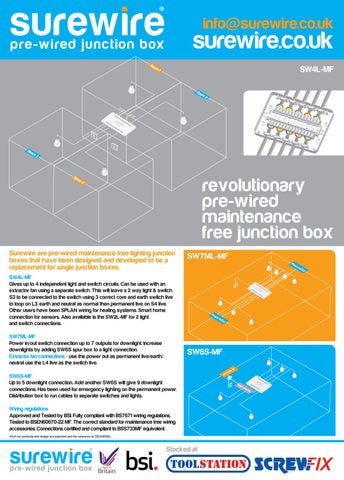

revolutionary pre-wired maintenance free junction box
Surewire are pre-wired maintenance free lighting junction boxes that have been designed and developed to be a replacement for single junction boxes.
SW7ML-MF Pow
SW4L-MF Gives up to 4 independent light and switch circuits. Can be used with an extractor fan using a separate switch. This will leave a 2 way light & switch. S3 to be connected to the switch using 3 correct core and earth switch live to loop on L3, earth and neutral as normal then permanent live on S4 live. Other users have been SPLAN wiring for heating systems. Smart home connection for sensors. Also available is the SW2L-MF for 2 light and switch connections. SW7ML-MF Power in/out switch connection up to 7 outputs for downlight. Increase downlights by adding SW6S spur box to a light connection. Extractor fan connections - use the power out as permanent live/earth/ neutral use the L4 live as the switch live.
Pow
er In /Ou t
er In /Ou t
SW6S-MF
SW6S-MF Up to 5 downlight connection. Add another SW6S will give 9 downlight connections. Has been used for emergency lighting on the permanent power. Distribution box to run cables to separate switches and lights.
W
PO
ER
IN
S in
gle
J un
ctio
nB ox
Wiring regulations Approved and Tested by BSI. Fully compliant with BS7671 wiring regulations. Tested to BSEN60670-22 MF. The correct standard for maintenance free wiring accessories. Connections certified and compliant to BSS733MF equivalent. All of our products and design are patented and the reference is GB2496683.
ÂŽ
Untitled-12 1
Stocked at
