Clutch - Clutch and components

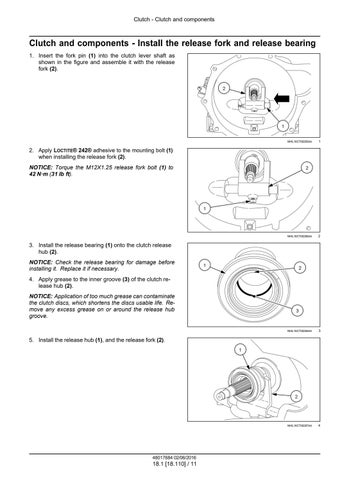

Clutch and components - Install the release fork and release bearing 1. Insert the fork pin (1) into the clutch lever shaft as shown in the figure and assemble it with the release fork (2).
NHIL16CT00283AA
1
NHIL16CT00285AA
2
NHIL16CT00284AA
3
NHIL16CT00287AA
4
2. Apply LOCTITE® 242® adhesive to the mounting bolt (1) when installing the release fork (2). NOTICE: Torque the M12X1.25 release fork bolt (1) to 42 N·m (31 lb ft).
3. Install the release bearing (1) onto the clutch release hub (2). NOTICE: Check the release bearing for damage before installing it. Replace it if necessary. 4. Apply grease to the inner groove (3) of the clutch release hub (2). NOTICE: Application of too much grease can contaminate the clutch discs, which shortens the discs usable life. Remove any excess grease on or around the release hub groove.
5. Install the release hub (1), and the release fork (2).
