General specification

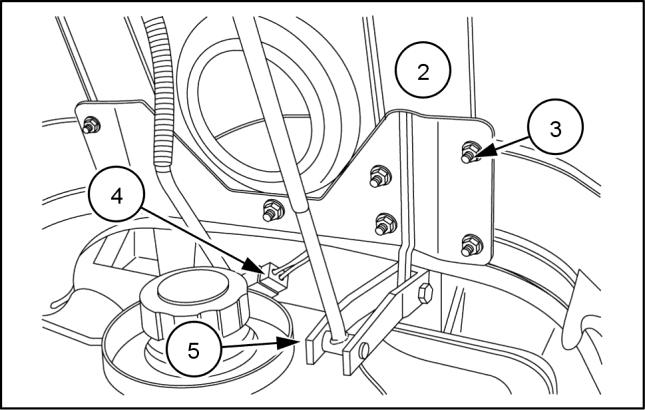

8. Install the engine hood (2), install the mounting nuts (3). 9. Connect the electrical connection (4), install the clip (5).

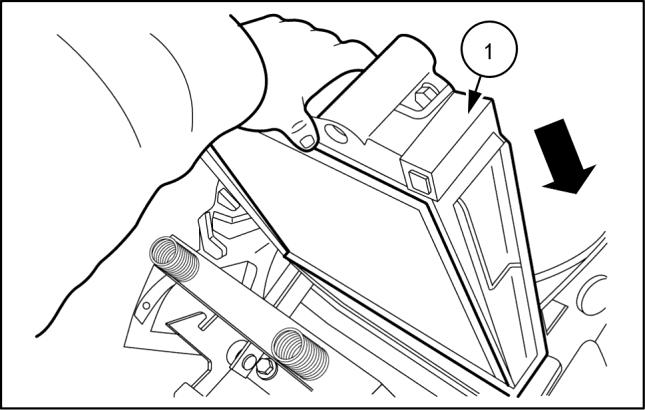

10. Install the radiator (1) in the direction of the arrow.
Advertisement

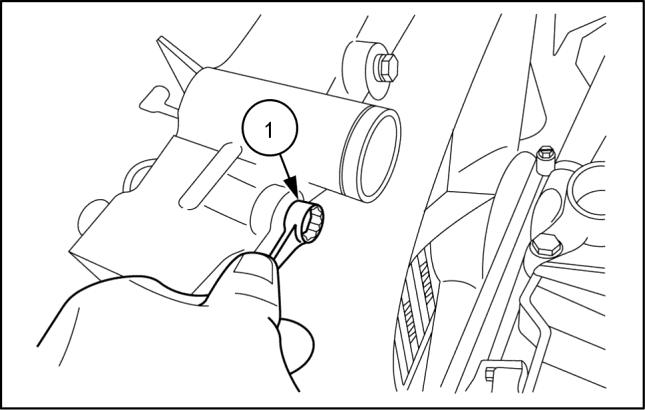

11. Install the M8 x 16mm radiator retaining bracket bolts (1).

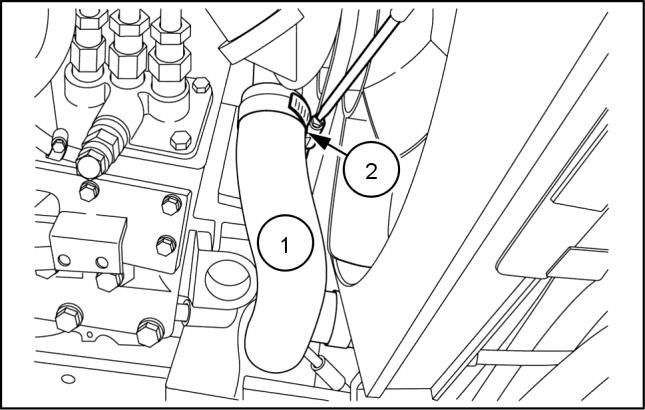

12. Install the lower coolant hose (1), and tighten the clamp (2).
83118792 7
83118791 8
83118790 9
83118788 10
