Engine - Engine and crankcase

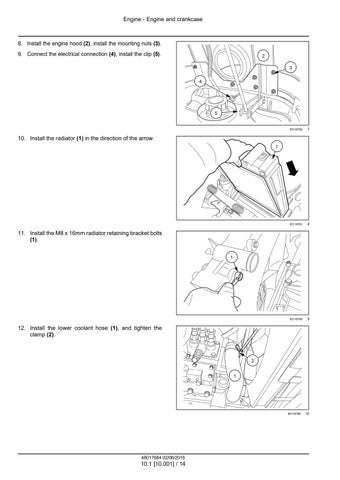

8. Install the engine hood (2), install the mounting nuts (3). 9. Connect the electrical connection (4), install the clip (5).
83118792
7
83118791
8
83118790
9
10. Install the radiator (1) in the direction of the arrow.
11. Install the M8 x 16mm radiator retaining bracket bolts (1).
12. Install the lower coolant hose (1), and tighten the clamp (2).
83118788
48017684 02/06/2016
10.1 [10.001] / 14
10
