Professional works
At Curated Spaces
“Curated Spaces” is a distinguished architectural firm located in Mangalore, renowned for its expertise in delivering exceptional projects across commercial, residential, and leisure sectors.
During my tenure at Curated Spaces, I have honed my skills in architectural detailing and design. The firm’s dedication to excellence has provided me with invaluable experience and exposure to advanced software tools, enabling me to enhance my proficiency in modern design methodologies.
My time here has been instrumental in shaping my career trajectory, equipping me with the necessary expertise to excel in future endeavors within the architectural realm.
COMMERCIAL CENTRE, BHATKAL
Curated spaces
6 Portfolio I Shamil
01
PROJECT
9 8
10 11 TRACK LIGHT GRID CEILING UTILITY 5'3" 7'8" KITCHEN 14'2" X11"10" TOILET ROOM 6' 6'5" C.TOILET 6'6X5'5" LADIES LIVING/DINING 24'2" 11'2" BED ROOM-4 12'1'' "12'5" TOILET 4'6" 8' LIFT 4'6" X3'6" BALCONY 8'8" X5'3" LIVING 12'1" 24' RWP DUCT TEL.COM. DUCT 102 RWP DUCT PLUMB DUCT PLUMB DUCT ELECTRICAL DUCT PLUMBING DUCT ACCESS TO SERVICES DROP 1/2" DROP 1/2 DROP 1/2 DROP 1/2 DROP 1/2 WARDROBE DROP DROP DROP 1/2" DROP 1/2" DROP FROM FFL DROP FROM FFL COVE LIGHT COVERING SHEET LIVING ROOM FALSE CEILING SECTION 1" COVE LIGHT COVERING SHEET TYPICAL BEDROOM FALSE CEILING SECTION NOTE FALSE CEILING HEIGHT TO BE TAKEN FROM EXISTING CEILING LEVEL. 2. COVE LIGHT WIDTHS MAY VARY IN EACH ROOM REFER PLAN FOR THE EXACT WIDTH. 3. TOILET FALSE CEILING TO BE FINISHED AT 8' LEVEL FROM FFL 4. TOILET GRID CEILING WILL HAVE STANDARD GRID 5. ALL GEYSER POINTS EXHAUST POINTS TO BE KEPT ABOVE 8'6" INSIDE THE WASHROOM SECTIONAL ELEVATION A VENEER ON PLYWOOD OPENING SECTIONAL ELEVATION F 4MM GROOVE ON VENEER DOOR SECTIONAL ELEVATION E STONE COUNTER PLAN FOR DETAIL E SECTIONAL ELEVATION C GROOVE ON NEXION OPENING 102 RWP DUCT C.TOILET BALCONY 8'8" X5'3" LIVING 12'1" 24' KEY PLAN
Internship works PROJECT
SJK is a multi-disciplinary practice encompassing master planning, architecture, and interior design. SJK Architects is a firm that has spent the last thirty one years designing environments that are rooted in the earth – using the sun, the wind and nature to create spaces that are suffused with light and contemporary innovations that draw from Indian traditions and spiritual metaphors
The company has a great work environment, which allows for people to learn and grow. It has been a fun and exciting period of my life, from learning new softwares to having Fridays at six. To push the boundaries of what defines a firm and how it functions, the design principles and teachings of SJK will continue to aid in my development as an architect in the future.
02 13 12 Portfolio I Shamil
BLOCK - SECTIONAL ELEVATION, WARANGAL Architectural Internship
DINING
Layers
Architectural Thesis
Culinary arts Centre.
Semester: X Year: V
The Layers Culinary Arts Centre, a cutting-edge educational facility located in Goa University. The project combines traditional Goan architectural elements with interactive spaces and the incorporation of food as an architectural feature. The Centre offers a comprehensive culinary arts education, showcasing the best of Goan cuisine with a modern twist.
Inspired by the layers of flavors in Goan cooking, the design incorporates natural materials like wood, and stone, along with traditional motifs and patterns. The open concept kitchen areas encourage student collaboration and engagement, while food-inspired textures and patterns create an immersive environment.
03 PROJECT
16 Portfolio I Shamil
LAYERS CULINARY ARTS CENTRE, GOA Architectural thesis I Individual
DESIGN DEVELOPMENT

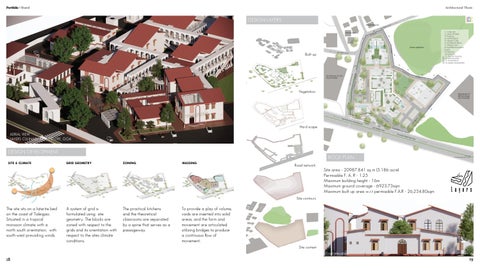

The site sits on a laterite bed on the coast of Taleigao. Situated in a tropical monsoon climate with a north south orientation, with south-west prevailing winds.
GEOMETRY ZONING MASSING
A system of grid is formulated using site geometry. The blocks are zoned with respect to the grids and its orientation with respect to the sites climate conditions.
The practical kitchens and the theoretical classrooms are separated by a spine that serves as a passageway.
DESIGN LAYERS
Built-up
Vegetation
Hard scape
Road network
Site contours
To provide a play of volume, voids are inserted into solid areas, and the form and movement are articulated utilizing bridges to produce a continuous flow of movement.
Site context
ROOF PLAN
Site area - 20987.841 sq m (5.186 acre)
Permissible F. A. R - 1.25
Maximum building height - 16m
Maximum ground coverage - 6923.73sqm
Maximum built up area w.r.t permissible F.A.R - 26,234.80sqm
Front elevation
18 Portfolio I Shamil 19 Architectural Thesis
SITE & CLIMATE GRID
AERIAL VIEW
LAYERS CULINARY ARTS CENTRE, GOA
EXPLODED ISOMETRIC VIEW
20 Portfolio 21
Exterior view showcasing roof profile
Exterior view- Main entrance
Interior view- View through arched corridor
Interior view- View of colossal library staircase
Exterior view- External drop off zone
Exterior view- Balcony overlooking sunken courtyard
SECTION - ACADEMIC BLOCK
SECTION - LIBRARY/CAFE BLOCK
C.U.L.T.U.R.A
The cultural hub
Community art culture.
Semester: V Year: III
A building that promotes art and culture
Creating a multi functional space by understanding local needs while designing an identity based on by meaning, aesthetics, and symbolic character.
This can be achieved through innovate materials, structure and techniques.
The main goal is to attain / accomplish a better community life with architecture as a medium with minimum footprint. 04
PROJECT
22 Portfolio I Shamil
CULTURAL CENTER DESIGN, MANGALORE Academic I Individual
CULTURAL CENTER
The site is located in Shakthinagar, Mangalore. It is an irregular site with access from north.
Creating a space which can be used as a medium for artists to represent their artwork and culture while also bringing in innovative techniques and ideologies into tradition. Designing with a rather open plan with multiple levels creates an interesting space for activities and also serves as community space.
The Cultural center ‘CULTURA’ is designed to represent the rich culture of Mangalore ‘Tulunadu’.
FLOOR PLANS
CONCEPTUAL DIAGRAM
24 Portfolio I Shamil
25 Cultural Center Basement Plan First Floor Plan Terrace Floor Plan Site Plan
GROUND FLOOR PLAN
TRUSSED ROOF WITH GLAZING
TERRACE FLOOR PARKING SERVICES
GROUND +1 FLOOR AUDITORIUM ART GALLERY DORM
GROUND FLOOR
OPEN AIR THEATRE MULTIPURPOSE HALL THEMED RESTAURANT DORM BASEMENT FLOOR PARKING SERVICES
The building form takes advantage of the naturally contoured site and incorporates the vegetation of the site.
The terraced parking with trussed roofing provides an interesting structure which stands out within the neighborhood.
26
EXPLODED ISOMETRIC VIEW
Portfolio I Shamil 11 Cultural Center
SECTION BB’
SECTION AA’
Key Plan Model
Marvel Academy
Management College.
Changing the perception of campus architecture
Semester: VI Year: III
The challenge is to design a campus that not only performs functionally but also promotes a better user experience. The focus is on scale, engagement (social, economic, political), hierarchy of spaces and integration of public and private and spaces. The design should determine how the character of architecture works in the public domain. Apart from this the design should be sensitive to the site surroundings and the influence of a public project on the surroundings by playing with the natural contours and vegetation of the site.
PROJECT
28 05 Portfolio I Shamil
CAMPUS DESIGN, MANGALORE Academic I Individual
1. ENTRY/ EXIT
2. WATCHMAN’S CABIN
3. PARKING
4. AMPHITHEATER
5. CANTEEN/AUDITORIUM
6. ADMIN/ACADEMIC BLOCK
7. LIBRARY
8. PLAYGROUND
9. INDOOR ARENA
10. HOSTEL BLOCK
11. STAFF QUARTERS
12. SERVICES
CONCEPTUAL
The Campus consists of an Admin block, 2 Academic blocks, and a playground in the center which provides an interactive space between them. Creating functional spaces based on zone segregation and using the natural contours to an advantage.
Dividing the site based on various user groups like academic, sports, accommodation units and services creates an efficient zoning pattern.
30 MASTER PLAN
Portfolio I Shamil 31 Campus Design Ground Floor Plan Ground +2 Floor Plan
LEGEND
DIAGRAMS ADMIN & ACADEMIC PLANS
Varying the heights according to function while allowing adequate light and ventilation by use of voids and courtyards. Introducing a large playground which acts as a breathing space in the campus
PARKING
ADMIN/ACADEMIC BLOCK INDOOR SPORTS
CANTEEN/ AUDITORIUM
Portfolio Shamil
OPEN AIR THEATRE LIBRARY PLAYGROUND
SECTION AA’ Key Plan
Cielo DE ARCO PROJECT
“Creativity is the ultimate renewable energy”. - Ravi Naidoo
Semester: VII Year: IV
To design an Architects office with all the necessary spaces with plans, sections, ceiling plans, electrical layout and details with views of the same.
An abandoned residence in Manjeshwar has been adaptively reused and is converted into an Architects office with its corresponding spaces, the existing spaces have been tweaked for their interest.
34 06 Portfolio I Shamil
INTERIOR DESIGN, MANJESHWAR Academic I Individual
MOOD BOARD
Blend of modern architecture with contemporary features in a rustic manner
The design is done for an Architects firm.
Project Type Architects Office
Location : Adyar, Mangalore
Site Area : 1150sqm
Client : Cinque Architects
Existing Spaces: - Entrance - Waiting Area - Reception - Workstation - Main Ar. Office - Courtyard/Sit-out
- Jr. Ar. Office
- Conference room/Model Making
- Printing Area
- Storage Room
- Pantry/Snack Bar
- Toilets/Wash Area
LEGEND A
1 ENTRANCE
2 RECEPTION/WAITING AREA
3 WORKSTATION
4 DECK
5 TOILET
6 MAIN AR OFFICE
7 JR AR OFFICE
8 PRINTING AREA
9 SNACK BAR/ PANTRY
10 STORAGE
11 CONFERENCE/MODEL MAKING
CEILING PLAN
Portfolio I Shamil 36
A’
MASTER PLAN
Architects Office 37
SECTION AA’
Working Drawing
Preparation of Architectural working drawings and details for a medium rise- framed structure like a residence. The drawings should include site plan, marking plan, all floor plans and a sanction drawing.
Details to include were toilets, doors, windows, compound wall, sky light and staircase. The project continued from the previous semester includes services such as electrical, water supply and sanitation. Apart from this structural drawings like foundations, columns, beams and slabs.
PROJECT
07 39 38 Portfolio I Shamil
ELEVATION DESIGN FOR RESIDENCE, MANGALORE Academic I Individual
Working Drawing 41 20mm JELLY SAND 150mm THICK GRAVEL ALLROUND/12MM JELLY. RCC RINGS 40mm JELLY SAND PCC 1:3:6 150mm THICK(TYP) 450 GROUND LVL. SCHEDULE OF OPENINGS (IN M) SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL MD D1 D2 D3 D4 W1 W2 W3 V MAIN DOOR DOOR DOOR DOOR SLIDING WINDOW WINDOW WINDOW VENTILATOR NOTES: ALL WALLS ARE 0.23M THICK AND THE INTERMEDIATE WALLS ARE 0.15M THICK, UNLESS OTHERWISE MENTIONED. ALL MEASUREMENTS ARE CONSIDERED FROM THE FINISHED FLOOR LEVEL. DATE SCALE DESIGNED CHECKED BY DRAWN BY VERIFIED BY 16/1/2021 1:100, 1: 200, 1:300 AR. RAMDAS & AR. AMITH AR. RAMDAS & AR. AMITH SHAMIL SHAMIL ALL DIMENSIONS ARE IN METER NORTH KHATHA NO: 6565) CHD.BY: PLAN SHOWING THE PROPOSED CONSTRUCTION OF APPLICANT: DATE ARCHITECT: SHAMIL IN FAVOUR OF Mr. XXX RESIDENTIAL BUILDING ON LAND SY. NO. 51/1C(P3) OF BOLURU VILLAGE, MANGALORE TALUK. DRN.BY ARCHITECT: 2.00 X 2.10 2.00 X 2.10 1.00 X 2.10 0.00 2.10 16/1/2021 SHAMIL AR. RAMDAS & AR. AMITH 0.00 0.00 0.00 0.00 2.10 2.10 2.10 2.10 DOOR SLIDING 2.80 X 2.30 5.80 X 2.30 1.00 X 1.60 2.00 X 1.60 2.00 X 1.20 0.60 X 0.60 0.90 0.90 0.90 1.65 2.50 2.50 1.30 2.20 5.5 4.3 LIVING ROOM TOILET 2.3 1.3 FOYER 2M TOILET 0.45LVL 0.9LVL 0.45 LVL GYM M GROUND FLOOR PLAN FIRST FLOOR PLAN 4.05LVL 3.75LVL 7.2LVL DOWN D1 D2 D2 W1 W2 W2 ENTRY ENTRY ENTRY 4.3 TOILET 15.91 CUTOUT CUTOUT 16 18 35 37 28 32 38 40 29 TERRACE FLOOR PLAN SECTION AA' SITE PLAN SCALE 1:300SCALE 1:200 KEY PLAN BUILT UP AREA -173.52 SQ M PROPOSED SITE WEST ELEVATION SCALE 1:100 SCALE 1:100 SCALE 1:100 SCALE 1:100 SCALE 1:100 RAINWATER HARVESTING PIT DETAIL SCALE NOT TO SCALE PARAPET LVL 8.4 7.21 ROOM LIVING ROOM BED FAMILY OVERHEAD TANK DOUBLE SHUTTER WOODEN DOOR QUANTITY: WOOD:TEAK MD ELEVATION PLAN AA' SINGLE SHUTTER WOODEN WINDOW QUANTITY: WOOD:TEAK PLAN AA' SECTION XX' WOODEN DOOR FRAME SIZE: 0.075 0.10 QUANTITY: SIZE: 0.80 2.10 LOCATION: WASHROOM DOORS FOUR SHUTTER ALUMINIUM SLIDING DOOR FRAME SIZE: 0.15 0.10 QUANTITY: DOOR SHUTTER FRAME SIZE 0.075 0.10 QUANTITY DOOR SHUTTER FRAME SIZE 0.075 0.10 DOOR SHUTTER PLAN AA' PLAN AA' PLAN AA' SECTION XX' SECTION XX' ELEVATION ELEVATION EIGHT SHUTTER ALUMINIUM SLIDING DOOR FRAME 0.15 0.10 QUANTITY: D4 PLAN AA' SECTION WOODEN VENTILATOR SECTION XX' SECTION XX' PLAN @ AA' DOUBLE SHUTTER WOODEN WINDOW QUANTITY: WOOD:TEAK W2 ELEVATION SECTION XX' PLAN AA' DOUBLE SHUTTER WOODEN WINDOW QUANTITY: WOOD:TEAK DOOR/WINDOW DETAILS A B C D TOILET 1.60 X 3.0 0.10 Ø CORE CUT 0.05 Ø CORE CUT LEDGE WALL FLOOR TILES 0.30 0.60 B C MIRROR WALL MOUNT E.W.C FLUSH VALVE WALL MIXER HEALTH FAUCET WASH BASIN SHOWER HEAD D C B A A D WALL TILES HEATED TOWEL RAIL TOILET DETAILS Portfolio I Shamil 40 PARKING MASTER BEDROOM TOILET BEDROOM 4.7 4.6 7.3 4.2 3.5 3M STORE/UTILITY 3M TOILET MAIDS ROOM 2.3 1.3 FOYER TOILET UP 0.45LVL 0.45 LVL 4.8 GYM 6M GROUND FLOOR PLAN FIRST FLOOR PLAN DOWN DOWN D1 D2 D2 D2 D2 D1 W1 W1 W2 W2 TOILET 4.3 3.3 M TOILET 3.96 16.01 6.39 11.88 THREAD 300MM CUTOUT CUTOUT 10 11 12 13 16 31 32 33 34 38 41 BUILT UP AREA -173.52 SQ M 1.68 1.68 TERRACE FLOOR PLAN SITE PLAN 5.5 MASTER BEDROOM TOILET 4.3 LIVING ROOM 4.7 4.6 DINING ROOM 7.3 4.2 KITCHEN 3.5 3M STORE/UTILITY 3M TOILET MAIDS ROOM POWDER ROOM WASH FOYER 1.6 UP 0.0LVL 4.8 6M GROUND FLOOR PLAN FIRST FLOOR PLAN DOWN 3.75LVL MD D2 D2 D2 D2 D2 W1 W1 W1 W2 W2 W2 TOILET 4.3 3.3 M 1.6 CUTOUT 10 11 31 32 3.16 2.89 0.24 9.20 3.16 2.89 0.24 9.20 4.58 0.40 0.61 1.65 4.30 1.96 0.24 DOWN TERRACE FLOOR PLAN 9.20 CENTERLINE PLAN SCHEDULE OF OPENINGS (IN M) SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL MD D1 D2 D3 D4 MAIN DOOR DOOR DOOR DOOR SLIDING ARCHITECT CHECKED BY W1 W2 W3 V WINDOW WINDOW WINDOW VENTILATOR SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL NOTES: ALL WALLS ARE 0.23M THICK AND THE INTERMEDIATE WALLS ARE 0.15M THICK, UNLESS OTHERWISE MENTIONED. DATE SCALE DESIGNED CHECKED BY DRAWN BY VERIFIED BY 1:100 AR. RAMDAS & AR. AMITH AR. RAMDAS & AR. AMITH SHAMIL SHAMIL ALL DIMENSIONS ARE IN METER NORTH THIS DRAWING IS THE EXCLUSIVE PROPERTY OF MR.SHAMIL, MANGALORE AND SHALL NOT BE RE PRODUCED OR USED ON THE SITE OTHER THAN THE ONE SUSPECTED FOR WITHOUT PRIOR PERMISSION AND MUST NOT BE RETAINED, COPIED, USED WITHOUT AUTHORITY. DO NOT SCALE THE DRAWING FOLLOW ONLY WRITTEN DIMENSIONS. DISCREPANCY OF ANY NATURE SHALL BE BROUGHT TO THE ARCHITECTS NOTICE AND WORKS HAVE TO BE EXECUTED ONLY AFTER NECESSARY CLARIFICATIONS HAVE BEEN MADE BY THE ARCHITECTS OR, BY ENGINEERS APPROVED FOR SUCH SPECIFIC TASKS BY THE ARCHITECTS. THIS DRAWING SHOULD BE READ CONJUNCTION WITH OTHER RELEVANT ARCHITECTURAL, STRUCTURAL, MECHANICAL AND ELECTRICAL DRAWINGS AND ALL RELEVANT SECTIONS OF THE SPECIFICATION. ALL DIMENSIONS ARE IN METERS, UNLESS OTHERWISE MENTIONED. ALL LEVELS NOTATIONS AND DIMENSIONS IN METERS, UNLESS OTHERWISE MENTIONED. 2.20 X 2.10 1.00 X 2.10 0.80 X 2.10 2.80 X 2.30 5.80 X 2.30 0.00 2.10 0.00 0.00 0.00 0.00 2.10 2.10 2.10 2.10 DOOR SLIDING FLOOR PLANS 1.00 X 1.60 2.00 X 1.60 2.00 X 1.20 0.60 X 0.60 0.90 0.90 0.90 1.65 2.50 2.50 1.30 2.20 DOWN THREAD 300MM RISER 150MM CUTOUT UP A' A FLOOR PLAN B' B 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 20 +0.90 LVL +4.05 LVL +7.2 LVL SECTION AA' SECTION BB'SCHEDULE OF OPENINGS (IN M) SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL MD D1 D2 D3 D4 MAIN DOOR DOOR DOOR DOOR SLIDING ARCHITECT CHECKED BY W1 W2 W3 WINDOW WINDOW WINDOW VENTILATOR SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL NOTES: ALL WALLS ARE 0.23M THICK AND THE INTERMEDIATE WALLS ARE 0.15M THICK, UNLESS OTHERWISE MENTIONED. DATE SCALE DESIGNED CHECKED BY DRAWN BY VERIFIED BY 1:50 AR. RAMDAS AR. AMITH AR. RAMDAS AR. AMITH SHAMIL SHAMIL ALL DIMENSIONS ARE METER NORTH THIS DRAWING THE EXCLUSIVE PROPERTY OF MR.SHAMIL, MANGALORE AND SHALL NOT BE RE PRODUCED OR USED ON THE SITE OTHER THAN THE ONE SUSPECTED FOR WITHOUT DO NOT SCALE THE DRAWING FOLLOW ONLY WRITTEN DIMENSIONS. DISCREPANCY CLARIFICATIONS HAVE BEEN MADE BY THE ARCHITECTS OR, ENGINEERS APPROVED FOR SUCH SPECIFIC TASKS THE ARCHITECTS. THIS DRAWING SHOULD READ CONJUNCTION WITH OTHER RELEVANT ARCHITECTURAL, STRUCTURAL, MECHANICAL AND ELECTRICAL AND ALL RELEVANT SECTIONS THE SPECIFICATION. ALL DIMENSIONS ARE METERS, UNLESS OTHERWISE MENTIONED. ALL LEVELS NOTATIONS AND DIMENSIONS METERS, UNLESS OTHERWISE 2.20 2.10 1.00 2.10 0.80 2.10 2.80 2.30 5.80 2.30 0.00 2.10 0.00 0.00 0.00 0.00 2.10 2.10 2.10 2.10 DOOR SLIDING STAIRCASE 1.00 X 1.60 2.00 1.60 2.00 1.20 0.60 0.60 0.90 0.90 0.90 1.65 2.50 2.50 1.30 2.20 FLOOR PLAN SECTION BB' SCALE 1:20 SCALE 1:25 SECTION AA' SCALE 1:25 STAIRCASE 0.11 4.58 0.40 0.61 1.65 4.30 0.11 4.41 3.16 1.96 3.15 2.89 0.75 0.75 0.68 0.68 0.68 0.68 0.68 0.68 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.68 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 KEY PLAN SCHEDULE OF OPENINGS (IN M) SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL MD D1 D2 D3 D4 MAIN DOOR DOOR DOOR DOOR SLIDING ARCHITECT CHECKED BY W1 W2 W3 V WINDOW WINDOW WINDOW VENTILATOR SYMBOL OPENING SIZE SILL LEVEL LINTEL LEVEL NOTES: ALL WALLS ARE 0.23M THICK AND THE INTERMEDIATE WALLS ARE 0.15M THICK, UNLESS OTHERWISE MENTIONED. DATE SCALE DESIGNED 1:50, 1:25 SHAMIL NORTH THIS DRAWING THE EXCLUSIVE PROPERTY OF MR. MOHAMMED HANAN, MANGALORE AND SHALL NOT BE RE PRODUCED OR USED ON THE SITE OTHER THAN THE ONE SUSPECTED FOR WITHOUT PRIOR PERMISSION AND MUST NOT RETAINED, COPIED, USED WITHOUT AUTHORITY. DO NOT SCALE THE DRAWING FOLLOW ONLY WRITTEN DIMENSIONS. DISCREPANCY OF ANY NATURE SHALL BE BROUGHT TO THE ARCHITECTS NOTICE AND WORKS HAVE TO EXECUTED ONLY AFTER NECESSARY CLARIFICATIONS HAVE BEEN MADE BY THE ARCHITECTS OR, BY ENGINEERS APPROVED FOR SUCH SPECIFIC TASKS BY THE ARCHITECTS. THIS DRAWING SHOULD BE READ IN CONJUNCTION WITH OTHER RELEVANT 2.20 X 2.10 1.00 2.10 0.80 X 2.10 2.80 X 2.30 5.80 X 2.30 0.00 2.10 0.00 0.00 0.00 0.00 2.10 2.10 2.10 2.10 DOOR SLIDING 1.00 X 1.60 2.00 X 1.60 2.00 X 1.20 0.60 X 0.60 0.90 0.90 0.90 1.65 2.50 2.50 1.30 2.20 FOOTING LAYOUT
Assorted works
The following are a few projects that I have worked on, individual and group during the course of architecture varying from landscape design, cafés to facade designs. The projects are presented to demonstrate architectural and photo-graphical skill in variety of work as well as show the use of softwares. Some other skills like writing is portrayed though the report as a part of the curriculum in the subject architectural writing and journalism.
42 Portfolio I Shamil
07 PROJECT
RESIDENTIAL DESIGN FOR RESIDENCE, KASARAGOD Personal Endeavor I Group
INTERIOR DESIGN FOR A RESIDENCE
UPPALA, KERALA
Personal Endeavor I Group
HOUSING FOR MIGRANT WORKERS, BANGALORE
Academic I Individual
INTERIOR DESIGN FOR RESIDENCE, MANGALORE
Personal Endeavor I Group
INTERIOR DESIGN FOR A CAFE
THE WAFFLE STORIES, MANGALORE
Personal Endeavor I Group
Assorted Works 44
PAVILION DESIGN, MANGALORE
Academic I Individual
COMMERCIAL COMPLEX BANDIYOD, KERALA
Academic I Group
Scan the QR code to view my complete architectural report
“A critical review on perception of ornamentation in architecture”
ARCHITECTURAL REPORT
Academic I Individual
Srinivas School of Architecture Graduate School
B. Arch Architectural Writing And Journalism 2021-2022
Term 7 Research Paper
A Critical Review on Perception of Ornamentation in Architecture
Shamil
INTERIOR DESIGN FOR RESIDENCE, UPPALA
Personal Endeavor I Group
Assorted Works 47 46
January 2022
| 4SN18AT061
Portfolio I Shamil Assorted Works PHOTOGRAPHY
