Corte transversal - túnel y pique de acceso / Transversal section - tunnel and access shaft

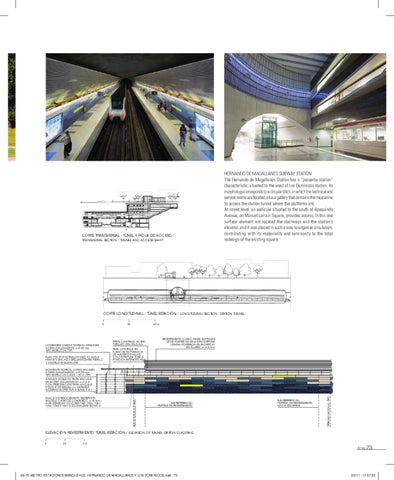

Hernando de Magallanes Subway Station The Hernando de Magallanes Station has a “passerby-station” characteristic, situated to the west of Los Dominicos station. Its morphology corresponds to a circular ditch, in which the technical and service rooms are located, plus a gallery that contains the mezzanine to access the station tunnel where the platforms are. At street level, an aedicule situated to the south of Apoquindo Avenue, on Manuel Larraín Square, provides access. In this one surface element are located the stairways and the station’s elevator, and it was placed in such a way to organize circulation, contributing with its materiality and luminosity to the total redesign of the existing square.
Corte longitudinal - túnel estación / Longitudinal section - station tunnel 0
costanera omega normal 400ma085 acero galvanizado e=0,85 mm tipo metalcon (tip) fijación por tornillos s-md 10-16x5/8" hwh n°3 zincado brillante entre perfil z y costilla mullion (tip)
20
40 m
perfil continuo acero tubular 150x150x3 mm tapa continua en plancha softwave 25 de hunter douglas, color pintura ídem a porción inferior cielo
revestimiento curvo panel softwave 25 de hunter douglas incorpora lámina posterior de sacrificio en aluzinc e=0,5 mm
montante normal curvo 60ca085 acero galvanizado e=0,85 mm tipo metalcon cada 1,20 m (tip)
eje referencial partida de revestimiento
eje referencial partida de revestimiento hacia izquierda
término módulo tipo
placa de fibrocemento swisspearl modelo carat de comintecc; e=8 mm, alta densidad colores 7083, 7091, 7061, 7043, 7040 y 7041 o equivalente técnico
inicio módulo tipo
ángulo doblado para anclaje en acero galvanizado e=3 mm con perforación para anclaje de ø5/8" de 65x50xl (l= variable s/distancia efectiva a túnel h.a.)
elevación revestimiento túnel estación / Elevation of tunnel station cladding 0
2,5
5m
