ARCH 335 DESIGN BUILD 2024

GOOD AFTERNOON

a reminder of where we started...

FIELD REQUIREMENTS

• FIELD ACCOMMODATING: VOLLEYBALL, SOCCER, 9 SQUARE IN THE AIR, FRISBEE, T-BALL, FOOTBALL ETC.

• YOUTH FIELD SIZES

• ACCOMMODATE THE HORSE RIDING LOADING RAMP

• STORABLE BACKSTOP NETTING

• ROLLER MAT FOR WHEELCHAIRS ON GRASS

• LIGHTING TOWER LAYOUT

• SERVICE ROAD TO NEW POOL HOUSE

PAVILION REQUIREMENTS

• 16 SHADED WHEELCHAIR ACCESSIBLE SEATING

• OVERFLOW SEATING FOR 30 GUEST

• SINGLE ADA RESTROOM

• WATER FOUNTAIN AND BOTTLE FILL

• HOSE BIB

• ELECTRICAL OUTLETS FOR POWER, LIGHTS, AND FAN

• STORAGE FOR ALL SPORTS GEAR AND ROOM FOR EXPANSION

Last We met...

RECAP OF OUR SECOND PRESENTATION

RECAP OF OUR SECOND PRESENTATION

RECAP OF OUR SECOND PRESENTATION

Questions

WATER FOUNTAIN PLACEMENT

PROJECTED PATH

WE MADE A FEW CHANGES

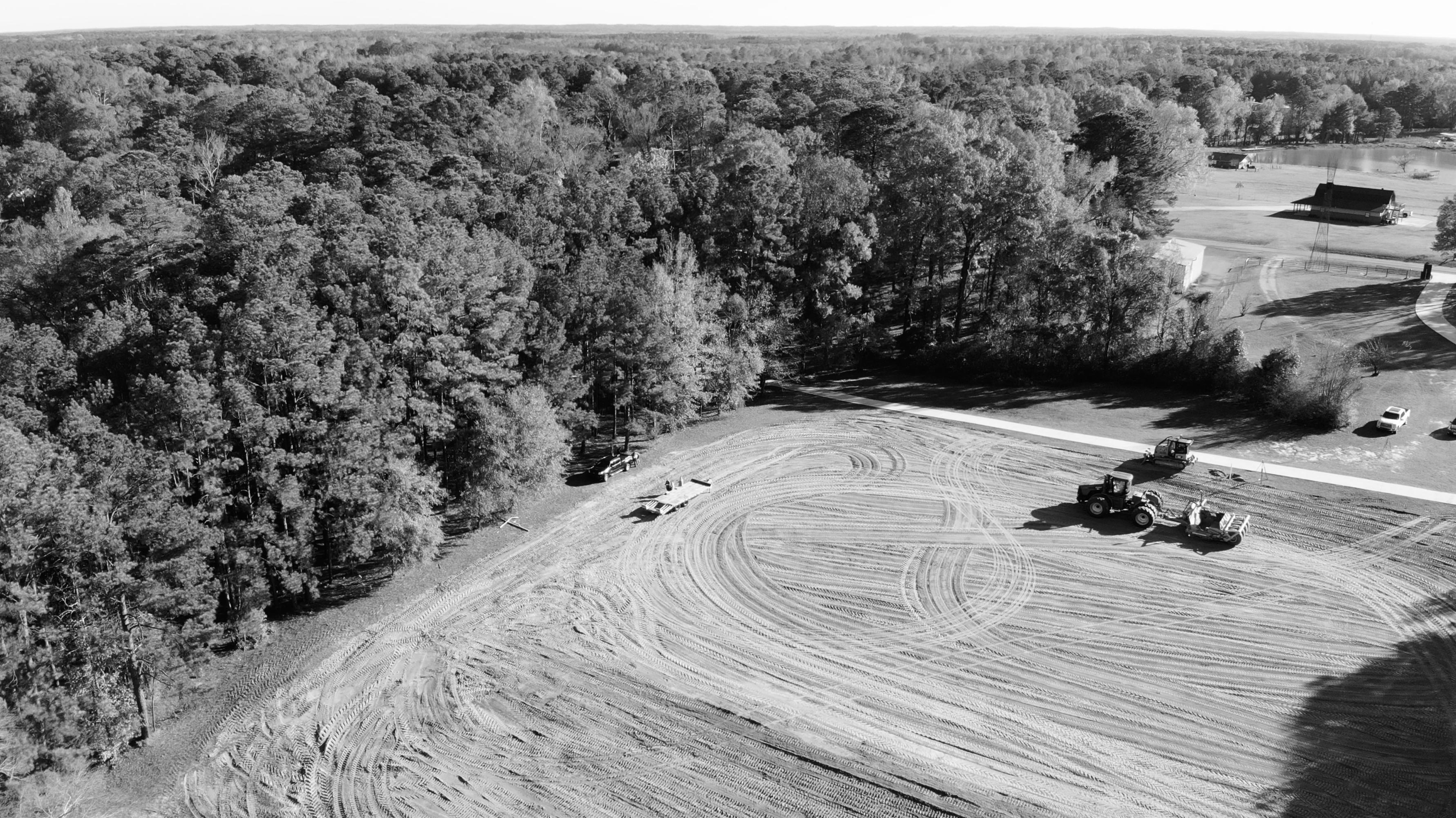

SITE

• Berms

• LOCATION IS A THRESHOLD FROM ANY APPROACH

• LIGHT POSTS

CHAPEL
POOL HOUSE

SITE

• SUN STUDY

• SHADING OF MORNING BLEACHERS

• EQUESTRIAN ACTIVITY WAITING AREA

CHAPEL
POOL HOUSE

SITE

• SUN STUDY

• ROOF PROVIDES COVERAGE FOR BUILDING

• CAMPERS WILL LIKELY BE AT LUNCH

CHAPEL
POOL HOUSE

SITE

• SUN STUDY

• SUN MOST AGGRESSIVE

• COVERED SEATING IS STILL SHADED

CHAPEL
POOL HOUSE

SITE

• CLIENT PROPOSED CIRCULATION

• ADA QUESTIONS ABOUT feasibility

• FUTURE PATHS CONNECT TO MAJOR PARTS OF CAMP

CHAPEL
POOL HOUSE

SITE

• ADA FRIENDLY PATH

• reevaluate THE NECESSITY OF A SERVICE ROAD

CHAPEL
POOL HOUSE

SITE

• MASTER CIRCULATION

• CURRENT PATHS ALLOW LIMITED CIRCULATION

• FUTURE PATHS CONNECT TO MAJOR PARTS OF CAMP

CHAPEL
POOL HOUSE

Concept: transformation

Concept: transformation

Relay

Concept: transformation

Relay Transform

Concept: transformation

Relay Transform Facade

Concept: transformation

Relay Transform Facade Roof

Concept: transformation

Relay Transform Facade Roof The building

WAYPOINT

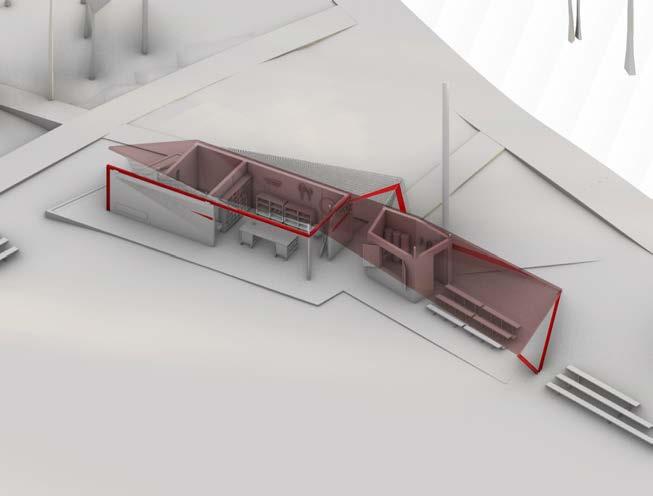

Approach:

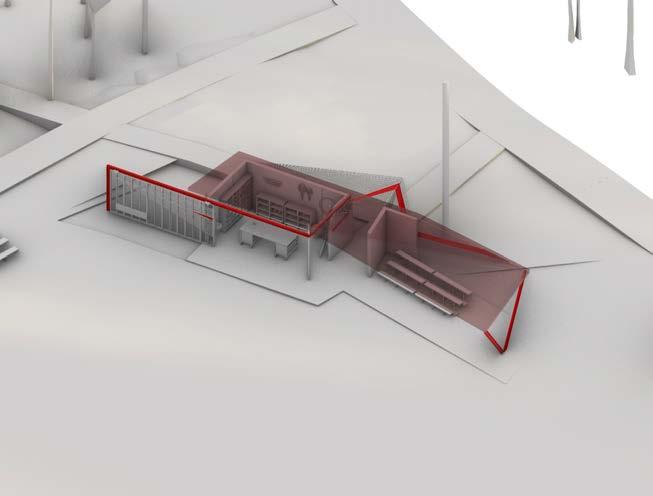

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• Large “camper“ storage

• Small “staff“ storage

• Restroom

• ADA restroom facilities

• Cool down space

• Semi-private entrance

OPEN STORAGE

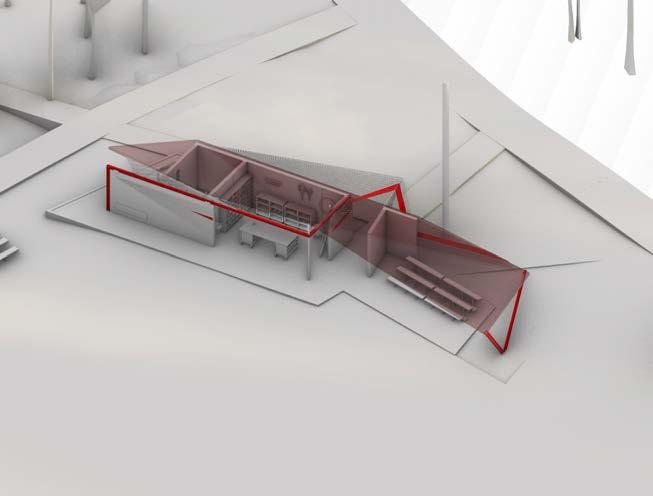

Doors:

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• Large “camper“ storage

• Small “staff“ storage

• Restroom

• ADA restroom facilities

• Cool down space

• Semi-private entrance

Doors:

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• Large “camper“ storage

• Small “staff“ storage

• Restroom

• ADA restroom facilities

• Cool down space

• Semi-private entrance

To the field:

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• Large “camper“ storage

• Small “staff“ storage

• Restroom

• ADA restroom facilities

• Cool down space

• Semi-private entrance

OPEN STORAGE

To the seats:

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• “Camper“ storage

• Small “staff“ storage

• Restroom

• ADA restroom facilities

• Cool down space

• Semi-private entrance

Covered Seating

Exit:

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• Large “camper“ storage

• Small “staff“ storage

• Restroom

• ADA restroom facilities

• Cool down space

• Semi-private entrance

Program:

• GATHERING CAPACITIES

• 16 wheelchair spaces

• 30 covered guest seats

• 60 uncovered guest seats

• Storage

• Large “camper“ storage

• Small “staff“ storage

• Restroom

• ADA rest room facilities

• Cool down space

• Semi-private entrance

PHOTOAREA

Budget

$6,966.96

$5,769.75

$166.00

$6,971.10

$3,216.18

$2,181.32

$1,000.00

$4,316.20

$6,966.96

$5,769.75 $166.00

$6,971.10

$3,216.18

$2,181.32

$1,000.00

$4,316.20

$6,971.10

$3,216.18

$2,181.32

$1,000.00

$4,316.20

$6,966.96

$5,769.75 $166.00

$6,971.10

$3,216.18

$2,181.32

$1,000.00

$4,316.20

BUDGET CUTTING OPTIONS

35,16.41

• REMOVED CLOSED STORAGE

• STORAGE IS NOW UNSECURED

• COUNSELORS MUST BRING SENSITIVE ITEMS OUT EVERY DAY

• MINIMIZE THE CONCRETE

• LESS ADA SEATING AVAILABLE

• ONLY ONE MEANS OF EGRESS

• SHADING BECOMES LESS EFFECTIVE

ESTIMATED total cost $ 29,695.59

• REMOVED RESTROOM

• MUST WALK DOWN NON ADA PATH TO GET TO THE NEAREST RESTROOM (ART CABIN)

• REMOVED CLOSED STORAGE

• STORAGE IS NOW UNSECURED

• COUNSELORS MUST BRING SENSITIVE ITEMS OUT EVERY DAY

• MINIMIZE THE CONCRETE

• LESS ADA SEATING AVAILABLE

• ONLY ONE MEANS OF EGRESS

• SHADING BECOMES LESS EFFECTIVE

total cost $ 20,253.67

WHICH OPTION SUITS CAMP BEST?
