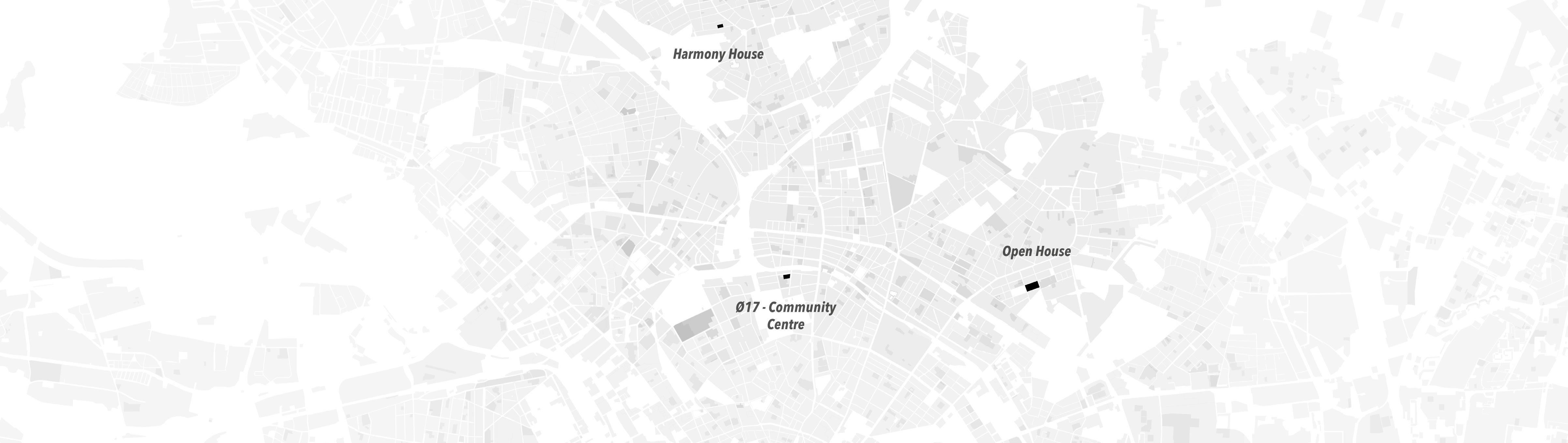

Berlin, DE

In my architectural portfolio, feature three architectural projects: Ø17 Community Centre’, ‘Harmony House’, and ‘Open House’.

These endeavors are a testament to my exploration of timber as a design medium, a niche that has brought interest to my liking, infusing each project with warmth, sustainability, and unique character.

Through these works, strive to showcase the versatility and beauty of timber in architectural expression, offering innovative solutions to diverse challenges while maintaining a strong aesthetic appeal.

Ø17

Community Centre

In collaboration with Christian Buddenbohm & Aime Buss

Course: Architectural Design

Project 1 (ADP1)

Semester: 3

Duration: 8 weeks

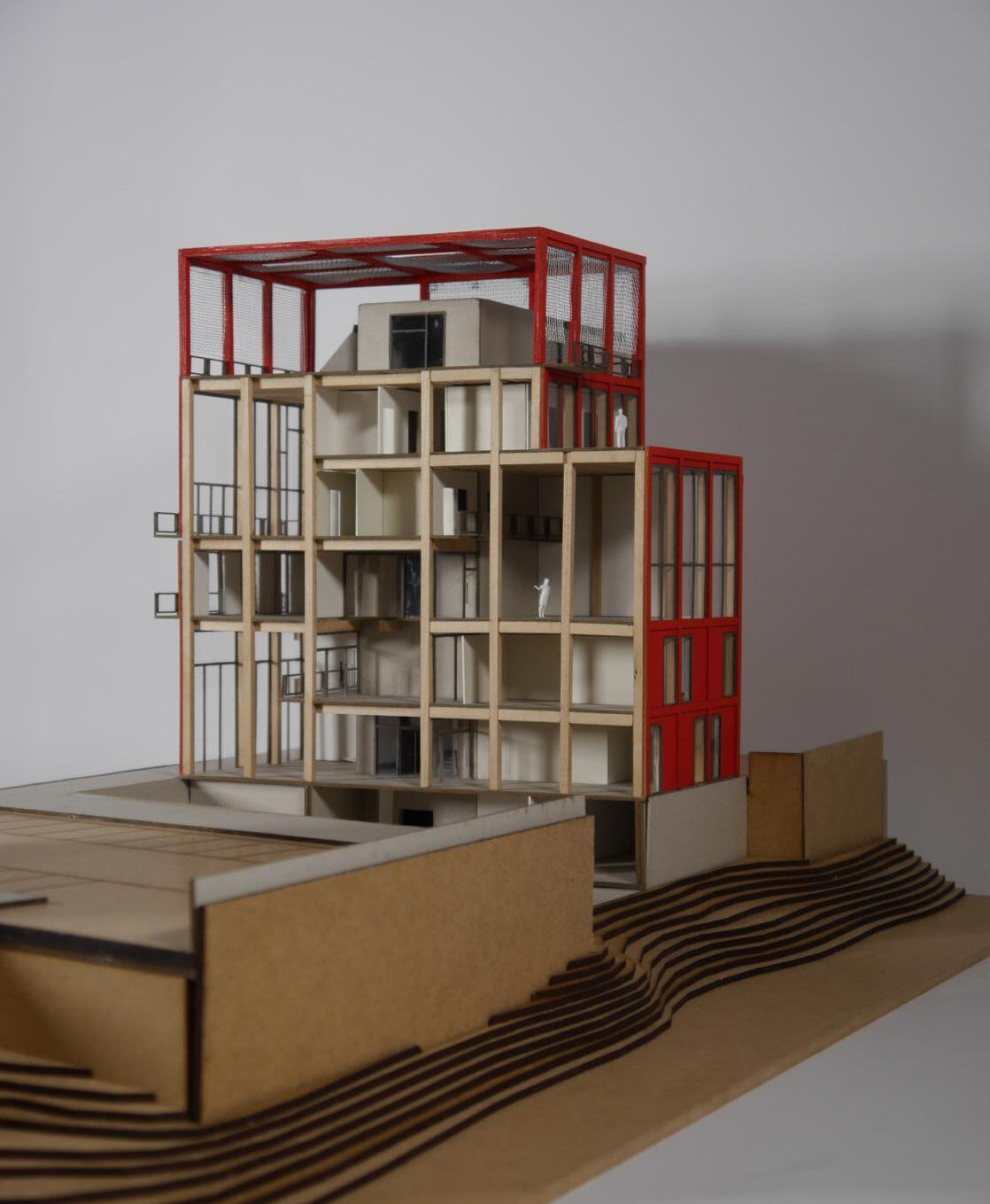

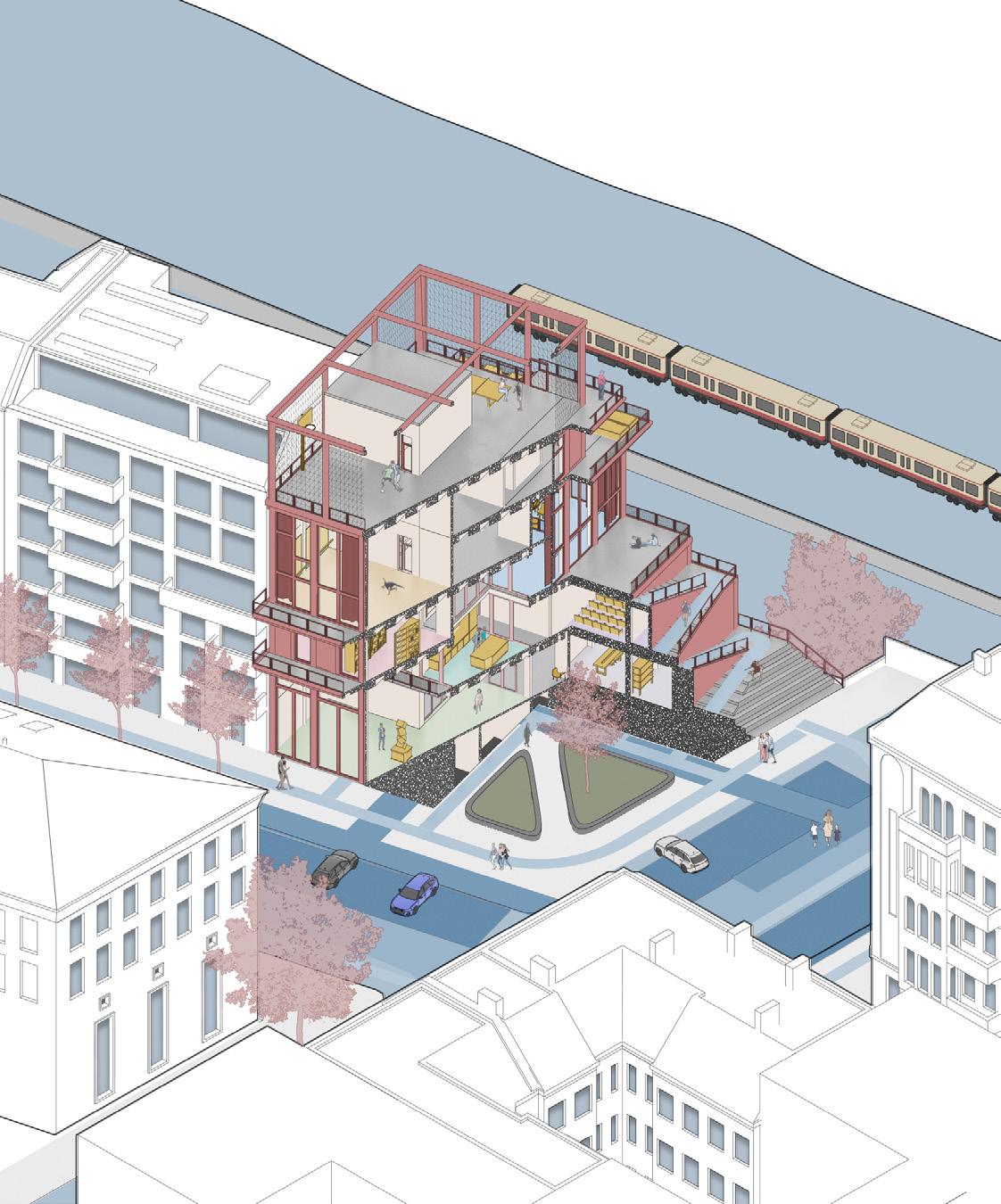

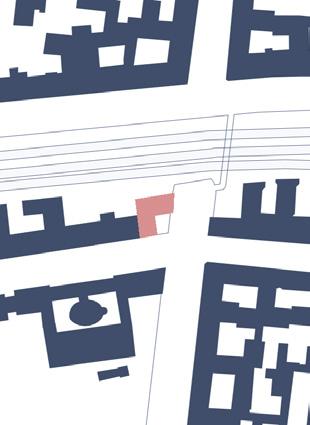

The site at Kopenhagener Straße 17 takes a central role within the dense urban fabric of Prenzlauer Berg. Its relative openness and location on a “natural plaza” serve as excellent preconditions for the creation of a community centre.

Ø17 carefully reacts to the existing qualities by means of juxtaposition and integration. The proposal relates its own volume to the scale of the existing building stock and only slightly imposes in height to create a visually pleasing end-of-block situation.

In respect to the context, this design sought to maximize integration of the whole community of Prenzlauerberg, bridging the diversifcation of age, ethnicity and genders within the neighbourhood.

All programatic decisions derive from a close analysis of the neighbourhood and community at Prenzlauer Berg.

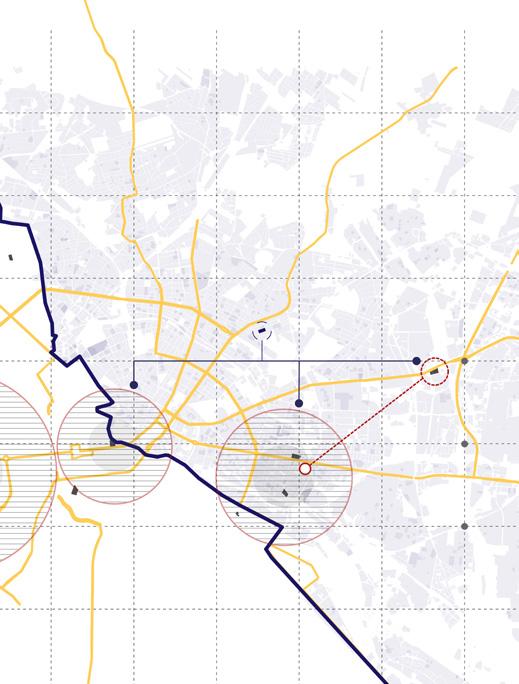

The plot is located centrally within Kiez and thus serves mostly the local population.

Prenzlauer Berg as one of the most desirable areas to live in Berlin has recently seen an infux of young professionals and families. However, still at the same time many of the old residents still inhabit the area, resulting in a mix of different age groups within the demography.

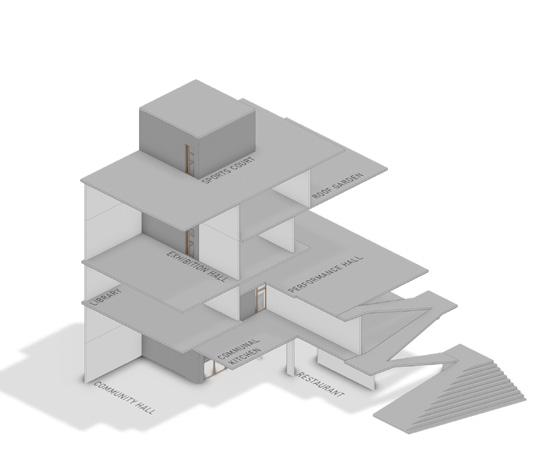

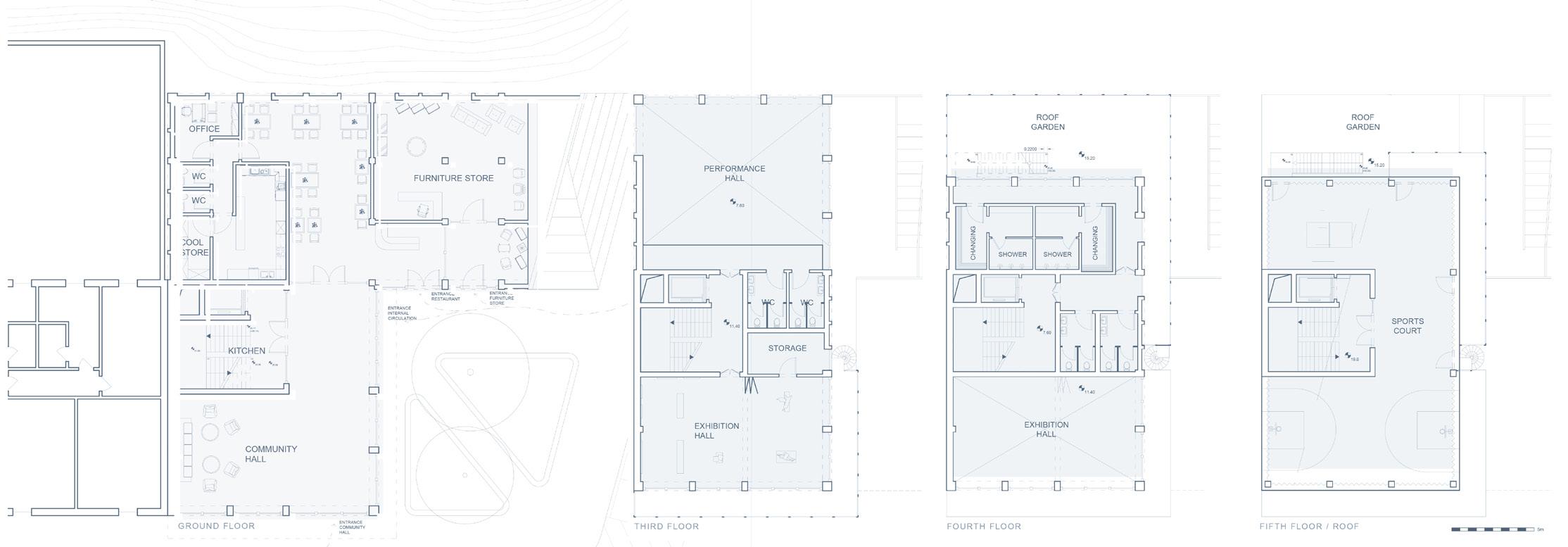

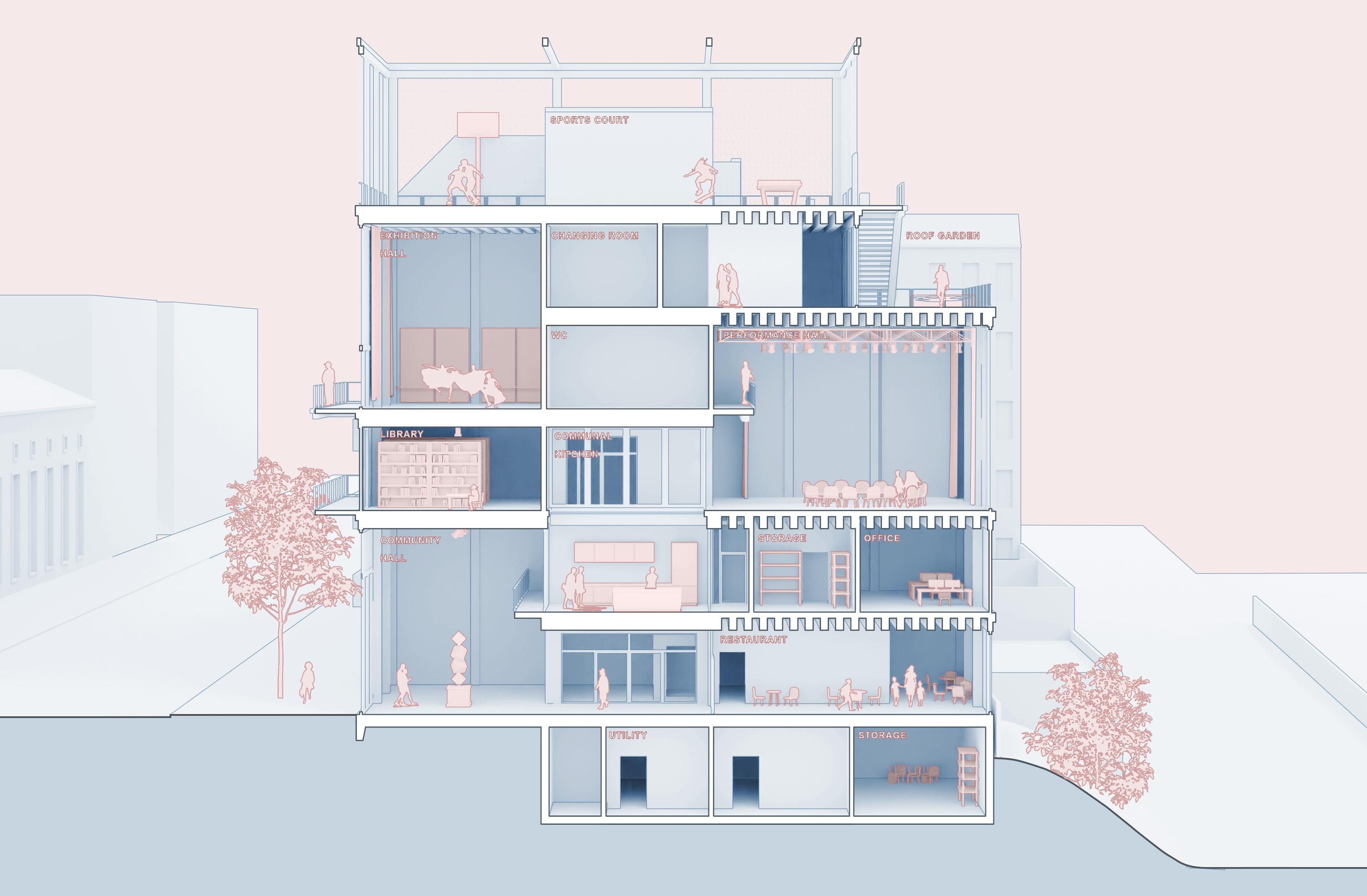

In order to achieve maximum effciency, the goal was to create a series of space that are reusable for different activities throughout the day and therefore serve as an attractive space for all age groups.

A central idea of this is to enhance the relation between the centre and its neighbourhood. We wanted to activate the immediate surrounding spaces, which is already an attractive spot to stop by, as one of the streets is cut off,

Structure & Design

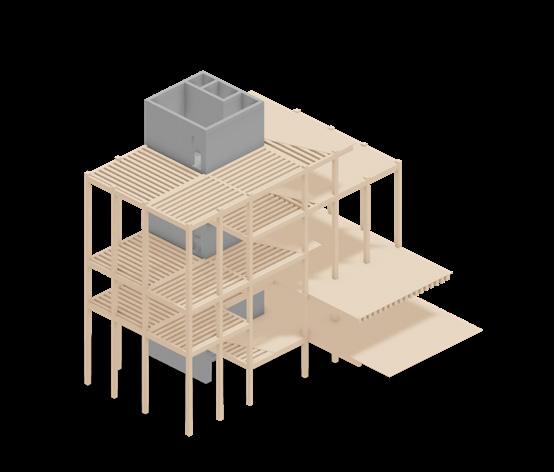

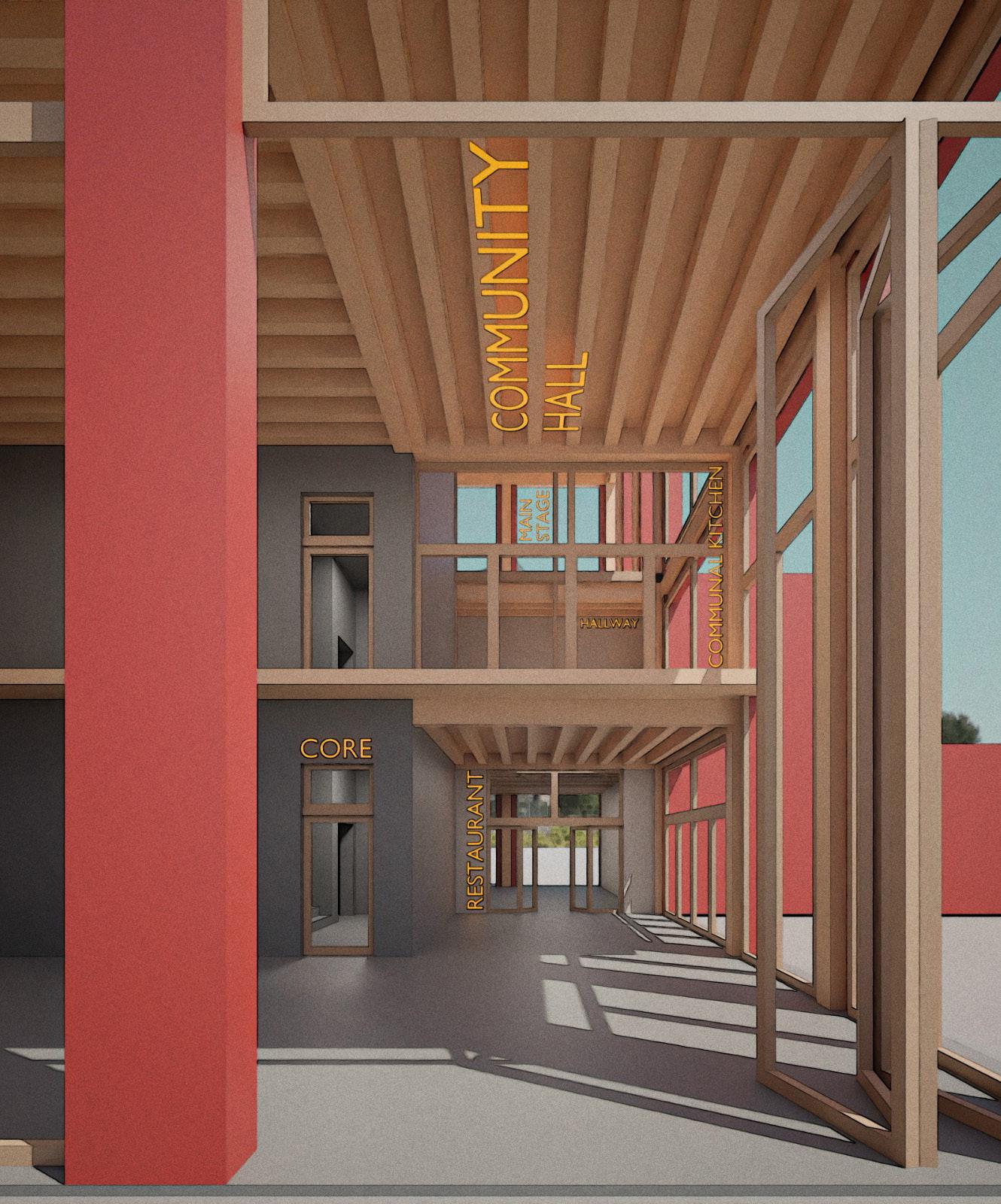

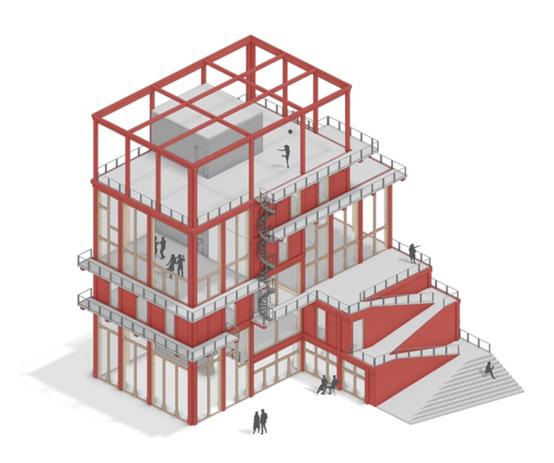

The structural disallows for the insertion of rooms as desired. A timber post and beam structure fulfls these needs best, while also providing excellent internal qualities. The structural system will be left exposed from within.

Double height ceilings are common characteristics within the design, enhancing the performance and activity spaces.

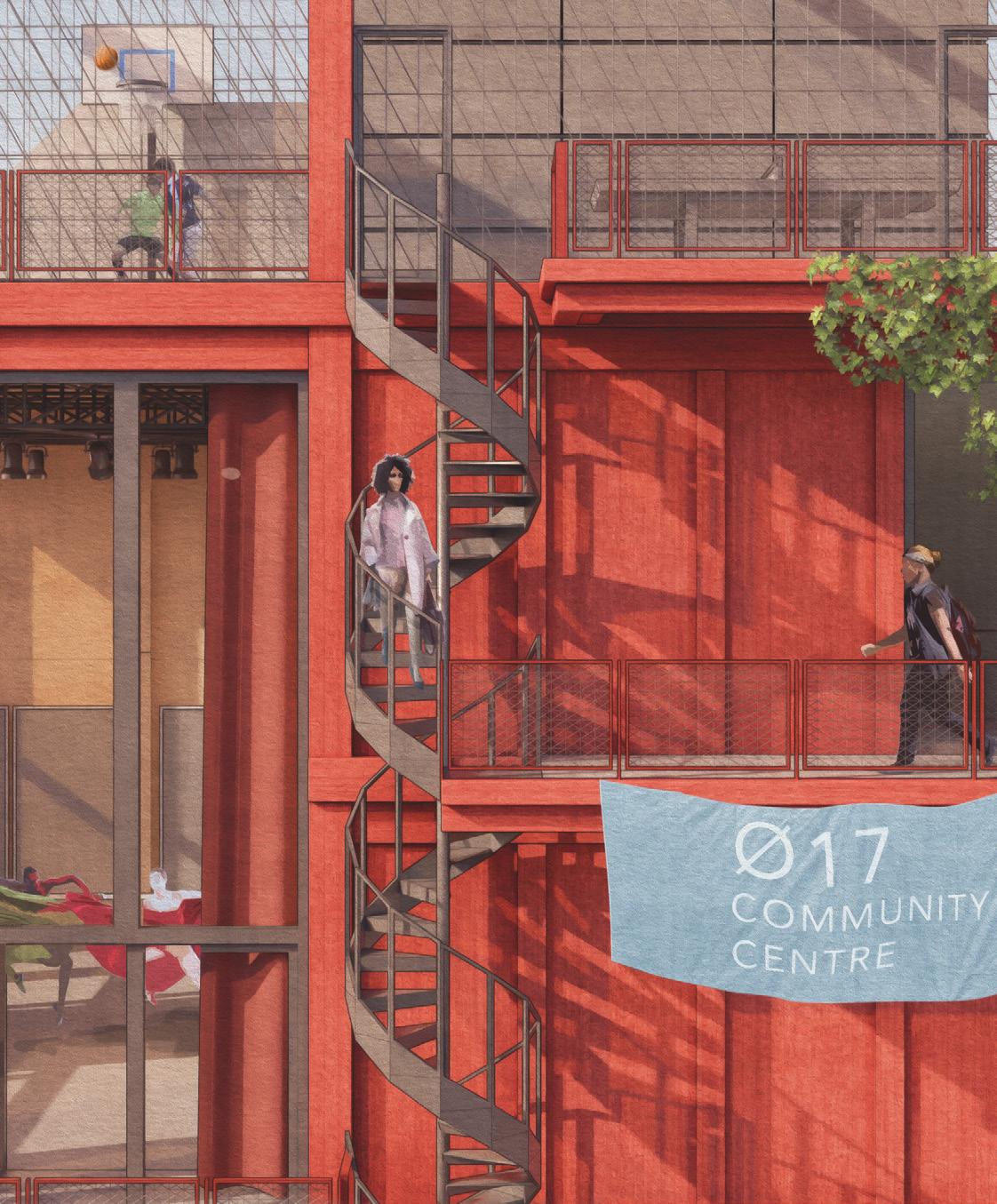

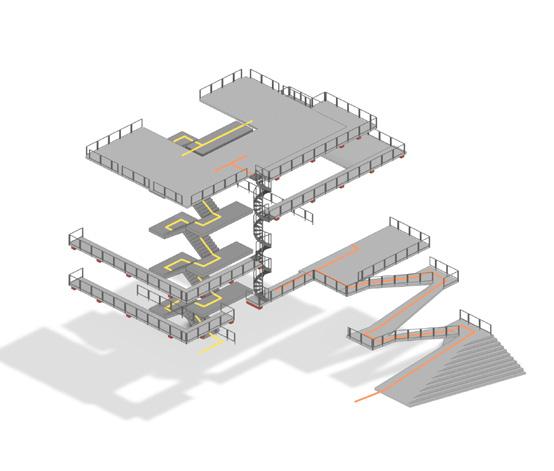

The existing grid is then perturbed by two means of circulation. Internally, through a core, and externally on balconies.Instead of having one central performance room. Several attractive and individual spaces are inserted into the grid.

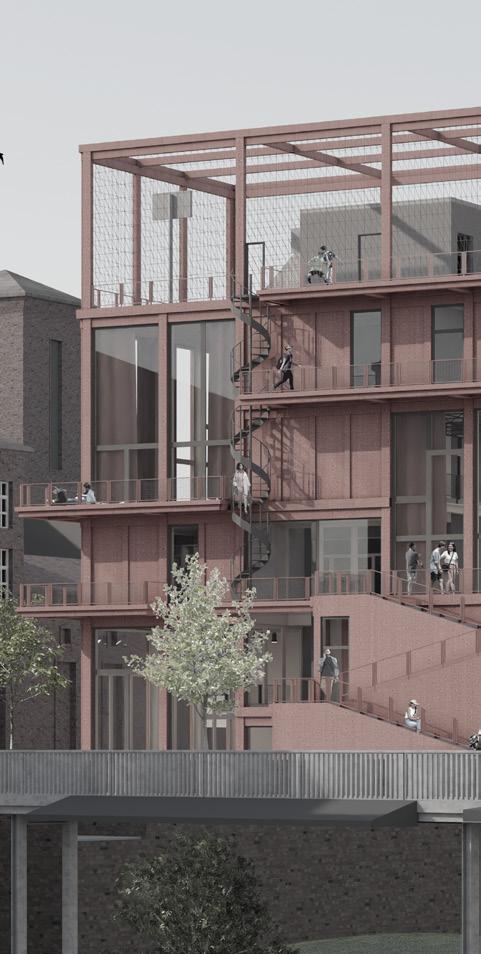

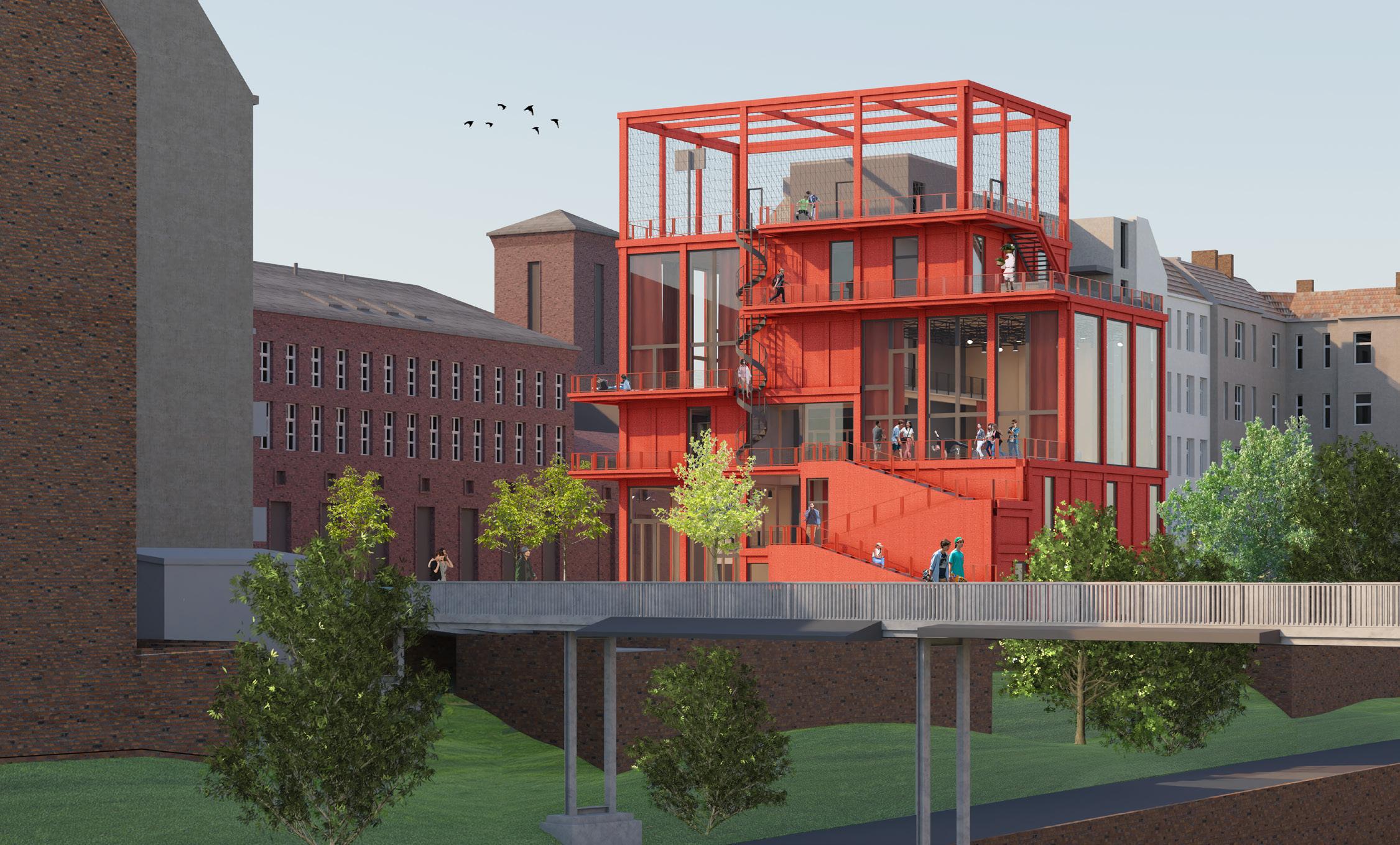

The volume is wrapped in its characteristics red timber façade, combined with large windows to produce, an interaction between inside and outside.

structural grid volume circulation

fnished product

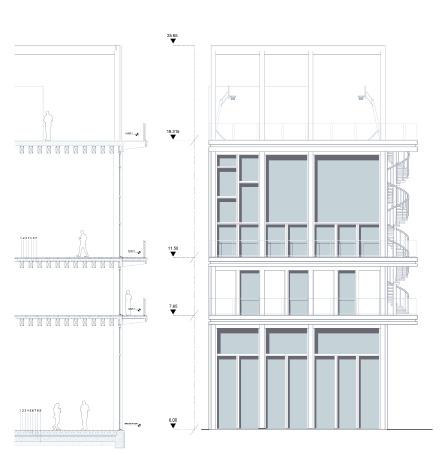

1. screed

2. solid support

3. steel profles (80mm 80mm)

+ cavity

4. rigid insulation

5. WPM

6. gravel

7. in-situ concrete

8. perforated pipe (drane)

1. screed

2. solid support

3. steel profles (80mm 80mm)

+ cavity

4. SCL (CLT wooden slabs)

5. structural secondary beam

40mm

30mm

80mm

125mm

3mm

120mm

300mm

250mm

40mm

30mm

80mm

60mm

450mm

1. screed

2. solid support

3. steel profles (80mm x 80mm)

+ cavity

4. rigid insulation

5. WPM

6. gravel

7. in-situ concrete

8. perforated pipe (drane)

40mm

1. screed

30mm

2. solid support

80mm

3. steel profles (80mm 80mm)

+ cavity

125mm

4. SCL (CLT wooden slabs)

3mm

5. structural secondary beam

120mm

300mm

250mm

40mm

30mm

80mm

60mm

450mm

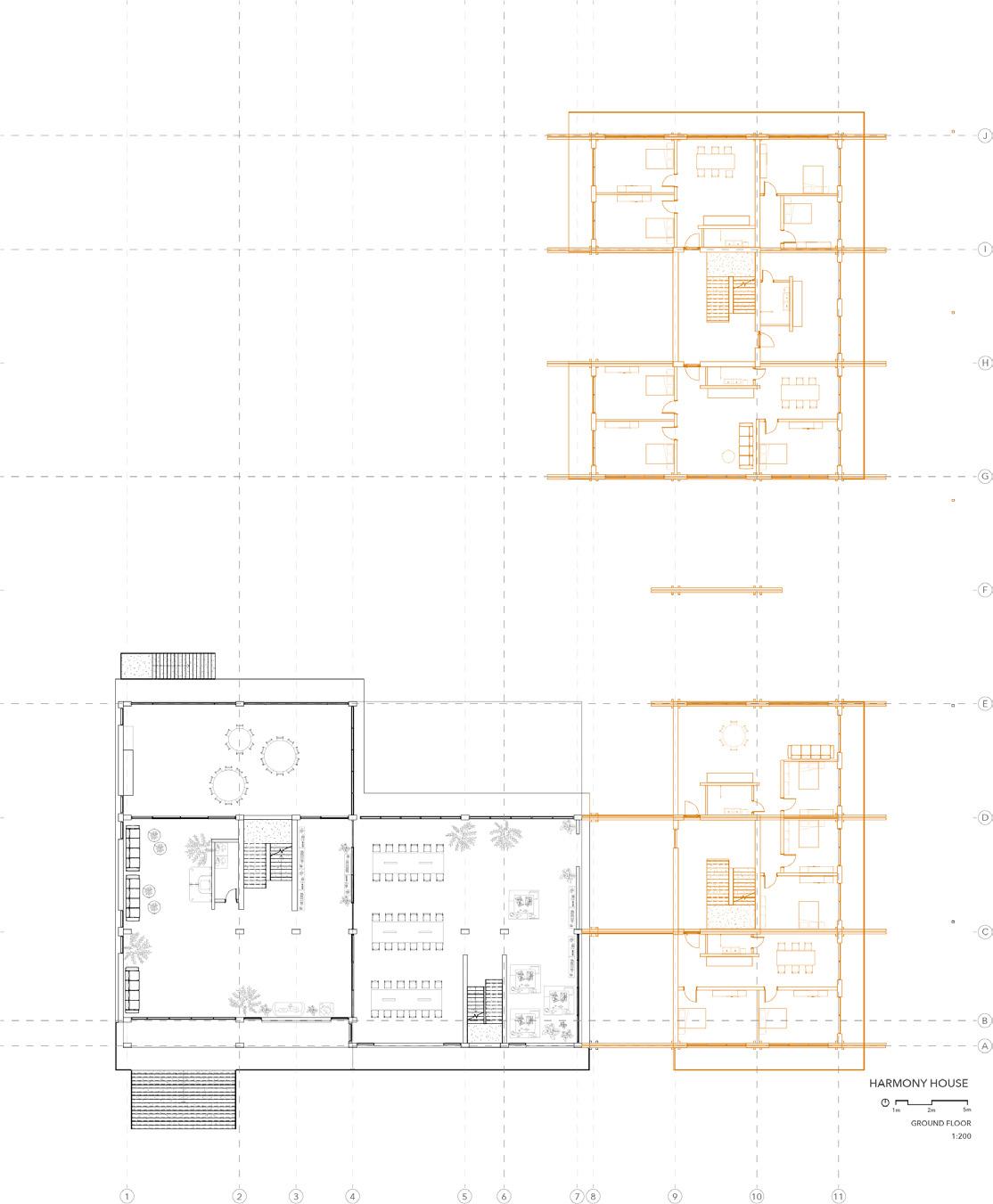

HH

Harmony House

Course: Architectural Design

Project 2 (ADP2)

Semester: 4

Duration: 8 weeks

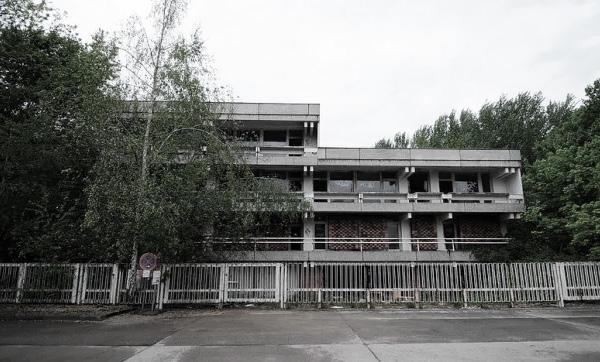

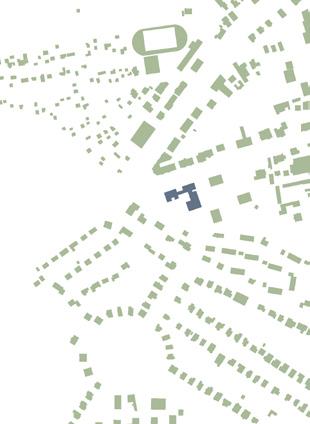

Harmony House located on Tchaikowskistrasse is surrounded by primarily residential family homes and a few diplomatic embassies, such as the old Australian Embassy to the GDR, mirroring the Iraqi Embassy’s foor plans.

Upon closer examination of the site, the abundance of trees emerged as signifcant spatial qualities to be preserved Through data collection and analysis, expansion plans were tailored to minimize disturbance to the trees, leaving voids where density was highest.

The refurbishment strategy focused on addressing community needs, with the building split into public and semi-public spaces This allows for a blend of community entertainment during working hours and communal facilities accessible 24/7 to tenants.

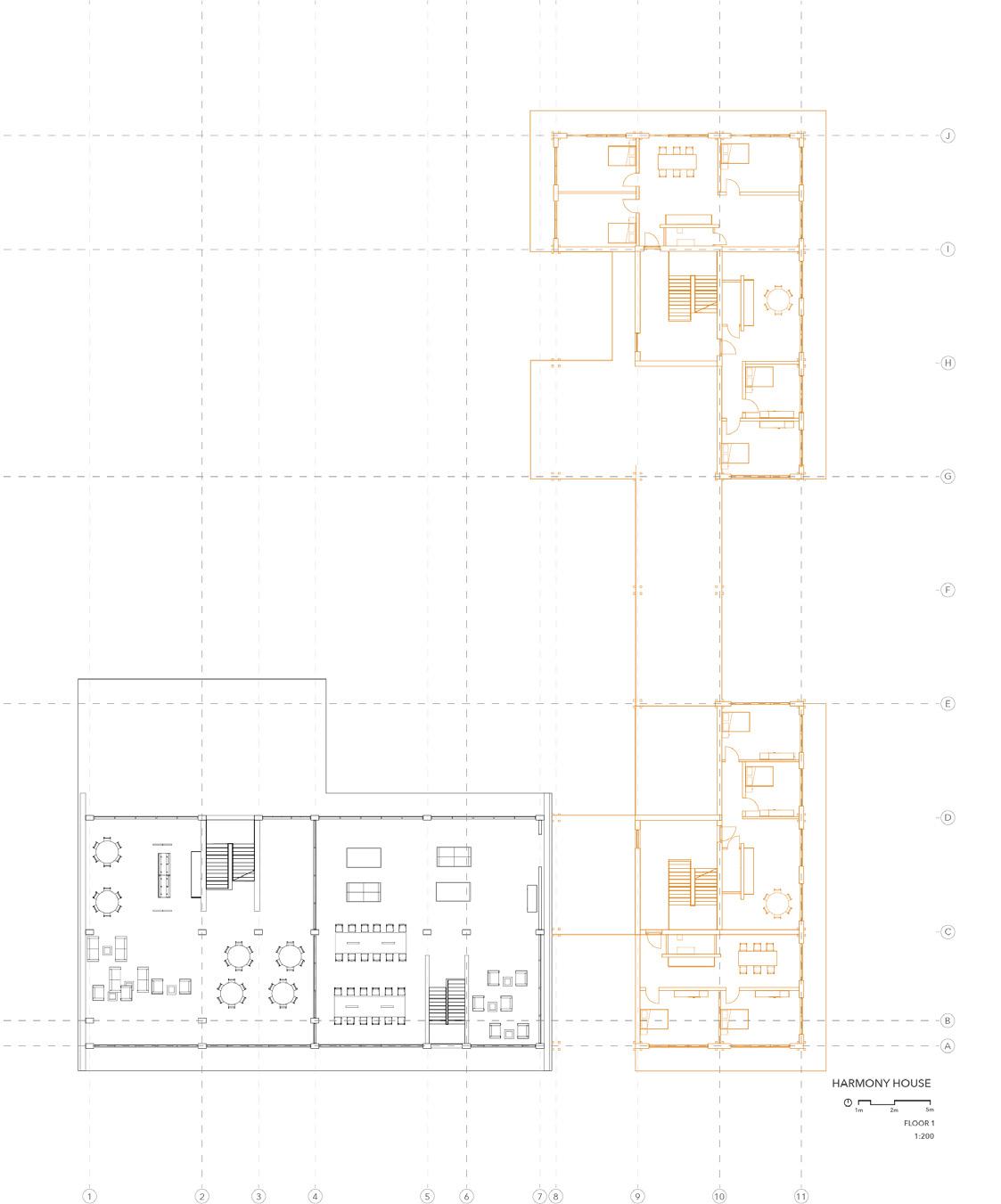

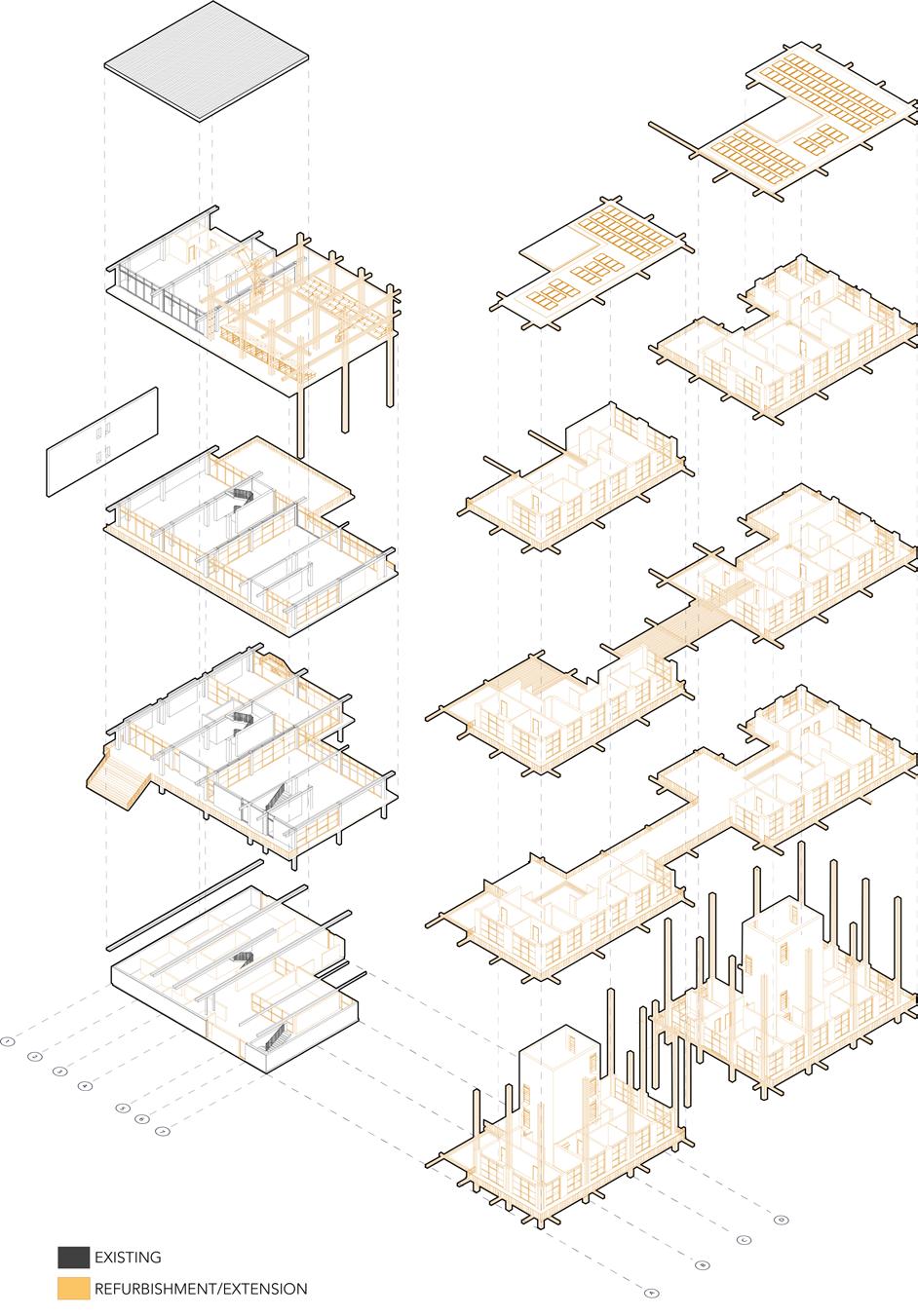

Refurbishment & Extension

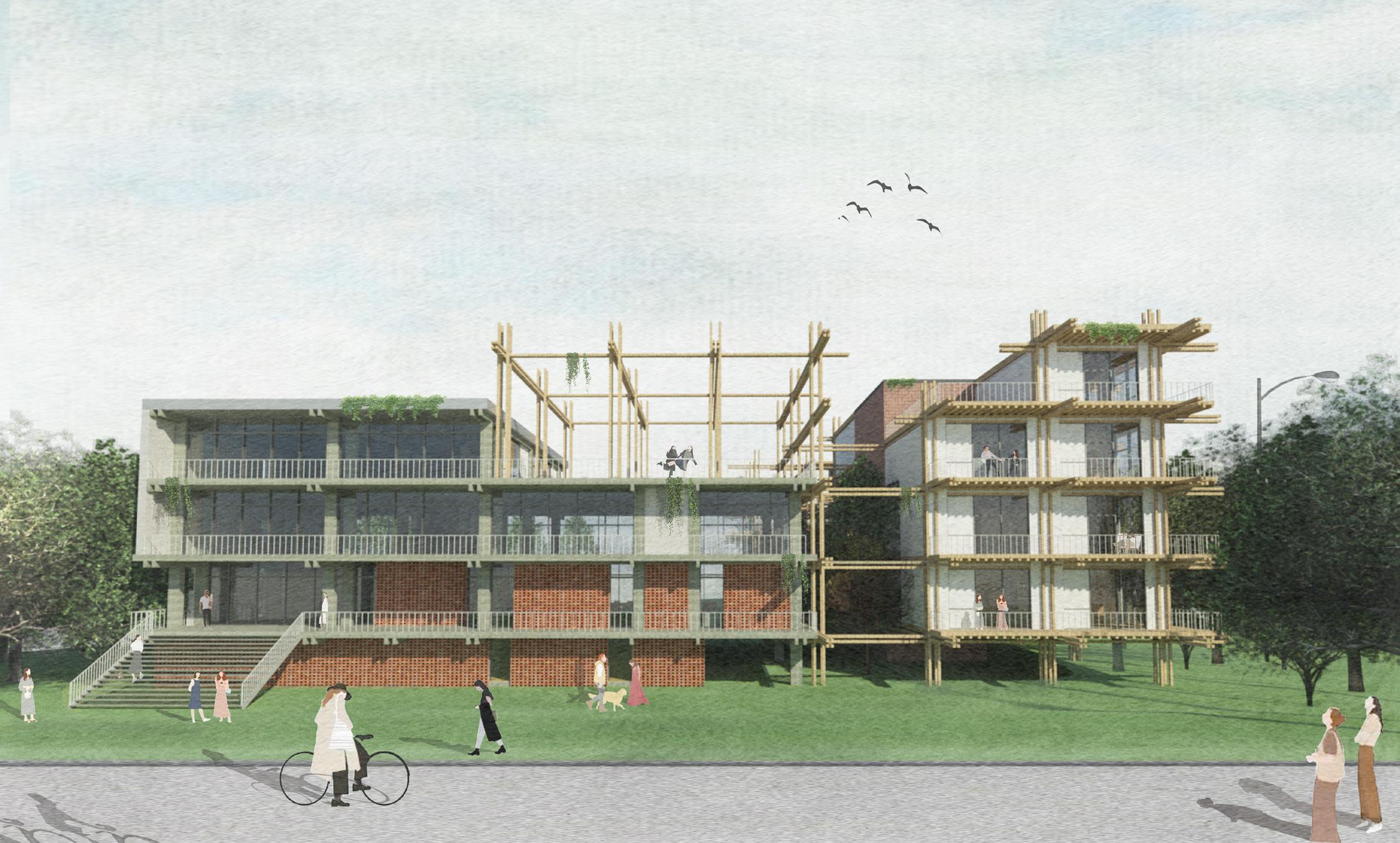

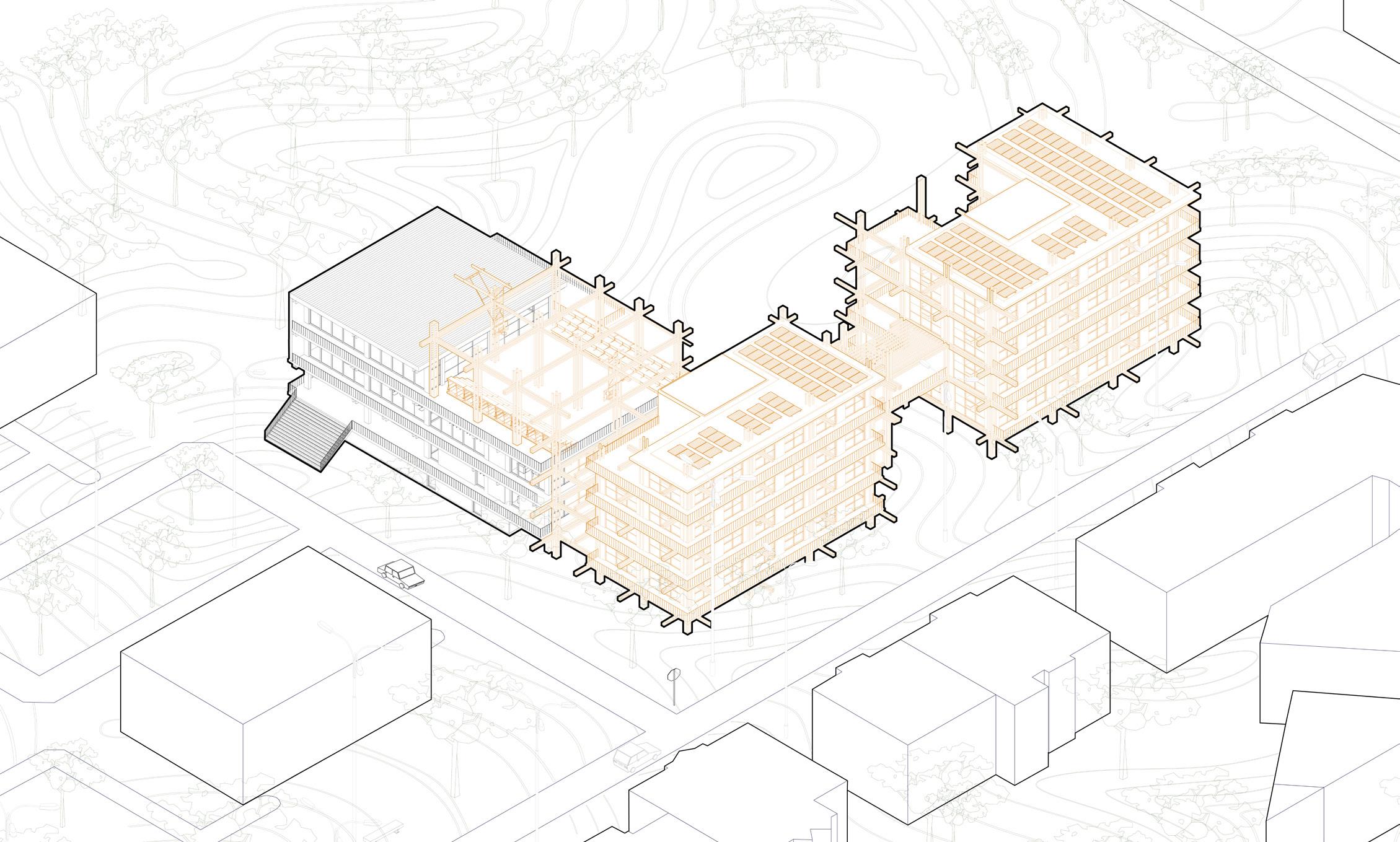

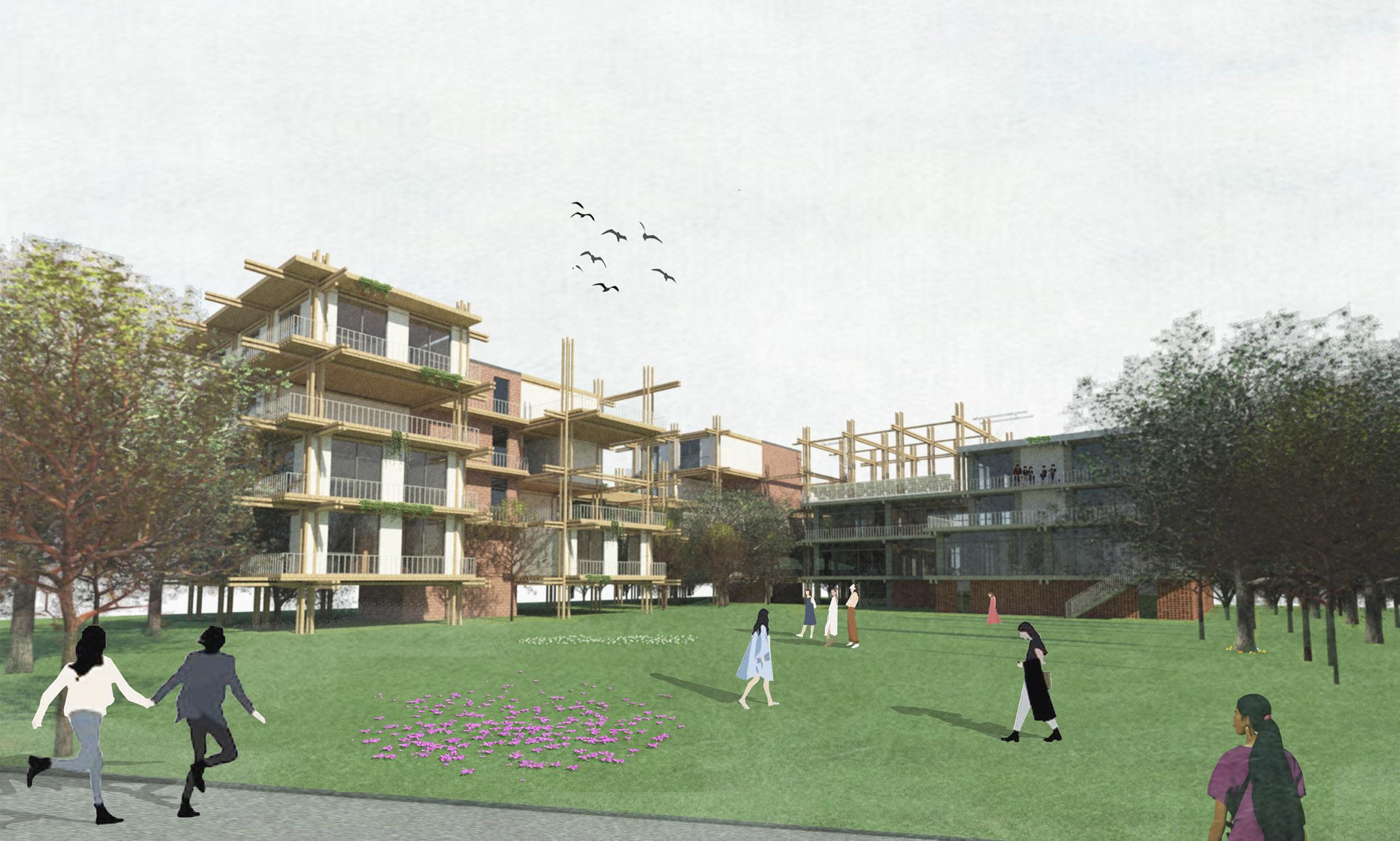

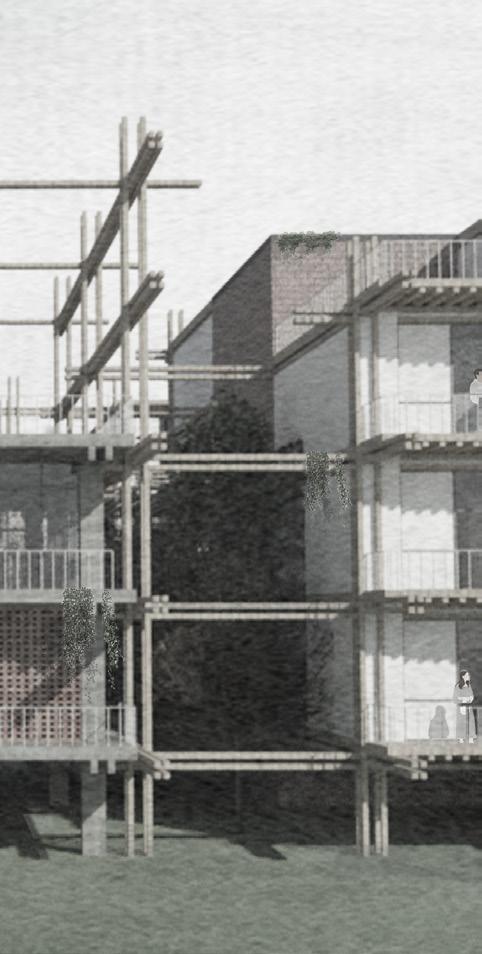

The transformation strategy for the GDR Embassy in Pankow introduces a unique timber structure contrasting the existing materials. Prefabricated concrete elements, supported by connected columns and beams, compose the GDR Iraqi embassy. To complement the grid layout while opposing materials, four separate timber elements act as a single column and beam system.

The extension adds 3850m2 of living space, with an open ground foor for easy courtyard access. Two concrete cores serve as both bracing and circulation systems. The refurbishment replaces non-load-bearing elements with curtain panels, emphasizing program separation and natural light fow. This design enhances functionality and aesthetics while maintaining integration with the surrounding environment.

Programs & Circulation

Co-living units feature 27m2 to 35m2 bedrooms, accommodating 2 to 3 tenants with a shared balcony. Shared kitchen and bathroom facilities are also accessible to tenants. In addition, Semi-public balconies in Block B of the extension are exclusively for co-living apartment tenants, maximizing their use of the site’s spatial qualities

Event spaces cater to the general public and residential event themes such as sports, music, art, and dance.

he study room is exclusive to residents, creating a semi-private space. Targeting the younger generation, we accommodated a study/co-working space.

Circulation is integrated throughout existing and new are-

level 3, the other to level 2. An elevator is added near the main staircase. The extension employs 2 concrete cores for

OH

Open House

In collaboration with Christian Buddenbohm (Arch.), Tereza

Petrova (Int. Arch.), Bety

Novotna (Int. Arch.) & Margarita

Lubkova (Graphic Designer)

Course: Interdisciplinary

Design

Semester: 5

Duration: 6 weeks

Organized and exhibitioned by the AEDES Metropolitan Laboratory along with 5 other proposals that presented form other groups, Open House was chosen as the winner of the best graphical representation of the theme of the competition, “The Future of Education.”

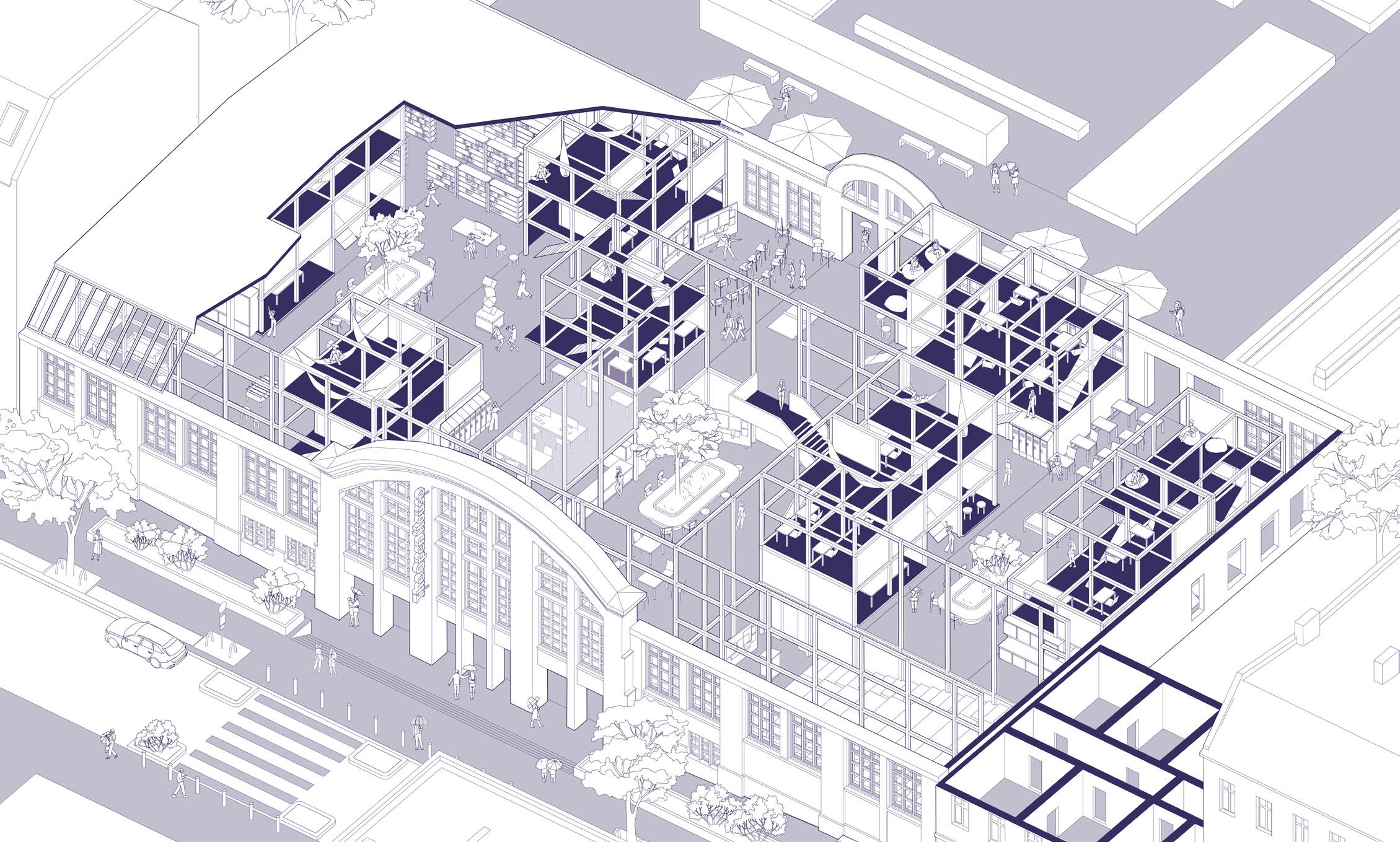

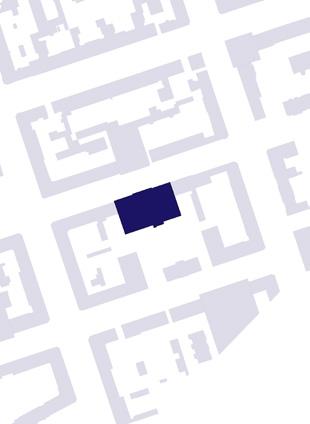

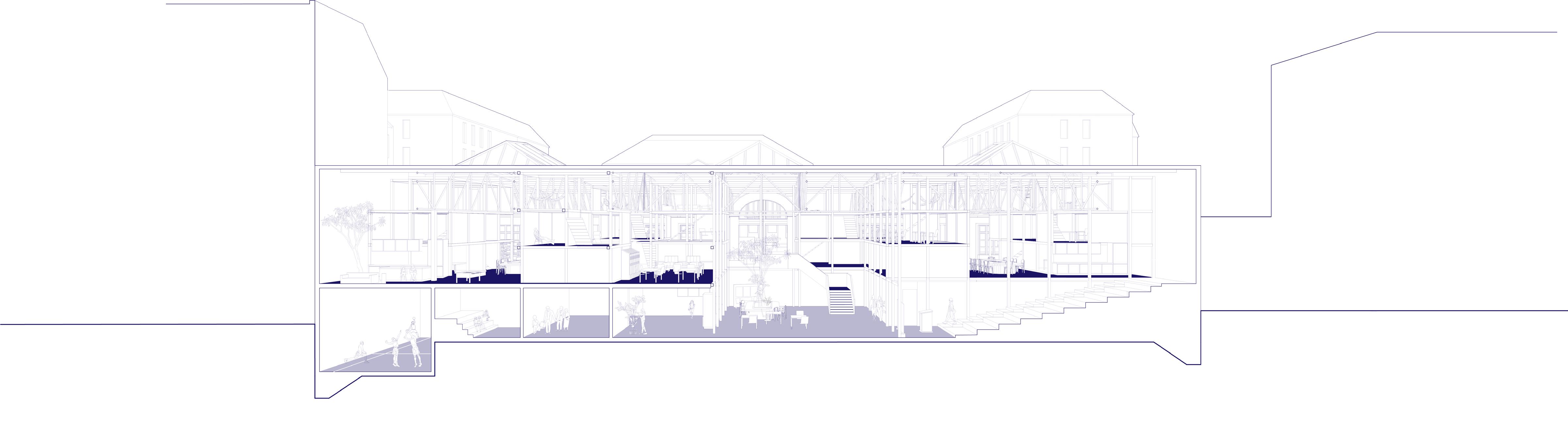

Open House is an interdisciplinary project that seeks to refurbish an abandoned fabric factory located at the heart of Weissensee, Berlin.

“The Future of Education”

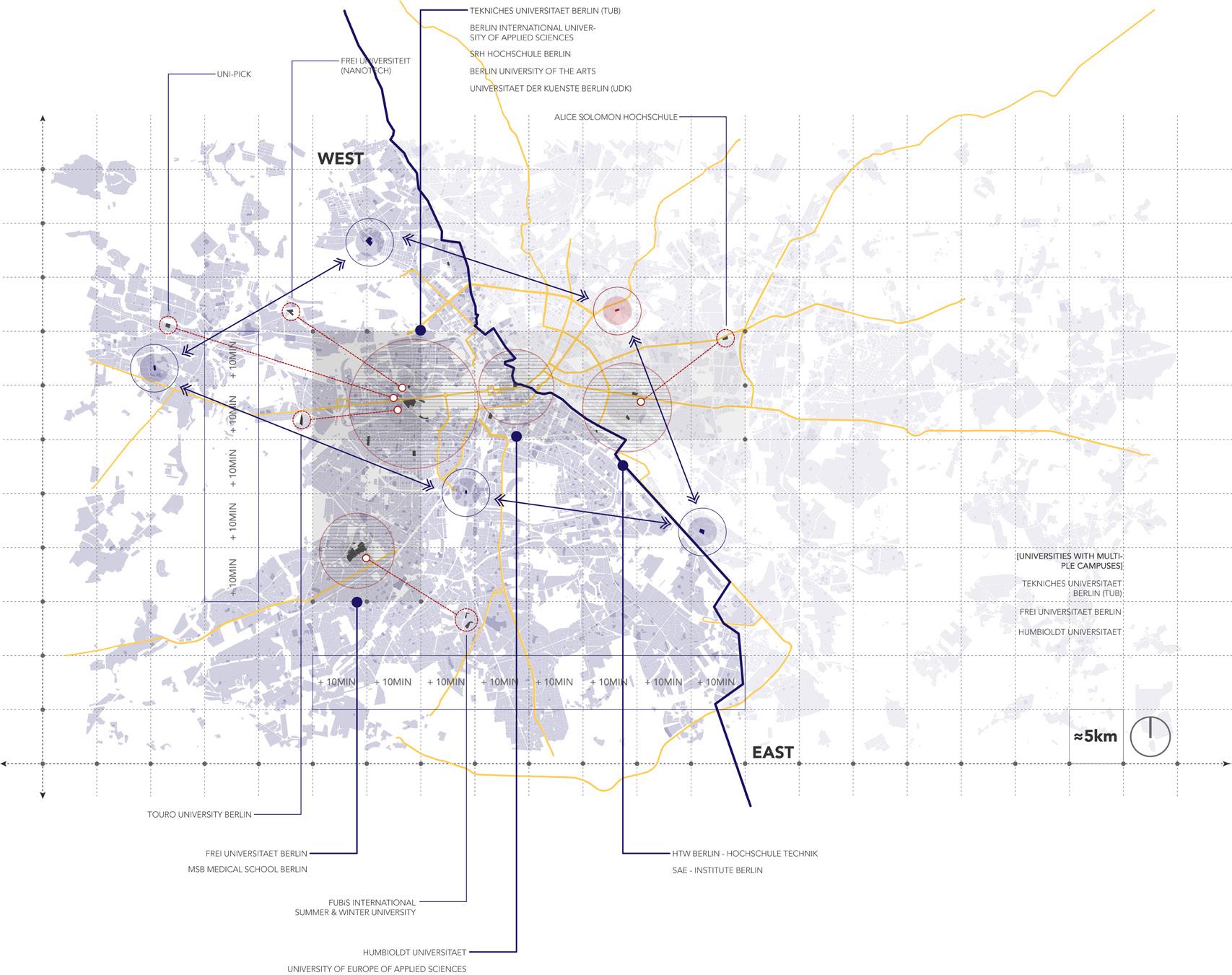

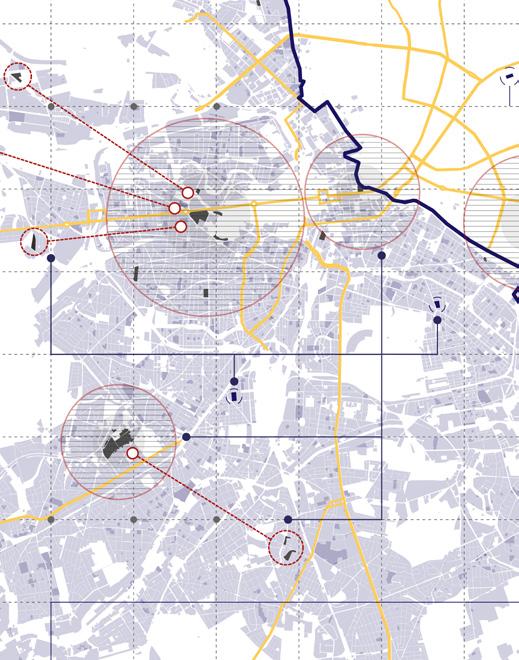

Berlin like many big cities, is a product of decades of urban agglomeration. Differing to other major European cities, on the other hand, Berlin was almost completely destroyed during the Second World War. Hence, the post-war period saw an immense rapid growth of cheap construction.

To keep costs low, cheap and cost-effective materials were utilized, leading to the proliferation of hastily con-

resulted in numerous abandoned structures and poor urban design, contributing to present-day challenges with blight and urban decay in certain areas of the city.

The building environment is full of aging buildings that stand silently, holding the stories of the past. Instead of demolishing them, there is a compelling case for fefurbishing them. Thus, this project sought to make use of one of the many abandoned buildings in Berlin, reviving its essence and serving the community for the greater good.

The Start of a Franchise

The concept aims tackle the issue of loneliness within students and young adults by generating a series of programs that correlate to form a community within the area. Furthermore, these design goals are represented in our 6 met criterias, such as:

1. Being able to spend more time on campus

2. Creating a comfortable environment for meeting and making friends

3. Finding an adequate replacement for studying at home

4. Meaningful extracurricular activities

5. Feeling of identity and having a sense of belonging

6. Bringing campus closer to where students are

exhibition week

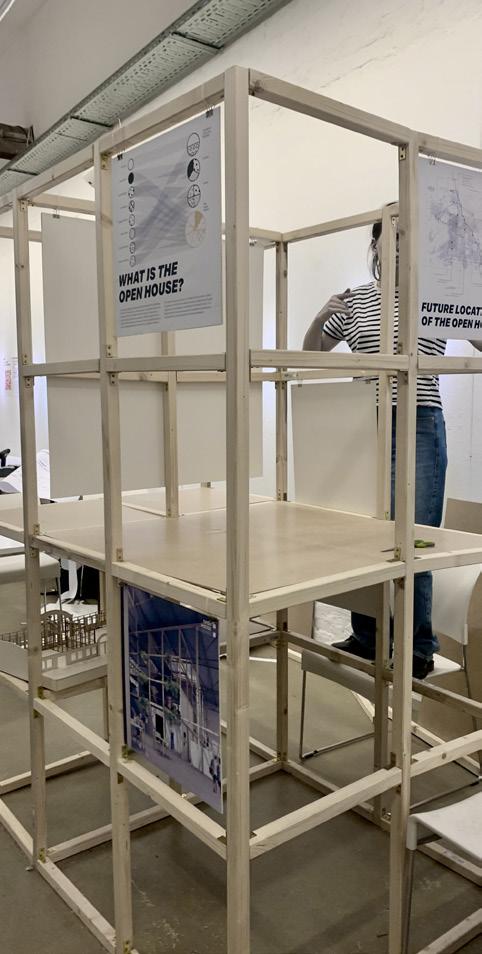

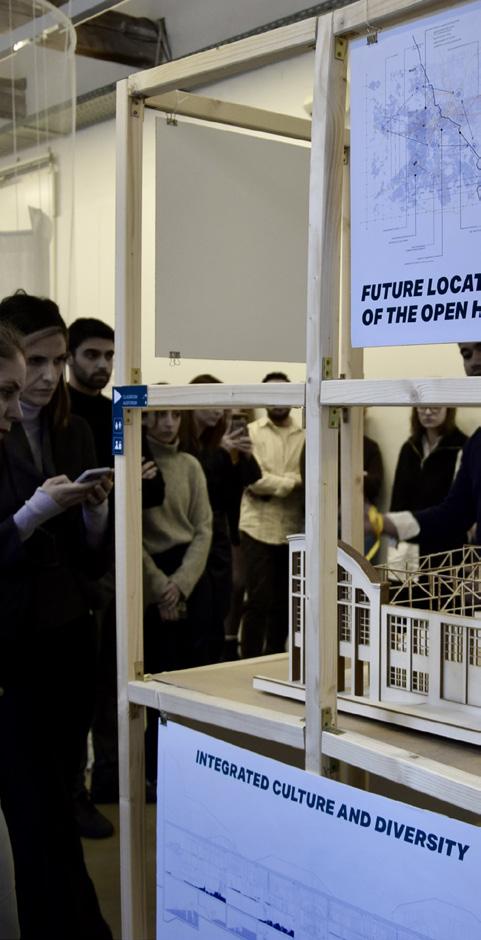

House Exhibition

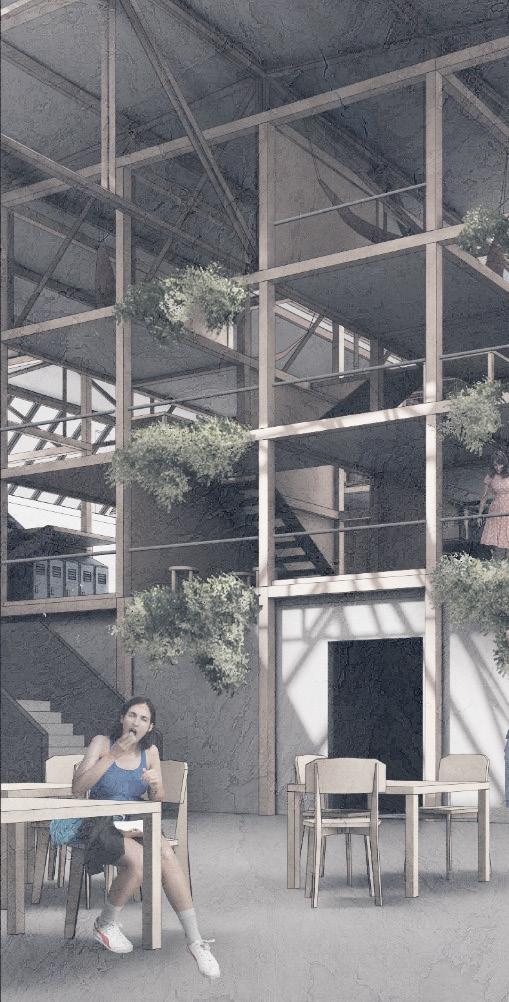

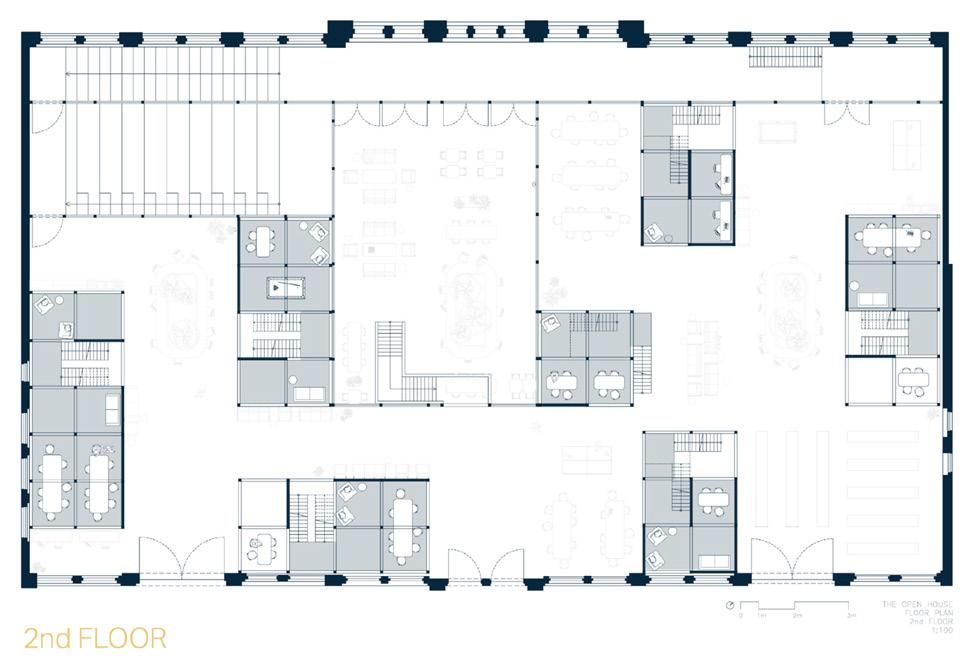

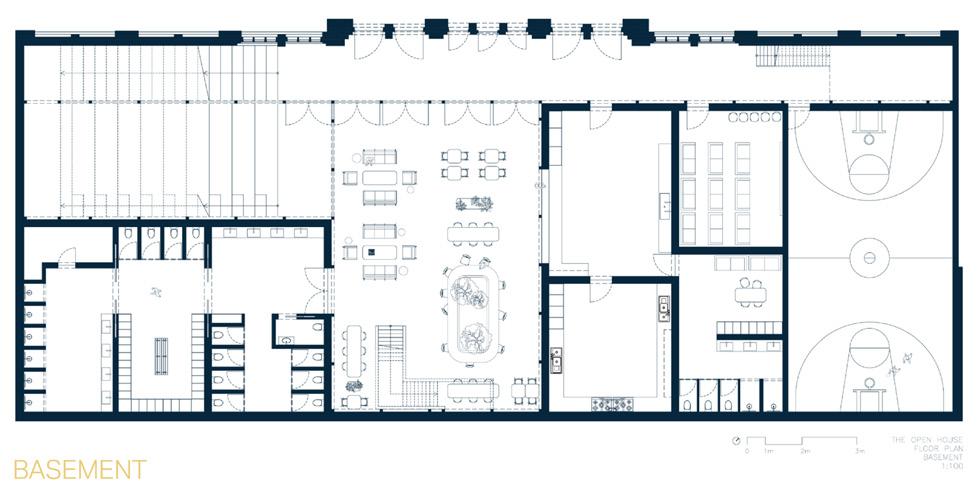

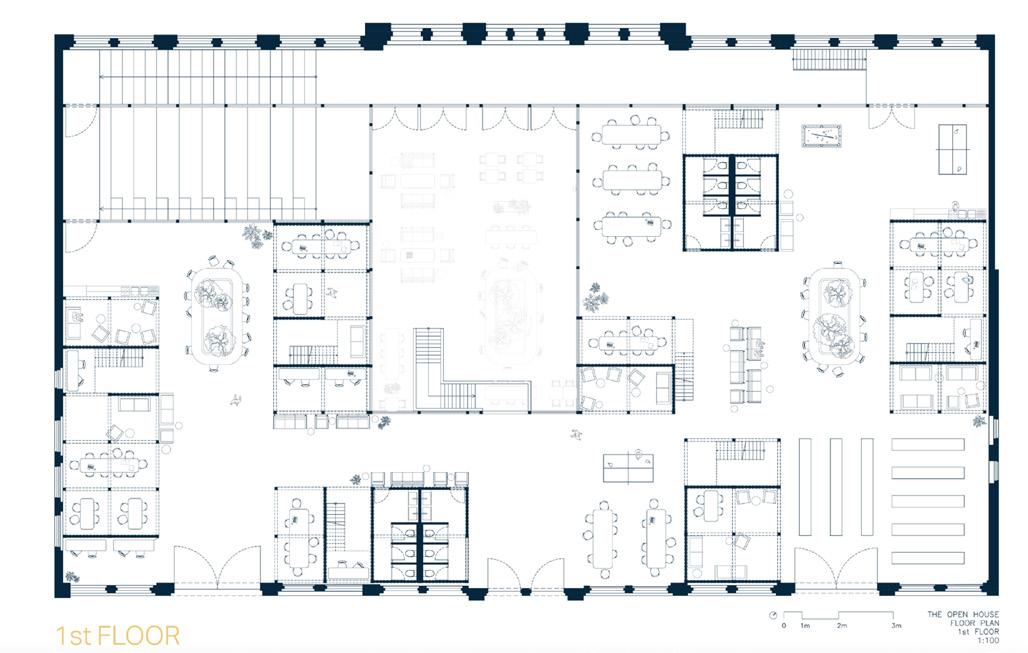

The main of Open House’ is to create a ‘home-like’ space using light wooden timber construction. It will serve multiple functions including inclusive study areas, entertainment zones, resting rooms with hammocks, and private reading areas. The design will incorporate interactive and semi-private features to cater to diverse needs.

Hence, we tried to recreate the image of ‘Open House’ through our exhibition. The structural system of the stand allowed it to feel as if they were the real interpretation of the wooden frames placed within the building (in a much larger scale).

Open

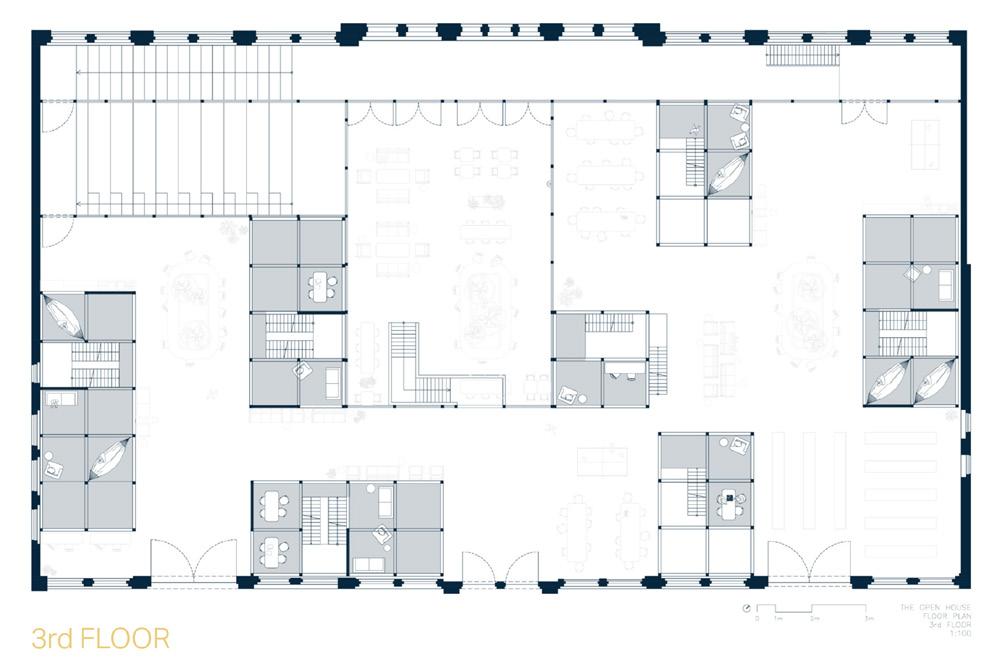

concept grid graphics to grid

15 .01.24 - 19.01.24
