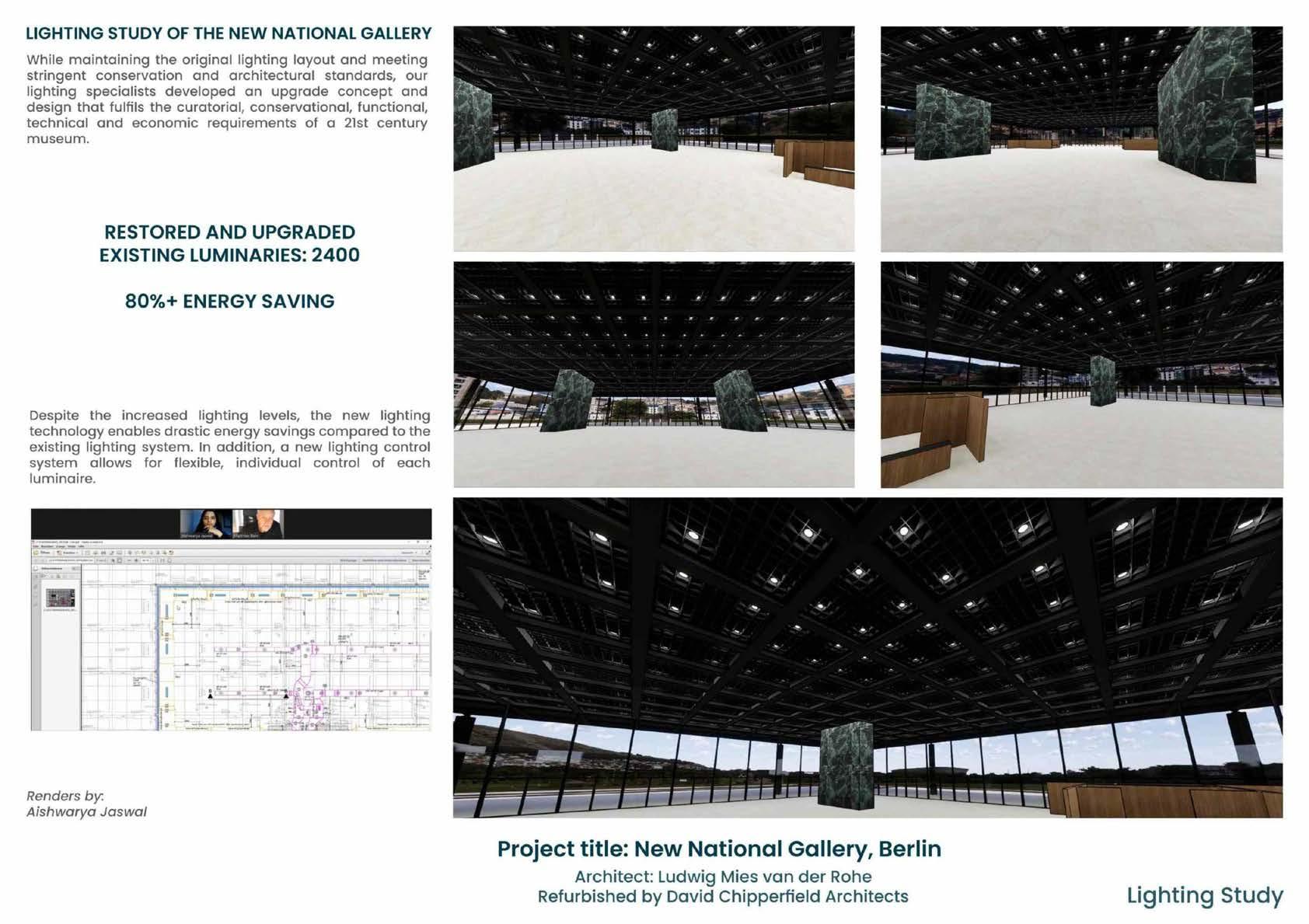

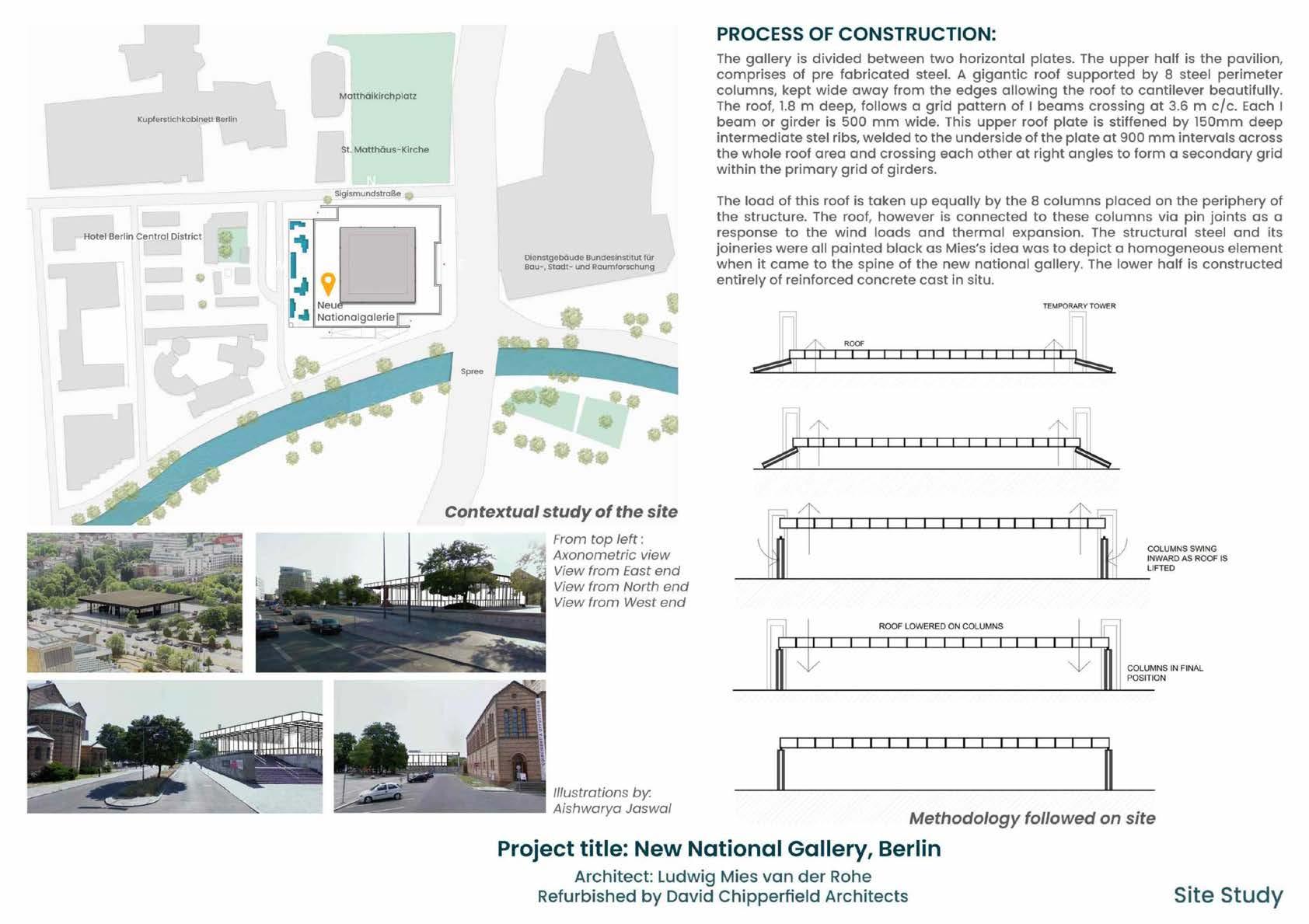

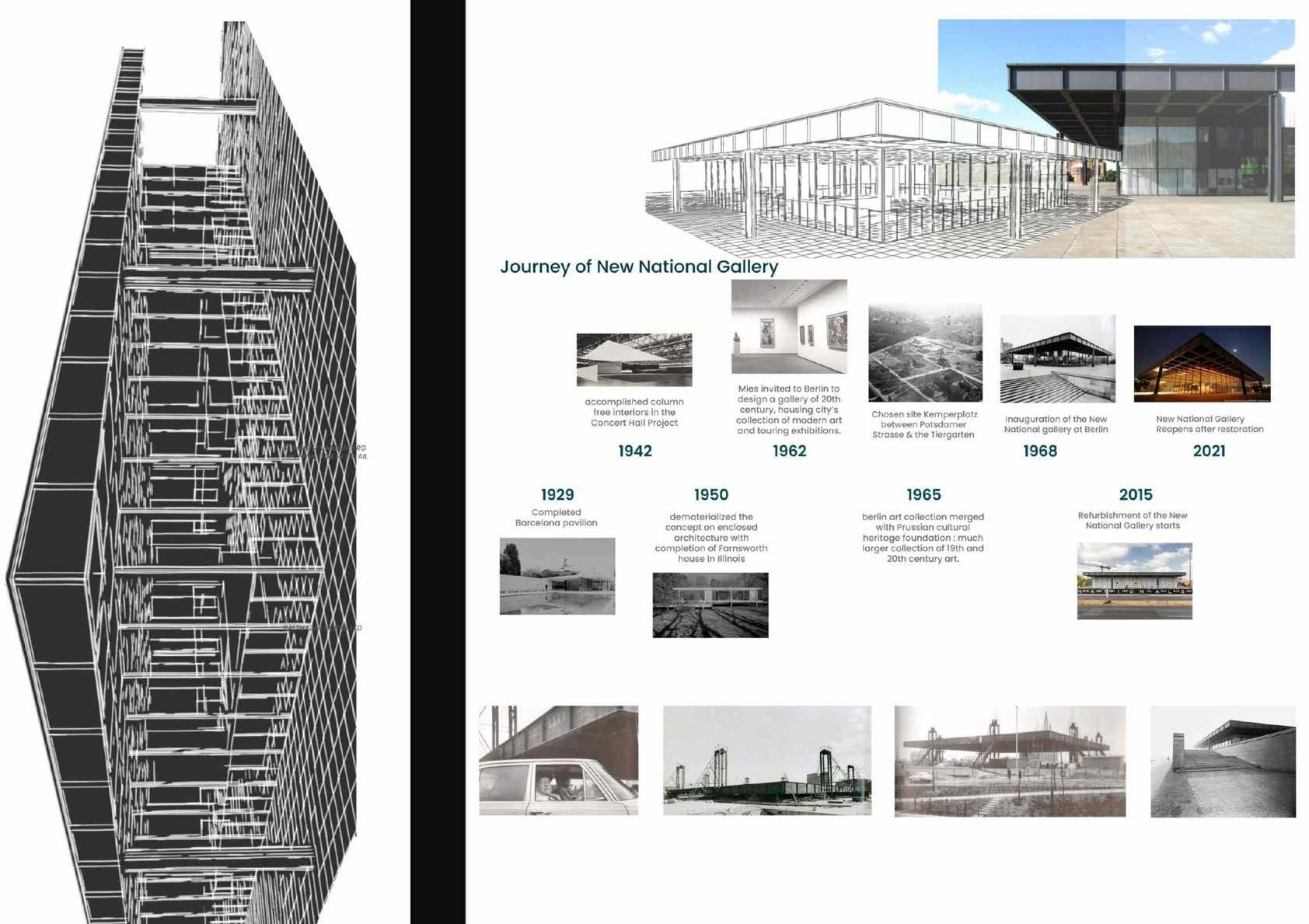

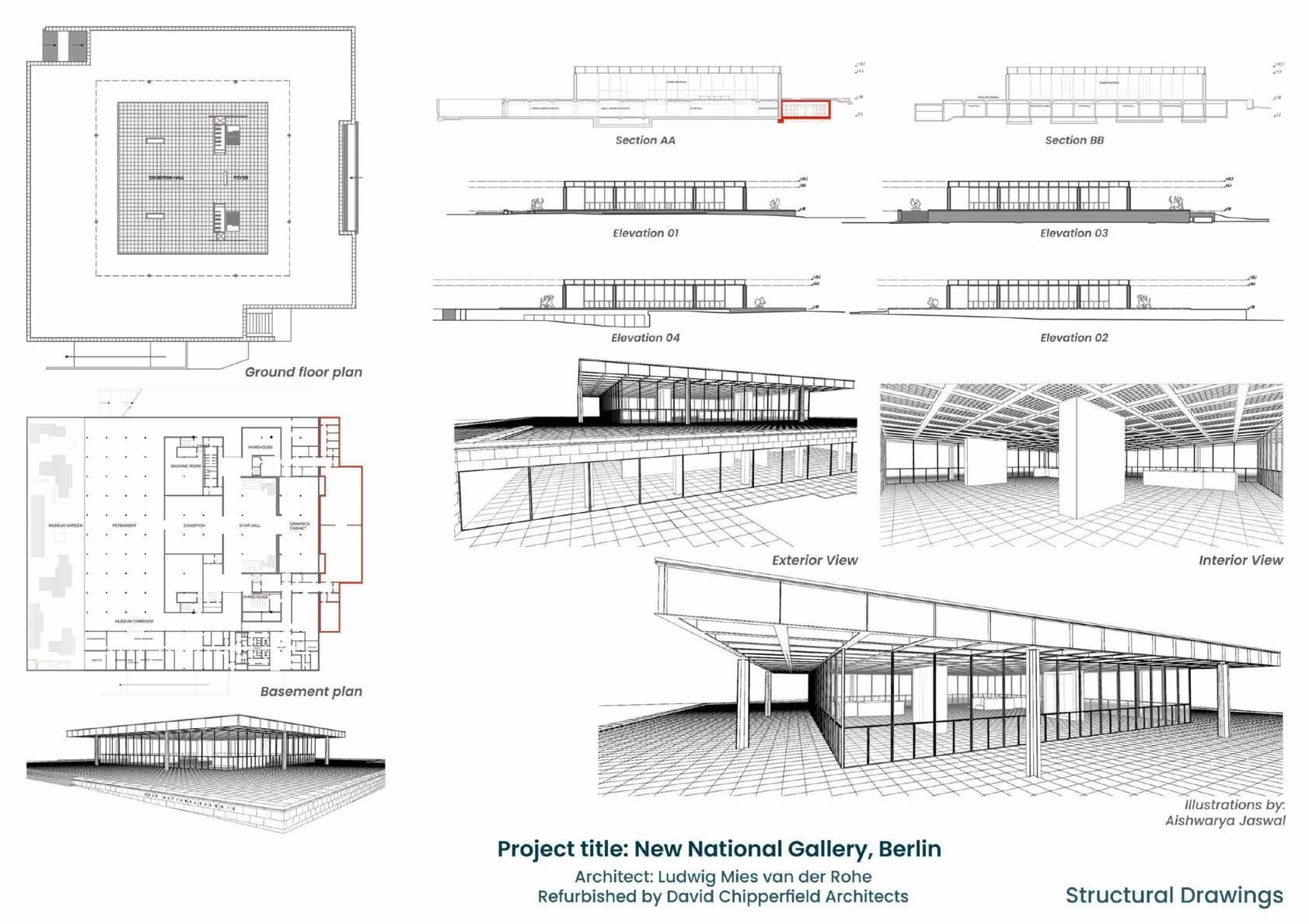

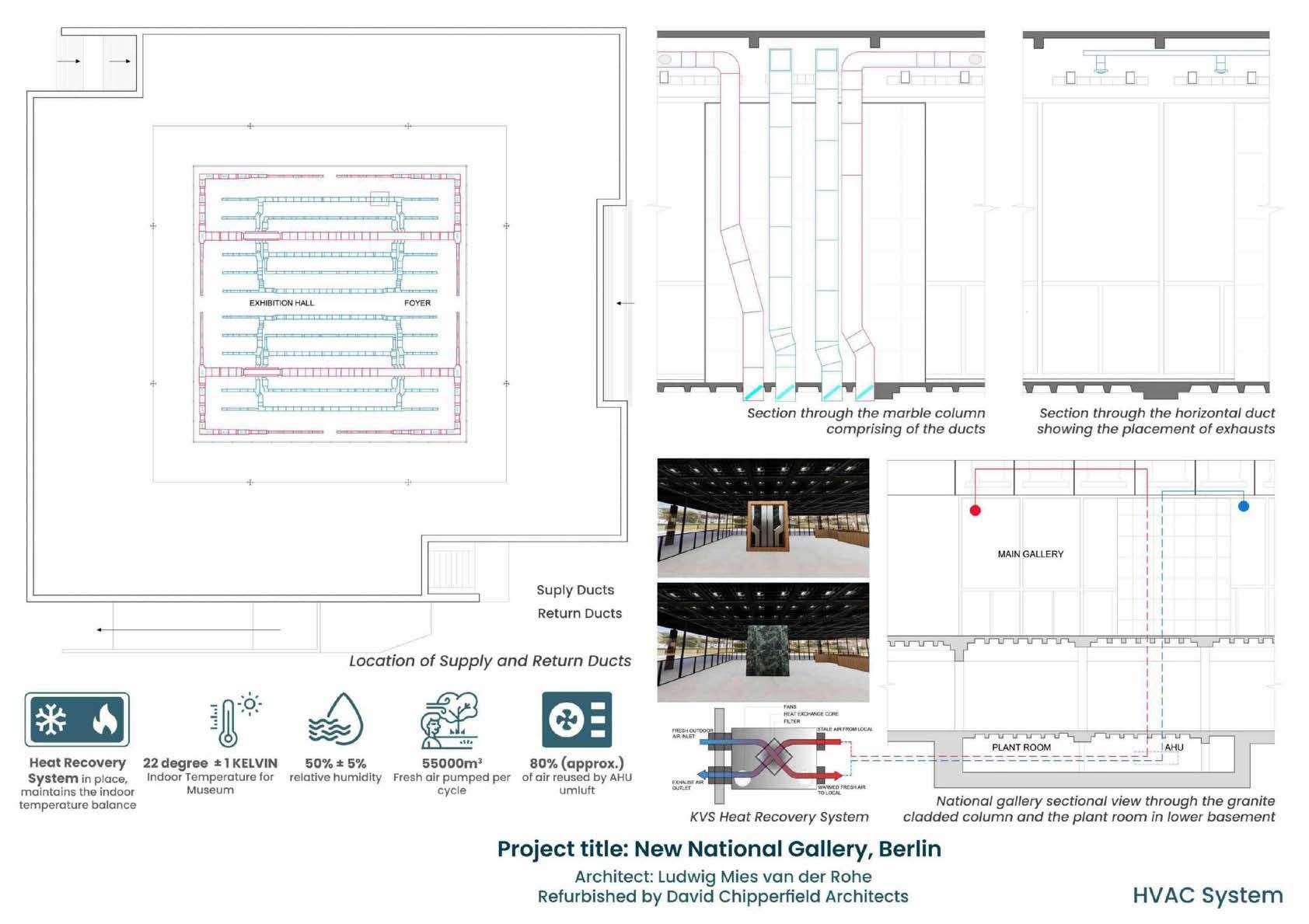

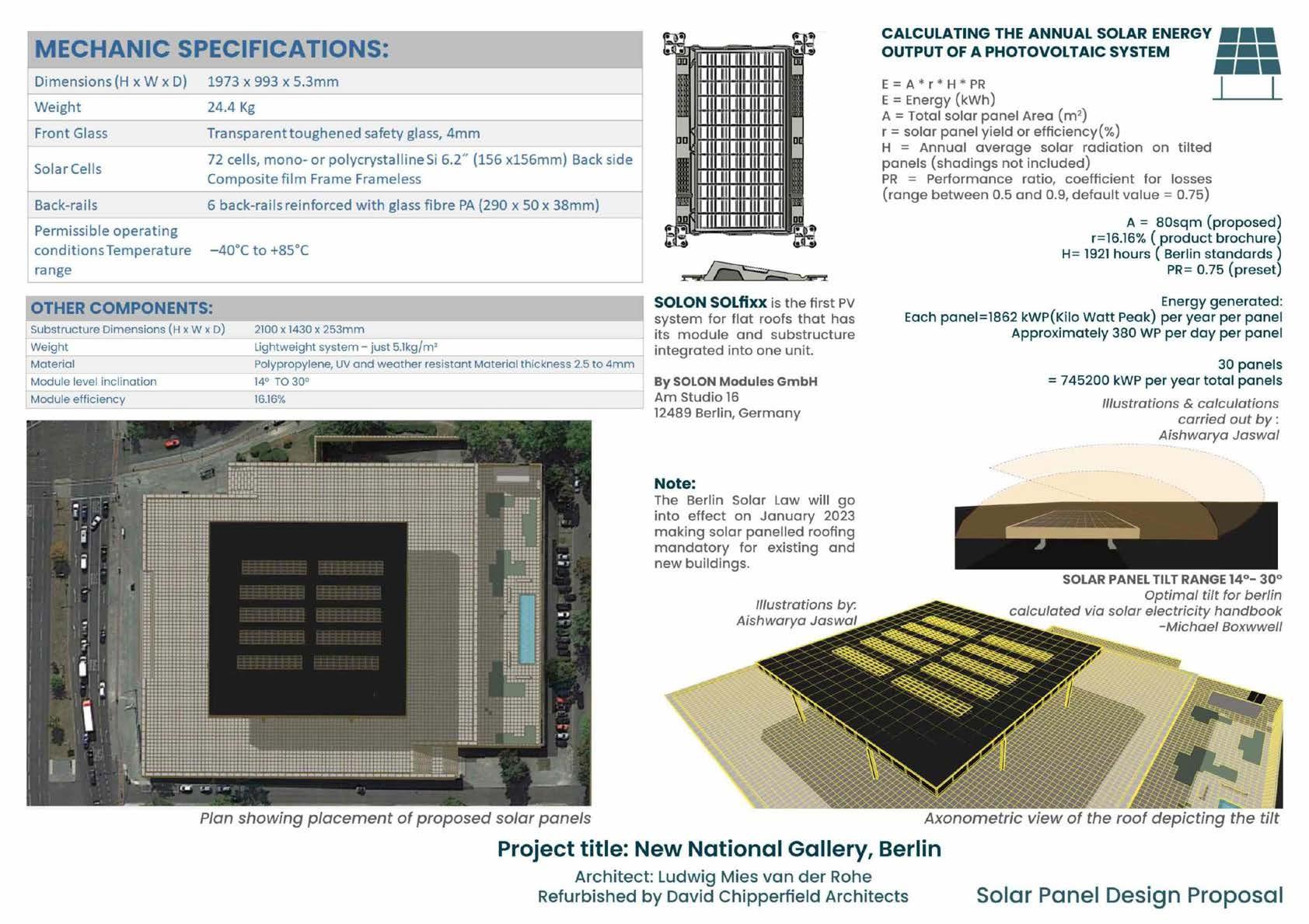

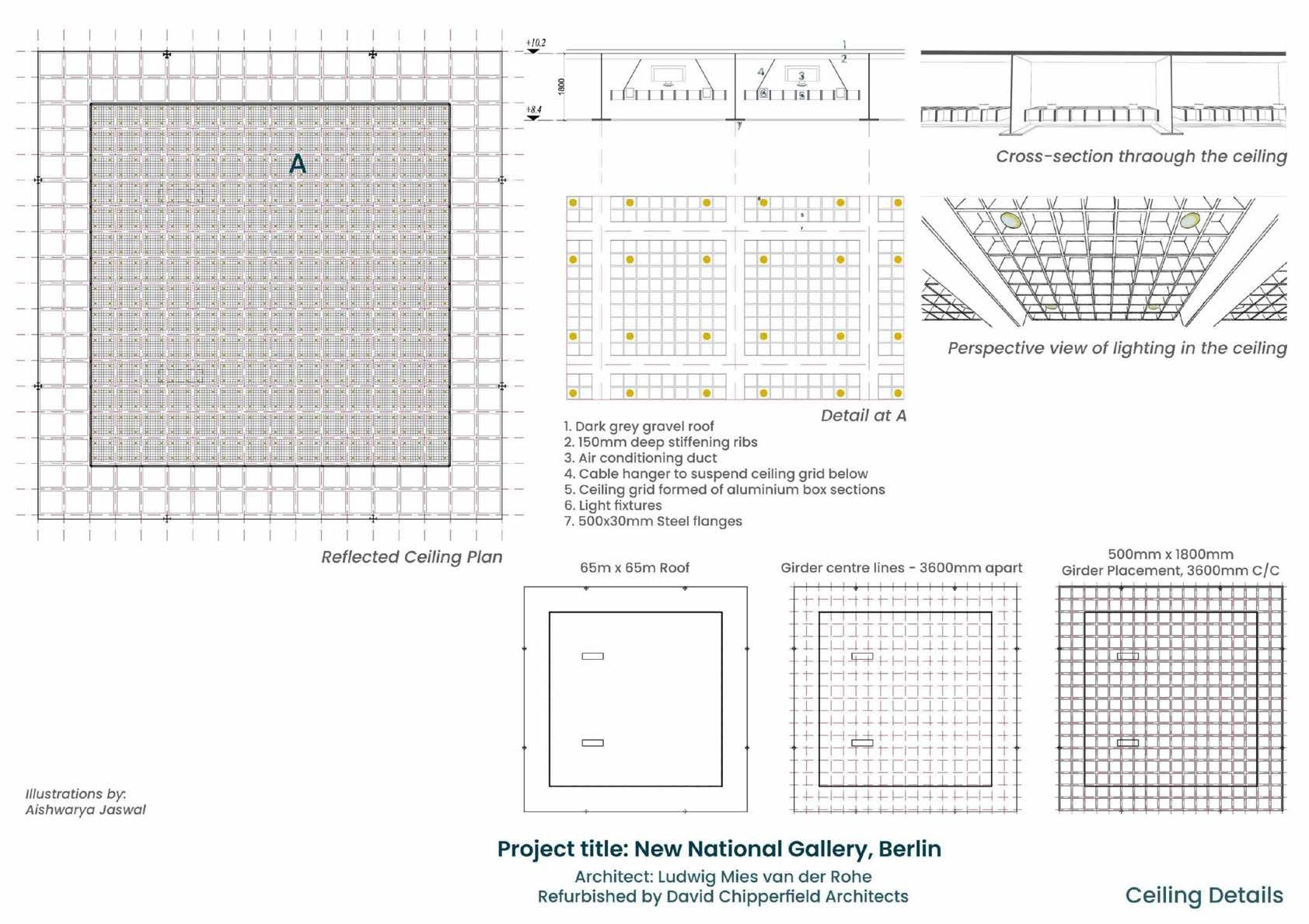

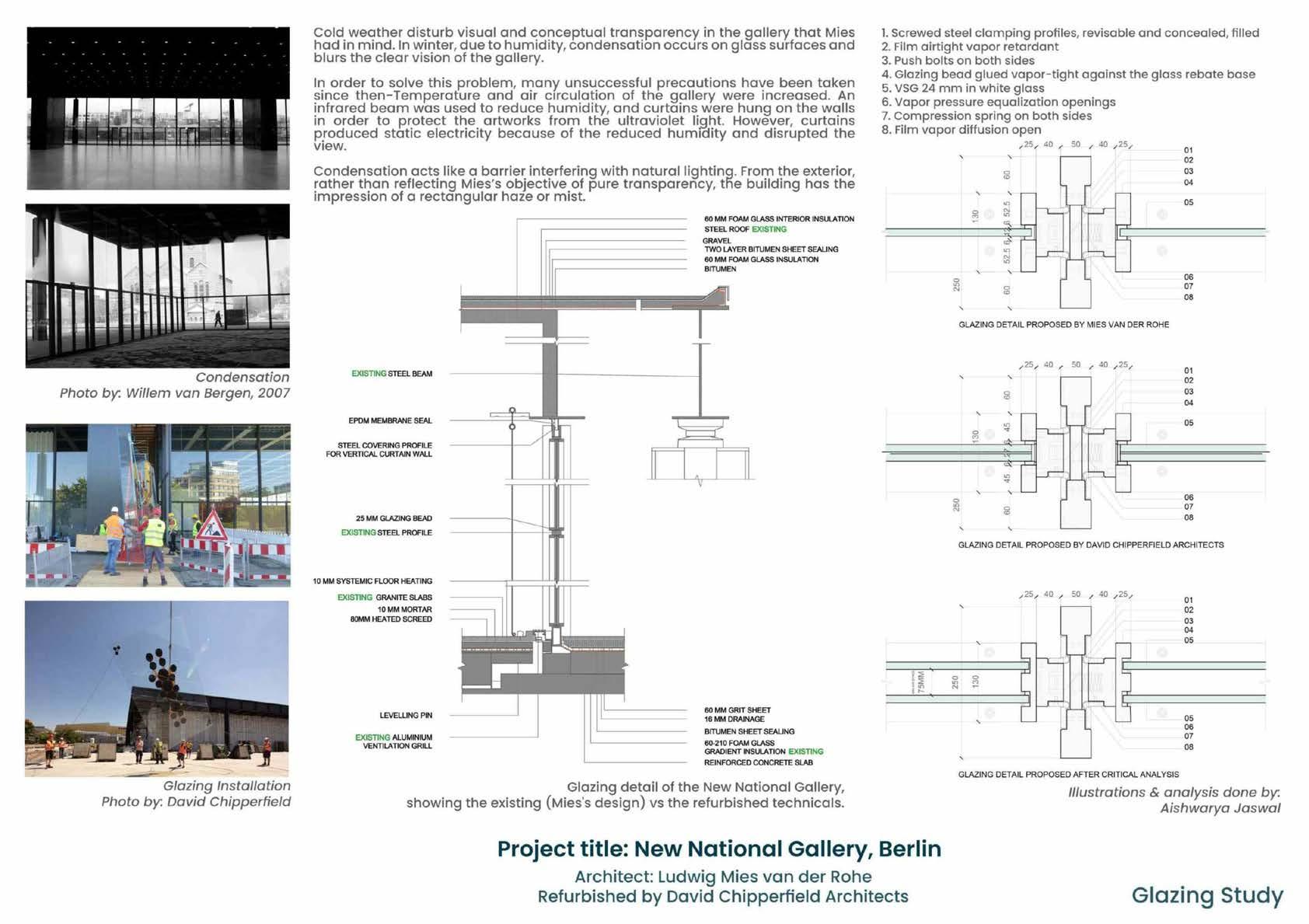

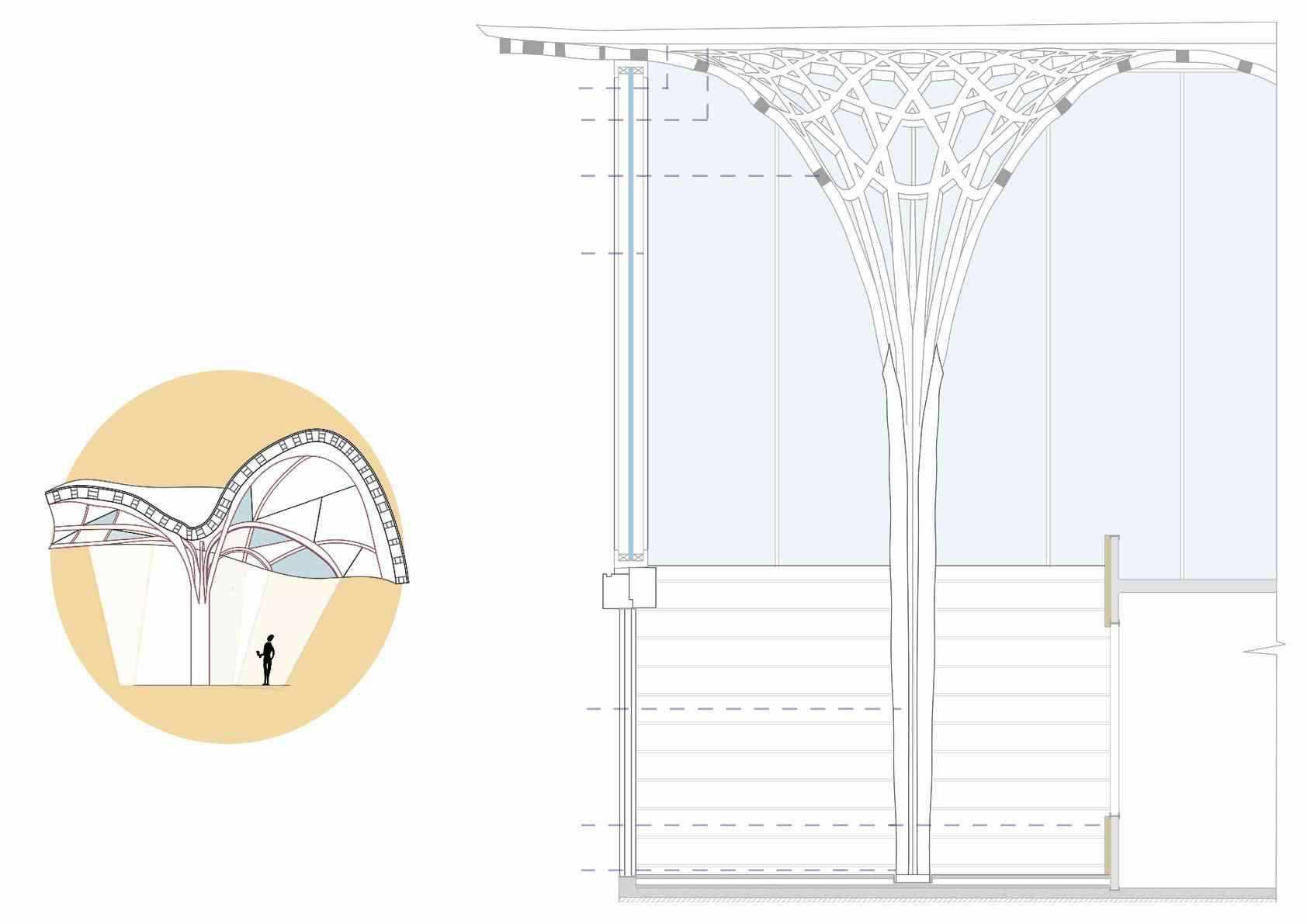

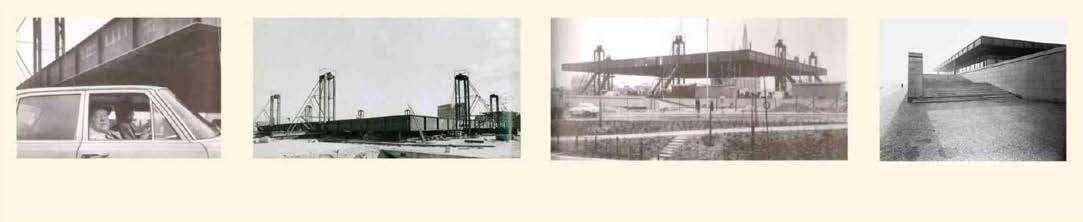

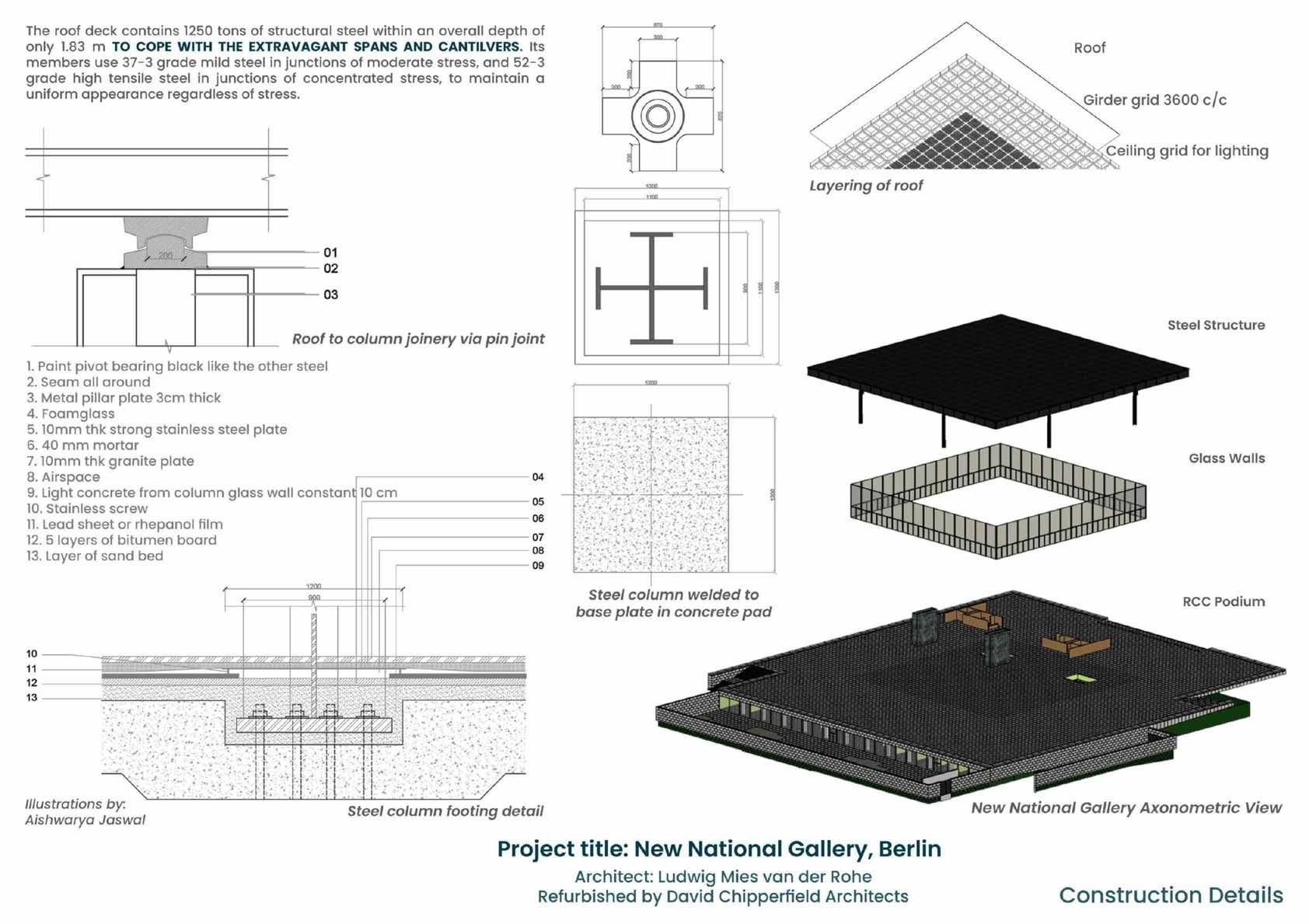

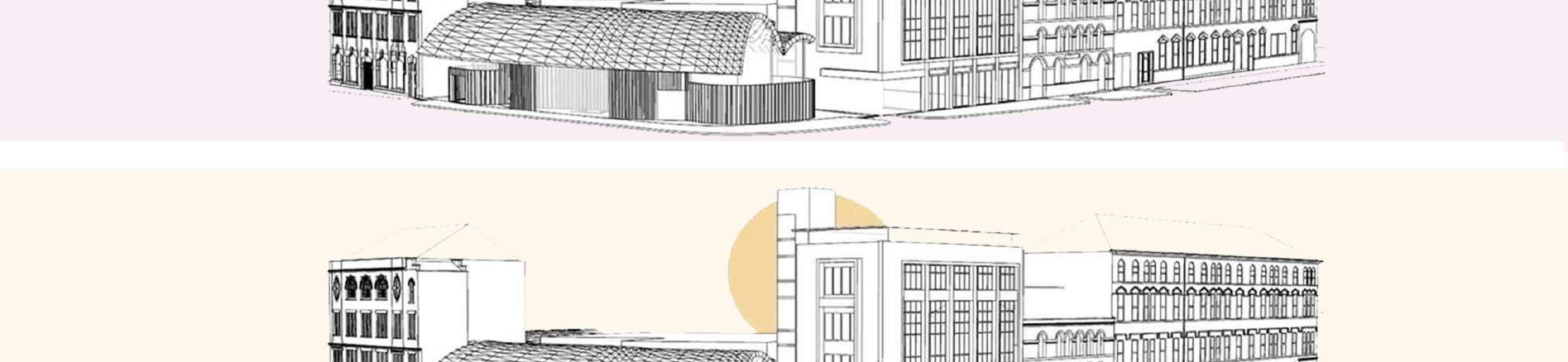

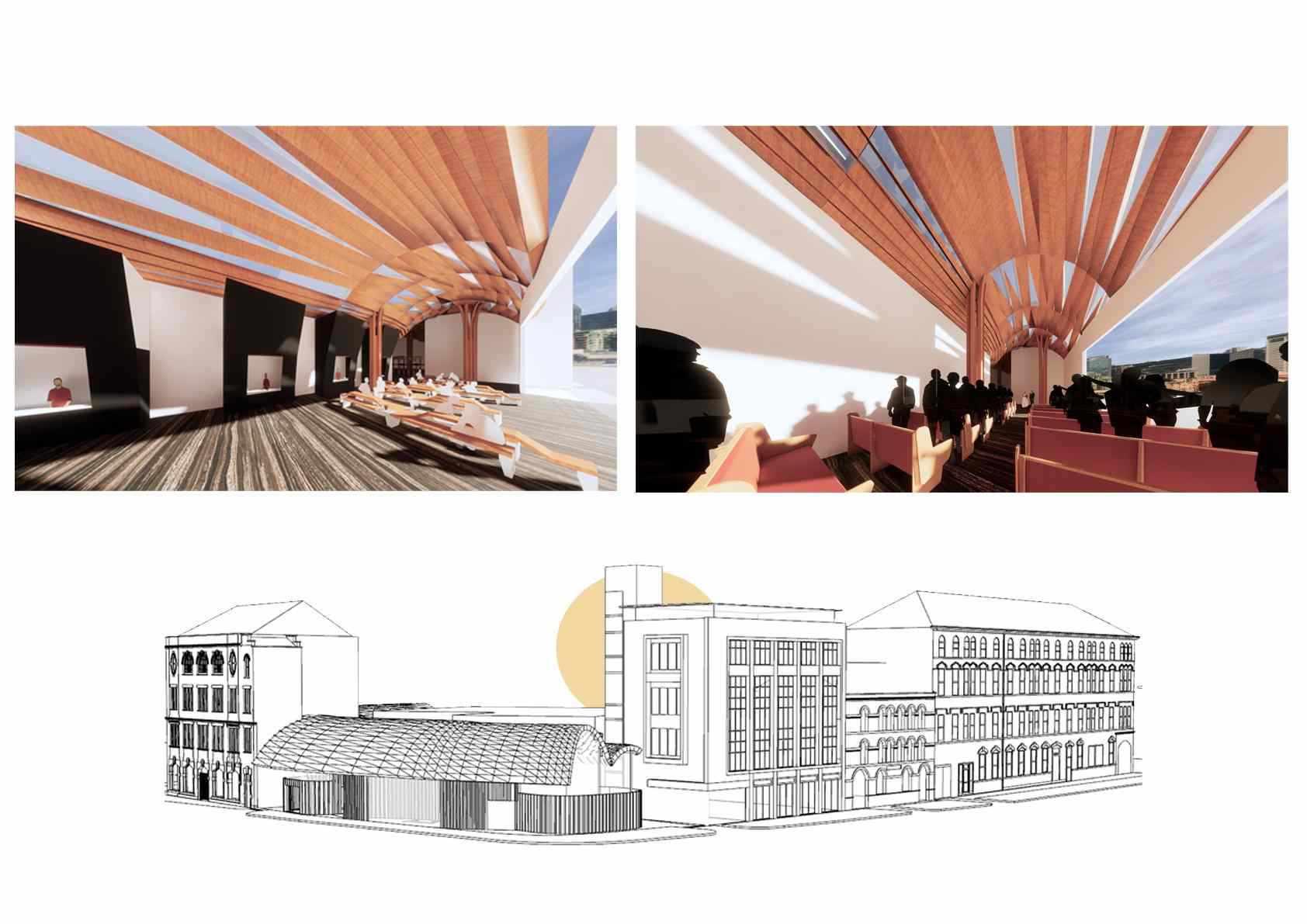

NEW NATIONAL GALLERY, BERLIN
MSc ADVANCED ARCHITECTURAL DESIGN
TECHNICAL DISSERTATION

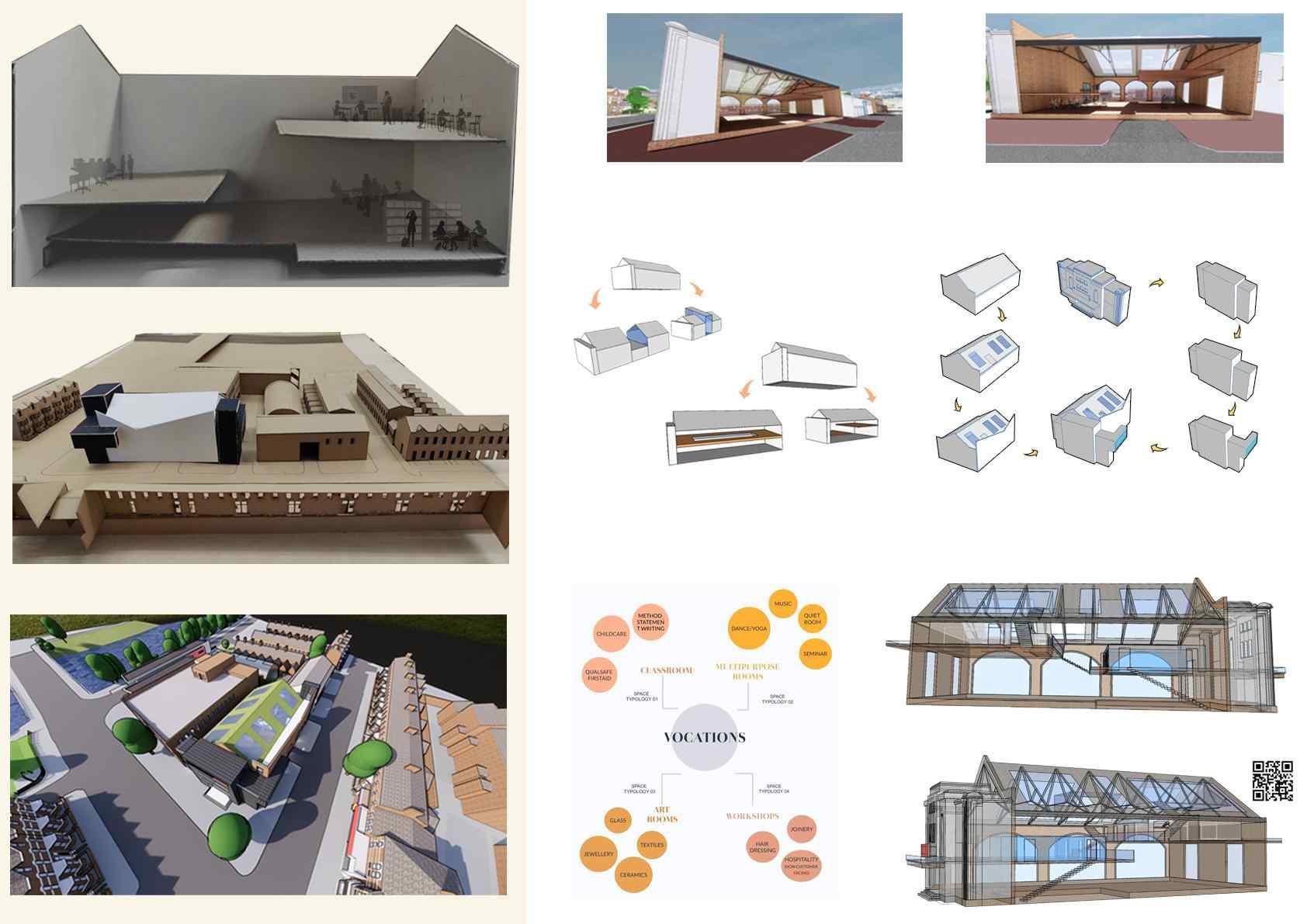

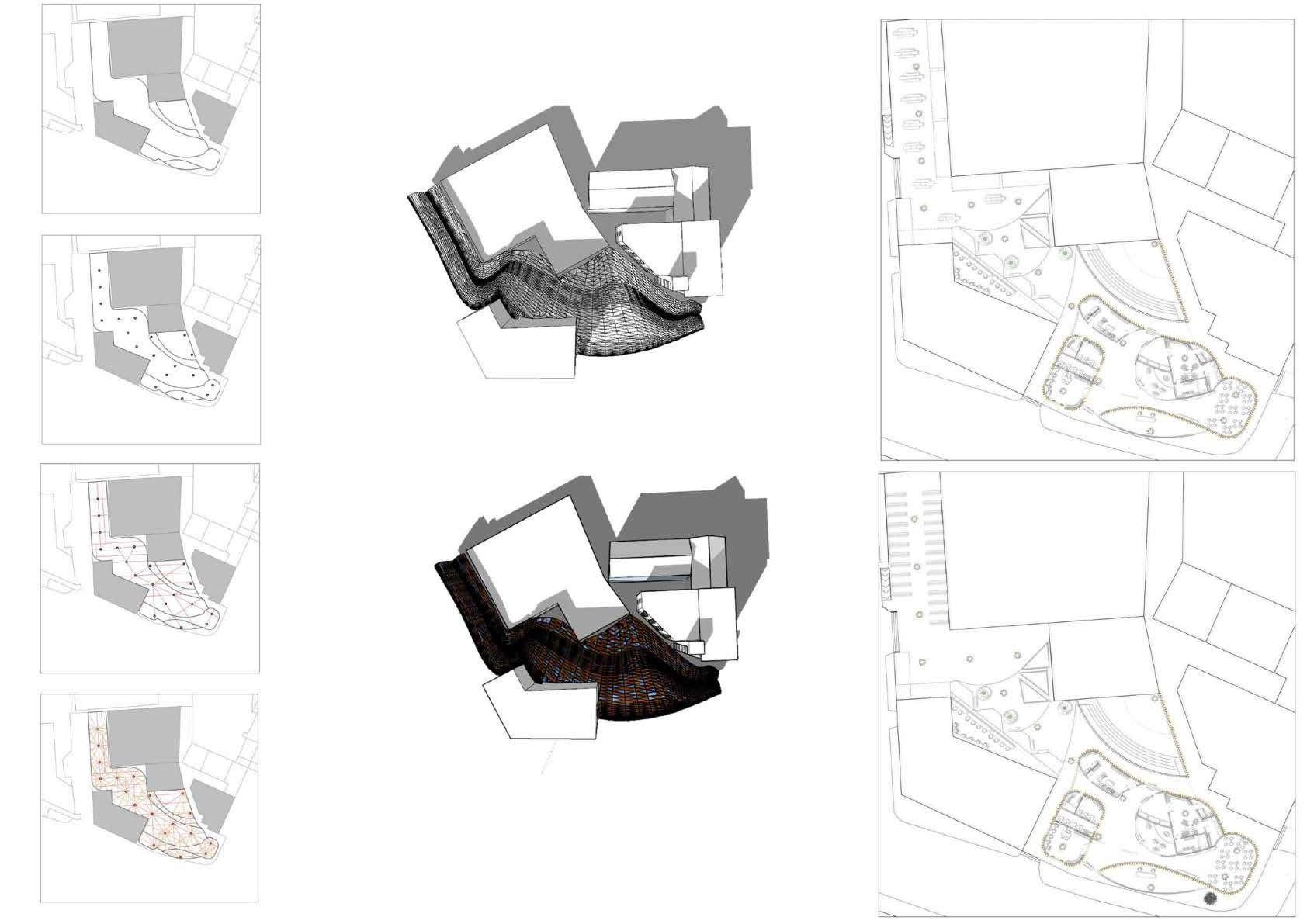

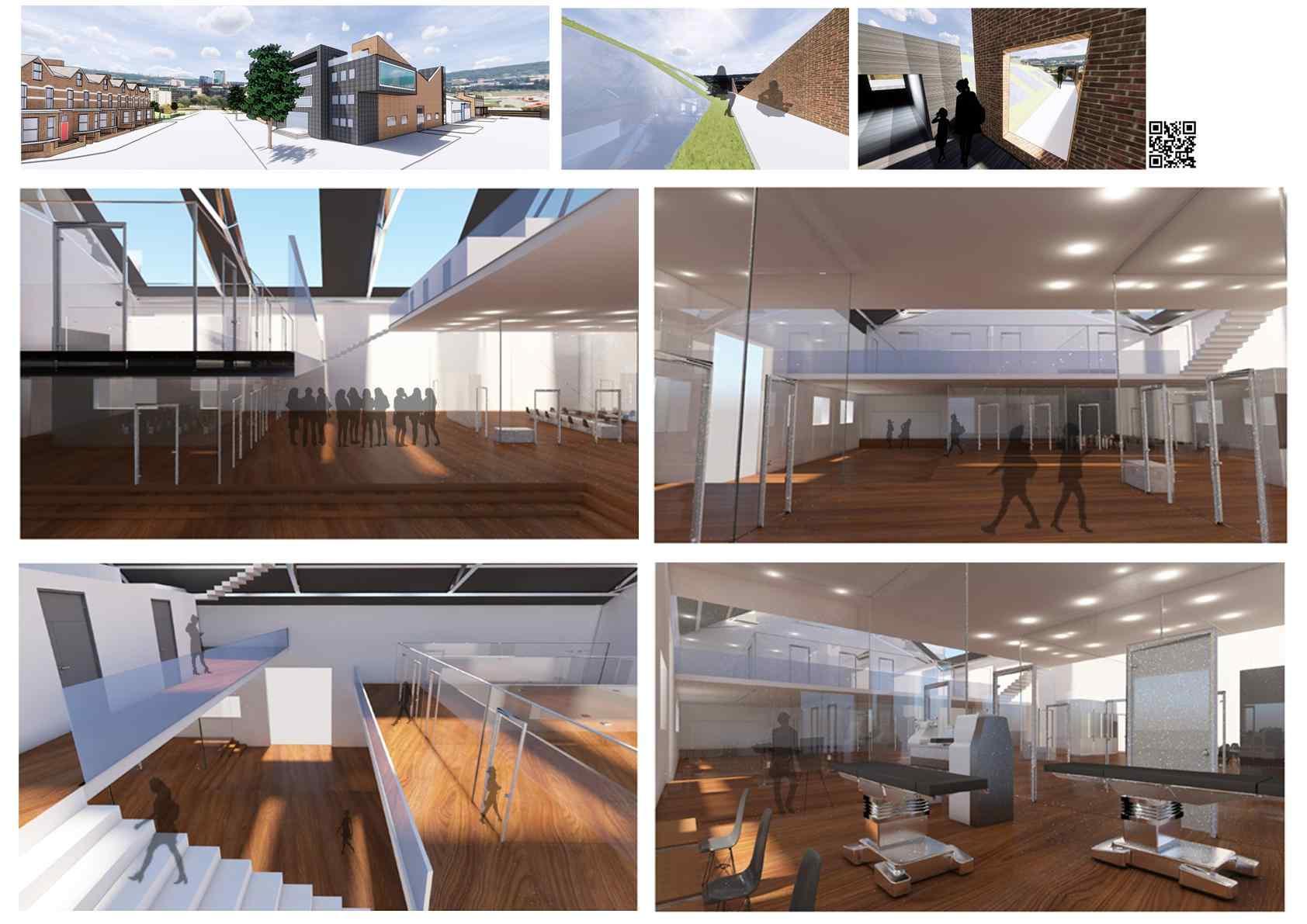

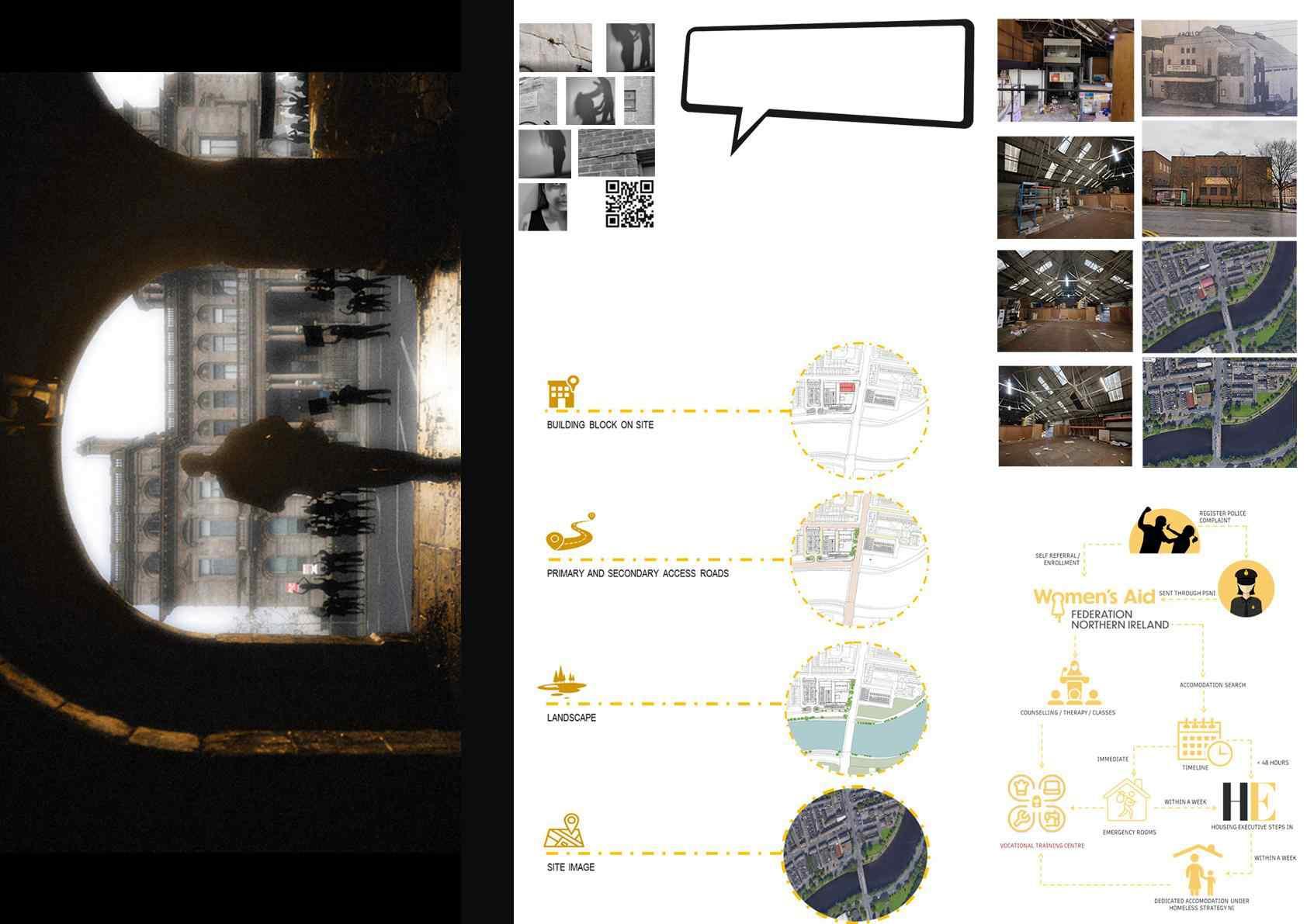

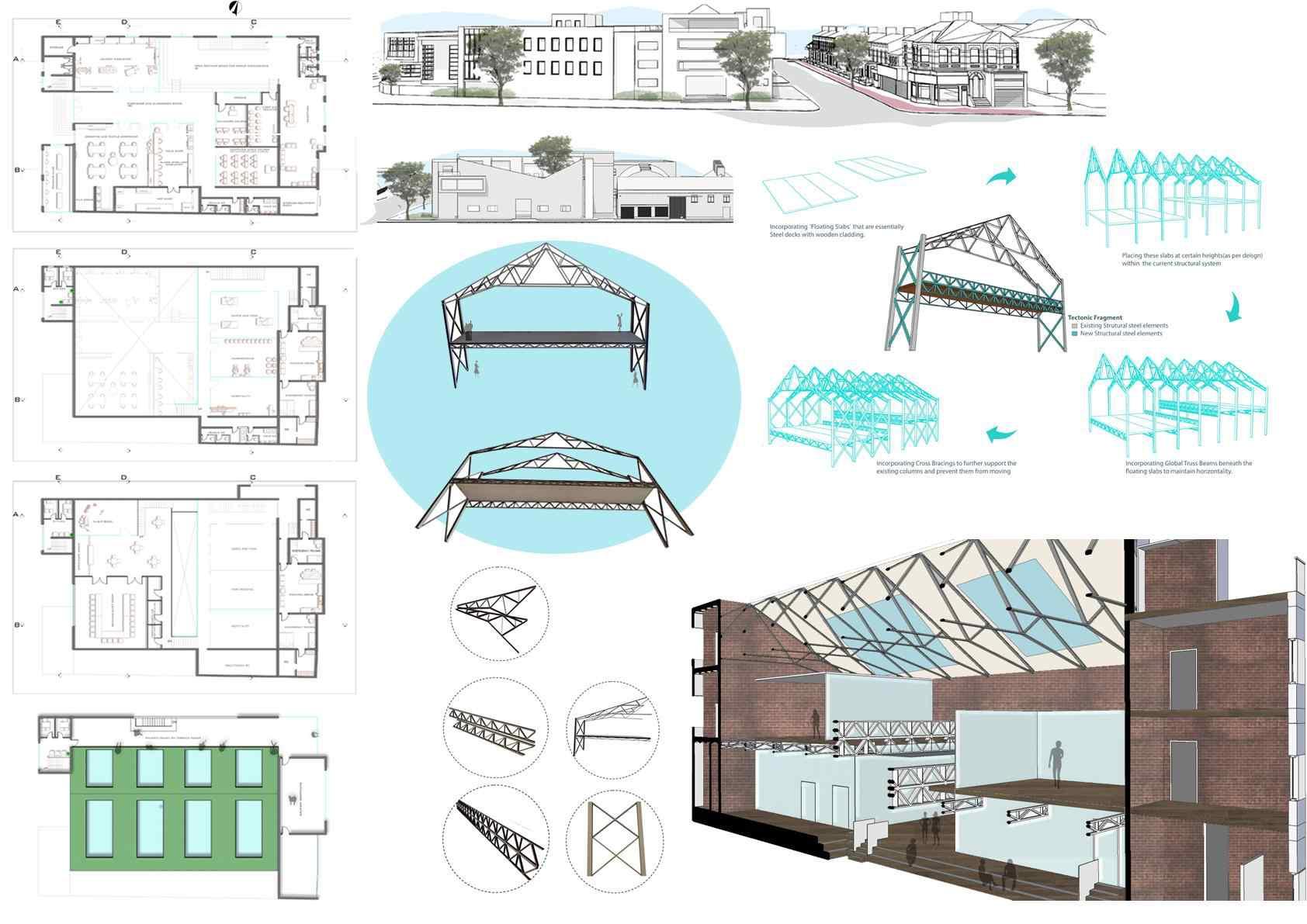

WOMEN IN NEED : VOCATIONAL
TRAINING CENTRE FOR DOMESTIC ABUSE SURVIVORS
MSc ADVANCED ARCHITECTURAL DESIGN
TECHNICAL DISSERTATION

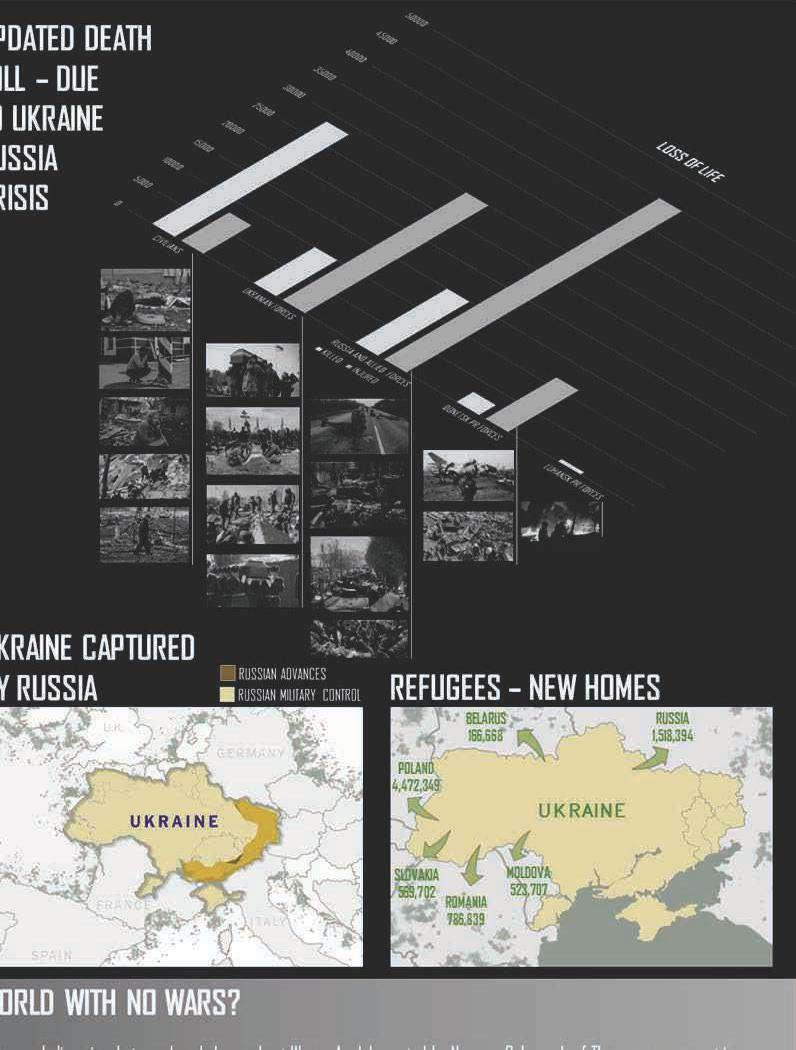

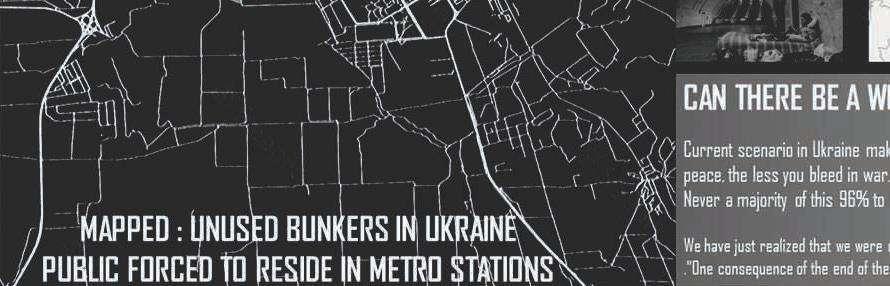

DESIGN TO SURVIVE
ARCHITECTURE INTHE TIME OF NEED

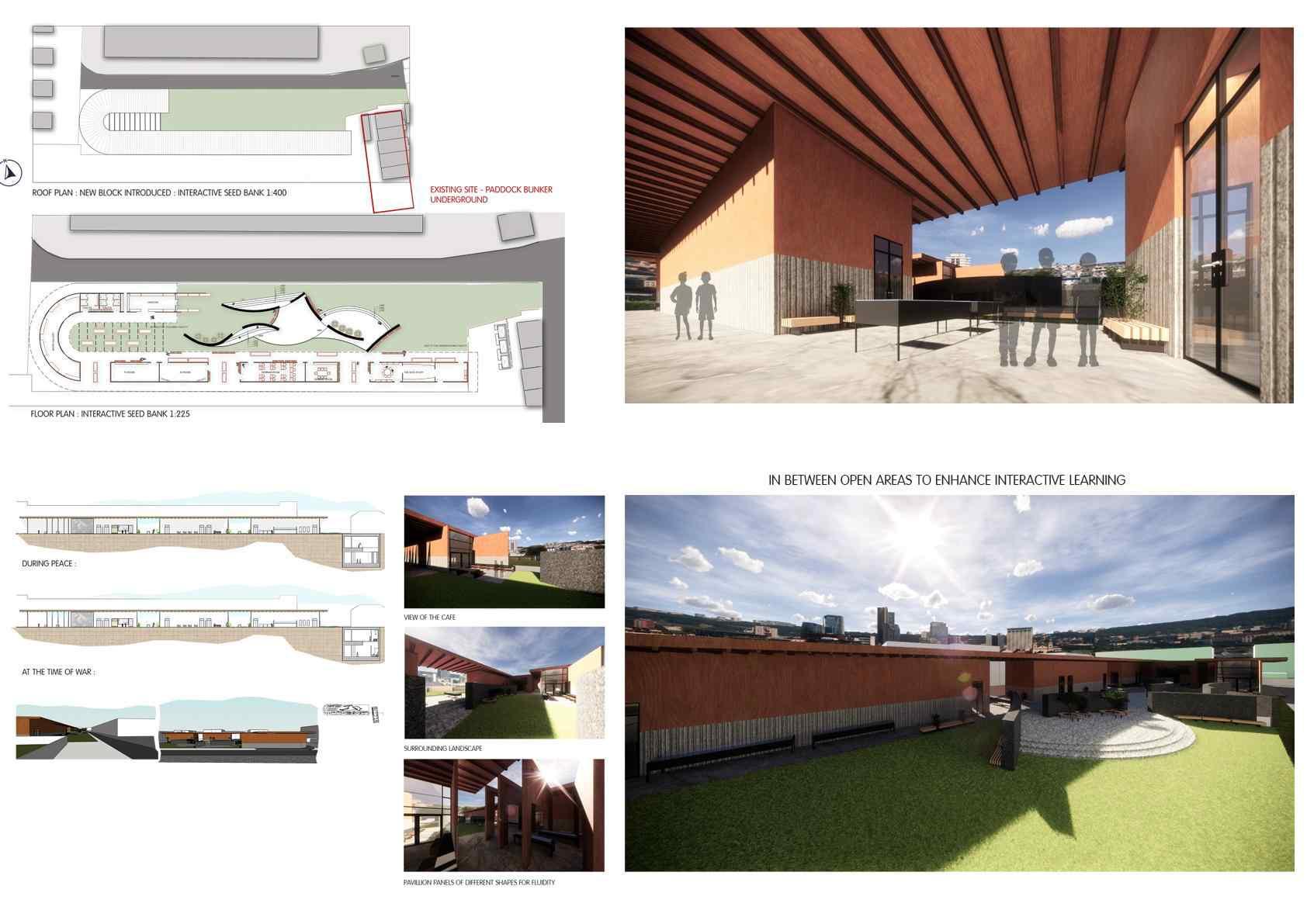

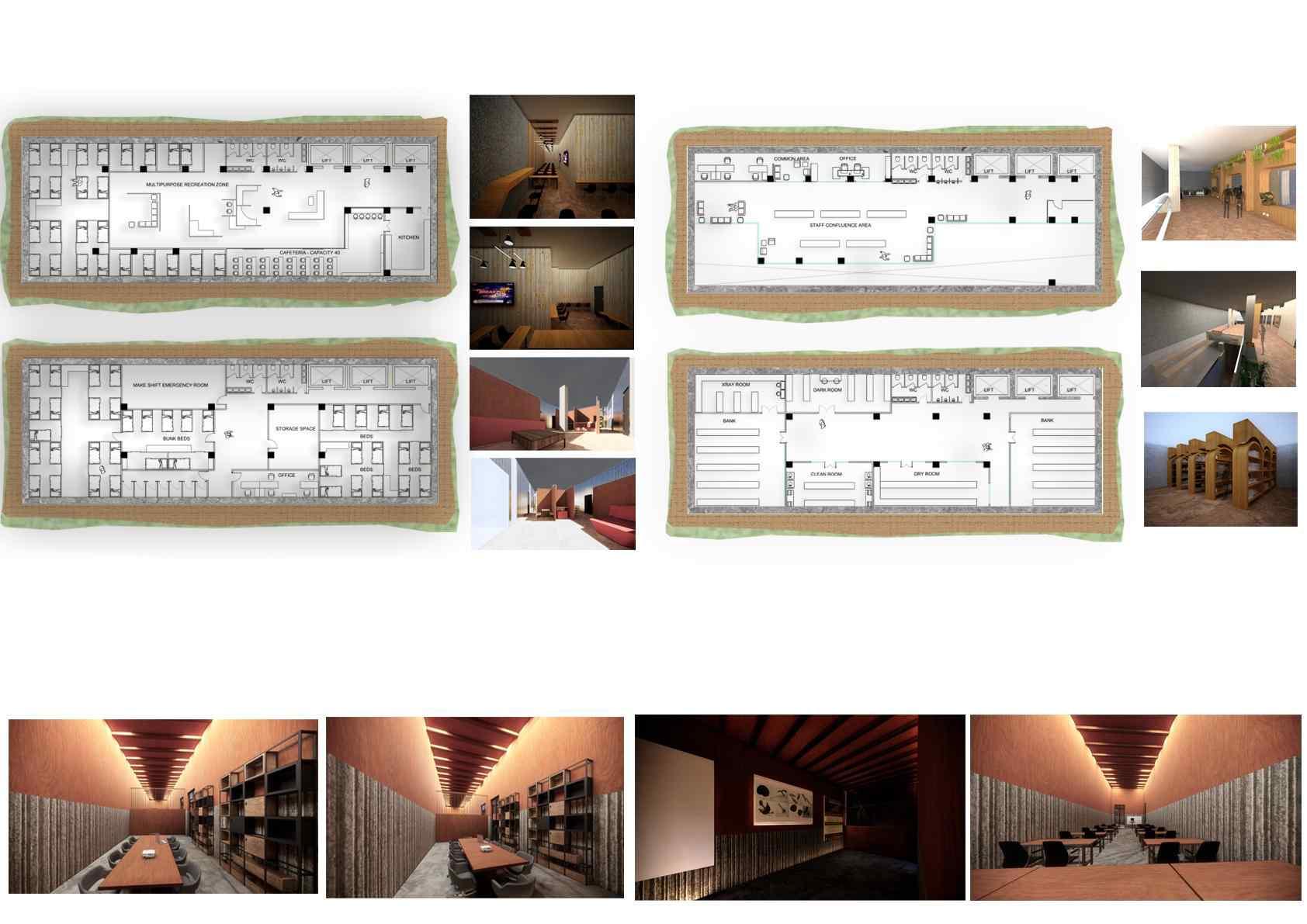

IN PERSPECTIVE PREPAREDNESS FOR WAR

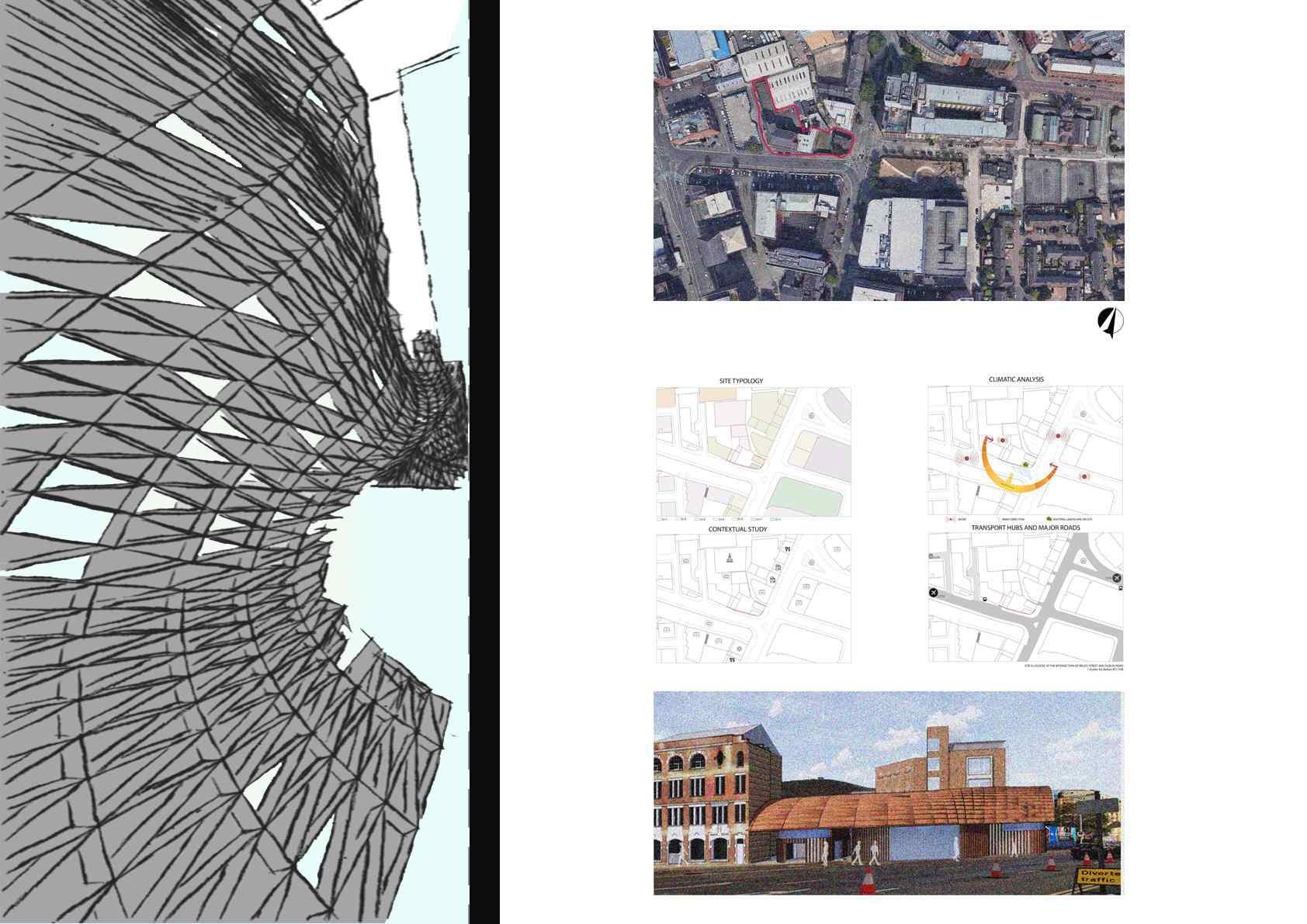

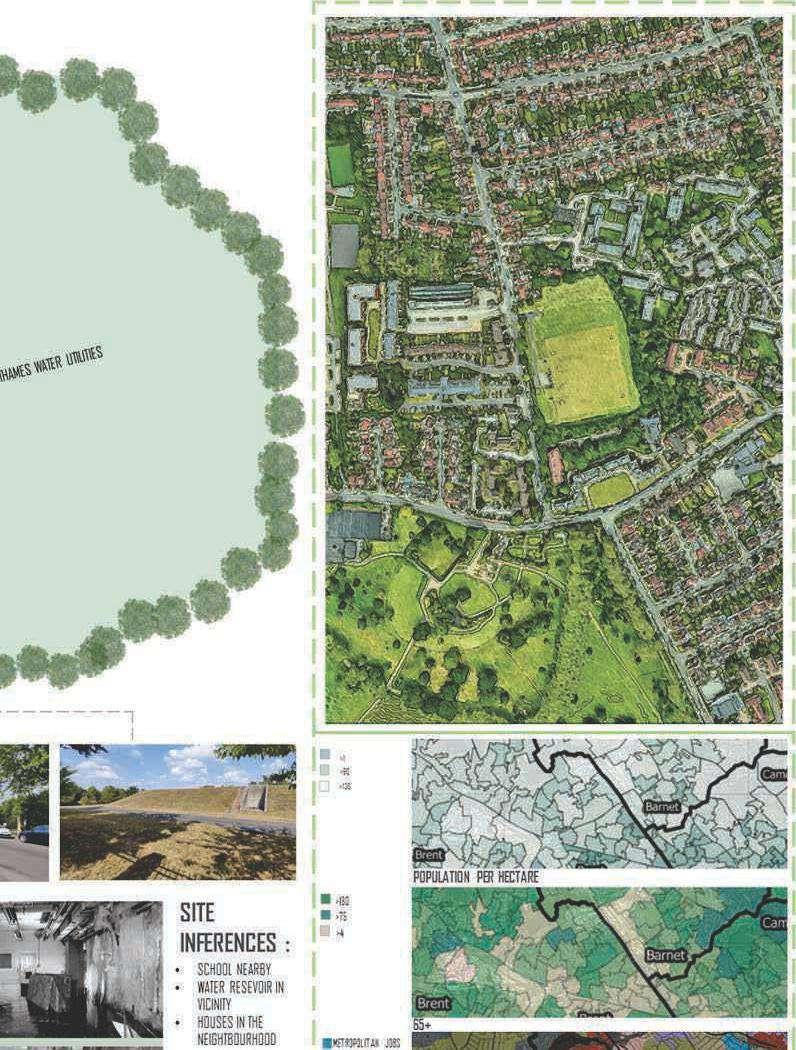

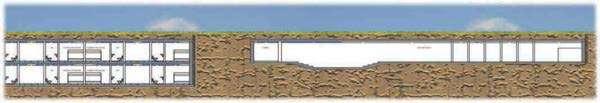

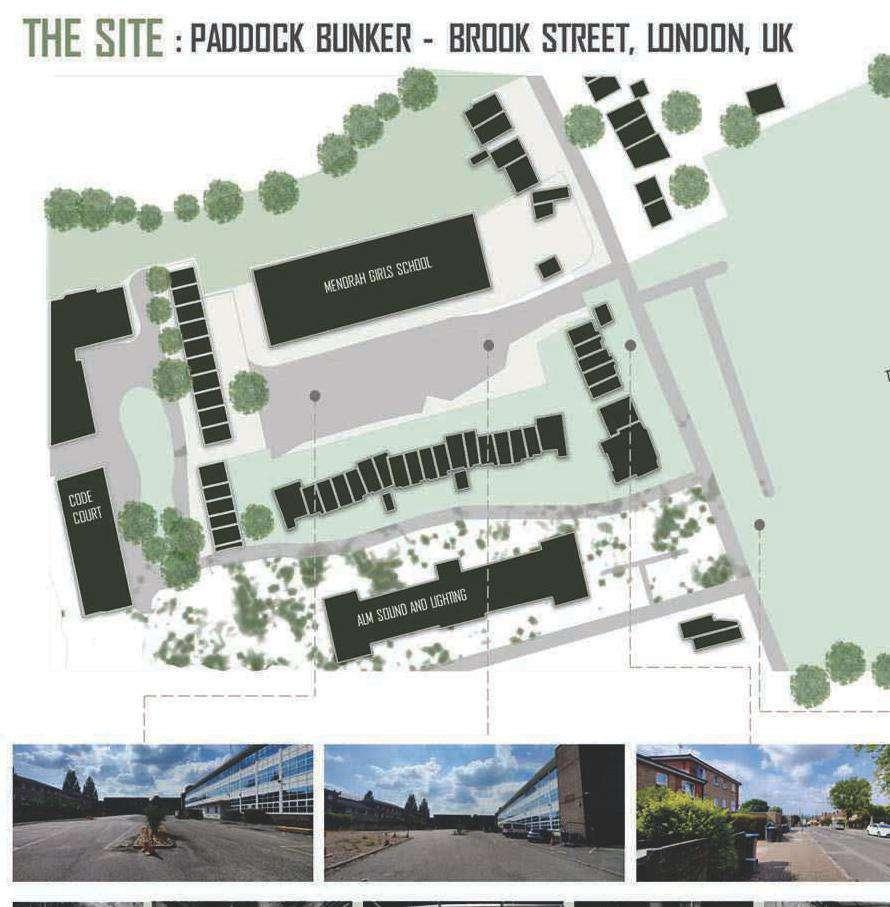

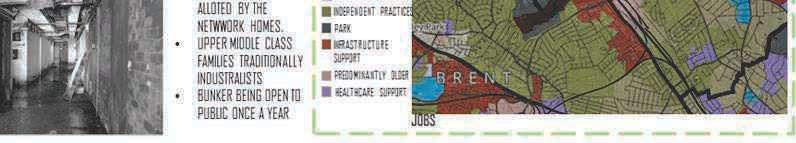

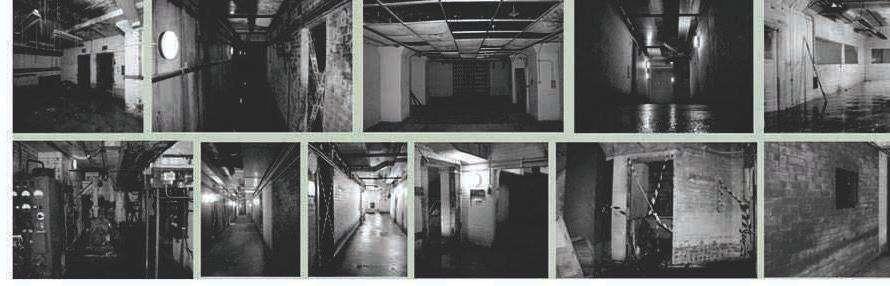

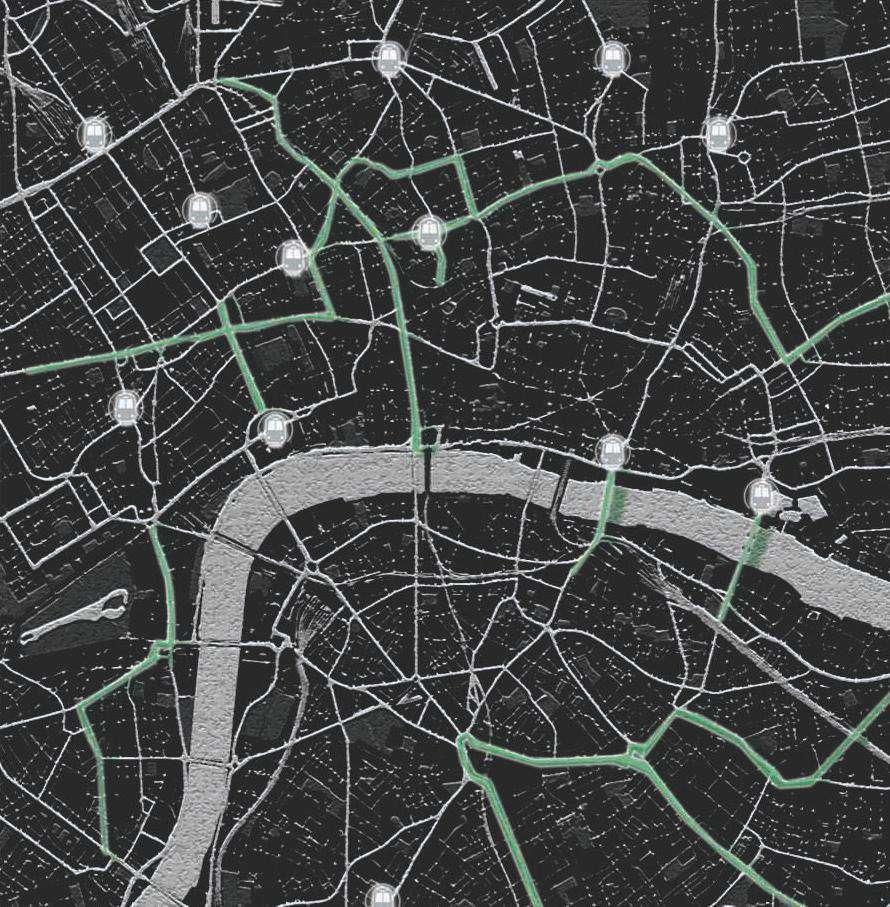

TIME : ADAPTIVE REUSE OF EXISTING

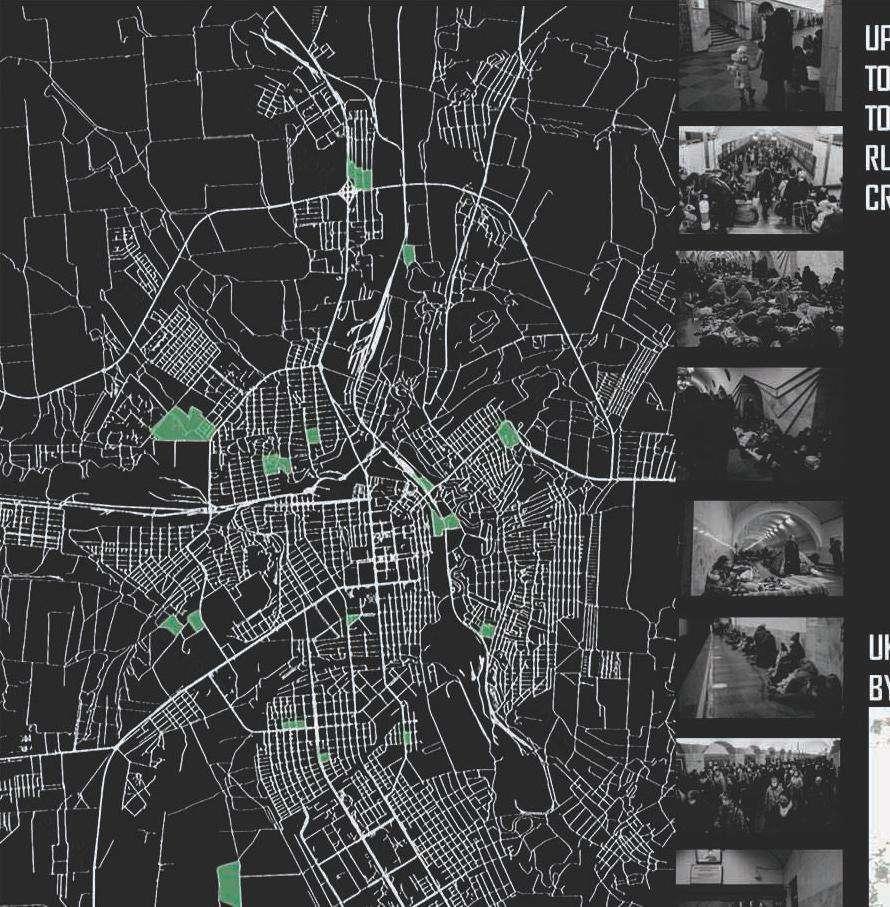

UNDERGROUND BUNKERS IN LONDON
MSc ADVANCED ARCHITECTURAL DESIGN
DESIGN PROJECT

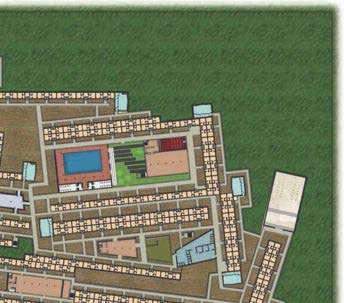

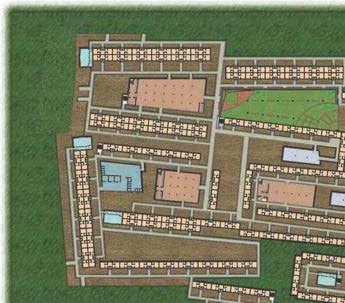

CONSERVING HUMAN LIFE IN COMBAT: WAR
SHELTERS AT AMRITSAR, INDIA
BACHELOR OF ARCHITECTURE
DESIGN PROJECT

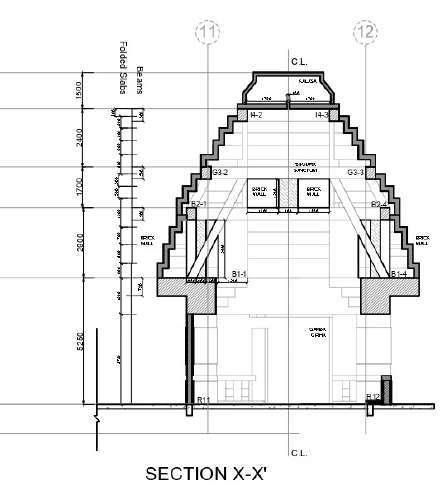

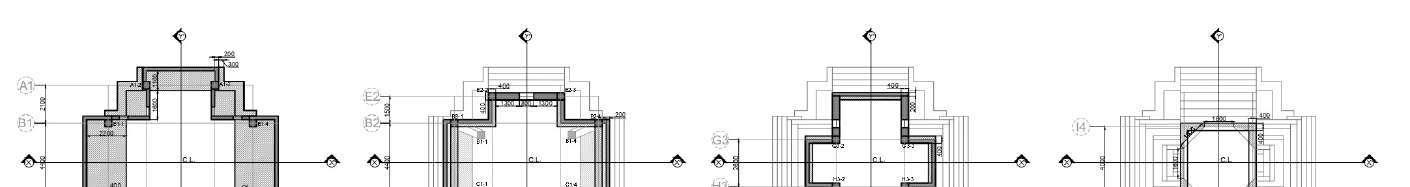

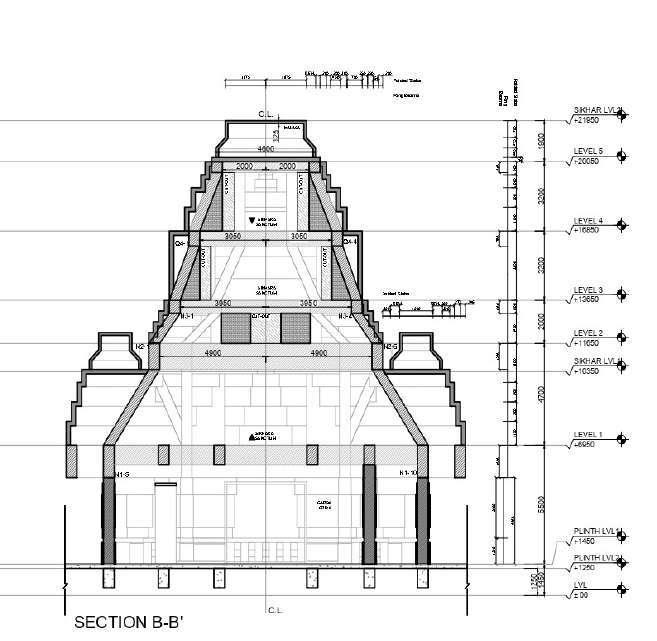

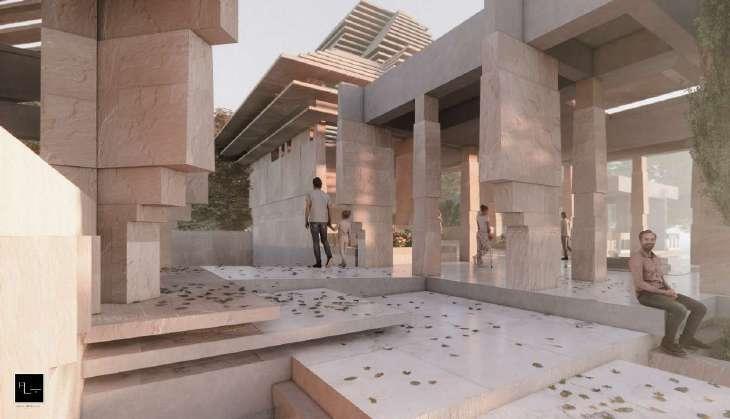

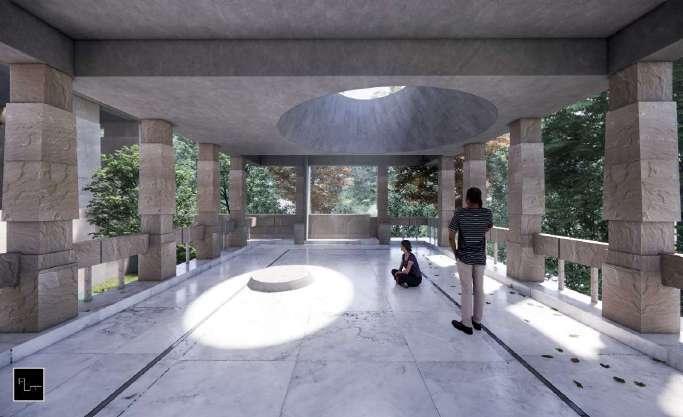

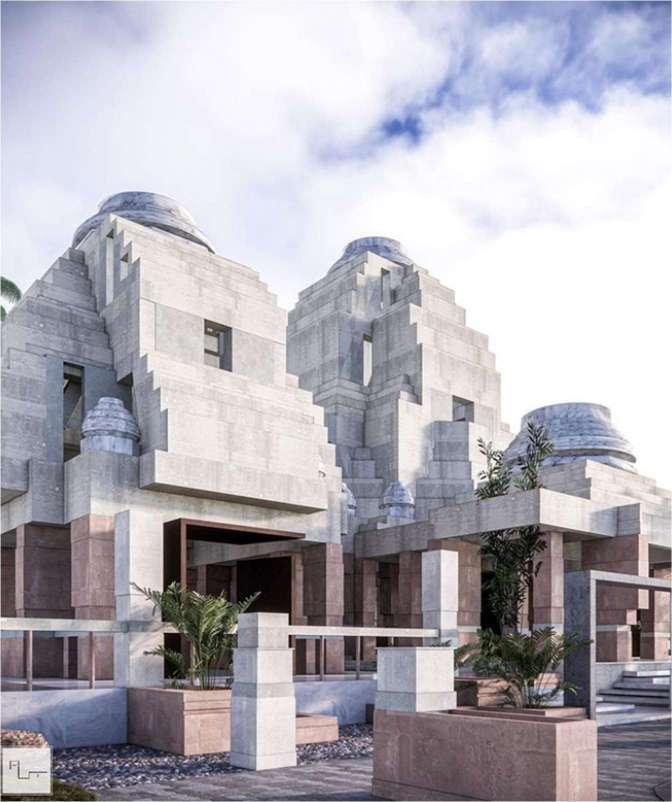

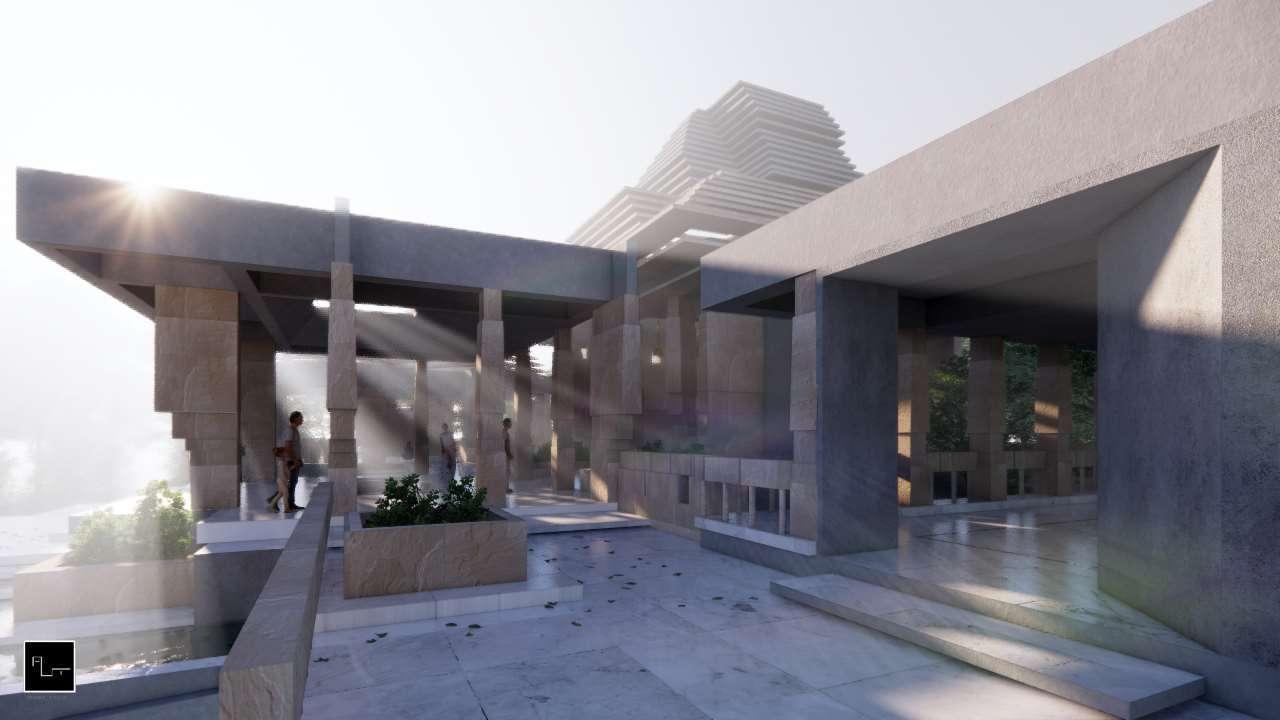

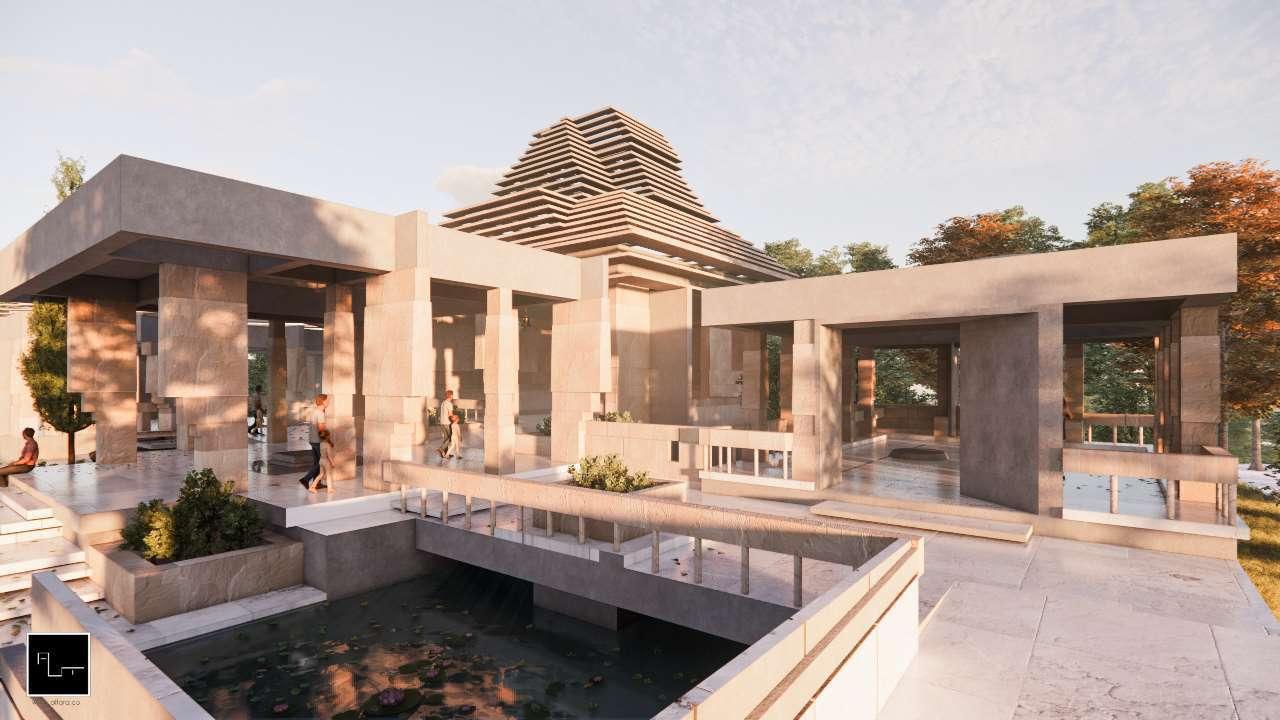

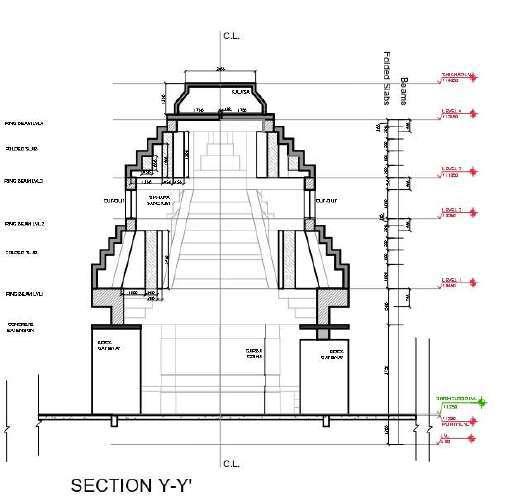

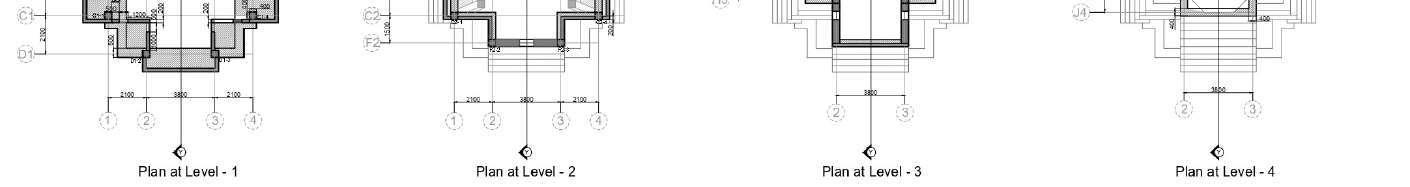

The Nalanda Temple Complex
.

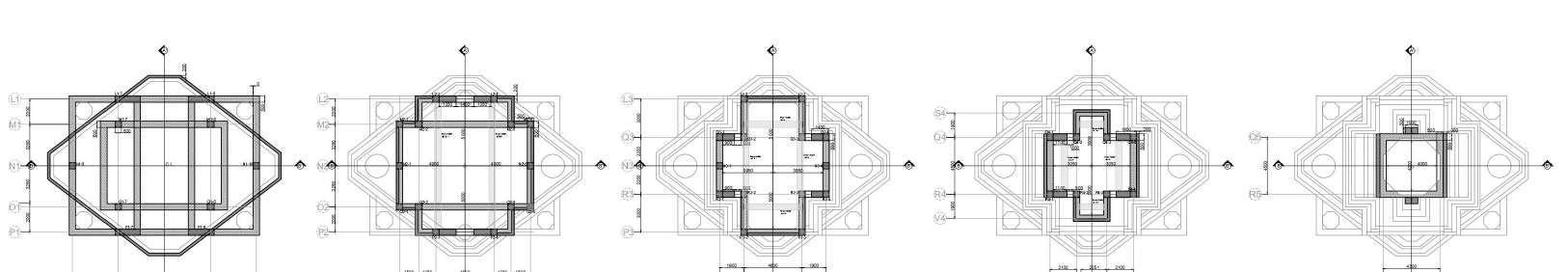

Delve in the serenity of this quaint temple complex situated in the historic city of Nalanda where the temples circumscribe a beautiful stepped pond. It will also serve the devotees during the mega festival of Chhath. Set for completion by the end of 2023, the phase I comprises Devi Temple, Ram Temple and Sai Temple.
The language of architecture is that of clean geometry composed in exposed sandstone, concrete and cortensteel. We tried to do away with detailed engravings on walls, playing in the field of contemporary culture.
STATUS: UNDER CONSTRUCTION
LOCATION: PATNA,INDIA
AREA: 833 SQM
TYPOLOGY: CULTURAL
AREA: 833 SQM
INVOLVEMENT: TEAMPROJECT CLIENT HANDLING GFC SET PREPARATION MOCK RENDERING
FLOORING SELECTION
VENDOR MANAGEMENT

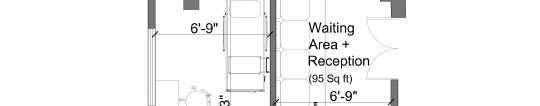

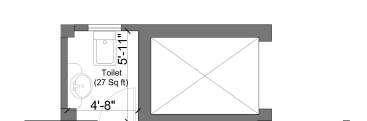

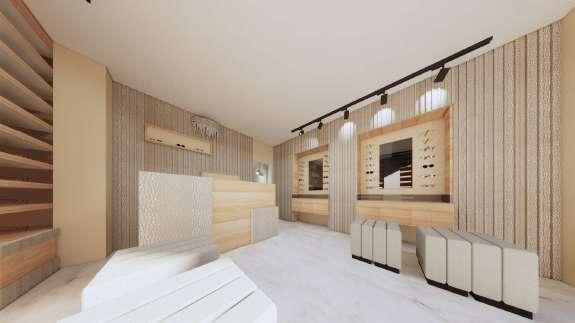

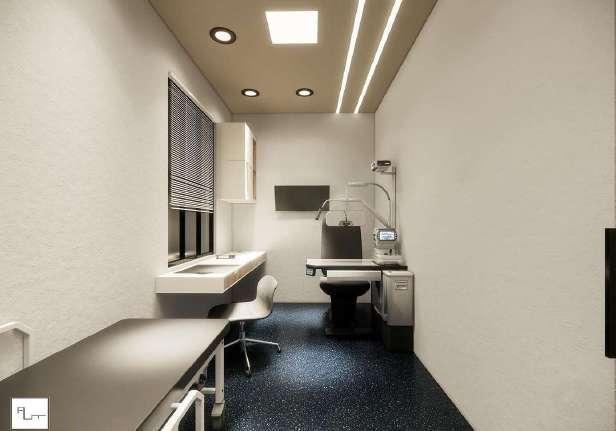

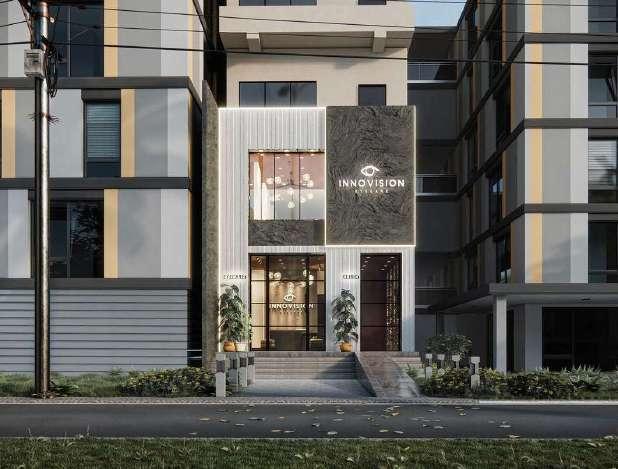

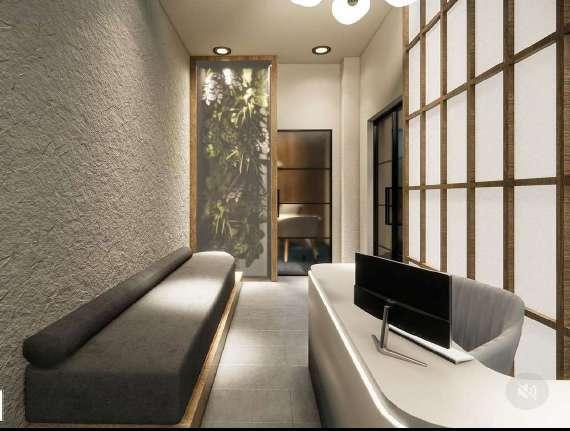

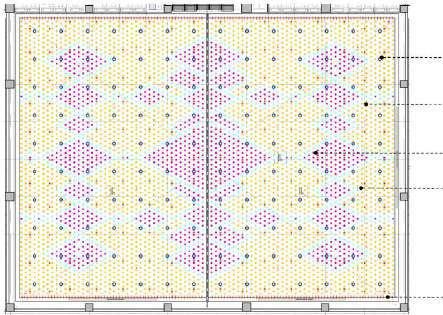

INNOVISION HEALTHCARE
STATUS: COMPLETED 2023
LOCATION: PATNA, INDIA
AREA: 686 SQFT
TYPOLOGY: HEALTHCARE
INVOLVEMENT:
INDIVIDUAL PROJECT
CLIENT HANDLING
GFC SET PREPARATION
MOCK RENDERING
LIGHT DESIGN
ELECTRICALDWGS
FURNITURE SELECTION AND PLACEMENT
FLOORING SELECTION
VENDOR MANAGEMENT

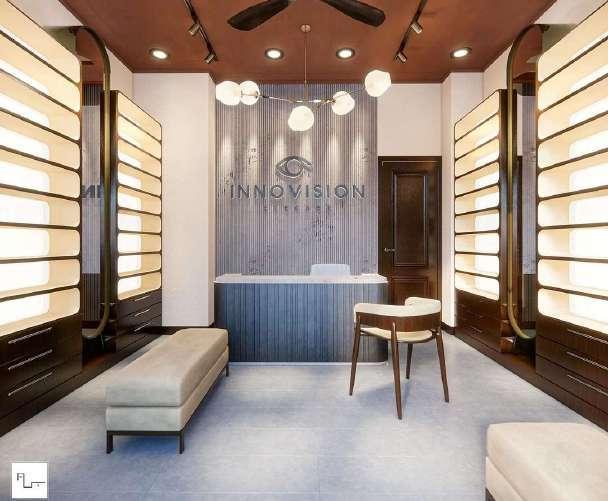

INNOVISION Healthcare, situated in Patna, is a striking confluence of aesthetic vision and medical pragmatism. Designed to reflect the refined tastes of a leading ophthalmologist, the facility transcends the typical clinical atmosphere, merging high-end design with the bespoke needs of an eye care center. The clinic’s interiors are meticulously curated to exude elegance while prioritizing the well-being of its patrons, with a spatial arrangement that speaks of sophisticated comfort and streamlinedfunctionality.

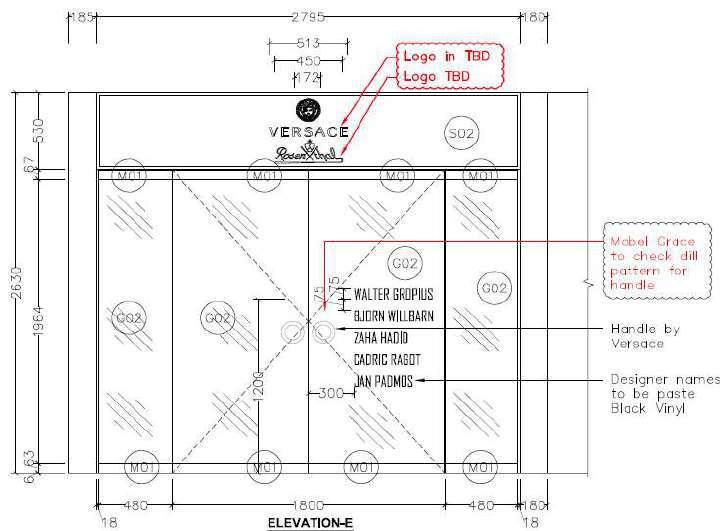

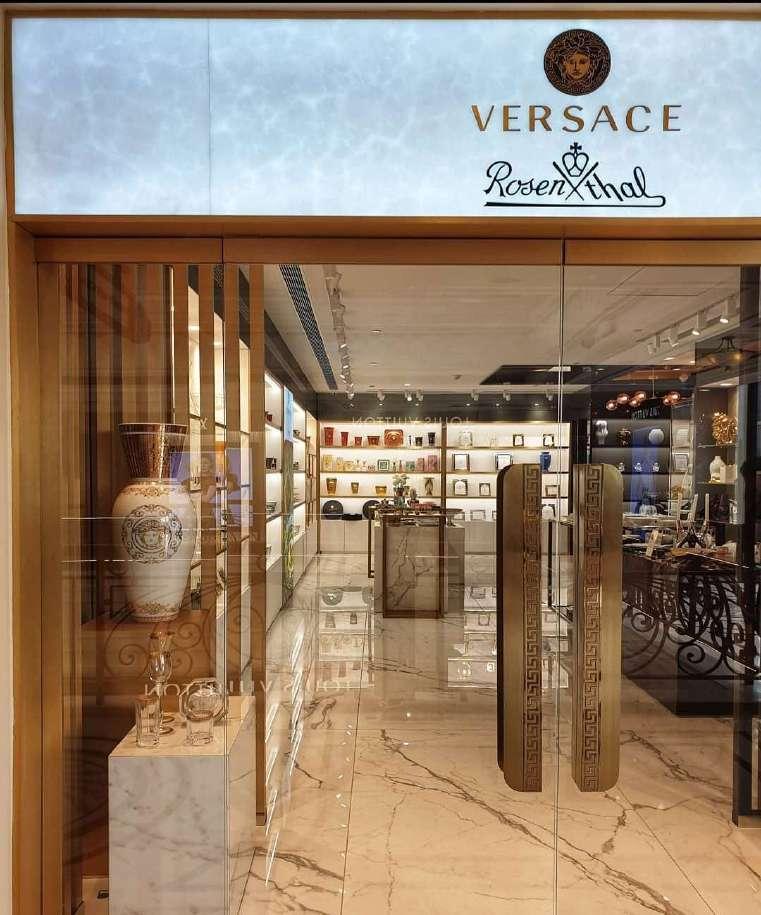

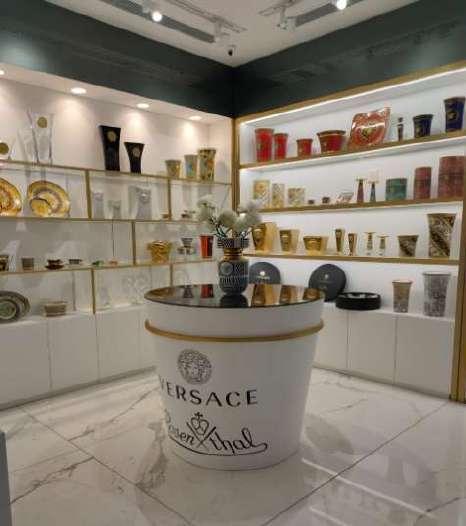

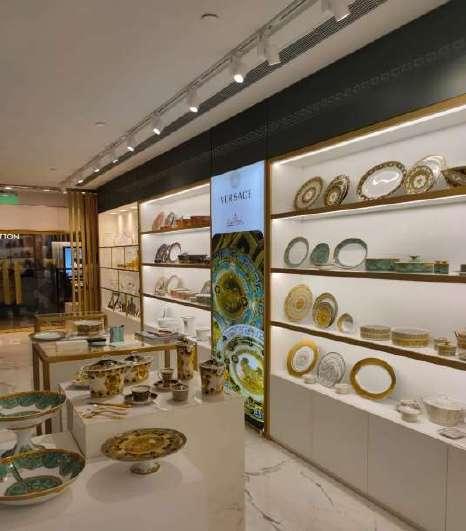

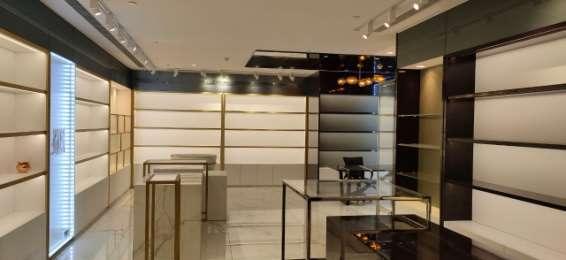

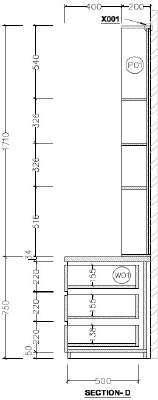

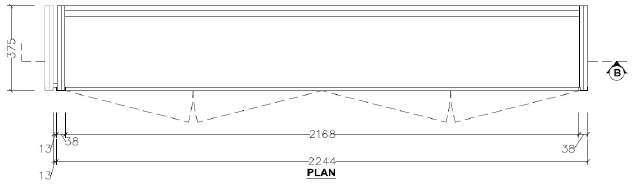

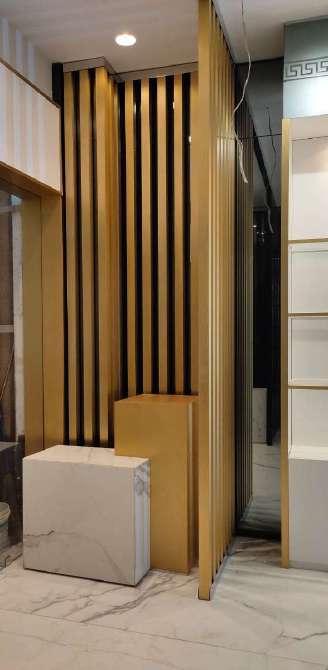

VERSACE X ROSENTHAL
STATUS: COMPLETED 2019 LOCATION: DELHI,INDIA
INVOLVEMENT:
• TEAMPROJECT
• CLIENT HANDLING
• FURNITURE DESIGN AND FABRICATION
• MOCK RENDERING
TYPOLOGY: COMMERCIAL AREA:
60 SQM

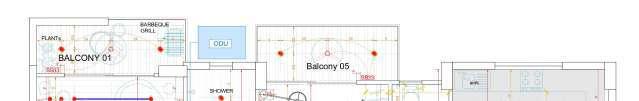

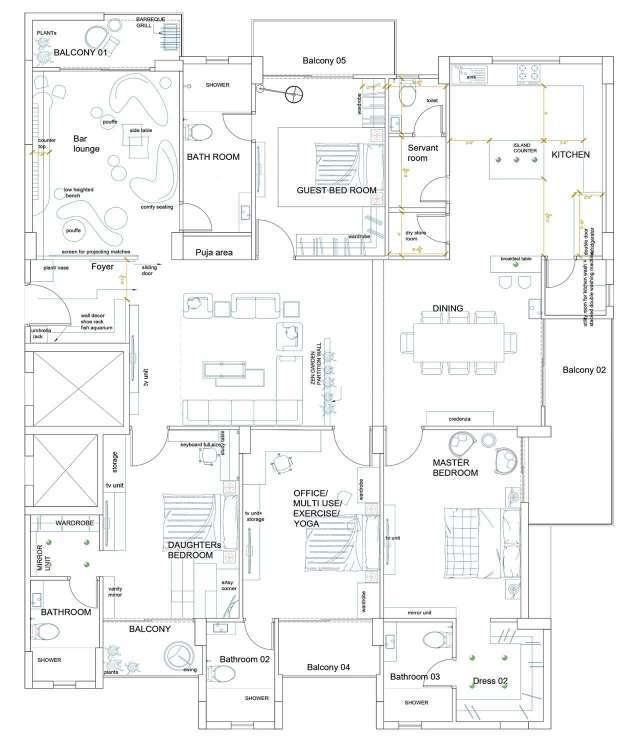

SAWAN’S RESIDENCE
STATUS: COMPLETED 2023
LOCATION: PATNA, INDIA
AREA: 3043 SQFT
TYPOLOGY: RESIDENTIAL
INVOLVEMENT:
INDIVIDUAL PROJECT
GFC SET PREPARATION
MOCK RENDERING
VENDOR MANAGEMENT
LIGHT DESIGN

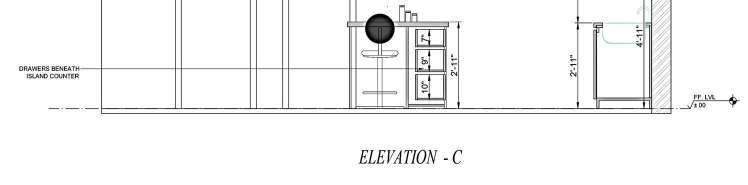

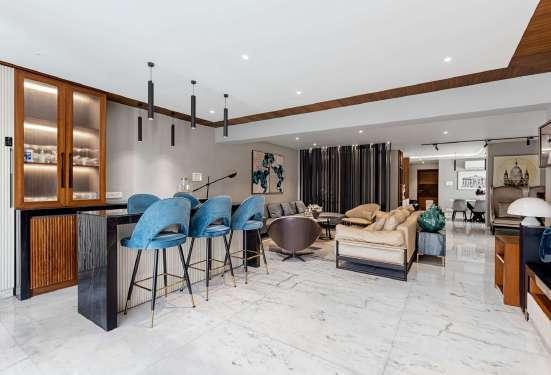

SawanResidence
air

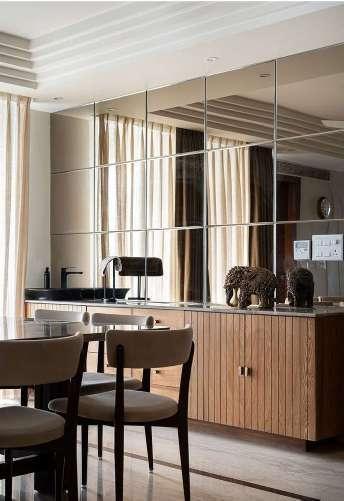

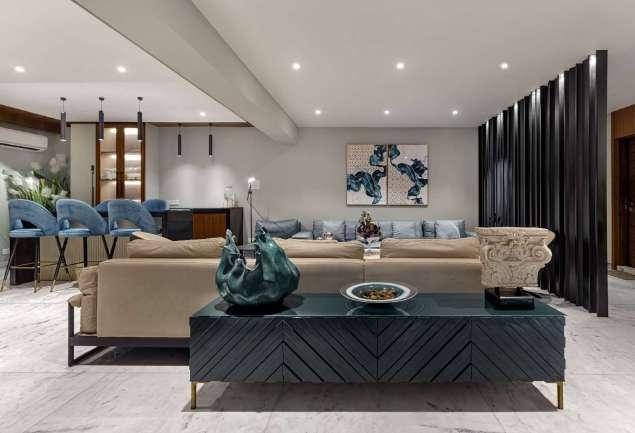

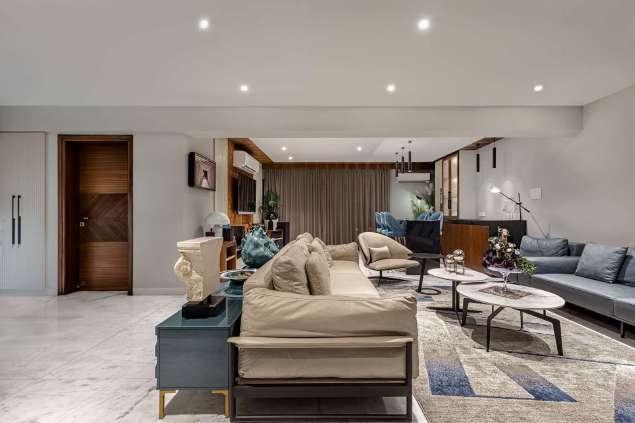

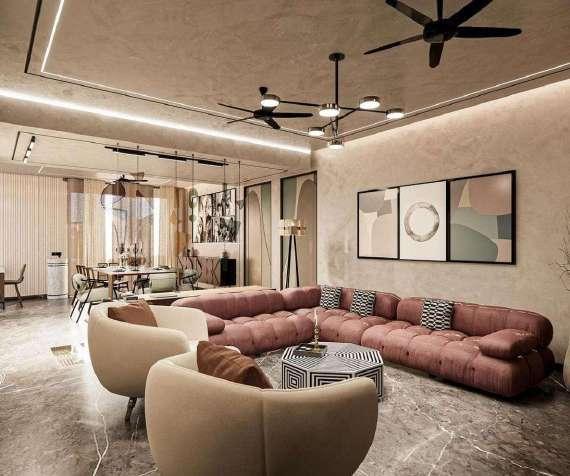

Throughout the SawanResidence, comfort interlaces with luxury, embodied in sumptuous furnishings designed for more than mere visual appeal—they promise an experience of indulgence. This residence stands as a symphony of architectural brilliance, where living extends beyond mere existence tobecome a vibrant declaration of lifestyle..
The
in Ranchi redefines modern living within its generous 3000sqft spread. This dwelling, conceptualized for a prominent businessman and his family, exudes contemporary elegance, with each space reflecting a youthful exuberance paired with sophisticated design choices. The barroom and office area are testimonials to the homeowner’s discerning taste, merging form and function with an
of exclusivity.

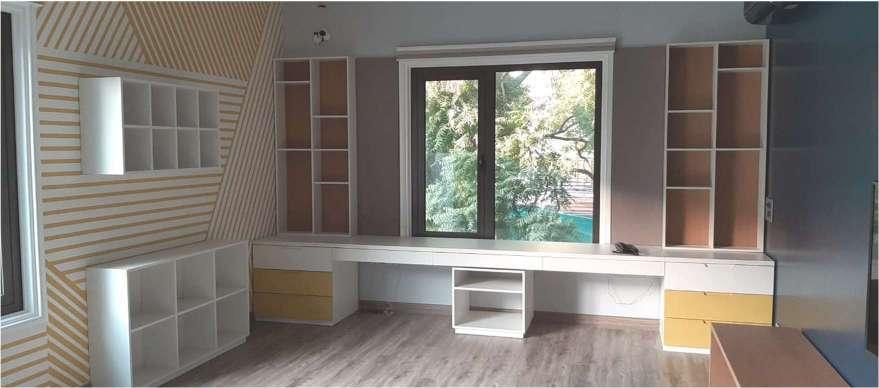

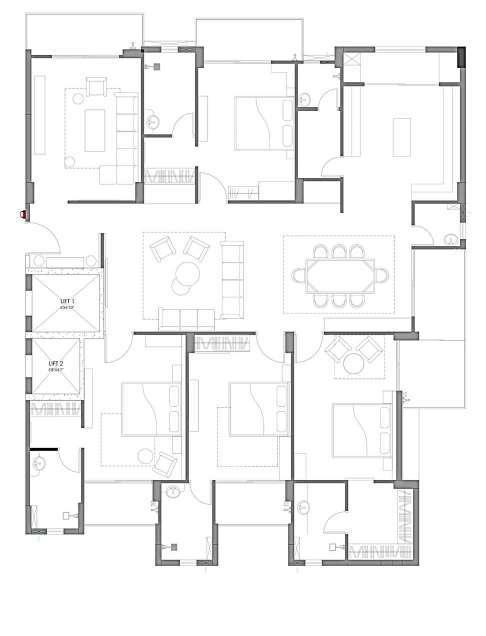

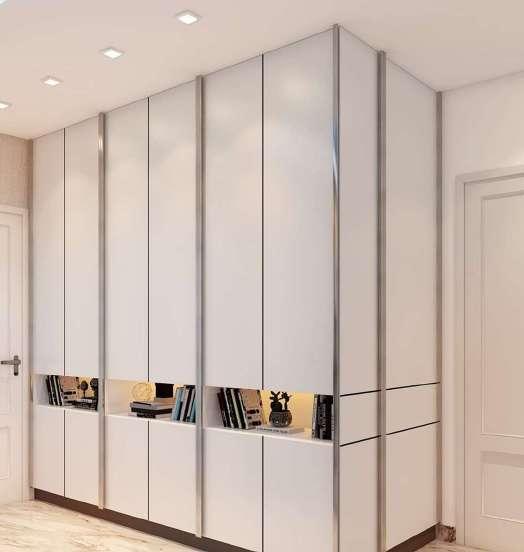

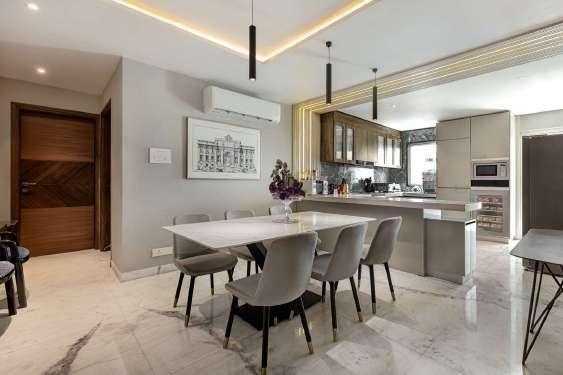

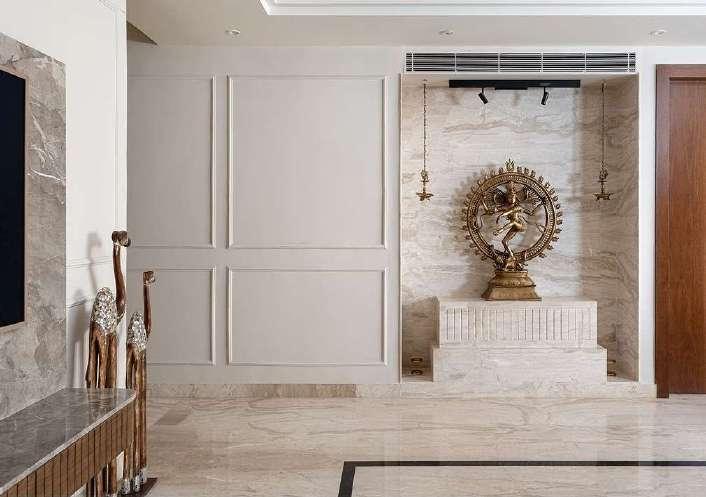

RESIDENCE 9C –CALM UNDERTONES INCORPORATED. FIRST INDIVIDUAL RESIDENTIAL PROJECT THAT I WORKED ON AND MANAGED THE VENDORS OF.
FROM FURNITURE PLACING TO SELECTION –IT WAS A FUN AND INTERESTING EXPERIENCE THAT HELPED ME JOT DOWN KEY POINTS OF RESIDENTIAL FITTINGS.
9C RESIDENCE STATUS: COMPLETED 2021 LOCATION: DELHI, INDIA AREA: 2358 SQFT TYPOLOGY: RESIDENTIAL INVOLVEMENT: INDIVIDUAL PROJECT GFC SET PREPARATION MOCK RENDERING VENDOR MANAGEMENT LIGHT DESIGN

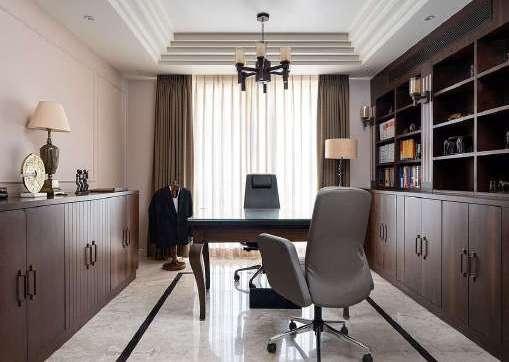

this stately home office is a sanctum of sophistication tailored for a legal luminary. Rich, dark wood paneling and bookcases exude gravitas, while the clean lines of the glass-topped desk inject a contemporary edge. Flanking the desk, the classic articulation of lamps and drapery softens the room’s authoritative tone. Strategic lighting from the modern chandelier and natural light filtering through the sheers illuminate the space with a soft, even glow. Each element, from the curated books to the chess set, is a testament to a mind attuned to strategy and refinement, echoing the meticulousness of a lawyer’s craft.
LOCATION: PATNA, INDIA
AREA: 273 SQM
TYPOLOGY: RESIDENTIAL INVOLVEMENT:
INDIVIDUAL PROJECT
GFC SET PREPARATION
MOCK RENDERING VENDOR MANAGEMENT
LIGHT DESIGN
RANJAN’S RESIDENCE STATUS:
2023
COMPLETED

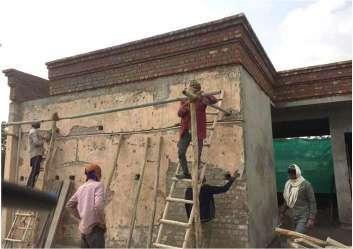

CONSTRUCTION SITE IMAGES
INVOLVEMENT:
INDIVIDUALPROJECT
CLIENTHANDLING
SANCTION SET PREPARATION
MOCK RENDERING
LIGHT DESIGN
ELECTRICALDWGS
FURNITURE SELECTION AND PLACEMENT
VENDOR MANAGEMENT

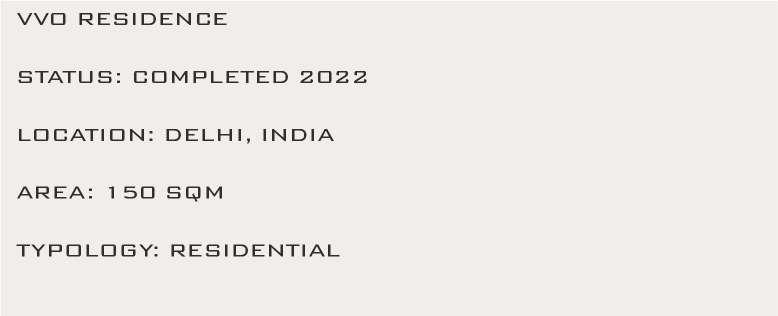

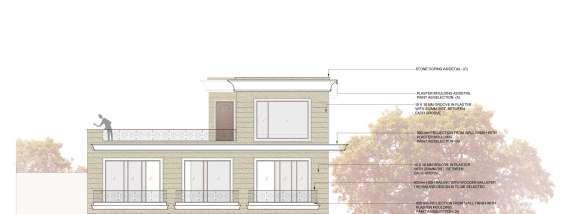

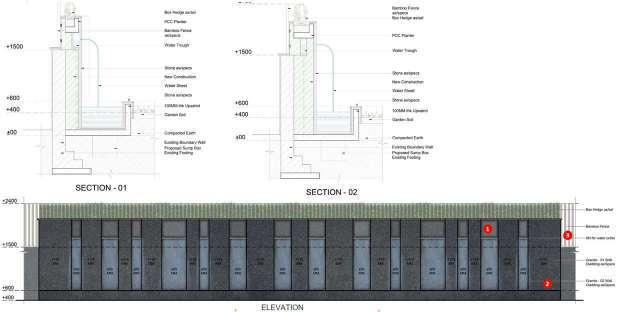

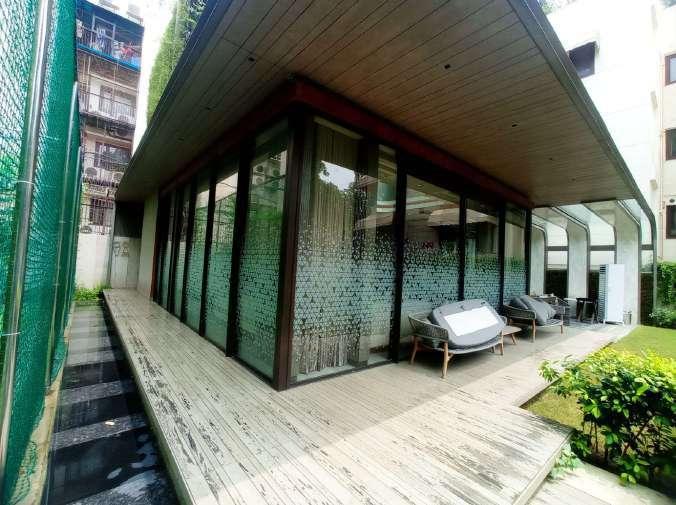

VVO RESIDENCE. From designing my first residential building out of Steel to its detailed book boundary wall planning and construction it was one of the most challenging experiences that I had faced as a designer. Completed within four months of its sanction drawing release set I was proud to work on this project by myself along with the principal architect

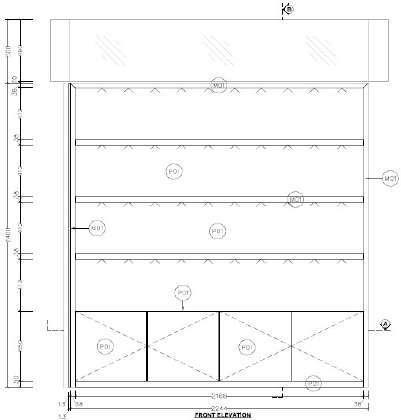

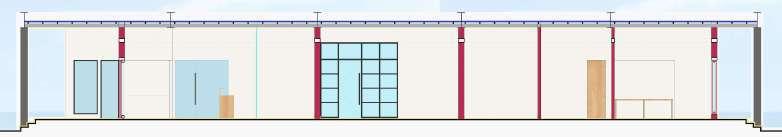

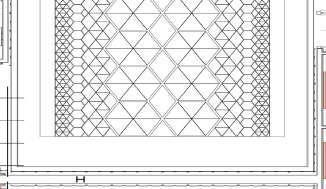

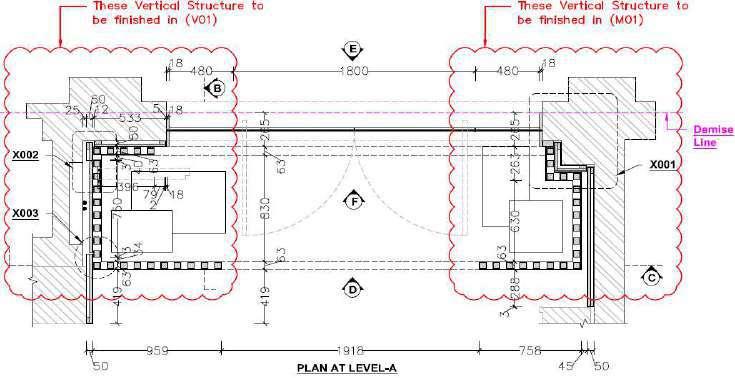

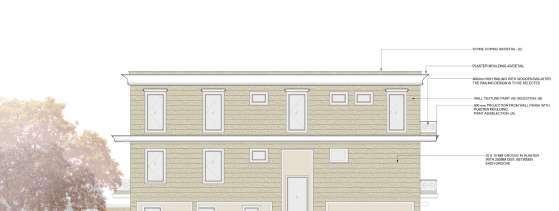

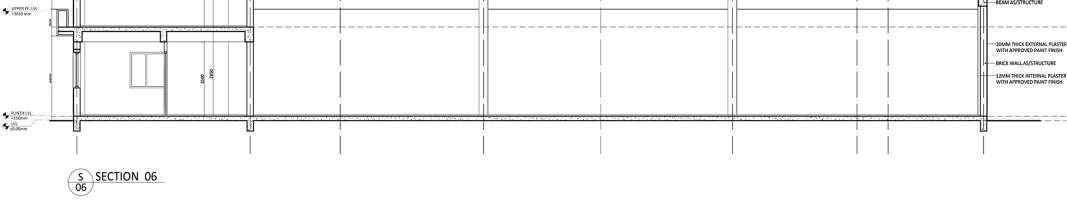

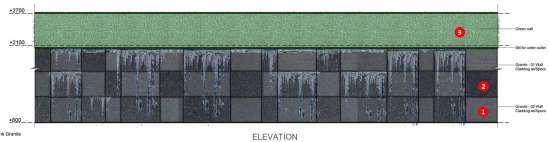

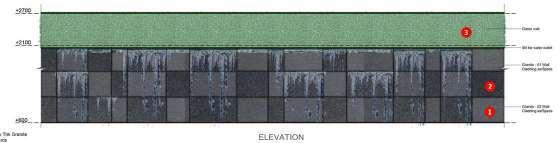

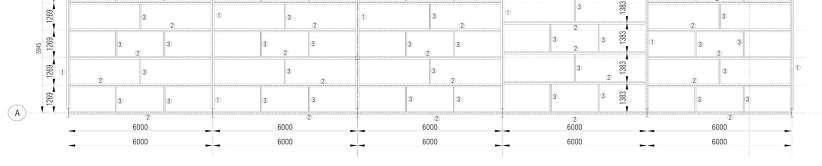

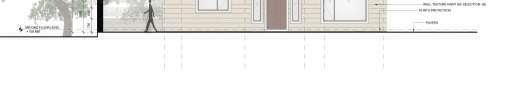

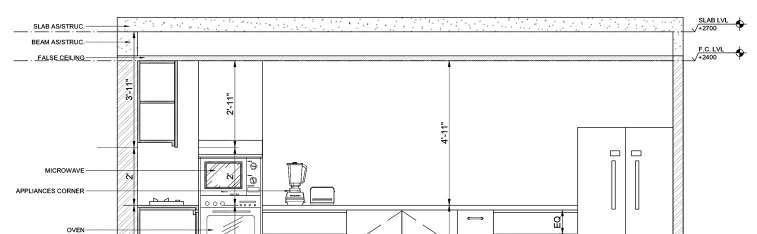

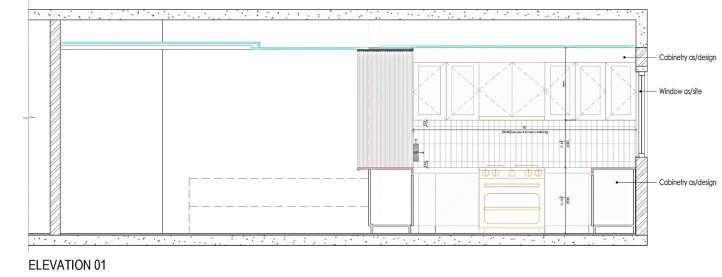

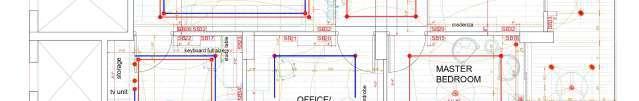

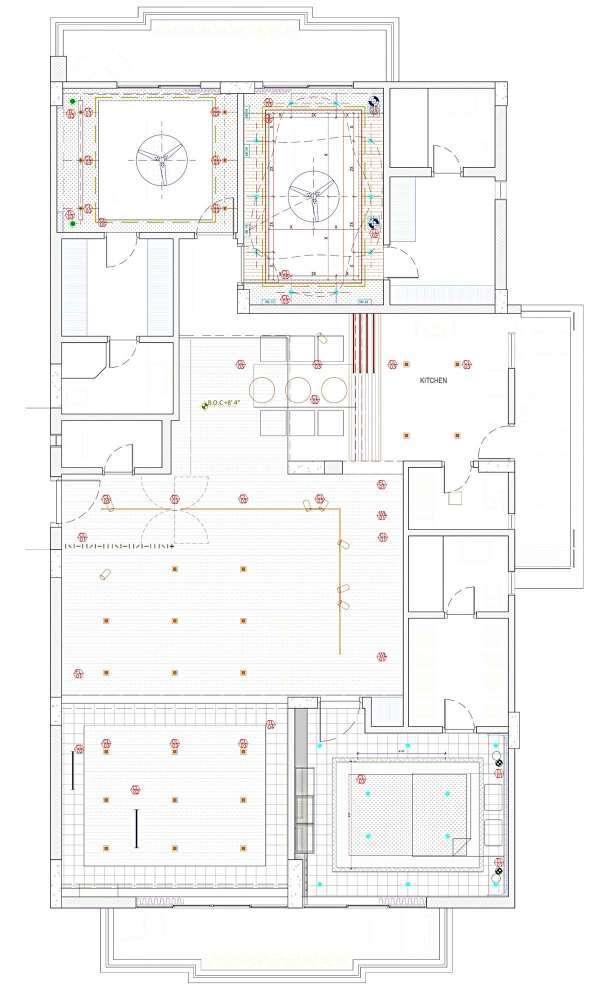

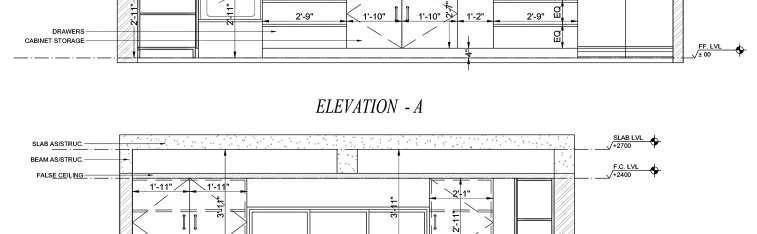

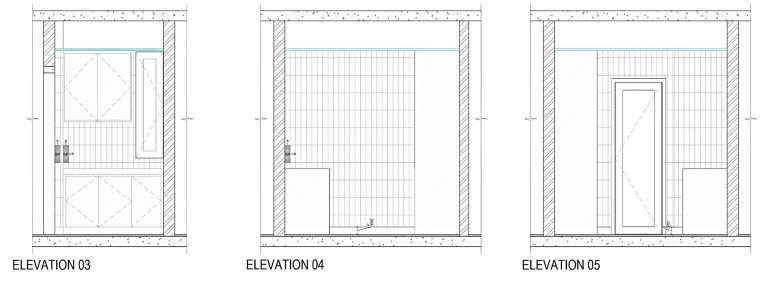

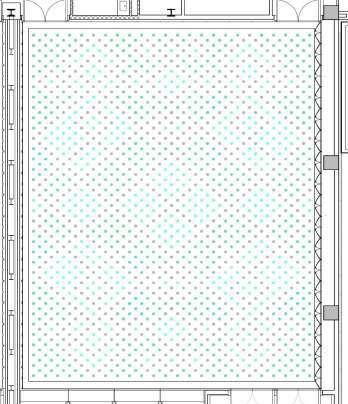

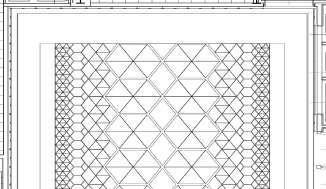

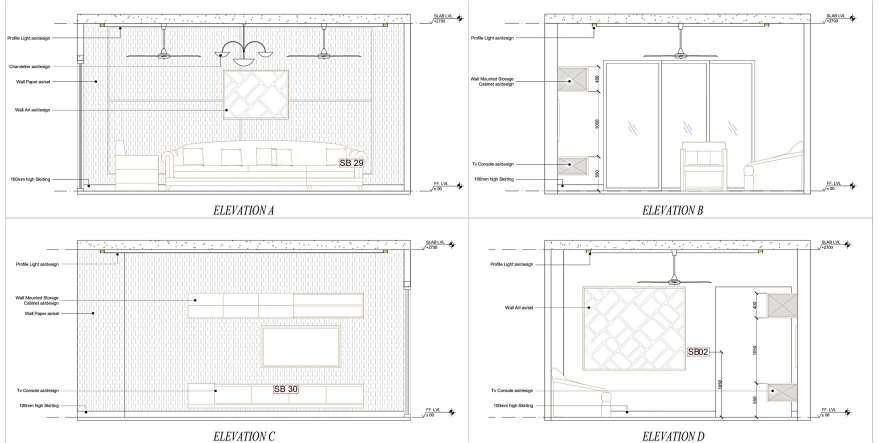

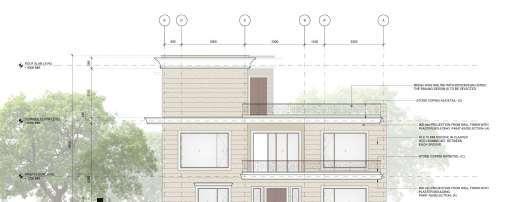

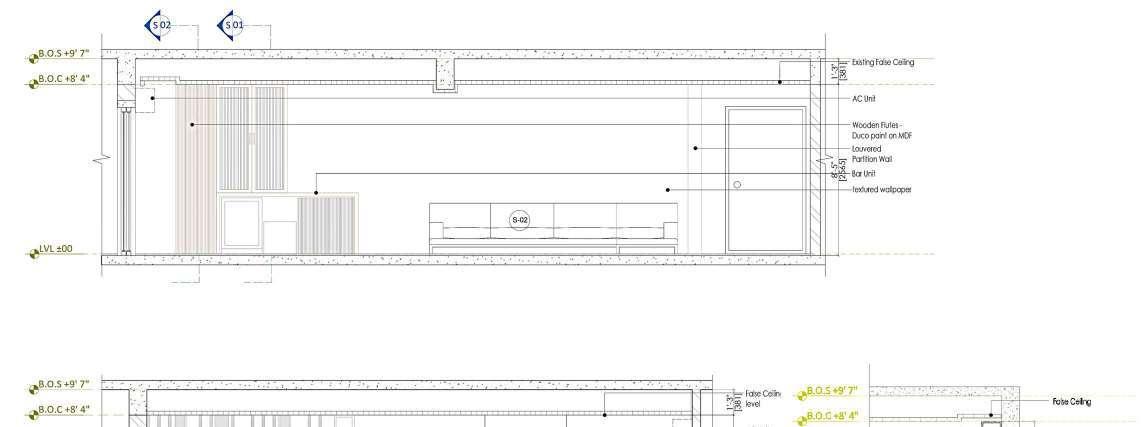

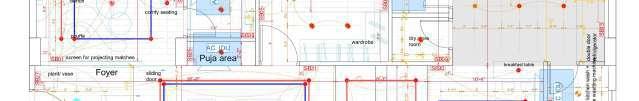

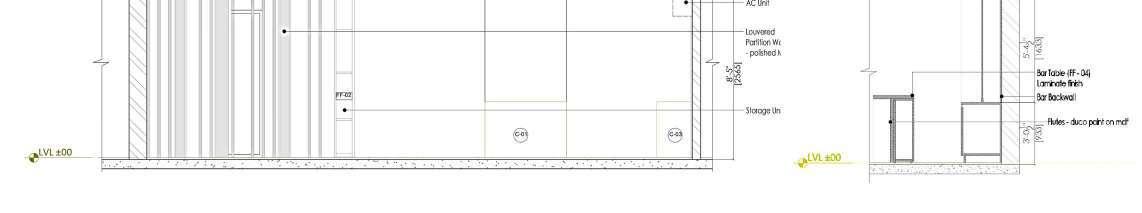

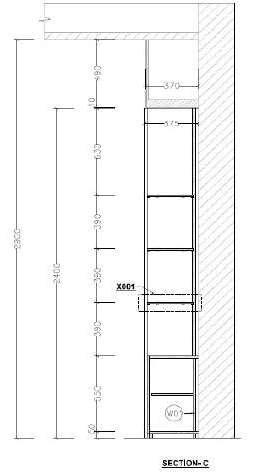

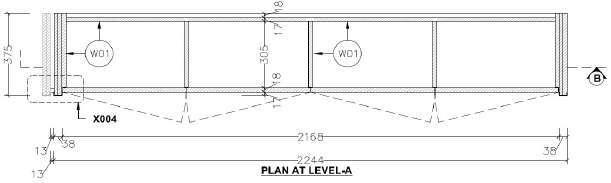

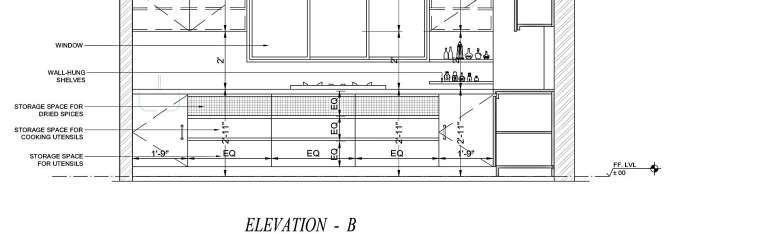

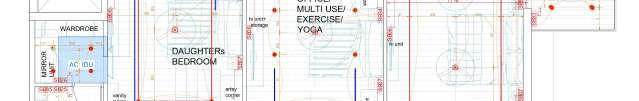

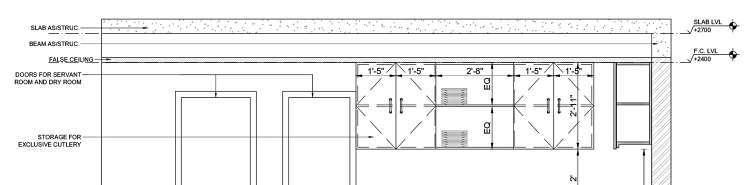

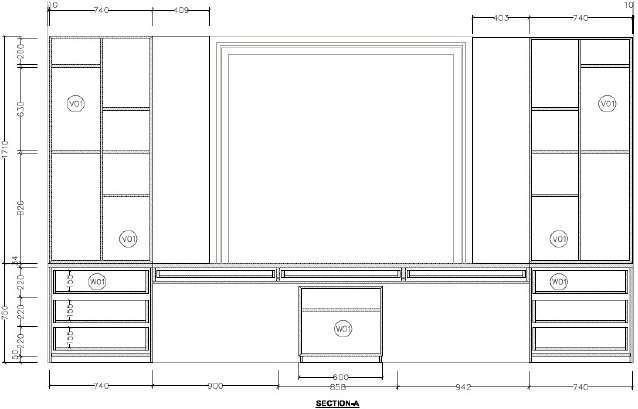

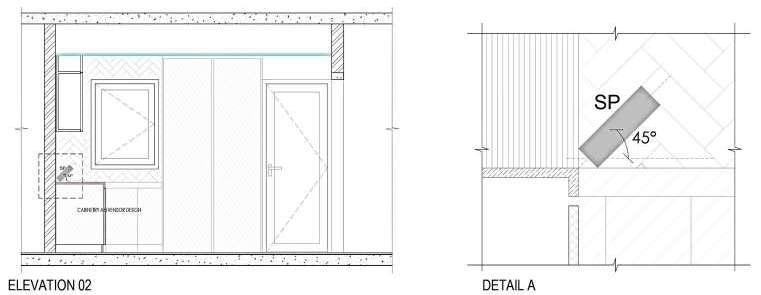

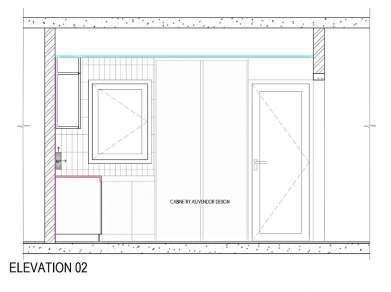

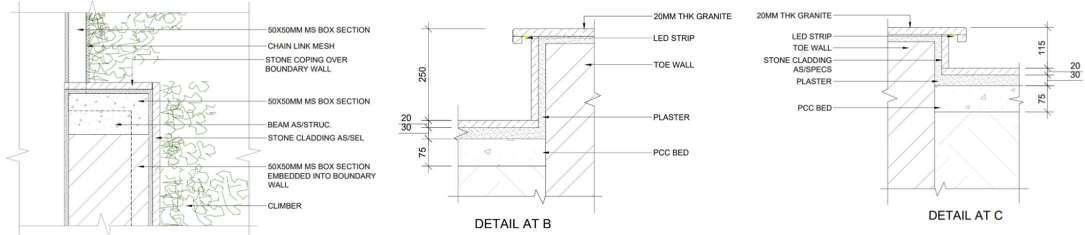

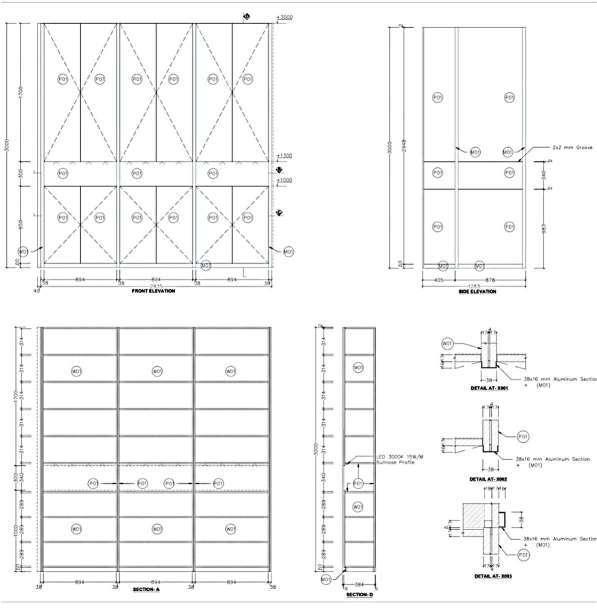

GLIMPSES OF THE RELEASED GFC SET

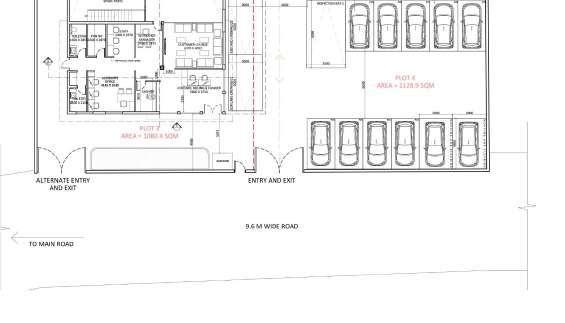

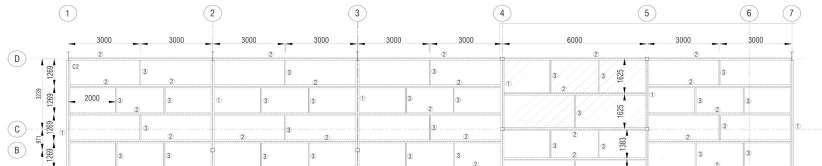

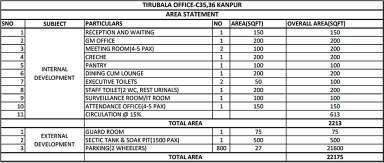

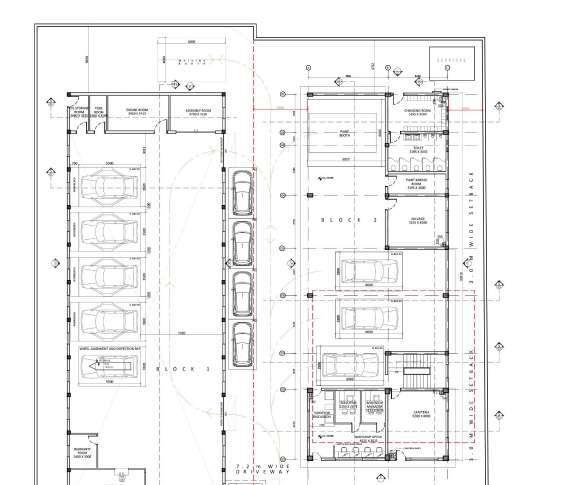

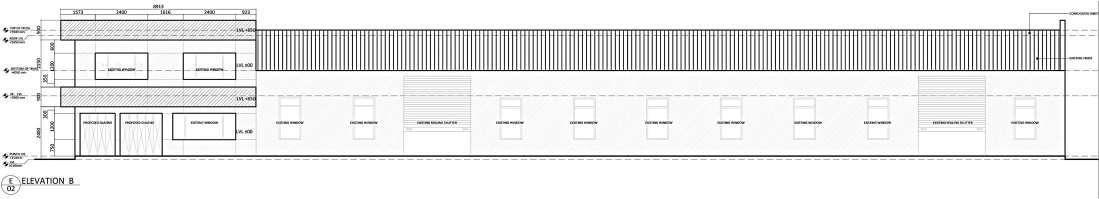

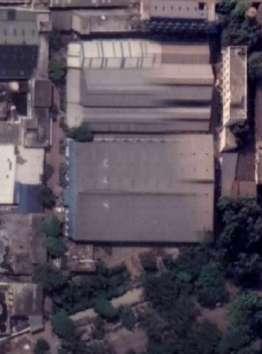

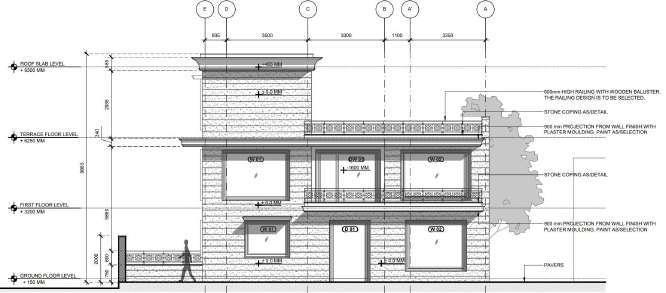

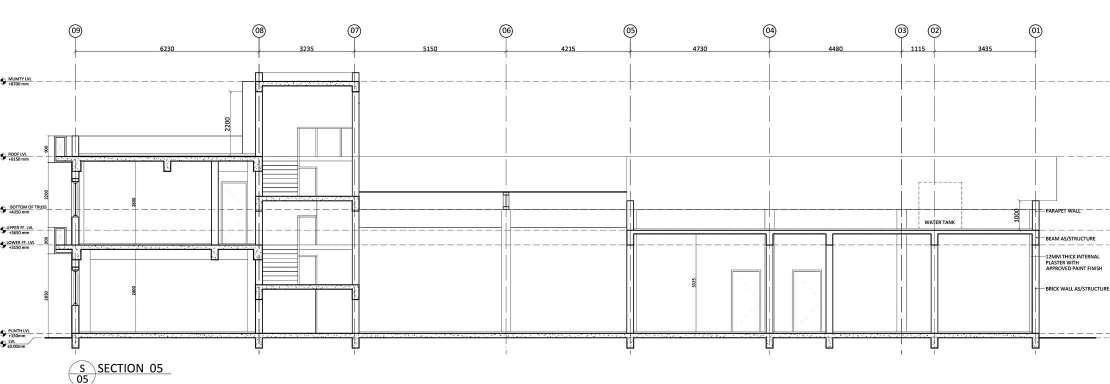

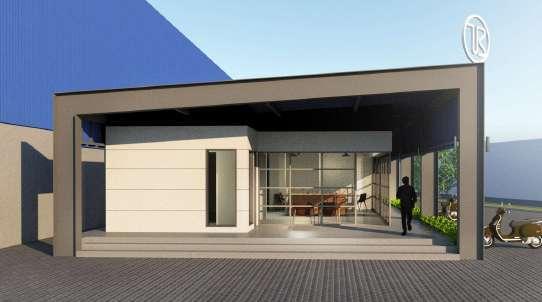

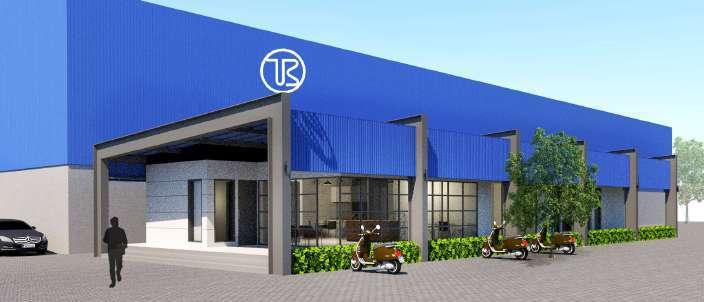

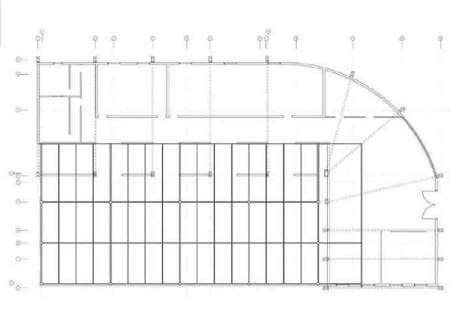

TIRUBALA FACTORY EXTENSION, KANPUR, INDIA: PROFESSIONAL PROJECT – WAL+ L ARCHITECTS, DELHI, INDIA 1200 MM WIDE CORRIDOR 5770 2725 5770 2725 ALL MEETING CABINS(4) GUARD ROOM 2115 3650 RECEPTION 5390X4220 3625x 2020 MEDICAL ROOM EXISTING BUILDING A B C d E PURPOSE: CURRENT STATUS: PROFESSIONAL –2020 ONGOING CLIENT: CARRIED OUT: TIRUBALA GROUP UNDER GUIDANCE TYPE: INDUSTRIAL LOCATION: KANPUR,INDIA SUPERVISION: WAL+L ARCHITECTS, NEW DELHI INVOLVEMENT: • PLANNING • DETAILING • MEP AND HVAC LAYOUTS • 3D RENDERINGS EXISTING FACTORY A EXISTING FACTORY B EXISTING FACTORYC Typical roof section FLOOR PLAN Section b VIEWS OF THE PROPOSED BLOCK Section c Section d Section e STRUCTURAL PLAN An office block, right next to an existing factory of renowned tirubalatraders. This specific site had shoe manufacturing factorieswhat client wanted was to have an extension. Where the managers would sit. The constructional time had to be minimum but the building had to stand out, seem eccentric. It did have to look like the boss’s den. And that’s how, the unique yet subtle form finding took place. SITE PLAN 13 M 81M 40 M RENDERS, DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL Section A RESIDENTIAL FURNISHINGS, DELHI, INDIA: PROFESSIONAL PROJECT – MOBEL GRACE, DELHI, INDIA PURPOSE: CURRENT STATUS: PROFESSIONAL –2020 COMPLETED CLIENT: CARRIED OUT: INDEPENDENT CLIENT SELF TYPE: RESIDENTIAL LOCATION: DELHI,INDIA INVOLVEMENT: • PLANNING • DETAILING • SITE EXECUTION • 3D RENDERINGS
ROOF P BLOCK - 2
TYPE: INDUSTRIAL
LOCATION:
KULLU, INDIA
CARRIED OUT: SELF
SUPERVISION:
WAL+L ARCHITECTS, NEW DELHI
INVOLVEMENT:
• Planning,
• Detailing,
• Mepand hvaclayouts
• Preparation of sanction set
CURRENT STATUS: ONGOING
PROJECT INFO:
Structural coordination
HVAC coordination
3d renderings

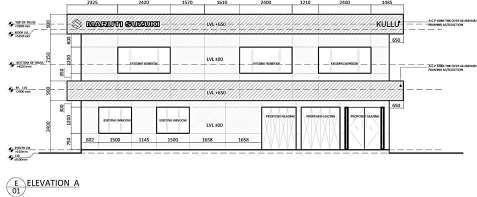

Marut Suzuki India Limited (MSIL), a subsidiary of Suzuki Motor Corporation, Japan, is India's largest passenger car maker.
Marut Suzuki is credited with having ushered in the automobile revolution in the country. The Company is engaged in the business of manufacturing and sale of passenger vehicles in India.

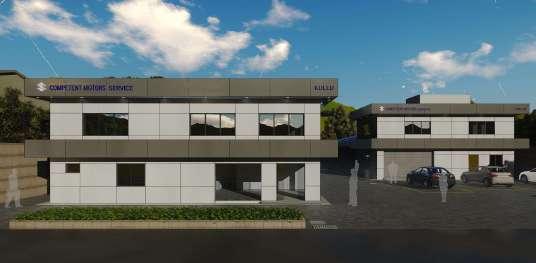

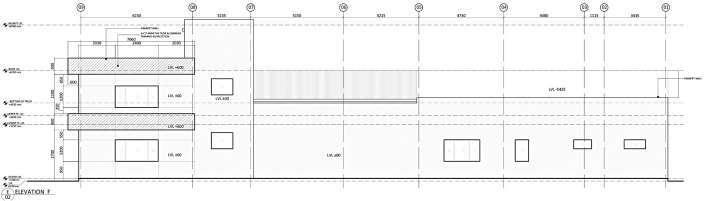

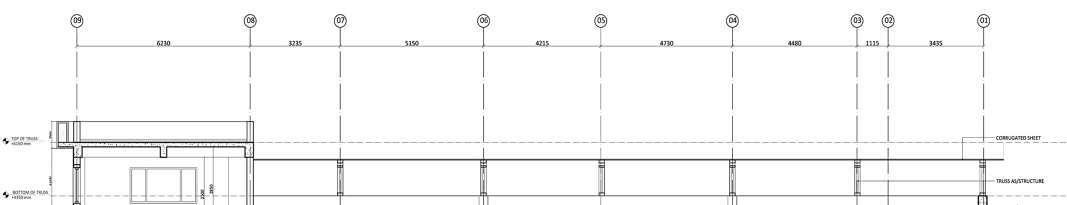

WAL+L Architects was handed over the responsibility of designing an automobile workshop for Maruti Suzuki, in the hilly terrains of Himachal Pradesh, India. Certain protocols were set, equipment list provided, and RFPs in place.block-1, trussed entity-was to remain intact, with certain additions to the façade, however block-2 was an entirely new block. Trussed, again.
AREA PROGRAM:
BLOCK 1
GROUND FLOOR 644.53 sqmtFIRST FLOOR 116.45 sqmt
BLOCK 2
GROUND FLOOR 414.00 sqmtFIRST FLOOR 81.4 sqmt

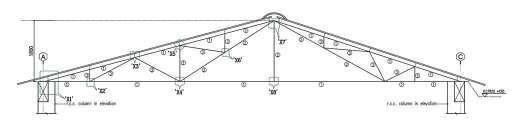

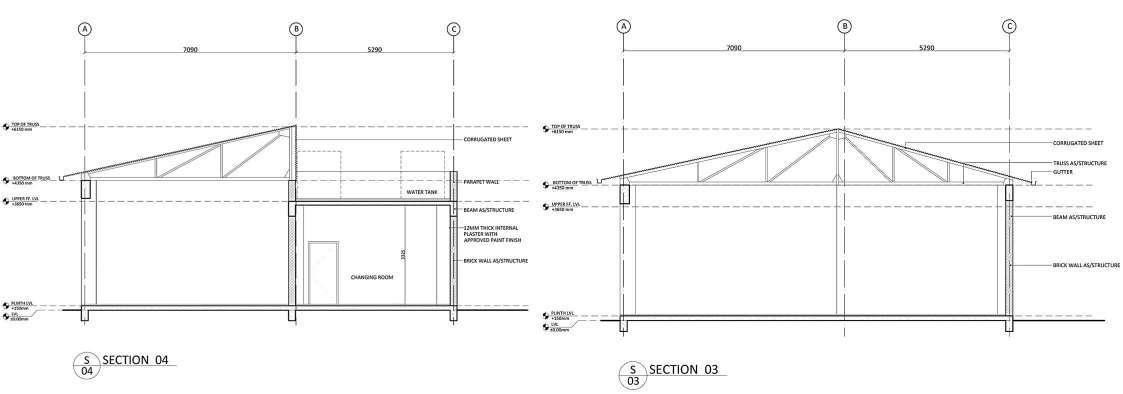

TRUSS T1 DETAIL
TRUSS T3 DETAIL

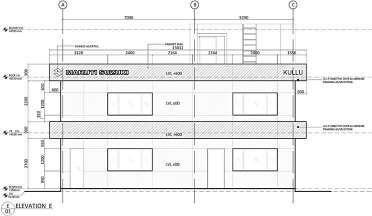

MARUTI SUZUKI - COMPETENT MOTORS WORKSHOP, KULLU, INDIAPROFESSIONAL PROJECT : WAL + L ARCHITECTS, DELHI
–2020
PURPOSE: PROFESSIONAL
CLIENT: MARUTI SUZUKI
56.6M 40.5M 40.5M
ALL THE DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL VIEWS OF THE PROPOSED BLOCKS NOTE: ALL THE RENDERS, DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL

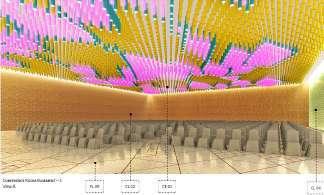

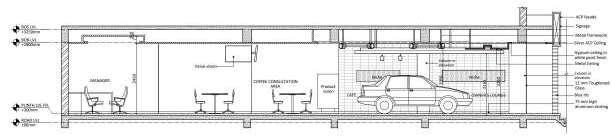

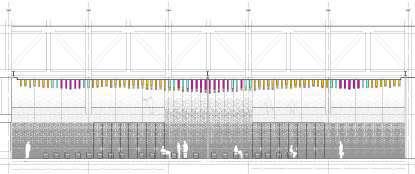

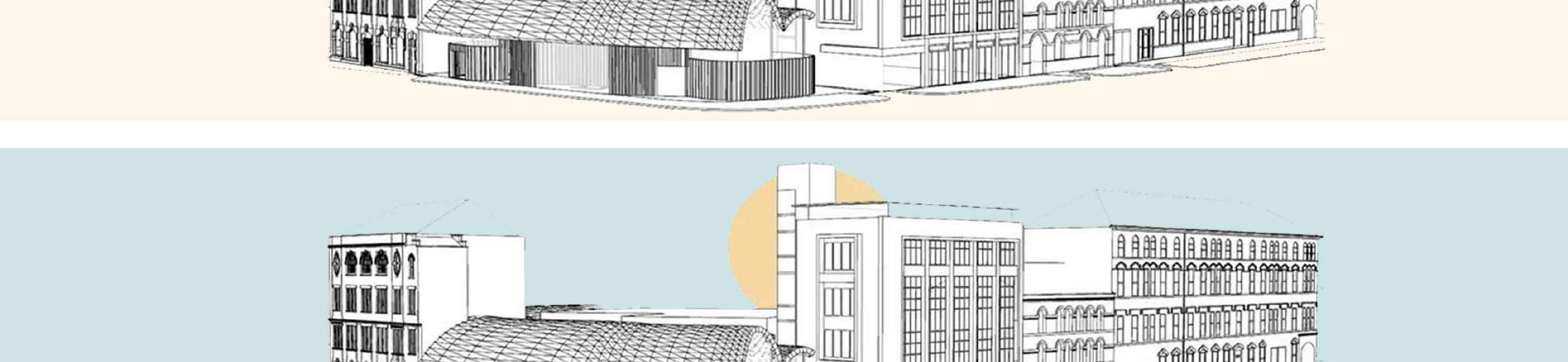

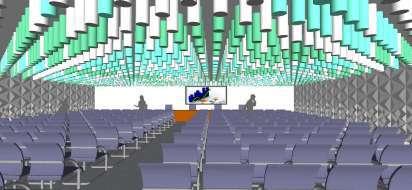

PURPOSE: CURRENT STATUS: PROFESSIONAL –2021 COMPLETED CLIENT: CARRIED OUT: INDEPENDENT CLIENT SELF TYPE: RESIDENTIAL LOCATION: DELHI,INDIA SUPERVISION: WAL+L ARCHITECTS, NEW DELHI INVOLVEMENT: • PLANNING, • DETAILING, • SITE EXECUTION • PREPARATION OF SANCTION SET • STRUCTURAL COORDINATION • HVAC COORDINATION • 3D RENDERINGS OTHER WORKS PROFESSIONAL PROJECTS AND WORKSHOPS INTERNATIONALWATCHCOMPANY(IWC):INTERNSHIP PROJECT : MOBEL GRACE, DELHI, INDIA CASANARUAJUSTINOTEIXEIRA:INTERNSHIP PROJECT : ALESSANDRO PEPE ARQUITECTO, PORTO, PORTUGAL UNITED NATIONS : EMERGENCY SHELTER, TENSILE STRUCTURE ACADEMIC WORKSHOPS MARUTISUZUKISHOWROOMPROFESSIONAL PROJECT : WAL+L ARCHITECTS, DELHI, INDA RESIDENCETURNKEY:PROFESSIONAL PROJECT : WAL+L ARCHITECTS, DELHI, INDA GROOVES IN PERFORATED ALLUMINIUM CEILING Y’ Y Y’ SOUND ABSORBENT CYLINDERS AC GRILL 850 DEEP BEAM SPACE FOR MEP SERVICES ACOUSTIC CYLINDERS INDIA INTERNATIONAL CONVENTION CENTRE: INTERNSHIP PROJECT : ARCOP ARCHITECTS, DELHI, INDA PURPOSE: PROFESSIONAL –2018 CLIENT: GOVERNMENT OF INDIA TYPE: COMMERCIAL CURRENT STATUS: COMPLETED CARRIED OUT: WITH THE TEAM LOCATION: DELHI,INDIA SUPERVISION: ARCOP ARCHITECTS, NEW DELHI INVOLVEMENT: • GFC SET • 3D RENDERINGS

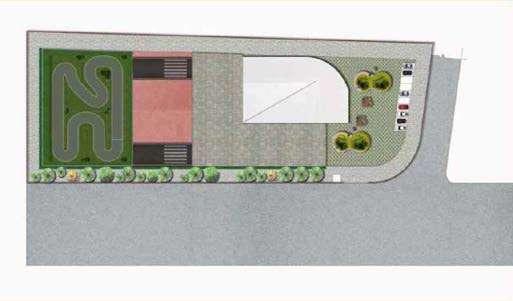

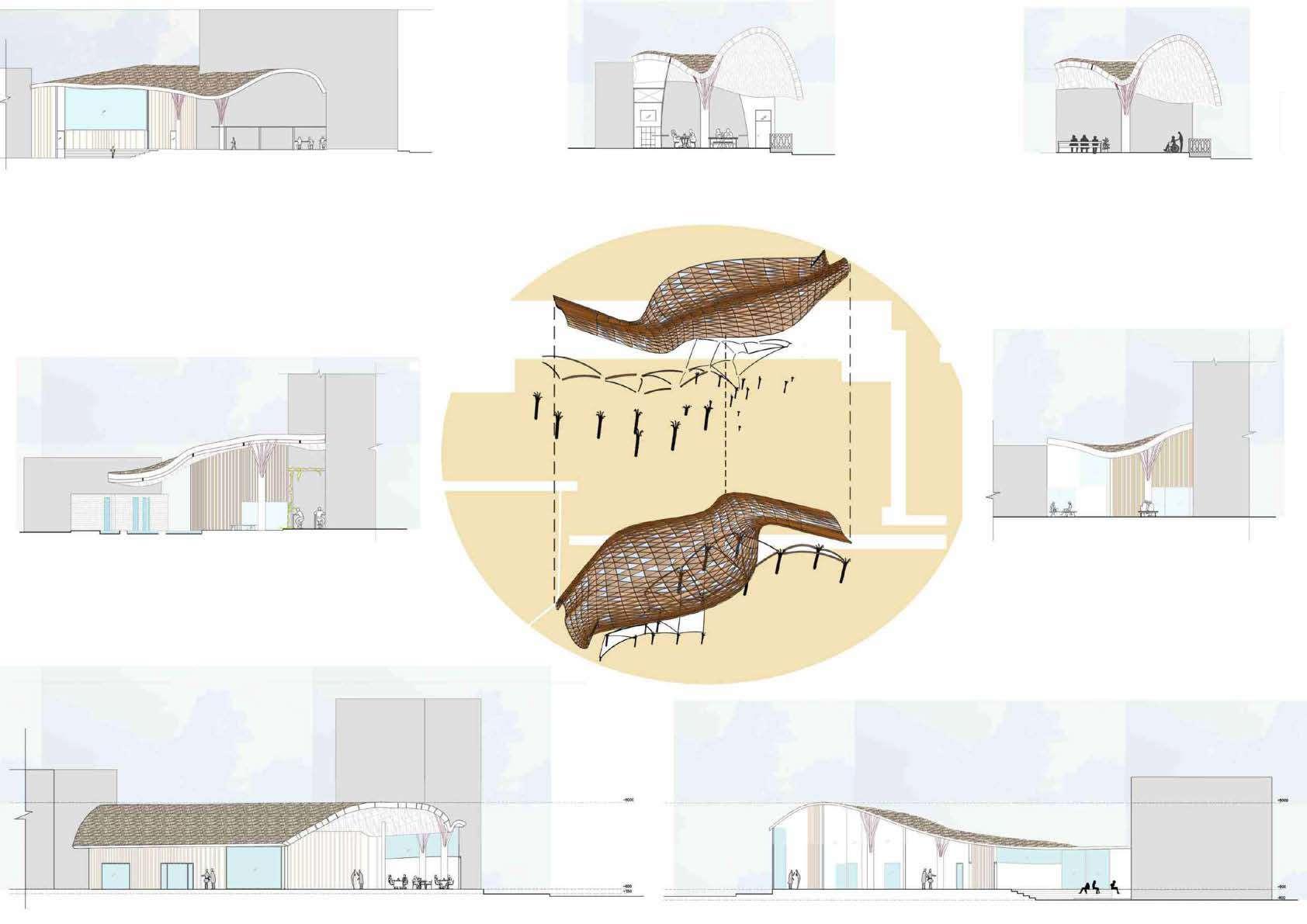

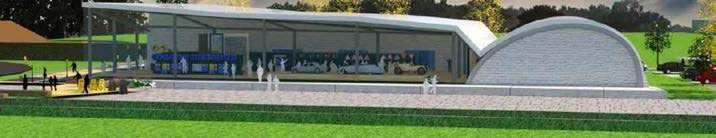

CENTRE FOR TRAFFIC AWARENESS AND ROAD SAFETY, PUNE: ACADEMC-IIYEAR 52.45M 161.89M 155.68M 30MWIDEROAD
RO DISCIPLINE
modern
to cater to citizens from all walksoflifeandagegroups. To infuse a positive attitude towards enforcement laws STEP1: SYMBOLIZEDMY CONCEPT TO SIGNIFYMYIDEAS ONPAPER STEP2:SKETCHED STRUCTURALIZED FREEHANDVISUALISATION. STEP 3 :PREPARED STRUCTURAL ASPECTS TO UNDERSTANDTHE COMPONENTSBETTER. PTFE MEMBRANE AS ROOFING MATERIAL Dynamicfreeflowingroof ledme totakeupthe tensileroofing system. Unliketemporary structures,rto hadtobe irrevocablebytimeand so itsroof had to be fabrically undulating,yet structurally sound. Here’swhenmyresearch onptfebegan: GLASSFABRIC BASECOAT TOPCOAT(WEATHERPROOF) TOPCOAT(WEATHERPROOF) PTFECOATING BASECOAT STEP4:HERECOMESMY FAVOURITEPART,REVIEWINH MYTHUGHTPROCESSES ONTO A SOFTWARE STEP4:STUDIEDTHEENTIRE STRUCTUREONVARIOUS SOFTWARESTOCLARIFYTHE MEMBERSANDTHEIR JOINERIES CURVED IBEAMS CROSSBRACINGS RADIALCOLUMNSINSTALLED PTFESHEETLAIDOVERCOMPLETED STRUCTURE FORM EXPLORATION The free flowing wavy structure itself is extremely complex in design,an amalgamationoftwostructuralsystems,combiningof two separate members from completely different clans. All coveredbythegracefulptfemembrane, givingit thedelicatelook it deserves. Framelessglasswallswrapthebuildingenclosingitgivingtheillusionthat theroofisfloatingabovethespace.Makingtheentirespace,withsuch structural steel, look lighter. OUTDOOR EXHIBITION SPACE MOCKUP ZEBRA CROSSING DRIVING TEST TRACK PROPOSED BLOCK PARKING DUDHANE LAWNS PROCESS MODEL EXPLORATION I N T E R P R E T A T I N G R E S E A R C H SITE P NOTE: ALL THE RENDERS, DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL C E N T R E F O R T R A F F I C A W A R E N E S S A N D R O A D S A F E T Y : B . A r c h S E M E S T E R 0 6
EDUCATING MASSES ABOUT
Sensitizing people by raising awarenessabouttrafficinjuries& theirgraveconsequences Topromoteincreaseinknowledge, awareness&skillofroadusers The centreaims to achieve its goals notonlythroughexhibition spaces, seminars, lectures etc, but also through
technology viz. Driving simulators, interactive & multimediaexhibitsetc.Thecentre aims
SIZE MEMBER NO ISMB 400 (400MM X 140 X 8.9MM) CURVED BEAM 01 300 MMØ RADIAL COLUMNS: CIRCULAR HOLLOW SECTION 02 ISMB 200 (200 X 100 X5.7MM) PRINCIPAL RAFTERS 03 ISMB 100 (100X75X5MM) SECONDARY RAFTER 04 ISMC100 (50X100MM) PURLINS 05 SECTION B LAYING OF CURVED I BEAMS, AND RADIAL COLUMNS VIZ THEIR RESPECTIVE FOUNDATION. CONNECTING ALL CURVED BEAMS WITH CROSS BRACINGS TO COUNTERACT HIGH CURVATURE RAFTERS ANDPRINCIPAL RAFTERS, FROM RADIAL COLUMNS. FURTHER CONNECTED TO CROSS MEMBERS OF CURVED BEAM CLUSTER. LAYING OF PURLINS FOR PTFE SHEET ON TOP PROCESS OF CONSTRUCT ON SECTION A 1. 2. 3. 4. 5. STRUCTURAL PLAN A 01 03 04 CURVED ISMB 400 FOUNDATION DETAIL DRIVING TEST TRACK MOCK UP ZEBRA CROSSING RETRO CARS ON DISPLAY VISUAL DISPLAY SCREENS PLAN SHOWING JOINERY OF PRINCIPAL RAFTERS TO COLUMNS ELEVATION OF THE JOINERY DETAIL SECTION THROUGH THE COLUMN Thestrikingly similar features between THIS PROJECT and tirubalafactory extension were the bold structiural members, holding the form together. It made me so happy to see that what ihad in mind, during my initial years, was an actual project of mine now, right infrontof my eyes! These members were anything but usual trusses. Steel members mouldedto perfection, these were dynamically proven structural systems standing amidst a vast land of varied context yet these buildings stood out. I hereby compare the two in my portfolio, depicting a clear transition of me as a student to an architect. Theroofing material is where iwent all in. A metallic sheet was never my thing hence that becomes the most prominent part of traffic awareness centre, the part that strongly differentiates the two. CENTREFORTRAFFICAWARENESSANDROAD SAFETY VS TIRUBALA FACTORY EXTENSION(A COMPARISON BETWEEN MYACADEMIC AND PROFESSIONAL PROJECTS) NOTE: ALL THE RENDERS, DWGS, GRAPHICS, CONST DETAILS ARE PREPARED BY AISHWARYA JASWAL Exhibition space 18000 x 6000 Corridor Space CLASSROOM 5660 X 5770 SEMINAR HALL 6050 X 11880 Book Sales 5550 x 5770 Reception 5990 x 5770 Workstations 5885 x 14202 Books 5660 x 5885 TOILETS FLOOR PLAN B A 15 16 17 18 20 15-ISMB 400 16-PTFE SHEET 17-CAST STEEL FOOTING 18-BASE PLATE 19-ANCHOR BOLT 20-RCC FOOTING 19 DETAIL AT Y 10 11 12 13 14 10-PTFE SHEET 11-ISMB 400 12-CEILING CHANNEL 13-CALCIUM SILICATE BOARD 14-BASE CHANNEL 15-WALL FINISH CONSTRUCTIONAL DETAILS DETAIL AT Z 02 01 03 04 05 06 07 08 01-PTFE SHEET 02-ISMB 400 03-CEILING CHANNEL 04-METAL STUDS AT 600 MM C/C 05-WALL FINISH 06-CALCIUM SILICATEBOARD 07-BASE CHANNEL 08-RCC BEAM 09-BEAM AT LINTEL LEVEL 09 DETAIL AT X
A SECTION AA’
