I’m an experienced architect with a great knack of client handling. I’m seeking therole of an Architectural Assistant Part 2.
The exciting world of architecture has kept me intrigued for the past two years, gaining experience with each project that I take on with the team or by myself.
Being from a defense background, versatility and heterodoxy are my main accomplishments. From working on large scale projects such as the Convention and Expo Centre to dealing with the renovation of Portuguese Case(houses) and their interiors, I pride on my experience and readiness to learn as much and more To further my interest in detailing, I worked on retail/exhibition architecture which gave me an insight to a completely new palette of materials.
Getting to work on such varied typology of projects only inspires me to strive for more.
EXPERIENCE
VISITOR ASSISTANT : ROYAL OBSERVATORY GREENWICH
London, UK | August 2022 -PRESENT
FREELANCE ARCHITECT : ALTARQ
New Delhi, India | June 2021 -PRESENT
• Project Management and client handling
• Social media and website management
• Preparation of BOQs
GRADUATE ARCHITECT : WAL+L ARCHITECTS
VRAY
Enscape
Lumion
PHOTOSHOP
MICROSOFT OFFICE
REVIT RHINO
SKILLS
• Verbal and written proficiency
• Customer and client management
• BOQ preparation and cost estimation as per the market rate
• Social media management
• Content Writing
2018 JUNE
2018 SEPTEMBER
New Delhi, India | Feb 2020 – June 2021
• Managed individual projects. From client to vendor handling.
• Preparing client briefs and presentations
• Preparing MOMs and BOQs
INTERN ARCHITECT : MOBEL GRACE
New Delhi, India |June 2019 -October 2019
INTERN ARCHITECT : ALESSANDRO PEPE ARQUITECTOS
Porto, Portugal | October 2018 – June 2019
INTERN ARCHITECT : ARCOP ASSOCIATES PRIVATE LTD
New Delhi, India |June 2018 -October 2018
EDUCATION
MSc ADVANCED ARCHITECTURAL DESIGN : QUEEN’S UNIVERSITY BELFAST
Belfast, Northern Ireland, UK | 2022
BACHELOR’S OF ARCHITECTURE : BNCA
Pune, India |2014 - 2019
HIGHER SECONDARY SCHOOL : DELHI PUBLIC SCHOOL
Delhi, India |2014
SENIOR SECONDARY SCHOOL : ARMY PUBLIC SCHOOL
Delhi, India |2012
2019 JUNE
2020 FEBRUARY
GRADUATE ARCHITECT
PROFILE
A J
ARCOP ASSOCIATES PVT. LTD, DELHI, INDIA
ALESSANDRO PEPE ARQUITECTO, PORTO, PORTUGAL
MOBEL GRACE, DELHI, INDIA
WAL+L ARCHITECTS, DELHI, INDIA ALTARQ ARCHITECTS, DELHI, INDIA
2021 JUNE INTERN ARCHITECT INTERN ARCHITECT INTERN ARCHITECT
BOLD NOT BRASH
CONSTRUCTIVIST APPROACH IN DESIGNING
WEDDINGS AND FUNERALS
MSc ADVANCED ARCHITECTURAL DESIGN
DESIGN PROJECT
TRAFFIC AWARENESS CENTRE
BACHELOR OF ARCHITECTURE
TIME ASSIGNMENT DESIGN PROJECT
ARCHITECTURE FOR THE PEOPLE, BY THE PEOPLE

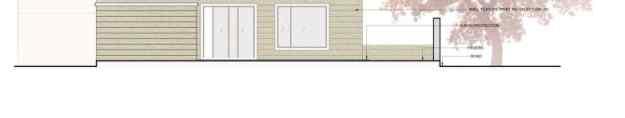

REFURBISHMENT AND RENOVATION
NEW NATIONAL GALLERY, BERLIN
MSc ADVANCED ARCHITECTURAL DESIGN
TECHNICAL DISSERTATION
WOMEN IN NEED : VOCATIONAL
TRAINING CENTRE FOR DOMESTIC
ABUSE SURVIVORS
MSc ADVANCED ARCHITECTURAL DESIGN
TECHNICAL DISSERTATION

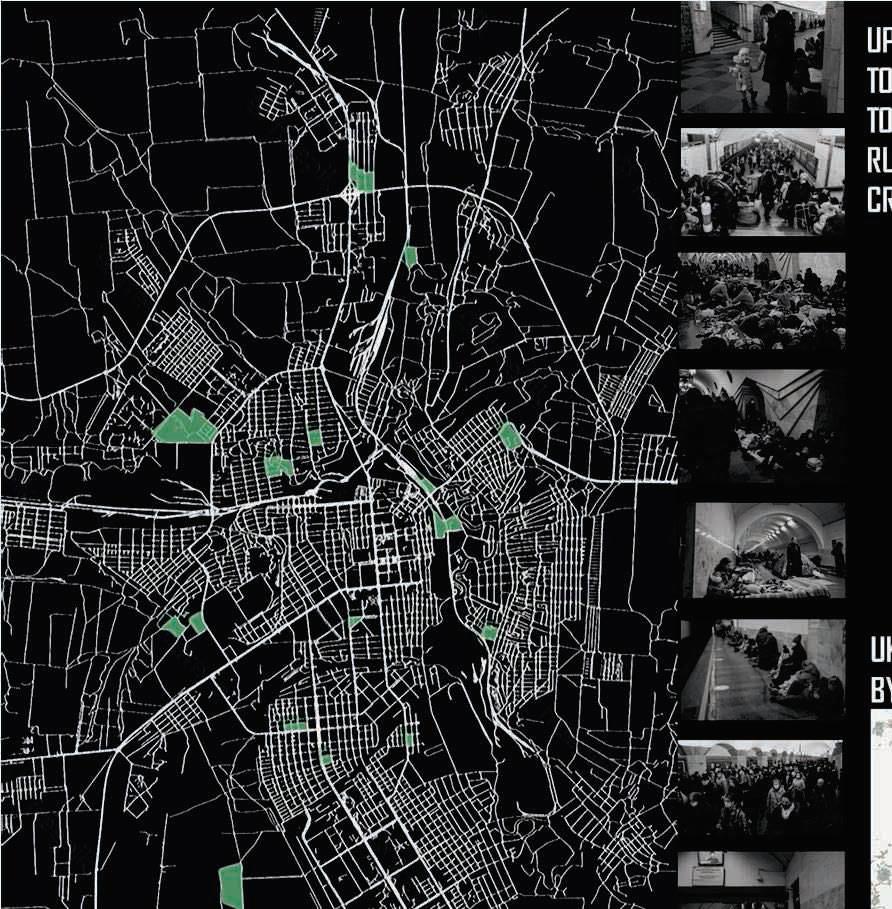

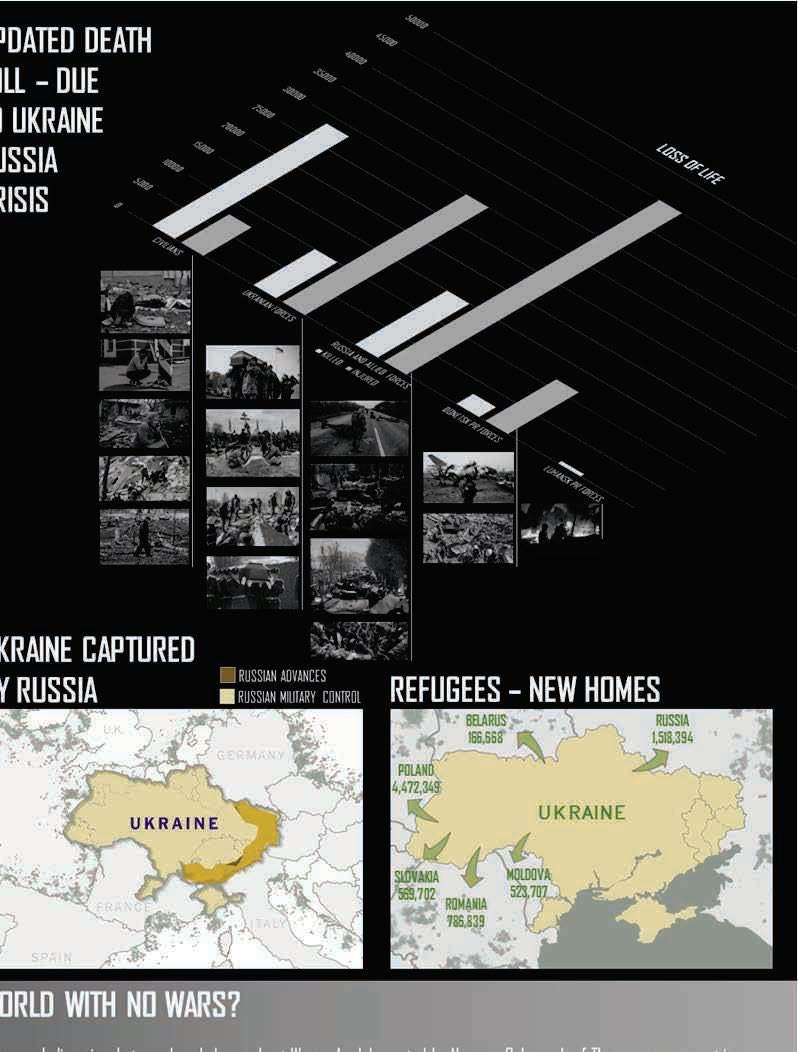

IN PERSPECTIVE PREPAREDNESS FOR WAR
DESIGN TO SURVIVE
ARCHITECTURE IN THE TIME OF NEED

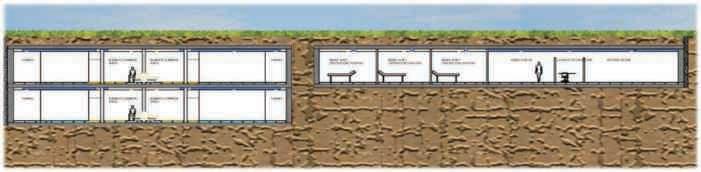

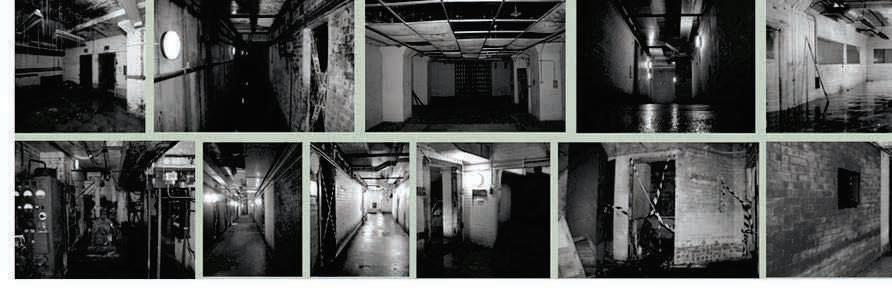

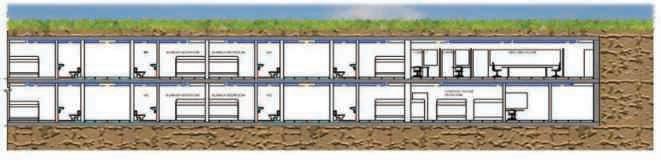

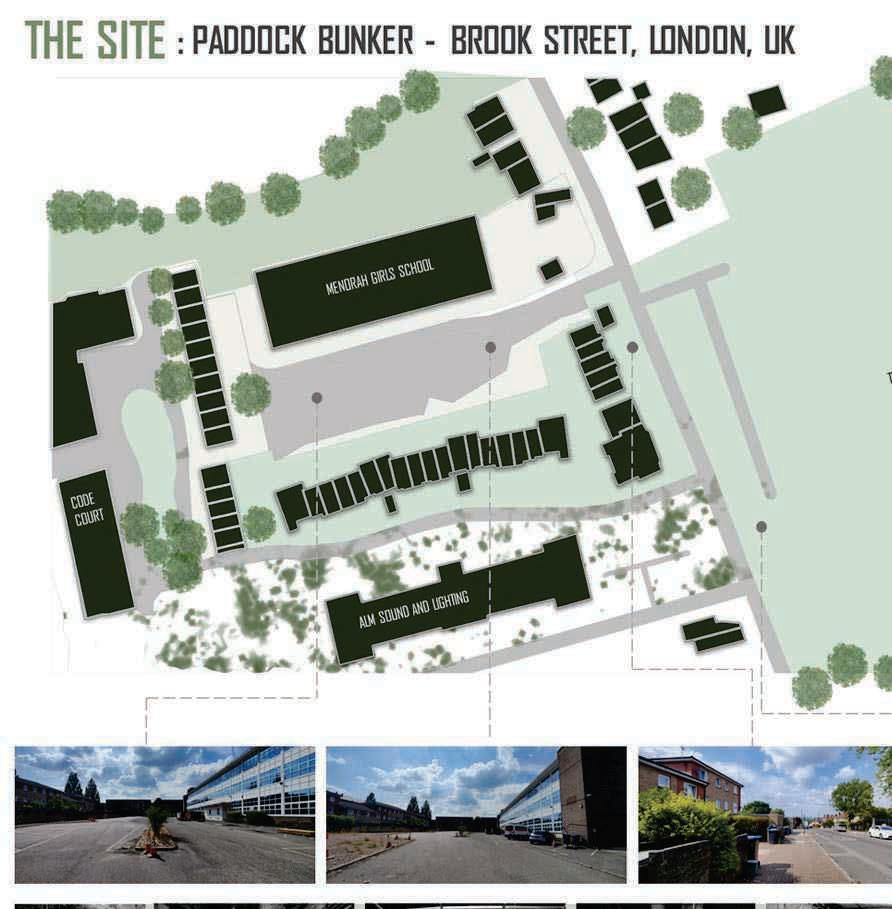

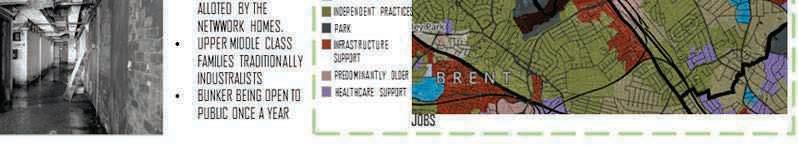

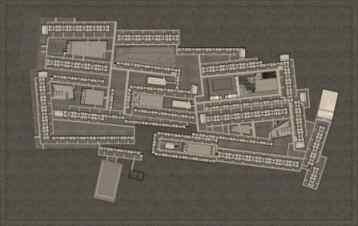

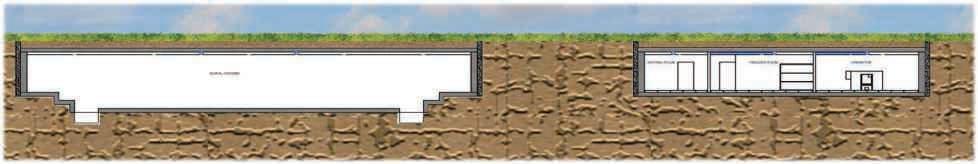

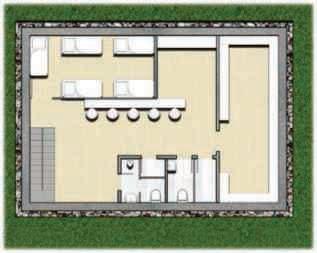

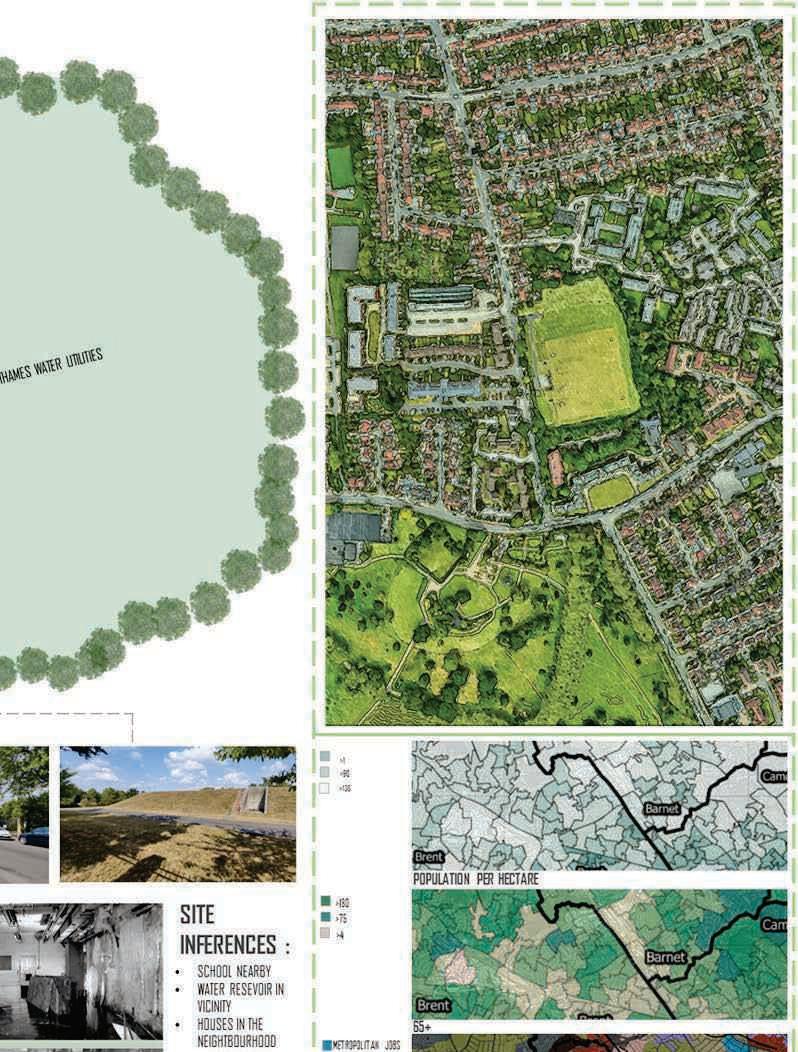

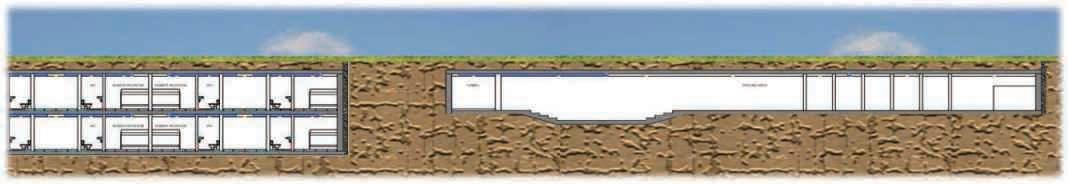

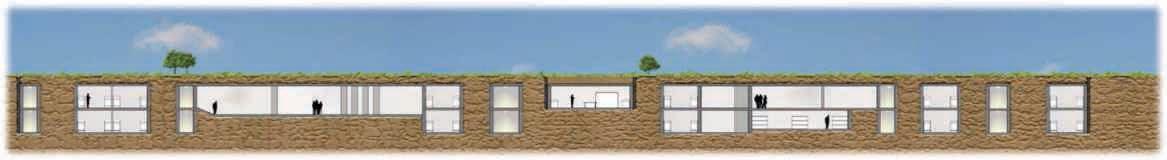

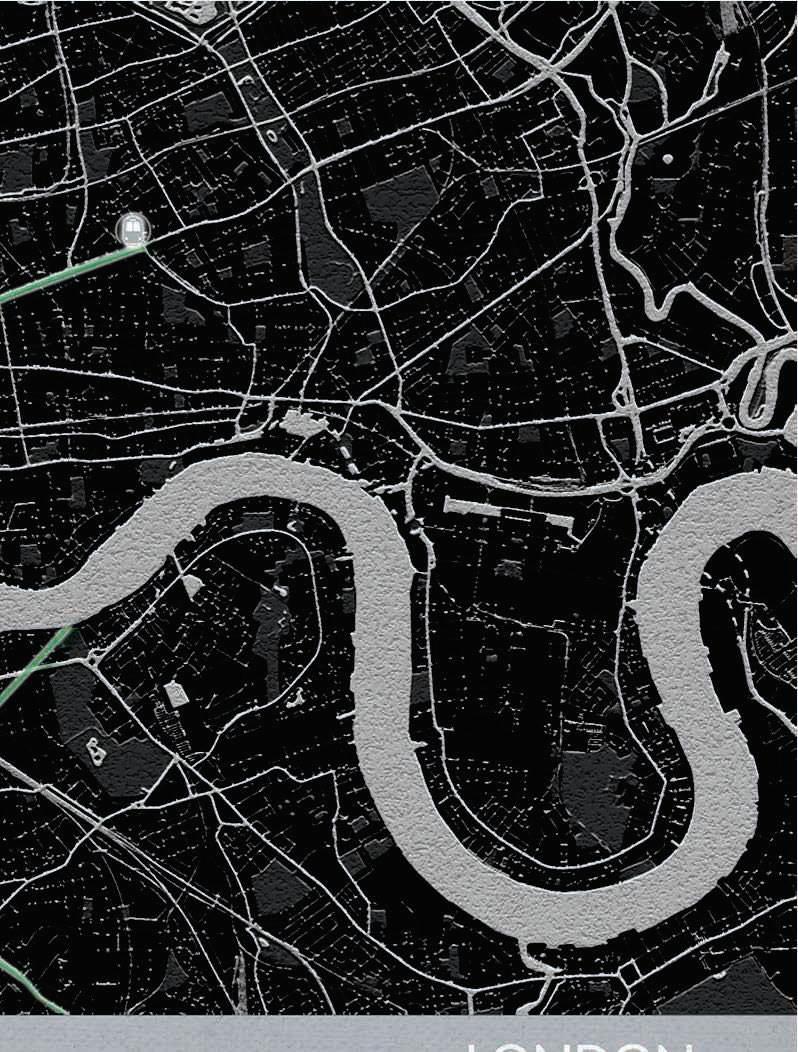

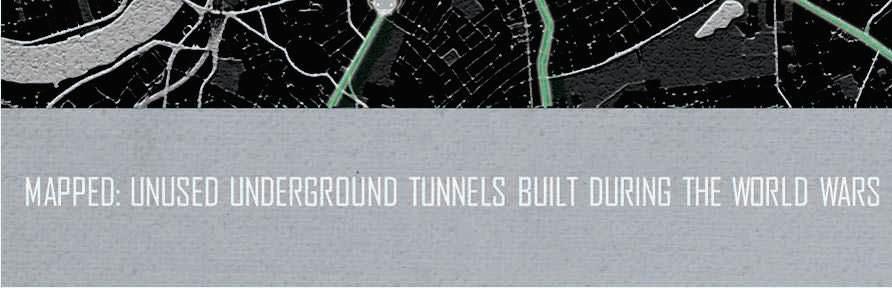

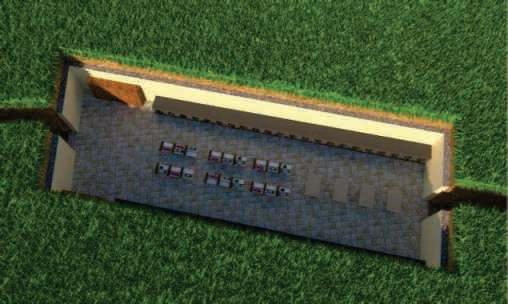

TIME : ADAPTIVE REUSE OF EXISTING
UNDERGROUND BUNKERS IN LONDON
MSc ADVANCED ARCHITECTURAL DESIGN
DESIGN PROJECT

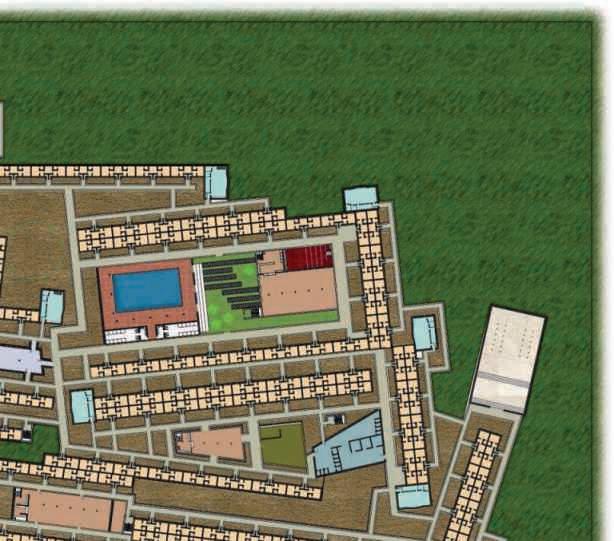

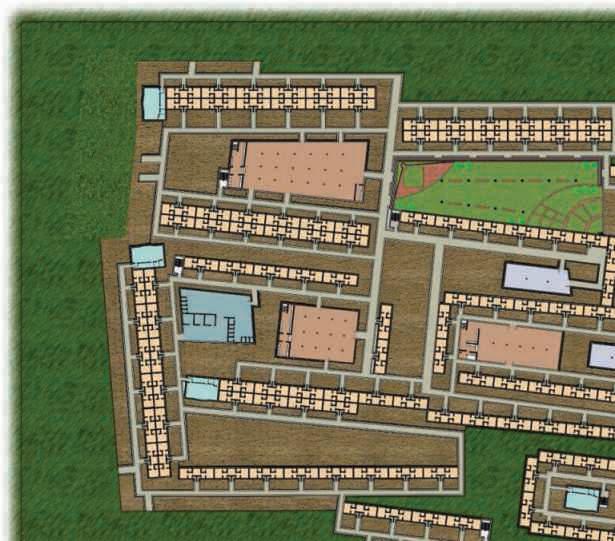

CONSERVING HUMAN LIFE IN COMBAT: WAR
SHELTERS AT AMRITSAR, INDIA
BACHELOR OF ARCHITECTURE
DESIGN PROJECT
PRACTICE ARCHITECTURE
PROFESSIONAL ARCHITECTURAL PROJECTS
C E N T R E F O R T R A F F I C A W A R E N E S S A N D R O A D S A F E T Y : B . A r c h S E M E S T E R 0 6
EDUCATING MASSES ABOUT RO DISCIPLINE
Sensitizing people by raising awarenessabouttrafficinjuries& theirgraveconsequences
Topromoteincreaseinknowledge, awareness&skillofroadusers
The centreaims to achieve its goals notonlythroughexhibition spaces, seminars, lectures etc, but also through modern technology viz. Driving simulators, interactive & multimediaexhibitsetc.Thecentre aims to cater to citizens from all walksoflifeandagegroups.
To infuse a positive attitude towards enforcement laws

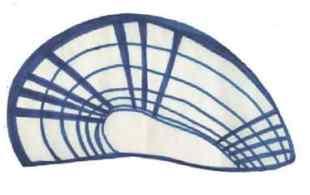

STEP1: SYMBOLIZEDMY CONCEPT TO SIGNIFYMYIDEAS ONPAPER
STEP2:SKETCHED STRUCTURALIZED FREEHANDVISUALISATION.
STEP 3 :PREPARED STRUCTURAL ASPECTS TO UNDERSTANDTHE COMPONENTSBETTER.
STEP4:STUDIEDTHEENTIRE STRUCTUREONVARIOUS SOFTWARESTOCLARIFYTHE MEMBERSANDTHEIR JOINERIES
CURVED IBEAMS

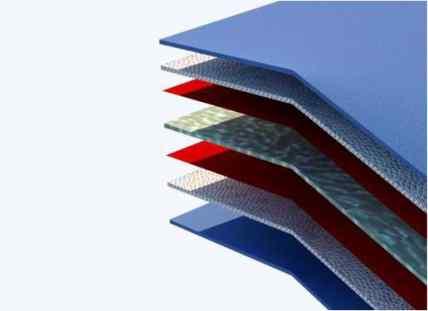

TOPCOAT(WEATHERPROOF)
PTFECOATING
BASECOAT
GLASSFABRIC
BASECOAT

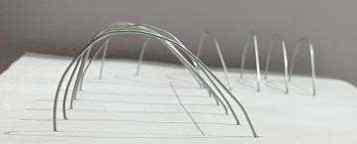

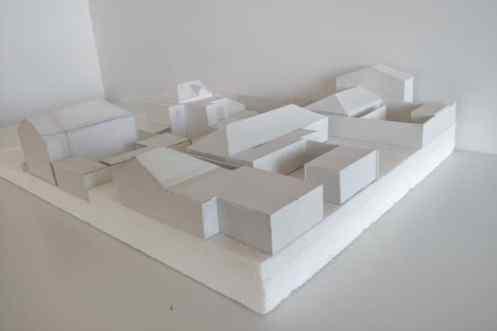

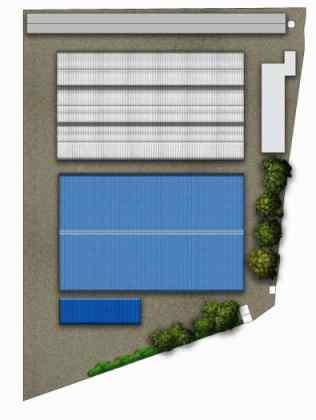

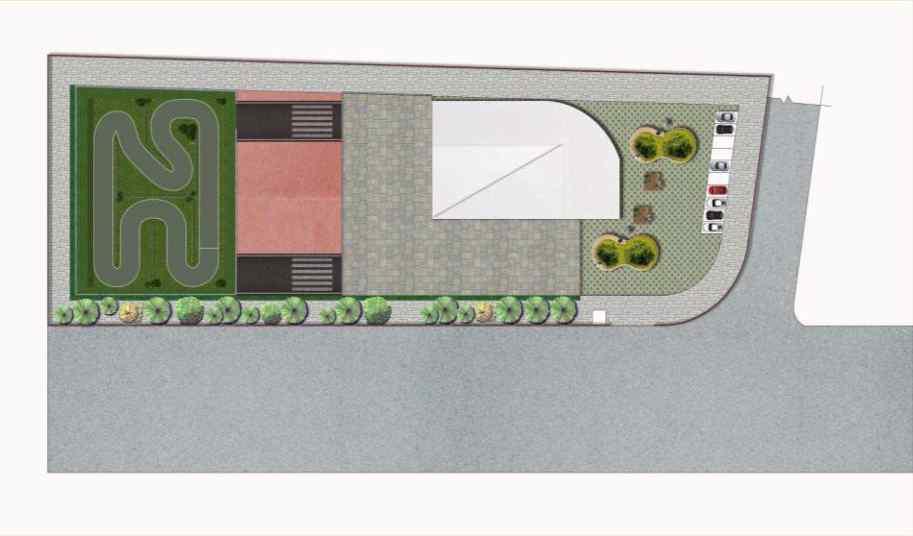

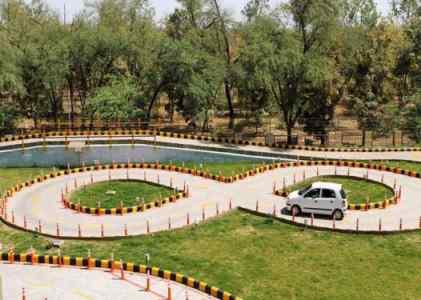

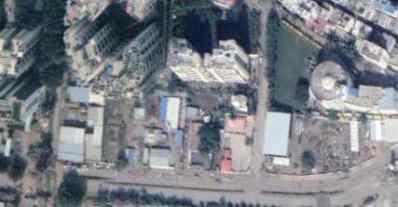

OUTDOOR EXHIBITIONSPACE MOCKUP ZEBRA CROSSING DRIVING TEST TRACK PROPOSED BLOCK PARKING DUDHANE LAWNS PROCESS MODEL EXPLORATION I N T E R P R E T A T I N G R E S E A R C H SITE P NOTE:

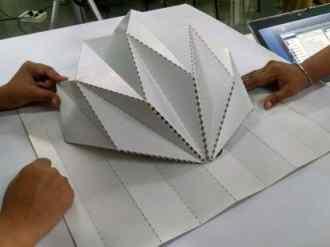

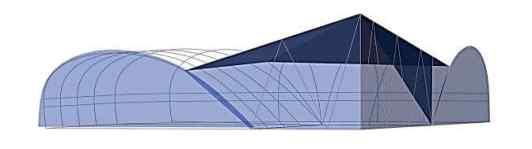

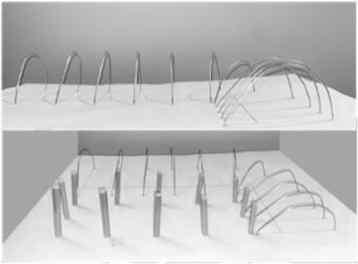

RADIALCOLUMNSINSTALLED FORM EXPLORATION
TOPCOAT(WEATHERPROOF)
STEP4:HERECOMESMY FAVOURITEPART,REVIEWINH MYTHUGHTPROCESSES ONTO A SOFTWARE

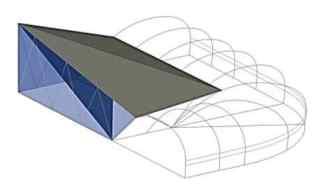

PTFE MEMBRANE AS ROOFING MATERIAL
Dynamicfreeflowingroof ledme totakeupthe tensileroofing system.
Unliketemporary structures,rto hadtobe irrevocablebytimeand so itsroof had to be fabrically undulating,yet structurally sound.
Here’swhenmyresearch onptfebegan:
The free flowing wavy structure itself is extremely complex in design,an amalgamationoftwostructuralsystems,combiningof two separate members from completely different clans. All coveredbythegracefulptfemembrane, givingit thedelicatelook it deserves.
52.45M 161.89M 155.68M 30MWIDEROAD
CENTRE FOR TRAFFIC AWARENESS AND ROAD SAFETY, PUNE: ACADEMC-IIYEAR
CROSSBRACINGS PTFESHEETLAIDOVERCOMPLETED STRUCTURE

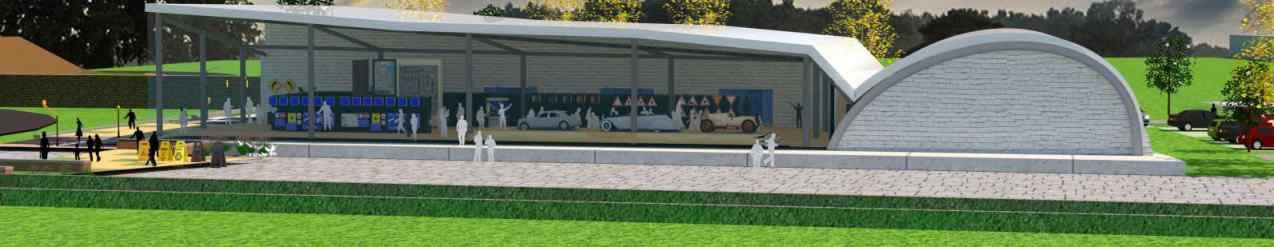

Framelessglasswallswrapthebuildingenclosingitgiving theillusionthat theroofisfloatingabovethespace.Makingtheentirespace,withsuch structural steel, look lighter.
ALL THE RENDERS, DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL
CENTREFORTRAFFICAWARENESSANDROAD SAFETY VS TIRUBALA FACTORY EXTENSION(A COMPARISON BETWEEN MYACADEMIC AND PROFESSIONAL PROJECTS)
A metallic sheet was never my thing hence that becomes the most prominent part of traffic awareness centre, the part that strongly differentiates the two.

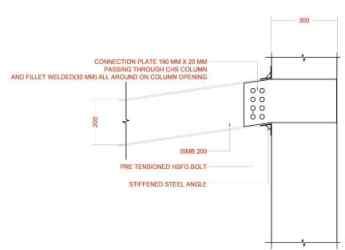

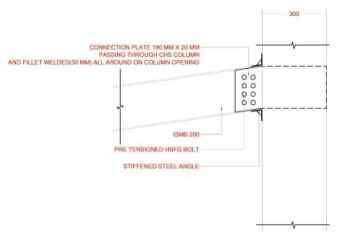

SIZE MEMBER NO ISMB 400 (400MM X 140 X 8.9MM) CURVED BEAM 01 300 MMØ RADIAL COLUMNS: CIRCULAR HOLLOW SECTION 02 ISMB 200 (200 X 100 X5.7MM) PRINCIPAL RAFTERS 03 ISMB 100 (100X75X5MM) SECONDARY RAFTER 04 ISMC100 (50X100MM) PURLINS 05 SECTION B LAYING OF CURVED I BEAMS, AND RADIAL COLUMNS VIZ THEIR RESPECTIVE FOUNDATION. CONNECTING ALL CURVED BEAMS WITH CROSS BRACINGS TO COUNTERACT HIGH CURVATURE RAFTERS ANDPRINCIPAL RAFTERS, FROM RADIAL COLUMNS. FURTHER CONNECTED TO CROSS MEMBERS OF CURVED BEAM CLUSTER. LAYING OF PURLINS FOR PTFE SHEET ON TOP PROCESS OF CONSTRUCT ON SECTION A 1. 2. 3. 4. 5. STRUCTURAL PLAN A 01 03 04 CURVED ISMB 400 FOUNDATION DETAIL DRIVING TEST TRACK MOCK UP ZEBRA CROSSING RETRO CARS ON DISPLAY VISUAL DISPLAY SCREENS PLAN SHOWING JOINERY OF PRINCIPAL RAFTERS TO COLUMNS ELEVATION OF THE JOINERY DETAIL SECTION THROUGH THE COLUMN Thestrikingly similar features between THIS PROJECT and tirubalafactory extension were the bold structiural members, holding the form together. It made me so happy to see that what ihad in mind, during my initial years, was an actual project of mine now, right infrontof my eyes! These members were anything but usual trusses. Steel members mouldedto perfection, these were dynamically proven structural systems standing amidst a vast land of varied context yet these buildings stood out. I hereby compare the two in my portfolio, depicting a clear transition of me as a student to an architect. Theroofing material is where iwent all in.

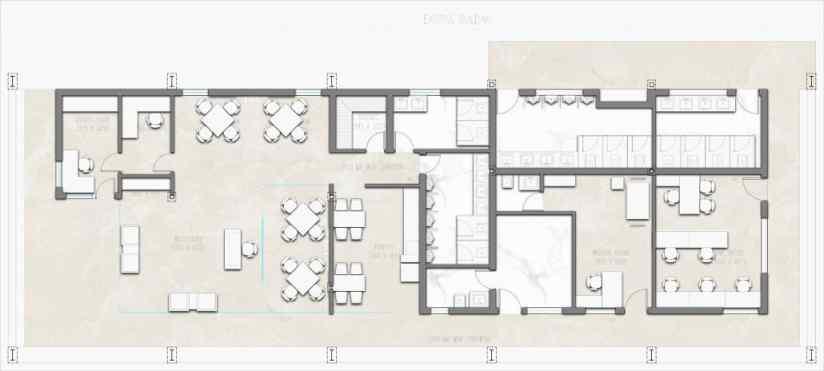

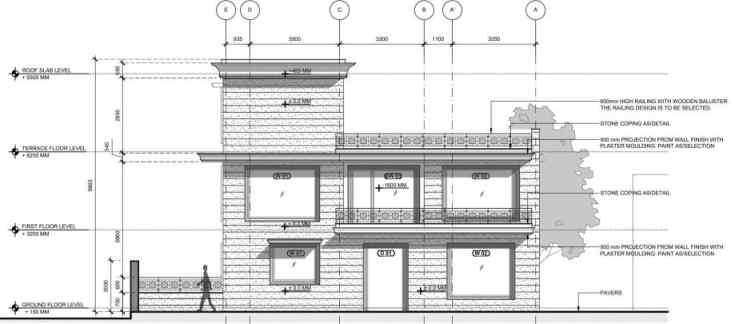

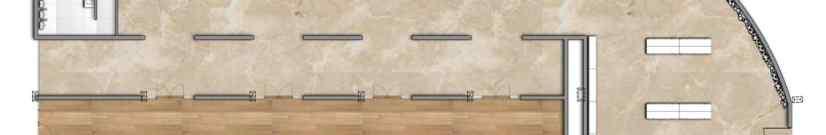

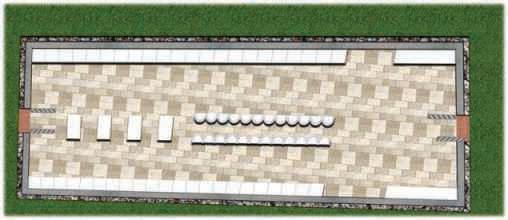

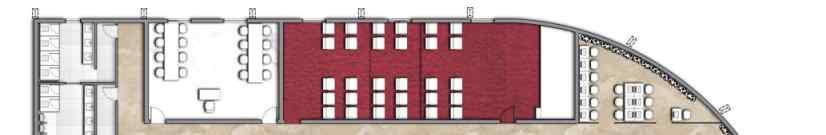

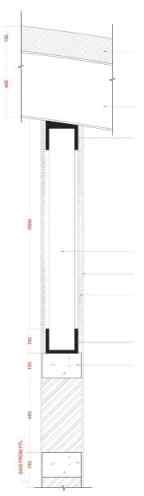

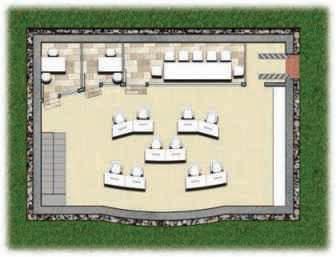

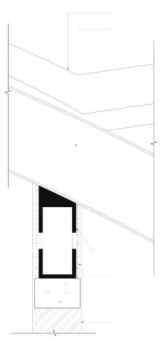

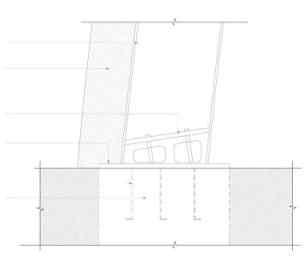

NOTE: ALL THE RENDERS, DWGS, GRAPHICS, CONST DETAILS ARE PREPARED BY AISHWARYA JASWAL Exhibition space 18000 x 6000 Corridor Space CLASSROOM 5660 X 5770 SEMINAR HALL 6050 X 11880 Book Sales 5550 x 5770 Reception 5990 x 5770 Workstations 5885 x 14202 Books 5660 x 5885 TOILETS FLOOR PLAN B A 15 16 17 18 20 15-ISMB 400 16-PTFE SHEET 17-CAST STEEL FOOTING 18-BASE PLATE 19-ANCHOR BOLT 20-RCC FOOTING 19 DETAIL AT Y 10 11 12 13 14 10-PTFE SHEET 11-ISMB 400 12-CEILING CHANNEL 13-CALCIUM SILICATE BOARD 14-BASE CHANNEL 15-WALL FINISH CONSTRUCTIONAL DETAILS DETAIL AT Z 02 01 03 04 05 06 07 08 01-PTFE SHEET 02-ISMB 400 03-CEILING CHANNEL 04-METAL STUDS AT 600 MM C/C 05-WALL FINISH 06-CALCIUM SILICATEBOARD 07-BASE CHANNEL 08-RCC BEAM 09-BEAM AT LINTEL LEVEL 09 DETAIL AT X

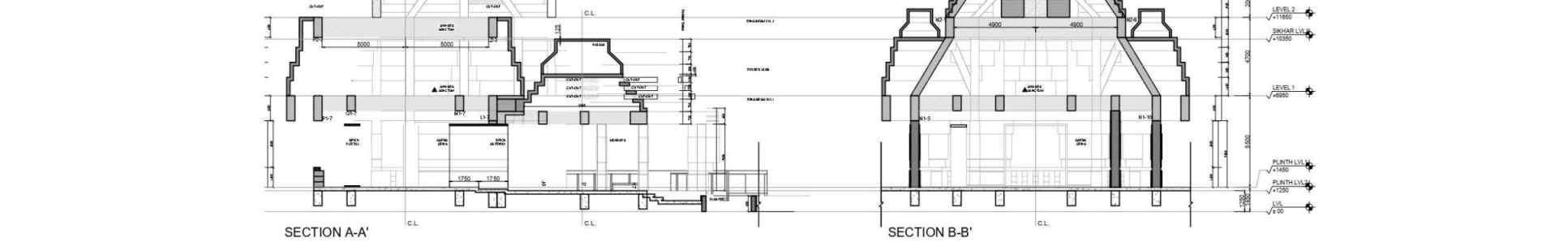

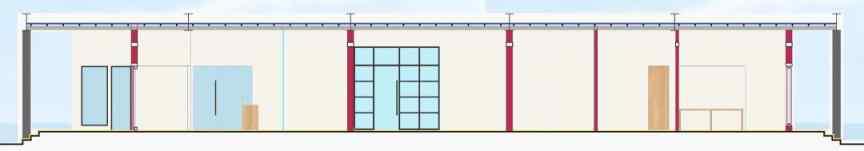

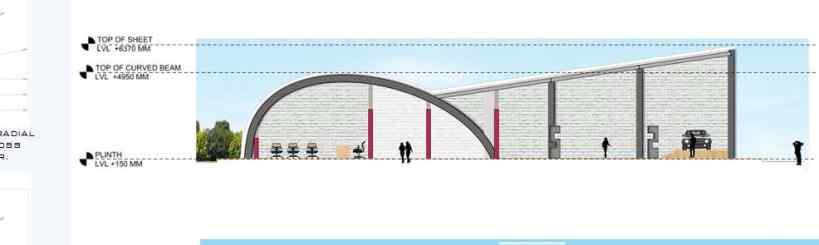

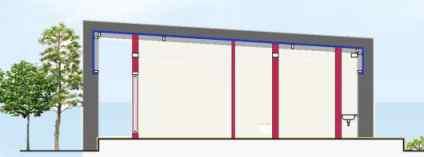

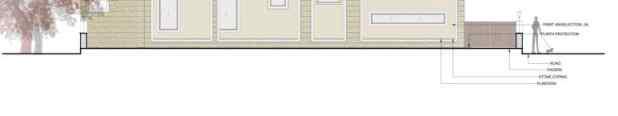

A SECTION AA’

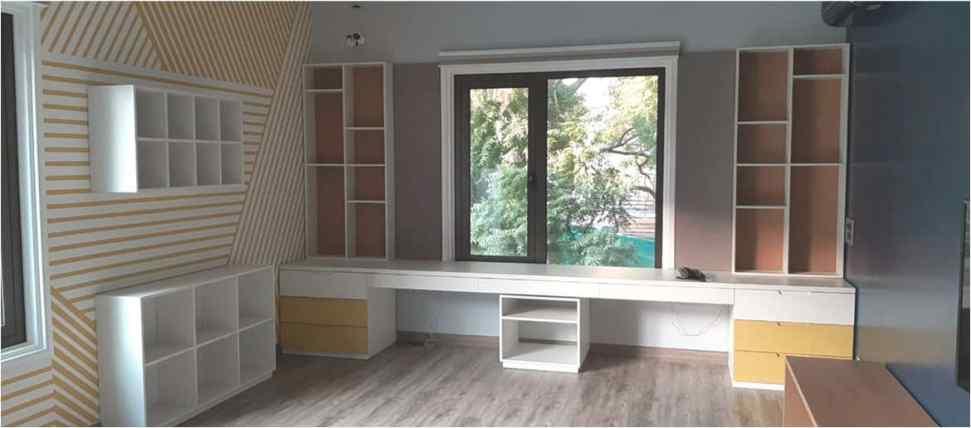

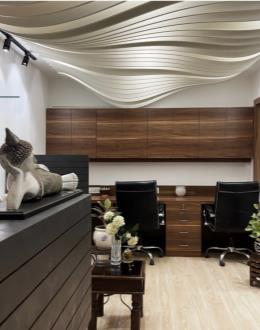

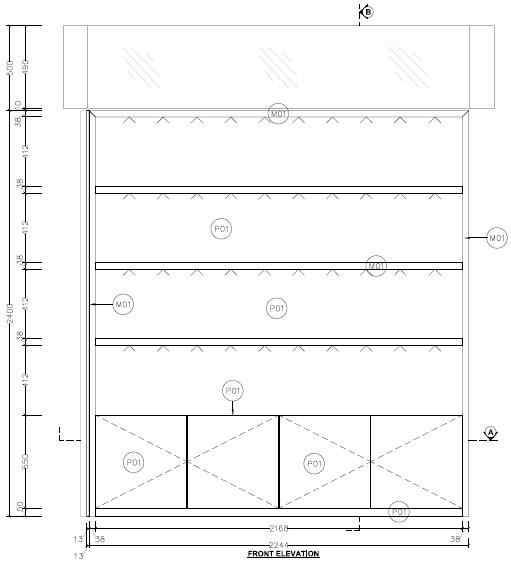

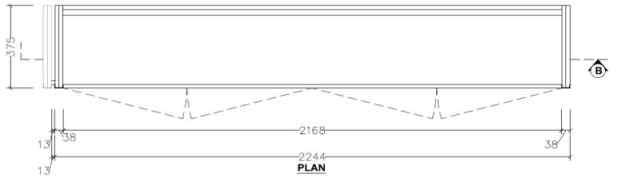

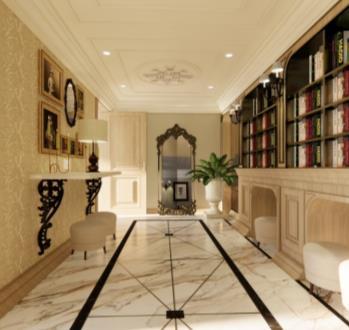

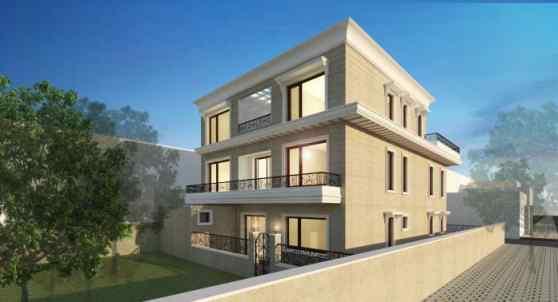

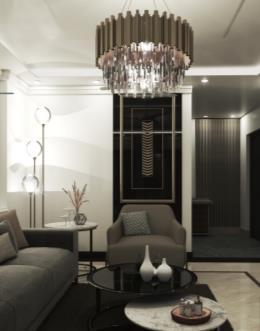

RESIDENTIAL FURNISHINGS, DELHI, INDIA:

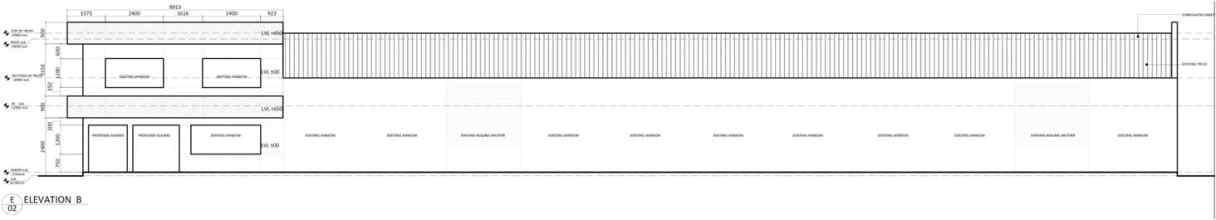

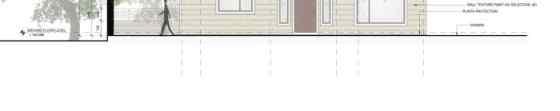

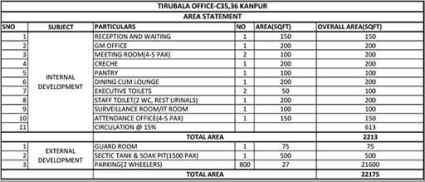

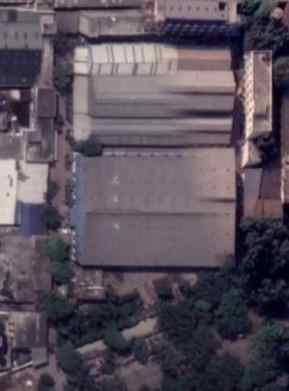

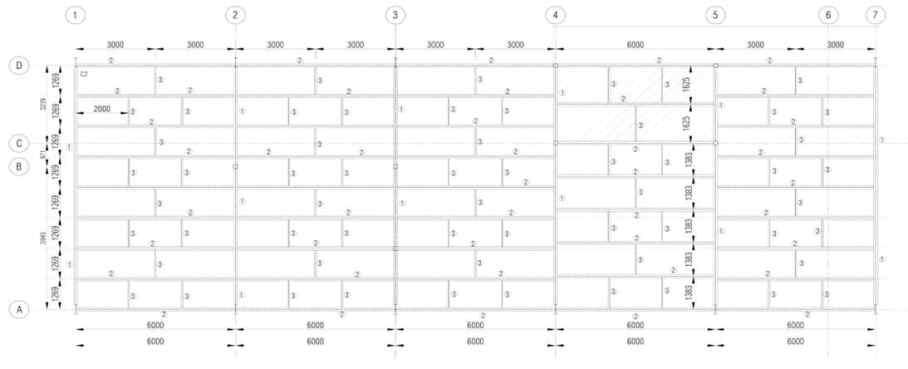

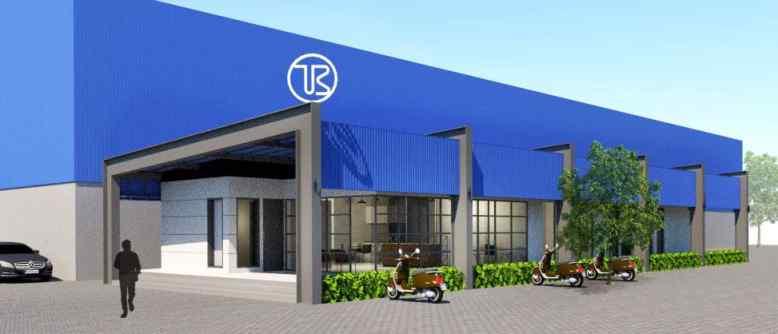

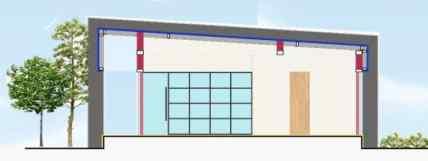

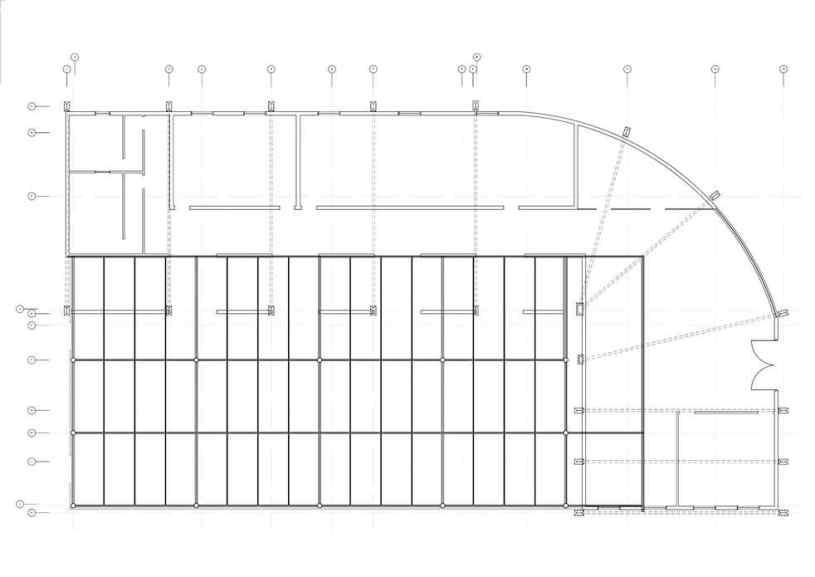

TIRUBALA FACTORY EXTENSION, KANPUR, INDIA: PROFESSIONAL PROJECT – WAL+ L ARCHITECTS, DELHI, INDIA 1200 MM WIDE CORRIDOR 5770 2725 5770 2725 DVR RECEPTION 3625x 2020 MEDICAL ROOM TOILET EXISTING BUILDING A B C d E PURPOSE: CURRENT STATUS: PROFESSIONAL–2020ONGOING CLIENT: CARRIED OUT: TIRUBALA GROUP UNDER GUIDANCE TYPE: INDUSTRIAL LOCATION: KANPUR,INDIA SUPERVISION: WAL+L ARCHITECTS, NEW DELHI INVOLVEMENT: • PLANNING • DETAILING • MEP AND HVAC LAYOUTS • 3D RENDERINGS EXISTING FACTORY A EXISTING FACTORY B EXISTING FACTORY C Typical roof section FLOOR PLAN Sect on b VIEWS OF THE PROPOSED BLOCK Sect on c Sect on d Sect on e STRUCTURAL PLAN An office block, right next to an existing factory of renowned tirubalatraders. This specific site had shoe manufacturing factorieswhat client wanted was to have an extension. Where the managers would sit. The constructional time had to be minimum but the building had to stand out, seem eccentric. It did have to look like the boss’s den. And that’s how, the unique yet subtle form finding took place. SITE PLAN 13 M 81M 40 M RENDERS, DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL Sect on A

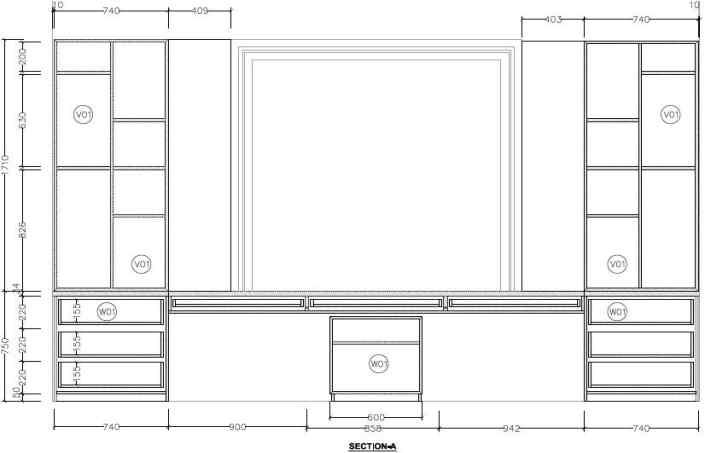

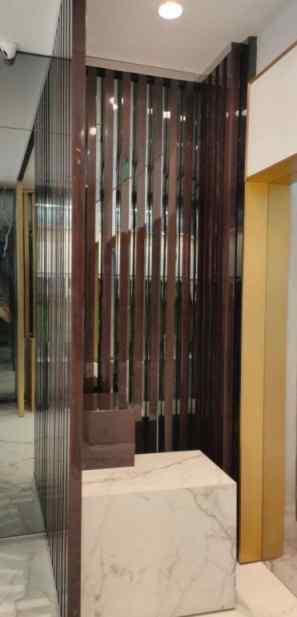

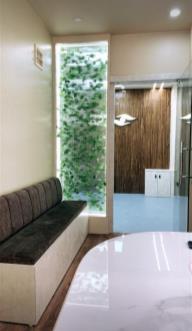

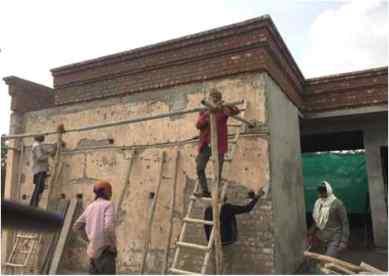

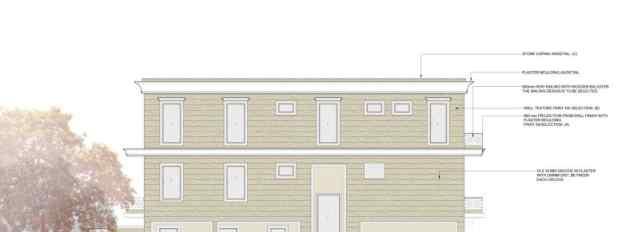

PROFESSIONAL PROJECT – MOBEL GRACE, DELHI, INDIA PURPOSE: CURRENT STATUS: PROFESSIONAL –2020 COMPLETED CLIENT: CARR ED OUT: INDEPENDENT CLIENT SELF TYPE: RESIDENTIAL LOCATION: DELHI,INDIA INVOLVEMENT: • PLANNING DETAILING • SITE EXECUTION • 3D RENDERINGS
ROOF P BLOCK - 2
PURPOSE: PROFESSIONAL –2020

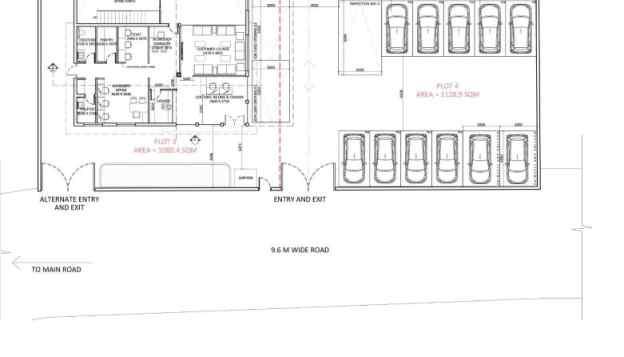

CLIENT: MARUTI SUZUKI TYPE: INDUSTRIAL LOCATION: KULLU, INDIA CARRIED OUT: SELF SUPERVISION: WAL+LARCHITECTS,NEWDELHI
PROJECT INFO:
Maruti Suzuki India Limited (MSIL), a subsidiary of Suzuki Motor Corporation, Japan, is India's largest passenger car maker. Maruti Suzuki is credited with having ushered in the automobile revolution in the country. The Company is engaged in the business of manufacturing and sale of passenger vehicles in India.
WAL+L Architects was handed over the responsibility of designing an automobile workshop for Maruti Suzuki, in the hilly terrains of Himachal Pradesh, India. Certain protocols were set, equipment list provided, and RFPs in place.block-1, trussed entity-was to remain intact, with certain additions to the façade, however block-2 was an entirely new block Trussed, again.
AREA PROGRAM:
BLOCK 1
GROUND FLOOR 644.53 sqmtFIRST FLOOR 116.45 sqmt
BLOCK 2 GROUND FLOOR 414.00 sqmtFIRST FLOOR 81.4 sqmt

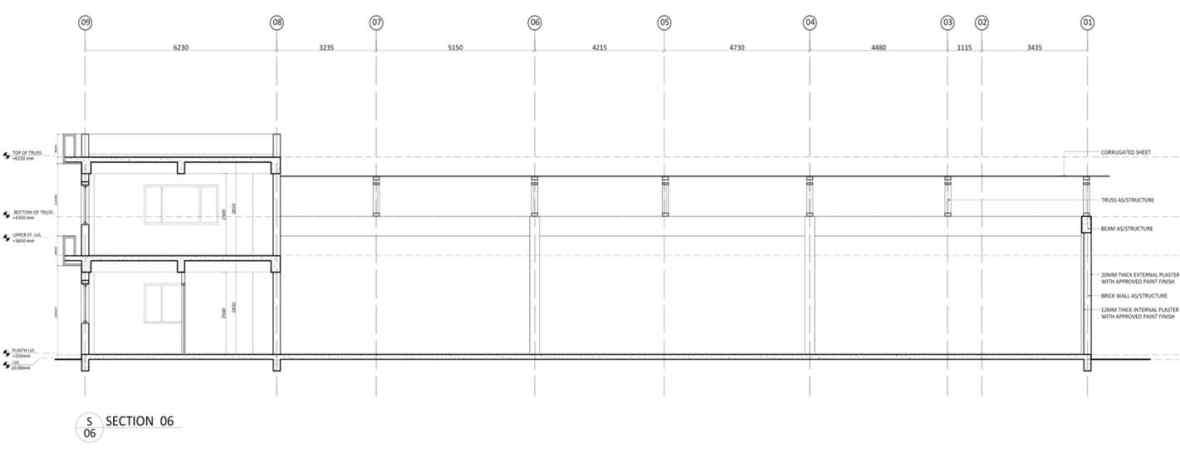

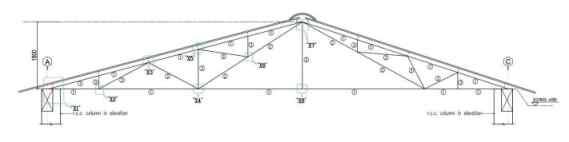

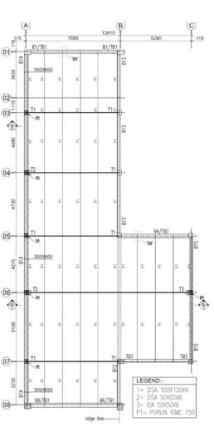

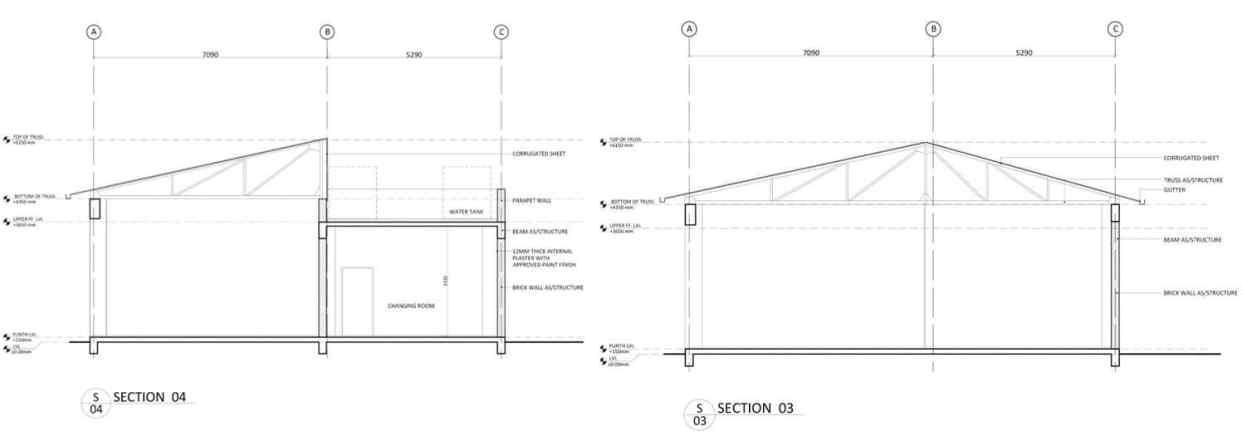

TRUSS T1 DETAIL

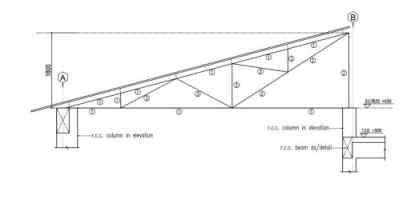

TRUSS T3 DETAIL

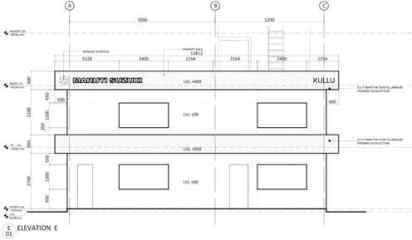

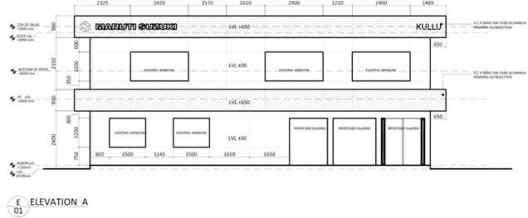

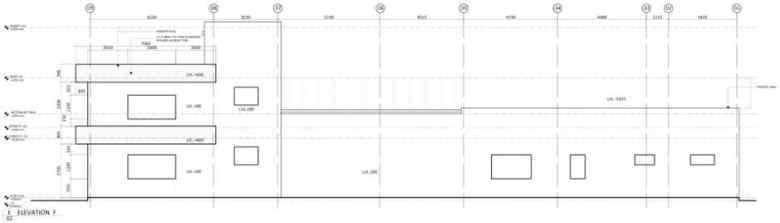

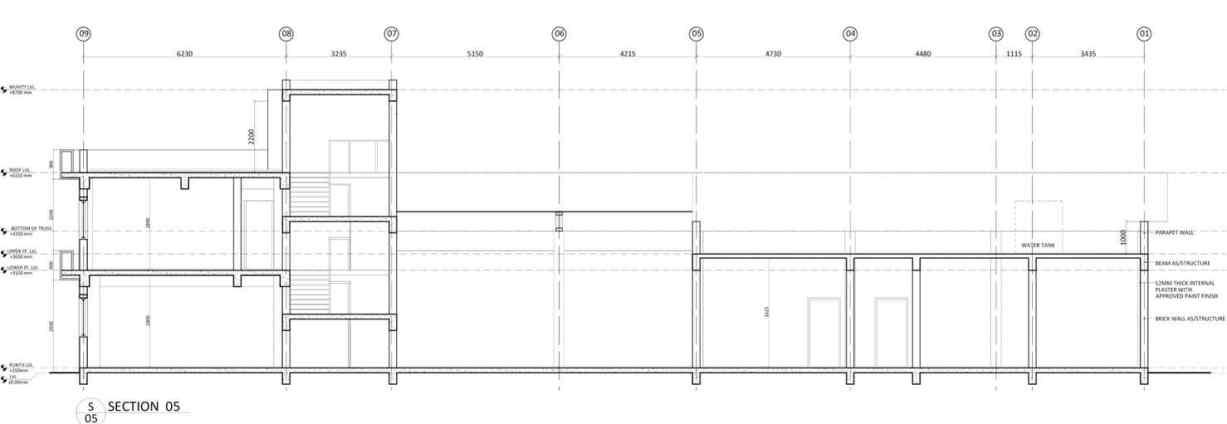

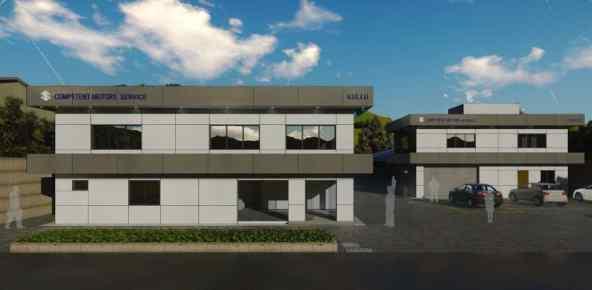

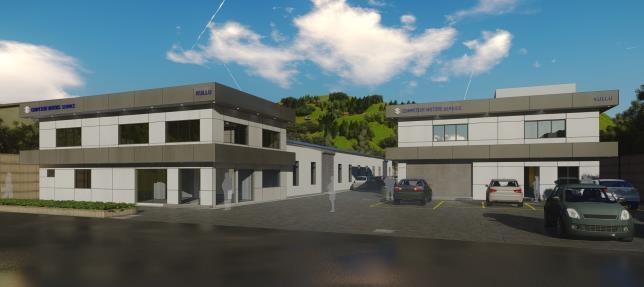

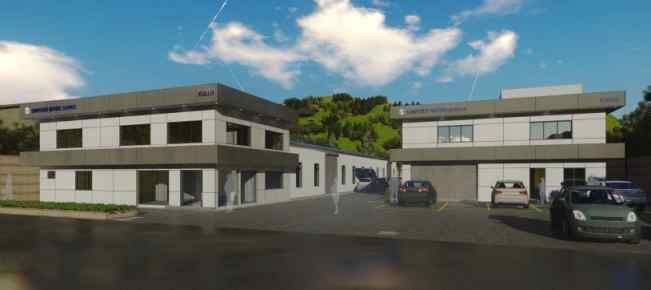

MARUTI SUZUKI - COMPETENT MOTORS WORKSHOP, KULLU, INDIAPROFESSIONAL PROJECT : WAL + L ARCHITECTS, DELHI
sanction set CURRENT STATUS: ONGOING 56.6M 56.6M 40.5M 40.5M Structural coordination • HVAC coordination • 3d renderings ALL THE DWGS, GRAPHICS ARE PREPARED BY AISHWARYA JASWAL VIEWS OF THE PROPOSED BLOCKS NOTE: ALL THE RENDERS, DWGS, GRAPHICS ARE PREPARED
INVOLVEMENT: • Planning, • Detailing, Mepand hvaclayouts • Preparation of

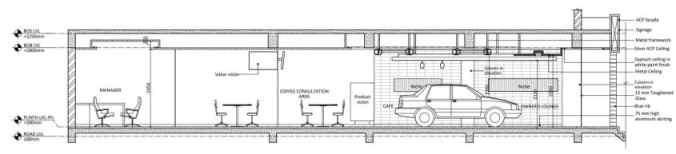

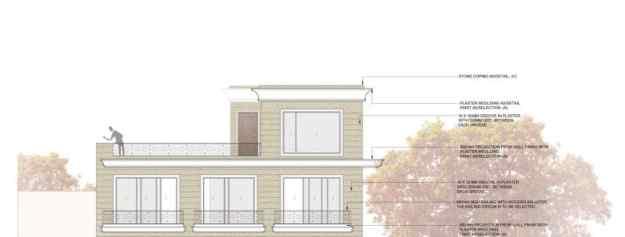

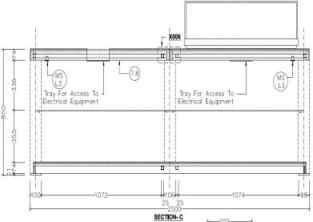

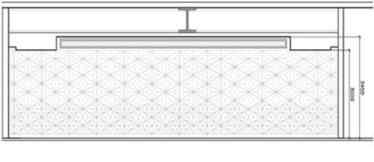

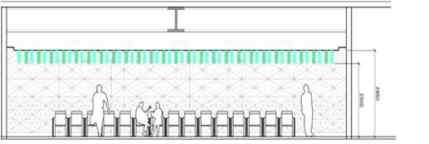

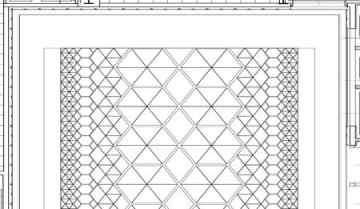

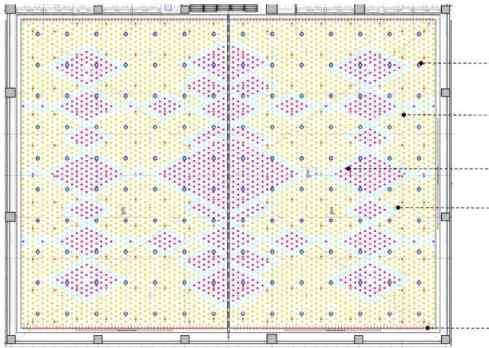

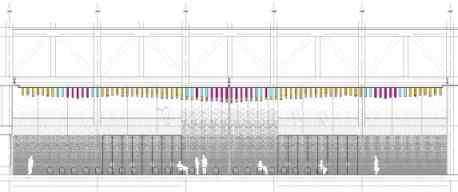

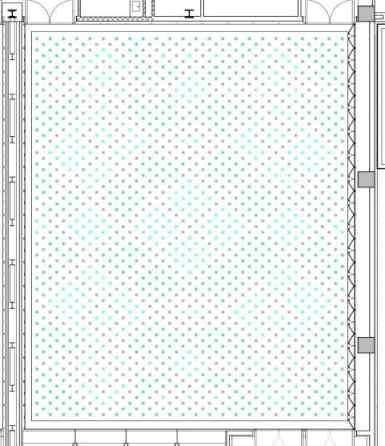

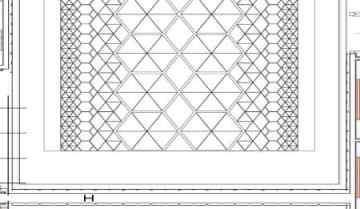

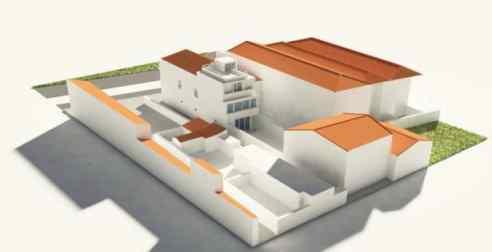

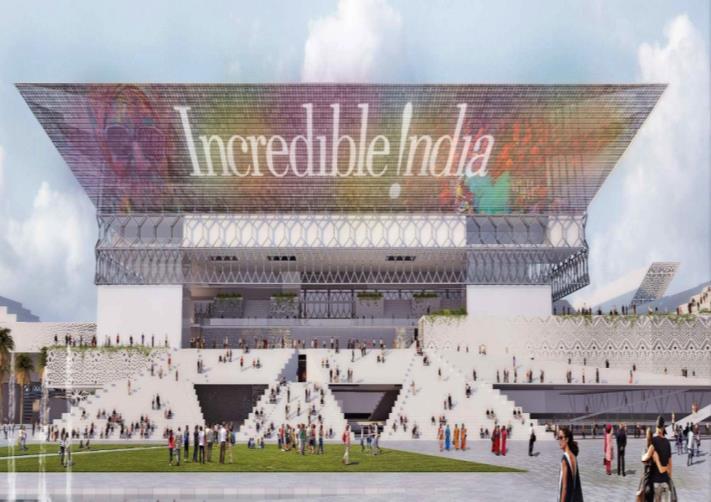

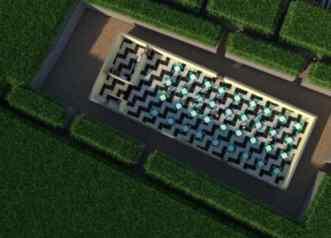

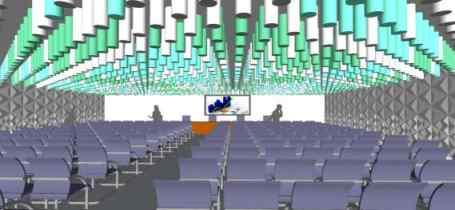

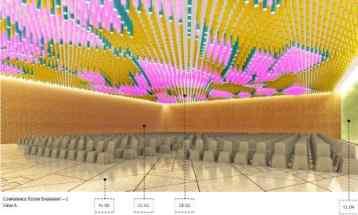

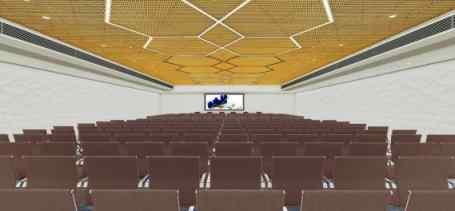

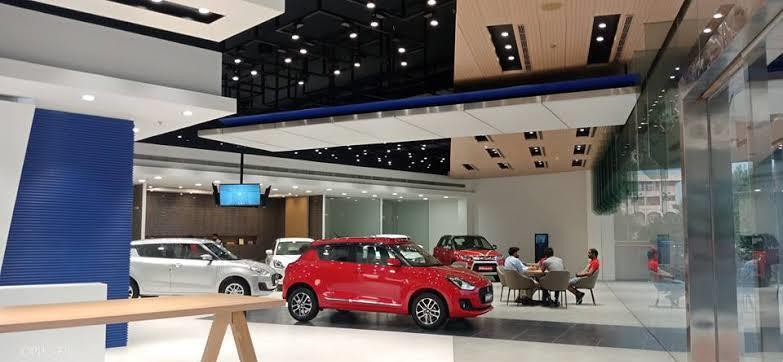

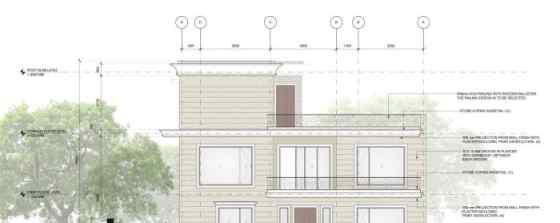

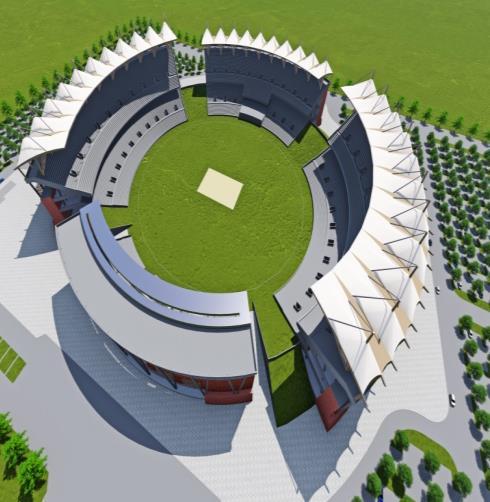

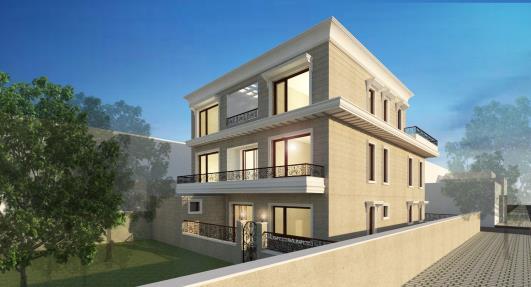

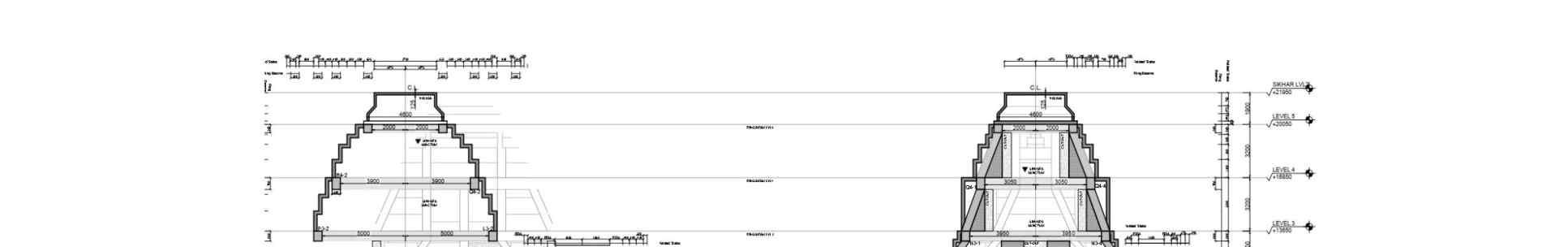

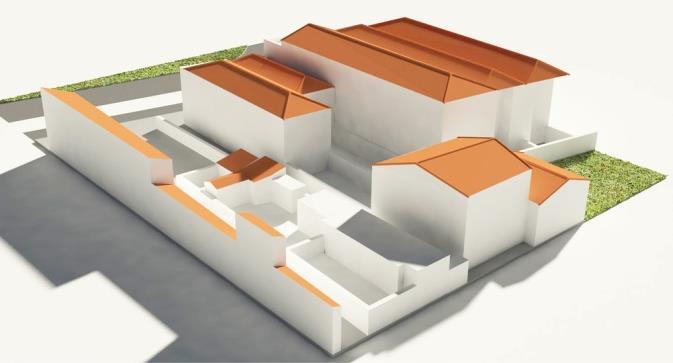

PURPOSE: CURRENT STATUS: PROFESSIONAL –2021 COMPLETED CLIENT: CARRIED OUT: INDEPENDENT CLIENT SELF TYPE: RESIDENTIAL LOCATION: DELHI,INDIA SUPERVISION: WAL+L ARCHITECTS, NEW DELHI INVOLVEMENT: • PLANNING, • DETAILING, • SITE EXECUTION PREPARATION OF SANCTION SET STRUCTURAL COORDINATION HVAC COORDINATION • 3D RENDERINGS OTHER WORKS PROFESSIONAL PROJECTS AND WORKSHOPS INTERNATIONALWATCHCOMPANY(IWC):INTERNSHIP PROJECT : MOBEL GRACE DELHI INDIA CASANARUAJUSTINOTEIXEIRA:INTERNSHIP PROJECT : ALESSANDRO PEPE ARQUITECTO PORTO PORTUGAL UNITED NATIONS : EMERGENCY SHELTER, TENSILE STRUCTURE ACADEMIC WORKSHOPS MARUTISUZUKISHOWROOMPROFESSIONAL PROJECT : WAL+L ARCHITECTS, DELHI, NDA RESIDENCETURNKEY:PROFESSIONAL PROJECT : WAL+L ARCHITECTS, DELHI, INDA GROOVES IN PERFORATED ALLUMINIUM CEILING Y’ Y Y’ SOUND ABSORBENT CYLINDERS AC GRILL 850 DEEP BEAM SPACEFOR MEP SERVICES ACOUSTIC CYLINDERS INDIA INTERNATIONAL CONVENTION CENTRE: INTERNSHIP PROJECT : ARCOP ARCHITECTS DELHI INDA PURPOSE: PROFESSIONAL –2018 CLIENT: GOVERNMENT OF INDIA TYPE: COMMERCIAL CURRENT STATUS: COMPLETED CARRIED OUT: WITH THE TEAM LOCATION: DELHI,INDIA SUPERVISION: ARCOP ARCHITECTS, NEW DELHI INVOLVEMENT: • GFC SET • 3D RENDERINGS

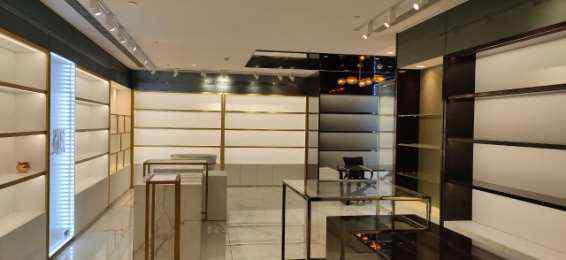

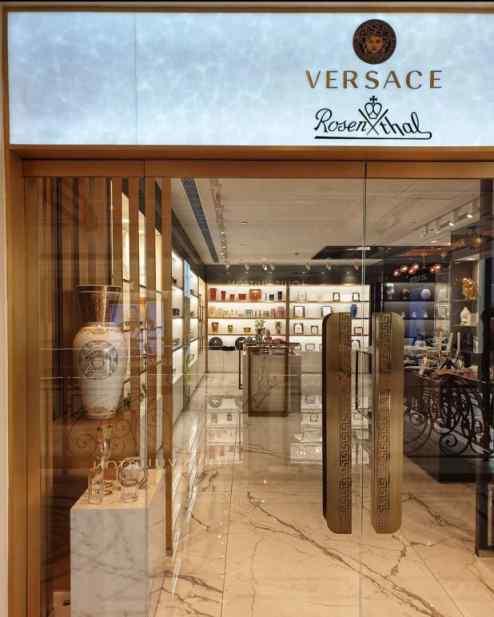

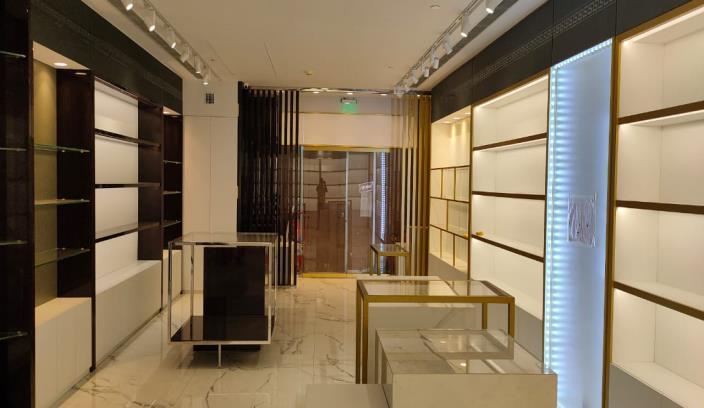

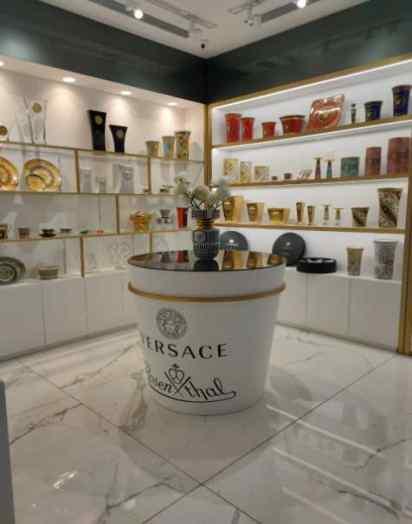

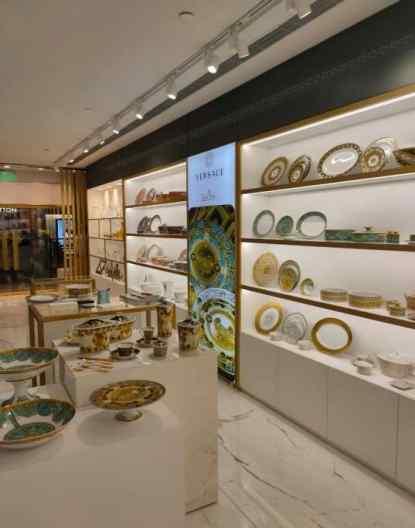

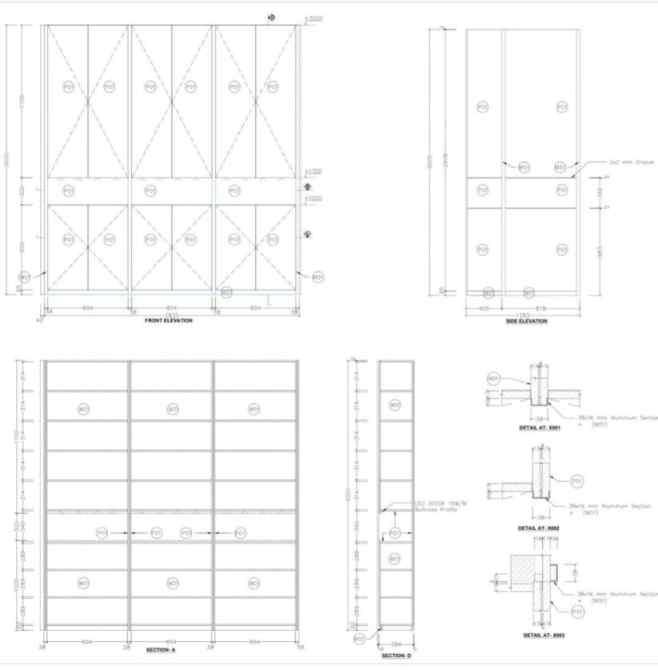

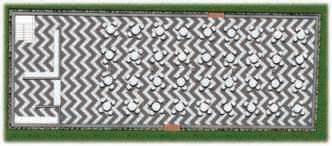

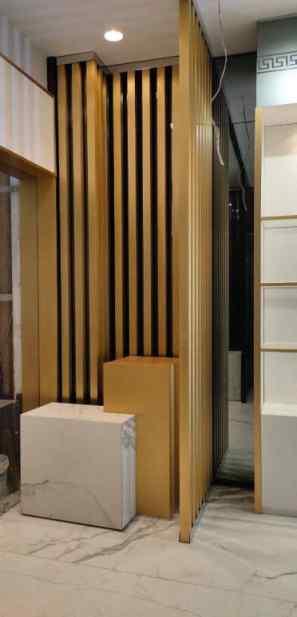

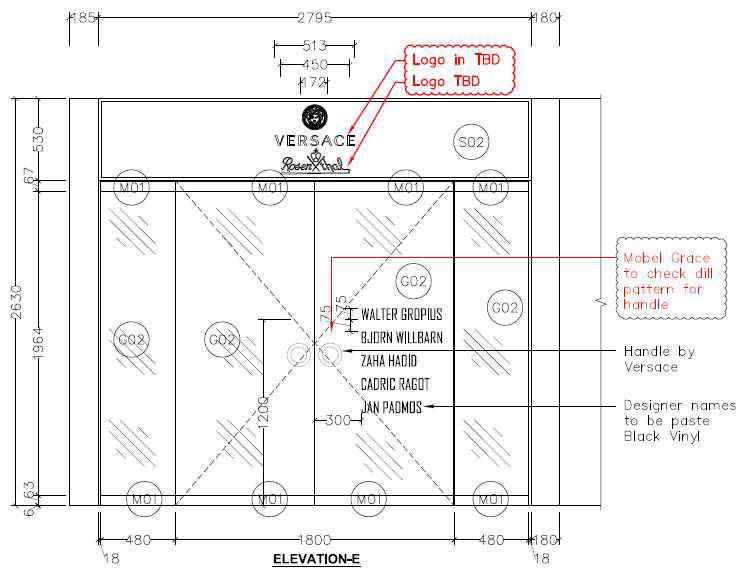

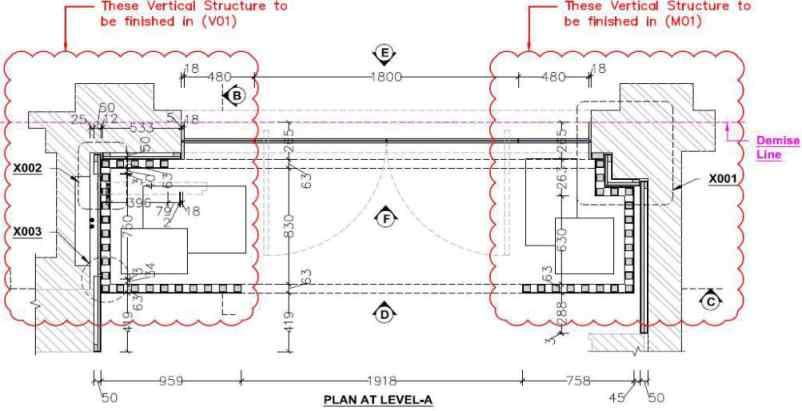

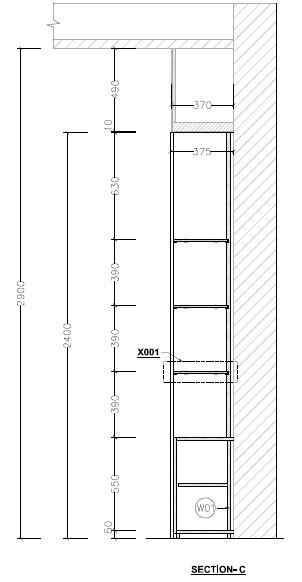

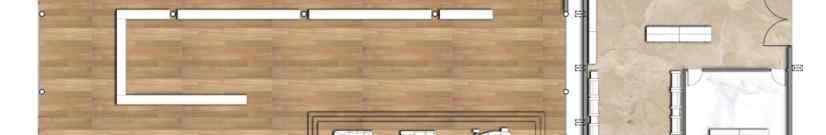

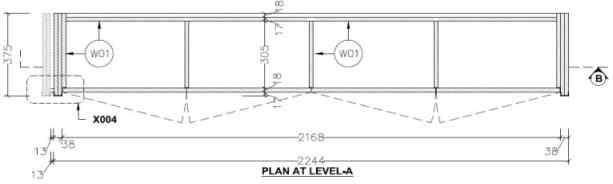

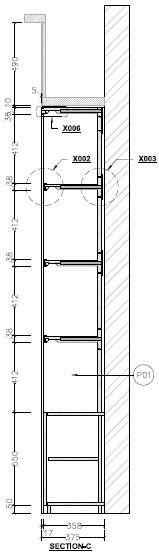

VERSACE X ROSENTHAL , DELHI, INDIA- PROFESSIONAL PROJECT : MOBEL GRACE, DELHI PURPOSE: CURRENT STATUS: PROFESSIONAL –2019 COMPLETED CLIENT: CARRIED OUT: INDEPENDENT CLIENT UNDER GUIDANCE TYPE: COMMERCIAL LOCATION: DELHI,INDIA SUPERVISION: MOBEL GRACE, NEW DELHI

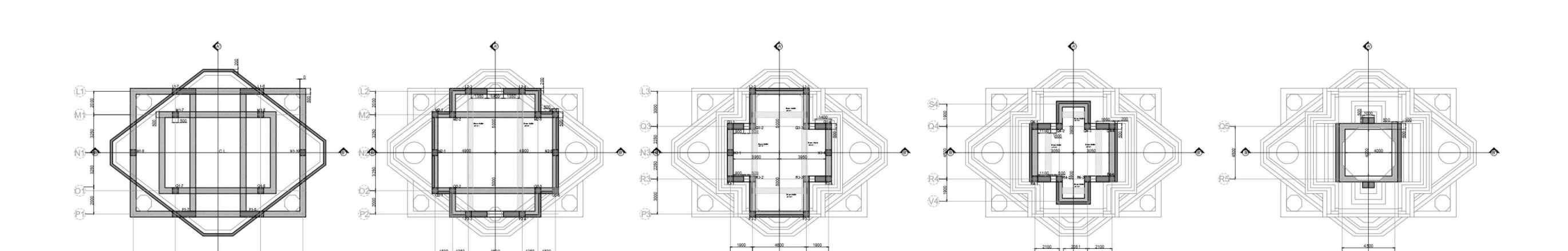

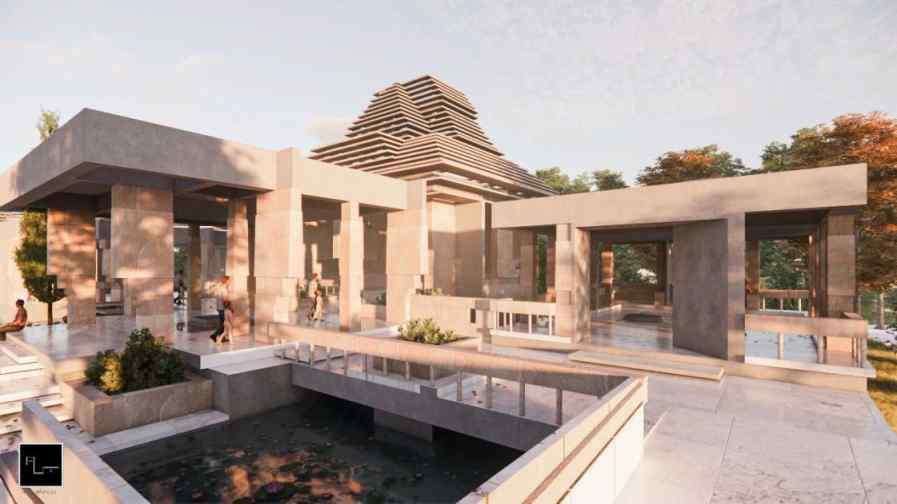

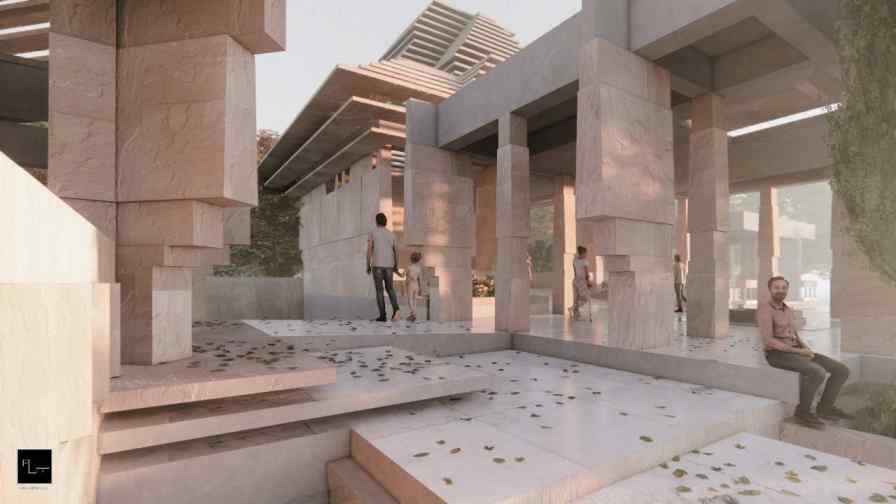

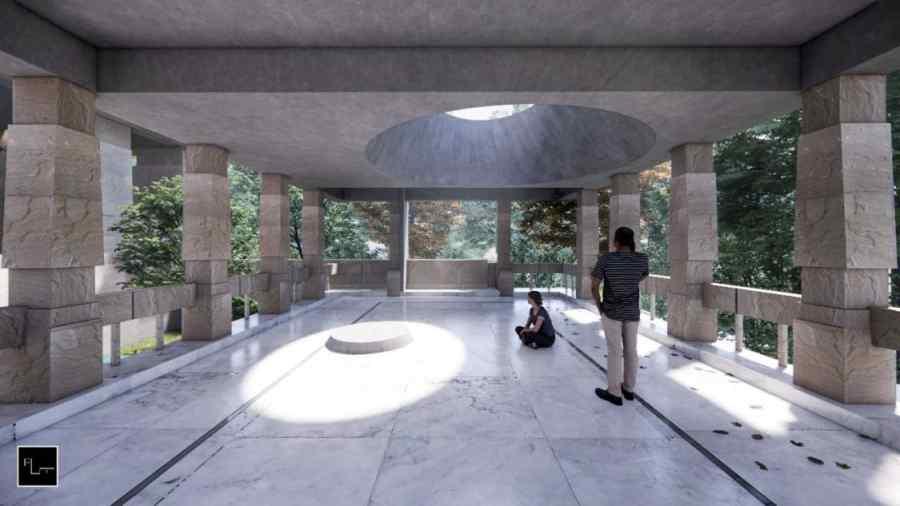

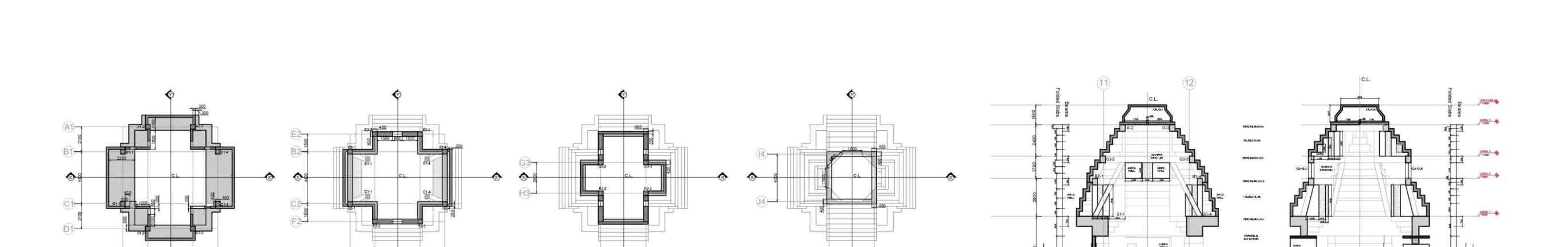

TEMPLE COMPLEX, BIHAR, INDIA- PROFESSIONAL PROJECT : ALTARQ ARCHITECTS, DELHI, INDIA
CURRENT STATUS: PROFESSIONAL –2022 COMPLETED CLIENT: CARRIED OUT: INDEPENDENT CLIENT TEAM –ALTARQ ARCHITECTS TYPE: COMMERCIAL LOCATION: DELHI,INDIA INVOLVEMENT: • PLANNING, • DETAILING, • PREPARATION OF SANCTION SET STRUCTURAL COORDINATION HVAC COORDINATION 3D RENDERINGS
