PRODUCT DESCRIPTION
1/2” (12 mm) - 102 sq. ft. box
$315.18/box

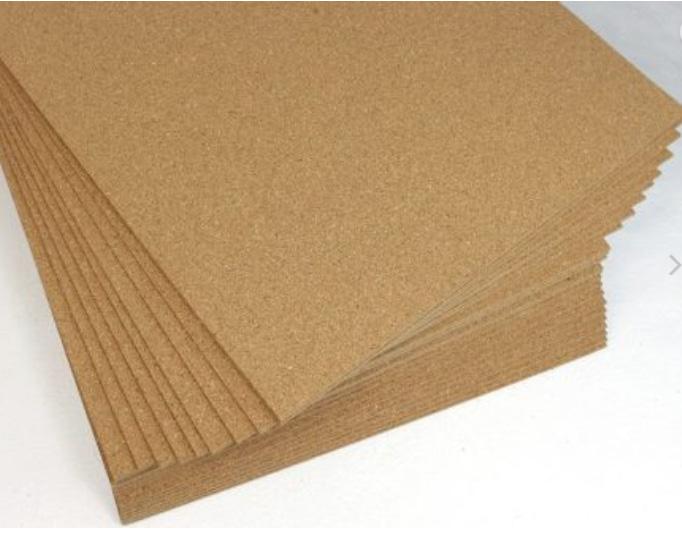

Forna cork underlayment is placed under the floors reflect body heat, thus offering a more comfortable feel and protecting the natural warmth of your feet.
It comes in 12mm cork underlayment. 1/2” (12mm) offers STC 49 and IIC 48 sound ratings. that’s just for the underlay.
100% cork (bark from the cork tree)
Excellent impact noise reduction, reduce sounds of footsteps: Reduce the amount of noise that a floor will make Environmentally Friendly Direct and Easy Installation
Adam DeardenArch 404
Constrution Detailing
Assignment 8
16 In. O.C. for 2x4 Wood Studs
$89.20/each 12 pieces per package
Coverage: 59.7ft2 (5.55m2)
Thickness 76 mm
Width 387 mm
Length 1194mm

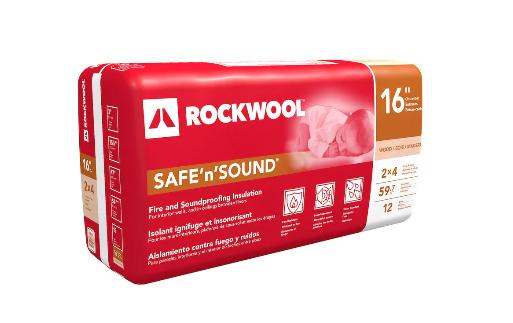

Stone wool insulation for use in interior partitions of residential wood and steel stud construction where superior fire resistance and acoustical performance are required.
Does not rot or promote growth of fungi or mildew
Fire resistant due to its high melting temperature
Easily cut
Excellent Sound Absorbency
Water and moisture reistant
Adam DeardenArch 404
Constrution Detailing
Assignment 8
Champagne Beach Wood

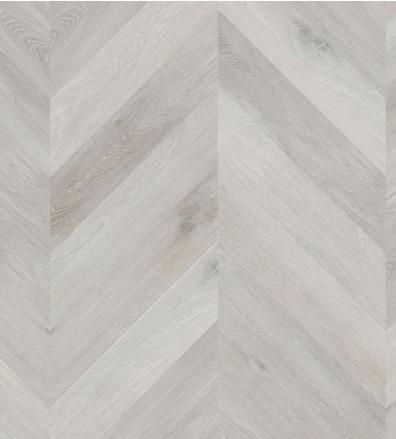

12.01 in. x 28.8 in. Chevron Luxury
18.87 sq. ft. / case
$131.71/case
This product has a pre-attached underlayment which minimizes sound and enhances warmth and comfort underfoot. LifeProof luxury vinyl flooring features a drop-and-lock installation system.
This product contains Ultra-Fresh treatment which inhibits the growth of odor and stain causing mold and mildew on the attached underlayment and top surface layer of the floor.
8 mm thick x 12.01 in. w x 28.28 in. l. 12 mil wear layer.
Slip Resistant, Phthalate-free, Removable, Watrproof, Hypoallergenic, Mark Resistant, Stain Resistant, Underlayment Attached, Commercial Use, Scratch Resistant
Adam DeardenArch 404
Constrution Detailing
Assignment 8
1/2 lb
$375.92
4’ x 25’ (100 sq. ft.)

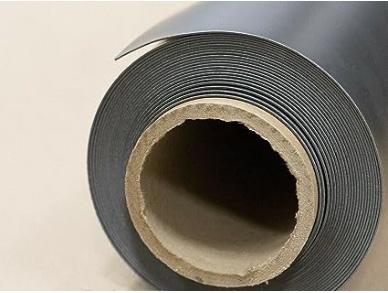

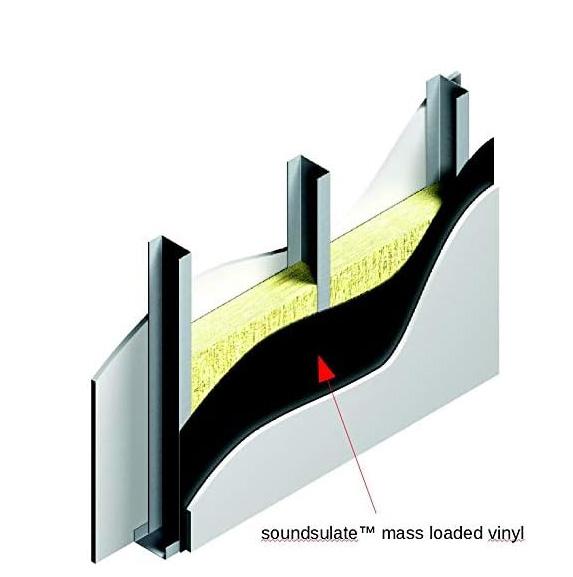

Superior solution over other soundproofing alternatives for blocking sound effectively. Very thin and flexible characteristics makes it a great choice for a variety of sound control applications without compromising space. It is designed to reduce noise transmission through floors, walls, and ceilings. Typical applications include applying over studs, joists or suspended ceilings. It can also be usd as an acoustic wrap for machinery, equipment and ductwork.
Made with high quality flexible vinyl for strength and durability
Odorless, non-toxic and can be painted with latex paint
STC rating 20
Heavy- weighs 1/2 pound per square foot or 50 pounds
Adam DeardenArch 404
Constrution Detailing
Assignment 8
Adam Dearden
ACOUSTIC ARCHITECTURAL PRODUCTS INC.
PRODUCT DESCRIPTION
Thickness 1-1/2” to 4-1/2”
Panel Sizes
12”x12”, 24”x24”, 24”x48”
Mounting Options
Z-Clip, Impaling Clip or Adhesive direct to wall
Arch 404
Constrution Detailing
Assignment 8
Adam Dearden
PRODUCT DESCRIPTION

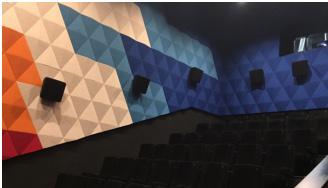

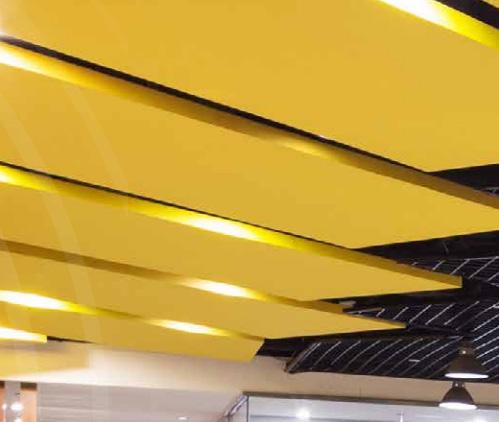

Fabric wrapped Acoustical Wall & Ceiling Panels
Ideal solution for new or renovation in spaces with reverberant noise problems. Available in a wide selection of sizes, thicknesses and finishes.
Arch 404
Constrution Detailing
Assignment 8
Architectural and Interior Acoustics
Acoustic Steel Doors, with an STC value of 56 (the highest STC rating of any 1.75” thick acoustical door in the industry). These have been designed to work better than other manufacturers’ acoustic steel doors and provide a number of additional benefits:
No need for specail locksets
3” wider than other manufacturers’ doors
More durable (three stainless steel cam lift hinges)
Design preserves double-wall sound isolation for much better acoustic seal
Frame and accessories included (full steel, partitioned window and full view glass options available including all gaskets and seals)
