Heli & Drone - 2025

Heli & drone

Delpoyable and permanent fabric-engineered hangars

www.rubbuk.com hello@rubbuk.com +44 (0) 191 482 2211

Building Systems

Advantages

4

Drone projects

18

Sustainability

23

Helicopter projects Thermohall® insulation Rubb structures Door options

Fire suppression Our customers

6

22 24 25 26 27

10

51 84

53°

9 37°

° 50

Our relocatable and permanent facilities are custom-designed to suit your project.

53° 76°

10 00

534 0

8

3 64°

7 59 54

26°

° 40

1

6 76°

5 ° 14

° 28

10 00

10 50 00 00

64°

76°

Since 1977, we’ve been industry leaders when it comes to safe, highquality solutions that are built to last.

Our durable, fabric-engineered buildings are designed for confidence. But what makes them special?

76°

• Proudly Made in Britain® certified • 25-year steel, 10-year single-skin PVC warranty • Post-fabrication, hot-dip galvanized steel frames • Relocatable and extendable for changing needs • Cost-saving insulation with Thermohall® • Flexible financing for affordable monthly costs

4 14 °

3

Advantages

Low maintenance and costs

Our high-quality membrane materials and post-production galvanized welded frames deliver durability over time, making the cost of maintaining Rubb buildings more economical compared to conventional structures.

Energy-efficient roof membranes

Translucent membranes allow natural daylight to illuminate the workspace while the white roof surface reflects heat. Thermohall® insulation can minimise heat transfer, prevents condensation and virtually eliminates thermal bridging and air infiltration.

Structure quality

All structures are code complaint, designed to its location’s wind and environmental requirements. Our PVC cladding has a manufacturer’s warranty of 10 years. Steelwork is hot-dip galvanized to eliminate corrosion, and comes with a 25-year warranty.

Multiple door options

Rubb offers a variety of different hangar door solutions. They can be selected and designed to suit many size and opening requirements, ensuring our clients get the best option for their selected Rubb building type and operational needs.

Complete environmental control

The membrane cladding of a Rubb building is continuously sealed to provide a weathertight shell. The buildings can be insulated, heated or air-conditioned as required. Rubb structures are uniquely suited for use as dehumidified facilities.

4

Engineering experts since 1977.

Whatever you need, we can build.

Reduced time on-site

Our established supply chain streamlines coordination of delivery and installation. Prefabricated elements and the ability to construct our buildings in a variety of weather conditions speeds up the construction process.

Rapid construction, installation, and relocation

Rubb buildings can be quickly erected, dismantled and relocated due to module prefabrication. Rubb can provide site supervisors or fully dedicated construction teams to complete any custom project. Structures are transportable by land, sea, and air.

Flexible and cost-efficient foundation systems

Rubb buildings can accommodate many foundation options such as concrete up-stand, ballast weights, and ground anchors into an existing surface. Rubb co-ordination with the groundwork contractor is key for the client to reach the most cost-effective solution.

Customisable features

Buildings can accommodate all types of door, ventilation and other systems. They can safely support high loads imposed by overhead cranes, ceiling-mounted HVAC and firesuppression systems, fall-protection equipment, and other superimposed loads.

Comprehensive long-term service

Rubb personnel are on hand to provide help and support, from initial contact and quotation, to installation and beyond. Rubb’s commitment to customer service continues after project completion and forms the basis for long-term customer satisfaction.

5

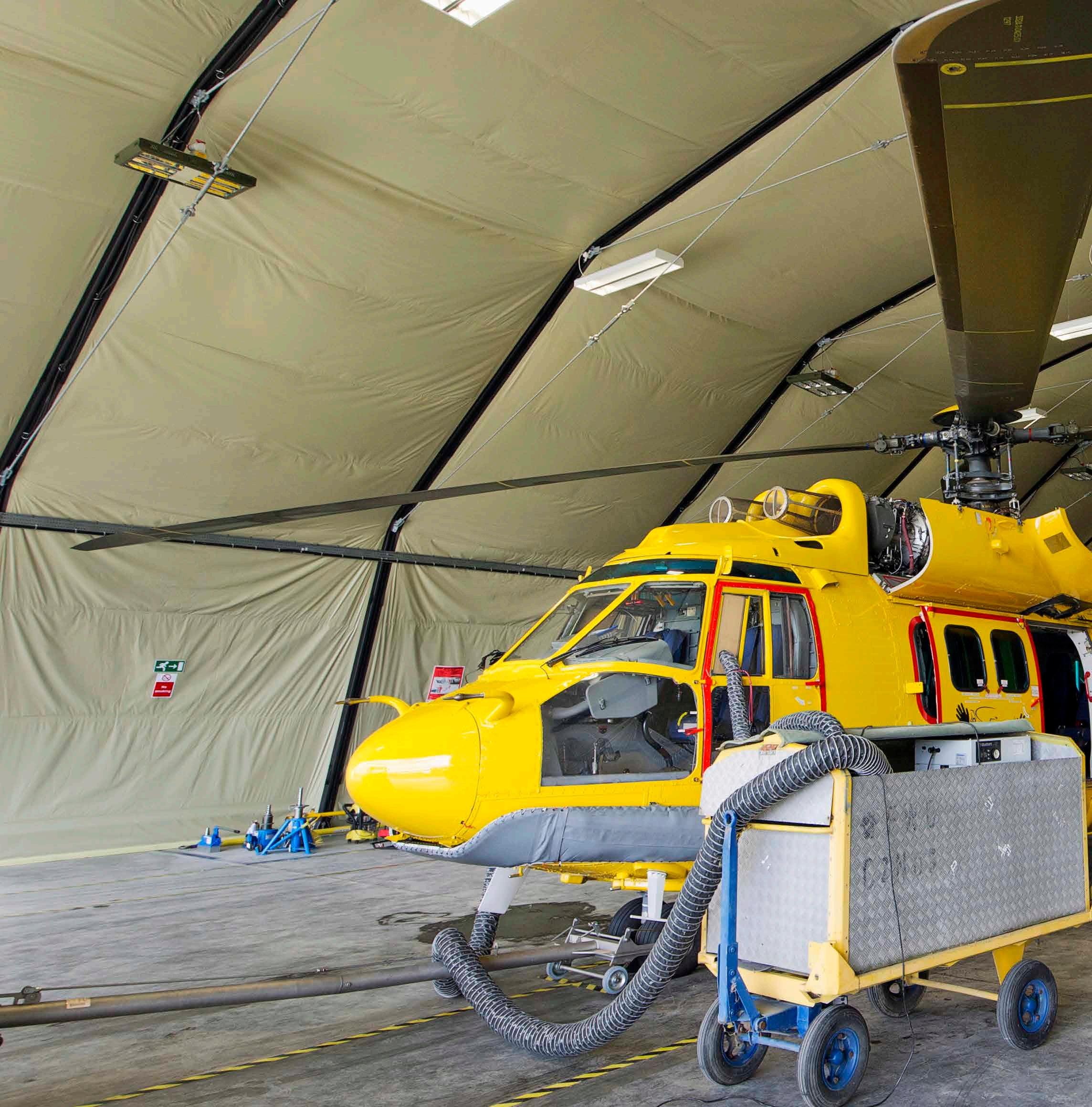

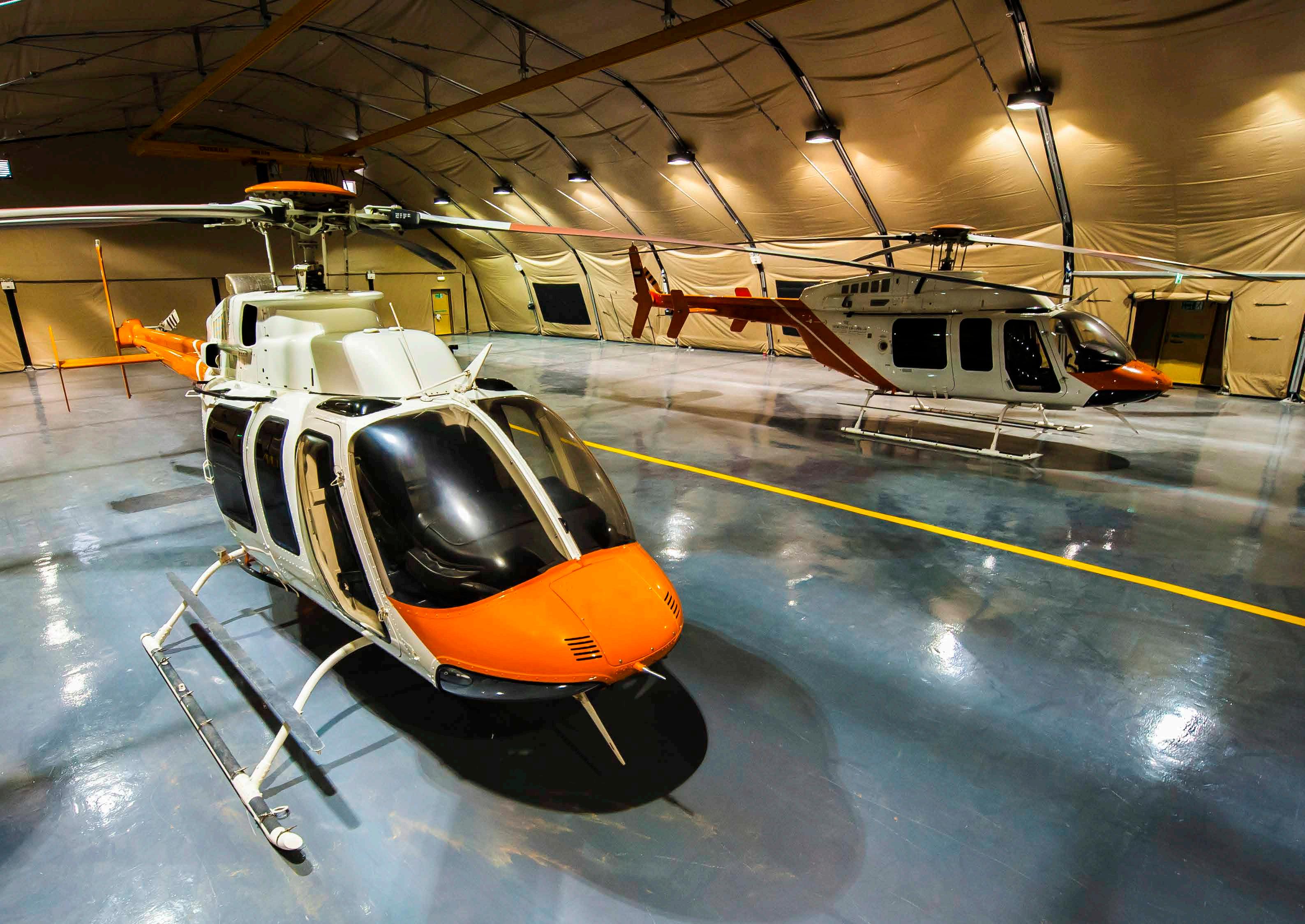

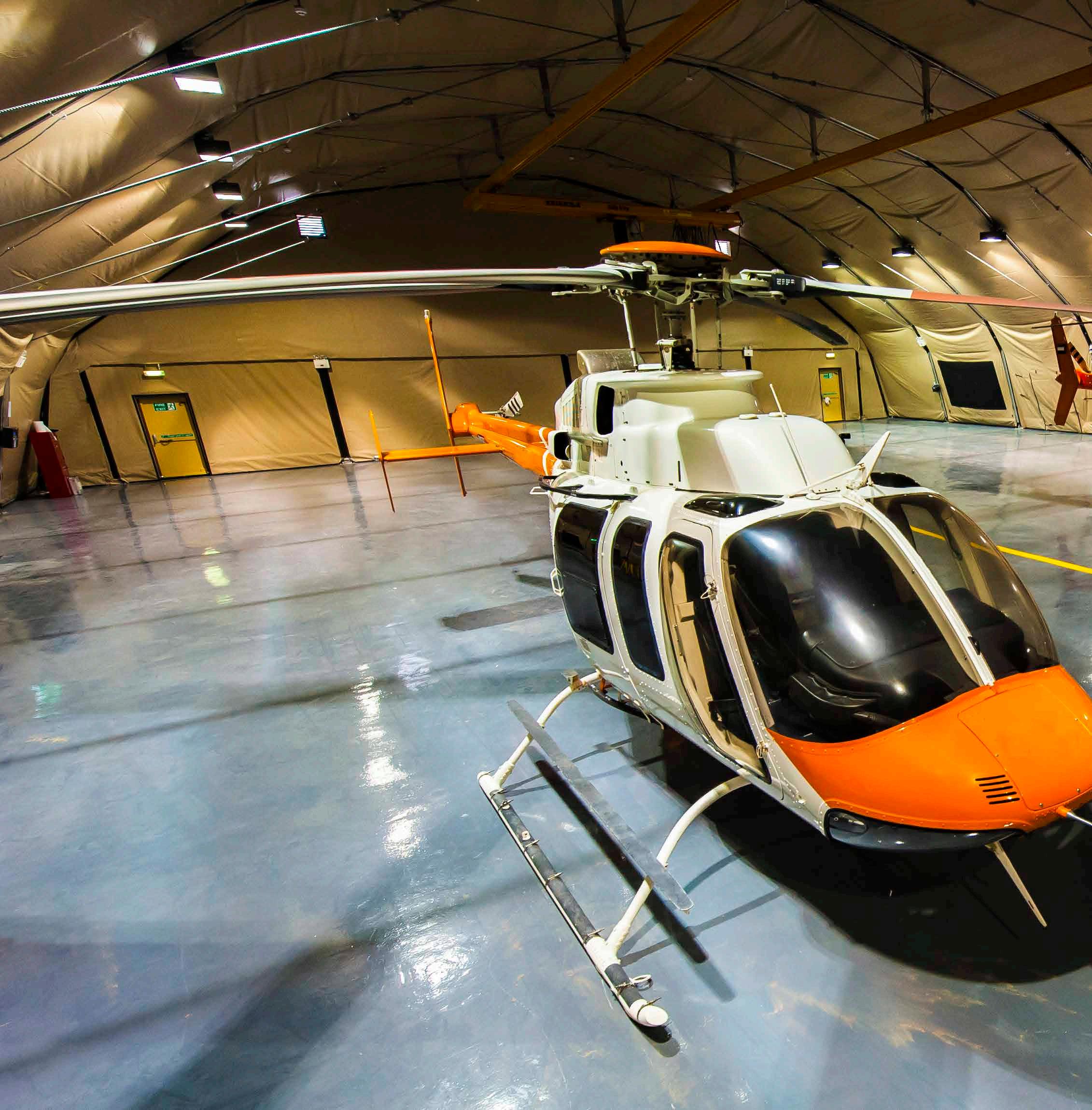

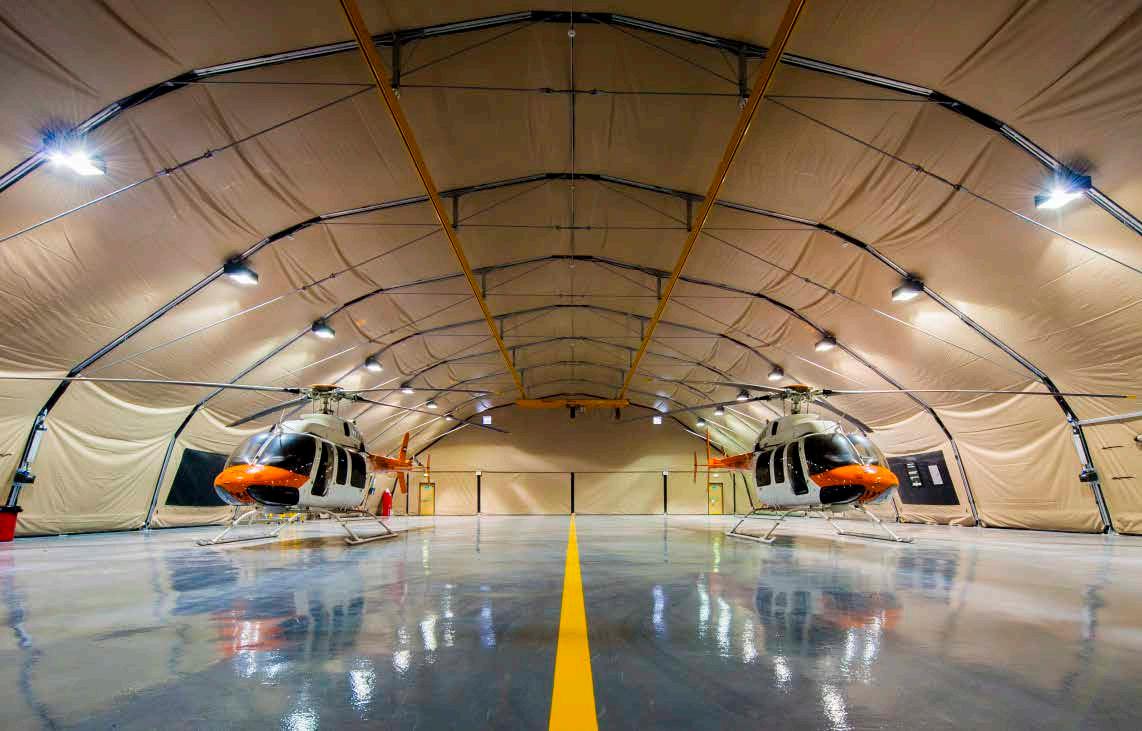

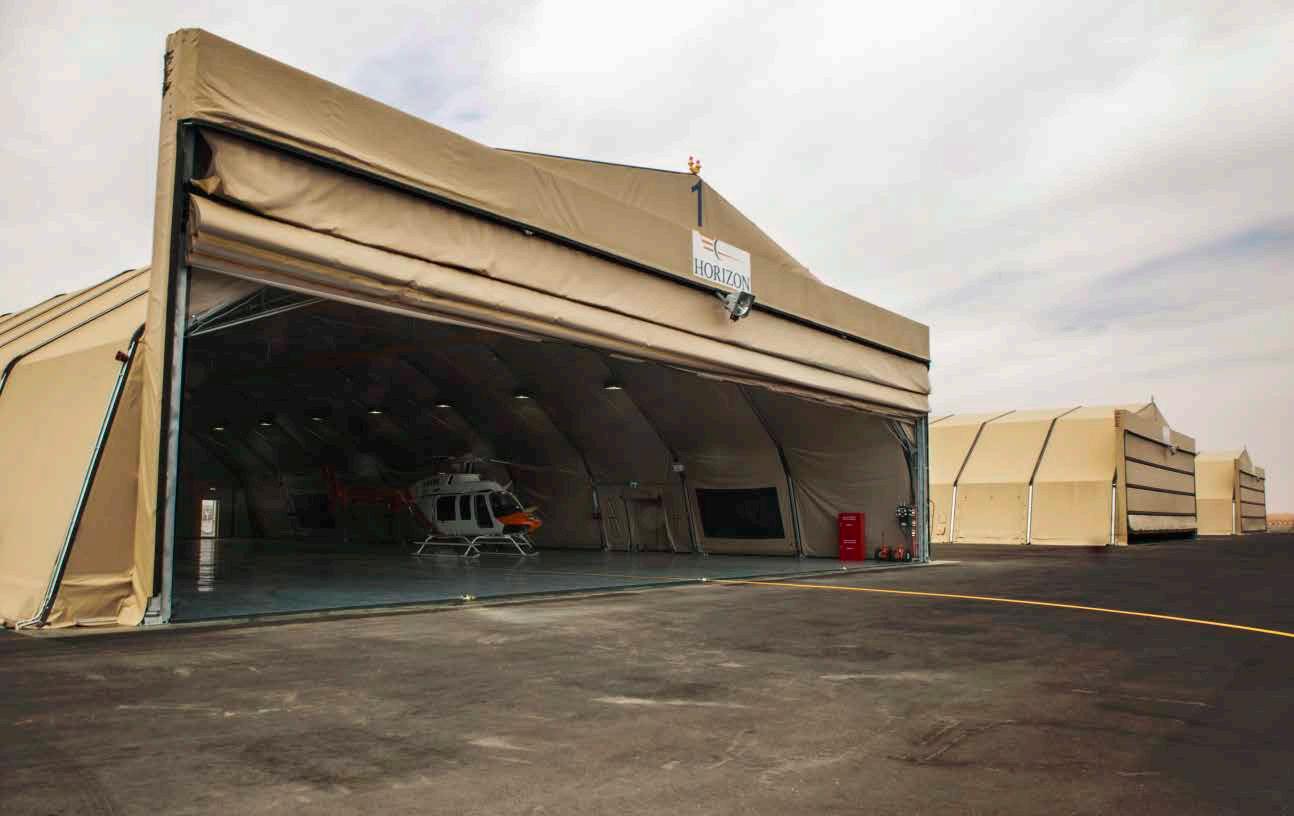

Horizon

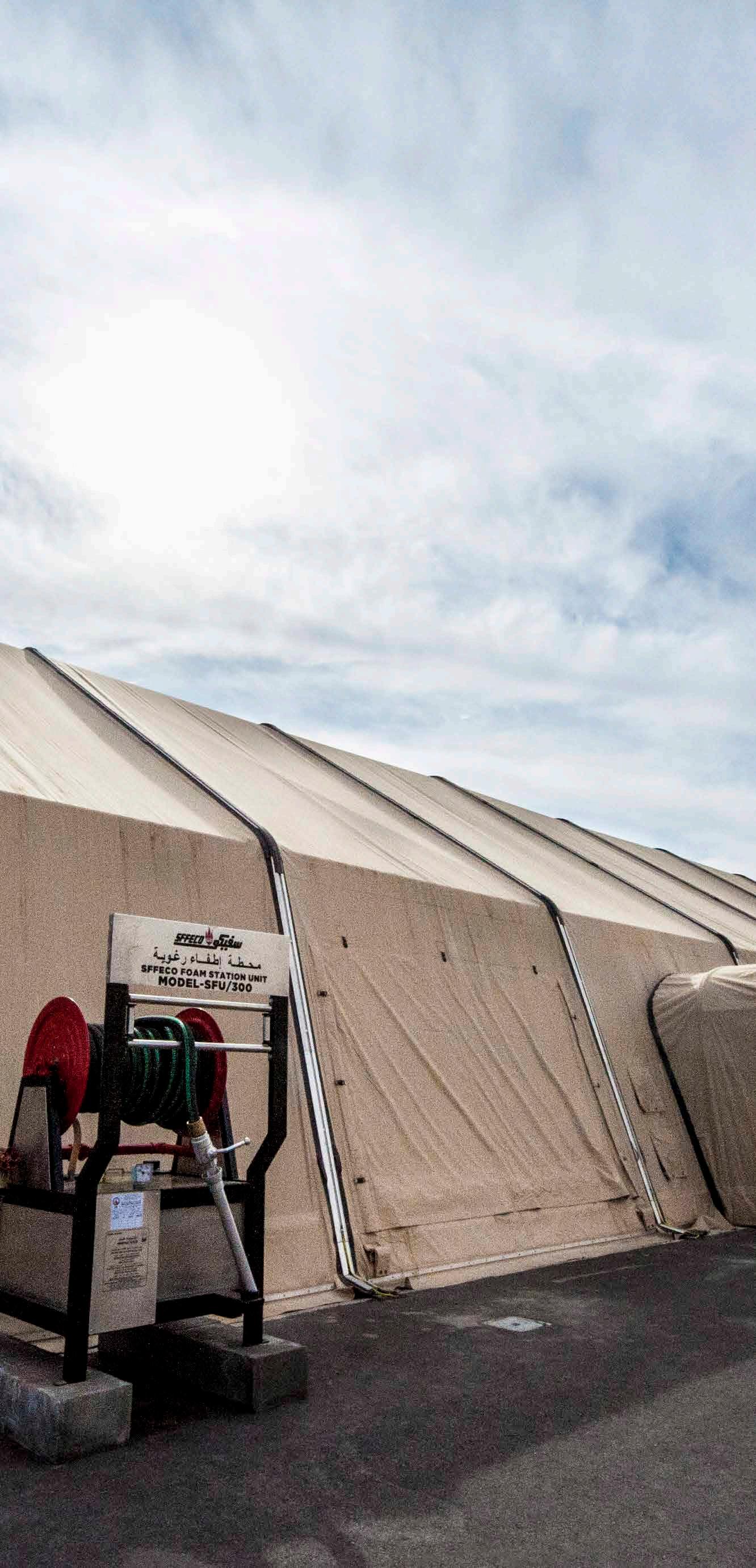

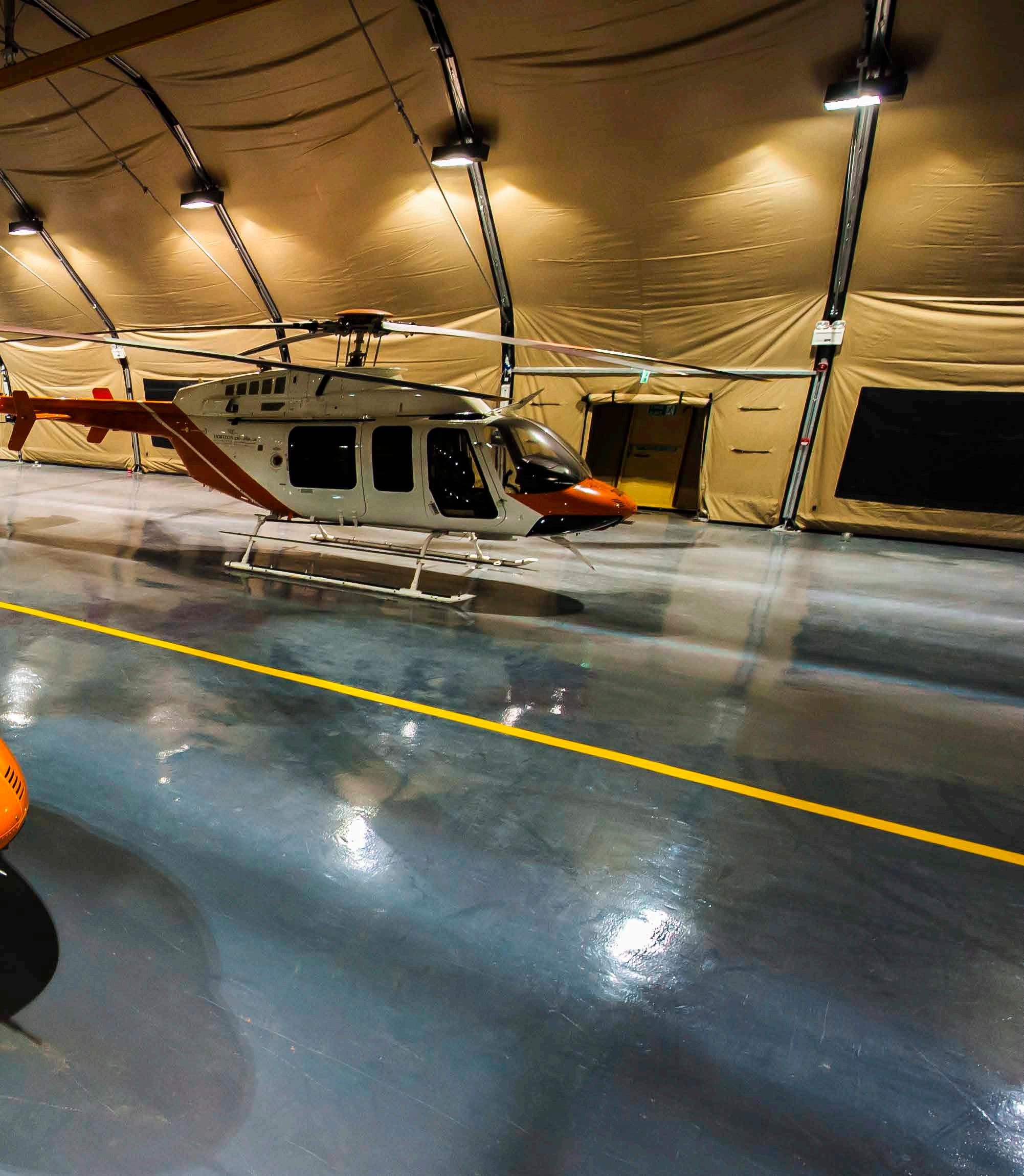

Al Ain International Airport, UAE Structure

EFASS

Length

36m

Span

Eaves Apex

Heli-Door

Completed

23.5m 3.2m 8m

21.5m x 7m 2013

We chose Rubb for their reputation in design, development and deployment of temporary hangars. The installation of our hangars was speedy and efficient.

CEO, Horizon Hareb Thani Hareb Al Dhaheri

6

Helicopter

7

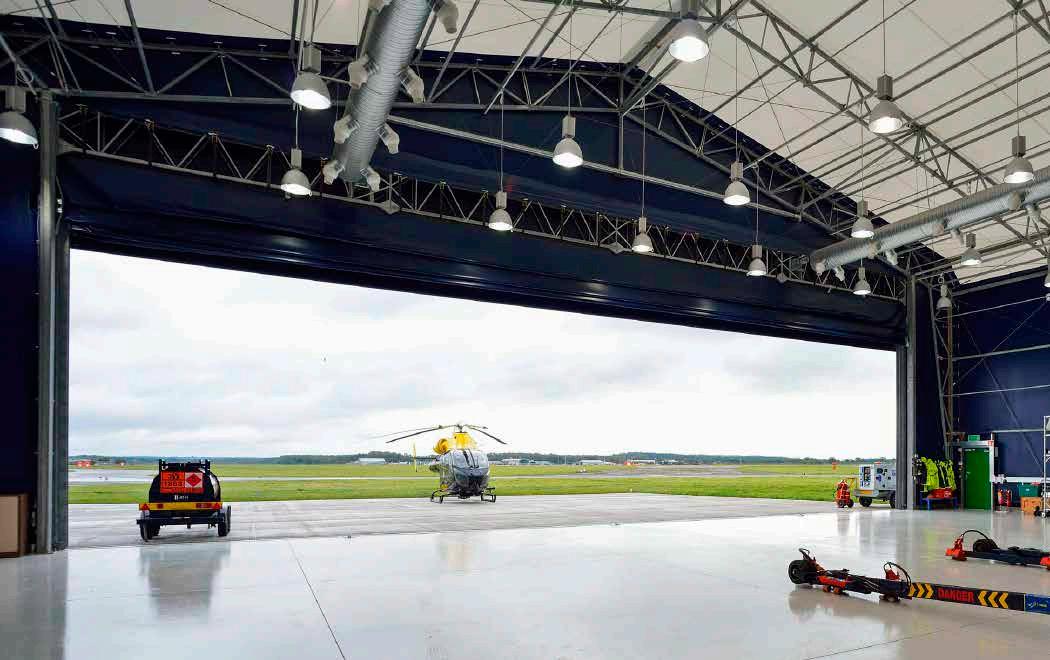

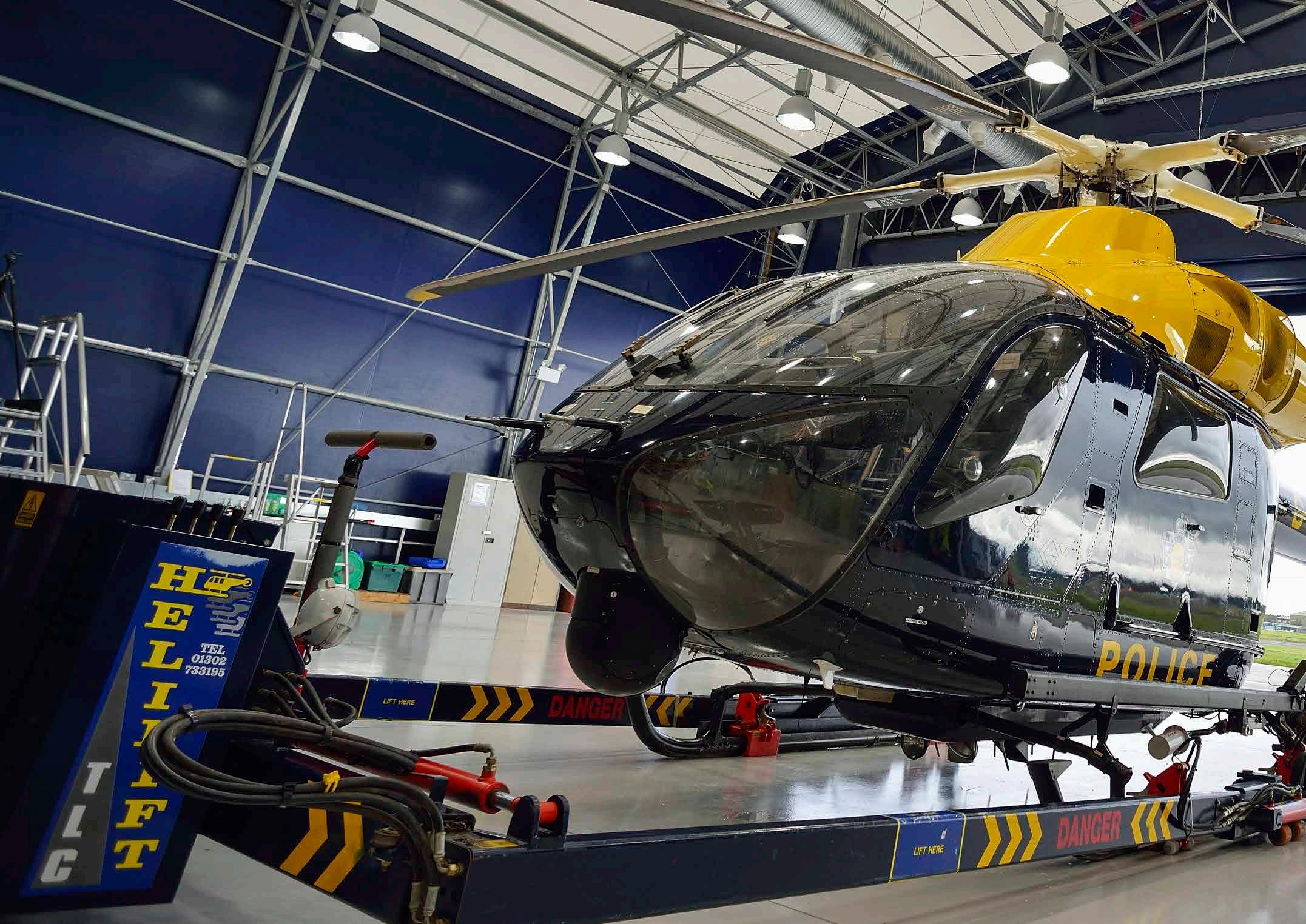

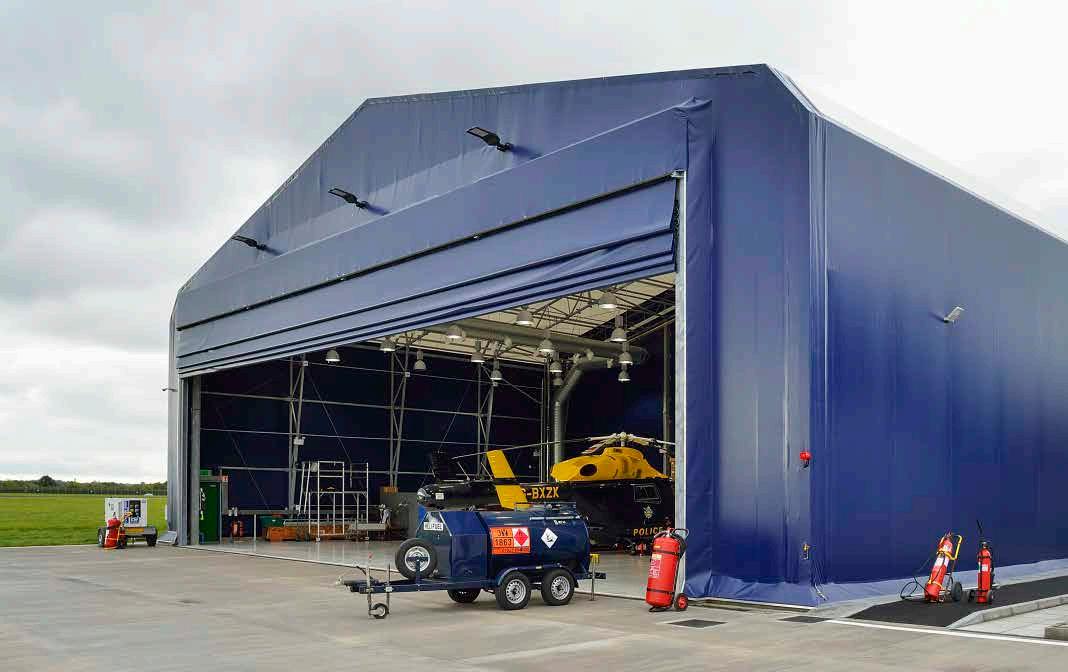

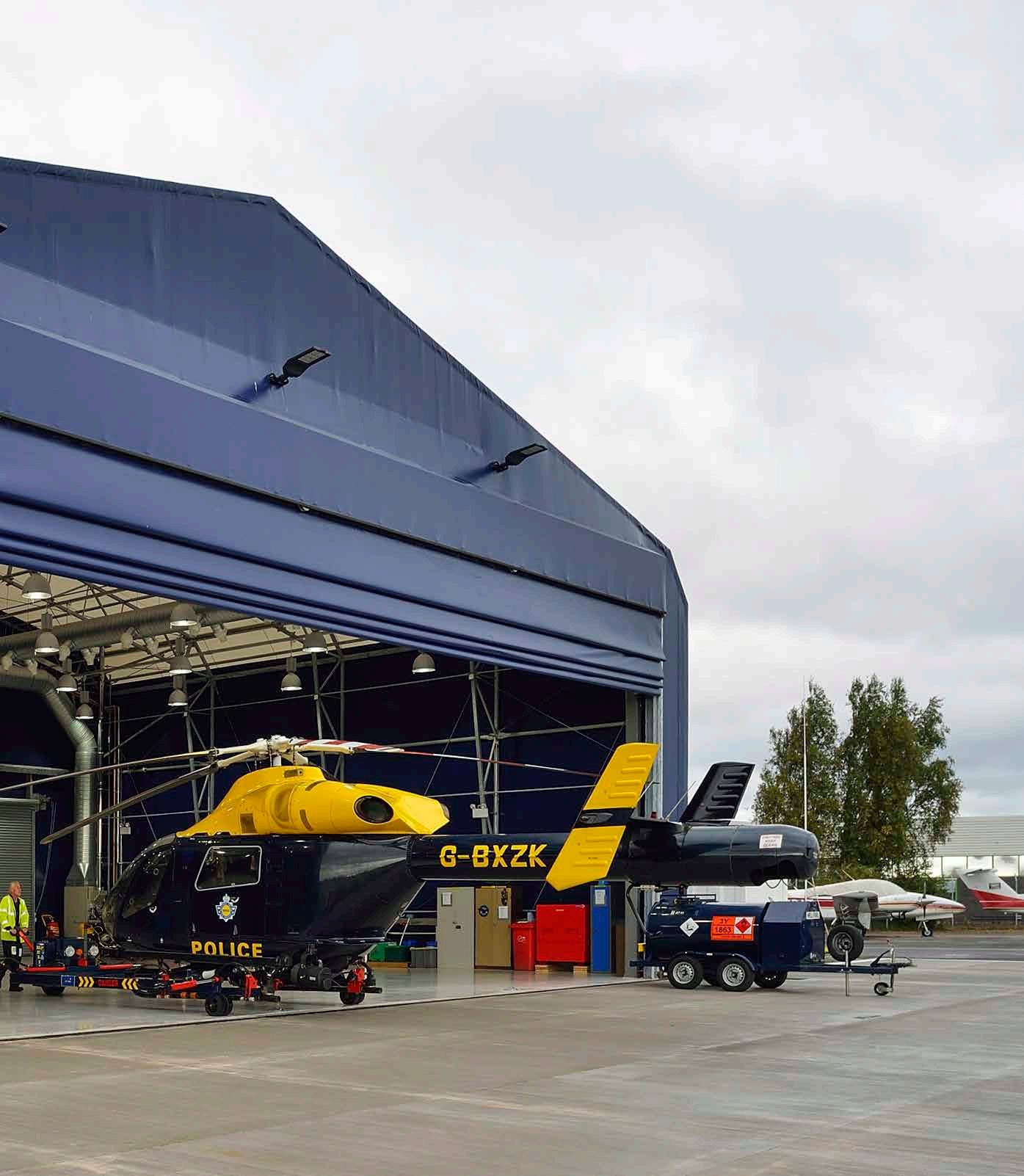

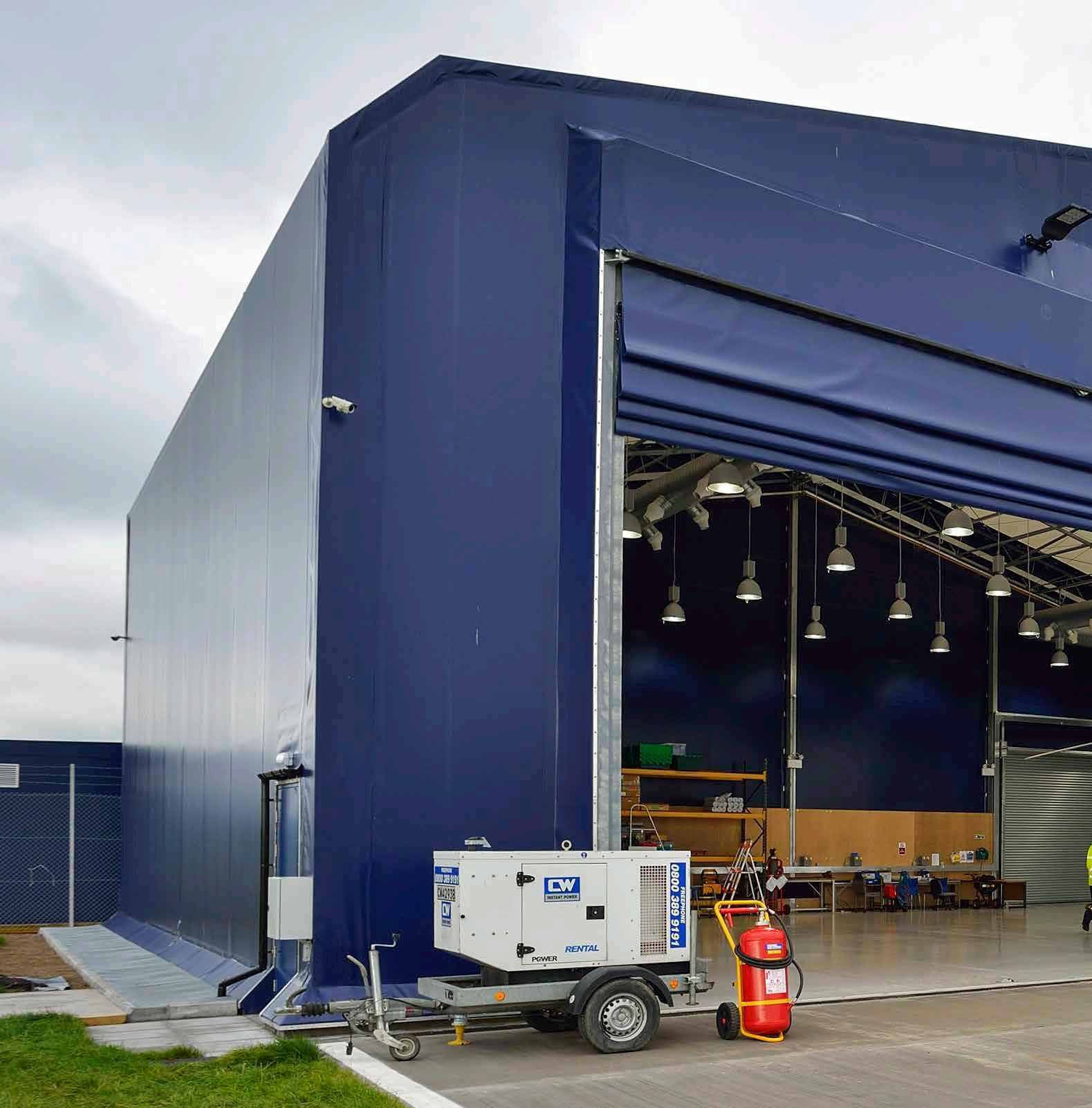

NPAS Bournemouth Bournemouth Airport, UK Structure

BVE

Length

17m

Span

Eaves Apex

Heli-Door

Completed

26m 7.5m

11.4m

21.5m x 5.5m 2014

The facilities at thenew hangar and base are excellent. It is an ideal location to operate from in order to service Dorset, Hampshire and the Isle of Wight.

Base Manager, NPAS Sgt. Neil Cartwright

8

Hellicopter

9

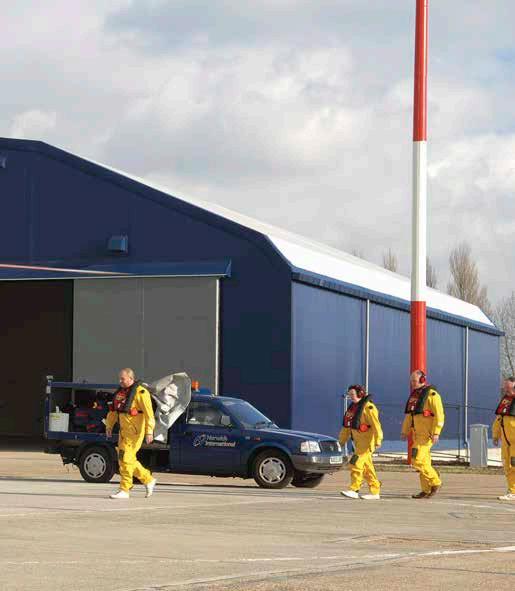

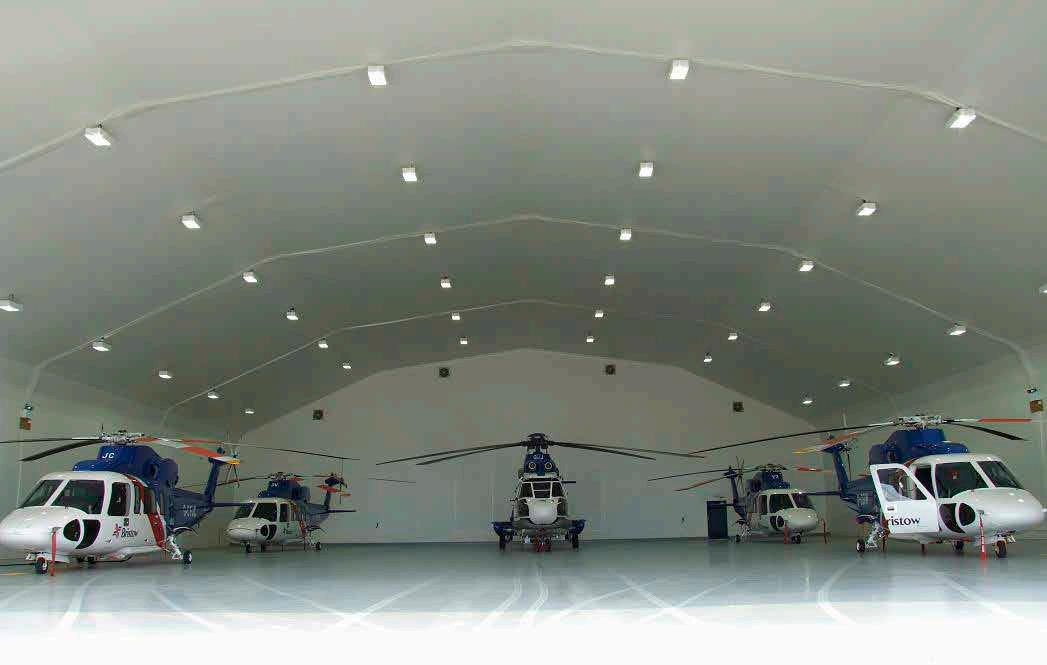

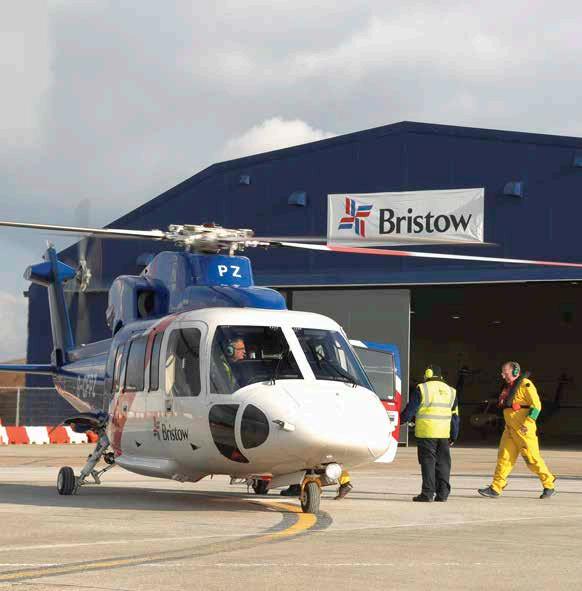

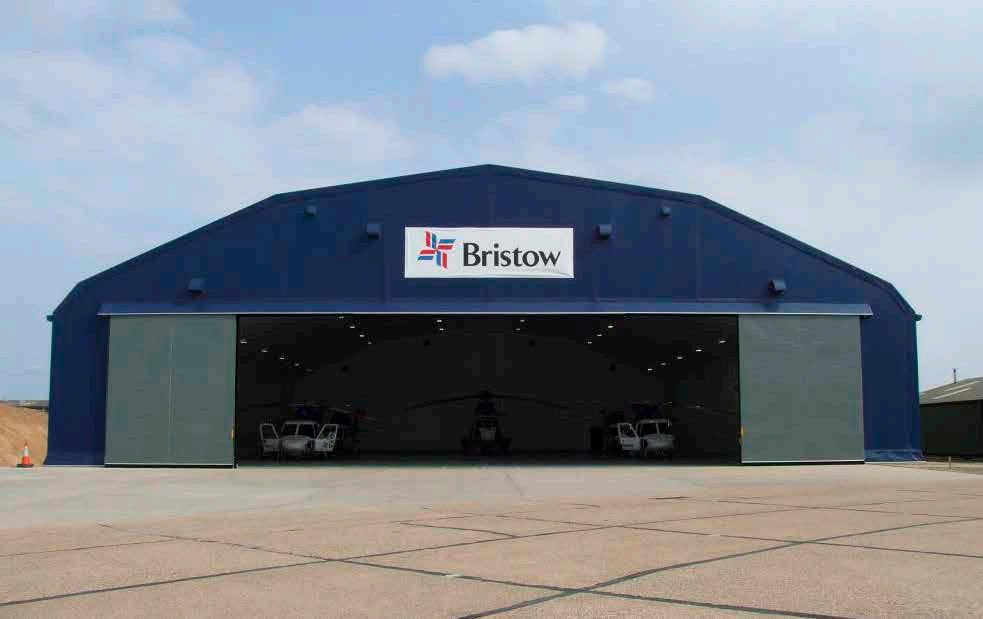

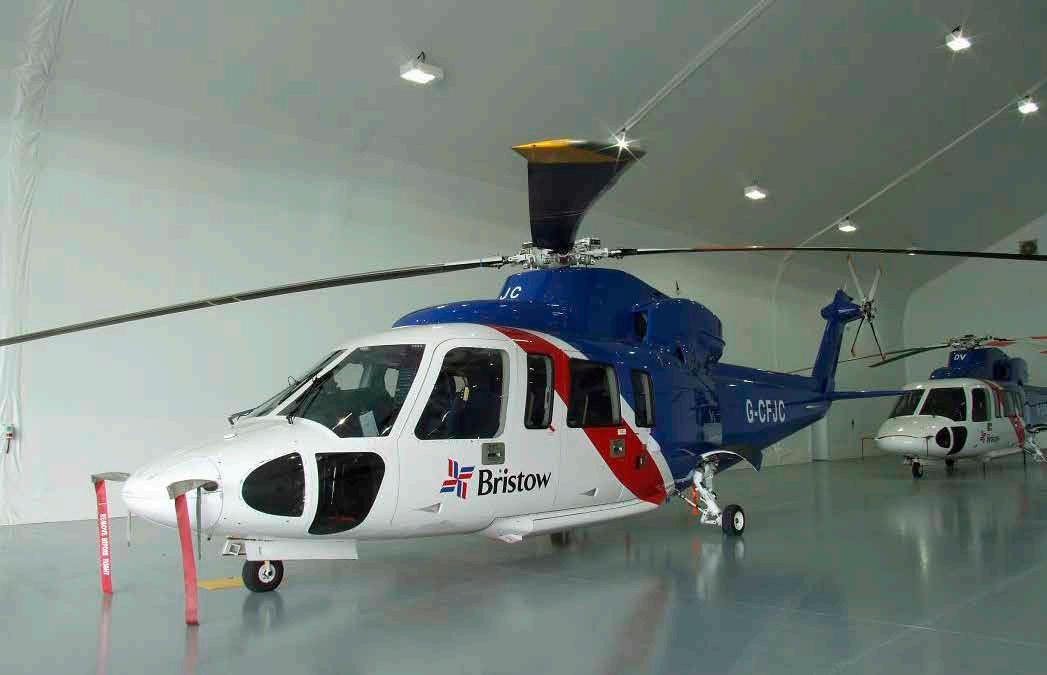

Bristow Group Norwich, UK Structure

BVE

Length

40m

Span

Eaves Apex Door

Completed

35m 6m

12m

20m x 6m 2010

It was a real pleasure working with Rubb, and I cannot thank you enough for the excellent work that you have all put together for Bristow. The safety awareness, commitment, dedication and professionalism of the team have become the benchmark for other contractors we have engaged with on the base and for the airport as a whole and I thank you most sincerely for making this happen.

Area Manager, Southern North Sea Bristow Helicopters Ltd Dapo Oyeleke

10

Helicopter

11

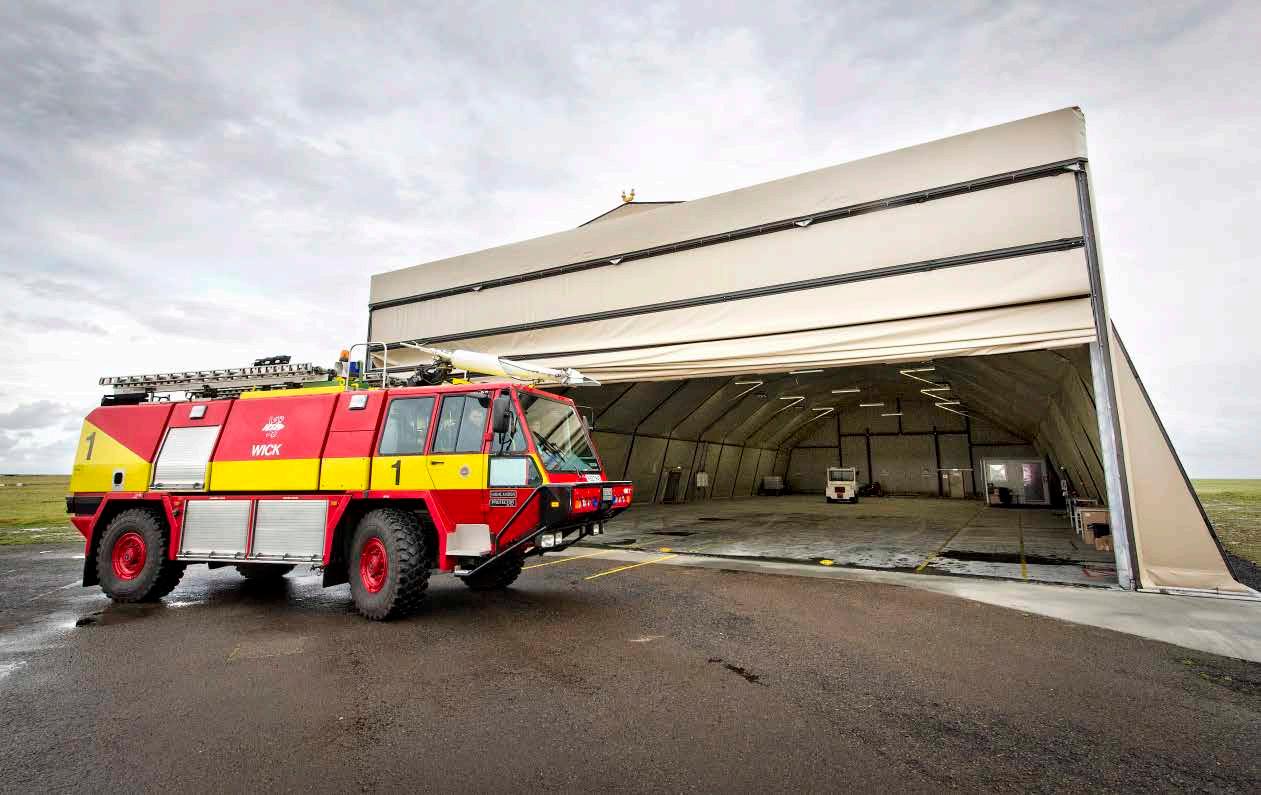

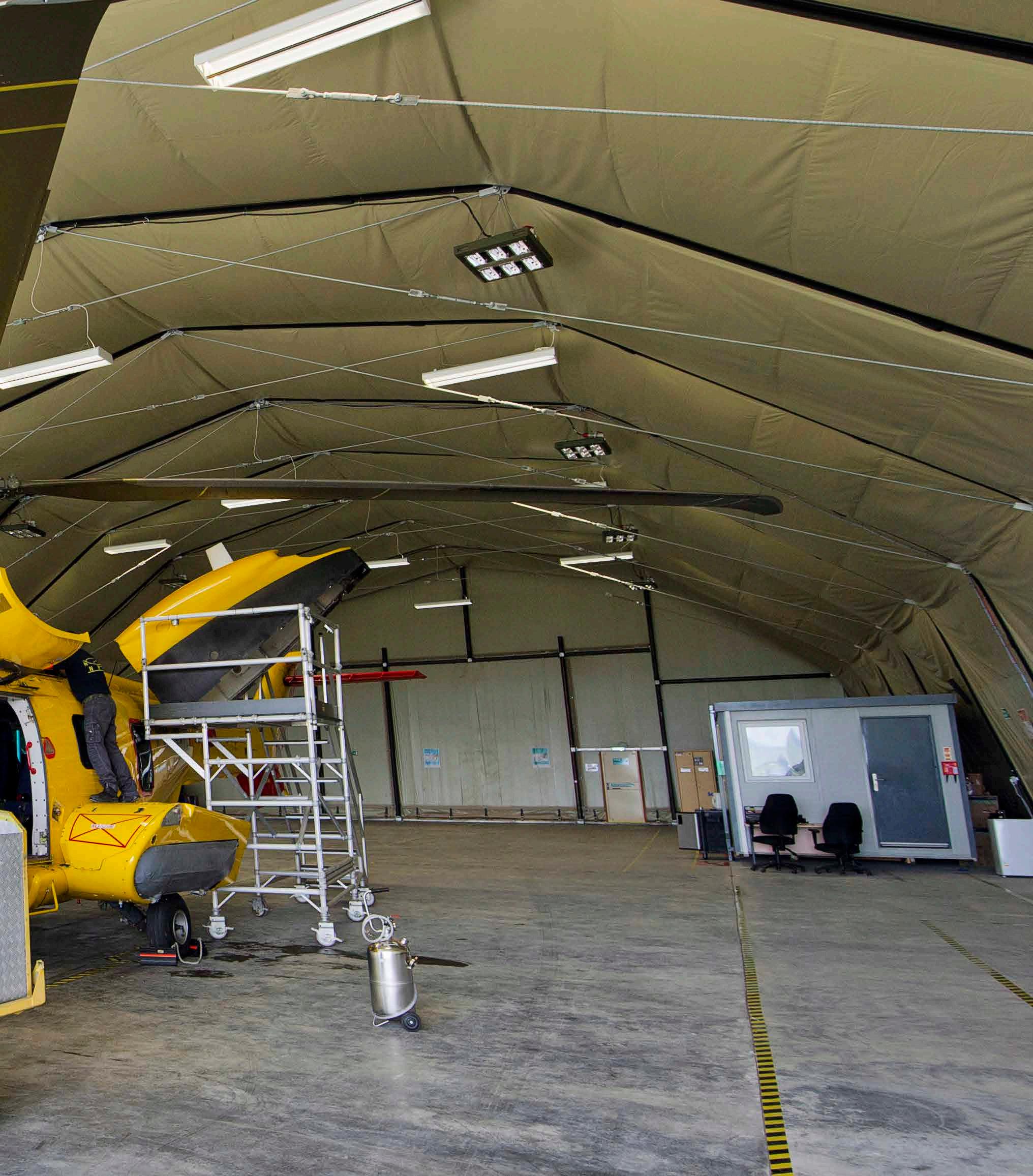

NHV

Wick John O’Groats Airport, Scotland Structure

EFASS

Length

44m

Span

Eaves Apex

Heli-Door

Completed

20.4m 4.2m 8.3m

17.7m x 5.5m 2014

NHV UK are very impressed with Rubb’s professionalism, service and quality product, and would have no hesitation in using them for similar projects in the future. Rubb provided various options for consideration – cost, build options, sizes etc – and managed to use locally based companies where they could, which was very important to the community due to the remoteness of the location.

Commercial Manager, NHV UK Colin Hancy

12

Helicopter

13

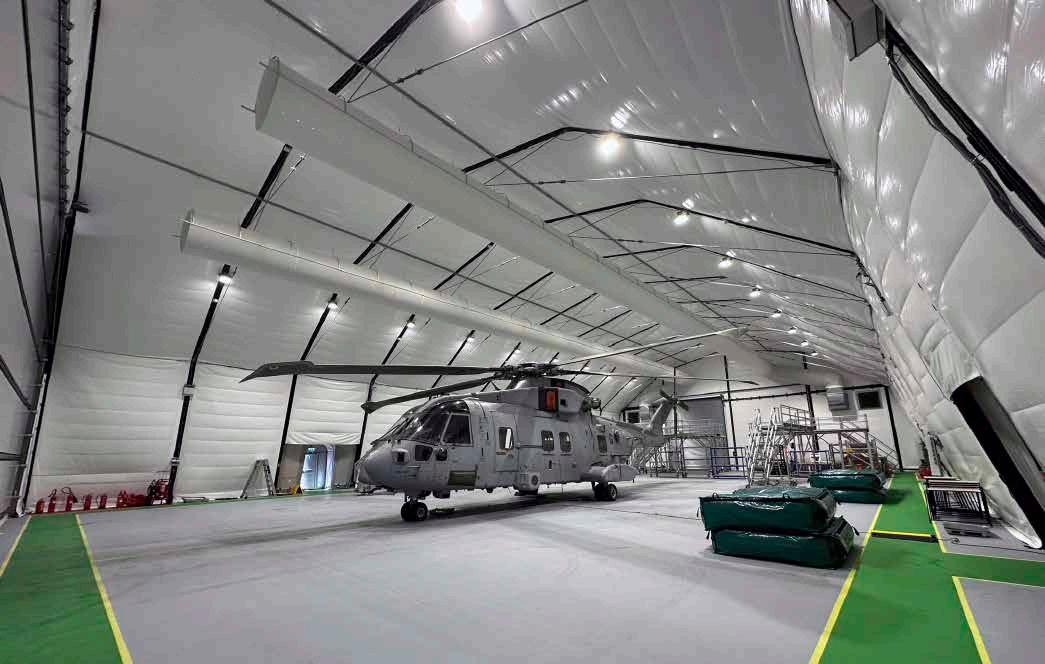

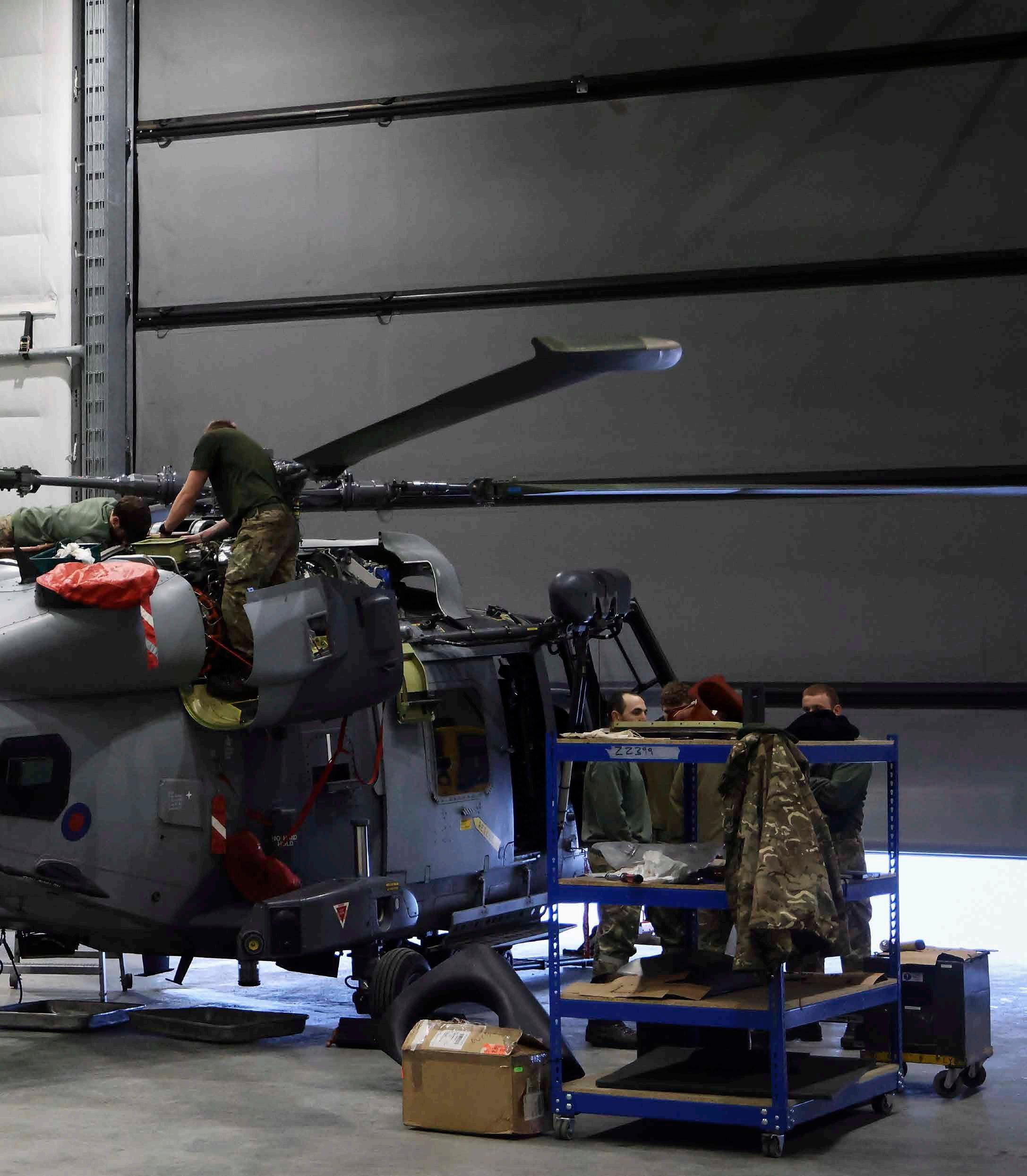

RNAS Yeovilton Somerset, UK Structure

EFASS

Length

40m

Span

Eaves Apex

Heli-Door RSD

Doors

Completed

25m

5.5m

10.8m 21.5m

5m x 5m

4 x access doors 2023

The client approached Rubb with a requirement for a new temporary hangar. It was agreed that the EFASS system was the most suitable solution due to its robust features. A great project to work on and one we are truly proud of.

Military Project Lead, Rubb UK Bryan Davis

14

Helicopter

15

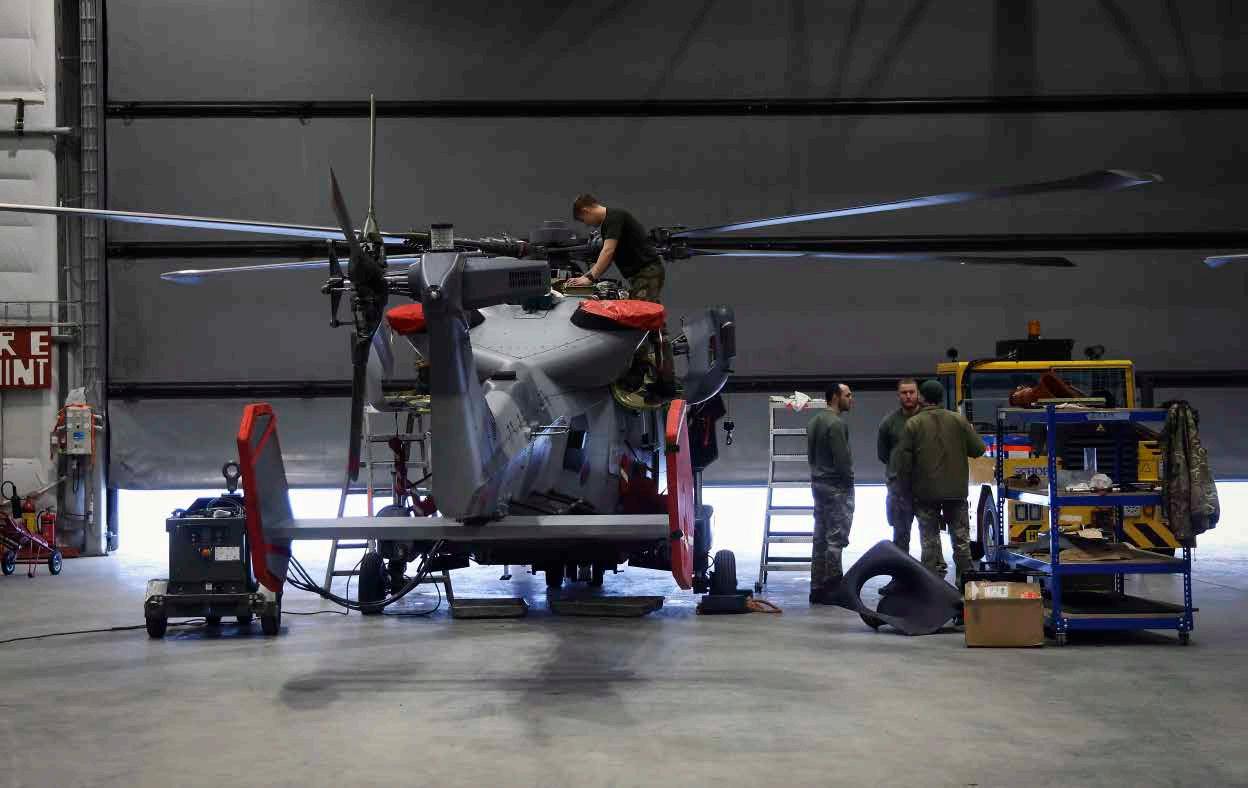

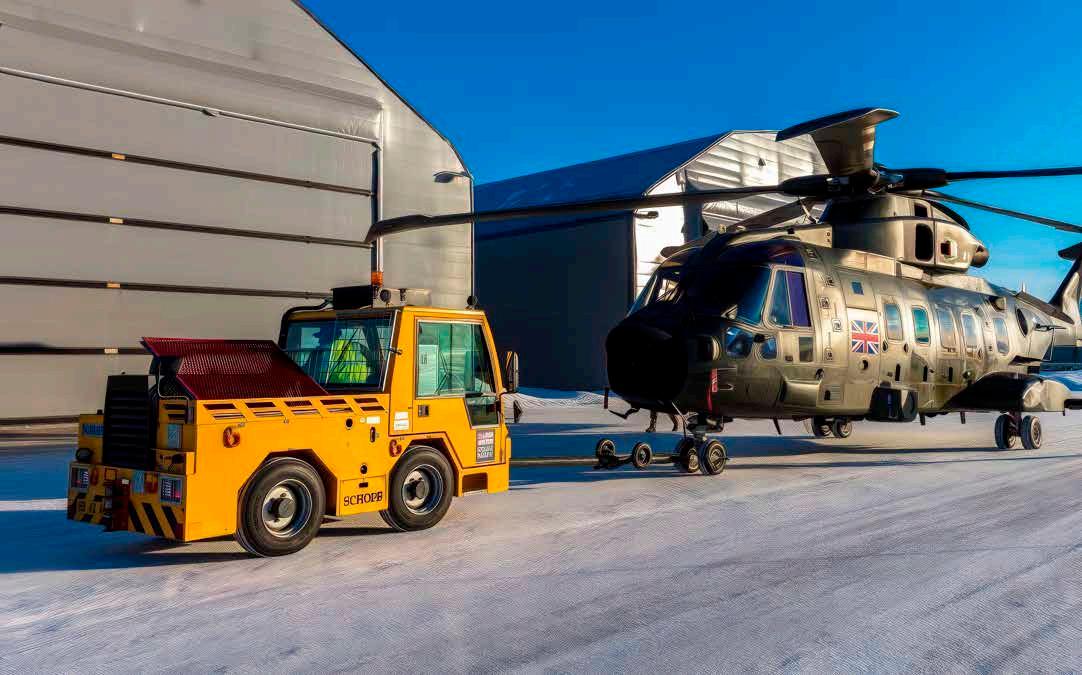

Royal Navy

Bardufoss Air Station, Norway Structure

BVE

Length

40m

Span

Eaves Apex

Heli-Door RSD

30m (x2) 8m

10.8m

21.5m x 7.8m 5m x 5m

Thermohall® 100mm Completed

2015

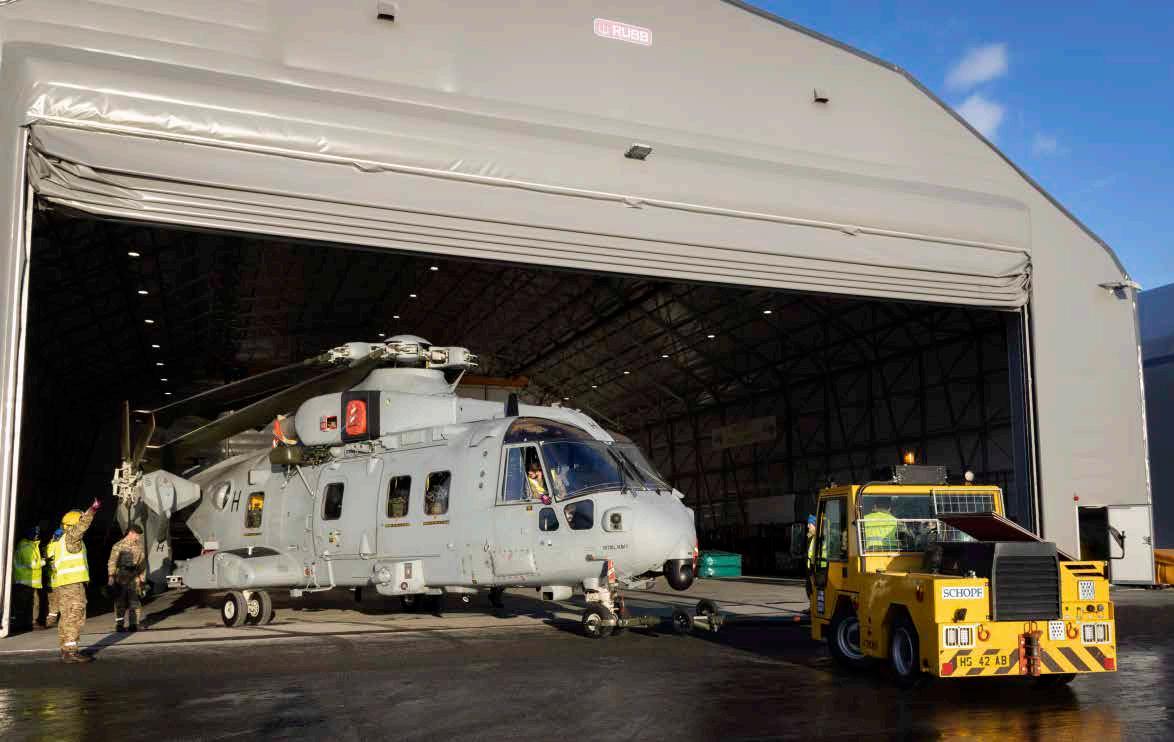

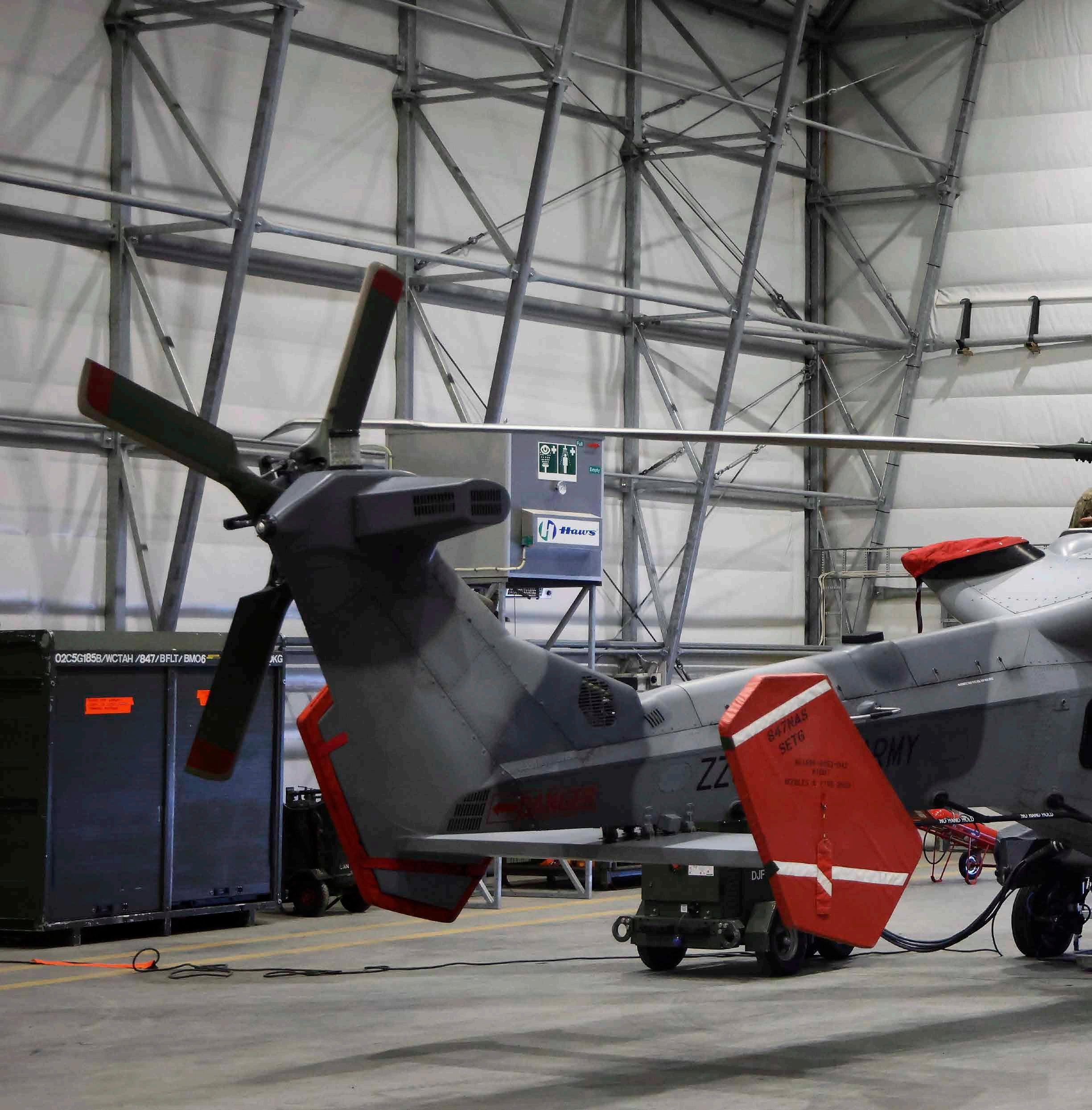

Our hangars for Op CLOCKWORK show how Rubb delivers reliable solutions for extreme environments, keeping Royal Navy operations running smoothly in sub-zero conditions.

Sales Director, Rubb UK Andy Knox

16

Helicopter

UK MOD © Crown Copyright 2025

UK MOD © Crown Copyright 2025

UK MOD © Crown Copyright 2025

17

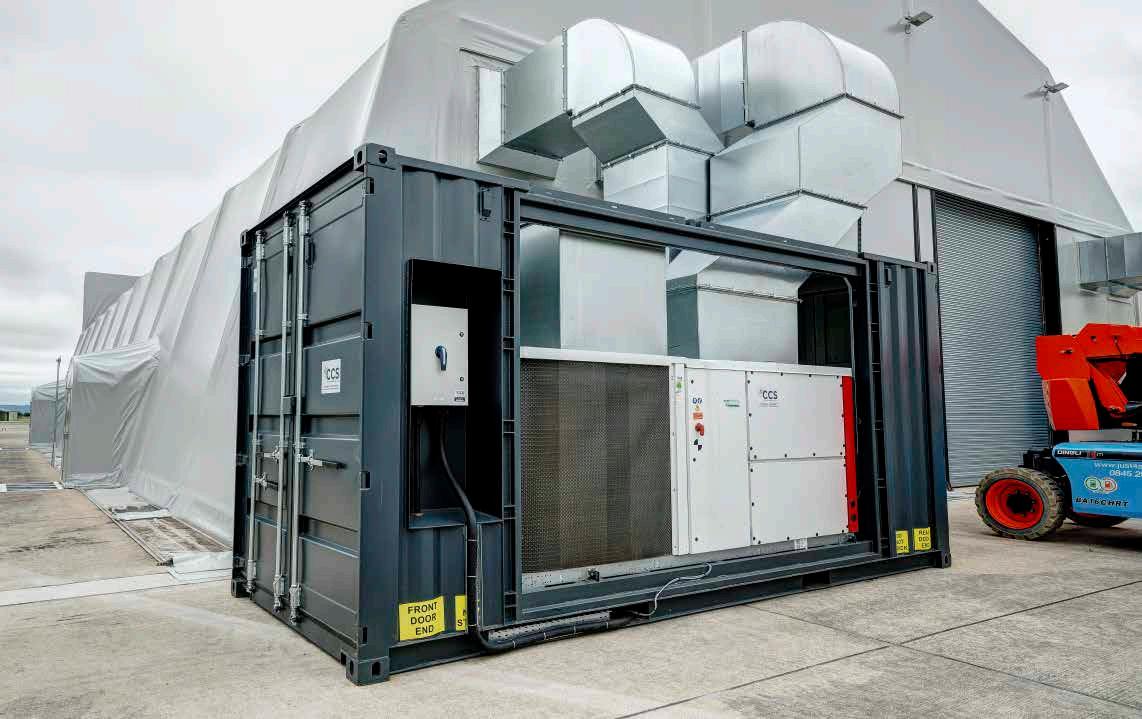

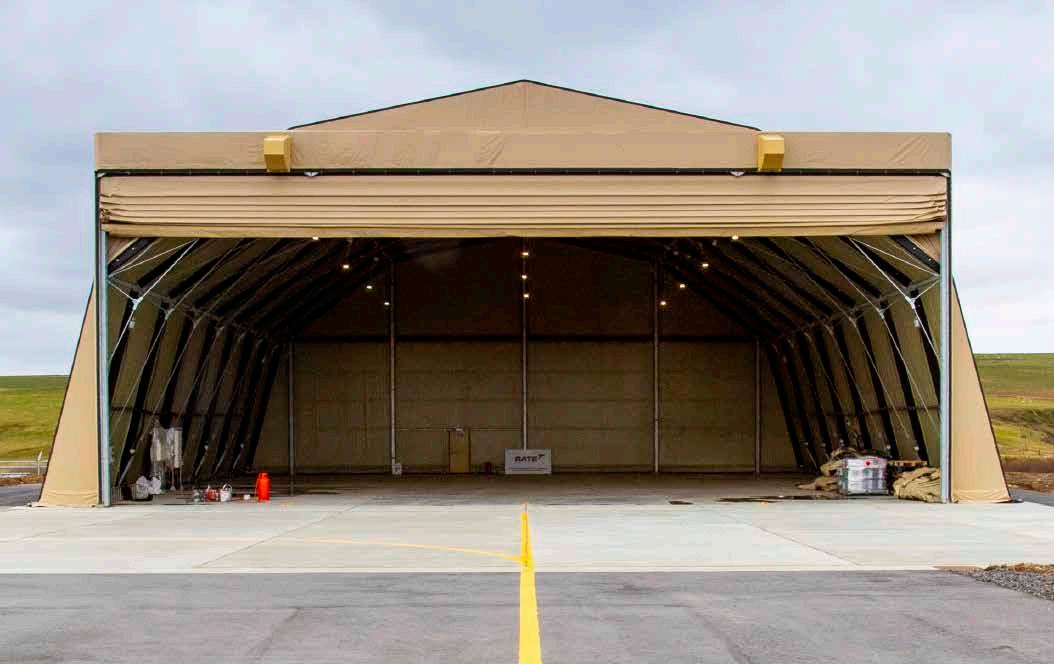

RAF Akrotiri Akrotiri, Cyprus Structure

EFASS

Length

36m

Span

Eaves Apex

Heli-Door

Completed

25m

5.9m

10.8m

18.2m x 6.5m 2021

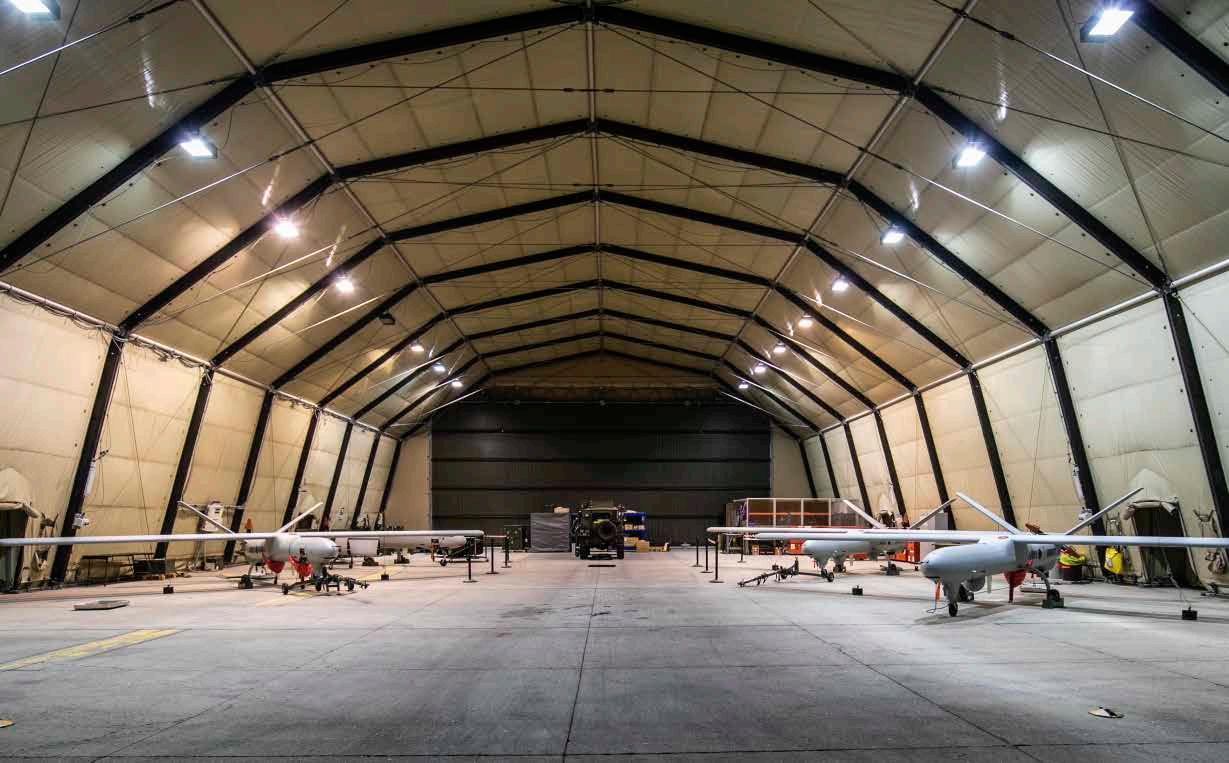

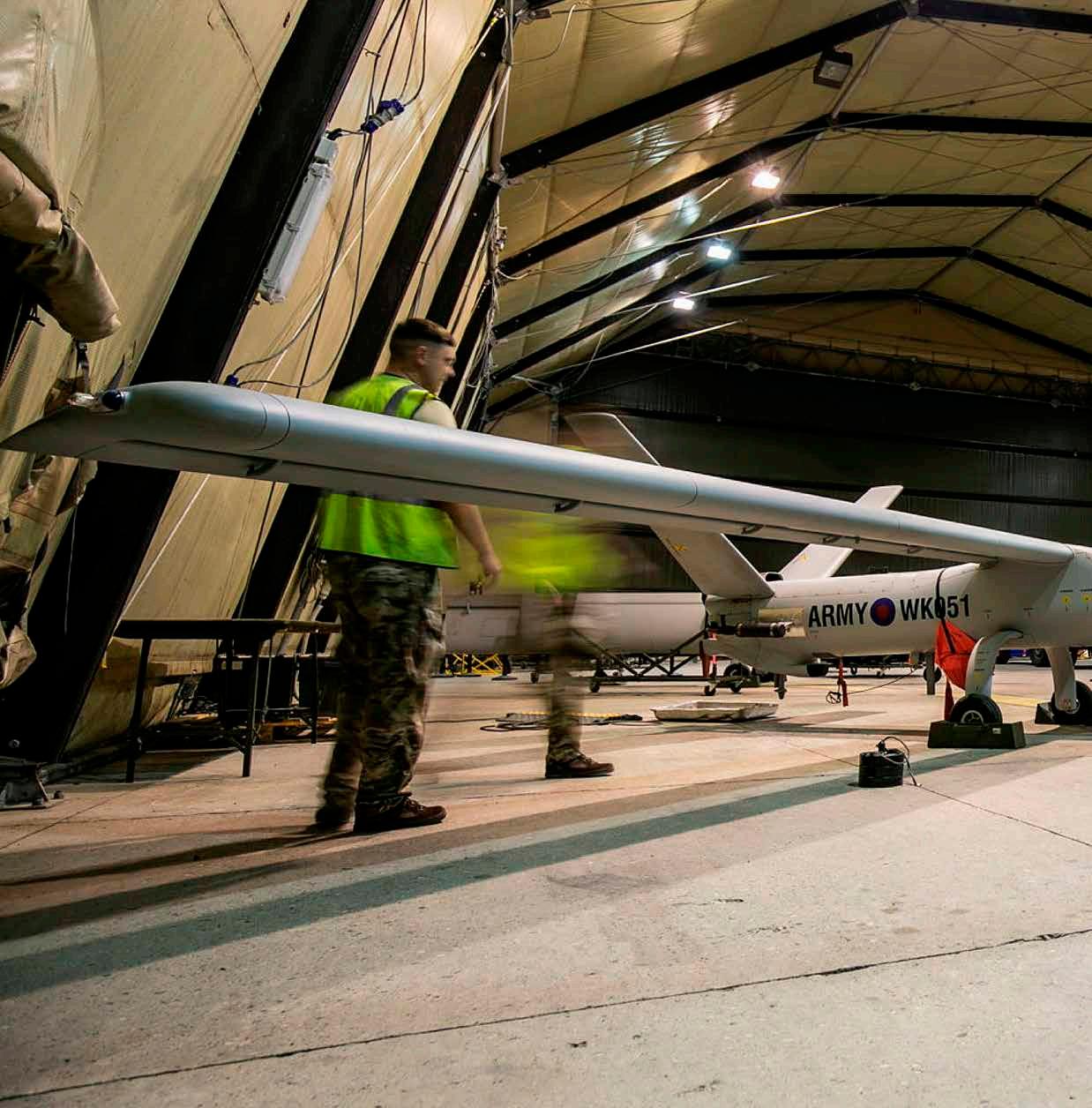

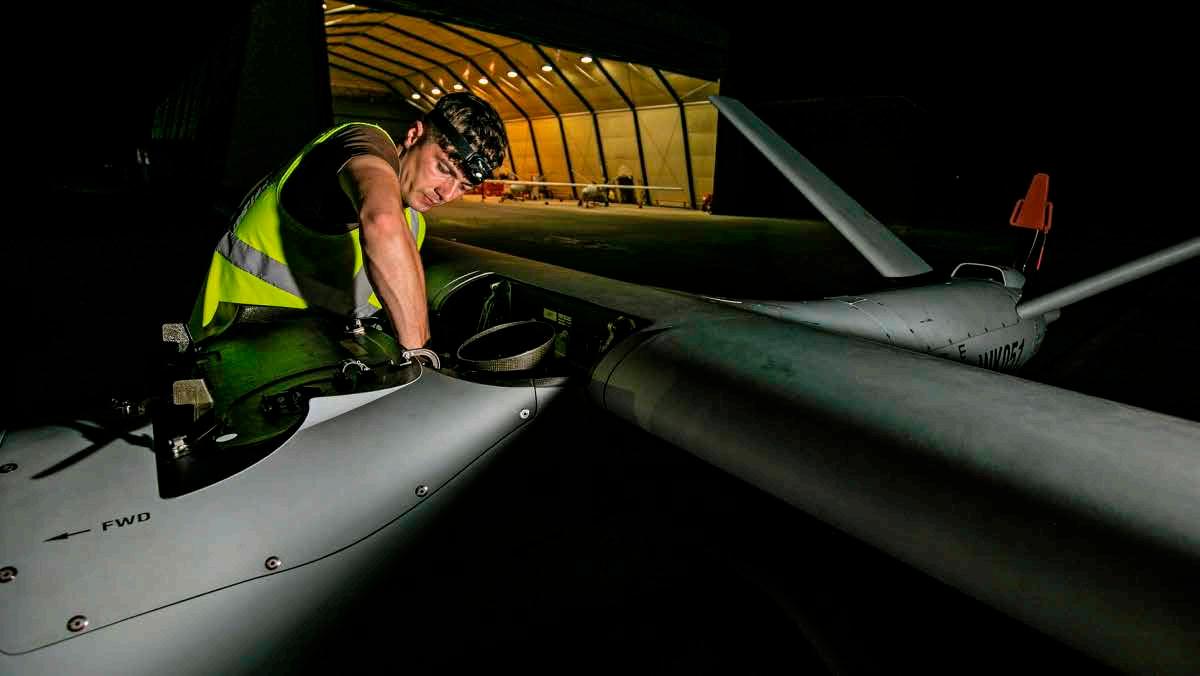

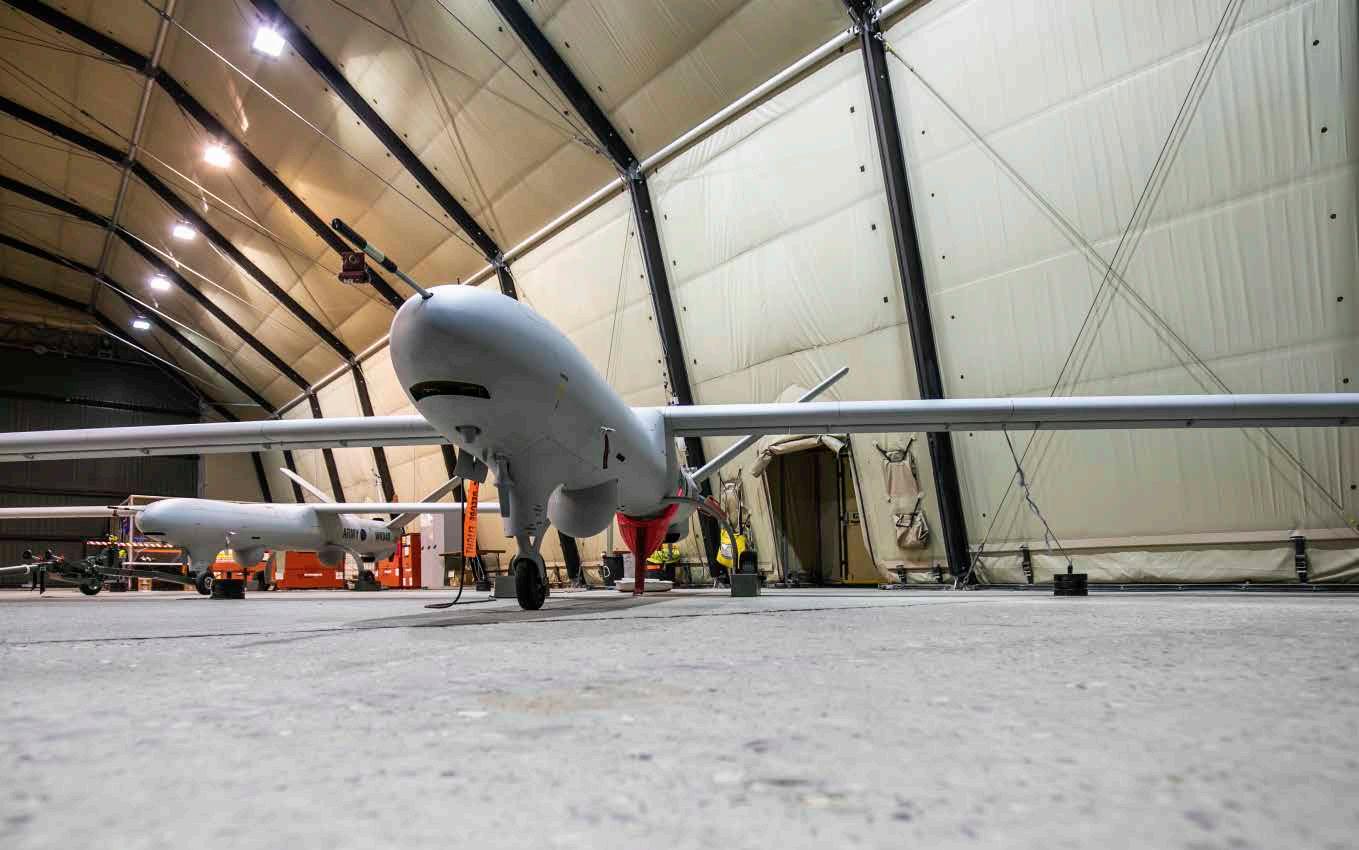

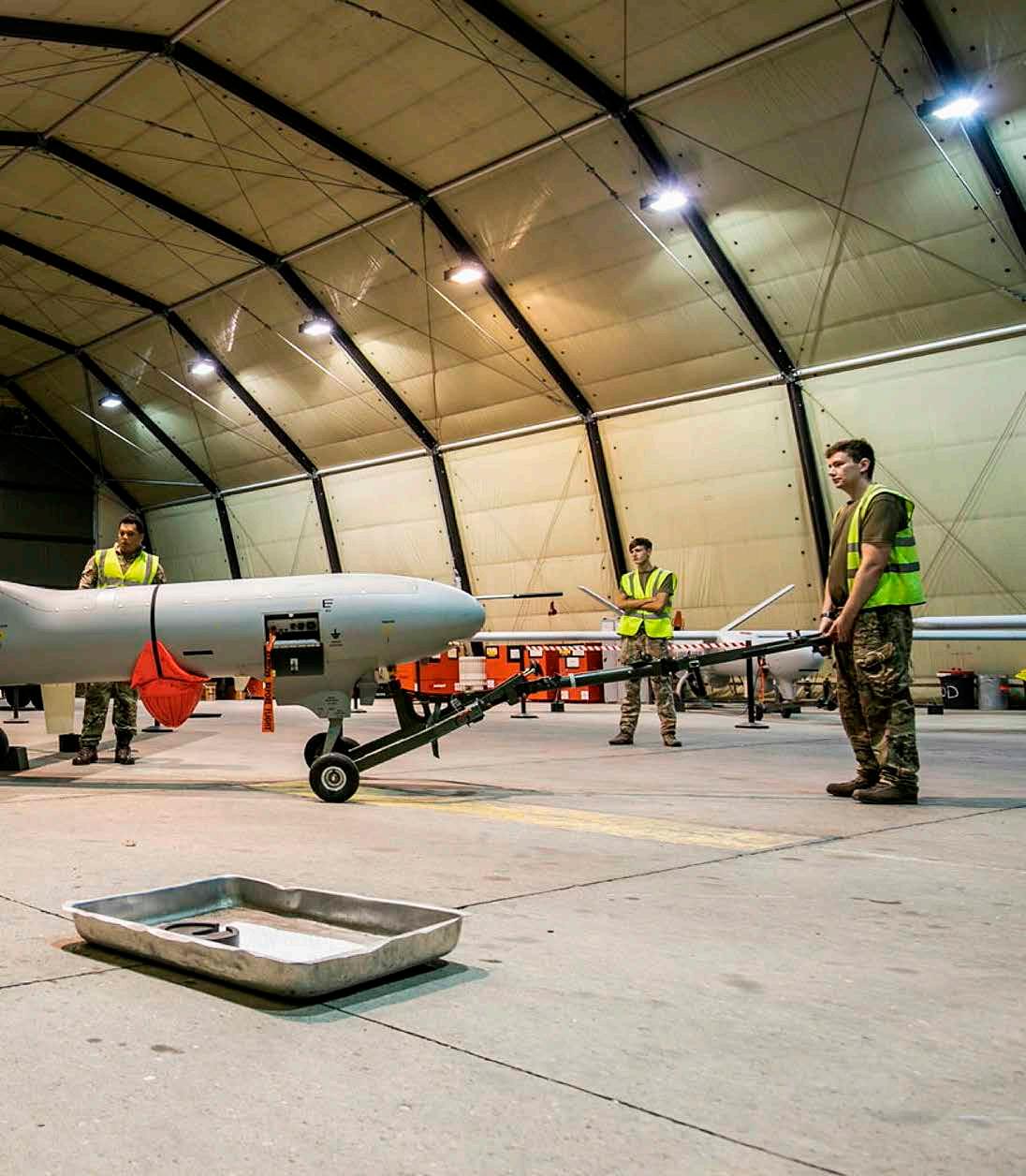

The 25 m EFASS at RAF Akrotiri is a prime example of Rubb’s rapid deployment capability.

Designed to house multiple Watchkeeper drones and support vehicles, it can be packed into just two 20 ft ISO containers and fully erected in under four days—delivering a large-scale, operational hangar solution exactly where and when it’s needed.

Sales Director, Rubb UK Andy Knox

18

Drone

UK MOD © Crown copyright 2021

UK MOD © Crown copyright 2021

UK MOD © Crown copyright 2021

UK MOD © Crown copyright 2021

19

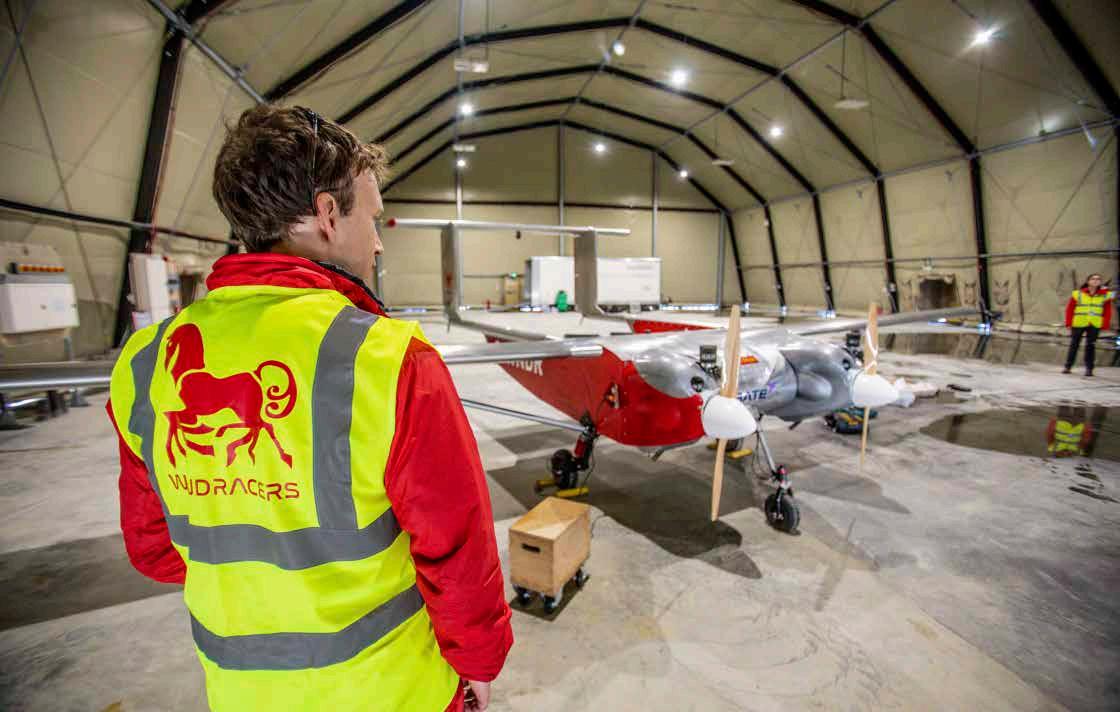

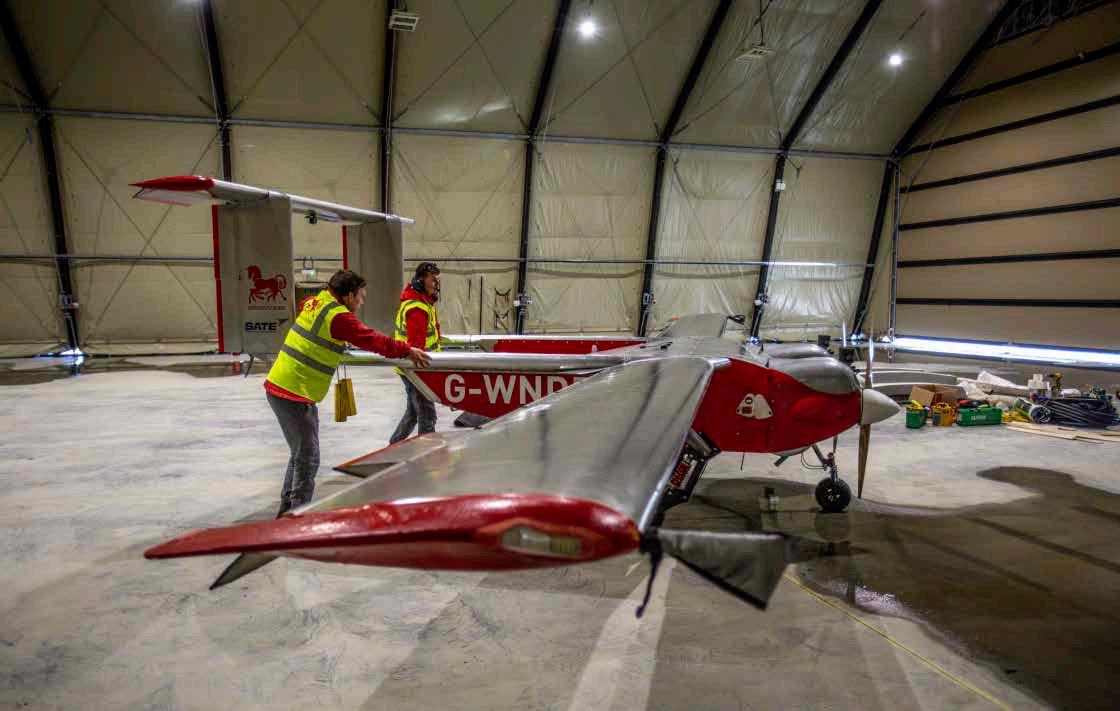

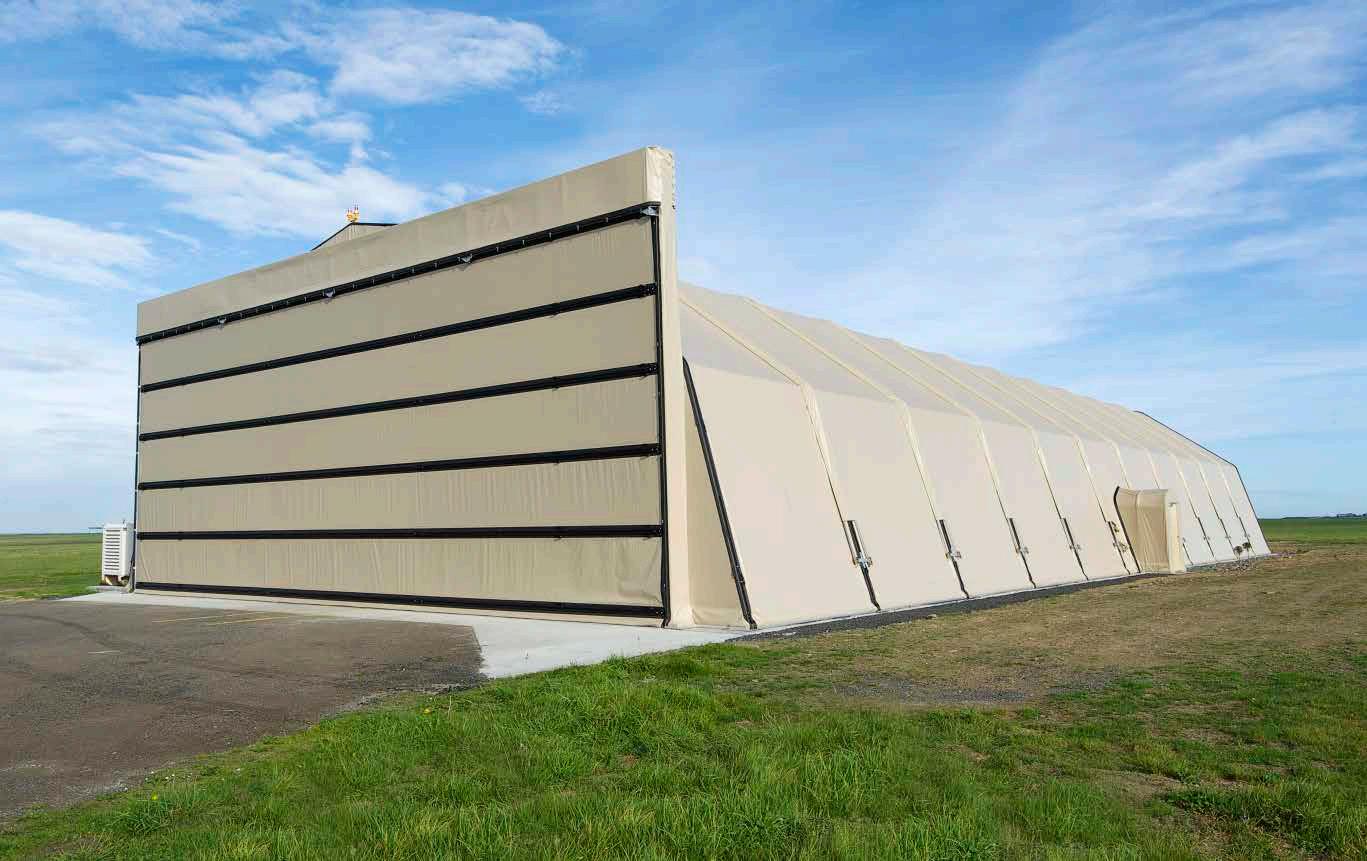

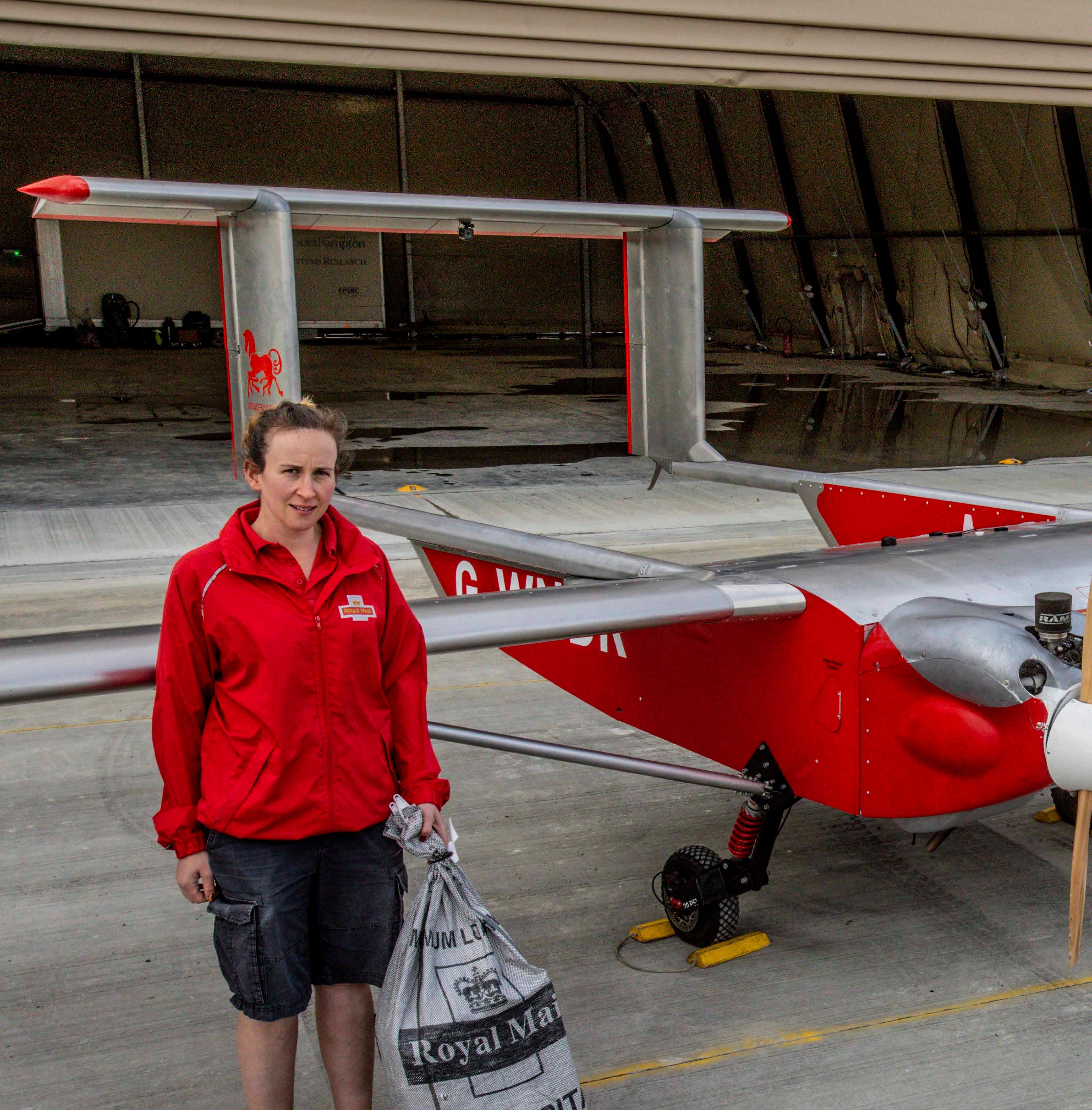

Windrunners Kirkwall Airport, Orkney Structure

EFASS

Length

32m

Span

Eaves Apex

Heli-Door

Completed

25m

5.9m

11.4m

21.5m x 7.8m 2021

On time delivery regardless of our customers location or the weather, whilst protecting our environment is our goal. Even though we go everywhere, Royal Mail already has the lowest CO2 emissions per parcel delivered, this initiative will help reduce our emissions even further.

Chief Executive Officer, Royal Mail Simon Thompson

20

Drone

© Colin Keldie - Courtesy EMEC

© Colin Keldie - Courtesy EMEC

© Colin Keldie - Courtesy EMEC

21

ThermoHALL ®

Industry-leading insulation

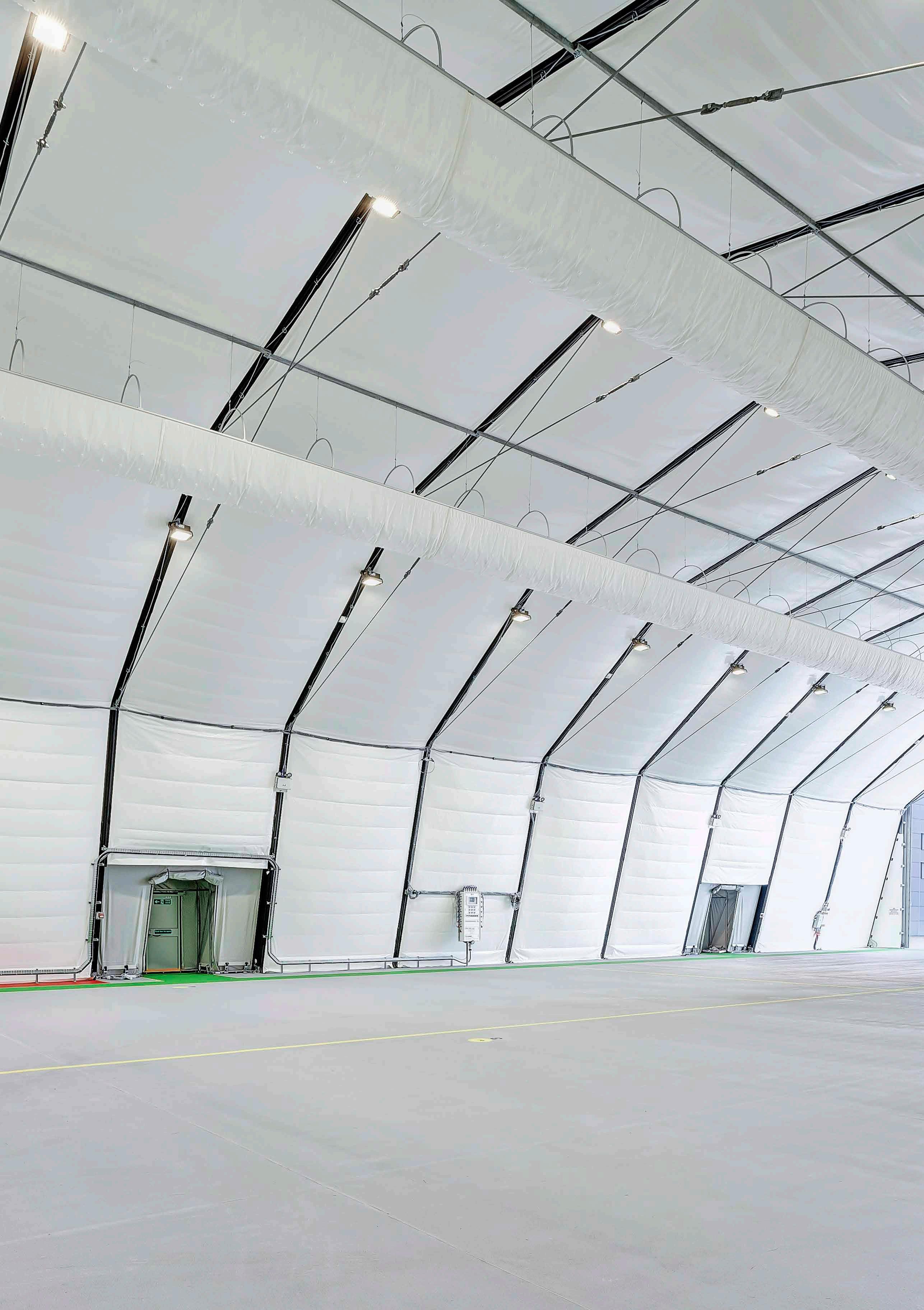

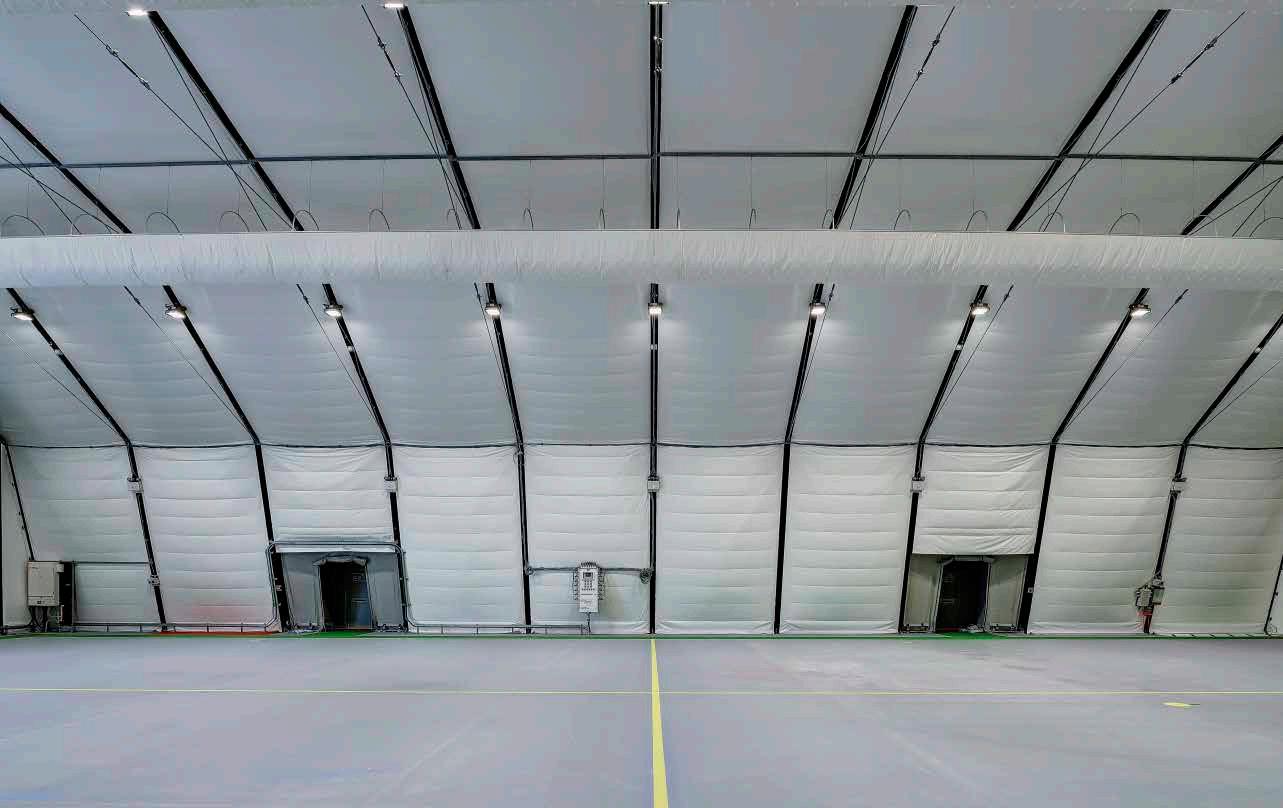

Thermohall® is Rubb’s patented insulation system. Eco-friendly, cost-effective, and practical—our insulated hangars come with serious benefits.

The system provides major energy savings, while protecting against weather, wind, and noise. With Thermohall®’s unique solution, cold bridges and condensation issues are avoided.

Technical specification Thickness

U Value (SI) W/m2K

R Value (US) ft-F-hr/BTU

50mm (2in)

0.67 W/m2K

R11

100mm (4in)

0.36 W/m2K

R19

150mm (6in)

0.25 W/m2K

R27

Outer layer

Flame retardant heavy-duty fabric

Core

High-density glass wool insulation

Inner layer

Self-cleaning PVC fabric

22

Thermohall® / Sustainability

Sustainable by design

Rubb is committed to delivering sustainable hangar solutions that align with your environmental standards.

With a Rubb hangar, you can support sustainability goals while benefiting from energy efficiency, reduced carbon footprints, and long-term cost savings.

Lightweight, durable materials

Thermohall® insulation

Circular construction

Striving for 100% recyclability

Our hot-dip galvanised steel frames and fabric covers are built to last for decades, reducing the need for resource-intensive replacements.

Rubb hangars can be dismantled, relocated, and reused, extending their lifecycle and minimising waste.

Enhances energy efficiency by maintaining optimal working conditions, reducing energy consumption and emissions.

In the event of disposal, we ensure materials are recycled responsibly, contributing zero toxic or hazardous waste.

23

Rubb structures

Multi-span solution

We have the capability and experience to design, manufacture, deliver, and install custom structures.

With Rubb, you can be sure everything is under control from concept to completion—including cost, quality, and delivery.

Multi-spans are more affordable than single roofs due to the reduced amount of steel work. Dual and multi-bay hangars also allow multiple storage and MRO operations to take place side-by-side within the same building.

While we generally have the right standard structure available to meet project needs, Rubb can also design custom solutions to meet special requirements. We have the in-house resources to provide a cost-effective solution customised to your needs.

Design

Using proven engineering software, we can tailor the project to the specific requirements of the site, type of cargo and logistical needs.

BVE

BVC

BVL

EFASS

BVE structures feature lattice frame sidewalls and can be designed with single or multiple lattice roof pitches. 20m to 40m span widths, by any length.

The BVC is designed with a vertical column leg and a lattice frame roof. This structure type offers a large clear internal area. 40m to 100m width spans are available.

Production

Our steel and membrane components are fabricated with proper equipment and quality control.

Installation

Pre-engineered and pre-fabricated to make on-site installation by a Rubb crew—or your own— go smoothly and efficiently.

24

Structures / Doors

The BVL has vertical lattice frame sidewalls and single or multiple lattice roof pitches per span. Large spans start from 40m to 100m in width, by any length.

The EFASS hangar is designed for rapid deployment. Lightweight, robust, and relocatable, these hangars are available in four widths (11m, 20.4m, 25m, and 30m).

Hangar door options

Rubb offers a variety of different hangar door solutions.

They can be selected and designed to suit many size and opening requirements. This flexibility ensures that our clients get the best option for their selected Rubb building type, depending on their operational needs.

We also supply a wide range of access and industrial roller shutter doors.

Access door

These types of doors are suitable for both public and non-public areas. EN 1125 and EN 179 standards apply to push bars and touch bars respectively. All doors and emergency exit doors supplied by Rubb adhere to European product standards. To meet customer requirements, all doors come with CE marking and are ISO 9001 approved.

Roller shutter doors

Commercial off-the-shelf doors measure up to 10m x 10m, but we also offer custom door sizes. All doors incorporate a motor driven system, with built-in safety mechanisms.

Doors can be electrically operated and can be combined with safety devices and traffic lights. All doors can be customised to suit your operations.

Aside from our in-house Heli-Door system, our sliding and vertical lifting aircraft doors are supplied by world-renowned producers.

All doors are bespoke and designed to project-specific requirements.

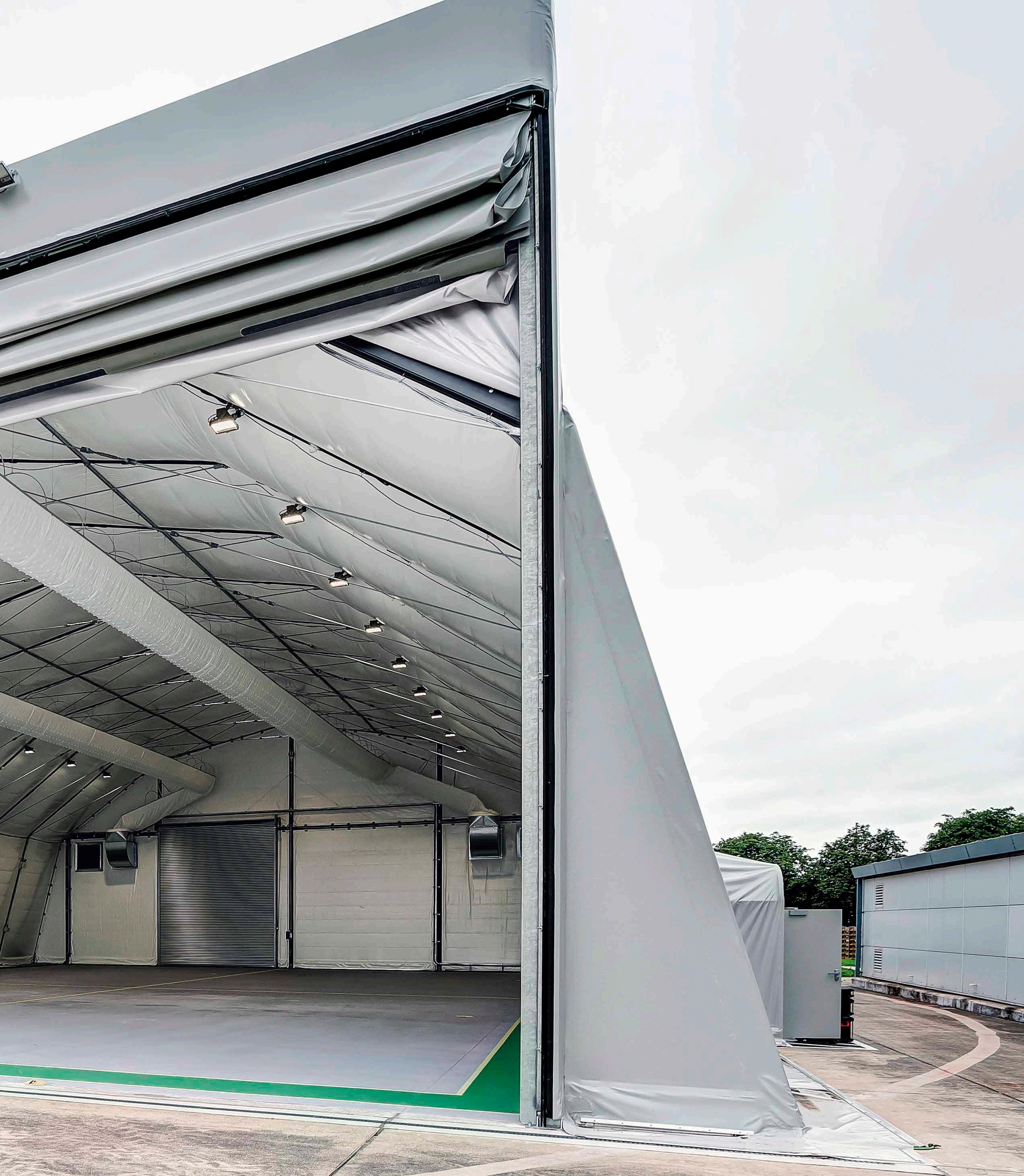

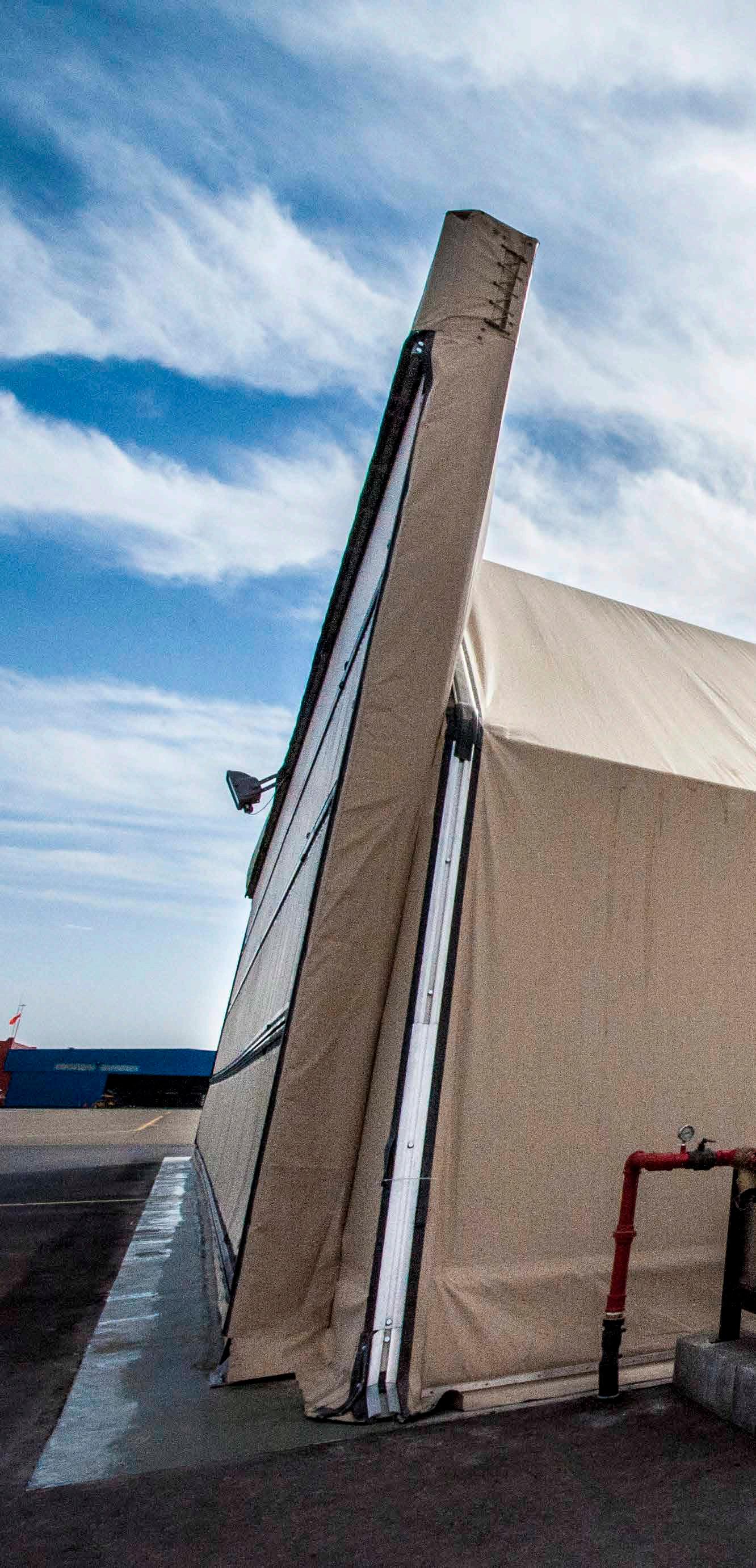

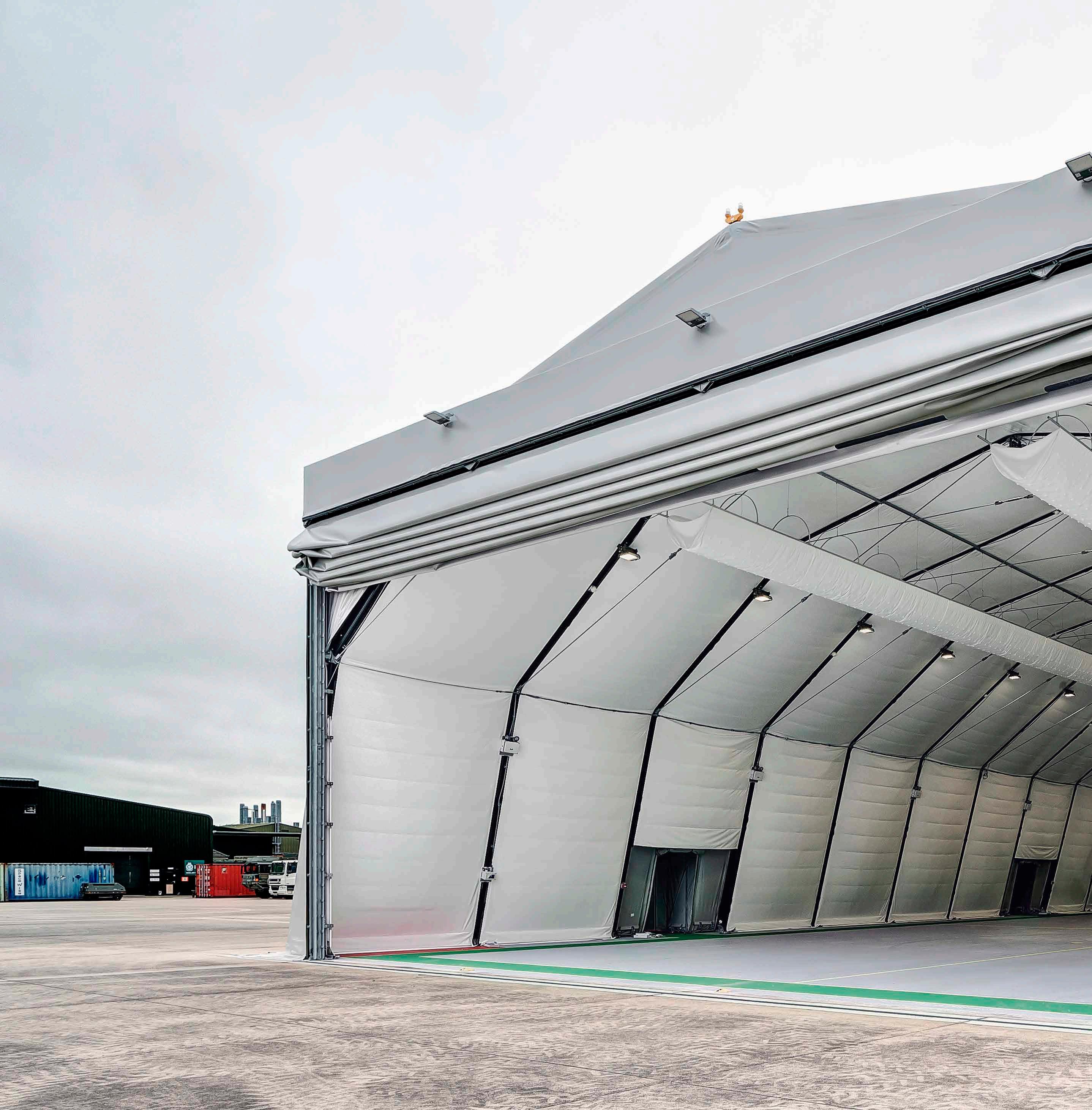

Heli-Door system

Designed to be quickly constructed, this vertically folding door is electrically operated via two helical geared motors, with emergency hand operation capability.

Sliding aircraft doors

This door is available in a variety of sizes to meet project requirements. These bottom rolling doors can be electrically or manually operated and insulated if needed.

Vertical lifting doors

These doors are cost-effective, reliable and help create a bright working environment.

They can withstand high windloads and eliminate draughts when closed.

25

Fire suppression

We work closely with your fire safety personnel to design and implement fire suppression systems that meet your specific needs.

Our fire suppression systems include foam, jet, and sprinkler solutions, and can be powered by dieseldriven fire pumps. They offer an independent power source, ensuring uninterrupted fire suppression—even in a power failure—and provide the pressure and flow needed to support our systems.

Foam extinguishing system

Perfect for areas with flammable liquids, foam systems quickly blanket and suppress fires, providing enhanced safety for sensitive equipment and personnel.

Jet system

Engineered for high-volume coverage, jet systems provide rapid response to fire incidents, effectively protecting large areas in a short period of time.

Sprinkler system

A reliable and time-tested solution, sprinkler systems automatically detect and respond to fire, offering consistent protection for your facility.

22 26

Fire suppression / Customers

Our customers

27
