Architecture Portfolio 2024

Zahra Khairunnisa Architecture, Interior, Landscape Projects 2024

.

ROMNIS

PORT FO LIO

ZAHRA KHAIRUNNISA I am Nisa, an Architecture graduate from BINUS University, Jakarta, with a strong conviction that architecture involves a fusion of research and functionality. My approach to building design is centered on meeting user needs, considering the environment, and embracing aesthetic considerations.

ABOUT ME

Through my academic journey and professional experiences, I have honed my research, creative thinking, and project management skills. My involvement in various design projects, both individually and collaboratively, has equipped me with the ability to be a team player and a proficient problem solver.

Personally, I am passionate about continuous learning, consistently upgrading my skills to enhance my knowledge. Recognized for my responsibility and meticulous attention to detail, I am eager to contribute my expertise to meaningful architectural endeavors.

+6285814942021 zhrkhaa@gmail.com www.linkedin.com/in/zahra-khairunnisa-151101

EDUCATION

COMPETENCE

SKILLS Microsoft Office AutoCAD SketchUp ArchiCAD

Enscape Adobe Photoshop V-ray Canva

LANGUAGE

2019-2023

Bachelor’s Degree in Architecture Real Estate Streaming University of Bina Nusantara Jakarta, Indonesia

2016-2019

Highschool - Science SMANN 47 Jakarta Jakarta, Indonesia

Indonesia English Korean

Native or bilingual proficiency Professional working proficiency Limited working proficiency

Teamwork Creative Able to work under-pressure Communication Effective time management

WORK EXPERIENCES

ORGANIZATION Feb 21- Feb 22

Sep 23 - Present

Freelance Design, architecture related Participated in the Hospital Type C Project with 3 other professional staff. As an design architect with a role to analyze and organize the space program needed in the hospital, Developed 2D drawing of floor plans and sections of the hospital, and 3D Modeling of the Hospital.

Developed 3D Modeling 15 Ha of urban area followed with 7 perspective rendering and 1 minutes 30 seconds of animation video with Enscape.

Developed and drafted technical drawing of house floor plan, with a total of 2 floor

Sep 22- Jan 23

Feb - Aug 22

Member of Dana Usaha Division, with the task to coordinate with the treasurer to meet organizational needs, organize Kartu Tanda Mahasiswa (KTM) and organization jacket project.

Other Projects: Member of Sponsorship in Architecture Gradn Festival , Member of HUMAS (PR) in HIMARS Competition, etc

ACHIEVEMENT Oct 23 - Nov 23

Authors and Presenter at ICEED 2023 7th International Conference on Eco Engineering Development 2023 Contributed as a writer and presenter with the journal title "Multifunctional Outdoor Space based on Outdoor Daily Activity (ODA): Realizing Healthy Space for Elderly"

July 23

Sayembara Desain Interior Kantor Pusat Bank DKI Propose Design Collaborate in a group of 3 people to proposed 3 interior design of the lobby HO Bank DKI by implementing the philosophy "continue to develop for the advancement and welfare of society" and "Global bank in a fast-paced world" merge with the identity of Bank DK

Sept 21

Certificate of Achievement: Presenter dan Author at NICE 2021 The 1st National International Conference Engineering 2021 Contributed as a writer and presenter with the journal title "Trotoar dan Perilaku Pengguna: Dampak Pandemi Covid-19 Terhadap Perilaku Pengguna"

BINUS Group: Infrastructure Development and Optimization Internship -- Design Architect/Architectural Intern Participate in the scope of work of New Building project: BINUS Semarang, especially in the tender process Designing interiors, landscapes, and exteriors for the New Building and Renovation Building Obtain insights regarding project tender implementation procedures, Green Building (LEED credit category, OTTV Calculation), and various types of building materials (paint, glass, furniture)

PT. Gujo Batavia - Architecture Counsultant Company Internship -- Design Architect Intern Participate in tendering process Hospital Type A Project, starting from the project brief stage of conducting site analysis to the schematic design stage by design 3D modeling, technical drawing, rendering, and making panel for presentations. Also attend meeting with other professionals Participate in office and public building projects, Given tasks at the schematic design stage, including technical drawing, 3D interior, rendering, area requirement calculations, and panel presentation Assisted the Legislative Area IKN competition team in making a site analysis diagram for proposed design.

Himpunan Mahasiswa Arsitektur (HIMARS) Architecture Student Association

CONTENTS CONTENTS

01

02

03

WANGSUL GALLERY Cultural Gallery with typology from joglo house

DAKARA SENIOR LIVING An independent senior living with blended services focusing on open space

UTAN KAYU UTARA URBAN PLAN Redesign slum area into residential area with 2 visual linkages

04

05

06

SAYEMBARA INTERIOR LOBBY BANK DKI edesign the lobby in their Head Office. The requirements are to design a lobby with combining three concepts.

FREELANCE PROJECTS Compilation of work as a design freelance, consist of 3D Modeling Masterplan and architecture

INTERNSHIP PROJECTS Compilation of work internship, including landscape, and esterior.

during interior,

01

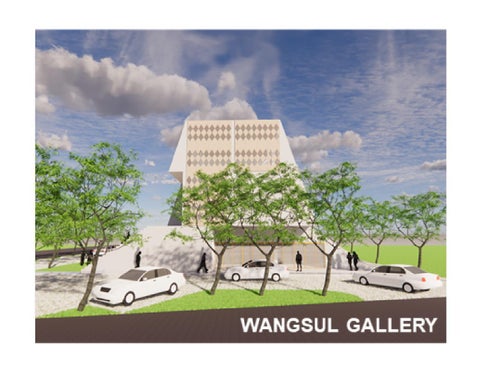

WANGSUL GALLERY The creative economy is currently one of the largest sources of state revenue, one of which is related to cultural tourism. This cultural tourism is proven to be able to move the regional economy by attracting both foreign and domestic tourists, which in turn will improve the community's economy. The presence of tourists will trigger the growth of the hotel sector, the service sector, and various other sectors.

Indonesia has a culture that is very widely spread from Sabang to Merauke. This culture is a great potential that has not been managed optimally. In fact, not many tourists know about the various cultures that exist in Indonesia. Therefore, it is necessary to have a showcase that displays local culture along with all materials and intangible wealth, so gallery and workshop facilities are needed.

06

DESIGN CONCEPT HUMANS IN CONNECTION WITH NATURE Wangsul comes from the Javanese language which means to return or return. It has two meanings in building. First, Back as Indonesian culture which is represented in the showcase gallery. Second, the return to nature can be felt by visitors from the gallery environment surrounded by gardens and green roofs, or even from the gallery shape inspired by the joglo roof shaped like a mountain.

The mountain is believed to have a philosophy contained in it. The mountain symbol has a high and sacred position in the life of the Javanese people.

The architecture of the gallery itself is an interpretation of the Joglo House. The roof of the joglo building is conical in shape to describe the shape of a mountain. The roof frame of this building is quite high. The roof was then changed to be simpler and adapted to the mass of the gallery building. Also, outdoor area has the same function as pendopo.

Applying Javanese pattern, namely Wajikan as secondary skin, it is arranged repetitive rhythm.

Wajikan is a symbol of justice in carrying out the law against anyone

1 Application of green areas and building regulations

07

2

Entrance or access to the gallery and adjustment to the program space

3

Response to sun and wind

4

Application of traditional elements

WAJIKAN AS SSECONDARY SKIN

ANALYSIS COMPOSITION

08

SPATIAL The floor plan of Wangsul Gallery also an interpretation from Joglo House.

The public space were placed in the front. On the first floor there is semi-permanent exhibition, on the second floor there are cafe and auditorium, and last, the third floor there is permanent exhibition. The service were placed in the back of the house, such as toilet, MEP room.

09

INTERIOR CONCEPT Wangsul Gallery applied modern and traditional elements by using natural material such as wood and concrete with polished white paint and marble slab.

The Outdoor area where has a function as pendopo of the gallery, for people to gather. It has stairs to seat and to go to cafe on the second floor. The material in using concrete and wood panel to create unity with surrounding evironment.

The lobby were completed with sofa for visitors and by placing Indonesia map to give a traditional accent.

The exhibition has circular circulation for visitors so they will see all of the work/creation. The exhibition were surrounding by window and Wajikan pattern as sun shading. It is to minimize the using of artificial lighting in daylight.

While the Cafe had traditional concept by using mainly wood for the furniture. The table and chair is using wood and metal. It is then completed with wayang as the decoration.

10

02

DAKARA SENIOR LIVING The Architecture final project focuses on designing a senior living facility in South Jakarta, addressing the region's second-highest density of elderly population. The current provision of senior living lacks adequate facilities, hindering the well-being of the elderly and restricting their movement. The proposed solution involves an innovative approach, introducing the concept of independent living with blended services, incorporating enhanced public areas, clinic facilities, and services like meals and social activities. Recognizing the importance of open spaces for senior well-being, the design emphasizes outdoor areas for recreation and social interaction, aiming to improve physical abilities and fulfill the social needs of the elderly. Ultimately, the project seeks to create an ideal senior living environment in a high-density population with limited land, promoting independence and overall quality of life for the elderly.

12

Site Location Jalan LebakBulus II, Kelurahan Cilandak Barat, Kecamatan Cilandak, Jakarta Selatan 12430 Area KDB (50%) KLB (6,84) KDH (20%) KTB (60%) KB GSB North East South West

4500 sqm 2475 sqm 30780 sqm 900 sqm 2700 sqm 12 4m 4m 5m 4m

Based on the book in Time-Saver Standards for Building Types and The journal of Toward Housing for the Elderly in Indonesia, there are criteria in determining location for senior living, which is closed to recreation area, hospital, etc. This requirement was fulfilled in Jl. Lebak Bulus II, Cilandak Barat, Cilandak, Jakarta Selatan 12430.

Legend: 1.Pemukiman 2.Sekolah Cikal 3.Mayapada Hospital 13

4.South Quarter 5.RSUD Fatmawati 6.MRT Fatmawati Indomaret

View from Jl. Lebak Bulus I

SITE DATA AND ANALYSIS

3P M

12 PM

6P M

REGULATION RESPONSES Based on site regulations, by applying KDB land regulations and building clearances (GSB). Moreover, also by maximizing the KLB site which is 12 floor.

VIEW RESPONSES The best view to the surrounding environment is from west and south, by providing balconies on the west and south parts of the site. Meanwhile, for the view towards the site, by providing an offset from the 1st floor.

SUN-SHADE RESPONSES Based on the shadow simulation at 9 am. The shape of the building mass is given a slope to minimize the impact of shadows on the surrounding environment. In addition, by making an offset from the 1st floor to the

OPEN SPACE RESPONSES Implementing an inner courtyard based on open space guideline design criteria for elderly residences. Apart from that, provides outdoor areas on each floor of the building to provide various open space zones/scopes

9A M

ACCESSIBILITY RESPONSES Entrance to the site is from left of the site, it is in response to the road-way at Jl. Lebak Bulus II. Where it will be easier to access the site again. Meanwhile, the service entrance leads to the service section which is to the north of the site.

6A M

SITE DATA

ZONING RESPONSES JL. Lebak Bulus II is the only acces to the site, and the usual traffic was not The 1st floor is used for public and Semi heavy compared to JL. Lebak Bulus I. Public facilities such as cafes, retail, K2 Zona Perdagangan dan lobbies located to the south of the site.

Residential Jasa Skala WP Where on the north of the site is for the K1 Zona Perdagangan dan Sekolah Cikal service zone. On the 2nd floor is for semi-public facilities.

Jasa Skala Kota

14

SITE PLAN

SITE INFORMATION Site Area : 4500 m2 KDB : 50% : 2475 m2 KDB (Built) : 2338 m2 KDH : 20% : 900 m2 KDH (Built) : 1010 m2 -- Including pedestrian path (walking area) and reflexology (25%)

LEGEND Vehicle outside site

Lane/flow

Senior Living Vehicle lane/flow

user’s

Service vehicle lane/flow

15

FLOOR PLAN 16

FLOOR PLAN 17

FLOOR PLAN 18

STRUCTURE AXONOMETRY SHEARWALL CORE 30 CM BEAM 35/70

BEAM BRIDGE 35/70 SHEARWALL EMERGENCY STAIRS 30 CM

DECK 12 CM

SECTION A-A FLOOR PLATE 17 CM

CEILINF FINISHING GYPSUM 2 CM

COLUMN 50X50 CM

SHEARWALL BASEMENT 40 CM

SECTION B-B

01 19

ROOF DECK

MULTI PURPOSE ROOM (SEMIPUBLIC)

RESIDENTIAL AREA (PRIVATE)

FACILITIES (SEMIPUBLIC) -- Only for elderly residents and guest who have reported FACILITIES (PUBLIC) BOH (SERVICE)

PARKING AREA (PUBLIC) BOH (SERVICE)

20

CONCEPT The building and the interior itself has modern minimalist concept. Where most of the material use wood, brown, and grey shade. The color selection is to create the continuity to the surrounding environment. Dakara Senior Living also provide first floor as public spaces, where other visitors/pedestrian outside the senior living can use the facilities provided by the management . The facilities which can be used by public users are cafe, retail shop, and inntercourtyard.

The unique aspect of the building, is the continuation of area from the users perspective as soon as entering the building. It can seen from the first area in the front/close to the pedestrian access and drop off area, which is semi outdoor lobby to the other side of the building (lobby lift.

01 21

DROP OFF AREA

LOBBY

22

OPEN SPACE CONCEPT

The application of open space in senior living is to be able to support the needs of the elderly in senior living so that they can improve physical abilities and interactions. The outdoor design based on the result of the researh, as in open space design guidelines.

The research conducted resulting in to provide Outdoor Daily Activities based on elderly preference, safety of the elderly, and spatial arrangement.

NEA Seating Area

NEA SEATING AREA

BENCH+PLANTER

SEATING AREA ZONE 1

REFLEXOLOGY

SEATING AREA ZONE 2

WALKING PATH

Seating Area Zone 2 Reflexology Seating Area Zone 1

Short Course pathaway

Open Space

Bench+Planter

INNER COURTYARD ISOMETRY

01 23

SEMI OUTDOOR LOBBY

OPEN SPACE

01

TERRACE AREA IN RESIDENTIAL FLOOR

24

03

UTAN KAYU UTARA URBAN PLAN Redesign residential area with an area of 10 hectares with 2 visual linkages. The location in Utan Kayu Utara residential area with the condition/existing of the settlement is not well organized, where the settlement is very dense so that there are many alleys in the settlement.

26

Only Jl. Waringin dan Jl. Kayu Ramin that can be passed with car

Population projections for the next 10 years (2031):

SITE LOCATION Utan Kayu Utara, Matraman, Central Jakarta, DKI Jakarta

27

Total Area Kelurahan Utan Kayu Utara = 107 ha Estimation total population in 10 ha at 2031 (25088/107) x 10 ha = 2345 population.

FACILITIES Based on the calculation of estimated population at Utan Kayu Utara in 2023, the area must provided community center, health center (Puskesmas), Mosque, Kindergarten, Elementary School, Park/Playground, retail, and parking area in the residentail area.

LINKAGE Monument 1 - Monument 2 - Community Center Entrance/Exit Residential Monument 2 - Mosque

2 2 7

Area

-

1

6

8

8

8

8

3

1 8

7

8

4 7

5

LEGEND 1. Monument 2. Retail 3. Mosque 4. Community Center, Puskesmas, Public Parking Aream Power House 5. Elementary School 6. Kindergarten 7. Playground/Park 8. Residential 9. Security Area 28

04

SAYEMBARA INTERIOR LOBBY BANK DKI Location: Kantor Pusat Bank DKI, Juanda A competition held by Bank DKI was to redesign the lobby in their Head Office. The requirements are to design a lobby with combining three concepts, which is modern minimalist, millenial, and environmental/sustainable aspects. Without forgetting to include Bank DKI philosophy in the design

30

CONCEPT

The concept used in the lobby area is to apply a modern minimalist style which is then combined with the Bank DKI identity.

The basic philosophy of interior design is from the identity of Bank DKI. Bank DKI declare itself as "A global bank in a fast-paced world", where one of their purpose is “continues to thrive for advance and prosper the community”

BEFORE

CONCEPT

PROPOSE DESIGN

31

1 First application, The 4 slashes on the Bank DKI logo are the basis shape for forming the panel pattern.

A combination of 2 patterns arranged in opposite ways which then produces an asymmetrical shape.

2

+ BANK DKI IDENTITY

=

Second application, The application is also applied to the ceiling of the reception area. The layer of drop ceiling represent Bank DKI to thrive in escalating economic prosperity in Jakarta.

3 Third application, four slanted lines with curved and sharp ends were applied as stickers on the glass wall, which is an inspiration for the desire to achieve the best performance and highest achievements.

32

SECTION A-A

SECTION B-B

Grey Emprador Marble

HPL Taco TH5001NT

Bronze Aluminium

Calcatta HPL Taco Marble New Maroon

01 33

Fossil Wood Bianco

01

34

INTERIOR EXTERIOR LANDSCAPE

05

FREELANCE PROJECTS

Various projects varies from rendering, 3D Modeling of architecture building and urban design.

1. Urban Design of Penajam North Paser Regency, East Kalimantan 2. Hospital Type B in Purwakarta, West Java

36

URBAN DESIGN Penajam North Paser Regency, East Kalimantan Shopping Centre

Low-rise Apartment Business Loft Office Building

OAD

LR A T S OA

C

Sport Centre Business Block

URBAN DESIGN PENAJAM NORTH PASER REGENCY The total area of urban design in Penajam North Paser Regency are 10 Hactares. The output of this project will be uploaded in Ministry of Investment / Indonesia Investment Coordinating Board. n this project, has a role to developed 3D modeling from standard building mass into schematic design. The concept of the urban design is to create community area in each district and inclusivy for all vehicles.

37

SPORT CENTRE

SHOPPING CENTRE

BUSNIESS BLOCK

COMMUNITY AREA

LOW RISE APARTMENT

38

HOSPITAL PROJECT Al-Muhajirin, Purwakarta

AL- Muhajirin Hospital Concept The Hospital has a total area of 10.000 sqm or equivalen to 1 Hectares. Al-Muhajirin is hospital Type C which has a total of 100 bed for inpatient ward and Intensive Care Unit. The concept of Al-Muhajirin Hosital is Islamic Modern, where they provided Mosque inside of the hospital.

In designing the hospital, there are aspects that are considered and maximized, which is the utilization of climate, airflow, and sunlight. The outstanding features of this hospital include providing separate VIP inpatient facilities and offering services to BPJS-insured patients.

39

40

INTERIOR EXTERIOR LANDSCAPE

06

INTERNSHIP PROJECTS

All architecture and interior projects from internship experiences, The project contents varies starts from universities, landscape, exterior, office, and hospital.

42

HOSPITAL PROJECTS

INTERIOR - MAIN ATRIUM Main Atrium were located between two building, namely polyclinic and wellness center, Its also has function as a main lobby in hospital area which consist of 7 buildings. Moreover, it can be used as communal space and information center for hospital users.

The concept of the interior it self is modern using color gray, white, and wood to create natural atmosphere. Those also to create harmony with green area/ park outside the building. The interior of main atrium also utilizing the skylight from the ceiling by having green area with bench in several area of the lobby.

43

HOSPITAL PROJECTS

INTERIOR - POCKET GARDEN IN YUSTISIAL BUILDING Pocket garden is a facility in one of the hospital building, it is located next to auditorium.

The interior concept is to create a space where visitors or patient can access in a specified time. The garden filled with planter with bench in all sides of the room, where rhe different elevation and shape create more sense of space then one variety. The bench and planter use material concrete, with a collaboration between wood panel flooring, dark gray walls, and concrete planter and bench create unity to one another.

44

LANDSCAPE PROJECT Grass-block Paving Block 10x20

COMMUNAL SPACE

Proposed Design

The propose design has a purpose to create new environment with using some of the construction built. The design also by put in mind what the client said, where endeavor not to remove the existing trees.

So, by emphasizing all the above, the proposed design was by remodeling the floor and the planter bench for an access and liven up the scenery where it can become an active spot for all the users, ilncluding student, staff, and lecturer to discuss and rest.

45

Red Paving Block 10x20

Existing condition

Stepping Stone Andesit 50x120

BUILDING FACADE STRUCTURE Aluminium Pipe (Welding) Aluminium Frame Hollow Aluminium 10 cm x 10 cm

Plate 20 cm x 20 cm

Wulung Bambooo

Metal Expanded

BUILDING FACADE The criteria for the design is to have sustainable concept, more importantly the building can be seen from a distance.

So, the propose design were by using secondary skin, which is folding louvre. The secondary skin has a purpose to response climate, and for service area (AC maintenance). While still put in mind an aesthetic aspect.

The reason for using bamboo not only because its a local material but also the easy maintenance

BEFORE

Proposed Design

46

UNIVERSITY PROJECTS Director’s Room Proposed Design

Lecturer room is one the room in Bridging Campus Project, where I’m collaborate with 3 teammates.

The concept for the interior design is modern minimalist. Where the main material and color scheme are wood and white color used in the wallpaper backdrop and marble in top table.

The partition used in the backdrop of the table is as the main accent where it is the point of view of the room. Also, the background for video calls and meetings.

The combination of the wood and white materials is to create clean and professional background despite the size room or the type of work space.

47

UNIVERSITY PROJECTS Lecturer’s Room Proposed Design

Lecturer room is one the room in Bridging Campus Project, where I’m collaborate with 3 teammates.

The lecturer’s room has a capacity for 15 people. The concept for the interior design is modern, with using an official color of BINUS as an accent at several point of the space.

The spatial arrangement in the room divided into 3 area, by emphasizing on working space concept. First, the working area with LED linear lights where it has partition per seat. Those partition has a purpose for privacy, but it also moveable as in lifted. Whereas, the high/ bar table is for the lecturer who has an online class. The room also provided an area for students/vistors who needs discussed with the lecturer.

48

THANK YOU

FOR MORE INFORMATION Contact Me at
