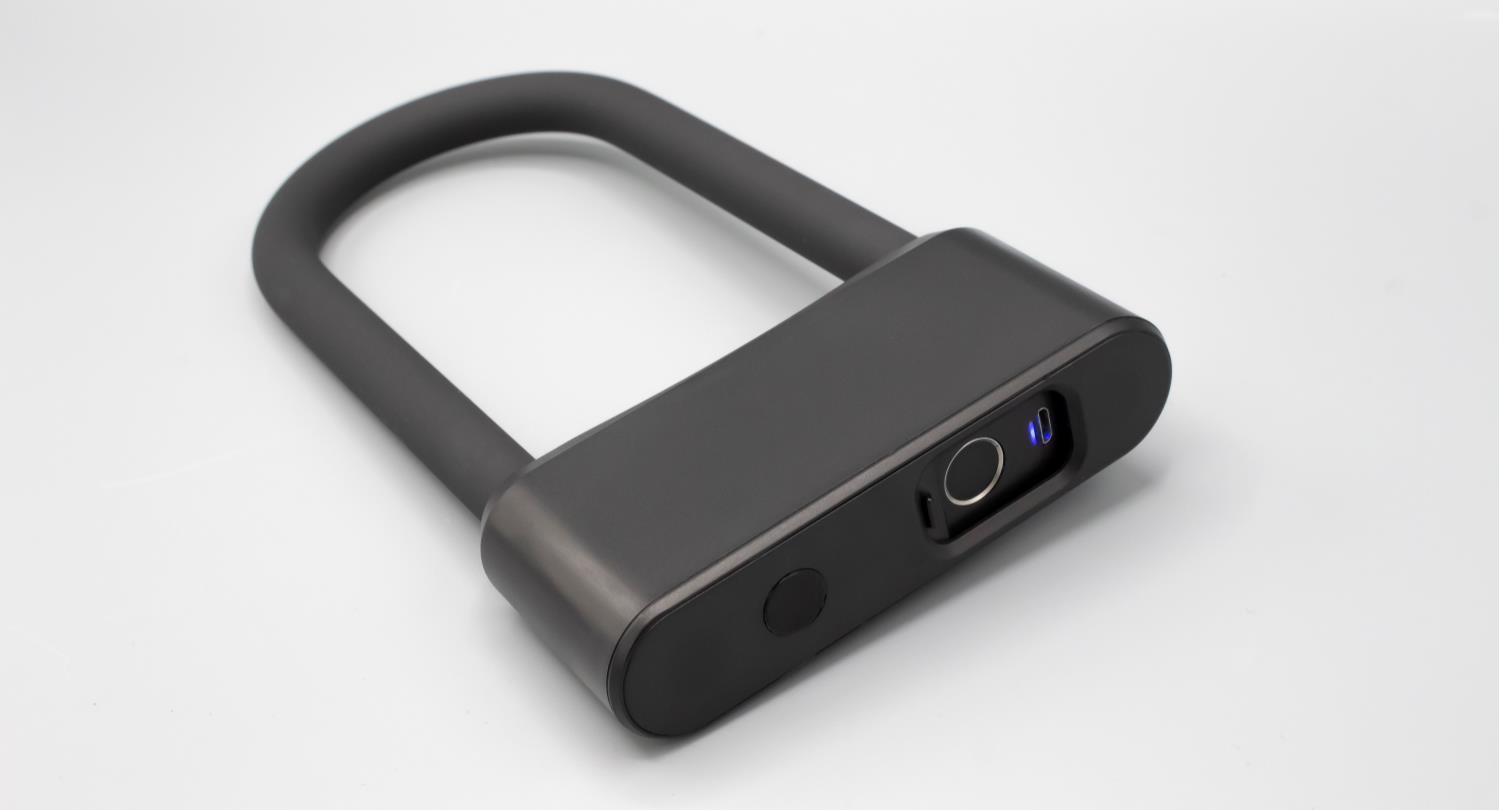

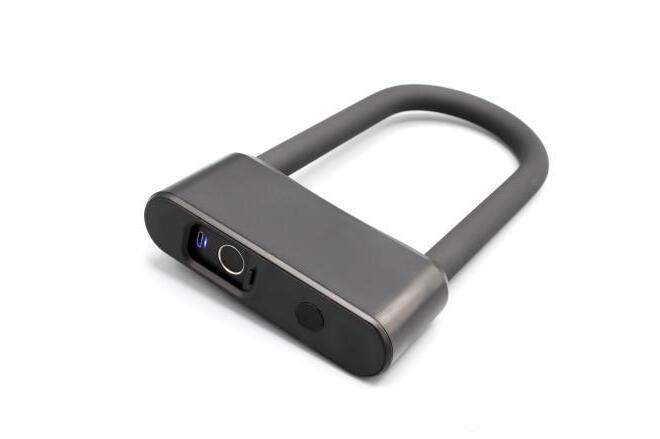

XLOCK Bikelock M

XLOCK FSM

PACKAGING CONTENT

Product name

App / Cloud System

XL-FSM

XLOCK Fahrradschloss M

XL Lock Manager App (iOS, Android)

Webservice: www.xlock.app; Made in Austria

IP Classification IP65 Dustproof & Waterproof

Temperature -20°C to 70°C

Battery 5v, Micro USB Interface (rechargeable)

Storage

Smartphone Users: unlimited

Fingerprint: up to 10 fingerprints programmable

XLOCK Bikelock M

2 x mechanical keys

XL Lock Manager app

Download and install on your smartphone (iOS & Android). Simply scan the QR code with your smartphone:

Fingerprint reading speed ≤ 0,5 Sekunden

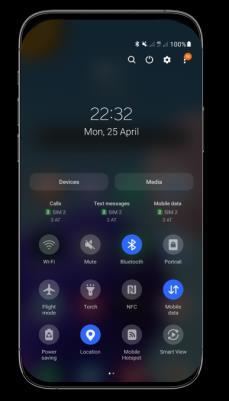

Caution for Android devices: With Android devices, the following authorizations must be granted without restrictions for the commissioning of Bluetooth devices: Location and Bluetooth In retrospect, this is no longer possible with some devices. Then you must uninstall and reinstall the app and then restart the device.

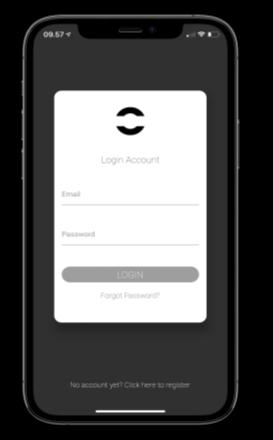

XLOCK ACCOUNT

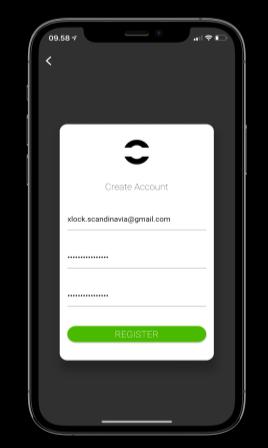

2. Insert your e-mail and reconfirm your password and press REGISTER.

4. Congrats – your XLOCK account has been

ATTENTION: Charge your XLOCK Bikelock until the green light shows Green light: full battery

PROGRAM FINGERPRINT

1. Press the lock you wish to program a fingerprint for

5) Choose the timeframe for how long the fingerprint should be activated for and press NEXT.

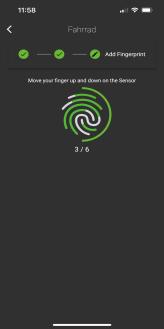

6. Hold and scan your finger 6 times on the fingerprint scanner

TIP: Make sure to scan all ankles of your finger for better operation

7) Follow the instructions

8) Your fingerprint is now programmed in the lock.

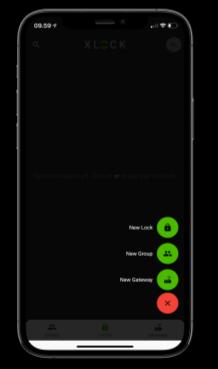

1. Press on the green symbol in the lower right corner on your home screen.

2. Press NEW LOCK.

3. Activate the Bikelock by touching the fingerprint scanner

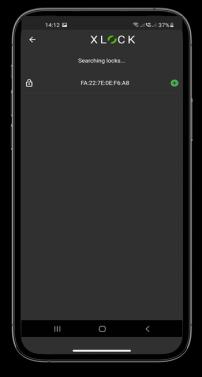

4 The XLOCK Bikelock is shown with it‘s MAC address. Press the number or the green symbol

5. Insert a preferred name for the lock.

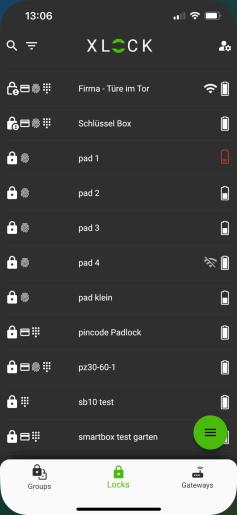

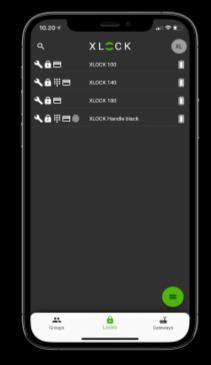

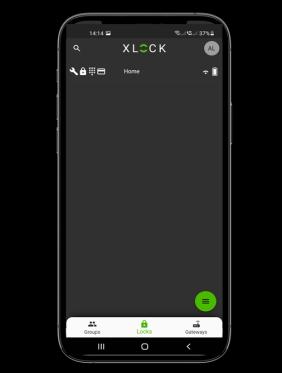

6. Your XLOCK Bikelock is now programmed to your account and can be found on the home screen.

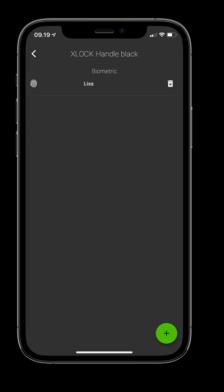

2. Press BIOMETRICS.

3) press the green symbol in the lower right corner.

4) Insert a name for the fingerprint.

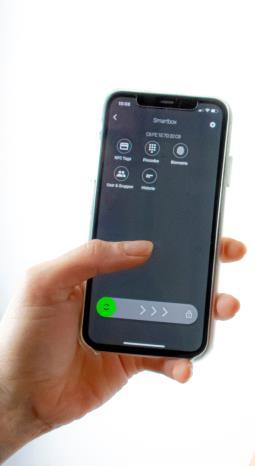

Unlocking your bikelock with your smartphone is very easy and simple The communication between smartphone and bikelock is via Bluetooth and the reading distance is up to 15 metres

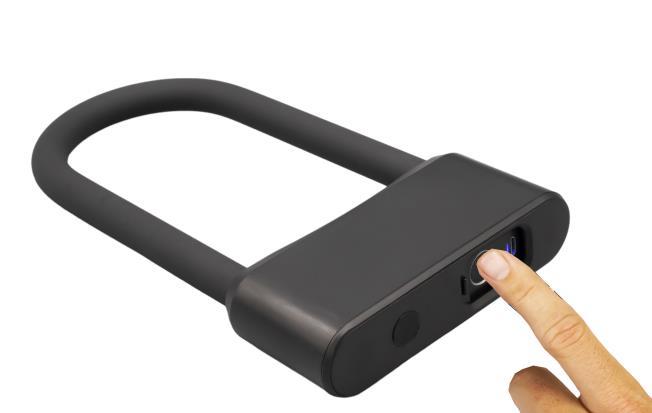

You can easily unlock the bike lock with your fingerprint You can program up to 10 fingerprints, which gives you flexibility and the possibility to share the lock with several users Do not forget to close the cover after unlocking with your fingerprint

BATTERY STATUS

You can check the battery status of the lock in the XL Lock Manager App. After every Bluetooth communication (unlocking, updating a setting or programming a fingerprint) the battery status is checked and updated.

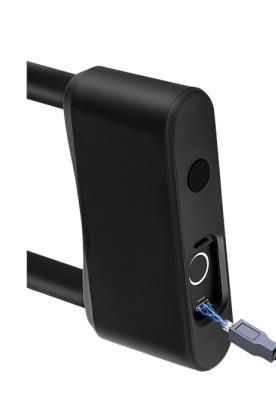

When the battery level is low, you should charge your lock using the USB port

XLOCK ACCESSORIES

Gateways can be used for remote unlocking.

OPTIONAL!! Please order separately.

XLOCK by data mobile

Landstrasse 35-39

AUT

6911 Lochau

info@xlockgroup.com www.xlockgroup.com

The Bluetooth remote key can be used to unlock the Bikelock via Bluetooth without your smartphone.

XLOCK Gateway G2-WIFI Inkl. Kabel, USB Netzteil separat bestellen

XLOCK Gateway G3-Ethernet Inkl. Kabel, USB Netzteil separat bestellen

XLOCK Gateway G3 POE-Ethernet USB Netzteil nicht unbedint notwendig – POE.

XLOCK BLE Funk-Schlüssel CR232 Lithium
