XLOCK 20 Mifare Flex Installation Guide

XLOCK 20 Mifare

INSTALLATION GUIDE

PACKAGING CONTENTS

Lock

XL20

Attention:

Please order batteries seperataly.

Closing part XL-S4

Fixing aid

5 x countersunk screws 3,5 x 40 mm

Battery CR123A, 3V lithium

XLOCK 20 DIMENSIONS

Closing part

XL-S4

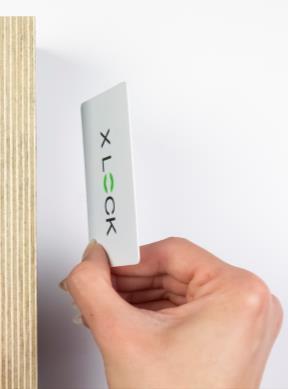

XLOCK 20 INVISIBLE INSTALLATION - ANTENNA IN THE LOCK (Mifare® Classic 4 Byte)

Important!

The reading distance depends on the material of the door and the transponder. In case of concealed installation, the reading distance must be checked before mounting.For EM4102 badges up to 3.5 cm, for EM4102 key fobs up to 3 cm. Please always check the reading range!

XLOCK 20 Installation on bottom panel

Exploded view right door

Attaching the lock

Tighten the screws with care and avoid using a drill or cordless screwdriver

Corpus

Door

Interior view right door

Interior view left door

Corpus Door

Door Corpus

XLOCK 20 Installation on bottom panel

XLOCK 20 Installation on top panel

Corpus

Door

Corpus Door

Door Corpus

Interior view left door

Interior view right door

Mounting distances left door and hole positions

Mounting distances right door and hole positions

XLOCK 20 Hole pattern and Installation aids

Attaching the lock

Tighten the screws with care and avoid using a drill or cordless screwdriver

Hole pattern installation top left door

Hole pattern installation bottom left door

Hole pattern installation top right door

Hole pattern installation bottom right door

XLOCK 20 Use of drilling aid

Attaching the lock

Tighten the screws with care and avoid using a drill or cordless screwdriver.

Use of drilling aid bottom right door

Optional ! Please order seperataly.

3 Master Cards

Master cards are unique and will be programmed to each lock for each project/building. These cards are needed to program and delete Service Cards, Emergency Opening Cards and User Transponders. Up to 3 master cards, 5 emergency opening cards and 47 user transponders can be programmed per lock.. programmiert werden.

Service Card for Personal Mode and Freelocker

With a master card and the service cards 01..... to 10, the lock can be programmed in mode 01......to mode 10.

Emergency opening Card

A blocked lock can be opened with an emergency opening card - only works with Freelocker Mode 7,8,9 and 10. The lock remains unlocked and can be locked again with the emergency opening card. The user ID that locked the locker remains stored. This means that the user card can open the lock again later.

With a master card and the service card 01, the lock can be programmed into mode 01. In mode 01 up to 47 transponders (type ISO14443a / NFC) can be programmed per lock. This mode is also called "Personal Locker" or "Fixcode".The type of locking is called the latch function: Only programmed data carriers can lock and unlock the lock. After an authorised data carrier has been identified, the bolt unlocks and automatically locks again after 4 seconds.

With a master card and the service card 02, the lock can be switched to mode 02 or programmed. In mode 02, up to 47 transponders (type ISO14443a / NFC) can be programmed per lock. This mode is also called "Personal Locker" or "Fixcode".The type of locking is called the locking function: After an authorised data carrier has been identified, the bolt moves to the open position and remains in this position. The next time an authorised data carrier is identified, the latch moves to the closed position and remains in this position.

With a master card and the service card 07, the Freelocker Mode 07 R/W - sector 10 (free locker selection) can be activated. In addition, "locker occupied" is written on the transponder. The lock is not automatically unlocked. The lock remains locked.

! Only works with Mifare 4 byte type Classic 1K / and Mifare Classic 4 K transponders !

With a master card and the service card 08, the Freelocker mode 08 R/W - sector 10 (free locker selection) can be activated. In addition, "locker occupied" is written on the transponder.The lock is automatically unlocked XX hours after the last booking.

! Only works with Mifare 4 byte type Classic 1K / and Mifare Classic 4 K transponders !

Freelocker Mode 09 R/W can be activated with a master card and service card 09. No information is written to the transponder. The lock is not automatically unlocked. The lock remains locked.

! Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a) can be used !

Freelocker Mode 10 R/W can be activated with a master card and service card 10. No information is written to the transponder. The lock is automatically unlocked XX hours after the last booking.

! Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a) can be used !

Keychain with Transponder

Wristband with Transponder

Card with Transponder

ACTIVATION – Insert battery

1) Remove battery strip = system active and the RFID field is activated.

2) Avoid overlapping reading field of the locks, otherwise the battery will be discharged quickly.

3) Do not activate batteries before installation.

4) Always isolate or remove batteries for transport!

Battery CR123A, 3V lithium battery

Always use lithium batteries!

Open the battery compartment cover and insert the batteries with the correct polarity (+/-).

Battery inserted with correct polarity -> system and RFID field is activated

Close the battery compartment cover and fix it with the screw. Your lock is now ready for operation

Otherwise

If you ordered the locks With the battery

Battery strip is pulled out -> system and RFID field is activated

ACTIVATION – teach in master cards

Reset the lock to the factory settings.This step is not necessary if the locks have never been programmed.

Long audio signal

Important:

If the reset button is only pressed briefly, the sound is switched off = short signal. If this happens, the reset button must be pressed again briefly = long tone, tone on

Reset button on the back of the lock gently press for 3 seconds.

ticks for approx. 5 seconds

Hold the 2. master card to the antenna field while it is ticking.

ticks for approx. 5 seconds

Hold the 3. master card to the antenna field while it is ticking

1. master card is held up to the antenna field

ACTIVATION – service cards and users – teach in transponders

Teach in service cards

User Transponder teach in only possible in mode 1 or 2

Hold the master card to the antenna field

ticks for approx. 5 seconds

Hold the service card against the antenna field, while it is ticking.

Hold the master card to the antenna field

ticks for approx. 5 seconds

Hold the Transponder against the antenna field, while it is ticking.

Emergency opening card programming (Mode 7, 8, 9 & 10)

Emergency opening card programming

ticks for approx. 5 seconds (Mode 7, 8, 9 & 10)

A maximum of 5 emergency opening cards can be programmed in Freelocker mode

Emergency opening with an emergency opening card

Hold the master card against the antenna field

While ticking, hold the emergency opening card against the antenna field. Repeat the procedure for further emergency opening cards.

The emergency opening card can be used to unlock and lock the lock (open/close mode).

The latch retracts -> the lock is unlocked.*When you hold the emergency card against the antenna field a second time, the lock locks again.

Hold the master card against the antenna field

Emergency opening with programming card (general)

Hold programming card against the antenna field

ticks for approx, 5 seconds

Hold the programming card against the antenna field 2 more times while ticking

The latch retracts -> lock unlockedno longer hold the card towards the antenna field.

Attention:

After the lock has been unlocked, the master card should no longer be held up against the antenna field. Otherwise, all master cards will be deleted and must be relearned..

Delete user Transponder

User Transponder individually deleting

ticks for approx. 5 seconds

Hold the programming card to the antenna field

While it is ticking, hold the transponder up to the antenna field.

All Users

Transponder

Deleting

ticks for approx 5 seconds.

Hold the programming card to the antenna field

Hold the programming card against the antenna field 2 more times while ticking.

The latch retracts -> lock unlocked.

Hold the programming card against the antenna field 2 more times while it is ticking. Remove the card from the antenna field.

Attention:

Do not hold the master card to the antenna field anymore. Otherwise, all master cards will be deleted and must be taught in again.

Deleting all master cards

Hold the programming card to the antenna field.

ticks for approx. 5 seconds

Hold the programming card against the antenna field 2 more times while ticking.

The latch retracts -> lock unlocked.

Hold the programming card against the antenna field 4 times while ticking.

The master cards are deleted after a long beep.

The lock then waits to be programmed with new master cards

User Transponders are still saved on the lock

Attention: After deleting the master cards, the lock waits for new programming cards. 1-3 new programming cards must be taught-in!

Switching sound on and off

Reseting the lock completly

Reset button is pressed briefly for 1 second -> sound on.

Reset button is briefly pressed once for 1 second -> sound off.

Press the reset button for 3 seconds until a signal sounds..

Important: After a reset, the mode of the lock remains stored.

Freelocker| Segment Cleaner Optional ! Please order

seperataly.

Delete the Freelocker segment on the transponder: The Segment Cleaner can be used to delete the locker number and "Locker locked" on the transponder. 2x

The transponder is held up to the antenna field 2 times.

-> Cabinet number deleted

Freelocker

Optional ! Please order seperataly.

If the user has forgot which of the lockers he locked, the locker number can be checked at the info terminal. To do this, a Mifare Classic transponder (Mifare Classic 1K / Mifare Classic 4K) is held up to the RFID field of the info terminal (see picture).

locking the lock - the cabinet number is saved on the transponder

unlocking the lock – the cabinet number gets deleted

1 Hold the transponder against the antenna field to lock it.

2. The segment (Sector 10) now contains the cabinet number

3. Hold the transponder against the terminal. The display now shows that the cabinet with the number 2 is occupied.

1. Hold the transponder to the antenna field for unlocking

2. Cabinet number has been deleted on the segment (Sector 10). No more cabinet number on the transponder

3. Read out the locker number on the info terminal. No locker is occupied.
