Products

Company offers range of benders, supported by advanced software that is user-friendly

For more than half a century, Italy’s OMCG Italia Srl has offered advanced wire-bending technology to meet the needs of manufacturers.

Per the company, the C31E model, OMCG’s top-class CNC feed-and-form machine, features an eccentric bending head for maximum bending flexibility. It can bend on insert, bend on a mandrel, and do a combined bend as well as an out-of-sequence bend. The model is available in 3 sizes: 10 mm, 14 mm and 18 mm, and it provides extreme flexibility for out-of-sequence bends, cantered eyelets, generation bends and spiral-like shapes. It can precisely form wire and tube material, and changeovers are quick and simple. With optional tooling, the C31E can be used for both off-the-coil wire and tube bending.

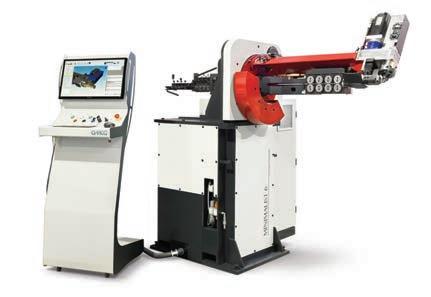

The Minimalist 6 bending system (pictured) from OMCG excels due to its proprietary front feeder that is a proven leader in terms of production rate, reliability and accuracy. It is lightweight, yet utterly dependable due to its robust bending head and longest-in-the-market aluminum bending arm that provides a fully electric automation system based on a real CNC. All of these features bring in additional advantages in manufacturing.

Supporting the capability of OMCG’s bending technology is its East Programming 4 Software, which offers simulation and anti-collision control and full 3D part programming (polar or cartesian coordinates) and simulation. It provides direct import/export of 3D STEP files, advanced safety features for open door setup and maintenance, and can be easily integrated with third-party robots or external units. It also offers full remote diagnostic through internet, and can be part of an IIoT (Industrial Internet of Things) solution, having the ability to collect and share production data with manufacturing databases.

OMCG also supplies accessories, such as decoilers, beveling units, presses, welding units, straighteners, measurement systems and more. See p. 65 for a profile of the company.

Contact: OMCG, Inc., tel. 630-860-1016, admin_na@omcg.com, www.omcg.com.

New wire-bending system provides ‘smart’ optimization via its iQsmartbend software

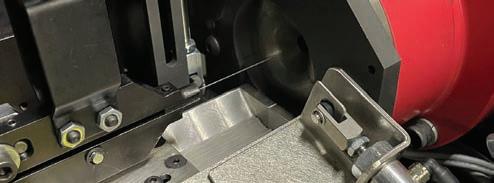

Germany’s WAFIOS AG, represented in North America by WAFIOS Machinery Corporation, reports that its new BM 36 high-speed wire bending machine offers superlative performance through its deployment of iQsmartbend.

Per the company, the new BM model has a new singlehead that sets new standards in terms of speed and quality. The machine structure has been completely redesigned, to fulfill the development goals of an innovative design, improved ergonomics and easy maintenance.

The latest BM generation features highly dynamic drives and the software function iQsmartbend for an automatic optimization of workpieces and maximum production speed. When forming wire parts with highspeed, strong vibrations occur due to the process. These oscillations can not only cause undesirable deformations in already bent wire areas, but if the deflections are too strong, they can also cause the wire to jump out of the upwardly opened die.

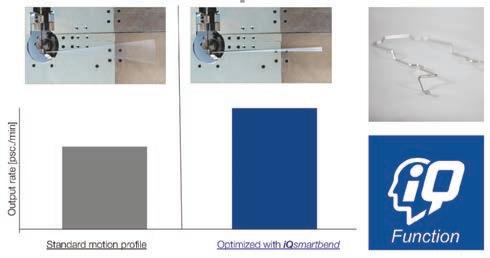

The key to the advance is iQsmartbend. The WAFIOS process optimizes the axis that travels in such a way that vibrations are significantly minimized and enables the machine to produce bend parts in new speed levels. As a result, the output of the BM 36 HS could be increased by up to 40% compared to its predecessor, optimizing the unit costs across the entire range of parts.

Contact: WAFIOS Machinery Corporation, tel. 203-481-5555, sales@wafios.us, www.wafios.us.

Nano diamond-coated die has many pluses

Fort Wayne Wire Die reports that the company’s Nano Diamond Coated Dies (Nano DCDs) introduce a completely new advancement in die surface technology.

Per the company, the Nano DCDs yield an incredibly smooth wire finish, with minimal generation of fines, in hole sizes as large as an unprecedented 100 millimeters (3.9 in.). That makes Nano DCDs an ideal solution for stranding, bunching and compacting applications of conductor cable. The dies come in hole sizes from 0.031 in. to 3.937 in. (0.80 mm to 100 mm). They are ideal for stranded cable used in electrical transmission, and can also

be used for large diameter wire drawing and tube drawing. The superior surface finish minimizes wire deformation forces for optimum cable conductivity and reduced fines and dust. They also have lower die pull resistance, which results in higher energy efficiency as well as minimized die wear, which provides huge potential savings in raw material cost. The dies also last at least 10 times longer than tungsten carbide. They offer the broadest range of sizes for stranding applications—up to 3.9 in. (100 mm).

There is often a strong value proposition in using NDCD dies over tungsten carbide dies apart from the quality, safety and energy efficiency benefits. Minimizing die wear can have a huge impact on the cost of production in ways not always obvious. Typically, power cables are sold by length, not by weight, and the cable conductor’s raw material is often the biggest fraction of a finished power cable’s cost. When designing a cable, the circular mil area and overall diameter are determined that will meet or exceed the minimum conductivity requirements of the cable producer’s customer. However, during production dies wear and as they wear the compacted cable becomes larger. That “extra” raw material that is being given away for free with every micron of wear has a surprisingly large cost associated with it. Just one more reason to consider Fort Wayne Wire Die’s Nano DCDs.

Contact: Fort Wayne Wire Die, tel. 260-747-1681, sales@fwwd.com, www.fwwd.com.

Clad metal rod wire and ribbon combines properties for optimal performance

U.S.-based Anomet Products supplies metallurgically bonded products that excel for a wide range of fuel cell and large electrical distribution applications. A press release said that custom-clad metal has up to three layers, including copper core materials with an outer sheath of nickel, Inconel®, or custom alloys to achieve specific performance properties. The products are offered as wire and rod from 0.002 in. to 0.125 in. and as ribbon to 1 in. width, for designing small fuel cells and electrical distribution facilities. They are ideal for fabricating connectors, micro-switches and bus bars.

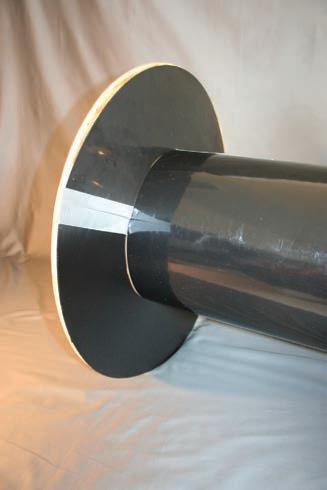

and other reel packaging products. Materials cut to your exact reel specifications.

Visit us at L-Si.com/reel-packaging 1-800-825-2561

EXPORTGUARD Reel Wrap

Flange Liners Drum Wrap

Featuring 2% or more cladding thickness, Anomet Clad Metal Products can include: platinum, gold, palladium, or silver clad to copper, stainless steel, Kovar®, niobium, nickel-iron, molybdenum, tantalum, and titanium core materials. A typical fuel cell or battery application includes titanium-clad-copper for corrosion resistance and high conductivity.

For over 40 years, Anomet Products has focused exclusively on manufacturing innovative clad-metal wire composite solutions that deliver optimized performance for the most demanding applications. The Anomet Clad Metal Products are typically 10 times less expensive than solid precious metal products. Price quotations and samples are available. Contact: Daniel F. Lambert, Anomet Products, tel. 857-302-2523, dlambert@anometproducts.com, www.anometproducts.com.

New cable glides through its deployment

MC Glide Tuff™ is a new cable available from Atkore under the AFC Cable Systems® brand that is designed to glide through metal studs and ceilings to offer a smoother, faster, quieter cable-pulling experience.

Per the company, MC Glide Tuff is part of the MC Glide™ family, the latest innovation in cable that was previously available in aluminum. The cable (U.S. Patent No. 11,101,056) excels for uses such as commercial, industrial, multi-residential branch circuits and feeder wiring, services for power, lighting, control and signal circuits. It can be exposed or concealed, fished, surface mounted, embedded in plaster, used in environmental air-handling spaces, open or messenger supported aerial runs and dry locations, in hazardous locations to Class I & II Div. 2 and Class III, Div. 1 & 2 (per NEC®Articles 501, 502, 503, 530), and in Places of Assembly Aluminum Interlocking Armor featuring ColorSpec® .

“Different applications call for different types of cable so it’s essential that we provide our customers with options,” said Peter Lafreniere, senior product manager for the brand’s electrical cable and flex conduit products. “But the one common need we see across all industries and environments is for a positive installation experience. MC Glide Tuff provides installers the opportunity to reduce resistance and work more quickly and efficiently with less risk for stud damage.”

MC Glide Tuff’s unique, lightweight steel armor profile reduces friction and glides easily without sacrificing flexibility and strength, saving time and labor costs compared to legacy MC Cable. Other benefits of this high-strength, galvanized cable include durability, high corrosion resistance for harsh environments, and resistance to extreme heat and fire.

MC Glide meets the flexibility requirements of UL 1569 and is equal to or more flexible than MC Lite®. MC Glide is also compatible with the installers’ current tools and fittings. To request a sample, see a video or to learn more about MC Glide, go to www.afcweb.com/contact/.

Contact: Atkore/AFC Cable Systems, tel. Toll free: 800-757-6996 or 508-998-1131, www.afcweb.com.

New crosshead design has ‘zero’ tolerance policy when it comes to possible bleeding

Joe Tools, known for innovative extrusion crossheads and tooling that bring greater efficiency and profitability to wire and cable processors, reports that its new Zero-Bleed™ Crosshead is the ideal solution for minimal downtime and maximum productivity.

Per the company, the Zero-Bleed Head has a unique duallayer, fixed center color inversion head that allows it to continuously run alternating skin or striping colors without stopping the production line. This new system of non-stop production can greatly reduce setup time, eliminate waste, increase sustainability and bring productivity to an all-time high.

The Zero-Bleed Head utilizes three extruders, with a color layer switch diverting the flow of compound from two extruders onto the inner and outer layers of the applied insulation. Then the third extruder feeds the base compound for the center layer, which can perpetually run without change. The “no bleed” color change system has an easy manual switch valve. Striping options are also available.

Based in metropolitan Atlanta, JoeTools is a complete design and manufacturing resource for premium quality extrusion products that include innovative and industry standard crossheads, tips, dies, screws, barrels, breaker plates and all accessories. It also offers a 24-hour/seven day customer service hotline for an instant response to your immediate needs.

Contact: Joe Tools, tel. 877-832-7864, www.joe-tools.com, sales@joe-tools.com.

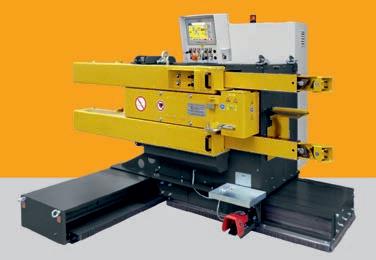

Cold rod welder is really hot news when it comes to processing copper and aluminum

U.K.-based Pressure Welding Machines (PWM) reports that the company’s EP500 welder is extremely effective at processing wire and strip.

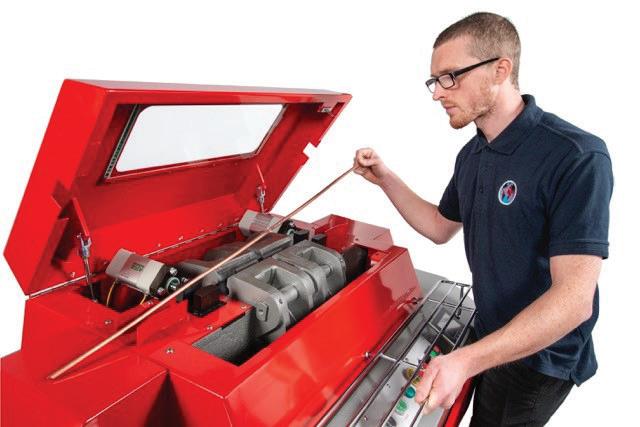

Per the company, the electro-pneumatic, free-standing rod welder can cold weld most nonferrous metals—wire or strip form—from 5.00 mm to 12.50 mm (copper) and 5.00 mm to 15.00 mm (aluminum), depending on the hardness of the material. The EP500 is equipped with an advanced, user-friendly programmable controller (PLC), which takes the pneumatic system through the required welding sequence and monitors the system for faults.

The heavy-duty machine is pneumatically powered and requires a compressed air supply and a single-phase electrical supply of between 100 and 240 volts (the specific voltage requirement is stated at the time of ordering). No hydraulics are used with the EP500. A co-axial thrust technique is applied in the welding process, with independent control over the grip and upset movements through an arrangement of pneumatic cylinders. Fully automatic deflashing is incorporated into the system for removal of the weld burr.

The EP500 is 1430 mm long, 970 mm wide and 1,240 mm tall, has a net weight of 960 kg and a gross weight of 1,160 kg.

The PWM range features hand-held cold welders, workbench welders, portable trolley-mounted welders and large free-standing rod welders. All the cold-welding machines use the multiple upset technique to create strong reliable welds on non-ferrous materials. PWM industry standard dies are manufactured to suit round or profile wire and rod. Dies can be custom-made to customer specifications.

PWM staff in Kent provide technical advice on cold welding applications, and customers are supported by a global network of experienced agents. In the U.S., the company is represented by Joe Snee Associates.

Contact: Joe Snee Associates, Inc., tel. 774-991-0504, joe@jsnee.com. Pressure Welding Machines, tel. 44-1233-82047, www.pwmltd.co.uk, pwm@btinternet.com. n

Technical advances are a necessity for any industry, and to that end, companies invest considerable resources in R&D. This section lists the abstracts of recently approved U.S. patents. Most are direct to wire and cable while a few may be more indirect/downstream.

(Continued from p. 28) 5.0 and 6.0 wt %, and the Mg content may vary between approximately 0.15 wt % and 0.50 wt %. The alloy is well suited for operations in which little or no dilution from the base metal affects the Si and/or Mg content of the filler metal. The Si content promotes fluidity and avoids stress concentrations and cracking. The Mg content provides enhanced strength. Resulting joints may have a strength at least equal to that of the base metal with little or no dilution (e.g., draw of Mg). The joints may be both heat treated and artificially aged or naturally aged. cross-sectional area of the flat portion as s mm.sup.2 and a vacancy ratio defined as a ratio of vacancies not occupied by the elemental wires in a cross section of the flat portion as v %, the conductor cross-sectional area and the vacancy ratio satisfies v>0.29 s+2.0. The covered electric wire contains electric wire conductor and an insulator covering the conductor. The wiring harness contains the covered electric wire.

Insulated wire, coil and method for manufacturing the coil U.S. Patent No.: 11,094,432 Assignee: Hitachi Metals, Ltd., Japan

Patent date: Aug. 17, 2021 Filed: Sept. 27, 2018

Inventors: Hiromitsu Kuroda, Shohei Hata, Takayuki Tsuji, Keisuke Fujito

An insulated wire includes a conductor including a copper material, and an insulation layer that is formed on an outer periphery of the conductor. A restoring temperature T.sub.B of the conductor is not more than 130.degree. C. The restoring temperature T.sub.B is a temperature that is needed to restore a conductivity of the conductor after a coil processing to a conductivity of the conductor before the coil processing.

Optical fiber cable U.S. Patent No.: 11,092,738 Assignee: Nitto Denko Corporation, Japan

Patent date: Aug. 17, 2021 Filed: Sept. 11, 2018

Inventors: Yasuhiro Koike, Azusa Inoue

Provided is an optical fiber cable which allows for high-quality signal transmission in short-distance transmission. The optical fiber cable is designed for use in optical communication based on transmitting an optical beam from a light-emitting device, to a light-receiving device. The optical fiber cable has: a proximal end which is one end thereof on the side of the light-emitting device, and a distal end which is the other end thereof on the side of the light-receiving device, wherein an optical beam returning from the side of the distal end toward the side of the light-emitting device has an M.sup.2 factor of 1.7 or more; and a length of 50 m or less.

Electric wire conductor, covered electric wire, and wiring harness U.S. Patent No.: 11,094,430 Assignees: Autonetworks Technologies, Ltd. Sumitomo Wiring Systems, Ltd. Sumitomo Electric Industries, all Japan

Patent date: Aug. 17, 2021 Filed: Nov. 6, 2018

Inventors: Hayota Ooi, et al.

An electric wire conductor having both flexibility and a space-saving property. Also provided are a covered electric wire and a wiring harness containing the electric wire conductor. An electric wire conductor contains a wire strand containing a plurality of elemental wires twisted together. The electric wire conductor has a flat portion in which a cross section intersecting an axial direction of the wire strand has a flat shape. Assuming a conductor

Cable armoring system U.S. Patent No.: 11,091,896 Assignee: Bright Technologies, LLC, USA

Patent date: Aug. 17, 2021 Filed: March 11, 2019

Inventor: Richard V. Campbell

A novel cable construction provided an armored covering over a cable containing high-strength synthetic filaments. The synthetic cable is provided with a strong and tough termination where it attaches to heavy machinery, such as mining machinery. An external armoring is then provided for a desired portion of the cable (up to the entire length of the cable). A collar is preferably provided to seal the end of the armoring portion to a cable jacket (where a cable jacket is present).

Alloy coated EDM wire

U.S. Patent No.: 11,091,820 Assignee: Thermocompact, France

Patent date: Aug. 17, 2021 Filed: Oct. 6, 2017

Inventor: Dandridge Tomalin

An electrode wire for use in an electrical discharge machining apparatus includes a metallic core and a layer of gamma phase brass disposed over the metallic core. Particles of beta phase brass are interspersed within the gamma phase brass layer. An oxide layer including zinc is disposed over the gamma phase brass layer.

Hydrosilylation crosslinking of polyolefin cable components

U.S. Patent No.: 11,091,573 Assignee: General Cable Technologies Corporation, USA

Patent date: Aug. 17, 2021 Filed: Nov. 23, 2016

Inventors: Sathish Ranganathan, Vijay Mhetar, Sean Culligan, Srinivas Siripurapu

A method of crosslinking a polyolefin resin with a silyl hydride crosslinking agent is disclosed. Crosslinkable compositions containing a polyolefin resin having about 0.9% to about 10% diene groups and a silyl hydride crosslinking agent are also disclosed.

Multicore cable

U.S. Patent No.: 11,087,904 Assignee: Sumitomo Electric Industries, Ltd., Japan

Patent date: Aug. 10, 2021 Filed: March 26, 2019

Inventors: Yuto Kobayashi, Masaki Hayakawa, Jun Otsuka

A multicore cable includes two-core parallel electric wires, wherein the two-core parallel electric wires each includes two conductors; an insulating layer that covers a periphery of the two conductors and having first and second flat portions and first and second semicircular portions; a first shield tape that covers a periphery of the insulating layer; a drain wire arranged inside the first shield tape; and a jacket that covers the first shield tape, wherein a cross-section of the insulating layer is an oval shape and has a groove at a portion at the first flat portion, wherein the drain wire is retained in the groove such that a portion of the drain wire protrudes toward the first shield tape with respect to the insulating layer, and wherein a twist pitch

of twisting together the two-core parallel electric wires is shorter than 250 mm.

Twisted pair cable U.S. Patent No.: 11,087,903 Assignee: LS Cable & System Ltd., South Korea

Patent date: Aug. 10, 2021 Filed: Jan. 22, 2018

Inventors: Woo Kyoung Lee, Jung Jin Kim, Young Cho, Dong Jeon

The present invention discloses a twisted pair cable in which a shape of a separator for separating a plurality of pairs of wires apart from each other is changed and minimizes internal interference between the pairs of wires.

Method for manufacturing Ni-based heat-resistant superalloy wire, and Ni-based heat-resistant super alloy wire U.S. Patent No.: 11,085,104 Assignee: Hitachi Metals, Ltd., Japan

Patent date: Aug. 10, 2021 Filed: June 26, 2018

Inventors: Ainul Muhamad, Gang Han, Remi Mukose

DESIGNED & BUILT

Fully Automated Swagers for Medical Applications

• Production volume up to 300 pcs/hr • System includes automatic feed table & collection bins • Minimize operator involvement • Reduce downstream costs • Ideal for solid rod applications up to 0.0625" & up to .25” for tubing

Interwire 2021 Booth #05

Provided are: a method for manufacturing a Ni-based heat-resistant superalloy wire having excellent bending workability; and a Ni-based heat-resistant superalloy wire. The method for manufacturing a Ni-based heat-resistant superalloy wire comprises a rod preparation step for preparing a Ni-based heat-resistant superalloy rod; and a rod processing step in which plastic working having a working rate of 40% or less is repeated several times toward the axis from the circumferential surface of the rod at a temperature of 500.degree. C. or lower until the cumulative working rate reaches 60% or more to reduce the cross-sectional area of the rod. A Ni-based heat-resistant superalloy wire obtained by the manufacturing method has a plastic worked or recrystallized microstructure.

Composite cable pair U.S. Patent No.: 11,081,256 Assignee: Sumitomo Wiring Systems, Ltd., Japan

Patent date: Aug. 3, 2021 Filed: March 19, 2019

Inventors: Kenta Kobayashi, Akira Kitabata

Provided is a composite cable pair with which it is possible to reduce the difference in durability between a rightwheel composite cable and a left-wheel composite cable. A composite cable pair includes a right-wheel composite

www.wirestraightener.com

cable and a left-wheel composite cable. One end of the composite cable is fixed to a cable fixing portion on the vehicle body side or the chassis side of an automobile, and the other end thereof is fixed to a cable fixing portion on the right wheel side. One end of the composite cable is fixed to a cable fixing portion on the vehicle body side or the chassis side of the automobile, and the other end thereof is fixed to a cable fixing portion on the left wheel side. Wires of the respective wire bundles of the composite cable and the composite cable are twisted in twisting directions that are opposite to each other so that the twisting is tightened, without loosening, by an operation of the handle.

Smart home cable

U.S. Patent No.: 11,081,254 Assignee: Apple Inc., USA

Patent date: Aug. 3, 2021 Filed: July 12, 2020

Inventors: Luca Zanetti, Silvia Fioravanti

A transmission system including a hybrid cable for optical and electrical data transfer. The smart cable includes an outermost sheath and an inner aluminum foil adjacent to the outermost sheath. The inner aluminum foil defining an annular space that contains a number of cable lines. A filler fills any space within the annular space. The cable lines include at least four optical fiber lines each connected to an optical connector, at least one optical fiber line connected to a Toslink connector; and at least one aux cable. Each of the cable lines can be of a different length from other cable lines.

Flexible cable durability

U.S. Patent No.: 11,079,810 Assignee: Apple Inc., USA

Patent date: Aug. 3, 2021 Filed: June 18, 2019

Inventors: Karan Bir, et al.

Apparatuses and systems can mitigate the ingress of debris such as small foreign particles or fluids passing into a joint of an electronic device. Some aspects of the systems prevent particles from passing between a flexible cable and a mandrel surface used to limit bending of the cable. Other aspects provide particle relief features including gaps, grooves, or reduced-size sections of the mandrel so that particles can pass into them and thereby cause no damage or pass out of the electronic device. Another aspect provides a protective layer configured to limit pressure applied to the cable by particles or other contaminants. These apparatuses and systems can improve the life and durability of the mandrel and cable, thereby improving the reliability of operating the electronic device.

Lloyd & Bouvier Inc.

MACHINERY FOR THE WIRE & CABLE INDUSTRY

Pay-offs & Take-ups Accumulators & Dancers Taping & Binding Heads Cablers – Single Twist, Double Twist, Planetary and Rigid Capstans – Wheels, Belt Wrap and Catapuller Rewind Lines Extruders Striping & Marking Electrical Panels Braiders

NEW - REBUILT - CUSTOM

www.lloydbouvier.com www.lloydbouvier.com 10 Parker St., Clinton, MA 01510 978-365-5700 978-365-5700

Fire retardant and low-smoke optical communications cable

U.S. Patent No.: 11,076,561 Assignee: Corning Optical Communications LLC, USA

Patent date: Aug. 3, 2021 Filed: Nov. 16, 2018

Inventors: Harold Hudson, II, William Hurley

An optical communication cable is provided. The optical communication cable includes a cable jacket and a plurality of optical fiber subunits surrounded by the cable jacket. Each optical fiber subunit includes a subunit jacket and a plurality of optical fibers located within the subunit passage. Each optical fiber includes an outer polymer buffer coating, such as a tight buffer coating. The outer cable jacket and/or the outer polymer buffer coating of the optical fibers is formed from a halogen containing polymer material including a fire retardant material, and the subunit jacket is formed from a polyolefin polymer material including a fire retardant material.

Cable and manufacturing method thereof

U.S. Patent No.: 11,076,515 Assignee: Luxshare Precision Industry Co., China

Patent date: July 27, 2021 Filed: June 15, 2015

Inventors: HuaBing Li, Yu Huang

A cable includes a wire and an electromagnetic shielding layer. The electromagnetic shielding layer covers the wire. The electromagnetic shielding layer is in the form of fiber mesh, including a conductive polymer. A manufacturing method includes: feeding the conductive polymer, melting the conductive polymer, extruding the molten conductive polymer to form a plurality of conductive polymer fibers, covering the wire with the plurality of conductive polymer fibers, and curing the plurality of the conductive polymer fibers to form the electromagnetic shielding layer covering the wire. The electromagnetic shielding layer of the cable of the present application replaces current aluminum foil shielding and metal shielding for conventional wires, decreasing interference by electromagnetic waves produced by electromagnetic induction on electronic devices nearby.

Coaxial cable and connector with dielectric spacer that inhibits unwanted solder flow

U.S. Patent No.: 11,075,741 Assignee: CommScope Technologies LLC, USA

Patent date: July 27, 2021 Filed: Feb. 11, 2014

Inventors: Ronald Vaccaro, Yujun Dai, Jin Liu

A coaxial cable-connector assembly includes a coaxial cable and a coaxial connector. The coaxial cable includes a central conductor, an outer conductor, a dielectric layer interposed between the central conductor and the outer conductor, and a jacket overlying the outer conductor. The coaxial connector includes: a central conductor extension configured to mate with a mating connector at one end and mated with the central conductor of the coaxial cable at a second opposite end; an outer conductor extension configured to mate with the mating connector at one end attached via a solder joint to the outer conductor of the coaxial cable at a second opposite end; and a dielectric spacer positioned between and separating the central conductor extension and the outer conductor extension, the dielectric spacer further positioned adjacent the solder joint to inhibit solder flow away from the solder joint.

Flat cable winding device and method of assembling same

U.S. Patent No.: 11,072,514 Assignee: Yazaki Corporation, Japan

Patent date: July 27, 2021 Filed: July 16, 2019

Inventor: Ryo Hamda

A flat cable winding device includes: a base plate in which a central shaft for holding one end side of the flat cable is erected on the center of the upper surface; a rotation table disposed on an upper surface of the base plate and rotatably supported around the central shaft; a spiral spring for rotationally energizing the rotation table in the winding direction of the flat cable since the energizing member is interposed between the base plate and the rotation table; and a tubular wall body mounted on the base plate while the spiral spring and the rotation table are accommodated therein, wherein a rib is formed on an inner periphery wall surface of the tubular wall body for preventing the rotation table from popping out of the base plate.

New & Used Wire and Cable Machinery

NEW MACHINERY AVAILABLE FROM: &

Mesh Welding Equipment Twisting & Extrusion Equipment

Machinery Bought & Sold Internationally

450 Town Street, East Haddam, CT 06423 U.S.A. Contact Mike or Mark at 860-873-1423 or mmi@mathiasen-machinery.com

Radiating cable and method of manufacturing a radiating cable with an inner/outer conductor, each having openings U.S. Patent No.: 11,069,460 Assignee: Nokia Shanghai Bell Co., Ltd., China

Patent date: July 20, 2021 Filed: March 23, 2018

Inventors: Raya Moustafa, Erhard Mahlandt

Radiating cable (100; 100a; 100b; 100c; 100d; 100e) for radiating electromagnetic energy, comprising an inner conductor (110), an outer conductor (120) arranged radially outside of said inner conductor (110), and an isolation layer (130) arranged radially between said inner conductor (110) and said outer conductor (120), wherein said outer conductor (120) comprises one or more first openings (1202), and wherein said inner conductor (110) comprises a hollow waveguide (1100).

Fire resistant cable with dual insulation layer arrangement U.S. Patent No.: 11,069,460 Assignee: Prysmian SpA, Italy

Patent date: July 20, 2021 Filed: Aug. 11, 2020

Inventors: Ehsan Fallahmohammadi, Clint Anderson

A fire resistant cable includes cable at least one conductor and at least one mica layer surrounding the at least one conductors. The fire resistant cable further includes a first layer of insulation surrounding the at least one mica layer and a second layer of insulation surrounding the first layer of insulation. The first and second layers of insulation are made of a composition based on a flame retardant ceramifiable silicone rubber. The second layer of insulation further contains a reinforcement material.

Electrical cable U.S. Patent No.: 11,069,458 Assignee: TE Connectivity Corporation, USA

Patent date: July 20, 2021 Filed: April 13, 2018

Inventors: Craig Nornung, Chad Morgan

An electrical cable includes a conductor assembly having a first conductor, a second conductor and an insulator surrounding the first conductor and the second conductor. The insulator has an outer surface and extends along a longitudinal axis for a length of the electrical cable. The conductor assembly has a coating layer on the outer surface of the insulator being conductive defining an inner electrical shield of the electrical cable. A cable shield is wrapped around the conductor assembly and has an inner edge and an outer edge. The outer edge is wrapped over the inner edge to form a flap covering the inner edge and extending along the longitudinal axis. The cable shield engages the

inner electrical shield and forms an outer electrical shield exterior of the inner electrical shield.

Wire harness enables a wiring path to be easily changed U.S. Patent No.: 11,069,457 Assignee: Sumitomo Wiring Systems, Ltd., Japan

Patent date: July 20, 2021 Filed: Nov. 26, 2018

Inventors: Junpei Zeniye, Naoto Tsukimori

A wire harness including: a wire including a core wire and an insulating covering that covers the core wire; an electromagnetic shield that covers and electromagnetically shields at least the core wire; a path regulator that has higher flexural rigidity than the wire and that is formed in an elongated shape; and a cover that covers the wire, the electromagnetic shield, and the path regulator, wherein the wire is fixed along the path regulator.

Corrosion resistant cable U.S. Patent No.: 11,066,783 Assignee: Leggett & Platt Canada Co., USA

Patent date: July 20, 2021 Filed: Sept. 17, 2018

Inventor: Eugene John Ficyk

A cable includes a core with a plurality of first wires made of carbon steel and a plurality of strands surrounding the core. Each strand includes a plurality of second wires made of stainless steel. The cable has a maximum cross-sectional dimension less than 2 millimeters.

Insulated wire capable of changing color when overheated under current load and method for making the same U.S. Patent No.: 11,062,823

Patent date: July 13, 2021 Filed: April 15, 2020

Applicant/Inventor: Cheng-Lang Tsai

An insulated wire capable of changing color when overheated under a current load includes an insulated core, at least one thermochromic strip, and a transparent plastic protective layer. The thermochromic strip is wound and fixed on the peripheral surface of the insulated core. The transparent plastic protective layer clads the peripheral surface of the insulated core and/or the top surface of the thermochromic strip. When the insulated core is overloaded and generates heat, the heat is transmitted to, and thereby changes the color of, the thermochromic strip. The color change is visible through the transparent plastic protective layer and can therefore alert the wire user in real time that the load on the insulated wire should be lowered.

Communication cable U.S. Patent No.: 11,062,822 Assignee: Sumitomo Electric Industries, Ltd. Sumitomo Wiring Systems, Ltd., Japan

Patent date: July 13, 2021 Filed: Dec. 21, 2017

Inventors: Ryoma Uegaki, Kinji Taguchi

A communication cable that includes a twisted wire pair that includes a pair of insulated wires that are twisted together and include a conductor and an insulating covering that covers an outer periphery of the conductor; and a sheath that is made of an insulating material and continuously covers an entire outer periphery of the twisted wire pair about a center along a longitudinal axis of the twisted wire pair, wherein the sheath has a dielectric loss tangent of 0.0001 or more in a frequency range of 1 to 50 MHz.

Extruded flexible flat cable and wire harness U.S. Patent No.: 11,062,820 Assignee: Yazaki Corporation, Japan

Patent date: July 13, 2021 Filed: Aug. 27, 2020

Inventors: Takeyuki Omura, Hioki Kondo, Tutaka Handar

An extruded flexible flat cable includes conductors arranged side by side in a width direction of the extruded flexible flat cable. The conductors are spaced away from each other at a regular interval and an insulator is provided around the conductors by extrusion molding. A portion of the insulator located between the conductors, the portion having been sampled after the extruded flexible flat cable is subjected to a slide bending test, has a tensile strength being equal to or greater than 47.2 MPa. The portion has a percentage elongation being equal to or greater than 50/ (0.5+2R), where R is a bend radius [mm] at which the extruded flexible flat cable is bent in the slide bending test.

Container with anti-wire-entangling device for packaging and paying out coiled welding wire U.S. Patent No.: 11,060,368 Assignee: Schlumberger Technology Corp. USA

Patent date: July 13, 2021 Filed: Oct. 22, 2019

Inventors: Nicholas Fundytus, Colin Wilson, Alejandro Martinez, Richard Parker

A well-logging system includes a first downhole tool coupled to a first cable for conveying the first downhole tool along a wellbore. A second downhole tool having a housing is coupled to a second cable for conveying the second downhole tool along the wellbore. The well-logging system includes a cable guide having a chassis structure coupled to the housing and a sleeve coupled to the chassis structure and disposed about the first cable. The first cable is configured to translate along the sleeve such that the sleeve facilitates guided movement of the first downhole tool relative to the second downhole tool.

Cable reel U.S. Patent No.: 11,059,695 Assignee: iPEK International GmbH, Germany

Patent date: July 13, 2021 Filed: Sept. 19, 2019

Inventors: Fabian Zahnd, Simon Grim, Gerhard Kennerknecht, Michael Kress

A cable reel is provided, in particular for a pipe inspection system, the cable reel having a frame and a cable receptacle. The cable receptacle is rotatably arranged on the frame, it being possible to wind a cable onto the cable receptacle and unwind it from the cable receptacle. The cable receptacle has an inner cage and an outer cage, with the diameter of the inner cage being smaller than the diameter of the outer cage. The inner cage is arranged coaxially with respect to the outer cage and is inside the outer cage. It is possible to rotate the inner cage and the outer cage independently of one another, and the inner cage is receives a first cable portion of the cable and the outer cage receives a second cable portion of the cable. 
