Neonatal Respiratory Catalogue

Page 1


Crédit

Vygon in the world

OUR STORY

Pierre Simonet founded Vygon in France in 1962. He was one of the first to introduce the concept of disposable medical equipment. Shortly thereafter, the company established subsidiaries in Europe, the United States, India, South America, and more. Today it is present worldwide. Vygon also relies on many production units, starting with its first plant in France and continuing on to its latest, brand-new plant that opened in Portugal in 2015.

Belgium

Czech Republic

Denmark

Finland

France

Germany

Ireland

Italy

Netherlands

Norway

Poland

Portugal

Spain

Sweden

Switzerland

Turkey

United Kingdom

Vygon, committed to its customers worldwide

Vygon is a company that designs, manufactures and markets a wide range of medical devices for 4000 customers worldwide. Its success is due to its teams, who are available and committed. They are at the service of caregivers to offer them products and solutions that improve the safety and performance of care. The company that invented the single-use medical device, a true revolution in hospital care practices, has built its offer on the complementary skills that make up its business: industrial and technological know-how, clinical knowledge and understanding of hospital structures, and its own resources in research and development. Today, Vygon is an international company but it also remains a family business. The stability and commitment of its shareholders allow for a sustainable development that brings projects to fruition and its value system is a guide.

VYGON OFFERS A SAFE AND

EFFICIENT RESPIRATORY

RANGE FOR NEONATES

This dedicated range of products aims to provide safe and adapted care to the smallest patients for the following treatments:

VENTILATION

Ventilation is needed when the baby has trouble breathing on its own. Invasive or non-invasive ventilation are used mainly for treatment of Respiratory Distress Syndrome (RDS).

ASPIRATION

The back of the throat, upper airways and endotracheal tubes of the patient may be obstructed by secretions such as mucus. Specific catheters, extractors and aspirators are designed by Vygon to solve each specific issue.

THORACIC DRAINAGE

Thoracic drainage is performed to evacuate liquid or gaseous effusions from pleural spaces. This operation requires adapted devices, to maximize the chances of success on the most vulnerable neonatal patients.

CONNECTORS

Vygon’s connectors are shaped to ease the link between every of our medical devices.

VENTILATION

RESPIRATORY DISTRESS SYNDROME (RDS)

WHAT IS RDS? (1),

(2)

RDS is a breathing disorder that affects newborns, mainly premature babies.

RDS is caused by pulmonary immaturity and surfactant deficiency, resulting in respiratory in-sufficiency from soon after birth. (3)

Managing RDS remains a key component of neonatal intensive care. (3)

HOW TO PREVENT RDS?

BREATHING SUPPORT WITH INVASIVE OR NON INVASIVE VENTILATION

• Continuous positive airway pressure (CPAP) can be used to cure RDS. It is considered as a less invasive ventilation.

• In more serious cases of RDS, a mechanical invasive ventilation may be needed to ensure life support to the premature patient.

CPAP or (s)NIPPV [synchronized Nasal Intermittent Positive Pressure Ventilation] should be started from birth in all babies at risk of RDS, such as those <30weeks of gestation who do not need intubation for stabilisation(3)

SURFACTANT THERAPY

• Surfactant therapy improves survival and reduces pneumothorax and therefore plays an essential role in management of RDS

•LISA (Less Invasive Surfactant Administration) is a technique of delivering surfactant, while maintaining a noninvasive ventilation.

European data from 2014 to 2016 show that around 50% of all babies born between 22 and 32 weeks receive surfactant (3)

LISA is the preferred method of surfactant administration for spontaneously breathing babies on CPAP (3)

If a preterm baby <30 weeks of gestation requires intubation for stabilisation, they should be given surfactant (3)

• If surfactant is needed in case of an invasive ventilation, the use of ET tubes with lateral lumen may be required.

INVASIVE VENTILATION

At birth the most vulnerable newborns need a trustful respiratory support to fight for their lives. Vygon offers a complete range of endotracheal tubes (ET tubes) for mechanical ventilation of the smallest patients.

ENDOTRACHEAL TUBES

The following ET tubes are designed to keep the airway open in order to provide air, oxygen, medicine or anesthesia.

Markings depending on the length and size of ET tubes

*Only for standard ET Tubes

Half-centimetre

15 mm adaptor

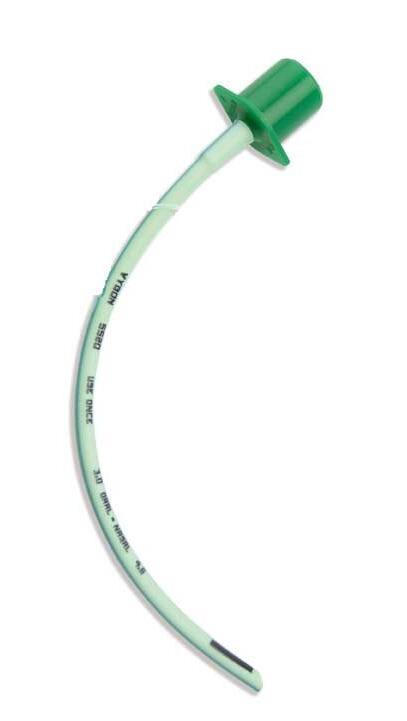

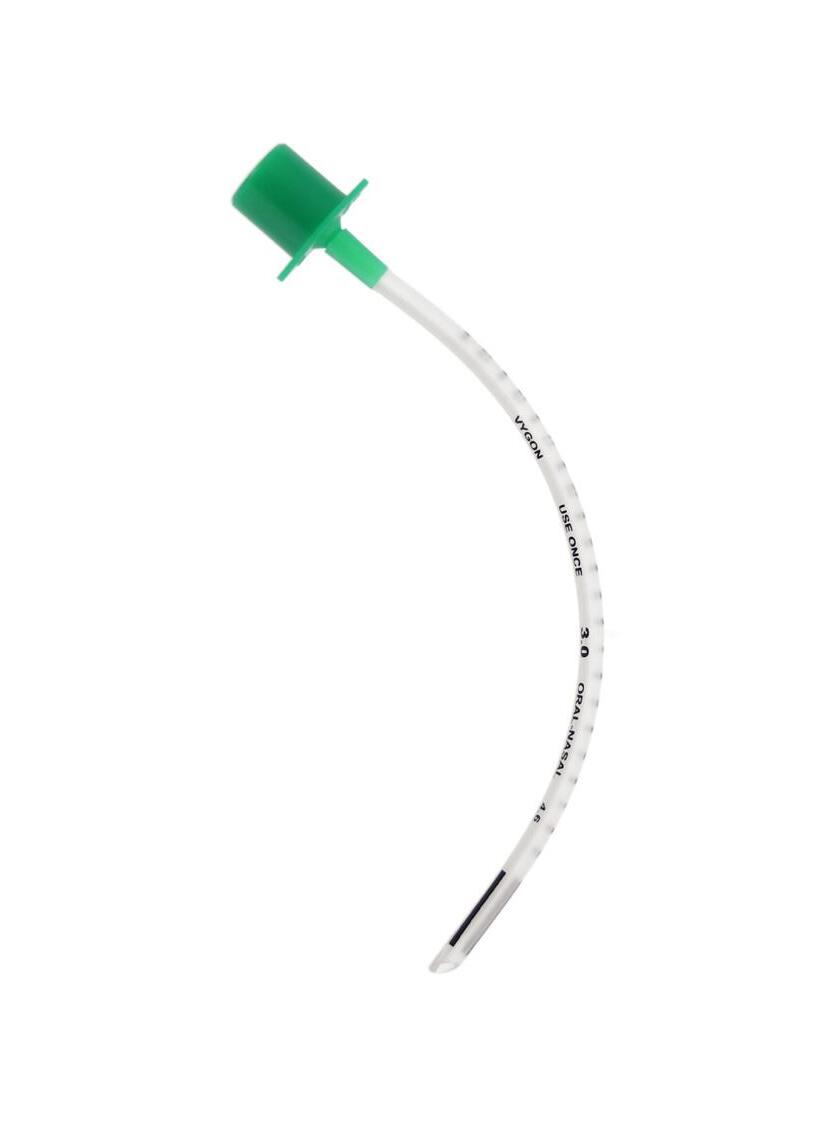

Standard ET tubes – PVC

The ET tubes are intended to be used for oral or nasal intubation of the newborn. They are designed for ease of introduction in routine anaesthesia or emergency intubation. The soft green tubes (codes 520.xx) aim to minimise tracheal damage during long-term intubation.

15mm

Adaptor

Radiopaque

Made of PVC (DEHP <0.1%)

24mm black distal end mark, used as a mark of glottal depth

Code:

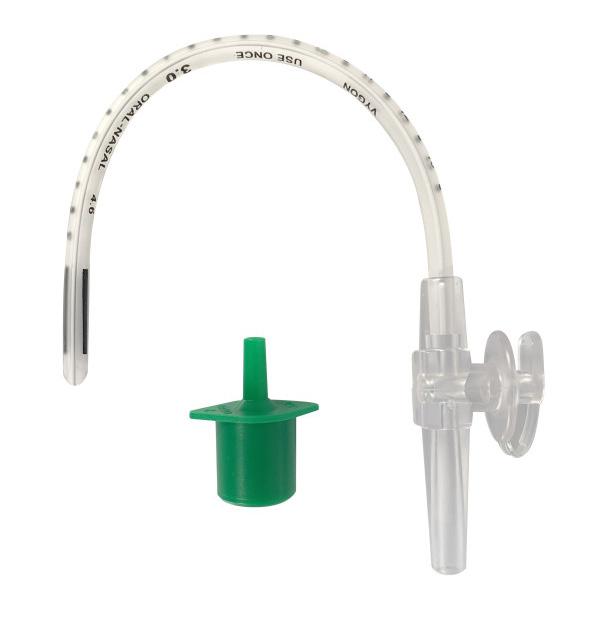

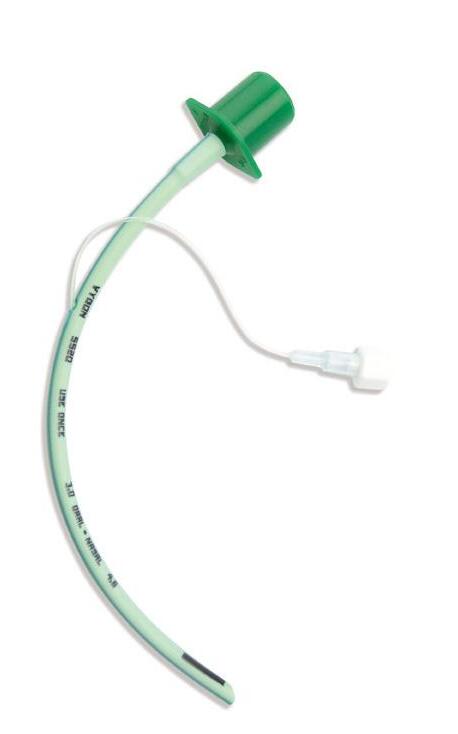

ET tubes with lateral lumen – PVC

The secondary lumen is dedicated to surfactant administration or other medication, or for monitoring the airway pressure.

Code: 5520.30

15mm

Adaptor

Secondary lumen with female Luer-lock hub

Made of PVC (DEHP <0.1%)

Radiopaque

24 black distal end mark used as a mark of glottal depth

Tube distal end bevelled at 38°

bO2ugie Boussignac - GUIDE FOR ENDOTRACHEAL TUBES

Intubation introducers are used in situation where planned or unplanned intubation turns out to be difficult, and with patients presenting apnea.

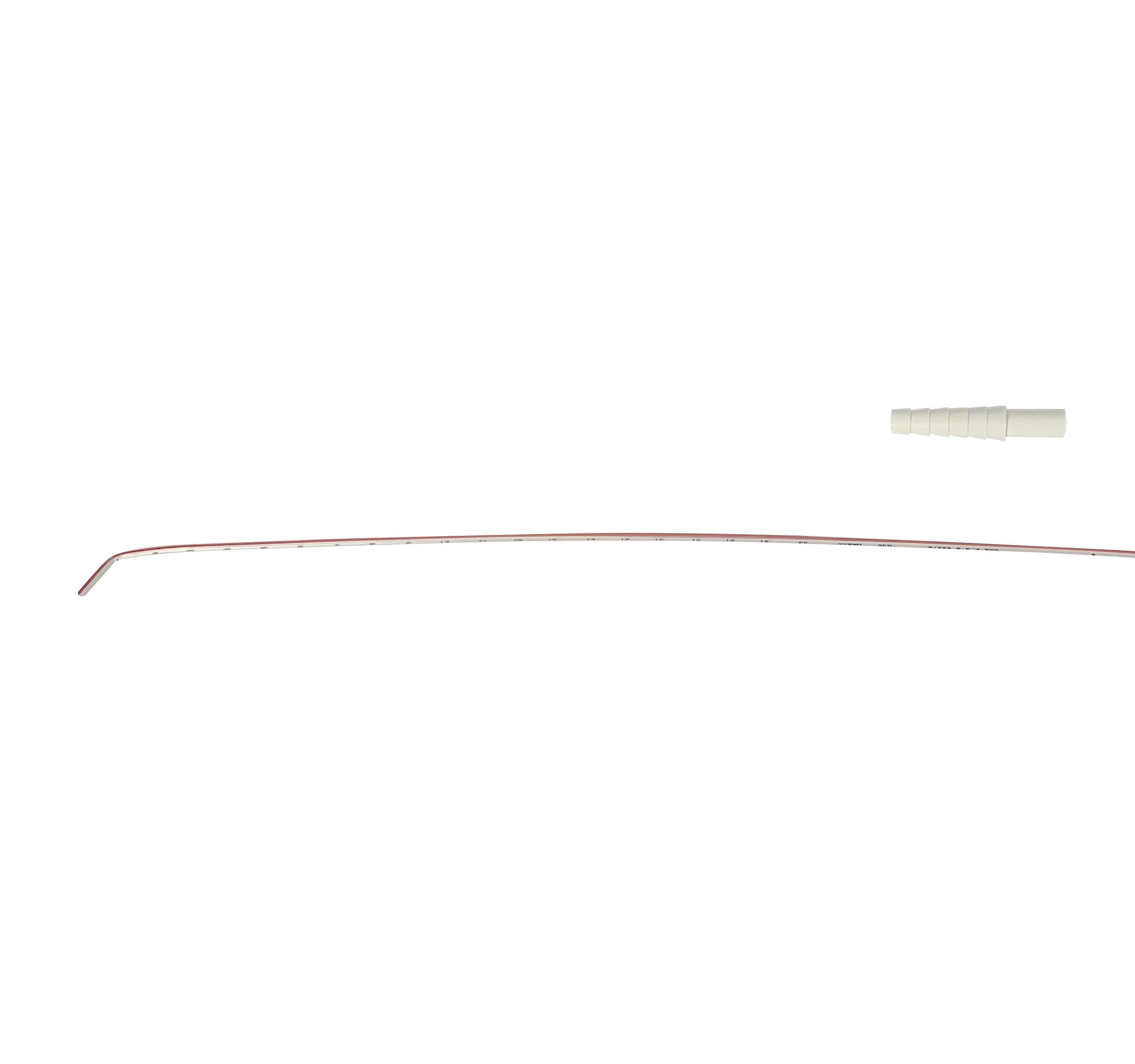

The bO2ugie Boussignac is an orotracheal flexible and angled intubation guide used to position endotracheal tubes during difficult intubation.

It features two lumens:

- The first lumen (transparent) is closed at the proximal end and open at the distal end.

- The second lumen (pink) is open at the proximal end and closed at the distal end. An opening of the colored lumen, before the proximal end, allows passage of the oxygen.

This double lumen can be used to inject oxygen during guide placement. In the event of spasm, decompression openings prevent any risk of barotrauma by allowing the oxygen to escape via the side holes.

Supplied with taper connector to connect the device to oxygen source if needed

Compatible with 2,5 to 3,5 mm internal diameters endotracheal tube

Double lumen in case of oxygenation

Numerical marking every centimetre from 1 to 20

Curved with a 40° angle To follow the airway anatomy and ease the passage between vocal cords

Side holes for decompression allowing oxygen to escape and preventing any risk of barotrauma

Numerical marking every centimetre from 1 to 20

Made of PEBAX

NON-INVASIVE VENTILATION

Evidence-based lung-protective management includes initiation of noninvasive respiratory support from birth […] and avoidance of intubation and mechanaical ventilation where possible (3)

NASAL VENTILATION

‘‘

The single and double nasal tubes are intended to be used for neonatal non-invasive nasal continuous positive airway pressure (CPAP) ventilation via the respiratory system.

Non-invasive CPAP ventilation is a method of artificially delivering air or oxygen enriched air to a patient (neonate) to mimic breathing and restore or maintain a constant level of oxygen in the blood.

International recommendations are more and more in favour of a non-invasive respiratory support for neonates. Vygon offers different devices dedicated to non-invasive ventilation. 15mm

Code 2595.xx

Single nasal tube

Main indications of use:

Open and rounded distal tips

Code 2596.xx

Double nasal tube

• In case of moderate respiratory distress syndromes in neonates, mild hyaline membrane disease, temporary respiratory difficulties

• If recurrent apneas occur in premature babies

• When reduction of incubation time (replacement of the endotracheal tube)

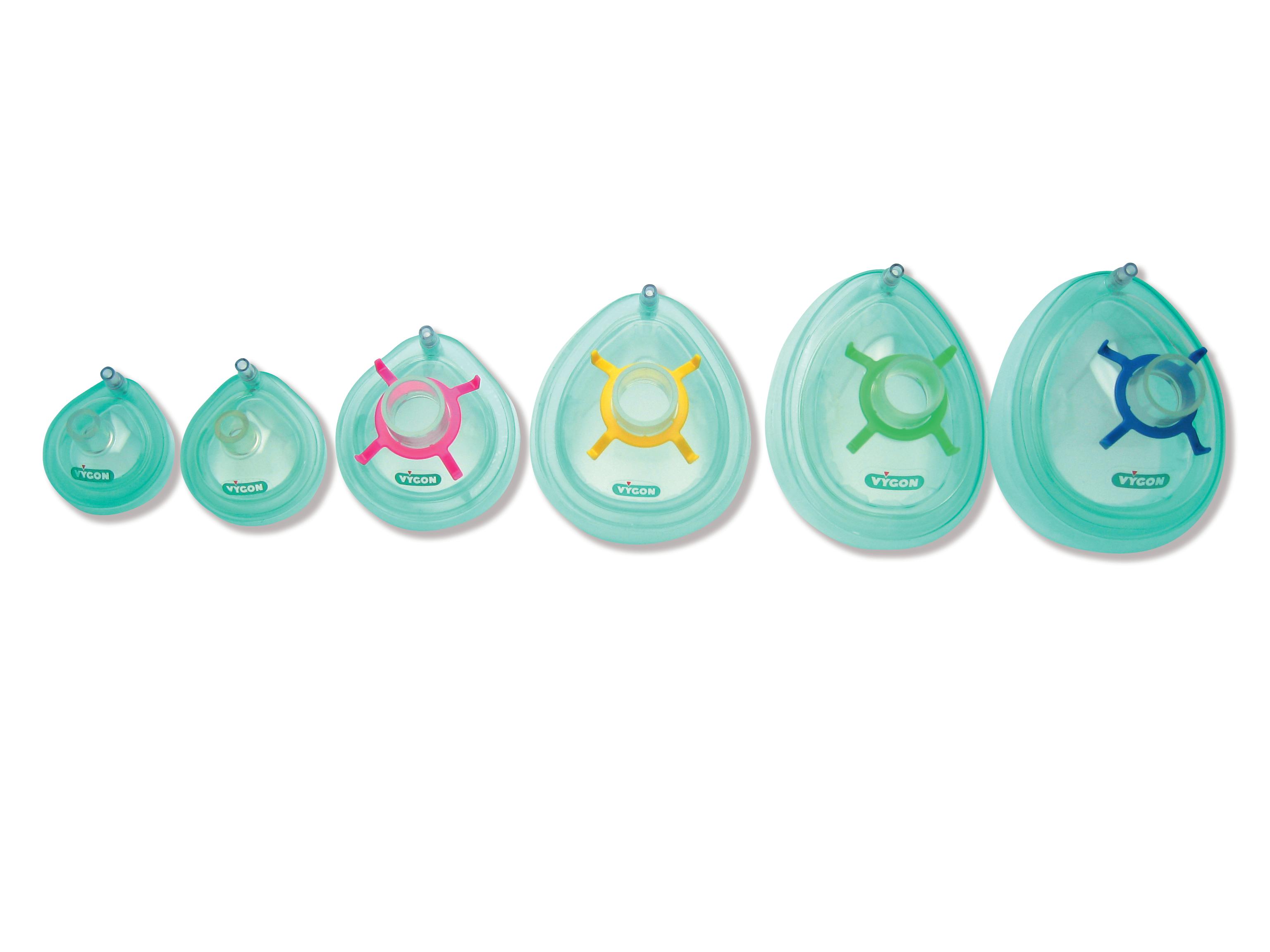

FACE MASKS

The disposable face masks are intended to be used for

The product features are as follows:

• PVC Inflatable cushion

• 15 mm male connection

• Non-sterile

SURFACTANT ADMINISTRATION

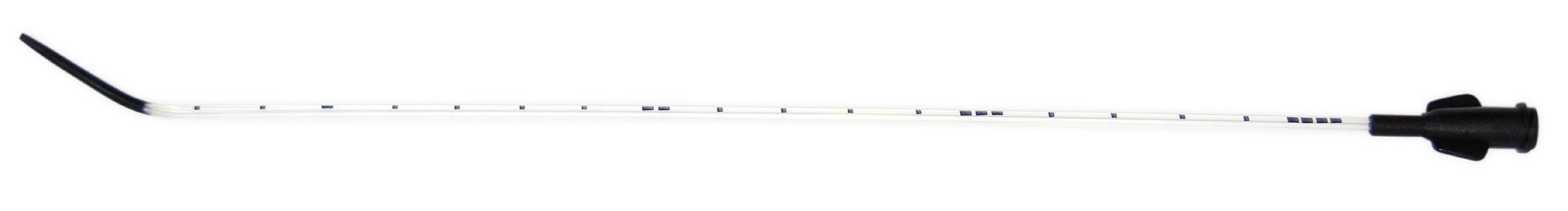

surfcath

Co-invented with Dr Kribs from University Hospital of Cologne (Uniklinik Köln)

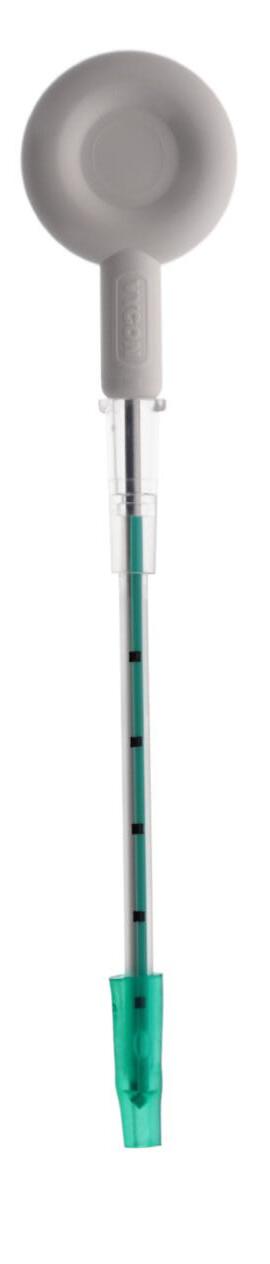

surfcath is a catheter for exogenous surfactant administration with Less Invasive Surfactant Administration (LISA) method, intended to be used for the treatment of newborns under non-invasive ventilation suffering from respiratory distress syndrome (RDS) caused by lung surfactant deficiency.

INTERNATIONAL RECOMMENDATIONS

(3)

Preterm infants should be managed without mechanical ventilation where possible

LISA is the preferred mode of surfactant administration for spontaneously breathing babies on CPAP

Non invasive ventilation with early rescue surfactant by LISA technique is considered optimal management for babies with RDS

Surfactant therapy improves survival and […] plays an essential role in management of RDS

• 2 cm black distal tip: visual mark to address the inserted length

• 2 cm soft distal tip: Double softness to minimize tracheal lesion risks

• Blunt: to minimize tracheal lesion risk

• Angled: to follow the anatomy of the trachea and ease the passage between vocal cords

Transparent: to allow visualisation of surfactant

Made of PEBA: semi-rigid and bendable with no need of Magill forceps

Numerical marking every centimetre

Proximal female Luer-lock hub

ASPIRATION

SUCTION CATHETERS

Airway suctioning is a way of removing excess mucus from the back of the throat and upper airway by insertion of a catheter via the nose or mouth. In order to clean the secretions, an application of suction will be apply. (4)

Today, several issues are identified as causing too much mucus to collect in the airway. Clearing these may help the child to breathe better.

The airway suctioning is practiced when:

• There are signs of excessive secretions in the upper airway which cannot be cleared by coughing alone or,

• Secretions are causing respiratory distress and making breathing difficult(1)

Colour code for suction catheters with large connector references 70533, 70545 and 70565 according to ISO 8836.

NASO-PHARYNGEAL ASPIRATION

The following catheters are used for naso-pharyngeal aspiration

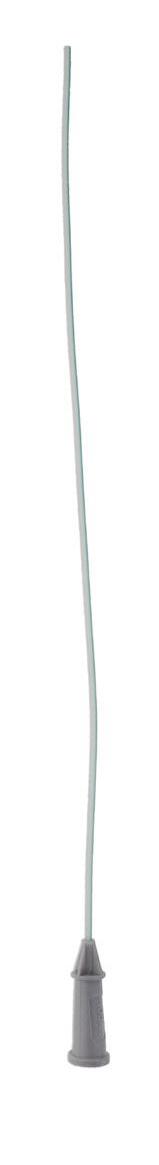

Naso-pharyngeal suction catheter

with

Proximal end
small, funnelled connector
Open smooth distal tip
Made of PVC

TRACHEAL AND BRONCHIAL ASPIRATION

The following catheters are used for tracheal and bronchial aspiration

Standard suction catheter

Code 533.06

Made of soft PVC

Open and rounded distal tip

Proximal end with a small funnel no colour-coded connector

Code 70565.05

Proximal end with a large funnel colour-coded connector

The mark at 16 cm from the distal tip for sizes 4 Fr to 8 Fr shows when the suction catheter has reached the bevelled tip of endotracheal tube codes 516, 520, 5516 and 5520.20/25/30/35.

Code 70533.05

Control suction catheter

Proximal connector with lateral eye for fingertip control (with integral closing cap)

Open distal tip with 2 lateral eyes

Made of PVC

Numerical marking every cm from 5 to 20

Suction catheter with lateral eye

Proximal end: With large funnel connector and colour code

Made of PVC

Open and rounded distal tip with 1 lateral eye

SUCTION CATHETERS - SUMMARY

MUCUS EXTRACTORS

The mucus extractors are intended to be used for aspiration and collection of mucus congesting the upper airways of the newborn or for suctioning tracheal / bronchial secretions (of new-borns, children, and adults) which will be analysed in laboratory.

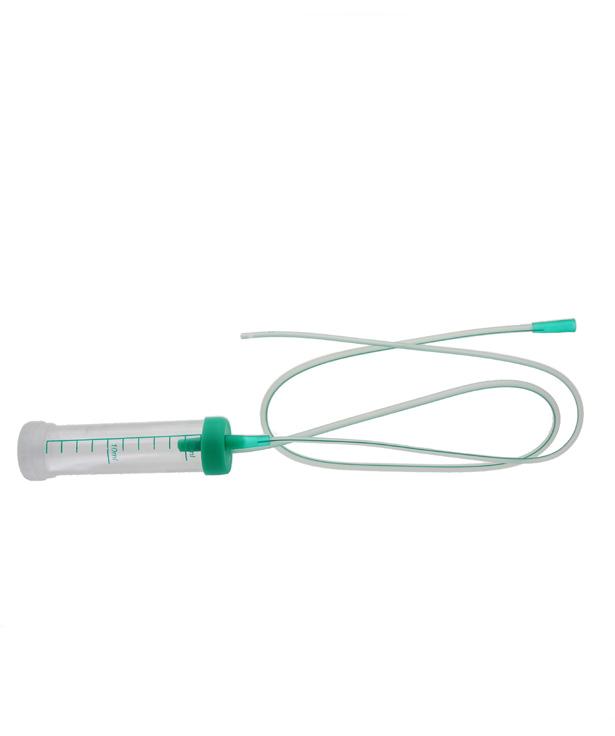

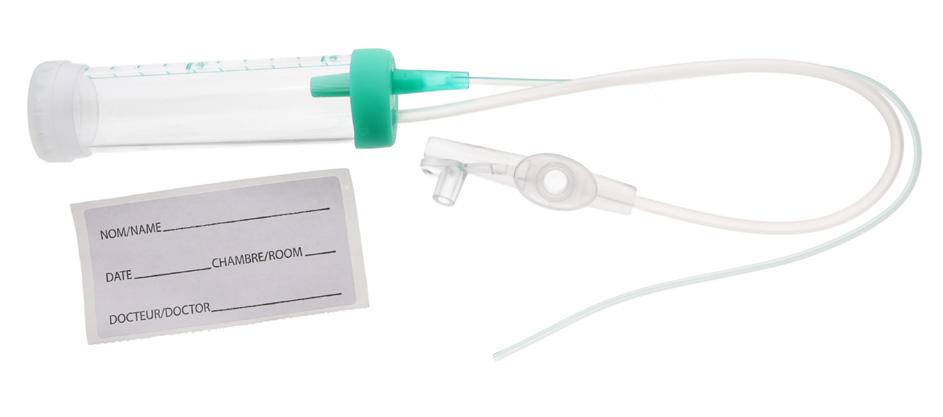

MUCUS EXTRACTOR

Small funnel connector

Small funnel connector

• 1 container (capacity 25ml), with graduations from 2 to 22 ml.

Large funnel connector

• 1 PVC extension tube with small or large funnel to connect the mucus extractor to the suction source

• 1 separate lid for safe sealing and transport of the aspirate

• 1 label

About the suction tubes :

• 534.08 has only 1 main tracheal suction tube (8 Fr)

• 534.10 and 534.101 each have 2 suction catheters:

- 1 main suction catheter connected to the container (10 Fr)

- 1 additional catheter (6 Fr), to replace the 10 Fr one if suction is carried out on a low-weight baby

The main difference between these two references is the size of their funnel connector.

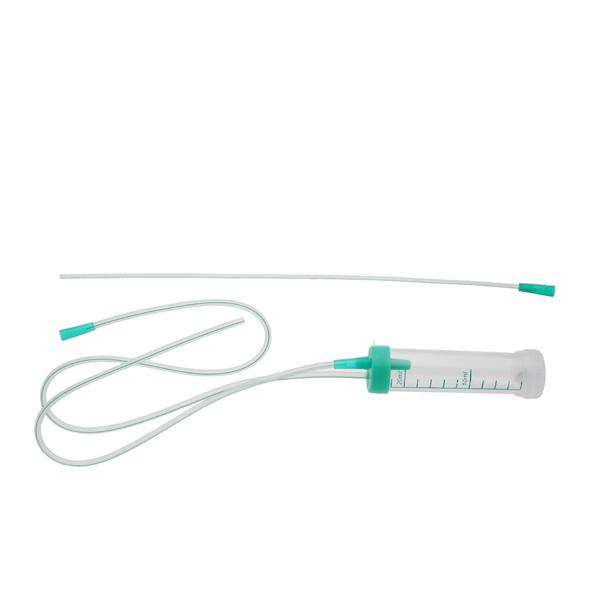

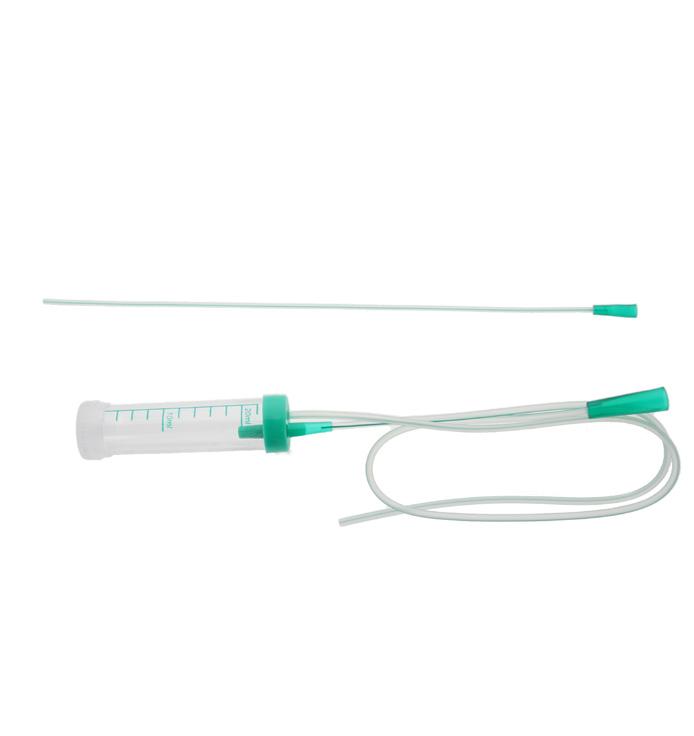

MUCUS EXTRACTOR WITH SCREW CAP

Tracheal suction tube, made of PVC with open tip and no lateral eyes

Screw cap located at the bottom of the graduated container for safe sealing and transport of the aspirate

Transparent container with graduations from 0 to 30 mL, capacity of 35 mL

MUCAID: MUCUS EXTRACTOR WITH CONTROL SUCTION CONNECTOR

Container with graduations from 2 to 22 mL, capacity of 25 mL

Separate lid for safe sealing and transport of aspirate

PVC extension tube 23 cm long with connector for finger-tip suction control, to connect the device to the suction source (mechanical/wall suction)

MUCUS EXTRACTOR - SUMMARY

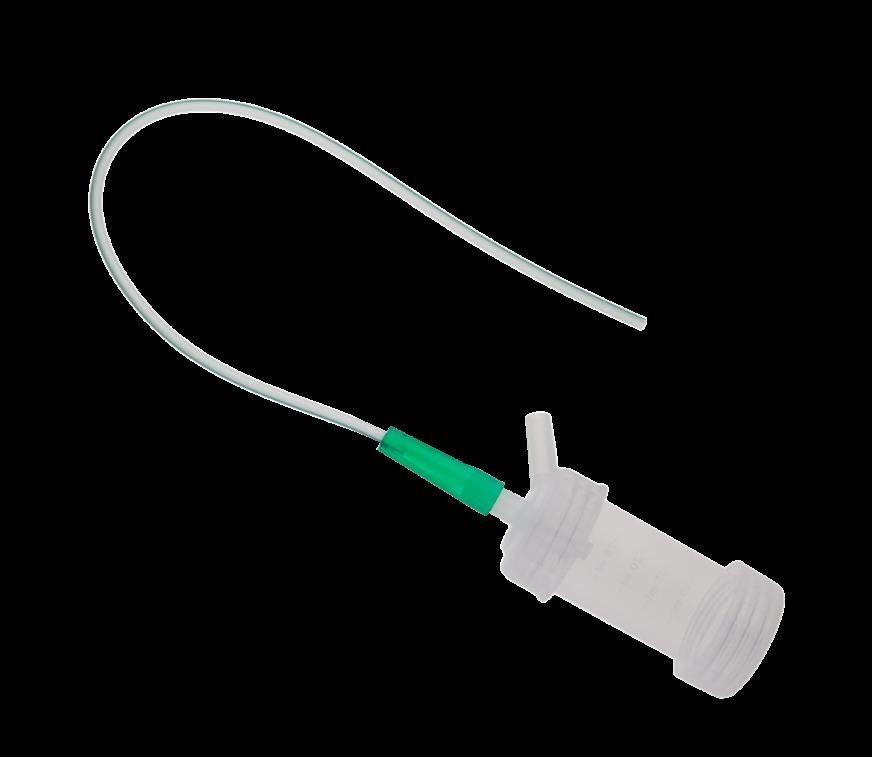

MECONIUM ASPIRATOR

This device is specially designed for meconium aspiration in case the baby has a meconium inhalation syndrome at birth.

This syndrome occurs during stress. The foetus inhales amniotic liquic which contains meconium, and the substance settles in his lungs. At birth, meconium can obstruct the airways and cause parts of the lungs to collapse. (5)

The meconium aspiration is done thanks to the connector with finger tip control of suction.

Green adaptor

How to use?

Connector

1. Perfom a Laryngoscopy to visualize the vocal cords of the patient before the insertion of the device.

2. Place the meconium aspirator until it reaches the trachea.

3. Withdraw the laryngoscope and start the aspiration, by connecting the white connector to the hospital aspiration system.

4. Once the aspiration is done, cut the tube below the white connector with sterile scissors.

5. Then, connect the green adaptor.

6. Start the respiratory assistance of the patient by connecting the ventilation system to the green adaptor.

THORACIC DRAINAGE

THORACIC DRAINS

Thoracic trocars and drains are intended to be used for thoracic / pleural drainage in case of pneumothorax, haemothorax, chylothorax, pyothorax, pleural effusion...

Distal tip with a lateral eye

Made of transparent PVC

Numerical marking every cm

Stainless steel trocar with hub 625.10

TRAY FOR THORACIC DRAINAGE

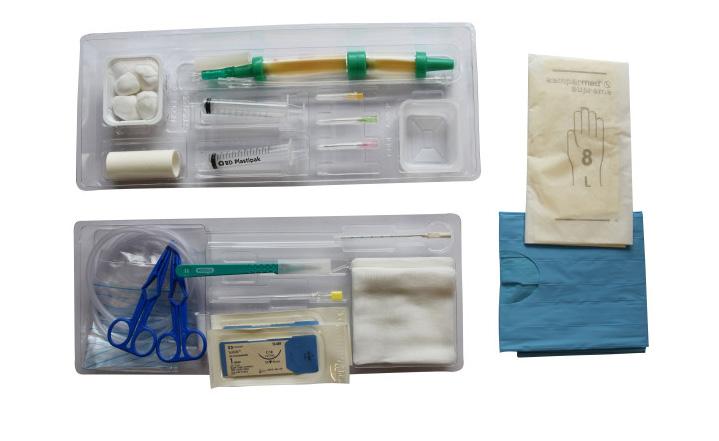

This complete tray is intended to be used for thoracic drainage. It contains all the instrumentation and accessories used during the insertion of a drain and allows to carry out this procedure under optimal aseptic conditions.

They include:

• 1 XRO trocar drain 8Fr code 625.08

• 1 dual suction valve with fitting connection

• 2 galipots (1 transparent, 1 white) for detergent and disinfectant agents

• 10 swabs (10 x 10 cm)

• 4 ball swabs

• 1 fenestrated absorbent drape (45 x 60 cm)

• 1 green scalpel

• 1 surgical gloves

• 2 blue prep forceps

• 2 luer slip syringes (10 ml)

• 1 pouch with connector for collecting the drained liquid (2 L)

• 1 extension line (6cm) for drainage pack

• 1 18G needle for drug aspiration (38 mm)

• 1 25G needle for skinwheal (15 mm)

• 1 21G needle for local anaesthesia (38 mm)

• 1 20G needle for exploratory puncture (38 mm)

• 2 suture needles (1 straight and 1 curved)

• 1m coil of non woven adhesive bandage, 7 cm wide

ACCESSORIES FOR THORACIC DRAINAGE

It allows either the double valve (code 668.00) or single valve (code 669.10) to be connected to the drain for pleural drainage (code 625) in neonates

VALVES

These devices allow thoracic drainage without risk, even when transport of the patient is necessary. The non-return valve eliminates the need to clamp the drain. The valve opens when the patient breathes out, allowing the fluid or air to escape. When the patient inhales, the valve closes, preventing air from entering in the pleural space.

The valves can be connected to the drain indirectly, using connector code 800.01 (cf below p.27) and an extension tube for neonates and infants.

Dual valve for thoracic drainage

Natural rubber sleeve in “duck’s bill” shape acting as a non-return valve

Single valve for thoracic drainage, Heimlich type Flexible and transparent PUR

This two-chamber device (code 668.00) differs from the single valve (code 669.10) in that it is possible to apply suction by manual compression of the compartment marked with an arrow.

ADAPTOR

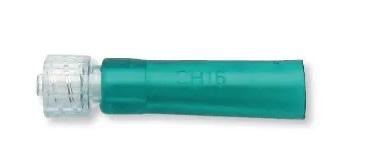

It allows either the double valve (code 668.00) or single valve (code 669.10) to be connected to the drain for pleural drainage (code 625) in neonates.

Male Luer-lock connector (ABS)
Soft green funnel (PVC)

CONNECTORS

CONNECTORS

881.xx

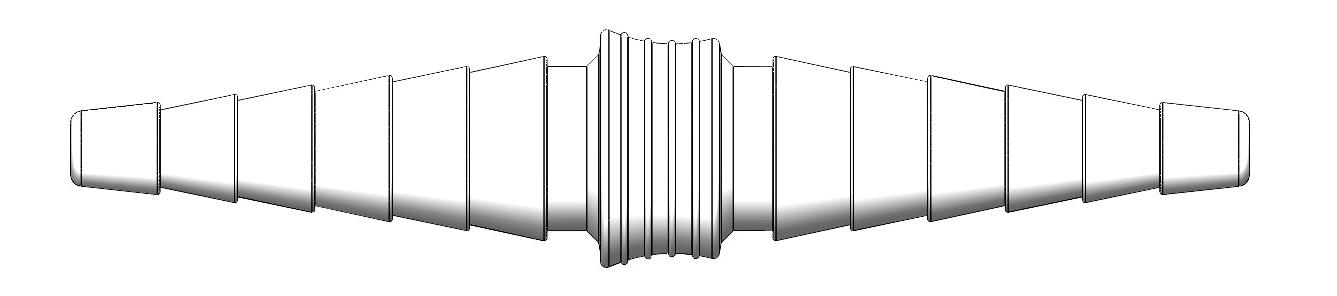

Straight double taper connector and adaptor

881.00

Universal straight double taper connector

882.xx «T» connector

884.xx «Y» connector

ABREVIATIONS

CPAP: Continuous Positive Airway Pressure

ET: Endotracheal tube

LISA: Less Invasive Surfactant Administration

NIPPV: Nasal Intermittent Positive Pressure Ventilation

RDS: Respiratory Distress Syndrome

XRO: X-ray Radio-Opaque

Material

ABS: Acrylonitrile butadiene styrene

DEHP: Di(2-ethylhexyl) phtalate

EVA: Ethylene-Vinyl acetate

PA: Polyamide

PE: Polyethylene

PEBA: Polyether bloc amide

PP: Polypropylene

PUR: Polyurethane

PVC: Polyvynil chloride

Si: Silicone

REFERENCES

(1) NIH National Heart, Lung and Blood Institute – March 24,2022 -https://www.nhlbi.nih.gov/health/respiratory-distresssyndrome

(2) John Hopkins Medicine - https://www.hopkinsmedicine.org/health/conditions-and-diseases/respiratory-distresssyndrome#:~:text=Respiratory%20distress%20syndrome%20(RDS)%20is,he%20or%20she%20is%20born

(3) Sweet DG, Carnielli VP, Greisen G, Hallman M, Klebermass-Schrehof K, Ozek E, Te Pas A, Plavka R, Roehr CC, Saugstad OD, Simeoni U, Speer CP, Vento M, Visser GHA, Halliday HL. European Consensus Guidelines on the Management of Respiratory Distress Syndrome: 2022 Update. Neonatology. 2023;120(1):3-23. doi: 10.1159/000528914. Epub 2023 Feb 15. PMID: 36863329; PMCID: PMC10064400.

(4) Paediatric suction (Yankeur/soft catheter – OP of NP) – Patient information-NHS Worcestershire Acute Hospitals NHS Trust.Approval Date : 01/09/2019 - https://www.worcsacute.nhs.uk/documents/documents/patient-informationleaflets-a-z/paediatric-suction-yankeur-soft-catheter-op-or-np/

(5) MSD Manual - https://www.msdmanuals.com/fr/accueil/probl%C3%A8mes-de-sant%C3%A9-infantiles/ probl%C3%A8mes-pulmonaires-et-respiratoires-chez-le-nouveau-n%C3%A9/syndrome-d-inhalation-m%C3%A9coniale

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
