PAIN MANAGEMENT CATALOGUE
Vygon in the world
OUR STORY
Pierre Simonet founded Vygon in France in 1962. He was one of the first to introduce the concept of disposable medical equipment. Shortly thereafter, the company established subsidiaries in Europe, the United States, India, South America, and more. Today it is present worldwide. Vygon also relies on many production units, starting with its first plant in France and continuing on to its latest, brand-new plant that opened in Portugal in 2015.
Belgium
Czech Republic
Denmark
France
Germany
Ireland
Italy
Netherlands
Norway
Poland
Portugal
Spain
Sweden
Switzerland
Turkey
United Kingdom
Turkey
Vygon, committed to its customers worldwide
Vygon is a company that designs, manufactures and markets a wide range of medical devices for 4000 customers worldwide. Its success is due to its teams, who are available and committed. They are at the service of caregivers to offer them products and solutions that improve the safety and performance of care. The company that invented the single-use medical device, a true revolution in hospital care practices, has built its offer on the complementary skills that make up its business: industrial and technological know-how, clinical knowledge and understanding of hospital structures, and its own resources in research and development. Today, Vygon is an international company but it also remains a family business. The stability and commitment of its shareholders allow for a sustainable development that brings projects to fruition and its value system is a guide.
Complete range of LRA products
Airway products for your anaesthesia needs
Vysets
Campus Vygon
Controlled sterilization
NRFit® transition
Complete range of LRA products
The Vygon solutions
Vygon’s regional anaesthesia portfolio includes a wide range of products for spinal, epidural, combined spinal-epidural and peripheral nerve block anaesthesia as well as other analgesia solutions.
Airway products for your anaesthesia needs
Vygon offers a complete range of airway products for anesthetists in the operating room procedures such as:
- CPAP Boussignac in the case of post-operative oxygenation patients at risk of hypoxia
- Bougie Boussignac guide allowing the placement of endotracheal tubes in the patient’s trachea during difficult intubations
- Endotracheal tubes for intubation for all type of population
Vysets
Vygon’s vyset solution allows you to create custom-made kits specially designed to fit your procedure needs.
Campus Vygon
Campus Vygon is our training plateform : webinars, training courses, e-books, posters.
NRFit® transition
Vygon’s sales team can accompany your establishement throught it’s NRFit® transition with the right products and the right support.
Controlled sterilization
Vygon’s sterilization process is fully controlled by our company and done in France.
EPIDURAL ANAESTHESIA
Epidural catheter
Luer & NRFit®
Vygon’s Pain Management portfolio presents a wide range of epidural catheters, meeting the different needs of practitioners and the requirements of practices of epidural anaesthesia and analgesia, This range of epidural devices is also available in custom-made procedure kits through our vyset solution (see page 54 for more information).
peribax & cristal
polyether block amide
19G 20G
peribax is a PEBAX® (Polyether Blockamide) catheter for epidural practice available in 19G and 20G
PEBAX® material offers a compromise between flexibility and rigidity.
Transparent with radiopaque line
Allows localisation in case of rupture or to check the correct placement
Centimetric graduations
Distal end marking
Control of insertion Allows you to see if the catheter has been completely removed
From 5 to 20 cm from the distal tip
Available with different distal ends:
Open
Soft closed distal tip distal tip with 3 lateral eyes
cristal, a version without XRO line of the catheter is available. This catheter is completely transparent.
peripur
polyurethane
peripur is a polyurethane (PUR) catheter for epidural practice available in 19G. PUR material offers a flexibility to the catheter with its thermosensitive characteristic.
Remains relatively stiff during insertion but softens once in place
Transparent with radiopaque line
Thermosensitive Allows localisation in case of rupture or to check the correct placement.
Control of insertion
Centimetric graduations
From 5 to 20 cm from the distal tip
Distal end marking
Allows you to see if the catheter has been completely removed
Available in different distal ends:
Closed Open distal tip with 3 lateral eyes distal tip
vyflex
polyamide – stainless steel
19G
vyflex is a polyamide catheter with internal coiled for epidural practice available in 19G. This catheter offers a good compromise between rigidity and flexibility.
Centimetric graduations
Centimetric markings for catheter insertion control
Distal end marking
An internal stainless steel spring
Resistant to kinking and collapsing while keeping it flexible, it also allows it to be radiopaque
Allows you to see if the catheter has been completely removed
Three viewing windows
Distributed all along the catheter, these windows make it possible to visualize any blood reflux
peristyl polyethylene
peristyl is a polyethylene (PE) catheter for epidural practice available in 19G. PE material offers great flexibility to the catheter. This catheter is available with pre-mounted metal stylet to facilitate the insertion.
Centimetric graduations
From 5 to 20 cm from the distal tip
Transparent with radiopaque line
Allows localisation in case of rupture or to check the correct placement
Distal end marking
Allows you to see if the catheter has been completely removed
Available in different distal ends:
Closed Open distal tip with 3 lateral eyes distal tip
The extra-flexibility & the smooth distal tip
Tuohy needles For epidural
Centimetric graduations
To identify the insertion depth of the needle
With lug
Transparent plastic hub
To easily visualise any blood or CSF reflux
To indicate bevel orientation
With removable wings
For handling and control of the needle during insertion (optional use)
or stainless steel
Standard colour coding
Corresponding to the external diameter of the needle
*Tuohy needle with back-eye for combined spinal-epidural anaesthesia
Easy connection
With its « twist and click » closing system, the connection is simpler. Reduces the risk of disconnection.
Luer and NRFit connection
This connector is available in Luer and Nrfit connexion in mini-kit and vyset (not available in stand alone).
How does it work ?
- Insert your catheter into the already opened connector.
- Turn the connector until you hear an audible « click » which confirms the connector is closed
nexus connector
easylock connector
Pratical
Small, compact and lightweight
Luer connection
This connector is available in Luer connexion in mini-kit and vyset (not available in stand alone).
How does it work ?
- Open the connector by unscrewing the yellow part.
- Insert your catheter.
- Screw the yellow part with the catheter.
SPINAL ANAESTHESIA LUMBAR PUNCTURE
LUER & NRFit® needles
For spinal anaesthesia and lumbar puncture
EXTENSIVE RANGE
Large range of needle lengths and diameters for spinal anaesthesia and lumbar puncture.
Short needles for paediatrics
Extra-long needles for obese patients and combined epidural-spinal anaesthesia (from 120 to 185mm)
Two bevels: Whitacre or Quincke type.
HUB
Transparent to visualise cerebrospinal fluid reflux (CSF).
Specific grooved design for a better handling.
STYLET
With lug to indicate the position of the distal eye (Whitacre needle) or bevel orientation (Quincke needle).
Colour coding corresponding to the external diameter of the needle.
Can be repositioned in the needle, if dural puncture fails.
Adjusted to reduce tissue trauma of the dura mater.
NEEDLE
Thin-walled needles to obtain rapid CSF reflux.
This range of spinal and lumbar puncture needle is also available in custom-made procedure kits through our vyset solution (see page 57 for more information).
Whitacre needles
Spinal and Lumbar puncture
LUER connection
Vygon proposes a range of Whitacre spinal needles with a Luer connection that can be inserted through an introducer during the procedure. This range includes an introducer with a plastic or a metallic hub as well as stand alone needles.
Recessed notch:
Quick identification of the distal eye for CSF visualisation
Crystal clear hub
Introducers: (with or without marks)
Plastic & metallic hubs
Whitacre spinal needles without introducer:
26G
25G x 38mm 20/800 5181.45
25G x 90mm 20/800 5181.05
25G
25G
Whitacre needles
Spinal and Lumbar puncture
LUER connection
Whitacre spinal needles with introducer: * Graduated introducer with metallic hub
25G x 120mm 20G x 38mm - x 20/480
25G x 120mm 20G x 38mm x - 20/480 181.25
25G x 145mm 20G x 38mm x* - 20/180 181.45E
24G x 90mm 20G x 38mm x - 20/800 181.95
22G x 90mm 18G x 38mm x* - 20/800 181.07E
Whitacre needles
Spinal and Lumbar puncture LUER
connection
Vygon proposes a range of Whitacre spinal needles with a Luer connection that can be inserted through an introducer during the procedure. This range includes an introducer with a metallic hub as well as stand alone needles.
Wings can be adapted on the needle hub to allow better handling.
Recessed notch:
Quick identification of the distal eye for CSF visualisation
Crystal clear hub
Metallic
Wings for better handling during the procedure
Whitacre spinal needles with wings:
neurafit™ Whitacre needles
Spinal and Lumbar puncture
NRFit® connection
Vygon proposes a range of Whitacre spinal needles with a NRFit® connection that can be inserted through an introducer during the procedure. This range includes an introducer with a plastic hub as well as stand alone needles.
Recessed notch:
Yellow protector for
neurafit™ Whitacre needles:
Crystal clear hub
Quick identification of the distal eye for CSF visualisation
Plastic hub
Quincke needles
Spinal and Lumbar puncture
LUER connection
Vygon proposes a range of Quincke spinal needles with a Luer connection that can be inserted through an introducer during the procedure. This range includes an introducer with a metallic hub as well as stand alone needles.
Recessed notch: Quick identification of the distal eye
Optimized stylet-needle adjustement to reduce lesions during insertion
Crystal clear hub for CSF visualisation
Metallic hub
Quincke spinal needles, with introducer: introducer
Quincke needles Spinal and Lumbar puncture LUER connection
Quincke spinal needles, without introducer:
20G x 38mm
neurafit™ Quincke needles
Spinal and Lumbar puncture
NRFit® connection
Vygon proposes a range of Quincke spinal needles with a NRFit® connection. This range is not packed with an introducer. See next page for stand alone introducer.
Recessed notch: Quick identification of the distal eye
Optimized stylet-needle adjustement to reduce lesions during insertion
Crystal clear hub for CSF visualisation
Yellow protector for
easy NRFit® identification
fit™Quincke needles:
20G x 90mm
Neura
introspin
Spinal needle introducers
METALLICHUB
COMBINED SPINAL-EPIDURAL ANAESTHESIA
Combined spinal-epidural anaesthesia
LUER connection
Combined spinal-epidural anaesthesia device with specific characteristics:
- Tuohy needle featuring a back-eye at the distal end which allows the spinal needle to pass through - Whitacre needle with marking indicating the exit point of the Whitacre needle1 from the back eye2 of the tuohy needle.
Back eye
Exit point marking
Special length of the Whitacre needle to offer a 15mm protrusion
(2)
(1)
Whitacre needle
Tuohy needle
Tuohy needle Whitacre needle
Combined spinal-epidural
Mini-kit
Available in soft blister pack containing:
- 1 epidural Tuohy needle with transparent hub, removable wings and back eye
- 1 Whitacre needle with black marking
Combined spinal-epidural Set
Available in a plastic pouch containing:
- 1 epidural Tuohy needle with back eye, transparent hub and removable wings
- 1 Whitacre needle with transparent hub and black marking (placed in its individual packaging)
- 1 loss of resistance 10ml syringe
- 1 peribax epidural catheter 20G, 90cm long, with closed tip, 3 lateral eyes and flexible distal end. It has centimetric graduations, needle exit marking and catheter guide
- 1 easy-lock catheter connector
- 1 antibacterial filter 0.2µm
- 1 yellow label for epidural access identification
PLEXUS & PERIPHERAL NERVE BLOCKS
Plexus and peripheral nerve blocks
The global range
Vygon’s Pain Management portfolio includes a wide range of products for stimulated and ultrasound guided peripheral nerve block for both single shot injections and continuous injections.
This range of peripheral nerve blocks needles and catheters is also available in custom-made procedure kits through our vyset solution (see page 58 for more information).
SINGLE SHOT (NEEDLE)
CONTINUOUS INJECTION (NEEDLE & CATHETER)
Single shot injection Stimulating needle
locoplex® is a range of plexus and peripheral nerve block needles used with a neurostimulation technique. It is available in two bevel types : 17° & 30°.
Transparent hub
For quick view of possible blood reflux. With bevel identification thanks to the positionning of the black cable
Centimetric markings
For safety and controlled insertion depth
Removable extension line
For a direct connection to syringe
2 bevel types
To fit your needs
Neurostimulation
With a 60cm cable to work distantly from the sterile field
23G
echoplex®
Single shot injection Echogenic & stimulating needle
echoplex® is a range of plexus and peripheral nerve block needles that can be used with a neurostimulation and ultrasound technique. The 20° bevel combines skin penetration and echogenicity.
A patented coating technology
The coating of the needle includes microscopic glass beads which are evenly distributed with the insulating polymer. The echogenic coating surrounds the entire needle up to the tip.
20° bevel & centimetric marking
For safety and controlled insertion depth
Transparent hub
For quick view of possible blood reflux. With bevel identification thanks to the positioning of the black cable
Neurostimulation
With a 60cm cable to work distantly from the sterile field
Removable extension line
For a direct connection to the syringe With low dead space (1 mL).
vygoplex® ENS & Echo
Single shot injection
Echogenic & stimulating needle
vygoplex® is a range of plexus and peripheral nerve block needles available both with a Luer and NRFit® connection. It includes a large number of references ranging from 20G to 25G with length from 35 to 120mm. It is also available as echogenic needles (see page 41 for more information).
Colored hub
2 bevels : 20° & 30°
For safety and controlled insertion depth
Neurostimulation
A long blue cable for double needle placement verification
For quick connection identification Yellow for the NRFit® connection
For echogenicity & PTFE coating for stimulation With millimeter markings on the first 2cm then centimetric markings to control insertion depth.
Colored hub
2 bevels : 20° & 30°
For safety and controlled insertion depth
25G x 50mm
vygoplex® ENS & Echo
Single shot injection
Echogenic & stimulating needle
AEYMV25050 AEYMVF25050
25G x 80mm 10/200 AEYMV25080 AEYMVF25080
25G x 120mm 10/200
24G x 40mm
24G x 70mm
AEYMV25120 AEYMVF25120
AEYMV24040 AEYMVF24040
AEYMV24070 AEYMVF24070
24G x 80mm 10/200 AEYMV24080 AEYMVF24080
24G x 100mm 10/200 AEYMV24100 AEYMVF24100
23G x 35mm 10/200 AEYMV23035 AEYMVF23035
22G x 50mm 10/200
AEYMV22050 AEYMVF22050
22G x 80mm 10/200 AEYMV22080 AEYMVF22080
21G x 100mm 10/200 AEYMV21100 AEYMVF21100
21G x 120mm 10/200 AEYMV21120 AEYMVF21120
20G x 120mm 10/200
25G x 50mm
10/200
25G x 80mm 10/200
25G x 120mm 10/200
24G x 40mm 10/200
24G x 70mm 10/200
24G x 80mm 10/200
24G x 100mm 10/200
23G x 35mm 10/200
22G x 50mm 10/200
AEYMV20120 AEYMVF20120
AEQMV25050 AEQMVF25050
AEQMV25080 AEQMVF25080
AEQMV25120 AEQMVF25120
AEQMV24040 AEQMVF24040
AEQMV24070 AEQMVF24070
AEQMV24080 AEQMVF24080
AEQMV24100 AEQMVF24100
AEQMV23035 AEQMVF023035
AEQMV22050 AEQMVF22050
22G x 80mm 10/200 AEQMV22080 AEQMVF22080
21G x 100mm 10/200
21G x 120mm 10/200
20G x 120mm 10/200
AEQMV21100 AEQMVF21100
AEQMV21120 AEQMVF21120
AEQMV20120 AEQMVF20120
visioplex®
Single shot injection Echogenic needle
visioplex® is a range of plexus and peripheral nerve block needles used with a ultrasound technique. Its sandblasted canula allows echogenic visibility up to the bevel.
Transparent Hub
Removable extension line
For a direct connection to syringe
For quick view of possible blood reflux.
360º centimetric markings
For safety and controlled insertion depth
30º echogenic bevel
For safety and visualization up to the tip of the bevel. The needle’s specific treatment on the distal end increases reflection.
vygoplex® Echo
Single shot injection
vygo NRFit
It is also available as neurostimulation and ultrasound needles (see page 38 for more information).
2 bevels : 20° & 30°
For safety and controlled insertion depth
Sandblasting technology
For echogenicity & PTFE coating for stimulation With millimeter markings on the first 2cm then centimetric markings to control insertion depth.
25G x 50mm
Colored hub
For quick connection identification
10/200 AEYMNV25050 AEYMNVF25050
25G x 80mm 10/200 AEYMNV25080 AEYMNVF25080
25G x 120mm 10/200 AEYMNV25120 AEYMNVF25120
24G x 40mm 10/200 AEYMNV24040 AEYMNVF24040
24G x 80mm 10/200 AEYMNV24080 AEYMNVF24080
22G x 50mm 10/200 AEYMNV22050 AEYMNVF22050
22G x 80mm 10/200 AEYMNV22080 AEYMNVF22080
21G x 100mm 10/200 AEYMNV21100 AEYMNVF21100
20G x 100mm 10/200 AEYMNV20100 AEYMNVF20100
25G x 80mm 10/200 AEQMNV25080 AEQMNVF25080
25G x 120mm 10/200 AEQMNV25120 AEQMNVF25120
24G x 40mm 10/200 AEQMNV24040 AEQMNVF24040
24G x 80mm 10/200 AEQMNV24080 AEQMNVF24080
25G x 50mm 30º 10/200 AEQMNV25050 AEQMNVF25050
22G x 80mm 10/200 AEQMNV22080 AEQMNVF22080
22G x 50mm 10/200 AEQMNV22050 AEQMNVF22050
21G x 100mm 10/200 AEQMNV21100 AEQMNVF21100
20G x 100mm 10/200 AEQMNV20100 AEQMNVF20100
Continuous injection Standard catheter
techniplex® is a range of plexus and peripheral nerve block catheters. It includes a standard PEBAX catheter in its wishbone and a stimulating needle. The catheter kit also includes a easylock® connector, a 0.2µm filter, a second extension line and a transparent dressing Dermafilm.
Resistant
In PEBAX material with XRO line
With needle tip and 360° centimetric markings
Precise insertion
With the wishbone
Stimulating needle
With 30° or Tuohy bevel
Two catheter types:
With or without stylet
With a closed (with 3 lateral eyes) or open distal tip
Neurostimulation
With a 60cm cable to work distantly from the sterile field
silverstim® Continuous injection Neurostimulation catheter
silverstim® is a range of plexus and peripheral nerve block catheters. It includes a stimulating catheter and a stimulating needle. The catheter kit also includes a special easylock® connector, a 0.2µm filter, a second electrical cable and a transparent dressing Dermafilm.
Stimulating catheter
Hydrolocalisation
Made simple thanks to an open distal end
With a insulating coating that allows stimulation at the tip of the catheter The 20G diameter limits the resistance of injection to a minimum
Lateral connection for electrical cable to allow stimulation whenever it is needed
ygon®
Nerve stimulator Accessories
plexygon® is a nerve stimulation device that provides simplicity and precision by the emission of low intensity electrical current.
Raised screen
Easy programming
dimensions
weight 186g - 232g with battery
pulse duration 50 - 100 - 300 µs
increments
pulse frequency 1 - 2 - 4 Hz
Control options for intensity settings
Emergency cessation to facilitate reading of the options with the “mode” button - Through the rotating button - Through the lateral buttons of stimulation while preserving the selected parameters.
Nerve stimulator Accessories
plexygon® transparent protective hood. This protective hood enables plexygon® to be used under sterile conditions.
plexygon® replacement cable (red and black)
REGIONAL ANAESTHESIA ACCESSORIES
Regional anaesthesia accessories
The global range
Vygon’s Pain Management portfolio includes a wide range of accessories to accompany all your procedures in regional anaesthesia both with a LUER and NRFit® connexion.
SYRINGES
epimatic® LOR syringe
syringes
FILTERS
OTHERS
neurafit™ syringes
neurafit™ LOR syringe
Flat
LUER range®
LUER connection
Accessories
for automatique detection of the epidural space. The Epimatic syringe allows an automatique detection of the epidural space by the continuous positive pressure applied to the piston by an elastic band.
1- Choose the type of technique used to localize the epidural space .
- If gas is used, position the letter « G » or the symbol « - » toward the piston of the syringe (toward the operator)
- If liquid is used, position the letter « L » or the symbol « + » toward the piston of the syringe (toward the operator)
2- Clip the accessory on the syringe. Place the elastic band on the piston of the syringe.
3- Use the standard procedure to insert the Tuohy needle. After positioning the needle into the interspinous ligaments, with-draw the stylet.
4- Aspirate liquid or air. Maintain the position of the piston with one hand. Connect the syringe to the Tuohy needle. Release the piston of the syringe. The pressure that the elastic band maintains on the piston is adapted to the type of technique and the volume used.
5- Place the hands on the wings of the Tuohy needle to control the push on the needle.
The loss of resistance is visible with the sudden move of the piston of the syringe. As soon as the loss of resistance happens, stop the move forward, the epidural space is identified.
LUER range LUER connection
Accessories
LOR syringes
LOR syringes or Loss Of Resistance syringes are used to detect the epidural space. Also available with a NRFit® connexion (reference on the next page).
Flat filter: a flat antibacterial filter with a porosity of 0.2
This is a flat antibacterial filtre with a porosity of 0.2µm. Also available with a NRFit® connexion (reference on the next page).
neurafit™ connection
Accessories
neurafit™ extension line 125cm
neurafit™ drawing up needle 18G 50mm
VGU15461125 25
neurafit™ 3-way stopcock
neurafit™ filter
neurafit™ LOR syringe
neurafit™ syringes : A full range to fit your needs
neurafit™ syringe 1 ml slip
neurafit™ syringe 2.5 ml slip
neurafit™ syringe 2.5 ml lock
neurafit™ syringe 5 ml slip
neurafit™ syringe 5 ml lock
neurafit™ syringe 10 ml slip
neurafit™ syringe 10 ml lock
neurafit™ syringe 20 ml slip
neurafit™ syringe 20 ml lock
neurafit™ syringe 60 ml lock
V051010011A1 100/2400
V051010031A1 100/2000
V051010032A1 100/2000
V051010051A1 100/1600
V051010052A1 100/1600
V051010101A1 100/1000
V051010102A1 100/1000
V051010201A1 80/800
V051010202A1 80/800
V051010602A1 60/240
Others
griplok® & drapes Accessories
griplok®
griplok® is a catheter fixation device dedicated to regional anaesthesia applications (epidural, plexus & peripheral nerve block catheters, etc). It ensures efficient and secure fixation and helps prevent accidental removal or migration of the catheter.
It is latex free and supplied sterile in a peelable packaging.
Only available through VYSET.
Drapes for epidural anaesthesia
BASIC SETS & VYSET
Basic Sets
All you need for LRA procedure
The LRA basic sets are standard procedure sets for the different types of anaesthesia: Epidural anaesthesia, Spinal anaesthesia and Lumbar puncture & Peripheral Nerve Block.
Our basic sets enable a safe and aseptic procedure.
A custom set adapted to your needs
Improving safety
Reducing the risk of infection and errors due to reduce manipulation of the procedure components.
Improving working conditions
Simplifying procedures for emergencies or practitioners working alone
Traceability (one label + barcode)
The VYGON expertise
Assembly and sterilization in our facilities in Europe
Selection of high-quality medical devices
Sales teams at your disposal to provide any additional training, help and advice needed to ensure your pack is a success. Continuous monitoring of usage rates.
Saving time and money
Reducing preparation time
Improving stock management
Reducing waste
Vyset
Epidural Sets
NRFit® connection
Environment Bronze
Epidural basic procedure set
NRFit® epidural Bronze set contains the essential components to perform epidural anaesthesia procedures. It is presented in a soft blister pack and includes:
- 1 Luer Filter needle 5 microns 18Gx40mm
- 1 NRFit® Filter needle 5 microns 18Gx50mm
- 1 Hypodermic needle 25G
- 1 Hypodermic needle 21G
- 1 Luer 2,5ml Slip syringe
- 1 Luer 5ml Slip syringe
- 1 NRFit® 10ml Lock syringe
- 1 NRFit® 20ml Lock syringe
- 5 Swabs 7.5 x 7.5cm
- 2 Foam sticks
- 1 Tray 3 sections
- 1 Clear fenestrated peelable drape 75 x 100cm opening of 12 x 7cm
- 1 Outer wrap
- 1 bag with zip closure 20 x 15 cm
- 1 NRFit® yellow label
Epidural Sets
NRFit® connection
Environment Silver sets
Epidural basic procedure set
NRFit® epidural Silver set contains the same essential components as the Bronze set (except the tray and drape). It also contains what is needed for an epidural under ultrasound and other additional components. It is presented in a soft blister pack and includes:
- 1 Luer Filter needle 5 microns 18Gx40mm
- 1 NRFit® Filter needle 5 microns 18Gx50mm
- 1 Hypodermic needle 25G
- 1 Hypodermic needle 21G
- 1 Luer 2,5ml Slip syringe
- 1 Luer 5ml Slip syringe
- 1 NRFit® 10ml Lock syringe
- 1 NRFit® 20ml Lock syringe
- 5 Swabs 7.5 x 7.5cm
- 2 Foam sticks
- 1 Outer wrap
- 1 bag with zip closure 20 x 15 cm
- 1 NRFit® yellow label
- 1 Device for safety needle securement – 5 needles
- 1 Lower tray 20,6 x 13 x 4cm
- 1 Upper tray 21 x 13 x 3,5cm
- 1 Peelable drape 100 x 80 cm with adhesive aperture 6.5 x 12cm
- 1 Green bag 12 x 15,5 cm
- 1 Probe cover 15 x 120cm and rubber band

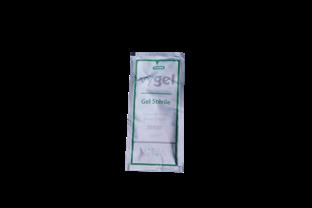

- 1 packet of ultrasound sterile transmission gel (20mL)
- griplok for regional anaesthesia
Bronze basic set +
Additional components
Epidural Sets
NRFit® connection
Environment Gold set
The Gold epidural set is composed of the Silver epidural set and one of the following mini-kit:
191.30A1 Mini-kit peripur catheter see page 13
191.70A1 Mini-kit peristyl catheter see page 17 V05776904
5191.3371A1 Mini-kit peribax catheter see page 11 V05776905
80189.322A1 Mini-kit cristal catheter see page 11 V05776906
Silver basic set
+191.30A1
+191.70A1
+5191.3371A1
+80189.32A1
Spinal Sets
LUER connection
Basic set
Spinal basic procedure set
This procedure pack contains the essential items needed for spinal anaesthesia. Presented in soft blister pack including:
- 1 tray
- 1 Whitacre needle 25G x 90mm (placed in its individual packaging)
- 1 introducer needle 20G, 38mm - with stainless steel hub
- 1 each syringe Luer 3mL, 5mL and 10mL
- 1 adhesive fenestred drape 80 x 100cm
- 1 gallipot
- 1 forceps (kocher type)
- 4 ball swabs (small)
- 2 ball swabs (large)
- 1 filter needle 5µm, 18G
- 2 hypodermic needles 25G and 21G
- 1 towel 33 x 38cm
- 1 outer wrap 75 x 90cm.
PNB Sets
Environment sets
Basic set
Ultrasound set for single shot injection
A sterile set for the protection of the ultrasound probe. The set is supplied in a soft blister pack containing:
- 1 pre-folded ultrasound probe cover, packed in a pre-cut PE bag with the following dimensions :
* 195mm long
* 51mm large
- 1 packet of ultrasound sterile transmission gel (20mL)
Ultrasound set for continuous injection
A sterile set for the protection of the ultrasound probe and cable to place a catheter. The set is supplied in a soft blister pack containing :
- 1 long transparent probe/cable cover (122x15cm) supplied in a precut PE bag. The folding of the protective sleeve is done in a way to facilitate the insertion of the ultrasound probe.
- 2 elastics (latex-free)
- 1 packet of ultrasound sterile transmission gel (20mL)
- 2 sponge sticks
- 3 round gallipots : 2 translucent colourless & 1 red
- 1 white absorbent towel 33x38cm
LRA Basic Sets
Environment sets
Basic set
Loco-Regional Anaesthesia basic procedure set
This procedure pack contains the essential items needed for a number of common procedures including spinal anaesthesia, lumbar puncture and epidural anaesthesia. Presented in soft blister pack containing:
- 1 tray
- 1 each syringe Luer Slip 2.5mL, 5mL, and 10mL
- 1 aperture drape (opening 7x12cm) with adhesive edge 63x80cm
- 1 gallipot
- 1 prep forceps
- 4 ball swabs (small)
- 2 ball swabs (large)
- 1 Luer filter needle 5µm, 18G
- 2 hypodermic needles 25G and 21G
- 1 absorbent towel 33x38cm
- 1 outer wrap 75x90cm
VYSET Solution
Custom sets
VYSET
set
Adapted to your needs for a simpler LRA procedure.
Reduced waste
Improved stock management
Vyset accompagnies you through all your procedure steps:
VYSET Solution
Custom sets VYSET set
VYSET® provides all the components/devices needed for a procedure under aseptic conditions. All needles and catheters dedicated to Peripheral Nerve Block, Epidural and Combined Spinal-Epidural procedure, Spinal anaesthesia and Lumbar puncture can be supplied in VYSET® with the following devices and more:
Transparent drape with a large fenestration
Adjustable drape 2 fenestrations
Can be used for upper and lower limbs
Sponge sticks to visualize the puncture area
Probe covers
Adhesive cover : AD cover to avoid using gel between the probe and the probe cover
Short cover
Long cover
Safe hypodermic needles
to differenciate drugs from disinfectant to avoid needlestick injuries
freedom5
Patient-Controlled Analgesia PCA
freedom5
Vygon PCA is a single-use mechanical device for patient-controlled analgesia.
freedom5 has been specially designed for pain management in the Accident and Emergency department and for the treatment of post-operative pain. This product is also indicated for pain treatment of patients suffering from sickle cell disease.
It can be easily set-up by healthcare personnel and is simple for the patient to use: if he feels pain, all he has to do is press the lever.
freedom5 allows the patient to self-administer a pre-set quantity of intravenous morphine equivalent to:
- 0.5mL for code 7301.05, 7301.50 and 7301.501.The lock-out for bolus reconstitution is 5 minutes.
- 1mL for models 7301.12 and 7301.10. The lock-out for bolus reconstitution is 7 minutes.
As the bolus reservoir is under negative pressure downloading is not possible.
freedom5
Patient-Controlled Analgesia PCA
freedom5
The freedom5 kit contains:
- 1 PCA reservoir carrier with inspection window. A check valve prevents any reflux into the bolus chamber. This valve only opens with positive pressure applied by the user on the lever.
- 1 calibrated reservoir (55mL). The reservoir must be locked within the carrier making sure that the graduations of the reservoir are visible in the inspection window of the carrier
- 1 capping device with lever
- 1 attachment cord
- 1 polyethylene storage bag
- 1 female/female Luer-lock adaptor (code 892) for filling the reservoir with a syringe
- 1 female Luer-lock obturator (code 888) for temporary capping of a filled reservoir
- 1 label for the PCA reservoir carrier
- 1 extension tube
Patient-Controlled Analgesia
Accessories
Patient-Controlled Analgesia
PCA
Refill kit for PCA
If necessary, freedom5 can be refilled twice. In this case, a complete refill kit is available. The complete refill kit code 7302.60 (for PCA code 7301.10 or 7301.12) and code 7302.62 (for PCA code 7301.05, 7301.50 or 7301.501) are presented in soft blister pack containing:
- 1 PCA lockable capping device with lever and cord
- 1 55mL calibrated reservoir
- 1 female/female Luer-lock adaptor
- 1 female Luer-lock obturator.
Simplified refill kit for PCA
The simplified refill kit code 7302.01 (for PCA code 7301.10 or 7301.12) and 7302.02 (for PCA code 7301.05, 7301.50 or 7301.501) are presented in soft blister pack containing:
- 1 PCA lockable capping device with lever and cord
- 1 female/female Luer-lock adaptor.
Reservoir for PCA
The 55 mL graduated reservoir for PCA refill is also available separately
References
[1] Leventhal L.C., Bianchi R. C., Junqueira Vasconcellos de Oliveira S. M., Clinical trial comparing three types of cryotherapy in non-pregnant women, 2010, pp. 44(2):337-43.
[2] Trichard S., La cryothérapie en traumatologie d’urgence, plus qu’une alternative thérapeutique. Etudeprospective, randomisée, ouverte réalisée au service d’urgences du CH de Montélimar Etude
CRYOANTALGIE, Université Claude Bernard - Lyon 1, Faculté de Médecine et de Maieutique Lyon-Sud, 2013
[3] Delassus L., La cryothérapie et les techniques d’utilisation du froid, 2004.
[4] Internal Documents, Temperature reading protocol
[5] Cryopad Instructions For Use, August 2018
Legal disclaimer
EPIDURAL ANAESTHESIA
Medical Devices indicated for Epidural Anaesthesia and analgesia peribax®, peripur®, peristyl® Catheters, Luer Tuohy needles, Luer Epidural mini-sets
Class IIa, Sterile
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
vyflex
Sets Article 22 Sterile
Manufacturing by : VYGON - 5 rue Adeline - 95440 EcouenFrance
SPINAL ANAESTHESIA / LUMBAR PUNCTURE
Medical devices indicated for Spinal Anaesthesia / Lumbar Puncture
vyspin Luer Whitacre Needles – Luer Quincke Needles
class III – Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
introspin class IIa – Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
neurafit™ Whitacre Needles – neurafit™ Quincke Needles
class III – Sterile, CE 1639
Legal Manufacturer: UNISIS - 2675-1 Nishikata, Koshigaya-shi, Saitama 343-0822, Japan
COMBINED SPINAL - EPIDURAL ANAESTHESIA
Combined Spinal - Epidural mini-kit
Sets Article 22 Sterile
Manufacturing by : VYGON - 5 rue Adeline - 95440 EcouenFrance
PERIPHERAL NERVE BLOCK
Medical devices indicated for Peripheral Nerve Blocks under ultrasounds and/or neurostimulation for Anaesthesia and analgesia.
locoplex®, echoplex®, visioplex®, techniplex®, silverstim® class IIa – Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
vygoplex ENS & echo NRFit® - vygoplex echo NRFit®, vygoplex ENS & echo Luer, vygoplex echo Luer
Class IIa, Sterile, CE 0426
Legal Manufacturer : MDL SRL, Via Tavani 1/A Delebio (So), Italy, 23014
plexygon® Neurostimulator
class IIa – Sterile, CE 0123
Legal Manufacturer: Vygon Italia S.r.l. - Viale dell’Industria 60/1a35129 PADOVA - Italy
REGIONAL ANAESTHESIA ACCESSORIES
Luer LOR Syringe, neurafit™ LOR Syringe, Luer Epimatic Syringe, Drapes for Epidural Anaesthesia class Is – Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France Flat Filter, Round Filter, neurafit™ epidural filter
class IIa – Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
neurafit™ extension Line
Class IIa, Sterile, CE1639
Legal Manufacturer: GBUK Group Ltd – Woodland House –Blackwood Hall Business Park – North Duffiled, Selby – North Yorkshire – YO8 5DD – United Kingdom
neurafit™ Drawing up Needle, neurafit™ 3-Way Stopcock class Is, Sterile, CE1639
Legal Manufacturer: GBUK Group Ltd – Woodland House –Blackwood Hall Business Park – North Duffiled, Selby – North Yorkshire – YO8 5DD – United Kingdom
neurafit™ Syringes - neuraxial syringe 1ml Slip to 20ml
Slip and neuraxial syringe 2,5ml Lock
class Is – Sterile - CE0051,
Legal Manufacturer: PENTAFERTE ITALIA s.r.l - Viale Piane Nocella, 23- 64012 CAMPLI (TE) - Italy
neurafit™ Syringes - neuraxial syringe for infusion pump 5ml Lock to 60ml Lock
class IIa – Sterile - CE0051
Legal Manufacturer: PENTAFERTE ITALIA s.r.l - Viale Piane Nocella, 23- 64012 CAMPLI (TE) - Italyy
Griplock®
class Is, Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
VYSET
Epidural Anaesthesia Vyset, Spinal Anaesthesia / Lumbar Puncture Vyset, Peripheral Nerve Blocks
Vyset, Combined Spinal –Epidural Anaesthesia Minisets
Sets Article 22 Sterile
Manufacturing by : VYGON - 5 rue Adeline - 95440 EcouenFrance
PCA
Medical device indicated for Pain Management
Freedom 5, Refill Kits & Reservoir
class IIb (Is MDR) – Extension Line class IIa – Sterile, CE 0459
Legal Manufacturer: VYGON - 5 rue Adeline - 95440 Ecouen –France
These devices must be used by trained healthcare professionals. Please refer to the IFU for more information.
For reimbursement information, please refer to your local market and health insurance organization.
