Design Lab 01 -Jewry Wall

5.0 NATURAL FEATURES Vegetation and Contour The diagram on the left shows the contour and vegetation on the site. The site has an irregular contour which needs to be sustained as part of the preservation of the historic ruins on the site. This irregularity can lead to the site being not wheelchair friendly enough, even though a wheelchair access is provided to the site through the St. Nicholas Walk.

When we look into the Vegetation, it can be observed that they are concentrated towards the North east side of the site. Some scattered vegetation can be seen on the northwest and southwest ends.

The site is adequately buffered from the Welles Street on the North by the medium canopy trees along the borders.

Highest point on site

Lowest point on site

However, the site is completely exposed on the south side to the busiest road around it, and lacks any type of buffering. This can lead to the site experiencing more noise pollution from the A47 road.

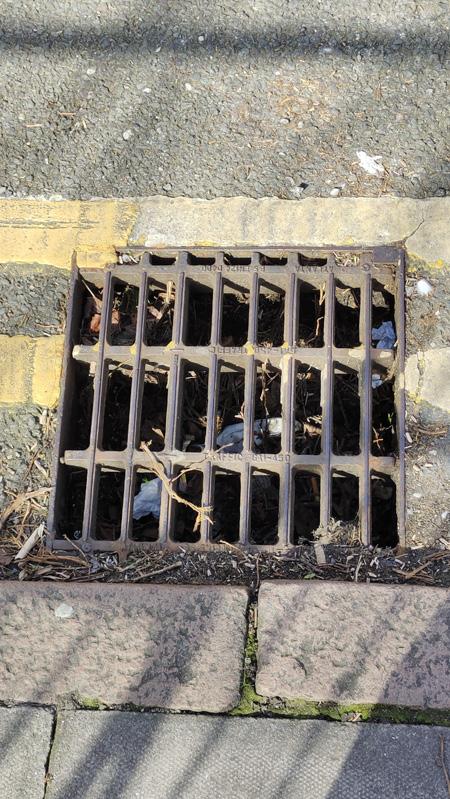

Drainage Sewer drains can be observed along the west, south and east sides of the site. The highest point in the site is at the northwest corner, hence the rainwater runoff will happen from the northwest to the southeast. The highest point of the surrounding however is at the southeast end of the site. Therefore the surface drainage flow occurs from south east to north and southeast to west from the A47.

Sewer Drains Surface Drainage Flow Rainwater Runoff in Site Fig 5.0.1: Exploded Axonometric View of Site contours and Vegetation

PAGE 26 | SITE ANALYSIS | VISHNU K V

Fig 5.0.2: Axonometric View of Site Showing Drainage Patterns and Drains

5.1 TOPOGRAPHY

A

B

A47 Road Welles St.

B Jewry Wall Musuem

Fig 5.1.1: Perspective View of Section BB

Talbot Ln.

A

Fig 5.1.4: Key Plan with section lines

Fig 5.1.2: Perspective View of Section AA

Soar River

Bath Lane

Fig 5.1.3: Birds Eye View of Section BB

PAGE 27 | SITE ANALYSIS | VISHNU K V

Jewry Wall Musuem

Talbot Lane

St. Nicholas Church

Vaughan College

Jewry Wall

St. Nicholas Church

A47

6.0 MAN-MADE FEATURES Ground-cover and Condition

Street Lights Public Seating Parking Metre Trash Can Traffic Signal Post Box Bollards Fig 6.0.1: Location of Man-made features in and around the site.

Stone Pavement

Stone Pavement

Roman Wall Ruins

Grass covered Terrain

Fig 6.0.3: Ground cover and Condition.

Fig 6.0.2: Significant Man Made Features in and around the site.

The above map shows the locations of man made features like Street Lights, Public Seating, Parking metrs, Trash Cans, Traffic Signals, Post Boxes and Bollards.

The roads around the site are well lit at night as they are lined with sufficient street lights. Public seating are scarce in the area since it is a heavy traffic area where people and vehicles are constantly moving around and other than the River Soar, the area does not provide a view to sit and look at. Parking on the Talbot lane is metreed. There are two post boxes situated to the west and east of the site, at a distance of about 260 metres from each other.

PAGE 28 | SITE ANALYSIS | VISHNU K V

The map represents the ground cover of the site.

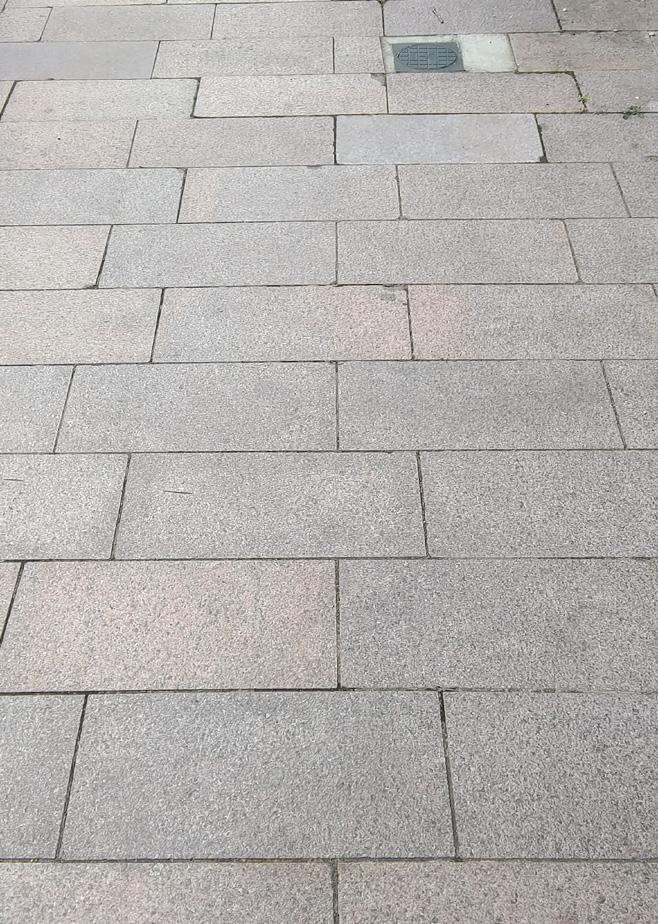

The corridors of the west wing of the building, visible from the outside are paved with stone blocks which gives an earthy ambiance to the building. The north wing of the building is also paved with smaller stone pavements, to provide continuation and unity.

The open area in the middle has two types of natural ground cover. The ruins of the Roman Bath House substantially characterizes the area. The spaces between the ruins of Roman Bath house and pedestrian paths provided on the site are covered with grass. This gives the site some kind of landscape features and the green patches are refreshing to the eyes.

6.1 BUILDING HEIGHT ANALYSIS

Fig 6.1.2: Axonometric Section of site.

We can see from the section that the taller buildings surrounding the site can overshadow the site, especially due to the Contours and depression of about 3 metres from the street level Fig 6.1.3 Birds Eye View of Building Height Analysis

>24 Mtr 20 Mtr 16 Mtr 12 Mtr 8 Mtr 4 Mtr

Merlin Wharf Apartments

Empire Service Apartments

Holiday Inn Hotel

Leicester Cathedral

Fig 6.1.4: Significant Buildings for Height Analysis Fig 6.1.1: Building Height Analysis.

It can be observed from the map that the region has more multistory buildings that single storey buildings. The buildings to the immediate surroundings of the site are predominantly multi storey as well.

Taller buildings dominate the outer parts of the map.

It can also be observed that when it come to unity of identity, height is not a strong character of the region, since the buildings are not harmonious in height.

PAGE 29 | SITE ANALYSIS | VISHNU K V

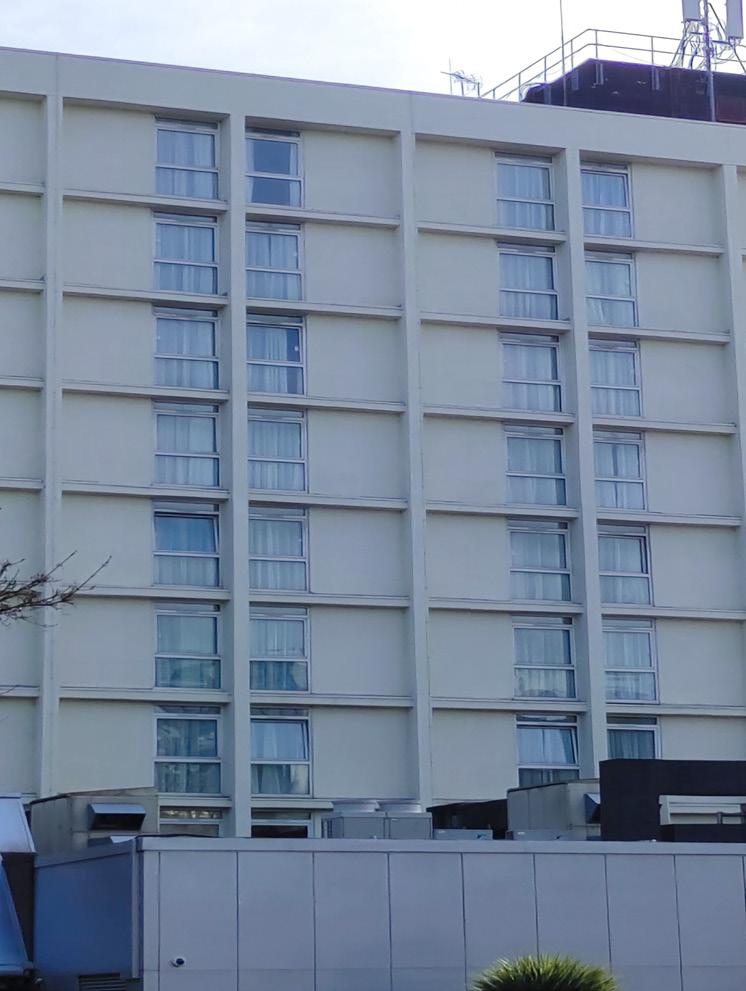

The site is surrounded with unsympathetically designed multi-storey buildings, including the Merlin Wharf Apartments, Empire Service Apartments and the Holiday Inn. These are visible from the vicinity of the site and play a major influence on the skyline of the city, around the site, as well as the enclosure ratio of the streets surrounding it. he spire of Leicester Cathedral and the tower of St. Nicholas Church are also two main visual points that can be observed from the site. The former is a major identifying feature of the pseudo-fingerprint of the City of Leicester.

6.2 SIGNIFICANT ARCHITECTURAL PATTERNS 2 8 10

11

8 Fig 6.2.3: Facades on Bath Lane

11 7

12 11

8

9 Fig 6.2.4: Facades on Welles Street

6 2

2

5 4

3

1

Fig 6.2.5: Facades on Nicholas Circle

11 Fig 6.2.6: Facades on Talbot Lane

2

12

Fig 6.2.1: Significant Architectural Patterns.

1

7

2

8

3

9

Fig 6.2.2: Patterns on Pavement and Ground-cover.

PAGE 30 | SITE ANALYSIS | VISHNU K V

Fig 6.2.7: Textures around the site

4

10

5

11

6

12

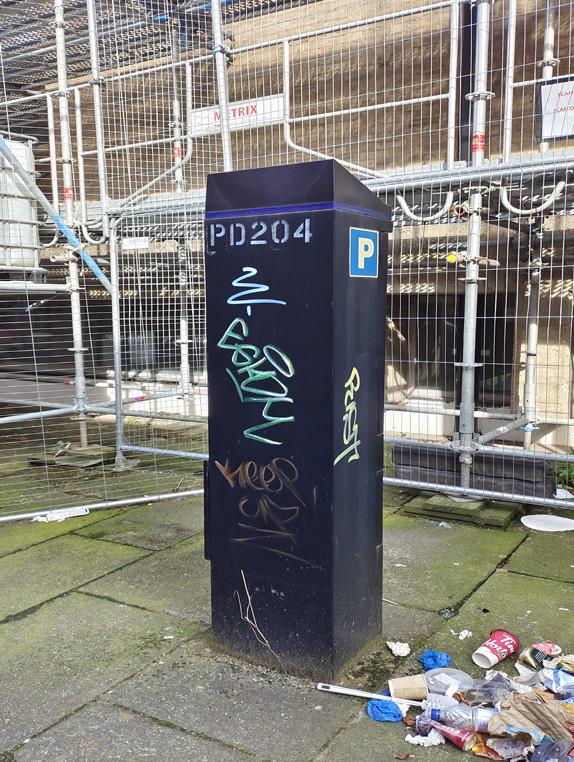

Fig 6.2.8: Vandalism around the site

The map shows the texture study of facades and ground around the site. It can be observed that there is a mix of traditional, modern and historical materials in the facades seen around. The Welles street showcases traditional facades, where as the Bath lane shows a dominance of Modern facades. In the Talbot lane, a mix of both traditional and modern facades can be observed. The St. Nicholas Church on the east of the site stands out with it’s brick and stone facades and stained glass window.

7.0 CIRCULATION The map shows the circulation around the site. The movement happening around the site, i.e. along vehicular pathways, pedestrian pathways and bicycle trails are demarcated. Measures taken to ensure easy flow of vulnerable road users are also depicted on the map. These include traffic calming areas and tactile pavings. Traffic signals and bus stop markings are provided to direct motor vehicle users as well.

Fig 7.5: Texture Treatment on Talbot lane

Fig 7.6: Tactile paving

Fig 7.7: Traffic Lights on A47 Road

TRAFFIC CALMING AREAS The traffic calming methods used on roads along the immediate surroundings of the site are as follows.

A47 ROAD The A47 road along the south-east of the site has a loading bay, a bus bay and a drop off point. The traffic calming methods used on this 4 lane road is a Pelican crossing.

TALBOT LANE The entrance to the Talbot Lane from the A47 Road is provided with a Sinusoidal Profile Hump at the intersection, followed by a surface texture treatment using block pavements throughout the lane. This ensures that the driver is alerted about the character change of the Lane from a busy vehicular road to a residential road.

Fig 7.2: Texture Treatment and Hump On Bath Ln- Welles St Junction

Fig 7.1: Circulation around the site Vehicular Movement Bicycle Movement Pedestrian Movement Tactile Paving Traffic Calming Area Traffic Signal

PAGE 31 | SITE ANALYSIS | VISHNU K V

Fig 7.3: Texture Treatment on Bath Lane

BATH LANE The Bath Lane, is provided with block pavements and entry treatment. These are used as a visual aid for drivers to ensure a considerable reduction in the speed of vehicles and to let drivers know that they are leaving a major road and entering an area of different character, i.e. a private lane. A difference in surface texture is also provided at the three way intersection with the Welles Street and the following private lane for the apartments along the lane.

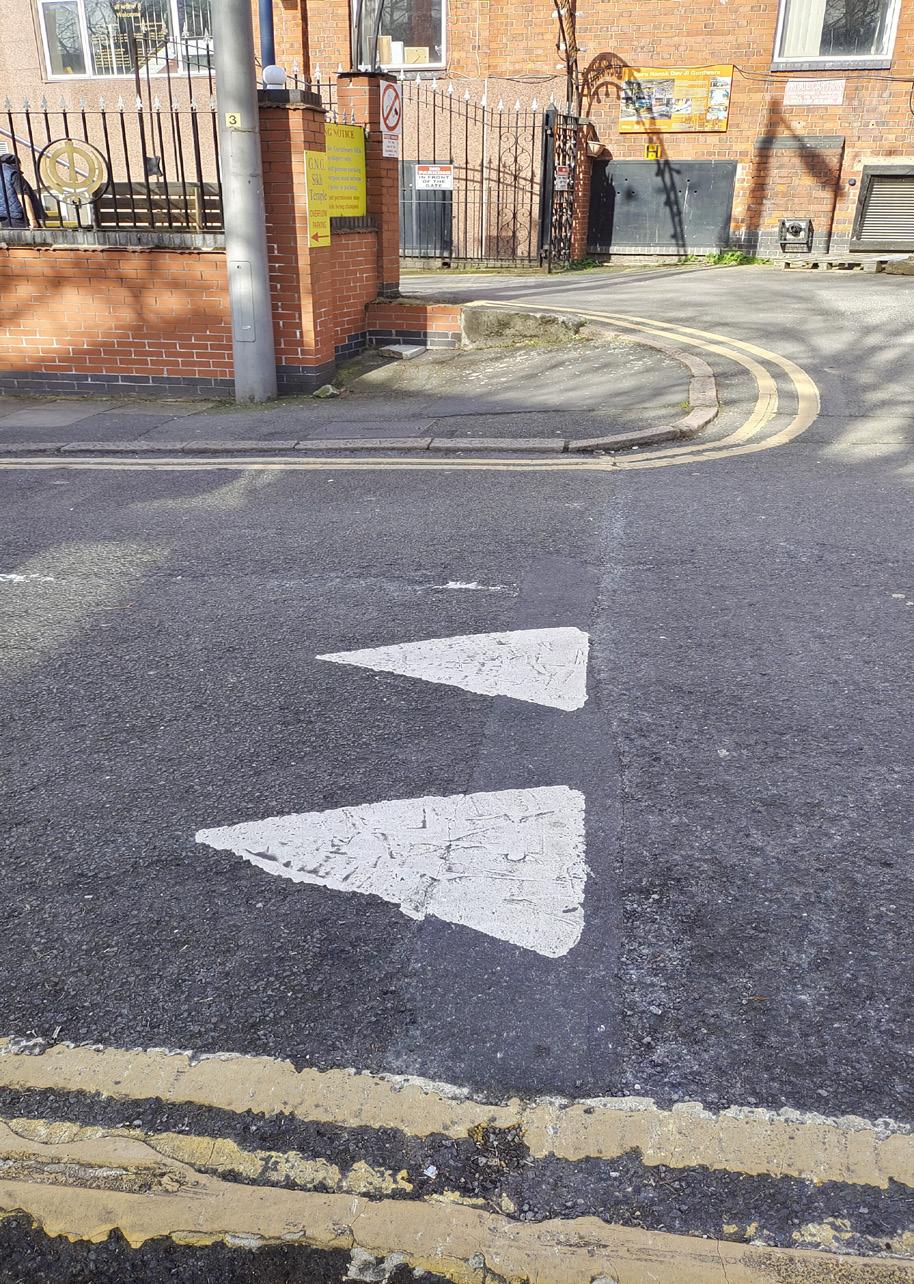

WELLES STREET The intersection of Holy Bones and Welles Street begins with a Sinusoidal Profile Hump, following which the street is completely block paved. Like mentioned above, a difference in surface texture is provided at the intersection with the Bath Lane using different types of pavings. It can also be observed that a slight hump is also provided at the changing point of pavings.

Even though there are traffic calming measures undertaken along the lanes around the site, it can be observed that there is a need for more measures in order to ensure a smoother flow of pedestrians and cyclists from the City centre to the site. This is most required at the intersection of the A47 Road Fig 7.4: Sinusoidal Hump and the St. Nicholas Place, adjacent to the Jubilee Square. The St. Nicholas on Welles Street Place currently acts as a transition space between the High Street and the A47.

ASSORTED VIEWS

Fig c: Bird’s eye view of site.

Fig a: View from Nicholas Circle

Fig d: View of Jewry wall musuem from courtyard.

Fig b: View Of Entrance to Jewry Wall Musuem.

PAGE 14 | ASSORTED VIEWS | VISHNU K V

Fig e: View of Jewry wall from courtyard.
