PREPARATION PREPARAZIONE / PRÉPARATION VORBEREITUNG / PREPARACIÓN

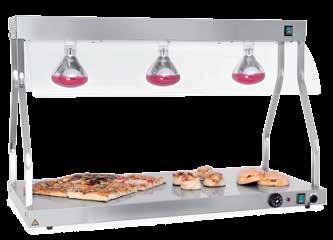

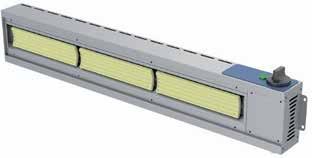

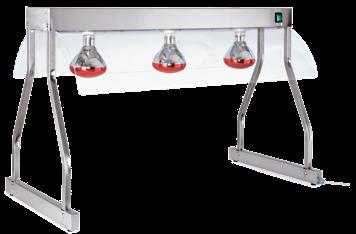

2 Countertop hotplates with infrared lamps Code Description Dimension Weight Net Power Capacity a x b x c (mm) (kg) (m3) (gn) 2093A1E Hot Display Unit 725x570x562 19 0.23 1.3Kw 2x1/1 2093A2 Hot Display Unit 1040x570x562 27 0.33 1.9Kw 3x1/1 9080 Inox Hot Plate 330x530x60 h 6 250W 1x1/1 9082 Inox Hot Plate 660x530x60 h 7 500W 2x1/1 9084 Inox Hot Plate 990x530x60 h 9 750W 3x1/1 TECHNICIAL SPECIFICATIONS - 220V operating voltage. - Disassambled sneezeguard. - Adjustable feet. - Digital control. - Working temperature: 30 °C / 90 °C Code Description Dimension Weight Net Power Capacity a x b x c (mm) (kg) (m3) (gn) ICA0012 Ceran Hot Plate 610x370x40 10 0.36 230W 1x1/1 ICA0013 Ceran Hot Plate 720x560x50 14 0.50 500W 1x2/1 ICA0011 Hot Display Unit Stainless Steel Body 800x600x120/750 27 0.36 1.3Kw 2x1/1 ICA0010 Hot Display Unit Stainless Steel Body 1115x600x120/750 35 0.50 1.8Kw 3x1/1 Art. 9082 Art. 2093A2 Art. ICA0012 Art. ICA0011 Art. 2093A1E
Models Modelle Version Ausführung Cable length Kabellänge GN Nr. of lamps Nr. von Lampen Power Anschlusswert W Max dim. Max. Abm. Cm 956T/MN 2x1/1 2 1000 70x53x70 h 9566T 2x1/1 2 500 70x53x70 h ICE0003 Aluminium Adjustable 48 - 155 cm 250 ø 22,5 ICE0004 Copper ICE0005 Chrome-plated • AISI 304 stainless steel sheet top • Built-in upper frame in tube and stainless steel sheet • Plexiglass curved sneeze guard • Infrared lamps, 250W each, red colour • Heated by electrical heating element • Separate switches for hotplate and infrared lamps, with warning light • Adjustable thermostat • Mains supply: 230V, 50/60 Hz, single-phase • Rubber feet Art. 9566T Art. 956T/MN Art. 9512A • Height-adjustable lamp holder • Infrared lamp, 250 W, red colour or white colour upon request • ON/OFF switch on lamp holder body • Mains supply: 230V, 50/60 Hz, single-phase 3

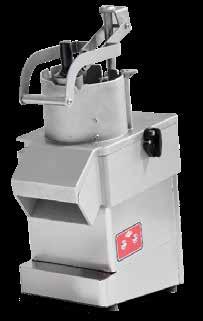

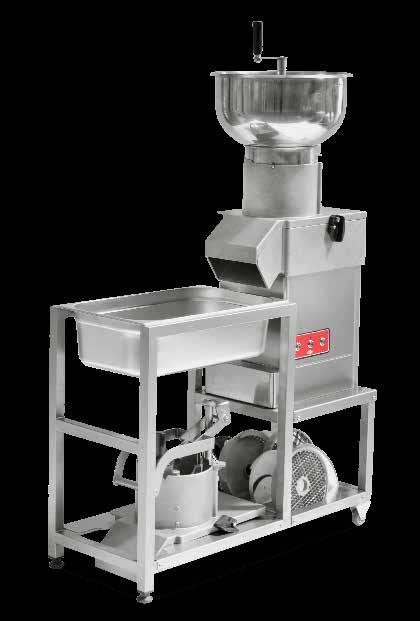

4 Vegetable Cutters Code Description Dimension Weight Net Capacity Volt a x b x c (mm) (kg) (m3) (kg/saat-kg/hour) (V) 9658E Vegetable Cutter 295x495x674 35 0.10 300 230 EMP.400 Vegetable Cutter 295x495x723 37 0.11 400 380 Z/E9658EAS Stand 420x495x600 41 0.26 400 9658E EMP.400 Z/E9658EAS Order nr. Mod. Thickness FS606CO* KIT B6 4 x 4 mm French fries cutting discs Order nr. Mod. Thickness DS1010CO* KIT D10X10 10 mm DS2020CO* KIT D20X20 20 mm Dicer discs Form 3Form 2Form 1 Order nr. Mod. Thickness SA001E* E1 (FORM 2) 2 – 8 mm SA002 E2 (FORM 1) 2 mm SA004 E4 (FORM 2) 4 mm SA006 E6 (FORM 2) 6 mm SA008 E8 (FORM 2) 8 mm SA010 E10 (FORM 3) 10 mm Cutting discs Order nr. Mod. Thickness DS888 D8X8 8 mm DS1000 D10X10 10 mm Dicer discs Order nr. Mod. Thickness FS808 B8 8 x 8 mm FS100 B10 10 x 10 mm French fries cutting discs ! * Discs for cutter 9658E Order nr. Mod. Thickness J404 H4 4 x 4 mm Strip discs Order nr. Mod. Thickness G002 Z2 2 mm G003 Z3 3 mm G005E* Z5 5 mm G007 Z7 7 mm G007E* Z7 7 mm Shredder discs
5 2 Changeable Head Loading System Code Description Dimension Weight Net Capacity a x b x c (mm) (kg) (m3) (kg/saat-kg/hour) EMP.800 Vegetable Cutter with Silo 370x885x1335 60 0.43 800 TECHNICIAL SPECIFICATIONS - Motor power: 0.75/80 kW 1500-3000 rpm - 380V - Stainless steel blades. - Double speed working system. - Blades can be easily removed for cleaning. - Safety sensor. - Aluminium top body - Stainless steel body. - Full blade set.Standard Blades EMP.300 - F.01 1.8-8 mm adjustable slicing blade. EMP.300 - F.06+F.07 French Fries Blade+Disc EMP.300 - F.03 5 mm Grater EMP.300 - F.11+F.08 10x10 mm Cubic Disc+Blade EMP.300 - F.04 7 mm Grater EMP.300 - F.12+F.09 20x20 mm Cubic Disc+Blade Vegetable Cutter with Silo
6 Vegetable Cutter Blades Code Description EMP.300 - F.01 Adjustable Disc Code Description EMP.300 - F.03 5 mm Grater Code Description EMP.300 - F.04 7 mm Grater Code Description EMP.300 - F.06+F.07 French Fries Blade+Disc Code Description EMP.300 - F.11+F.08 10x10 mm Cubic Disc+Blade Kod Code Ürün Adı Description EMP.300 - F.12+F.09 20x20 mm Cubic Disc+Blade 2/8 mm adjustable slicing blade.

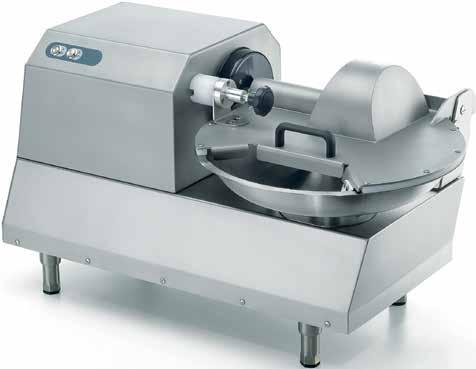

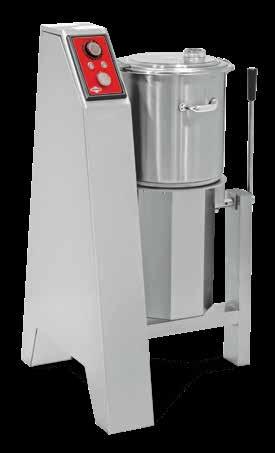

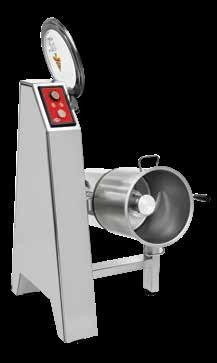

7 Cutter Mixers - Motor power: 0,37 kW 900 rpm - 220V - Bowl dimension(diameter/depth): 240x175 mm - Safety switch. - Stainless steel body and bowl. Code Description Dimension Weight Net Capacity a x b x c (mm) (kg) (m3) (lt) EMP.350 Cutter Mixer 245x360x550 19 0.05 8 Code Description Dimension Weight Net Capacity a x b x c (mm) (kg) (m3) (lt) 9519E Cutter Mixer 340x500x390 18 0.06 8 TECHNICIAL SPECIFICATIONS TECHNICIAL SPECIFICATIONS - Motor power: 0,37 kW 1400 rpm - 220V - Bowl dimension (diameter/depth): 240x175 mm - Safety sensor. - Stainless steel body and bowl. Order nr. FLA0014* FLA0015* FLA0016* Dimensions - Abmessungen W • D H mm 305 • 365 255 305 • 365 320 355 • 455 • 380 Speed - Geschwindigkeiten n° variable variable variable Revolutions - Umdrehungen pro Minute rpm 1500÷2500 1500÷2500 1500÷2500 Bowl volume - Fassungsvermögen Behälter lt 3,3 5,3 9,4 Absorbed power - Anschlusswert watt 350 350 350 + 350 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz TECHNICIAL SPECIFICATIONS - Strong AISI 304 steel construction. - Detached motor and bowl for a better thermal insulation. - S/S bowl with handles and heavy bottom. - High efficiency ventilated motor for continuous operation. - Strong cutlery steel knives. - Safe operations ensured by a system of micro switches on the lid. - See-through lexan lid. - Lid with opening to add ingredients during operation. - Variotronic: speed control with stabilizer.
8 50 lt Capacity Vertical Cutter Mixers Code Description Dimension Weight Net Bowl Size Capacity a x b x c (mm) (kg) (m3) (mm) (lt) SD.07 Vertical Cutter Mixer 610x645x1045 71 0.40 300x300 20 SD.07-22 Speed Control Vertical Cutter Mixer 615x685x1050 67 0.40 300x300 20 SD.09 Vertical Cutter Mixer 720x685x1250 112 0.60 400x400 50 HUMUS 20 lt Capacity TECHNICIAL SPECIFICATIONS - Easy cleaning by the removable parts. - Easy removable blade and bowl. - Time adjustable control panel. - Safety sensor. - Stainless steel body and bowl. - Possibility of grinding without removing the oil and sap without disturbing the material feature. - Simple usage and serial work ability. - Safety switch connected to the lid and the chamber. - Silent and without vibration working. SD.07 - Motor power: 1.5/2.5 kW 750/1500 rpm - 380V SD.07-22 - Speed controlled operating option. - Motor power: 2.2 kW 1500 rpm - 220V SD.09 - Motor power: 3.5/5.5 kW 750/1500 D/Dk - 380V Standard Blade
Universal preparation machine

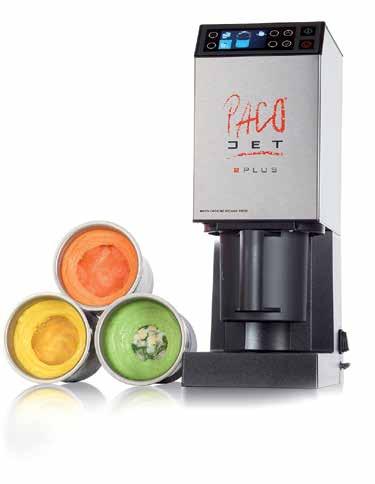

Universal preparation machine „PacoJet 2 Plus“
de preparación de cocina
2 Plus“
una mayor fuerza con un nivel de ruido decididamente inferior al de Pacojet Junior. Gestiona el vaso con 10 porciones y décimas de cada porción. Trabaja con 2 velocidades para optimizar el acercamiento del cuchillo al producto y el retorno en posición. Puerto USB para el diagnóstico. Display gráfico sencillo e intuitivo para la gestión de los distintos programas: elaboración hielo, elaboración fresco y limpieza.
escobillas de bajo consumo,
Küchenvorbereitungsmaschine „PacoJet 2 Plus“
Er ist mit einem energiesparenden Brushless-Motor ausgestattet und ent wickelt höhere Leistungsstärke bei deutlich geringerem Lärmpegel im Vergleich zu Pacojet Junior. Für die Portionierung ist der Becherinhalt in zehn Portionen und diese wiederum in zehn Dezimalportionen aufgeteilt. Arbeitet mit 2 Geschwindigkeitsstu fen, so dass die Annäherung des Messers an das zu bearbeitende Produkt und die Rückkehr in die Ausgangsposition effizienter wird. Mit USB-Anschluss für die Feh lerdiagnose. Einfaches, intuitives Grafikdisplay für die Steuerung der verschiedenen Programme: Gefrierverarbeitung, Frischverarbeitung und Reinigung.
Machine de préparation universelle „PacoJet 2 Plus“
Équipé de moteur sans balais, il développe une plus grande force avec un niveau sonore nettement inférieur par rapport à Pacojet Junior. Il gère le bol avec 10 portions entières et des dixièmes de portions. 2 vitesses de travail pour que le couteau s'approche du produit à travailler et retourne à sa position initiale de façon beaucoup plus efficace. Il est équipé d'une porte USB pour le diagnostic. Écran graphique simple et intuitif pour la gestion des différents programmes: transformation d'aliments congelés, d'aliments frais et nettoyage.
9
➀ Creativity and a vast range of possible uses ➁ The ideal container ➂ Into the blast chiller and then… ➃ …all in the freezer! ➄ Ready to be “pacotize” ➅ From 1 to 10 portions of flavour All changes concerning the products from our catalogues e.g. Prices, technical information, pictures need to be checked on our website www.virtusnet.de . Check also our stock availability. Alle Änderungen bezüglich der Produkte aus unseren Katalogen wie z.B. Preise, technischen Angaben, Bilder entnehmen Sie bitte unserer Website www.virtusnet.de. Rufen Sie auch aktuelle Lagerbestände ab. Order nr. PACOJETIIP Dimensions - Abmessungen W D • H mm 182 • 360 498 Volume - Fassungsvermögen lt 0,8 Air pressure - Luftdruck bar 1,0 Revolutions - Umdrehungen pro Minute rpm 2000 Working temperature - Arbeitstemperatur °C -18° -23° Absorbed power - Anschlusswert watt 950 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz
Equipped with a low-consumption brushless motor, it develops greater power with a decidedly lower noise level compared to Pacojet Junior. It manages the cup with 10 portions and tenths of each single portion. It has 2 speeds to enhance the knife’s efficiency when approaching the product to be processed and returning to its initial position. It features a USB port for diagnostics. Straightforward and intuitive graphic display for managing the various programmes: frozen processing, fresh processing and cleaning. Máquina
„PacoJet
Dotado de motor sin
desarrolla
Z/S69012010 4 cup set Z/S69012009 Set of knives for fresh food
10

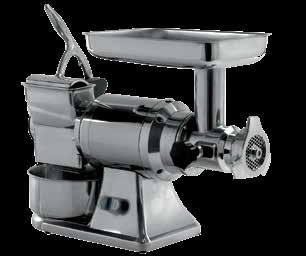

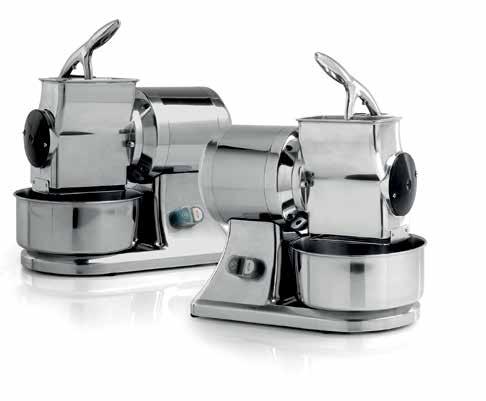

Protection grate/stainless steel drum for GF
Order nr. FHZ0001 FMC0001/F Dimensions - Abmessungen W • D • H mm 170 280 • 310 420 220 440 Version - Version grater mozzarella cutter Output - Produktion Kg / h 30 50 Mouth dimensions - Öffnung Abmessung mm 110 65 Revolutions - Umdrehungen pro Minute rpm 1400 1400 Absorbed power - Anschlusswert watt 380 750 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Order nr. Z/FF2280 Z/FF2182 Z/FF2281 Z/FF2282 Version - Version Ø 2,5 mm. cream cheese cutting disc Ø 7 mm. mozzarella cutting disc Ø 4 mm. vegetables cutting disc Ø 2 mm potato chip, mushroom cutting disc Meat mincers, Graters & Mozzarella cutter FHZ0001 FMC0001/F
and grater
mincing groups Enterprise Order nr. FIF0023 FIF0004 TCG22E/F Dimensions - Abmessungen W D • H mm 260 • 380 360 200 • 550 460 220 610 460 Output - Produktion meat Kg / h 15 200 300 grater Kg / h 30 50 70 Revolutions - Umdrehungen pro Minute meat rpm 80 200 300 grater rpm 1400 1400 1400 Mouth dimensions - Öffnung Abmessung meat Ø mm 60 70 75 grater Ø mm 100 65 140 • 80 140 • 82 Standard plate - Standard lochscheibe Ø mm 6 6 6 Absorbed power - Anschlusswert watt 380 750 900 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Meat Mincers
Professional equipment - Ideally suited for hotels, restaurants, tables, etc - AISI 304 stainless steel plated case - Speed reducer with oil immersed gears - Italian make asynchronous motor - Thermal protection - Stainless steel self-sharpening draw-plates included - Gear inversion option available - Loading meat inlet dimensions: 120x52 mm - Output mouth dimensions: mod. 8/Ø 60 mm. - mod.12/Ø 70 mm. - mod. 22/Ø 82 mm. - Stainless steel tray and hopper - Stainless steel gra ting roll plated with nikel electroless - Stainless steel cheese bowl - Safety Stainless steel protec tion grid placed at the bottom of the grating mouth - Safety micro switch placed on the mouth inlet - ABS pestle- 24 volt controls (FOR CE MODELS ONLY) Option: ·Half/total unger system. Proudly Made in Italy FIF0004 Order nr. FIF0016/F* FIF0001 FIF0002 FIF0003/22HP FIF0003 Dimensions - Abmessungen W D H mm 270 260 • 360 220 • 370 440 240 440 • 510 260 • 510 • 525 300 510 560 Output - Produktion Kg / h 15 200 300 500 600 Revolutions - Umdrehungen pro Minute rpm 80 200 140 140 140 Mouth dimensions - Öffnung Abmessung Ø mm 60 70 82 98 98 Standard plate - Standard lochscheibe Ø mm 6 6 6 6 6 Absorbed power - Anschlusswert watt 380 750 1100 1600 2200 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz * Device is not suitable for continuous commercial use GENERAL ACCESSORIES Model 8 Ø 60 mm Model 12 Ø 70 mm Model 22 Ø 82 mm Model 32 Ø 98 mm Plates Ø holes mm Order nr. Order nr. Order nr. Order nr. 2,0 Z/FF82 Z/FF2 Z/FF222 Z/FF322 3,0 Z/FF83 Z/FF3 Z/FF223 Z/FF323 3,5 Z/FF835 Z/FF3.5 Z/FF223.5 Z/FF323.5 4,5 Z/FF845 Z/FF4.5 Z/FF224.5 Z/FF324.5 6,0 Z/FF86 Z/FF6 Z/FF226 Z/FF326 8,0 Z/FF88 Z/FF8 Z/FF228 Z/FF328 11

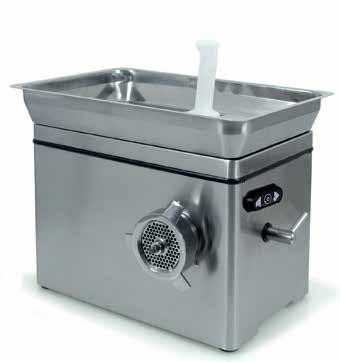

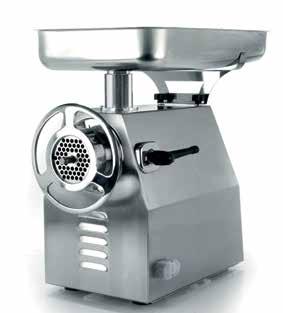

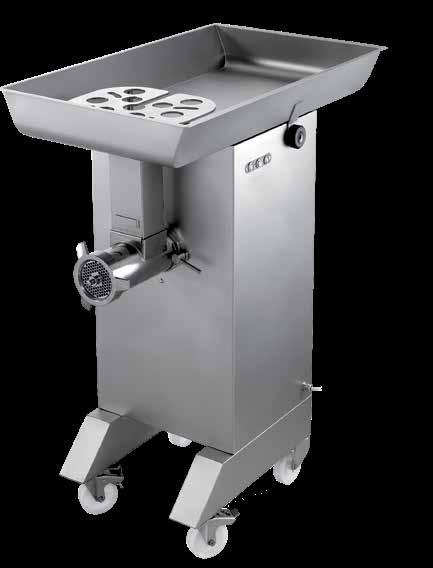

Meat Mincers
working cycle end: 50-90 g. – Stainless steel drive pin. – Tempered steel worm pin. – Grinding set is quickly disassembled – of faster cleaning and sanitation. – Square feeding “neck” allows for faster processing cycles. – Large 563x 900 x h 120 mm feeding tray with safety microswitch. – IP 67 water protected stainless steel controls with reverse (on CE versions).
Standard accessories: -Stainless steel self-sharpening knive and 6 mm plate. –Product pusher. – Worm and plate removing tool. – Use and maintenance manual.
Available versions: -Table top: “Short” legs with foot. – Medium: “Medium” legs with wheels and brake. – Tall: “Tall” legs, with wheels and brake.
Optional:
· Stainless steel splash guard. · Pedal controls. · Stainless steel 1/ 2 unger grinding set. · Stainless steel total unger grinding set. · Safety deflector if 8 + mm plates are installed. · Wide selection of plates and knives. · Overload protection (suggested).
12 Meat mincers Tensione Power Spannung Tension 400V /3+N / 50 Hz Potenza Power Puissance Potencia Prod.oraria (max) Output/h (max) Dèbit/h (max) Producciòn oraria (max) Piastra in dotazione Standard plate Fillères Placa en dotaciòn Dim. piastra Plate dimensions Dimensìons plaque Dimensiones placa A B C D E F G Peso netto Net weight Poids net Peso neto Watt/Hp Kg Ø mm Ø mm mm mm mm mm mm mm mm kg TC32MONT12HP4 2940/4 700 6 320 348 393 564 911 654 1169 1237 115 TC42MONT12HP7 5145/7 1200-1300 6 420 348 393 564 973 631 1171 1241 137 Z/STGO Tramoggia gigante / Oversize tray Trémie géante / Tolva gigante 348 393 626 1125 631 1282 1282 153 Z/SBLO Bocca lunga / Longer barrel head Bouche longue / Boca larga 348 393 564 1053 631 1171 1241 157 Z/STGBLO Tramoggia gigante + Bocca lunga / Oversize tray and Longer barrel head Trémie géante et Bouche longue / Tolva gigante y Boca larga 348 393 626 1215 631 1282 1282 173
AISI 304 stainless steel construction. Can be sprayed. Motors with thermal protection (on CE versions). Epycycloidal, oil-bath, water protected gear box. Grinding set: - Completely made from AISI 304 stainless steel. - Designed for high performance. – Machine works perfectly even if product is processed two or more times. – Hourly output until: 1.100 Kg (actual). – Hourly output until: 3500 kg (possible). –Unprocessed meat inside grinding – set at

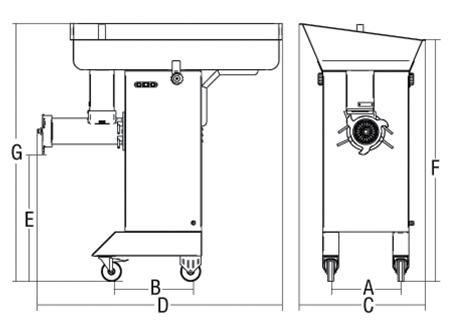

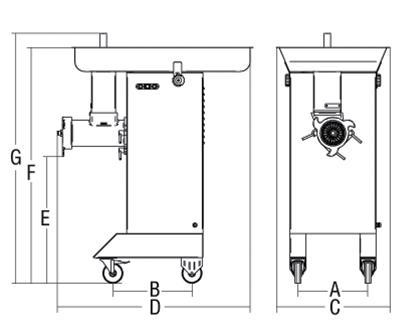

D B C B B E B F B G Meat Mincers - AISI 304 stainless steel construction - Powerful IP 55 insulated and fan-cooled motors for continuous use - Endless screw motor-reducer running in an oil-bath enables a long service life - Motor-reducer equipped with a double seal for long, trouble-free service - Convenient head interlock mechanism (CE versions) - Stainless steel mincing head carefully designed for high yeld production - Feed tray designed with square neck for outstanding performance - Feed tray provided with safety interlock (CE versions) - IP 54 protected, 24 V controls Potenza Power Puissance Potencia Prod.oraria (max) Output/h (max) Dèbit/h (max) Producciòn oraria (max) Piastra in dotazione Standard plate Fillères Placa en dotaciòn Dim. piastra Plate dimensions Dimensìons plaque Dimensiones placa A B C D E F G Peso netto Net weight Poids net Peso neto Watt/Hp Kg Ø mm Ø mm mm mm mm mm mm mm mm kg TC22NEVADA 1100/1,5 350 4,5 220 374 221 512 390 182 428 531 39 TC32NEVADAT 2205/3 650 285 637 455 207 447 551 72 Potenza Power Puissance Potencia Prod.oraria (max) Output/h (max) Dèbit/h (max) Producciòn oraria (max) Piastra in dotazione Standard plate Fillères Placa en dotaciòn Dim. piastra Plate dimensions Dimensìons plaque Dimensiones placa A B C D E F G Peso netto Net weight Poids net Peso neto Watt/Hp Kg Ø mm Ø mm mm mm mm mm mm mm mm kg FIF0009/SN 1475/2 350 4,5 220 374 221 512 390 182 428 531 70 FIF0010/SNT 2205/3 650 6,0 320 480 285 637 455 207 447 551 82 TCNEVADA Refrigerated TECHNICIAL SPECIFICATIONS - Transparent top protection cover. - Stainless steel handwheel and spiral. - Cooling system with digital control. - Hand protection provides safe operation. - Emergency stop. - Stainless steel body. - Mirror plate and blade as per international standards. 13

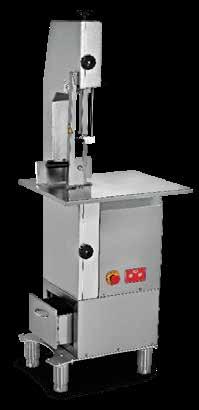

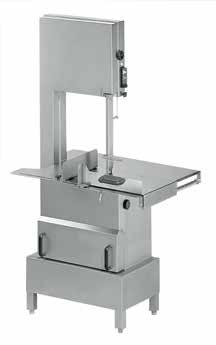

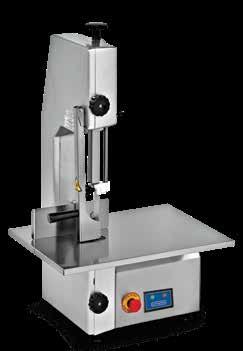

14 Anodized Bone Saws Code Description Dimension Weight Net a x b x c (mm) (kg) (m3) FiG0011/E Anodized Bone Saw 545x590x900 45 0.30 EMP.ETK.02 Anodized Bone Saw With Stand 550x670x1540 75 0.56 TECHNICIAL SPECIFICATIONS - Stainless steel working surface and blade. - Easy adjustable meat holding arm. - Frozen and fresh boned, boneless and cutting saw. - Emergency stop. EMP.ETK.01 Removable wastage tray for easy cleaning. Upper stainless steel guide blade and adjustable stainless steel blade guard. Alimentary plastic blade scraper in quick to insert. Watertight black plastic flange to protect the motor Easy removable special knob for fixing the pulley. Order nr. FIG0007SN FIG0002 FIG0009M Dimensions - Abmessungen W D H mm 535 • 520 815 560 568 • 1030 715 750 • 1670 Blade length - Bandsägelänge mm 1650 2020 2400 Pulley - Riemenscheibe Ø mm 210 250 300 Working surface - Arbeitsfläche mm 415 470 475 490 575 • 705 Revolutions - Umdrehungen pro Minute rpm 1400 1400 900 Absorbed power - Anschlusswert watt 1125 1125 1875 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Bone saws - Made from AISI 304 stainless steel. – Interlocked drip tray. (not on “Basic” version). – Easy demountable door for easy cleaning. – Bright finished aluminium pulleys. – Pulley with sealed bearing. – Motor with sealing ring. – Upper pulley with easy unlocking system. Fast blade replacement and thorough cleaning. (not available on “Basic” version). – Easy to replace scrapers. – High efficiency 6 or 8 poles motors. –Thermal protection on single phase motors. – Waterproof. (not high pressure)
Code Description Dimension Weight Output produktion Capacity a x b x c (mm) (kg) (Kg/h) (kg) 9550E/E Potato Peeler Machine 220V 540x760x965 42 300 10 9551E/E Potato Peeler Machine 380V 600x870x1065 53 600 20 FLC0001/f Potato Peeler Machine 230V 530X520X520 50 150 5 FLC0012/f Potato Peeler Machine 230V 530X660X850 55 300 10 FLC0003/f Potato Peeler Machine 400V 530X660X950 65 500 18 TECHNICIAL SPECIFICATIONS - Equipped with timer and con trol panel. - Machine stops once setted operation is completed. - Peeling time: 1-2 minute. - Stainless steel body. - Long lasting abrassive surface covered with silicium carbide. - Discharge from front door. - Product stop operating once the cover is open, as it has mag netic switch. FLC0001/f FLC0012/f FLC0003/f 9550E/E 9551E/E Order nr. FMD0001/F FMD0002/F Dimensions - Abmessungen W • D H mm 530 660 • 850 530 • 660 950 Output - Produktion Kg / h 150 250 Revolutions - Umdrehungen pro Minute rpm 180 180 Bowl volume - Fassungsvermögen Behälter Kg 10 18 Shell washer cycle - Muschelreinigungszyklus sec 120 - 150 150 - 180 Flexible pipe feeding - Flexible Rohrzuführung inch 3/4 3/4 Absorbed power - Anschlusswert watt 350 650 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Potato Peeler Machines Mussel Washers Shell washer Professional equipment – Ideally suited for restaurants and hotels – Entirely structured in AISI 304 s/steel – Ventilated asynchronous Italian make motor – Abrasives designed to enable the user to operate, clean and maintain with the minimum of effort – Water jets Electronic electronic valve – Safety micro switch assembled on the cover and chute – Unbreakable transparent plastic cover – Waste filter drawer included – Digital and user-friendly control panel – Electric parts covered by safety ergonomic plastic case – Multifunction digital timer – Manual discharge button – IP 55 plastic box control board protection – Wall or floor discharge outlet – Belt transmission – CE approved – Proudly Made in Italy 15
16 Meal Seal Machines Code Description Dimension Weight Net Power a x b x c (mm) (kg) (m3) (kw) FGZ0031 Meal Seal Machine 330x655x310 18 0.07 1 EMP.TKM.01-CM Custom Made Mold Price Difference TECHNICIAL SPECIFICATIONS - 1 kW 220 V electric connection. - Seal surface: 270x250 mm - Roll thickness of the film: 200 mm - Film width: 245 mm max. - Stainless steel body. Standart Mold 218 125109,3 220 271 271 271 271 220 125 104 108 108 104 218 125109,3 220 271 271 271 271 220 125 104 108 108 104 Order nr. FGZ0014 FGZ0016/E FGZ0015 Dimensions - Abmessungen W • D H mm 485 600 140 555 440 240 590 • 625 290 Film roll - Folienrolle max mm 450 400 500 Heating surface - Heizfläche mm 385 • 125 385 • 125 290 • 165 Absorbed power - Anschlusswert watt 120 170 115 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Dispenser : Designed for packing meat, cheese, pasta, fruits and vegetables; our wrapping machines offer a fast hygeninc service for supermarkets, butcher’s, delicatessens and wherever fresh products retail needs a quick and safe daily packaging. - Stainless steel body. - Anodized aluminium rollers and rods. - Heating surface temperature adjustable by thermostat. - Teflon coated section (do not smoke). TECHNICIAL SPECIFICATIONS
Seal the most
the
and stable stainless steel construction.
optional
with a lid with spring mechanism for easy and safe opening.
Welding process is almost effortless; resistance is minimal due to bearings and special sliding material.
Pressure absorber ensures a tight seal and prevents packages from crushing.
Insulated handle made of damage-resistant plastic.
guillotine with safety knife in specially designed cover; cutting takes place just behind the sealed container in a special strip (air-cut technology).
Film feeder with a stretcher prevents the film from curling up. Sealing surface has titanium coating that prevents film sticking and enables a fast seal in 1-3 seconds (depending on film thickness).
power heaters reduce heat-up time.
Warm-up time after start-up to full operational mode – approxima tely 8-10 minutes.
Knob with fine adjustment of sealing temperature from 50-210°C.
LEDs for monitoring appliance performance. Overheat lock, overheat protection, illuminated safety switch. Anti-slip feet ensure stability of the unit during operation and protect the tabletop from scratches.
Sealing of trays up to tray size
mm and cups up to (H)170 mm.
Maximum film roll size: width 187 mm, ø170 mm – film sold separately (970720).
Equipped with aluminium die for 227x178 mm containers (805572), without divider.
Detachable power cord, 1.5 m, grounded. Net weight: 10 kg.
TRAY SEALER MATRIX 976722
TRAY SEALER MATRIX 976722
of polished aluminium.
silicone seal.
805572 for a single-compartment
805572
805589
container ø165 mm 107,50
805626 for a three-container 227x178 mm tray 107,50
805633 for two soup containers ø115 mm
for a colt 227x178
805640 for a colt 227x178 mm two-compartment tray
for a single-compartment 178x113
805657 for a single-compartment 178x113 mm tray + ø115 mm container 107,50
a single-compartment
805664 for a single-compartment 187x137 mm tray
19 Code Description Dimension Net Power a x b x c (mm) (Kg) (kw) 976722 Meal Seal Machine 247x637x258 12 0,75
popular tray types on
market with
dies. Robust
Equipped
Automatic
High
Color-coded
235x190x(H)155

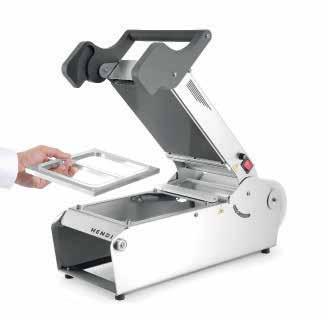

TRAY SEALING MACHINE Made of polished aluminium. Black silicone seal.
shape code type €
for a single-compartment 227x178 mm tray 107,50
for two 178x113 mm trays 107,50 805596 for a 227x178 mm two-compartment tray 107,50 805619 for large soup
shape code type €
Made
Black
shape code type €
227x178 mm tray 107,50 805589 for two 178x113 mm trays 107,50 805596 for a 227x178 mm two-compartment tray 107,50 805619 for large soup container ø165 mm 107,50 805626 for a three-container 227x178 mm tray 107,50 shape code type € 805633 for two soup containers ø115 mm 805640
mm two-compartment tray 805657
mm tray + ø115 mm container 107,50 805664 for
187x137 mm tray FILM FOR PET/CPP PEEL 12/40 SEALERS Designed for packaging PET 12 / CPP 40 food trays. PEEL layer for easy peeling off the sealed film. Film dimensions: width: 18.5 cm, length: 250 lm. Roll diameter: ø15 cm. Film roll weight: approx. 2.9 kg. code € 970720 39,95
Vacuum bags
VACUUM COOKING BAGS
Suitable for sous vide cooking.
2-ply, inside layer 60 µm food contact approved Polyethylene, outside layer 15µm Polyamide (Nylon).
Total thickness is 75 µm.
The used materials act as an UV filter.
Bags can be used in temperatures from -20˚ up to 110˚C. Suitable for chamber vacuum packing machines.
VACUUM PACKING BAGS, FOR CHAMBER
VACUUM PACKING MACHINES
layers
Inner layer made from food grade Polyethylene. Outer layer made from Polyamide (Nylon) – increases strength and guarantees airtightness Total thickness: 65 μm. Suitable for chamber vacuum packing machines. code mm
970676
250x150
200x150 970652
970683
300x200 970669
350x250 970690
400x300
970607 200x140 970386 230x160 970614 300x200 970393 350x250 970621 400x300
971314
450x350 971321
400x400 971338
500x380
EMBOSSED VACUUM BAGS ON ROLL - 2 PCS
2-ply, inside layer 60 µm food contact approved Polyethylene, outside layer 15µm Polyamide (Nylon).
Total thickness is 75 µm.
The used materials act as an UV filter. Embossing improves the air flow out of the bag during the vacuum packing process.
Bags can be used in temperatures from -20˚ up to 100˚C.
for chamber and external vacuum packing machines.
971062
EMBOSSED VACUUM BAGS
2-ply, inside layer 60 µm food contact approved Polyethylene, outside layer 15µm Polyamide (Nylon).
Total thickness is 75 µm.
The used materials act as an UV filter.
Embossing improves the air flow out of the bag during the vacuum packing process.
Bags can be used in temperatures from -20˚ up to 100˚C.
for chamber and external vacuum packing machines.
971017
200x300
20
2
code packed per mm
100
100
100
100
100
50
50
50
Suitable
code packed per mm
2 6000x200 971079 2 6000x280 code packed per mm
100 150x250 971024 100
971048 100 150x400 971055 100 250x350 971031 100 300x400 971000 50 400x500
Suitable
Vacuum machines
of durable high-quality
plastic makes it
make it possible to pack large
in the lid has a low leak rate
indicators (digital display and dial gauge) make it possible to pinpoint the moment when the required vacuum level is reached in the chamber of the packaging machine
vacuum time 5-90 s
bag sealing time advances every 0.5 s up to 6 s
function with adjustable time from 9 to 99 minutes
of one cycle: 9 min): the possibility to programme 11 cycles
extracting and letting air into the bag; thanks to negative pressure, marinade penetrates into the product faster, which significantly speeds up the whole process
packing cycle starts automatically when the upper lid is closed
pump ensures a short and very efficient packing cycle
be used with smooth and embossed bags
Order nr. FGZ0005* FGZ0012* FGZ0025* FGZ0013* FGZ0006 FGZ0026 Dimensions - Abmessungen W D • H mm 450 334 305 450 • 334 305 554 • 450 • 365 554 450 • 405 528 493 440 616 493 440 Volume - Fassungsvermögen W D • H mm 310 280 85 310 • 280 85 370 • 350 150 370 350 • 150 420 370 • 180 460 420 180 Vacuum pump - Vakuumpumpe m3 / h 4 8 8 16 21 21 Sealing bar - Schweissleiste mm 280 280 350 350 420 2x 420 Cycle - Zyklus sec 25 ÷ 60 15 ÷ 35 25 ÷ 60 15 ÷ 30 15 ÷ 35 15 ÷ 35 Programs - Programme memory 1 1 1 1 10 10 Absorbed power - Anschlusswert watt 300 400 400 550 750 750 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Order nr. FGZ0002/L FGZ0003/L FGZ0004/L Dimensions - Abmessungen W D H mm 370 260 130 420 280 • 170 520 • 280 170 Vacuum pump - Vakuumpumpe Q lt / min 20 ÷ 24 20 ÷ 24 40 ÷ 48 Sealing bar - Schweissleiste mm 350 400 500 Absorbed power - Anschlusswert watt 250 270 350 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50 Hz *NEW models are with Sensor control Standard with sensor-control • exact setting of vacuum% consistant packaging result • -saves time • -decreases risk of boiling 21 -For professional use in the catering industry and other industries -For packing food and technical products, including those with a high water content -Durable design – casing and chamber made of high-quality AISI 304 stainless steel -Transparent lid made
ABS
possible to control the packaging process -Convex lid and concave bottom
portions -Gasket
-Clear
-Adjustable
-Adjustable
-Marinating
(duration
of
-The
-Oil
-To

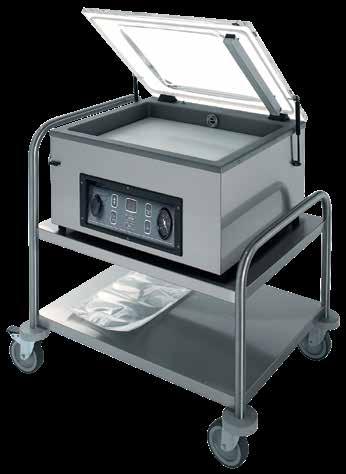

IFI0031 Vacuum machine trolleys, Dim: 810 630 • 850 mm

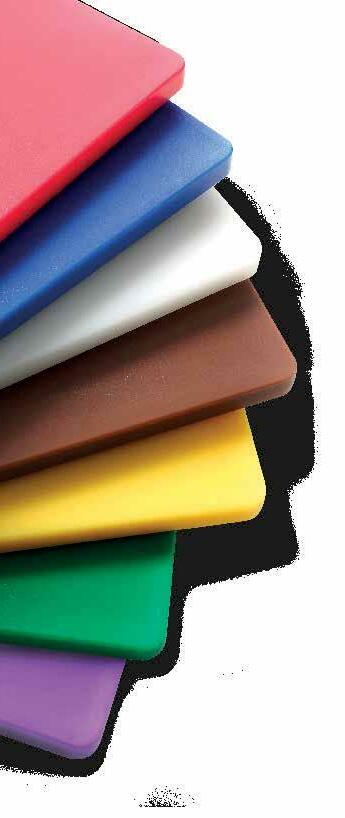

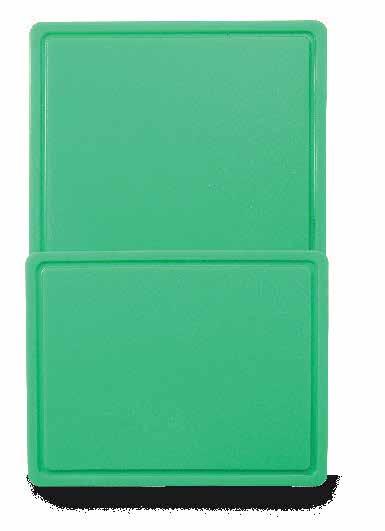

22 Cutting boards with juice groove Order nr. FCF3K4 FCF30K3 DE15K5N DE36K10N DE60K20N DE150K50N Dimensions - Abmessungen W D H mm 270 • 345 106 270 345 • 106 318 308 75 318 308 75 318 308 75 318 308 75 Display device - Anzeigengerät W D H mm 225 110 45 225 110 45 225 110 45 225 110 45 Weighing plate - Wägeplatte W D mm 253 228 253 228 318 • 308 318 • 308 318 • 308 318 • 308 Weighing range - Wägebereich max. kg 3,0 30 6 | 15 15 | 35 30 | 60 60 | 150 Readout - Ablesbarkeit gr 0,1 1,0 2 | 5 5 | 10 10 | 20 20 | 50 Minimal load - Mindestlast gr 2 20 100 100 200 400 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz Order nr. RFE6K3M RFE15K3M RFE30K3M BFB600K200SM BFB15T05SM Dimensions - Abmessungen W D H mm 320 • 450 • 130 320 450 • 130 320 • 450 130 1000 • 1000 85 1000 1000 85 Display device - Anzeigengerät W D H mm 250 • 160 58 250 160 58 Weighing plate - Wägeplatte W D mm 230 300 230 300 230 • 300 1000 1000 1000 • 1000 Weighing range - Wägebereich max. kg 3 | 6 6 | 15 15 | 30 600 1500 Readout - Ablesbarkeit gr 1 | 2 2 | 5 5 | 10 200 500 Minimal load - Mindestlast gr 20 40 100 4000 10000 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz Standard DE - With dust and spray protected display device and XXL display device FCF – Compact bench scale with multi-purpose functionality and a high level of accuracy for use in industry and gastronomy Standard BFSA01 Ascending ramp RFE - Compact portion scale with 2 XXL displays weight, unit price, total price and TARE value at a glance, equipped with column
Series Processing tables
Processing tables
Manufactured in stainless steel.
Polyethylene top with 20 mm of thickness for product processing.
Brown coloured for meat, blue coloured for fish and green for fruit and vegetables processing. 700 mm depth available.
½’’ Hole for drainage.
Waste hole.
Perforated working top. Adjustable feet.
Vorbereitungstische
Tables de préparation
Fabrication en acier inoxydable.
Planche de découpe en polyéthylène d’épaisseur 20 mm pour préparer les produits.
Couleur marron pour la viande, bleu pour poisson et vert pour préparation des fruits et légumes.
Profondeurs de 700 mm.
Trou sortie d’eau ½’’.
Avec trou vide-déchets. Plan de travail perforé. Pieds réglables.
Mesa de procesamiento
Fabricado
acero inoxidable.
de trabajo de polietileno con 20 mm de espesor para producto.
Marrón para carne, azul para pescado y verde para el procesamiento de frutas y hortalizas.
de 700 mm.
‘’ agujero para drenaje.
Agujero de residuos.
Superficie de trabajo perforada. Pies ajustables.

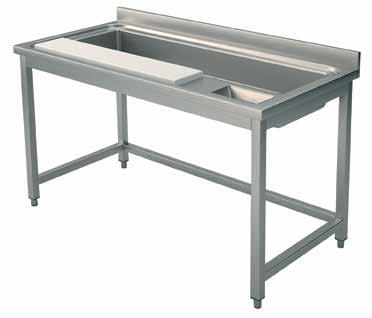

23 Vegetable processing table Gemüsevorbereitungstisch Table de préparation pour légumes Mesa de procesamiento de vegetales Meat processing table Fleischvorbereitungstisch Table de préparation pour vianade Mesa de procesamiento de carne Fish processing table Fischvorbereitungstisch Table de préparation pour poisson Mesa de procesamiento de pescado Dimensions mm Order nr. Order nr. Order nr. L D H 1400 700 850 DTPV714 DTLC714 DTLP714 2000 700 850 DTPV720 DTLC720 DTLP720 Dimensions mm Dimensions Sink mm Order nr. L D H L D H 1000 700 900 860 500 370 DLP710 1200 700 900 1060 500 370 DLP712 1400 700 900 1160 500 370 DLP714 1600 700 900 1360 500 370 DLP716 1800 700 900 1660 500 370 DLP718 Pot sink unit with pan support grid Topfspültisch mit Topfrostablage Plonge pour marmites avec grille Fregadero para ollas con soporte de bandeja
Hergestellt aus Edelstahl. Polyethylen 20 mm stark. Braun für Fleisch, blau für Fisch und grün für Gemüse. 700 mm Tiefe. 1/2“ Ablauf. Abfallloch. Gelochte Arbeitsoberfläche. Füße höhenverstellbar.
en
Superficie
Profundidad
H ½
Hole

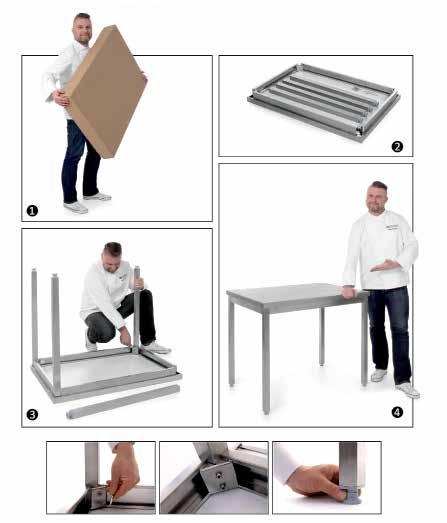

KNOCKED-DOWN
Stainless steel
and easy
- low
costs.
ALL ELEMENTS ARE READY-TO-ASSEMBLE, SCREWS AND HEX KEY INCLUDED
SOLID MODEL READY TO USE IN 5 MINUTES!
24
STABLE LEVELLING AND HEIGHT ADJUSTMENT SOLID FASTENING OF LEGS USING TWO SCREWS ADJUSTMENT HEX KEY FOR QUICK ASSEMBLY QUICK ASSEMBLY OF LEGS USING HEX KEY AND SCREWS
FURNITURE DELIVERED IN A HANDY PACKAGE
furniture for self-assembly. Fast
fastening. Compact packaging
shipping
Series Work Tables
Made of AISI 430 stainless steel
Welded for high durability and stability
Worktop filled from below with waterproof laminated board that reinforces and soundproofs the item
Approximate maximum load per worktop – 70 kg/m² 40 mm backsplash prevents the walls from being stained Door handles made of plastic Cabinet body moved from the wall by 100 mm to ensure easy wall-mounting
Feet height: 160 mm, adjustable feet – 25 mm upwards or 5 mm downwards

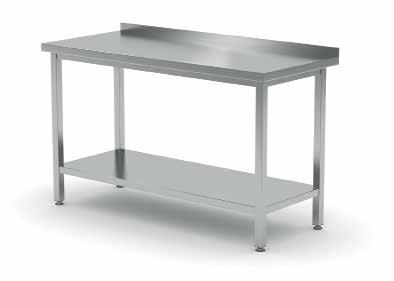

WALL WORK TABLE WITH A SHELF – SCREWED
With a 40 mm backsplash – to maintain hygiene. Rear legs moved from the wall by 150 mm to ensure easy wall-mounting. Adjustable feet – 25 mm upwards or 5 mm downwards.
HCA0058/U 1000x700x(H)850
HCA0059/U 1200x700x(H)850
STNA7014/U 1400x700x(H)850
HCA0060/U 1600x700x(H)850
STNA70180/U 1800x700x(H)850
WALL WORK TABLE WITH A SHELF – SCREWED
Stainless steel shelf mounted at 200 mm, non–adjustable Approximate maximum load per worktop and per shelf – 70 kg/m².
code mm
DEPTH 700 MM
HCA0027/U 800x700x(H)850
HCA0028/U 1000x700x(H)850
HCA0029/U 1200x700x(H)850
HCA0030/U 1400x700x(H)850
HCA0032/U 1600x700x(H)850 HCA0033/U 1800x700x(H)850
WALL WORK HOT TABLE CABINETS
Made of AISI 430 stainless steel Welded for high durability and stability Worktop filled from below with waterproof laminated board that reinforces and soundproofs the item 40 mm backsplash prevents the walls from being stained Cabinet body moved from the wall by 100 mm to ensure easy wall-mounting Feet height: 160 mm, adjustable feet – 25 mm upwards or 5 mm downwards
HCA0058/U 1000x700x(H)850
HCA0059/U 1200x700x(H)850
STNA7014/U 1400x700x(H)850 HCA0060/U 1600x700x(H)850
STNA70180/U 1800x700x(H)850
25
Drawers in stainless steel - With steel slides - Suitable to containers GN1/1 on depth 700 mm - Drawers sets in stainless steel - With drawers suitable to contain containers - 2 drawers H=200 mm - 3 drawers H=150 mm - 4 drawers H= 65 mm - GN1/1 on depth 700 mm WALL WORK TABLE CABINETS – WELDED
code mm
code mm
code mm CCA0003 without backsplash 600x700x(H)850CCA0004 with backsplash Sliding doors mounted on roller bearings Sliding doors mounted on roller bearings WORK TABLE CABINET WITH SLIDING DOORS - WELDED WORK HOT TABLE CABINET WITH SLIDING DOORS - WELDED
26 Made of polyethylene HDPE 500. Meets HACCP standards. Both sides suitable for cutting. Can be cleaned in professional dishwashers (short program). CUTTING BOARD HACCP Side with groove Smooth side CUTTING BOARD HACCP 600 300 400 CUTTING BOARD HACCP GASTRONORM 1/1 One side smooth and other side with groove. code colour mm thickness (mm) FCZ0026LN White 600x400 15 FCZ0024LN Red 600x400 15 FCZ0033 Blue 600x400 15 FCZ0022LN Green 600x400 15 FCZ0020LN Yellow 600x400 15 CUTTING BOARD HACCP GASTRONORM 1/2 One side smooth and other side with groove. code colour mm thickness (mm) FCZ0016LN White 300x400 15 FCZ0019LN Red 300x400 15 FCZ0032 Blue 300x400 15 FCZ0018LN Green 300x400 15 FCZ0017LN Yellow 300x400 15 VERYHARD POLYETHYLENE Z/LKCB004 Holder for 6 cutting boards Order nr. FCZ0006/F FCZ0015/F FCZ0007/F Dimensions - Abmessungen W D • H mm 500 500 • 900 700 500 • 900 1000 500 900 Working surface - Arbeitsfläche thickness mm 50 50 50
Series High

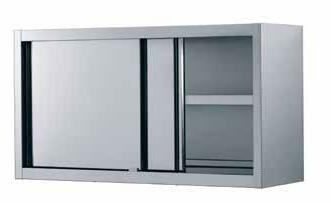

HANGING CABINET WITH SLIDING DOORS
– WELDED
Made of AISI 430 stainless steel.
Sliding doors prevent from hitting one’s head.
Door handles made of plastic for easy opening/closing and cleaning. Smooth internal surface for easy cleaning.
Maximum load per shelf: 70 kg/m², provided that the load is distributed evenly.
Welded for high durability and stability.
Delivered with special strip brackets for mounting on the wall.
mm
DEPTH 400 MM
HCC1011/U 1000x400x(H)660
HCC1012/U 1200x400x(H)660
HCC1013/U 1400x400x(H)660
HCC1015/U 1600x400x(H)660
HCC1016/U 1800x400x(H)660
HCC1017/U 2000x400x(H)660
THROUGH CUPBOARD WITH SLIDING DOORS
Made of durable stainless steel (AISI 430).
Fitted with 2, non adjustable,
fixed shelves (bottom and middle shelf).
Equipped with 4 sliding doors with
all
roller bearings.
The legs are adjustable in height (-5/+25
to guarantee a level instalment.
Flat pack delivery, needs assembly.
HCC0031 1000x700x(H)2000
HCC0032 1200x700x(H)2000
HCC0033 1400x700x(H)2000
1600x700x(H)2000
27
code
cupboards | Wall cupboards
removable shelves and 2
vertical handle,
on
mm)
code mm
HCC0035
Dimensions Order nr. Power supply Absorbed power Version L mm V-P-Hz watt 1000 ER10/U 230V/1+N/ 50-60 Hz 3x 250 Ceramic heating element Keramik-Heizelement Élément chauffant en céramique Elemento de calentamiento de cerámica 1200 ER12/U 230V/1+N/ 50-60 Hz 3x 250 1400 ER14/U 230V/1+N/ 50-60 Hz 4x 250 1600 ER16/U 230V/1+N/ 50-60 Hz 4x 250 1800 ER18/U 230V/1+N/ 50-60 Hz 5x 250 2000 ER20/U 230V/1+N/ 50-60 Hz 6x 250 Dimensions mm Order nr. L D H 1000 300 350 HCB0050 1200 300 350 HCB0051 1400 300 350 HCB0052 1500 300 350 HCB0053 1600 300 350 HCB0054 1800 300 350 HCB0055 2000 300 350 HCB0056 Dimensions mm Order nr. L D H 1000 300 650 HCB0057 1200 300 650 HCB0058 1400 300 650 HCB0059 1500 300 650 HCB0060 1600 300 650 HCB0061 1800 300 650 HCB0062 2000 300 650 HCB0063
28 All changes concerning the products from our catalogues e.g. Prices, technical information, pictures need to be checked on our website www.virtusnet.de . Check also our stock availability. Alle Änderungen bezüglich der Produkte aus unseren Katalogen wie z.B. Preise, technischen Angaben, Bilder entnehmen Sie bitte unserer Website www.virtusnet.de. Rufen Sie auch aktuelle Lagerbestände ab. Stainless steel perforated Polypropylene GN 1/1 Order Nr. L • D mm H mm FAA0049 530 325 100 FAA0041 530 325 65 FAA0058 530 325 40 GN 2/3 Order Nr. L • D mm H mm FAA0068 354 325 100 FAA0044 354 325 65 FAA0043 354 325 40 GN 1/2 Order Nr. L D mm H mm FAA0085 325 265 100 FAA0084 325 265 65 FAA0083 325 265 40 GN 1/1 Order Nr. L • D mm H mm FAA0107 530 325 200 FAA0108 530 325 150 FAA0109 530 325 100 FAA0110 530 325 65 GN 1/2 Order Nr. L D mm H mm FAA0111 325 265 200 FAA0112 325 265 150 FAA0113 325 265 100 FAA0114 325 265 65 GN 1/3 Order Nr. L • D mm H mm FAA0115 325 176 200 FAA0116 325 176 150 FAA0117 325 176 100 FAA0118 325 176 65 GN 1/4 Order Nr. L • D mm H mm FAA0119 265 162 200 FAA0120 265 162 150 1470815 265 162 100 FAA0121 265 162 65 GN 1/6 Order Nr. L D mm H mm FAA0122 176 162 200 FAA0123 176 162 150 1470915 176 162 100 FAA0124 176 162 65 Order Nr. L D mm GN FAA0125 1/1 FAA0126 1/2 FAA0127 1/3 FAA0128 1/4 FAA0129 1/6 FAZ0001 Dim.: 530 mm, GN 1/1 FAZ0002 Dim.: 325 mm, GN 1/2
29 Series Gastronorm pans & lids GN 2/1 Order Nr. L • D mm H mm FAA0056 650 530 200 FAA0055 650 530 150 FAA0054 650 530 100 FAA0053 650 530 65 FAA0050 650 530 40 FAA0052 650 530 20 GN 1/1 Order Nr. L D mm H mm FAA0006 530 325 200 9911.5 530 325 150 9911.4 530 325 100 9911.3 530 325 65 FAA0010 530 325 40 9911.1 530 325 20 GN 1/3 Order Nr. L • D mm H mm FAA0032 325 176 200 9913.5 325 176 150 9913.4 325 176 100 9913.3 325 176 65 FAA0029 325 176 40 9913.1 325 176 20 GN 2/3 Order Nr. L • D mm H mm FAA0027 354 325 200 FAA0026 354 325 150 FAA0025 354 325 100 FAA0024 354 325 65 FAA0023 354 325 40 FAA0022 354 325 20 GN 1/4 Order Nr. L • D mm H mm FAA0021 265 162 200 FAA0004 265 162 150 FAA0020 265 162 100 FAA0019 265 162 65 FAA0051 265 162 40 FAA0042 265 162 20 GN 1/2 Order Nr. L • D mm H mm FAA0018 325 265 200 9912.5 325 265 150 9912.4 325 265 100 9912.3 325 265 65 FAA0014 325 265 40 9912.1 325 265 20 GN 1/9 Order Nr. L • D mm H mm FAA0045 176 108 100 FAA0036 176 108 65 GN 1/6 Order Nr. L D mm H mm FAA0035 176 162 200 9916.5 176 162 150 9916.4 176 162 100 9916.3 176 162 65 Order Nr. L • D mm GN FAA0007 1/1 FAA0038 2/3 FAA0037 1/2 FAA0039 1/3 FAA0005 1/4 FAA0040 1/6 FAA0046 1/9 Stainless steel
30 Chainmail glove Fingerhandschuhe Order nr. size MGA515M M MGA515L L MGA515XL XL Sharpening Rods with special coating Stäbe mit Spezialbeschichtung Order nr. 9009200 Table top can opener Tisch-Dosenöffner Clamp base and bar in cast iron, st/st. head. Table fixing either with screws or clamp. Order nr. L mm 1981000 560 Pallet Palette Order nr. L • D H mm P80 1200 • 800 155 P100 1200 • 1000 160 Order nr. FIE0001 Version - Version fish scaling machine meat tenderizer Dimensions - Abmessungen W D H mm 190 240 • 230 480 390 • 460 Revolutions - Umdrehungen pro Minute rpm 1360 110 Roller - Walze width mm 250 Absorbed power - Anschlusswert watt 180 370 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50 Hz Chainmail glove, long Fingerhandschuhe, lang Order nr. size KRPBS301M M KRPBS301L L Protective apron Schutzschürze Order nr. dim mm BAAHGA9730 750 550 ! Tenderizing blade assembly with 96 blades included FOOD SAFE Fish scaling machine, Meat tenderizer Z/SGT48 Cutting blade assembly: 10 mm with 48 blades • Weatherproof • Food Safe • Use between -30° C and +60° C • Rounded corners • 3 runners • Anti slip edges
31 Order nr. GJZ0006 EL304/F EL308E/F Dimensions - Abmessungen W • D H mm 380 105 • 260 380 105 • 260 695 105 285 Coverage - Reichweite max. m2 40 100 240 UV-A lamps - UV-A Lampen watt 2x 8 2x 20 2x 40 Absorbed power - Anschlusswert watt 23 40 89 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Order nr. GHZ0005 GHZ0001/M Dimensions - Abmessungen W • D • H mm 552 131 • 620 400 • 130 670 Lamps and power - Lampen und Leistung n° / watt 1x 15 1x 16 Timer - Schaltuhr min 0 - 120 0 - 60 Knives capacity - Messerkapazität n° 10 max. blade 350 mm 14 max. blade 350 mm Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50 Hz Fly killers & Knife sterilizers ABS fire proof material for high safety. 2x UV-A tube. Insects are electrocuted with 2000 V. IPX4 waterproof, can be used indoor or outdoor. Removable collection tray, easy to clean. Chain mounting. INSECT KILLER WATER RESISTANT
32 Order nr. 8920/RN 8921/RN 8922/RN FEB0032 Dimensions - Abmessungen W D • H mm 345 480 335 480 • 530 • 375 480 550 430 740 • 540 • 460 Blade - Messer Ø mm 220 250 300 300 Cut thickness - Schnittbreite mm 14 ÷ 16 14 ÷ 16 14 ÷ 16 13 Run of carriage - Wagenschub mm 195 235 235 265 Hopper - Wagengröße mm 190 • 210 190 210 205 • 230 275 260 Absorbed power - Anschlusswert watt 140 140 180 210 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz
Slicing
33 Order nr. PALLADIO300 PALLADIO330 PALLADIO350 Dimensions - Abmessungen W D H mm 710 547 • 545 710 570 535 710 • 575 530 Blade - Messer Ø mm 300 330 350 Cut thickness - Schnittbreite mm 23 23 23 Run of carriage - Wagenschub mm 310 310 310 Hopper - Wagengröße mm 305 270 305 • 270 305 • 270 Absorbed power - Anschlusswert watt 275 275 370 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz Slicing machines FEB0032 Remarkable clearance between blade and machine body Large hopper
machines • Rounded design, no sharp edges and visibile screws. • Chrome plated and ground slide rod. • Lapped cast iron slide rod bushing. • Vulcanized rubber stops on carriage. • Remov able support cover for thickness gauge plate. • Stainless steel slice deflector with bayonet fitting. • Stainless steel screws and fittings. • Enclosed and sealed belt pulley. • 49,5 mm dis tance between blade and motor. • Bottom cover. • Changeover electronic circuit 110-220-380 V single and three phase. • Built in sharpening tool with bottom protection. • Standard blade removal tool. • 35° blade inclination.
PALLADIO
Slicing
34 Zavorra smontabile Removable food pusher Ampio spazio tra lama e corpo macchina Wide space between blade and motor FEB0033 FEB0034 FEB0035 MANTEGNA30BS MANTEGNA350BS FEB0018/SN Tensione Power Spannung Tension 230V /1+N / 50 Hz A B C D E F G X Y H W mm/inch. watt/Hp mm mm mm mm mm mm mm mm mm mm mm mm mm kg MANTEGNA30BS 300/12” 275/0,37 24 310 468 338 635 600 500 750 695 270 230 230 230 51,5 FEB0018/SN 330/13” 275/0,37 24 310 468 338 645 600 515 750 705 270 245 245 245 52 MANTEGNA350BS 350/14” 275/0,37 24 310 468 338 660 600 530 750 715 270 255 255 255 53 FEB0033 300/12” 275/0,37 24 310 468 338 635 685 500 720 560 250 225 225 225 52 FEB0034 330/13” 275/0,37 24 310 468 338 645 685 515 720 560 250 235 235 235 53 FEB0035 350/14” 275/0,37 24 310 468 338 660 685 530 720 560 250 245 245 245 54 F C B E G D A X Y=H W SLICING MACHINES - Innovative rounded design and no sharp edges or visible screws - Chrome plated ground and lapped slide rod - Lapped cast iron slide rod bushing - Vulcanised rubber stops on carriage - Removable support cover for thickness gauge plate - Cut thickness 30 mm. - Stainless steel slice deflector with snap-on bayonet fitting - Stainless steel screws and fittings - Bottom cover for accessing electrical components - Changeover electronic circuit 110-220-380 V single and three-phase - Built-in sharpening tool with bottom protection - Enclosed and sealed belt pulley - 48 mm distance between blade and motor - Standard blade removal tool Motre Motor Motor Moteur Spessore taglio Cut Thickness Schnittbreite Epaisseur de coupe Coresa carrello Run of carriage Wagenschub Course du chariot Ø Lama Ø Blade Ø Lame Ø Cuchukka Peso Weight Gewicht Poids
machines
35 Tensione Power Spannung Tension 230V /1+N / 50 Hz A B C D E F G X Y H W mm/inch. watt/Hp mm mm mm mm mm mm mm mm mm mm mm mm mm kg PALLADIO AUTOMATIC FEB0021/SN 300/12" 275+200/0,37+0,27 23 310 465 340 615 660 465 730 650 240/270 190 240 220 53 FEB0023/SN 330/13" 275+200/0,37+0,27 23 310 465 340 645 660 455 730 650 240/270 210 260 240 54 FEB0022/SN 350/14" 275+200/0,37+0,27 23 310 465 340 660 660 455 730 650 240/270 225 275 255 55 PALLADIO AUTOMATICA PALLADIO300AM 300/12" 275+180/0,37+0,24 23 310 465 340 667 660 670 685 750 240/270 190 240 220 70 PALLADIO350AM 350/14" 275+180/0,37+0,24 23 310 465 340 685 660 670 700 750 240/270 225 275 250 72 Motre Motor Motor Moteur Spessore taglio Cut Thickness Schnittbreite Epaisseur de coupe Coresa carrello Run of carriageWagenschubCourse du chariot Ø Lama Ø Blade Ø Lame Ø Cuchukka Peso Weight Gewicht Poids Palladio Automatica B D E G F C A SLICING MACHINES - Rounded design, no sharp edges and visibile screws. - Chrome plated and ground slide rod. - Lapped cast iron slide rod bushing. - Vulcanized rubber stops on carriage. - Removable support cover for thickness gauge plate. - Stainless steel slice deflector with bayonet fitting. - Stainless steel screws and fittings. - Enclosed and sealed belt pulley. - 49,5 mm distance between blade and motor. - Bottom cover. - Changeover electronic circuit 110-220-380 V single and three phase. - Built in sharpening tool with bottom protection. - Standard blade removal tool. - 35° blade inclination. Palladio Automatica - Ergomic controls – push buttons with IP67 protection rating. Comandi Automatica Automatica controls Palladio Automatic
36 A B C D E F G L X Y H W mm/inch. mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm kg FEB0030 300/12” 0÷3 285 270x295 520 180 770 625 510 855 590 90 270 200 200 200 78 LX350 350/14” 0÷3 345 320x350 592 180 820 780 560 910 615 120 330 255 255 255 90 Spessore taglio Cut Thickness Schnittbreite Epaisseur de coupe Corsa carrello Run of carriage Wagenschub Course du chariot Piatto Hopper Wagen Grosse PlateauØ Lama Ø Blade Ø Lame Ø Cuchukka Peso Weight Gewicht Poids A B EG D C F L X Y=H W SLICING MACHINES - 300 mm (12”) blade Flywheel slicer. - Polished and painted aluminum construction. - Featuring stainless steel and silver anodized aluminum details. - Patented motion system with no visible mechanical parts. - Table featuring a lateral movement with a double articulating arm BS1 to firmly hold and smoothly slide the produce through. - Removable carriage for ease of cleaning. - Simple, yet stylish Italian design, rounded for ease of cleaning. - The only one featuring a removable carriage. - Easy to clean and disassemble without tools. Z/S11001500 Red stand for FEB0030 Z/S11001000 Red stand for LX350 Slicing machines
37 Horizontal Cutters A B C D E F G H L M Watt/Hp Volt lt R.p.m. mm mm mm mm mm mm mm mm mm mm kg FLA0030 370/0,5 230V /1+N / 50 Hz 6,0 1440 297 540 356 714 505 833 583 92 470 766 60 FLA0031 750/1,0 230V /1+N / 50 Hz 12,0 1440 335 600 394 759 587 902 680 92 512 854 75 A B C D EF G H L M FLA0031 FLA0030 Peso Weight Gewicht PoidsTensione Power Spannung Tension Capacità vasca Bowl capacity Capacitè cuve Capacidad tuba Potenza Power Puissance Potencia FLA0030 & FLA0031 - Completely made in AISI 304 stainless steel - Blade driven by powerful ventilated asynchronous motor - Sturdy, removable AISI 304 stainless steel bowl - Easily removable interlocking lid to facilitate cleaning and sanitising - Controls with IP 67 stainless steel buttons - Easily removable blade hub - Hub with 2 blades is standard, 3 blade hub is optionalMaximum protection against liquid infiltration on the shaft - Perfect for meat and vegetables, but also suitable for many other types of processing
Hamburger automatic machine
ROBUSTNESS AND RELIABILITY
and
require
PRODUCTIVITY
is 15 liters assuring a con tinuous and silent production. The
need any special
requires just one single
to work.
motor is completely isolated and ther mally protected.
has magnetic sensors in sequence to protect without hindering the work.
in contact with the product meet the international standards.
Z/O71871
Z/O71872
Hamburger Press
mm hamburgers.
aluminium alloy with non-stick coating.
of polypropylene.
Hamburger Press
Components in contact with meat are made of stainless steel.
of anodised aluminium.
removing prepared hamburger patties from the press bowl.
38 Order nr. 7401A FIB0004 FIB0003 FIB0005 FIB0006 Dimensions - Abmessungen W D • H mm 255 250 275 255 270 • 320 260 • 310 360 260 330 • 360 265 • 330 360 Version - Version hamburger presse hamburger presse hamburger presse hamburger presse hamburger presse Diameter mould - Durchmesser Presse Ø mm 130 100 130 150 180 Ø MEATBALL 40 mm WEIGHT MEATBALL 10 - 40 gr HEIGHT MEATBALL 10 - 27 mm CAPACITY 8 pcs Z/O71874
Ø HAMBURGER 98 mm WEIGHT HAMBURGER 80 - 240 gr HEIGHT HAMBURGER 5 - 27 mm CAPACITY 4 pcs Hamburger presses A C E B D F G H
Ø HAMBURGER 90 mm WEIGHT HAMBURGER 60 - 200 gr HEIGHT HAMBURGER 5 - 27 mm CAPACITY 4 pcs Cellophane divider sheets presses Order nr. Ø mm Z/S28010605 100 Z/S28010608 130 Z/S28010612 150 Z/S28010618 180 FIB0001
▲ Automatic machine for the continuous production of hamburgers and meatballs. Essential for large communities, laboratories of meat and those who need to produce quickly and accurately. Perfect results: it prepares pieces that are always perfectly identical in size and weight, providing a large production of hamburgers (1200/h) and meatballs (2400/h).
▲ The machine is compact
composed of parts that do not
preventive maintenance. Ven tilated motor, hopper and mixing group are constructed entirely of stainless steel.
▲ Hopper capacity
machine doesn’t
installation and
operator
SAFETY ▲ The
The machine
All parts
Bottom housing made
Handy lever for
Container for patty dividers.
Makes Ø 115
Made of
Handle made
39 Sausage filling machines 282151282151 10 L SAUSAGE FILLING MACHINES Made of stainless steel. Equipped with a two-speed filling system: – quick gear for lifting the piston – slow gear (low load) for filling the skins with stuffing. Parts that have contact with food are removable for easy filling and cleaning. Supplied with a set of 4 stainless steel funnels, diameter: ø16, ø22, ø32 and ø38 mm, 180 mm long. Equipped with bearings and gear train made of hardened steel, resistant to pressure. PROFI LINE SAUSAGE FILLING MACHINE CAPACITY UP TO Made of stainless steel. Durable gear system – made of hardened steel. Parts that come in contact with food are easily removed, easing filling and cleaning. With a set of 4 stainless steel funnels 16/22/32/38 mm Code Liters Dimension a x b x c (mm) 282571 3 304x304x(H)525 282588 5 304x304x(H)640 282090 7 304x304x(H)830 282151 10 304x304x(H)690
MIXERS
40 Meat mixers E D A B C A B C D E F G Watt/Hp Volt mm lt/kg mm mm mm mm mm mm mm kg IP50BAXP Basculante (2x) 550/0,75 230 V / 1+N / 50 Hz 420x500 88/50 810 630 730 1030 1617 1220 500 90 FID0007 Basculante (2x) 550/0,75 400 V / 3+N / 50 Hz 620x500 110/80 1000 630 730 1030 1617 1220 500 110 FID0008 Grande 2200-3 400 V / 3+N / 50 Hz 995x550 250/180 1360 670 1000 1080 1260 180 AB C E D MEAT
AISI 304 stainless steel base and castors. Tilting tank. Two mixing arms system. Removable AISI 304 stainless steel mixing arms. (no tools required). Oil-bath gear box, ground and tempered helical gears. IP 54 protection rated controls with reverse. Safety microswitch on the cover. Minimum loading required: 50% max capacity. Perfect for hard mix and salad. Optional: · Stainless steel IP 67 protection rated controls. · Speed control and reverse. Peso Weight Gewicht PoidsTensione Power Spannung Tension Capacità vasca Bowl capacity Capacitè cuve Capacidad tuba Dimensione vasca Dimension capacity Dimensions cuve Dimensiones cuba Potenza Power Puissance Potencia
41
