CAFFETTERIA

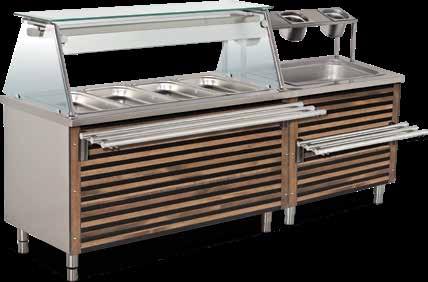

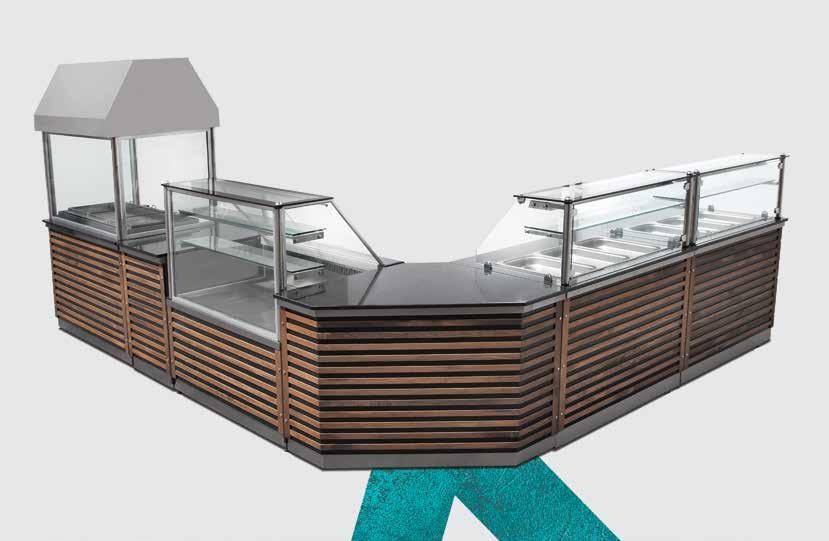

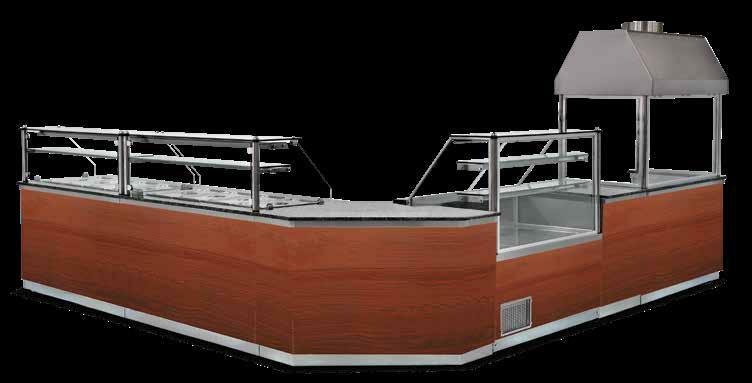

6 Bainmarie and Neutral Service Units Cover not included - GN containers not included Housse non incluse - GN Bacs non inclus Abdeckung nicht enthalten GN-Behälter nicht enthalten Funda no incluida - Contenedores GN no incluidos. Order nr. IEC0054 IEC0055 IEC0056 Dimensions - Abmessungen W • D • H mm 1100 • 880 • 850 / 1150 1500 • 880 • 850 / 1150 2000 • 880 • 850 / 1150 Volume - Fassungsvermögen Doors / GN 2 3x GN 1/1 max 150 mm h 2 4x GN 1/1 max 150 mm h 3 5x GN 1/1 max 150 mm h Working temperature - Arbeitstemperatur °C 0° +10° 0° +10° 0° +10° Ambient temperature - Umgebungstemperatur °C / RH +35° / 45% +35° / 45% +35° / 45% Lighting - Beleuchtung LED yes yes yes Refrigerant gas - Kältemittel gas R290 R290 R290 Cooling - Kühlung ventilated ventilated ventilated Defrost – Abtauung automatic automatic automatic Absorbed power - Anschlusswert watt 398 507 507 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz

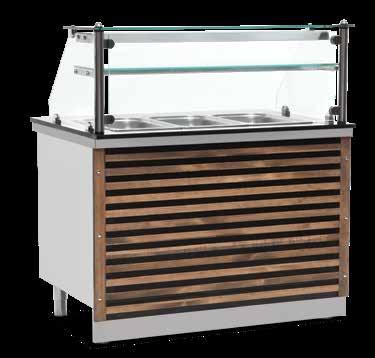

7 Bainmarie Service Units Order nr. IEA0024 IEA0025 IEA0026 Dimensions - Abmessungen W • D • H mm 1100 • 880 • 850 / 1150 1500 • 880 • 850 / 1150 2000 • 880 • 850 / 1150 Volume - Fassungsvermögen GN 3x GN 1/1 max 150 mm h 4x GN 1/1 max 150 mm h 5x GN 1/1 max 150 mm h Working temperature - Arbeitstemperatur °C max. +90° max. +90° max. +90° Lighting - Beleuchtung LED yes yes yes Heating - Beheizung static wet static wet static wet Absorbed power - Anschlusswert watt 2000 3000 3000 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz Hot & Cold display counters • Black granite is used for worktops (thickness up to 5 cm) • Unit width is 88 cm, The refrigerator body depth is 80 cm • Workbench on the chef side is 25 cm (Large and comfortable work area) • Front panel is made of wood material • Stainless steel feet • Top glass width 30 cm • Internal and external stainless steel • Cooling group, slide-out removable for cleaning • Digital thermostat, auto defrost and auto evaporation are available for refrigerator sections Kalte- und Warme-Theken • Schwarze Granitarbeitsplatte bis zu 5 cm stark • Gesamtprodukttiefe 88 cm, Korpus 80 cm • Ablagefläche Bedienerseite 25 cm (breite und komfortable Arbeitsfläche) • Frontverkleidung aus Holz • Edelstahlfüße • Verglasung 30 cm hoch • Hergestellt aus Edelstahl • Kühleinheit herausziehbar • Digitale Steuerung, automatische Abtauung und Verdampfung • Rückseite mit Schiebetüren Comptoirs froids et chauds • Plan de travail en granit noir (jusqu'à 5 cm d'épaisseur) • Profondeur totale du produit 88 cm, corps 80 cm • Surface du plateau côté opérateur 25 cm (surface de travail large et confortable) • Panneau avant de bois • Pieds en acier inoxydable • Vitrage 30 cm de haut • Fabriqué en acier inoxydable • Unité de refroidissement amovible • Commande numérique, dégivrage et évaporation automatique • Arrière avec portes coulissantes

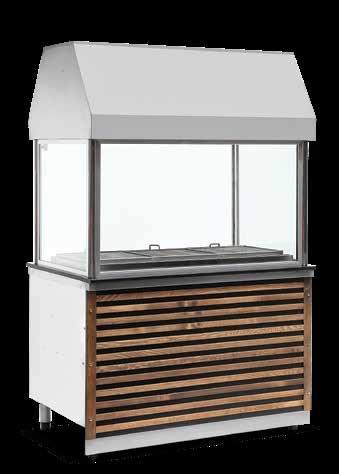

8 Display Type Grills (with Hood) TECHNICIAL SPECIFICATIONS - Coal grill firebrick. - Tempered glass. - Hood with filter. - Inside lighting. - Coal drawer. - Stainless steel body. Charcoal grill • Stainless steel body • Front cover in stainless steel • Black granite counter top • Charcoal grill with exhaust • Charcoal drawer • Tempered glass on 3 sides • Flameguard stainless steel filters Holzkohlegrill • Edelstahlkonstruktion • Frontverkleidung aus Edelstahl • Arbeitsplatte aus schwarzem Granit • Holzkohlegrill mit Abzugshaube • Holzkohleschubladen • 3-seitig aus gehärtetem Glas • Flammschutz-Edelstahl-Filter Barbecue au charbon • Construction en acier inoxydable • Panneau avant en acier inoxydable • Dessus de travail en granit noir • Gril à charbon avec canopée • Tiroir à charbon • Verre trempé 3 côtés • Filtres en acier inoxydable Flameguard Parrilla de carbón • Cuerpo de acero inoxidable. • Tapa frontal en acero inoxidable. • Encimera de granito negro • Parrilla de carbón con escape • Cajón de carbón • Vidrio templado en 3 lados. • Filtro ignífugo de acero inoxidable. Order Nr. AJJ0005 AJJ0006 Dimensions - Abmessungen W • D • H mm 1400 • 880 • 1900 1800 • 880 • 1900 Grill zone - Grillfläche mm 1200 1600

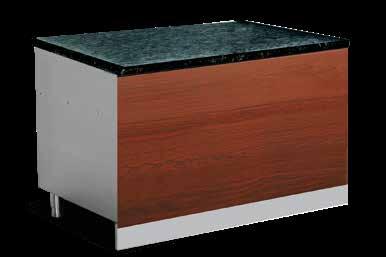

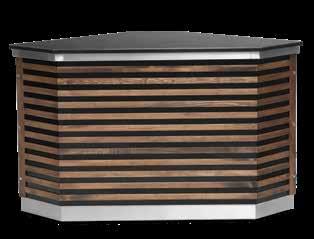

9 Neutral Service Units TECHNICIAL SPECIFICATIONS - Adjustable feets. - Optional wooden front surface. - Stainless steel body. Order nr. IEB0007 IEB0008 IEB0009 IEB0010 Dimensions - Abmessungen W • D • H mm 600 • 880 • 850 800 • 880 • 850 1000 • 880 • 850 1200 • 1200 850 Drawers - Schubladen n° 1 1 1 Refrigerant gas - Kältemittel gas Ambient temperature - Umgebungstem peratur °C / RH Absorbed power - Anschlusswert watt Power supply - Netzspannung V-P-Hz Cover not included - GN containers not included Housse non incluse - GN Bacs non inclus Abdeckung nicht enthalten GN-Behälter nicht enthalten Funda no incluida - Contenedores GN no incluidos.

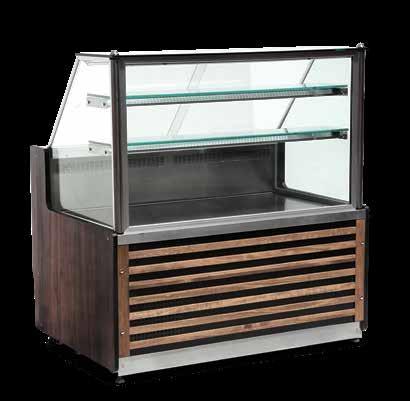

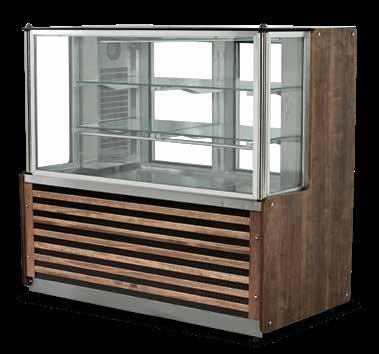

10 Mercury Meat and Appetizer Showcases (Flat Glass) Order nr. BGB0300 BGB0301 BGB0302 Dimensions - Abmessungen W • D • H mm 1000 • 780 • 1350 1400 • 780 • 1350 1800 • 780 • 1350 Working temperature - Arbeitstemperatur °C 0° +8° 0° +8° 0° +8° Ambient temperature - Umgebungstem peratur °C / RH +35° / 45% +35° / 45% +35° / 45% Lighting - Beleuchtung LED yes yes yes Refrigerant gas - Kältemittel gas R290 R290 R290 Cooling - Kühlung ventilated ventilated ventilated Defrost – Abtauung automatic automatic automatic Absorbed power - Anschlusswert watt 790 1645 2250 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz Pastry display cabinet • Fan cooling • Digital Thermostat, automatic evaporation • Internal made of stainless steel AISI 304 • Construction; stainless steel, wooden front cover • 2 middle shelves • Sliding doors at the backside Konditorei-Theke • Umluftkühlung • Digitale Steuerung, automatische Verdamp fung • Innen aus Edelstahl AISI 304 • Korpus aus Edelstahl, Frontverkleidung aus Holz • 2 Regalböden • Schiebtüren auf der Bedienerseite Comptoir réfrigéré de pâtis serie • Refroidissement de recirculation • Contrôle numérique, évaporation automa tique • Intérieur en acier inoxydable AISI 304 • Corps en acier inoxydable, panneau avant en bois • 2 étagères • Portes coulissantes côté serveur Pasteles mostrador refriger ado • Enfriamiento de recirculación • Control digital, evaporación automática • Interior de acero inoxidable AISI 304 • Cuerpo de acero inoxidable, panel frontal de madera • 2 estantes • Puertas corredizas en el lado del servidor
11 Pluton Meat and Apettizer Showcase (Flat Glass) Order nr. BGB0280 BGB0281 BGB0282 Dimensions - Abmessungen W • D • H mm 1000 • 880 • 1350 1400 • 880 • 1350 1800 • 880 • 1350 Working temperature - Arbeitstemperatur °C 0° +4° 0° +4° 0° +4° Ambient temperature - Umgebungstem peratur °C / RH +35° / 45% +35° / 45% +35° / 45% Lighting - Beleuchtung LED yes yes yes Refrigerant gas - Kältemittel gas R290 R290 R290 Cooling - Kühlung static static static Defrost – Abtauung automatic automatic automatic Absorbed power - Anschlusswert watt 1438 1860 2075 Power supply - Netzspannung V-P-Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz 230V/1+N/ 50-60 Hz Refrigerated meat display counters • Static cooling • Under-set storage system • Automatic evaporation • Digital thermostat with temperature control • Internal made in stainless steel AISI 304 • Construction: body of stainless steel, wood front covers • Ecology friendly CFC free polyurethane insulation Fleisch-Kühltheken • Statische Kühlung • Unterbaukühlfächer • Automatische Verdampfung • Temperaturkontrolle durch digitales Ther mostat • Arbeitsfläche hergestellt aus Edelstahl AISI 304 • Konstruktion: Korpus aus Edelstahl, Front verkleidung aus Holz • FCKW frei Comptoirs réfrigéré à viande • Refroidissement statique - Système de rangement sous-ensemble - Évaporation automatique - Contrôle de température - Intérieur en acier inoxydable AISI 304 - Construction: corps en acier inoxydable, couvercles en bois - Isolation écologique sans CFC en polyurét hane Mostradores de carnes refrig erado • Enfriamiento estático • Almacenamiento debajo • Evaporación automática. • Termostato digital con control de tempera tura. • Interior realizado en acero inoxidable AISI 304. • Construcción: cuerpo de acero inoxidable, cubiertas frontales madera • Aislamiento de poliuretano sin CFC ecológico

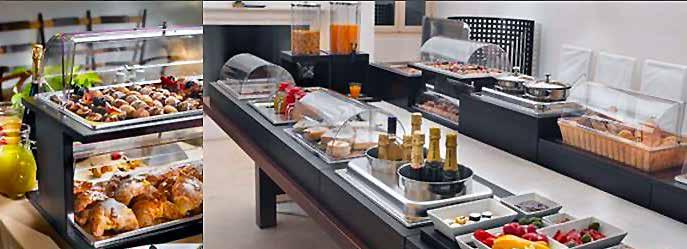

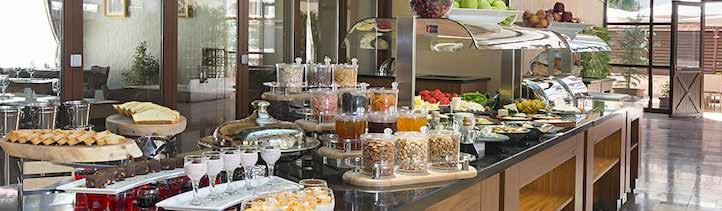

Hotel breakfast buffet
GLT.NTR-N.01
GLT.NTR-N.02
GLT.NTR-N.03
GLT.NTR-N.04
GLT.NTR-N.05
GLT.NTR-N.06
GLT.NTR-N.07
GLT.NTR-N.08
GLT.NTR.01
GLT.NTR.02
GLT.NTR.03
GLT.NTR.04
GLT.NTR.05
GLT.NTR.06
GLT.NTR.07
GLT.NTR.08
TECHNICIAL SPECIFICATIONS
1200x900x900
1400x900x900
1600x900x900
1800x900x900
2000x900x900
2200x900x900
2400x900x900

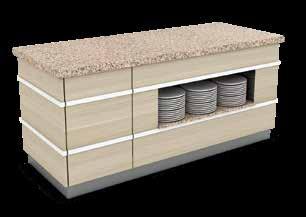

14 Service Units Code Description Dimension a x b x c (mm)
Service Units 1000x900x900
Service Units
Service Units
Service Units
Service Units
Service Units
Service Units
Service Units

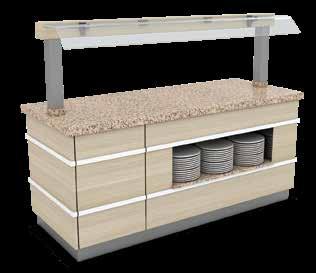

TECHNICIAL SPECIFICATIONS - Granite table. - Wooden Decoration. - Stainless steel frame. - With sneeze guard. - Led lighting. - Plate shelve. - Other typology for granite and wood on request Code Description Dimension a x b x c (mm)
Service Units With Sneeze Guard 1000x900x900/1550
Service Units With Sneeze Guard 1200x900x900/1550
Service Units With Sneeze Guard 1400x900x900/1550
Service Units With Sneeze Guard 1600x900x900/1550
Service Units With Sneeze Guard 1800x900x900/1550
Service Units With Sneeze Guard 2000x900x900/1550
Service Units With Sneeze Guard 2200x900x900/1550
Service Units With Sneeze Guard 2400x900x900/1550
- Granite table. - Wooden Decoration. - Stainless steel frame. - Plate shelve. - Other typology for granite and wood on request
GLT.SSU-N.01
GLT.SSU-N.02
GLT.SSU-N.03
GLT.SSU-N.04
GLT.SSU-N.05
GLT.SSU-N.06
GLT.SSU-N.07
GLT.SSU-N.08
Sneeze
SPECIFICATIONS
GLT.P.SSU.01
GLT.P.SSU.02
GLT.P.SSU.03
GLT.P.SSU.04
GLT.P.SSU.06
1000x900x900/1550
Sneeze Guard 1200x900x900/1550
Sneeze Guard 1400x900x900/1550
Sneeze Guard 1600x900x900/1550
Sneeze Guard 1800x900x900/1550
Sneeze Guard 2000x900x900/1550
Sneeze Guard 2200x900x900/1550
Sneeze Guard 2400x900x900/1550

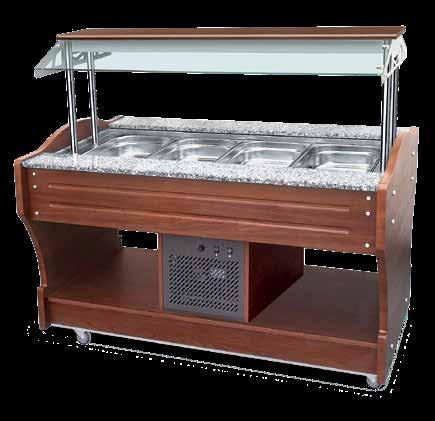

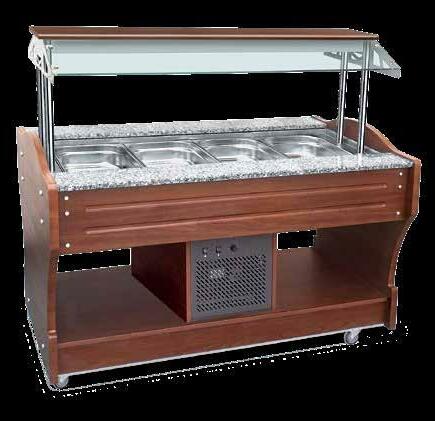

15 Cold Service Units (With Sneeze Guard) Code Description Dimension a x b x c (mm)
Cold Service Units With
Guard
Cold Service Units With
Cold Service Units With
Cold Service Units With
Cold Service Units With
Cold Service Units With
Cold Service Units With
Cold Service Units With
Code Description Dimension a x b x c (mm)
S/S Cold Service Units With Sneeze Guard 1000x900x900/1550
S/S Cold Service Units With Sneeze Guard 1200x900x900/1550
S/S Cold Service Units With Sneeze Guard 1400x900x900/1550
S/S Cold Service Units With Sneeze Guard 1600x900x900/1550 GLT.P.SSU.05 S/S Cold Service Units With Sneeze Guard 1800x900x900/1550
S/S Cold Service Units With Sneeze Guard 2000x900x900/1550 GLT.P.SSU.07 S/S Cold Service Units With Sneeze Guard 2200x900x900/1550 GLT.P.SSU.08 S/S Cold Service Units With Sneeze Guard 2400x900x900/1550 TECHNICIAL
- Granite top cold table. - Wooden Decoration. - Stainless steel frame. - With sneeze guard. - Led lighting. - Plate shelve. TECHNICIAL SPECIFICATIONS - Granite table. - Stainless steel cold table. - Wooden Decoration. - Stainless steel frame. - With sneeze guard. - Led lighting. - Plate shelve. - Other typology for granite and wood on request
GLT.SSB.01
1/1
1/1
1/1

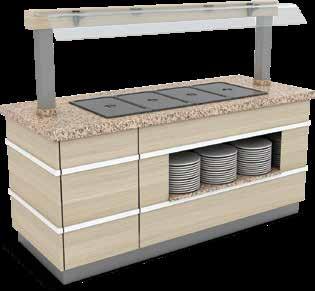

16 Code Description Dimension Capacity a x b x c (mm) (gn)
Hot Service Units With Sneeze Guard 1000x900x900/1550 2 x 1/1 Gn GLT.SSB.02 Hot Service Units With Sneeze Guard 1200x900x900/1550 3 x
Gn GLT.SSB.03 Hot Service Units With Sneeze Guard 1400x900x900/1550 4 x
Gn GLT.SSB.04 Hot Service Units With Sneeze Guard 1600x900x900/1550 5 x

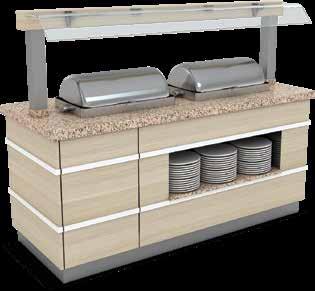

Gn Code Description Dimension Capacity a x b x c (mm) (gn) GLT.SSC-N.01 Hot Service Units Chafing Dish 1200x900x900/1550 1/1 Gn Dish GLT.SSC-N.02 Hot Service Units Chafing Dish 1800x900x900/1550 2x(1/1 Gn) Dish GLT.SSC-N.03 Hot Service Units Chafing Dish 2600x900x900/1550 3x(1/1 Gn) Dish Hot Service Units (With Sneeze Guard) TECHNICIAL SPECIFICATIONS - Granite top table. - Wooden Decoration. - Stainless steel frame. - With sneeze guard. - Led lighting. - Plate shelve. - Stainless steel well. - Other typology for granite and wood on request Standart product does not have containers. TECHNICIAL SPECIFICATIONS - Granite top table. - Wooden Decoration. - Stainless steel frame. - With sneeze guard. - Led lighting. - Plate shelve. - Other typology for granite and wood on request

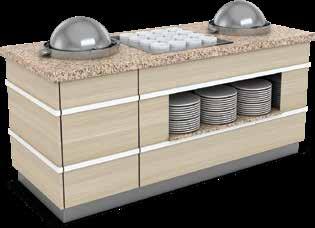

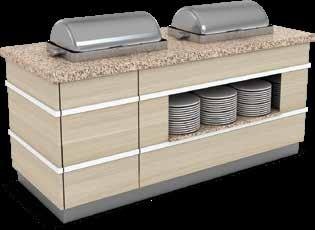

17 TECHNICIAL SPECIFICATIONS TECHNICIAL SPECIFICATIONS - Granite top table. - Wooden Decoration. - Stainless steel frame. - Plate shelve. - Other typology for granite and wood on request - Granite top table. - Wooden Decoration. - Stainless steel frame. - Plate shelve. - Other typology for granite and wood on request Hot Service Units (Chafing Dish) Code Description Dimension Capacity a x b x c (mm) (gn) GLT.SSC.01 Hot Service Units Chafing Dish 1200x900x900 1x1/1 Gn Dish GLT.SSC.02 Hot Service Units Chafing Dish 1800x900x900 2x1/1 Gn Dish GLT.SSC.03 Hot Service Units Chafing Dish 2600x900x900 3x1/1 Gn Dish Soup Service Units Soup Service Units Code Description Dimension Capacity a x b x c (mm) (gn) GLT.CSU.01 Soup Service Units 1400x900x900 1 Soup Dispenser GLT.CSU.02 Soup Service Units 2000x900x900 2 Soup Dispenser GLT.CSU.03 Soup Service Units 2400x900x900 3 Soup Dispenser
GLT.ESU.01
GLT.ESU.02
GLT.ESU.03
GLT.ESU.04
GLT.ESU.05
GLT.ESU.06
GLT.ESU.07
1000x900x900
1200x900x900
1400x900x900
1600x900x900
1800x900x900
2000x900x900
2200x900x900
2400x900x900

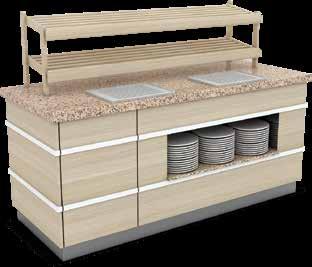

18 Bread Service Units Code Description Dimension a x b x c (mm)
Bread Service Units
Bread Service Units
Bread Service Units
Bread Service Units
Bread Service Units
Bread Service Units
Bread Service Units
GLT.ESU.08 Bread Service Units
TECHNICIAL SPECIFICATIONS - Granite top table. - Wooden Decoration. - Stainless steel frame. - Plate shelve. - Other typology for granite and wood on request Plate Dispenser Code Description Dimension Capacity a x b x c (mm) GLT.TD.01 Plate Dispenser 1100x900x900 2 / Plate - / Heated GLT.TD.02 Plate Dispenser 1100x900x900 2 / Plate - / Neutral TECHNICIAL SPECIFICATIONS - Granite top table. - Wooden Decoration. - Stainless steel frame. - Other typology for granite and wood on request
