BAKERY AND PIZZERIA PANETTERIA E PIZZERIA / BOULANGERIE ET ​​PIZZERIA BÄCKEREI UND PIZZERIA / PANADERIA Y PIZZERIA

Pizzbak

Electric stackable oven for Pizza & Bakery

Foodser vice equipment evolution

2

Foodser vice equipment evolution

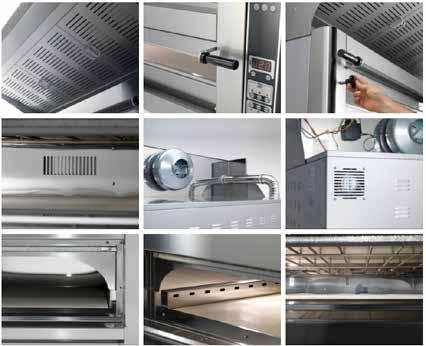

DIFFERENTIATED CEILING AND FLOOR POWER Potenza differenziata cielo/platea.

Differenzierte Ober-und Unterhitze.

Potencia diferenciada superior e inferior.

Différente puissance haut et plateau.

ELECTRONIC TEMPERATURE CONTROL SYSTEM Controllo elettronico della temperatura.

Elektronische Temperaturkontrolle.

Control electrónico de la temperatura.

Contrôle électronique de la température.

CHAMBER LIGHTENING SYSTEM WITH HALOGEN LAMP

HOOD WITHOUT MOTOR FOR OVENS

STAND WITH TWO DRAWERS AND WHEELS

Illuminazione interna con lampada alogena.

Beleuchtung der Backkammer mit Halogenlampe.

Iluminación interior con lámpara halógena. Éclairage interne avec lampe halogène.

Cappa senza motore per forno.

Haube ohne Motor für Bäckereiofen.

Campana extractora sin motor para hornos.

Hotte d’aspiration sans moteur pour four de boulangerie.

Supporto con due vani e ruote.

Untergestell mit zwei Schubaden und fahrbar.

Soporte con dos compartimentos y ruedas.

Support avec deux compartiments et des roues.

STEAM GENERATOR

ADJUSTABLE STEAM VENTS

DOOR WITH PANORAMIC GLASS

Vaporiera.

Dampferzeuger / befeuchter.

Vaporera.

Cuit-vapeur.

Sfiato vapori di cottura regolabile.

Regulierbarer Abzug der Backdämpfe.

Evacuación de vapores regulable.

Soupape vapeurs réglable.

Porta con vetro panoramico.

Tür mit Panoramaverglasung.

Puerta con cristal panorámico.

Porte avec vitre panoramique.

3

on

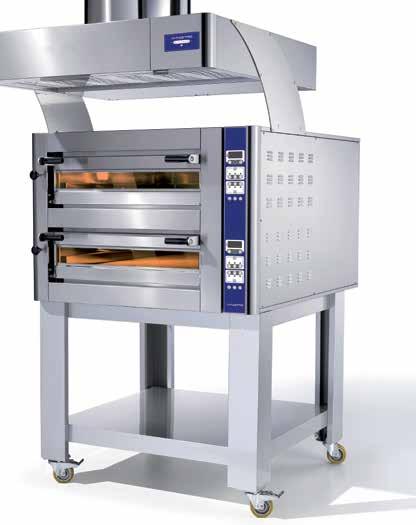

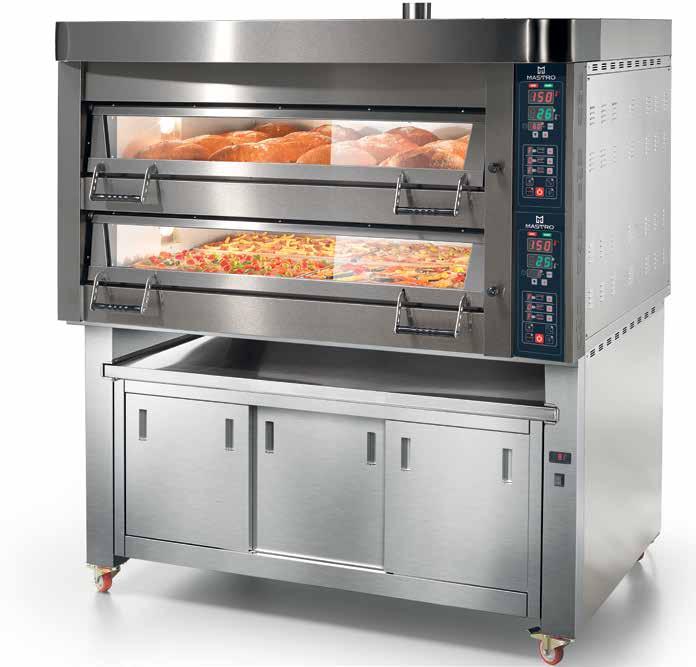

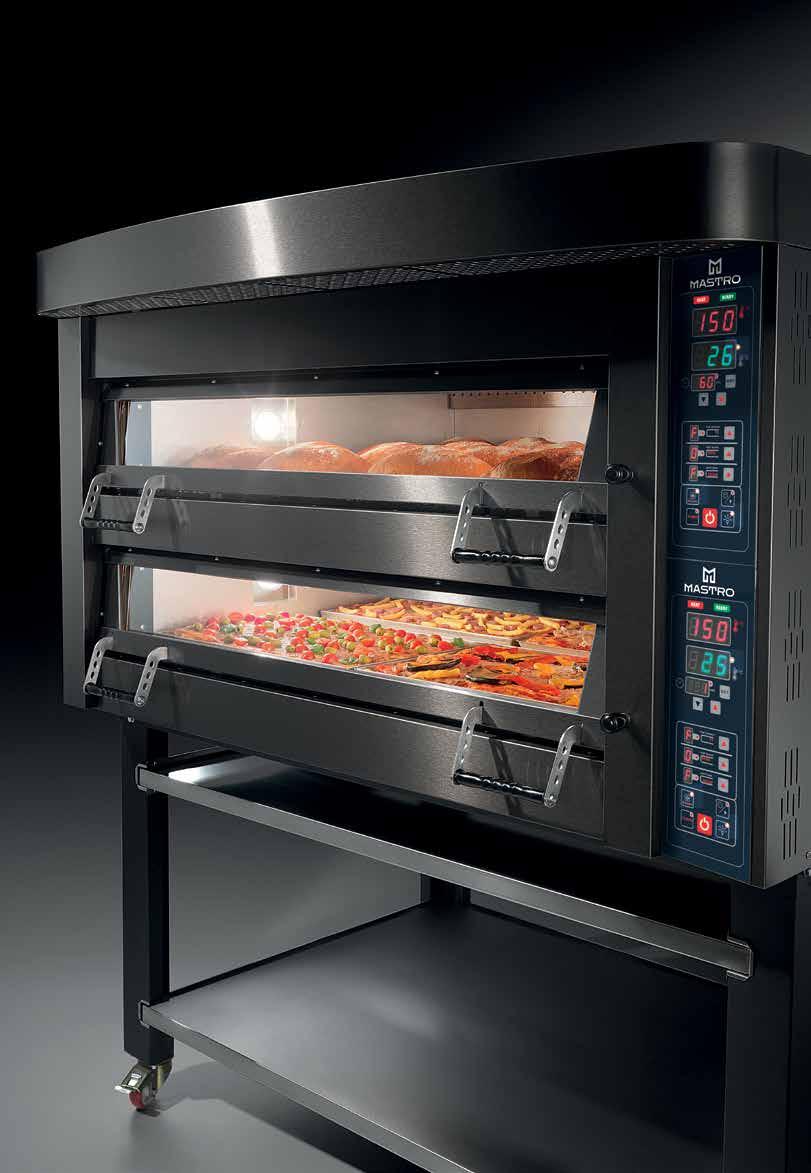

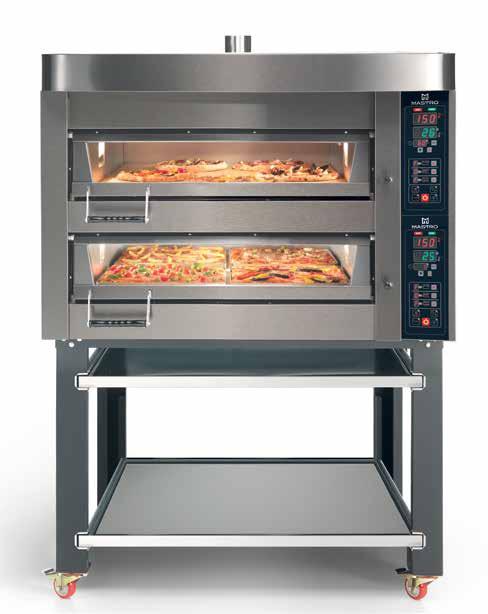

Pizzbak Electric stackable oven for Pizza & Bakery ELECTRIC BAKERY OVEN WITH STEAM GENERATOR, DIGITAL CONTROL. • Multipurpose oven: High baking temperature.

• Suitable for bread, pitta, pizza.

• Inside with refractory baking stones at the bottom.

• Front made of stainless steel anthracite coloured.

• Halogen lighting in each chamber.

• Baking chamber made of aluminized steel Equipped with steam generator and safety thermostat.

Pizzb PIZZBAK - AIF0056

Foodser vice equipment evolution

4

FORNO PANETTERIA ELETTRICO CON UMDIFICATORE, CONTROLLO DIGITALE.

ELEKTRO-BÄCKEREIOFEN MIT BEFEUCHTER, DIGITALE VERSION

E HORNO ELÉCTRICO PANADERÍA CON VAPOR, CONTROL DIGITAL.

• Forno multiuso: cottura ad alta temperatura.

• Adatto per pane, pitta, pizza.

• All’interno con mattoni refrattari in cordierite (solo nella parte inferiore).

• Facciata in acciaio inossidabile color antracite.

• Illuminazione alogena in ogni camera di cottura.

• Camera di cottura in acciaio alluminato.

Dotato vaporiera e termostato di sicurezza.

• Mehrzweck-Ofen: Backen bei hoher Temperatur.

• Geeignet für Brot, Pitta, Pizza.

• Innen mit Backsteinen aus Schamott (nur am Boden).

• Frontblende aus rostfreiem Edelstahl in Anthrazit.

• Halogenbeleuchtung in jeder Backkammer.

• Backkammer aus aluminiertem Stahl.

Ausgestattet mit Dampferzeuger / Befeuchter und Sicherheitsthermostat.

• Horno polivalente: cocción a alta temperatura.

• Apto para pan, pitta, pizza.

• En el interior con ladrillos de arcilla refractaria (sólo en la parte inferior) • Fabricado en acero inoxidable en color antracita.

• Iluminación halógena en cada cámara de cocción.

• Cámara de cocción de acero aluminizado.

Equipado con generador de vapor / humidificador y termostato de seguridad.

bak PIZZBAK - AIF0058

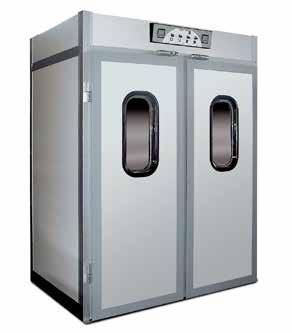

(Proofer cabinet in request)

FOUR ÉLECTRIQUE BOULANGERIE AVEC VAPEUR, CONTRÔLE DIGITAL. • Four polyvalent: cuisson à haute température.

• Convient pour le pain, la pitta, la pizza.

• Intérieur avec briques réfractaires (uniquement sur la sole).

• En acier inoxydable de couleur anthracite.

• Éclairage halogène dans chaque chambre de cuisson.

• Chambre de cuisson en acier aluminisé. Équipé d’un générateur de vapeur et thermostat de sécurité.

14 cm

LARGE BAKING CHAMBER SUITABLE FOR PIZZA AND PASTRIES Ampia camera di cottura adatta a pizza e panificati.

Große Backkammer geeignet für Pizza und Backwaren.

Gran cámara de cocción adecuada para pizzas y pasteles.

Grande chambre de cuisson adaptée aux pizzas et aux pâtisseries.

5

6

AIF0055

AIF0056

AIF0057

AIF0058

Up to °C

400

400

400

400

mm

1 820 x 1000 x 180 h

2 820 x 1000 x 180 h

1 1240 x 1000 x 180 h

2 1240 x 1000 x 180 h

Nr

4 (Ø 400 mm) 4 -  tray 500 x 400 3 -  tray 600 x 400 2 -  tray 800 x 400

8 (Ø 400 mm) 8 -  tray 500 x 400 6 -  tray 600 x 400 4 -  tray 800 x 400

6 (Ø 400 mm) 6 -  tray 500 x 400 5 -  tray 600 x 400 3 -  tray 800 x 400

12 (Ø 400 mm) 12 -  tray 500 x 400 10 -  tray 600 x 400 6 -  tray 800 x 400

Electric power supply Alimentazione elettrica Stromversorgung Alimentation électrique Alimentación eléctrica

Volt 50/60 Hz

400 - 3F+N

400 - 3F+N

400 - 3F+N

400 - 3F+N

Maximum absorption Assorbimento massimo Maximale Stromaufnahme Absorption maximale Absorción máxima

kW

12.75

25.5

17.85

35.7

Net weight Peso netto - Nettogewicht Poids net - Peso neto

Kg

160

280

240

400

External dimensions Dimensioni esterne Außenmaße Dimensions externes Dimensiones externas

L mm P mm H mm

1250 x 1385 x 423

1250 x 1385 x 815

1670 x 1385 x 423

1670 x 1385 x 815

Oven max temperature Temperatura massima del forno Maximale Ofentemperatur Température maximale du four Temperatura máxima del horno Capacity chamber Capacità della camera Kapazität Backkammer Capacité de la chambre Capacidad de la cámara Pizza baking capacity Capacità di cottura pizze Backleistung Pizzas Capacité de cuisson de pizzas Capacidad de cocción de pizzas

Hood suitable for oven Cappa adatta al forno Haube geeignet für Backofen Hotte adaptée au four Campana apta para horno External dimensions Dimensioni esterne Außenmaße Dimensions externes Dimensiones externas

Z/EKTM80NT

Z/EKTM120NT

mod.

AIF0055 / AIF0056

AIF0057 / AIF0058

L mm P mm H mm

1238 x 1420 x 193

1659 x 1420 x 193

Support with wheels suitable for oven Supporto con ruote adatto al forno Untergestell mit Rädern geeignet für Backofen Support à roulettes adapté au four Soporte con ruedas apto para horno External dimensions Dimensioni esterne Außenmaße Dimensions externes Dimensiones externas

Foodser vice equipment evolution

Z/ESTM80T3

Z/ESTM80T12

Z/ESTM120T3

Z/ESTM120T12

mod.

AIF0055 + AIF0056

AIF0055 / AIF0056

AIF0057 + AIF0058

AIF0057 / AIF0058

L mm P mm H mm

1200 x 1025 x 640

1200 x 1025 x 930

1620 x 1025 x 640

1620 x 1025 x 930

Virtus Group GmbH Hüserstrasse, 53 Hamm - Germany Phone +49(0)2381-97371-0 - Fax +49(0)2381-97371-88 Email: info@virtusnet.de

studioverde.it

Pizzbak

virtusnet.de 7

1420 1420 1080 1080

1080 1080

1080 1080 720 720

720720

1080 1080

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

CAB0008/CD

CAB0009/CD

4 (Ø350 mm) 1 (Ø500 mm)

6 (Ø350 mm) 2 (Ø500 mm)

6 (Ø350 mm) 2 (Ø500 mm)

9 (Ø350 mm) 4 (Ø500 mm)

5-6 ( tray 400x600 mm)

10-12 ( tray 400x600 mm)

10-12 ( tray 400x600 mm)

20-24 ( tray 400x600 mm)

40-44 (ø 350 mm)

60-66 (ø 350 mm)

60-66 (ø 350 mm)

90-99 (ø 350 mm)

10-11 (ø 500 mm)

20-22 (ø 500 mm)

20-22 (ø 500 mm)

40-44 (ø 500 mm)

Volt (50/60 Hz/ Гц)

AC 3 N 400*

AC 3 N 400*

AC 3 N 400*

AC 3 N 400*

kW max

5,8

8,4

8,6

12,6

kWh

3,5

5,0

5,2

7,6

Kg

147

187

190

250

Kg

167

211

215

282

Modello - Model - Modell - Modèle

Z/CSDN435

Z/CSDN635

Kg

54

64

63

77

Gross weight - Bruttogewicht

Kg

58

68

67

82

Modello - Model - Modell - Modèle - Modelo - Модель

Produttività oraria Productivity per hour - Stunden Leistung Productivité horaire - Productividad por hora Почасовая производительность

Nr

1420 1420

1420 1420 1060 1060

1080

1080 1080

140 mm1080

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

1080 1080 720 720

1080 1080

1080 720 1080 720

1080 1080

1510 1510

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1080 1080 H 1080 1080

1080 1080

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

720720

1420 1420

1420 1060 1420 1060

1060 1060

1420 1420

1420 1420

1080 1080

1080 1080

1060 1060

1510 1510

720 720

H 140 mm

1510H 780 mm 1510 1510 1510 1510 1510 Dimensioni esterne

1510 1510

720720

1150 1150

1510 Dimensioni esterne1510

720 720

1080 1080

720720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

mm

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

720 1080 720 1080

720720

720 720 1080 1080

720 720

720720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

720 720

720 H 140 mm

720 720

1150 H 780 1150 1150 1510 1150 1510

1060 1060

1420 1420

1060 1060

1060 1060

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

720

H 140 mm

1150 1150

1150 1150

1060 1060

1150 1150 1150 esterne Dimensioni

720 720

1150 H 780 mm 1150 1150

Dimensioni esterne External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

Nr

Z/CSDN635L Z/CSDN935

Net weight - Nettogewicht -

H 780 mm

Capacità di cottura pizze Pizza baking capacity - Backleistung Pizzas Capacité de cuisson de pizzas Capacidad de cocción de pizzas Производительность приготовления

H 1100 mm

1080 1080

Nr

1420 1420

Produttività oraria Productivity per hour - Stunden Leistung Productivité horaire - Productividad por hora Почасовая производительность

1080 1080

Nr

H 1100 mm

CAB0025/CD

CAB0013/CD

CAB0014/CD

CAB0015/CD

4+4 (Ø350 mm) 1+1 (Ø500 mm)

6+6 (Ø350 mm) 2+2 (Ø500 mm)

6+6 (Ø350 mm) 2+2 (Ø500 mm)

9+9 (Ø350 mm) 4+4 (Ø500 mm)

10-12 ( tray 400x600 mm)

20-24 ( tray 400x600 mm)

20-24 ( tray 400x600 mm)

40-48 ( tray 400x600 mm)

80-88 (ø 350 mm)

120-132 (ø 350 mm)

120-132 (ø 350 mm)

180-198 (ø 350 mm)

20-22 (ø 500 mm)

40-44 (ø 500 mm)

40-44 (ø 500 mm)

80-88 (ø 500 mm)

Volt (50/60 Hz/ Гц)

AC 3 N 400

kW max

5.8 + 5.8

8.4 + 8.4

8.6 + 8.6

12.6 + 12.6

kWh

7,0

10,0

10,4

15,2

Kg

252

330

324

430

Kg

273

356

350

465

*

AC 3 N 400

*

AC 3 N 400

*

AC 3 N 400*

H 900 mm

Modello - Model - Modell - Modèle

8

1420 1420

1420 1420 1060 1060

1420 1420 1080 1080

1080 720 1080 720

1080 1080

1080

140 mm1080

CAB0007/CD

Capacità di cottura pizze Pizza baking capacity - Backleistung Pizzas Capacité de cuisson de pizzas Capacidad de cocción de pizzas Производительность приготовления

Alimentazione elettrica Electric power supply - Stromversorgung Alimentation électrique - Alimentación eléctrica Электрическое питание Assorbimento massimo Maximum absorption - Maximale Stromaufnahme Absorption maximale - Absorción máxima Максимальное потребление Consumo medio Average consumption - Durchschnittlicher Verbrauch Consommation moyenne - Consumo medio Среднее потребление Peso netto Net weight - Nettogewicht - Poids net Peso neto - Вес нетто Peso lordo Gross weight - Bruttogewicht Poids brut - Peso bruto - Вес брутто

1510 1510

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1080 1080 H 1080 1080

1080 1080

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

1060 1060

1420 1060 1420 1060

1420 1420

1080 1080

1080 1080

720 720

720720

720720

1510 1510

720 720

H 140 mm

720 1080 720 1080

1080 1080

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

1060 1060

720 720

720 720

1510H 430 mm 1510 1510 1510 1510 1510 Dimensioni esterne

1510 1510

CAB0024/CD

Modello - Model - Modell - Modèle - Modelo - Модель

Alimentazione elettrica Electric power supply - Stromversorgung Alimentation électrique - Alimentación eléctrica Электрическое питание Assorbimento massimo Maximum absorption - Maximale Stromaufnahme Absorption maximale - Absorción máxima Максимальное потребление Consumo medio Average consumption - Durchschnittlicher Verbrauch Consommation moyenne - Consumo medio Среднее потребление Peso netto Net weight - Nettogewicht - Poids net Peso neto - Вес нетто Peso lordo Gross weight - Bruttogewicht Poids brut - Peso bruto - Вес брутто

720720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

720 720

1150 1150

1510 Dimensioni esterne1510 External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

720 720

720 H 140 mm

720 720

mm

1080 1080

720

H 140 mm

1150 1510 1150 1510

720720

1420 1420

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1060 1060

1060 1060

Dimensioni esterne External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1150 H 430 1150

1150 1150

1150 1150

1420 1420

1150 1150 1150 esterne Dimensioni

1060 1060

1150 H 430 mm 1150 1150

1060 1060

H 430 mm

Z/CSDN4352

H 900 mm

Z/CSDN6352 Z/CSDN635L2 Z/CSDN9352

Net weight - Nettogewicht -

Kg

50

60

59

73

Gross weight - Bruttogewicht

Kg

54

64

63

78

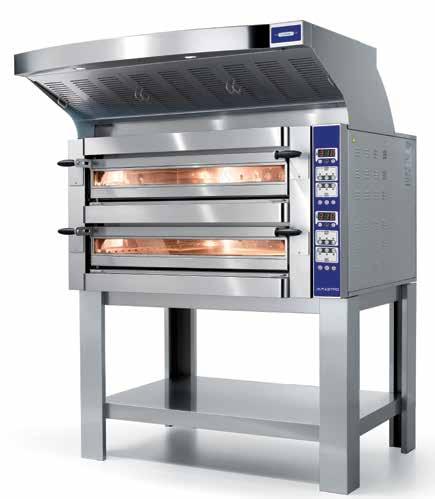

Donato

Forno elettrico - Electric oven - Elektro-Pizzaofen Four électrique - Horno eléctrico

The beauty of simplicity

ETL SANITATIONETL LISTEDSturdy single-chamber or double-chamber electric oven with stainless steel facade and cooking chamber.

CD VERSION: Digital control system; possibility to set the temperature of the chamber and the power of the two groups of elements (top and bottom) separately: “OFF” off, “MIN” 33% or “MAX” 100%; end of cooking buzzer; programmable oven ignition with countdown up to 99 hours.

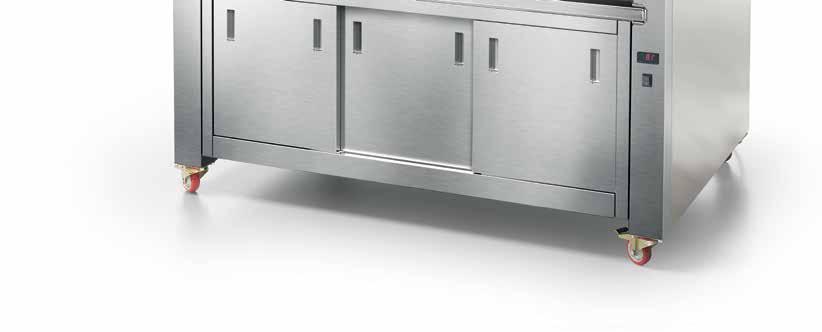

Strengths All models can be supplied with stand (with or without wheels and, with the exception of model 435, with or without cutting for spiral mixer) and hood (with or without a 5-speed motor).Stainless steel facade Stainless steel facade Stainless steel cooking chamber Cordierite cooking floor Evaporated rock wool insulation Heat seal between door and cooking chamber Integrated heat recovery system in the cooking chamber Adjustable chimney opening Electrical components compartment separated from the oven Armored individual elements above and below the cooking floor Cooking chamber lighting with a 12V lamp Safety thermostat

Has to be assembled directly in production

Bestellung nur ab Werk

Z/CRSF Set of 4 castors

Order nr.

Z/CKDN435AS

Z/CKDN635AS

Z/CKDN635LAS Z/CKDN935AS

1146 • 1110 • 410

1146 • 1110 • 410

1506• 1110 • 410

1506• 1110 • 410

Dimensions - Abmessungen

W • D • H mm

Performance - Leistung

m3/h

700

700

700

700

Power supply - Netzspannung

V-P-Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

Absorbed power - Anschlusswert

watt

130

130

130

130

CAB0024/CD, CAB0025/CD

CAB0007/CD, CAB0013/CD

CAB0008/CD, CAB0014/CD

CAB0009/CD, CAB0015/CD

Suitable for - Geeignet für

9

1460 1460

1080 1080

1080 720 1080 720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

CAB0103

CAB0104

4 (Ø350 mm) 1 (Ø500 mm)

6 (Ø350 mm) 2 (Ø500 mm)

6 (Ø350 mm) 2 (Ø500 mm)

9 (Ø350 mm) 4 (Ø500 mm)

6-7 ( tray 400x600 mm)

12-14 ( tray 400x600 mm)

12-14 ( tray 400x600 mm)

24-28 ( tray 400x600 mm)

44-48 (ø 350 mm)

66-72 (ø 350 mm)

66-72 (ø 350 mm)

99-108 (ø 350 mm)

11-12 (ø 500 mm)

22-24 (ø 500 mm)

22-24 (ø 500 mm)

44-48 (ø 500 mm)

Volt (50/60 Hz/ Гц)

AC 3 N 400*

AC 3 N 400*

AC 3 N 400*

AC 3 N 400*

kW max

5,8

8,4

8,6

12,6

kWh

3,5

5,0

5,2

7,6

Kg

169

218

212

283

Kg

189

244

237

316

H 1100 mm

Modello - Model - Modell - Modèle

H 1100 mm

Z/CSML435

Z/CSML635

Z/CSML635L

Z/CSML935

Net weight - Nettogewicht -

Kg

54

66

64

78

Gross weight - Bruttogewicht

Kg

58

70

68

83

1080 1080

1080

1080

1080

1080 H 1080 1080

1080 1080

1080 720 1080 720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

1460 1460

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1080 1080

140 mm1080

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

1080 1080

720 720 1080

1550 1550

1460 1460 1100 1100

140 mm

720720

720 720H

1460 1100 1460 1100

1100 1100

1460 1460

Dimensioni esterne1550 External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1550H 780 mm 1550 1550 1550 1550 1550 Dimensioni esterne

1550 1550 1460 1460

1550 1550

1100 1100

1190 1190 1550

1080 1080

mm

1080 1080

1460 1460

1100 1100

1190 H 780 1190

720720

720720

720 1080 720 1080 1080 1080

720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

720

720720

720 720 1080 1080

720

720720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

720

720 H 140 mm

720 720

1190 1550 1190 1550

1100 1100

Dimensioni 1190 esterne External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

720

H 140 mm

1190

1190 1190

1100 1100

1100 1100

Dimensioni esterne External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1190

1190

1190

720720

1190 H 780 mm 1190 1190

1460 1460

H 780 mm

1460 1460

Nr

1080 1080

Produttività oraria Productivity per hour - Stunden Leistung Productivité horaire - Productividad por hora Почасовая производительность

1080 1080 720720

Nr

CAB0105

CAB0106

CAB0107

CAB0108

4+4 (Ø350 mm) 1+1 (Ø500 mm)

6+6 (Ø350 mm) 2+2 (Ø500 mm)

6+6 (Ø350 mm) 2+2 (Ø500 mm)

9+9 (Ø350 mm) 4+4 (Ø500 mm)

12-14 ( tray 400x600 mm)

24-28 ( tray 400x600 mm)

24-48 ( tray 400x600 mm)

48-56 ( tray 400x600 mm)

88-96 (ø 350 mm)

132-144 (ø 350 mm)

132-144 (ø 350 mm)

198-216 (ø 350 mm)

22-24 (ø 500 mm)

44-48 (ø 500 mm)

44-48 (ø 500 mm)

88-96 (ø 500 mm)

Volt (50/60 Hz/ Гц)

AC 3 N 400*

AC 3 N 400*

AC 3 N 400*

AC 3 N 400*

kW max

5.8 + 5.8

8.4 + 8.4

8.6 + 8.6

12.6 + 12.6

kWh

7,0

10,0

10,4

15,2

Kg

302

380

378

473

Kg

324

406

405

508

Modello - Model - Modell - Modèle - Modelo - Модель Capacità di cottura pizze Pizza baking capacity - Backleistung Pizzas Capacité de cuisson de pizzas Capacidad de cocción de pizzas Производительность приготовления

Nr

Produttività oraria Productivity per hour - Stunden Leistung Productivité horaire - Productividad por hora Почасовая производительность

Nr

H 900 mm

Modello - Model - Modell - Modèle

10

1080 1080

1080 1080

1080

140 mm1080

CAB0102

Capacità di cottura pizze Pizza baking capacity - Backleistung Pizzas Capacité de cuisson de pizzas Capacidad de cocción de pizzas Производительность приготовления

Alimentazione elettrica Electric power supply - Stromversorgung Alimentation électrique - Alimentación eléctrica Электрическое питание Assorbimento massimo Maximum absorption - Maximale Stromaufnahme Absorption maximale - Absorción máxima Максимальное потребление Consumo medio Average consumption - Durchschnittlicher Verbrauch Consommation moyenne - Consumo medio Среднее потребление Peso netto Net weight - Nettogewicht - Poids net Peso neto - Вес нетто Peso lordo Gross weight - Bruttogewicht Poids brut - Peso bruto - Вес брутто

1460 1460

1460 1460 1100 1100

1080 1080 H 1080 1080

1080 1080

1080 1080 720720

1080 Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

1100 1100

14601460

1080 1080

1550 1550

External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

720720

720 720 1080

10801080

140 mm

1550 1550

1460 1100 1460 1100

1460 1460

11001100

1460 1460

720 720H

1550H 440 mm 1550 1550 1550 1550 1550 Dimensioni esterne

1550 1550

Dimensioni esterne1550 External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1100 1100

1100 1100

720 1080 720 1080

1190 1190 1550

1080 1080

720720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

10801080

720

720 720

720

720 720

mm

CAB0101

Modello - Model - Modell - Modèle - Modelo - Модель

Alimentazione elettrica Electric power supply - Stromversorgung Alimentation électrique - Alimentación eléctrica Электрическое питание Assorbimento massimo Maximum absorption - Maximale Stromaufnahme Absorption maximale - Absorción máxima Максимальное потребление Consumo medio Average consumption - Durchschnittlicher Verbrauch Consommation moyenne - Consumo medio Среднее потребление Peso netto Net weight - Nettogewicht - Poids net Peso neto - Вес нетто Peso lordo Gross weight - Bruttogewicht Poids brut - Peso bruto - Вес брутто

720

720

Dim.camera di cottura Cooking chamber dim.

Maße der Backkammer Dimen.chambre de cuis.

Dimen. cámara de cocción Размеры пекарной камеры

720

H 140 mm 720

720

1080 1080

720

H 140 mm

1190 H 440 1190

720720

Dimensioni 1190 esterne External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1190 1550 1190 1550

720720

11001100

1190

1190

1190 1190

1100 1100

Dimensioni esterne External dimensions Außenmaße Dimensions externes Dimensiones externas Внешние размеры

1190

1190

1190

720 720

1190 H 440 mm 1190

14601460

H 440 mm

H 900 mm

Z/CSML4352

Z/CSML6352

Z/CSML635L2

Z/CSML9952

Net weight - Nettogewicht -

Kg

50

62

60

74

Gross weight - Bruttogewicht

Kg

54

66

64

79

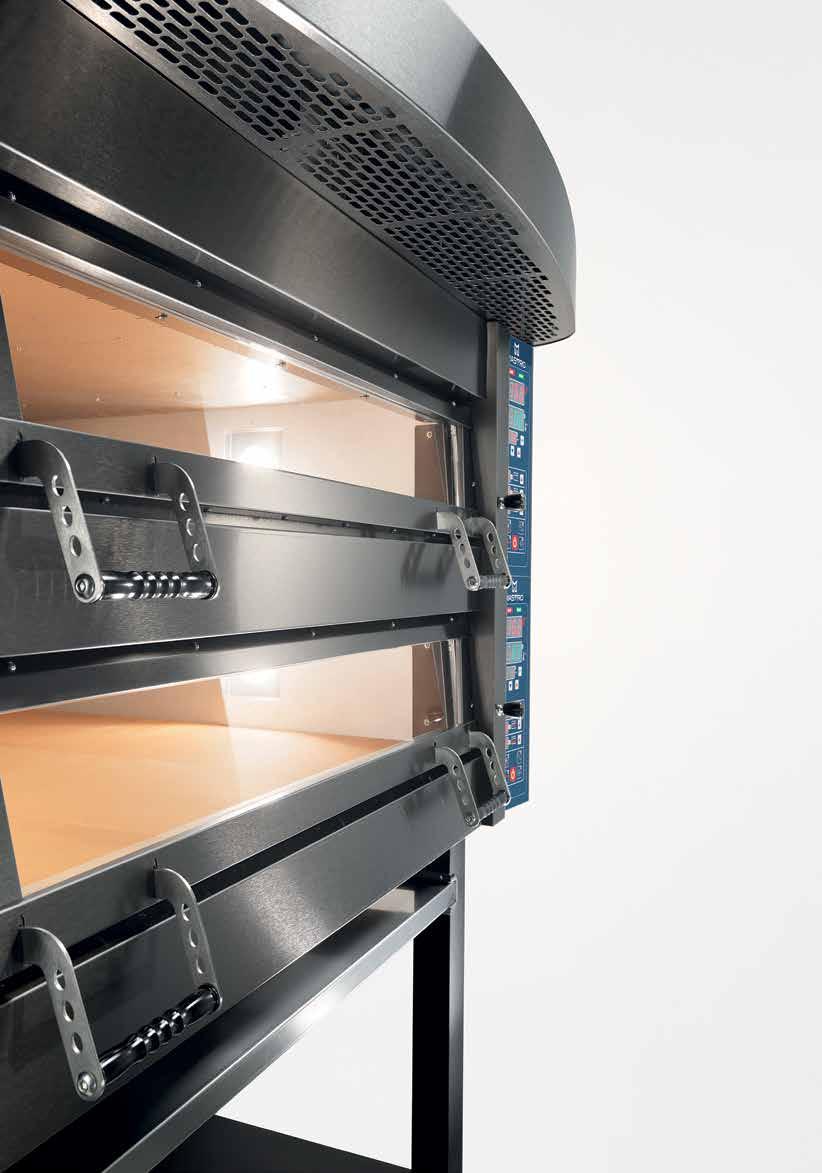

Michele

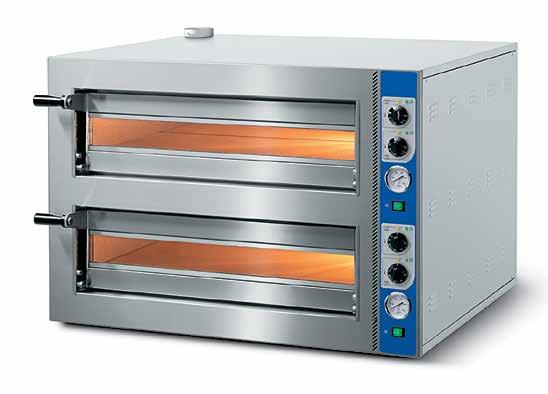

Forno elettrico - Electric oven - Elektro-Pizzaofen Four électrique - Horno eléctrico

Versatility and charm

ETL SANITATIONETL LISTED Versatile and practical single-chamber or double-chamber electric oven featuring a rounded stainless steel façade.

CD VERSION: Digital control system; possibility to set the temperature of the chamber and the power of the two groups of elements (top and bottom) separately: “OFF” off, “MIN” 33% or “MAX” 100%; end of cooking buzzer; programmable oven ignition with countdown up to 99 hours.

Strengths All models can be supplied with stand (with or without wheels and, with the exception of model 435, with or without cut-out for spiral mixer) and hood (with or without a 5-speed motor).

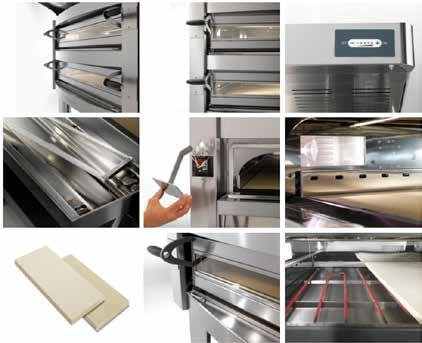

Curved stainless steel façade Stainless steel cooking chamber Cordierite cooking floor Evaporated rock wool insulation Door with double panoramic glass and opening and closing system with compression spring Heat seal between door and cooking chamber Integrated heat recovery system in the cooking chamber Electrically adjustable chimney opening Separate control group Electrical components compartment separated from the oven Armored individual elements above and below the cooking floor Safety thermostat Cooling fan

Has to be assembled directly in production

Bestellung nur ab Werk

Z/CRSF Set of 4 castors

Order nr.

Z/CKML435AS

Z/CKML635AS

Z/CKML635LAS Z/CKML935AS

1188 • 1200 • 410

1188 • 1200 • 410

1546 • 1200 • 410

1546 • 1200 • 410

Dimensions - Abmessungen

W • D • H mm

Performance - Leistung

m3/h

700

700

700

700

Power supply - Netzspannung

V-P-Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

Absorbed power - Anschlusswert

watt

130

130

130

130

CAB0101 CAB0105

CAB0102 CAB0106

CAB0103 CAB0107

CAB0104 CAB0108

Suitable for - Geeignet für

11

ELECTRIC PIZZA OVENS COMPACT – Ideal for baking pizzas, bread, lasagnas, etc.

– The compact dimensions make it perfect for small kitchens or even food trucks.

– The use of high-quality materials guarantees a long service life.

– Housing made of high-quality stainless steel AISI 430, easy to clean and maintain.

– Oven chamber measures 415×400×(H)120 mm for pizzas or other dishes.

– Chamber floor lined with chamotte stone; these accumulate the heat which results in crispy pizza bottoms.

I7w

– Each heating element is 1000W and can be set independently from 50°C to 350°C. – The door is fitted with a window and the chamber has a light, this allows to follow the cooking process.

– The door can be opened without stopping the heating process.

– Can operate in continuous mode or with a timer.

– Timer can be set up to 120 minutes and when the times is finished the oven stops heating.

– Fitted with ± 1.7 m long power cable with earthed plug.

NEW

PIZZA OVEN COMPACT CAB0098/E – Chamber is heated by 2 efficient heating elements; one above and one below the chamber.

DOUBLE DECK PIZZA OVEN 3000W CAB0099/E – Chambers are heated by 3 efficient heating elements; one above, one below and one in between the two chambers.

CAB0098/E

CAB0099/E

Dimensions extern - Aussenabmessungen

W • D • H mm

570 • 565 • 290

570 • 565 • 450

Dimensions cooking chamber - Abmessungen Backkammer

W • D • H mm

410 • 410 • 110

2x 410 • 410 • 110

Backing capacity - Backleistung

qty / cm

1x Ø 40

1 + 1x Ø 40

Working temperature - Arbeitstemperatur

°C

max. +300°

max. +300°

Absorbed power - Anschlusswert

watt

3000

3000 + 3000

Power supply - Netzspannung

V-P-Hz

230V/1+N/ 50-60 Hz

2x 230V/1+N/ 50-60 Hz

Order nr.

Chamber bottom lined with chamotte stone

12

Doors open forwards

Timer can be set up to 120 min

PIZZA OVENS

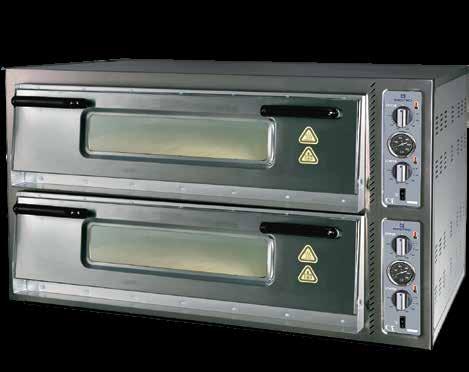

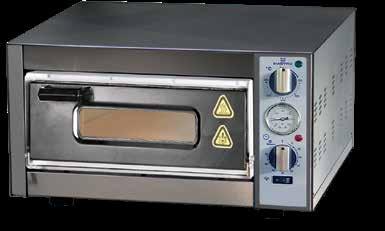

PIZZA OVEN BASIC

– Stainless steel front panel and painted steel body.

Insulation made of rock wool.

– Refractory bricks in the cooking chamber.

– Heating elements in the chamber (top and bottom).

– Separate thermostat for each heating element.

– Steel housing with a stainless steel front, insulated with rock wool.

– Analog control panel with individual controls for each heating element, two elements per oven chamber.

– Each oven chamber is fitted with refractory bricks, a thermometer and a light.

– Models with 2 chambers have full separate control panels for each oven chamber.

model number of chambers dimensions extern dimensions int. range power/voltage Backing capacity

CAB0110/E

CAB0112/E

CAB0114

CAB0111/E

CAB0113/E

CAB0115

1

1

1

2

2

2

975x800x(H)400 mm

1185x770x(H)400 mm

1185x1080x(H)400

975x880x(H)710* mm

1185x770x(H)710 mm

1185x1080x(H)710 mm

700x700x(H)140 mm from 45°C to 455°C 4 kW/400 V

920x620x(H)140 mm from 45°C to 455°C 6 kW/400 V

920x920x(H)140 mm from 45°C to 455°C 10 kW/400 V

2x 700x700x(H)140 mm from 45°C to 455°C 11 kW/400 V

2x920x620x(H)140 mm from 45°C to 455°C 12 kW/400 V

2x920x922x(H)140 mm from 45°C to 455°C 20 kW/400 V

4x Ø 34 qty / cm

6x Ø 30 qty / cm

9x Ø 30 qty / cm

4+4x Ø 34 qty / cm

6+6x Ø 30 qty / cm

9+9x Ø 30 qty / cm

Order nr.

Dimensions - Abmessungen Suitable for - Geeignet für

W•D•H mm

Z/OSNOV444E

Z/OSNOV666E

970 • 830 • 900

1180 • 720 • 900

Z/OSNOV999E 1180 • 1020 • 900

CAB0110/E | CAB0111/E

CAB0112/E | CAB0113/E

CAB0114 | CAB0115

13

SERIES WOOD PIZZA OVENS

! Standard delivery: Frontale in rame „UNIVERSAL”

d est d int hf ht hb

„MEC80“

Ø200

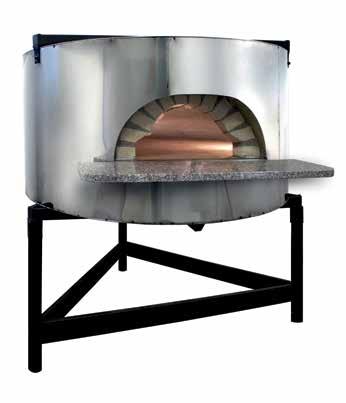

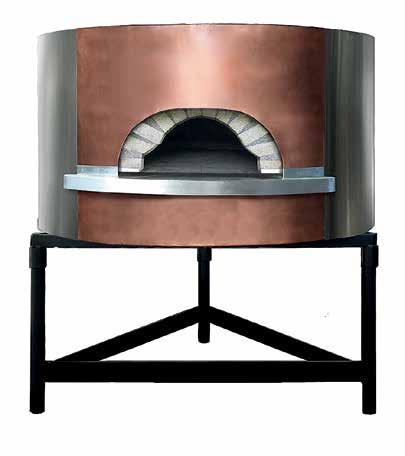

Wood oven The MEC80 „Built-in” models are pre-assembled monoblock to be placed in a masonry structure (Recessed oven). • This is the heart of your oven that must be insulated, walled up and finished as you desire. • Where it is not possible to install the pre-assembled monoblock we propose our Kit components designed so that it can be assembled on site. (Passage/entrance required: 1 meter wide). • Iron support stand is included in the delivery. • Gas burner can be fitted (see: Accessories).

The UNIVERSAL model is a fully insulated pre-assembled and stainless steel covered monoblock with an incorporated inox steel oven threshold.

Additional covering is not required.

MEC80 CAC0015

CAC0016

CAC0017

Dimensions extern - Aussenabmessungen

d est mm

1300

1540

1680

1790

Dimensions intern - Innenabmessungen

d int mm

1100

1300

1450

1540

Order nr.

CAC0018

Total height - Gesamthöhe

ht mm

1800

1800

1820

1820

Stand height - Unterbauhöhe

hb mm

1180

1180

1180

1180

External chamber height - Backkammer Aussenhöhe

hf mm

Backing capacity - Backleistung

qty / cm

1050

1050

1070

1070

4 - 5 / Ø 30

6 - 7 / Ø 30

8 - 10 / Ø 30

10 - 12/ Ø 30

CAC0021

CAC0022

CAC0023

CAC0024

1680

1850

1960

1300

1450

1540

UNIVERSAL Order nr.

14

Dimensions extern - Aussenabmessungen

d est mm

1440

Dimensions intern - Innenabmessungen

d int mm

1100

Total height - Gesamthöhe

ht mm

1850

1850

1850

1850

Stand height - Unterbauhöhe

hb mm

1170

1170

1170

1170

External chamber height - Backkammer Aussenhöhe

hf mm

Backing capacity - Backleistung

qty / cm

1150

1150

1150

1150

4 - 5 / Ø 30

6 - 7 / Ø 30

8 - 10 / Ø 30

10 - 12 / Ø 30

ELECTRIC PIZZA OVENS COMPACT – Stainless steel front panel and painted steel body.

Insulation made of rock wool.

– Refractory bricks in the cooking chamber.

– Heating elements in the chamber (top and bottom).

– Separate thermostat for each heating element.

30

– Steel housing with a stainless steel front, insulated with rock wool.

– Analog control panel with individual controls for each heating element, two elements per oven chamber.

– Each oven chamber is fitted with refractory bricks, a thermometer and a light.

– Models with 2 chambers have full separate control panels for each oven chamber.

Pizza Ø cm

Z/CKTZ435 Hood without motor

Order nr.

Dimensions cooking chamber - Abmessungen Backkammer

W•D•H mm W•D•H mm

Backing capacity - Backleistung

qty / cm

Working temperature - Arbeitstemperatur

°C

Absorbed power - Anschlusswert

watt

Dimensions extern - Aussenabmessungen

Power supply - Netzspannung

V-P-Hz

Order nr.

Dimensions - Abmessungen Suitable for - Geeignet für

W•D•H mm

CAB0032/CN

CAB0033/CN

1000 • 860 • 390

1000 • 860 • 690

720 • 720 • 140

2x 720 • 720 • 140

4x Ø 35

4 + 4x Ø 35

max. +400°

max. +400°

5200

10400

230-400V/3+N/ 50-60 Hz

230-400V/3+N/ 50-60 Hz

Z/CSTZ4351P

Z/CSTZ4352P

1000 • 840 • 1170

1000 • 840 • 970

CAB0032/CN

CAB0033/CN

15

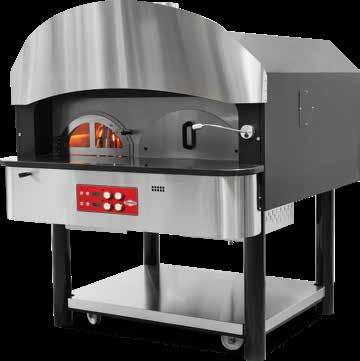

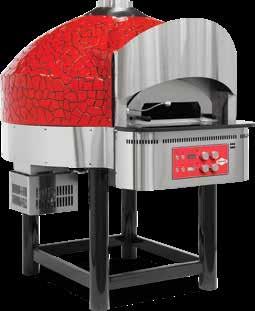

SERIES GAS ROTATING

Gas Rotating Base Oven Code EMP.SPO.04

Description

Version

Gas Rotating Base Oven

Dimension

Weight (kg)

(m3)

Net

Power

Capacity

1480x1724x1855

764

4.73

41.20

Ø 300 mm 6 pizza 75 pizza hour

1965x2127x2113

1500

8.84

48

Ø 300 mm 9 pizza 130 pizza / hour

1480x1724x1855

764

4.73

41.20

Ø 300 mm 6 pizza 75 pizza hour

1965x2127x2113

1500

8.84

48

Ø 300 mm 9 pizza 130 pizza / hour

a x b x c (mm)

(kw)

Stand EMP.SPO.02

Gas Rotating Base Oven

EMP.SPO.04-D Gas Rotating Base Oven

Digital

EMP.SPO.02-D Gas Rotating Base Oven

ELECTRICAL ROTATING BASE OVENS

TECHNICIAL SPECIFICATIONS - Adjustable cooking time and digital indicator.

- Adjustable cooking temperature between 0/400 °C - Internal high: 170 mm - Internal stone diameter: 1000 mm - Door dimension: 500x140 mm - Rotating bedplate provides homogeneous cooking refractory material.

- Stainless steel internal reservoir.

- Digital interior temperature indicator.

Code EMP.SPO.01

Description Electrical Rotating Oven

EMP.SPO.01-D Electrical Rotating Oven 16

Version

Dimension

Weight (kg)

(m3)

Net

Power

Capacity

Bottom Stand

1200x1384x2000

331

3.32

17

Ø 300 mm 6 pizza 75 pizza hour

Digital

1200x1384x2000

331

3.32

17

Ø 300 mm 6 pizza 75 pizza hour

a x b x c (mm)

(kw)

Gas Fixed Base Oven

Gas and Wood Rotating Oven

Code

Description

Version

Dimension

Weight (kg)

(m3)

Net

Power

Capacity

a x b x c (mm)

(kw)

Gas Fixed Base Oven

Stand

1480x1724x1855

755

4.74

28.70

Ø 300 mm 9 pizza 130 pizza / hour

EMP.SPO.03-D Gas Fixed Base Oven

Digital

1480x1724x1855

755

4.74

28.70

Ø 300 mm 9 pizza 130 pizza / hour

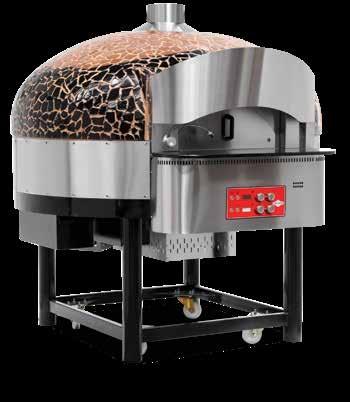

Gas and Wood Rotating Oven

Stand

1650x1705x1970

865

5.54

41.20

Ø 300 mm 6 pizza 75 pizza/hour

EMP.SPO.05-D Gas and Wood Rotating Oven

Digital

1650x1705x1970

865

5.54

41.20

Ø 300 mm 6 pizza 75 pizza/hour

EMP.SPO.03

EMP.SPO.05

Color Options

Red-Black

Black-Red

Gold-Black

Brown-Black

TECHNICIAL SPECIFICATIONS - Adjustable cooking time and digital indicator.

- Adjustable cooking temperature between 0/400 °C - 220V 50/60 Hz. Operating power.

- Adaptable to LPG or NG. - Adaptable to operate with gas or wood.

- Internal high: 515 mm - Internal stone diameter: 1000 mm - Door dimension: 650x270 mm - Fast and best cooking process through thermal stability.

- Thermostatic heating.

- Rotating bedplate provides homogeneous cooking.

- Baking bedplate made by refractory material.

- Stone interior reservoir.

Specify colour code on order.

Smoker system inside the oven with wood 17

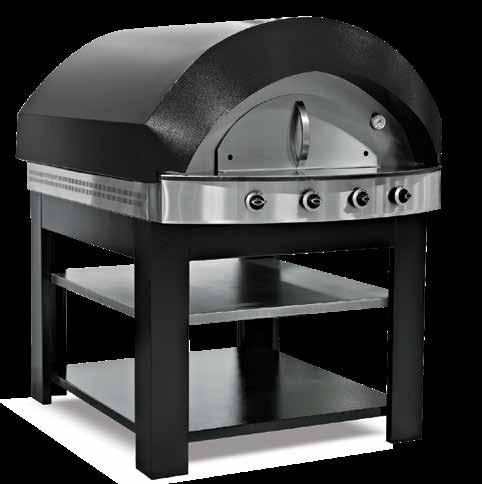

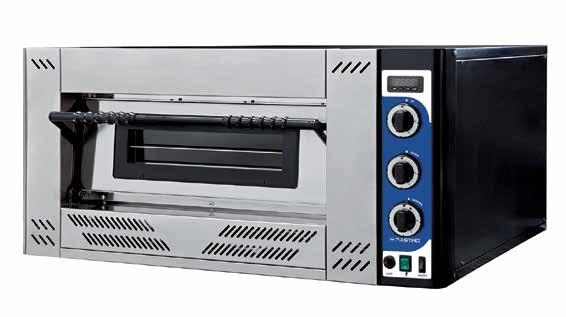

SERIES GAS PIZZA OVENS Color Options

Black

Red

Orange

Green * Please, Specify colour code on order.

TECHNICIAL SPECIFICATIONS - Adaptable LPG or NG - Adjustable cooking temperature between: 0/400 °C - Independent top and bottom burners.

- Magnet Safety valves.

- Special stone floor.

- Stainless Steel oven inside.

- 4 different color options.

Code

Weight

Interior Dimensions

Net

Power

a x b x c (mm)

(kg)

a x b x c (mm)

(m3)

(kw)

Dimension

PLF.PLS.D3

Gas Pizza Oven

1062x1037x800

169

750x600

0.88

30.40

PLF.PLS.D4

Gas Pizza Oven

1062x1237x800

194

750x800

1.05

30.40

AS.PLF.D3

Bottom Stand

977x827x930

44

0,75

AS.PLF.D4

Bottom Stand

977x1027x930

50

0.93

Dimension

Weight

Interior Dimensions

Net

Power

a x b x c (mm)

(kg)

a x b x c (mm)

(m3)

(kw)

Code

18

Description

BOTTOM STAND

Description

CAA0010

Gas Pizza Oven

1265x1480x800

260

1000x950

1.50

34

CAA0011

Gas Pizza Oven

1265x1730x800

299

950x1250

1.75

34

Z/EPLFD1

Bottom Stand

1177x1201x930

66

1.31

Z/EPLFD2

Bottom Stand

1177x1445x930

74

1.58

30

Pizza Ø cm

The gas ovens are made of stainless steel and prepainted steel, baking surface in refractory stones, rock wool insulation. Designed to cook very well the most fancifull pizzas and tastefull gastronomy dishes.

Z/CCF33P Drawn diverter

Z/PR4KIT

Z/PSTACKIT

Set of 4 castors

Exhauster connection for stackable ovens

CAA0005/P

CAA0003/P

CAA0004/P

Dimensions extern - Aussenabmessungen

W • D • H mm

1000 • 1058 • 540

1000 • 1357 • 564

1300 • 1358 • 540

Dimensions cooking chamber - Abmessungen Backkammer

W • D • H mm

620 • 620 • 150

620 • 920 • 150

920 • 920 • 150

Order nr.

Backing capacity - Backleistung

qty / cm

Working temperature - Arbeitstemperatur

°C

Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

Order nr.

Dimensions - Abmessungen Suitable for - Geeignet für

W • D • H mm

4x Ø 30

6x Ø 30

9x Ø 30

max. +450°

max. +450°

max. +450°

16100

21500

27000

230V/1+N/ 50-60 Hz

230V/1+N/ 50-60 Hz

230V/1+N/ 50-60 Hz

Z/CSG433PR

Z/CSG633PR

Z/CSG933PR

Z/CSG833PR

Z/CSG1233PR

1000 • 845 • 960

1000 • 1140 • 960

1300 • 1140 • 960

1000 • 845 • 860

1000 • 1140 • 860

Z/CSG1833PR 1300 • 1140 • 860

CAA0005/P

CAA0003/P

CAA0004/P

2X CAA0005/P

2X CAA0003/P

2X CAA0004/P

19

TU N N E L O V E N

Support not included Order nr.

Dimensions extern - Aussenabmessungen

W • D • H mm

Working temperature - Arbeitstemperatur

°C

Absorbed power - Anschlusswert

watt

CAD0004/ZN

SY850VELED

CAD0009

SY1280VE

SY12100VELED

980 • 1300 • 440

1260 • 1750 • 1070

1400 • 2000 • 1100

1650 • 2180 • 1130

1820 • 2450 • 1190

max. +320°

max. +320°

max. +320°

max. +320°

max. +320°

7900

14200

18500

24900

44900

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

CAD0001/ZN

CAD0007

CAD0010

SY1280VG

SY12100VGASD

1030 • 1300 • 440

1260 • 1750 • 1070

1560 • 2000 • 1100

1650 • 2180 • 1130

1980 • 2450 • 1190

max. +320°

max. +320°

max. +320°

max. +320°

max. +320°

9000

13900

24000

30000

45000

230V/1+N/ 50 Hz /0,44

230V/1+N/ 50 Hz /0,44

230V/1+N/ 50 Hz /0,44

230V/1+N/ 50 Hz /0,44

230V/1+N/ 50 Hz /0,88

Alimentation - Anschluss Power supply - Netzspannung

V-P-Hz

Support not included Order nr.

Dimensions extern - Aussenabmessungen

W • D • H mm

Working temperature - Arbeitstemperatur

°C

Absorbed power - Anschlusswert

watt

Alimentation - Anschluss Power supply - Netzspannung

V-P-Hz / kW

Z/ZOSV1A00

Order nr.

Dimensions - Abmessungen Suitable for - Geeignet für

20

W • D • H mm

Z/ZOSV1A01

715 • 580 • 620

765 • 580 • 620

CAD0004/ZN

CAD0001/ZN

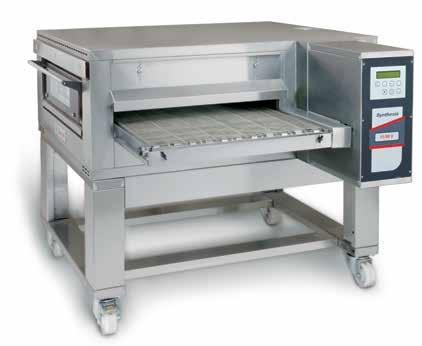

THE SYNTHESIS OF MODULAR OVENS FOR DELI BAKES Available in electric or gas versions, Synthesis can cook everything from pizza to grilled vegetables, deli bakes or pastries.

All Synthesis modular tunnel ovens can be stacked in order to step up the production rate during peak hours. Stacking two modules also enables multiple cooking processes by optimizing the space in the kitchen.

The maximum temperature is 320°C. The hot air hits the product as it passes through the chamber, ensuring perfect cooking from the first to the last pizza.

Synthesis, the oven by definition

A combination of essential elements gathered in an ideal solution is called Synthesis. This is an ideal oven, combining fundamental qualities, such as a mesh conveyor belt, an air ventilated tunnel and a highly versatile range of modules.

Simple operation for easier management Optimization of work time thanks to automated product feeding Ability to cook different products, even directly on the conveyor mesh

Since 1952, Zanolli has produced a wide range of ovens for bakeries, pastry shops and pizzerias. In 1987, we patented the first Italian ventilated tunnel oven: Synthesis. Rapidly reaching the global market, today Synthesis is the No 1 tunnel oven in Europe in terms of sales and product range.

ECONOMY function that keeps the oven warm between cooking sessions Option of custom combinations

21

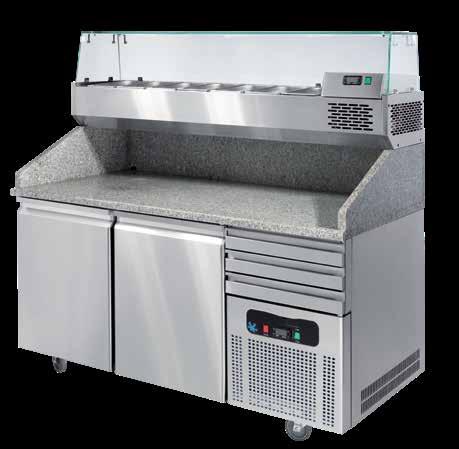

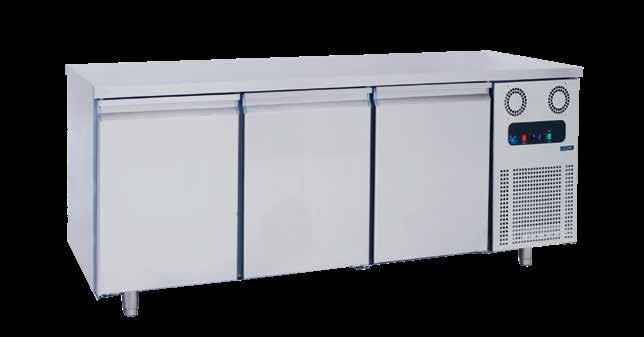

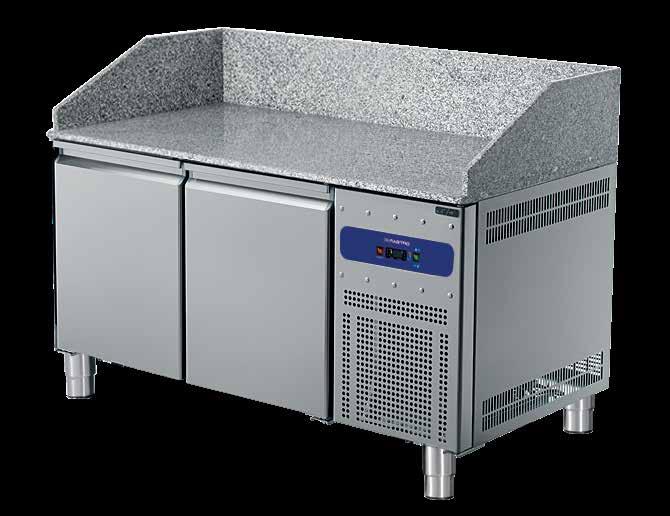

SERIES REFRIGERATED PIZZA COUNTERS Drawer Options

OPTIONAL 3D 1/3 Drawers MOD: Z/F3D6040

2D 3D

2D 1/2 Drawers MOD: Z/F2D6040

Dimension Details

Info * Inside Depth: 63 Cm (40x60 Tray Capacity) * 35/40 Kg/m3 Ecology Friendly HCFC Free Polyurethane Insulation * Digital Control Panel * Electrical Resistor Automatic Defrost * Special Water Evaporation * Stainless Steel Legs Adjustable For Height * Special Door and Hinge Systems * Removable and Easy Cleaning Magnetic Gaskets * Ambient Temperature: + 43oC %65 Humidity

Model Models

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

o

Shelf Rails Pair Regalschienen Paar

Weight Gewicht

Stainless Steel Type

Kg 3 Shelf Rail

9929F

-2/+8

380

0,20

155x80x108

without refrigerated display

236

430

236

430

3 Shelf Rail

9925F/FN

-2/+8

380

0,20

155x80x108

without refrigerated display 6 Shelf Rail

22

9932F/FN

-2/+8

615

0,21

210x80x108

without refrigerated display

311

430

9953F

+4/+10

6 Ad. GN1/3

0,12

155x39x46

-

67

304

9931VF

+4/+10

10 Ad. GN1/3

0,12

210x39x46

-

105

304

Accessories 40x60 Shelf

Z/CQ326040

Guides Z/C418124

Wheels Z/C81010330

L

Left Door (Upright)

20 €

60hz

220 V 60 hz

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

CCZ0018/F

-2/+8

380

0,20

160x80x154

6 Shelf Rail

286

430

BZT 215-3D

-2/+8

615

0,21

215x80x154

9 Shelf Rail

311

430

9932CV/F

+4/+10

6 Ad. GN1/3

0,12

160x39x46

-

311

304

DSP 215

+4/+10

10 Ad. GN1/3

0,12

215x39x46

-

108

304

Model Models

o

Shelf Rails Pair Regalschienen Paar

Weight Gewicht

Stainless Steel Type

Kg

23

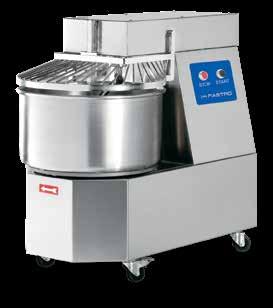

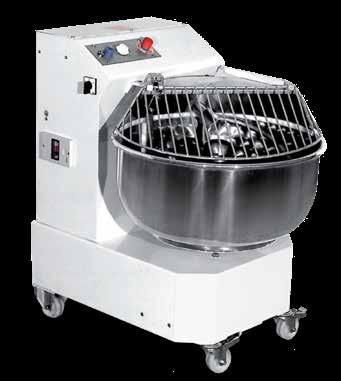

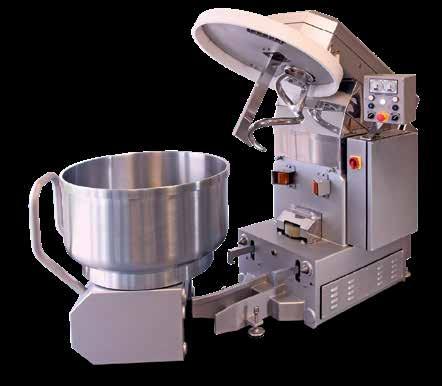

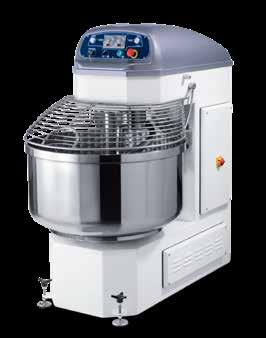

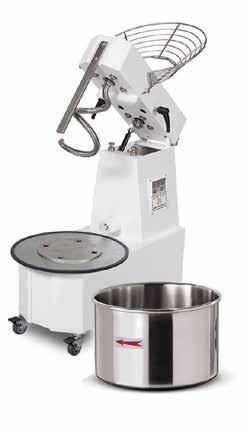

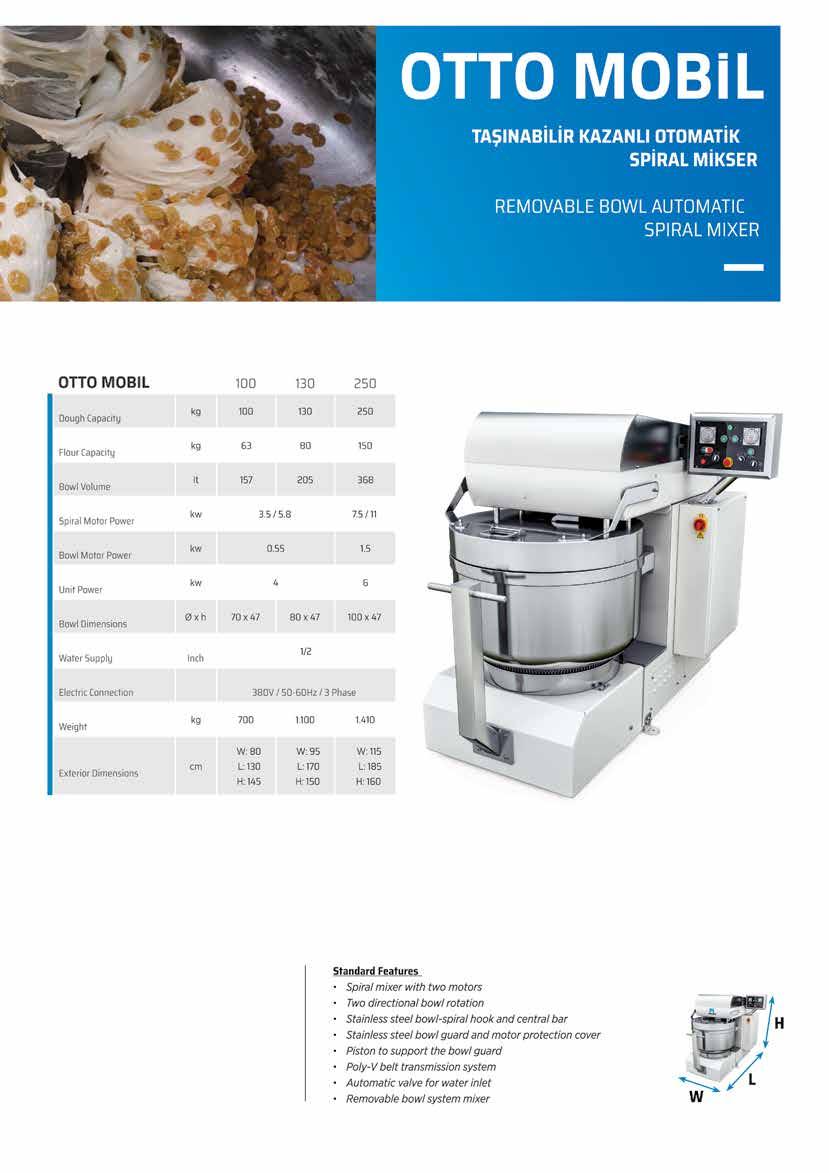

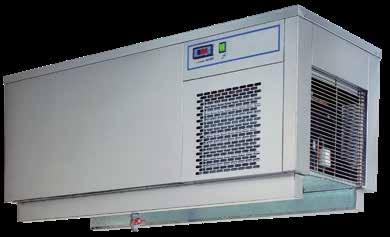

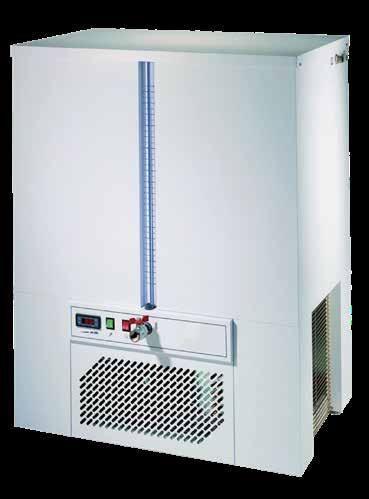

SERIES SPIRAL DOUGH MIXERS WITH EXTRACTABLE BOWL

CBD0001/P CBD0002/P on feet / without castors

!

CBD0003/P CBD0004/P2V CBD0005/P2V CBD0006/P2V CBD0008/P

The minimum workable dough is 20% of the bowl capacity

CBD0001/P

CBD0002/P

CBD0003/P

240 • 500 • 500

260 • 500 • 500

385 • 670 • 725

385 • 670 • 725

424 • 735 • 810

480 • 805 • 870

535 • 935 • 915

1

1

1

2

2

2

2

yes

yes

yes

yes

yes

yes

yes

lt

7

10

16

22

32

41

60

kg

5

8

12

17

25

35

48

370

370

750

750 | 1100

1100 | 1300

1100 | 1700

2200 | 2200

Order nr.

Dimensions extern Aussenabmessungen

W • D • H mm

Speed - Geschwindigkeiten

n°

Timer - Timer Bowl volume Fassungsvermögen Behälter Dough capycity Teigfassungsvermögen Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

CBD0004/P2V CBD0005/P2V CBD0006/P2V

CBD0008/P

230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 230V/1+N/ 50 Hz 400V/3+N/ 50 Hz 400V/3+N/ 50 Hz 400V/3+N/ 50 Hz 400V/3+N/ 50 Hz

CBD0010/PR CBD0011/PR CBD0012/PR CBD0013/PR

Order nr.

Dimensions extern - Aussenabmessungen

W • D • H mm

Speed - Geschwindigkeiten

n°

Timer - Timer Bowl volume - Fassungsvermögen Behälter

24

CBD0010/PR

CBD0011/PR

CBD0012/PR

CBD0013/PR

385 • 670 • 725

424 • 735 • 810

480 • 805 • 870

480 • 805 • 870

1

1

1

1

yes

yes

yes

yes

lt

22

32

41

48

17

25

35

42

Dough capycity - Teigfassungsvermögen

kg

Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

750

1100

1100

1500

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

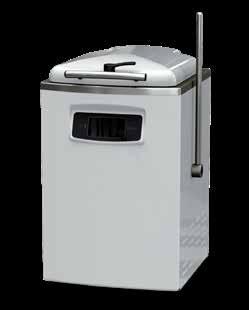

Entirely built instainless steel • An ideal machine for pizza houses, bakeries and cake shops • the spiral system carries out amalgamation of the mix in a few minutes insuring a greater volume of mixture and a better production oxygenation • reduction unit under oil • all moving parts mounted on bearings • the machine is complete with all the safety device required by international standards.

Order nr.

CBD0050

CBD0051

380 • 700 • 810

480 • 840 • 810

Dimensions extern - Aussenabmessungen

W • D • H mm

Speed - Geschwindigkeiten

n°

1

1

Bowl volume - Fassungsvermögen Behälter

lt

24

41

Dough capycity - Teigfassungsvermögen

kg

20

30

Absorbed power - Anschlusswert

watt

750

1100

Power supply - Netzspannung

V-P-Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

CBD0014/P

CBD0015/P

525 • 900 • 875

590 • 930 • 875

2

2

yes

yes

30

40

Order nr.

Dimensions extern - Aussenabmessungen

W • D • H mm

Speed - Geschwindigkeiten

n°

Timer - Timer Bowl volume - Fassungsvermögen Behälter

lt

Dough capycity - Teigfassungsvermögen

kg

Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

25

35

750 / 1100

750 / 1100

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

25

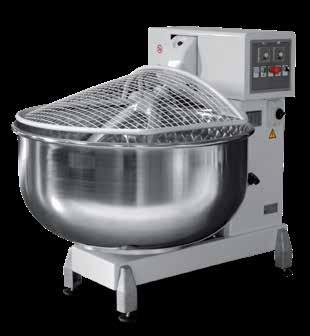

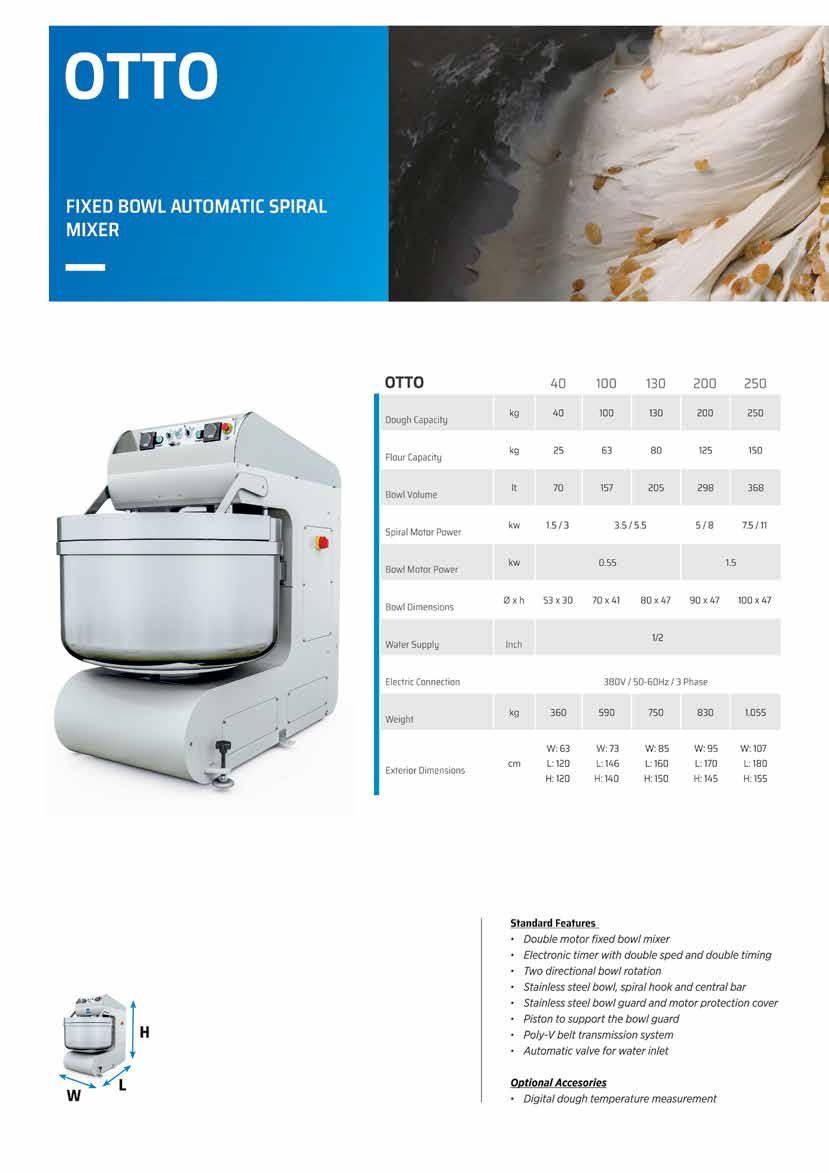

Spiral mixers with fixed bowl

· Equipped with automatic lifting and coupling. · Drive of the bowl designed to eliminate noise and maintenance. · 2-speed mixer conceived to obtain a well blended high-quality mix. · Body of the mixer made of heavy duty coated steel.

Dough capacity

Flour capacity

Kg

Kg

ME 80

80

50

95

165

ME 130

130

80

103

ME 160

160

100

ME 200

200

ME 250

External dimensions Abmessungen

Spiral motor

Bowl motor

Weight Gewicht

Power (kw) Anschlusswert

W∙D∙H Cm

Kw

Kw

Kg

kw

125

2,4/4,4

0,45

810

-

175

135

3,0/5,2

0,75

894

-

108

185

135

3,7/5,9

0,75

940

-

125

112

189

137

4,5/7,8

0,75

1200

-

250

150

115

195

137

5,9/10,3

0.75

1250

-

ME 300

300

190

130

230

170

9,0/15,0

1.1

1720

-

AO 170

80

50

93

119

115

-

-

420

5,2

AO 230

120

75

100

133

122

-

-

450

5,2

AO 330

180

110

107

139

122

-

-

490

5,2

Model

26

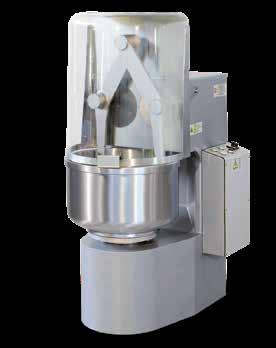

FORK MIXERS WITH FIXED BOWL FRENCH TYPE · Fork with two rotation speed. · Bowl with manually variable speed through a braking device. · Fork with adjustable position compared with the bowl bottom. · It shall can be lifted in order to facilitate the emptying of the bowl.

· Bowl, spiral and shaft are made in st. steel inox. · The head plate is covered in st. steel. · Machine equipped with two operating speeds automatically adjustable. · Two independent motors for spiral and bowl. · Two digital timers for an automatic management of operating speeds. · Bowl with rotation on impulse. · Reversible bowl. · Chain drive system made using trapezoidal belts to get the lowest noise level. · Front feet are made in stainless steel and they are adjustable. · The rear wheels give an easy movement. · The frame is in stainless steel painted.

Dough capacity

Flour capacity

Bowl volume

External dimensions Abmessungen

Spiral motor

Bowl motor

Weight Gewicht

Kg

Kg

lt

W∙D∙H Cm.

Kw

Kw

Kg

SP 80

80

53

130

73

131

146

3/5.2

0.75

510

SP 100

100

66

160

73

131

146

3/5.2

0.75

520

SP 130

130

86

200

83

136

146

3/5.2

0.75

580

SP 160

160

106

250

93

144

156

4.5/7.8

1.1

790

SP 200

200

133

290

93

149

156

6.5/11

1.1

830

SP 250

250

166

390

103

158

156

6.5/11

1.1

870

Model

Double arms mixers

Double arm mixer machines are particularly suitable for doughs requiring a lot of oxygenation and minimum heating. · Bowl made of stainless steel. · Moving shafts mounted on ball bearings. · Gears operate in an oil bath. This system permits to avoid the necessity of constant lubrication

Dough capacity Model

Kg

External dimensions Abmessungen

Power (kw) Anschlusswert

W∙D∙H Cm.

kw

Weight Gewicht Kg

T 50

50

69

82

142

1,5/2,2

370

T 70

70

76

90

147

1,8/3,1

400

T 80/T

80

76

107

181

1,84/3,1

625

T 100 /T

100

78

109

183

1,84/3,1

630

T 120 /T

120

93

130

186

1,84/3,1

735

T 160 /T

160

93

130

186

2,2/4,0

745

27

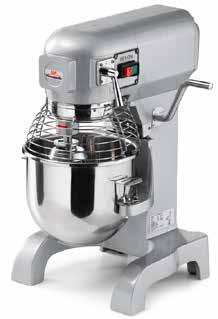

SERIES PLANETARY DOUGH MIXERS

Accessories included

Bowl Cuve Kessel Tazón

Fine wire whisk Fouet ­ls minces Feindrahtiger Rührbesen Batidor de alambre fino

Hook Crochet Knethaken Gancho

CBE0002/Z

CBE0004/Z

CBE0005/Z

850 • 1032 • 1500

850 • 1032 • 1500

850 • 1032 • 1500

n°

3

3

3

Revolutions - Umdrehungen pro Minute

rpm

120 / 240 / 420

120 / 240 / 420

120 / 240 / 420

Bowl volume - Fassungsvermögen Behälter

lt / Ø mm

40 / 400

60 / 450

80 / 480

2200

3000

4000

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

Z/ZZEUSCAR

Z/ZZEUSCAR60

Z/ZZEUSCAR80

424 • 671 • 930

424 • 662 • 1036

424 • 662 • 966

CBE0002/Z

CBE0004/Z

CBE0005/Z

Order nr.

Dimensions extern - Aussenabmessungen

W • D • H mm

Speed - Geschwindigkeiten

Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

Order nr.

Dimensions - Abmessungen Suitable for - Geeignet für

28

Spatula Spatule Flachrührer Espátula

W • D • H mm

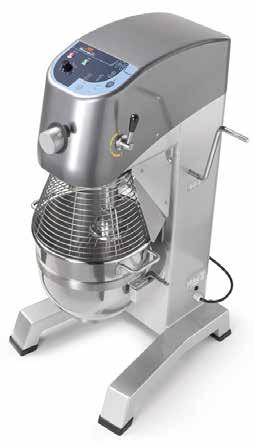

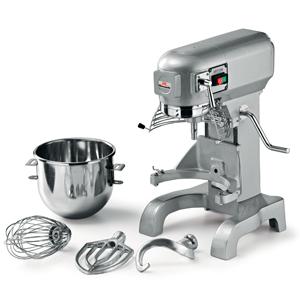

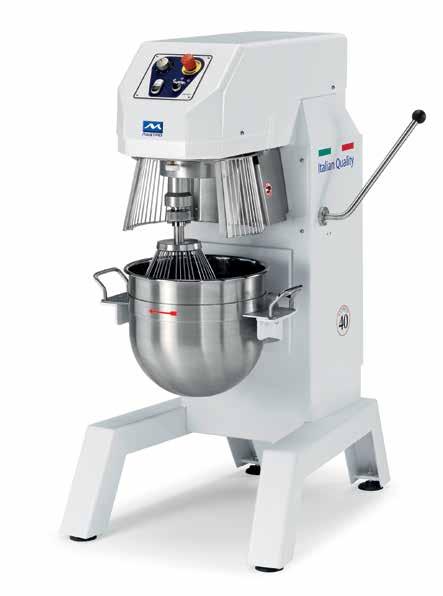

KITCHEN LINE PLANETARY MIXERS – Planetary Mixers , models Plutone : – Machine body made from large thickness powder coated steel – bowl protection made from metal wire – easy to remove bowl made from stainless – steel 304 – safety microswitches for the lid and the bowl – 3 easy to remove metal tools: aluminium spatula – and hook, steel and aluminium whisk – 3 speed gear – steel gear box – ventilated motor – control speed model Plutone 30 – D.C. motor with speed control model Plutone 7

Plutone 7

code liters flour/dough load dimensions control speed power/voltage

MAX CAPACITY

8 kg

Plutone 30

Plutone 10 Plutone 20

Plutone 7

Plutone 10

Plutone 20

Plutone 30

7l 0,4 kg/1,5 kg 470x320x(H)500 mm mechanical speed control 75 ÷ 660 rpm 350 W/230 V

10 l 2,5 kg/4 kg 470x550x(H)750 mm mechanical 108/195/355 rpm 450 W/230 V

20 l 2,5 kg/5 kg 570x630x(H)920 mm mechanical 97/220/316 rpm 1100 W/230 V

30 l 5 kg/8 kg 730x730x(H)1300 mm Digital 93/167/285 rpm 1500 W/230 V

29

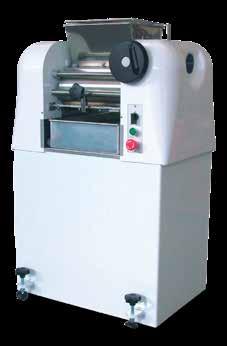

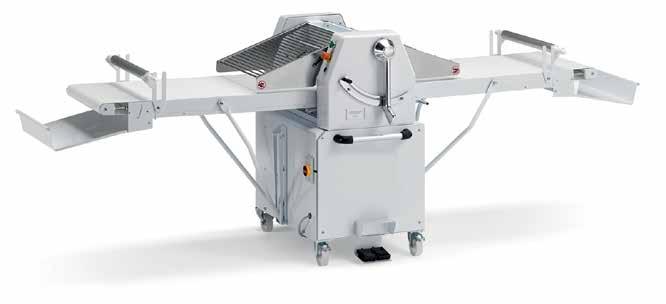

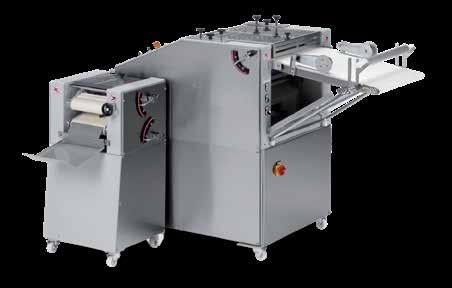

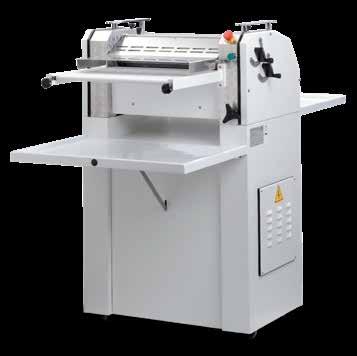

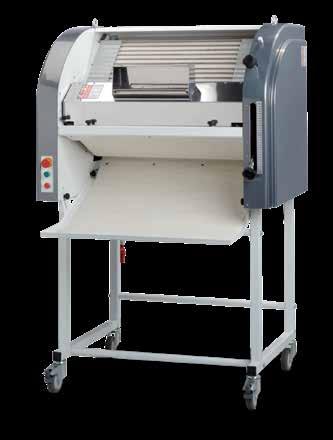

SERIES DOUGH SHEETERS & ROLLING MACHINES

This machine can work (process) every kind of dough, even with very thin thickness. Rolling cylinders chromiumplated with hard chrome, grounded and polished.

C

· Painted steel structure. · Cylinders diameter: 60 mm ( SF 500 ) / 70 mm ( SF 600 ). · Roller gap: 0-35 mm ( SF 500 ) / 0-40 mm ( SF 600 ). · Manual cylinders lowering. · Reversal rolling belts by joystick and/or by pedal. · Supplied with 2 rolling pins to wrap the dough. · Scrapers can be removed very easily. · Variable speed between in-feed and discharge belts.

F

D

CBG0010/Z D

CBG0011/Z CBG0013/Z

D

B

E

A

CBG0010/Z

CBG0011/Z

CBG0013/Z

Dimensions extern - Aussenabmessungen

A • B • C mm

1750 • 900

2400 • 930 • 1160

2500 • 930 • 1160

Dimensions belt - Bandabmessungen

D • E mm

750 • 500

1000 • 500

1400 • 600

Dimensions base - Unterbauabmessungen

F mm

-

890

890

Belt speed - Bandgeschwindigkeit

n°

1

variable

variable

Absorbed power - Anschlusswert

watt

750

750

750

Power supply - Netzspannung

V-P-Hz

400V/3+N/ 50 Hz

230V/1+N/ 50 Hz

230V/1+N/ 50 Hz

Order nr.

30

A

B

F

E

B

F

E

C

C

A A H

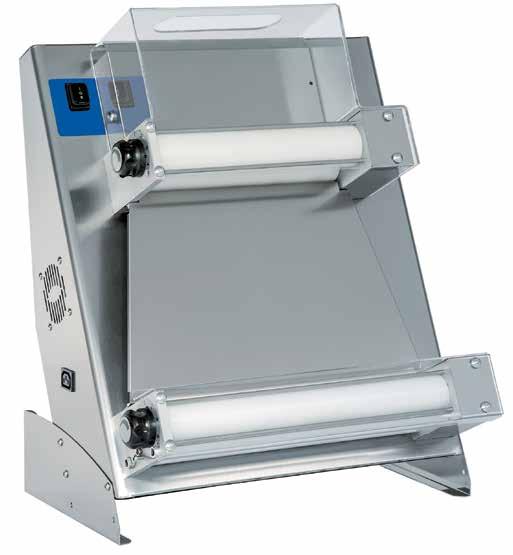

PED/P Foot pedal • elektronisches Fußpeda

Order nr.

Dimensions extern - Aussenabmessungen

W • D • H mm

Dimensions pizza - Abmessungen Pizza

Ø cm

Foot pedal • Elektronisches Fußpedal

included

Dough weight - Teiggewicht

gr

Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

CBB0006/PR

CBB0005/PR

CBB0012

CBB0001/P

CBB0002/P

650 • 345 • 430

585 • 435 • 715

665 • 435 • 715

475 • 375 • 660

585 • 435 • 790

26 - 45

26 - 40

26 - 45

14 - 30

26 - 40

yes

yes

yes

no

no

210 - 700

220 - 900

220 - 900

80 - 210

210 - 700

250

250

250

250

250

230V/1+N/ 50-60 Hz

230V/1+N/ 50-60 Hz

230V/1+N/ 50-60 Hz

230V/1+N/ 50-60 Hz

230V/1+N/ 50-60 Hz

31

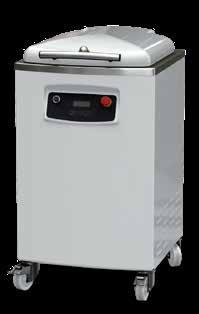

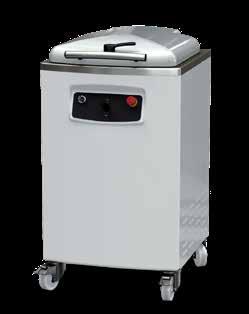

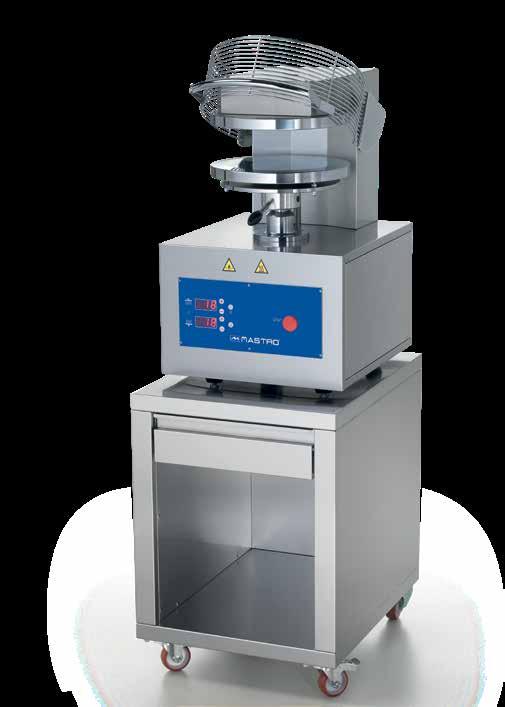

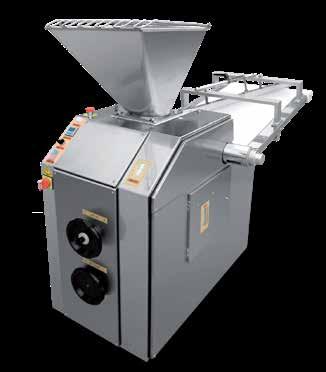

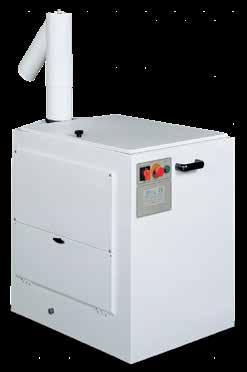

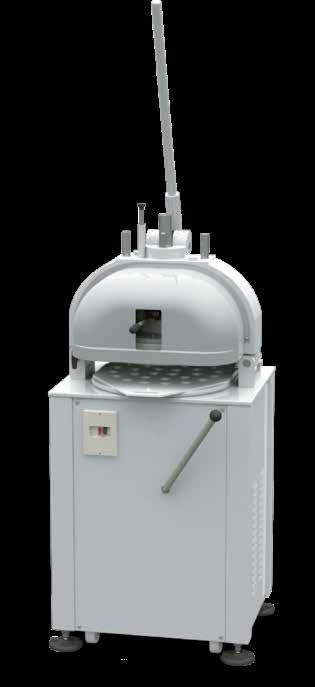

DOUGH PRESSES PORTIONING & ROUNDING MACHINES Dough divider + rounder Two functions in a single model: CBI0001 automatically divides the pizza dough into portions and rounds them into balls. You can introduce up to 30-32 kg of dough and obtain perfectly round balls with high weight accuracy. Its very high output allows you to schedule your tasks: making daily batches of dough is not necessary and you can refrigerate balls for the fermentation and leavening processes.

Order nr.

Version - Version Accessories - Zubehör

included

Dimensions extern - Aussenabmessungen

W • D • H mm

Volume - Fassungsvermögen

kg

Absorbed power - Anschlusswert

watt

Power supply - Netzspannung

V-P-Hz

Order nr.

Dimensions - Abmessungen

W • D • H mm

Suitable for - Geeignet für

Order Nr. Cones - Trichter

CBH0001

CBI0001

dough divider

dough divider and rounder

Z/OKA27

Z/OAH025

Z/OKA27 • Z/OHA025

570 • 610 • 500

475 • 765 • 740

765 • 765 • 1450

-

30

30

370

480

840

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

400V/3+N/ 50 Hz

Z/OSU107

Z/OSU037

530 • 570 • 850

490 • 600 • 600

CBA0001

CBH0001

Dimensions - Abmessungen

Suitable for - Geeignet für

Ø cm - gr Ø 3,5 - 50 / 70

Z/OAH027 Z/OAH021 Z/OAH022 Z/OAH023 Z/OAH024 Z/OAH025 Z/OAH026

Ø 5,0 - 120 / 160

Z/O­A H044

Ø 7,0 - 240 / 300

Ø 4,0 - 60 / 100 Ø 4,5 - 90 / 130 Ø 5,5 - 150 / 190

CBI0001 CBH0001

Ø 6,0 - 180 / 220 Ø 6,5 - 210 / 250

Order Nr. Bells - Schnecke

Dimensions - Abmessungen

Suitable for - Geeignet für

gr

Z/OKA24 Z/OKA25 Z/OKA26 Z/OKA27 Z/OKA29 Z/OKA28

32

CBA0001 dough rounder

50 / 80 90 / 130 140 / 180 190 / 230 220 / 260 260 / 300

CBA0001 CBI0001

Order nr.

CBC0003

CBC0001

CBC0002

500 • 610 • 770

500 • 610 • 770

550 • 710 • 860

Dimensions extern - Aussenabmessungen

W • D • H mm

Dimensions plates - Abmessungen Presse

Ø cm

30

35

50

Capacity - Leistung

balls / h

400

400

400

Working temperature - Arbeitstemperatur

°C

max. +200°

max. +200°

max. +200°

Absorbed power - Anschlusswert

watt

4200

4200

6600

Power supply - Netzspannung

V-P-Hz

230 - 400V/3+N/ 50- Hz

230 - 400V/3+N/ 50- Hz

230 - 400V/3+N/ 50- Hz

Z/CSPZF50

Order nr.

Dimensions - Abmessungen

W • D • H mm

Price - Preis

Euro

560 • 710 • 800 955,–

33

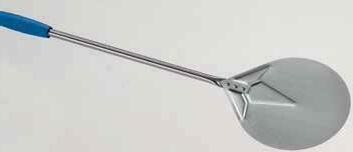

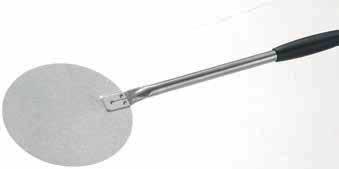

ALLUMINIO TONDA

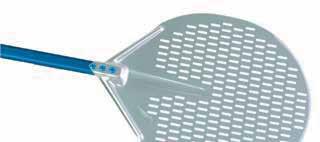

ALLUMINIO TONDA ASOLATA

ALUMINIUM ROUND

ALUMINIUM ROUND PERFORATED

ALU RUND

ALU RUND PERFORIERT

> Testa alluminio anodizzato neutro, manico anodizzato azzurro > Neutral anodised aluminium head, light blue anodised handle > Kopfbereich, neutral eloxiertes Alu, blau eloxierter Stiel

> Testa alluminio anodizzato neutro, manico anodizzato azzurro > Neutral anodised aluminium head, light blue anodised handle > Kopfbereich, neutral eloxiertes Alu, blau eloxierter Stiel

CODICE Reference Artikelnummer

Q

Z/GA32

33

120

156

0,66

1

Z/GA37 Z/HA45

36 45

120 120

160 170

0,73 1,20

1 1

A-30F/120 A-30F A-30F/180

Q 120 150 180

30

153 183 213

0,55 0,62 0,69

PALETTINO INOX

PALETTINO ALLUMINATO

STAINLESS STEEL SMALL PEEL

ALUMINATED SMALL PEEL

KLEINE SCHAUFEL EDELSTAHL

KLEINE SCHAUFEL ALUMINIERT

> Testa inox, manico inox > Stainless steel head, stainless steel handle > Edelstahlkopf,-stiel

> Testa alluminata, manico zincato > Aluminated head, galvanised handle > Aluminierter Kopf, verzinkter Stiel

CODICE Reference Artikelnummer

I-17/75 Z/GI23 Z/GI32

LEGENDA LEGEND LEGENDE

34

CODICE Reference Artikelnummer

Q 23 23 33

75 122 123

Dimensioni testa (cm) Head dimensions (cm) Abmessung Kopf (cm)

93 145 156

0,54 0,68 0,77

Lunghezza manico (cm) Handle length (cm)

1 1 1

CODICE Reference Artikelnummer

F-20 Z/HF20L

Lunghezza Totale (cm) Total length (cm)

1 1 1

Q 20

Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

120 150

Q

139 169

Lotto minimo Minimum lot Mindestlosgröße

0,78 0,88

12 12

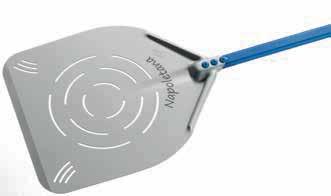

ALLUMINIO RETTANGOLARE

ALLUMINIO RETTANGOLARE ASOLATA

ALUMINIUM RECTANGULAR

ALUMINIUM RECTANGULAR PERFORATED

ALU RECHTECKIG

ALU RECHTECKIG PERFORIERT

> Testa alluminio anodizzato neutro, manico anodizzato azzurro > Neutral anodised aluminium head, light blue anodised handle > Kopfbereich, neutral eloxiertes Alu, blau eloxierter Stiel

> Testa alluminio anodizzato neutro, manico anodizzato azzurro > Neutral anodised aluminium head, light blue anodised handle > Kopfbereich, neutral eloxiertes Alu, blau eloxierter Stiel

CODICE Reference Artikelnummer

CODICE Reference Artikelnummer

Q

Z/GA32R

33

120

156

0,70

1

Z/HA37R Z/GA45R

36 45

120 120

160 170

0,78 1,28

1 1

Z/GANAP32RF AN-37RF AN-41RF

Q 33 36 41

150 150 150

186 190 196

0,91 0,99 1,19

1 1 1

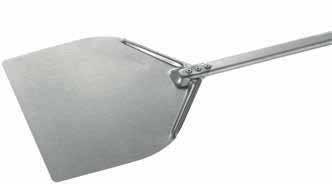

ACCIAIO ALLUMINATO RETTANGOLARE ALUMINATED STEEL RECTANGULAR ALUMINIERTER EDELSTAHL RECHTECKIG

> Testa acciaio alluminato, manico alluminio non trattato > Aluminated steel head, untreated, aluminium handle > Aluminierter Kopf, Alustiel, nicht behandelt CODICE Reference Artikelnummer

Q

ZHF32RL F-32R/L

32x30

LEGENDA LEGEND LEGENDE

Dimensioni testa (cm) Head dimensions (cm) Abmessung Kopf (cm)

120 150

153 183

0,88 0,95

12 12

Lunghezza manico (cm) Handle length (cm)

KIT PIZZA CASA BASIC - 4 PZ BASIC HOME PIZZA KIT - 4 PCS BASIC HOME PIZZA-SET - 4 STÜCK CODICE Reference Artikelnummer

*

Z/GS2AMICA 36x158x9

Lunghezza Totale (cm) Total length (cm)

2,41

Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

- pala (F-32R), palettino (F-20), spazzola (ACH-SP) e appendipale a 3 posti (ACH-PP3) - peel (F-32R), small peel (F-20), brush (ACH-PP3) and 3-slot peel-hanger - schaufel (F-32R), Palette (F-20), Bürste (ACH-SP) und

Q

Lotto minimo Minimum lot Mindestlosgröße

35

ALLUMINIO A METRO

ALLUMINIO A METRO ASOLATA

ALUMINIUM BY THE METER

PERFORATED ALUMINIUM BY THE METER

ALU METERPIZZA

ALU METERPIZZA PERFORIERT

> Testa alluminio anodizzato neutro, manico anodizzato azzurro > Neutral anodised aluminium head, light blue anodised handle > Kopfbereich, neutral eloxiertes Alu, blau eloxierter Stiel

> Testa alluminio anodizzato neutro, manico anodizzato azzurro > Neutral anodised aluminium head, light blue anodised handle > Kopfbereich, neutral eloxiertes Alu, blau eloxierter Stiel

CODICE Reference Artikelnummer

Z/GAM4060 AMP-4080

CODICE Reference Artikelnummer

Q 40x60 40x80

30 120

134 202

1,48 2,24

1 1

AMP-4060F AMP4080F

Q 40x60 40x80

120 120

182 202

1,50 1,75

1 1

Rastrello recupero corpi solidi | Scraper to recover solid bodies | Harke zur Einholung solider Teile CODICE Reference Artikelnummer

Q

AC-RS

155

Z/GACHTB

184

24x4*

SS

AN

0,47

1

SS

AN

0,54

1

* Dimensioni utili testa | Usable head dimensions | Nutzmaße Kopf

Rastrello Amica recupero corpi solidi | Amica scraper to recover solid bodies | Harke Amica zur Einholung solider Teile CODICE Reference Artikelnummer

Q

ACH-RS

124

Z/GACHRSL

154

24x4*

SA

AR

0,41

6

SA

AR

0,48

6

* Dimensioni utili testa | Usable head dimensions | Nutzmaße Kopf

Paletta raccolta cenere | Ash-raising shovel | Aschenschaufel CODICE Reference Artikelnummer

Q

Z/HACHPLL

175

AC-PL/180

205

22x20*

SS

AN

0,77

1

SS

AN

0,84

1

* Dimensioni utili testa | Usable head dimensions | Nutzmaße Kopf LEGENDA | LEGEND | LEGENDE Lunghezza Totale (cm) Total length (cm)

AR

36

Alluminio non trattato Untreated aluminium Unbehandeltes Alu

AN

Materiale Material Material Alluminio Anodizzato nero Black anodised aluminium Schwarz eloxiertes Alu

Materiale manico Handle Material Stielmaterial

SS

Inox Stainless steel Edelstahl

SA

Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg) Acciaio Alluminato Aluminated steel Aluminierter Stahl

SG

Q

Acciaio Zincato Galvanised steel Verzinkter Stahl

Lotto minimo Minimum lot Mindestlosgröße

SR

Acciaio non trattato Untreated steel Nicht behandelter Stahl

PH

Polimero alta resistenza Highly-resistant polymer Polymer

PS

Plastica standard Standard plastic Kunststoff Standard

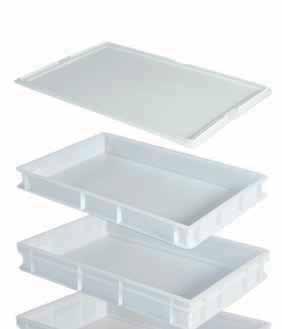

Cassetta in plastica | Plastic case | Kunststoffkisten CODICE Reference Artikelnummer

Z/M4400N Z/HE6407 Z/HE6410

60x40

PE

0,7

57x36,5 PE 1,17 xh6,5 57x36,5 PE 1,48 xh9,5

*

Q

Coperchio, polietilene uso alimentare Lid, polyethylene for food use

2

Polietilene uso alimentare Polyethylene for food use

10

Polietilene uso alimentare Polyethylene for food use

10

Z/M4400N

Spatola | Spatula | Spachtel CODICE Reference Artikelnummer

*

Q

AC-STP31

9,5

SS PH 0,12

Flexible triangular

4

Z/GACST4M

11,5

SS PH 0,14

Flexible triangular

4

10

SS PS 0,12

Triangolare Triangular Dreieckig

6

PH PH 0,13

Flessibile Flexible Biegsam

4

AC-ST4M Z/GACSTF10

10

AC-ST4M AC-STP31

* Dimensioni utili lama | Usable blade dimensions | Nutzabmessungen Blatt

Z/GACST4M

Tagliapasta | Dough-cutters | Teigschneider CODICE Reference Artikelnummer

AC-TP Z/GACTPM

Z/GACSTF10

* 6,5x13,5*

PH

PH

0,18

7,5x15*

SS

PS

0,18

Q

Impact-resistant and scratch-resistant Stoff- und kratzfest Rigida Rigid Hart

AC-TP

6 6 Z/GACTPM

* Dimensioni utili lama | Usable blade dimensions | Nutzabmessungen Blatt

Paletta rettangolare | Rectangular pizza-server | Rechteckige Schaufel CODICE Reference Artikelnummer

*

Q

AC-STP20

12x9

SS

PH

0,16

Flessibile Flexible Flexibel

4

Z/GACST21

14x10

SS

PH

0,18

Flessibile Flexible Flexibel

4

AC-STP20

Z/GACST21

Paletta triangolare | Triangular pizza-server | Dreieckige Schaufel CODICE Reference Artikelnummer

AC-STP15F AC-STP10

AC-STP15F

Q 19,5x14 19,5x15

SS SS

PH PH

•

0,24 0,30

4 4

AC-STP10

LEGENDA | LEGEND | LEGENDE Lunghezza Totale (cm) Total length (cm)

Materiale Material Material

Materiale manico Handle Material Stielmaterial

Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

Capacità Capacity

Costruzione Artigianale Artisan construction Handwerklich hergestellt

*

Note caratteristiche Features Eigenschaften

Q

Lotto minimo Minimum lot Mindestlosgröße

Asolata Perforated Perforiert

37

Teglia rettangolare | Rectangular pan | Rechteckiges Blech CODICE Reference Artikelnummer

Z/D4174560

* 40x60

LB

1,82

Z/D4174560

Q

Bordo svasato 3 cm

20

Angesenkter Rand 3 cm

Teglia rettangolare Alluminium | Rechteckiges Blech CODICE Reference Artikelnummer

4174432 Z/DTREPA

4174432 Z/DTREPA

* 53x33 60x40

LB LB

1,82 1,82

Q

Bordo svasato 3 cm

20

Angesenkter Rand 3 cm Bordo svasato 3 cm

20

Angesenkter Rand 3 cm

Teglia tonda | Round pan | Rundes Blech CODICE Reference Artikelnummer

Z/HTLN2425 Z/HTLN2625 Z/HTLN2825 Z/HTLN3025 Z/HTLN3225 Z/HTLN3625

Q interno, internal, intern esterno, external, extern interno, internal, intern esterno, external, extern interno, internal, intern esterno, external, extern interno, internal, intern esterno, external, extern interno, internal, intern

2 esterno, external, extern interno, internal, intern esterno, external, extern

LB 0,31 2,5

0,6

20

LB 0,35 2,5

0,6

20

LB 0,40 2,5

0,6

20

LB 0,48 2,5

0,6

20

LB 0,64 2,5

0,6

20

LB 1,26

0,8

20

4

Teglia tonda of alluminiun perforated |Rundes Blech CODICE Reference Artikelnummer

Z/SPTF2425 Z/SPTF2625 Z/SPTF2825 Z/SPTF3025 Z/SPTF3225 Z/SPTF3625

Q interno, internal, intern esterno, external, extern interno, internal, intern

6 esterno, external, extern interno, internal, intern esterno, external, extern interno, internal, intern esterno, external, extern interno, internal, intern

2 esterno, external, extern interno, internal, intern esterno, external, extern

LB 0,31 2,5

0,6

20

LB 0,35 2,5

0,6

20

LB 0,40 2,5

0,6

20

LB 0,48 2,5

0,6

20

LB 0,64 2,5

0,6

20

LB 1,26

0,8

20

4

Retina | Screen | Gitter CODICE Reference Artikelnummer

*

Z/HDF30

AR

Z/HDF33

AR

Z/HDF36

AR

Q

0,13

Piatta Flat Flach

12

0,15

Piatta Flat Flach

12

0,17

Piatta Flat Flach

12

Pinza | Grippers | Zange CODICE Reference Artikelnummer

Z/GACPZE

Z/GACPZE

* 39,5 SS SS 0,33

Q

Altezza regolabile + tacca. Manico 30 cm Adjustable height + notch 30 cm handle Einstellbare Höhe + Einkerbung Stiel 30 cm

6

LEGENDA | LEGEND | LEGENDE Lunghezza Totale (cm) Total length (cm)

38

Materiale Material Material

Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

*

Note caratteristiche Features Eigenschaften

Q

Lotto minimo Minimum lot Mindestlosgröße

Bordo svasato Flared edge Angesenkter Rand

Spessore materiale Material thickness

Oliera | Oil can | Ölkanne CODICE Reference Artikelnummer

Q

Z/GOL06R

0,6 lt

CB

0,21

•

1

OL10

1,10 lt

CB

0,34

•

1

Bucasfoglia | Roller docker | Teiglocher Z/GACBSM

CODICE Reference Artikelnummer

*

Z/GACBSM

SS

SS 0,40

Punte in inox Stainless steel tips Spitzen aus Edelstahl

Q 1

Mattarello | Rolling pin | Rollholz

Z/GMT34 Z/GMT50

CODICE Reference Artikelnummer

AC-PCP37 Z/GACPCP41

Q

Z/GMT34

40

PE

0,33

4

Z/GMT50

50

PE

0,77

2

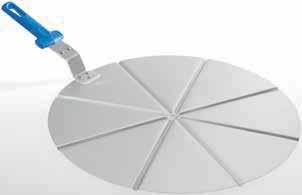

Vassoio con manico | Tray with handle | Tablett mit Griff

Z/GACCPT456

CODICE Reference Artikelnummer

AC-PCP37 Z/GACPCP41

* ø37 ø41

Z/GACCPT456 ø45

Z/GACCPT506

Z/GACCPT506 ø50

Q

AR PH 0,58

Liscio Smooth Glatt

2

AR PH 0,67

Liscio Smooth Glatt

2

AR PH 0,79

6 spicchi 6 slices 6 Stücke

2

AR PH 0,92

6 spicchi 6 slices 6 Stücke

2

Disponibile nelle versioni da46 e 92 cm Available inthe46 and92 cm versions Verfügbar inder46 und 92 cm Versionen

Portacomande | Tab grab | Bestellungshalter CODICE Reference Artikelnummer

PCM46 PCM92

A

Alluminio Aluminium Alu

SS

Inox Stainless steel Edelstahl

CB

Rame e Ottone Copper and Brass Kupfer und Messing

PE

Polietilene Polyethylene Polyäthylen

PH

* 46 92

Polimero alta resistenza Highly-resistant polymer Widerstandsfähiges Polymer

A A

PS

Q

0,42

Portacomande a sfere Spherical tab grab Bestellungshalter mit Kugeln

2

0,85

Portacomande a sfere Spherical tab grab Bestellungshalter mit Kugeln

2

Plastica standard Standard plastic Kunststoff Standard

39

Z/GACSPGT

Spazzole per griglia | Grill brushes | Gitterbürste CODICE Reference Artikelnummer

Z/GACSPGT

Q 27

14,5x4xh3,5

S

PS

0,24

6

Appendi pale AMICA CODICE Reference Artikelnummer

Z/GACHPP

* 41,5x8 A

3 0,19

Q Z/GACHPP

A parete 3 posti (pala, palettino, spazzola) Wall-mounted, 3 places (peel, small peel, brush) An der Wand für 3 St. (Schaufel, kleine Schaufel, Bürste)

6

Appendipala da parete | Wall-mounted peel rack | CODICE Reference Artikelnummer

Z/GACAPM

* 17,5x9xh9

A

2

Q

A parete per pale Wall-mounted rack for peels An der Wand für Schaufel

0,08

Appoggio pale Peels support Ablage für Schaufeln

Z/GACAPM

1

Tasselli non inclusi | Dowels not included | Dübel nicht inbegriffen Appoggio spazzole/palettini Brushes/small peels support Ablage für Bürsten/Paletten

Appendipale autoportante | Free-standing peel rack | Z/GACBS1

CODICE Reference Artikelnummer

Z/GACBS1

25x35xh175 SM 4

8,60

*

Q

singolo per pale da 150 cm h 150 single front h 150 einzelne Vorderseite

1

Base in marmo Marble base Marmorsockel

* Accessori e pale non inclusi Tools not included Zubehör nicht inbegriffen

Rotella tagliapizza | Pizza cutter | Pizzaschneiderad CODICE Reference Artikelnummer

*

Z/GACROP6 ø10 26x10 SS PH 0,19

manico polimero alta resistenza Stainless steel blade, can be dismantled and sharpened, highly-resistant polymer handle Edelstahlblatt, ausbaubar,

Q Z/GACROP6

3

Polymer Griff Lama inox temperato smontabile,

Z/HACROM

ø10 23x10 SS PS 0,17

Tempered stainless steel blade, can be dismantled and sharpened

6

Z/HACROM

ausbaubar, schleifbar

LEGENDA | LEGEND | LEGENDE Dimensioni utili (cm) Useful dimensions (cm) Arbeitsmaße (cm) Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

40

Materiale Material Material

*

Note caratteristiche Features Eigenschaften

Materiale manico Handle Material Stielmaterial

Q

Lotto minimo Minimum lot Mindestlosgröße

SS

Inox Stainless steel Edelstahl

PH

Polimero alta resistenza Highly-resistant polymer

PS

Plastica standard Standard plastic Kunststoff Standard

Box rigido non coibentato | Not insulated rigid box | Unisolierte starre Boxen CODICE Reference Artikelnummer

BP33R Z/GBP40CR BP45R BP50R

* 46x47 xh50 51x52 xh50 58x59 xh50 60x61 xh50

41x43 xh45 46x48 xh45 53x55 xh45 56x58 xh45

Q

Solo piano centrale Central shelf only Nur zentrale Plan

1

AV 8,7

Solo piano centrale Central shelf only Nur zentrale Plan

1

AV 9,5

Solo piano centrale Central shelf only Nur zentrale Plan

1

AV

Solo piano centrale Central shelf only Nur zentrale Plan

1

AV

7

10

Piastra fissaggio box | Fixing plate | Befestigungsplatte CODICE Reference Artikelnummer

Z/GBPKIT2

* 34x37,5 xh3,5

A 2,82

Q

portapacchi ciclomotore

1

Befestigungssatz, für den des Motorrads

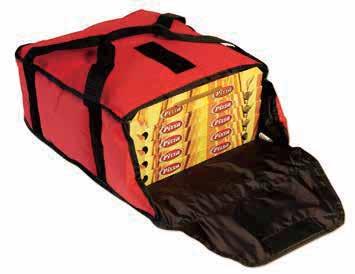

Borsa termica morbida | Soft thermal back | Weiche Thermotasche CODICE Reference Artikelnummer

*

Q

Z/GBTD3320 36x36xh17 5xø33 0,63

Alto isolamento Highly-insulating Hohe Isolierung

5

4xø40 0,87 5xø36

Alto isolamento Highly-insulating Hohe Isolierung

5

Z/GBTD4520 49x48xh18 3xø45 0,91

Alto isolamento Highly-insulating Hohe Isolierung

4

BTD5020

Alto isolamento Highly-insulating Hohe Isolierung

2

Z/GBTD4020 43x42xh19

53x52xh17 3xø50 1,08

Misure totali | Total sizes | Gesamtausmaß

Armadio pizza |Pizza rack | Pizzaschrank CODICE Reference Artikelnummer

ACPRO

* 30x30 SS 15 66 5,5 xh66

Q

Con cerniere per ruotare i supporti With hinges to rotate supports Mit Scharnieren für die Drehung der Halterungen

1

ACPRO

A parete | Wall-mounted | Wandbefestigung CODICE Reference Artikelnummer

*

Q

Z/GBIM11

49x41 SS 10 66 5,5 xh83

Con cerniere per ruotare i supporti With hinges to rotate supports Mit Scharnieren für die Drehung der Halterungen

1

BI-M15

49x41 SS 14 66 7,4 xh117

Con cerniere per ruotare i supporti With hinges to rotate supports Mit Scharnieren für die Drehung der Halterungen

1

Distanza tra piani 8 cm (6,6 cm utile) |Distance between shelves 8 cm (6,6 cm useful) | 8 cm

Z/GBIM11 LEGENDA | LEGEND | LEGENDE Dimensioni esterne (cm) External dimensions (cm) Außenmaße (cm) Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

Dimensioni interne (cm) Internal dimensions (cm) Innenmaße (cm)

*

Note caratteristiche Features Eigenschaften

Dimensioni utili (cm) Useful dimensions (cm) Arbeitsmaße (cm)

Q

Lotto minimo Minimum lot Mindestlosgröße

Capienza solo cartoni Box only capacity Fassungsvermögen der Kartons

Capienza borse Bag capacity Taschenfassungsvermögen

AV

Alluminio Preverniciato Pre-coated aluminium Vorlackiertes Alu

SG

Acciaio Zincato Galvanised steel Verzinkter Stahl

Materiale Material Material

A

Alluminio Aluminium Alu

41

Tramoggia per farina | Flour carrier | Mehltrichter CODICE Reference Artikelnummer

2670/G 2671

*

Ø 39x70 xh78 46x75 xh78

80 80

SS SS

50 50

16,2

2 sacchi 2 sacks

17,2

2 sacchi 2 sacks

Q 1 1

Contenitori per alimenti| Roll container | Rollbehälter CODICE Reference Artikelnummer

IFI0022

*

Ø 75x42 xh71

80

50

16,2

2 sacchi 2 sacks

Q 1

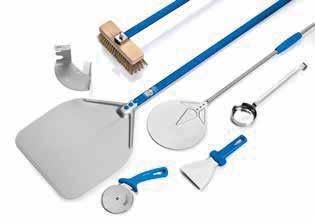

KIT PROFESSIONALEPALA PIENA - 7 PEZZI

KIT PROFESSIONALEPALA FORATA - 7 PEZZI

PROFESSIONAL KIT SOLID PIZZA PEEL - 7 PIECES

PROFESSIONALKIT PERFOARTED PIZZA PEEL - 7 PIECES

PROFESSIONELLESSET MIT VOLL SCHAUFEL PROFESSIONELLESSET MIT PERFORIERTER SCHAUFEL - 7- STÜCK - 7 STÜCK

CODICE Reference Artikelnummer

PRO32

* 2,88

A-32R + I-20 + AC-SP + AC-APM + AC-ROP6 + AC-STP31 + AC-MS90

Q

CODICE Reference Artikelnummer

1

PRO32F2

* ,77

A-32RF + I-20F + AC-SP + AC-APM + AC-ROP6 + AC-STP31 + AC-MS90

Q 1

LEGENDA | LEGEND | LEGENDE Dimensioni utili (cm) Useful dimensions (cm) Arbeitsmaße (cm) Peso netto (Kg) Net weight (Kg) Nettogewicht (Kg)

42

*

Ø

Dimensione ruote (mm) Wheel dimension (mm)

Note caratteristiche Features Eigenschaften

Q

Materiale Material Material

Lotto minimo Minimum lot Mindestlosgröße

Capacità pezzi Capacity pieces Teileaufnahme

SS

Inox Stainless Steel Edelstahl

Passaggio utile fra i piani Usable space between shelves

SC

Inox / Cromato Chrome-plated / Stainless s.

Edelstahl / Verchromt

Portata statica max. (Kg) Max. static capacity (Kg) Statische max. tragkraft (Kg)

SERIES BAKING

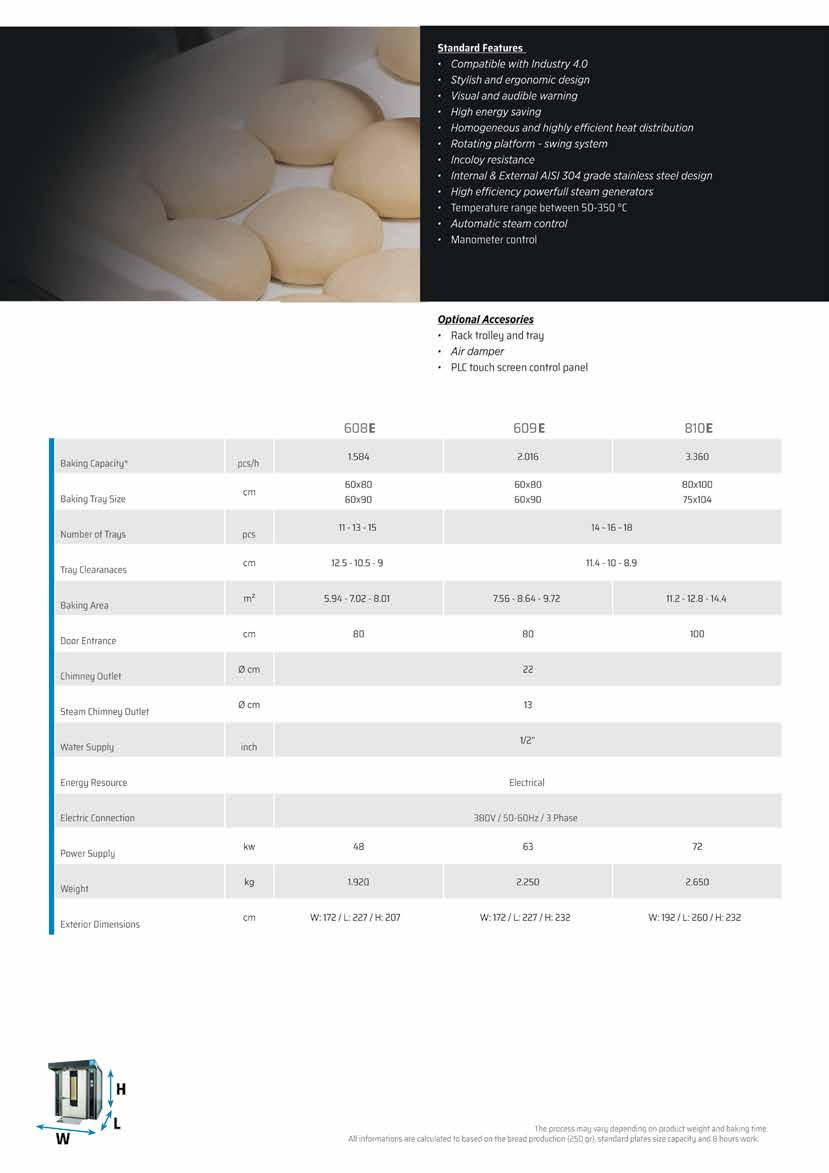

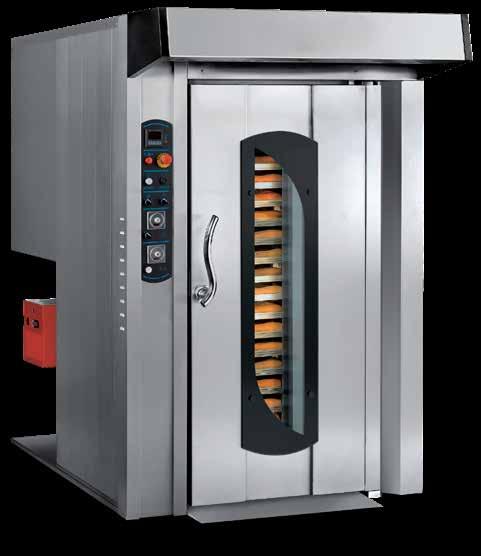

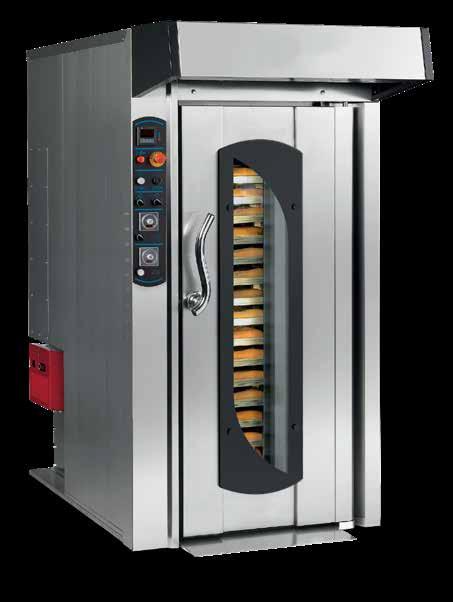

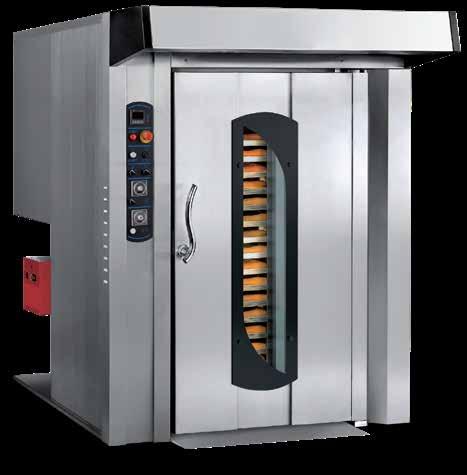

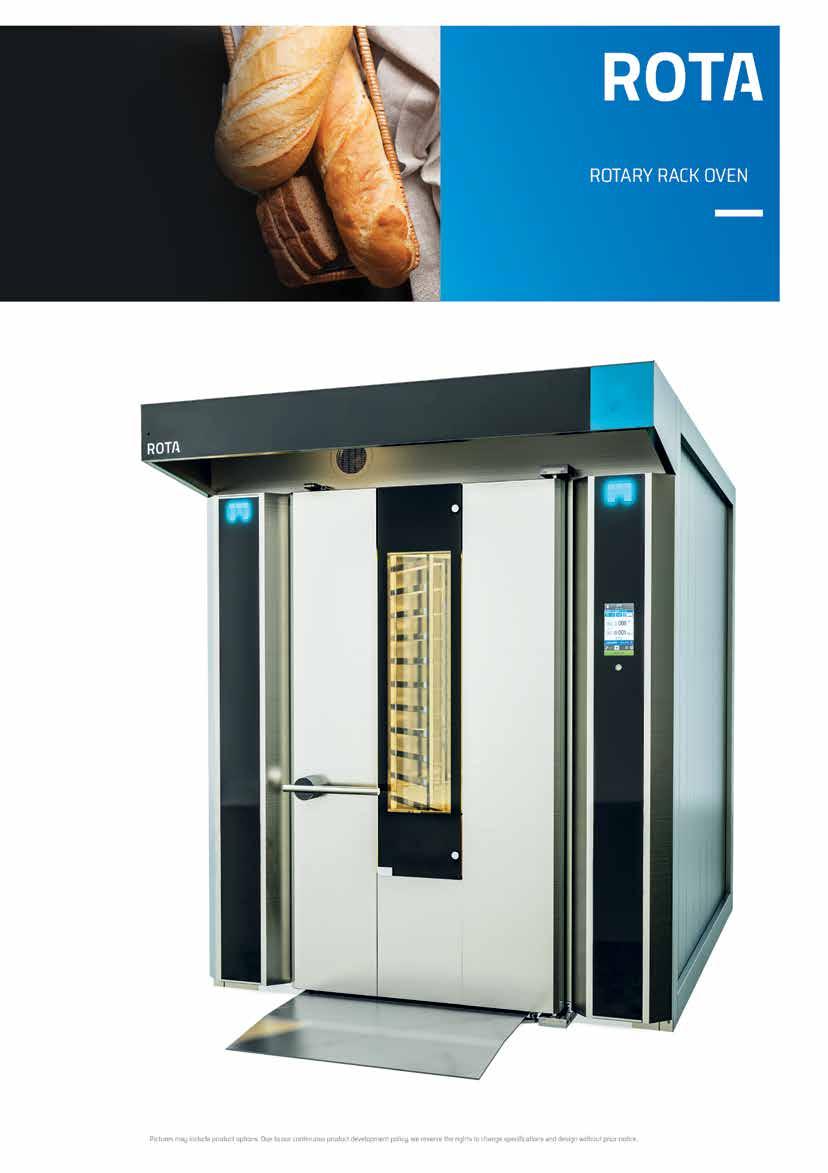

Rack oven for bakeries and pastry shops

· Face, internal and external panels in stainless. · Hood with st. steel steam exhauster. · Gas or diesel models with heat exchanger in refractory st. steel; electrical model with st. steel covered resistances. · Steamer with rods for a high steam production capacity. · Timed solenoid valve to give water to the steamer. · Heat exchanger and control panel on the left side and door opening from left to right ( standard ). · Double glass door with rubber gasket. · Trolley rotation is performed by geared motor. · Extractable rack ( not included ). · Oven with hook. · Electromechanical control panel with digital thermostat, timer with bell for cooking and timer for steam. · Double safety thermostat in the baking chamber and fumes extractor chimney. · Decompression duct.

OPTIONAL · Diesel oil or gas burner application or electrical functioning. · Computerized control panel “Easy Cooking” or “Easy Touch”. · Inverter to regulate motor fan speed ( for pastry production ). · Oven with revolving platform application. · St. steel rack.

Thermal power

Models Modelle

Kcal/h B.T.U./h

Pan dimensions Cm

Power (kw) Anschlusswert

Dimensions Abmessungen

Weight Gewicht

Hourly cons.

Rates

Voltage

kw.

W∙D∙H Cm.

Kg.

Diesel Gas

V

MAXI-E

-

80x80 - 80x90 75x95 - 66x92 80x100

2,90

171x239x220

1800

-

400/50Hz/3P

MAXI-G

80.000 Kcal/h 320.000 B.T.U./h

80x80 - 80x90 75x95 - 66x92 80x100

3,00

171x239x220

1800

Diesel 4,5 Kg Gas 6,0 mc

400/50Hz/3P

1 x (80x120) 2 x (60x80)

3,05

190x265x232

1 x (80x120) 2 x (60x80)

3,57

190x265x232

ROTOR-2/E

ROTOR-2/G

100.000 Kcal/h 400.000 B.T.U./h

400/50Hz/3P

Diesel 5,5 Kg Gas 7,5 mc

400/50Hz/3P

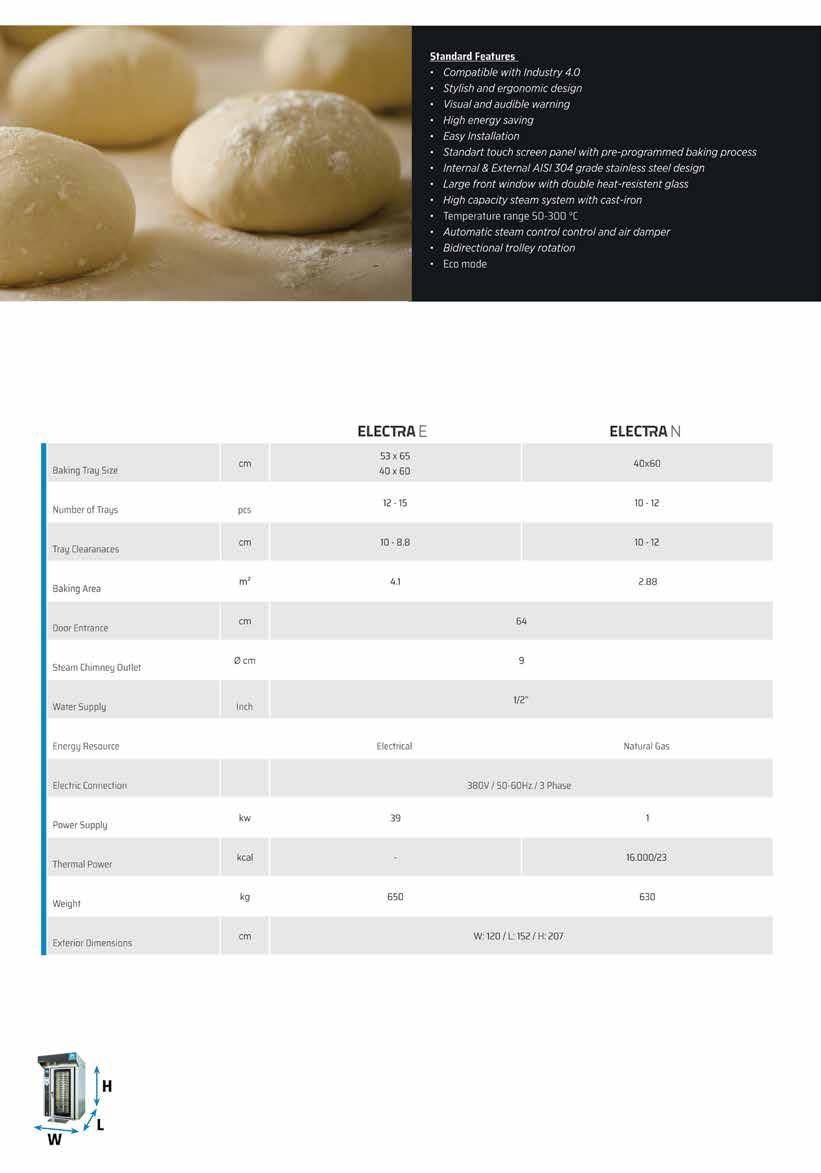

43

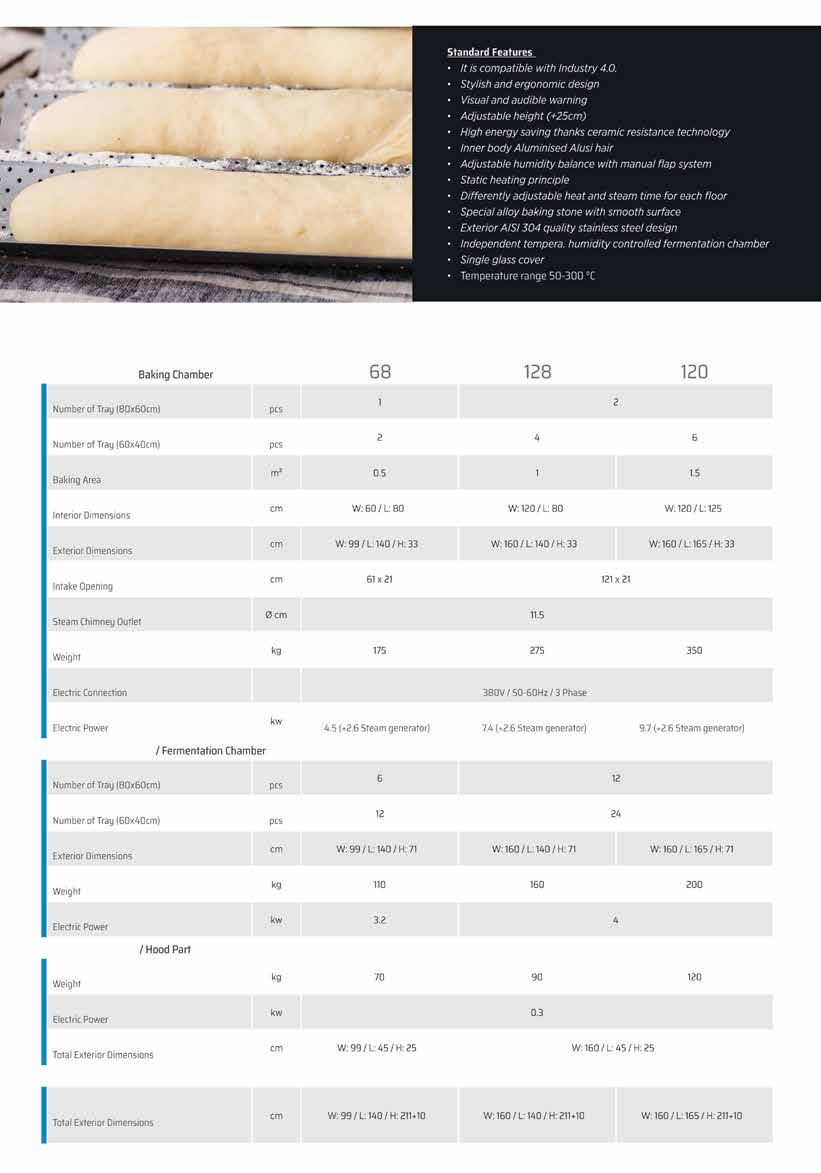

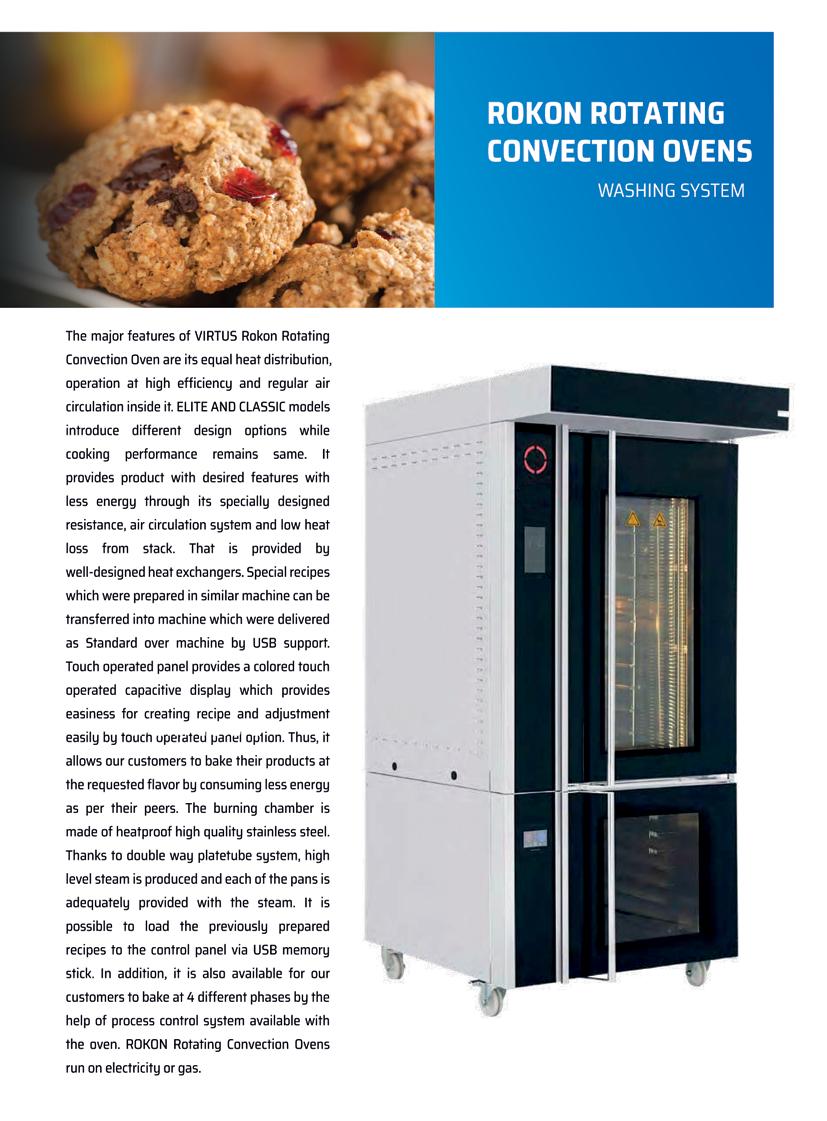

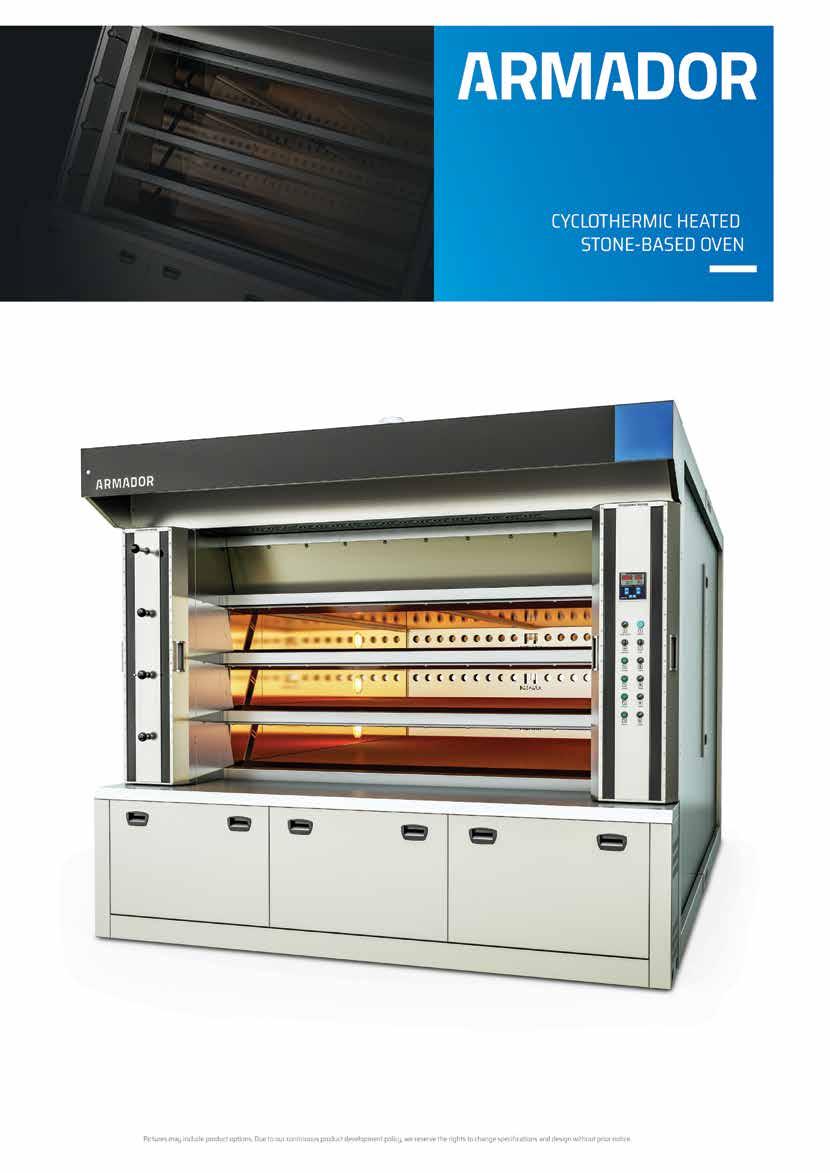

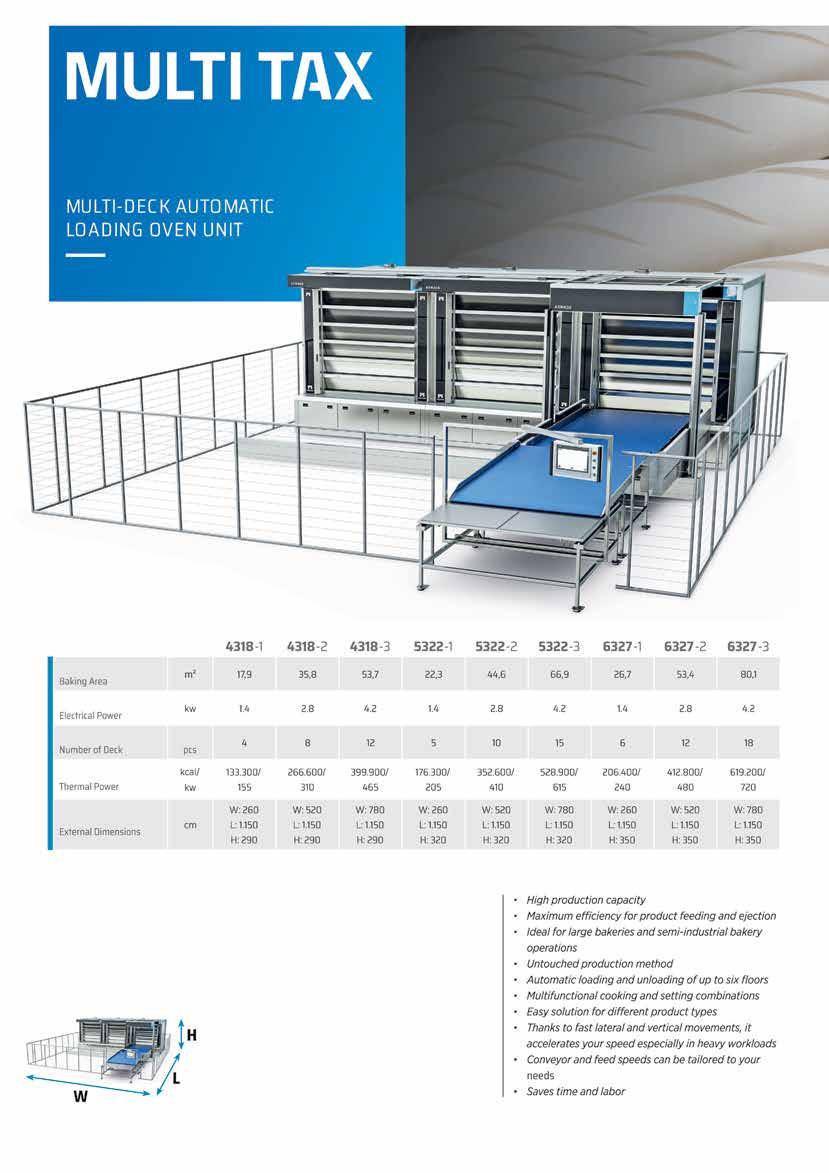

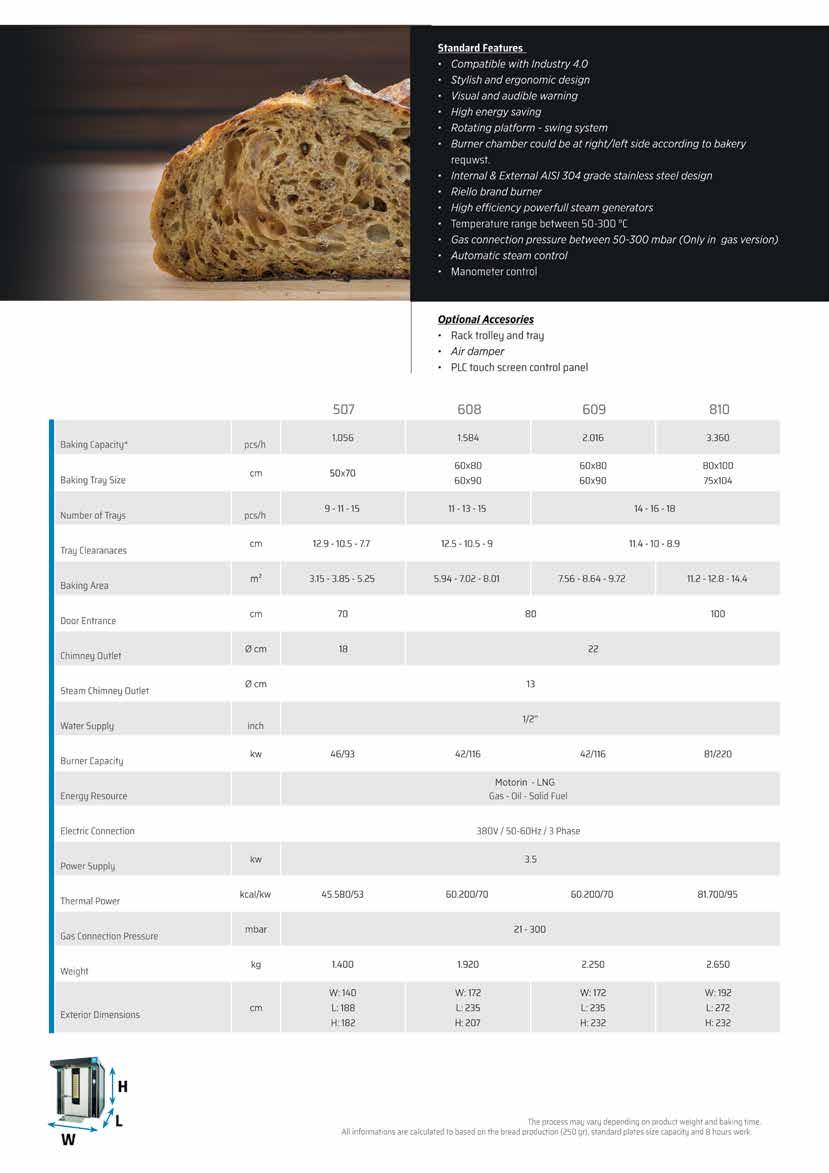

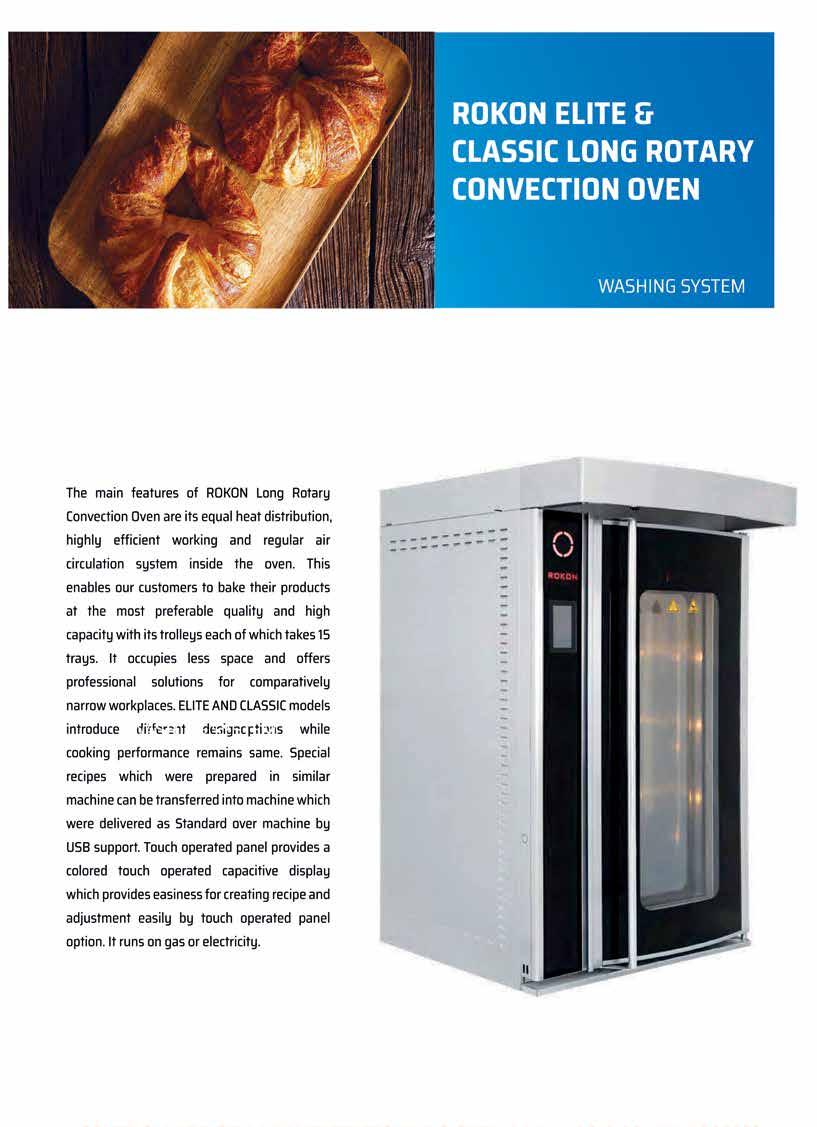

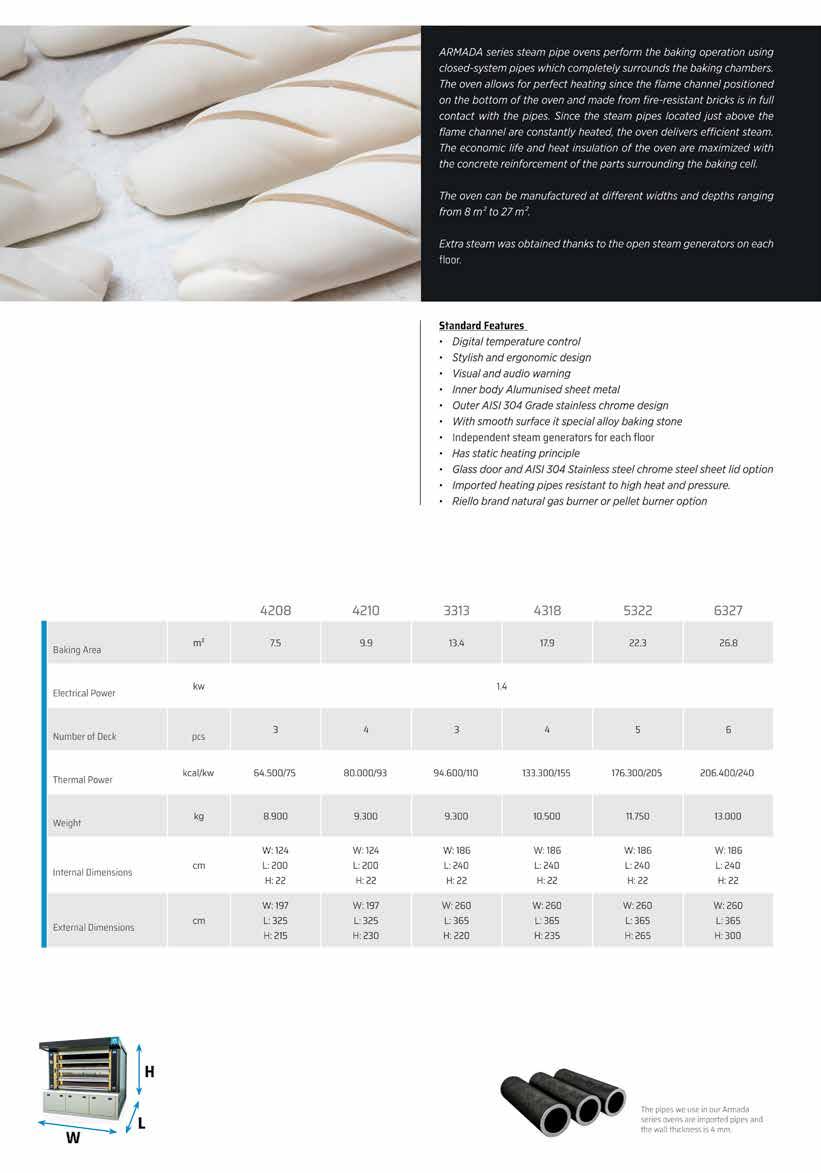

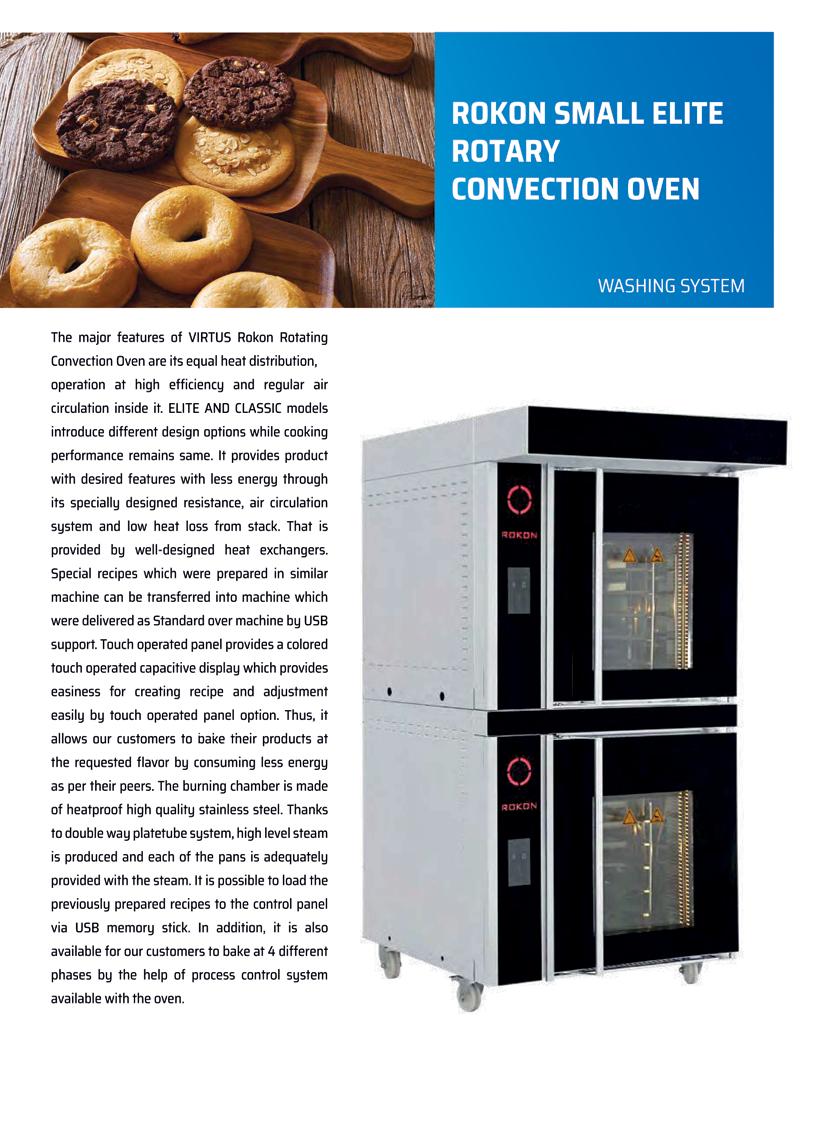

44

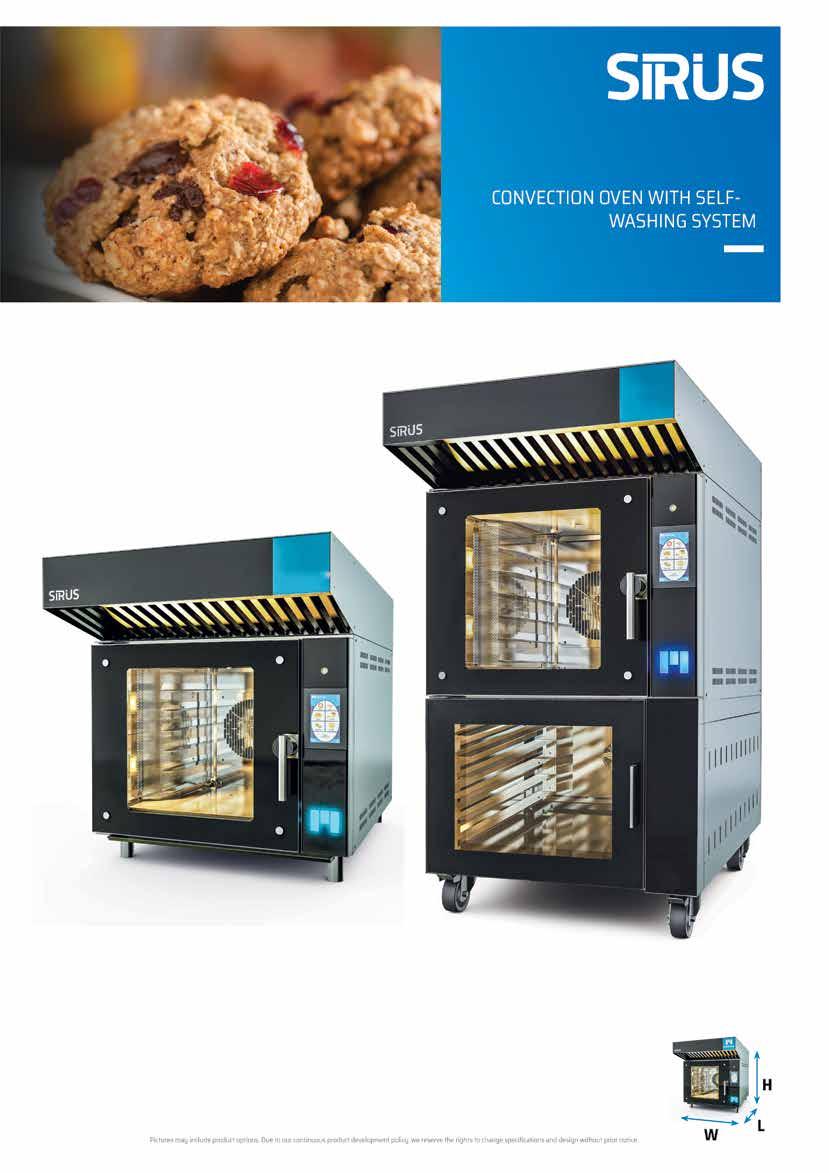

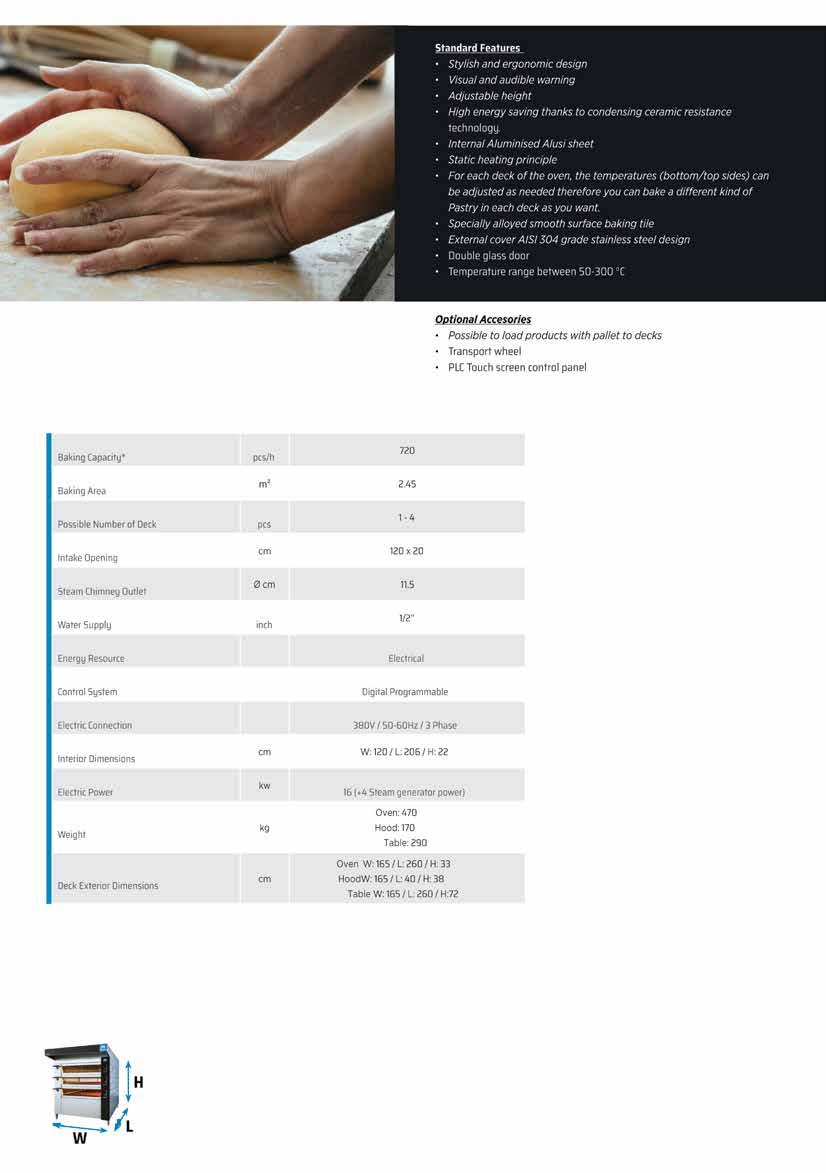

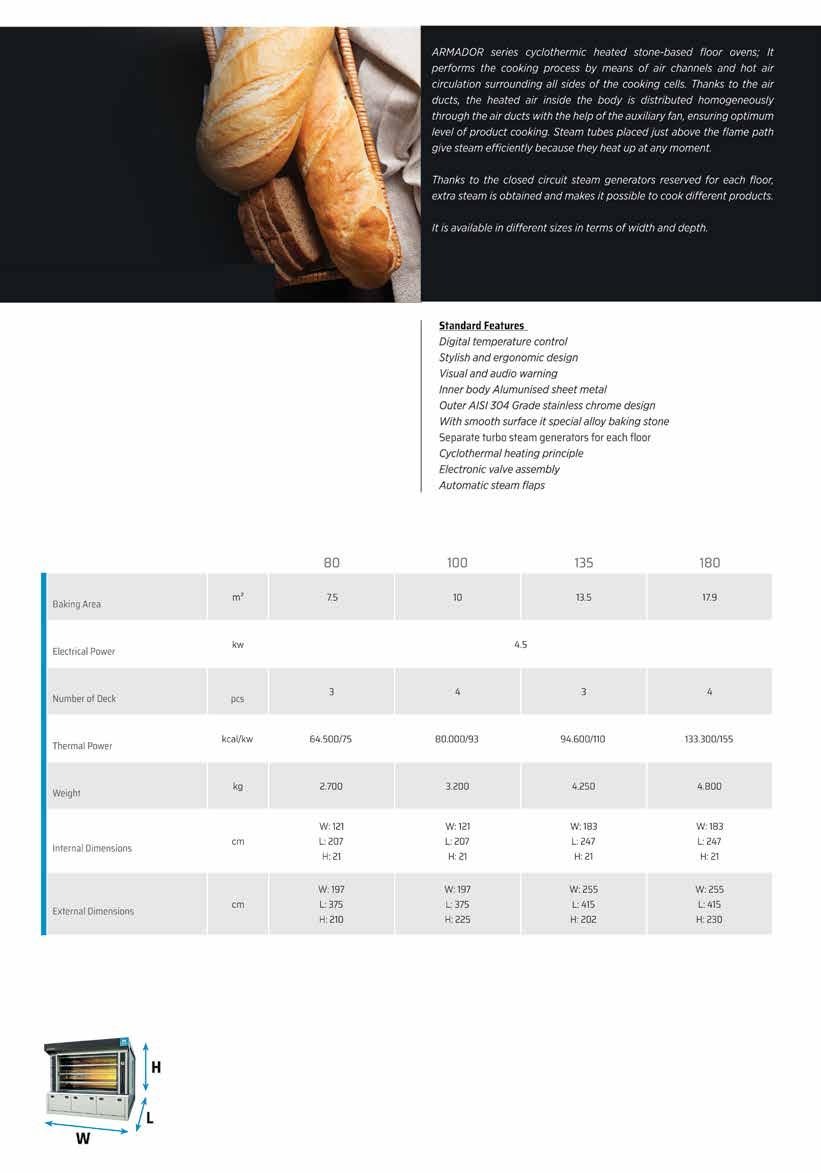

45

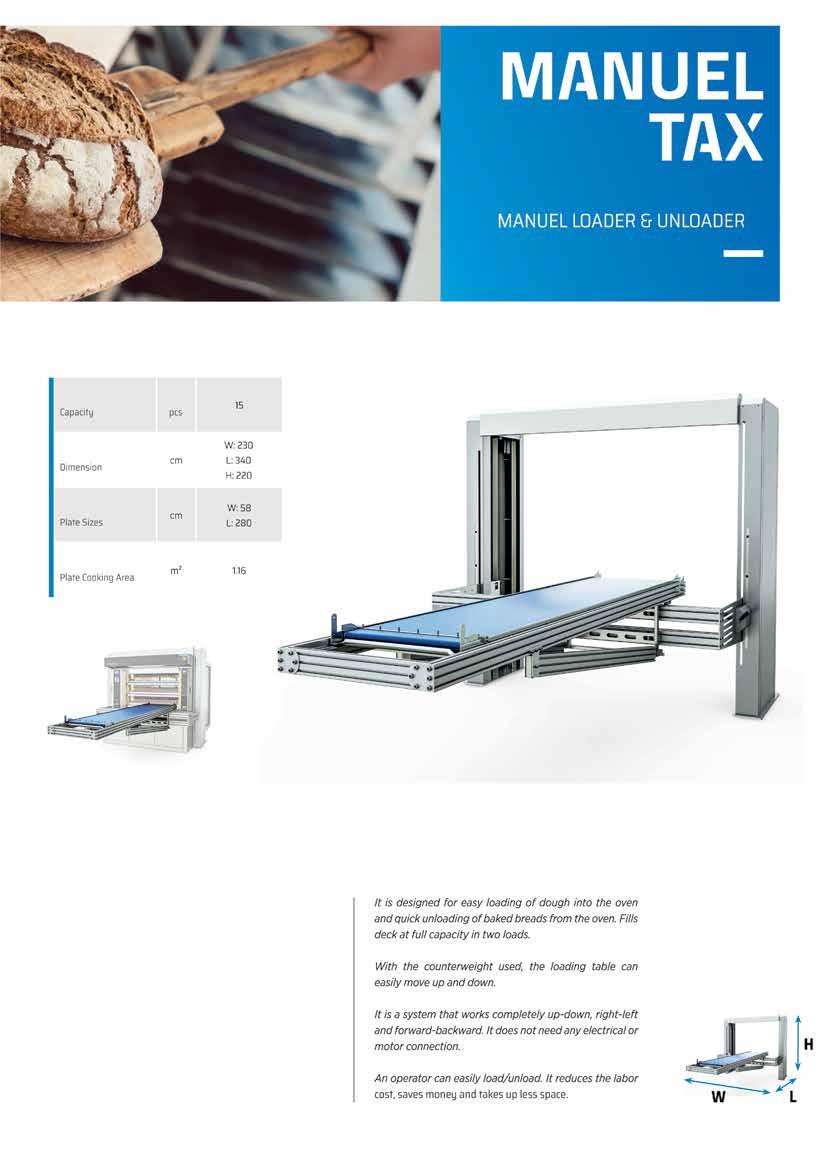

46

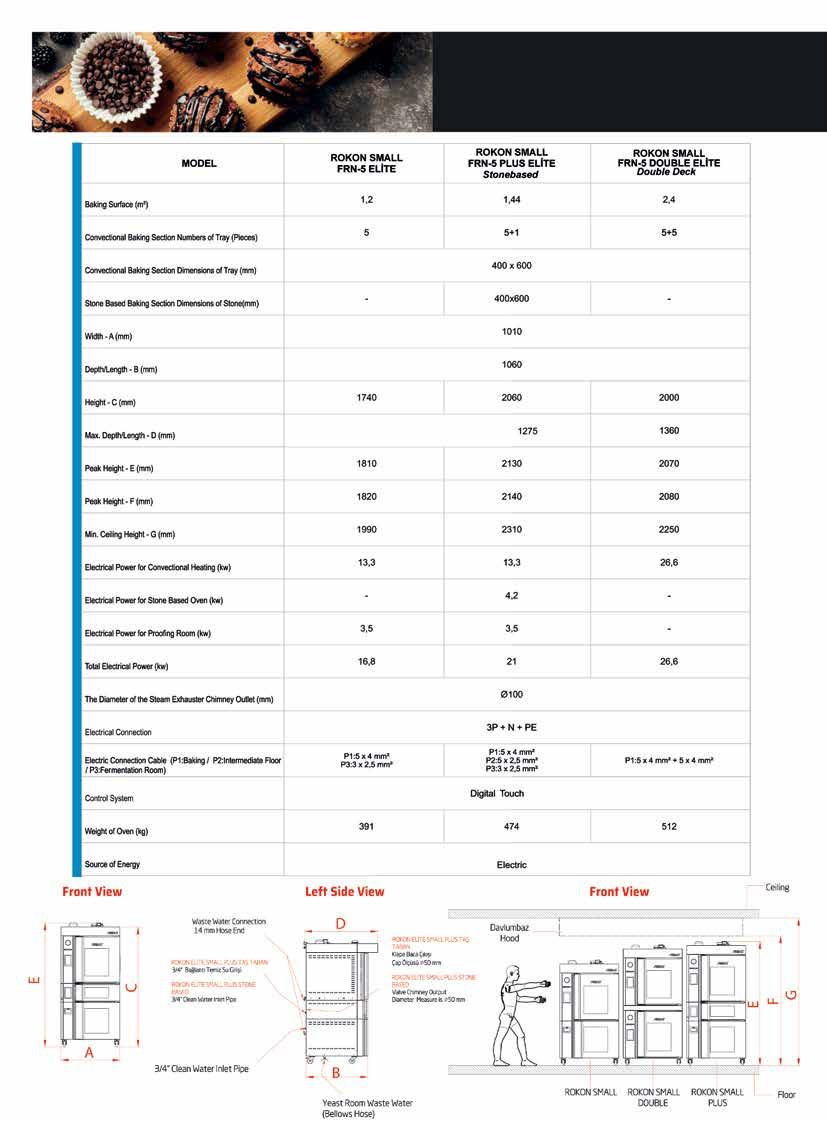

47

48

49

50

51

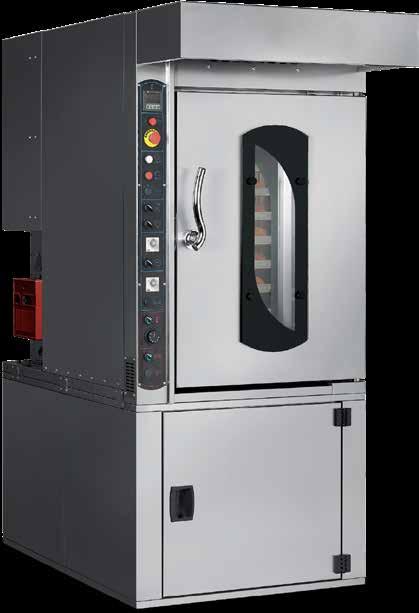

SERIES BAKING

Thermal power

Pan dimensions

Dimensions Abmessungen

Weight Gewicht

Hourly cons.

Rates

Voltage

Kcal/h B.T.U./h

Power (kw) Anschlusswert

Cm

kw.

W∙D∙H Cm.

Kg.

Diesel Gas

V

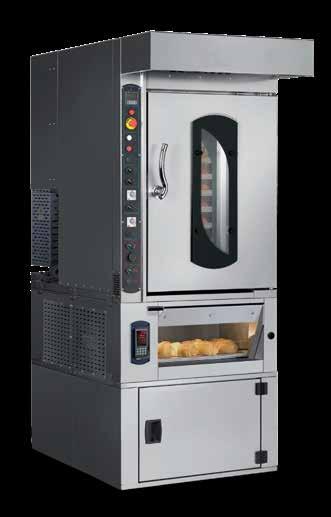

FLEX-E

-

40x60

1,25

90x132x133

450

-

400/50Hz/3P

FLEX-G

20.000 Kcal/h 80.000 B.T.U./h

40x60

1,40

90x132x133

500

Diesel 1,10 Kg Gas 1,30 mc

400/50Hz/3P

CHAMBER STD

-

n°2 - 40x60

3,60

90x132x38

130

-

400/50Hz/3P

PROOFING BOX

-

40x60

2,20

90x132x69

86

-

400/50Hz/3P

PROOF. BOX H. 54

-

40x60

2,20

90x132x54

72

-

400/50Hz/3P

Models Modelle

52

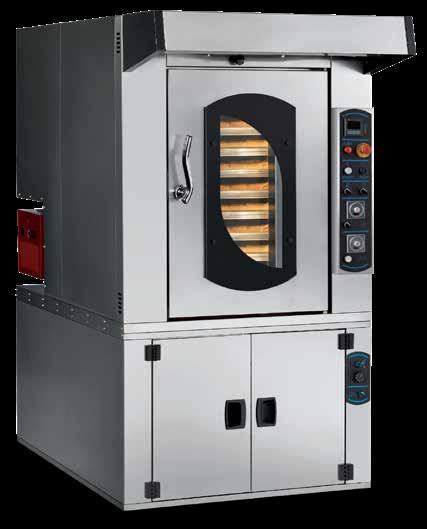

Rack oven for bakeries and pastry shops

· Face, internal and external panels in stainless steel. · Extractor hood in stainless steel. · Gas or diesel models with heat exchanger in refractory stainless steel, electrical model with stainless steel covered resistances. · Steamer with rods for a high steam production capacity. · Timed solenoid valve to pump water to the steamer. · Heat exchanger and control panel on the left side and door opening from left to right ( standard ). · Double glass door with rubber gasket. · Trolley rotation is performed by geared motor. · Extractable rack ( not included ). · Oven with hook. · Electromechanical control panel with digital thermostat, timer with bell for cooking and timer for steam. · Double safety thermostat in the baking chamber and in the fumes extractor chimney. · Decompression duct.

OPTIONAL · Electric chamber with or without steamer ( + Kw 0,70 ). · Proofer or base or stand. · Trays holders for the base or for the stand. · Diesel oil or gas burner application or electrical functioning. · Computerized control panel “Easy Cooking” or “Easy Touch”. · Inverter to regulate motor fan speed ( ideal for pastry production ). · St. steel rack. · St. steel rack support.

Models Modelle

Thermal power

Pan dimensions

Power (kw) Anschlusswert

Dimensions Abmessungen

Weight Gewicht

Hourly cons.

Rates

Voltage

Kcal/h B.T.U./h

Cm

kw.

W∙D∙H Cm.

Kg.

Diesel Gas

V

-

400/50Hz/3P

BABY-E

-

40x60 - 50x60 50x70 - 45x65 45x75 - 18”x26”

1,25

110x150x127

600

BABY-G

25.000 Kcal/h 100.000 B.T.U./h

40x60 - 50x60 50x70 - 45x65 45x75 - 18”x26”

1,40

110x150x127

650

PROOF. BOX

-

40x60 - 50x60 50x70 - 45x65 45x75 - 18”x26”

2,2 resist.

110x150x71

100

Diesel 1,30 Kg 400/50Hz/3P Gas 1,60 mc

-

400/50Hz/3P

53

SERIES BAKING

Rack oven for bakeries and pastry shops

· Face, internal and external panels in stainless. · Extractor hood in stainless steel. · Gas, diesel or pellet models with heat exchanger in refractory st. steel, electrical model with st. steel covered resistances. · Steamer with rods for a high steam production capacity. · Timed solenoid valve to pump water to the steamer. · Heat exchanger and control panel on the left side and door opening from left to right ( standard ). · Double glass door with rubber gasket. · Trolley rotation is performed by geared motor. · Extractable rack ( not included ). · Oven with hook. · Electromechanical control panel with digital thermostat, timer with bell for cooking and timer for steam. · Double safety thermostat in the baking chamber and fumes extractor chimney. · Decompression duct OPTIONAL · Diesel oil or gas or pellet burner application or electrical functioning. · Computerized control panel “Easy Cooking” or “Easy Touch”. · Inverter to regulate motor fan speed ( for pastry production ). · Oven with revolving platform application. · St. steel rack.

Models Modelle

54

Thermal power

Pan dimensions

Power (kw) Anschlusswert

Dimensions Abmessungen

Weight Gewicht

Hourly cons. Rates

Voltage

Kcal/h B.T.U./h

Cm

kw.

W∙D∙H Cm.

Kg.

Diesel - Gas

V

SMALL-E

-

40x60 - 45x65 18”x26”

1,20

107x156x206

1000

-

400/50Hz/3P

SMALL-G

40.000 Kcal/h 160.000 B.T.U./h

40x60 - 45x65 18”x26”

1,35

107x156x206

1000

Diesel 2 Kg Gas 2,5 mc

400/50Hz/3P

SMALL PELLET

40.000 Kcal/h

40x60 - 45x65 18”x26”

2,50

107+46x156x206

1050

-

400/50Hz/3P

MINI-E

-

40x60 - 45x65 40x80 - 45x75 50x70 - 18”x26”

1,74

133x188x220

1400

-

400/50Hz/3P

MINI-G

45.000 Kcal/h 180.000 B.T.U./h

40x60 - 45x65 40x80 - 45x75 50x70 - 18”x26”

1,89

133x188x220

1400

Diesel 2,5 Kg Gas 3,0 mc

400/50Hz/3P

MINI PELLET

45.000 Kcal/h

40x60 - 45x65 40x80 - 45x75 50x70 - 18”x26”

2,26

133+46x188x220

1450

-

400/50Hz/3P

Accessories Solid aluminum baking trays

Perforated aluminum baking trays

Perforated aluminum baking trays -frame

Perforated aluminum baking trays flat

Perforated aluminum trays reinforcement bar

Stainless steel trolley.

STANDARD

Thermal power

Models Modelle

Kcal/h B.T.U./h

Pan dimensions Cm

EASY COOKING

EASY TOUCH

Power (kw) Anschlusswert

Dimensions Abmessungen

Weight Gewicht

Hourly cons.

Rates

Voltage

kw.

W∙D∙H Cm.

Kg.

Diesel Gas

V

ROTOR-E

-

60x80

2,17

143x203x220

1600

-

400/50Hz/3P

ROTOR-G

60.000 Kcal/h 240.000 B.T.U./h

60x80

2,32

143x203x220

1600

Diesel 4 Kg Gas 5,5 mc

400/50Hz/3P

ROTOR PELLET

60.000 Kcal/h

60x80

2,69

143+46x203x220

1650

-

400/50Hz/3P

ROTOR-FR/E

-

60x80

1,68

170x151x230

1700

-

400/50Hz/3P

ROTOR-FR/G

60.000 Kcal/h 240.000 B.T.U./h

60x80

1,83

170x151x230

1700

Diesel 4 Kg Gas 5,5 mc

400/50Hz/3P

55

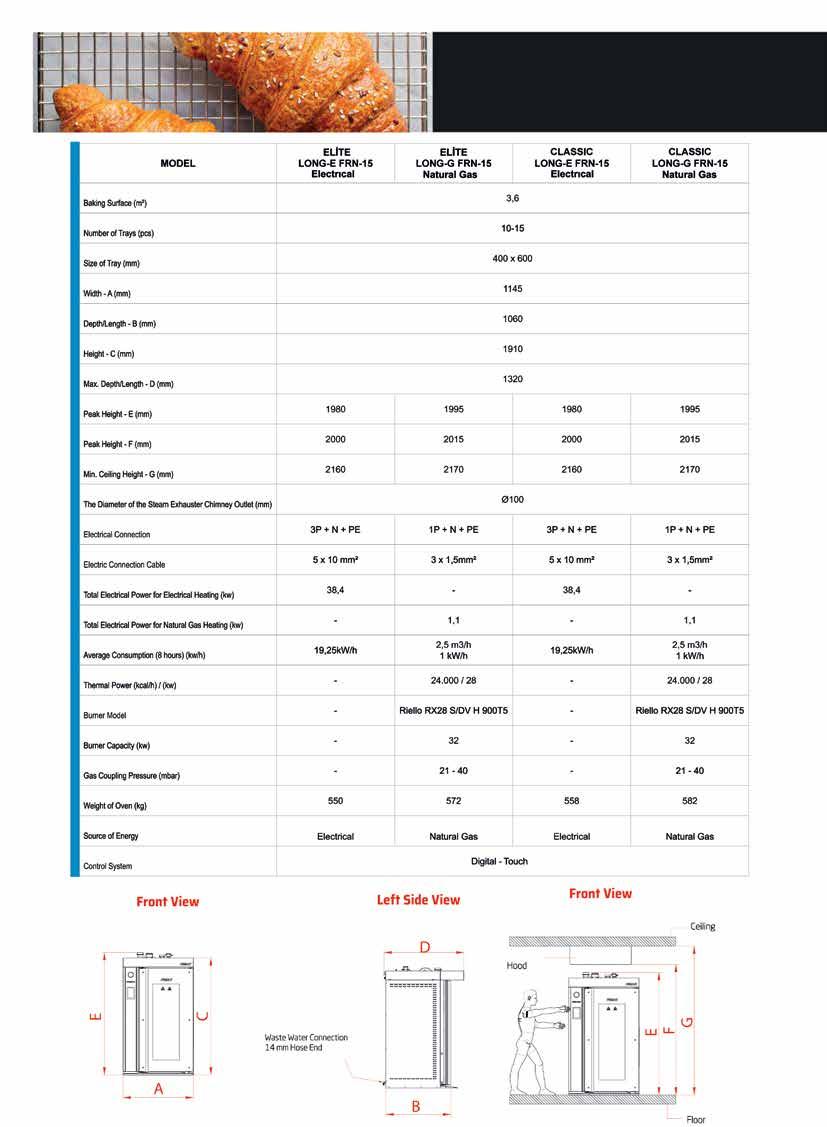

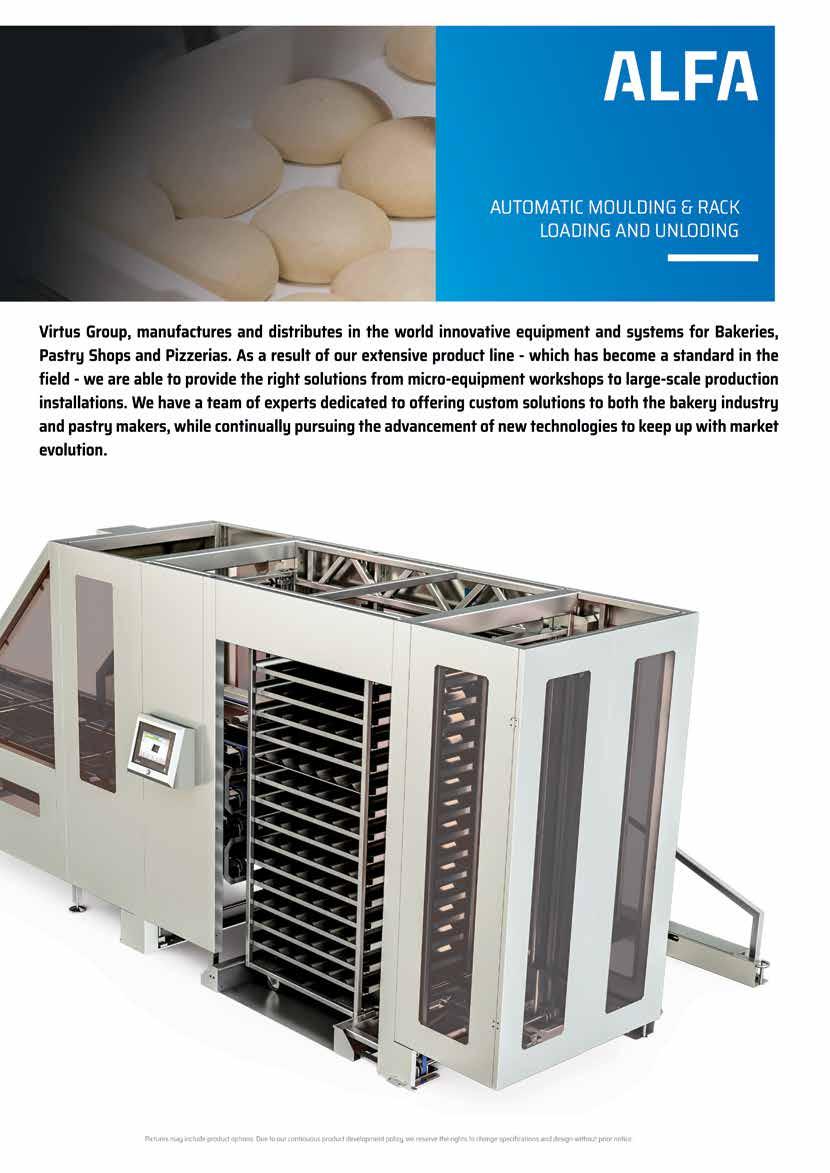

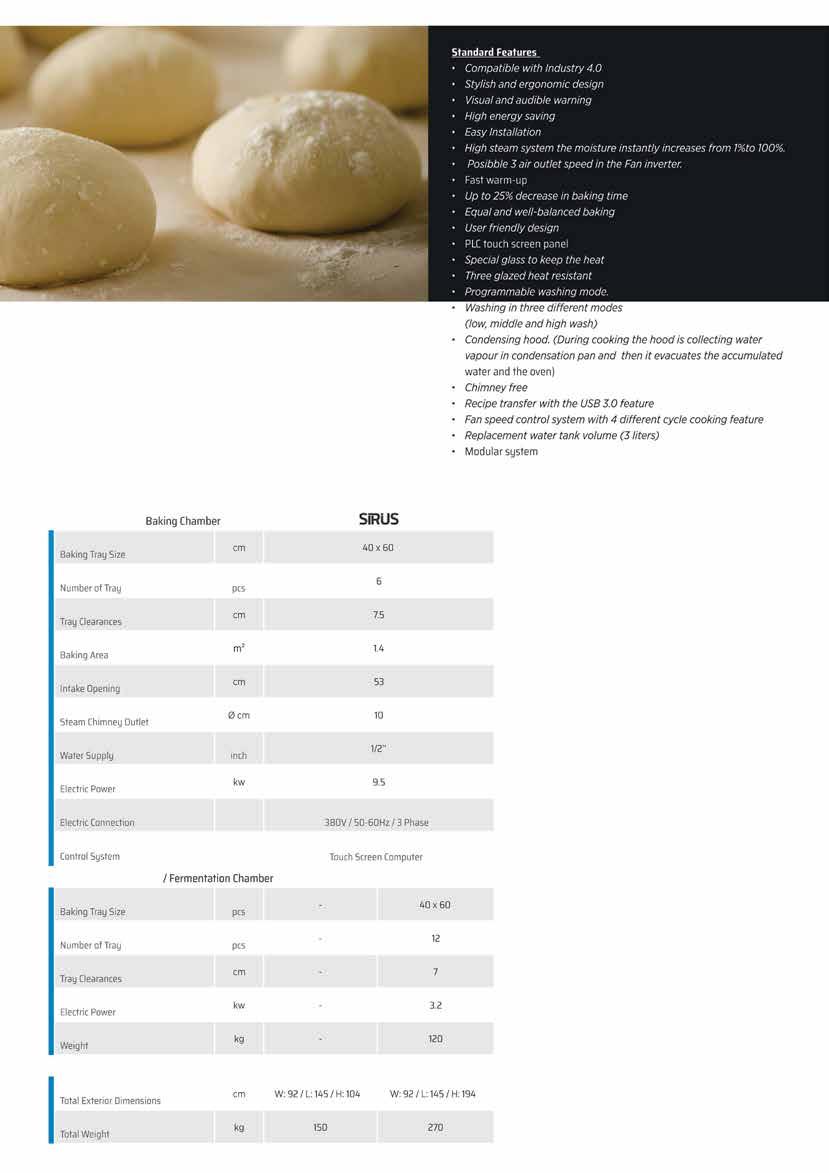

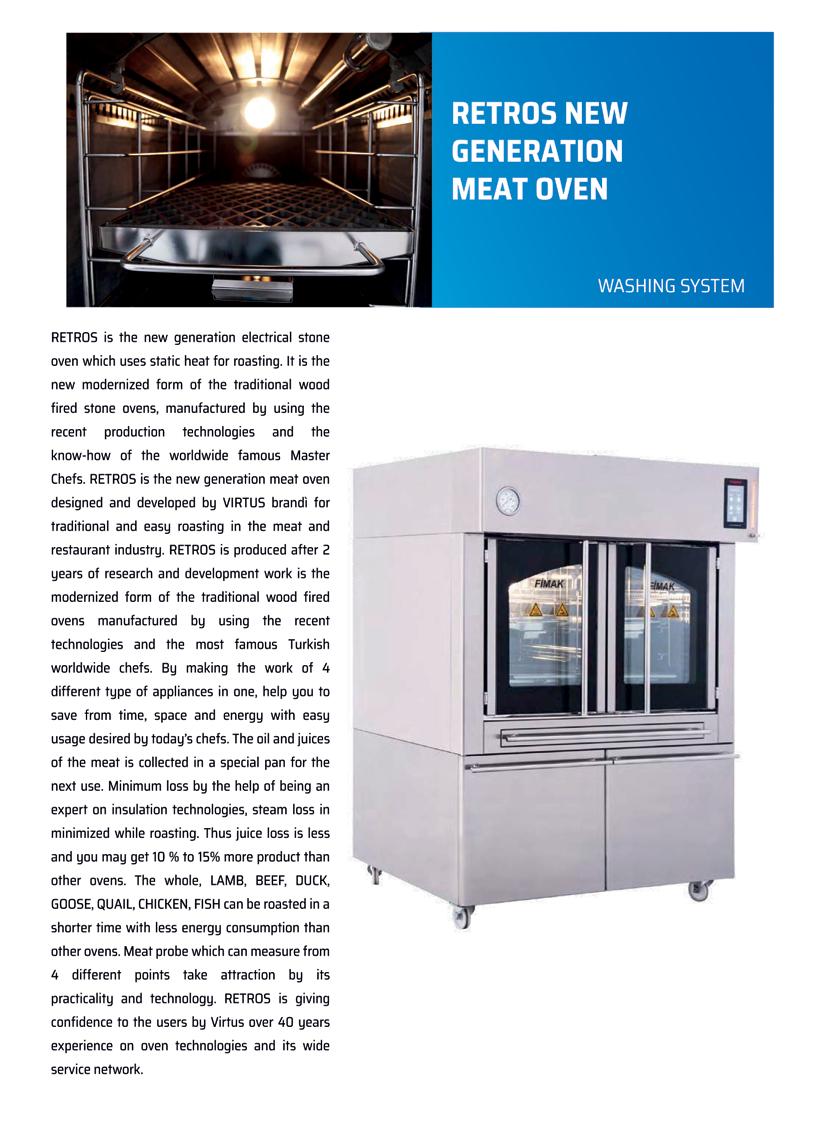

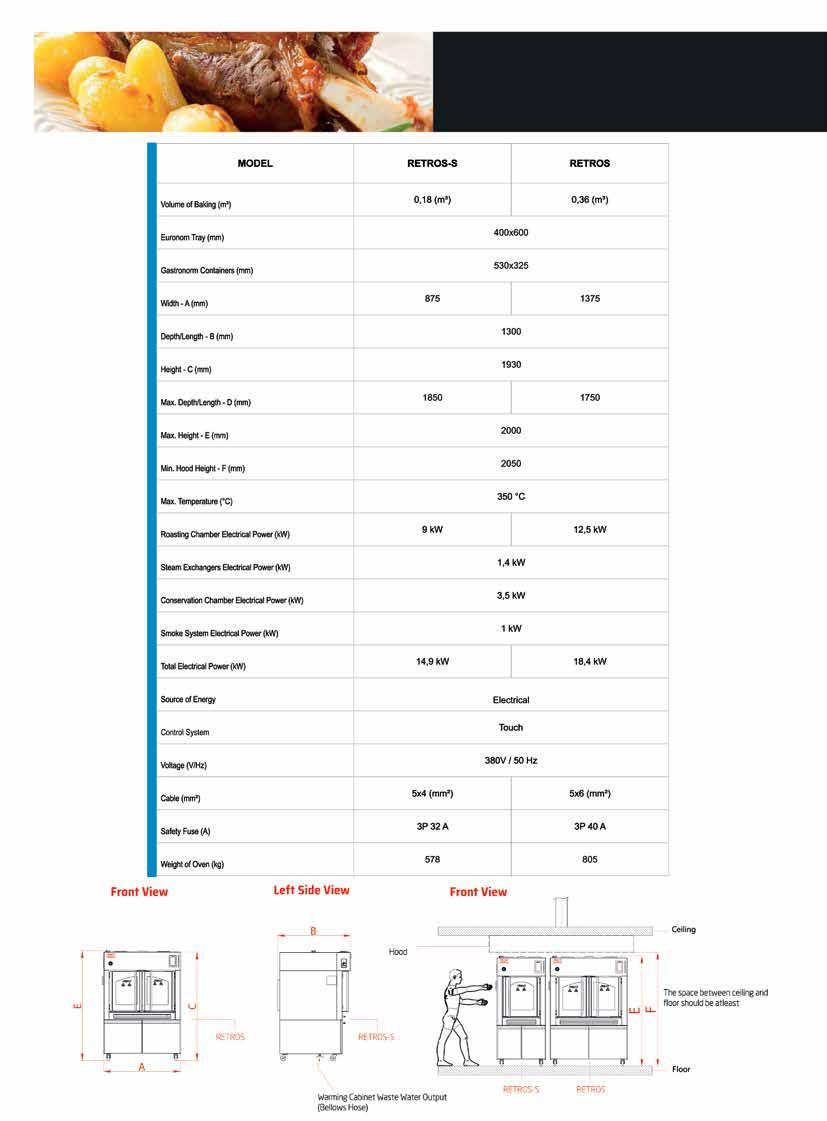

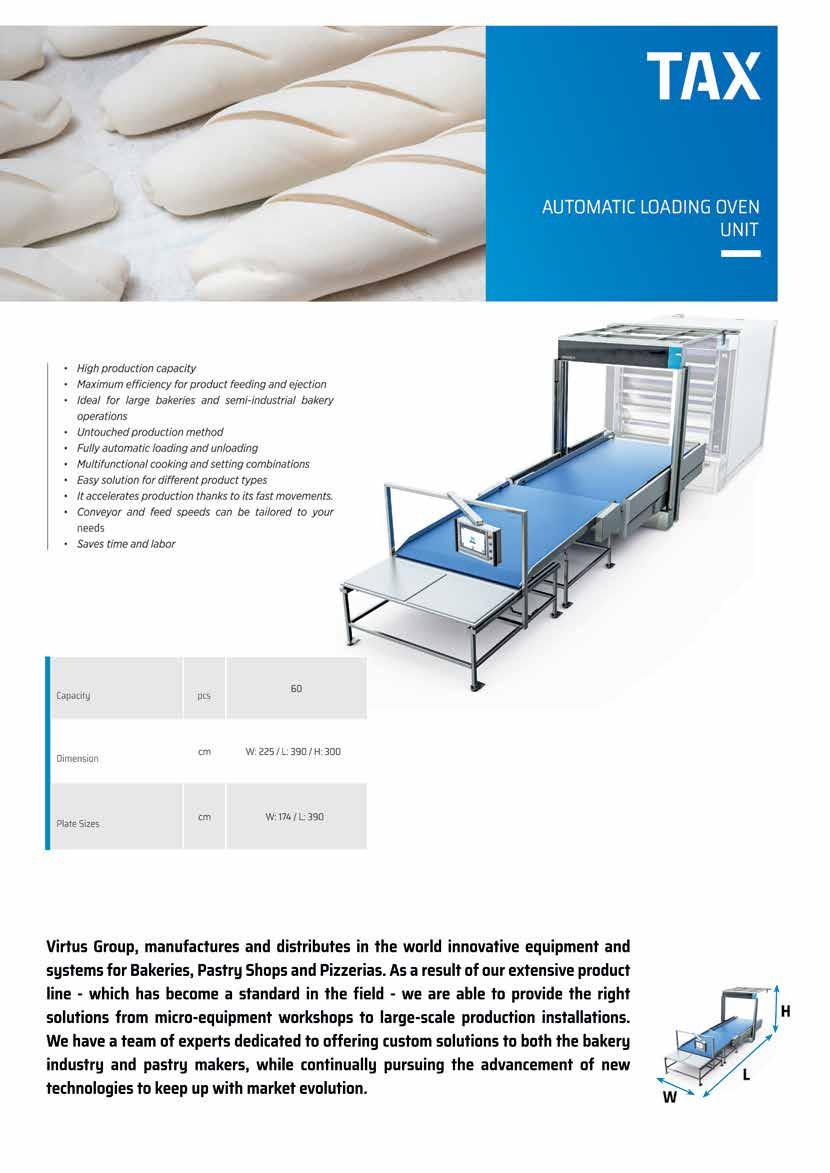

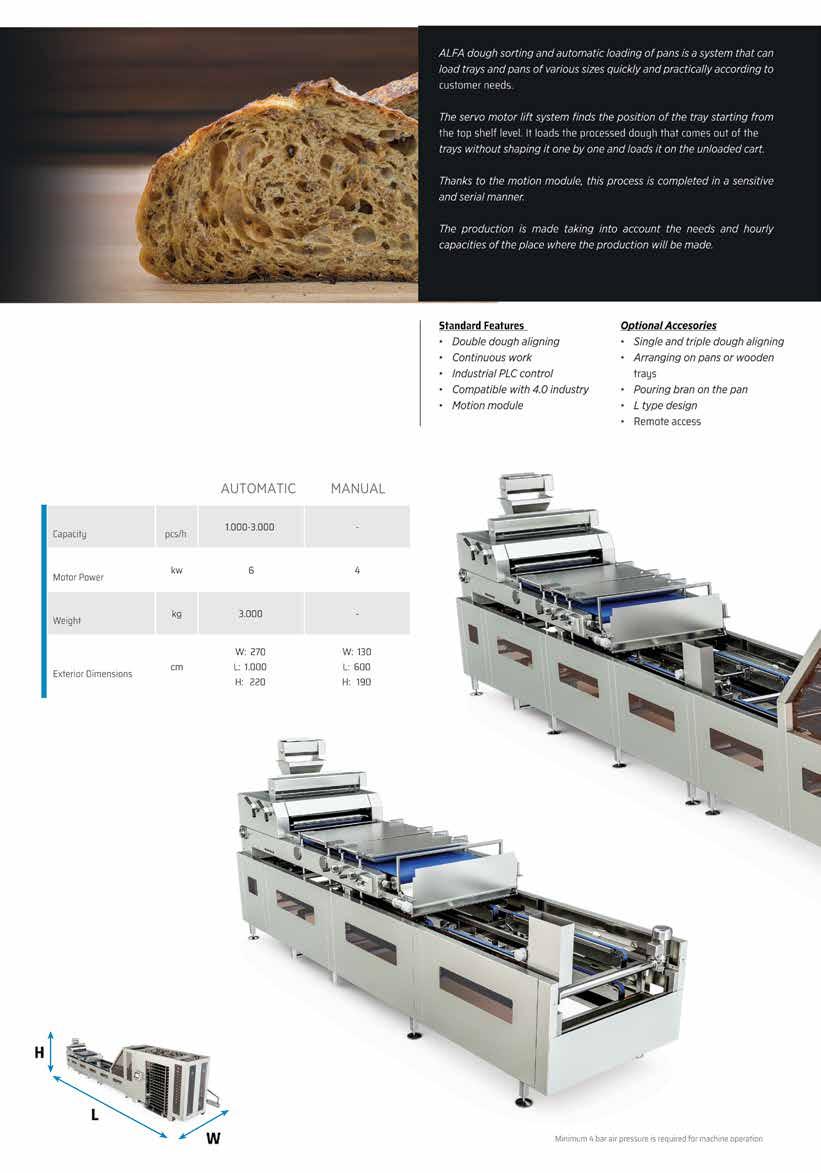

56 56

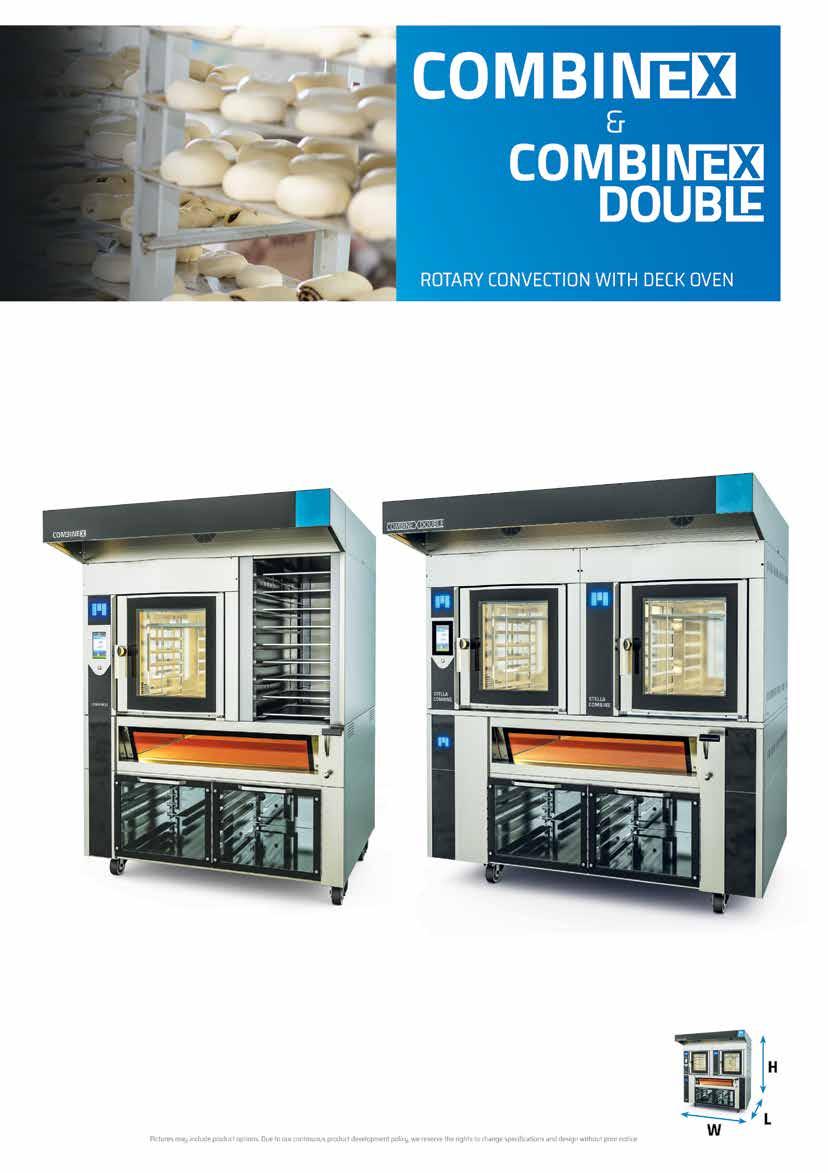

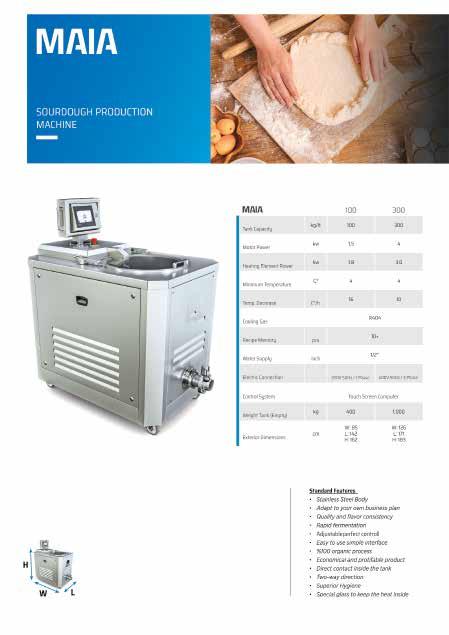

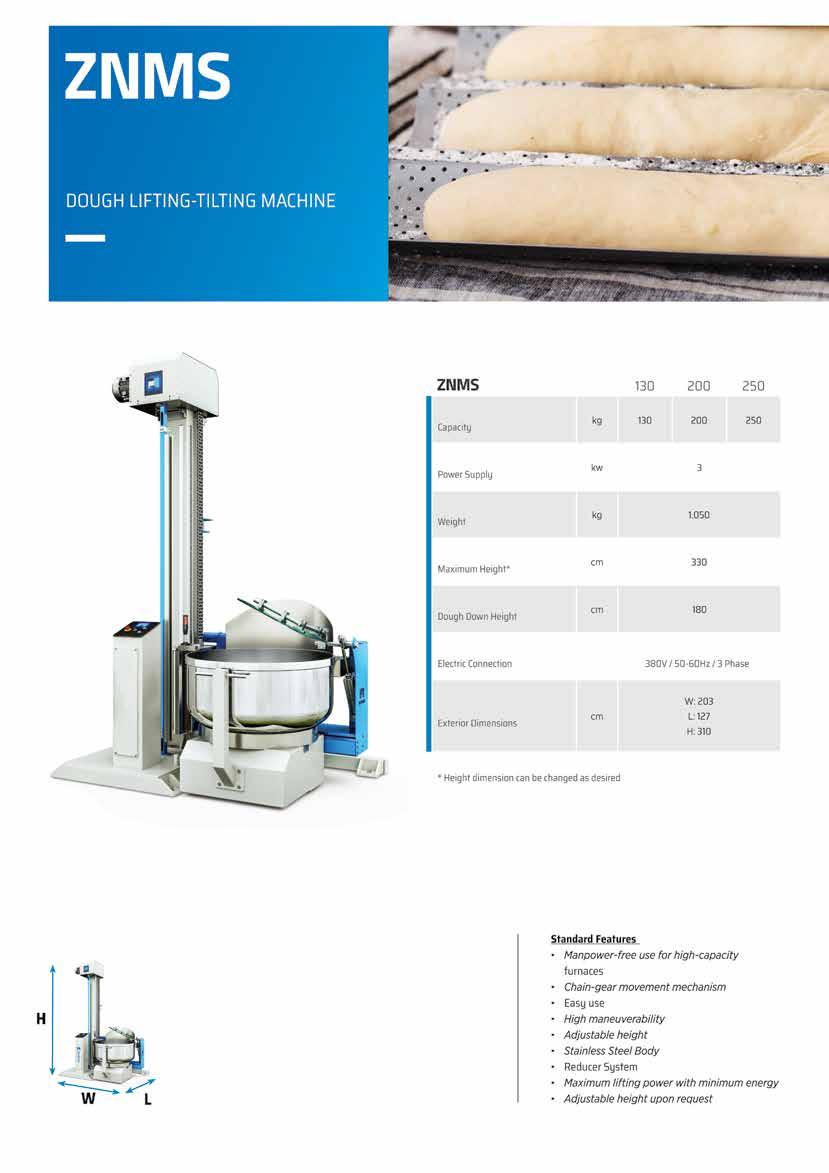

57 57

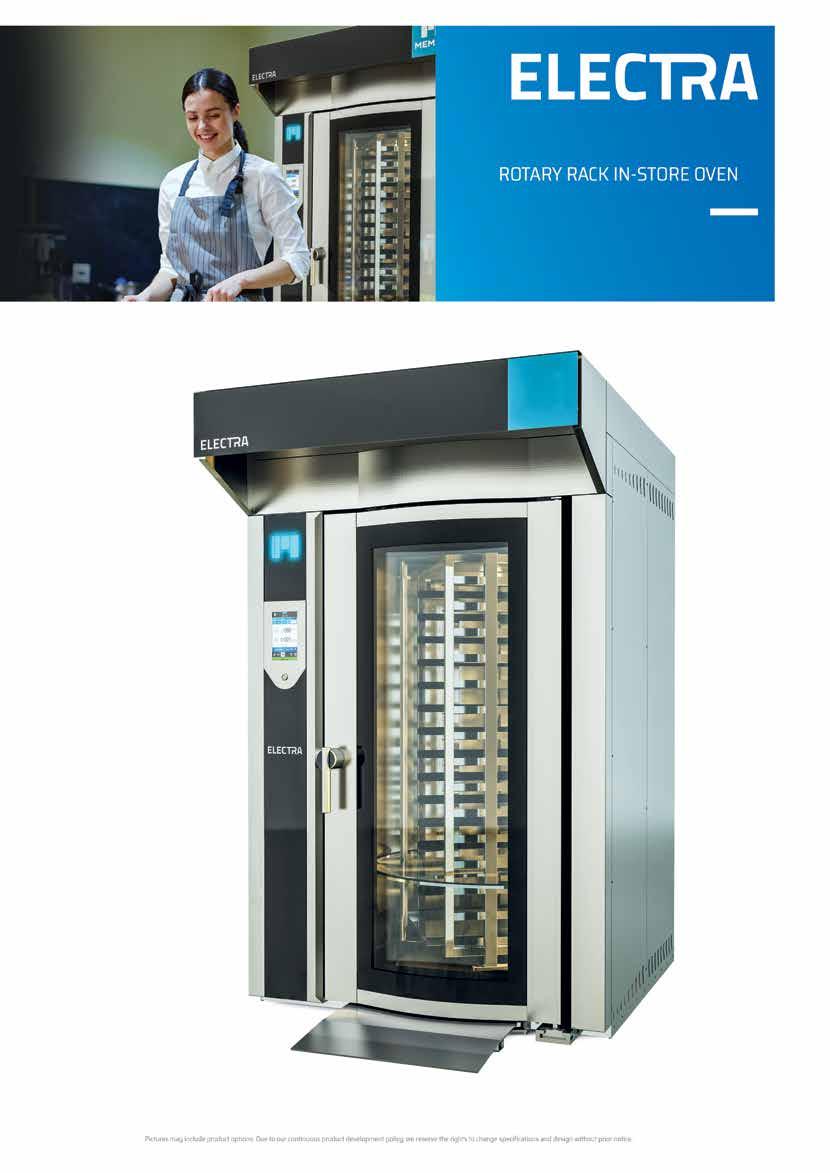

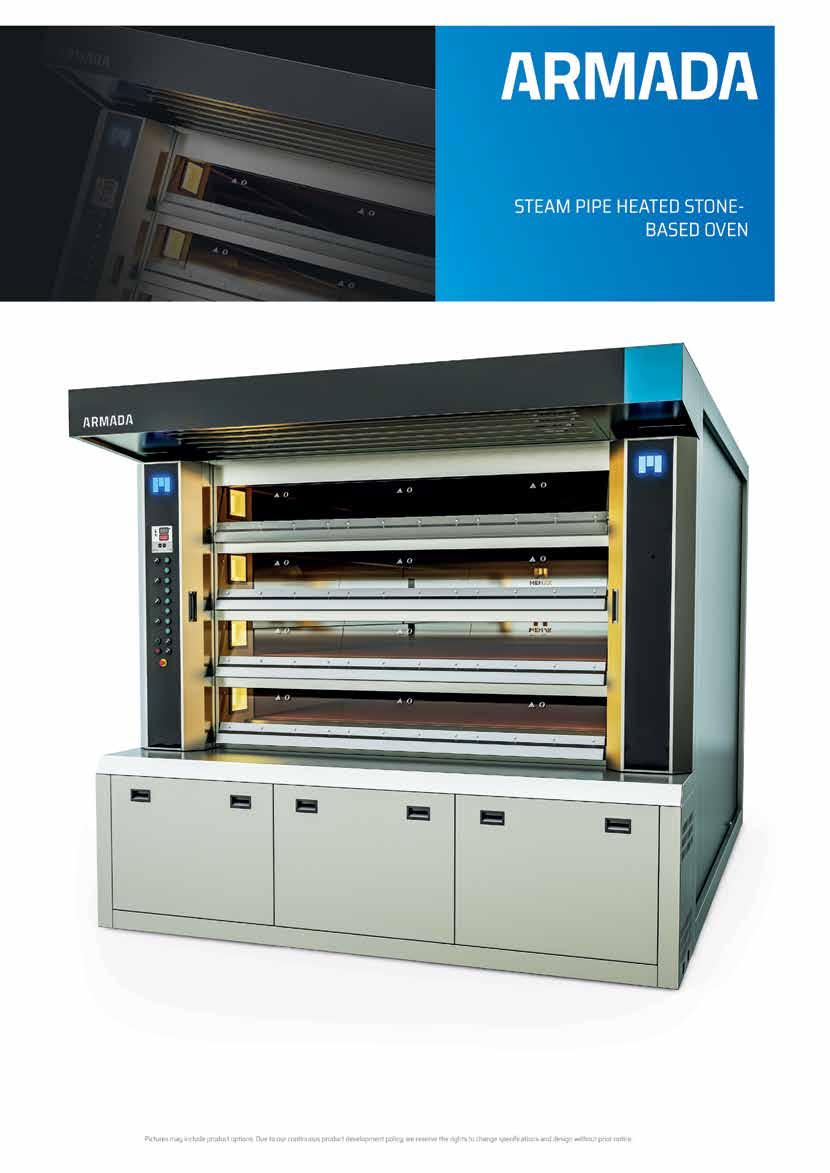

58 58

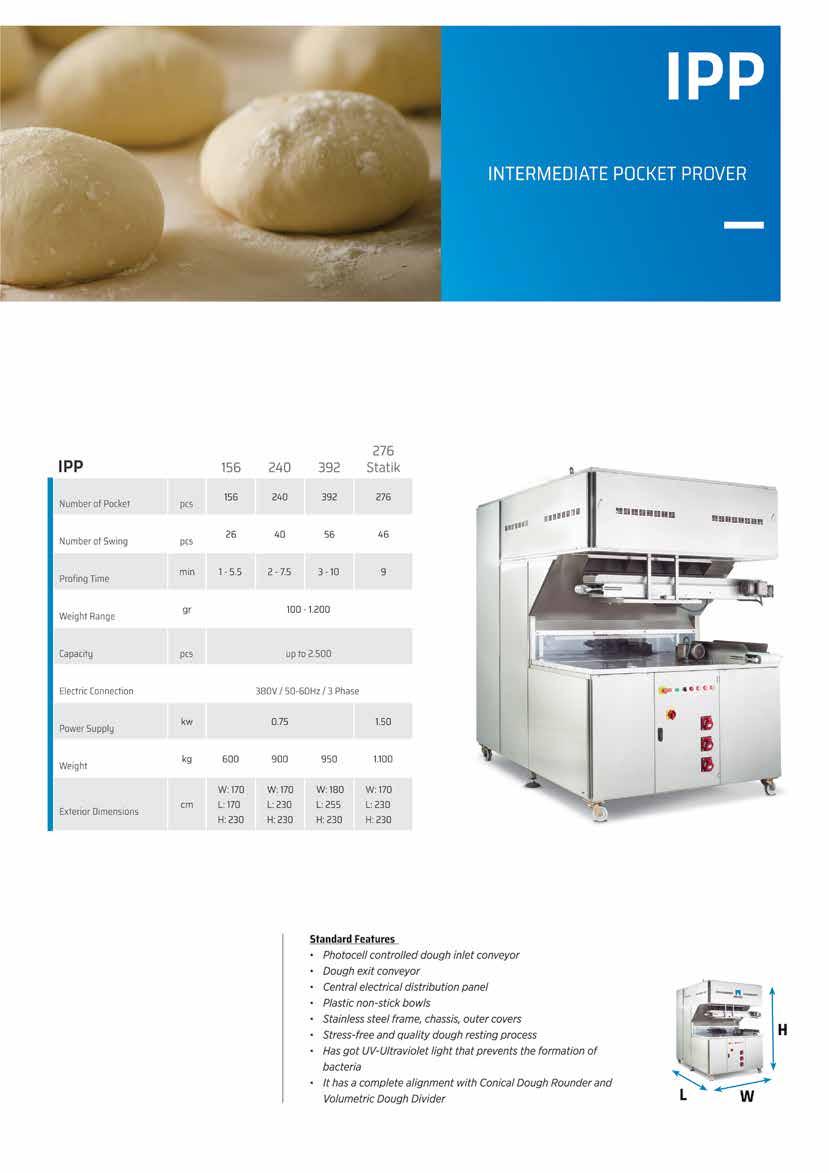

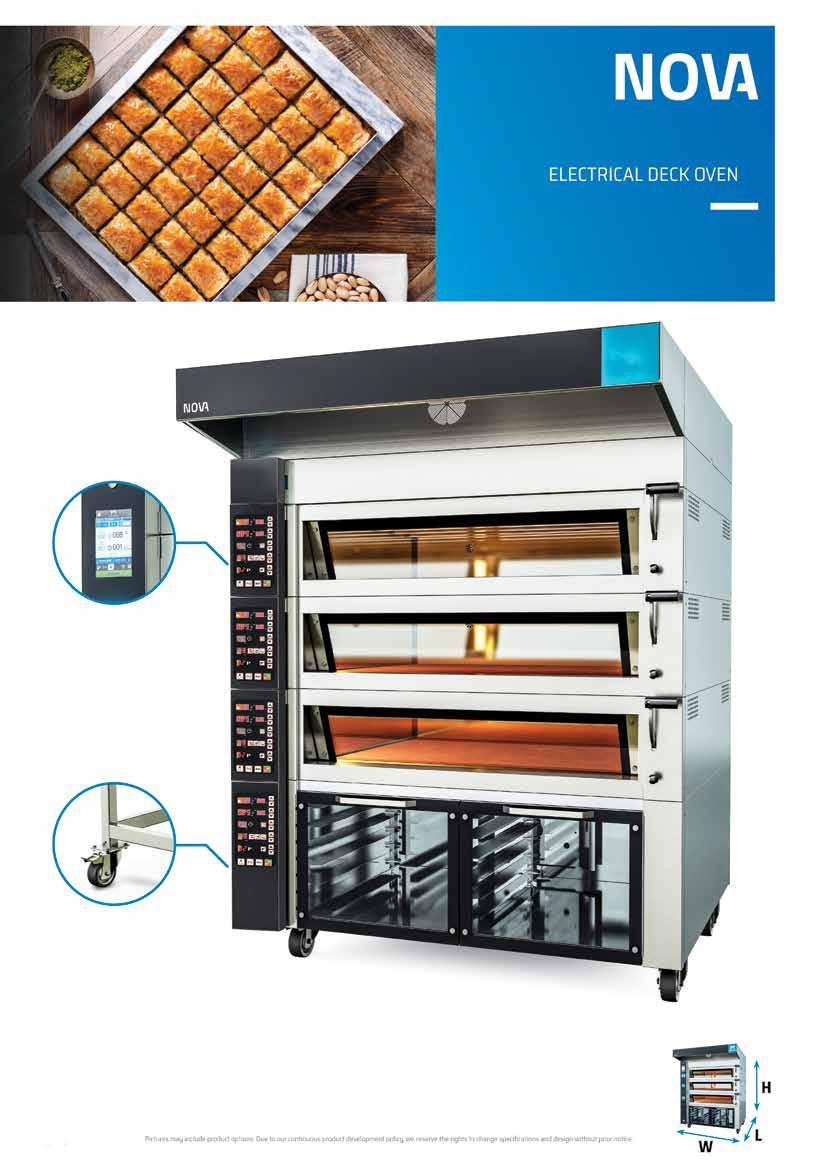

59 59

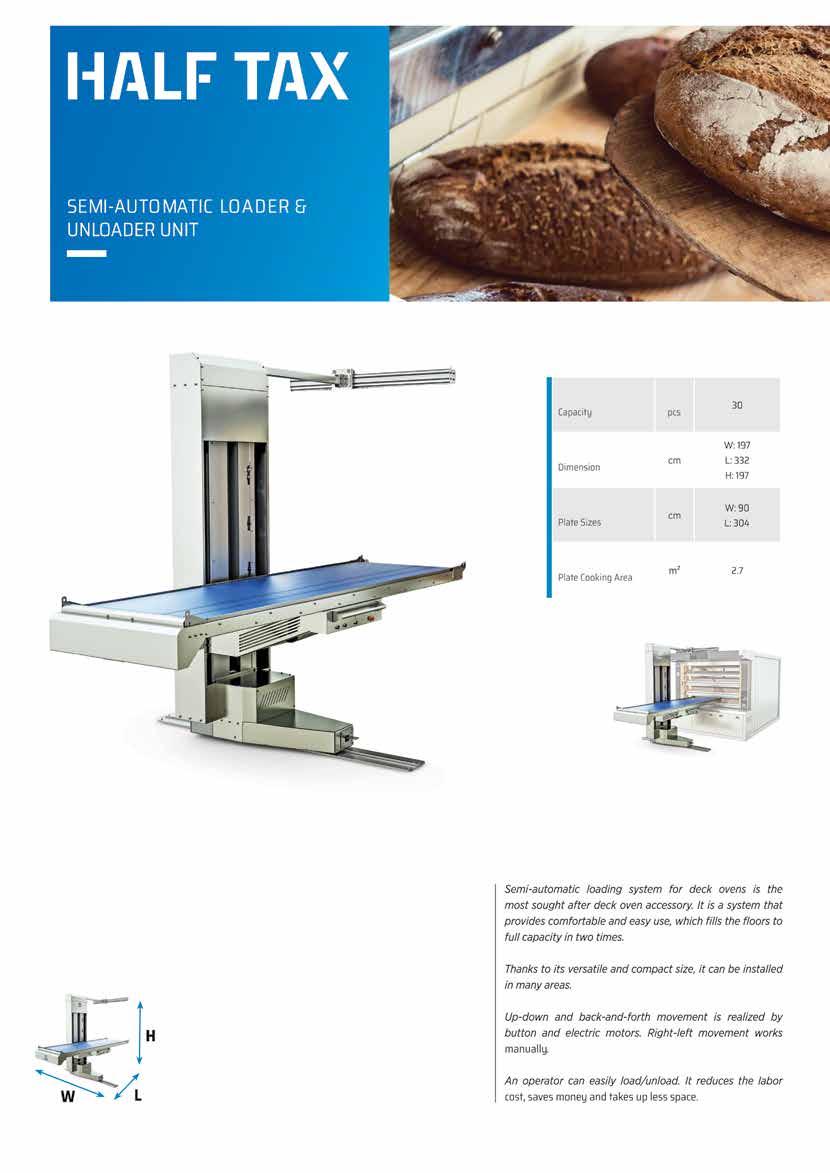

60 60

61 61

62 62

63 63

64 64

65 65

66 66

67 67

68 68

69 69

70 70

71 71

72 72

73 73

74 74

75 75

76 76

77 77

78 78

79 79

80 80

81 81

82 82

83 83

84 84

85 85

86 86

87 87

88 88

89 89

90 90

91 91

92 92

93 93

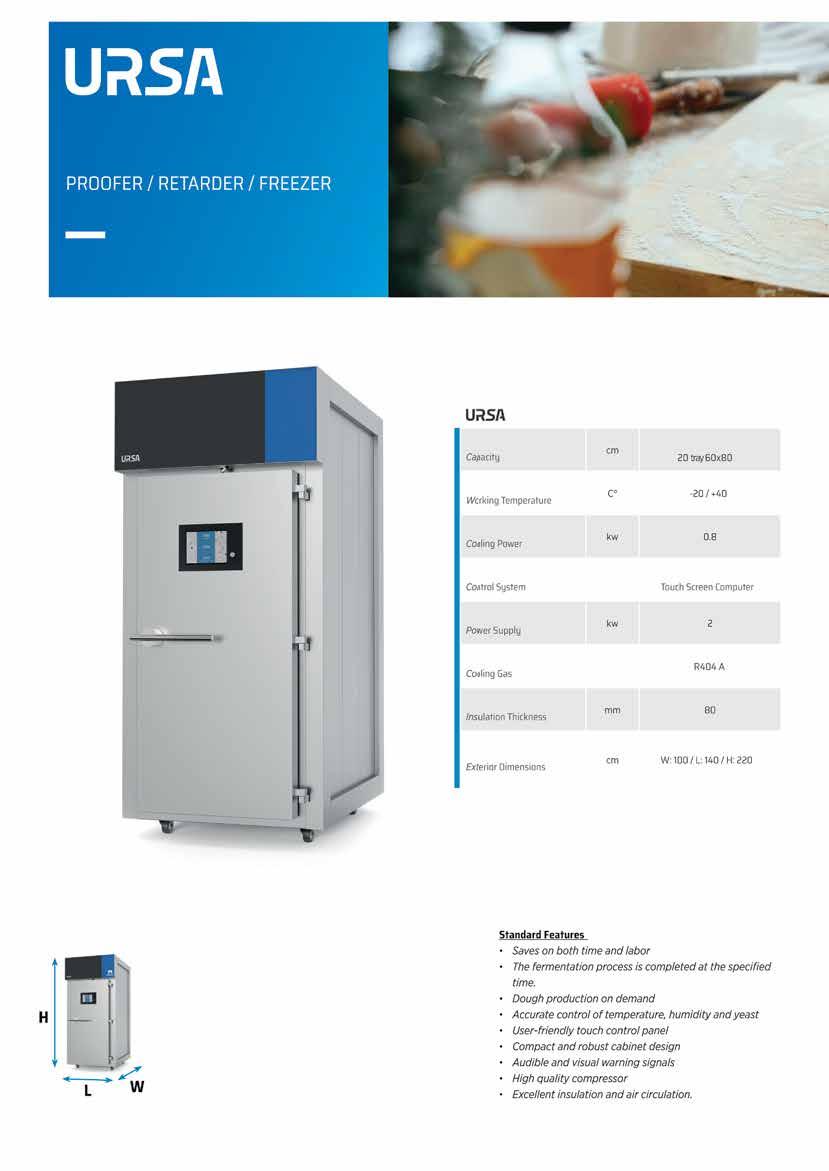

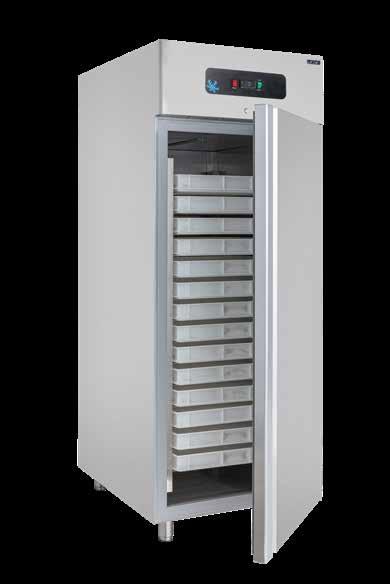

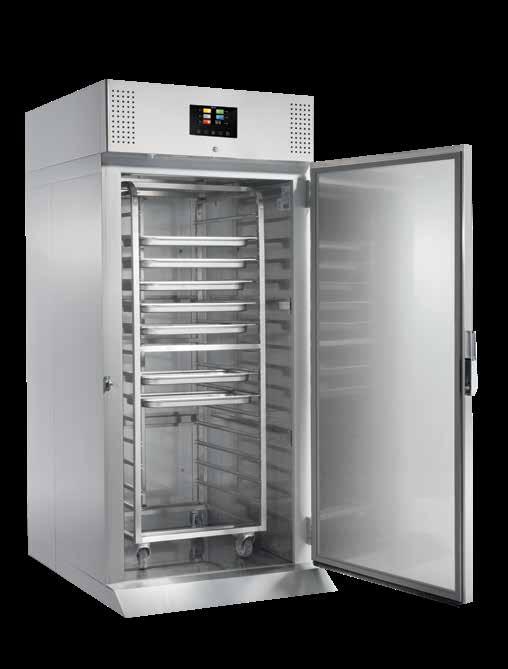

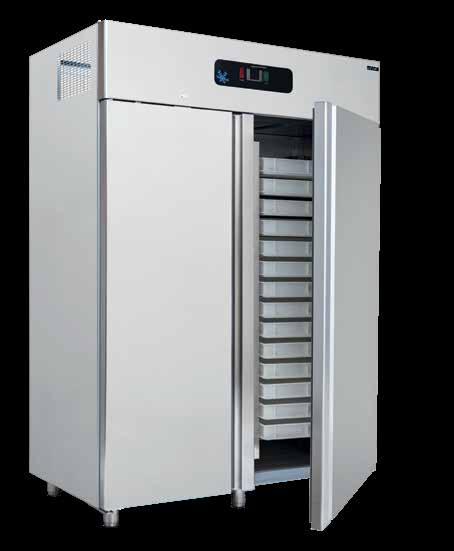

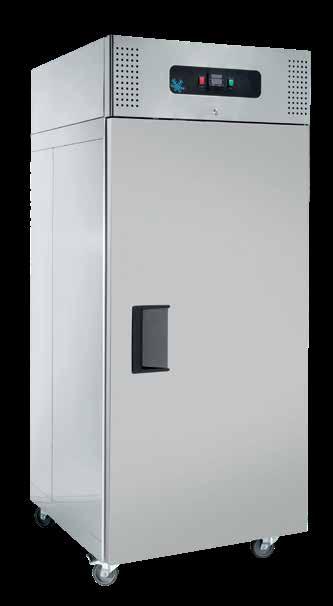

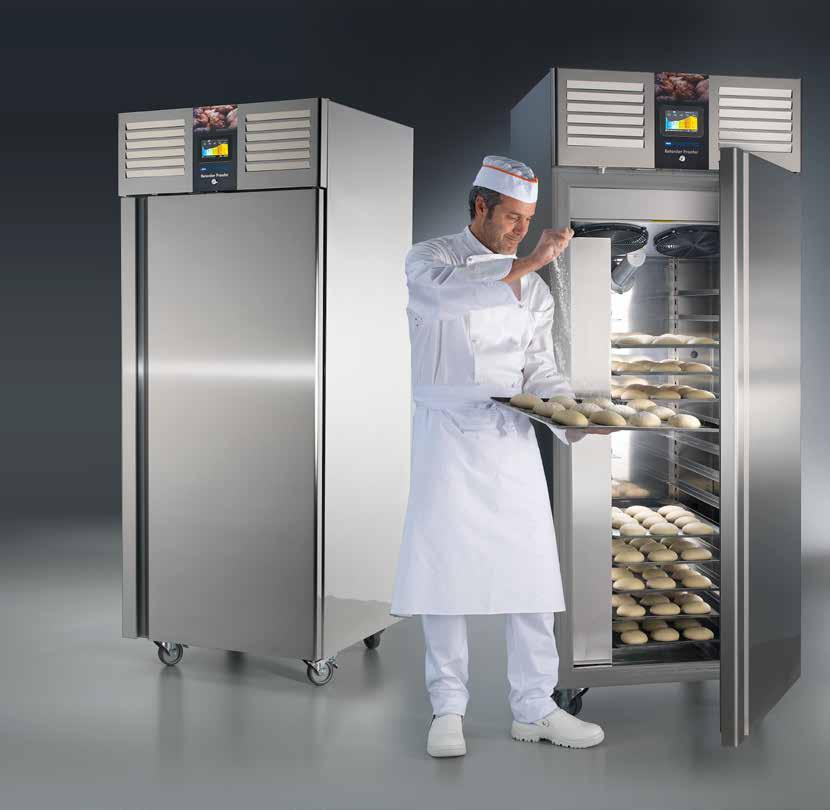

Retarder Bakery Prover Refrigerators

Accessories

Tray Trolley

W Wheels

60hz

220 V 60 hz

* Inside Depth: 40x60 Tray Trolley * Trolley Height Max. 145 Cm. * 35 / 40 Kg/m³ Ecology Friendly HCFC Polyuretahe Insulation * Digital Control Panel * Door Lock * Automatic Water Evaporation System * (Hot Gas System) * Special bottom to enter with the Rolling Car * Special Door and Hinge Systems * Removable and Easy Cleaning Magnetic Gasket * Ambient Temperature + 43ºC & % 65 Nem

Model Modell

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

-10/+30 r.h. %90-60

700

0,57

91x121x221

o

PA-VL7-RO-RP

94

Insulation Thickness Isolierstärke

Weight Gewicht

Stainless Steel Type

Kg

80 mm

250

304

Model Modell

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

-10/+30 r.h. %90-60

785

0,60

82x92x208

o

BL8-RP

Insulation Thickness Isolierstärke

Weight Gewicht

Stainless Steel Type

Kg

60 mm

176

430

95

SERIES BAKERY

Vertical Refrigerators - 40x60 Tray Capacity

Info * Inside Depth: 40x60 Tray Capacity (28 Units) * 35/40 Kg/m3 Ecology Friendly HCFC Free Polyurethane Insulation * Control Panel * Automatic Water Evaporation System * (Electrical Resistor) * Electrical Automatic Defrost * Stainless Steel Legs Adjustable For Height * Automatic Lighting Inside When Door is Open * Special Door and Hinge Systems * Removable and Easy Cleaning Magnetic Gaskets * Ambient Temperature: + 32oC & % 50 Humidity

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

BN8-P

-2/+8

850

0,30

82x92x208

14

169

430

BL8-P

-10/-20

850

0,60

82x92x208

14

176

430

BN8-P-G

-2/+8

850

0,35

82x92x208

14

176

430

BL8-P-G

-10/-20

850

0,65

82x92x208

14

190

430

Model Modell

o

96

Shelf Holder Regalhalter

Weight Gewicht

Stainless Steel Type

Kg

Accessories 40x60 Shelf

Z/CQ326040

Guides Z/C418124

Wheels

Z/C81010330

L

Left Door (Upright)

20 €

60hz

Monoblock Cooling Group

220 V 60 hz

Strong Fans with maximum air speed

Front Cover Can be Opened For Easy Access

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

BN16-P

-2/+8

1700

0,35

172x101x211

56

300

430

BL16-P

-10/-20

1700

0,70

172x101x211

56

310

430

BN16-P-G

-2/+8

1700

0,40

172x101x211

56

330

430

BL16-P-G

-10/-20

1700

0,80

172x101x211

56

350

430

Model Modell

o

Shelf Holder Regalhalter

Weight Gewicht

Stainless Steel Type

Kg

97

Pizza Refrigerators 40x60 Tray Info * Inside Depth: 63 Cm ( 40x60 Tray Capacity ) * 35 / 40 Kg/m³ Ecology Friendly HCFC Polyuretahe Insulation * Digital Control Panel * Electrical Resistor Automatic Defrost * Stainless Steel Legs Adjustable for Height * Special Door and Hinge Systems Dimension Details

* Removable and Easy Cleaning Magnetic Gasket * Ambient Temperature + 43 ºC & % 65 Humidity * GN 1/3x150 Capacity Static Cooled Make-Up * Marble Top Front Work Top * Glass Cover over Make-Up

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

BPN2-DZ

-2/+8

380

0,17

155x80x85

6 Shelf Rails

159

430

BPL2-DZ

-10/-22

380

0,85

155x80x85

6 Shelf Rails

159

430

BPN3-DZ

-2/+8

615

0,20

210x80x85

9 Shelf Rails

260

430

BPL3-DZ

-10/-22

615

0,90

210x80x85

9 Shelf Rails

260

430

Model Models

o

98

Shelf Rails Pair Regalschienen Paar

Weight Gewicht

Stainless Steel Type

Kg

Cake Shock Freezer - 60x80 Capacity Accessories 40x60 Shelf Wheels Z/CQ326040

GR

Z/C81010330

2 Door 3 Door

Guides

Granite Work Top

-10°C | -30°C

Z/C418124

K

A With Lock

10 cm Curved Splashback Work Top

BT

60hz 220 V 60 hz

Wi-Fi Digital

Info * Inside Depth: 40x60 Tray Capacity (28 Units) * 35/40 Kg/m3 Ecology Friendly HCFC Free Polyurethane Insulation * Automatic Water Evaporation System * (Electrical Resistor) * Electrical Automatic Defrost * Stainless Steel Legs Adjustable For Height * Automatic Lighting Inside When Door is Open * Removable and Easy Cleaning Magnetic Gaskets * Ambient Temperature: + 32oC & % 50 Humidity

Temperature Temperatur

Gross volume internes Volumen

Power (kw) Anschlusswert

Dimensions Abmessungen

C

Lt.

kw.

W∙D∙H Cm.

PSL9

-10/-30

850

0,80

90x103x213

28

245

304

PSL18

-10/-30

1700

1,10

180x103x213

28

395

304

Model Models

o

Inside Depth 40x60 Tray

Weight Gewicht

Stainless Steel Type

Kg

99

Rising rooms

· Rising rooms for racks · Supplies with supporting frame in aluminium and structure in panels th. 40 mm covered with pre-painted white aluminium. · Door made with the handle directly obtained from the profile and completely reversible. · Control panel with digital thermostat and hygrostat. · St. steel unit for heat and steam. · Fan for homogeneous heat and steam distribution. · On request the proofing chamber can be supplied with doors and/or external panels in stainless steel, with st. steel base or not.

Doors

trolleys

Model

Trolley dimensions

external dimensions

Cons. rates

Weight

cm

n

n

W

D

H

H2

Kw

Kg

BOX 1-1/46

Small / Mini Rotor

1

1

40x60

75

100

230

250

3,25

130

BOX 1-2/46

Small / Mini Rotor

1

2

40x60

80

160

230

250

5,25

170

BOX 2-2/46

Small / Mini Rotor

2

2

40x60

150

110

230

250

5,25

200

BOX 2-4/46

Small / Mini Rotor

2

4

40x60

150

160

230

250

5,25

245

BOX 2-6/46

Small / Mini Rotor

2

6

40x60

150

220

230

250

5,25

285

BOX 1-2/57

Mini Rotor

1

2

50x70

90

180

230

250

5,25

205

BOX 2-2/57

Mini Rotor

2

2

50x70

154

110

230

250

5,25

215

BOX 2-4/57

Mini Rotor

2

4

50x70

154

180

230

250

5,25

255

BOX 2-6/57

Mini Rotor

2

6

50x70

154

250

230

250

5,25

315

BOX 1-2/68

Rotor

1

2

60x80

94

200

230

250

6,25

190

BOX 2-2/68

Rotor

2

2

60x80

180

120

230

250

6,25

220

BOX 2-4/68

Rotor

2

4

60x80

180

200

230

250

6,25

290

BOX 2-6/68

Rotor

2

6

60x80

180

280

230

250

7,00

330

BOX 1-2/88

Maxi Rotor

1

2

80x80

115

200

230

250

6,25

235

BOX 2-2/88

Maxi Rotor

2

2

80x80

207

120

230

250

6,25

250

BOX 2-4/88

Maxi Rotor

2

4

80x80

207

200

230

250

6,25

320

BOX 2-6/88

Maxi Rotor

2

6

80x80

207

280

230

250

7,00

370

BOX 1-2/810

Maxi Rotor

1

2

80x100

115

240

230

250

6,25

260

BOX 2-2/810

Maxi Rotor

2

2

80x100

207

140

230

250

6,25

365

BOX 2-4/810

Maxi Rotor

2

4

80x100

207

240

230

250

6,25

355

BOX 2-6/810

Maxi Rotor

2

6

80x100

207

340

230

250

12,00

395

100

SERIES DIVIDING-MOULDING

Moulding machine 2 cylinders

FRL 500 · Machine made of painted sheet steel with cast aluminium sides. · All moving parts are mounted on water-tight ball bearings · Steel rollers are rectified and chromed to thickness. · Machine equipped with an entry conveyor belt for the automatic feed of the dough pieces into the rollers. · A special device allows the top felt belt to be stopped. · The machine can be used as a SHEETER for working small dough pieces. · At the end of the working cycle the rolled pieces return toward the operator. · The rollers are protected by a stainless steel grill. · Security device for immediate cylinder stoppage. · Control buttons and grill safety device worked by a 24V remote control switch. · Dough pieces from 20 to 1000 grams can be formed.

FRB 700 T

· Suitable for production of Baguette loaves. · Can be placed directly on a work table and the product can be discharged into an inclined surface or, on demand, can be equipped with a trolley. · Rolling cylinders coated with a plastic material which is suitable for the food industry. · A hand wheel controls the incoming rolling cylinders, with decimal precision, a second hand wheel regulates the length of the Baguette (max. 70 cm).

OPTIONAL · Dough moulder with French loaf on exit.

Model

Cylinders

Capacity

Dimensions Abmessungen

Kg

W∙D∙H Cm

mm

Weight Gewicht

Motor Kw

Kg

FRL 500

500

1500

80

88

120

0,55

145

FRL 630

630

2000

93

88

120

0,55

160

Capacity

Dough weight

Max bread width

pcs/h

gr

Cm

1800

50-1500

70

Model

FRB 700 T

Power

Kw 0,75

Voltage

220-400V/3PH/50-60 Hz

109

Dimensions Abmessungen

Weight Gewicht

W∙D∙H Cm

Kg

98

161

270

101

SERIES DIVIDING-MOULDING

Bun Dividers/rounders

Semi-automatic bun rounding dividers are machines that cut a piece of raw dough into small portions and, using an oscillating plate, subsequently roll each piece to obtain balls of the same weight and shape, all in a few seconds! · Mechanical machine. · Pressing, cutting and rounding carried out with levers. · While the shaping chamber adjusted using a joystick with numerical scale. · Machine supplied with no. 3 plates.

Weight Gewicht

Weight pallet+carton

Kg

Kg

0,55

173

193

150

0,55

173

193

61

150

0,55

173

193

68

61

150

0,55

173

193

2,7

68

61

150

0,55

173

193

40/135

4

68

61

150

0,55

173

193

36

34/110

4

68

61

150

0,55

173

193

52

12/30

1,6

68

61

150

0,55

173

193

Divisions

Weight range

Capacity

Dimensions Abmessungen

Pcs

gr

Kg

W∙D∙H Cm

SPA 11

11

180/500

5,5

68

61

150

SPA 15

15

150/360

5,5

68

61

SPA 18

18

120/280

5

68

SPA 22

22

60/220

5

SPA 30

30

25/90

SPA 30 M

30

SPA 36 SPA 52

Model

102

Power Kw

SERIES DIVIDING-MOULDING

Exagonal and square dividers

Automatic Semi Automatic · Oven - painted electro welded steel structure. · 18/10 stainless steel bowl and blades. · Pressers in acetal resin for food purpose.

Manual Dividing machine · Movements by lever mechanisms manually moved. · Manual lid opening.

Semi Automatic Dividing machine · Servo devices activated by hydraulic unit. · Pressing and dividing working cycle manually activated by a selector. · Manual lid opening.

Manually

Square moulds

Exagonal

OPTIONAL · Grids with many cutting types.

Automatic Dividing machine · Hydraulically controlled servo devices. · Pressing time adjustable by PLC device. · Fully automatic pressing, dividing and lid opening working cycle. · Blades cleaning button.

Divisions

Min. Piece weight

Max. Piece weight

Dimensions Abmessungen

Capacity

Weight Gewicht

Weight pallet+carton

Pcs

gr

gr

W∙D∙H Cm

Kg

Kg

Kg

Model

Manually exagonal

SEM 37

37

30

130

61

68

100

4,8

150

175

SEM 37 M

37

40

150

61

68

100

5,5

150

175

SEM 19

19

90

300

61

68

100

6,0

150

175

SQM 20 S

20

80

350

61

68

100

7,0

150

175

SQM 42 S

42

40

170

61

68

100

7,0

150

175

Manually with square moulds

Semi automatic exagonal

SE 19 SA

19

90

300

61

68

110

6,0

205

230

SE 37 SA

37

30

130

61

68

110

4,8

205

230

SE 37 MSA

37

40

150

61

68

110

5,5

205

230

Semi automatic with square moulds

SQ 20 SA

20

150

800

61

68

110

16,0

205

230

SQ 24 SA

24

120

650

61

68

110

16,0

205

230

SQ 30SA

30

90

530

61

68

110

16,0

205

230

automatic exagonal

SE 19

19

90

300

61

68

110

6,0

205

230

SE 37

37

30

130

61

68

110

4,8

205

230

SE 37 M

37

40

150

61

68

110

5,5

205

230

automatic with square moulds

SQ 20

20

150

800

61

68

110

16,0

205

230

SQ 24

24

120

650

61

68

110

16,0

205

230

SQ 30

30

90

530

61

68

110

16,0

205

230

103

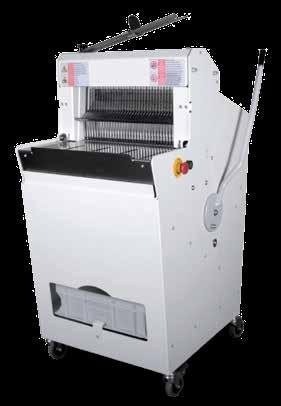

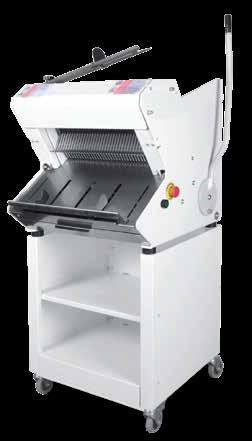

Slicers

C420/520-A C420/520

Slicer produced in steel structure · Can be supplied either as bench type or with base on wheel. · The cutting is made by means of a double frame of blades with an alternative axil movement. · Supplied with a drawer for crubs, with surfaces and bread pusher in stainless steel. · The pusher can have different pression.

C420/520-S

Model

Maximun cut width

Dimensions Abmessungen

Cutting height mm

mm

Thickness of slices mm

W∙D∙H Cm

Installed power

Weight Gewicht

Kw

Kg

C 420

420

60

170

65

60

81

7-9-10-12-14-16-18

0,75

100

C 420A

420

60

170

65

60

146

7-9-10-12-14-16-18

0,75

130

C 420S

420

60

5

65

60

130

7-9-10-12-14-16-18

0,75

140

C 520

520

60

170

75

60

81

9-10-12-14-16-18

0,75

110

C 520A

520

60

170

75

60

146

9-10-12-14-16-18

0,75

140

C 520S

520

60

170

75

60

130

9-10-12-14-16-18

0,75

150

104

SERIES DIVIDING-MOULDING

Water refrigerators

· Interior tank and coil in stain. steel AISI 304. · 60 mm insulation of injected polyurethane, density 45kg./m³. · Dismountable lid. · Automatic filling by floater. · Interior water removing. · Overflow safety . · Compressor electric power: 502 W. · Cooling power: 969 W. · Electronic control box and digital temperature display. · Priming-drawing indicator with graduated scale.

Mod. TEA - 175 VERTICAL · Exterior construction in plastified sheet.

Mod. TEA - 100 HORIZONTAL · Exterior in stainless steel AISI 304 except unit tray in galvanised sheet.

Tank Capacity

Hourly production

Dimensions Abmessungen

Pump Power

Power installed

lt

lt

W∙D∙H Cm

Kw

Kw

TEA 175

175

100

88

56

112

-

0,75

R. 404 a

TEA 100

100

100

130

56

55

-

0,75

R. 404 a

Model Models

Gas

Weight Gewicht

Pump Weight

Kg

Kg

220/1PH/50Hz

88

-

220/1PH/50Hz

85

-

Voltage

105

Flour Sieve

· Able to eliminate all impurities and specially studied to oxygen the flour. · Mounted on wheels which locking device, equipped with a revolving exit system. · In the basic model the flour come out at cm. 104 from floor level (on request the height can be modified). · Can be inspected at both side. · Sifting capacity kg. 100 every 5’.

Dimensions Abmessungen

Model Models

Kw

W∙D∙H Cm SF 100

70

Weight Gewicht

Motor Power

100

136

Kg

0,37

150

Volumetric divider The dough is absorbed by a piston and is later compressed and expelled.

This system provides with proper allows good accuracy of weighing and prevents the dough from being mistreated. · Prepared to divide dough with percentage of water range from 55% to 70% and with a tolerance into the weight precision of a 2% (depending on the additives and dough elasticity ) · Speed variation. · Productivity: from 1080 to 2400 pieces / hour. · Counting with stop pre-selection. · Tefloned conical rounder channel with 2 regulations. · Closed circuit of oil. · Hopper capacities: 50-80-150-200 kg.

OPTIONAL · Ext. panels in st. steel. · Flouring machine. · Regulation of electrical speed. · Teflon hopper . Ø Piston

Model

Min-Max

mm

PH

106

Dimensions Abmessungen

Weight GR.

Power Kw

W∙D∙H Cm

80

30

300

90

35

350

100

40

400

110

60

600

120

100

1000

135

150

1250

140

180

1400

73

172

145

1,50

Weight Gewicht Kg

500

SERIES PASTRY

Automatic croissants machine The Model GC unit, made entirely of painted steel or with stainless steel 304 panels, has been designed to ensure superior results in croissant production. · The sheet of dough, rolled with the rolling pin, is laid on the feed table. · Two side disks trim the dough and the waste falls into a special container. · The dough is rolled by the gauging cylinders to ensure uniform weight, and the dough sheets are joined together to enable continuous work. · The triangles are cut in two stages, separated and conveyed automatically to the curling unit that rolls up the product as if it were done by hand. · N. 01 cutting roll included.

Hourly production Lines 2-3-4-5-6

Model

Dimensions Voltage

Models

Motor Power

Weight Gewicht

Kw

Kg

W∙D∙H Cm gr. 110 120

gr. 90 100

gr. 70 - 90

gr. 40 - 60

gr. 25 - 50

GC 200

840

1260

1680

2000

2500

205

10

145

400V/50Hz/3ph

1,5

590

GC 400

1320

1800

2400

3300

4000

205

10

145

400V/50Hz/3ph

1,5

590

Two cylinder refiner

The ideal machine when pastry refining is required, designed as a convenient and longlasting equipment. It is very easy to use ordinary maintenance is only required. · Cleaning of the scraping blades through the convenient fitting system. · Support in steel reinforced plate. · Shoulders in cast iron. · Oil bath for the gearing, to guarantee full reliability.

Weight Gewicht

Cylinders

Lenght Cylinders

Dimensions in working

Ø

Cm

W∙D∙H Cm

RF 120

120

26

64

60

112

1,1

200

RF 150

150

29

68

67

112

1,5

220

Model Models

Motor Power Kw

Kg

107
