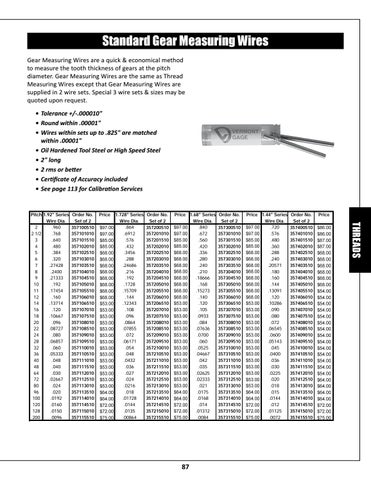

Standard Gear Measuring Wires Gear Measuring Wires are a quick & economical method to measure the tooth thickness of gears at the pitch diameter. Gear Measuring Wires are the same as Thread Measuring Wires except that Gear Measuring Wires are supplied in 2 wire sets. Special 3 wire sets & sizes may be quoted upon request. • Tolerance +/-.000010" • Round within .00001" • Wires within sets up to .825" are matched within .00001" • Oil Hardened Tool Steel or High Speed Steel • 2" long • 2 rms or better • Certificate of Accuracy included • See page 113 for Calibration Services
Order No. Set of 2 357100510 357101010 357101510 357102010 357102510 357103010 357103510 357104010 357104510 357105010 357105510 357106010 357106510 357107010 357107510 357108010 357108510 357109010 357109510 357110010 357110510 357111010 357111510 357112010 357112510 357113010 357113510 357114010 357114510 357115010 357115510
Price $97.00 $97.00 $85.00 $85.00 $68.00 $68.00 $68.00 $68.00 $68.00 $68.00 $68.00 $68.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $53.00 $64.00 $64.00 $72.00 $72.00 $75.00
1.728" Series Wire Dia. .864 .6912 .576 .432 .3456 .288 .24686 .216 .192 .1728 .15709 .144 .12343 .108 .096 .0864 .07855 .072 .06171 .054 .048 .0432 .036 .027 .024 .0216 .018 .01728 .0144 .0135 .00864
Order No. Set of 2 357200510 357201010 357201510 357202010 357202510 357203010 357203510 357204010 357204510 357205010 357205510 357206010 357206510 357207010 357207510 357208010 357208510 357209010 357209510 357210010 357210510 357211010 357211510 357212010 357212510 357213010 357213510 357214010 357214510 357215010 357215510
Price 1.68" Series Wire Dia. $97.00 .840 $97.00 .672 $85.00 .560 $85.00 .420 $68.00 .336 $68.00 .280 $68.00 .240 $68.00 .210 $68.00 .18666 $68.00 .168 $68.00 .15273 $68.00 .140 $53.00 .120 $53.00 .105 $53.00 .0933 .084 $53.00 .07636 $53.00 .0700 $53.00 .060 $53.00 .0525 $53.00 .04667 $53.00 .042 $53.00 .035 $53.00 .02625 $53.00 .02333 $53.00 .021 $53.00 .0175 $64.00 .0168 $64.00 .014 $72.00 .01312 $72.00 .0084 $75.00
87
Order No. Set of 2 357300510 357301010 357301510 357302010 357302510 357303010 357303510 357304010 357304510 357305010 357305510 357306010 357306510 357307010 357307510 357308010 357308510 357309010 357309510 357310010 357310510 357311010 357311510 357312010 357312510 357313010 357313510 357314010 357314510 357315010 357315510
Price 1.44" Series Wire Dia. $97.00 .720 $97.00 .576 $85.00 .480 $85.00 .360 $68.00 .288 $68.00 .240 $68.00 .20571 $68.00 .180 $68.00 .160 $68.00 .144 $68.00 .13091 $68.00 .120 $53.00 .10286 $53.00 .090 $53.00 .080 .072 $53.00 .06545 $53.00 .0600 $53.00 .05143 $53.00 .045 $53.00 .0400 $53.00 .036 $53.00 .030 $53.00 .0225 $53.00 .020 $53.00 .018 $53.00 .015 $64.00 .0144 $64.00 .012 $72.00 .01125 $72.00 .0072 $75.00
Order No. Set of 2 357400510 357401010 357401510 357402010 357402510 357403010 357403510 357404010 357404510 357405010 357405510 357406010 357406510 357407010 357407510 357408010 357408510 357409010 357409510 357410010 357410510 357411010 357411510 357412010 357412510 357413010 357413510 357414010 357414510 357415010 357415510
Price $86.00 $86.00 $87.00 $87.00 $68.00 $68.00 $68.00 $68.00 $68.00 $68.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $54.00 $64.00 $64.00 $64.00 $64.00 $72.00 $72.00 $75.00
THREADS
Pitch 1.92" Series Wire Dia. 2 .960 2 1/2 .768 3 .640 4 .480 5 .384 6 .320 7 .27428 8 .2400 9 .21333 10 .192 11 .17454 12 .160 14 .13714 16 .120 18 .10667 20 .096 22 .08727 24 .080 28 .06857 32 .060 36 .05333 40 .048 48 .040 64 .030 72 .02667 80 .024 96 .020 100 .0192 120 .0160 128 .0150 200 .0096
