Depth Notches & Pressure Relief Flats
DEPTH NOTCHES
Gage hole diameter and depth.
Depth notches can be added to reversible cylindrical style gages to gage hole depth as well as diameter. Length tolerances from .0005". Available on plug gage sizes .050" diameter and larger.
Range Notch Tolerance .0005" to .0010" .0005" to .0010" .0005" to .0010" .0005" to .0010" .001" and over .001" and over .001" and over .001" and over Range Member Length Up to 2.0000" 2.0001" to 4.0000" 4.0001" to 6.0000" 6.0001"-11.5000" Up to 2.0000" 2.0001" to 4.0000" 4.0001" to 6.0000" 6.0001"-11.5000"
Contact Customer Service for pricing on Carbide.

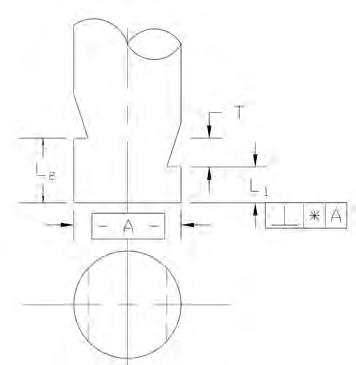

Dimensions
A Gage Diameter L1 Go Depth Notch L2 NoGo Depth Notch T Depth Tolerance
Price Price
Go Go/NoGo Depth Notch Depth Notches Add $32.00 Add $55.00 Add $45.00 Add $75.00 Add $58.00 Add $95.00 Add $75.00 Add $120.00 Add $28.00 Add $45.00 Add $38.00 Add $65.00 Add $48.00 Add $80.00 Add $60.00 Add $100.00
PRESSURE RELIEF FLATS
Allows air or fluid to escape.

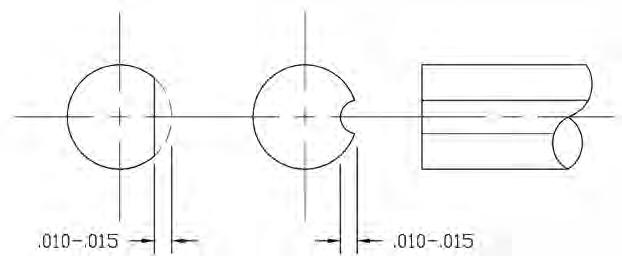

Pressure relief flats can be added to reversible cylindrical style gages to allow air or fluid to escape when gaging blind holes. Depth of flat is .010" to .015".
Price Price Price Price
Gage Length Gage Length Gage Length Gage Length up to 2'' up to 4'' up to 6'' up to 12'' $22.00 $30.00 $37.00 $48.00
Contact Customer Service for pricing on Carbide. Excludes XX tolerance.
