Gear Measuring Wires (1.92", 1.728", 1.68" or 1.44" Series

Standard Gear Measuring Wires

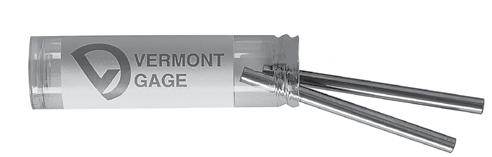

Gear Measuring Wires are a quick & economical method to measure the tooth thickness of gears at the pitch diameter. Gear Measuring Wires are the same as Thread Measuring Wires except that Gear Measuring Wires are supplied in 2 wire sets. Special 3 wire sets & sizes may be quoted upon request.

• Tolerance +/-.000010" • Round within .00001" • Wires within sets up to .825" are matched within .00001" • Oil Hardened Tool Steel or High Speed Steel • 2" long • 2 rms or better • Certificate of Accuracy included • See page 113 for Calibration Services

Pitch 1.92" Series Order No. Price 1.728" Series Order No. Price 1.68" Series Order No. Price 1.44" Series Order No. Price Wire Dia. Set of 2 Wire Dia. Set of 2 Wire Dia. Set of 2 Wire Dia. Set of 2 2 .960 357100510 $97.00 .864 357200510 $97.00 .840 357300510 $97.00 .720 357400510 $86.00 2 1/2 .768 357101010 $97.00 .6912 357201010 $97.00 .672 357301010 $97.00 .576 357401010 $86.00 3 .640 357101510 $85.00 .576 357201510 $85.00 .560 357301510 $85.00 .480 357401510 $87.00 4 .480 357102010 $85.00 .432 357202010 $85.00 .420 357302010 $85.00 .360 357402010 $87.00 5 .384 357102510 $68.00 .3456 357202510 $68.00 .336 357302510 $68.00 .288 357402510 $68.00 6 .320 357103010 $68.00 .288 357203010 $68.00 .280 357303010 $68.00 .240 357403010 $68.00 7 .27428 357103510 $68.00 .24686 357203510 $68.00 .240 357303510 $68.00 .20571 357403510 $68.00 8 .2400 357104010 $68.00 .216 357204010 $68.00 .210 357304010 $68.00 .180 357404010 $68.00 9 .21333 357104510 $68.00 .192 357204510 $68.00 .18666 357304510 $68.00 .160 357404510 $68.00 10 .192 357105010 $68.00 .1728 357205010 $68.00 .168 357305010 $68.00 .144 357405010 $68.00 11 .17454 357105510 $68.00 .15709 357205510 $68.00 .15273 357305510 $68.00 .13091 357405510 $54.00 12 .160 357106010 $68.00 .144 357206010 $68.00 .140 357306010 $68.00 .120 357406010 $54.00 14 .13714 357106510 $53.00 .12343 357206510 $53.00 .120 357306510 $53.00 .10286 357406510 $54.00 16 .120 357107010 $53.00 .108 357207010 $53.00 .105 357307010 $53.00 .090 357407010 $54.00 18 .10667 357107510 $53.00 .096 357207510 $53.00 .0933 357307510 $53.00 .080 357407510 $54.00 20 .096 357108010 $53.00 .0864 357208010 $53.00 .084 357308010 $53.00 .072 357408010 $54.00 22 .08727 357108510 $53.00 .07855 357208510 $53.00 .07636 357308510 $53.00 .06545 357408510 $54.00 24 .080 357109010 $53.00 .072 357209010 $53.00 .0700 357309010 $53.00 .0600 357409010 $54.00 28 .06857 357109510 $53.00 .06171 357209510 $53.00 .060 357309510 $53.00 .05143 357409510 $54.00 32 .060 357110010 $53.00 .054 357210010 $53.00 .0525 357310010 $53.00 .045 357410010 $54.00 36 .05333 357110510 $53.00 .048 357210510 $53.00 .04667 357310510 $53.00 .0400 357410510 $54.00 40 .048 357111010 $53.00 .0432 357211010 $53.00 .042 357311010 $53.00 .036 357411010 $54.00 48 .040 357111510 $53.00 .036 357211510 $53.00 .035 357311510 $53.00 .030 357411510 $54.00 64 .030 357112010 $53.00 .027 357212010 $53.00 .02625 357312010 $53.00 .0225 357412010 $54.00 72 .02667 357112510 $53.00 .024 357212510 $53.00 .02333 357312510 $53.00 .020 357412510 $64.00 80 .024 357113010 $53.00 .0216 357213010 $53.00 .021 357313010 $53.00 .018 357413010 $64.00 96 .020 357113510 $64.00 .018 357213510 $64.00 .0175 357313510 $64.00 .015 357413510 $64.00 100 .0192 357114010 $64.00 .01728 357214010 $64.00 .0168 357314010 $64.00 .0144 357414010 $64.00 120 .0160 357114510 $72.00 .0144 357214510 $72.00 .014 357314510 $72.00 .012 357414510 $72.00 128 .0150 357115010 $72.00 .0135 357215010 $72.00 .01312 357315010 $72.00 .01125 357415010 $72.00 200 .0096 357115510 $75.00 .00864 357215510 $75.00 .0084 357315510 $75.00 .0072 357415510 $75.00
