THE REGENT Residential Development at Tai Po Tender Stage 2017-2018

THE REGENT SMALL HOME SMART HOME Interior Design 2014

CELEBRATION PRECINCT Public Open Space Feasibility Stage

THE ARLES Residential Development at Fo Tan Tender Stage 2017-2018

HERMES AIR CRAFT RENDEZVOUS Window Art Installation 2014

8 HOT BATHING POOL

Water Temperature: 38°C

Depth: 500mm

Salinity: 3%

LUNG TSUN STONE BRIDGE

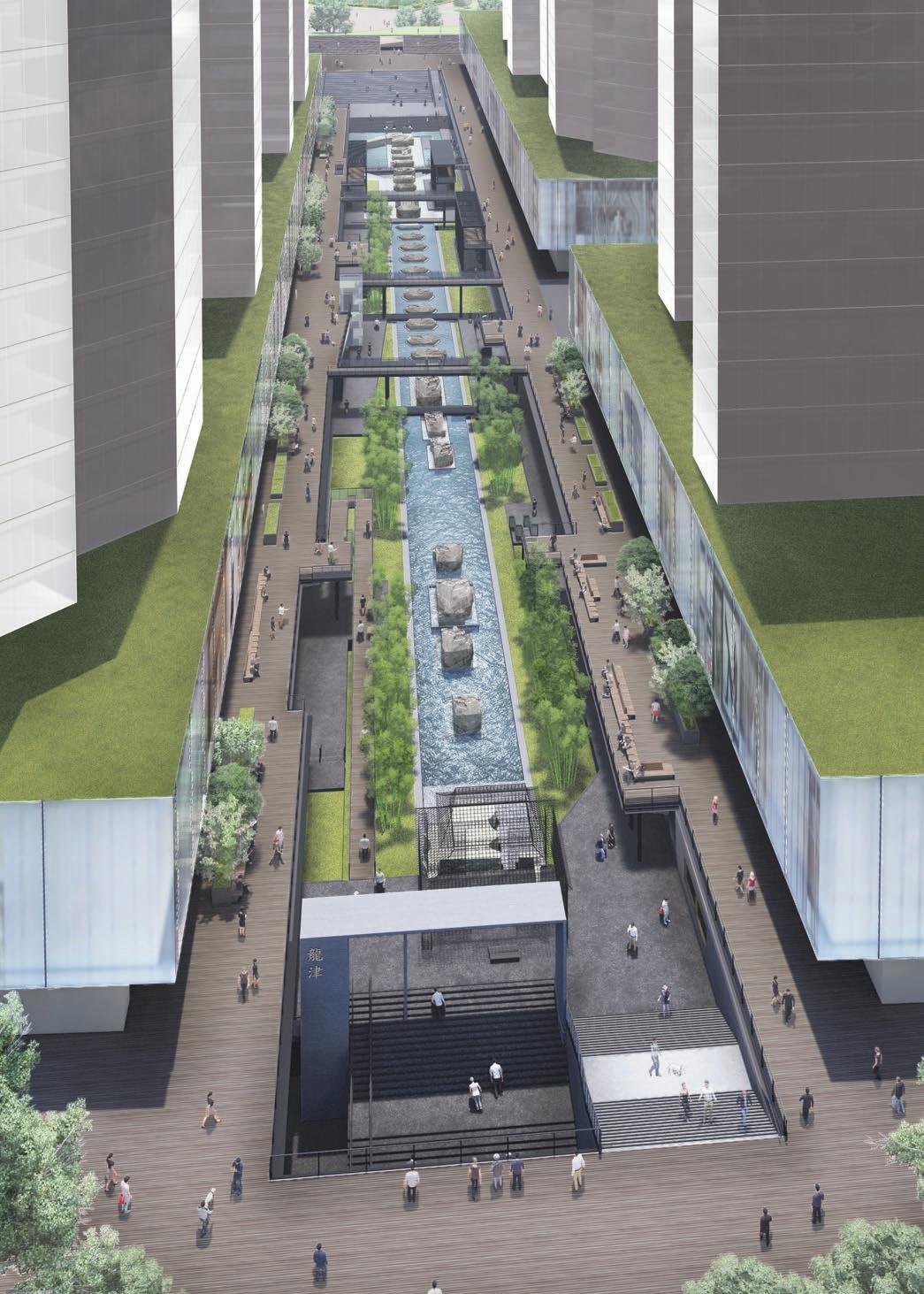

A PRESERVATION CORRIDOR AT KAI TAK

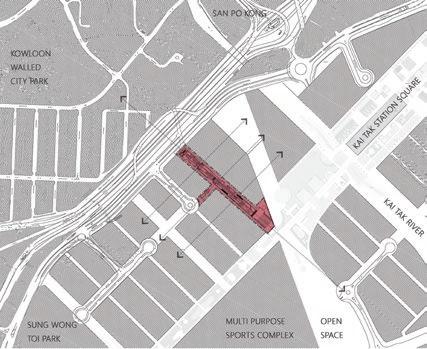

Site: Muk Lai Street, Kai Tak, Hong Kong

Architects: Architectural Services Department

Area: 11400 m²

Year: 2025 (Expected)

1873 - 1875

1956

Construction of Lung Tsun Stone Bridge.

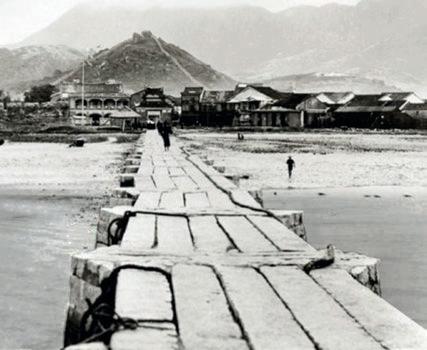

HISTORICAL SIGNIFICANTS

2023

Kai Tak Airport was constructed. Lung Tsun Stone Bridge was covered up.

Lung Tsun Stone Bridge was revealed to connect the history of Kai Tak and the future of Kai Tak Development. Lung Tsun Bridge served as a linkage to the main gate of the Kowloon Walled City and the Kowloon Street, with Kowloon Bay in the late 19th to early 20th century.

During Japanese occupation in World War II, Stone Bridge was partly buried to make way for the reclamation of Kowloon Bay and the construction of Kai Tak Airfield in 1927.

After the relocation of the airport to Chek Lap Kok in 1998, some archaeological investigations were conducted. A Preservation Corridor was planned to exhibit the remnants in-situ for public appreciation and leisure.

1:

2:

3:

4:

5:

6:

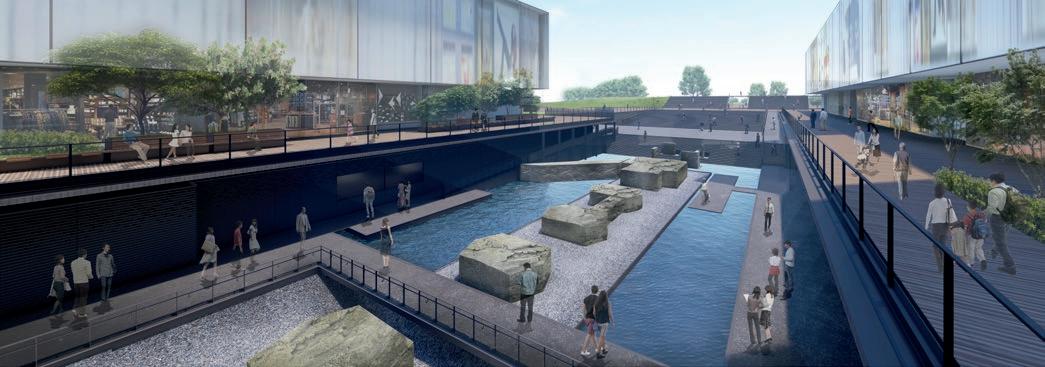

FEATURE WALL DESIGN IN SUNKEN GARDEN

The Urban Valley design concept was make reference to traditional Chinese garden. For example, the famous Chinese garden in Suzhou, natural stone landscape along the pool surrounding by tall trees and plants with the pavilion situated above, overlooking the Chinese garden.

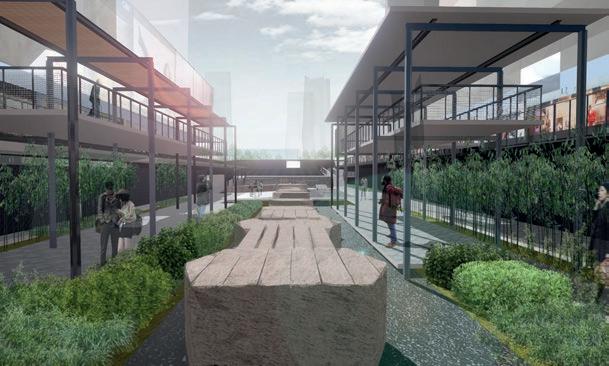

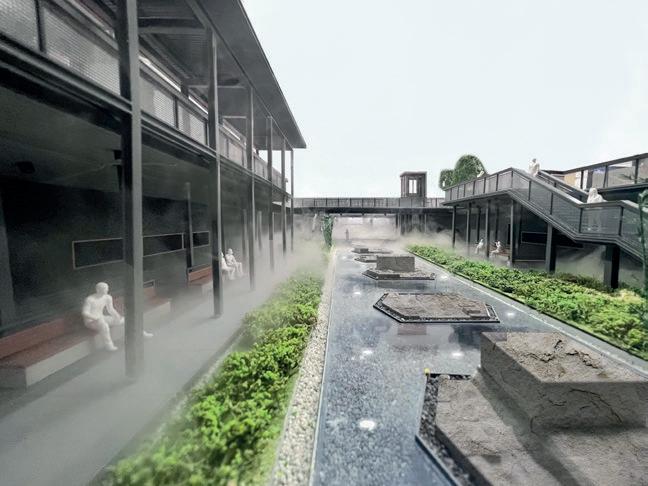

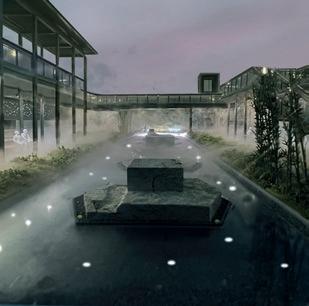

For the design of sunken garden, the lower ground floor preserve the remnants in situ, surrounded by water mist and natural landscape. It creates a poetic ambience to exhibit the History of old Kai Tak and Nature.

At night, the water mist together with the feature lighting at the granite wall and reflective pool creates an imaginary atmosphere to experience the garden nature with remnants. Visitors can enjoy the peacefulness when they stroll along the urban valley.

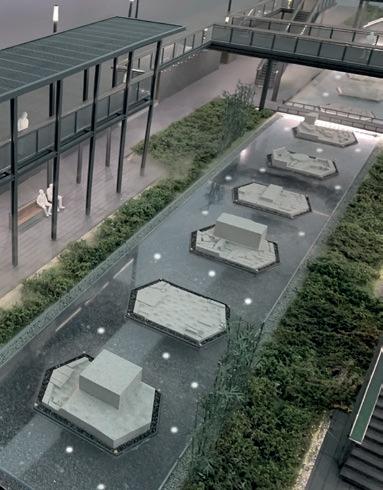

1: Photo of 1:50 physical model (View of remnants)

2: Photo of 1:50 physical model (View at LG1)

1

3

4: Photo of mock-up (View of feature wall)

5: Photo of mock-up (View of a section of feature wall)

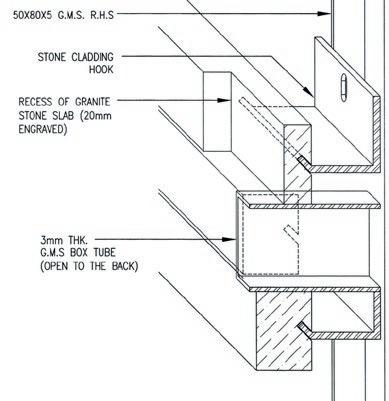

6: Detail axonometric view of feature wall

7: Detail axonometric view of feature wall

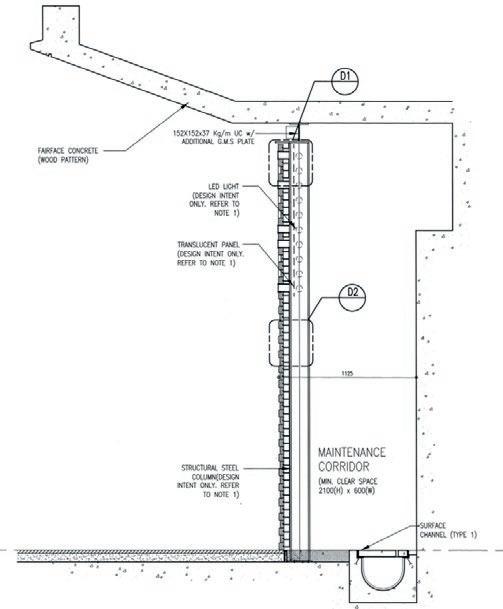

8: Section of feature wall

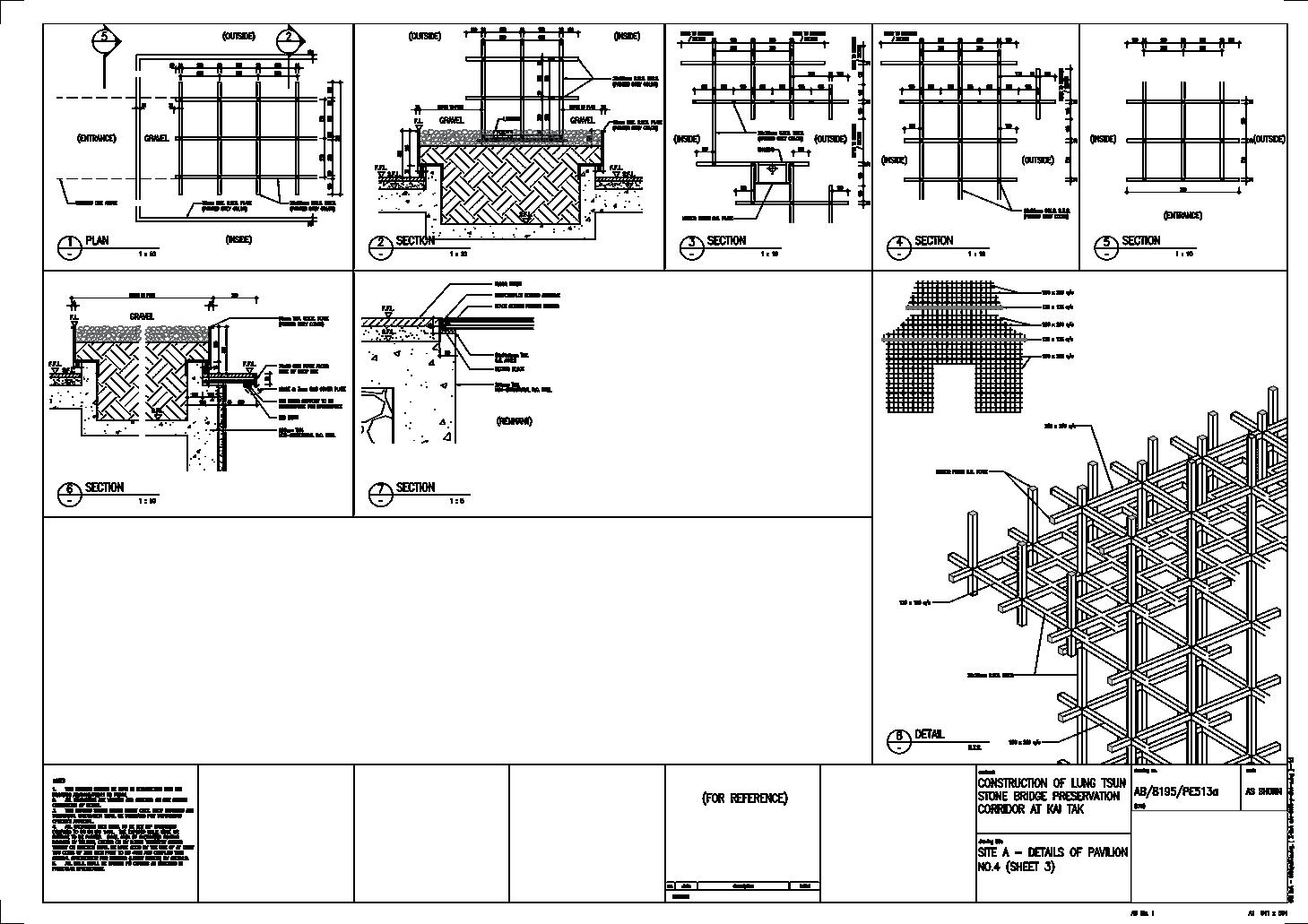

PAVILION FOR GREETING OFFICIALS

By responding to the characters of the remnants, geography and the surrounding activities, experiences are generated along the sunken Urban Valley. The entrance plaza of the urban valley is designed with a portal in fairface finish, welcoming visitors to experience the garden and archaeological exhibition. A silhouette to symbolize the Pavilion for Greeting Officials will appear together with its remnants, as a reminiscence of the Pavilion in the past history.

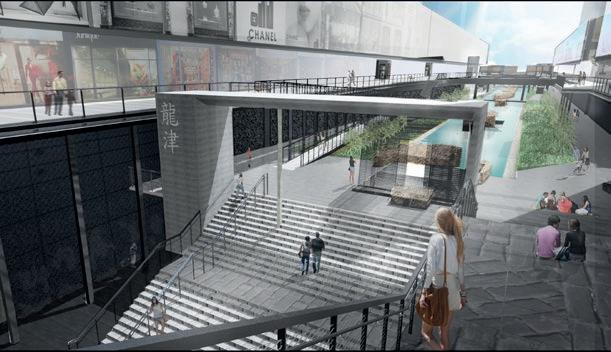

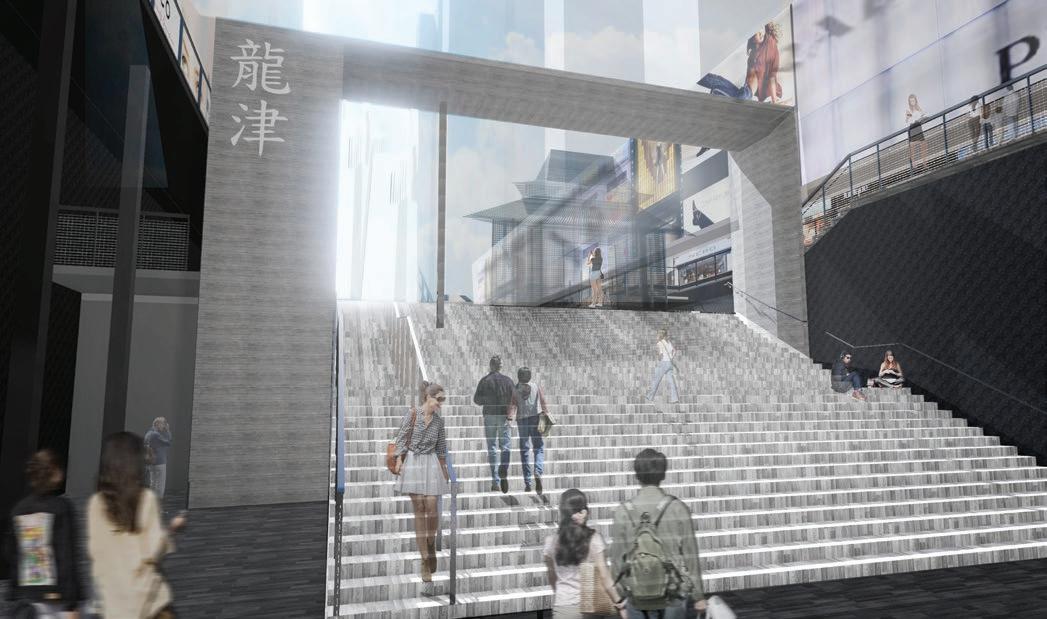

1: Rendering (View of entrance gate)

2: Rendering (View of reconstructed pavilion)

3: Photo of 1:1 3D print testing model

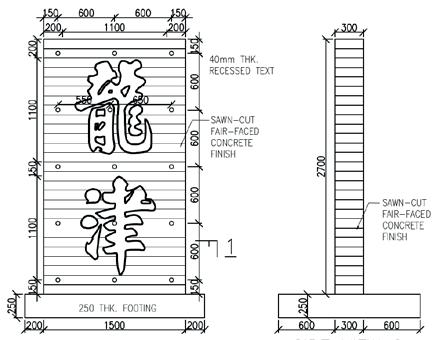

‘‘LUNG TSUN’’ SIGNAGE

In order to design the ‘‘Lung Tsun’’ signage, different testing methods have been adopted. From hand cut foam board model, 3D print model to mock-up construction to test the font and the engraved depth in the fairface concrete. Since this signage will be display in the entrance portal, it would place a landmark in this site.

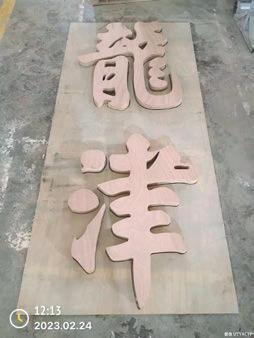

1. Photo of CNC milled woodern mold of ’’Lung Tsun’’

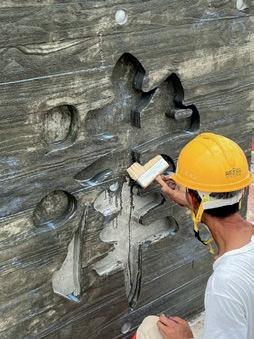

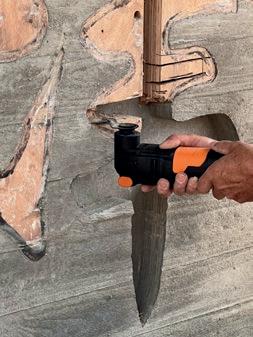

4. Photo of worker applying waterproofing sealant

3. Photo of worker drilling out the woodern mold

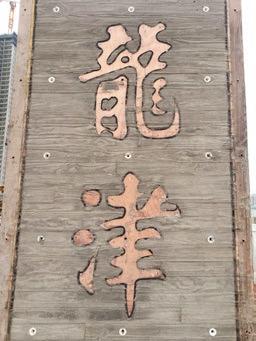

2. Photo of fairface concrete removed from formwork

Original Signage

1:5 3D Print Model

1:1 Foam Model

1:1 Fairface Mock-Up

VISUALIZATION

CAVE AUTOMATIC VIRTUAL ENVIRONMENT (CAVE)

In order to have virtual stimulate and educate the public. This project is selected as a of the pilot project to exhibit in CAVE (Cave Automatic Virtual Environment), which is a virtual reality (VR) environment consisting of a cube-shaped VR room or a room-scale area in which the walls, floors and ceilings are projection screens.

The interface is carefully designed with five buttons, including introducing the history of LTSB, the preservation corridor, to showcase the point cloud data recorded by CEDD in 2013, to switch day and night view and can experience AR.

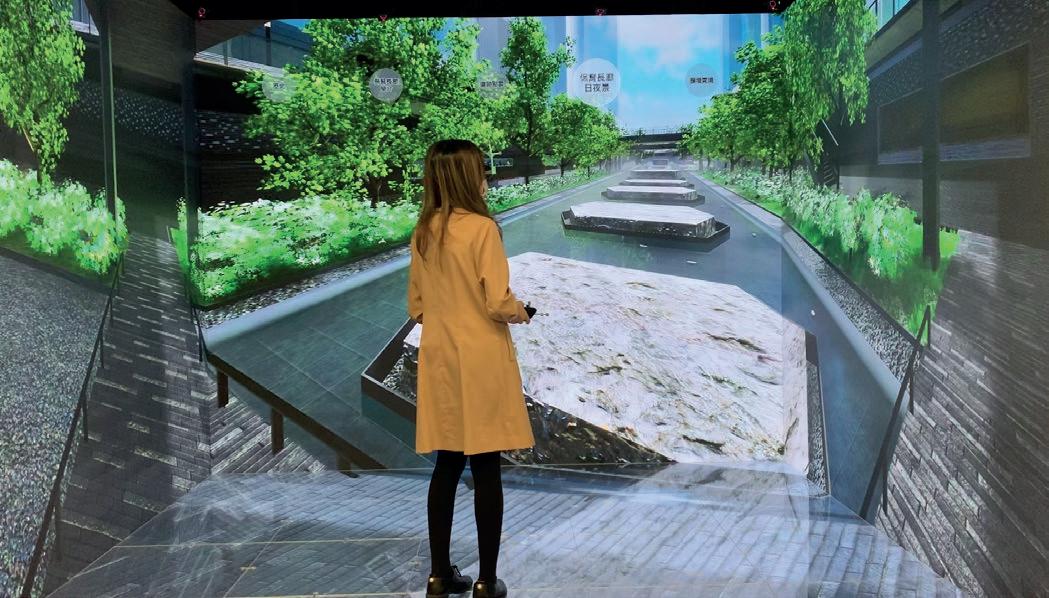

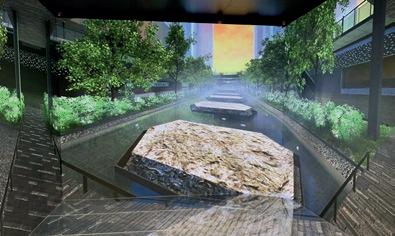

1: Photo of CAVE’s interface

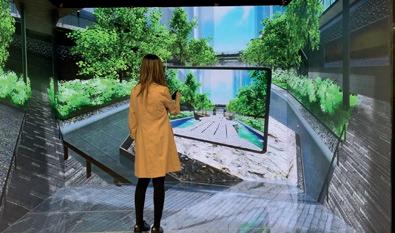

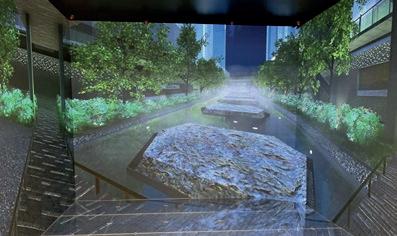

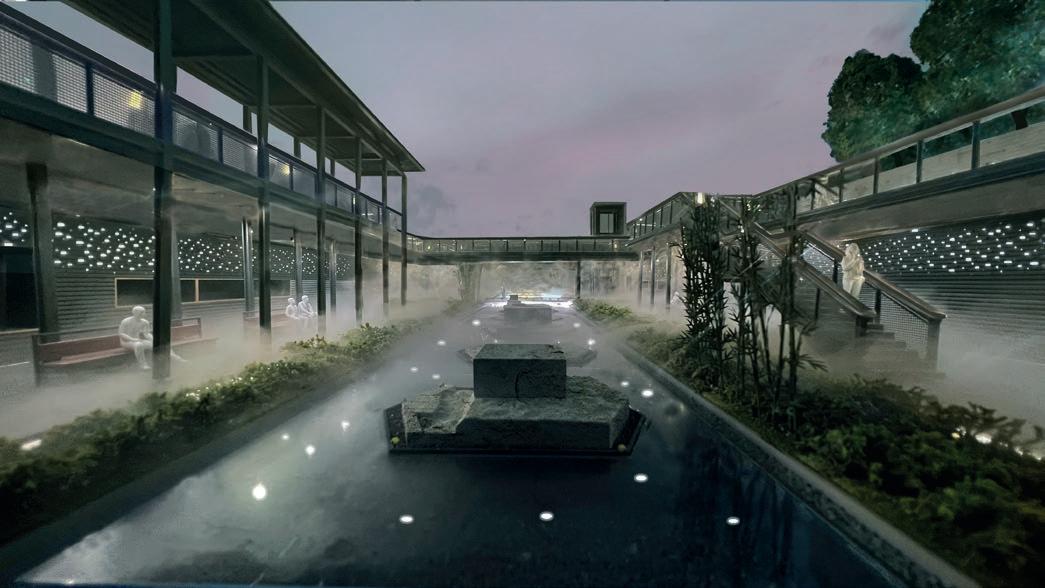

2: Photo of CAVE (night view)

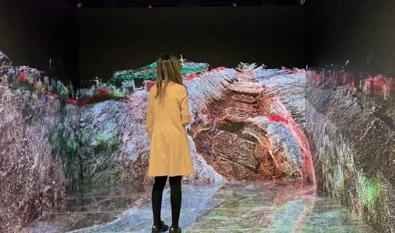

3: Photo of CAVE (Point Cloud)

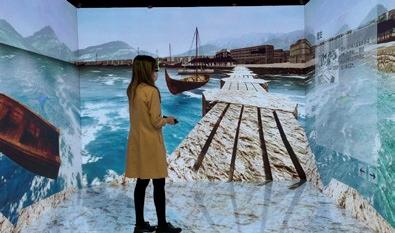

4: Photo of CAVE (History sence)

5: Photo of CAVE (AR mode)

MULTI-MEDIA EXPERIENCES

To help promote public awareness on heritage conservation, this site also include heritage interpretation design from exhibition display areas, outdoor projection show, to multi-media for virtual presentation to facilitate public appreciation of the LTSB remnants and the relationship between LTSB and Kowloon Walled City (“KWC”).

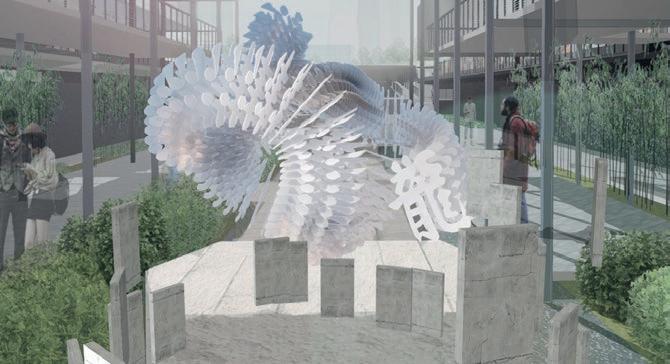

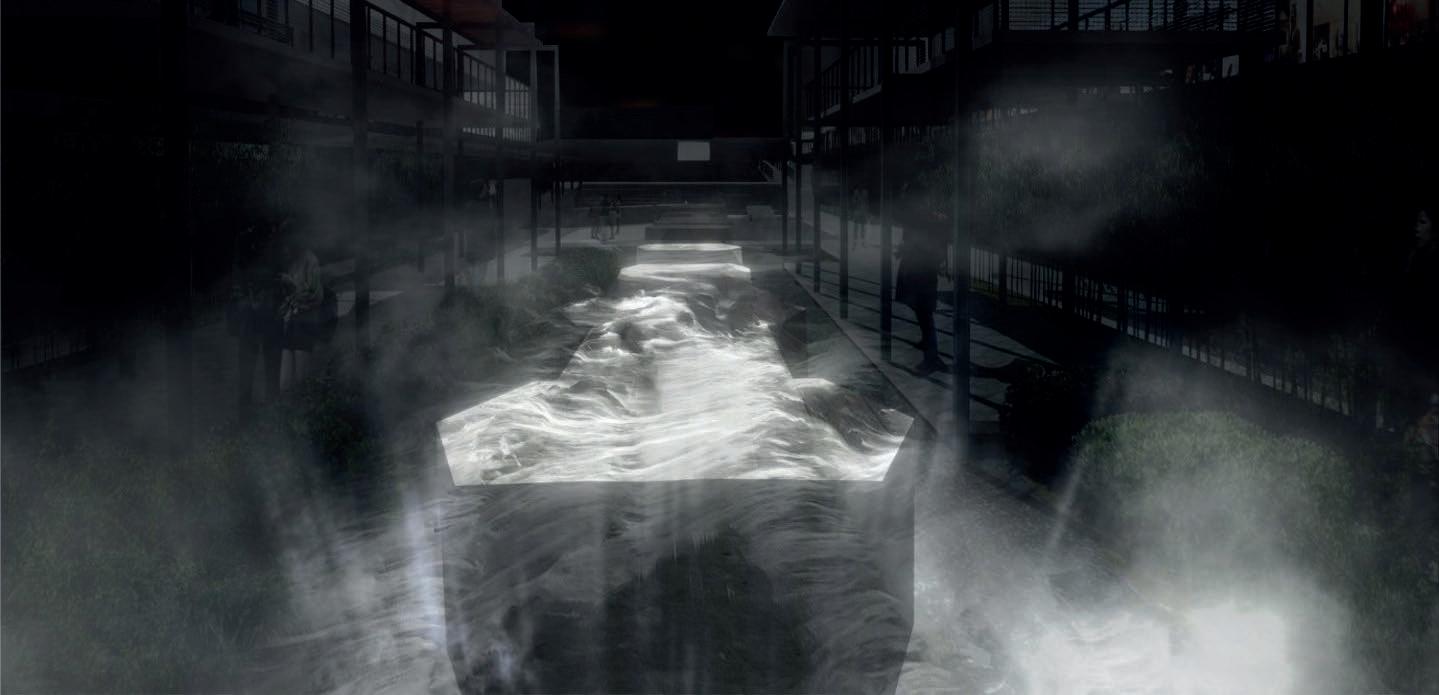

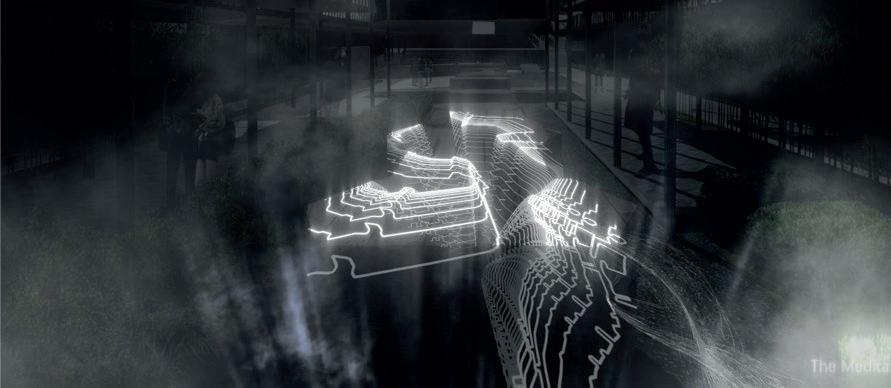

6: Rendering of projection show

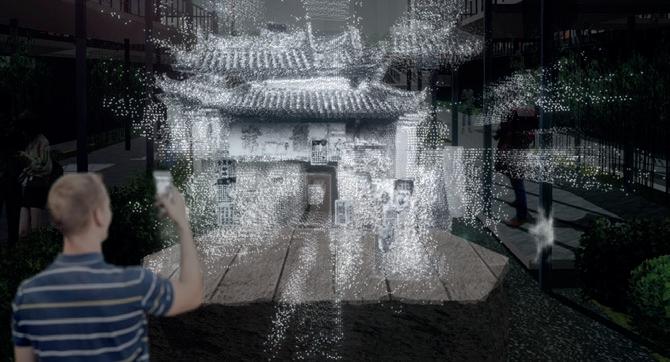

7: Rendering of Augmented reality (AR)

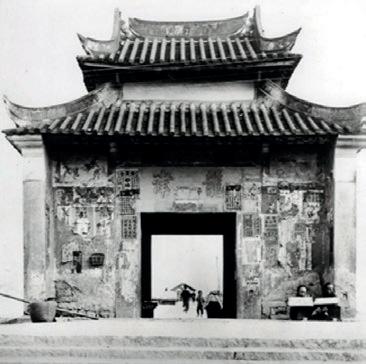

8: Pavilion for Greeting Officials in 1875

9: Rendering of AR

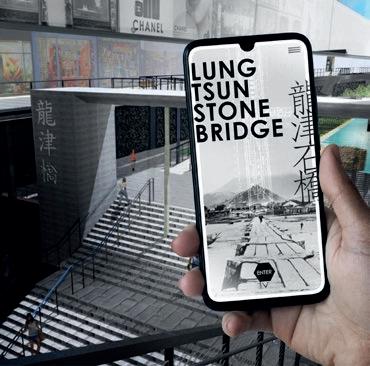

10: Rendering of using AR app

Public Open Space at Celebration Precinct, Wan Chai

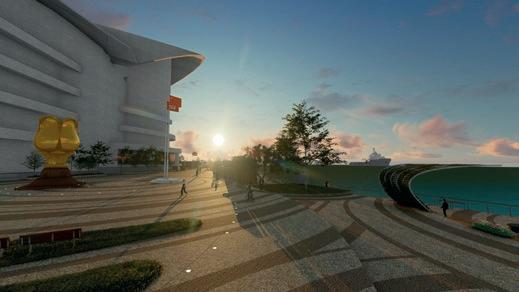

Site: Golden Bauhinia Square, Wan Chai, Hong Kong

Architects: Architectural Services Department

Area: 18500m²

Year: 2027 (Expected)

Wan Chai is a mixed area, where old meets new. Land uses along the harbourfront have evolved over the years fo tie in with the changing circumstances of the harbour and the hinterland.

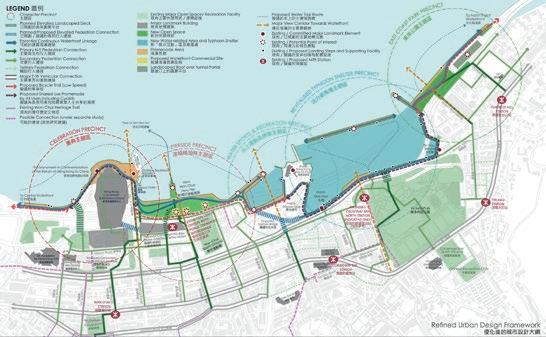

The Urban Design Framework Plan has been finalised to take into consideration the latest design concepts and public aspirations. With public’s support, five character precincts with unique design have been designated. The 3.8km long waterfront promenade from Wan Chai to North Point with about 15ha of harbourside parkland cum promenade will form distinctive green edges along the harbour.

SITE ANALYSIS

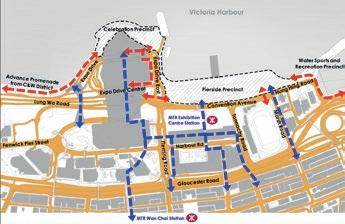

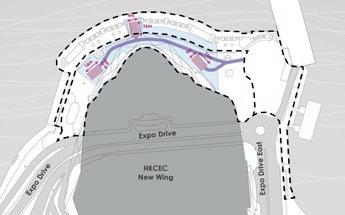

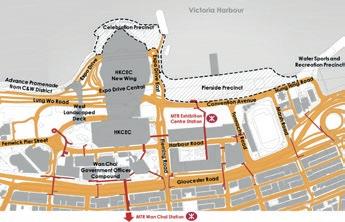

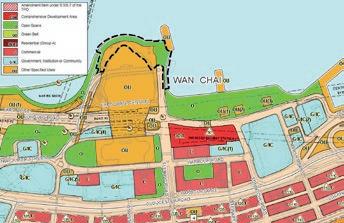

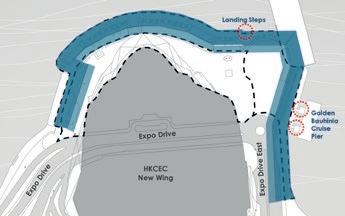

ZONING PLAN

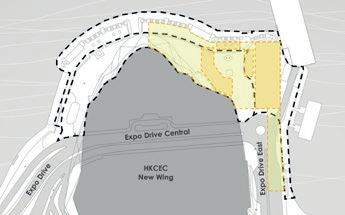

DESIGN RESTRICTIONS (SEAWALL)

FOOTBRIDGE

PEDESTRIAN ACCESS

CEREMONY AREA

HKCEC MAINTENANCE ZONE

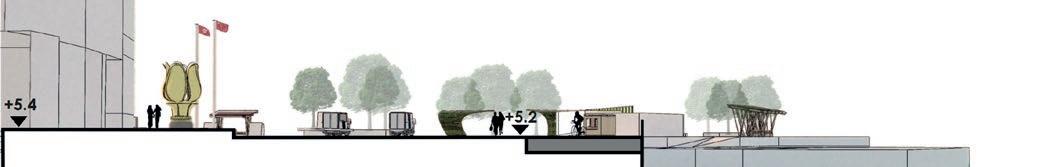

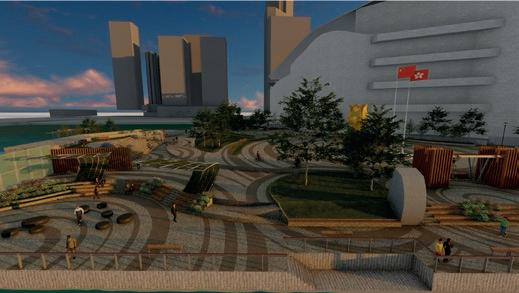

SCHEMATIC DESIGN SCHEME

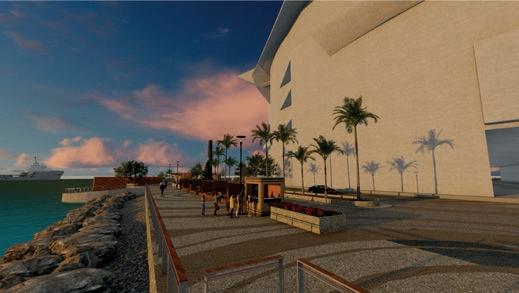

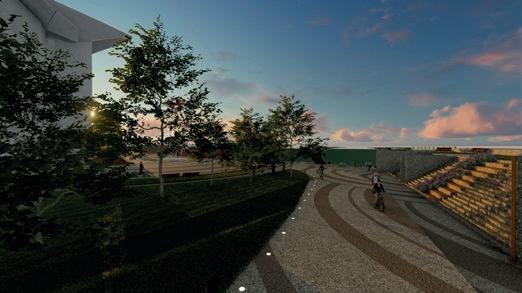

This project aims to transform an existing urban area into a vibrant and multifunctional space, offering a dynamic experience for both cyclists and pedestrians.

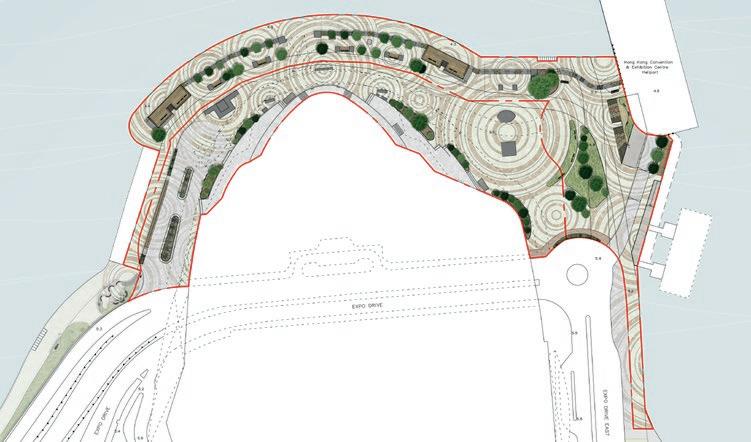

MASTER LAYOUT PLAN

1: Sunset bench with shelters

2: Refreshment Kiosk

3: VIP drop-off

4: Face-uplifted above-ground pump house

5: Sitting steps

6: Seating bench with shelter

7: Golden Bauhinia Plaza

8: Lawn

9: Planter shield from roundabout

The Regent

Residential Development At Tai Po

Site: Shang Tong Road, Lai Chi Shan, Tai Po, New Territories

Architects: DLN Architects Limited

Area: 37697 m²

Year: 2022

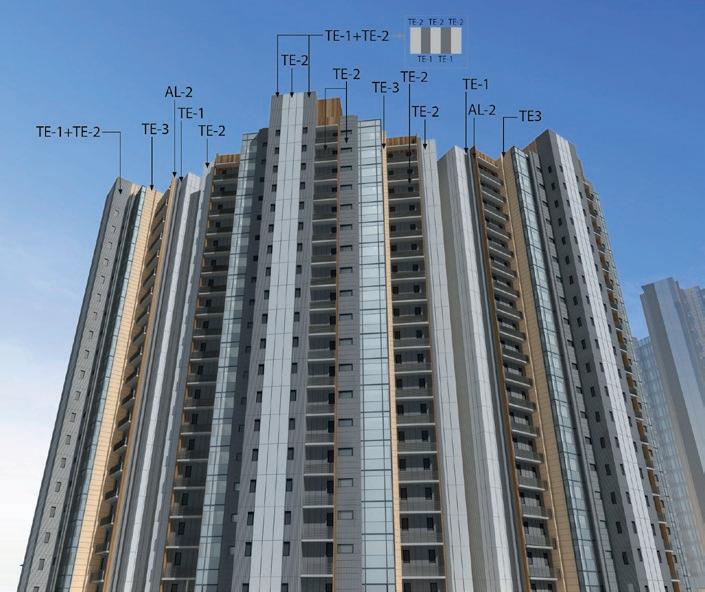

AL-1: PVF 2 Coating in Silver Metallic Color

AL-1: PVF 2 Coating in Timber Pattern and Color

AL-1: PVF 2 Coating in Beige Color

AL-1: PVF 2 Coating in Ivory Color

Unglazed Facing Tile in Dark Grey Color

Unglazed Facing Tile in Light Grey Color

Unglazed Facing Tile in Beige Grey Color

PHYSICL MODELS

Physical models were made in order to have a visualization of different color combination of facade design and roof top design.

1: Rendering (View of clubhouse)

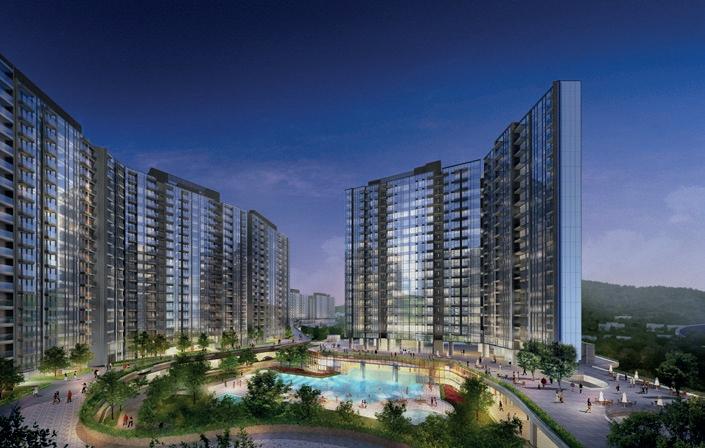

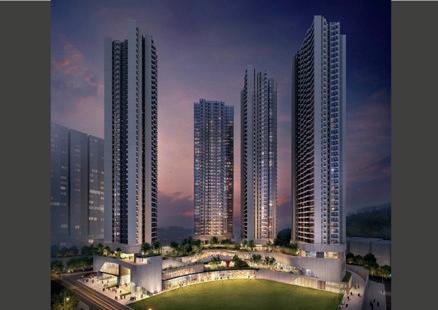

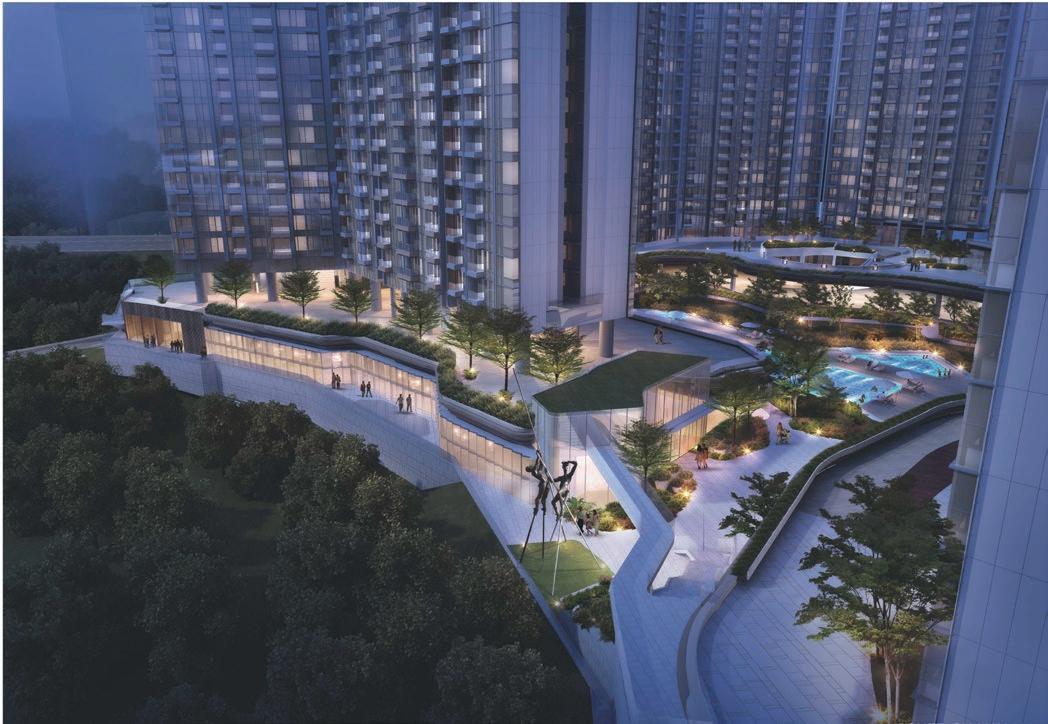

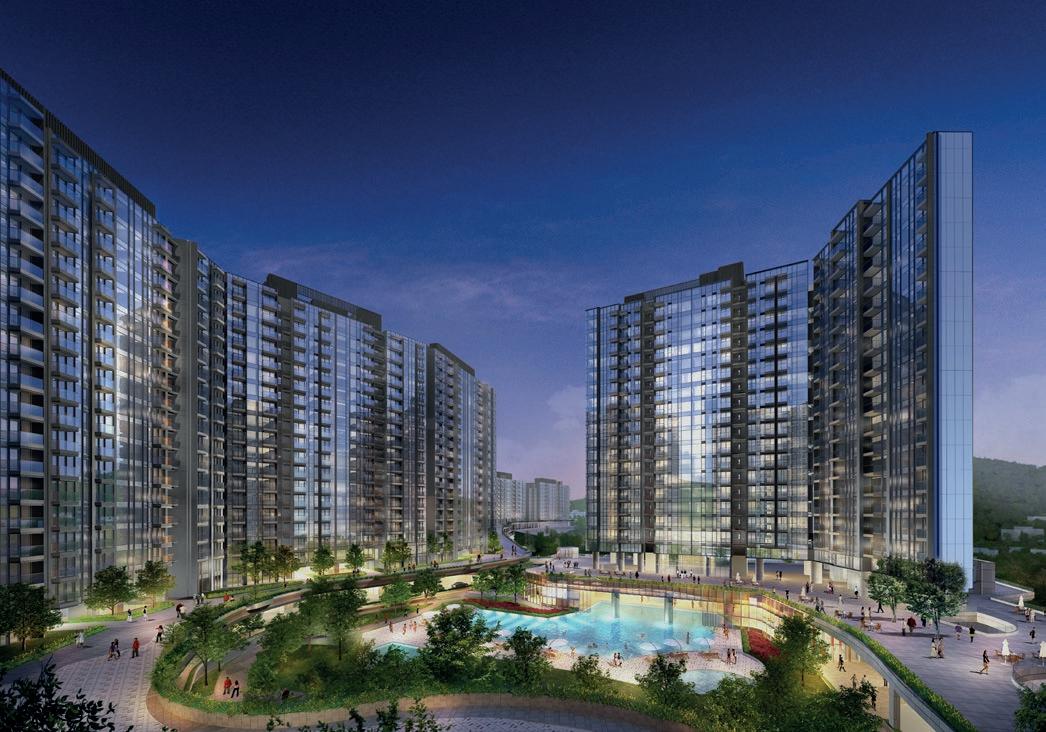

2: Rendering (Ariel view)

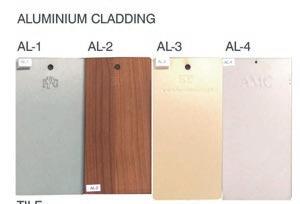

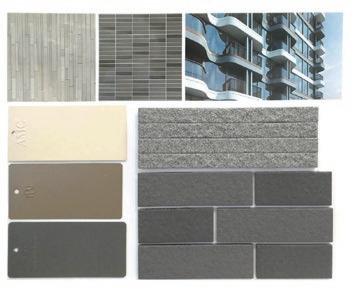

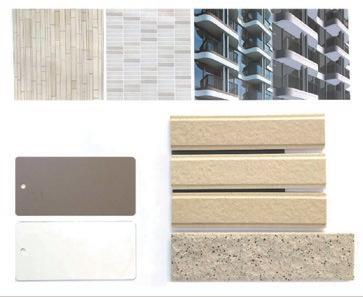

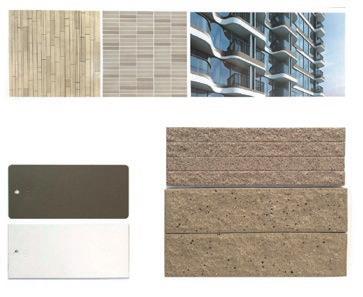

3: Material selection

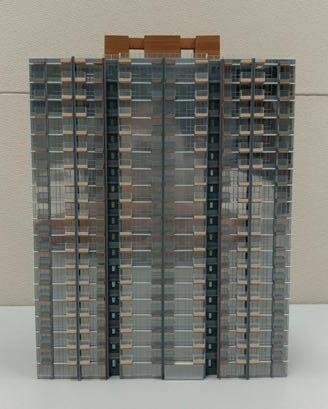

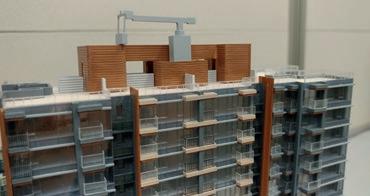

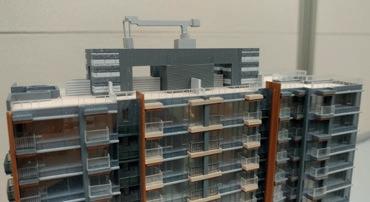

4: Photo of physical model

5: Tender drawing of detail section

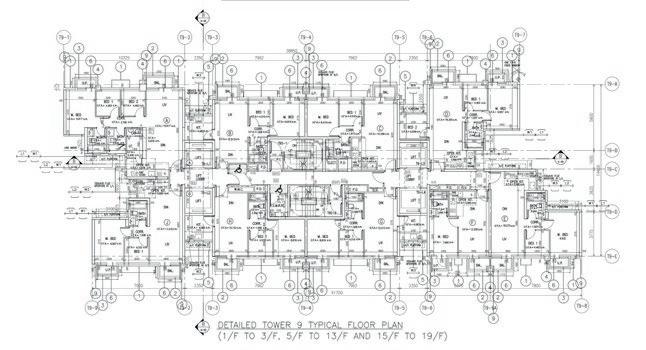

6: Tender drawing of typical floor plan

4

3

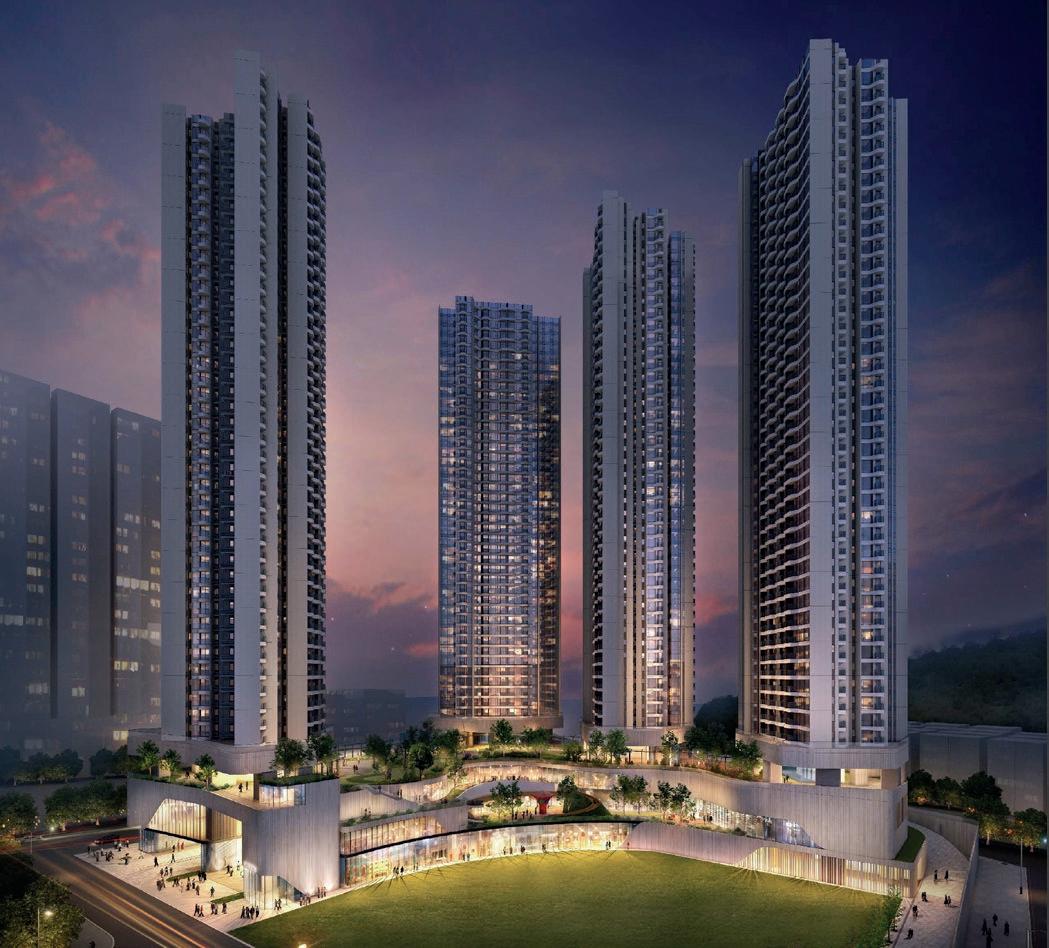

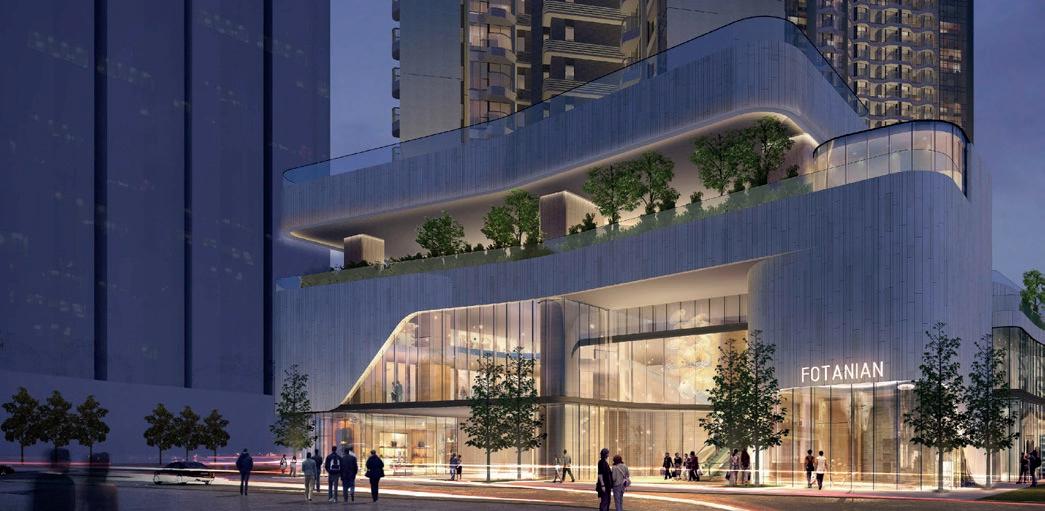

The Arles

Residential Development At Fo Tan

Site: 1-11 Au Pui Wan Street, Fo Tan, New Territories

Architects: DLN Architects Limited

Area: 20038 m²

Year: 2023

Curved glass

Curved handrail

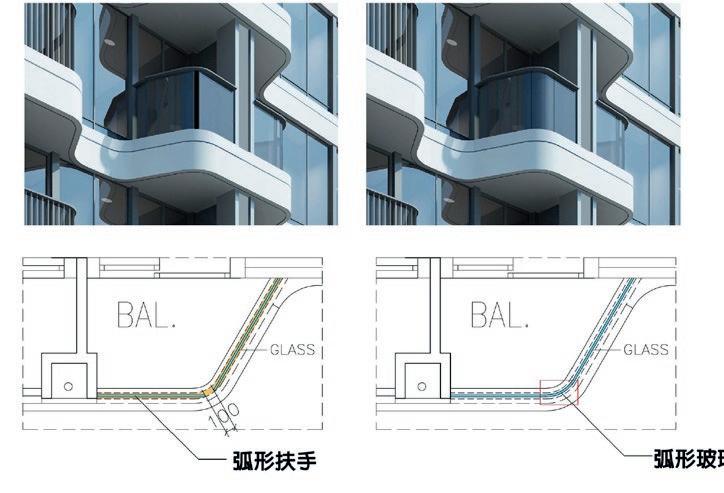

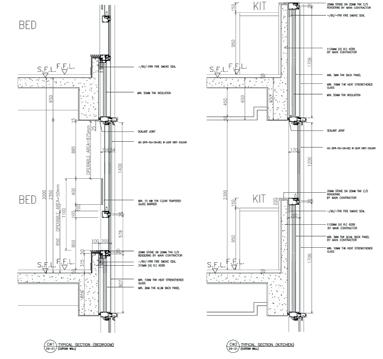

TOWER 4 BALCONY SECTION PLAN

1m acoustic fin

1m acoustic fin

1m acoustic fin

TOWER 4 PLANS

MATERIAL

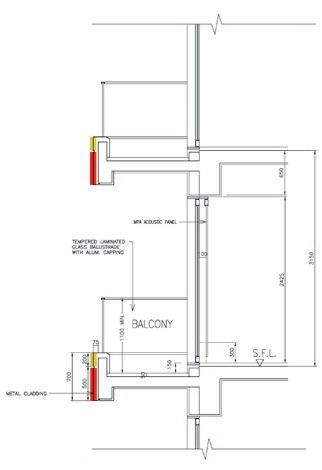

TOWER 4 BALCONY SECTION DETAIL

Hermes Air Craft Rendezvous

Window Art Installation

Site: Taipei, Tokyo, Guam

Architects: LAAB Limited

Year: 2016

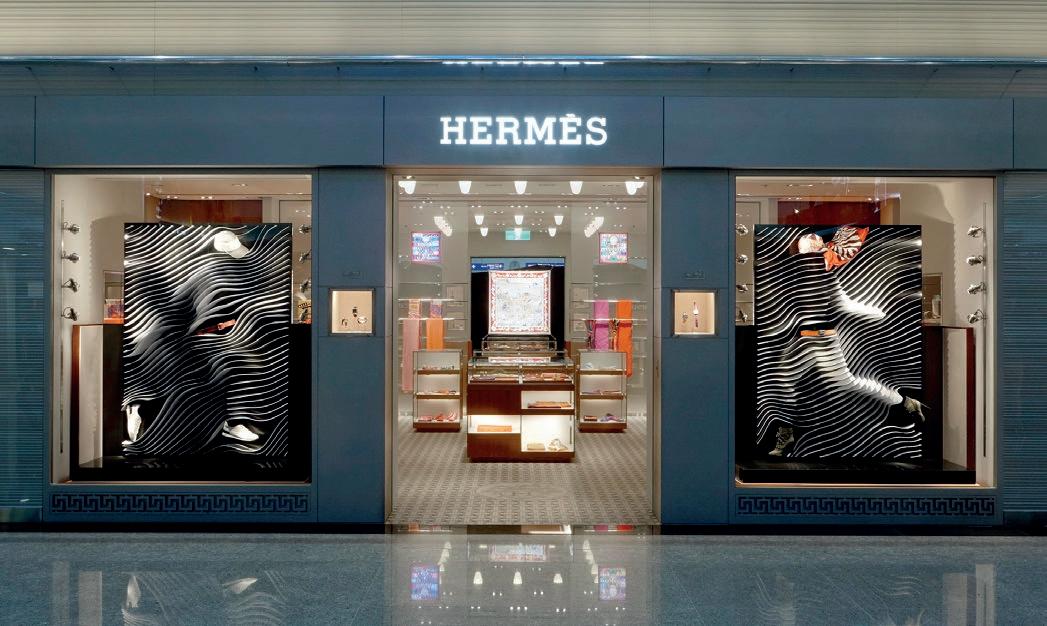

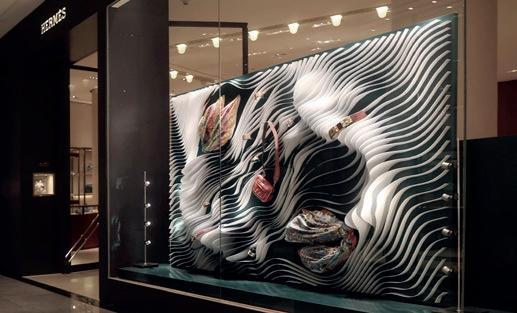

1/2/3: Photos of shop front

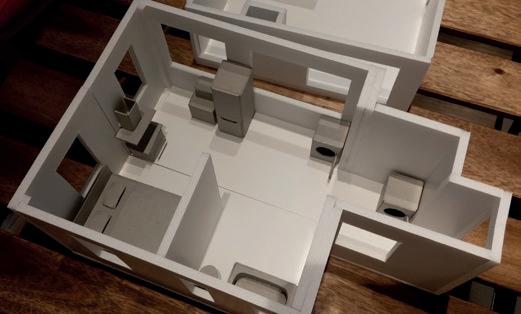

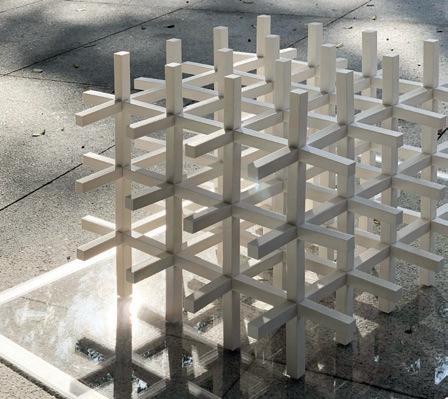

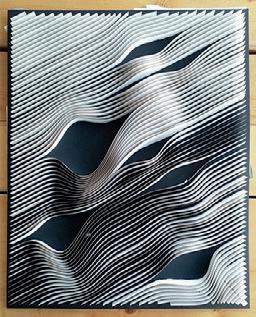

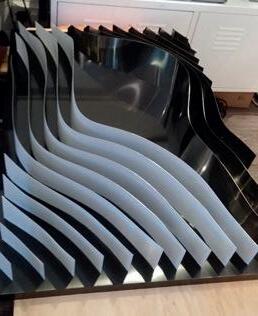

4: Photo of physical model

5: Photo of 1:1 mock-up

Small Home Smart Home

Interior Design

Site: Central, Hong Kong

Architects: LAAB Limited

Year: 2016

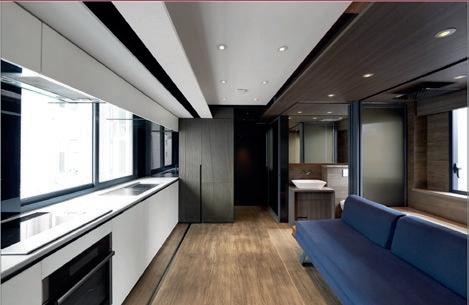

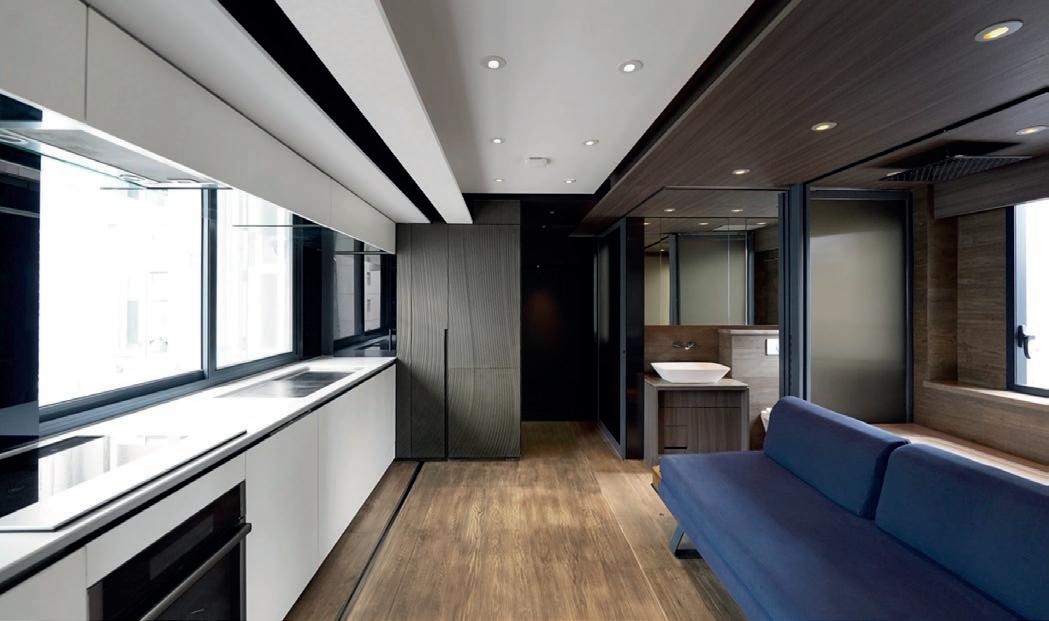

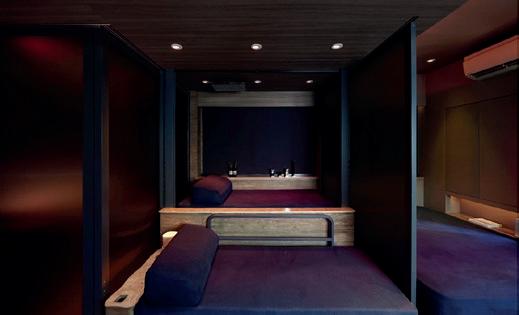

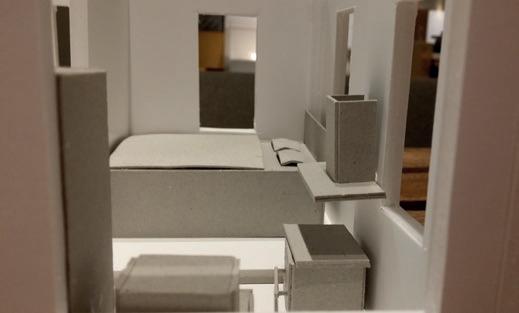

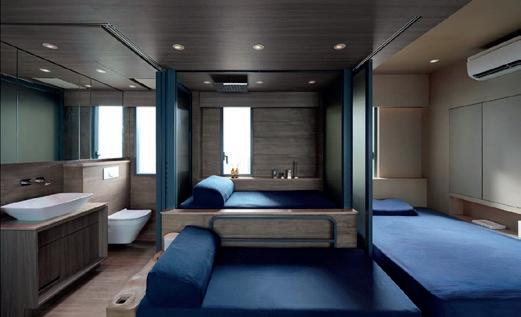

1/2/3: Photos of interior 4/5: Photo of physical model

Bath Center at Swanscombe Peninsula

Master Thesis I - True Stories

Site: Swanscombe Peninsula, Kent, UK

University of Kent, Studio One

Academic Year: 2018-2019

Water Temperature: 42°C

Depth: 1000mm

Salinity: 3%

2 3

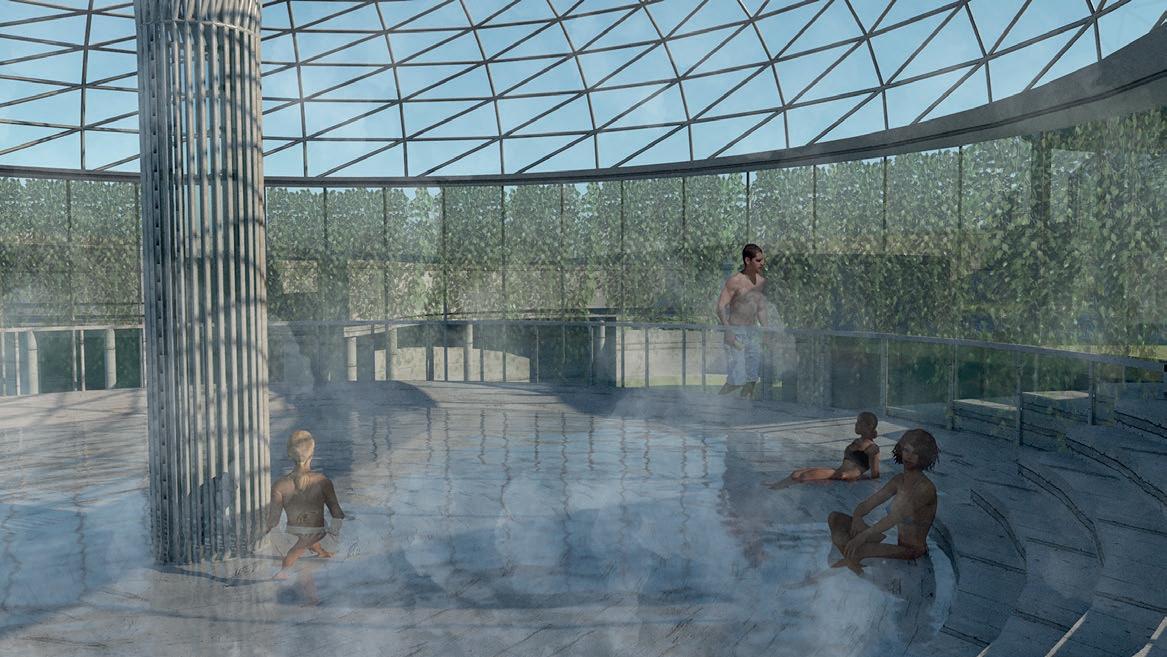

BATHING POOL

UNI-SEX BATH CENTRE

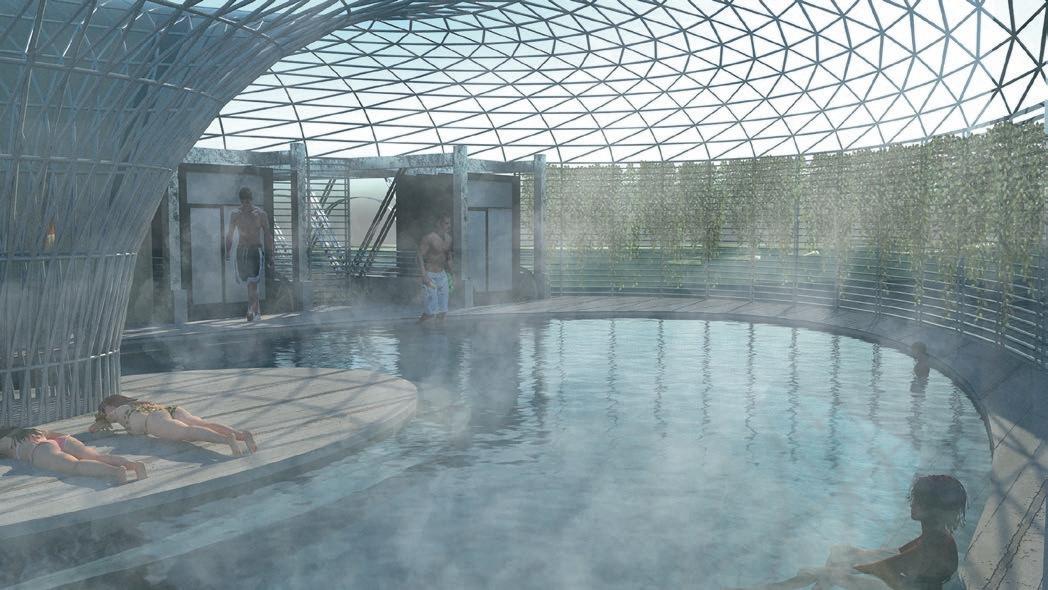

8 HOT BATHING POOL

Since the turn of the century, awareness of trans people has increased, and with that new visibility comes a cavalcade of mainstream mediocrity in the cinema. From Transamerica (2005) to The Danish Girl (2015), films about transgender people that reach a wide audience tend to serve as distorted guides for cis people to pity us.

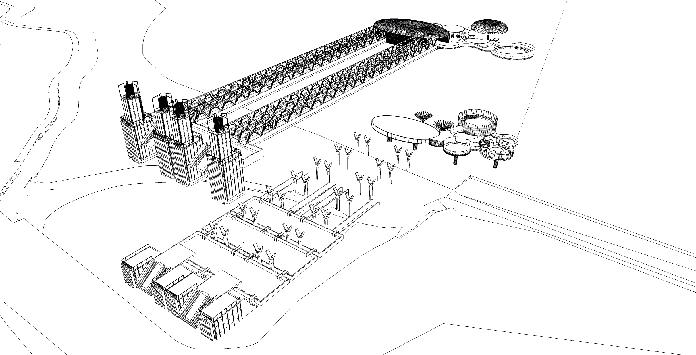

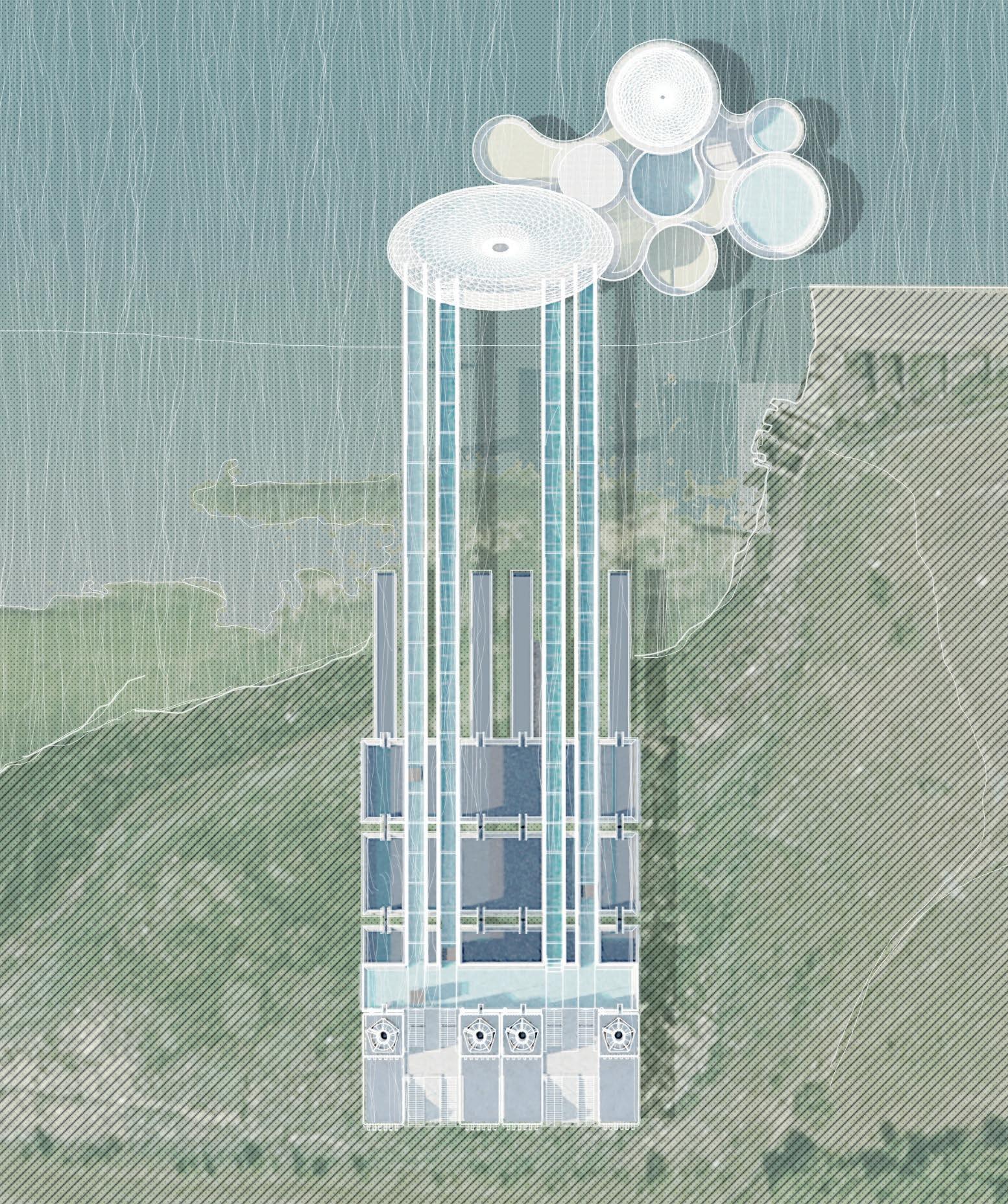

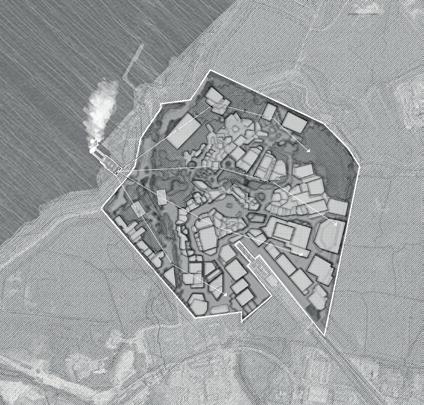

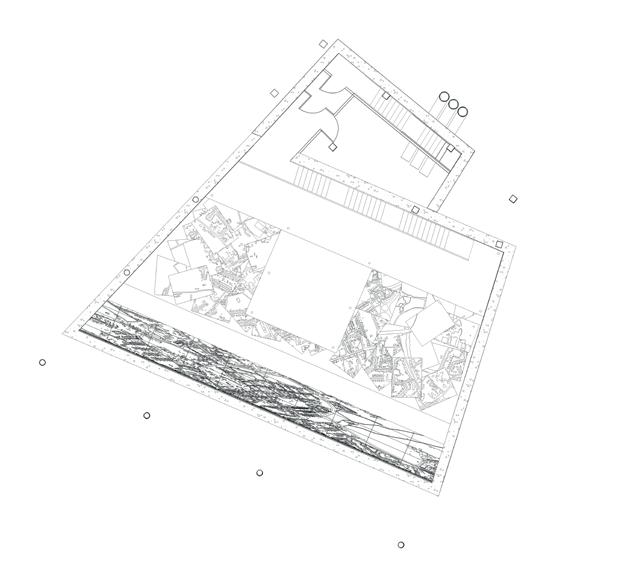

1: Site plan

Water Temperature: 38°C

Depth: 500mm

Salinity: 3%

Water Temperature: 38°C

Depth: 500mm

Master Thesis

ARRIVAL

5 ARRIVAL HOT BATHING POOL

POWER PLANT & POOL

The project connects with the first part of a plower plant to the future London Resort in additional supplies of energy. The plant will exhuast steam as a by-product of the generation of electricity. From water to electricity and steam; from sea to plant to bath, this would be the major idea of the bath centre. The diagram shows the consumption relationship of the project with the future london resort. The project would be a generator as well as the releaser.

Thermal power plant

Distillation tower

Fine filtration pool

Sand filtration pool

Sedimentation pool 1

2

BATHING MACHINE

1. Preforated flooring

2. Japanese rug

3. Bag for wet bathing-togs

4. Toilet shelf

5. Square stool

6. Mirror

7A/B. Entry and exit door

8. Small side windows

9. For connecting horses

Bathing Machine is developed to protect privacy in 18th century, bathing machine was popular for people changing from their usual clothes into swimwear. Some bathing machines were wooden carts powered by horses, little by men and rolled into the sea. The use of bathing machines as part of the etiquette for sea-bathing was more rigorously enforced upon women than men, but it was to be observed by both sexes among those who wished to behave respectably.

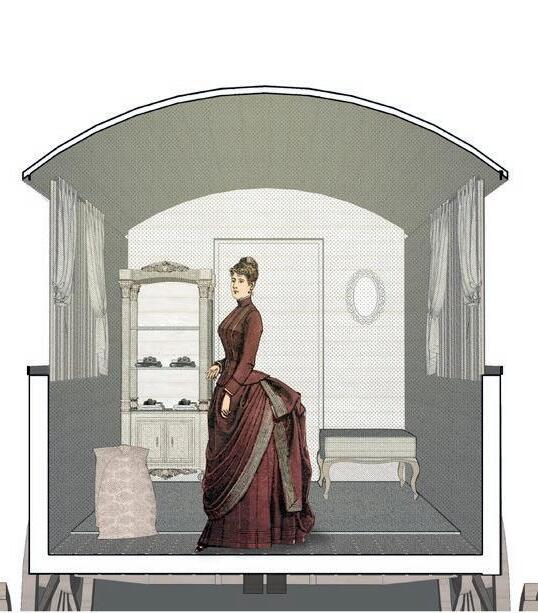

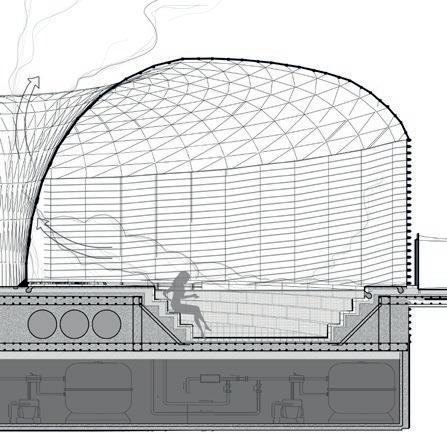

5: Section of a bathing machine

6: Axonometric diagram of a bathing machine

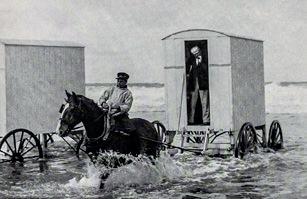

7: Photo of bathing machine in 1892

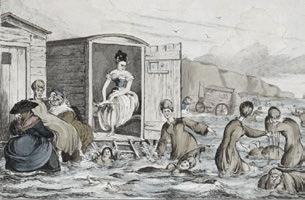

8: Drawing of bathing machine in 1829

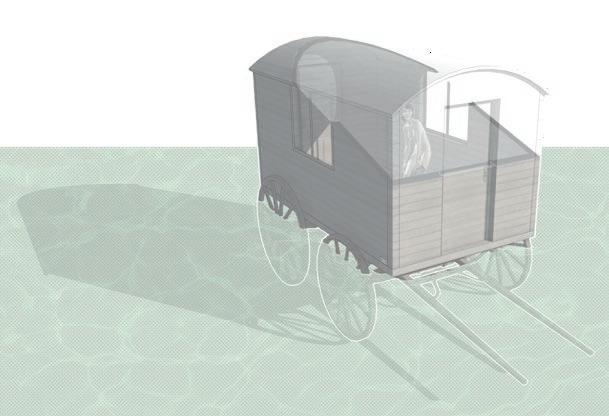

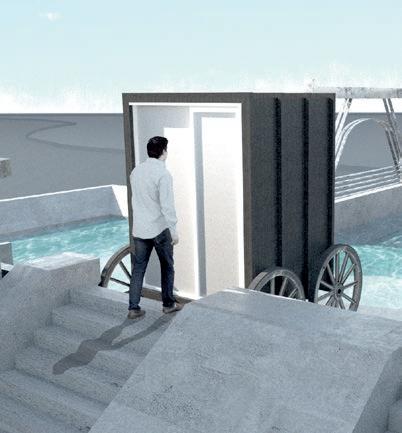

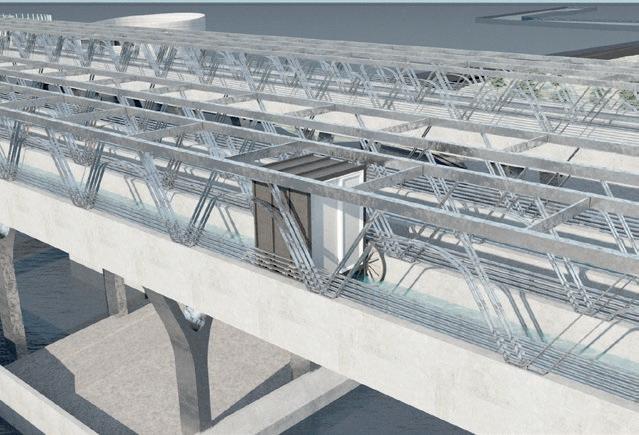

9/10: Rendering of bathing machine

The Memory Archive of Canterbury

Master Thesis II - Gothic

Site: Canterbury, Kent, UK

University of Kent, Studio One

Academic Year: 2019-2020

SECOND WORLD WAR MAPPING OF BAEDEKER BLITZ (1942-45)

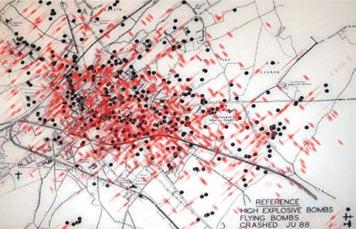

Bomb map of canterbury in second world war. The red dots represent the prediction track of the bombs from the fighter aircraft. Baedeker raids were the name given to German air attacks on the English cathedral cities of Exeter, Bath, York, Canterbury and Norwich, carried out mainly during spring and summer 1942. The main attack on Canterbury took place on 1 June 1942, shortly after the Cologne bombing

This is a conceptual arrangement to response the site condition, almost dark mysterious and eclectic. However active nor built on the site. A memorial museum of Canterbury which showcases an artifact in a large and deep basement, also renders a hollow and empty atmosphere of what Canterbury could sometimes make people feel.

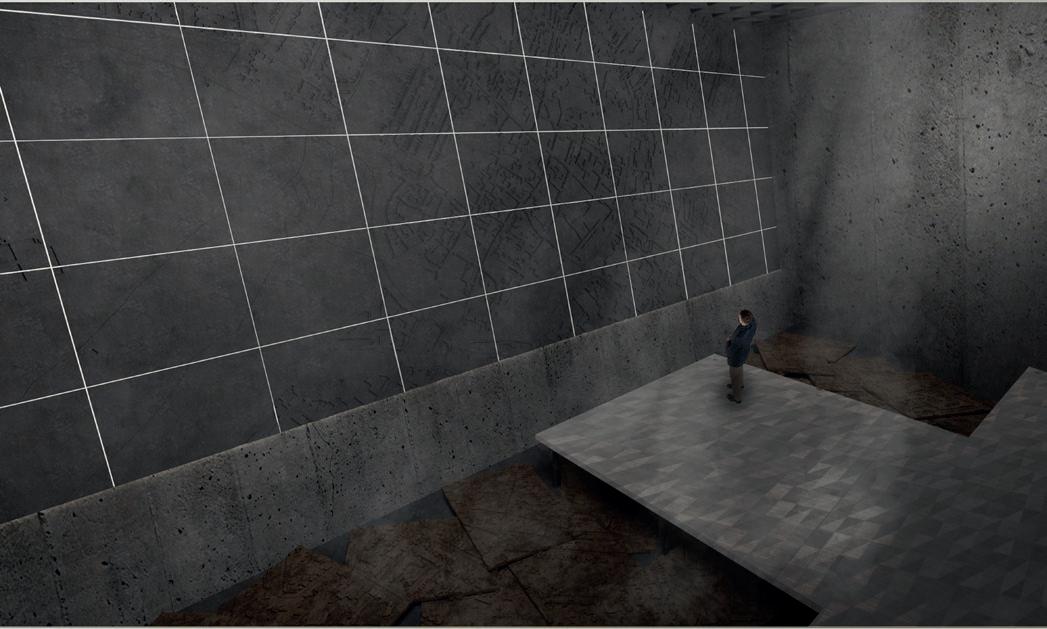

1: Rendering (View of basement)

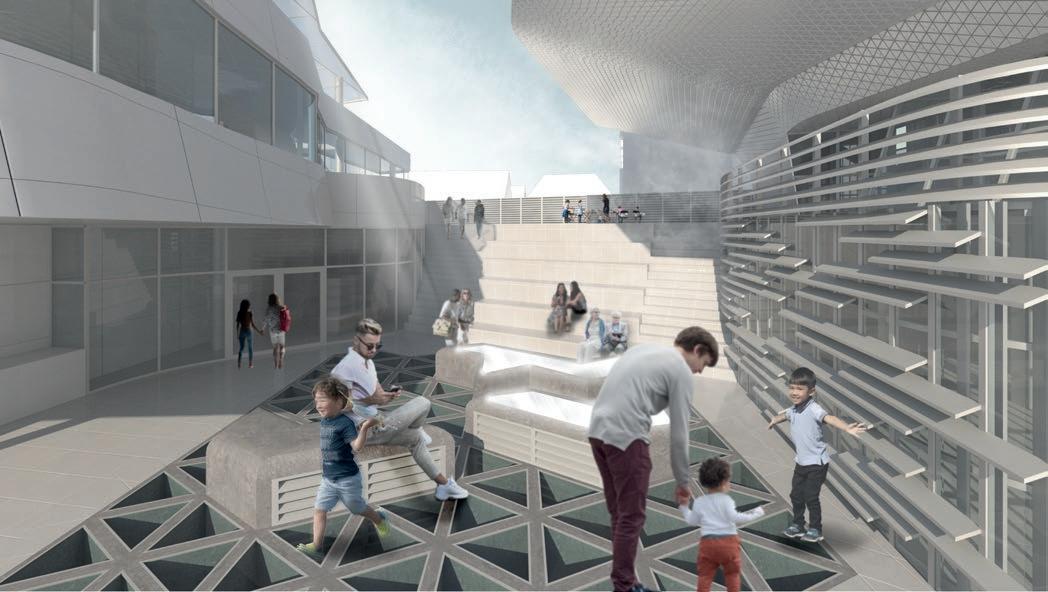

2: Rendering (View of entrance plaza)

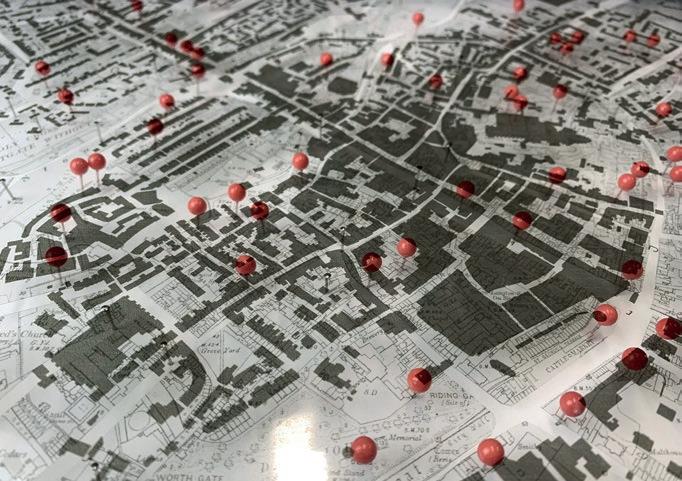

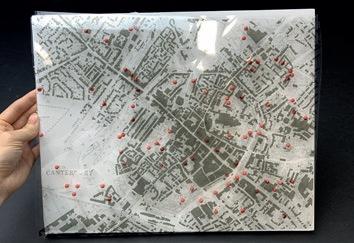

3: Photo of bomb mapping model

4/5: Collage of ruined Canterbury

Overall

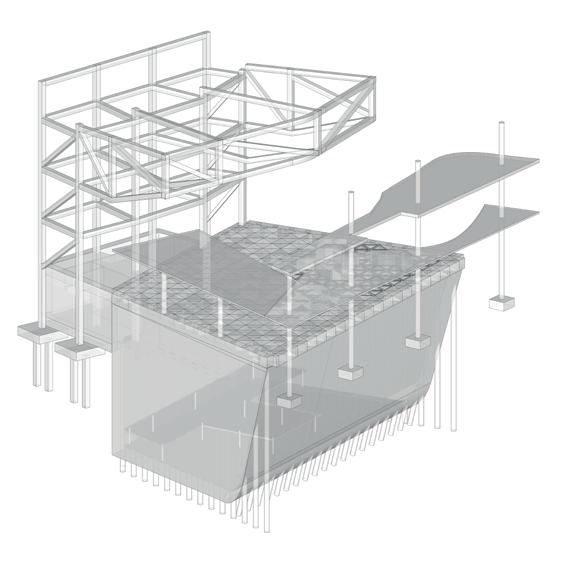

Steel columns stand on the retaining wall

Steel diagonal braced frame structure (300mm(w)x 300mm(d))

Pile foundations

Waffle floor slab with 600mm depth

Flat slab and column system

Piled Retaining Walls 500mm

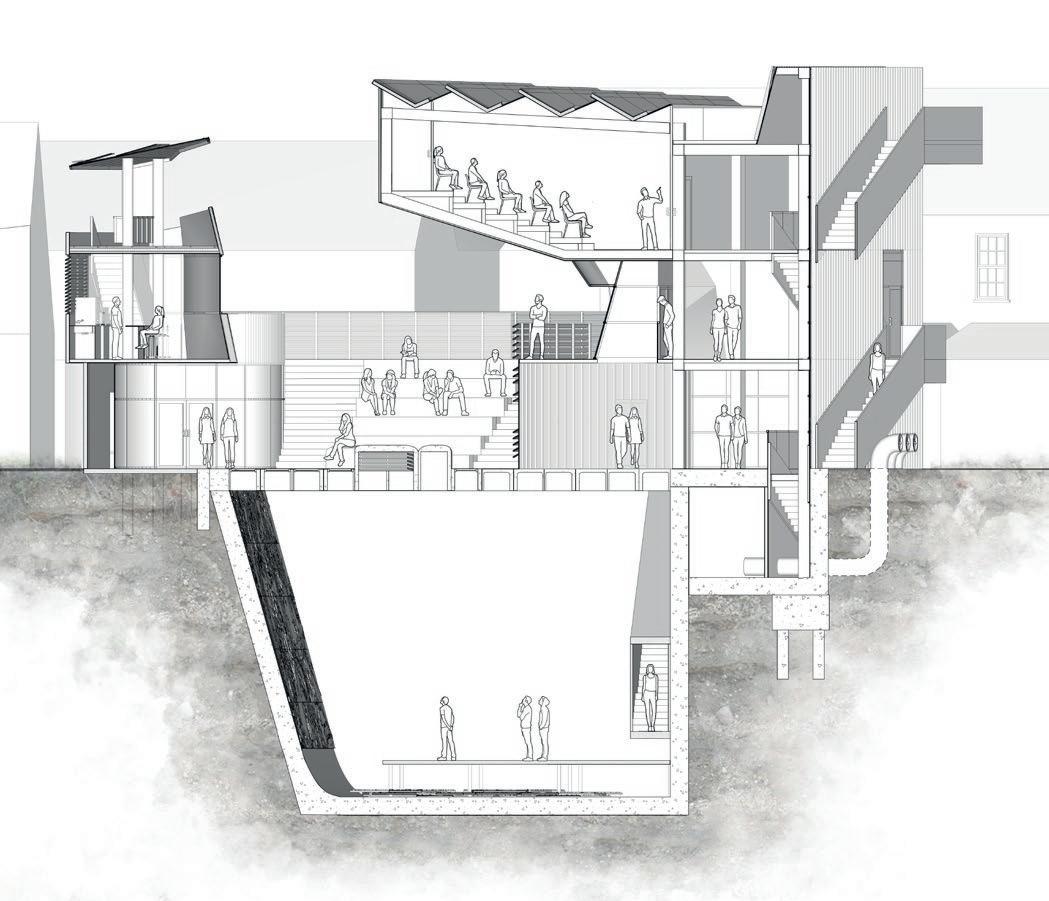

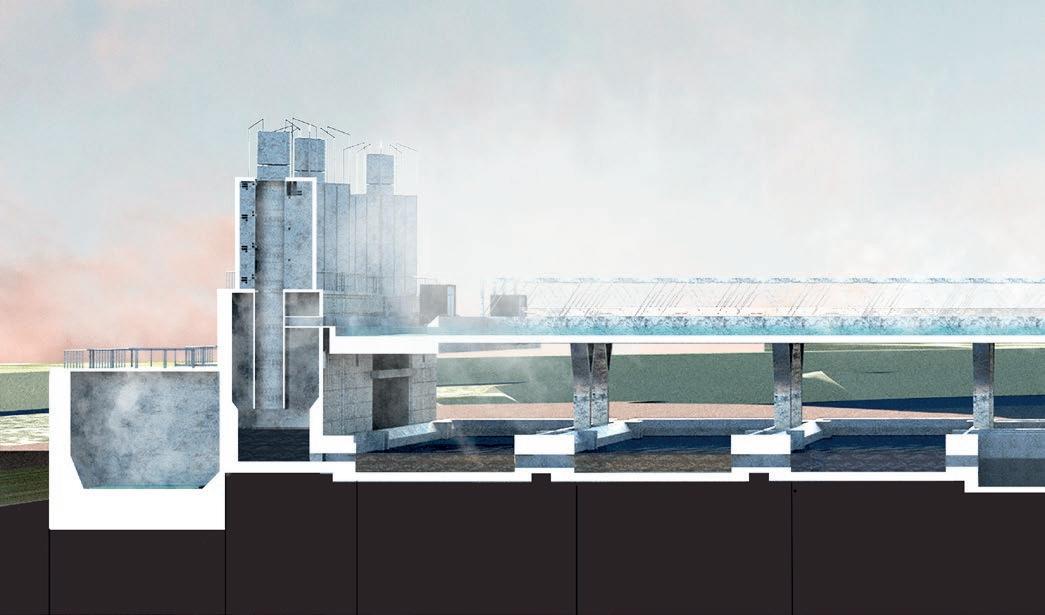

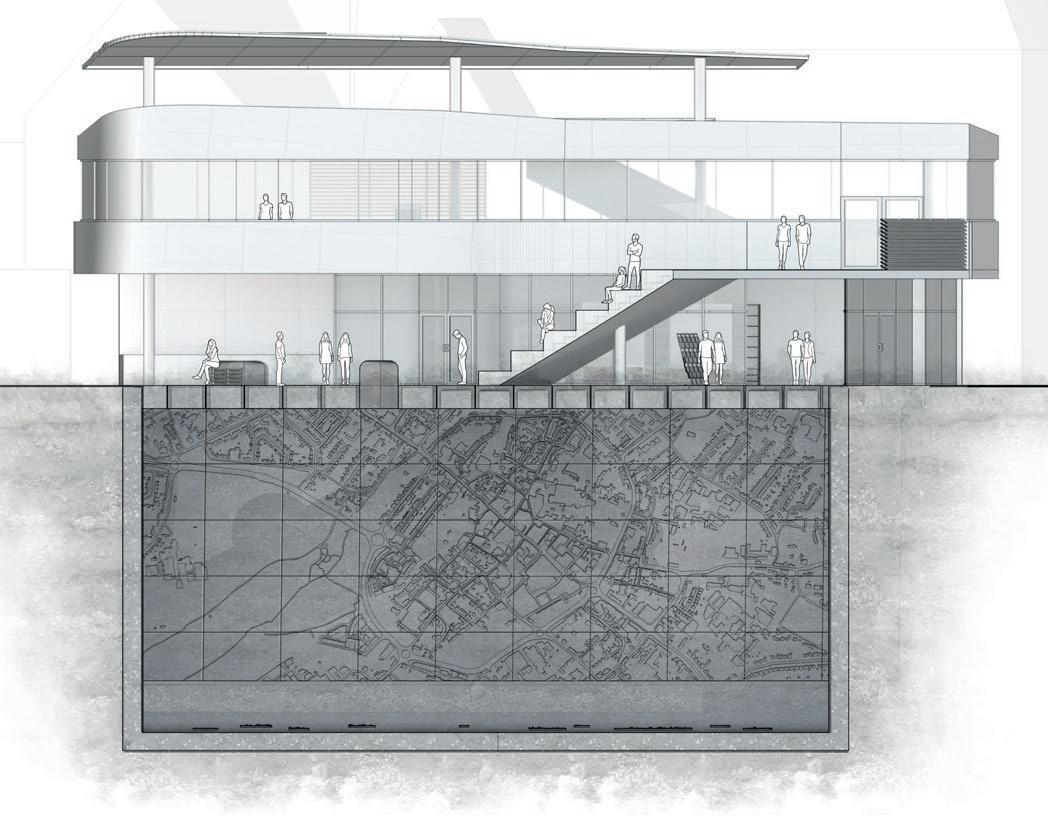

Scetion

Master Thesis
