VLR-100 product datasheet

Page 1


VELCO VLR-100

Velco VLR-100 is a fresh air vent that automatically adjusts according to the outdoor temperature using a thermostat. It smoothly adjusts between +10°C and -5°C. At temperatures lower than this, a few millimeters of minimum opening ensures adequate and draft-free ventilation. The reliable thermostat vent comes with a 10-year warranty.

Features noise reduction disc

Includes a noise reduction disc that can be used to silence incoming noise if needed.

Electrostatically charged filter

Velco VLR-100 features a Velco filter that effectively prevents impurities from entering the indoor air. The filter, made from 3M Filtrete™ material, has exceptional performance due to its electrostatic charge, which attracts impurities like a magnet. According to VTT research, it filters 100% of pollen and significantly reduces harmful fine particles. Velco filter is the only one with the Allergy Label® certification, guaranteeing exceptionally high filtration efficiency.

Remember to replace the filter regularly. It should be replaced when it becomes soiled, but at least once a year.

Applications & Installation

Install on a wall with a new hole. The recommended wall thickness is a minimum of 160 mm. The included pipes (150 mm each) fit partially into each other and can be easily shortened if necessary. With the pipes included in the retail package (2 pieces), installation is suitable for walls up to approximately 430 mm thick. Additional pipes are sold separately. Suitable for use in all buildings with either natural or mechanical exhaust ventilation.

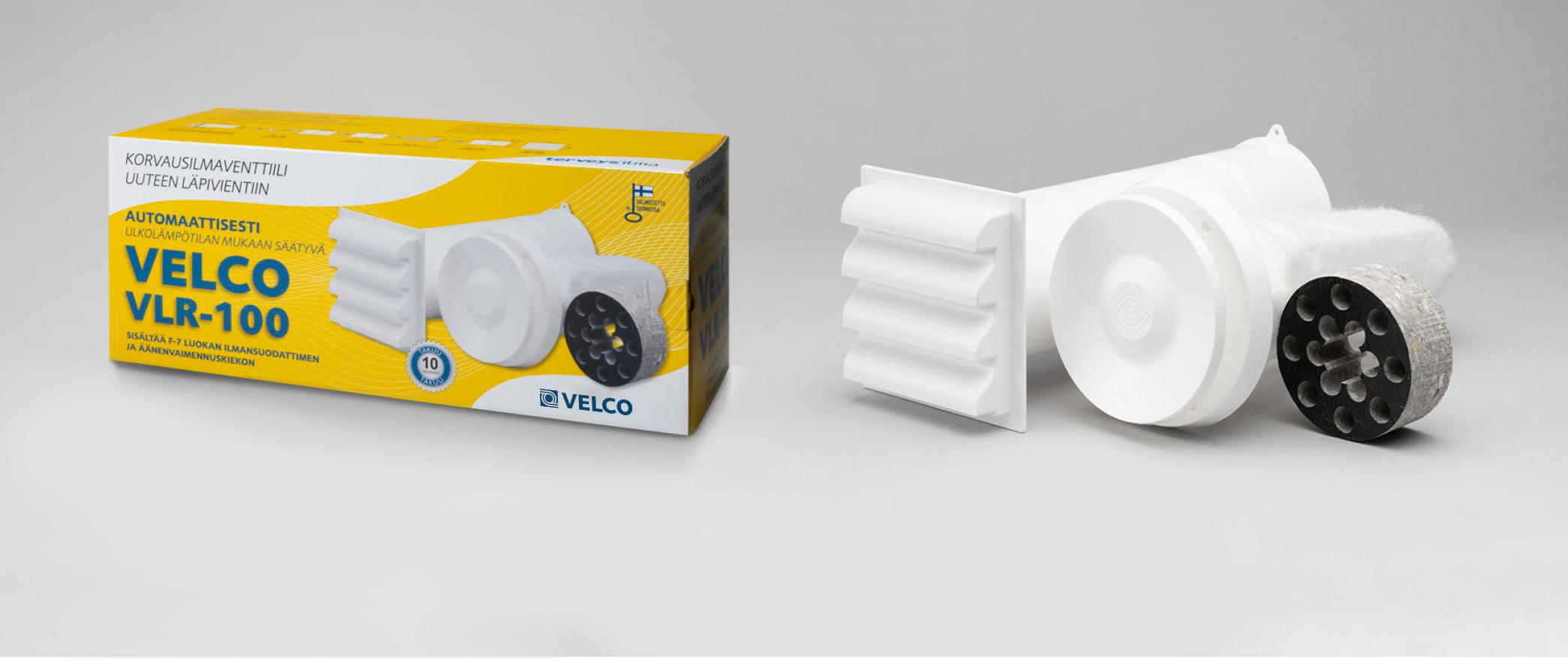

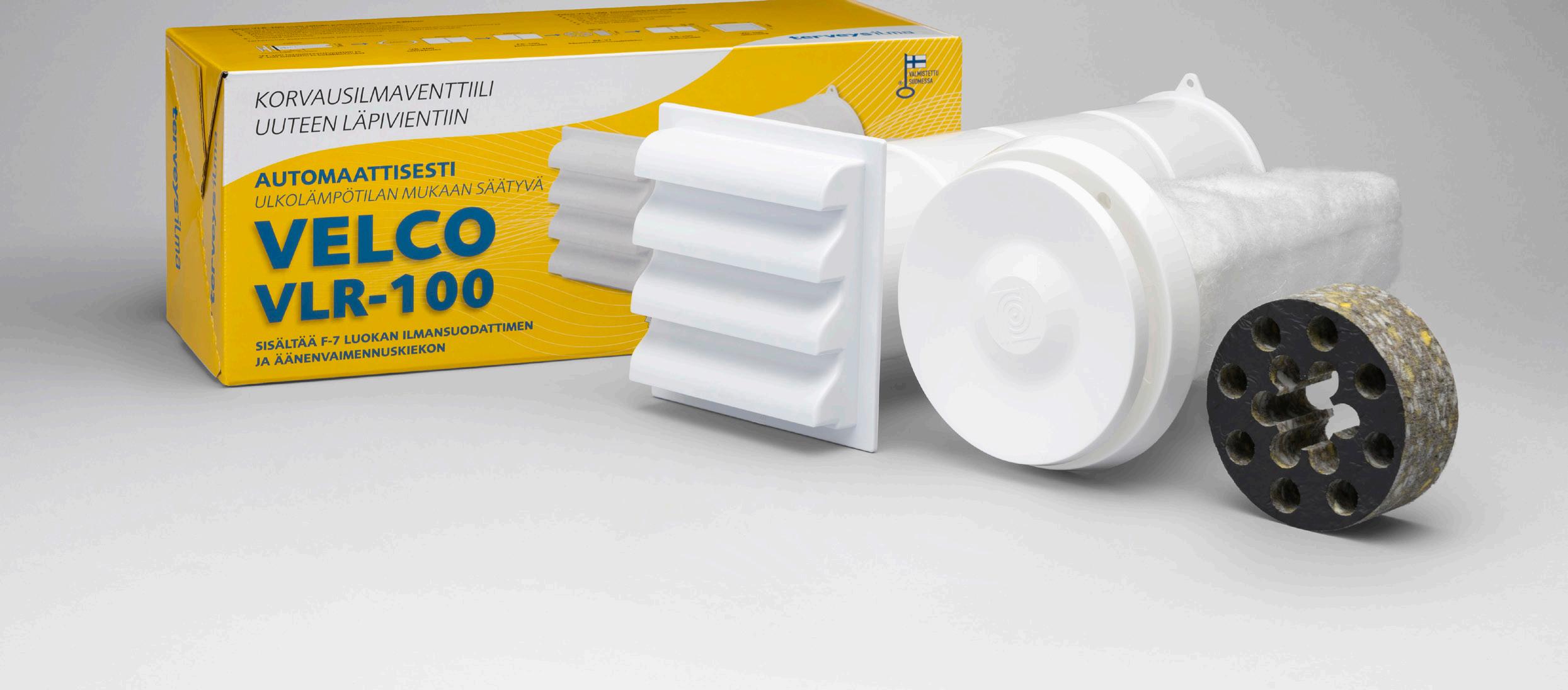

Velco VLR-100 retail packaging includes:

VT-100 thermostat-controlled valve

S-100 filter and structure wires

VR-100 wall pipe

FR-100 x2 extension pipe

RE-97 silencer disc

YG-100 outside grille

Installation instructions

VELCO VLR-100

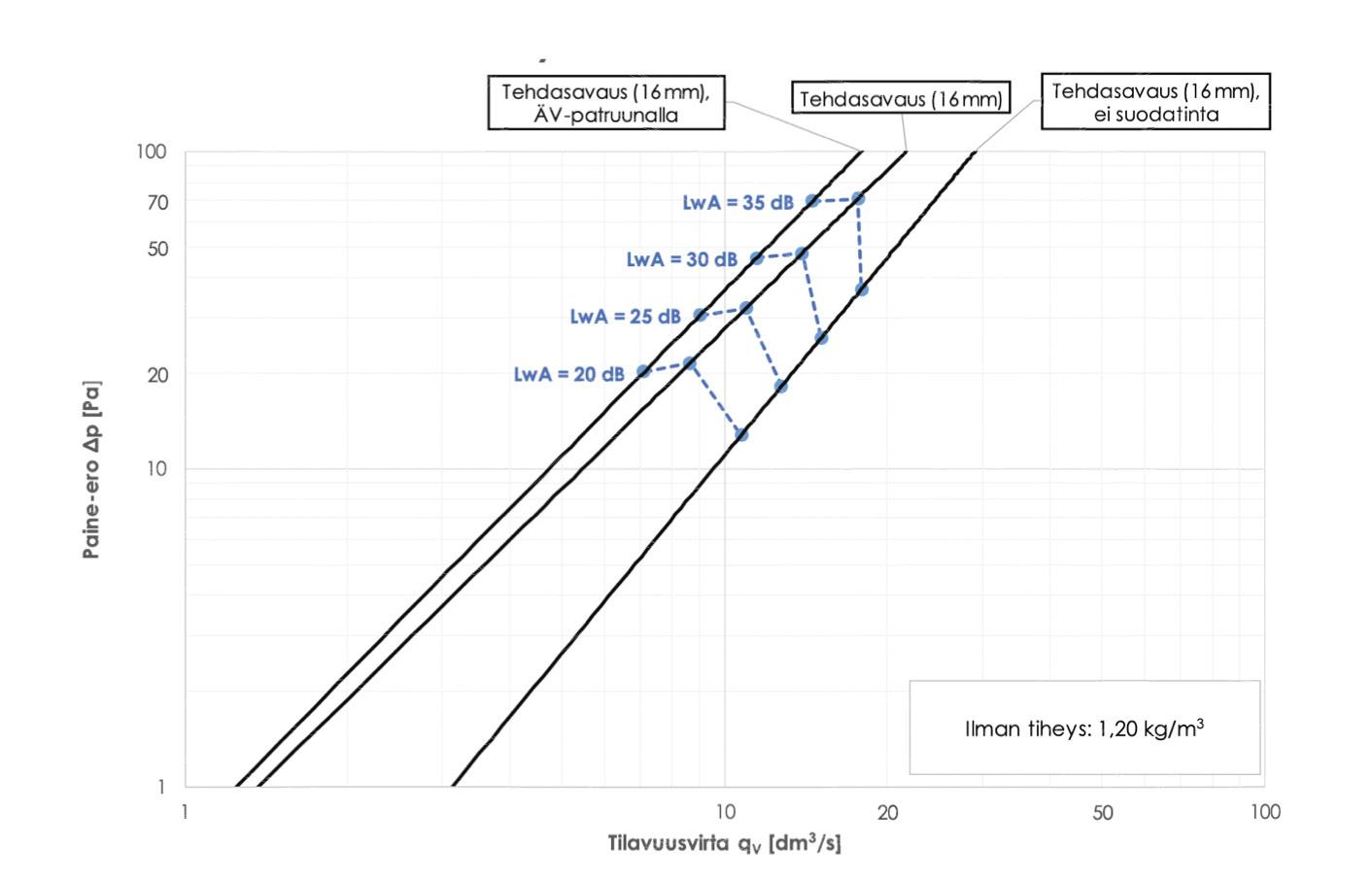

Acoustic and Flow Characteristics of the Fresh Air Vent

With the noise reduction disc, the sound attenuation rating is Dn,e,w 37 dB according to SFS-EN ISO 717-1.

Colors: The standard color in the retail package is white. The VT-100 thermostat vent is also available in brown and black. The exterior grille color can be customized.

Warranty: 10 v

LVI-code:

VLR-80 8841014

VLR-100 8841025 retail package

VLR-125 8841015

VLR-160 8841016
