Velco VTS-160 product data sheet

Page 1

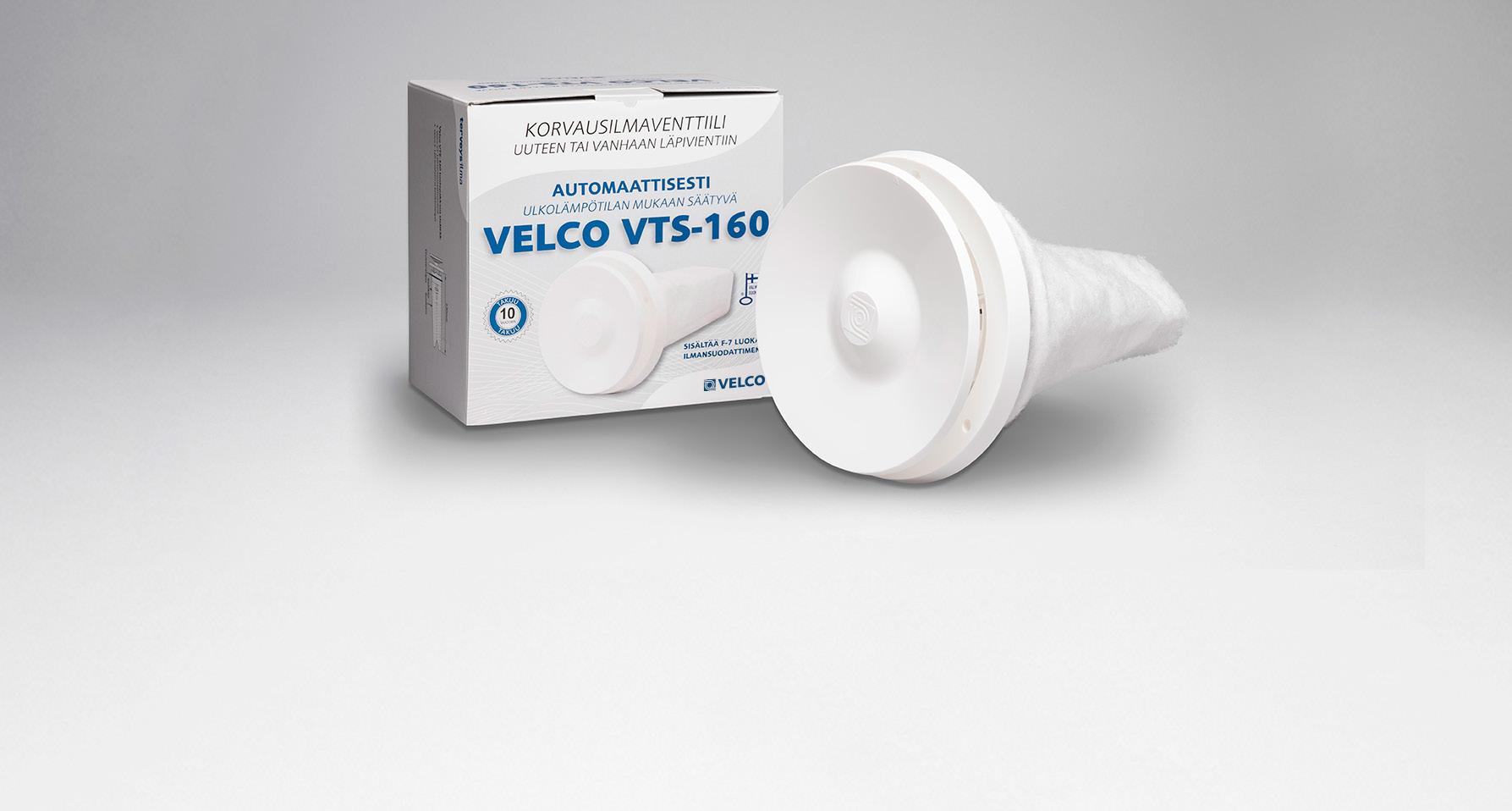

VELCO VTS-160

Velco VTS-160 fresh air vent with filter. Suitable for installation in a new mounting or an existing mounted valve.

Automatically adjusts according to the outdoor temperature. The thermostat, based on thermal expansion, continuously regulates the valve plate opening between +10°C and -5°C. In colder weather, even a minimal opening of just a few millimeters ensures sufficient and draft-free ventilation. The minimum opening can be adjusted according to the installation site. Can also be closed manually if needed.

The filter, made from 3M Filtrete™ material, owes its unique efficiency to an electrostatic charge that attracts impurities like a magnet. According to VTT research, it filters pollen and street dust with 100% efficiency and blocks a significant portion of harmful fine particles.

Velco VTS-160 includes:

Velco VT-160 thermostat valve

Velco S-160 Filter and structure wires

Colors: White

Warranty: 10 years

LVI-code: 8841052
