NORTH SUBAREA

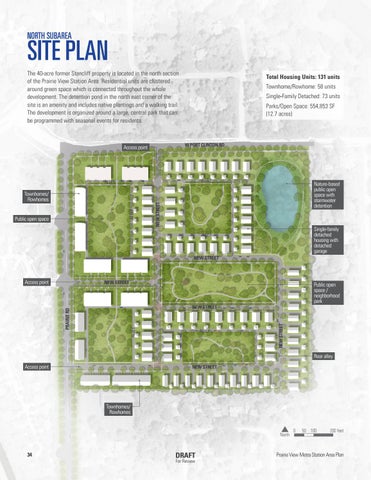

SITE PLAN The 40-acre former Stancliff property is located in the north section of the Prairie View Station Area. Residential units are clustered around green space which is connected throughout the whole development. The detention pond in the north east corner of the site is an amenity and includes native plantings and a walking trail. The development is organized around a large, central park that can be programmed with seasonal events for residents.
Total Housing Units: 131 units Townhome/Rowhome: 58 units Single-Family Detached: 73 units Parks/Open Space: 554,853 SF (12.7 acres)
W PORT CLINTON RD
Access point
ALLEY
ALLEY
Townhomes/ Rowhomes
Public open space
Nature-based public open space with stormwater detention
NEW STREET
ALLEY
Single-family detached housing with detached garage
ALLEY
NEW STREET
Access point
NEW STREET
Public open space / neighborhood park
ALLEY
NEW STREET
ALLEY
PRAIRIE RD
NEW STREET
Rear alley Access point
NEW STREET
Townhomes/ Rowhomes
North
34
DRAFT For Review
0
50 100
200 feet
Prairie View Metra Station Area Plan
