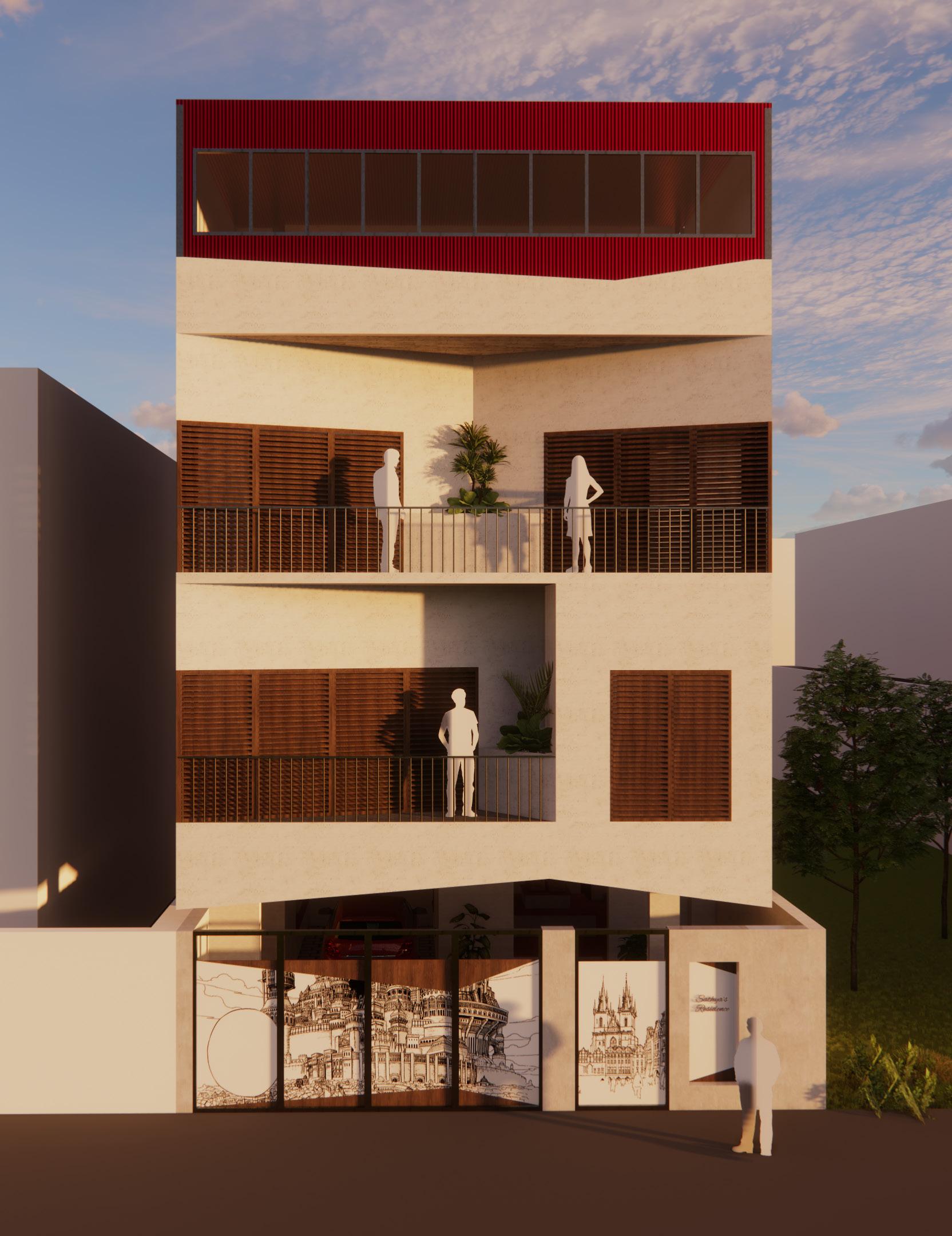

SATHIYA’S RESIDENCE

the coexitence of a residence and an academy, pertaining to permanence and volatility and negotiating the laws

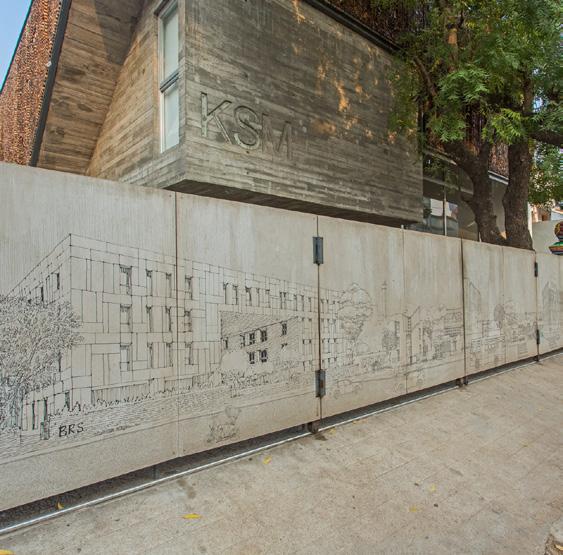

Grade beam at ±0 GL compound wall with required columns for further detail

Triple O

Rd, Gandhi Nagar, Adyar, Chennai, Tamil Nadu 600020, India email mail@tripleostudio.com finding poise in chaos, peace in turmoil and order in unbound territories

· All dimensions are in millimeters unless mentioned.

· This drawing is the sole property of 'Triple O studio' and cannot be reproduced in any form or on any other site apart from that specified, retained or copied without the express consent of the architects.

Conceptualisation

Conceptualisation - plan

UpRamp

stone laid to the give pattern as floor work as the base for

Flag mast as per bajaj's details

300 mm thick stone pedestal sculpted and finished with design suggested by the sthapathy

150 mm deep space for the base plate air circulation

X 1300 mm Pedestal

114 mm dia CHS as Rafter finished with yellow primer and epoxy of selected shade.

5 mm thick MS metal plate bent to the curvature as a stopper for rain water finished with yellow primer and epoxy of selected shade.

139 mm dia MS pipe section as column

230mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

From Original Centre

230mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

230mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

300mm thk good earth filling

From Eccentric Centre, (Offset from Original CentreX- 3.2m, Y- 0.5m

RCC cast in-situ planter bed finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

300mm thk good earth filling

230mm thk RCC cast in-situ wall 300mm thk good earth filling

230mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

From Original Centre

230mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

230mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

300mm thk good earth filling

230mm thk RCC cast in-situ wall

RCC cast in-situ planter bed finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

300mm thk good earth filling

SPOT LVL FLUSHED TO FFL

300mm thk good earth filling

· drawing is the sole property of 'Triple O and cannot be reproduced in any form or on any other site apart from that specified, retained or copied without the express consent of

5% slope towards chute pipe

150 min.

150mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

50mm thk pebble bed

MS grated grill

150mm thk RCC cast in-situ wall finished with 15mm plastering on the outer surface and 15mm plastering with WPC and DPC on the inner surface

150mm dia PVC chute pipe

Ground floor Plan
