Botanic Reflections: VISITOR'S CENTRE portfolio

yy PORTFOLIO Lecturers : Mr Amai , Ms. Mazlan Ida Marlina, Ms. Intan Liana

TAYYABA SHAHID

Born on 22-03-2001

Language : English, Urdu, Malay, Hindi, Arabic.

Tay.glams02@gmail.com

BSc (HONS) in Architecture.

An ambivert who posses great fondness towards all sorts of art, music, lights, colors, textures and just the overall beauty of simply nature.

“We create our buildings and then they create us. Likewise, we construct our circle of friends and our communities and then they construct us. ”

This is one of my favorite quote by the legend himself, Frank Llyod Wright.

SOFTWARE

Tableof

PROJECT 1A SITE ANALYSIS (MACRO)

Intro

Teluk Intan is a town located in the state of Perak, Malaysia. It is known for its rich history, cultural heritage, and beautiful natural surroundings. The town is situated along the Perak River, making it a popular destination for those seeking to explore the region's stunning waterways.

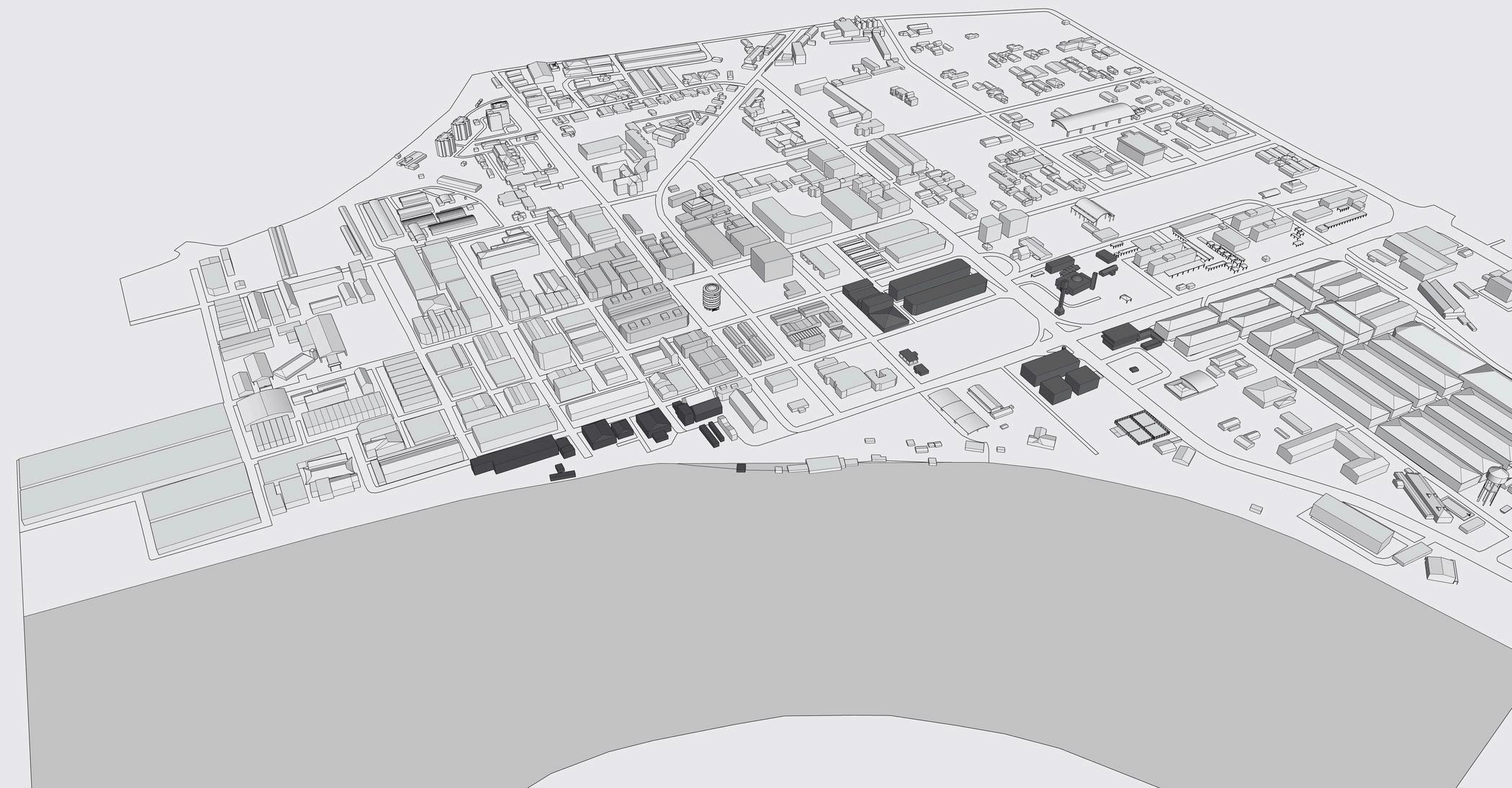

Figure ground

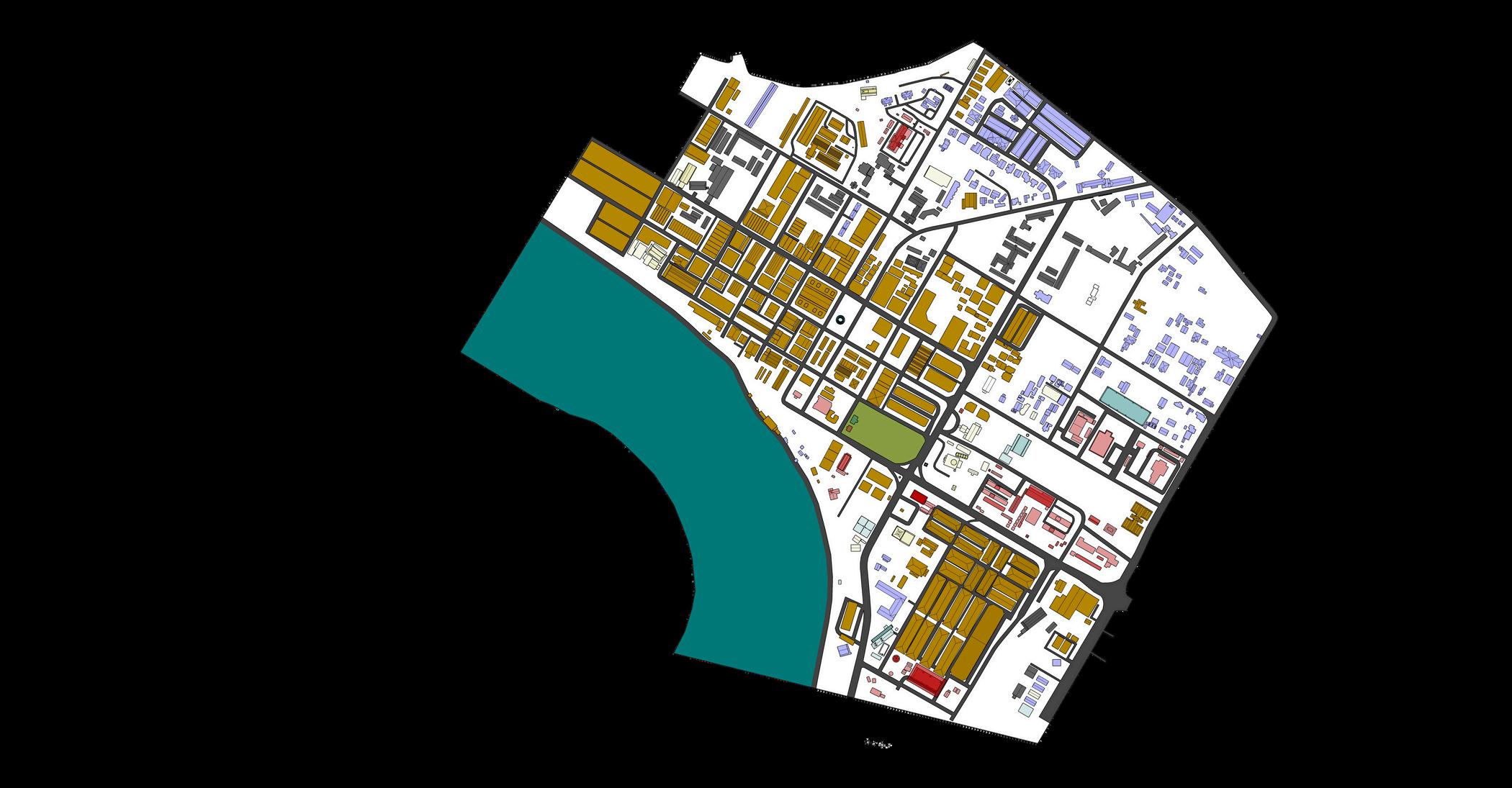

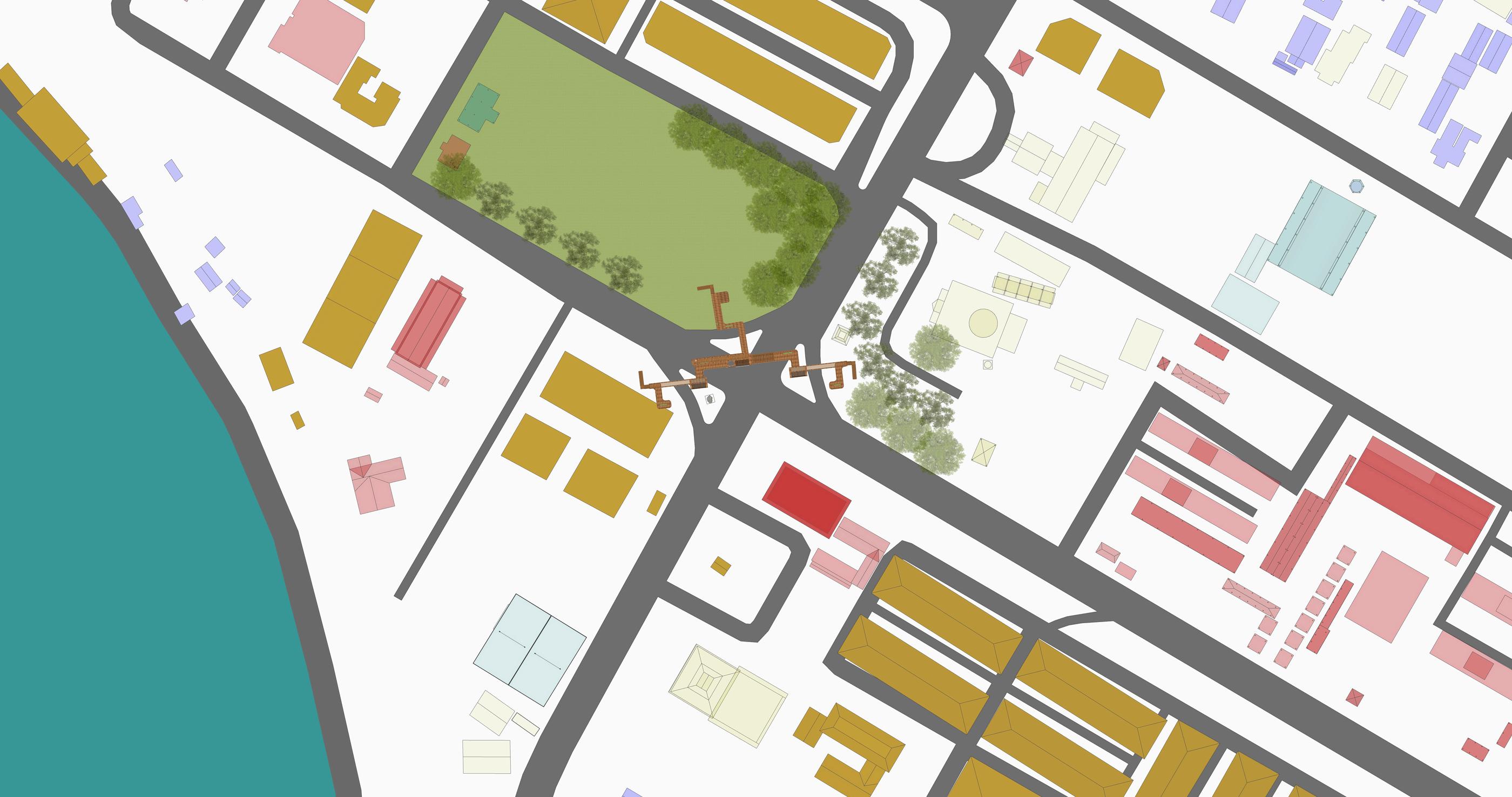

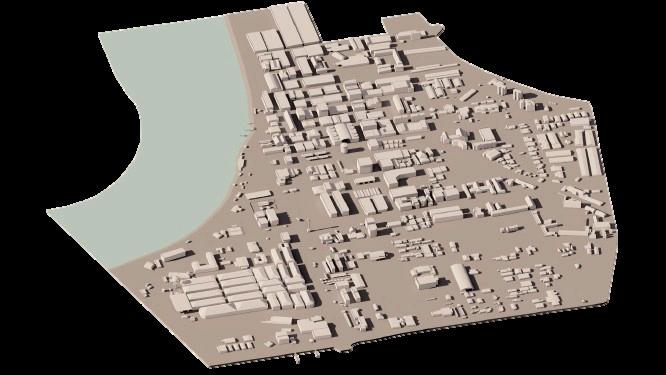

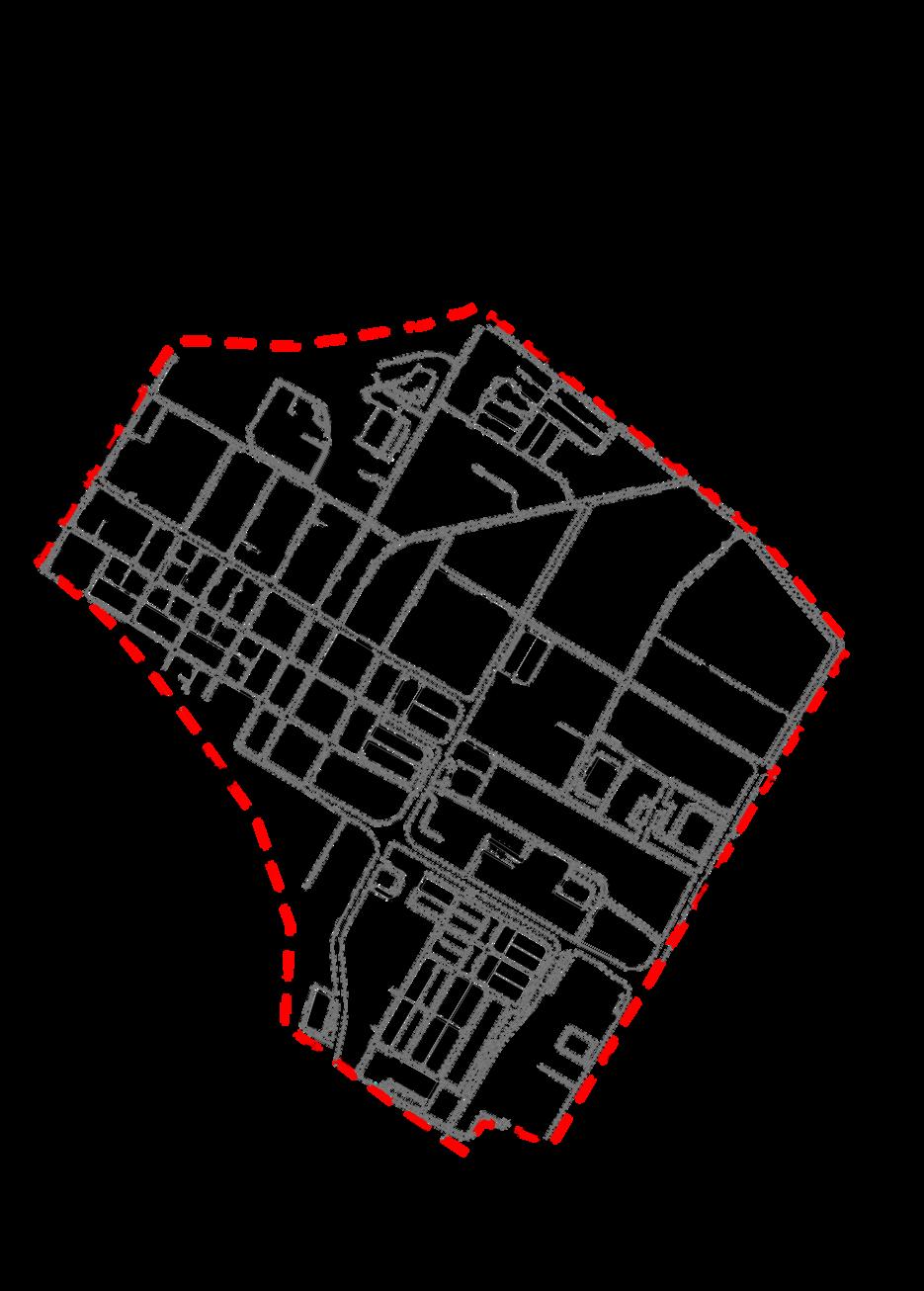

70% of the land is covered with several types of buildings. The other 30% are open areas. Whereas 35% are shophouses and commercials, 17% are other facilities, including religious buildings, food courts, and historical landmarks. 14% are residential, and 3% are schools.

Site Morphology

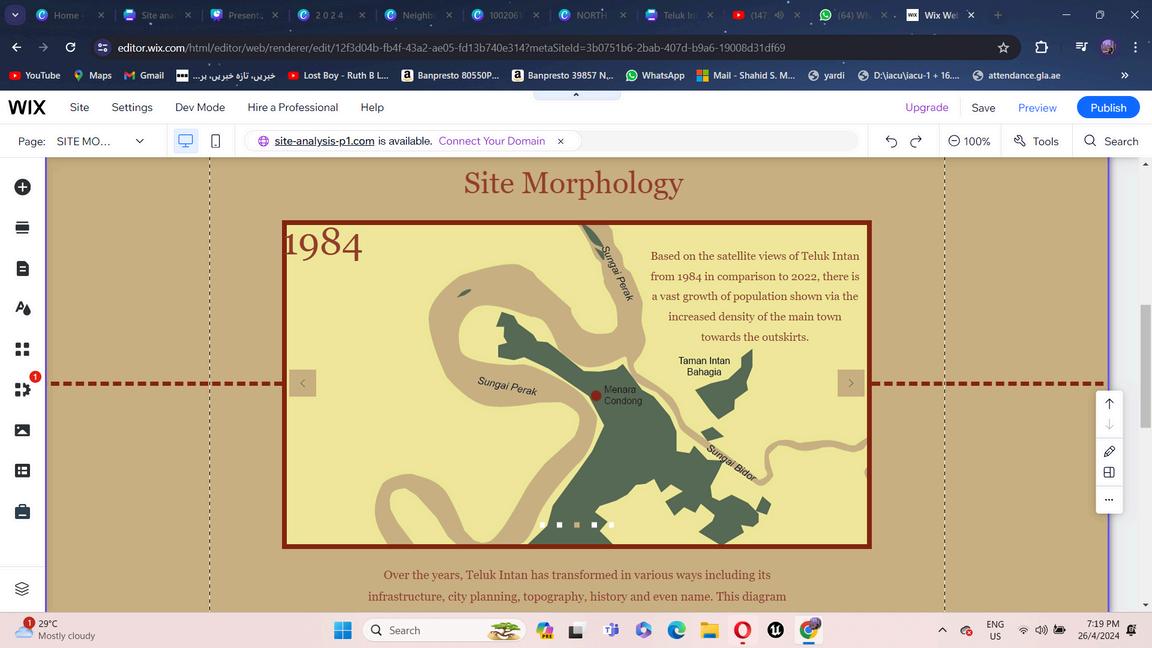

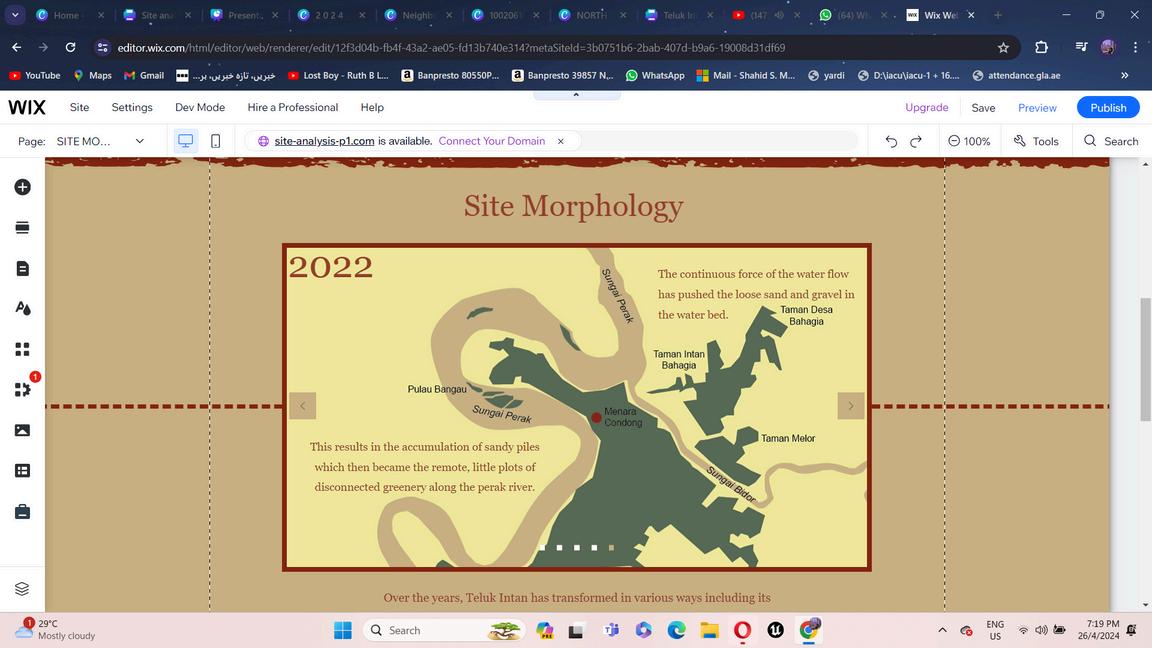

Over the years, Teluk Intan has transformed in various ways including its infrastructure, city planning, topography, history and even name. This diagram showcases the timeline of these changes and highlights them through illustrations and information.

Topography

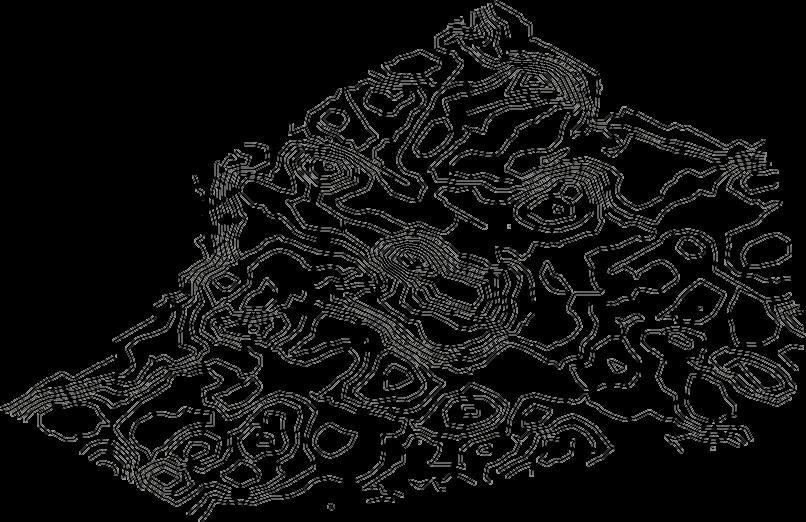

The terrain of Teluk Intan and its surrounding areas generally consists of low-lying plains with an average elevation of 6M

The town itself is nestled along the banks of the Perak River, which provides a natural source of water and is also used for transportation and recreational activities such as boating and fishing.

Topography

Around the junction there are lots of commercial shops. There are many cars and motorcycles because it's a busy junction. This makes it easy for people to see and visit Batu Tenggek.

Site 1 is a beautiful place by the river with lots of greenery, attracting birds like pigeons and cranes People can take river cruises from the boat jetty there, and there are shops for tourists to shop.

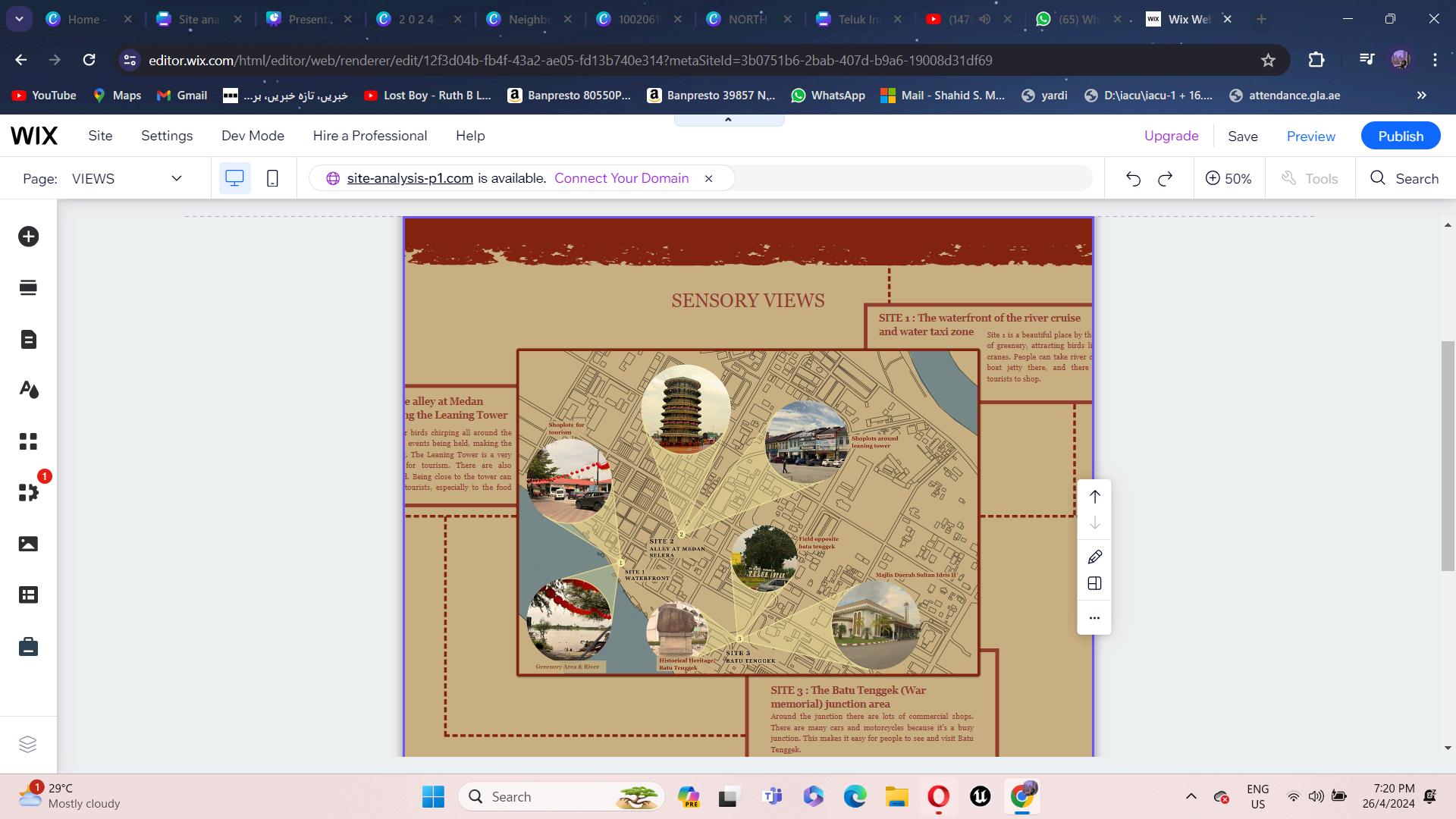

SITE 1 : The waterfront of the river cruise and water taxi zone SITE 3 : The Batu Tenggek (War memorial) junction area

Mangrove Apples

Mangrove Apples are nicknamed the Star of The Sea as the trees often border rivers, oceans, and swamps, dropping the buoyant fruits into the water. Legend has it that the fruits were first discovered floating in the water.

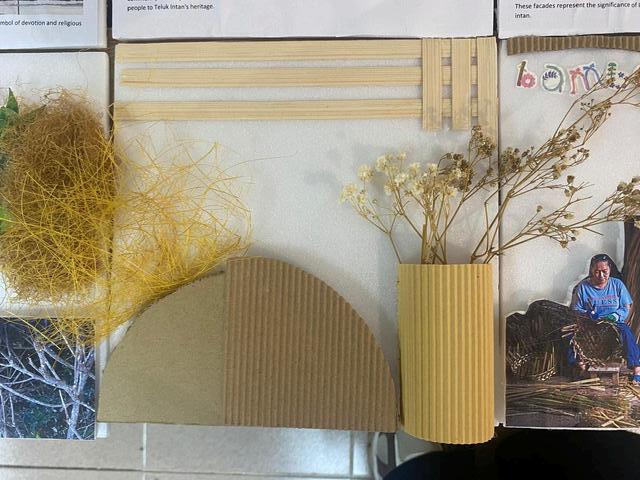

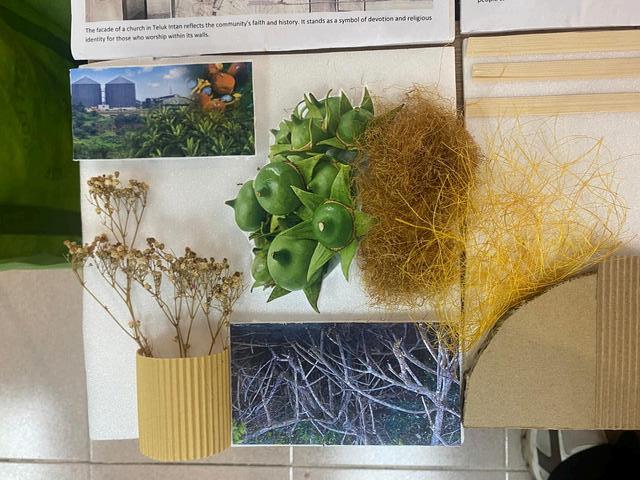

Material Collection

Batu Tenggek Rock

it is said that this inconspicuous big stone is alive, and its size slowly grows every year. In the early days of its establishment, the size was not larger than the base underneath. Whether it is true or not, you can only see it on site.

TELUK INTAN'S SOUND AND NOISE MAPPING : 9AM - 3PM DAYTIME

Sensory sound and Noise

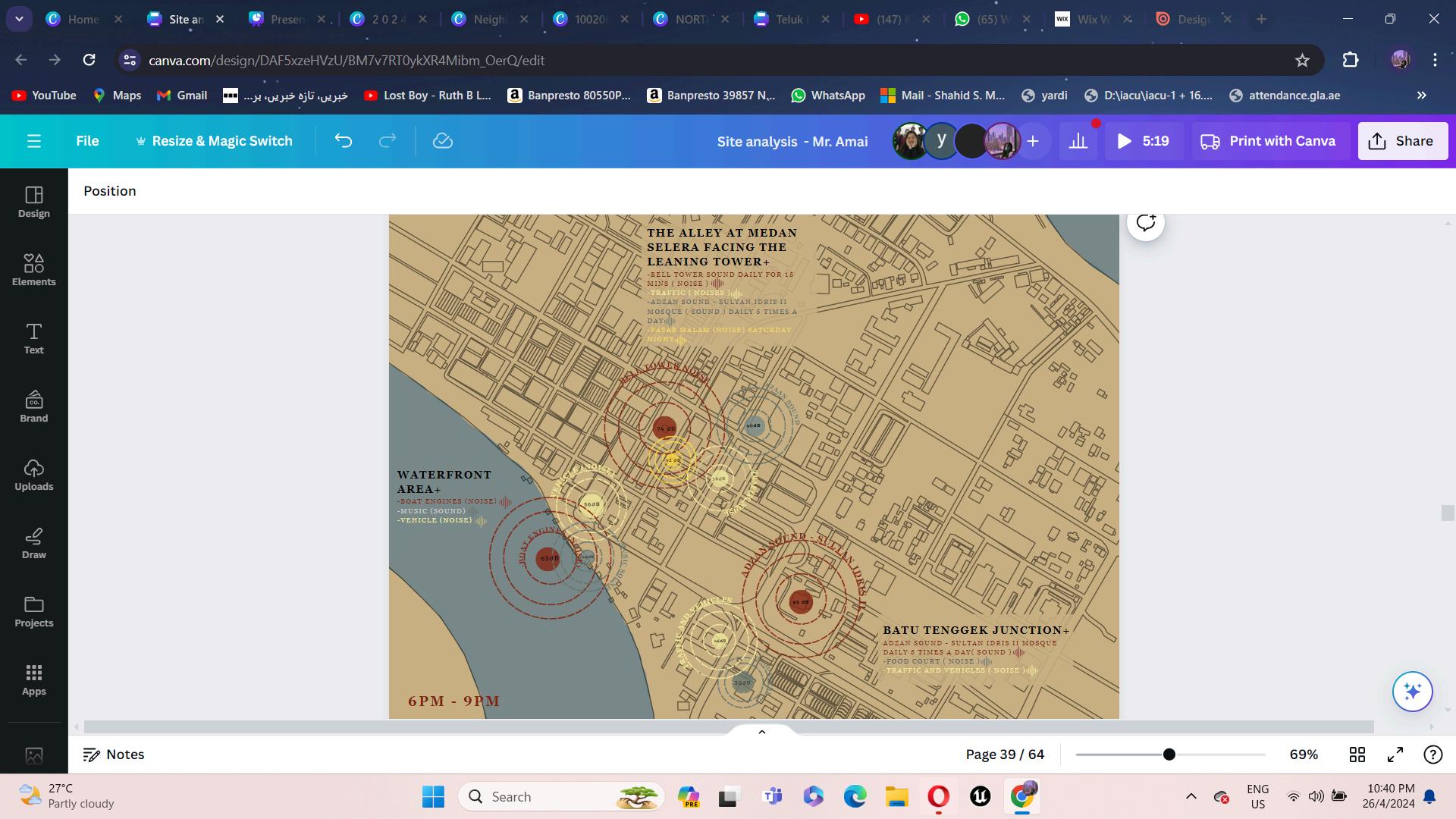

TELUK INTAN'S SOUND AND NOISE MAPPING : 6PM- 9PM NIGHT TIME

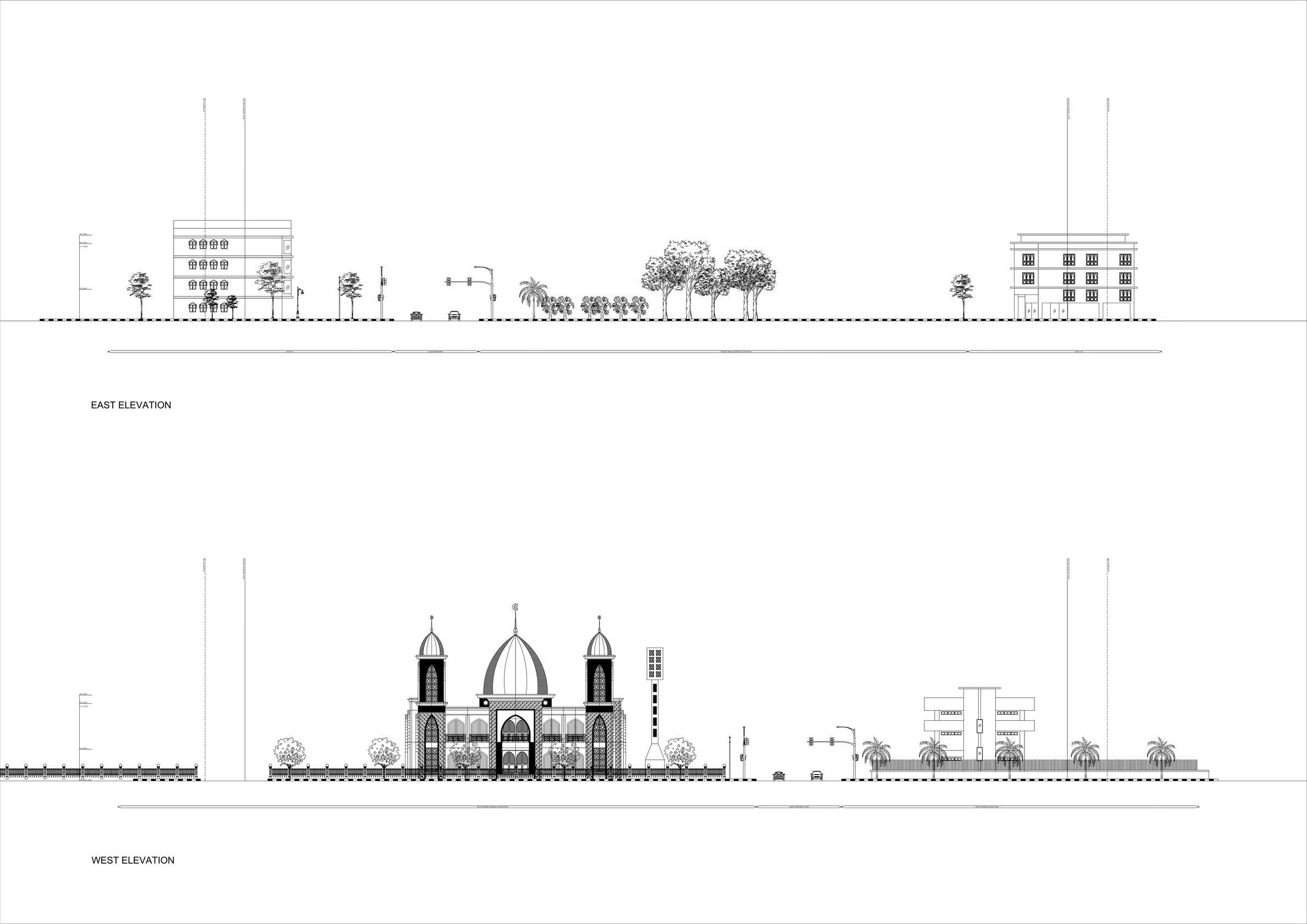

Site Drawings (MICRO)

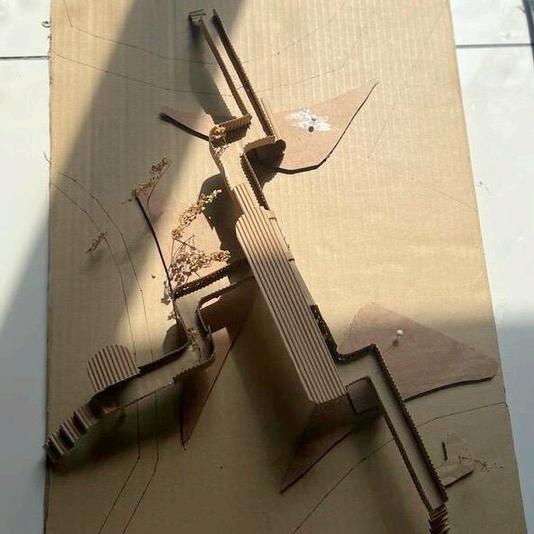

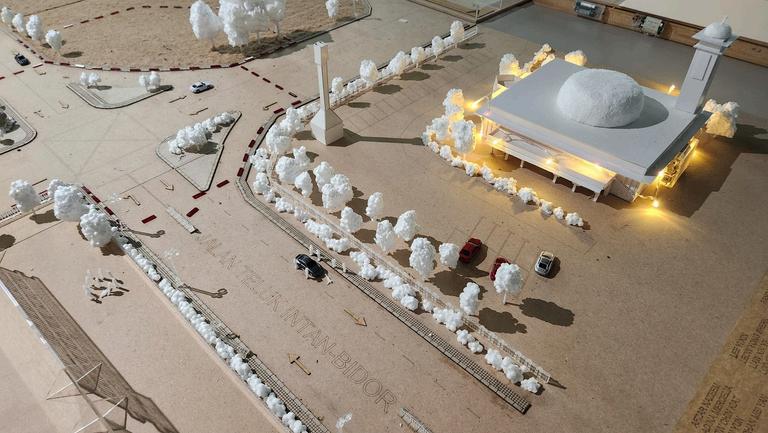

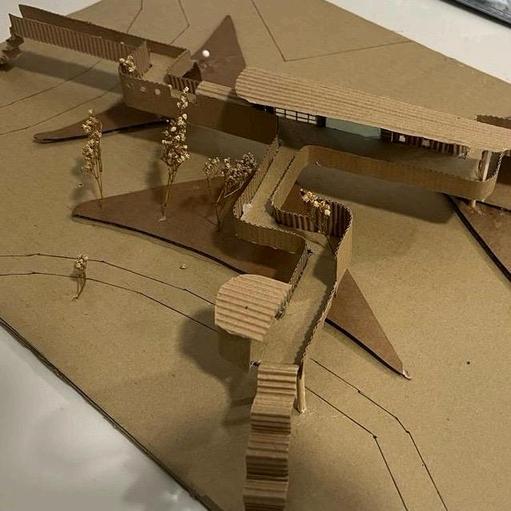

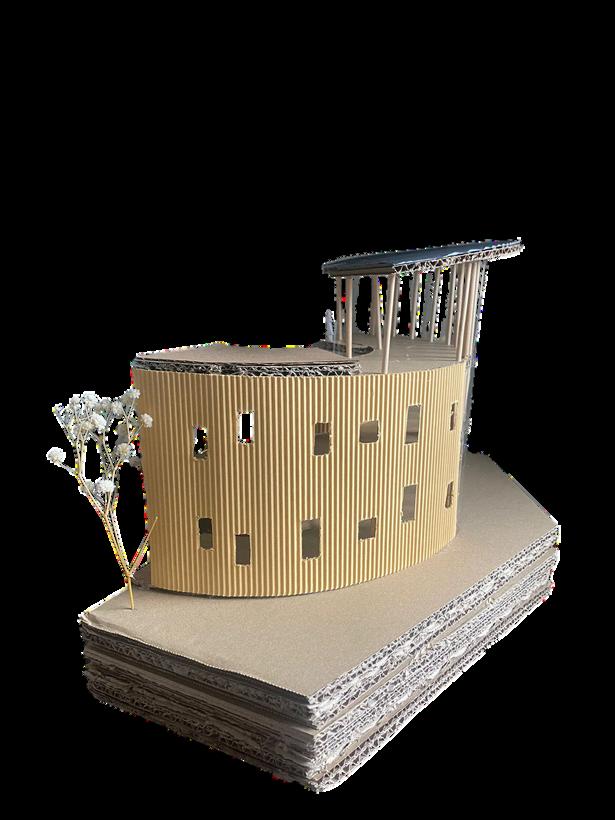

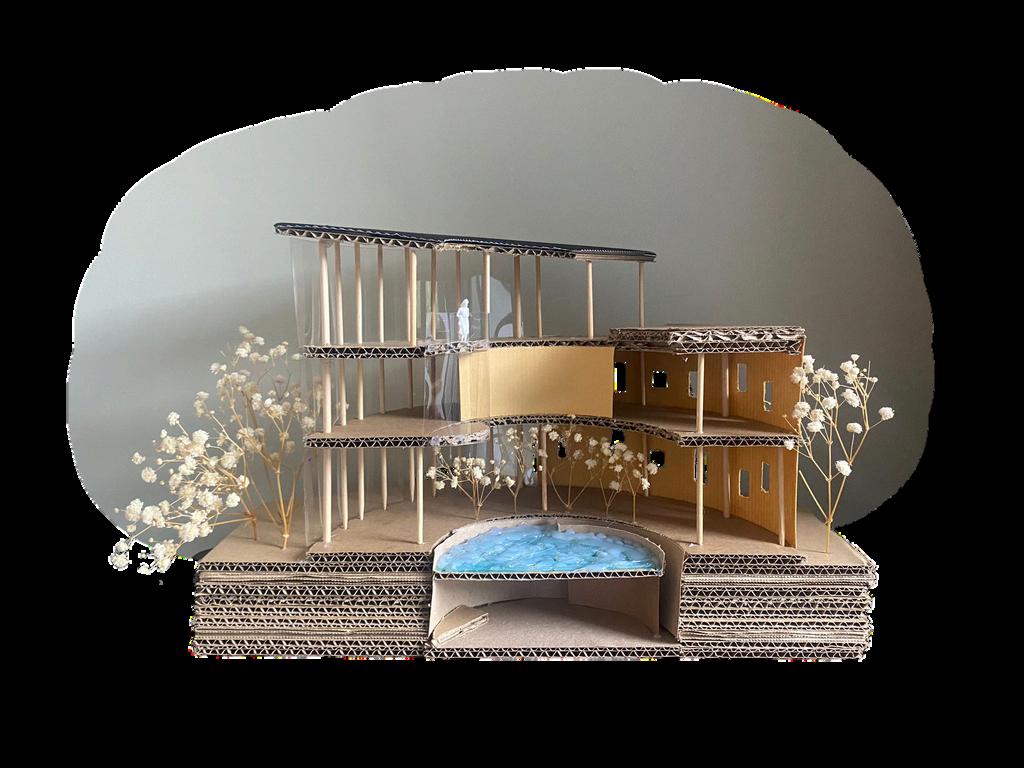

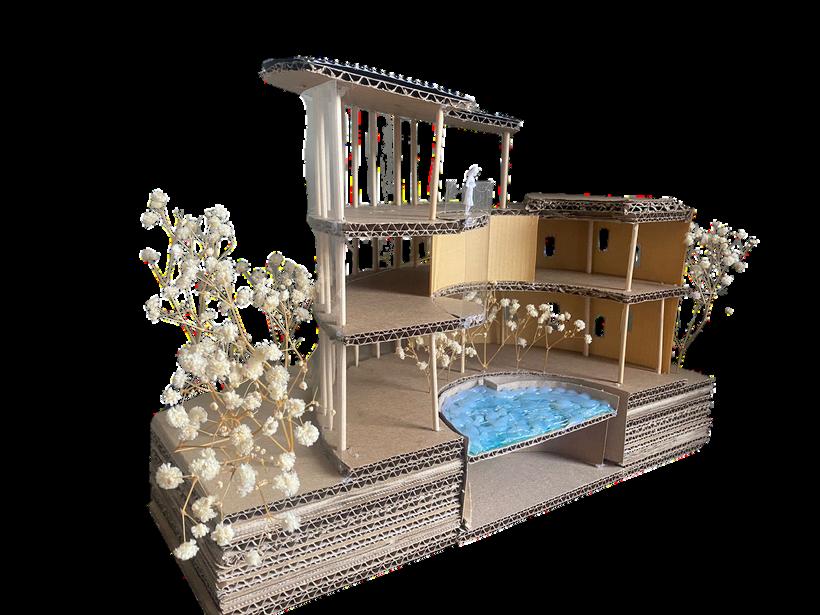

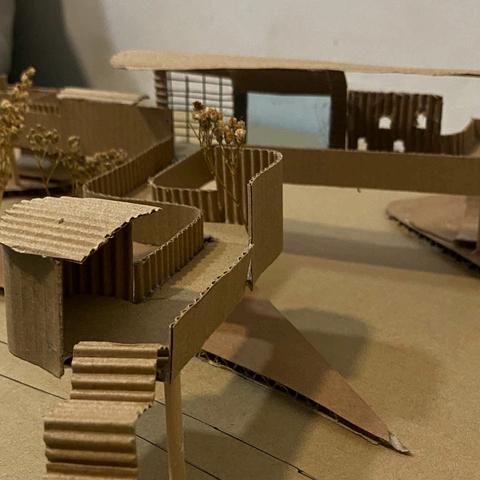

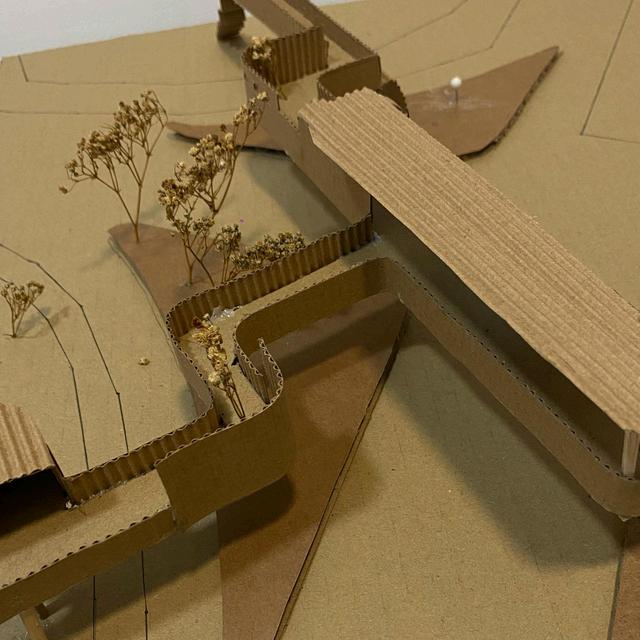

PROJECT 1B SITE MODEL (MICRO)

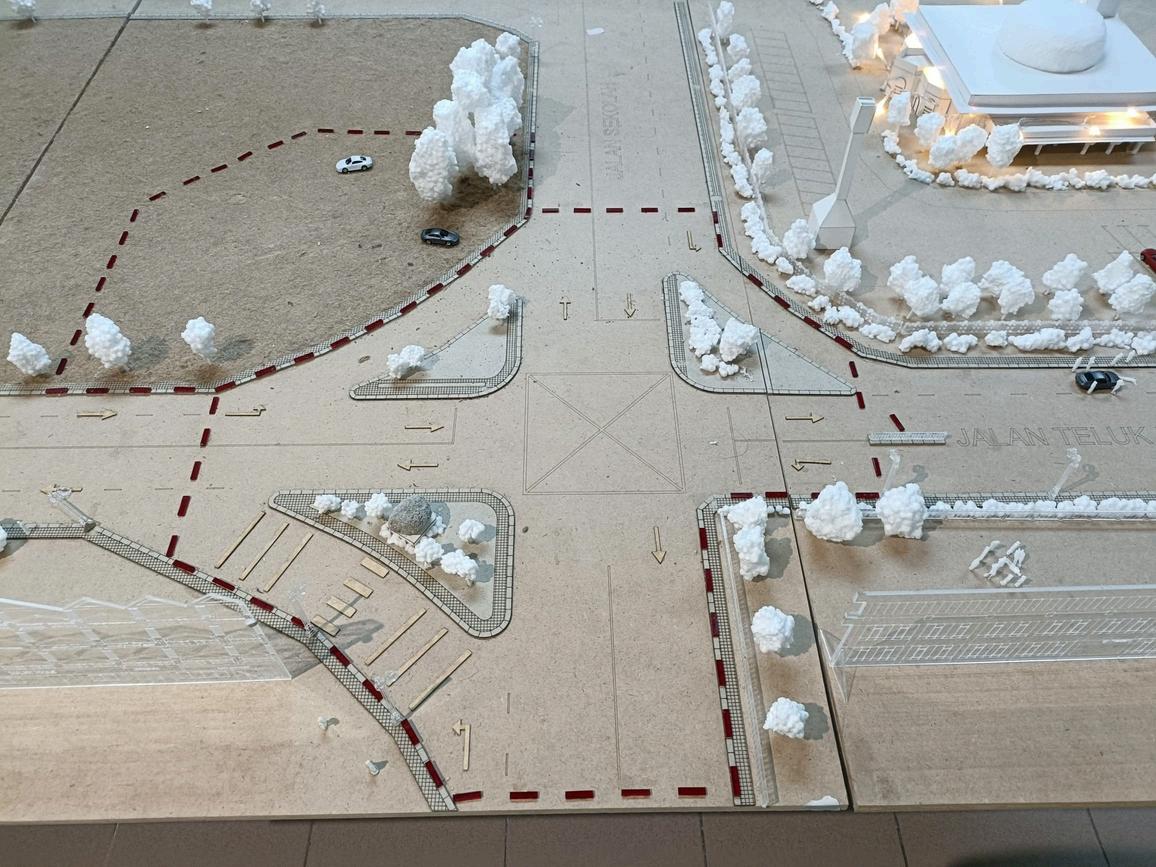

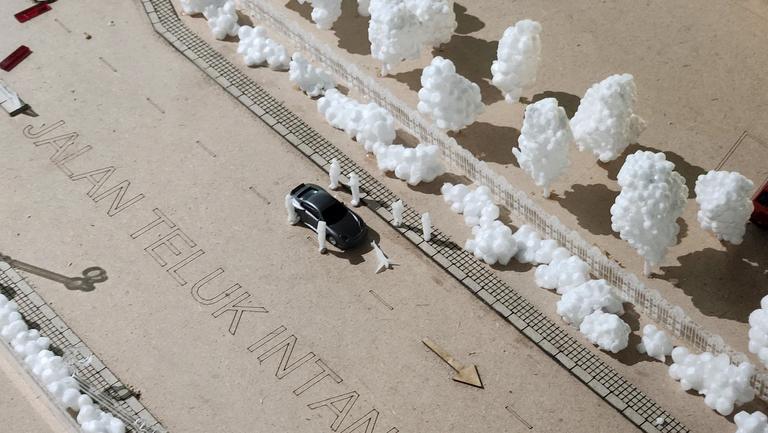

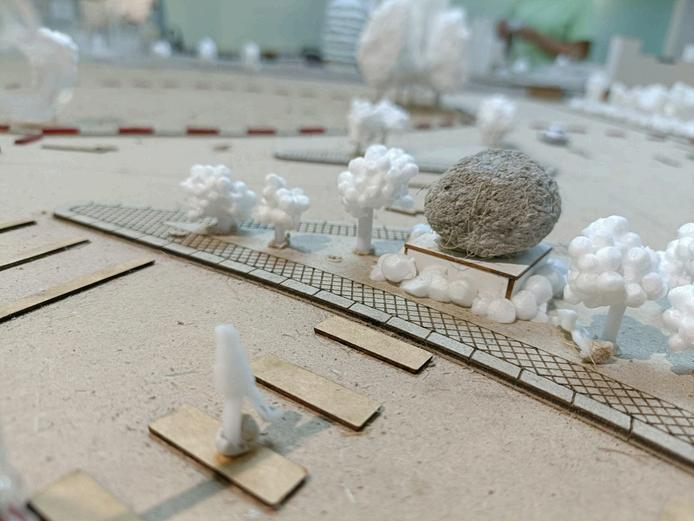

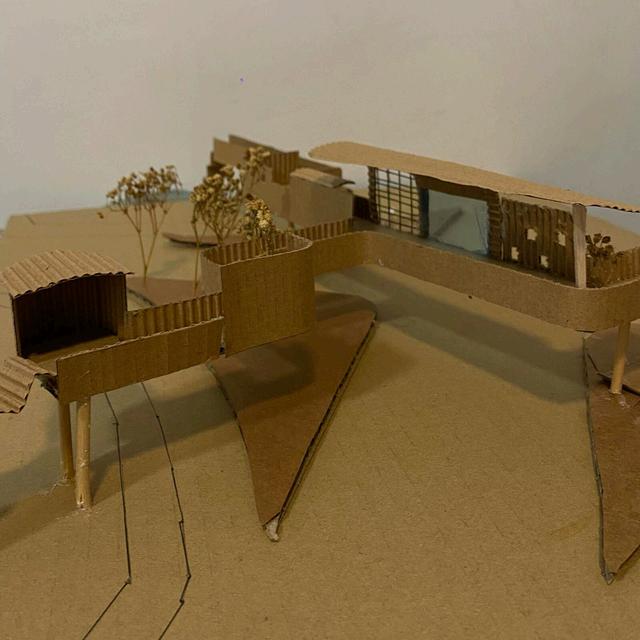

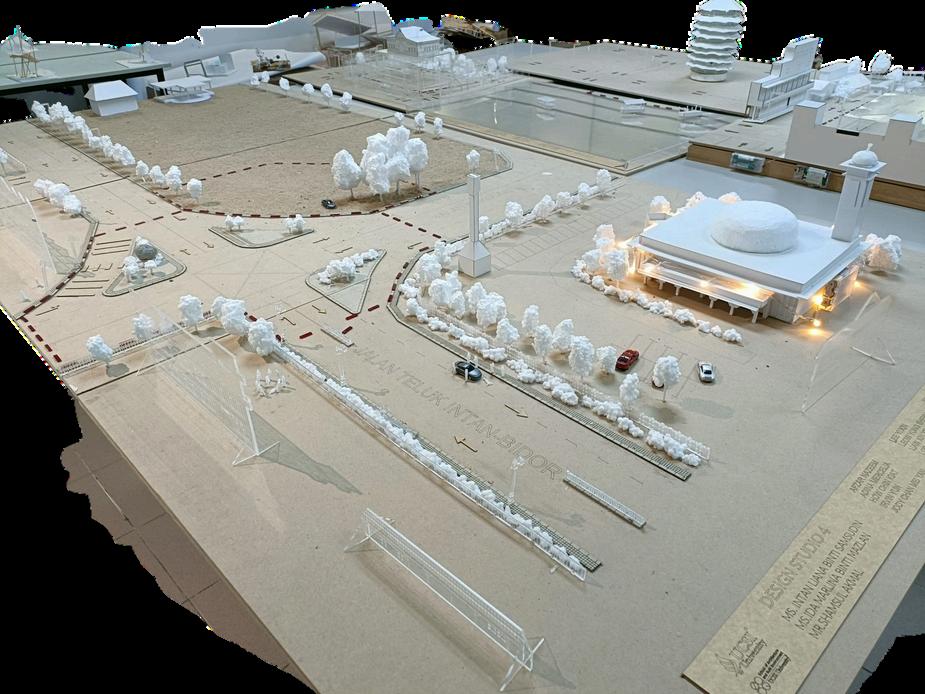

The Batu Tenggek (War memorial) junction area

PROJECT 2A

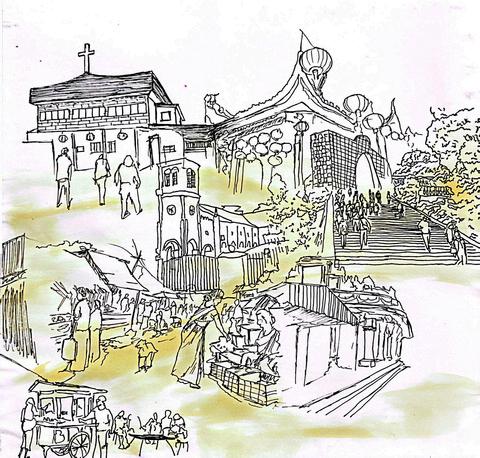

DISSECTION OF TELUK INTAN

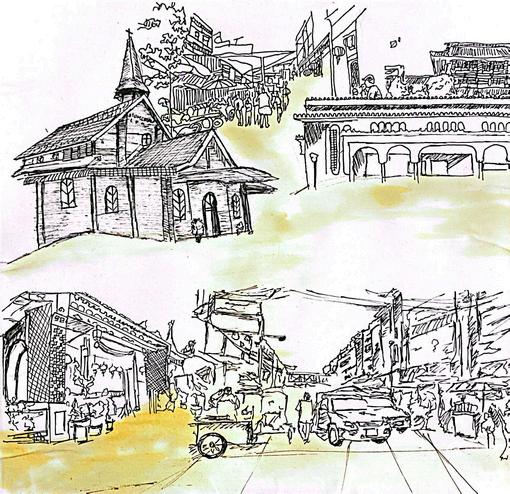

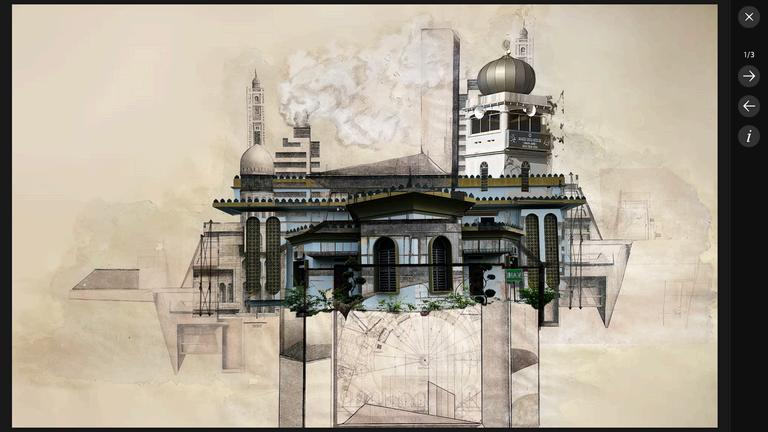

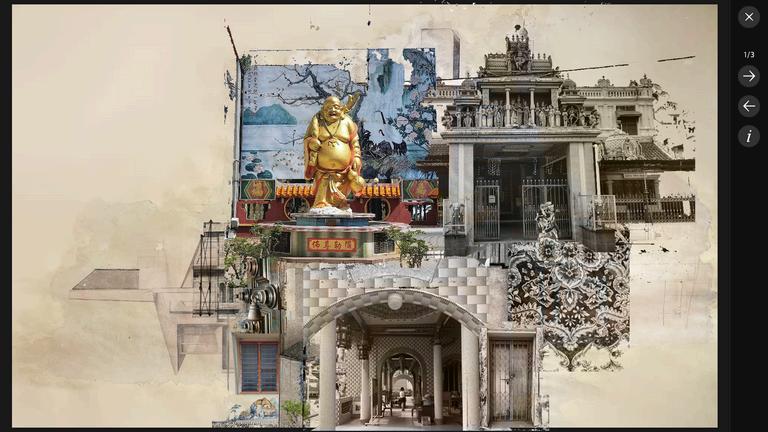

I merged the Sri Thend Temple with the Hock S temple because they represent important aspects of our community's history and culture By combining them, we honor the contributions of both the Chettiars and the Hokkien people to Teluk Intan's heritage.

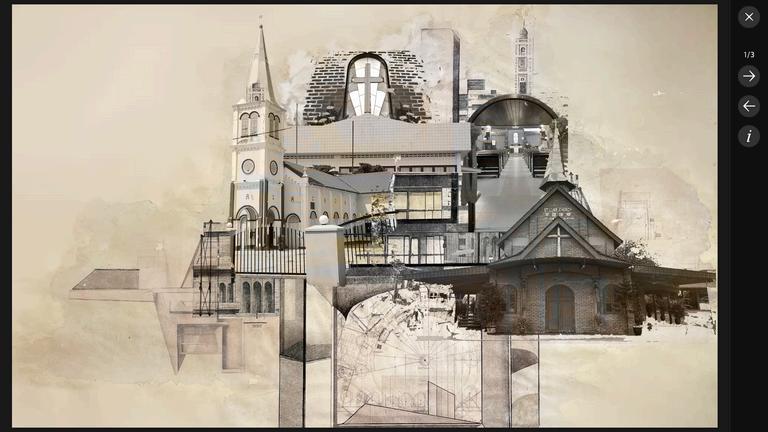

The facade of a church in reflects the community's faith and history. It stands as a symbol of devotion and religious identity for those who worship within its walls.

These facades represent the significance of Islam in our community and showcase the beauty of Islamic architecture in teluk intan.

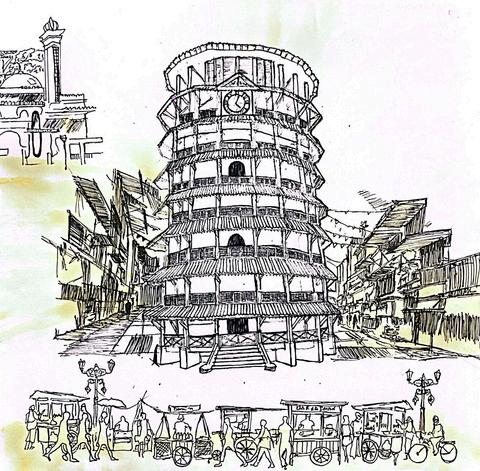

Teluk Intan is well-known for the Menara Chondo, a unique leaning tower. Beyond its architectural charm, this tower symbolizes the unity among diverse religious groups in the area. Around it, you'll discover a vibrant mix of cultures, each contributing to the rich tapestry of Teluk Intan's heritage.

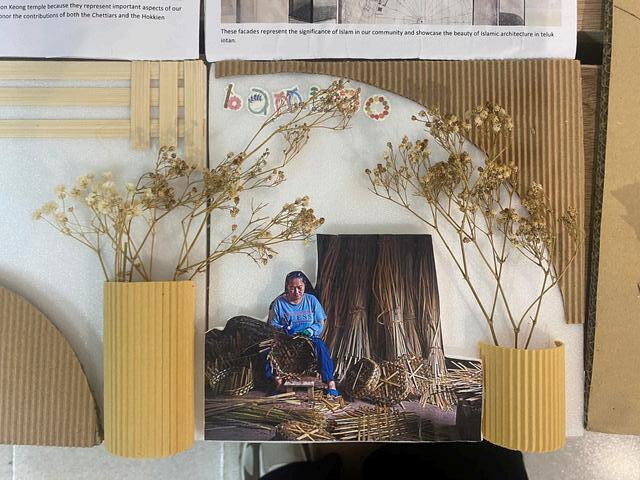

Teluk Intan boasts a variety of flora, including mangrove fruits, palm trees for palm oil production, and bamboo. This diversity highlights the region's rich natural resources. Of particular note is the traditional bamboo weaving craft, renowned in the area. This craftsmanship is deeply ingrained in local tradition and culture, with artisans skillfully crafting baskets used by factories for fish collection. It's a beautiful showcase of their heritage and expertise.

LABYRINTHINE GATEWAY

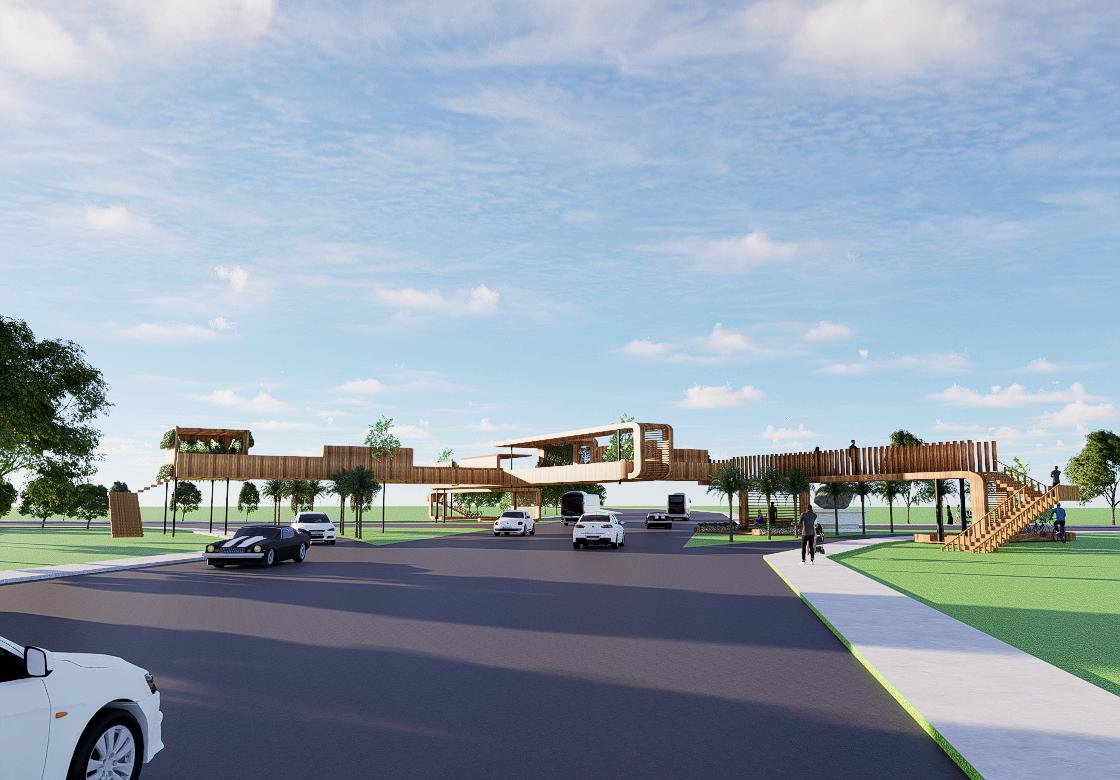

BRIDGE CONCEPT

The bridge serves as a symbolic and functional space for interfaith connection and meditation, drawing inspiration from the concept of labyrinth walks found in various religious traditions. It represents a physical manifestation of the journey towards inner peace and spiritual harmony, inviting people of diverse faith backgrounds to come together in a shared space of contemplation and reflection.

DESIGN DEVELOPMENT

SITEAREA CREATINGVOLUMESIN EXISTINGAREAS

IDEA

DESIGN INTENTION:

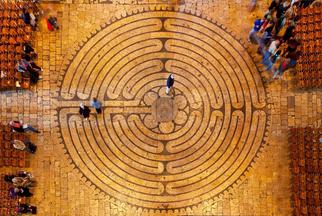

A labyrinth walk is a meditative practice where individuals follow a winding path, often laid out in a circular or geometric pattern, to reach a central point and then return along the same path.

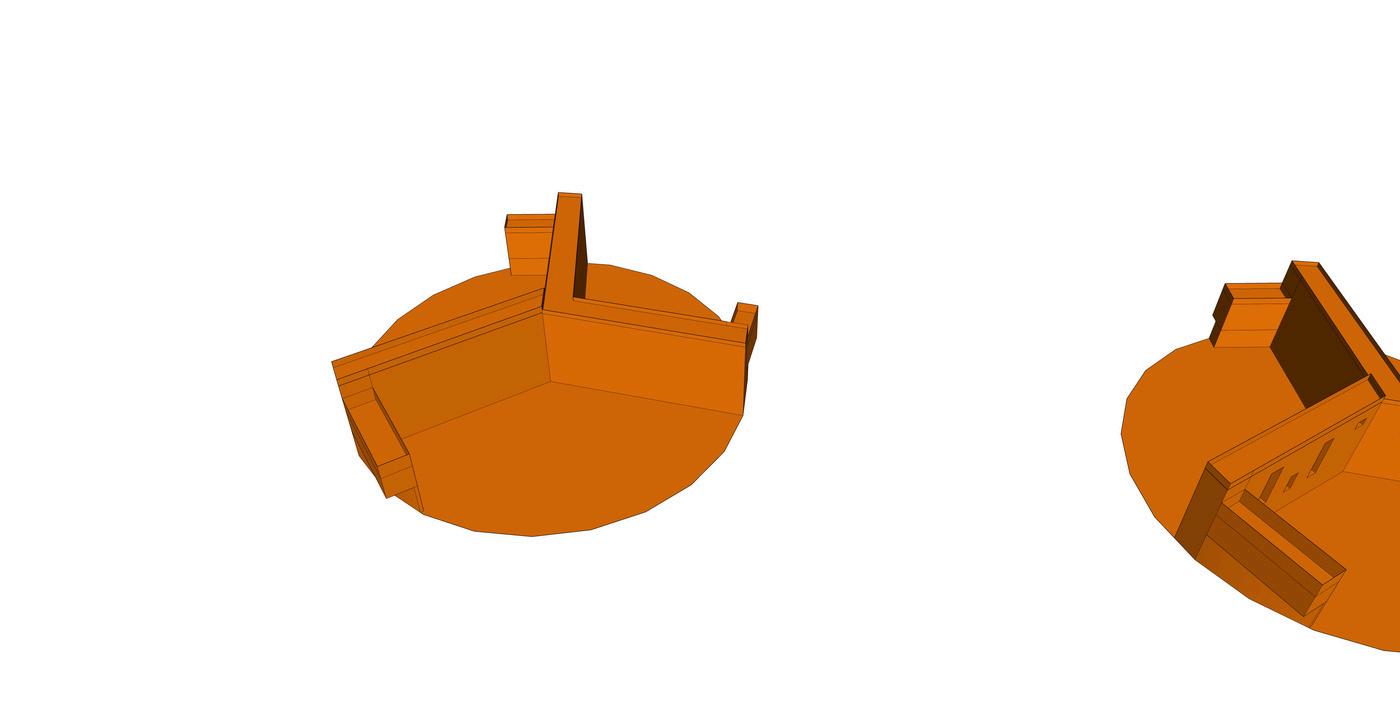

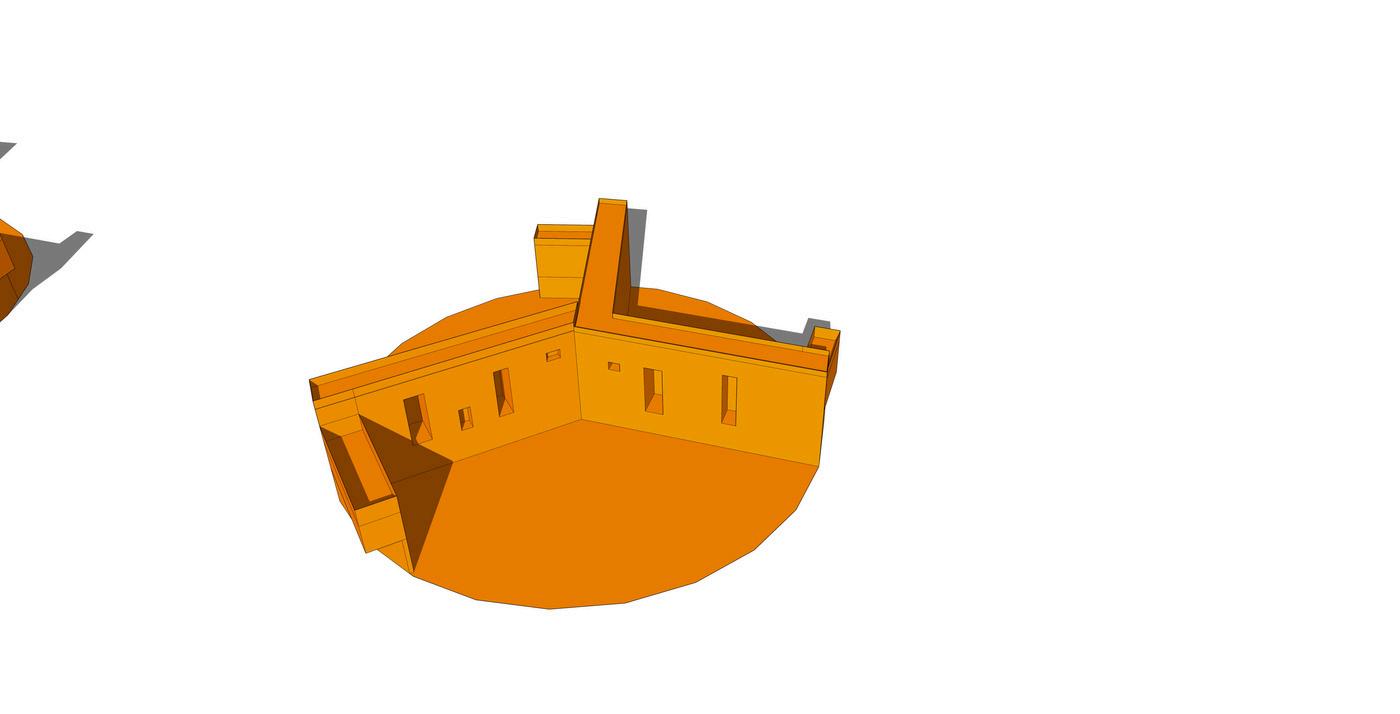

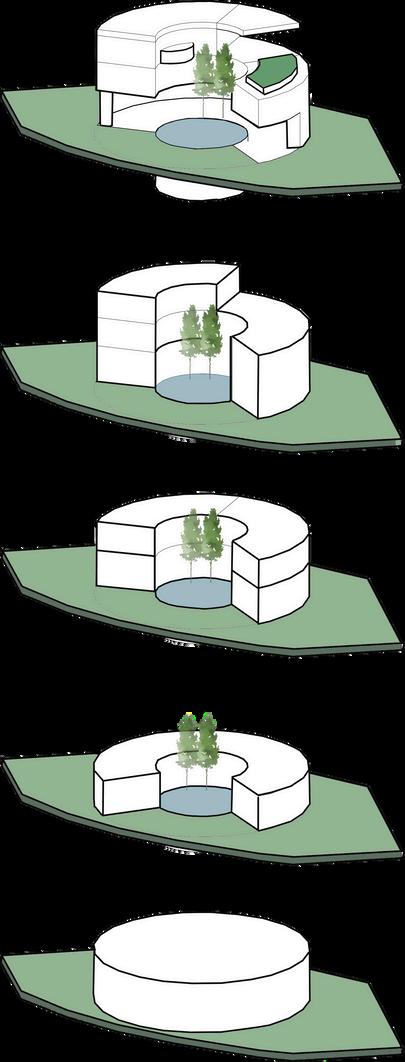

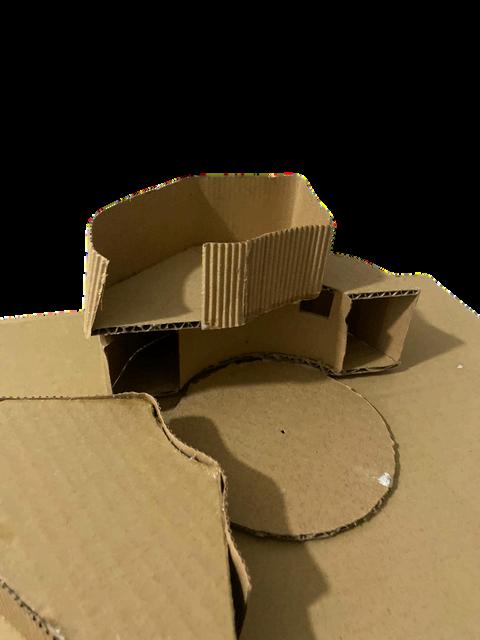

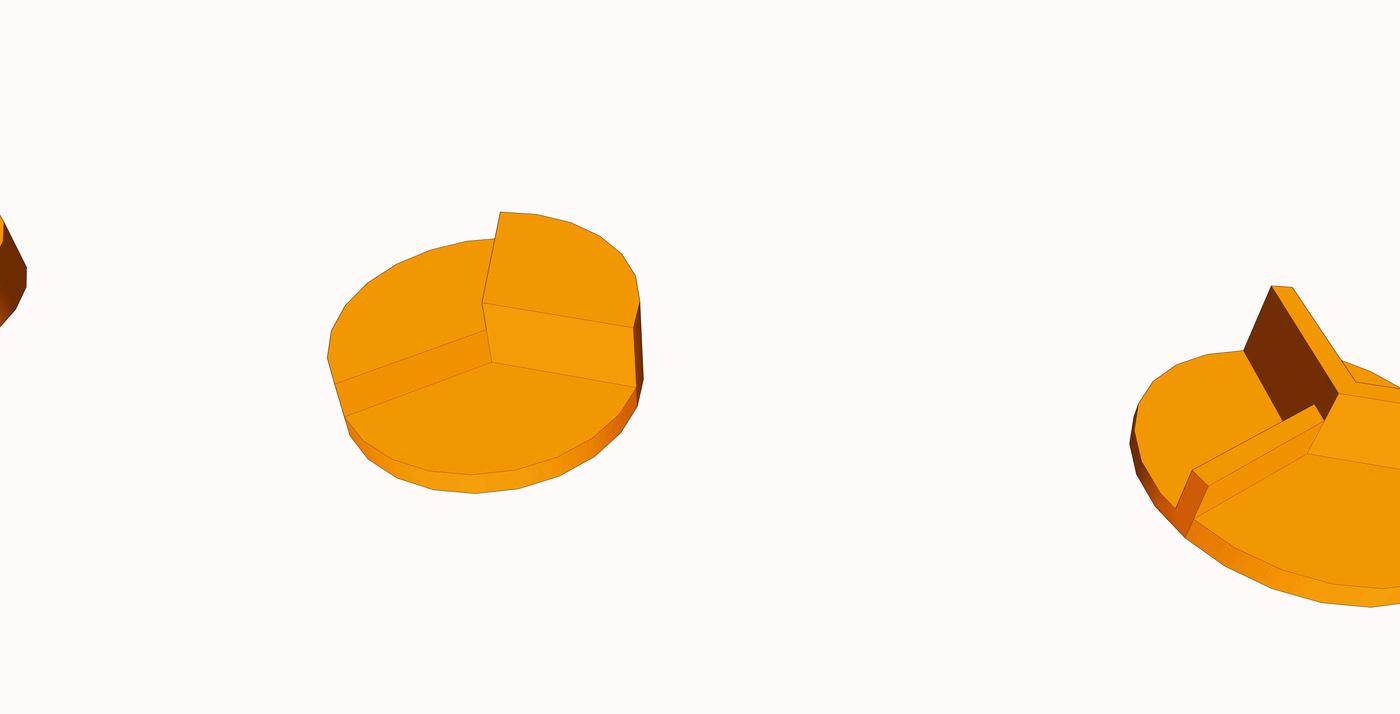

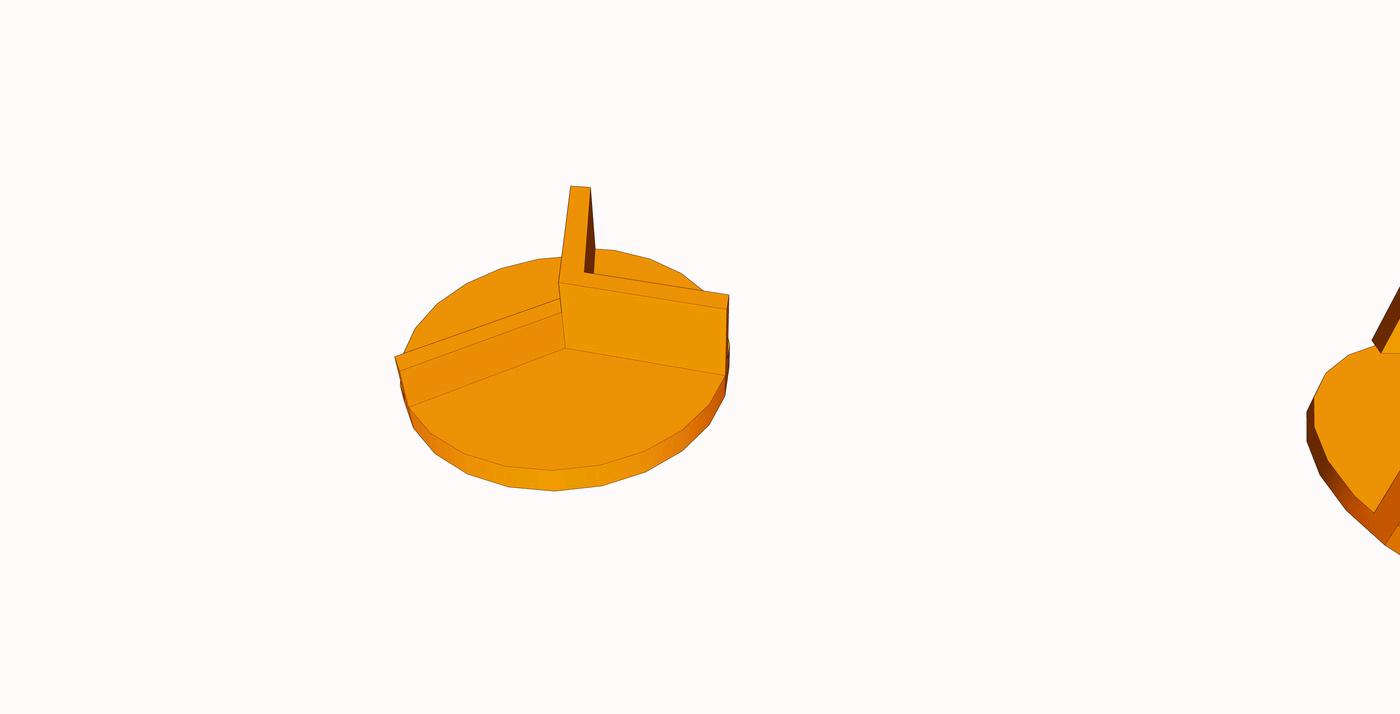

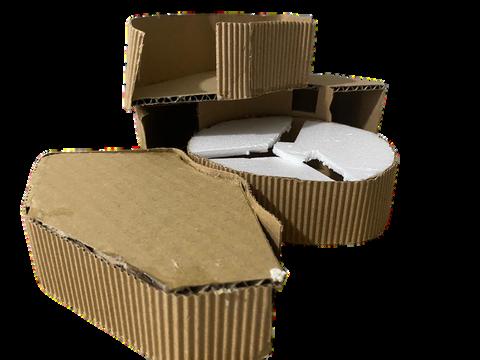

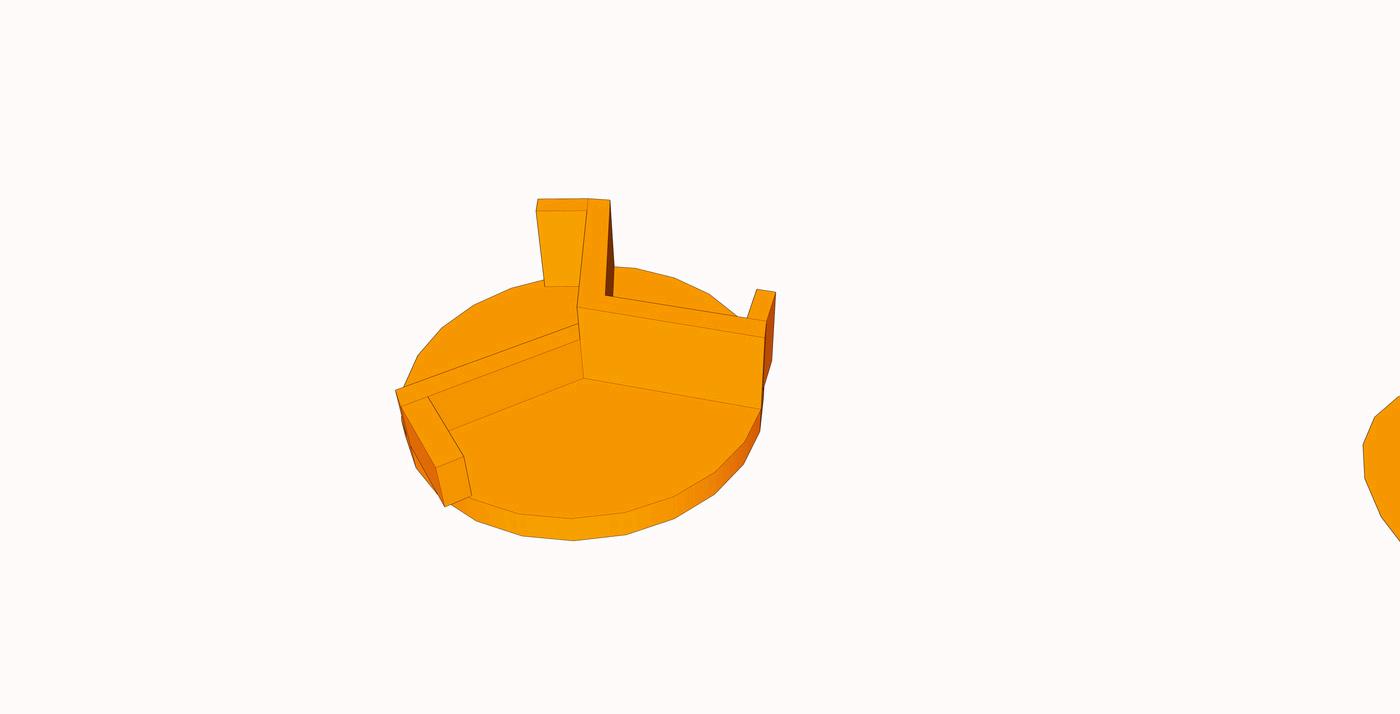

MASSING DECONSTRUCTION CONNECTIONS

IMPLEMENTINGCRITICAL REGIONALISMIN FACADE DESIGN

PROGRAMS/SPACES

The intention of the design is to create an inclusive environment where individuals can experience a sense of tranquility and connectedness, regardless of their religious affiliations. Through thoughtful spatial arrangements, symbolism, and sensory elements, the bridge aims to evoke feelings of serenity, reverence, and unity among visitors.

GATHERING SPACES

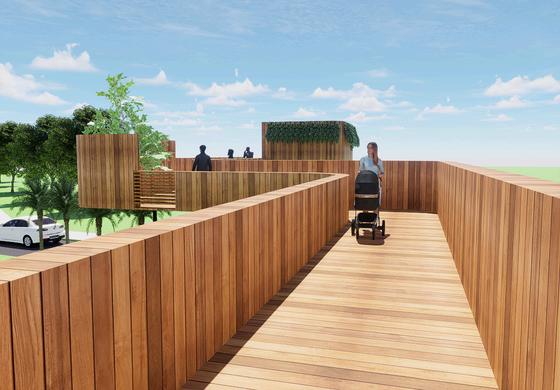

MEDITATIVE WALKWAY

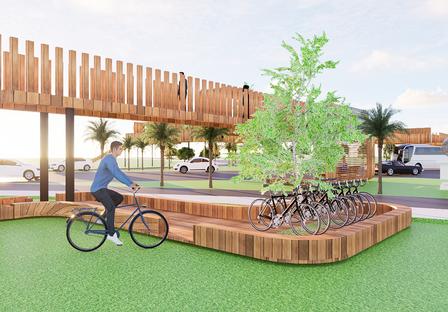

RELAXING SEATINGS

SITE VIEWING

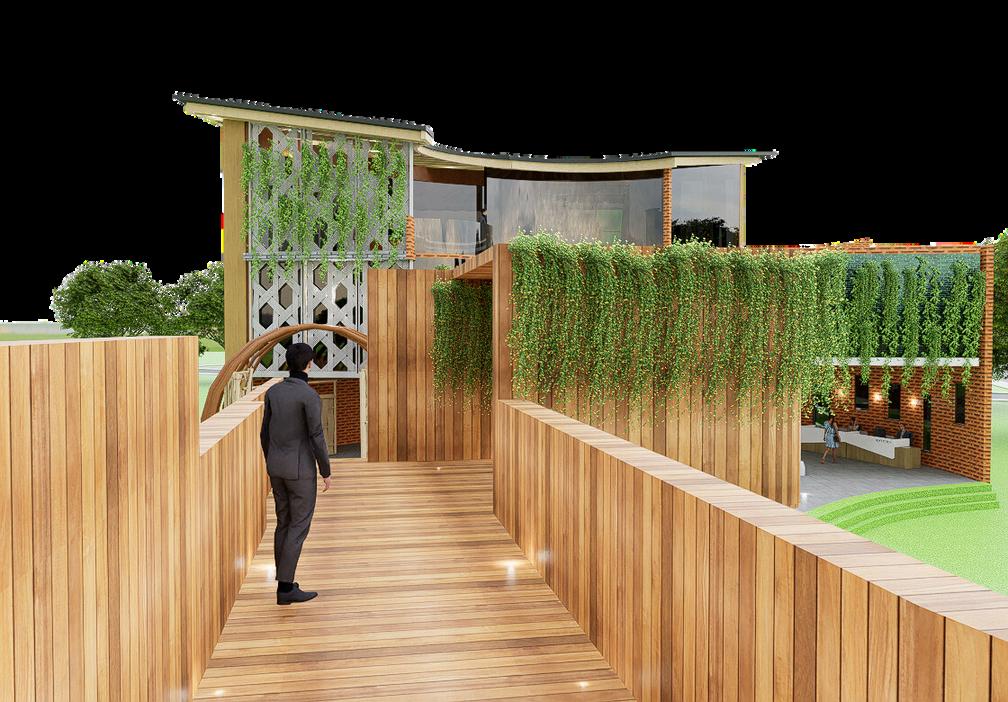

BRIDGE

PROJECT 2B

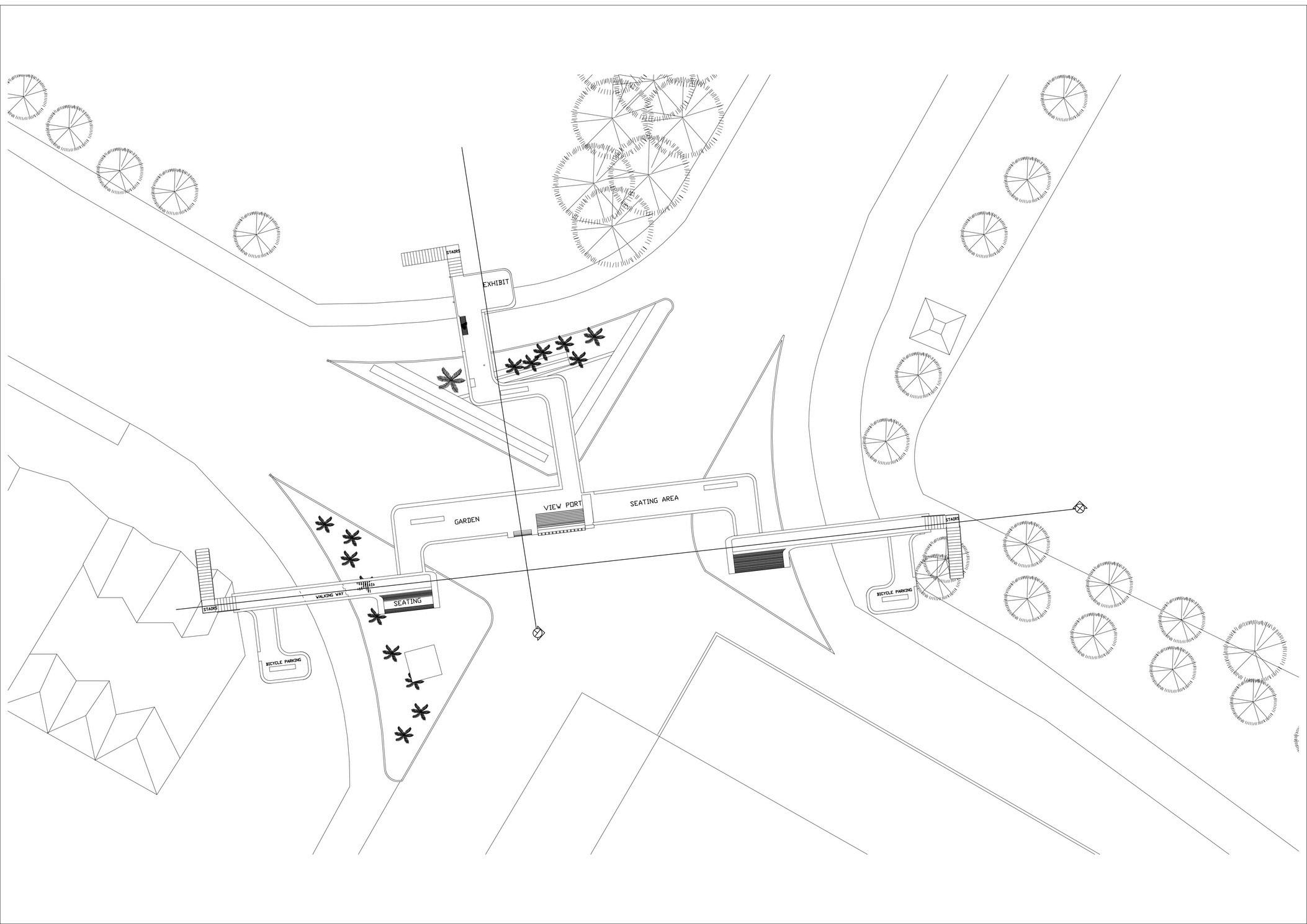

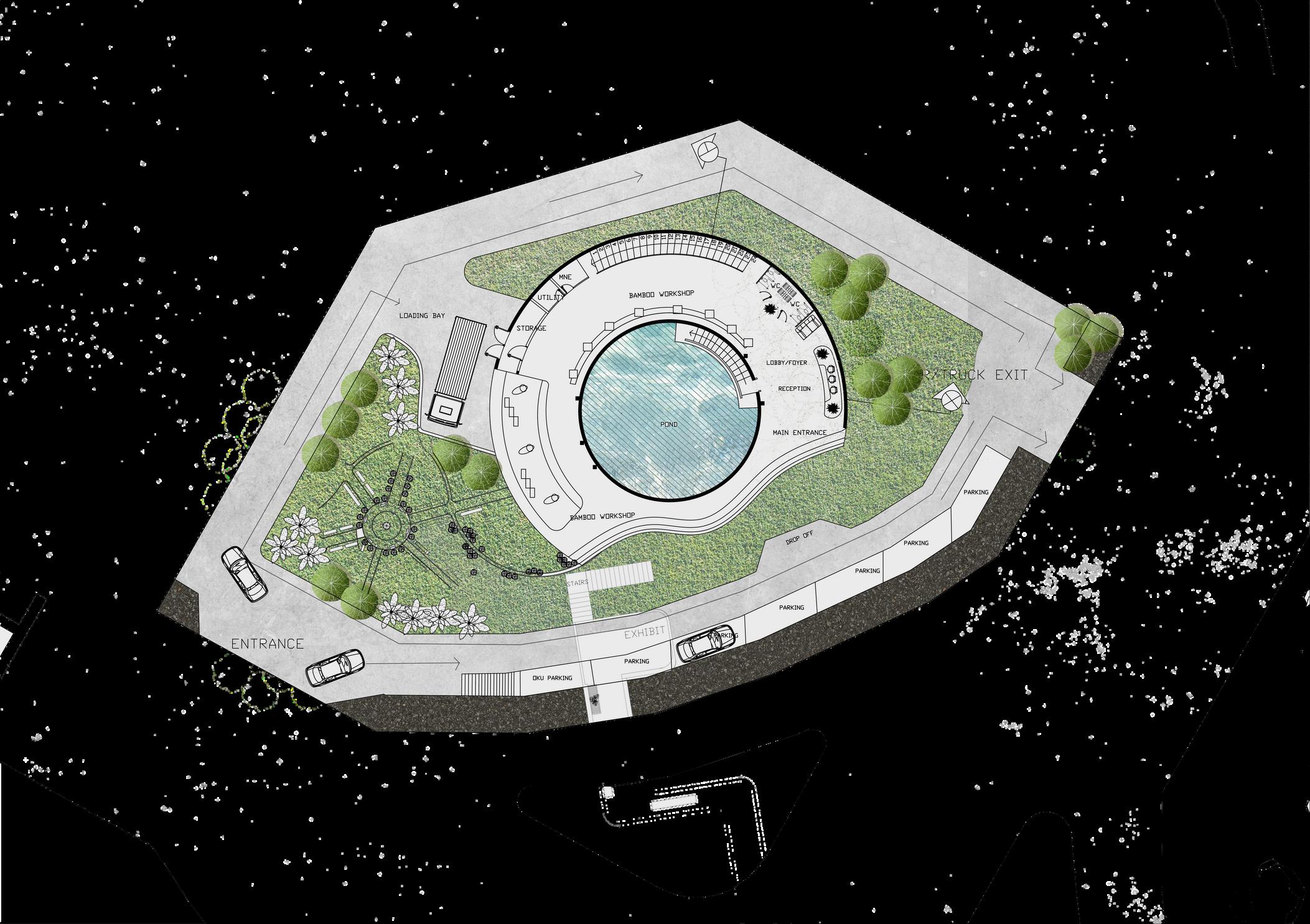

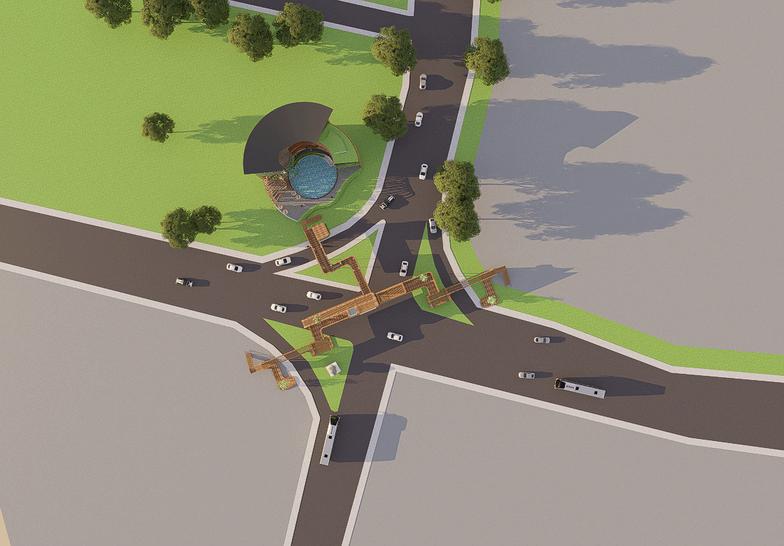

SITE PLAN SCALE NTS

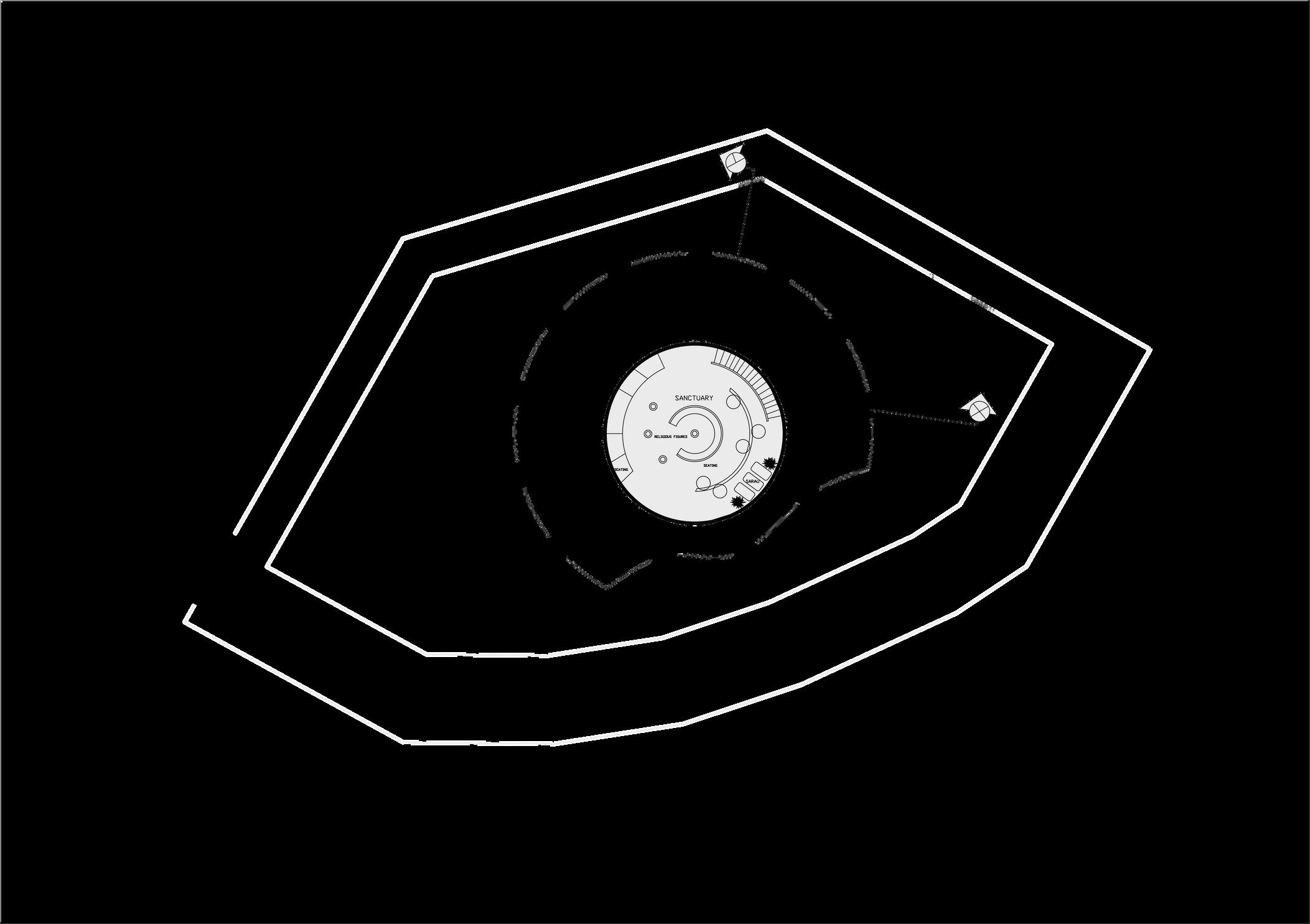

ROOF PLAN

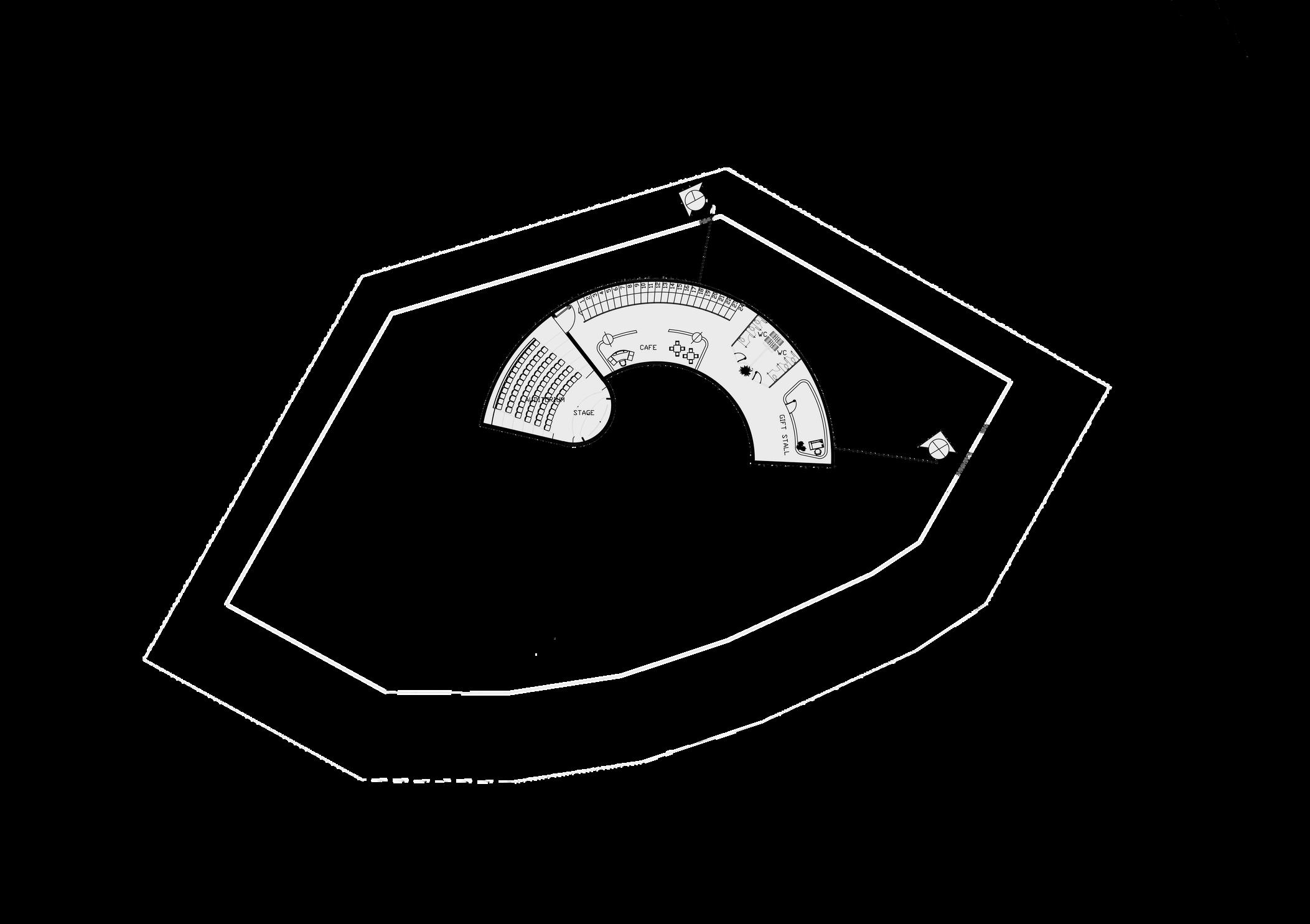

FLOORPLAN SCALE 1:150

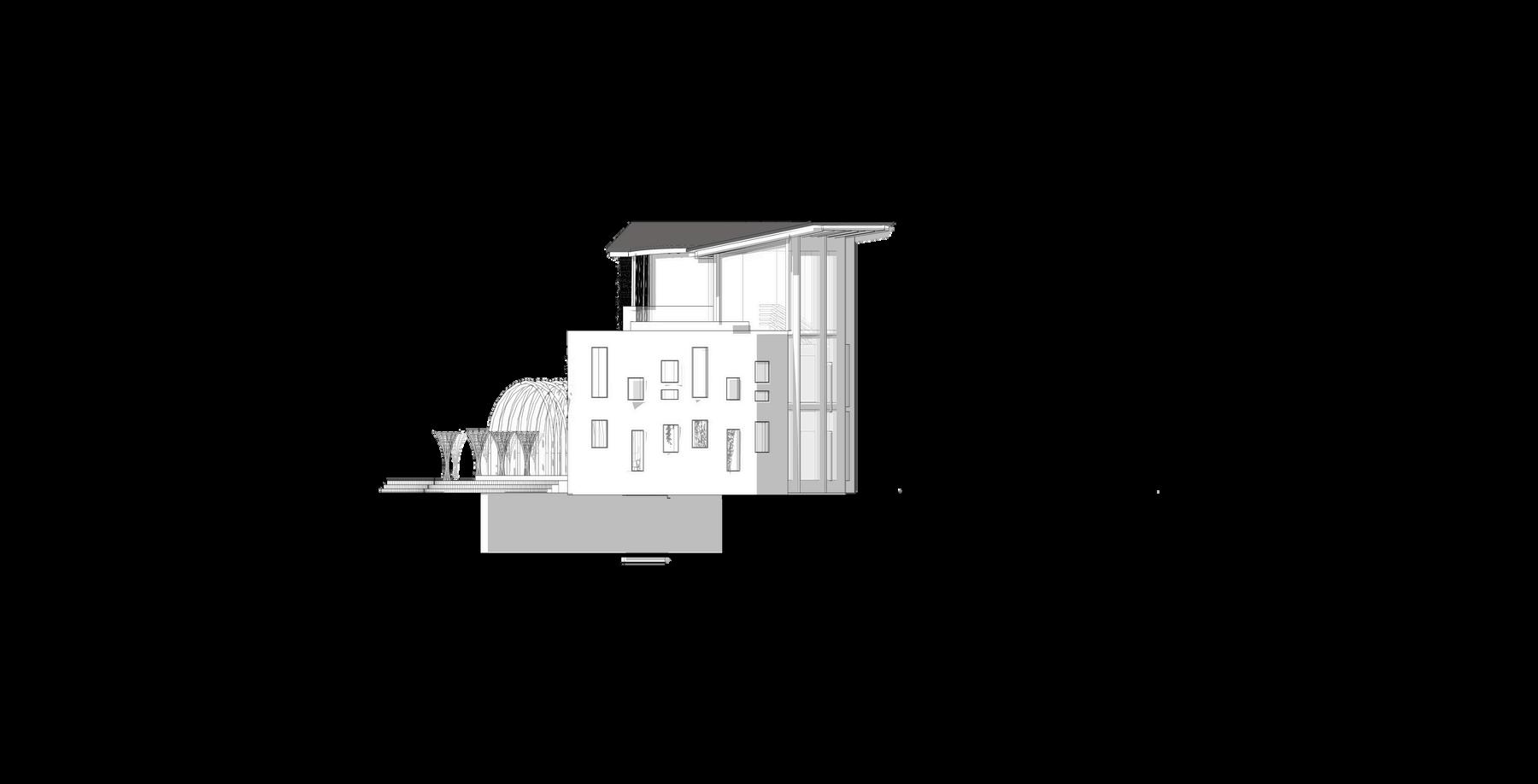

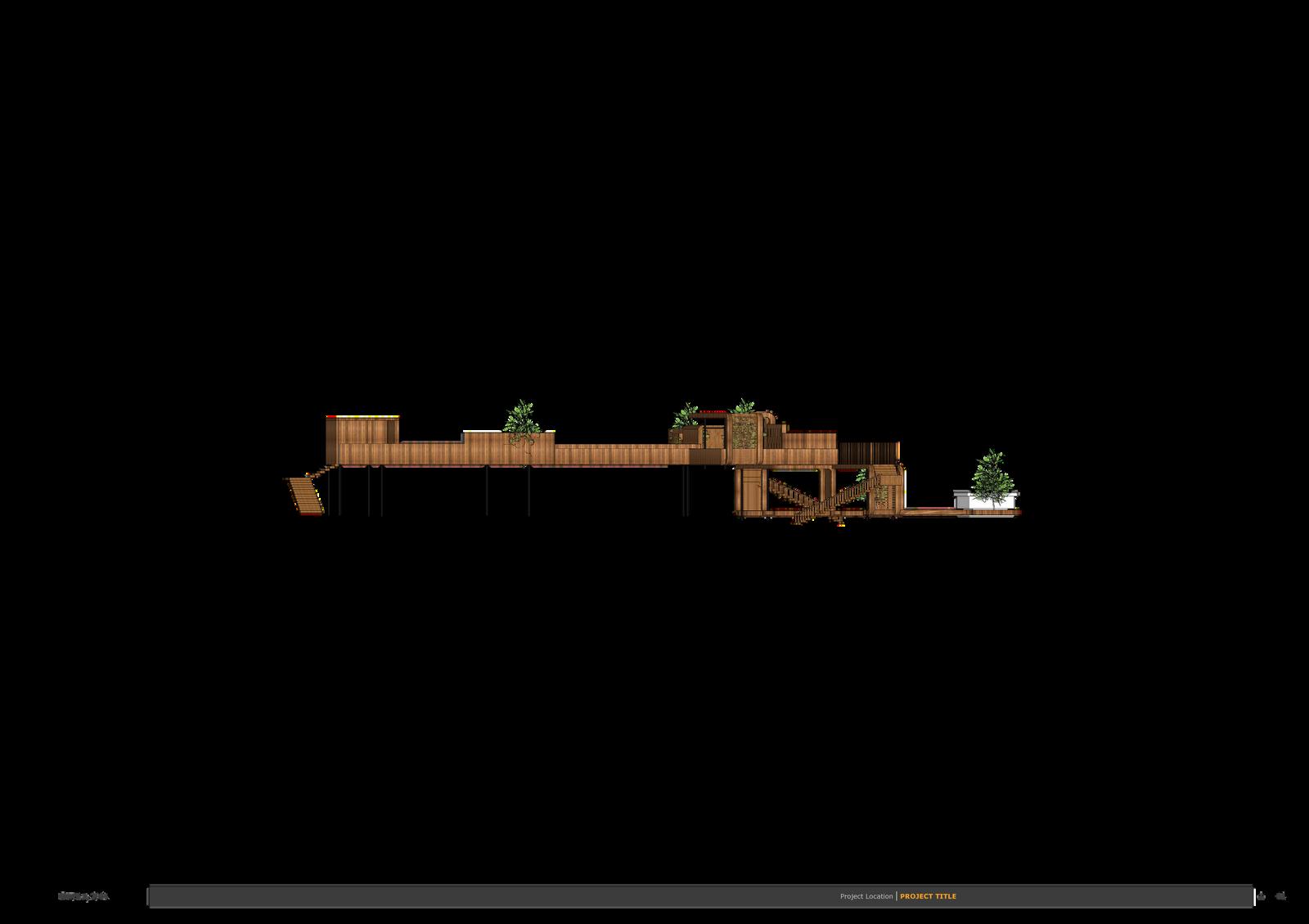

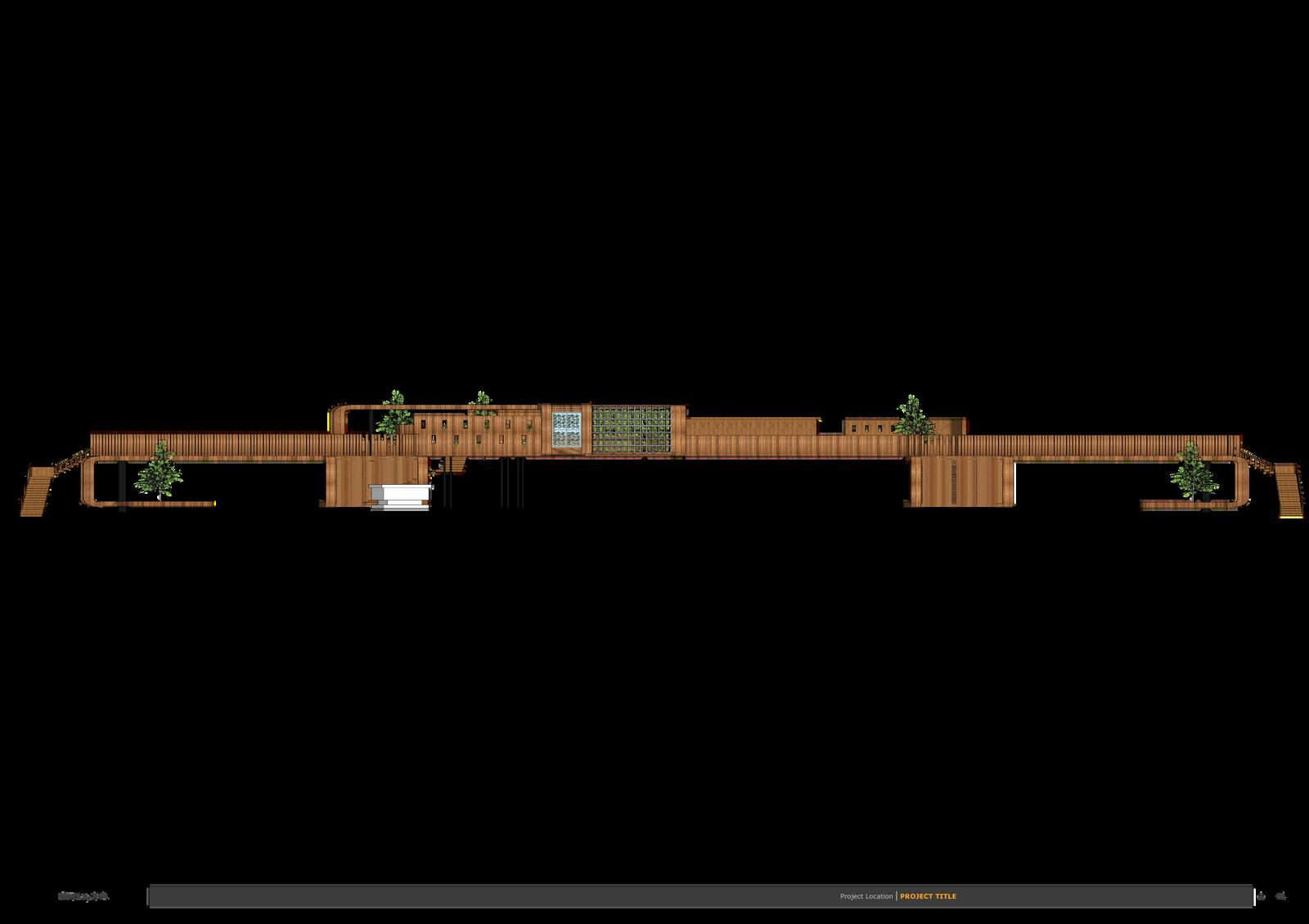

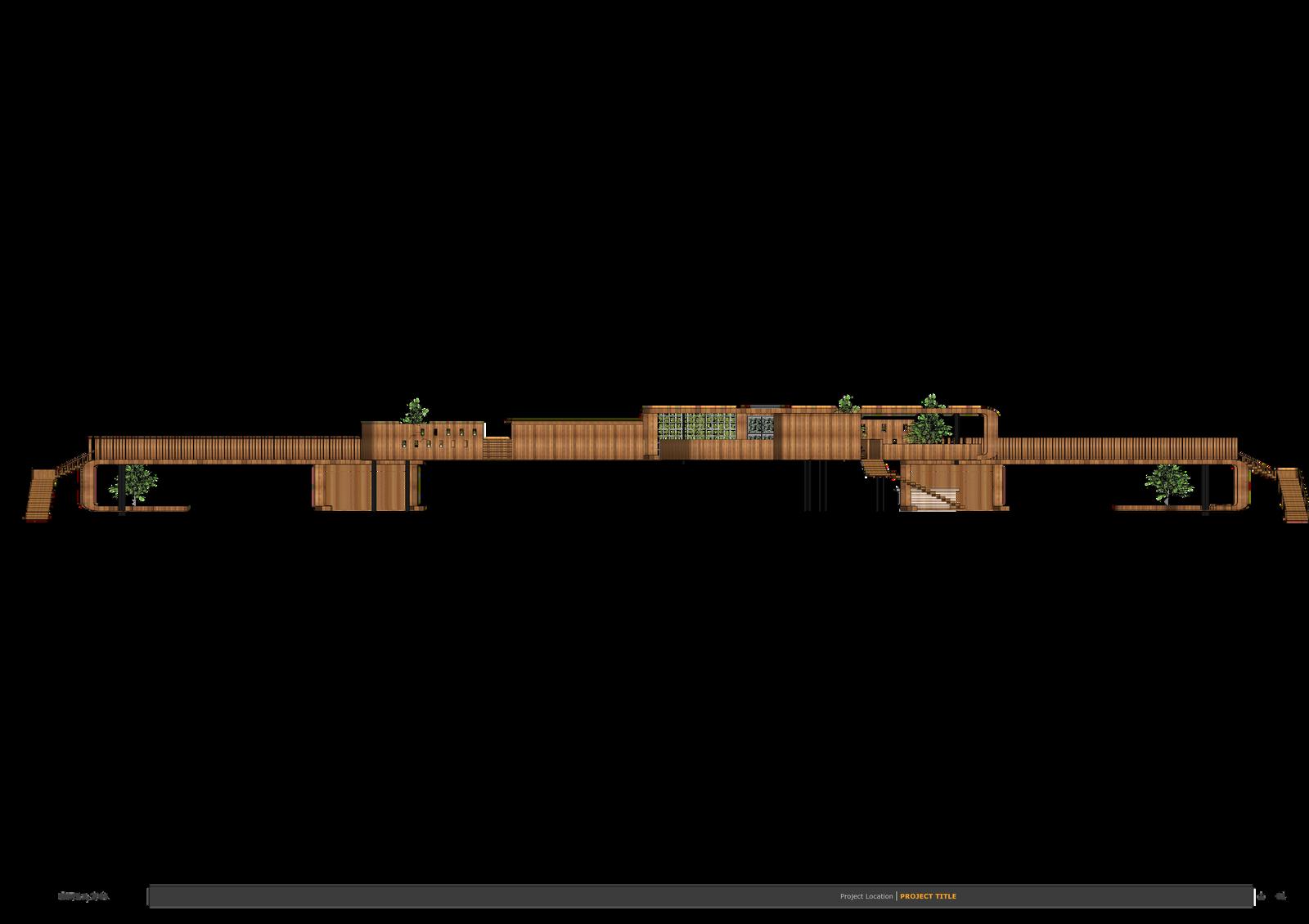

FRONTELEVATION

SCALE1:100

BACKELEVATION

SCALE1:100

LEFTELEVATION

SCALE1:100

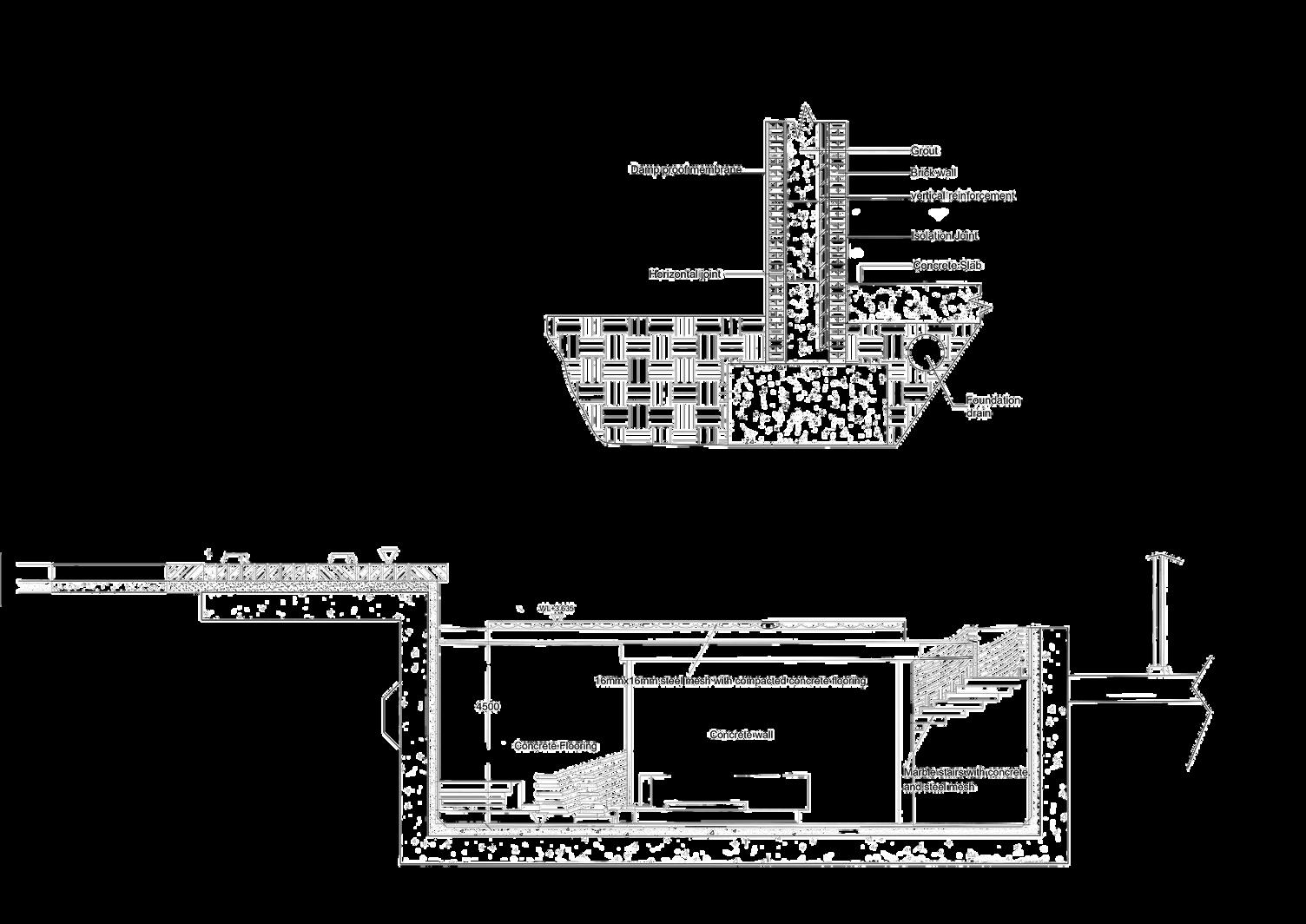

SCALE1:50

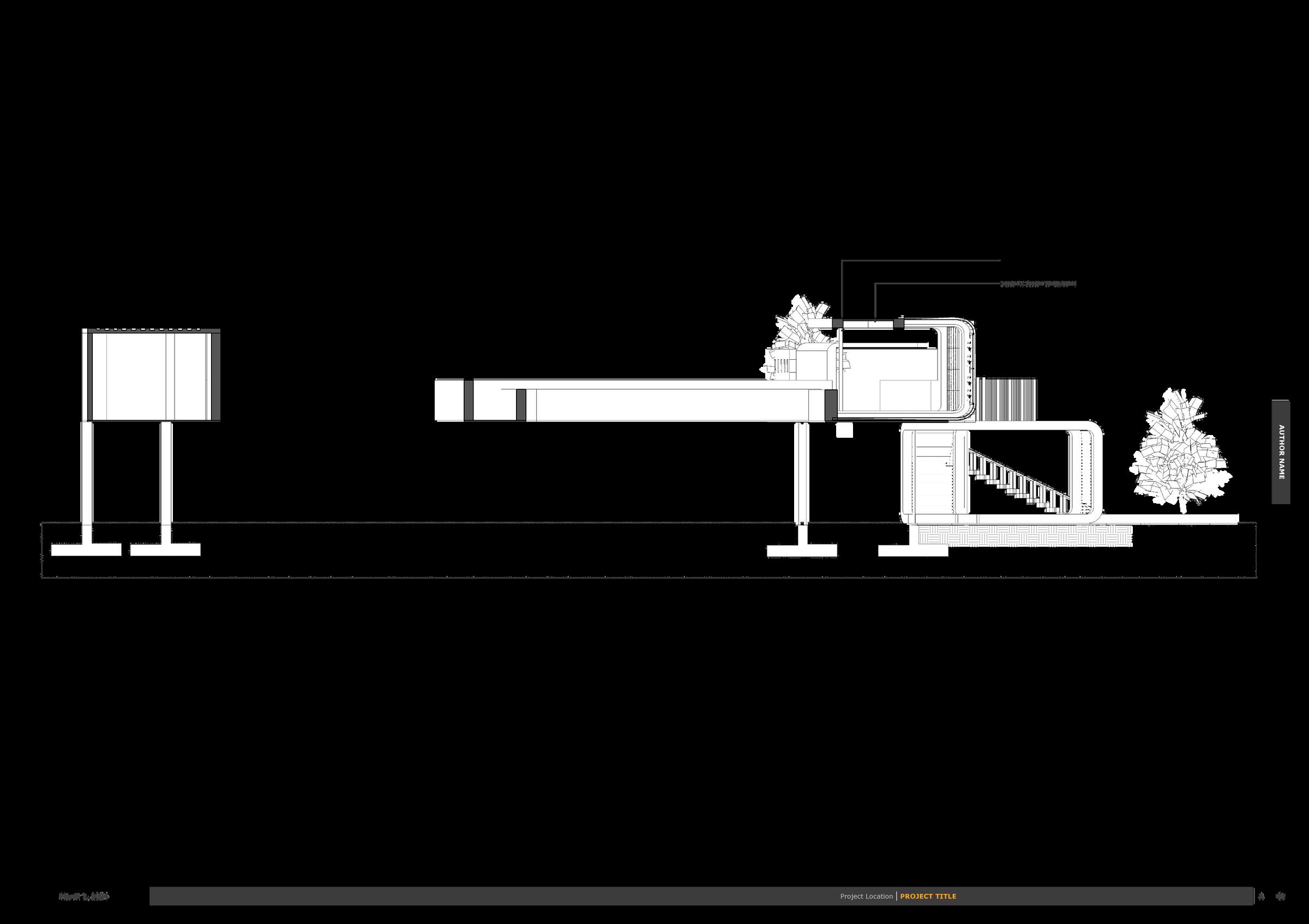

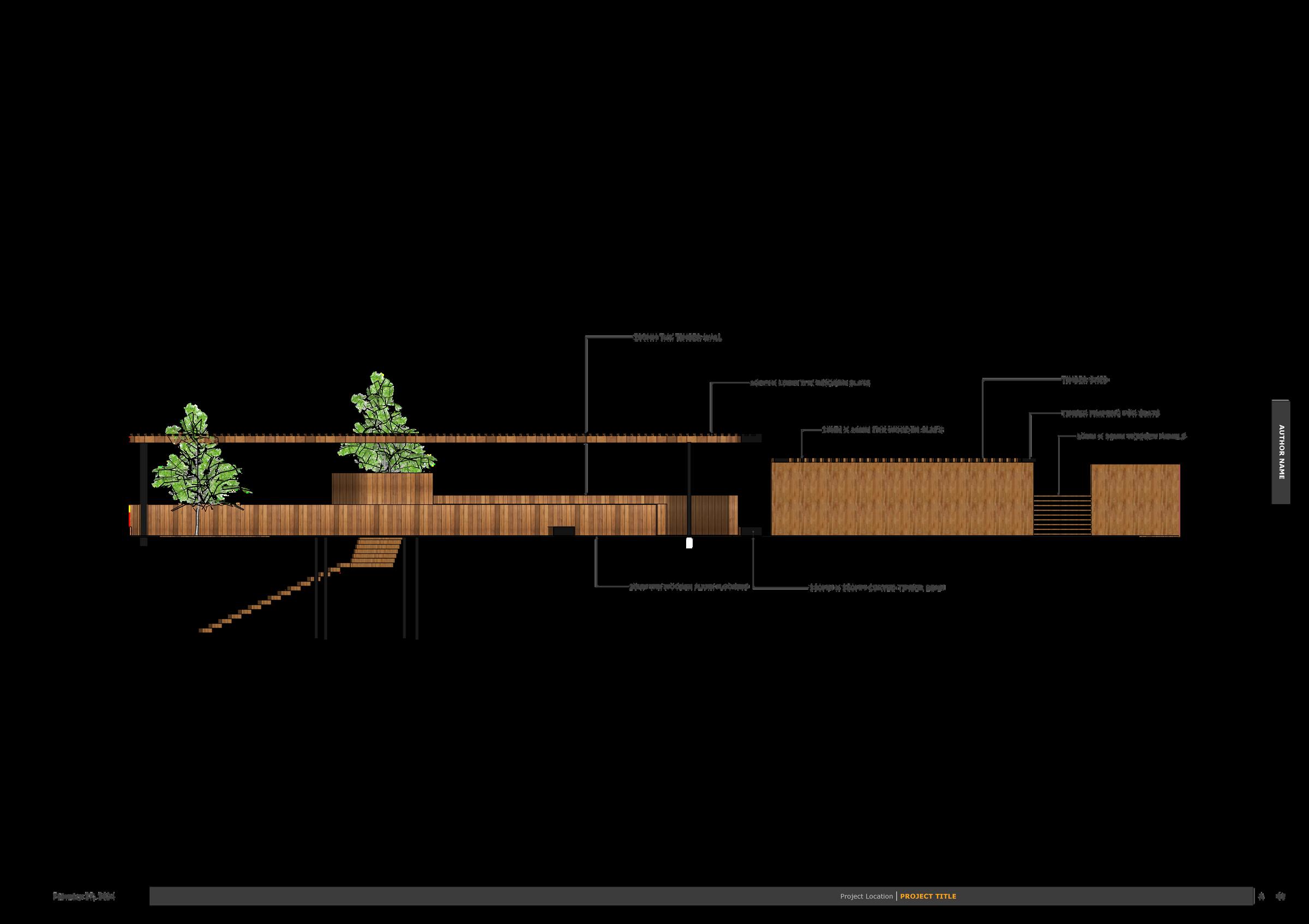

SECTIONXX

PROJECT 2B

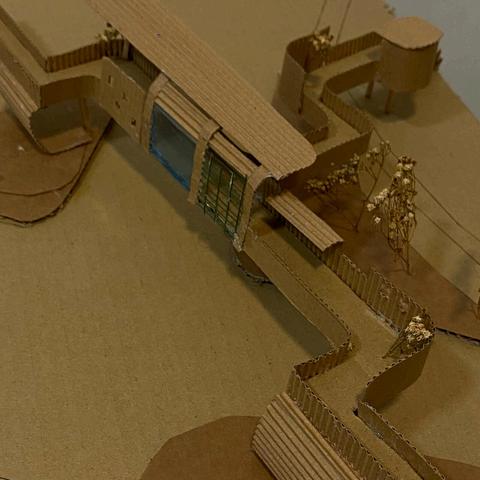

PLACE MAKING AND FACADE EXPLORATION

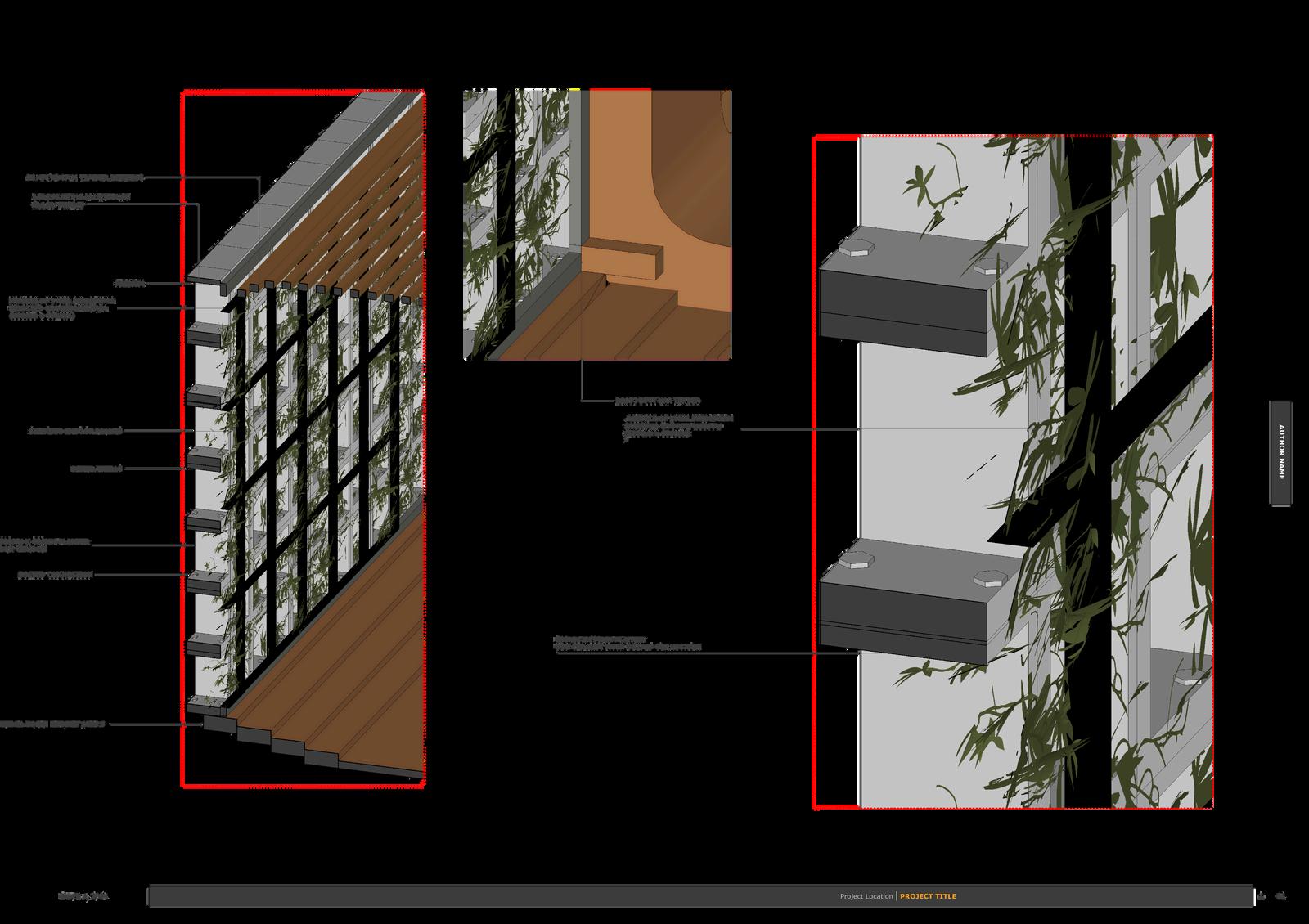

FACADEMODULEEXPLORATION

SCALE1:50

SCALE1:10 SCALE1:5

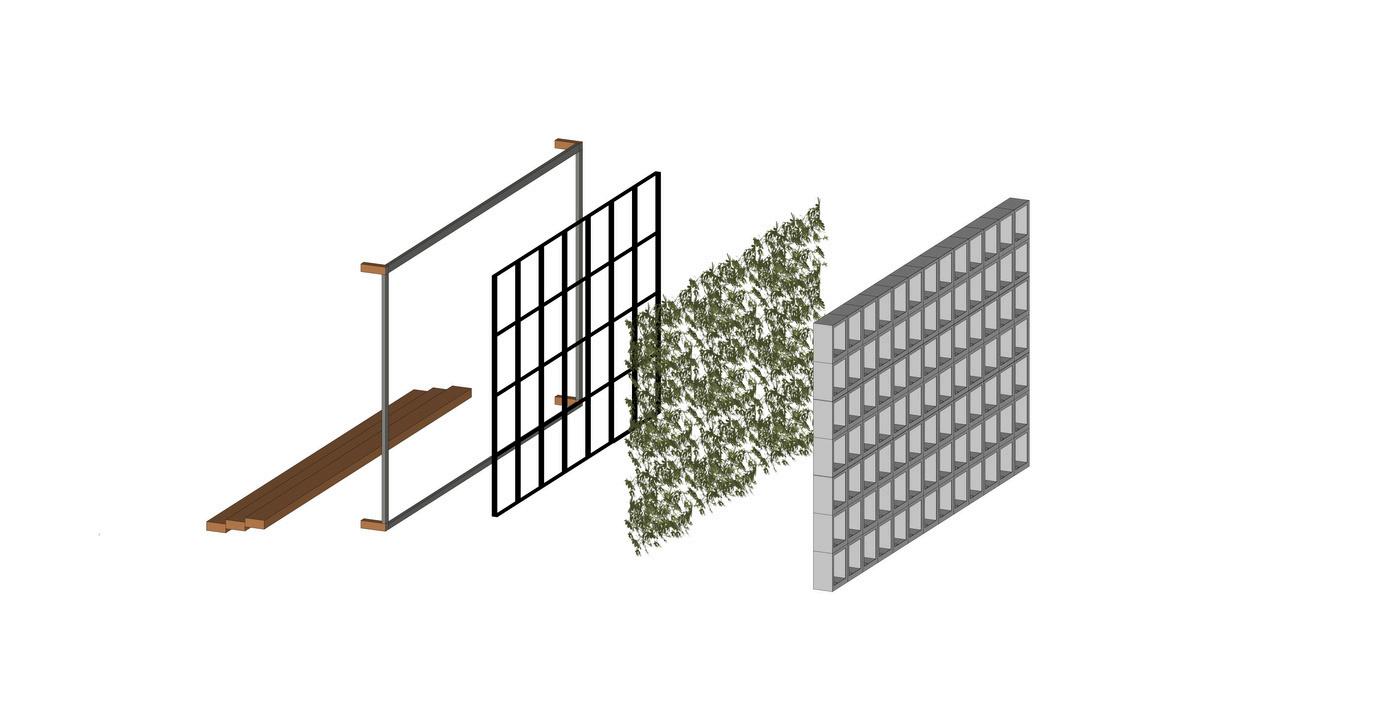

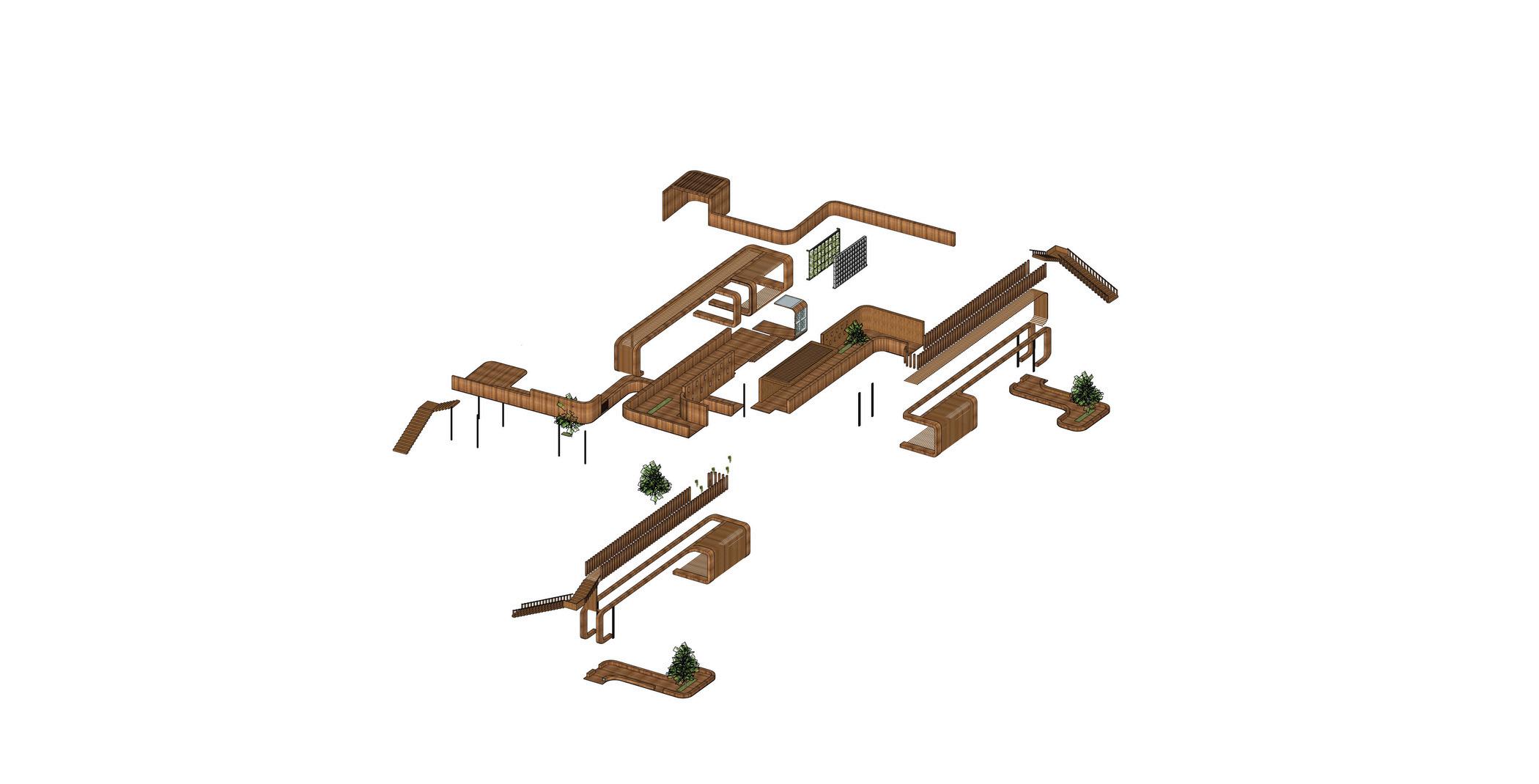

EXPLODEDAXONOMETRY

MATERIALS

Timber,asanatural material,holdssymbolic significanceinmany religiouspractices, representingpurity, strength,andconnection totheearth.

Ithasorganicqualities andcanharmonizewith nature.

1 2 3 4 5 6 7

3 2 5 7

1 4

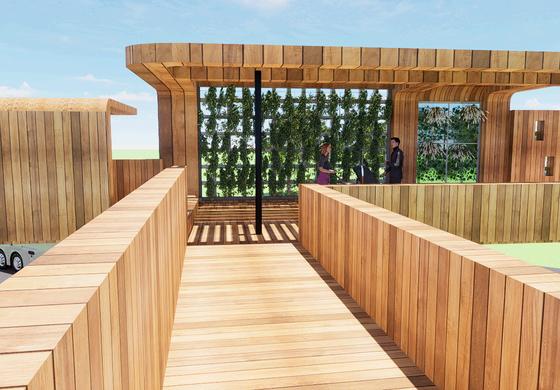

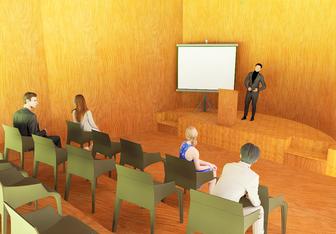

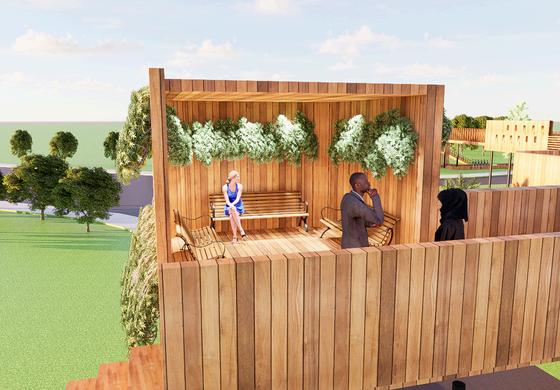

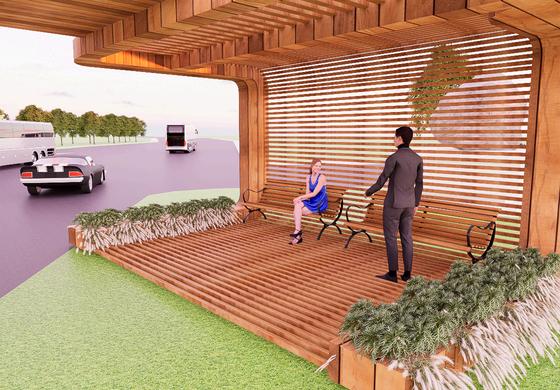

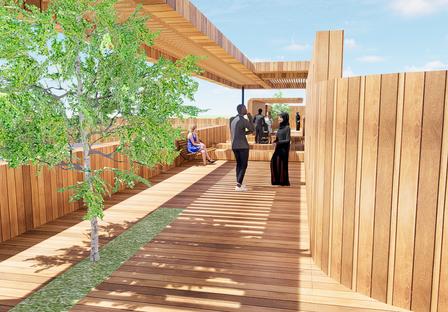

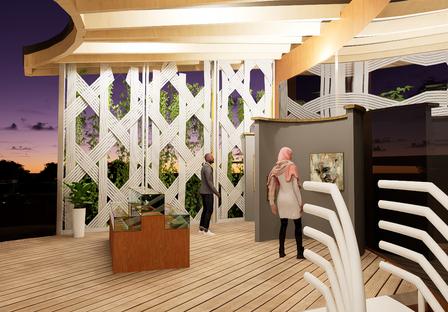

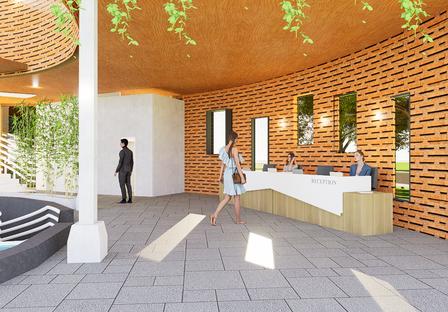

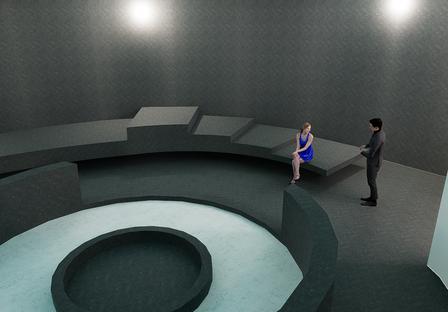

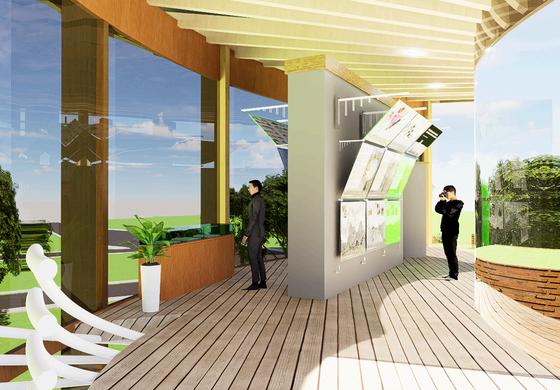

INTERIOR PERSPECTIVES

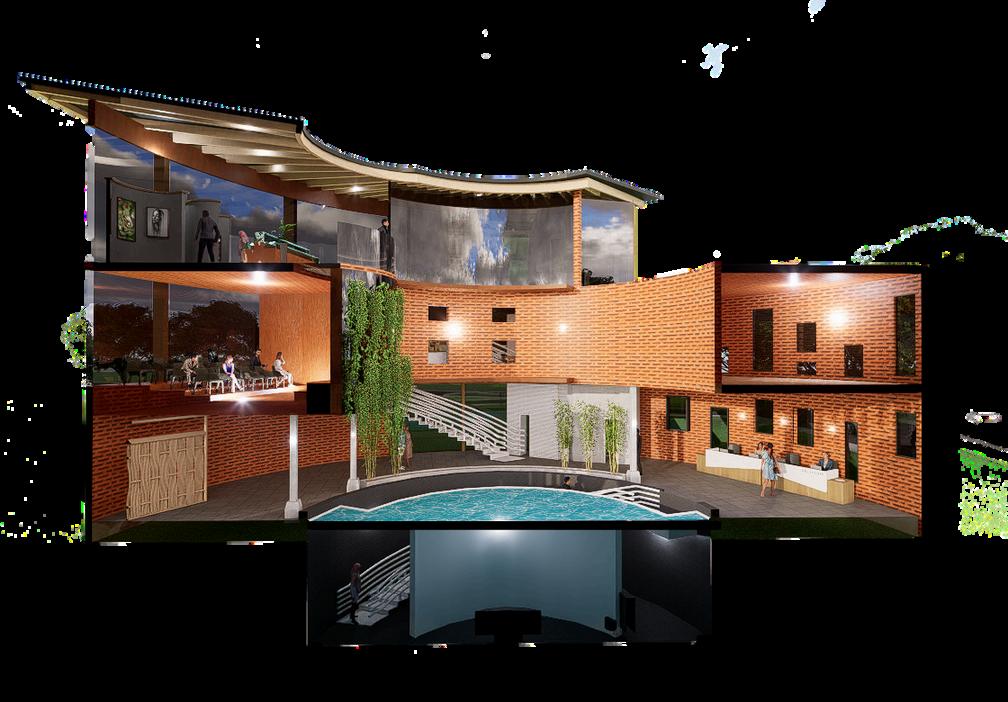

PROJECT 3

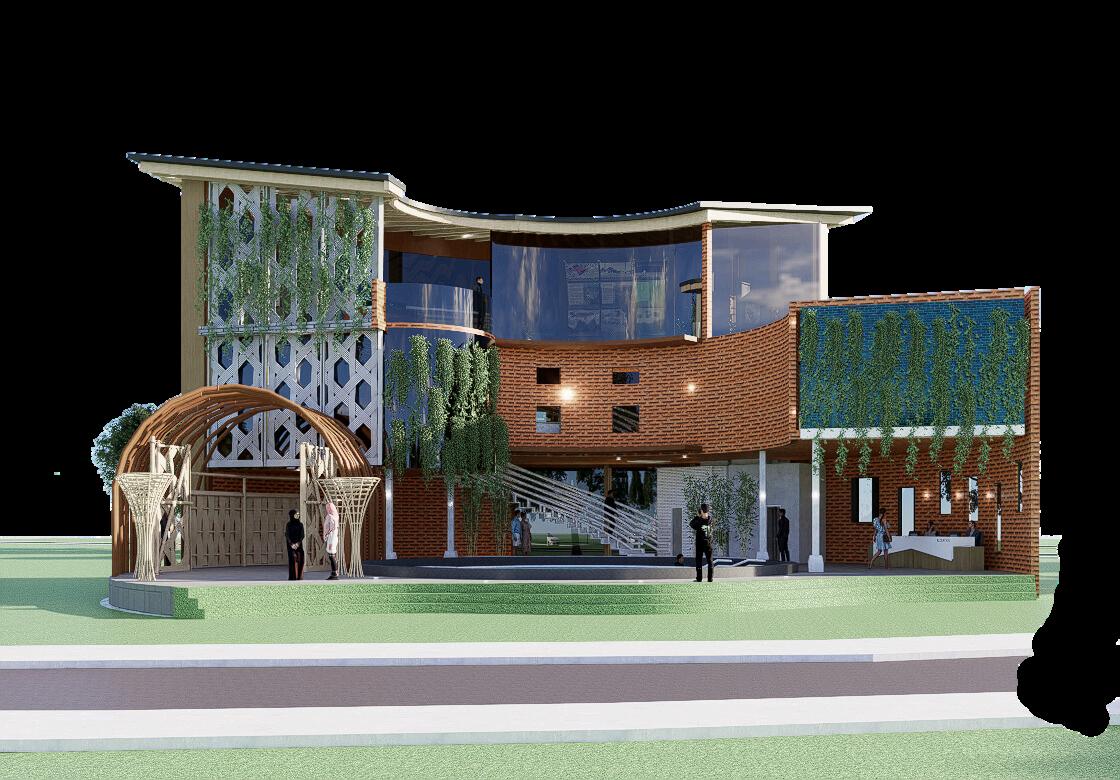

VISITORS CENTRE

BOTANIC REFLECTIONS:

VISITORS CENTRE

EMBRACING DIVERSITY AND DEVOTION

DESIGN INTENTION

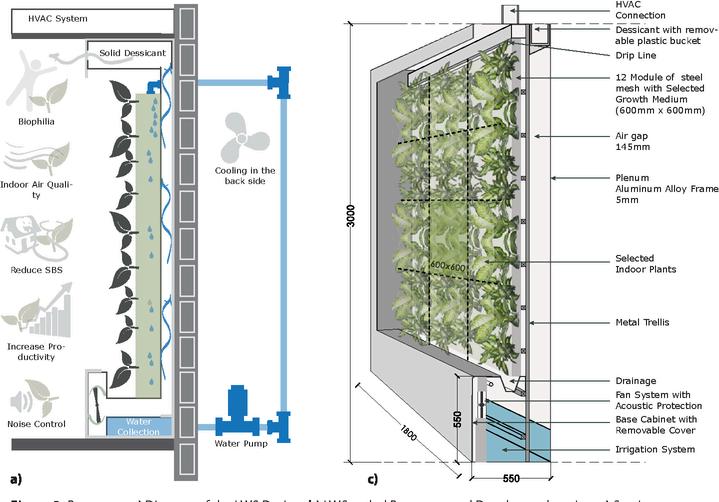

The aim of the project is to create a peaceful sanctuary for both local residents and tourists in Teluk Intan, showcasing the region's diverse flora and cultural heritage. Through the integration of botanical elements and cultural symbolism, the center aims to provide a serene retreat where visitors can connect with nature, learn about local plants like palm oil, mangrove, and bamboo, and experience the traditional craft of bamboo weaving, while also promoting environmental sustainability.
