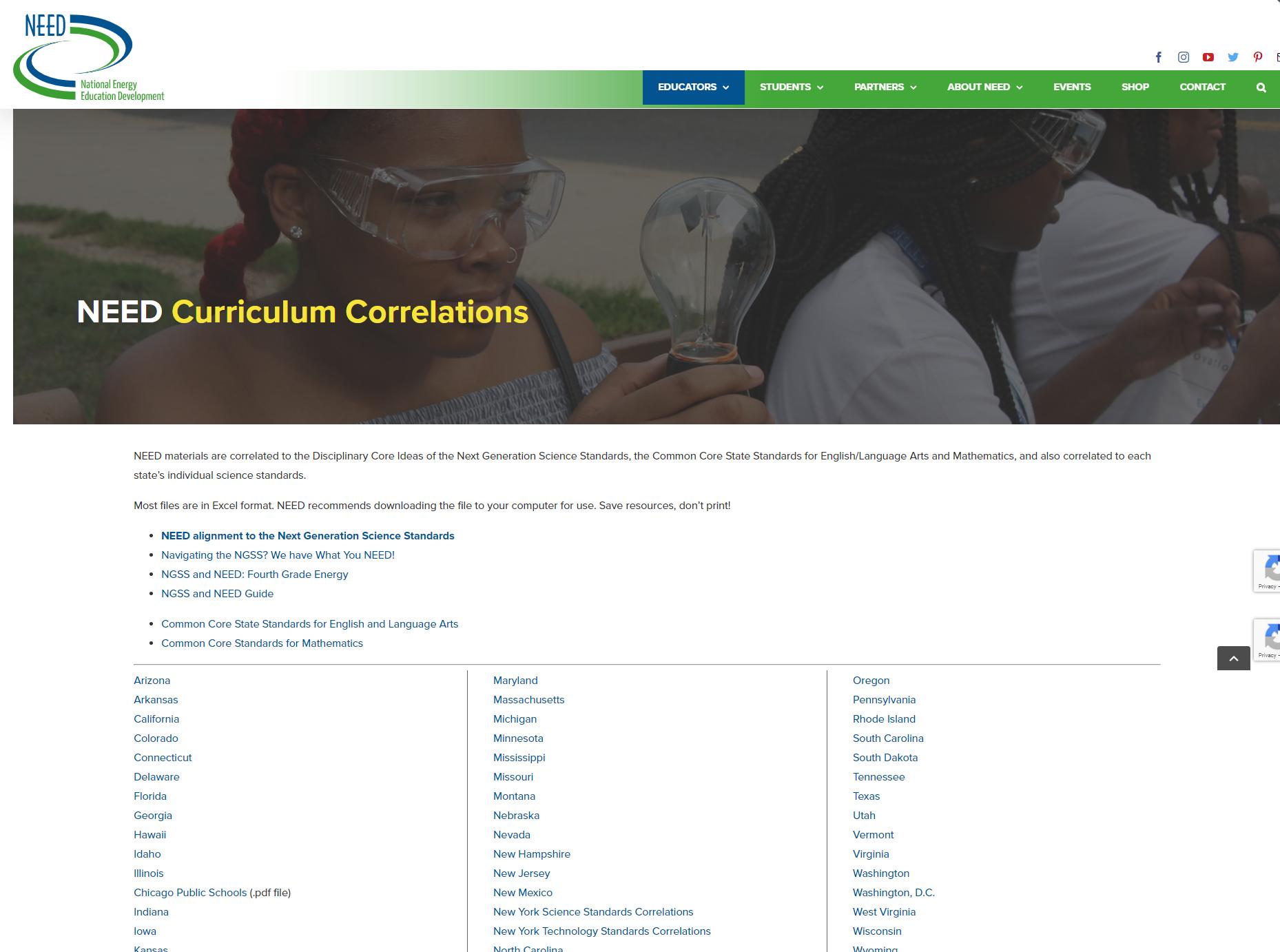

www.NEED.org/educators/curriculum-correlations/

Next Generation Science Standards

ƒ This guide effectively supports many Next Generation Science Standards. This material can satisfy performance expectations, science and engineering practices, disciplinary core ideas, and cross-cutting concepts within your required curriculum. For more details on these correlations, please visit NEED’s curriculum correlations website.

Common Core State Standards

ƒ This guide has been correlated to the Common Core State Standards in both language arts and mathematics. These correlations are broken down by grade level and guide title, and can be downloaded as a spreadsheet from the NEED curriculum correlations website.

Individual State Science Standards

ƒ This guide has been correlated to each state’s individual science standards. These correlations are broken down by grade level and guide title, and can be downloaded as a spreadsheet from the NEED website.

4 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org

Your Future in Marine Hydrokinetics Materials

ACTIVITY

Electricity and Magnetism

ƒ Alligator clips

ƒ Iron nails

ƒ 9-volt batteries

ƒ DC motors

ƒ Disassembled DC motors

ƒ Compasses

ƒ Masking tape

ƒ Shake-light flashlights

Science of Electricity

ƒ 28 Gauge magnet wire

ƒ Alligator clips

ƒ Masking tape

ƒ Wooden dowels

ƒ Plastic bottles

ƒ Foam tubes

ƒ Rubber one-hole stoppers

ƒ Rulers

Discovering MHK Technology

ƒ Craft wood

MATERIALS NEEDED

CTE Model Wave Generator

ƒ Small screws, nuts, bolts, other fasteners

ƒ Permanent markers

ƒ Strong, rectangular magnets

ƒ Digital multimeters

ƒ Large and small nails

ƒ Sharp scissors or utility knives

ƒ Fine-grain sandpaper

ƒ Push pins

ƒ Hand-operated pencil sharpeners

ƒ Repurposed materials such as plastic bottles, yard signs, etc.

ƒ Craft materials such as foam, plastic, wire, etc.

ƒ Display boards and art supplies (optional)

ƒ DC motors (for electrified models)

ƒ Digital multimeters (for electrified models)

ƒ Shake-light flashlights

ƒ 1 Gallon water jugs, empty

ƒ Heavy gauge plastic bags

ƒ Clear plastic tubing

ƒ Cylindrical magnets

ƒ Rubber stoppers

ƒ Magnet wire

ƒ Repurposed materials such as water bottles, cardboard, yard signs, etc.

ƒ Sand, gravel, other dense material for anchoring structures

ƒ Large plastic tubs (4-5 gallon+)

ƒ Hot glue guns and glue sticks

ƒ Utility knives

ƒ Waterproof duct tape

ƒ String, fishing line, etc.

ƒ Alligator clips

ƒ Digital multimeters

ƒ Balances

ƒ Fine-grain sandpaper

ƒ Galvanometer

ƒ Parafilm or other waterproofing supplies

ƒ Pool noodle, styrofoam, or buoyant material

ƒ Fishing bobbers or floats

ƒ Anchors or weights

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 5

Teacher Guide

Grade Level

ƒ Secondary, grades 9-12

 Time

ƒ 7-14 class periods depending on the length of class periods and the activities you choose to conduct

Magnet Safety

The magnets in the Model Wave Generator are very strong. In order to separate them, students should slide/twist them apart. Please also take the following precautions:

ƒ Wear safety glasses when handling magnets.

ƒ Use caution when handling the magnets. Fingers and other body parts can easily be pinched between two attracting magnets.

ƒ When students set the magnets down they should place them far enough away from each other that the magnets won’t snap back together.

ƒ When you are finished with the magnets and ready to store them, put a small piece of cardboard between them.

ƒ Keep magnets away from your computer screen, cell phone, debit/credit cards, and ID badges.

ƒ Do not allow the magnets near a person with a pacemaker or similar medical aid. The magnetic field can affect the operation of these devices.

&Background

Water moving in the oceans has a large amount of kinetic energy. Marine Hydrokinetics (MHK), also known as Marine Renewable Energy (MRE), involves the use of technology to harness this energy from the oceans to generate electricity to power our lives. MHK incorporates power from ocean surface waves, ocean currents and tidal movements, and even the power produced from thermal and salinity differences throughout the waters of the world.

Your Future in Marine Hydrokinetics is an exploratory unit for secondary students in a CTE classroom environment that includes teacher and student guides containing comprehensive background information on energy, the properties of fluids and waves, electricity, hydrokinetic technologies, and specific skills needed in the future MHK/MRE field. Students will review energy forms and sources, electricity generation and transmission, water movement in the oceans, and the technology under development to utilize the energy in ocean waves, currents, and tides. Activities included have been curated with a CTE classroom in mind and can be easily modified according to the skill level of the students. The curriculum includes hands-on, inquiry-based explorations, group presentations, and cooperative learning activities. Many of the materials suggested can be gathered from a craft, hobby, or sporting goods store, and are substituted easily with similar materials found in your classroom and beyond.

Concepts

ƒ Energy exists in many forms, and those forms can be transformed into other forms.

ƒ We use ten energy sources for our energy needs; five are renewable and five are nonrenewable.

ƒ Electricity is generated when a coil of conducting wire is moved in an electric field, or when magnets are moved through or around a coil of conducting wire.

ƒ Electricity can be generated using the energy found in tides, ocean currents, and waves.

ƒ Marine hydrokinetic technologies are primarily experimental or developmental.

ƒ When MHK technology is ready to be installed on a utility scale, many geographic and environmental factors must be considered.

ƒ When MHK technology is ready to be installed on a utility scale, there will be a great demand for people trained to pilot the vessels specifically designed to install and maintain the equipment.

@Science Notebooks

Throughout this curriculum, science notebooks are referenced. If you currently use science notebooks or journals, you may have your students continue using these. A rubric to guide assessment of student notebooks can be found on page 13 in the Teacher Guide.

In addition to science notebooks, student worksheets have been included in the Student Guide. Depending on your students’ level of independence and familiarity with the scientific process, you may choose to use these worksheets instead of science notebooks. Or, as appropriate, you may want to make copies of worksheets and have your students glue or tape the copies into their notebooks. The rubric can also be used to evaluate student work in this format.

6 Exploring Marine Hydrokinetics ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
CONTINUED
PAGE
ON NEXT

2Preparation

ƒ Read the Teacher and Student Guides thoroughly and decide how you are going to implement the unit in your classroom.

ƒ Obtain the materials needed for the hands-on activities using the materials list on page 5.

ƒ To save time and anticipate student struggles, you may want to assemble one Science of Electricity Model prior to using it with the class. Become familiar with the operation of the model and the other equipment in the kit, especially the multimeter. Directions for using the multimeter are included on Student Guide page 30. A more detailed discussion of multimeters and measuring electricity can be found in this guide on pages 17-19.

ƒ For Discovering MHK Technology, decide if you will have students build models that actually generate electricity or that are visually illustrative only.

ƒ Preview the three parts of the CTE Model Wave Generator and decide how you will approach them. Part 1 can be done as a teacher demonstration while Parts 2 and 3 work well as small-group activities. However, if you have a small class, you might want to have them work as one group on the entire activity.

ƒ The tubs of water needed for the CTE Model Wave Generator should be sufficiently deep such that student models can be submerged and move freely, but small enough to be pushed to generate waves. Placing thick wooden dowel rods or pieces of PVC pipe beneath the tub can make generating waves easier.

Activity 1: Electricity and Magnetism &Background

Generating electricity involves capitalizing on the principles surrounding electromagnetism. As one of the four fundamental forces of nature, electromagnetism allows us to use changing magnetic fields to induce electric current in a conductor. The two parts of this activity allow students to explore electromagnetism and see its effects.

 Objectives

ƒ Students will be able to explain how electricity and magnetism are related.

ƒ Students will be able to demonstrate electromagnetism using at least two different devices.

 Materials PER STUDENT GROUP

ƒ 9-volt battery

ƒ Compass

ƒ Nail

ƒ 2 DC motors

ƒ 2 Alligator clips

ƒ Disassembled motor

ƒ Shake-light flashlight

ƒ Masking tape

ƒ Electricity and Magnetism worksheets, Student Guide pages 24-25

2 Preparation

ƒ Gather materials for student use.

ƒ If appropriate, assign reading Student Guide pages 2-8 as a homework assignment the night before you conduct the activity.

ƒ Prepare copies of the handouts as needed.

©2022 The NEED Project 8408 Kao Circle, Manassas, VA 20110 1.800.875.5029 www.NEED.org 7 Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
CONTINUED ON NEXT PAGE

Procedure

1. Introduce the activity to students. Explain that electricity and magnetism are related. Go into as much or as little detail as is appropriate for your students. Have students read pages 2-8 in the Student Guide.

2. Forewarn students that leaving the alligator clips attached to both terminals of the 9-volt battery in Part 1 essentially short-circuits the battery, draining it of its energy and making it get very hot. In some cases, 9-volt batteries left to short-circuit have ruptured. Advise students to connect the alligator clips to the second terminal only when they are ready to test the electromagnet.

3. Allow students sufficient time to complete both parts of the activity.

4. Have students reconvene as a large group.

5. Using a shake-light flashlight, talk about its operation and explain how the parts contribute to its operation. Ask students which parts are important for generating electricity and which parts are used to create light. This will be important when students conduct Part 1 of the CTE Model Wave Generator in a later activity.

¨Extensions

ƒ If your students are already familiar with the basic concepts of electromagnetism, have them go further into what factor(s) affect the strength of an electromagnet. They can investigate number of turns around the nail, thickness of wire used, size of the nail, voltage of the battery, and so on. The strength of the magnet can be demonstrated by the maximum distance at which the magnet will act on another object, such as a paper clip or another nail. Understanding how the variables contribute to electromagnet strength will help students understand how transformers work and the variables surrounding increasing power output of a generator or alternator.

ƒ Have students use digital multimeters to calculate the power used by the motors in Part 2. Pages 17-18 contain a detailed explanation of using multimeters to measure electricity. Provide additional batteries or DC power sources and motors of varying sizes and have students investigate the power used by them. An investigation such as this will help students understand the relationships among voltage, current, power, and motor size.

Activity 2: Science of Electricity

 Objective

Students will be able to demonstrate and describe how electricity is generated.

 ! Caution

ƒ The magnets used in this model are very strong. Refer to page 6 of this guide for more safety information.

ƒ Use caution with nails and scissors when puncturing the bottle.

 Materials PER STUDENT GROUP

ƒ 1 Small bottle

ƒ 1 Rubber stopper with ¼” hole

ƒ 1 Wooden dowel (12” x ¼”)

ƒ 4 Strong rectangle magnets

ƒ 1 Foam tube

ƒ 1 Small nail

ƒ 1 Large nail

ƒ Magnet wire

ƒ Permanent marker

ƒ 1 Pair sharp scissors

ƒ Masking tape

ƒ Fine sandpaper

ƒ 1 Push pin

ƒ 1 Multimeter with alligator clips

ƒ Hand operated pencil sharpener

ƒ Ruler

ƒ Utility knife

ƒ Science of Electricity instructions, Student Guide pages 28-30

8 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
CONTINUED ON NEXT PAGE

2 Preparation

ƒ Build one Science of Electricity model for student reference and to help you assist your students in the trickier parts of the build.

ƒ Gather materials for student use and prepare copies of the instructions as needed.

Tips for Assembly

ƒ You may want to pre-sharpen the dowel rods or slice rubber stoppers in half width-wise, using half on each side of the rotor, to make assembly easier.

ƒ To streamline the process of winding wire around their bottles, have them thread a pencil or dowel through the wire spool and have one student hold this in their hands while another student winds wire.

ƒ Before students wind wire around their bottles, have them tear several 5 cm pieces of masking tape and have them hanging off the edge of their table or lab bench as they work. Students can tape their wire coils as they go to prevent a seemingly catastrophic, spontaneous unspooling of wire.

ƒ One tip of a large, sharp pair of scissors can be inserted into the hole in the bottle to shave away some of the plastic so the dowel turns freely. The dowel needs to be able to spin unimpeded.

ƒ When connecting the sanded ends of magnet wire to alligator clips, have students wrap the wire around the clips. Otherwise, the fine wire may pull easily from the alligator clip.

Procedure

1. Introduce the activity. Demonstrate the model you have already assembled, explaining the various parts.

2. Divulge to students the areas in which you struggled a bit, explaining how you overcame those struggles and providing tips to help them be successful.

3. Allow students enough time to assemble their models. If one class period is not sufficiently long enough, make sure students have wrapped all of their wire coils before stopping for the day so they do not lose track of where they were.

4. After students have finished building and testing their models, ask them how their models compare to the simple DC motors they worked with in Activity 1.

5. Discuss with students how their models, and the DC motors they worked with in Activity 1, are the same as utility-scale generators, and how they are different.

¨Extension

ƒ You might want to build your model according to the student directions, and then have students modify the model to use a different container, or varying numbers of magnets or turns of wire, and compare their results. Challenge students to design a model that produces electricity in greater amounts than your model did.

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 9

Activity 3: Discovering MHK Technology &Background

Marine hydrokinetic technology is a rapidly evolving field. This activity provides an opportunity for students to explore the different technologies currently in development. It also gives students the opportunity to hone their modeling skills by asking them to build a representative model of the technology. Because of the speed with which MHK technology is being adapted and developed, the same group of students could engage in this activity in sequential years and not repeat their research or findings.

 Objectives

ƒ Students will understand the different technological areas of MHK generation currently in development.

ƒ Students will be able to build a model of a device given its description and photographs or drawings.

 Materials

The following materials are suggestions of the kinds of things students can use to build their models. Teachers are encouraged to utilize what they have available without incurring significant additional expense.

ƒ Craft wood

ƒ Small screws, nuts, bolts, other fasteners

ƒ Repurposed materials such as plastic bottles, yard signs, etc.

ƒ Craft materials such as foam, plastic, wire, etc.

ƒ Display boards and art supplies (optional)

ƒ DC motors (for electrified models)

ƒ Digital multimeters (for electrified models)

ƒ Discovering MHK Technology worksheet, Student Guide pages 31-32.

2 Preparation

ƒ Spend some time using internet resources to read about the most prominent MHK technologies currently under development.

ƒ Decide if you will pre-assign students to groups or if you will allow them to form their own small groups.

ƒ Determine how much in-class time you will devote to the activity, and how much must be done outside of class.

ƒ Make a physical or digital copy of the worksheet with resource links for students.

ƒ Make a list of the technologies you wish students to investigate and decide the manner in which you will assign them to student groups.

ƒ Gather supplies for students to use to build their models and/or make their presentations.

Procedure

1. Have students read Student Guide pages 9-23. This can be done as a pre-reading homework assignment.

2. As a class, summarize the information students have read.

3. Present the activity to students, giving an overview of what the activity will entail. If students will be electrifying their models, explain to them how that will be accomplished.

4. Assign student groups the technology you wish to have them explore.

5. Preview the internet resources listed on the student worksheet. If you are providing others, preview those as well.

6. Give students time to start planning their presentations and designing their models as a group.

7. As students work on their projects, they may need assistance or suggestions as they build their models and finalize their presentations.

8. Before students present their models, provide them with the rubric or grading scheme you will use to score them.

9. After all of the presentations are completed, have a class discussion about which technology they believe will be most feasible at utility-scale.

10 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
CONTINUED ON NEXT PAGE

Notes

ƒ Students with limited internet access outside of school should be allowed time during the school day to gather information and work together on their presentations. This can be accomplished by devoting some entire class periods to this task or by providing part of each class period on sequential days.

ƒ Decide if you will allow power tools, and if so, under what circumstances students will use them.

ƒ Because waterproofing can be a significant challenge for students building electrified models, testing models should be done using air pushed by fans as the energy source rather than flowing water. Advanced students can be instructed in building waterproof models.

ƒ If you have a 3-D printer available for student use, this project can be a great way to help students hone their 3-D modeling and printing skills.

¨Extensions

ƒ The models and presentations students develop are great for community outreach or a parent night.

ƒ Have students investigate which technology, if any, would be appropriate to install within your school community. If your community is not located near any large bodies of water, choose a place on the map to explore.

ƒ Collaborate with a social studies teacher to discover the cost of each type of technology and whether it is appropriate for implementation in a developing country.

Activity 4: CTE Model Wave Generator

&Background

Wave energy is accessible any place there is a very large body of water; it is not limited to just oceans. The Great Lakes and inland seas also have waves sufficient in size to be used to generate electricity. Wave generators take advantage of the steady oscillation of waves in an up-and-down, or rocking, motion. This activity shows students a working device in the form of the shake-light flashlight, then challenges them to build two models, one horizontal and one vertical, that generate electricity from wave action.

 Objectives

ƒ Students will understand the variables that affect the voltage a generator can produce.

ƒ Students will understand the relationship between electricity and magnetic fields.

ƒ Students will be able to build, test, and modify a design given a specific problem or set of parameters.

 Materials

PART 1 MATERIALS

ƒ 2 Shake-light flashlights

ƒ 1 Heavy-gauge, zip-close, plastic bag large enough to hold one flashlight

ƒ Alligator clips

ƒ Digital multimeter or galvanometer

ƒ Empty 1-gallon water jug, with cap

ƒ Utility knife

ƒ Balance

PART 2 MATERIALS PER STUDENT GROUP

ƒ Clear plastic tubing

ƒ Two rubber stoppers

ƒ Magnet wire

ƒ 1 Cylindrical magnet

ƒ Alligator wires

ƒ Digital multimeter or galvanometer

PART 2 MATERIALS FOR THE WHOLE CLASS TO SHARE

ƒ At least 1 large tub of water, 4-5 gallons or more; clear containers are better but not necessary.

ƒ Hot glue guns and extra glue sticks

ƒ Fine-grain sandpaper

ƒ Parafilm or other means of waterproofing

PART 3 SUGGESTED MATERIALS

ƒ Clear plastic tubing

ƒ Cylindrical magnets

ƒ Fishing line

ƒ Hot glue gun

ƒ Magnet wire

ƒ Pool noodle, Styrofoam, or other buoyant materials

ƒ Sandpaper

ƒ Fishing bobber or floats

ƒ Galvanometer

ƒ Waterproof duct tape

ƒ Repurposed plastic containers

ƒ Heavy objects for anchoring

ƒ Alligator clips

CONTINUED ON NEXT PAGE

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 11

2 Preparation

ƒ Read through each part of the activity. The first two parts build up to a design challenge activity where students design, build, and test their own wave generator models.

ƒ To save on materials and cost, you may choose to do Part 1 as a demonstration and discussion rather than individual or small group activity.

ƒ Prepare copies of the handouts as needed.

Notes

ƒ It may be helpful to have pieces of large wooden dowel or thick-walled PVC under the tub of water to facilitate a rocking motion to produce consistent waves.

ƒ One great way to waterproof your students’ models is by using a thin layer of paraffin. Parafilm is a commercially available product that is a thin layer of paraffin on waxed paper and often found in chemistry laboratories. Application of parafilm involves simultaneously stretching and wrapping the film. The wax film sticks to itself when stretched and pressed gently.

ƒ Part 3 has students designing their own models that are oriented vertically. Page 46 of the Exploring Marine Hydrokinetics Student Guide has directions for building a working model using the suggested materials. It may prove helpful if you review this activity to provide some tips or suggestions if students are struggling to design their own models.

ƒ When students are designing their vertical generator models in Part 3, it is important to keep the diameter of the coil such that the magnet is very near it. Use cylindrical magnets that are just a bit smaller than the inner diameter of the tubing you provide. While students might choose different materials or designs for their vertical generators, they will not get any measurable output if the coil of wire is too far away from the moving magnetic field.

Procedure

1. Have students read the informational text about wave energy generation in the student guide on pages 11-13. This can be assigned as homework the night before the activity.

2. Work through Part 1 with students. You may decide to do all of the steps yourself while students watch, or you may decide to have each student do one step at a time while you read or provide instructions.

3. Ask students about buoyancy and why it’s important to this model, and then to scaling up this model to utility-scale generation.

4. Introduce Part 2. Explain that students should design and build a model very similar to the flashlight that will be water-tight and float without needing the plastic bag. Allow students enough time to complete Part 2.

5. Discuss the results of Part 2 with students. Ask them to compare their results to the results of Part 1, and the functioning of Part 2 as compared to Part 1. As a class, discuss and work through issues students encountered. These issues may arise in Part 3, so it’s important to discuss them here.

6. Introduce Part 3. Show students the materials you have prepared for them to use. This part of the activity is designed to be a designtest-modify process. Remind students to change only one thing at a time when modifying their designs so they know which change(s) yield the greatest improvement.

7. When students have finished, discuss their results. Project or draw a table similar to the one shown below and allow students to identify and discuss the pros and cons of horizontal and vertical designs.

DESIGN PROS CONS

HORIZONTAL (ROCKING) GENERATOR

VERTICAL (BOBBING) GENERATOR

8. It’s simple enough to build a small-scale model such as the ones in this activity. However, scaling a model up to utility-scale generation is quite another story. Ask students what kinds of materials they think a large-scale device based on their models might employ. Discuss the problems they think engineers might encounter when scaling up to utility-scale generation.

12 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org

Rubrics For Assessment

Inquiry Explorations Rubric

This is a sample rubric that can be used with inquiry investigations and science notebooks. You may choose to only assess one area at a time, or look at an investigation as a whole. It is suggested that you share this rubric with students and discuss the different components.

SCIENTIFIC CONCEPTS SCIENTIFIC INQUIRY DATA/OBSERVATIONS CONCLUSIONS

4 Written explanations illustrate accurate and thorough understanding of scientific concepts.

The student independently conducts investigations and designs and carries out his or her own investigations.

Comprehensive data is collected and thorough observations are made. Diagrams, charts, tables, and graphs are used and labeled appropriately. Data and observations are presented clearly and neatly with appropriate labels.

The student clearly communicates what was learned and uses strong evidence to support reasoning. The conclusion includes application to real life situations.

3 Written explanations illustrate an accurate understanding of most scientific concepts.

The student follows procedures accurately to conduct given investigations, begins to design his or her own investigations.

2 Written explanations illustrate a limited understanding of scientific concepts.

1 Written explanations illustrate an inaccurate understanding of scientific concepts.

The student may not conduct an investigation completely, parts of the inquiry process are missing.

The student needs significant support to conduct an investigation.

Culminating Project Rubric

Necessary data is collected. Observations are recorded. Diagrams, charts, tables, and graphs are used appropriately most of the time. Data is presented clearly, and neatly.

Some data is collected. The student may lean more heavily on observations. Diagrams, charts, tables, and graphs may be used inappropriately, have some missing information, or are labeled without 100% accuracy.

Data and/or observations are missing or inaccurate.

This rubric may be used for any group work you ask the students to complete.

The student communicates what was learned and uses some evidence to support reasoning.

The student communicates what was learned but is missing evidence to support reasoning.

The conclusion is missing or inaccurate.

CONTENT ORGANIZATION ORIGINALITY WORKLOAD

4 Project covers the topic indepth with many details and examples.

Subject knowledge is excellent.

3 Project includes essential information about the topic. Subject knowledge is good.

2 Project includes essential information about the topic, but there are 1-2 factual errors.

1 Project includes minimal information or there are several factual errors.

Content is very well organized and presented in a logical sequence.

Content is logically organized.

Content is logically organized with a few confusing sections.

There is no clear organizational structure, just a compilation of facts.

Project shows much original thought. Ideas are creative and inventive.

The workload is divided and shared equally by all members of the group.

Project shows some original thought. Work shows new ideas and insights.

The workload is divided and shared fairly equally by all group members, but workloads may vary.

Project provides essential information, but there is little evidence of original thinking.

Project provides some essential information, but no original thought.

The workload is divided, but one person in the group is viewed as not doing a fair share of the work.

The workload is not divided, or several members are not doing a fair share of the work.

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 13

MHK Instructions

Bingo is a great icebreaker for a NEED workshop or conference. As a classroom activity, it also makes a great introduction to an energy unit.

2Preparation

ƒ 5 minutes

Time

ƒ 45 minutes

Bingos are available on several different topics. Check out these resources for more bingo options!

ƒ Biomass Bingo—Energy Stories and More

ƒ Change a Light Bingo—Energy Conservation Contract

ƒ Coal Bingo—Coal guides

ƒ Energy Bingo—Energy Games and Icebreakers

ƒ Energy Efficiency Bingo— School Energy Experts and School Energy Managers

ƒ Hydrogen Bingo—H2 Educate

ƒ Hydropower Bingo — Hydropower guides

ƒ Nuclear Energy Bingo— Nuclear guides

ƒ Oil and Natural Gas Bingo— Oil and Natural Gas guides

ƒ Science of Energy Bingo— Science of Energy guides

ƒ Solar Bingo—Solar guides

ƒ Transportation Bingo— Transportation guides

ƒ Wind Energy Bingo—Wind Energy Guides

BINGO

Get Ready

Duplicate as many MHK Bingo sheets (found on page 32 of the Teacher Guide) as needed for each person in your group. In addition, decide now if you want to give the winner of your game a prize and what the prize will be.

Get Set

Pass out one MHK Bingo sheet to each member of the group.

Go

PART ONE: FILLING IN THE BINGO SHEETS

Give the group the following instructions to create bingo cards:

ƒ This bingo activity is very similar to regular bingo. However, there are a few things you’ll need to know to play this game. First, please take a minute to look at your bingo sheet and read the 16 statements at the top of the page. Shortly, you’ll be going around the room trying to find 16 people about whom the statements are true so you can write their names in one of the 16 boxes.

ƒ When I give you the signal, you’ll get up and ask a person if a statement at the top of your bingo sheet is true for them. If the person gives what you believe is a correct response, write the person’s name in the corresponding box on the lower part of the page. For example, if you ask a person question “D” and they give you what you think is a correct response, then go ahead and write the person’s name in box D. A correct response is important because later on, if you get bingo, that person will be asked to answer the question correctly in front of the group. If they can’t answer the question correctly, then you lose bingo. So, if someone gives you an incorrect answer, ask someone else! Don’t use your name for one of the boxes or use the same person’s name twice.

ƒ Try to fill all 16 boxes in the next 20 minutes. This will increase your chances of winning. After the 20 minutes are up, please sit down and I will begin asking players to stand up and give their names. Are there any questions? You’ll now have 20 minutes. Go!

ƒ During the next 20 minutes, move around the room to assist the players. Every five minutes or so tell the players how many minutes are remaining in the game. Give the players a warning when just a minute or two remains. When the 20 minutes are up, stop the players and ask them to be seated.

PART TWO: PLAYING BINGO

Give the class the following instructions to play the game:

ƒ When I point to you, please stand up and in a LOUD and CLEAR voice give us your name. Now, if anyone has the name of the person I call on, put a big “X” in the box with that person’s name. When you get four names in a row—across, down, or diagonally—shout “Bingo!” Then I’ll ask you to come up front to verify your results.

ƒ Let’s start off with you (point to a player in the group). Please stand and give us your name. (Player gives name. Let’s say the player’s name was “Joe.”) Okay, players, if any of you have Joe’s name in one of your boxes, go ahead and put an “X” through that box.

ƒ When the first player shouts “Bingo,” ask them to come to the front of the room. Ask them to give their name. Then ask them to tell the group how their bingo run was made, e.g., down from A to M, across from E to H, and so on.

14 Exploring Marine Hydrokinetics ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
CONTINUED ON NEXT PAGE

ƒ Now you need to verify the bingo winner’s results. Ask the bingo winner to call out the first person’s name on their bingo run. That player then stands and the bingo winner asks them the question which they previously answered during the 20-minute session. For example, if the statement was “can name two renewable sources of energy,” the player must now name two sources. If they can answer the question correctly, the bingo winner calls out the next person’s name on their bingo run. However, if they do not answer the question correctly, the bingo winner does not have bingo after all and must sit down with the rest of the players. You should continue to point to players until another person yells “Bingo.”

ANSWERS

A. Knows the percentage of U.S. electricity supplied by hydropower

E. Can explain what a generator does

I. Knows the source of energy that drives the water cycle

M. Can name the effect responsible for the curving of ocean and wind currents

B. Knows the unit used for distance on water and in the air

F. Knows the name for the highest part of a wave

J. Knows what energy source causes ocean waves

N. Knows the state that produces the most hydropower

C. Can name the energy transformation involved with MHK devices

G. Can name the device that captures the energy of moving water

K. Can explain the force that produces tides in the ocean

O. Can name one challenge of siting a device in ocean water

5-10%

D. Can name two types of marine or hydrokinetic energy

H. Can name the energy source that supplies most of U.S. electricity

L. Can name one factor or force responsible for ocean currents

P. Knows the name of the device that increases or decreases voltage for transportation or safe use

wave, tidal, currents, OTEC, salinity gradient

generator converts kinetic energy into electrical energy crest a turbine captures the energy of moving water natural gas produces about 40% of U.S. electricity

solar energy drives the water cycle ocean waves are caused primarily by wind tides are mostly formed by the gravitational pull of the moon wind, salinity, temperature, density, gravity, or oceanfloor

mile motion to electrical Coriolis Effect

Washington State corrosion (salt water), access, friction, etc. transformer

©2022 The NEED Project 8408 Kao Circle, Manassas, VA 20110 1.800.875.5029 www.NEED.org 15 Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
amount
rainfall nautical
depending on
of
A E I M B F J N C G K O D H L P

MHK Resources

U.S Department of Energy, Water Power Technologies Office

ƒ Marine Energy Program - https://www.energy.gov/eere/water/marine-energy-program

ƒ Marine Energy Basics - https://www.energy.gov/eere/water/marine-energy-basics

ƒ Glossary with video explanations - https://www.energy.gov/eere/water/marine-energy-glossary

ƒ Interactive Project Map - https://www.energy.gov/eere/water/water-power-technologies-office-projects-map

U.S. Department of Energy & National Renewable Energy Laboratory, Marine Energy OpenEI Portal (PRIMRE)

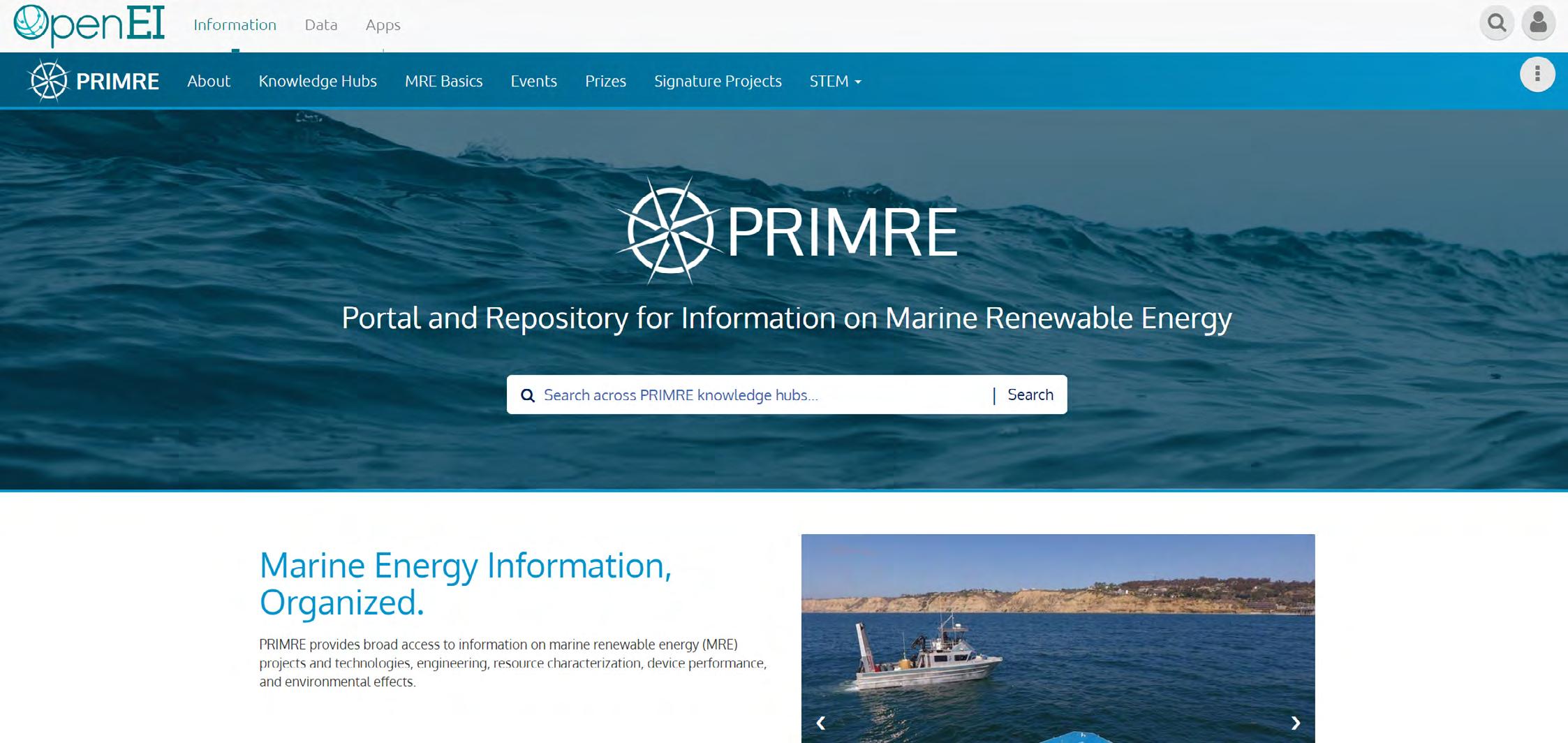

ƒ https://openei.org/wiki/PRIMRE

ƒ STEM - https://openei.org/wiki/PRIMRE/STEM

ƒ MRE Basics - https://openei.org/wiki/PRIMRE/MRE_Basics

ƒ Educator Resources - https://openei.org/wiki/PRIMRE/STEM/Resources/Educator_Resources

ƒ Renewable Energy Discovery Island (REDi) - https://openei.org/wiki/PRIMRE/REDi_Island

US. Department of Energy, Office of Energy Efficiency and Renewable Energy

ƒ Energy 101: Marine and Hydrokinetic Energy Video - https://www.energy.gov/eere/videos/energy-101-marine-and-hydrokineticenergy

U.S. Fish and Wildlife Service, Hydrokinetic Energy

ƒ https://www.fws.gov/node/265253

National Renewable Energy Laboratory, Marine Energy Research

ƒ https://www.nrel.gov/water/marine-energy.html

U.S. Department of the Interior, Bureau of Ocean Energy Management

ƒ https://www.boem.gov/renewable-energy

European Marine Energy Centre

ƒ http://www.emec.org.uk

16 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org

Multimeters, Ohm’s Law, and Measuring Electrical Values

10A JACK FOR RED (NOT USED)

VΩmA JACK FOR RED

COM JACK FOR BLACK

Any professional who works with electricity and electronics needs to know how to use a digital multimeter properly to measure voltage, current, and resistance. These values are related to each other through Ohm’s Law, which states that the voltage through a circuit or portion of a circuit is equal to the product of the current and resistance. Being able to take measurements and using Ohm’s Law to calculate unknown values allows us to understand what is going on in a DC circuit or system. Direct Current (DC) is provided by a cell, battery or a power supply, and can be shown as a one-way arrow from the negative terminal (anode) to the positive terminal (cathode) of that power source.

DIRECT CURRENT + -

Ohm’s Law is written as V=IR where V stands for voltage in Volts (V), I stands for current in Amps (A), and R stands for resistance in Ohms (Ω). Another way to write Ohm’s Law is as shown: V

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 17
OFF 750 200 µ 200 2000 µ 20 m 200 m 10 hFE 1000 200 20 2000 m 200 m 2000 K 200K 20K 2000 200 V --- V A --CE DIGITAL MULTIMETER Ω NPN PNP E E B B C E E C 10AD C V mAΩ C OM ! ! 1 0 A ma x u n fu se d 750VAC 1000VDC 200m A max 500V max DISPLAY DC VOLTAGE ROTARY SWITCH RESISTANCE AC VOLTAGE DC CURRENT
I R MASTER

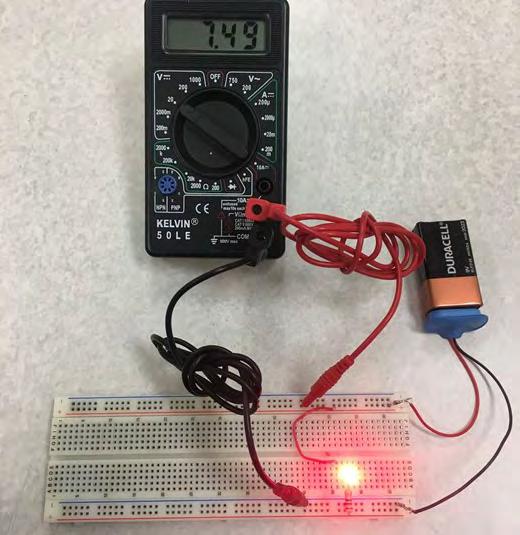

Multimeter measuring voltage across the LED and resistor. The meter reads 7.49 V under load when powering this circuit. The meter is set to the 20V DC range.

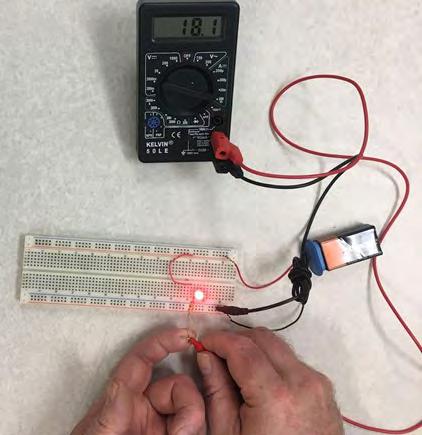

Multimeter connected in series, measuring current. The meter in this case reads 18.1 mA or milliAmperes. The meter is set to the 200 mA range.

Measuring Voltage: Voltage is measured in parallel to the load on the circuit. Place one lead on one side of the load and the other on the other side. If the meter has a negative reading, reverse the connections. If the meter shows a 1 at the far left, increase the scale one click and try again. The circuit must be powered to make this measurement.

Measuring Current: Current is measured in series with the load. Disconnect the load from the power supply and insert one lead of the multimeter. Connect the other lead of the multimeter to the power supply. If the display is negative, reverse the connection, and if there is a 1 in the far left of the display move the scale up one click.

Measuring Resistance: This is the only measurement made with the power disconnected. Touch the two leads to either side of the device or circuit segment you are measuring. The resistance scale is also used to determine whether a circuit provides a complete path for current, or circuit continuity.

The meter in set to the 2000 Ω or 2K Ω range. The resistor is 330 Ω by color code - with a gold (5%) tolerance band - so the acceptable range is between 313.5 Ω and 346.5 Ω. This resistor is slightly out of tolerance and should be replaced.

18 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org

Units and Conversions

1 Ampere = 1 Coulomb / second

1 Coulomb = 6.24 x 1018 electrons; if electrons were grains of sand, one Coulomb would fill a triple-axle dump truck.

1 Volt = 1 Joule / Coulomb; Joule is the SI unit for energy. 1 Joule = 1 kg m2 / s

1 Ohm = 1 Volt / Ampere

Each of these units may be modified by prefixes:

Prefix Symbol Power of 10

Terra T 1 x 1012

Giga G 1 x 109

Mega M 1 x 106

kilo k 1 x 103

Larger than 1

Smaller than 1 milli m 1 x 10-3

centi c 1 x 10-2

micro μ 1 x 10-6

nano n 1 x 10-9

pico p 1 x 10-12

It is important to pay attention to the prefixes on a meter’s scale; for example, if the scale is set to “20 mA” and your reading is 3.47, you are measuring 3.47 mA and need to make sure you are calculating with that measurement appropriately. 3.47 mA = 0.00347 A. There are more prefixes than those listed in the table above; however, these are the most common.

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 19
MASTER

A. Knows the percentage of U.S. electricity supplied by hydropower

E. Can explain what a generator does

I. Knows the source of energy that drives the water cycle

M. Can name the effect responsible for the curving of ocean and wind currents

B. Knows the unit used for distance on water and in the air

F. Knows the name for the highest part of a wave

J. Knows what energy source causes ocean waves

N. Knows the state that produces the most hydropower

C. Can name the energy transformation involved with MHK devices

G. Can name the device that captures the energy of flowing water

K. Can explain the force that produces tides in the ocean

O. Can name one challenge of siting a device in ocean water

D. Can name two types of marine or hydrokinetic energy

H. Can name the energy source that supplies most of U.S. electricity

L. Can name one factor or force responsible for ocean currents

P. Knows the name of the device that increases or decreases voltage for transportation or safe use

20 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org
NAME NAME NAME NAME NAME NAME
NAME NAME
NAME NAME NAME NAME NAME A E I M B F J N C G K O D H L P
MHK
NAME NAME
NAME
BINGO

NEED’s Online Resources

NEED’S SMUGMUG GALLERY

http://need-media.smugmug.com/

On NEED’s SmugMug page, you’ll find pictures of NEED students learning and teaching about energy. Would you like to submit images or videos to NEED’s gallery? E-mail info@NEED.org for more information.

Also use SmugMug to find these visual resources:

Online Graphics Library

Would you like to use NEED’s graphics in your own classroom presentations, or allow students to use them in their presentations? Download graphics for easy use in your classroom.

AWESOME EXTRAS

Looking for more resources? Our Awesome Extras page contains PowerPoints, animations, and other great resources to compliment what you are teaching in your classroom! This page is available under the Educators tab at www.NEED.org/educators/ awesome-extras/.

The Blog

We feature new curriculum, teacher news, upcoming programs, and exciting resources regularly. To read the latest from the NEED network, visit www.NEED.org/about-need/news/.

Evaluations and Assessment

Building an assessment? Searching for standards? Check out our Evaluations page for a question bank, NEED’s Energy Polls, sample rubrics, links to standards alignment, and more at www.NEED.org/educators/evaluations-assessment/.

E-Publications

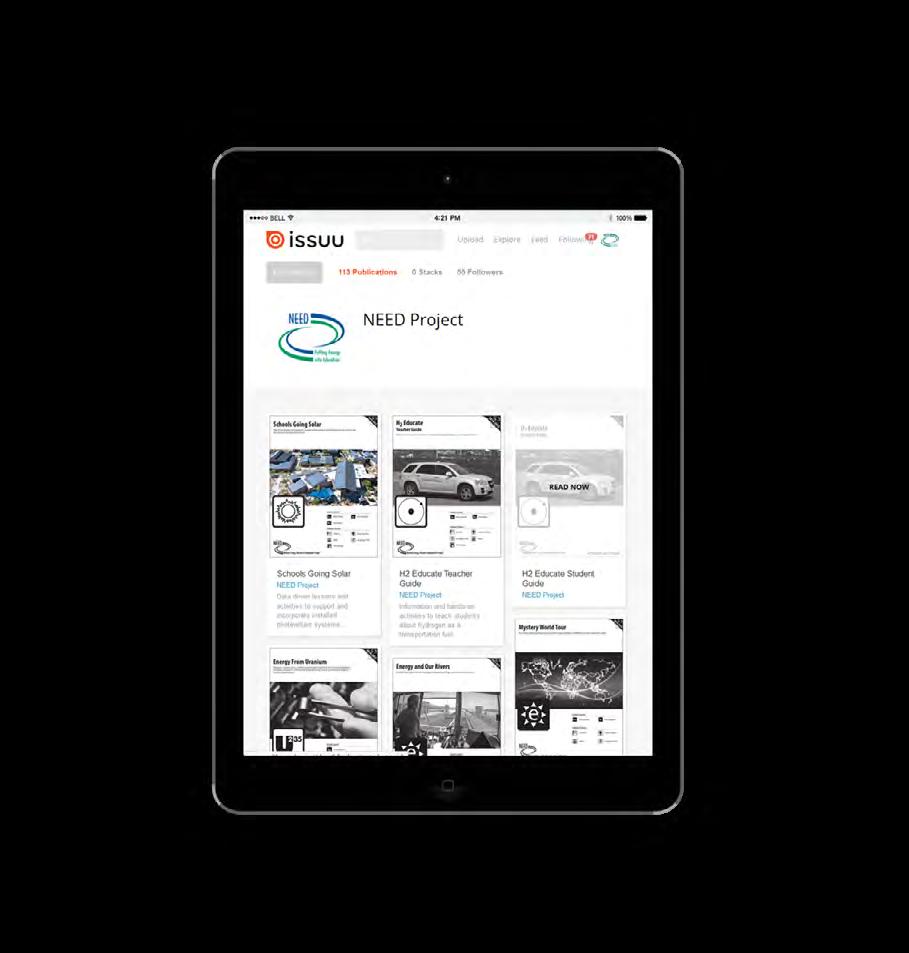

The NEED Project offers e-publication versions of various guides for in-classroom use. Guides that are currently available as an e-publication can be found at www.issuu.com/theneedproject.

SOCIAL MEDIA

Stay up-to-date with NEED. “Like” us on Facebook! Search for The NEED Project, and check out all we’ve got going on!

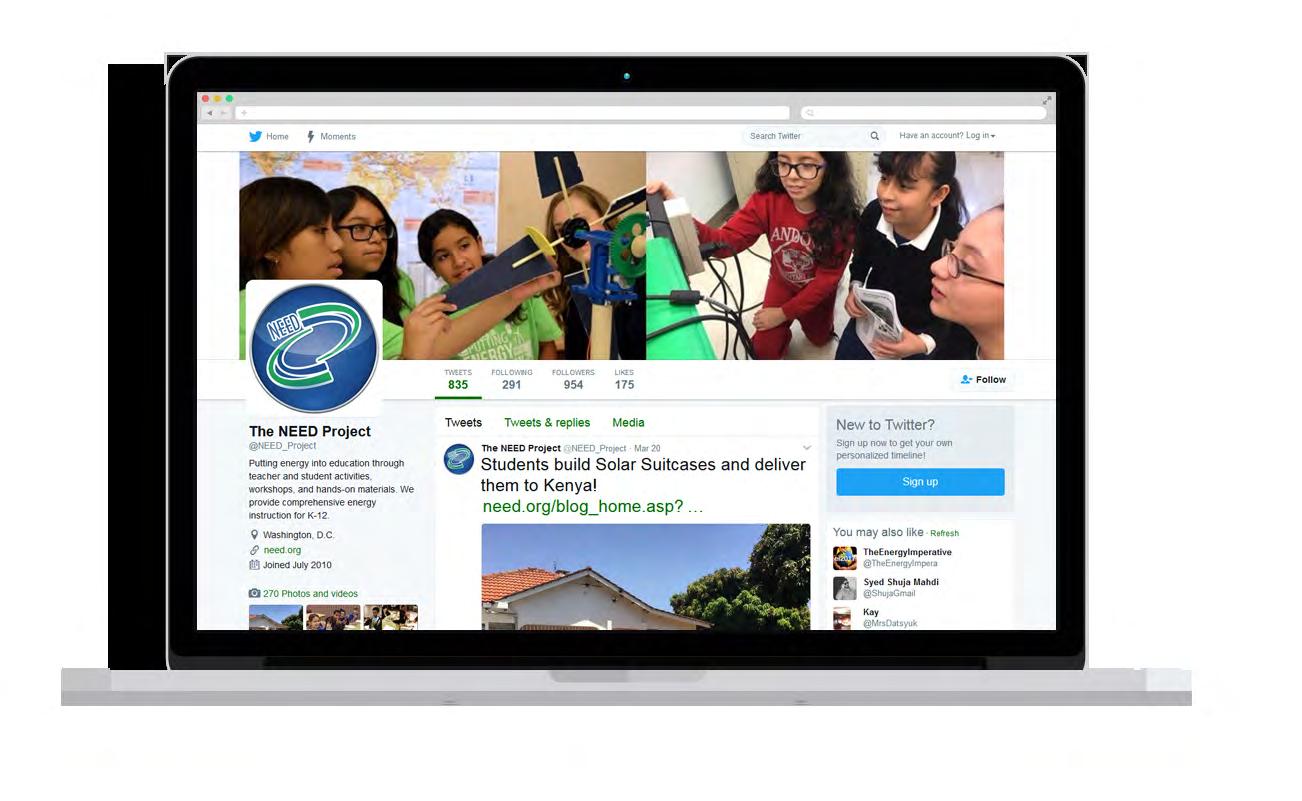

Follow us on Twitter. We share the latest energy news from around the country, @NEED_Project.

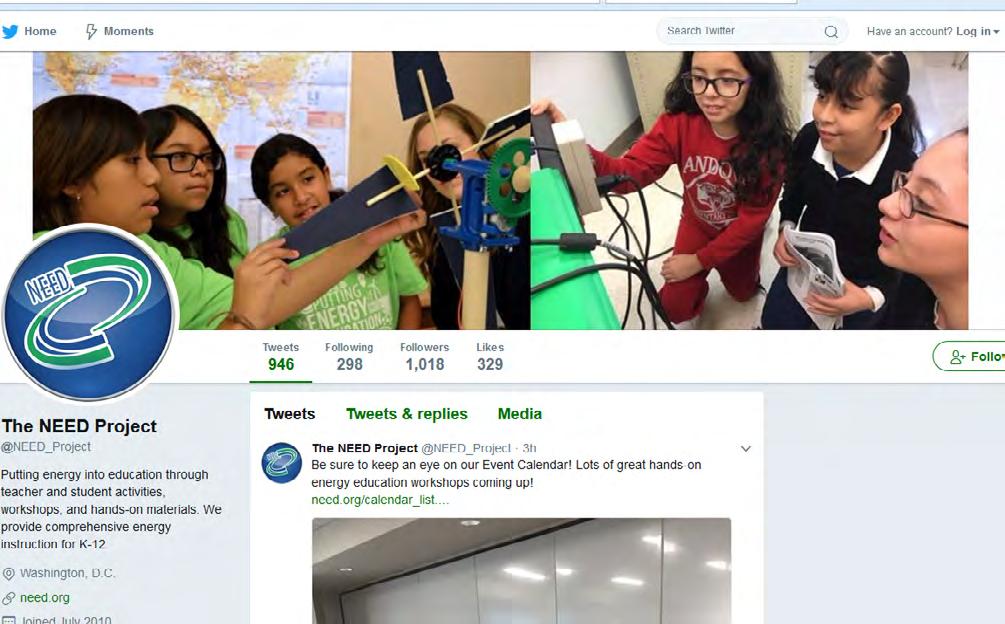

Follow us on Instagram and check out the photos taken at NEED events, instagram.com/theneedproject.

Follow us on Pinterest and pin ideas to use in your classroom, Pinterest.com/NeedProject.

Subscribe to our YouTube channel! www.youtube.com/user/NEEDproject

NEED Energy Booklist

Looking for cross-curricular connections, or extra background reading for your students? NEED’s booklist provides an extensive list of fiction and nonfiction titles for all grade levels to support energy units in the science, social studies, or language arts setting. Check it out at www.NEED.org/booklist/

U.S. Energy Geography

Maps are a great way for students to visualize the energy picture in the United States. This set of maps will support your energy discussion and multi-disciplinary energy activities. Go to www.need.org/resources/ energy-in-society/?PortfolioCats29 to see energy production, consumption, and reserves all over the country!

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org

ORDER MATERIALS AND CURRICULUM ONLINE!

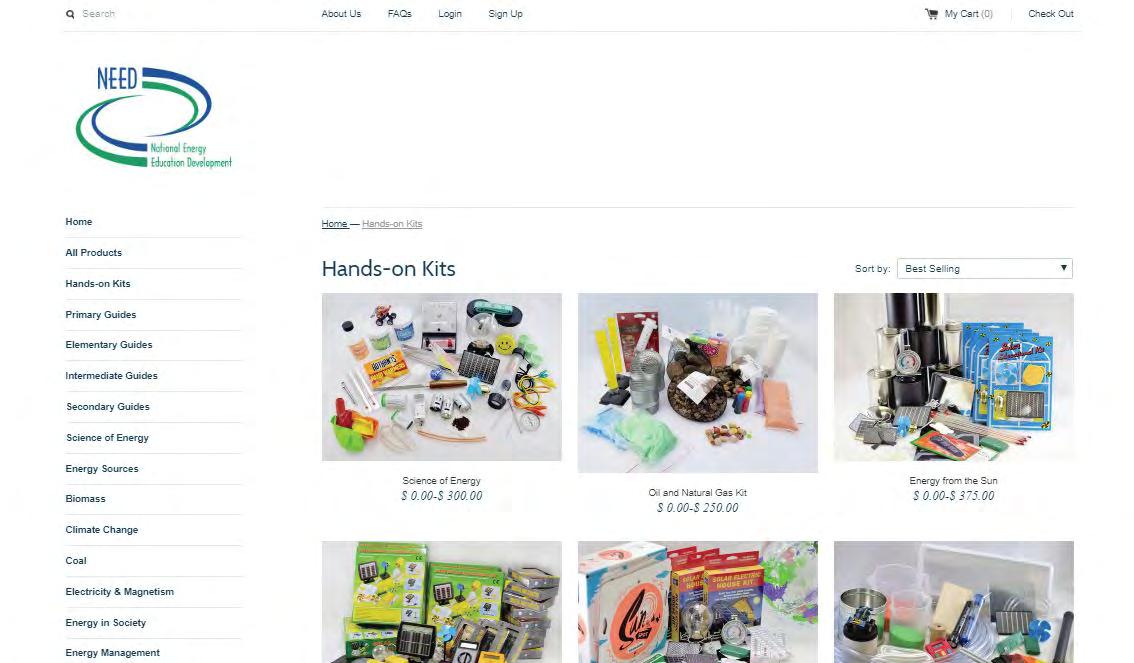

Anemometers and solar cells and light meters — oh my! Getting your guides and kits (or refills) has never been easier! Check out NEED’s official online store at shop.NEED.org.

22 ©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org

Other

Your Future in Marine Hydrokinetics Evaluation Form

©2023 The NEED Project Your Future in Marine Hydrokinetics Teacher Guide www.NEED.org 23
State: ___________ Grade Level: ___________ Number of Students: __________ 1. Did you conduct the entire unit?  Yes  No 2. Were the instructions clear and easy to follow?  Yes  No 3. Did the activities meet your academic objectives?  Yes  No 4. Were the activities age appropriate?  Yes  No 5. Were the allotted times sufficient to conduct the activities?  Yes  No 6. Were the activities easy to use?  Yes  No 7. Was the preparation required acceptable for the activities?  Yes  No 8. Were the students interested and motivated?  Yes  No 9. Was the energy knowledge content age appropriate?  Yes  No 10. Would you teach this unit again?  Yes  No Please explain any ‘no’ statement below. How would you rate the unit overall?  excellent  good  fair  poor How would your students rate the unit overall?  excellent  good  fair  poor What would make the unit more useful to you?
Comments: Please fax or mail to: The NEED Project 8408 Kao Circle FAX: 1-800-847-1820 Manassas, VA 20110 Email: info@need.org

AES

AES Clean Energy Development

American Electric Power Foundation

Appalachian Voices

Arizona Sustainability Alliance

Baltimore Gas & Electric

Berkshire Gas - Avangrid

BP America Inc.

Bob Moran Charitable Giving Fund

Cape Light Compact–Massachusetts

Celanese Foundation

Central Alabama Electric Cooperative

The City of Cuyahoga Falls

Clean Virginia

CLEAResult

ComEd

Con uence

ConocoPhillips

Constellation

Delmarva Power and Light

Department of Education and Early Childhood

Development - Government of New

Brunswick, Canada

Dominion Energy, Inc.

Dominion Energy Charitable Foundation

DonorsChoose

East Baton Rouge Parish Schools

East Kentucky Power Cooperative

EcoCentricNow

EDP Renewables

EduCon Educational Consulting

Enel Green Power North America

ENGIE

Entergy

Eversource

Exelon

Exelon Foundation

Foundation for Environmental Education

FPL

Generac

Georgia Power

Gerald Harrington, Geologist

Government of Thailand–Energy Ministry

Greater New Orleans STEM

GREEN Charter Schools

Green Power EMC

Guilford County Schools–North Carolina

Honeywell

National Sponsors and Partners

Iowa Governor’s STEM Advisory CouncilScale Up

Iowa Lakes Community College

Iowa State University

Illinois Clean Energy Community Foundation

Illinois International Brotherhood of Electrical Workers Renewable Energy Fund

Independent Petroleum Association of New Mexico

Kansas Corporation Energy Commission

Kansas Energy Program – K-State Engineering Extension

Katy Independent School District

Kentucky Environmental Education Council

Kentucky O ce of Energy Policy

Kentucky Power–An AEP Company

Liberty Utilities

Llano Land and Exploration

Louisiana State Energy O ce

Louisiana State University – Agricultural Center

LUMA

Marshall University

Mercedes Benz USA

Minneapolis Public Schools

Mississippi Development Authority–Energy Division

Motus Experiential

National Fuel

National Grid

National Hydropower Association

National Ocean Industries Association

National Renewable Energy Laboratory

NC Green Power

Nebraskans for Solar

NextEra Energy Resources

Nicor Gas

NCi – Northeast Construction

North Shore Gas

O shore Technology Conference

Ohio Energy Project

Oklahoma Gas and Electric Energy Corporation

Omaha Public Power District

Paci c Gas and Electric Company

PECO

Peoples Gas

Pepco

Performance Services, Inc.

Permian Basin Petroleum Museum

Phillips 66

PowerSouth Energy Cooperative

Prince George’s County O ce of Human Resource Management (MD)

Prince George’s County O ce of Sustainable Energy (MD)

Providence Public Schools

Quarto Publishing Group

The Rapha Foundation

Renewable Energy Alaska Project

Rhoades Energy

Rhode Island O ce of Energy Resources

Salal Foundation/Salal Credit Union

Salt River Project

Salt River Rural Electric Cooperative

Schneider Electric

C.T. Seaver Trust

Secure Futures, LLC

Shell

Shell Carson

SMUD

Society of Petroleum Engineers

South Carolina Energy O ce

Southern Company Gas

Snohomish County PUD

SunTribe Solar

United Way of Greater Philadelphia and Southern New Jersey

Unitil

University of Iowa

University of Louisville

University of North Carolina

University of Northern Iowa

University of Rhode Island

U.S. Department of Energy

U.S. Department of Energy–O ce of Energy

E ciency and Renewable Energy

U.S. Department of Energy - Solar Decathlon

U.S. Department of Energy - Water Power Technologies O ce

U.S. Department of Energy–Wind for Schools

U.S. Energy Information Administration

United States Virgin Islands Energy O ce

Virginia Cooperative Extension

We Care Solar

West Virginia O ce of Energy

West Warwick Public Schools

©2023 The NEED Project 8408 Kao Circle, Manassas, VA 20110 1.800.875.5029 www.NEED.org

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
