TRUSTED HEAT TRANSFER
PRODUCT BROCHURE

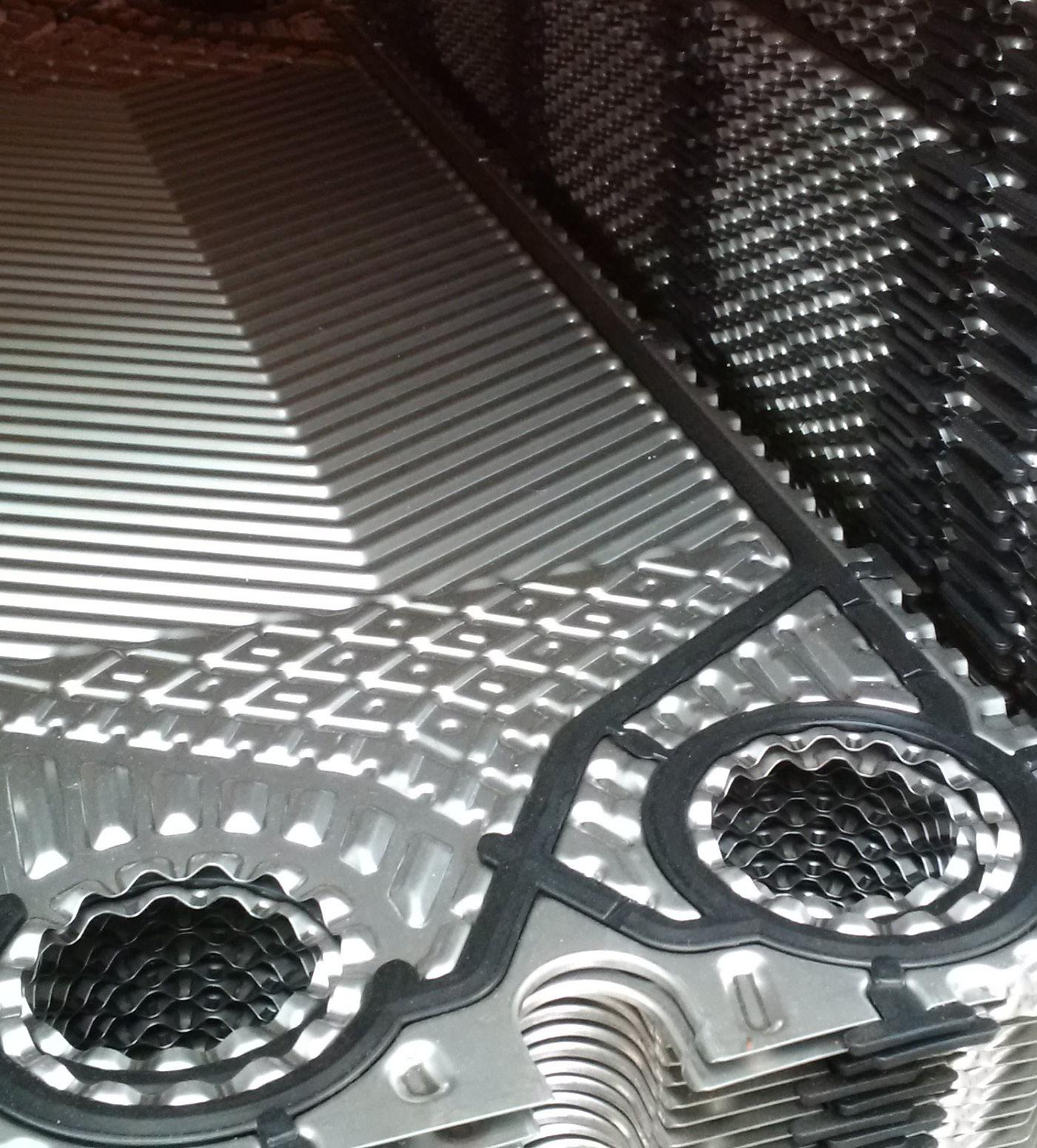

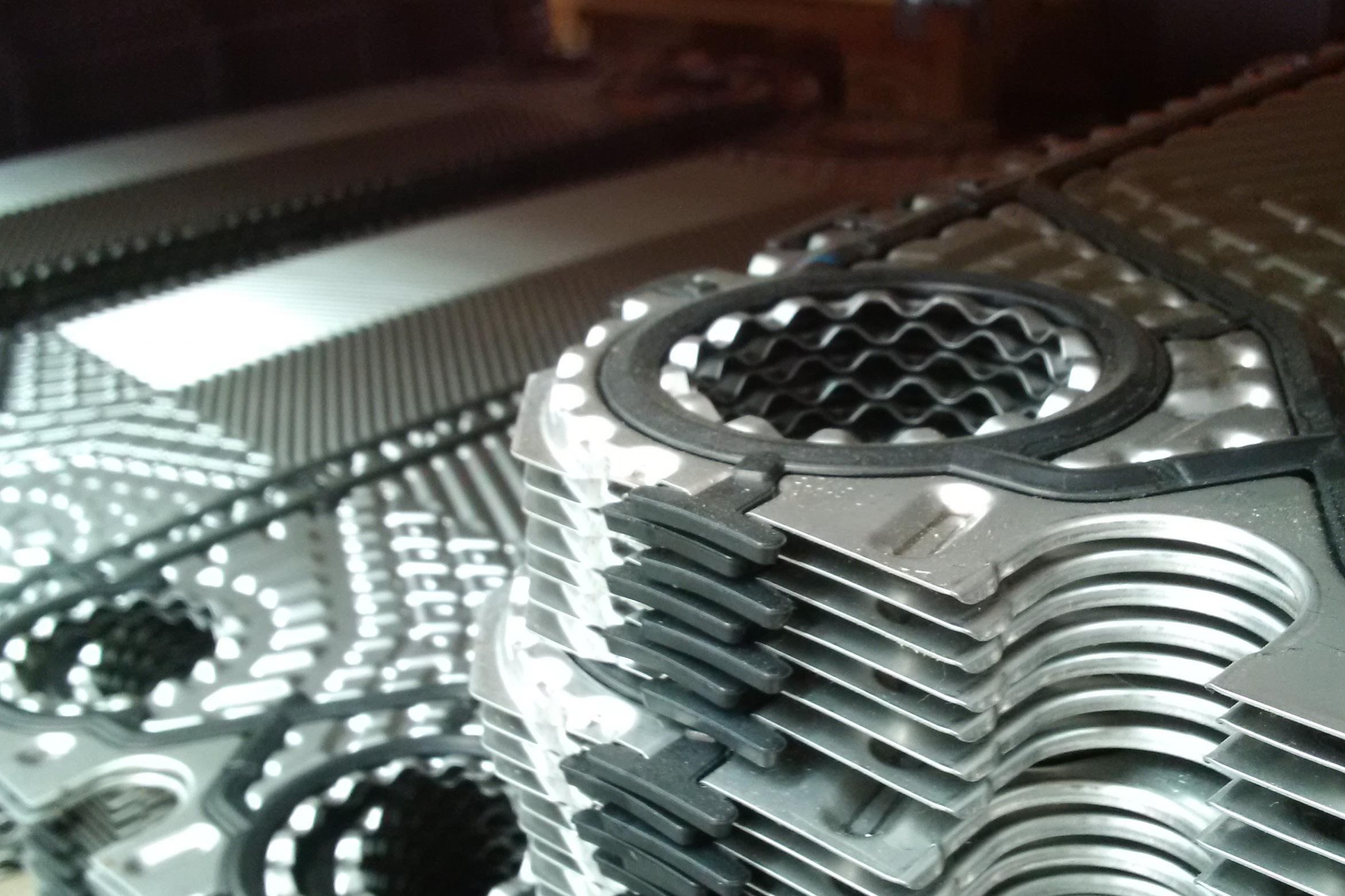

PLATE HEAT EXCHANGER GASKETS
OEM QUALITY
HEAT EXCHANGER GASKETS BRANDS WE STOCK

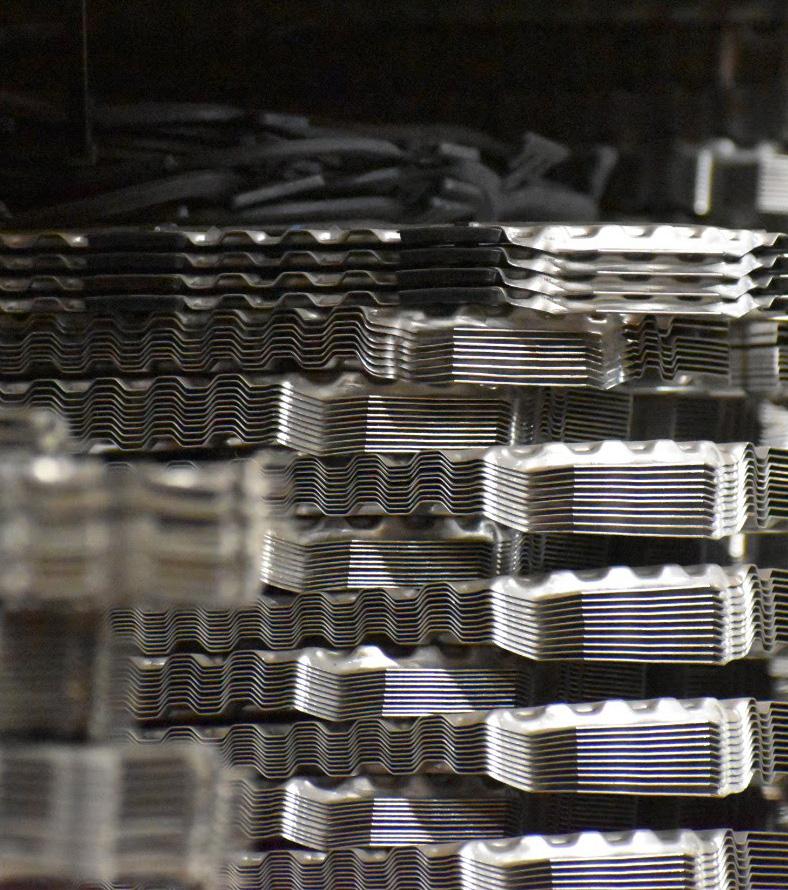

Teralba stocks a range of non-OEM gaskets with OEM quality standards. We offer genuine savings onnew plates and gaskets for all brands including Alfa Laval, APV, GEA, Tranter, ARES, Mueller and many others in the Australian market.

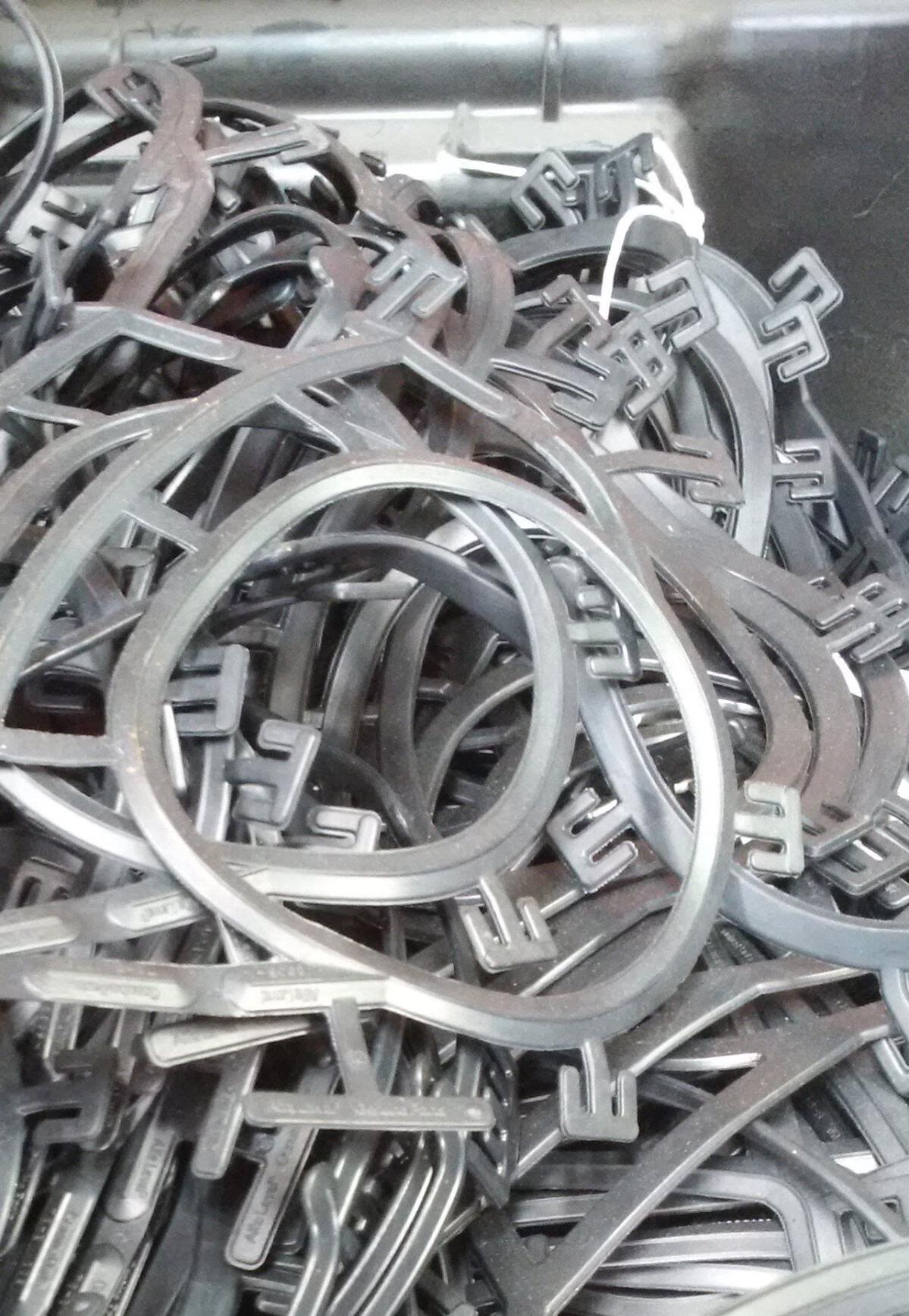

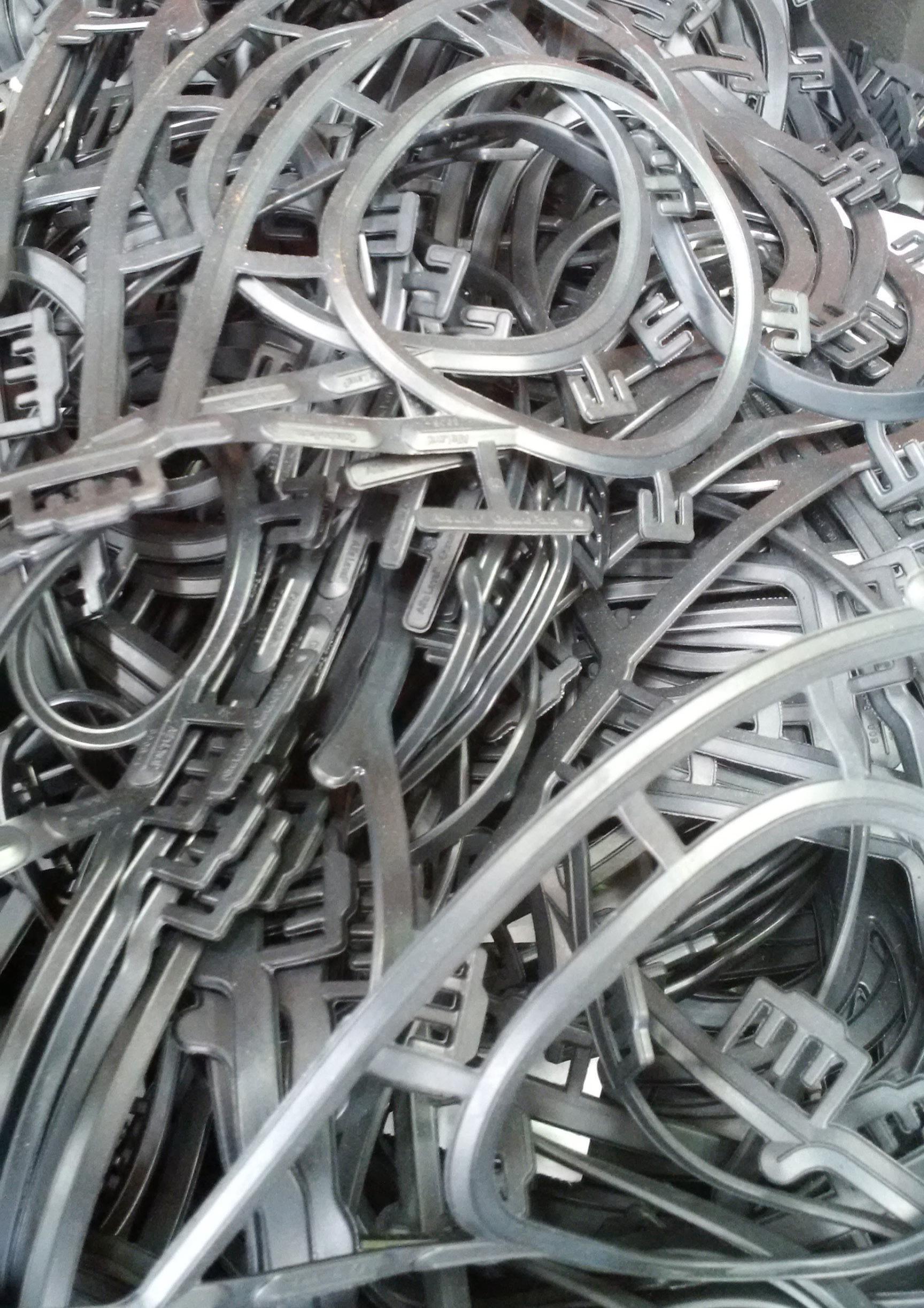

Since the majority of plate heat exchanger gaskets are manufactured from perishable rubber polymers, they require replacing from time to time as the gasket loses the ability to seal through hardening and deterioration. With over 40 years experience we understand that the correct polymer is crucial to the effective operation of the plate heat exchanger therefore ensuring the integrity of your heat exchangers performance.
• ALFA LAVAL
• Tetra Pak
• APV
• Tranter
• Hisaka
• Swep
• GEA
• Mueller
• ARES
MATERIAL TYPES & COMMON APPLICATIONS
There are many gasket material types for sealing plate heat exchangers some of which are in the below tabe with their typical application. This is only a guide and other material types and variants are available for specific applications. Please contact us and one of our professional team will ensure the correct materials is seleceted for your application.
Elastomer & Temperature
FKM Fluorocarbon, Viton ®
-40°C to +204°C
Compound Specific
FKM Fluorocarbon G, Viton®GF
-40 C to +204 C
Compound Specific
Ethylene Propylene (EPDM)
-54 C to +160 C
Ethylene Propylene (EPDMF)
-54 C to +160 C
Food Grade
Highly Saturated Nitrile (HSN, HNBR)
-26 C to +160 C
Neoprene
-40 C to +135 C
Nitrile (Buna-N or NBR)
-40 C to +135 C
Nitrile (Low-Temp)
-65 C to +120 C
Including food grades
Silicone
-65 C to +260 C
Applications
Featuring excellent resistance to petroleum products and solvents, with good high temperature ad low compression set characteristics. For use with wide chemical exposure situtations, and with low gas permeability, it is also suited for hard vacuum service.
High performance grades with resistance to petroleum products and solvents, with good high temperature and low compression set characteristics. For use with wide chemical exposure situations, and with low gas permeability, it is also suited for hot water and steam.
Ethylene Propylene has excellent ozone and chemical resistance characteristics. Generally used in automotive brake systems.
Very readily used in the food industry for CIP to steam applications. EPDMF has good resistance to alkalis, cleaning chemicals. Also used in hot food processes with foods not containing fats or oils.
A nitrile elastomer with excellent resistance to petroleum oils, and sour gas. With the extended temperature range, HSN is becoming a preferred compound in the oil patch.
Due to its excellent resistance to freon and ammonia, Neoprene is widely accepted as a preferred elastomer for refrigeration seals.
Presently the seal industry’s most widely used elastomer. Nitrile combines excellent resistance to petroleum-based oils and fuels, silicone greases, hydraulic fluids, water and alcohols. It has a good balance of working properties such as low compression set, high tensile strength, high abrasion resistance, combined with a low cost.
Typically used in HVAC condenser heat exchangers.
Widely used in the Food Industry for general sealing applications especially for food oil-based products.
Silicone elastomer is resistant to high, dry heat, in primarily static applications. It has low compression set characteristics and a wide temperature range.
Use With These Fluids
Petroleum oils, gasoline, transmission fluid
petroleum oils, gasoline, transmission fluid, hot water and steam
brake fluids, refrigerants, steam
CIP fluids, Fruit juices, alkali-based foods, sauces
petroleum oils, H2S, CO2
refrigerants, alcohol, ozone
Do Not Use With These Fluids
Acetone, H2S, hot water, amines, alkalis
Concentrated alkalis
petroleum oils, diester lubricants
Vegetable oils, fatty foods, oil based foods e.g. mayonnaise and dressings
brake fluid
petroleum oils, Toluene
petroleum oils, water, hydraulic oils
vegetable oil, mayon naise brake fluid, ketones, phosphate esters, Steam
dry heat, alcohol, vegetable oil
petroleum oils & fuels
ACCU-THERM PHE GASKETS TO SUIT
ACCU-THERM PHE GASKETS TO SUIT APV-SPX MODELS
ACCU-THERM PHE GASKETS TO SUIT TRANTER MODELS
ACCU-THERM PHE GASKETS TO SUIT SWEP MODELS
ACCU-THERM PHE
GASKETS TO
SUIT MUELLER MODELS
ACCU-THERM PHE GASKETS TO SUIT GEA MODELS
A
OUR CAPABILITIES
• Heat Exchanger repairs
• Process equipment repairs
• Valve repairs and replacement
• Gasket replacement
• OEM Spare parts
• Hydrostatic / integrity testing
• Critical quality welding
• Specialised fittings
• Installations
• Preventative maintenance and repair services
• Heat Exchanger Performance Validating
SPECIALIST AREAS
• Breweries
• Wineries
• Condiments
• Beverage Industry
• Dairy Industry
• HVAC Industry
• Pharmaceutical Industry
• Pet Food Industry
• Nuclear Industry
• Mining Industry
• Oil & Gas Industry
• Chemical Industry
SERVICING ALL BRANDS
Our team is skilled and knowledgable, continually training ans saying abreast of new developments. in the heat trasnfer industry. Design and selection programs are advanced and reliable. Sending your applocation paramenters through to Teralba is now an even simpler step towared recieving a design recommendation and quotation for the qulity equipment Teralsba is renowned for.
Teralba are holding extensive stocks of componenty and are able to respond to your needs wuith the same exxecellent servoice that has sood Teralba on its feet for close to 50 years.
Teralba will stock and assemble components at our manufactuing facility offering short lead times for new units and service to existing usnits,
Now you have at your disposal a one stop shop for every type of plate and tube heat exchanger that are subject of continuing research and development to give you the best performing selection.
All our dedicated team of heat exchange consultants are avalable to run selections and service your units.
