LMC Inline Flexo Folder-Gluer Series Brochure

PP Series FAST-SET FLEXO FOLDER GLUER MODEL NO.

A B

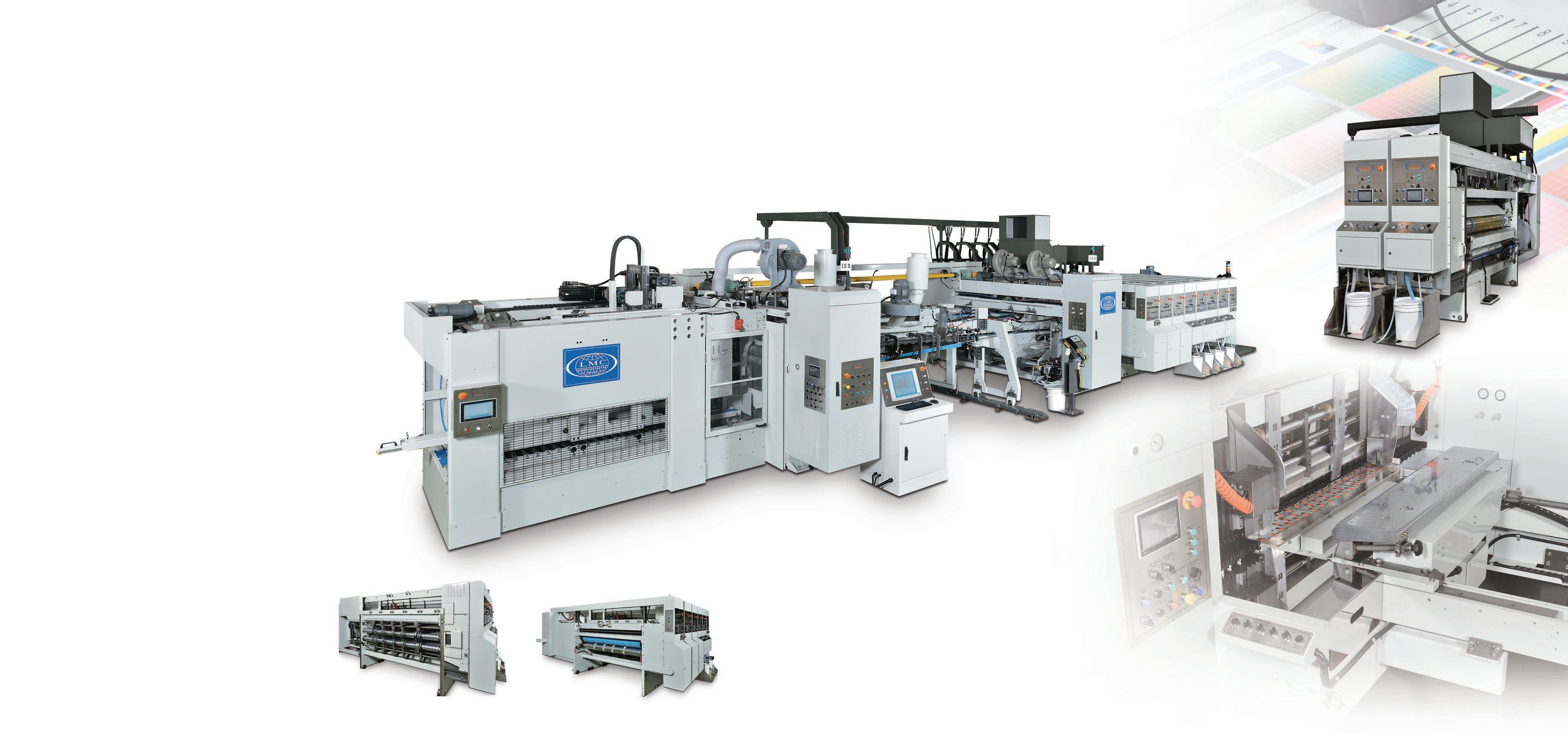

Inline Flexo Folder Gluer Set While Run & Open Close Type PP6618 FFG | PP1025 FFG | PP1227 FFG | PP1230 FFG | P1600 | P2200 Series

C D

P1600 Series

PP6618FFG

PP1025FFG

PP1227FFG

PP1230FFG

► MACHINE SIZE

INCH

(660 x 1800) 26" x 71"

(1000 x 2500) 39" x 98"

(1200 x 2700) 47" x 106"

(1200 x 3000) 47" x 118"

► SHEET LENGTH

MAX.

70.86"

98.42"

106.29"

118.11"

MIN.

18.89"

27.55"

27.55"

27.55"

MAX.

33.85"

47.24"

51.18"

57.08"

MIN.

7.87"

13.38"

13.38"

13.38"

MAX.

29.92"

37.40"

37.40"

37.40"

MIN.

3.14"

4.72"

4.72"

4.72"

MAX.

30.70"

35.43"

35.43"

35.43"

MODEL NO.

MIN.

3.93"

7.08"

7.08"

7.08"

► MACHINE SIZE ► SHEET LENGTH

► TWO PANELS

► SMALL PANEL

► LARGE PANEL

C+D ► DISTANCE BETWEEN

MIN.

8.26"

13.38"

13.38"

13.38"

E

► GLUE LAP WIDTH

MAX.

1.57"

1.96"

1.96"

1.96"

F

► BOX HEIGHT

MIN.

1.96"

1.96"

1.96"

1.96"

G

► SHEET WIDTH

MAX.

24.21"

36.81"

43.58"

43.58"

(STANDARD REGULAR FEED)

MIN.

9.44"

11.02"

12.59"

12.59"

► SHEET WIDTH (SKIP FEED)

MAX.

33.07"

53.14"

59.05"

59.05"

► PRINTING AREA

MAX.

24.88" x 66.92"

37.40" x 90.55"

43.30" x 98.42"

43.30" x 110.23"

► DIE CUTTING AREA

MAX.

23.62" x 66.92"

35.43" x 94.48"

43.30" x 102.36"

43.30" x 114.17"

► NON-FOLD SHEET

MAX.

47.24"

66.92"

66.92"

66.92"

► SQUARE BOX

MAX.

17.32"

23.62"

25.59"

28.54"

MIN.

3.93"

7.08"

7.08"

7.08"

400

320

250

250

MAX.

0.32"

0.32"

0.32"

0.32"

MIN.

0.055"

0.055"

0.055"

0.055"

FOLDING BEAMS

G

► MAXIMUM MACHINE SPEED (SHEET / MIN)

► BOARD CALIPER

P1600 Series FLEXO DIECUTTER MODEL NO.

A B

B

P1630

P1635

P1640

► MACHINE SIZE

INCH

(1600 X 2500) 66" X 98"

(1600 X 3000) 66" X 118"

(1600 X 3500) 66" X 137"

(1600 X 4000) 66" X 157"

► SHEET LENGTH

MAX.

98.42"

118.11"

137.79"

157.48"

MIN.

31.10"

31.10"

31.10"

31.10"

► SHEET WIDTH

MAX.

60.70"

60.70"

60.70"

60.70"

(STANDARD REGULAR FEED)

MIN.

18.89"

18.89"

18.89"

18.89"

► SHEET WIDTH (SKIP FEED)

MAX.

78.74"

78.74"

78.74"

78.74"

► PRINTING AREA

MAX.

59.05" x 94.48"

59.05" x 114.17"

59.05" x 133.85"

59.05" x 153.54"

► DIE CUTTING AREA

MAX.

59.05" x 94.48"

59.05" x 114.17"

59.05" x 133.85"

59.05" x 153.54"

180

180

150

120

MAX.

.39"

.39"

.39"

.59"

MIN.

.063"

.063"

.063"

.063"

► MAXIMUM MACHINE SPEED (SHEET / MIN)

QUALITY | PERFORMANCE | VALUE

P1625

► BOARD CALIPER

(60.70" Skip Feed Mode Must Be Used)

(60.70" Skip Feed Mode Must Be Used)

(60.70" Skip Feed Mode Must Be Used)

(60.70" Skip Feed Mode Must Be Used)

PP Series and P2200 Series

P2200 Series FLEXO FOLDER GLUER with G4 Folder Gluer

A B C D

► TWO PANELS

► SMALL PANEL

► LARGE PANEL

C+D ► DISTANCE BETWEEN FOLDING BEAMS

P2242

P2248

P2252

P2255

INCH

89" x 165"

89" x 188"

89" x 204"

89" x 216"

MAX.

165.35"

188.97"

204.72"

216.53"

MIN.

51.96"

51.96"

51.96"

51.96"

MAX.

78.74"

90.55"

98.42"

104.33"

MIN.

22.04"

22.04"

22.04"

22.04"

MAX.

63.77"

75.59"

83.46"

89.37"

MIN.

5.90"

5.90"

5.90"

5.90"

MAX.

71.65"

83.46"

91.33"

97.24"

MIN.

13.77"

13.77"

13.77"

13.77"

MIN.

20.47"

20.47"

20.47"

20.47"

E

► GLUE LAP WIDTH

MAX.

3.93"

3.93"

3.93"

3.93"

F

► BOX HEIGHT

MIN.

0 (3.54")

0 (3.54")

0 (3.54")

0 (3.54")

G

► SHEET WIDTH

MAX.

82.36"

82.36"

82.36"

82.36"

(STANDARD REGULAR FEED)

MIN.

25.59"

25.59"

25.59"

25.59"

► SHEET WIDTH (SKIP FEED)

MAX.

98.42"

98.42"

98.42"

(82.36" Skip Feed Mode Must Be Used)

(82.36" Skip Feed Mode Must Be Used)

98.42"

► PRINTING AREA

MAX.

82.67" x 161.41"

82.67" x 185.03"

82.67" x 200.78"

82.67" x 212.59"

► DIE CUTTING AREA

MAX.

82.67" x 161.41"

82.67" x 185.03"

82.67" x 200.78"

82.67" x 212.59"

► NON-FOLD SHEET

MAX.

137.79"

157.48"

177.16"

188.97"

► SQUARE BOX

MAX.

39.37"

45.27"

49.21"

52.16"

MIN.

18.11"

18.11"

18.11"

18.11"

100

100

100

100

MAX.

0.59"

0.59"

0.59"

0.59"

MIN.

0.063"

0.063"

0.063"

0.063"

G

► MAXIMUM MACHINE SPEED (SHEET / MIN)

► BOARD CALIPER

(82.36" Skip Feed Mode Must Be Used)

(82.36" Skip Feed Mode Must Be Used)

* ( ) For Folder Gluer size * Required power and weight may change depending on configuration (shown 3-color FFG with diecutter). * The maximum production speed varies according to the types of boxes processed. * Metric measurement is the default specifications. * LMC reserves the right to change specifications without notice.

S U N I S T H E O F F I C I A L N O R T H A M E R I C A A N D C E N T R A L A M E R I C A R E P R E S E N TAT I V E F O R TA I W A N - B A S E D L AT I T U D E M A C H I N E R Y C O R P O R AT I O N

AGENT OF LMC SALES | SERVICE AND PARTS

Open Close Type Mini P660/27" Through P2200/89"

Folder Gluer

Precreaser Pre-Crease Section ■ Computer Controlled and Motorized PreCreaser Heads Nip Adjustment ■ Computer Controlled and Motorized Lateral Head Adjustment by Yokes / Anti-Backlash Nuts ■ Two Piece Spring Loaded Bronze Block Yoke Guides ■ Solid Universal Shafts with Gearboxes Synchronize the Linear Bearing Positioning of the Upper and Lower Heads

■ Folder Guide Wheels to Control Manufacturing Joint Gap ■ Accurate Folding Using Multiple Guides and Belts Which Control the Panel During the Process ■ Extended Vacuum Area Ensures Sheet Stability Throughout Folding Section ■ Independent Speed Control of each Lower Folding Belt by AC Motor / Drive

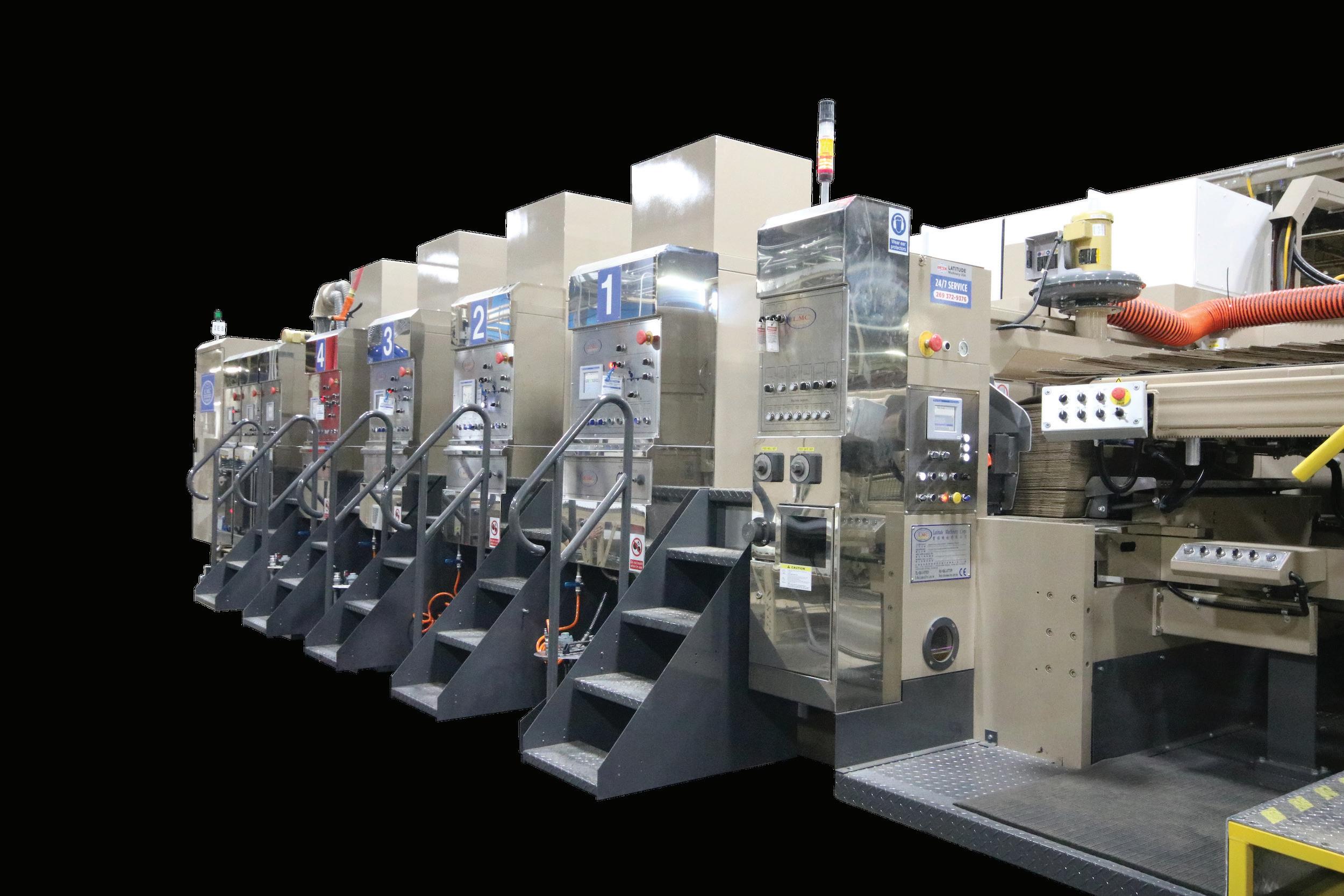

Print Section Top Print / Bottom Vacuum Transfer for P6618/P1025/P1227/P1230 Bottom Print / Top Vacuum Transfer for P1600 Bottom Print / Pull Roll System for P2200

■ Motorized Register Adjustment through Planetary Gear System and Ringfeders ■ Wheels Based Vacuum Transfer with Dampers and Variable Vacuum Control ■ Chambered Doctor Blade System and Auto-Wash while Running ■ Laser Engraved Ceramic Anilox Roll

Counter Ejector ■ Servo Motor / Drive for Bundle Separator Bars In / Out Movement ■ Servo Motor / Drive for Bundle Separator Bars Up / Down Movement ■ Servo Motor / Drive for Stacking Lift Table Movement ■ Top Loading Squaring Hopper ■ Motorized Bundle Squaring Plate ■ Motorized Back Stop In / Out (Depth) Adjustment with Digital Display ■ Bundle Delivery Belt Conveyor and Compression Conveyor ■ Motorized Lateral Adjustment

Control ■ Windows Based LMC Computer Control System Sets All Nips and Box Dimension with “Order Manager” for Easy Next Order Pre-Setting of All Axes ■ Distributed Control System with HMI Touch Screen & Diagnostic Display on Each Section ■ Ethernet for Online Support

Dual Slot / Score Section ■ Moveable Center Slot Head ■ Computer Set Up and PLC / Motorized Control of Trail, Lead and Score Head Board Caliper and Lateral Adjustments ■ Solid Universal Shafts with Gearboxes Synchronize the Linear Bearing Positioning of the Upper and Lower Heads

EVERYTHING CORRUGATED UNDER

Die–Cut Section ■ Anvil Cylinder Speed Synchronization with Die Mount Cylinder ■ Independent Anvil Cylinder Drive for Compensating Anvil Speed ■ Anvil Trimmer for Maximum Anvil Covers Life

Feeding Section ■ SUN Designed Lead Edge Feeder with SUN Transmission ■ 3 Wheel Shafts or 4 Wheel Shafts Depends on Model ■ Motorized Pull Roll Board Caliper, Backstop, Side Guides and Feed Gates Adjustment ■ Frequency Inverter Drive for Variable Vacuum Control ■ Auto–Zero for Automatic Machine Timing with One–Push Button

The content in this document was sourced from Latitude Machinery Corporation and repurposed by its North America and Central America sales and service representative, SUN Automation Group®. Revised July 2021
