OUR FARM MACHINERY RANGE OFFERS EFFICIENT DESIGN AND HIGH BUILD QUALITY FOR OUTSTANDING DURABILITY — GIVING FARMERS AND CONTRACTORS THE BEST CHOICE IN THE FIELD
MAXIMUM SUBSOIL SHATTER MINIMUM SURFACE DISTURBANCE

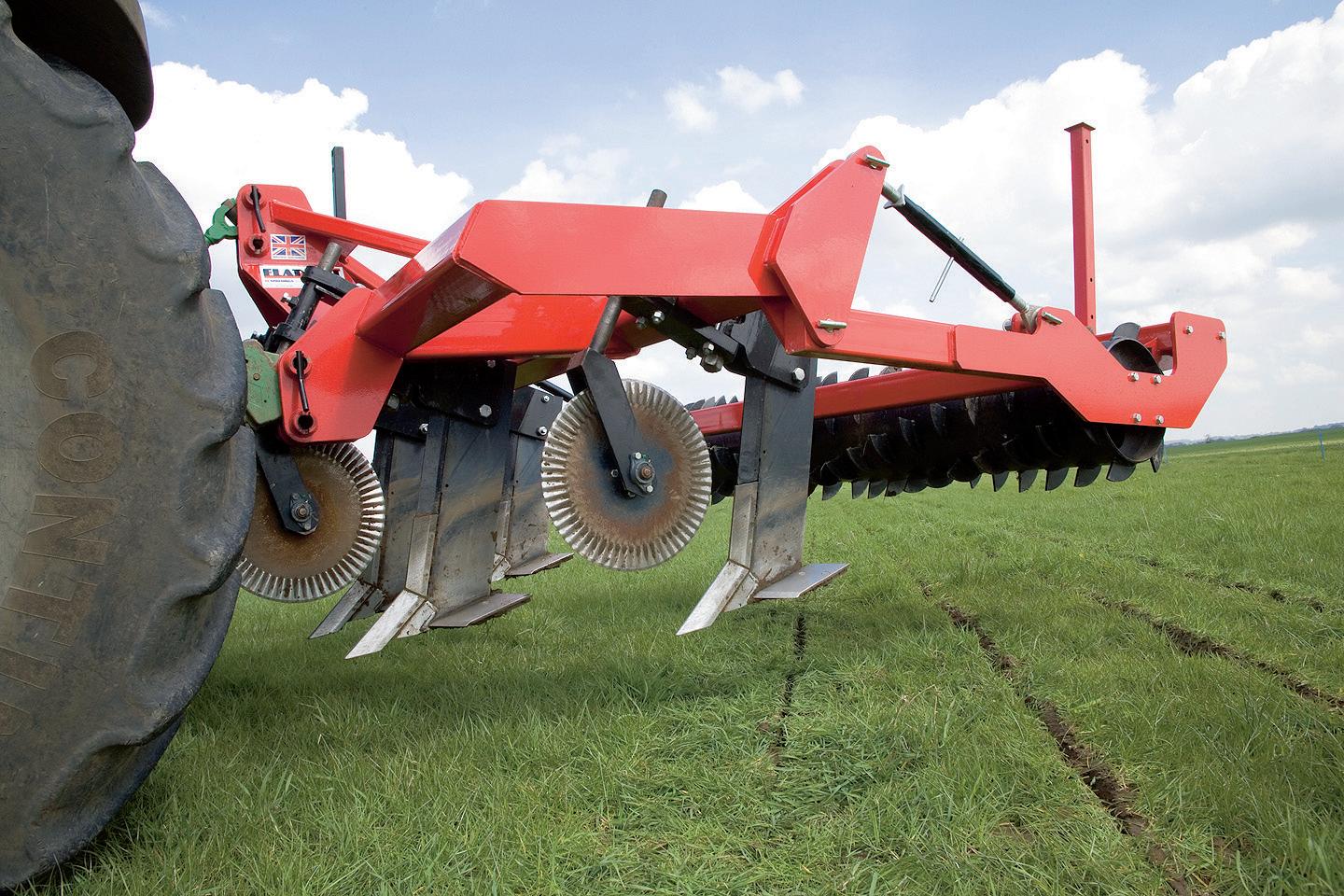

The Flatlift is designed to shatter deep compacted soils and plough pans, improving drainage and aeration whilst encouraging root growth in arable soils and grassland pasture.
Each leg has a unique swivel hinge, designed to reduce draft and reduce side stress on the leg whilst reducing shear bolt breakages.
The leg has a unique knife cutting edge design to minimise top soil disturbance. Points and shin pieces are secured with roll pins to allow quick and easy replacement. The heavy duty angled wings offer maximum shatter of compacted soils without bringing subsoil to the surface.
QUALITY ENGINEERING
Manufactured in the UK
2.85 or 3.5m FRAME WIDTH 3, 4 or 5
2.85, 3.5m Width / 3, 4, 5 LEG
SUBSOILER

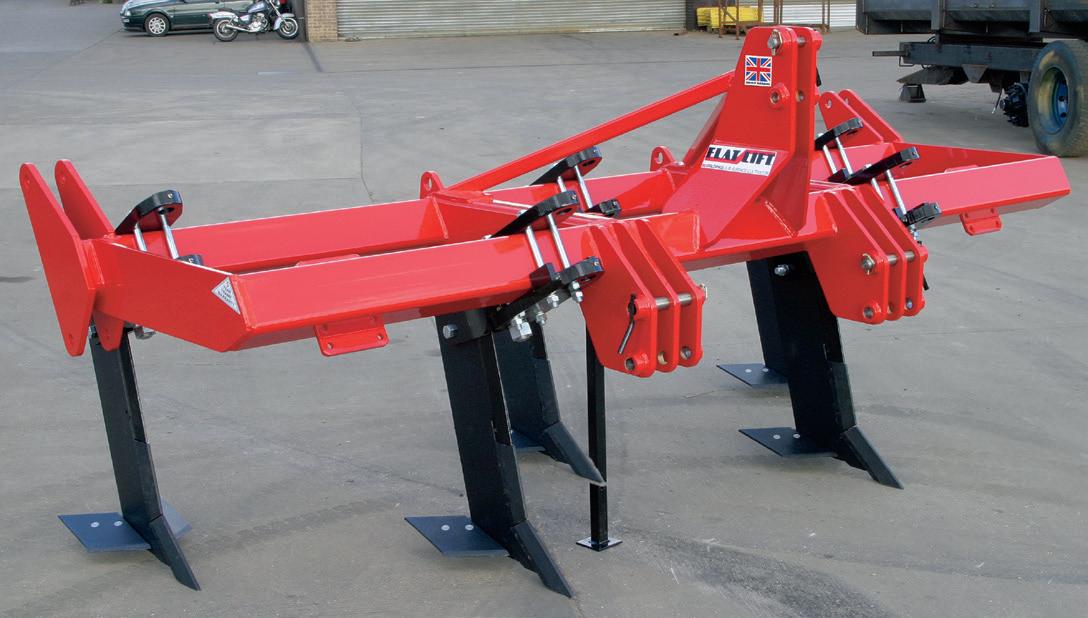

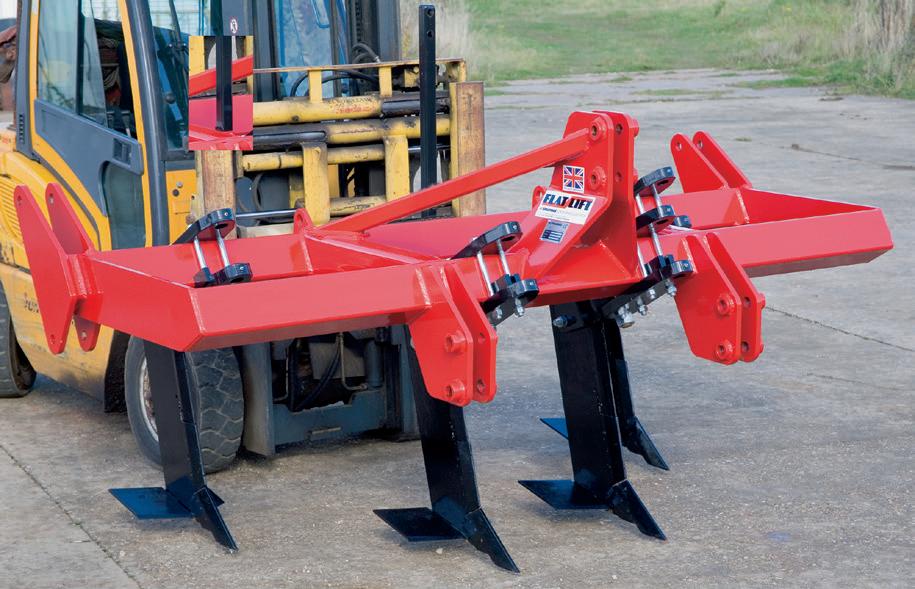

FLATLIFT SUBSOILER
Featuring heavy duty frames constructed with 10mm box section and supplied with a 5 Year frame warranty. Working depth, up to 430mm (17”)
Linkage .................... Cat .3
Delivery is extra, please ask for details.
Flatlift subsoilers can be fitted with OPTIONAL : - Depth wheels - Trash discs +
SINGLE-PASS CULTIVATION

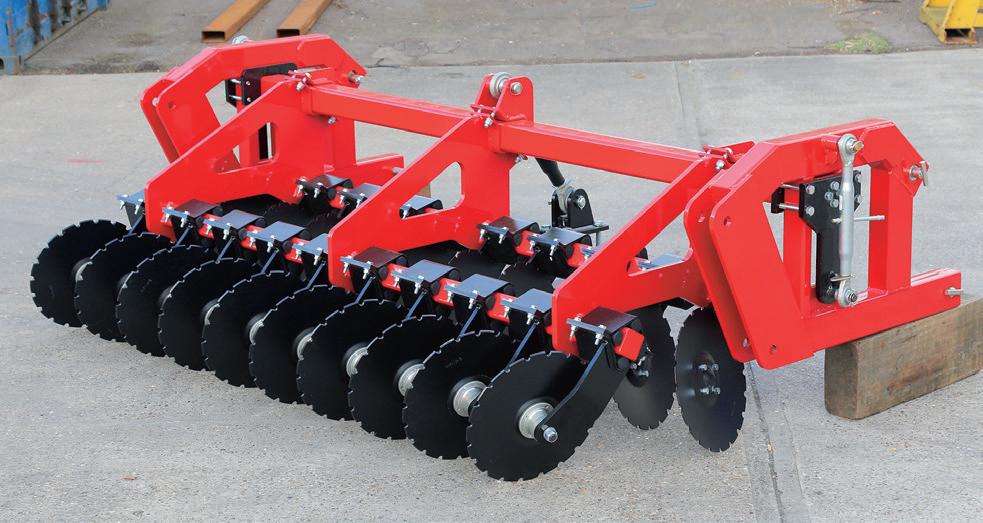

The addition of a disc cultivation tool-bar turns the standard Flatlift subsoiler into a single pass cultivator. Two rows of opposing conical cutaway discs chop and mix the loosened top soil to a depth of up to 4", efficiently mixing stubble and crop residues while maintaining a level finish.
DISC TOOL BAR
Working Depth UP TO: 100mm (4")
Spald Model To fit Disc prod no. description Frame width Assemblies
12853 Disc toolbar 2.85m 10 R.H. and 10 L.H. assemblies
12854 Disc toolbar 3.5m 12 R.H. and 12 L.H. assemblies
FLATLIFT DISC TOOLBARS

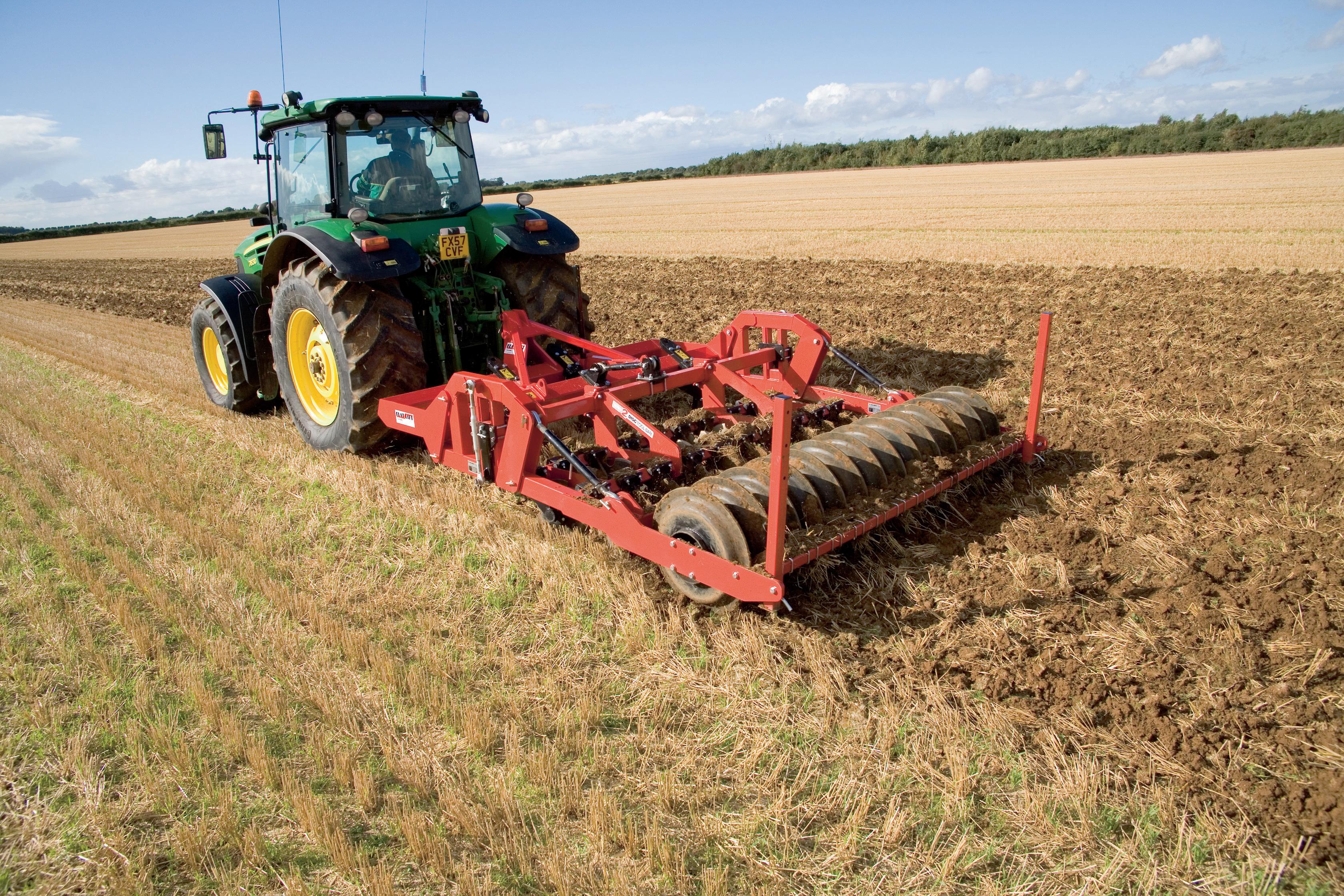

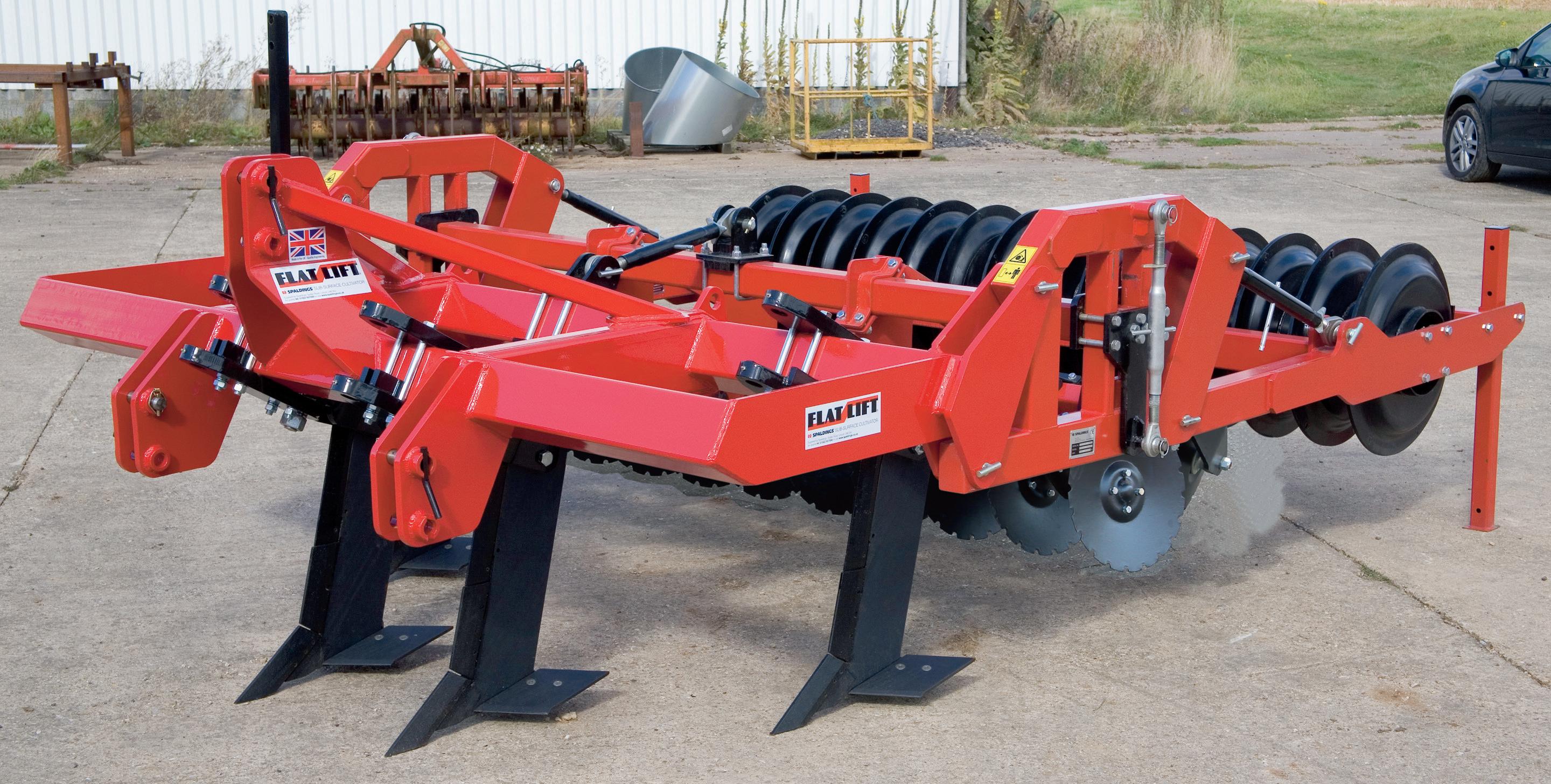

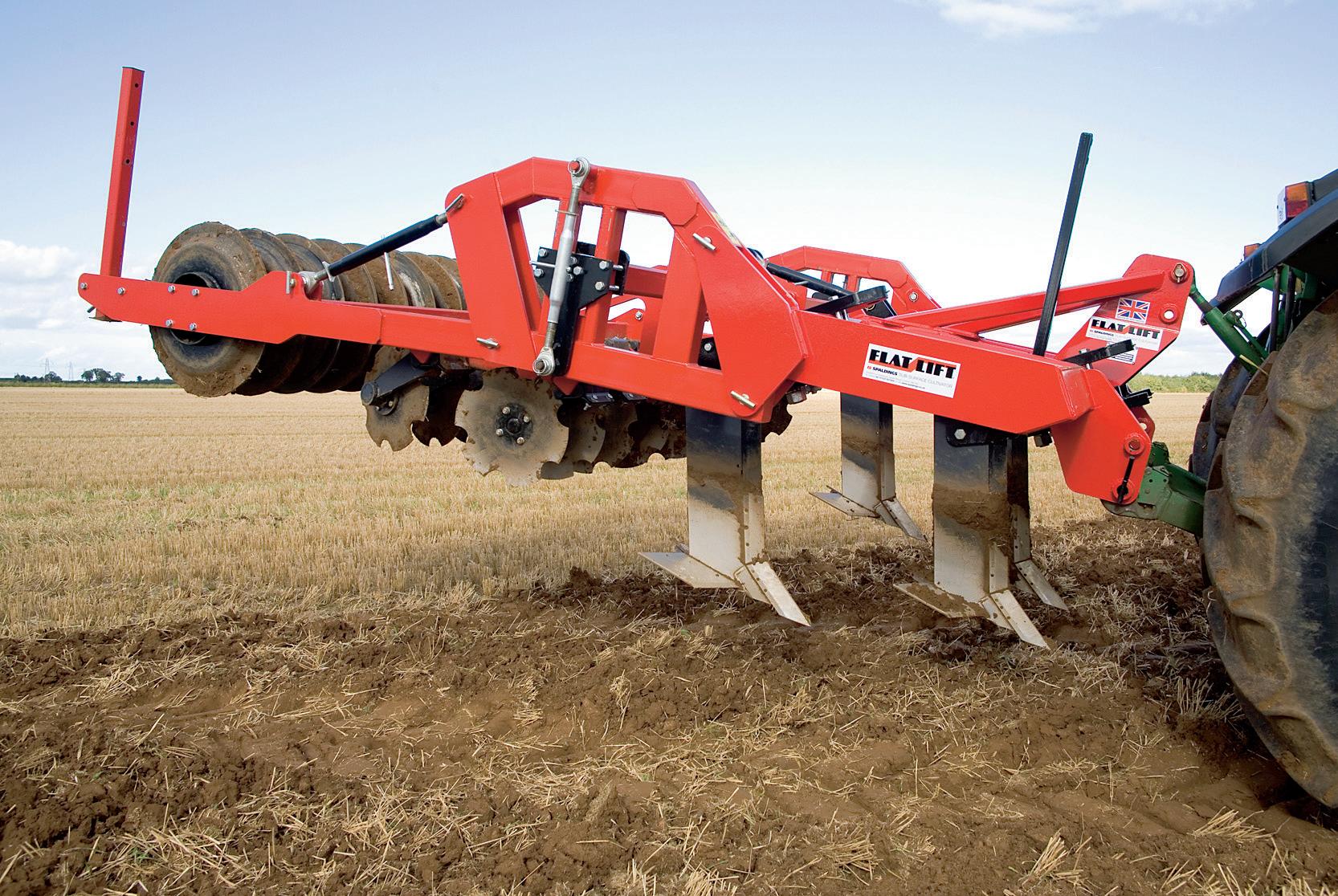

Illustrated: 4 Leg Flatlift single-pass combination with disc toolbar and press ring packer roller.
Working depth can be independently adjusted to the Flatlift subsoiler legs.
Working depth, up to ........ 100mm (4”)
Depth adjustment Top link Discs ...................... 16" conical
12853 Flatlift, disc toolbar 2.85m. £8,520
12854 Flatlift, disc toolbar 3.5m. £8,910
Delivery is extra, please ask for details.

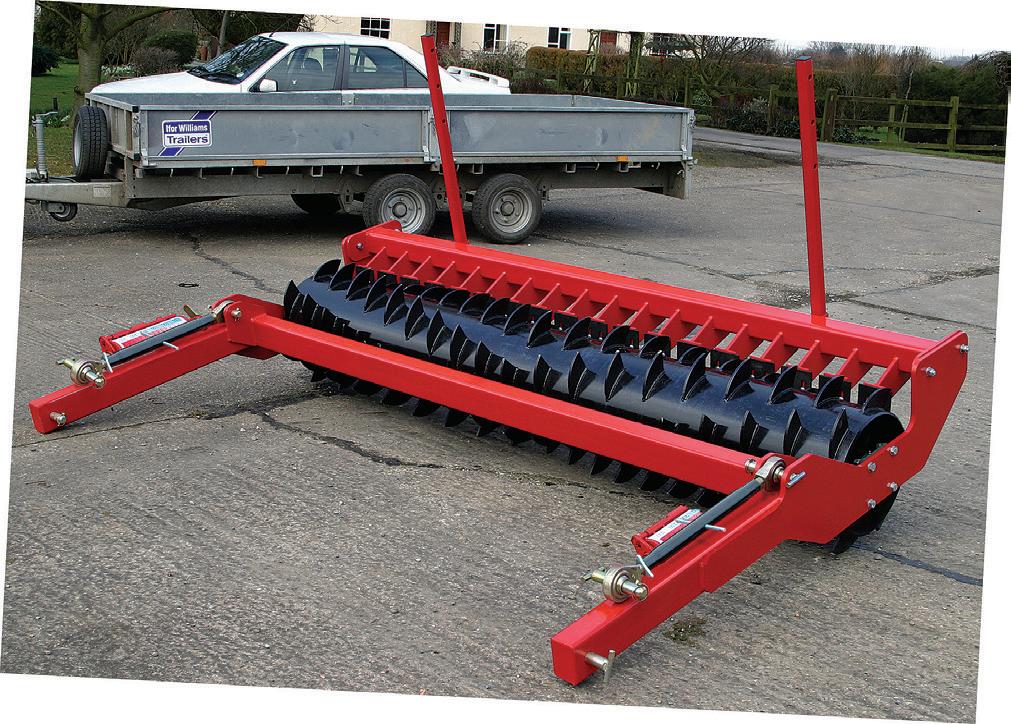

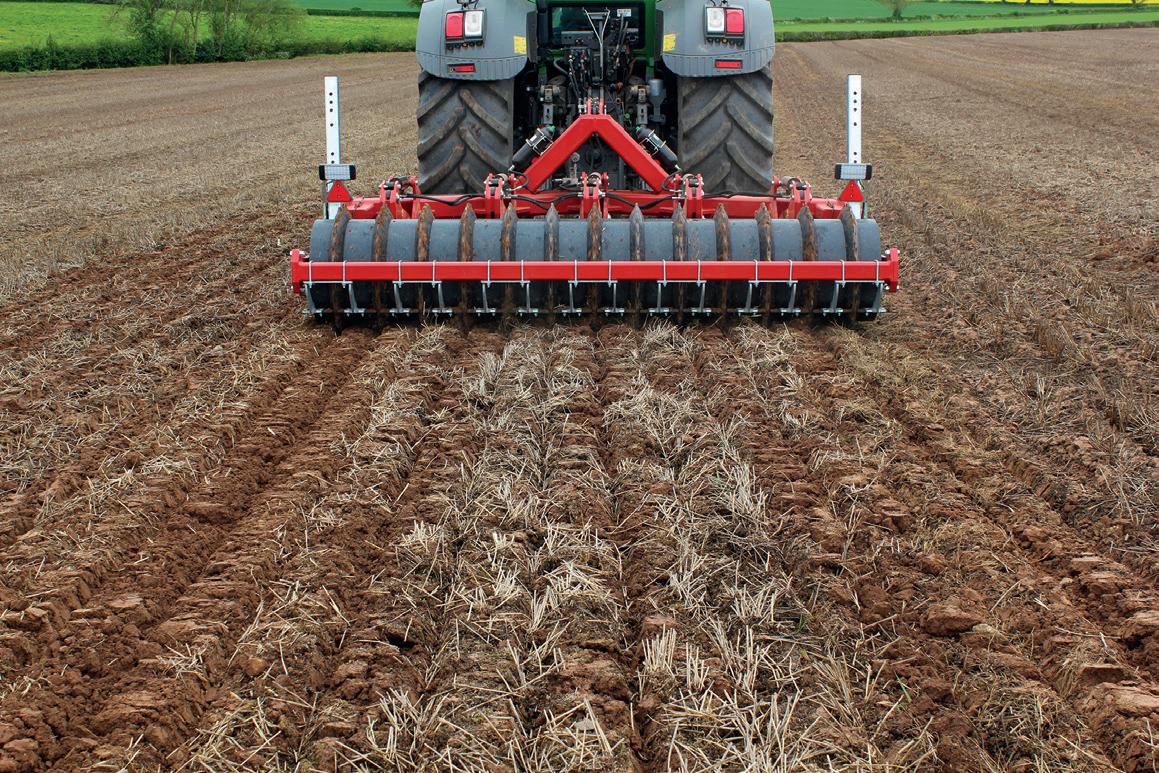

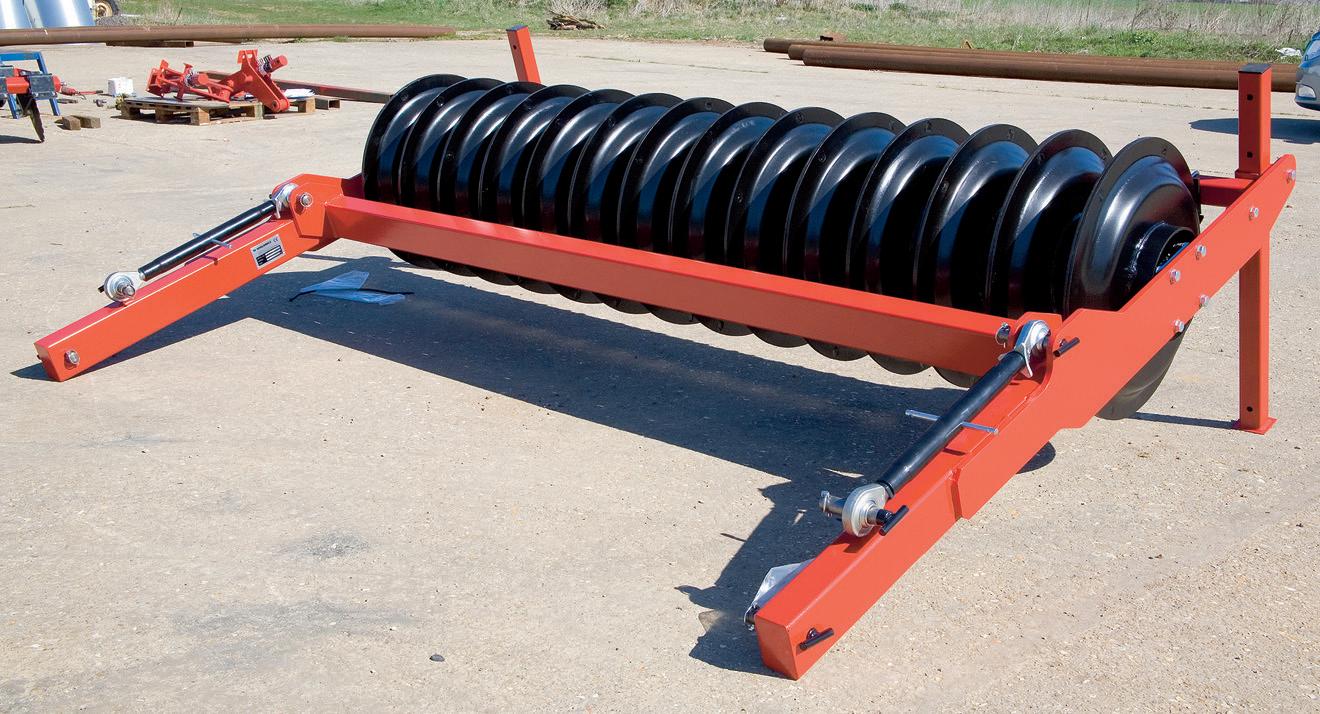

The Flatlift press ring packer roller contacts over 80% of the soil surface, providing consolidation, levelling and weather proofing
Packer dia : 16"
Press ring dia : 26"
FLATLIFT PACKER ROLLERS
Packer rollers are supplied as standard with fully adjustable scrapers and turn-buckles for depth adjustment.
Packer rollers can be fitted with OPTIONAL : - Hydraulic depth control kits +

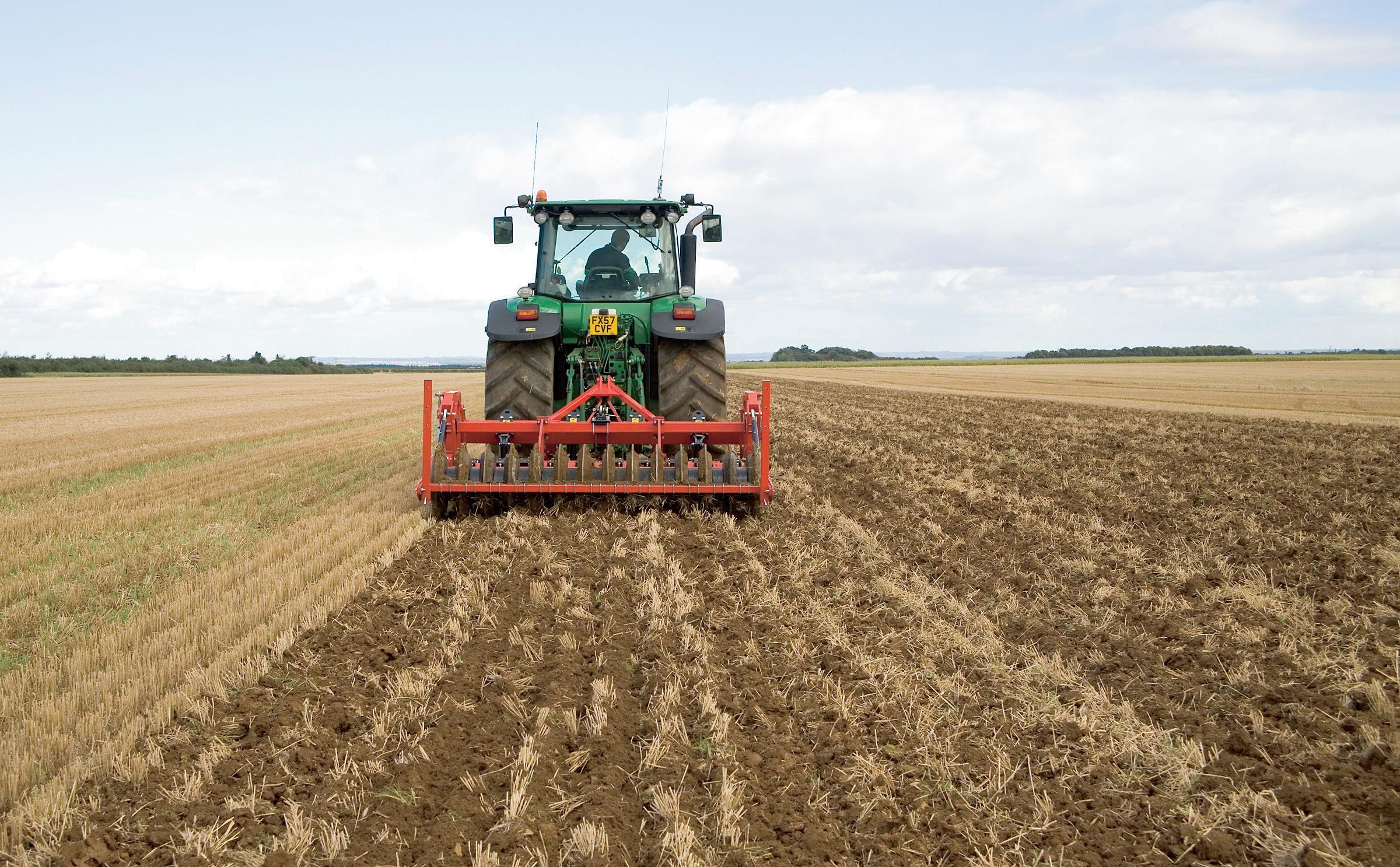

EFFICIENTLY REDUCE COMPACTION
Spaldings Flatlift V-Range subsoil cultivators feature a heavy duty V-shaped frame which lets soil and trash flow more efficiently, allowing the legs to be staggered in a low draught configuration giving total loosening. This efficient action increases the aeration, leaving the soil surface 50 –100mm raised
up to 3.4m
3, 4 or 5
Hydraulic auto-reset leg protection –can also be raised for ease of transport
Retains soil moisture & reduces evaporation
Retains crop residue on or near the soil surface
Breaks-up natural pans and compacted soil up
Lifts and presses the soil gently, maintaining
0–500mm

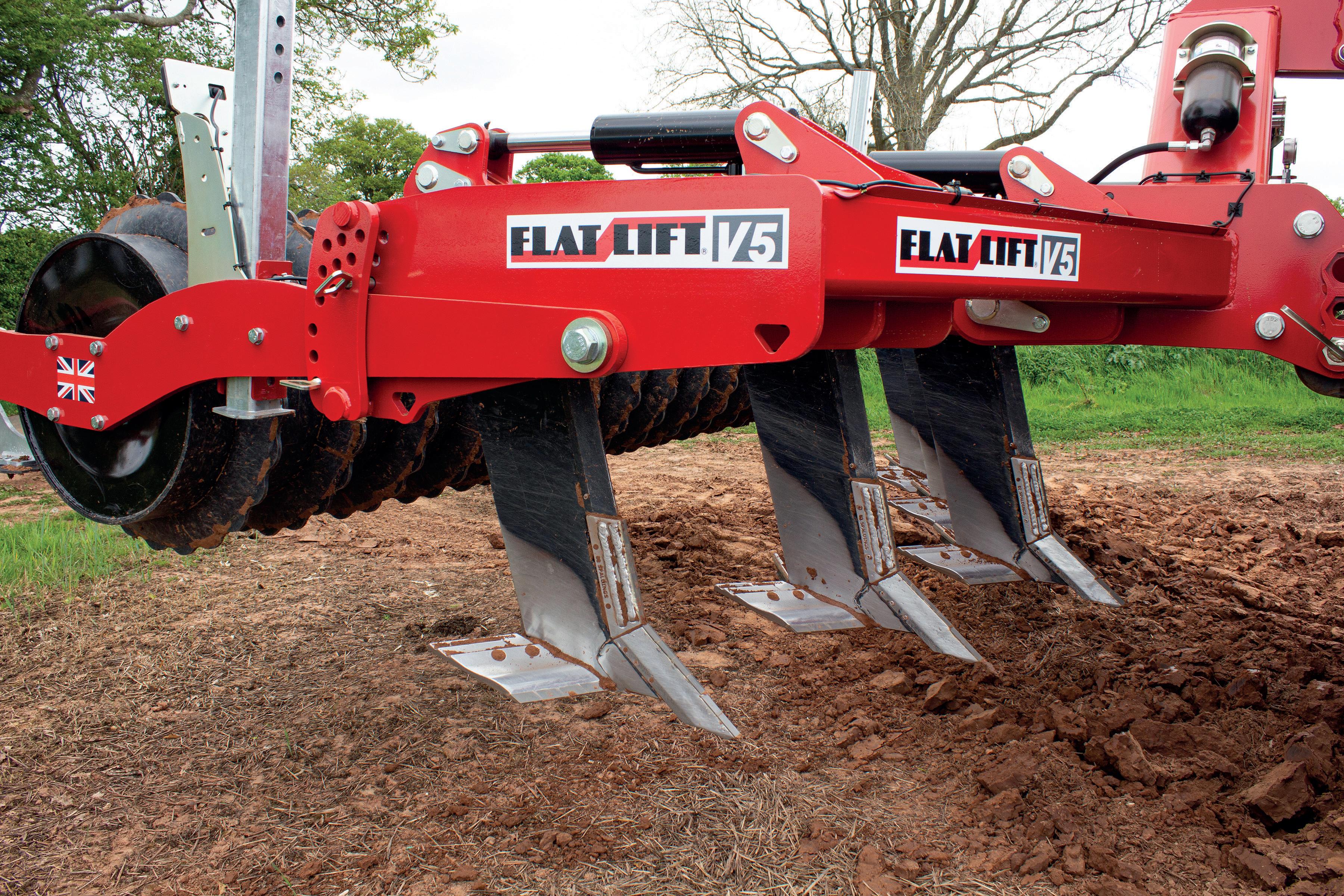

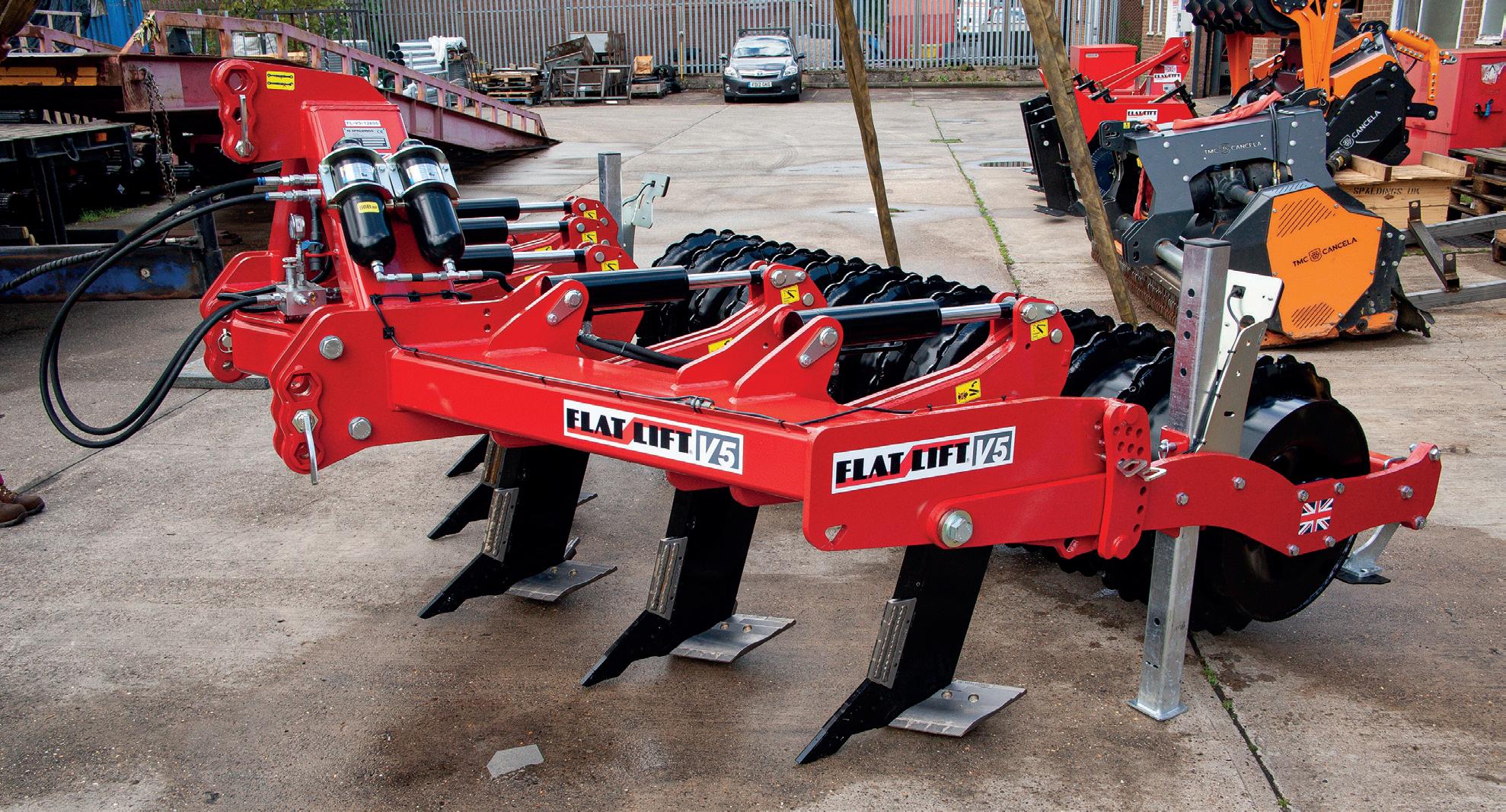

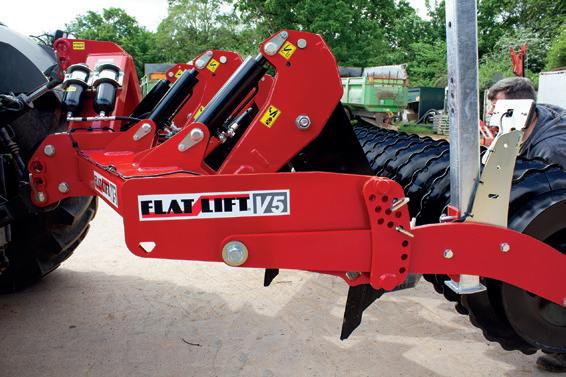

Note: Flatlift V5 (12655) illustrated above with OPTIONAL Tungsten and SPL® Ultra high performance wearing parts.

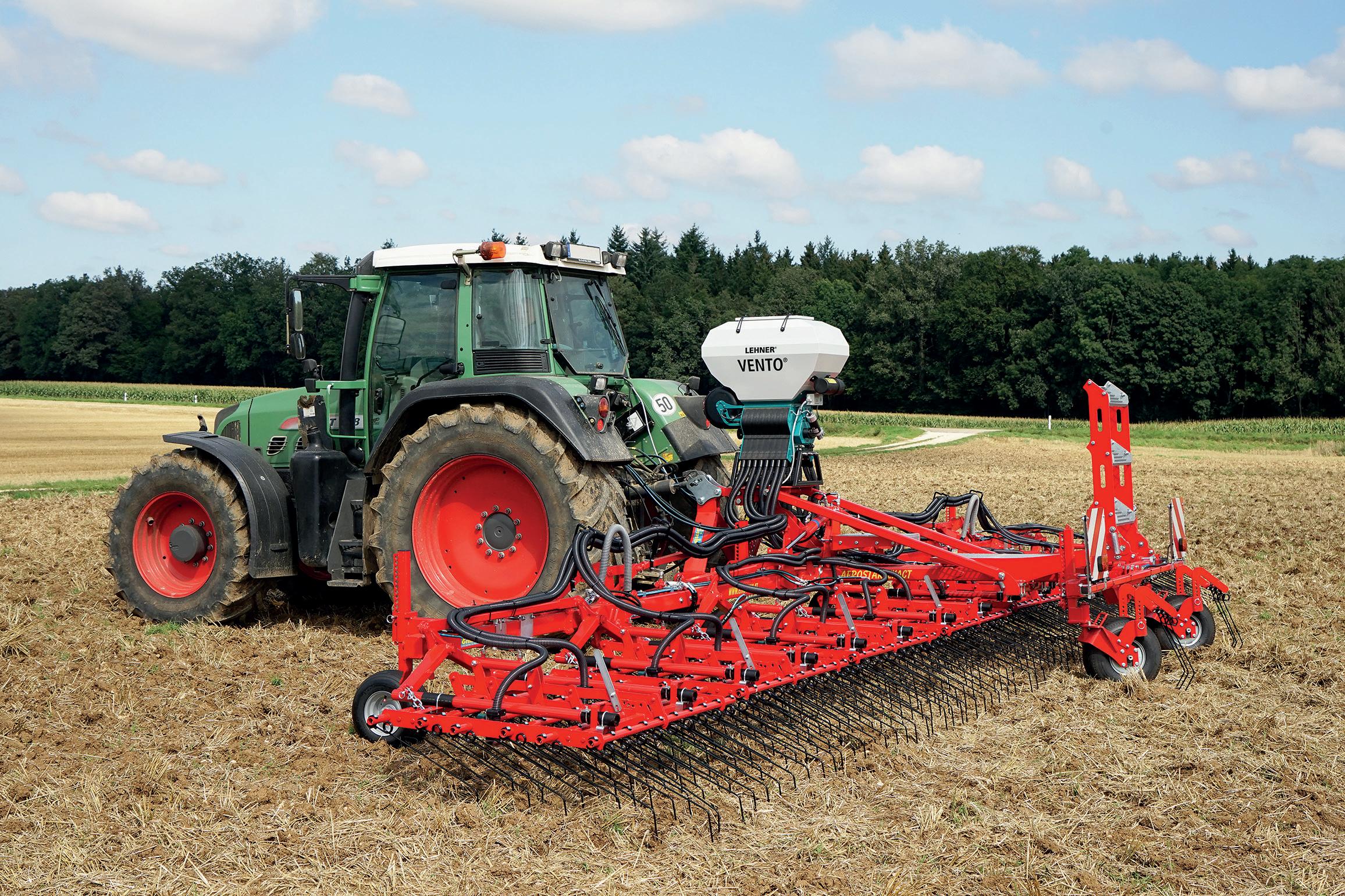

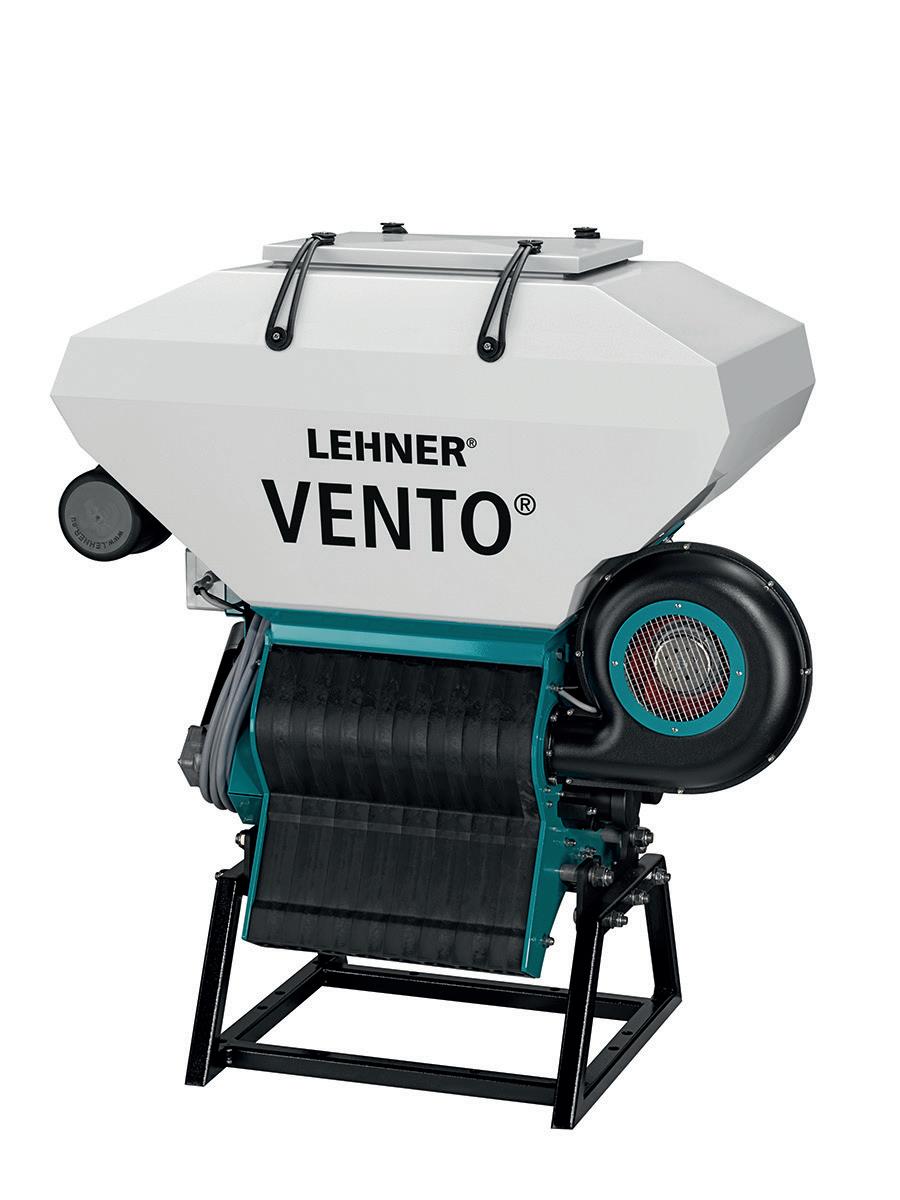

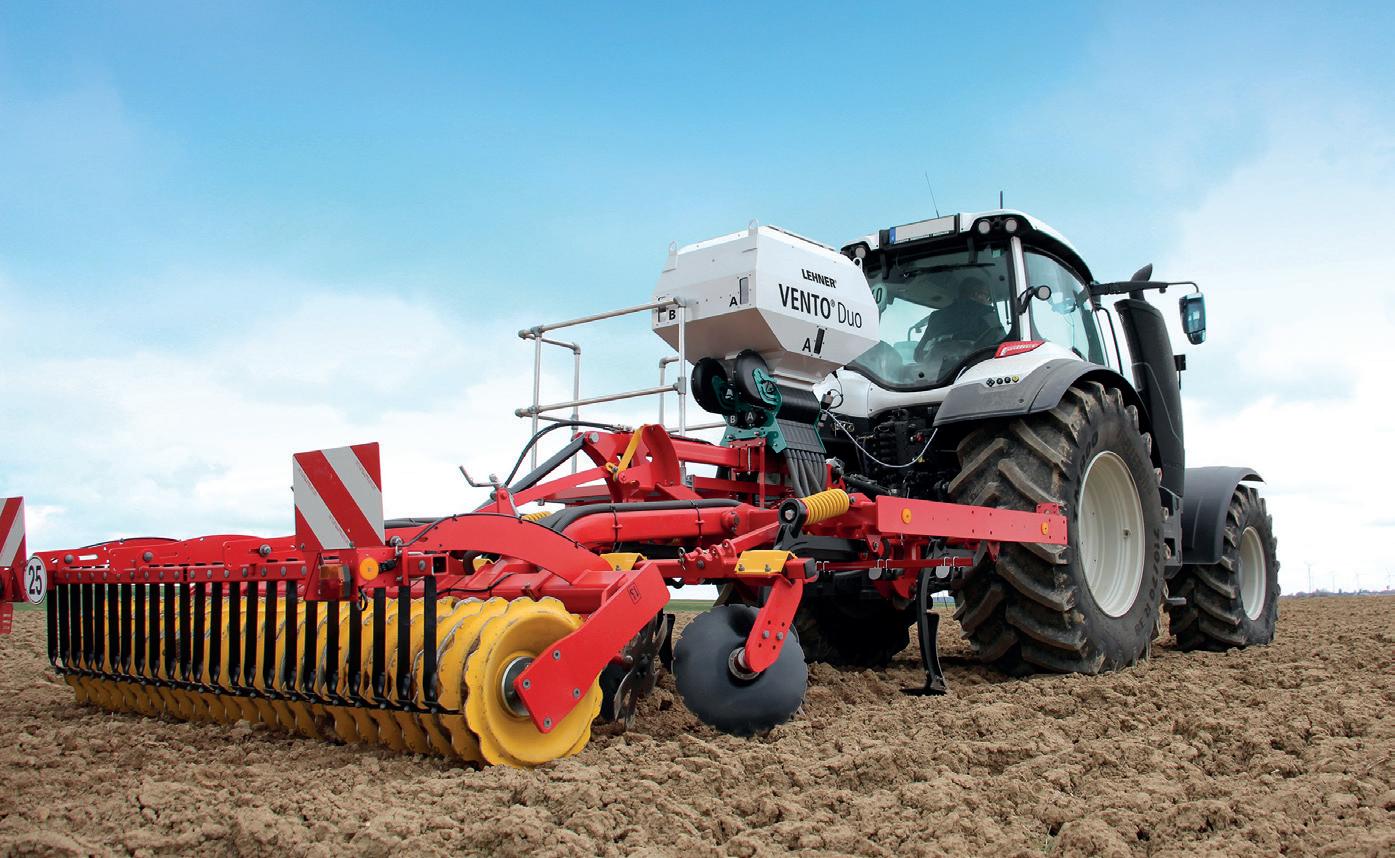

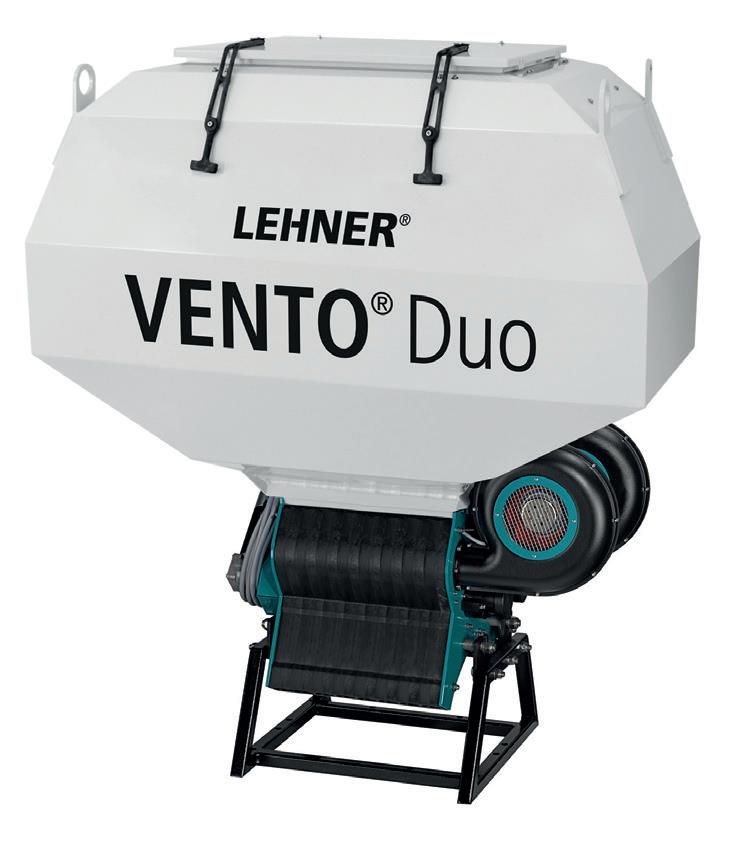

PNEUMATIC SPREADER LEHNER®
VENTO BROADCASTER

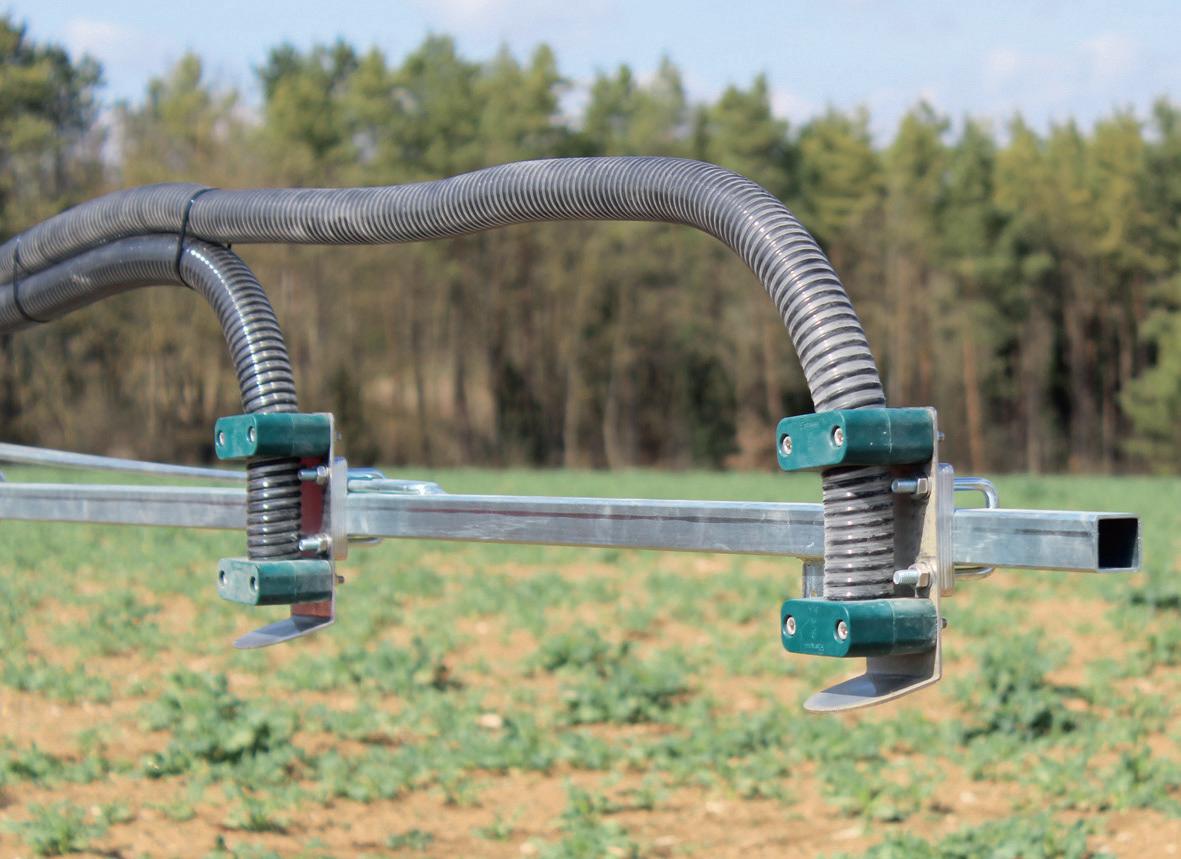

Pneumatic hose spreader can apply all types of seed, grasses, slug pellets and granular materials. Available with the choice of 8 or 16 outlets providing a working width of 6 or 12m.
• 7-pin data socket with optional cable for direct feed from the tractor, giving forward speed and hydraulic headland control

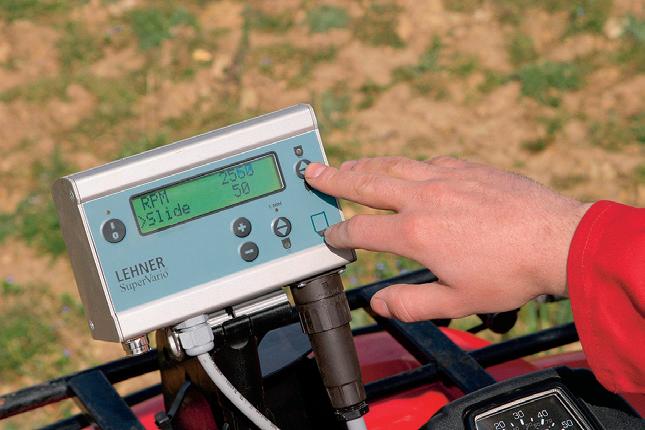

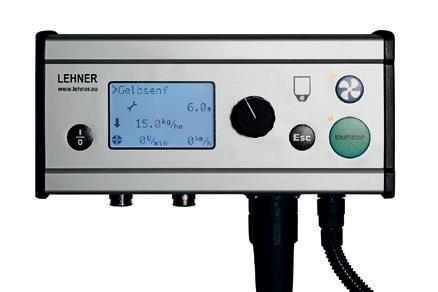

• Control panel with 3.3 inch graphic display
with either 8 or 16 outlet plates with mounting brackets plus Lehner ‘Superflex’ hose.
No. of fans / spread width: 1x / up to 6m 1x / up to 6m 2x / up to 12m
Weight: 61 kg 67 kg 78 kg Batt cable / control cable: 6m / 6m 6m / 6m
Broadcaster settings are available offline on your device providing simple step-by-step instructions.

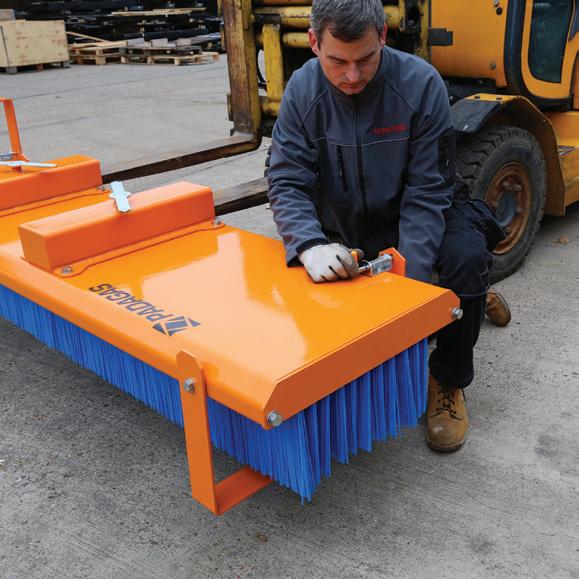

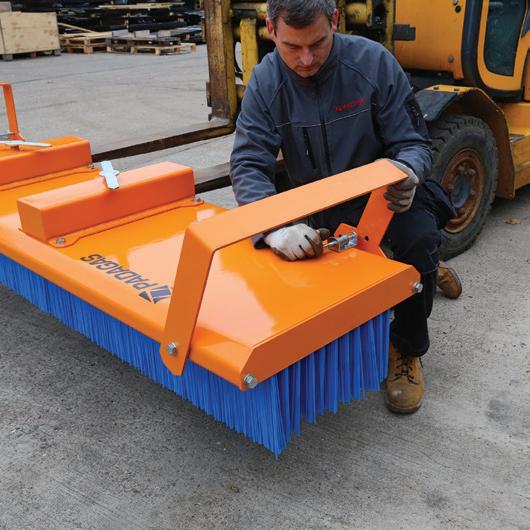

2.4m PUSH-BROOM
With integral parking stands to protect bristles when not in use!

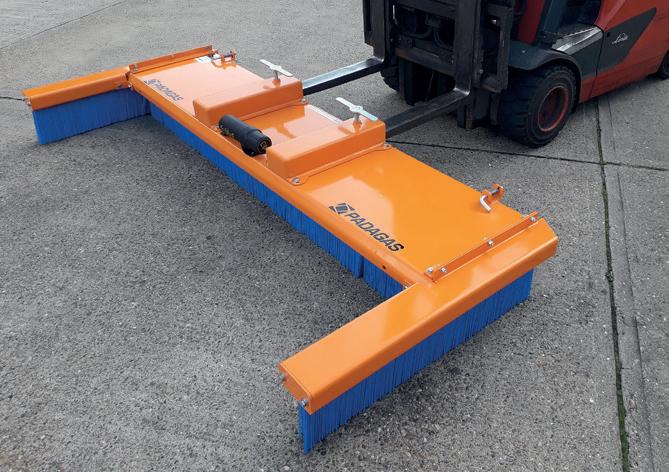

PADAGAS 2.4 m PUSH-BROOM c/w FORKLIFT TINE POCKETS
Versatile and effective Spaldings Push-Broom provides superior sweeping for farm applications. Ideal for clearing water, snow, gravel, muck, slurry, mud and general debris. Fitted with 11 rows of bristles as standard for maximum sweeping power in the most demanding applications
• Fork mounted with securing bolts
• Maintenance free – no moving parts, chains, belts or motors to breakdown or replace
• Very effective in grain stores and won’t damage wooden floors and slats
• Creates a ‘squeegee’ type action on wet surfaces
15380 2.4m Push-broom. £1,690 15383 Side brush kit £250 for push broom 15380.
Delivery is extra, please ask for details.
Side brush kit.
SWEEPER COLLECTORS

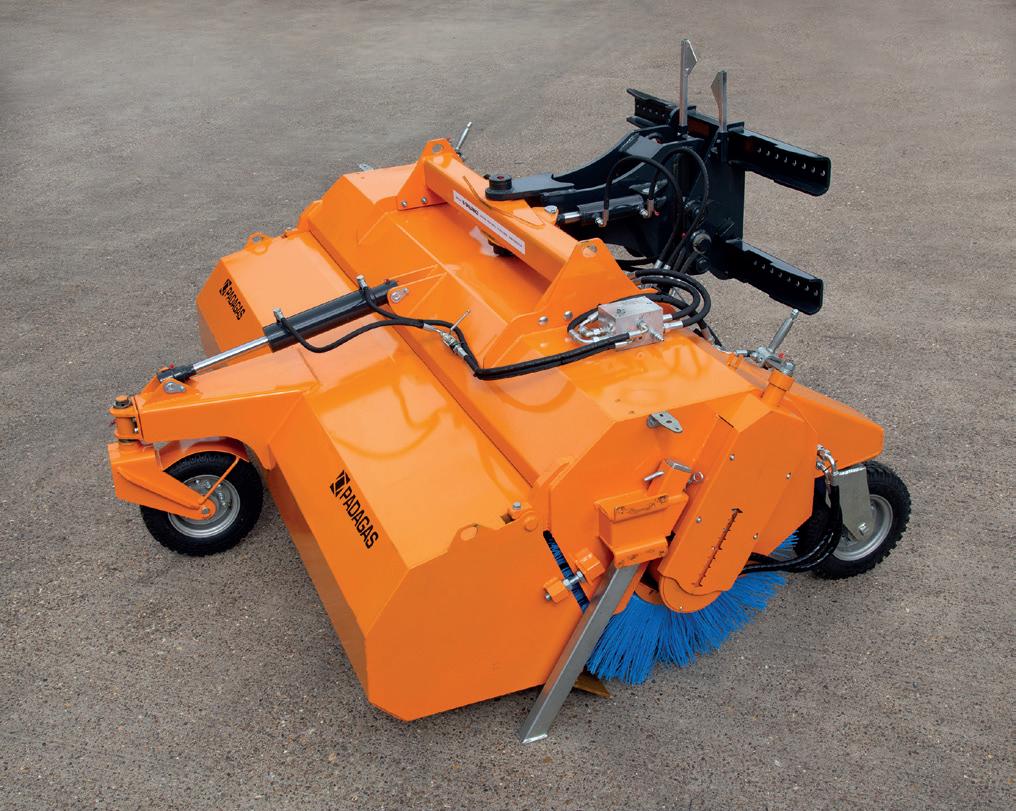

PROFI H-2501
B rush : 800mm dia.
Working width : 2.25m

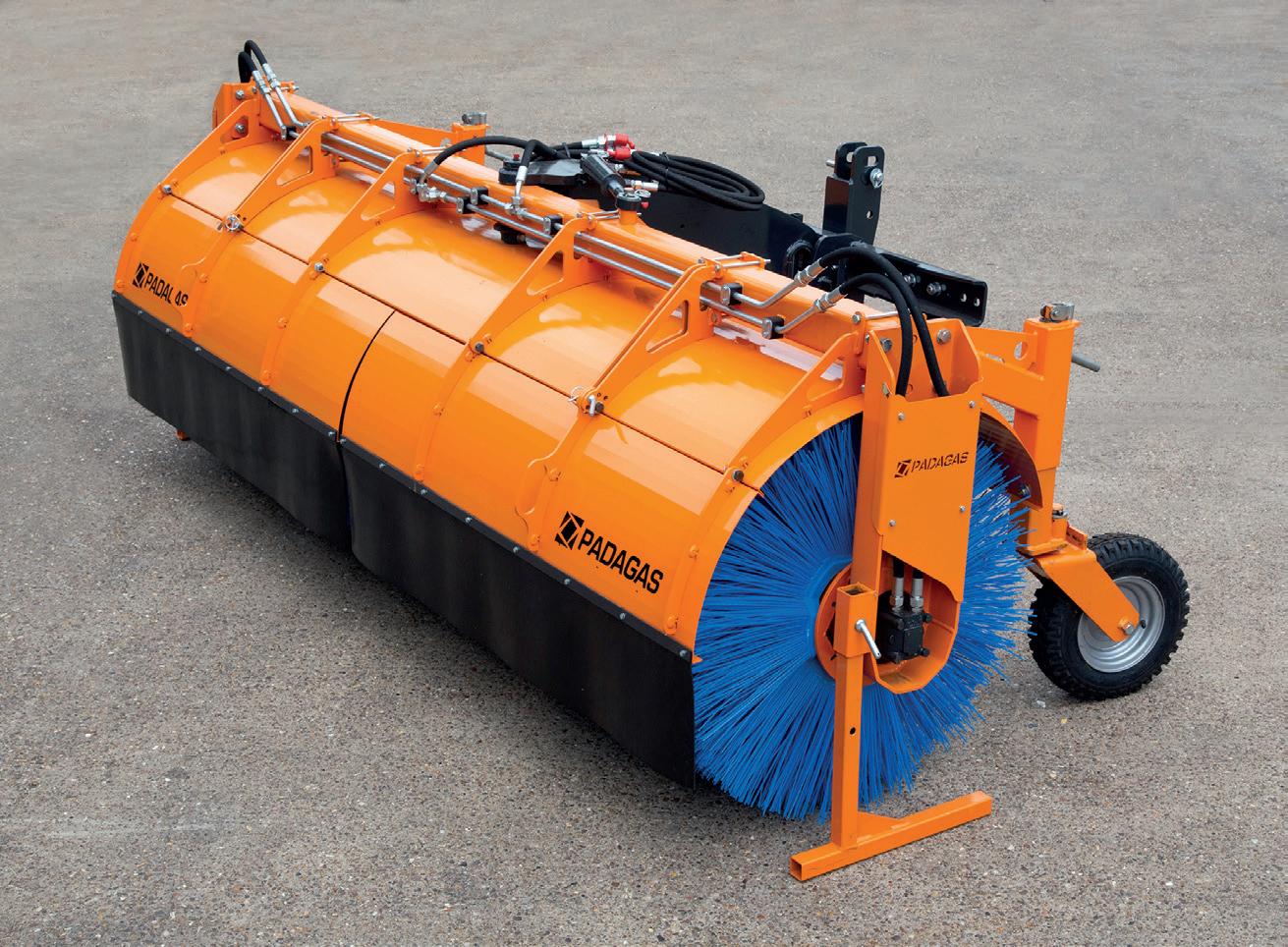

PADAGAS PROFI H-2501
2.25 m SWEEPER c/w COLLECTION

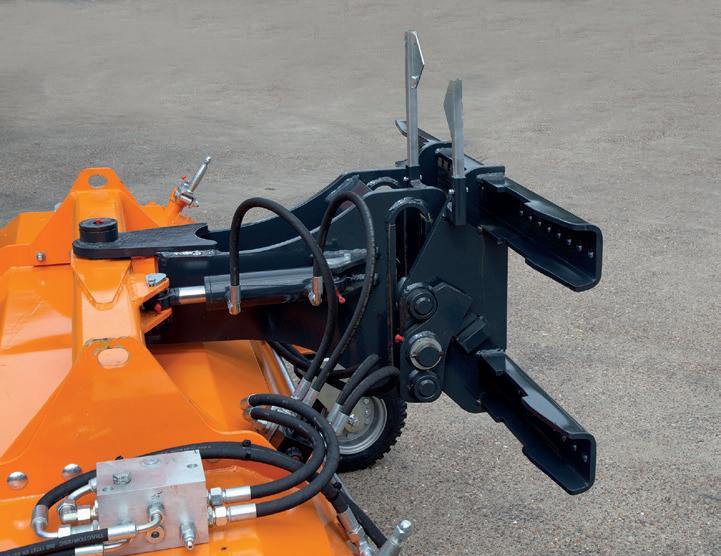

Rotary Sweeper (15362) with Universal Headstock allowing a choice of bolt-on mount options or fork tine brackets.
Total width 2,705mm
Working width / angled 20° ... 2,242mm / 2,098mm
Weight 839kg
Drive ...................... 2x hydraulic motors
15362 Profi H-2501 2.25m Rotary Sweeper.* £8,360
Delivery is extra, please ask for details.
KS-250
B rush : 600mm dia.
* Requires bolt-on hitch bracket kit and angle adjustment kit to suit your application.
Working width : 2.3m

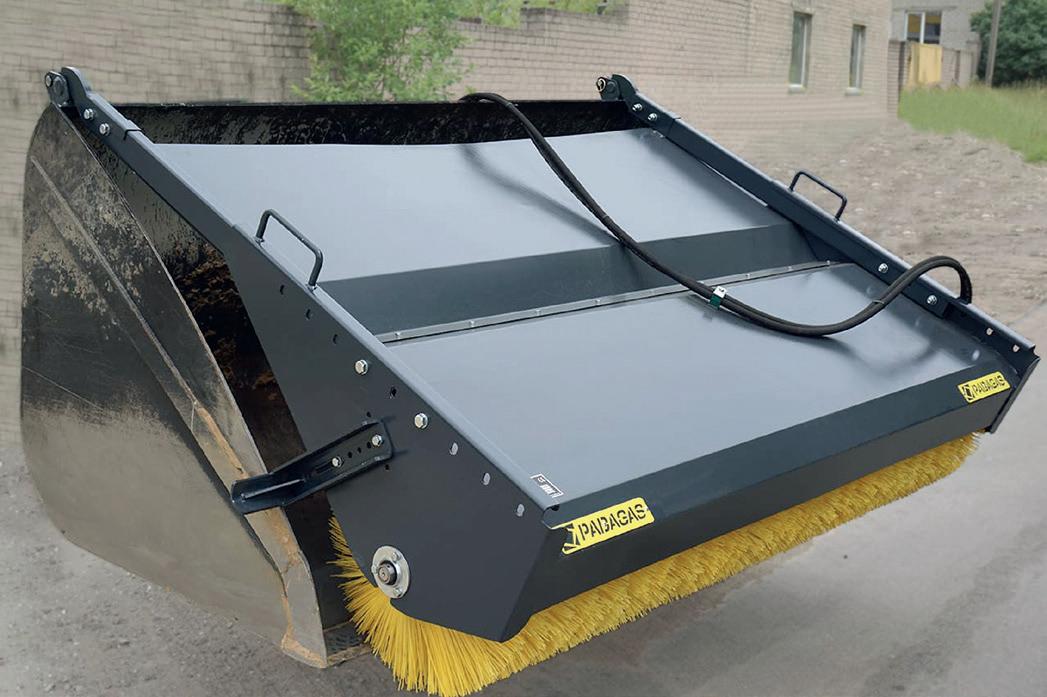

PADAGAS KS-250
BUCKET MOUNTED ROTARY SWEEPER
Total width / Working width 2,733mm / 2,306mm
Weight..................... 368kg
Drive 1x hydraulic motor
15366 KS-250 2.3m bucket sweeper.
£2,690
Delivery is extra, please ask for details.
• Simple attachment to loader bucket

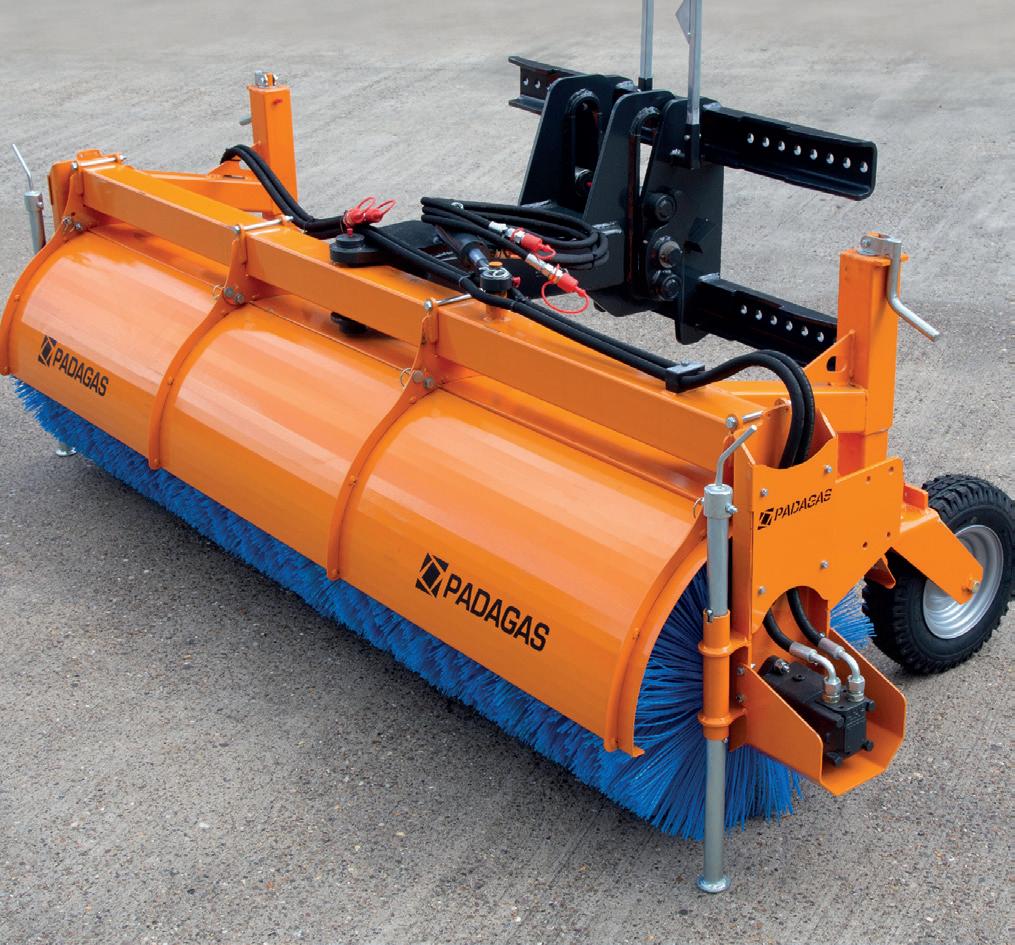

2.5 m ROTARY SWEEPER
PI-25
Rotary Sweepers with Universal Headstock allowing a choice of bolt-on mount options or fork tine brackets.
B rush : 600mm dia. Working width : 2.5m
PADAGAS PI-25
2.5 m ROTARY SWEEPER
• Hydraulic sweeper, 2.5m working width
• With 600mm brush diameter
• Robust support wheels and parking legs
• Floating linkage to follow contours of the ground
• Bolt-on mounting options to suit application
• Can be mechanically angled 25°
Total width
2,776mm
Working width 2,447mm
Working width angled
. 2,235mm
Mechanical angling 25°
Weight with bracket
. . . 500kg
Brush dia. / no. of sections 600mm / x 54 sections
Drive
Rotary Sweepers manufactured with a FLOATING HEAD to follow ground contours
1x hydraulic motor
Required oil flow at 160 bar 45 ltr/min
15359 PI-25 2.5m Rotary Sweeper.* £3,590
Delivery is extra, please ask for details.
* Requires bolt-on hitch bracket kit and angle adjustment kit to suit your application.
2.5 m, 2.9m HEAVY
DUTY ROTARY SWEEPER
SHARK-250H, 300H
B rush : 915mm dia.
Working width : 2.5m (15364) 2.9m (15365)
PADAGAS SHARK-250H
2.5 m HEAVY DUTY ROTARY SWEEPER
Total width 2,820mm
Working width .............. 2,460mm
Weight with bracket
565kg
Hydraulic angling 25°
Brush dia. / no. of sections ... 915mm / x 34 sections
Drive 2x hydraulic motors
Required oil flow at 160 bar .. 70 ltr/min
15364 Shark-250H 2.5m sweeper.* £4,950
Delivery is extra, please ask for details.
PADAGAS SHARK-300H
2.9 m HEAVY DUTY ROTARY SWEEPER
Total width ................. 3,320mm
Working width 2,960mm
Weight with bracket .
. 604kg
Hydraulic angling 25°
Brush dia. / no. of sections ... 915mm / x 41 sections
Drive 2x hydraulic motors
Required oil flow at 160 bar .. 70 ltr/min
15365 Shark-300H 2.9m sweeper.* £5,420
Delivery is extra, please ask for details.
SHARK Features:
• E XTRA large 915mm brush dia.
• Floating linkage to follow ground contours
• 25° Hydraulic angling to left or right
OPTIONAL
for Rotary sweepers:
- Mounting brackets for handler, 3-point linkage or fork tines
- Angle adjustment kits +
* Require bolt-on hitch bracket kit and angle adjustment kit to suit your application.

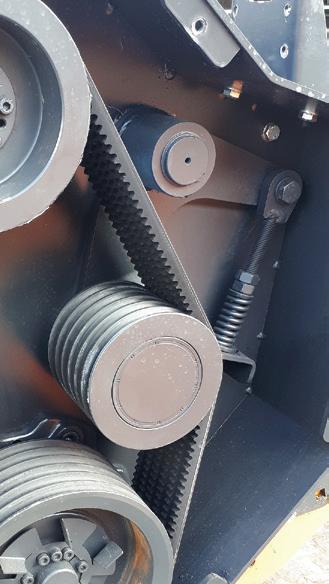

x6 BELTS

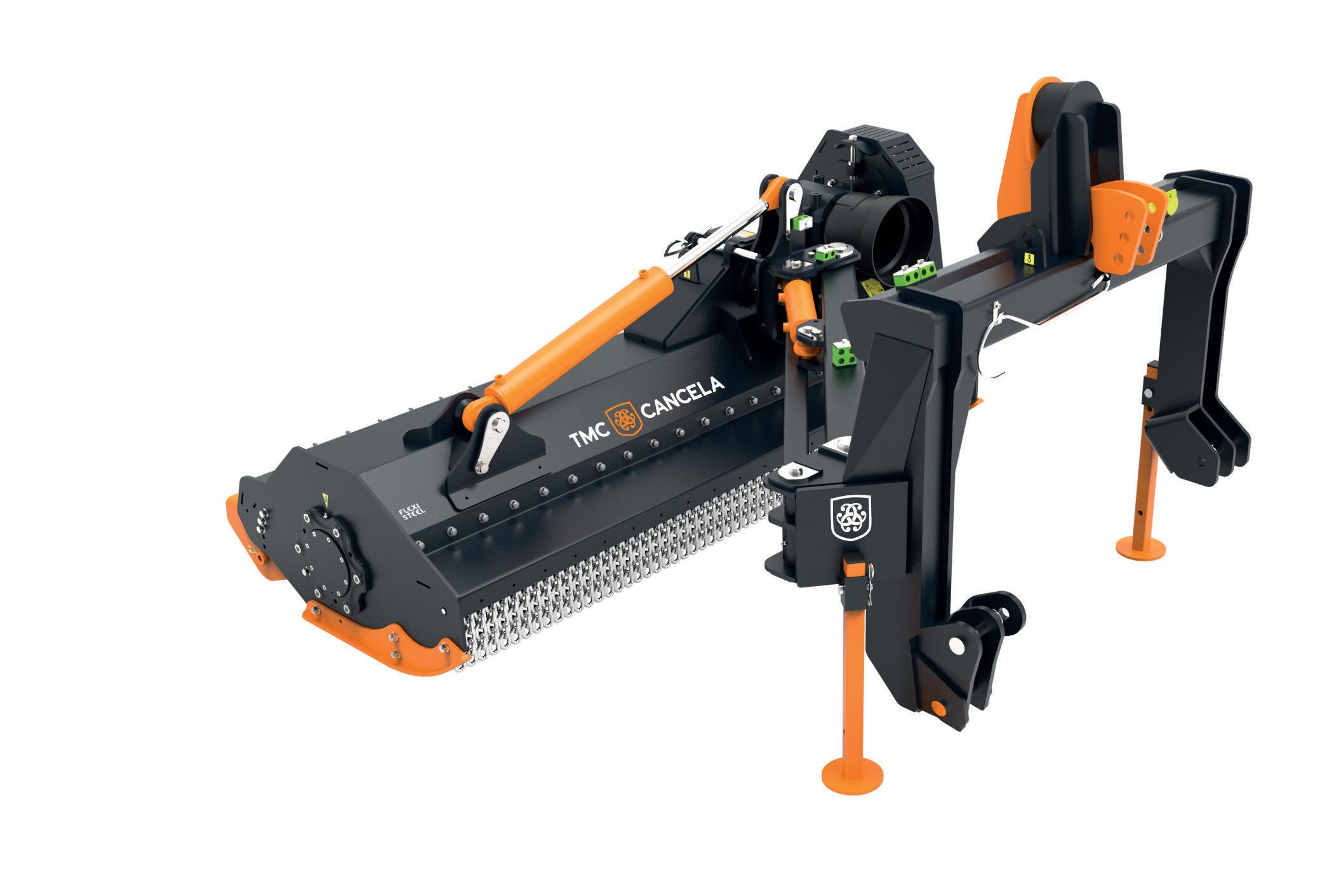

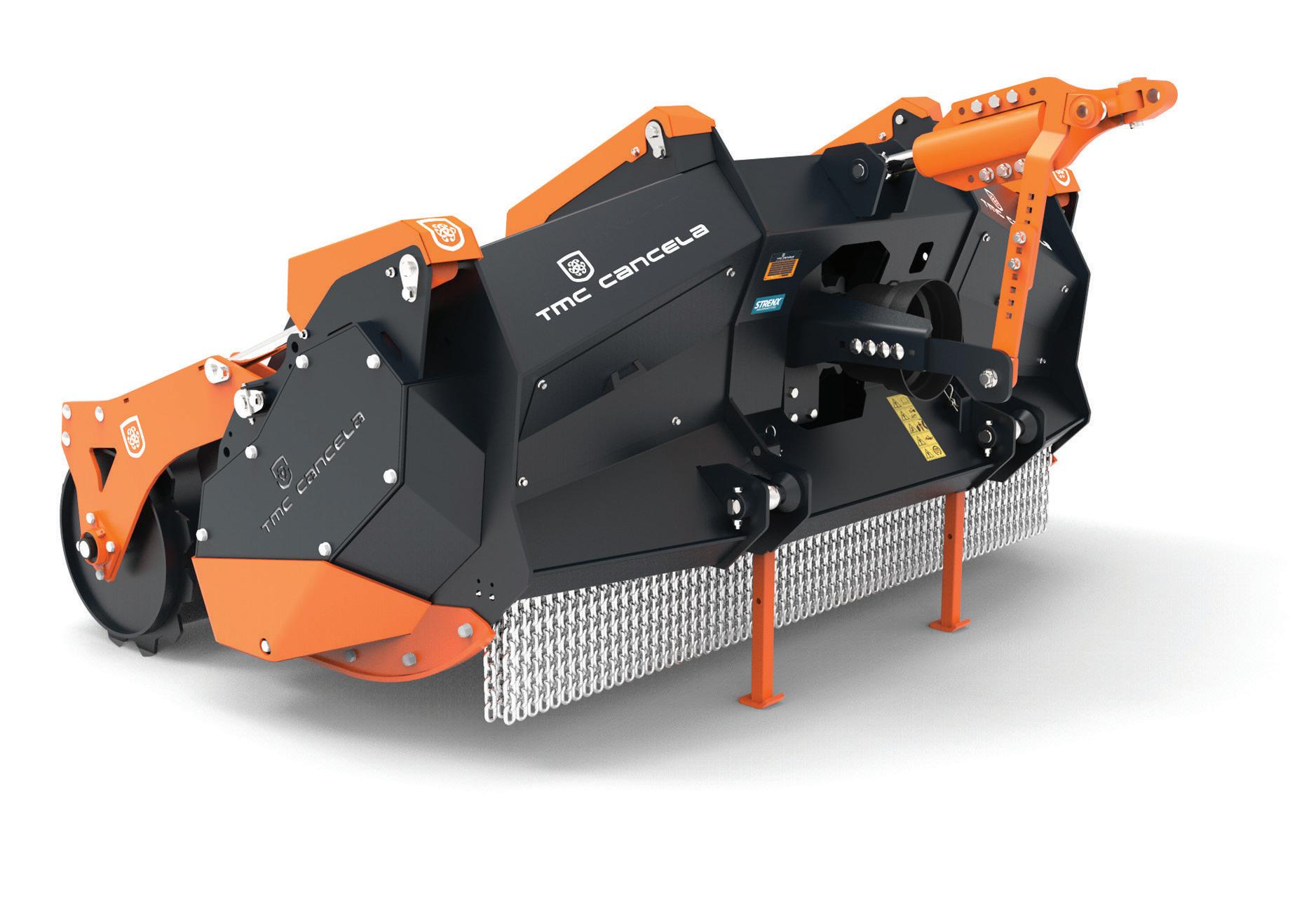

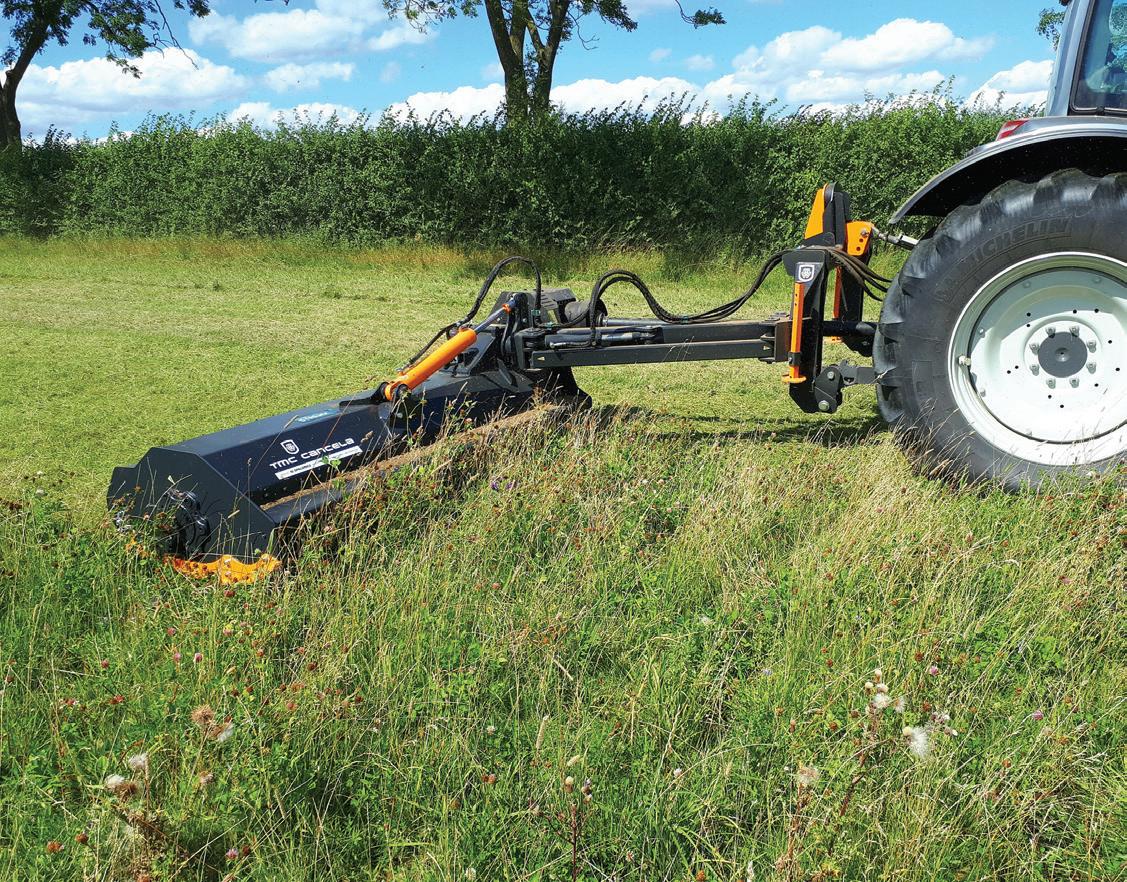

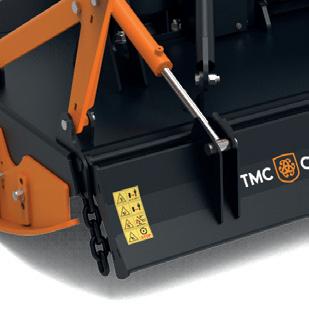

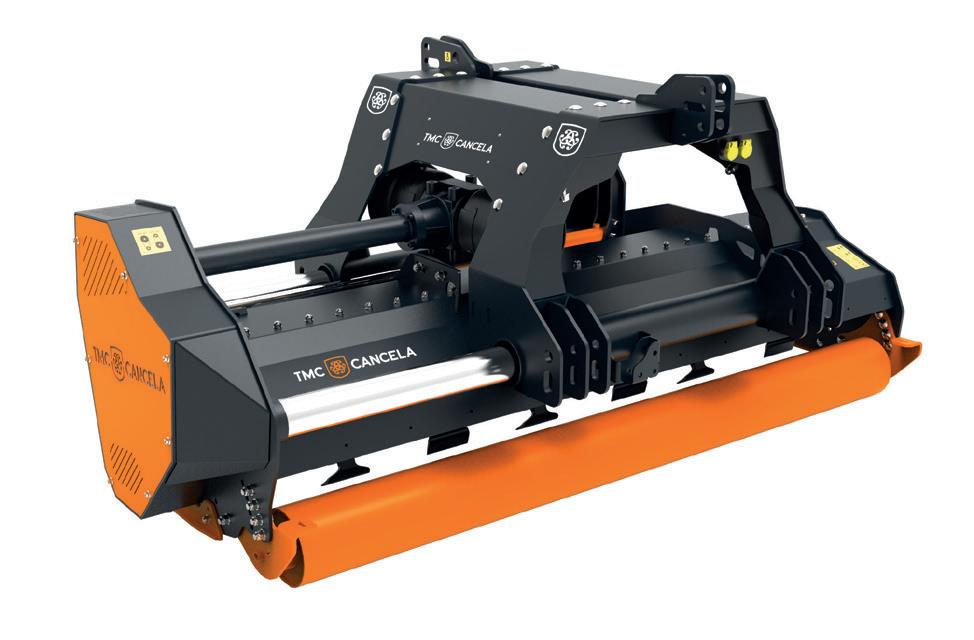

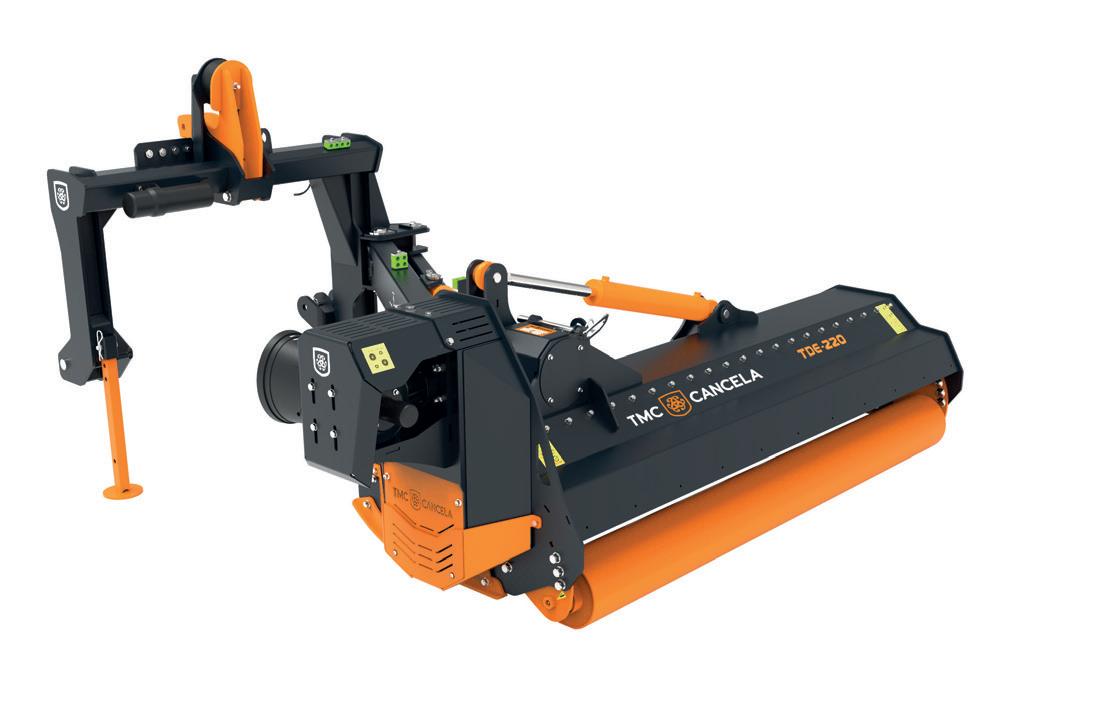

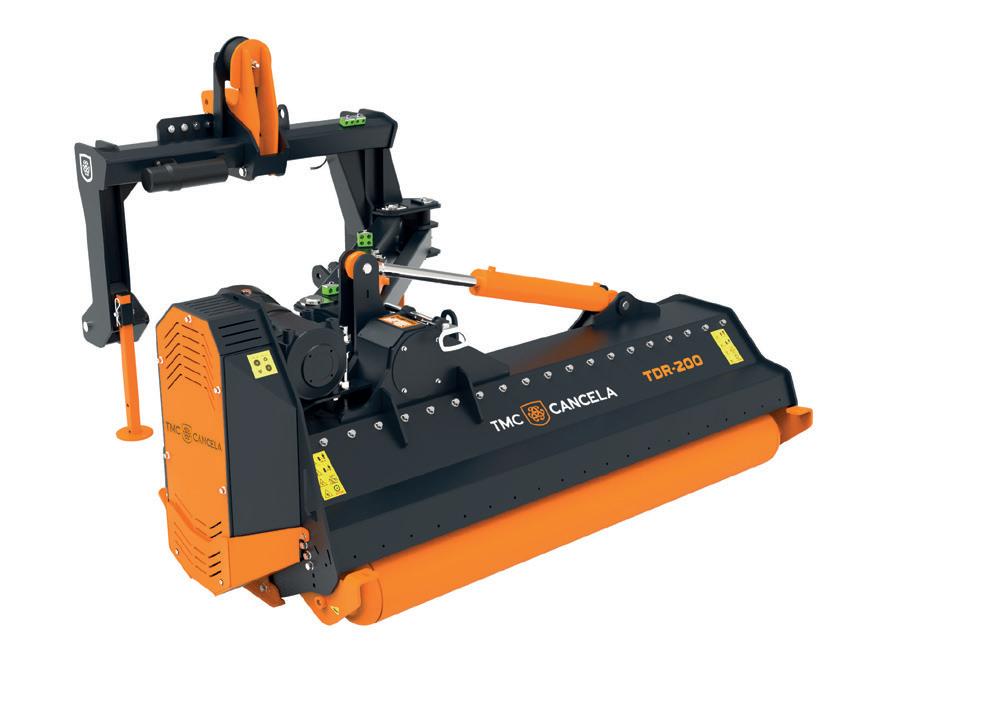

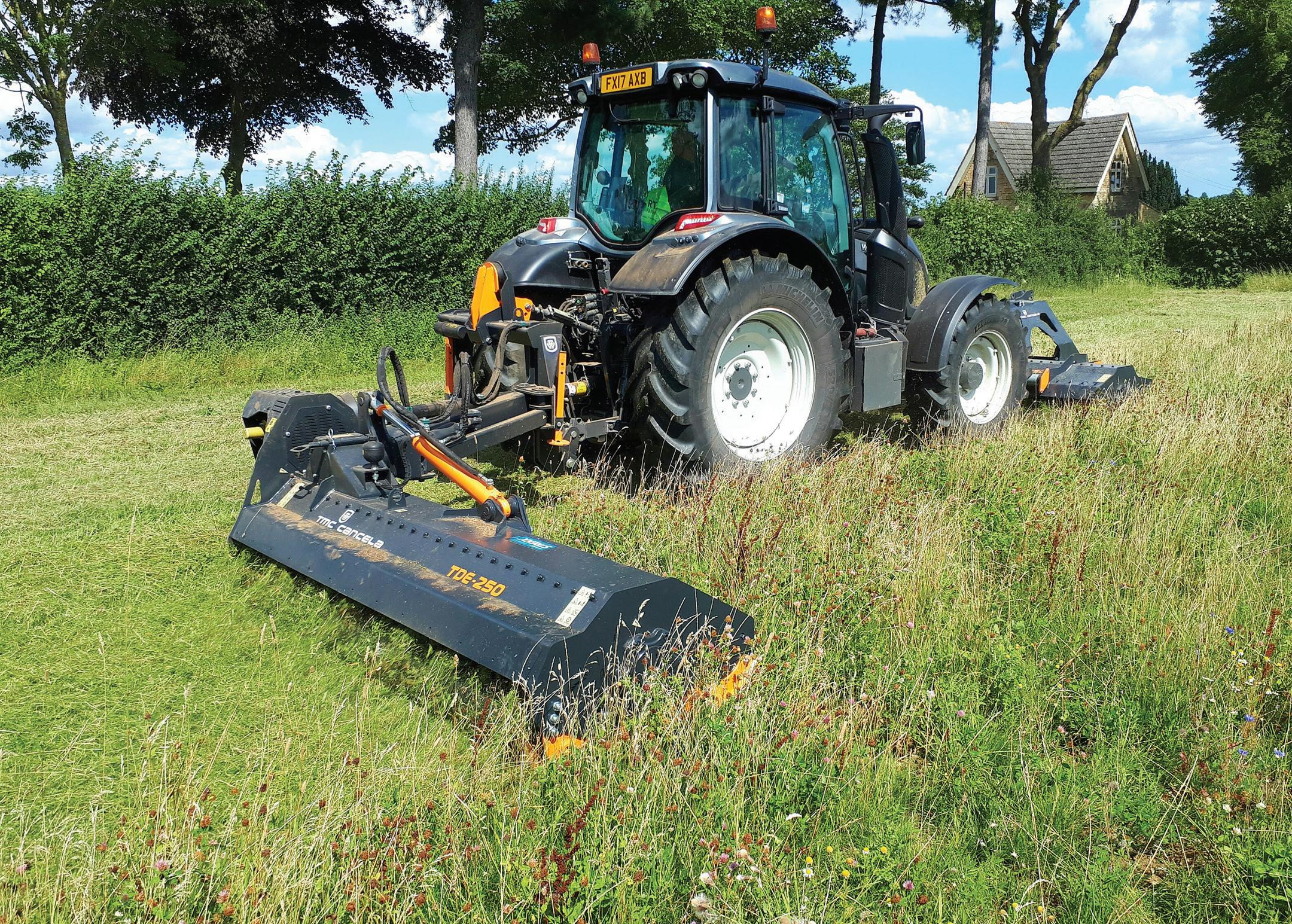

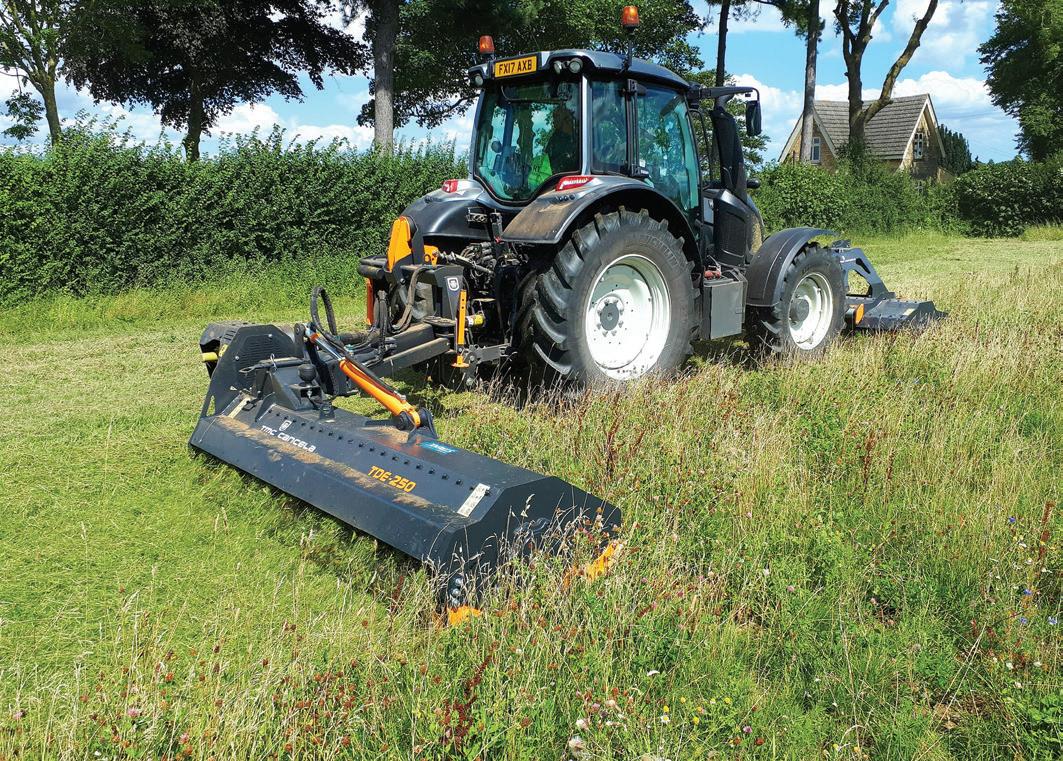

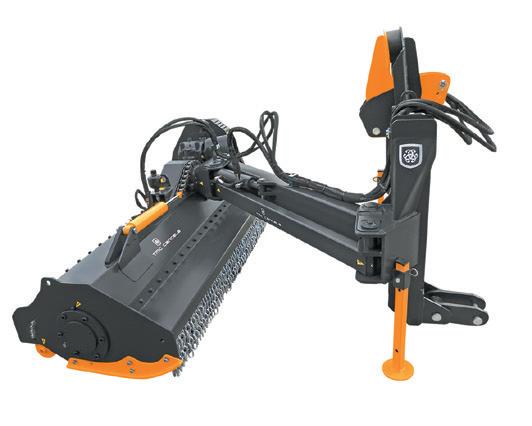

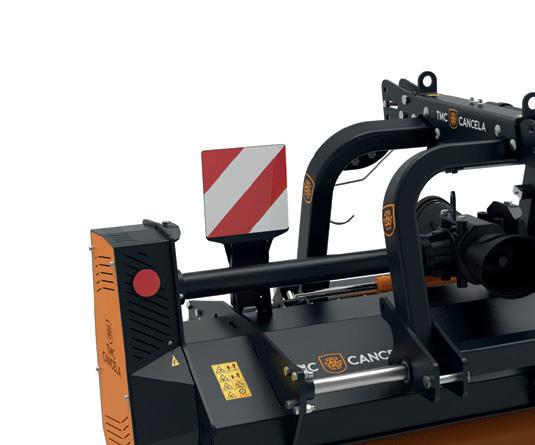

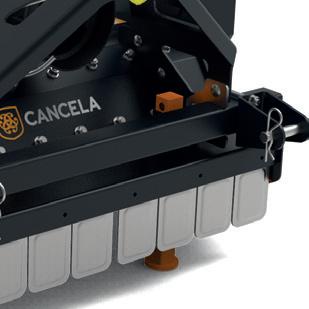

TMC CANCELA TDR-220

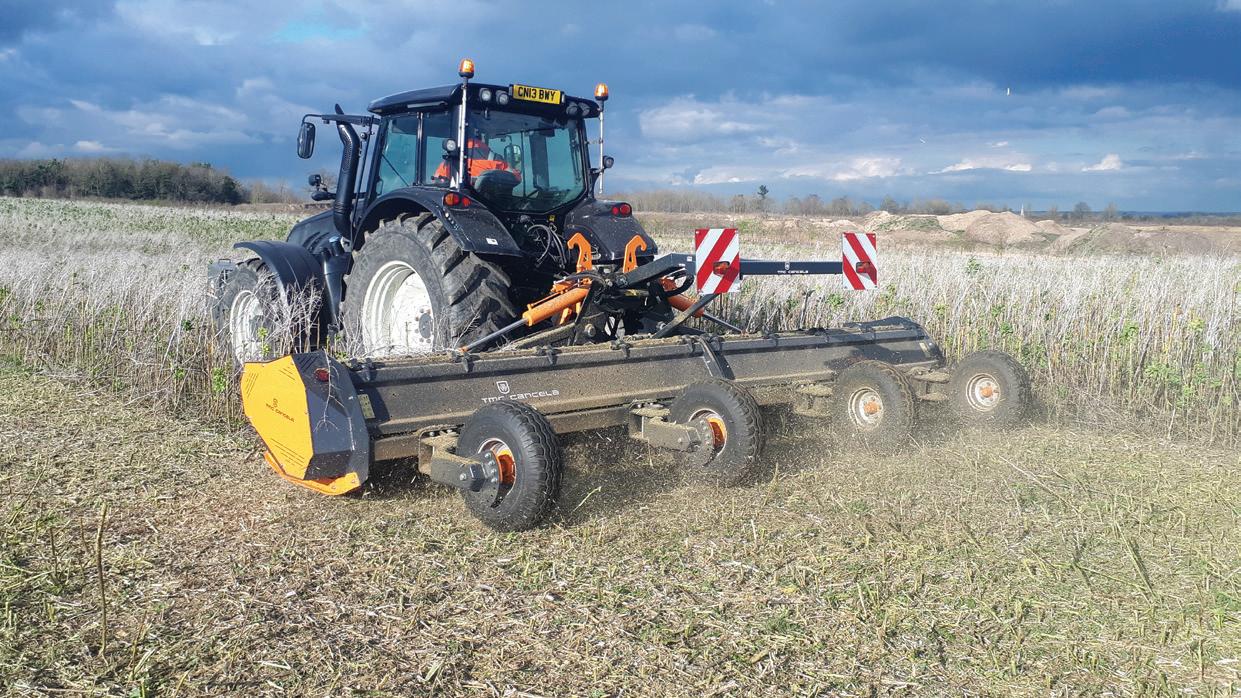

R.H. OFFSET MULCHING TOPPER
• Floating 3-point linkage for uneven ground
• Parallelogram design hydraulic offset with a mechanical safety device

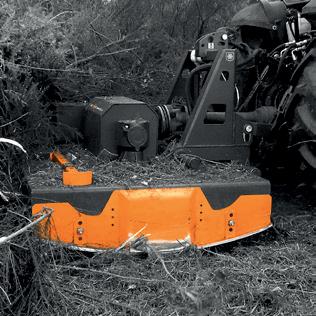

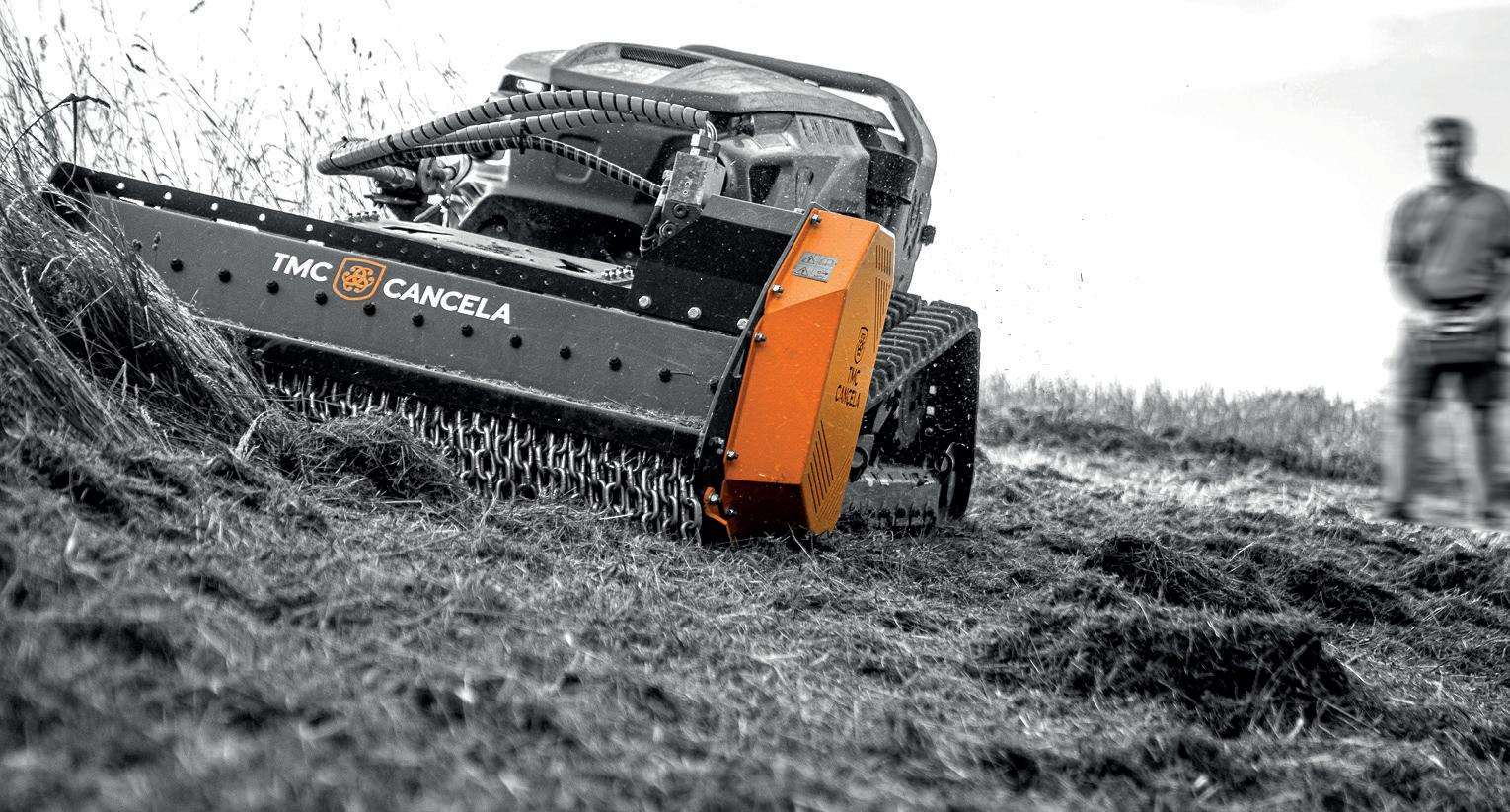

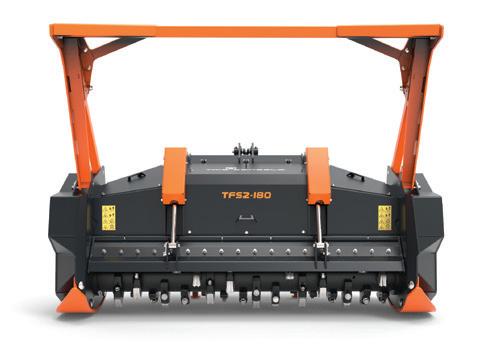

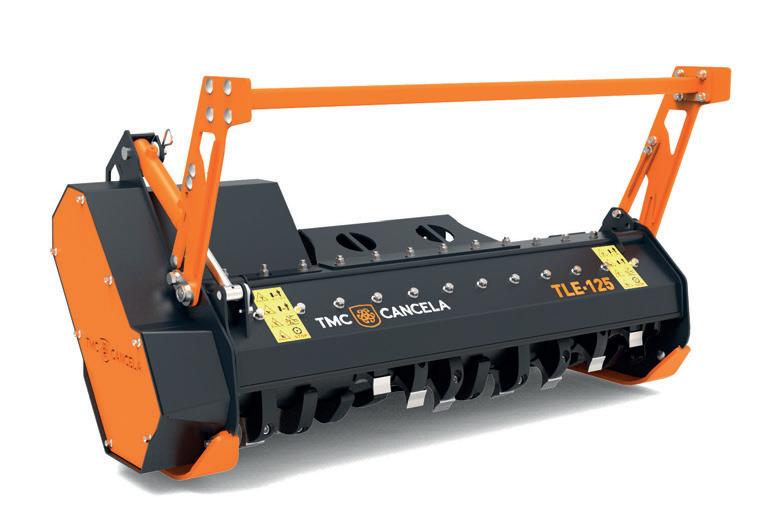

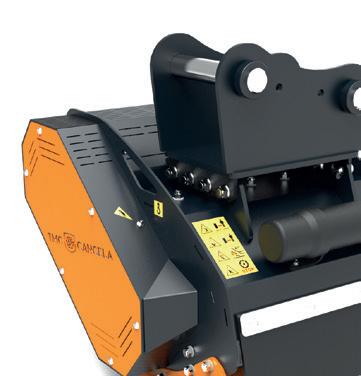

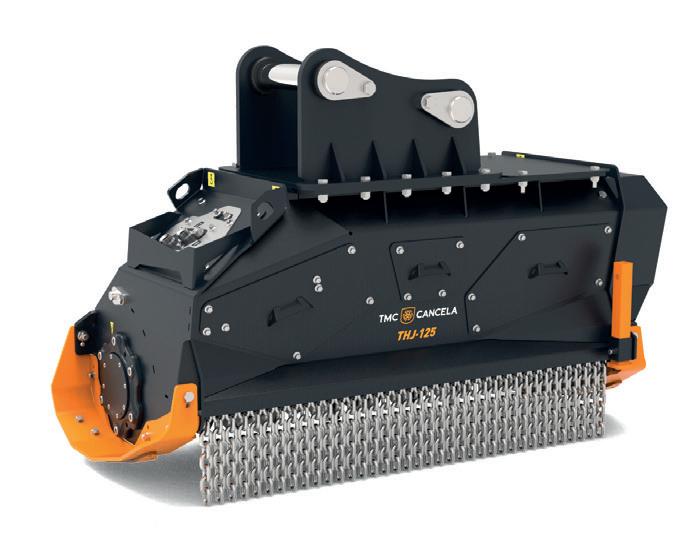

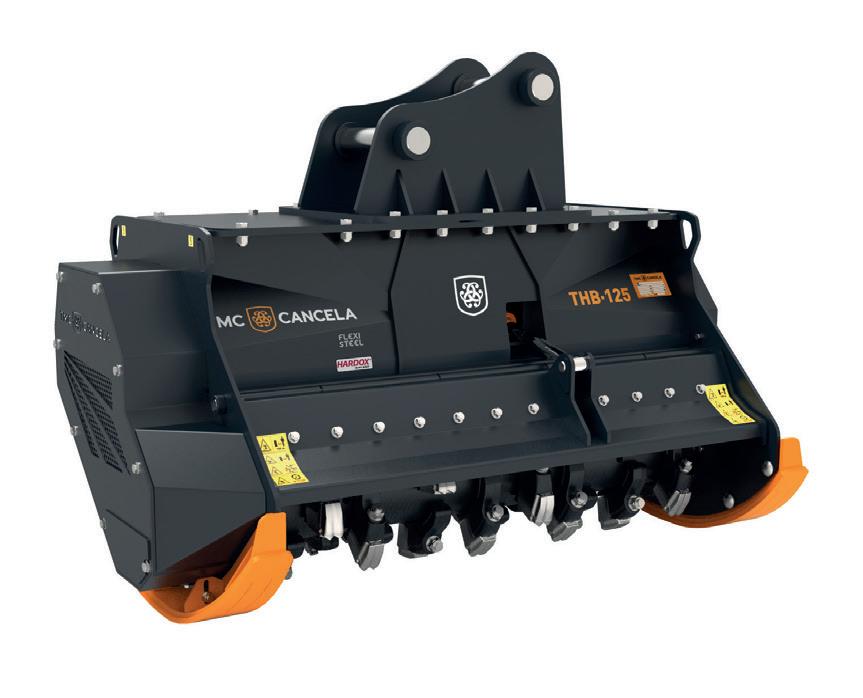

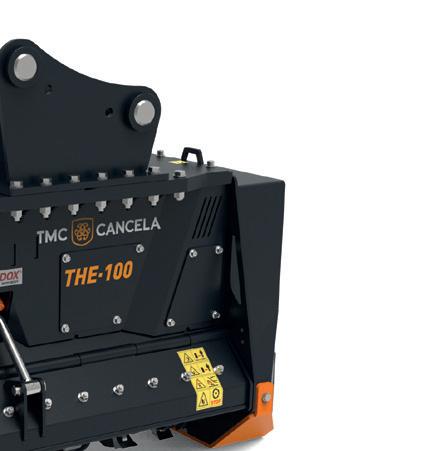

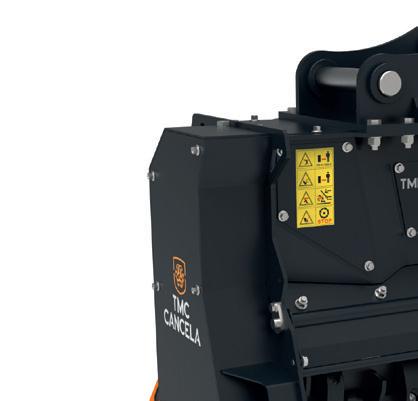

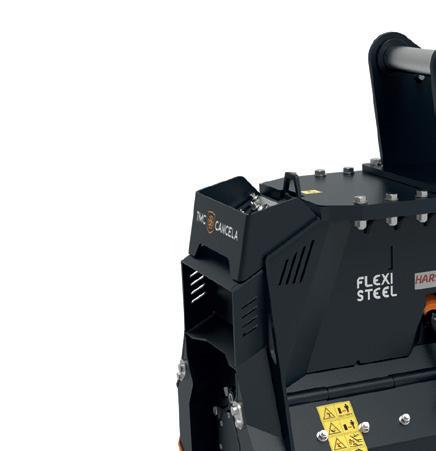

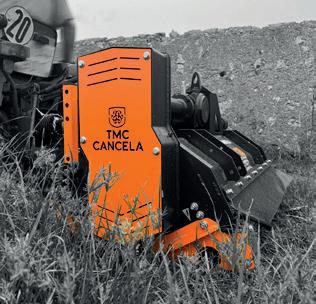

The TLE mulcher is a robust, compact unit for attachment to remotecontrolled vehicles, offering manoeuvrability and efficient mulching in difficult to access areas.
*Hydraulic hoses & connectors to carrier not included.
**Maximum pressure for 28cc & 32cc fixed displacement motors
