Lopez Garrido Heavy Duty Agricultural Mulchers | Spaldings Ltd

Page 1


HEAVY DUTY AGRICULTURAL MULCHERS

Commitment to Quality and Innovation

SPALDINGS are pleased to announce we are now

Sole Distributor in the UK and Ireland, for Mulching Toppers supplied by one of Spain’s leading manufacturers, LÓPEZ GARRIDO.

López Garrido are dedicated to delivering exceptional quality and performance with years of experience in the design and manufacture of agricultural equipment. Utilising both highstrength Strenx® and abrasion-resistant Hardox®

performance steels in their manufacture, these robust machines are perfect for managing heavy vegetation and maintaining fields, ensuring optimal performance and durability.

FEATURES

• Constructed with high-strength, high performance materials

• Supplied with 1 year manufacturer’s warranty –fully CE marked

• Full parts and service backup

• Rugged and reliable machines, engineered for a demanding environment

LÓPEZ GARRIDO – Spaldings are SOLE DISTRIBUTOR in the UK and Ireland farming and land management sectors, with access to a wider range of agricultural and forestry mulchers on request.

Mulcher designed for medium-power tractors. Specially designed for working on grass and pruning waste with a maximum diameter of 12.5 cm.

MAIN FEATURES

- Front and rear mounted mulcher

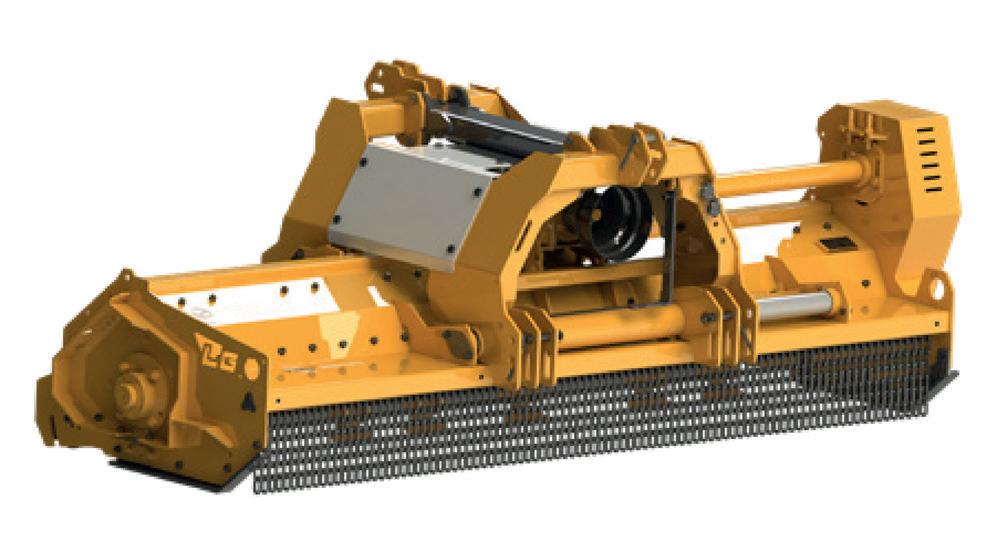

LÓPEZ GARRIDO TGQ 2800 Front & Rear Mounted Mulching Topper

• Chassis made with high-strength steel

• Rotor diameter: 480mm

• 450mm hydraulic side-shifting

• Rear levelling roller

• Category II hitch

• Rear retaining pins

• Forged & hardened hammers c/w 27mm bolts

• 2 rows of bolt-on Hardox counter-blades

• Side transmission by 5 XPB belts

• Front protection chains

• Height-adjustable skids

• Gearbox with free-wheel 1 ⅜” at 1,000 rpm

• Reinforced transmission shaft

• Meets relevant safety standards

• CE marking

SPECIFICATION

- Hydraulic displacement

- Double three-point linkage

- Frame made from SWEDISH steel

NEW PRODUCTS

2.8m

TGP 2800

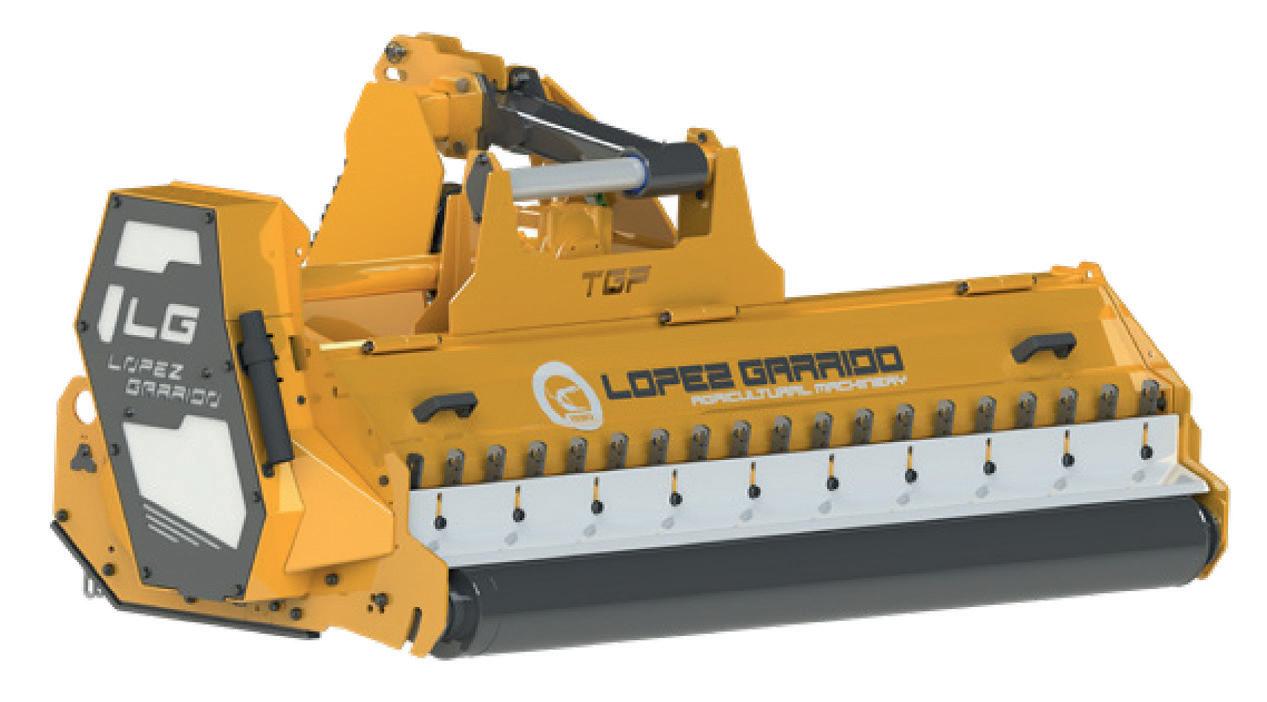

LÓPEZ GARRIDO TGP 2800

Rear Mounted

Mulching Topper

• Chassis made with high-strength steel

• Rotor diameter: 480mm

• 450mm hydraulic side shifting

• Rear levelling roller

• Category II hitch

• Rear hood

• Rear retaining pins

• Forged & hardened hammers c/w 27mm bolts

• 2 rows of bolt-on Hardox counter-blades

• Side transmission by 5 XPB belts

• Front protection chains

• Height-adjustable skids

• Gearbox with free-wheel 1⅜” at 540 rpm

• Reinforced shaft transmission

• Meets relevant safety standards

• CE marking SPECIFICATION

of hammers 26

min-max 100–140 hp

Gearbox input speed 540 rpm Weight 1,449 kg

16420 TGP 2800 rear mulching topper.

2.4m

REAR MOUNTED MULCHER FRONT & REAR MOUNTED MULCHER

Mulcher designed for medium-power tractors. Specially designed for working on grass and pruning waste with a maximum diameter of 12.5 cm.

MAIN FEATURES

- Rear mounted mulcher

- Hydraulic displacement

- Three-point linkage

- Frame made from SWEDISH steel

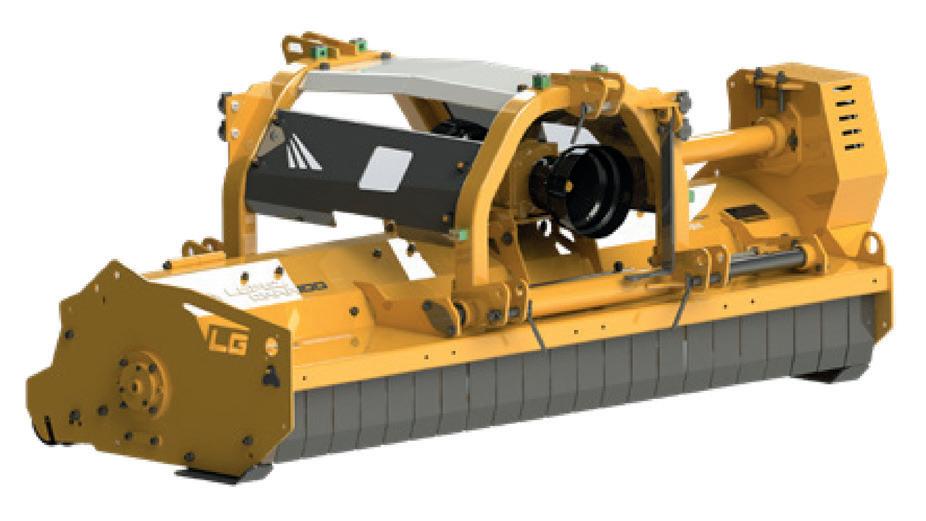

LÓPEZ GARRIDO

TGD 2400

Front & Rear Mounted Mulching Topper

• Chassis made with high-strength steel

• Rotor diameter: 430mm

• 450mm hydraulic side shifting

• Rear levelling roller

• Category II hitch

• Rear hood

• Rear retaining pins

• Forged & hardened hammers c/w 18mm bolts

• 2 rows of bolt-on Hardox counter-blades

• Side transmission by 4 XPB belts

• Front protection

• Height-adjustable skids

• Gearbox with free-wheel 1 ⅜” at 1,000 rpm

• Reinforced shaft transmission

• Meets relevant safety standards

• CE marking SPECIFICATION

width 2,600mm

995mm

1,190mm

of hammers 22

maximum diameter of 7 cm.

MAIN FEATURES

- Front and rear mounted mulcher

- Hydraulic displacement

- Double three-point linkage

- Frame made from SWEDISH steel

min-max 90–120 hp Gearbox input speed 1,000 rpm Weight 993 kg 16422 TGD 2400 front & rear mulching topper.
