Song Young Dental Loupes & Head Lights 2023

GALILEAN DENTAL LOUPES

To design a frame to meet ergonomic wearing is our main concern. The System includes the coaxial headlight provides a very light and comfortable stable wearing. The patent of four sections up and down view angle design with clear field of vision optic lenses to ensure dentists and hygienist a good visual performance. This combination provides a proper operation posture to prevent the neck, shoulder and waist tension.

Four main reasons to choose the S.Y. sport type Loupes

(1) Material

TR90 frame is an elastic high polymer material. Its outstanding anti deformation ratio reaches 620kg/cm 2 with high durability and light weight (only 27.5g) provide a very comfortable wearing.

(2) Function

1. The patent of four section up and down view angle design is to ensure the wearer have a proper working posture to prevent the neck, shoulder and waist tension.

(3) Lenses

View angle can up and down adjustable

1. Using medical grade with multilayer coating lenses, the light transmission rate of 99.0% can reduce the reflection of light.

Its achromatic, long depth of field and high resolution can provide users a clear and full field of vision.

50%Beamsplitter COATING SPECIFICATIONS

Spectrum

MODEL U-2900

HITACHI

T70%±5% @460±5nm

Tave>90% @500~700nm

T=71.2% @460nm

Tave=93.1 @500~700nm

Anti deformation

New Type

2. Equipped a prescription inserts for special uage.

2. Front-end protector using a special coating lenses when you work with LED head light will have 25% reduction of blue ray.

(4) Retention

New user usually will experience the weight of the burden, inconvenience to use and ultimately abandoned the loupes.

Its characteristics are as follows.

(1) The curved flexible frame design will help to maintain the stability of wearing in different directions of both side of the ear.

(2) Special upholstered cushion on the front design can provide the retention and share the weight.

(3) The design of different widths adjustable nose pads, provide individual's need to the most comfortable wearing.

(4) When a long time wearing, string can be replaced by tying an elastic stretch bands which provide better stability and reduce nose burden.

To solve the problem, we design a patent frame work.

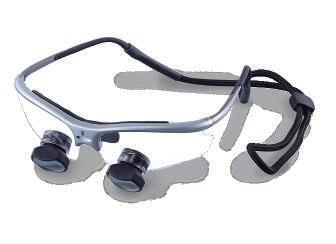

GALILEAN DENTAL LOUPES

New Aluminum magnesium alloy frame with smaller barrel.

Weight

55 g

Pink color

08380SV-2.5X-420 mm

mm

08380R -2.5X-420

420mm

(1)

1 2 3 4 5

3

mm

Antideformation

(2)

Upholstered Cushion

Equipped a prescription inserts for special uage.

(3) Nose Pad Adjustable

6 7 8

1. Case DL-006A

2. Screw driver DL-032

3. Cleaning cloth

DL-033

4. Loupe fixing tool 08270-6

5. Cotton Bag DL-049

6. Prescription inserts 08380-4

7. String 08380-6

8. Protect cover(W) 08380-15

Pliable temples

GALILEAN DENTAL LOUPES

S.Y. MULTIFUNCTION LOUPES

S.Y. MULTIFUNCTION INDIVIDUALIZED LOUPES

It is designed for those customers wants to have asynchronous PD. Independent adjustment of left and right optics barrel for perfect PD adjustment. High magnification with a large field of view and excellent depth of field. The Song Young Patent four section up and down view angle provides any angle of view and it work perfectly with the optional LED light.

GALILEAN TTL DENTAL LOUPES

TTL LOUPES 3.0X ULTRALIGHT TYPE

TTL(Through The Lens) Loupes

New Aluminum magnesium alloy frame with smaller barrel. Ready Made Different PD Protective Eyeglasses.

Weight

48 g

Loupes Components

Through the Lens(TTL) do not have the flip-up mechanism. Consequently they are lighter and the depth of field, the field of view is deeper and width than the flip-up system. So most of user's are easily get used to the TTL loupes on the beginning. Since every TTL loupes needs to be custom-made based on the user's Pupillary Distance (PD) the cost is higher and also takes time. Thanks to the new revolution design. We can offer four different PD protective eyeglasses SS,S,R,L.(SS is PD 56mm, S is PD 58mm, R is PD 60mm and L is PD 64mm.) It's easy for customers to choose the right PD eyeglasses by PD meter. Put the right eyeglasses into the frame, screw in the desired loupes (or 3.0X), your TTL loupes is ready to use.

Features

• The bright images

• Large field of view

• Superior depth of field

• No need Pupillary Adjustment

• Ultra-light weight

• Magnification – 4.5X

• Water Washable

Accessories

Item No.

Measure PD by meter

5. Eyeglasses SS (PD 56±1mm) 08352-SS

6. Eyeglasses S (PD 58±1mm) 08352-S

7. Eyeglasses R (PD 60±1mm) 08352-R

8. Eyeglasses L (PD 64±1mm) 08352-L

9. Pupillary Distance Meter 08353

1. String Band 08380-6

2. Eyeglasses frame 08240A-7

3. Inner Eyeglasses 08380-4

4. Lense barrel (3.0X) 08380-9-3.0X

GALILEAN TTL DENTAL LOUPES

TTL(Through The Lens) Loupes

New Innovation

Interchangeable Ready Made Different PD Protective Eyeglasses.

Loupes Components

Through the Lens(TTL) do not have the flip-up mechanism. Consequently they are lighter and the depth of field, the field of view is deeper and width than the flip-up system. So most of user's are easily get used to the TTL loupes on the beginning. Since every TTL loupes needs to be custom-made based on the user's Pupillary Distance (PD) the cost is higher and also takes time. Thanks to the new revolution design. We can offer four different PD protective eyeglasses SS,S,R,L.(SS is PD 56mm, S is PD 58mm, R is PD 60mm and L is PD 64mm.) It's easy for customers to choose the right PD eyeglasses by PD meter. Put the right eyeglasses into the frame, screw in the desired loupes (2.5X or 3.0X), your TTL loupes is ready to use.

Features

• The bright images

• Large field of view

• Superior depth of field

• No need Pupillary Adjustment

• Ultra-light weight

• Magnification – 2.5X、3.0X

• Water Washable

Accessories

Item No.

1. String Band 08240A-6

2. Eyeglasses frame 08240A-7

3. Rubber Band 08240A-5

4. Prescription Inserts 08240A-4

5. Lense barrel (2.5X、3.0X) 08351-2.5X、08351-3.0X

6. Eyeglasses SS (PD 56±1mm) 08352-SS

7. Eyeglasses S (PD 58±1mm) 08352-S

8. Eyeglasses R (PD 60±1mm) 08352-R

Measure PD by meter

9. Eyeglasses L (PD 64±1mm) 08352-L

10. Pupillary Distance Meter 08353

GALILEAN / KEPLERIAN DENTAL LOUPES

VARIABLE MAGNIFICATION LOUPES

This Song Young Loupe offers adjustable magnification levels ranging from 2.0X–3.0X magnification working distance from 500mm–340mm. With the high definition, optical techniques, customers will experience powerful magnification with best resolution possible.

Patented multi-angle adjustable hinge can be fully adjusted to ensure long working time with the right posture. It's dedicated to assist healthcare professionals view an operating site from multiple perspectives, the loupe is made to fit each and every individual's needs and own preference.

KEPLERIAN LOUPES (4.5X)

VARIABLE MAGNIFICATION TYPE

Full Set Item No.

Original type New Type (four section up and down view angle type)

Silver 08280A Silver 08281A

Red 08280B Red 08281B

Weight 103g

The Song Young Prismatic Loupe offers high magnification levels at 4.5x magnification with 420mm working distance. With its high definition, optical techniques, customers will experience powerful magnification with best resolution possible.

Patented multi-angle adjustable hinge can be fully adjusted to ensure long working time with the right posture. It's dedicated to assist healthcare professionals view an operating site from multiple perspectives, the loupe is made to fit each and every individual's needs and own preference.

KEPLERIAN CENTER ADJUSTABLE TYPE

Full Set Item No. Silver Red 08360A-4.5X 08360B-4.5X

Working distance 420mm

Depth of view 30mm

Field of view 35mm

Weight 85g

KEPLERIAN TTL DENTAL LOUPES

TTL LOUPES 4.5X

TTL(Through The Lens) Loupes New Innovation Interchangeable Ready Made Different PD Protective Eyeglasses.

Use your right fingers hold the barrel, and turn the left barrel until you can see a single focused image.

Full Set Item No.

Loupes Components

Through the Lens(TTL) do not have the flip-up mechanism. Consequently they are lighter and the depth of field, the field of view is deeper and width than the flip-up system. So most of user's are easily get used to the TTL loupes on the beginning. Since every TTL loupes needs to be custommade based on the user's Pupillary Distance (PD) the cost is higher and also takes time. Thanks to the new revolution design. We can offer four different PD protective eyeglasses SS,S,R,L.(SS is PD 56mm, S is PD 58mm, R is PD 60mm and L is PD 64mm.) It's easy for customers to choose the right PD eyeglasses by PD meter. Put the right eyeglasses into the frame, screw in the desired loupes (2.5X or 3.0X), your TTL loupes is ready to use.

Features

Accessories

Item No.

1. String Band 08240A-6

2. Eyeglasses frame 08240A-7

3. Rubber Band 08240A-5

4. Prescription Inserts 08240A-4

08350A-4.5X

08350B-4.5X

• The bright images

• Large field of view

• Superior depth of field

• No need Pupillary Adjustment

• Ultra-light weight

• Magnification – 4.5X

• Water Washable

5. Lense barrel (4.5X) 08351-4.5X

6. Eyeglasses SS (PD 56±1mm) 08352-SS-4.5X

7. Eyeglasses S (PD 58±1mm) 08352-S-4.5X

8. Eyeglasses R (PD 60±1mm) 08352-R-4.5X

Measure PD by meter

9. Eyeglasses L (PD 64±1mm) 08352-L-4.5X

10. Pupillary Distance Meter 08353

GALILEAN DENTAL LOUPES

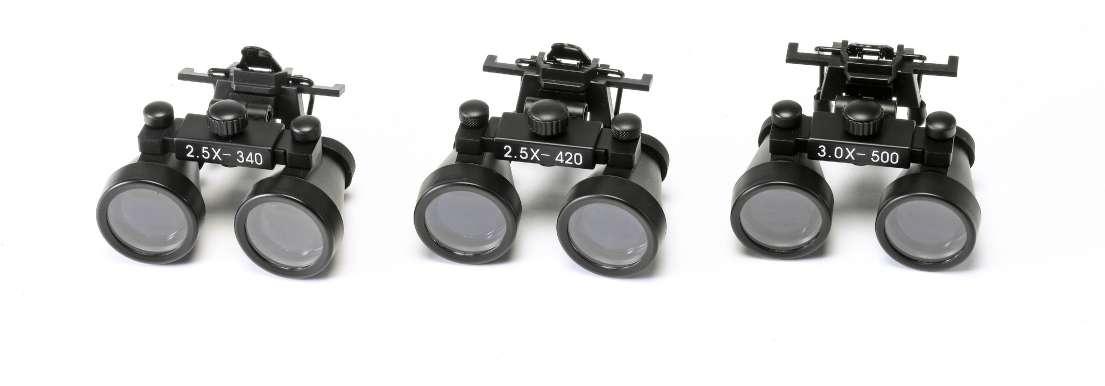

CLIP ON LOUPES

(Frame not include)

HEADBAND LOUPES / LED HEADBAND LIGHT SV

HEADBAND LOUPES

3 Adjusts to the shape of your head.

2 Locking Nut.

1 Vertical adjustment slot. Fast and easy positioning of the optical system.

5

Full Set Item No. 08300-2.5X 08300-3.0X

4

Two hinge design provide a quick and easy adjustment for personal needs.

4

Two hinge design provide a quick and easy adjustment for personal needs.

6 Weight is only 236g.

3 Adjusts to the shape of your head. Compatible with headlight.

Features

• Light weight, comfortable headband provides stable positioning and easy integration with loupes.

• Designed for glasses wearers.

• Much more close to your eyes, large field size and clear image minus the pressure on your nose.

LED HEADBAND LIGHT SV

Full Set Item No. 08266 Complete Set

Features

2.5X 3.0X

Working distance 420mm 420mm

Depth of view 90mm 75mm

Field of view 75mm 60mm

Weight 236g 236g

Yellow color filter (Light SII/SV)

Item No. 08264-8

• Good Light spot converging, Better light depth, continuously adjustable spot size and brightness control.

• Unique ergonomics design.

• Helmet is designed for both headlight and loupes use.

Technical specifications

Light SV:

Brightness on 30cm distance: 30,000Lux

Color temperature: 6000(±1000)°K

Illuminate beam radios on 30cm

Distance: 80mm

Dimensions(w/o headband):

41Lx21 x34Hmm

Weight (w/o headband): 23 grams

Led lifetime: 10,000hours

Item No.

08266-6 Light SV only

08264-8 Yellow color filter (Light SII/SV)

Controller:

Input: 5V/1000mA

Battery capacity:2,600mA

Full switching adapter time: 6hours

Average operating time: 5 hours

Dimensions: 81(L)x66(W)x13(D)mm

Weight: 112grams

Item No. 08264-1

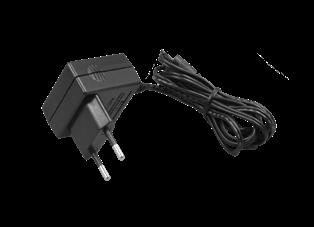

Switching Adapter:

Type:AC/DC Adapter

Input voltage:

AC100-240V 50-60Hz

Wall outlet plug: Euro/US

Output Power:

DC 5V/1000mA

Item No. 08264-3

Switching Adapter

USA plug AC100-240V 08264-4 Switching Adapter

EU plug AC100-240V

CHANGEABLE

CORDLESS LED HEADLIGHT

Insulation ring

Prevent the skin from being burned by the heat of the lamp

Full Set Item No.

Clip on 08220A-4 (For Regular Eye Glasses) HL-023 (For Galilean)

Snap on cordless type

-The holder can be fixed on the magnifying glasses -There are 4 types of clips for different types of magnifying glasses

08265 Snap on CORDLESS complete set

08265B Clip on CORDLESS complete set

08265C Clip on CORDLESS for TTL loupes complete set

Cordless Headlight controller x2

Charging Cable x1

Headlight:

Brightness on 30 cm distance: 10,000 Lux

Color temperature: 6000(±1000) °K

Illuminate beam radios on 40 cm

Distance: 10cm

Dimensions: 44(L) x 19(Φ) mm

Led lifetime: 10,000 hours

Weight: 13.6 grams

Item No.

08265-6 Snap on light CORDLESS Headlight only (2.5jack)

08265B-6 Clip on light CORDLESS only (2.5jack)

08267C-6 Clip on light CORDLESS only (for TTL)

08265-8 Flip up filter(Light CORDLESS)

08265-5A Switching adapter Cable

Clip-on x1

(For TTL /Universal Eye Glasses)

Yellow color filter x1 (Light Cordless)

Switching Adapter

(EU PLUG or USA PLUG x1)

Cordless Controller:

Input : 5V1000mA

Battery capacity: 700 mAh

Full battery charging time: 150 min

Average operating time: 120 min

Dimensions: 36(L) x 14.4(W) x 15.5(D) mm

Weight: 25 grams

Item No.08265-1

Switching Adapter:

Type: AC/DC Adapter

Input voltage: AC100 – 240V

50-60 Hz

Input frequency: 50-60 Hz

Wall outlet plug: Euro / US

Output Power: DC 5V / 1000mA

Item No.

08265-3 Switching adapter USA Plug

AC100-240V

08265-4 Switching adapter EU Plug

AC100-240V

Compatible with magnifying glasses:

It can be clip on with magnifying glasses directly.

Adjustable angle:

The beam angle can be adjusted up to 180 degrees, which can meet the needs of doctors to adapt to various operations.

Use with snap on Galilean loupes

Use with TTL loupes

Use with Full-frame loupes

Controller:

Input : 5V1000mA

Battery capacity: 2,600mAh

Full battery charging time: 6 hours

Average operating time: 5 hours

Dimensions: 81(L) x 66(W) x 13(D) mm

Weight: 112 grams

Item No. 08264-1

When examining oral tissue and teeth, it presents the true colors under natural daylight.

Daylight & Yellow Filter: Lightweight design:

The weight of the light is between 36-37.5g, which hardly puts pressure on the forehead or nose.

Go wireless or wire:

Connece the battery with the light with or without wire.

Switching Adapter:

Input voltage:

AC100-240V 50-60Hz

Wall outlet plug: Euro/US

Output Power: DC 5V/1000mA

Item No. 08264-3

08264-4

The indicator light shows the power:

the green light shows the power of 95~100%, the blue light is 95~70%, and the red light is below 70%.

Switching Adapter

USA plug AC100-240V

Switching Adapter

EU plug AC100-240V

Cable Headlight

Charging

12

Item No. 08264-3 Item No. 08264-1 Item No. 08262-7 Item No. 08264-4

Adjustable Light Beam

Knob

LED HEADLIGHT SI ( Knob Type )

Switching Adapter

Snap-on Type Light SI (3.5Jack)

weight(w/o wire): 31g

Clip-On-Type

Light SI (3.5Jack)

weight(w/o wire): 36g

Features

Clip-On-Type ( for TTL) Lopues Light SI (3.5Jack)

weight(w/o wire): 37g

The light and the loupes is coaxial, provide a shadow-free illumination. Some cases when operator change the position, the overhead light will cause shadow and affect treatment especially on the posterior teeth.

CHANGEABLE

HL-023 (For Galilean)

Full Set Item No.

Clip on 08220A-4 (For Regular Eye Glasses)

08260N Snap on SI complete set

08260BN Clip on SI complete set

08260CN Clip on SI for TTL loupes complete set

• Loupes mounted – Extra Light comes with a mount attachment for any Magnification Loupes.

• Daylight – allows the doctor to see tissues and teeth in the oral cavity in their true color, just like in natural day light.

• Narrow beam – allows the surgeon to illuminate the oral cavity, without dazzling the patient.

• Adjustable slope angle – beam's angle can be adjusted up to 18 degrees to fit individual surgeons and tasks.

• Lightweight – Extra light weight just 15grams, applying minimal pressure on the forehead or the nose, when mounted on glasses.

Light:

Brightness on 30cm distance: 40,000Lux

Color temperature: 6000(±1000)°K

Illuminate beam radios on 30cm

Distance: 100mm

Dimensions: 31Lx24 x39Hmm

Led lifetime: 50,000hours

Item No.

08260A-4 Snap on Light SI only(3.5Jack)

08260B-4 Clip on Light SI only(3.5Jack)

08260C-4 Clip on for TTL Light SI only(3.5Jack)

08262-8 Yellow color filter(Light S)

Controller:

Input: 4.2

Battery capacity:3,600mA

Full switching adapter time: 8 hours

Average operating time: 8.5 hours

Dimensions: 146(L)x65(W)x23(D)mm

Weight: 142grams

Item No.

08260N-5 Headlight controller I only

Switching Adapter:

Input voltage: 100-240V

Input voltage: 50-60Hz

Wall outlet plug: Euro/US

Output Power: DC 5V/1000mA

Item No.

08260N-3 Switching Adapter

USA plug AC100-240V

08260N-4 Switching Adapter

EU plug AC100-240V

Headlight Controller

Leather Cover

TTL Loupes with Headlight Clip on type

Snap-On type

Yellow color filter (Light S)

Item No. 08262-8

Yellow color filter (Light S)

Item No. 08262-8

LED HEADLIGHT SII

( Compact Design )

Battery Indicator Lamp

USB Switching Adapter

Headlight II Controller Light section bright adjustable

Adjustable Light Beam Knob

Fix Clip

Clip-On-Type ( for TTL) Light S Light S (2.5Jack)

weight(w/o wire): 37g

Full Set Item No.

Clip-On-Type Light S Light S (2.5Jack)

weight(w/o wire): 36g

08264JP Snap on SII complete set

08264BJP Clip on SII complete set

08264CJP Clip-On SII for TTL loupes complete set

Technical specifications

Light S:

Brightness on 30cm distance: 25,000Lux

Color temperature: 6000(±1000)°K

Illuminate beam radios on 30cm

Distance: 100mm

Dimensions: 31Lx24 x40Hmm

Led lifetime: 10,000hours

Item No.

08262-6 Snap on type SII Light S only (2.5Jack)

08262B-6 Clip on type SII Light S only (2.5Jack)

08262C-6 Clip on type SII for TTL Light S only (2.5Jack)

08262-8 Yellow color filter (Light S)

08262-7 Leather Cover

08240A-8 Fix Clip

Snop-on Type Light S (2.5Jack)

weight(w/o wire): 31g

CHANGEABLE

Clip on 08220A-4 (For Regular Eye Glasses)

Controller:

Input: 5V/1000mA

Battery capacity:2,600mA

Full switching adapter time: 6hours

Average operating time: 8 hours

Dimensions: 81(L)x66(W)x13(D)mm

Weight: 112grams

Item No. 08264-1

Switching Adapter: Input voltage: AC100-240V 50-60Hz

Wall outlet plug: Euro/US

Output Power: DC 5V/1000mA

Item No. 08264-3 Switching Adapter

USA plug AC100-240V 08264-4 Switching Adapter

EU plug AC100-240V

Leather Cover

Yellow

CHANGEABLE

LED HEADLIGHT II

(Fixed Light Spot)

Full Set Item No.

08267 Snap on II complete set

08267B Clip on II complete set

08267C Clip on II for TTL loupes complete set

08267D Clip on II with Frame

08268D Magnetic Joint type with Frame

Technical specifications

Headlight II:

Brightness on 30cm distance: 21,000Lux

Color temperature: 6000(±1000)°K

Illuminate beam radios on 30cm

Distance: 80mm

Dimensions: 41Lx21 x34Hmm

Led lifetime: 10,000hours

Item No.

08267-6 Snap on light II Headlight only (2.5jack)

08267B-6 Clip on light II only (2.5jack)

08267C-6 Clip on light II only (for TTL)

08264-8 Yellow color filter(Light II)

08262-7 Leather Cover

08240A-8 Fix Clip

Features

• Good Light spot converging, Better light depth

• Unique ergonomics design.

• Fix spot size

Controller:

Input: 5V/l1000mA

Battery capacity:2,600mA

Full switching adapter time: 6hours

Average operating time: 5hours

Dimensions: 81(L)x66(W)x13(D)mm

Weight: 112grams

Item No. 08264-1

Switching Adapter:

Input voltage:

AC100-240V 50-60Hz

Wall outlet plug: Euro/US

Output Power: DC 5V/1000mA

Item No.

08264-3 Switching Adapter

USA plug AC100-240V

08264-4 Switching Adapter

EU plug AC100-240V

Leather Cover

Snap-on type Light II (2.5jack) weight(w/o wire): 15.6g

Clip-on type Light II (2.5jack) weight(w/o wire): 23g

Clip-on type (for TTL) Light II weight(w/o wire): 23.5g

Battery Indicator Lamp

color filter (Light II) Fix Clip

Item No. 08264-8

Item No. 08267D Clip on II with Frame Item No. 08268D

Magnetic Joint type with Frame

USB Switching Adapter

Clip on 08220A-4 (For Regular Eye Glasses) HL-023 (For Galilean)

GALILEAN / KEPLERIAN DENTAL LOUPES

Galilean & Keplerian Loupes
