ADJUSTABLE ARTICULATORS

The Objective of

Labo-Mate Series Articulators

These semi adjustable articulators are developed for multiple purposes. It can be used for all goods of skillfulness; to be operated easily with approximate reappearance system on lower jaw movement by checkbite method to be used for both dentulous and edentulous. It is ideal for college students and dental labs. Each articulator has been calibrated by 3D calibrator and the intercondylar distance is fixed for 110mm. The model can be switched from one articulator to another with complete assurance. Eliminated the need for transporting back and forth no longer subjected to transport stress. Avoids functions jeopardizing its registration and simulation.

ADJUSTABLE ARTICULATORS

Compatible with Artex System

Compatible with Artex System

Both of them are 100mm /110 mm

Interchangable with Transfer Stand

LABO-MATE 600

Fully Adjustable Articulator

(1) With the maxillary and mandibular alveolar ridge lines and the observation from the opposite direction, the forces and their directions on the denture were analyzed to plan for optimized denture alignment, which is used to formulate a maxillary denture solution with good retention and stability even under strong unilateral biting force, and does not crack from the center.

(2) Silicone is used to fill up the medial side of the defective denture bed before model fabrication. The fabricated model is fit on the articulator, and the maxillary and mandibular alveolar ridge lines are recorded. Observe the alveolar ridge lines and the alignment of the defective denture to understand the cause of failure in order to plan for effective revision.

Features

1. This is condylar type articulator which is used for both dentulous and edentulous cases.

2. The sagittal condyle path can be adjusted from -20° to 70°.

3. The immediate side shift can be adjusted from 0 to 3 mm.

4. The Bennett's angle can be adjusted from 0° to 30°.

5. The protrusion can be adjusted from 0 to 7mm, the retrusion is 0 to 2mm.

6. The height can be raised separately on both sides, from 0 to 3.5mm.

7. Each articulator has been calibrated by 3D calibrator. The model can be switched from one articulator to another with complete assurance.

Function

Arcon type

Includes

Condyle angle: -20°~70°

Bennett angle: 0°~30°

Protrusion: 0~7mm

Retrusion: 0~2mm

• Draw the mandibular alveolar ridge line on one side of a transparent slide using black oily pen

• Draw the maxillary alveolar ridge line on another side of the slide using red oily pen

Immediate side shift: 0~3mm

Height adjustable: 0~3.5mm

Rubber Ring (Greyx1, Black x1)

Plastic Plate x6

Dental Plates (0°x1, 100Rx1, 125Rx1, 140Rx1, 160Rx1)

Dental Plate Base x1 Allen Wrench x1 (2.5mm)

Item No. 02250 (126mm)

Figure

LABO-MATE 500

Semi Adjustable Articulator

Features

1. This is condylar type articulator which is used for both dentulous and edentulous cases.

2. The sagittal condyle path can be adjusted from -20° to 70° for younger generation, and the lateral condyle path is from 0° to 30°.

3. The immediate side shift can be adjusted from 0 to 3 mm.

4. The incisal pin can be adjusted up to 10 mm upper and 5 mm lower sides on the circle of which the center is on the intercondylar axis.

5. Each articulator has been calibrated by 3D calibrator. The model can be switched from one articulator to another with complete assurance.

Labo-Mate 500S : The protrusion can be adjusted from 0 to 8 mm and fixed with the screw separately..

Function

Includes

Condyle Angle: -20°~70°

Bennett's Angle: 0°~30°

Arcon type

Immediate Side Shift: 0~3mm

LABO-MATE 500 Item No. 02100 (126mm)

Rubber Ring (Greyx1, Black x1)

Plastic Plate x6

Dental Plates (0°x1, 100Rx1, 125Rx1, 140Rx1, 160Rx1)

Dental Plate Base x1

Allen Wrench x1 (2.5mm)

Protrusion: 0~8mm

LABO-MATE 400

Semi Adjustable Articulator

Features

1. This is non-arcon type articulator which is used for both dentulous and edentulous cases.

2. The intercondylar distance is fixed for 110mm.

3. The sagittal condyle path can be adjusted from 0° to 50° for younger generation, and the lateral condyle path is from 0° to 20°.

4. The height can be raised separately on both sides, the maximum is 5mm.

5. Each articulator has been calibrated by 3D calibrator. The model can be switched from one articulator to another with complete assurance.

Condyle angle: 0°~50° Bennett angle : 0°~20°

Non-Arcon type

Adjustable height : 0~5mm (each scale is 1mm)

Rubber Ring (Greyx1, Black x1)

Dental Plates (0°x1, 100Rx1, 125Rx1, 140Rx1, 160Rx1)

Dental Plate Base x1

Orientation Jig x1

Item No. 02200 (126mm)

Bennett Angle Adjustable height

LABO-MATE 350 Semi Adjustable Articulator

Item No. 02150 (126mm)

Features

LABO-MATE 350 & LABO-MATE 320

LABO-MATE 320 Mean Value Articulator

Item No. 02130 (126mm)

1. This is condylar type articulator which is used for both dentulous and edentulous cases.

2. The intercondylar distance is fixed for 110mm.

3. The sagittal condyle path can be adjusted from -20° to 70° for younger generation. (LABO-MATE 350) The condyle path is fixed at 35°. (LABO-MATE 320)

4. The Bennett angle is fixed at 15°.

5. Each articulator has been calibrated by 3D calibrator. The model can be switched from one articulator to another with complete assurance.

Function

Includes

Rubber Ring (Greyx1, Black x1)

Plastic Plate x6

Dental Plates (0°x1, 100Rx1, 125Rx1, 140Rx1, 160Rx1)

Dental Plate Base x1

Condyle Angle: -20°~70° Arcon type Bennett's Angle: 15°

Sagittal 15°

Condyle Angle : 35° Arcon type Bennett's Angle : 15°

LABO MATE 350 :

LABO MATE 320 :

LABO-MATE 310

LABO-MATE 310

Semi Adjustable Articulator

Item No. 02140

Features

1. This is non-arcon type articulator which is used for both dentulous and edentulous cases.

2. The intercondylar distance is fixed for 110mm.

3. The sagittal condyle path can be adjusted up to 50° for younger generation, and the lateral condyle path can be adjusted from 0° to 20°.

4. The height can be raised separately on both sides, the maximum is 5mm.

5. Each articulator has been calibrated by 3D calibrator. The model can be switched from one articulator to another with complete assurance.

6. The articulator includes the optional orientation jig, which can secure the upper and lower jaw casts on to the articulator without using a face-bow.

Function

Non-Arcon type Condyle angle : 0°~50°

Includes

LABO MATE 310 Set:

Adjustable height ADJUSTABLE ARTICULATORS / LABO MATE 310 , 300

Bennett Angle

Rubber Ring (Greyx1, Black x1)

Plastic Plate x6

Dental Plates (0°x1, 100Rx1, 125Rx1, 140Rx1, 160Rx1)

Dental Plate Base x1 Orientation Jig x1

Bennett angle : 0°~20°

Adjustable height : 0~5mm (each scale is 1mm)

Includes

MOUNTING ARTICULATORS

Its specification is same as the articulator 320~600. The incisal pin is made in one piece without the height adjustment. Tighten the upper and lower components to prevent the deformation of stone expansion during mounting.

Work with Surveyor

Mini Surveyor Operation

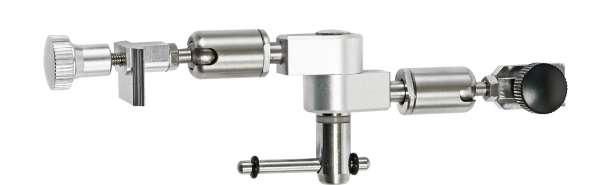

1.Unscrew the support from the table

2.Detach the incisal table from the Labo-mate 500.

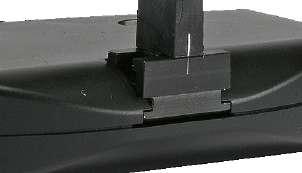

3.Fix the support on the position, where incisal table or incisal pin was, with the screw.

4.After assembling with the articulator, then we can start to survey.

Surveyor Turn Table

Item No. 02100-10

You can put the cast on the turn table directly for surveying with our Survey/ Milling Machine.And it can prevent to harm the stone when you put on or pick up the cast from the table.

Item No. 02120 (126mm)

Rubber Ring (Greyx1, Black x1)

Plastic Plate x6

Bonwill's Triangle 110mm

Allen Wrench x1 (2mm) Fix stick bar x1

Item No. 02120-5

Item No. 02535

Optional Accessories

Incisal Guidance Tables

Different degrees of incisal guidance tables:

0°(02100-28A)、5°(02100-28B)、

10°(02100-28C)、20°(02100-28D)

Adjustable Incisal Guidance Table 02100-28E

You can adjust different degrees of both sides and inclination..

Flat Pin 02100-28F

Plastic Plate 02100-31

Adhesive Disk

Ø35 x 1.5mm 02100-23

Rubber Ring

Grey(23mm) 02100-32A

Black(18mm) 02100-32B

Mounting Table

Two bases 02100-30

Single base 02100-30S

Dental Plates - Black type (1set) 02100-44-B set

0°(02100-44-0R), 100R (02100-44-100R), 125R(02100-44-125R), 140R(02100-44-140R), 160R(02100-44-160R)

Dental Plates - Clear type (1set) 02100-44-C set

Clear type

Black type

0°(02100-44-C000R), 100R (02100-44-C100R), 125R(02100-44-C125R),140R(02100-44-C140R), 160R(02100-44-C160R)

Base for Dental Plates

02100-16

Adjustable Base for Dental Plates

126mm 02100-56H

3D Adjustable Base for Dental Plates

126mm 02100-58

Optional Accessories

Lower jaw orientation jig

It is used for positioning the edentulous lower model with 3 points (center and retromolar pads), according to the Bonwill triangle.

126mm 02100-48H

Dental Measure Ruler (1set) 02100-54

Dental Measure Ruler 1 02100-52

Dental Measure Ruler 2 02100-53

Magnet Remover 02100-34

Plastic Plate II (6pcs/pkg) 02100-31C

1 Plastic Plate 02100-31C-1

2 Adhesive Disk Ø25 x 2.5mm 02100-31C-2

Calibrator

116mm 02100-42A

126mm 02100-42B

Checking Plates (1set) 02100-50 Carry Box

02100-45 L230 x W220 x H205 mm

02100-45A L230 x W220 x H255 mm

This box is specifically designed for Labo-Mate Semi-Adjustable Articulator only or with Face Bow V2 package.

Positioning plate with magnet 02000-3

Specifically designed for Labo-Mate 300

Bite Panel 02000-1

A. Flat 02000-1A

B. Curved 02000-1B

C. Stand 02000-1C

Labo-Mate 300 Only

Optional Accessories

Centric Needle 02100-29

Centric needle points out the anterior centric point of Bonwill's triangle.

Centric Lock (1 pair) 02100-17 Left 02100-17-A Right 02100-17-A1

Rubber Band (2 pcs) 02100-07A Labo-Mate 500/350/320

Rubber Band Black(2 pcs) 02100-07 Labo-Mate 400/300

Magnet 02100-04E

Support Pin 02100-14N

Support Pin Add 02100-14N-1 126mm articulators.

Anti-Slip Cover 02100-11C

Incisal Pin

116mm 02100-05

126mm 02100-05P

1 02100-05-C 2 02100-05-A

3 02100-05-D 4 02100-05-B (116mm) 02100-05-BP (126mm)

Screw for Reversed Articulator (Φ4.9) 02100-05E

Orientation Jig

It can secure the upper and lower jaw casts onto the articulator without using a face-bow.

Labo-Mate 400 / 310 02200-2H

Labo-Mate 300 02000-2

Remounting Jig 02100-55

FACE BOW-V / V I

FACE BOW-V

DIRECT SYSTEM

Item No. 02140-20V

FACE BOW-V I QUICK MOUNT SYSTEM

Item No. 02100-20

Function

For hygiene purposes, cover the ear balls with the sheaths.

Retractable Nasion relator for better retention on the nose.

Adjustment of the face bow on patient with reference to the patient horizontal plane.

Adjustable Nasion relator base for differen cases.

Attach the utility joint on the prominence under the face bow.

V type (Direct joint)

Turn loose the bar screw of the direct joint fix from the front side of the transfer stand upper plane both side.

V I type (Utility joint)

Turn the knob anticlockwise to fix the distance of the ear ball.

Turn loose the bar screw of the utility joint fix to the transfer stand upper plane both side.

Fix the both screws

FACE BOW-V

Face Bow-V Set (02140-20V-set):

1 Face Bow x1pc 02100-20

2 Sheaths x10pcs/bag 02100-35

3 Direct joint x1pc 02140-36V

4 Bite fork for toothless x1pc 02140-21V

5 Bite fork for non-toothless x1pc 02140-22V

6 Transfer stand (Labo) x1pc 02140-40V

7 Fork support x1pc 02100-41

8 Level x1pc 02100-20Y

9 Indicator x1pc 02100-20P

10 Allen Wrench x1pc (3.0mm) 02100-59B

FACE BOW-V I

Face Bow-V I Set A (02100-20A-set):

1 Face Bow x1pc 02100-20

2 Sheaths x10pcs/bag 02100-35

3 Utility joint x1pc 02100-36

4 Bite fork for toothless x1pc 02100-21

5 Bite fork for non-toothless x1pc 02100-22

6 Transfer stand (clinic) x1pc 02100-38/39

7 Level x1pc 02100-20Y

8 Indicator x1pc 02100-20P

9 Allen Wrench x1pc (3.0mm) 02100-59B

Face Bow-V I Set B (02100-20B-set):

1 Face Bow x1pc 02100-20

2 Sheaths x10pcs/bag 02100-35

3 Utility joint x1pc 02100-36

4 Bite fork for toothless x1pc 02100-21

5 Bite fork for non-toothless x1pc 02100-22

6 Transfer stand (lab) x1pc 02100-40 02100-40H

7 Fork support x1pc 02100-41

8 Level x1pc 02100-20Y

9 Indicator x1pc 02100-20P

10 Allen Wrench x1pc (3.0mm) 02100-59B

When using the Labo-Mate 300/310/400H articulator, the ear balls should be changed to the special ones before attaching on the ear pins

Left 02100-35C Right 02100-35C-1

Function

FACE BOW-V II

For hygiene purposes, cover the ear balls with the sheaths.

Retractable

The Nasion relator base can be moved left and right due to different cases.

Attach the utility joint on the prominence under the face bow.

Nasion relator for better retention on the nose.

Turn the screws anticlockwise to fix the distance of the arms.

Turn the bar screw to fixed the direction of the utility joint. (Clockwise – fixed)

Loosen the utility joint from the face bow.

Attach to the long transfer stand (clinic)

Attach to the short transfer stand (short)

FACE BOW-V II

Face Bow-V II Set A (02100-60A-set):

1 Face Bow-V II x1pc 02100-60

2 Sheaths x10pcs/bag 02100-35

3 Utility joint V2 x1pc 02100-36B

4 Bite fork for toothless x1pc 02100-21

5 Bite fork for non-toothless x1pc 02100-22

6 Transfer stand (clinic) x1pc 02100-38/39

7 Level x1pc 02100-20Y

8 Indicator x1pc 02100-20P

9 Allen Wrench x1pc (3.0mm) 02100-59B

Face Bow-V II Set B (02100-60B-set):

1 Face Bow-V II x1pc 02100-60

2 Sheaths x10pcs/bag 02100-35

3 Utility joint V II x1pc 02100-36B

4 Bite fork for toothless x1pc 02100-21

5 Bite fork for non-toothless x1pc 02100-22

6 Transfer stand (lab) x1pc 02100-40 02100-40H

7 Fork support x1pc 02100-41

8 Level x1pc 02100-20Y

9 Indicator x1pc 02100-20P

10 Allen Wrench x1pc (3.0mm) 02100-59B

Optional Accessories

1 Sheaths (10pcs/bag) 02100-35

2 Nasion Relator 02100-20N

1 Indicator 02100-20P

2 Level 02100-20Y

Direct Joint V 02140-36V

Utility Joint V I 02100-36

Utility Joint V II 02100-36B

Bite Fork (for V I / V II)

1 Toothless 02100-21

2 Non-toothless 02100-22

Fork Support 02100-41 Transfer Stand (Lab)

1 126mm (for V I) 02100-40H

2 126mm (for V) 02140-40V

Bite Fork (for V)

3 Toothless 02140-21V

4 Non-toothless 02140-22V

Transfer Stand + Transfer table (Clinic) 02100-38/39

1 Transfer Stand (Clinic) 02100-38

2 Transfer table 02100-39

3 Allen Wrench x1pc (3.0mm) 02100-59B

Arbitrary Connector (1pair) 02100-35C-set Left 02100-35C Right 02100-35C-1 (Labo Mate 300/310/400H only)

Face Bow Transfer

For Dentist - Transfer with the Transfer Stand (Clinic)

Operation

1.Detach the utility joint with bite fork from the face-bow.

2.Fixed the joint on the Transfer Stand and fixed the bite fork on the Transfer Table with plaster.

3.When the plaster harden, detach the fork from the joint.

4.Send the Transfer Table with the fork to technicians' lab.

For Technician - Transfer with the Transfer Stand (Lab)

Operation

1.Detach the Incisal table and Incisal pin from the articulator, then put in the Transfer Stand and Fork support.

2.Detach the utility joint with bite fork from the face-bow.

3.Fixed the joint on the Short Transfer Stand.

4.Rotate the Fork support till it touch the fork, then put upper model on the fork and mounting.

5.After the upper jaw fixed, match with its lower jaw and mounting. Finished.

Mounting with face bow

Operation

1.Detach the Nasion relator assembly

2.Change the incisal pin to a extend plate, put the fork support into the articulator.

3.Register the face-bow with ear-ball to the ear-pin, support pin at the both side and bite fork on the fork support.

4.Put on the cast, add some plaster then cover the upper component, waiting for setting.

Labo-Mate Articulator Series
