Data Logger & Sensor
Water Level & Temperature Monitoring
This rugged and autonomous monitoring solution is an excellent choice for water level and temperature monitoring. This setup is equipped to handle your task with ease and its versatility makes it an essential tool for water level management. The system consists of a submersible transmitter and a data logger suitable for outdoor use.
A stable and reliable piezoresistive pressure sensor and a temperature sensor are mounted with the high-performance signal processing circuit in a stainless-steel housing. The measuring range of the sensor is liquid level to 200mH2O depth, and the temperature range is -20 to 70°C. The sensor supports 4~20mA dual output, with level and temperature dual standard output.
A Complete System
The system features a data logger and a fully sealed submersible water level sensor, ensuring reliable and accurate readings even in harsh outdoor environments.
Your measurement data is automatically uploaded to a cloud server via cellular technology, allowing easy access via mobile phone, tablet, or computer. This means you can stay informed about water levels and temperature at all times, no matter where you are, saving both time and money.
Features and Benefits
Low cost and low maintenance
Easy and fast installation
Alerts for critical events via web, SMS, or email
No fixed communication or power source required
Outdoor Data Logger
DeltaBlue is a rugged data logger with an integrated positioning system for measuring in remote areas without access to power or cable connection. DeltaBlue has a battery life of up to one year and is ideal for long-lasting and reliable performance. You get a complete water level and temperature measure by pairing DeltaBlue with a level sensor.
Your logged measurements can be accessed and analyzed via an IoT Cloud Dashboard. External sensors for measuring humidity, temperature, groundwater levels and other parameters can also be connected.

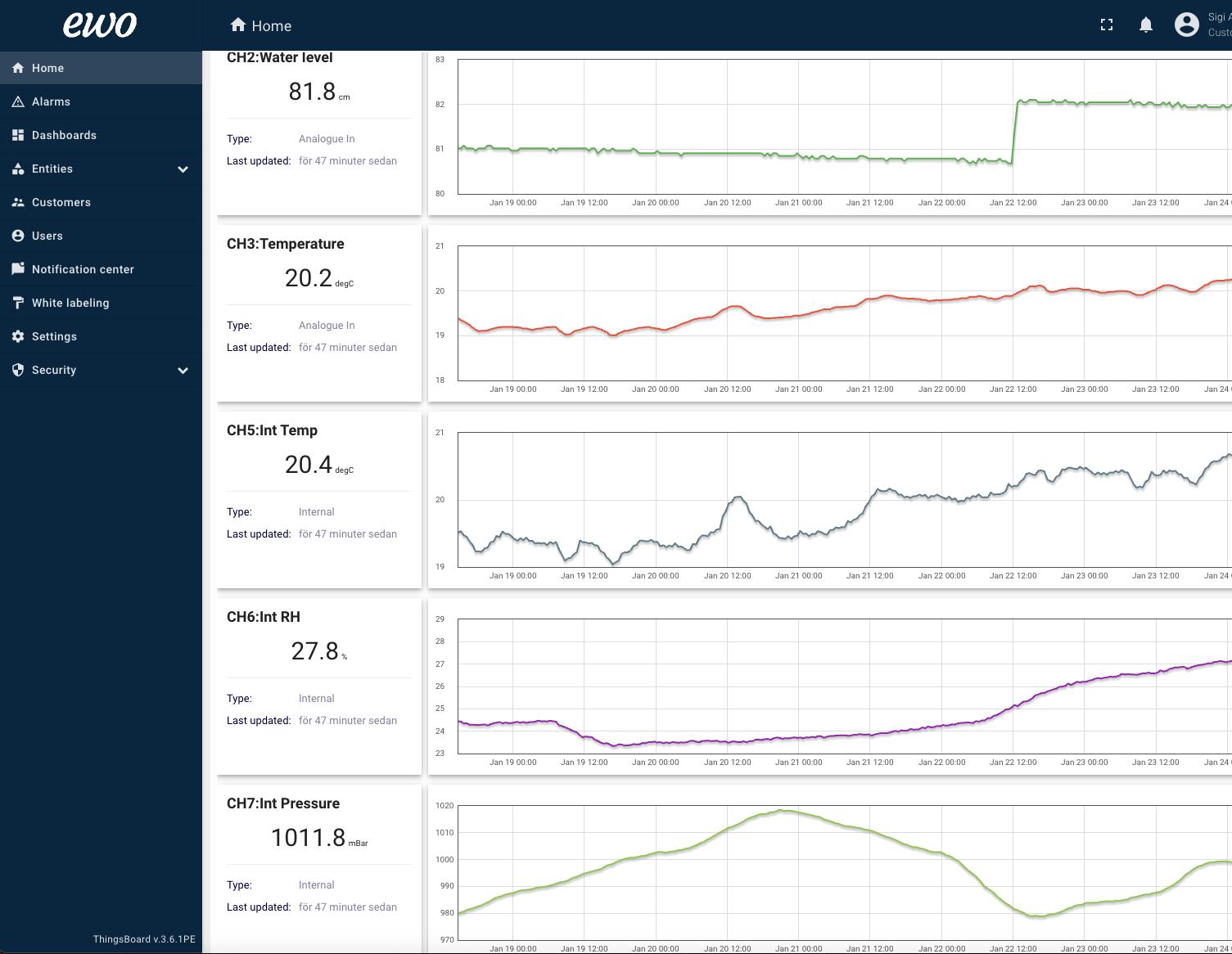

IoT Platform
ETM Web Office is an IoT cloud-based dashboard and a platform for seamless management and monitoring of your hardware. Collect, store, and display visualization of data and connectivity parameters. Users can receive SMS and e-mail alerts directly from their connected units and sensors.
Hosted within a secure AWS environment, the platform supports robust data security and boasts an intuitive user interface. It has the ability to integrate with third-party SCADA platforms, expanding its versatility and compatibility.
The IoT platform has several advantages such as quick response times when issues occur, preventing possible future problems, documentation of the quality of communication, and better possibility of performing fault tracing.
The platform serves as the central hub for visualizing measurement data, offering a comprehensive solution for IoT management and data utilization.
Pejang Tahmasebi Sales Manager Industrial
+46 72 078 76 56 pejang.tahmasebi@sigicom.com
Technical Data
Model: DeltaBlue Data Logger
Cellular: 4G, 3G and 2G
GNSS: GPS/BeiDou/GLONASS/Galileo
Antenna:
DeltaBlue Data Logger
Dimensions:
Cellular: Integrated and external GNSS: External
Internal sensors: Temperature: accuracy ± 0.2°C
Humidity: accuracy ± 3%
Accelerometer: 3-axis motion detector
Barometric pressure: 300-1100 mBar
Battery life: Up to 1 year
Battery type: ER34615M 3,6V 13 Ah
Power supply: 3-5V
Operating temp: -30°C to +70°C
Size: 177 x 99 x 47 mm
Weight: 340 g
Casing: Ventilated IP67 casing
Model: Water Level Transmitter (MPM4811)
Range: 0 to 200mH2O
Accuracy*: ±0.5%FS
Overpressure: 2 times FS
Pressure type: gauge, absolute
Acc
Application temp*: -20°C~ 80°C (cable material: PUR)
Storage temp: -20°C ~ 85°C
Accuracy temp**: ±2°C
Vibration: 10g, 55Hz ~ 2000Hz
Shock: 100g, 11ms
Class: IP68, ATEX
Size: 98 mm, 26Ø mm
Weight: ≤240 g
*Repeatability is generally better than the specified accuracy
**The transmitter cannot withstand being frozen in water
Product specifications and descriptions in this document are subject to change without notice.
