Groundwater Monitoring
This rugged and autonomous monitoring solution is an excellent choice for groundwater monitoring, providing precise data to help you make informed decisions about water usage and conservation. The system consists of a groundwater level sensor and a data logger suitable for autonomous outdoor use. This setup is equipped to handle your task with ease. Its versatility makes it an essential tool for anyone involved in groundwater management.

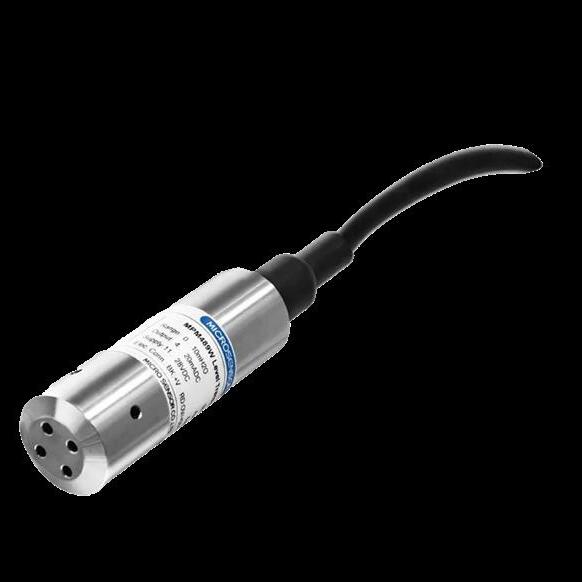

The level sensor contains a piezoresistive sensing element of excellent stability and reliability and a dedicated circuit housed in a high-strength stainless steel housing. The tightly sealed connection between the cable and housing allows long-term service of the sensor.
A Complete System
The system features a data logger and a fully sealed submersible water level sensor, ensuring reliable and accurate readings even in harsh
outdoor environments. Your measurement data is automatically uploaded to a cloud server via cellular technology, allowing easy access via mobile phone, tablet, or computer. This means you can stay informed about water levels at all times, no matter where you are, saving both time and money.
Features and Benefits
Low cost and low maintenance
Easy and fast installation
Alerts for critical events via web, SMS, or email
No fixed communication or power source required
Outdoor Data Logger

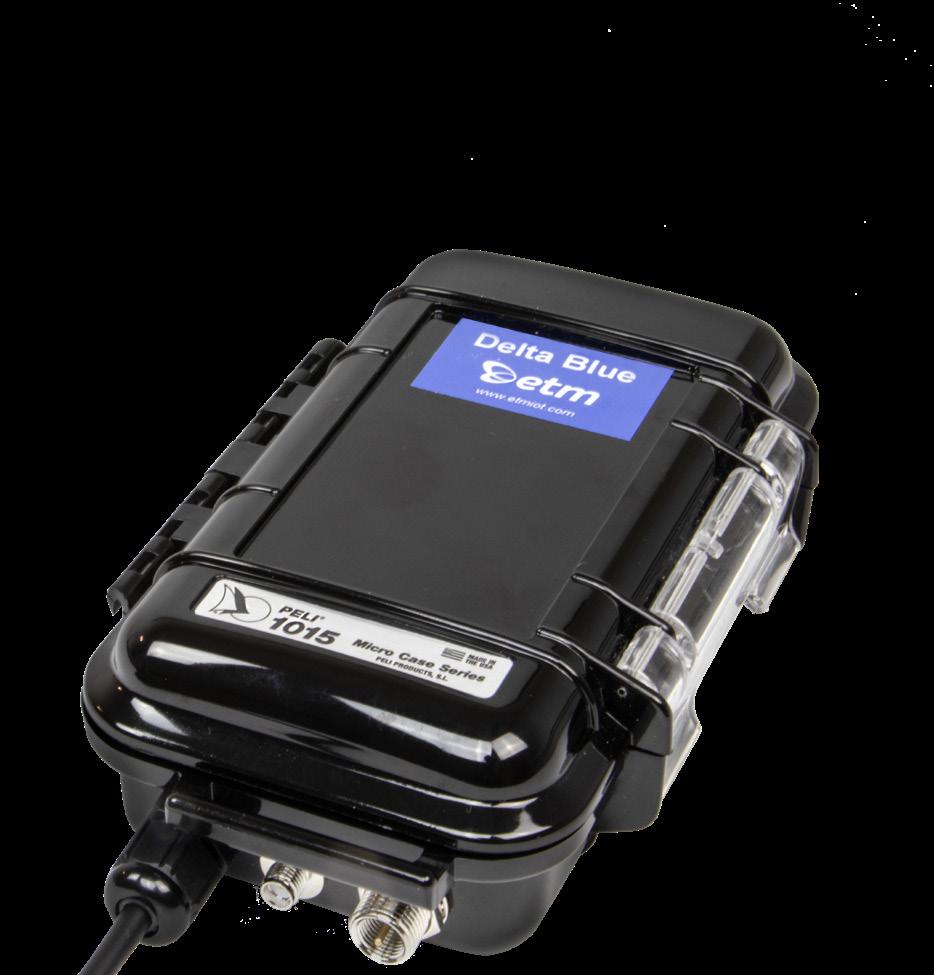

DeltaBlue is a rugged data logger with an integrated positioning system system for measuring in remote areas without access to power or cable connection. DeltaBlue has a battery life of up to 1,5 years and is ideal for long-lasting and reliable performance. You get a complete water level measurement solution by pairing DeltaBlue with a level sensor.
Your logged measurements can be accessed and analyzed via an IoT Cloud Dashboard. External sensors for measuring humidity, temperature, and other parameters can also be connected.

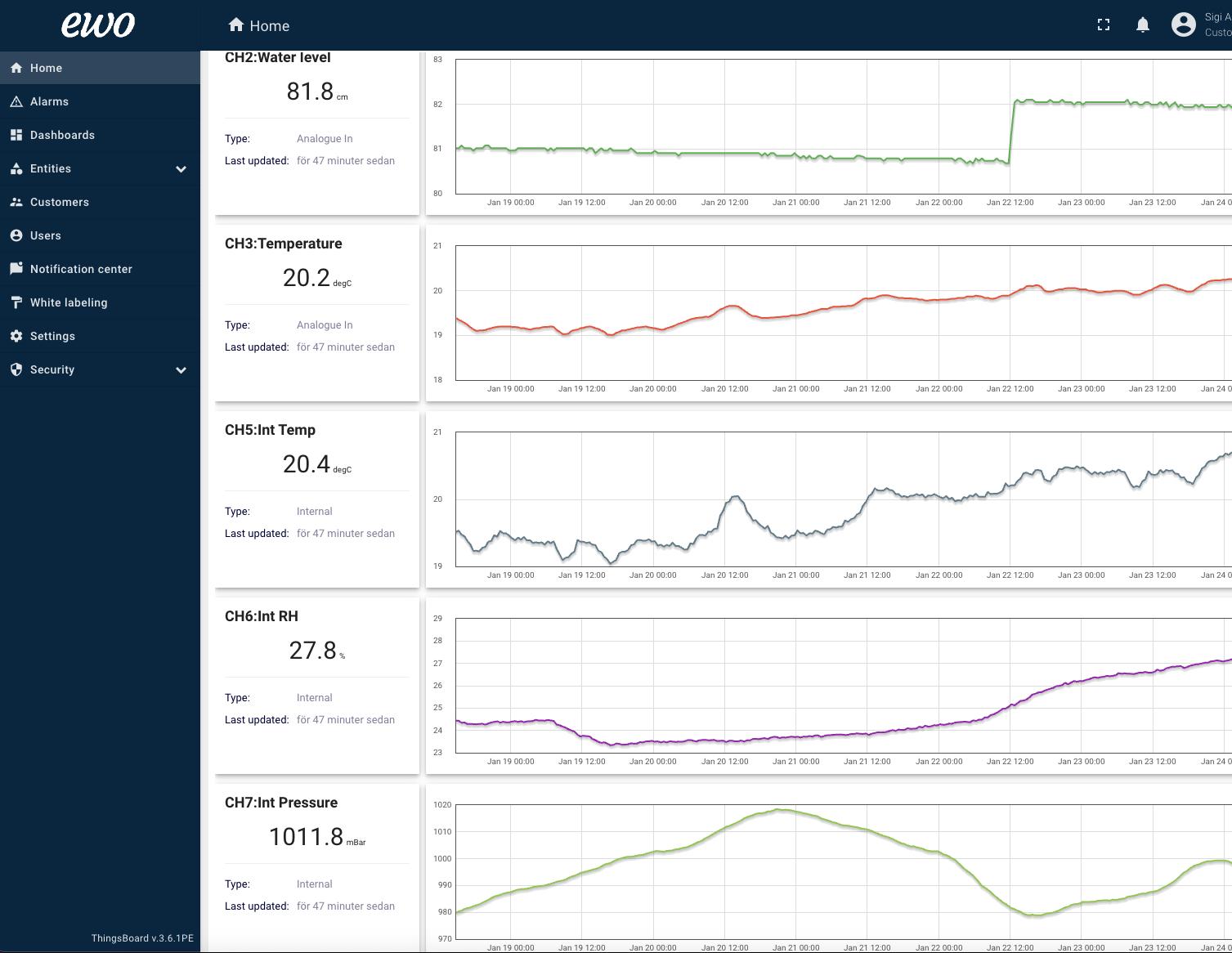

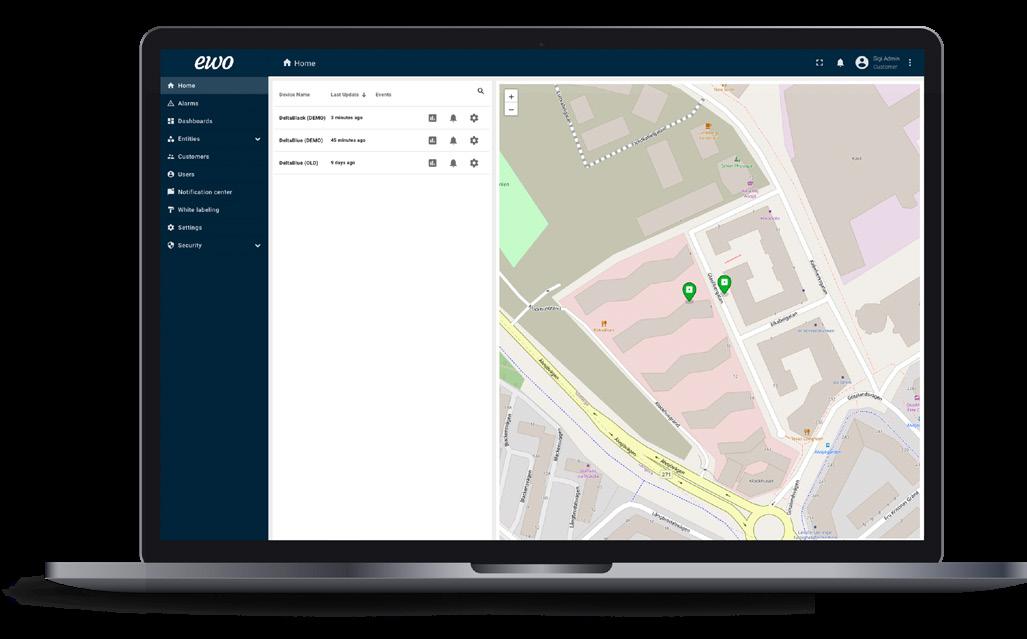

IoT Platform
ETM Web Office is an IoT cloud-based dashboard and a platform for seamless management and monitoring of your hardware. Collect, store, and display visualization of data and connectivity parameters. Users can receive SMS and e-mail alerts directly from their connected units and sensors.
Hosted within a secure AWS environment, the platform supports robust data security and boasts an intuitive user interface. It has the ability to integrate with third-party SCADA platforms, expanding its versatility and compatibility.
The IoT platform has several advantages such as quick response times when issues occur, preventing possible future problems, documentation of the quality of communication, and better possibility of performing fault tracing.
The platform serves as the central hub for visualizing measurement data, offering a comprehensive solution for IoT management and data utilization.
Data Logger
Sensor
Technical Data
Pejang Tahmasebi Sales Manager Industrial
+46 72 078 76 56
pejang.tahmasebi@sigicom.com
DeltaBlue Data Logger
Dimensions:
*For custom requests, please contact us
Model: DeltaBlue Data Logger
Cellular: 4G, 3G and 2G
GNSS: GPS/BeiDou/GLONASS/Galileo
Antenna:
Cellular: Integrated and external
GNSS: External
Internal sensors: Temperature: accuracy ± 0.2°C
Humidity: accuracy ± 3%
Accelerometer: 3-axis motion detector
Barometric pressure: 300-1100 mBar
Battery life: Up to 1.5 years
Battery type: ER34615M 3,6V 13 Ah
Power supply: 3-5V
Operating temp: -30°C to +70°C
Size: 177 x 99 x 47 mm
Weight: 340 g
Casing: Ventilated IP67 casing
Model: Groundwater Level Transmitter (MPM489W)
Range: 0 to 200mH2O
Accuracy* ±0.5%FS
Overpressure: 1.5 times FS
Pressure type: gauge, absolute
Ac:
Application temp**: -20°C ~ 80°C
cable material: PUR
Storage temp: -20°C ~ 85°C
Shock: 100g, 11ms
Class: IP68, ATEX
Size: 77 mm, 26Ø mm
Weight: ≤220 g
*Repeatability is generally better than the specified accuracy
**The transmitter cannot withstand being frozen in water
