Datasheet
Purple Smart Metering Modem
Wireless Modem
Smart Metering Modem

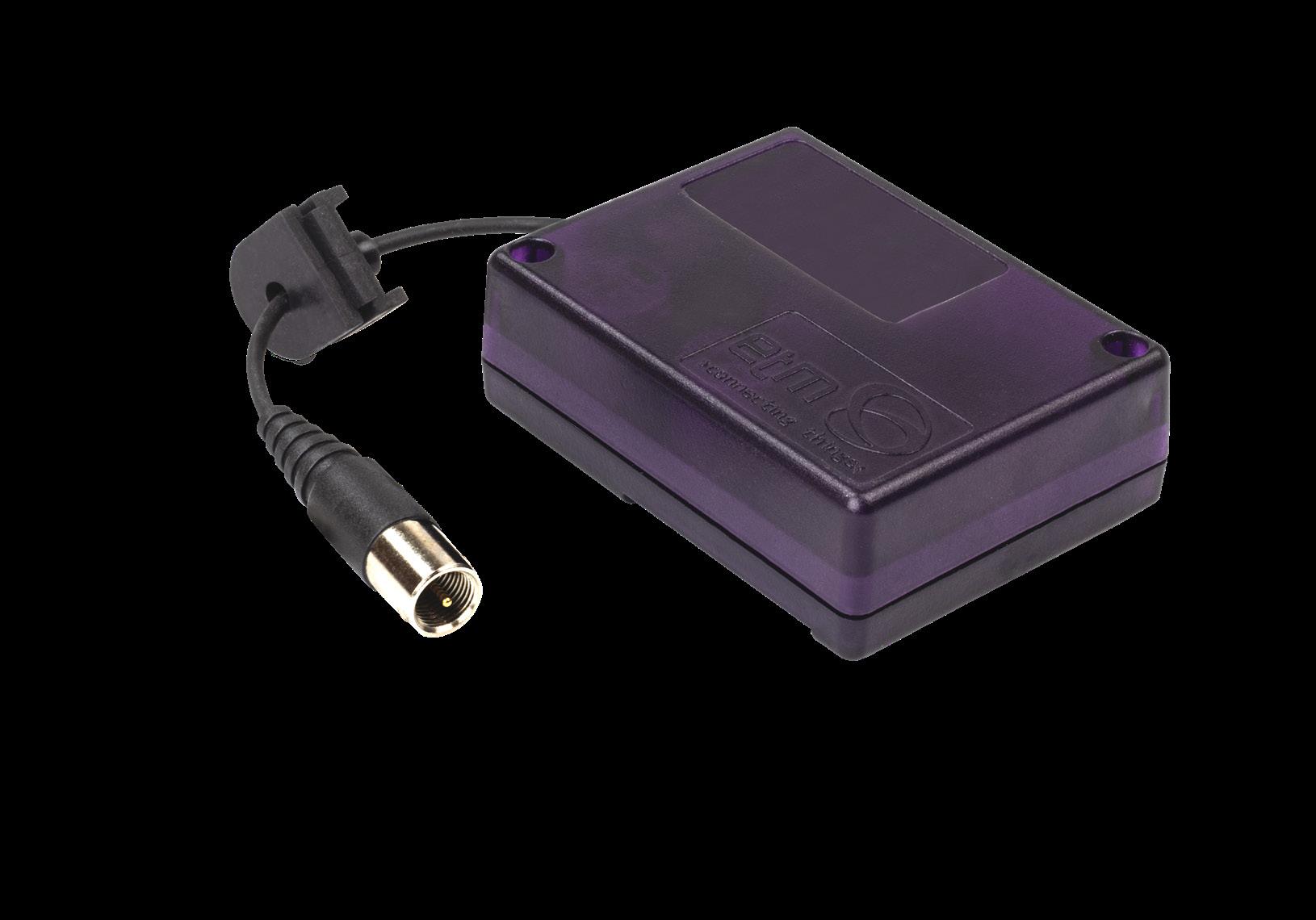

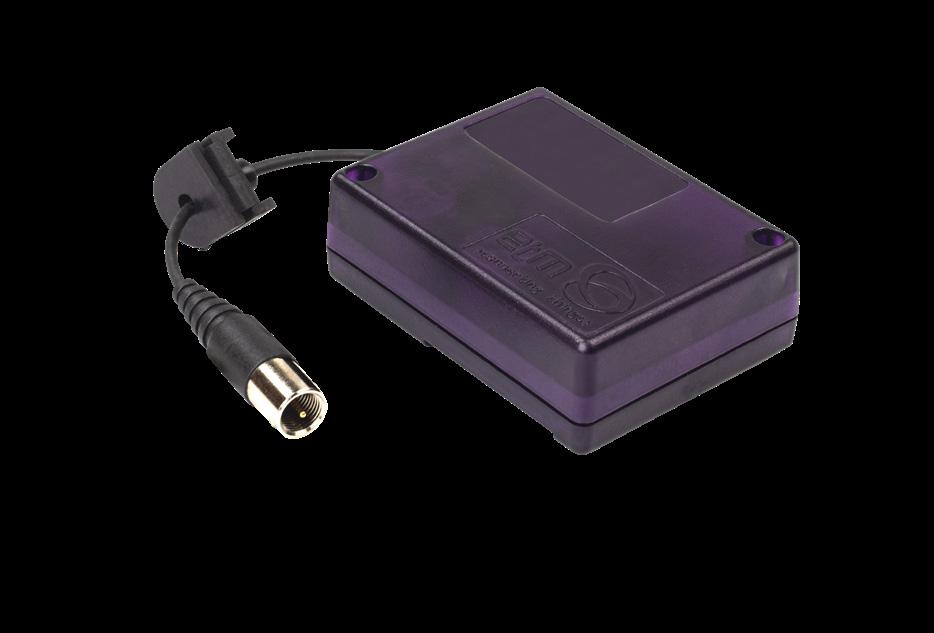

The Purple Wireless Modem is designed to be used with a variety of energy meters to provide a robust communication channel for meter data to back office systems. The modem only weighs 67 grams, and its compact design fits inside the most common electrical meters on the market. Our modems provide a reliable gateway to collect and serve real-time data from smart meters used in industrial and domestic environments. The modem supports 4G, 3G, and 2G.
Benefits
Cost-effective
Robust and compact design
High durability
Thanks to its compact design, Purple fits inside most electricity meters. It safeguards the modem while providing power and ensures high durability and an extended lifespan.
The modem has a single 8-pin RJ45 connector for serial and power, and the antenna cable is mounted with an FME connector. Modems include a USB cable and antenna cable with a rubber grommet for simple mounting in the electric meter. For other products, we also have a Y-cable for RS232 communication with power input/output and communication cables.
Applications
Automatic meter reading
Cellular wireless meter reading sent to server
SMS modem
TCP/IP Gateway
090-07150-0: Purple includes a usb cable for connection
Making electricity meters smart
Thanks to its smart and compact form, you can easily install the Purple modem inside the electricity meter, which will both protect the modem and supply it with power.
A significant advantage of mounting an external modem inside an electricity meter is that it’s easy and straightforward to replace the modem during repairs, or when the modem needs to be replaced.
090-01115-0: Y-Cable for connecting Purple to serial communication and power.
(Not included in 090-07150-0)
Pejang
Tahmasebi Sales Manager Industrial
+46 72 078 76 56 pejang.tahmasebi@sigicom.com
Technical Data
Model: Purple Worldwide 2G/3G/4G
Art.no: 090-07150-0
Module: Telit Cinterion PLS63-W
RS232: RJ45 connector/ Box head connector
Power: RJ45/USB
USB: USB 2.0 up to 480 Mbps and power over USB
SIM: Mini SIM (2FF)
Cellular bands: LTE Cat. 1 (4G)
Purple
Dimensions:
FDD-LTE: bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
TDD-LTE: bands 38, 40, 41
3G
UMTS (WCDMA/FDD): bands, 1, 2, 3, 4, 5, 6, 8, 19 2G 850/900/1800/1900MHz
Data transmission: LTE Cat. 1
Max. 10,2 Mb/s (DL), Max 5,2 Mb/s (UL) 3G
Max. 7,2 Mb/s (DL), Max 5,76 Mb/s (UL) 2G
Max. 237 kb/s (DL), Max 237 kb/s (UL)
SMS
Yes
TCP/IP
Yes
OS
Azure ThreadX (Available with PLS63-W fw version 2.1)
GNSS: GPS/GLONASS/BeiDou/Galileo
Dimensions: 72 x 52 x 23 mm
Weight: 67 g
Power supply: 5-26V
Power consump.: 400 mA (rated), <250 mA (transmitting) <35 mA (idle), <0.7 mA (sleep)
Operating temp.: -30°C to +70°C
Antenna: FME-M Connector
NES DC1000 kit: Includes power cable, communication cable and M20 gland
NES DCN3000 kit: Includes USB cable and antenna cable with rubber grommet
