Globalization has profoundly impacted cities, transforming urban areas through interconnected economies, cultures, and societies. However, rapid urbanization has also introduced significant challenges that negatively affect the mental well-being of city residents. Issues such as congestion, traffic, pollution, and inadequate social support contribute to increased stress in these bustling centers. This project explores experiential architectureasameanstocreatehealthierurbanspaces.
ARCHITECTURAL EXPERIENCES
DYNAMIC CHARACTER OF DAYLIGHT
TRANSPARENCY
E X P E R I E N T I A L H U B
semester 10
TRANSITION OF VOLUME
SEMI OPEN VS CLOSE
3
ISOMETRIC 4
SITE
5
SOUTH EAST ELEVATION
1 10 13 11 12 2 3 4 5 6 7 8 9 SION PANVEL HIGHWAY 30M WIDE ACCESS ROAD
B B A SITE PLAN
TANKI
0M 5M 15M 30M 50M A 78.06 M 126.63 M 7MWIDEROAD 7M WIDE ROAD 38.57 M 146.65 M 146.146 M 3M 4M 4.9M 5.6M LVL = 5.6M LVL = 5.3M 6
LEGEND
1. Access Point for Site
2. Covered Parking & Temporary Market
3. Reception Area
4. Experiential Culinary Space
5. Multipurpose Hall
6. Administration
7. Workshop
8. Courtyard of Reection
9. Waterbody
10. UGT & Pump house Location
11. Electric Substation & DG set
12. Rainwater Harvesting Tank
13. 6m Wide Service Access
FIRST FLOOR PLAN 16.3M 11.1M
7
VOLUME & AMBIENCE OF ART GALLERY
SECTION AA
8
EXHIBIT AREA
APPROACH TO STRUCTURE THROUGH LANDSCAPE PUBLIC SPACE
THEATRE CULINARY SPACE
THEATRE +3.9M
9
PLINTH +0.3M
SECTION BB 10
RCC BEAM
EXHIBIT AREA +4.5M
11
PLINTH LVL +0.90M
SUPERSTRUCTURE CONSTRUCTION METHOD & MATERIAL
SOLAR CONTROLLED GLASS WITH MECHANISED SUNSHADE
EXTERIOR ROOFING MATERIAL (RED SHINGLES)
SUPPORTING BATTENS
INTERIOR ROOFING MATERIAL (ACOUSTIC FINISH)
ISMB SCISSOR TRUSS SYSTEM
NON LOAD BEARING SURFACE
12
DETAIL FOR SKYLIGHT
SCALE 1:5
DETAIL AT A SCALE 1:20
STRIP SECTION
SCALE 1:50
13
CM Rise & CM Rise Tribal Schools
Madhya Pradesh
typology : education (government)
CMRT (DHE)
CMRT (KUS)
I N T E R N S H I P
14
CMR (DEO)
UCJ architecture & environment
CMR (SIR)
15
Directorate of Accounts, Goa | 10,500 sqmt.
typology : commercial (government)
VIEW OF SITE
EAST SIDE VIEW
I N T E R N S H I P
16
UCJ architecture & environment 17
Goa Fish Market | 5700 sqmt.
typology : commercial (government)
ROOFING LAYER DETAIL
H I
I N T E R N S
P
18
UCJ architecture & environment SITE PLAN 19
kharghar, navi mumbai | 24,000 sqmt.
typology : housing
The project aimed to design a vibrant housing facility for retired senior citizens. The inspiration behind the design was to create and distribute interaction spaces that are easily accessibletoeveryresident.
WEST ELEVATION
E N I O R C I T I Z E N H O U S I N G
S
20
SITE
semester 7
TOWER A
TOWER B
ROW HOUSES
A A
CLUB HOUSE
21
PLAN SECTION AA
RECREATIONAL AREA
SITE RENDER
22
TYPICAL FLOOR PLAN (TOWER A)
TYPICAL FLOOR PLAN (TOWER B)
INTERACTION SPACE
TYPOLOGY : 2BHK, STUDIO
INTERACTION SPACE
TYPOLOGY : 1BHK, 1RK
23
bandra, mumbai | 2020
typology : bus stop

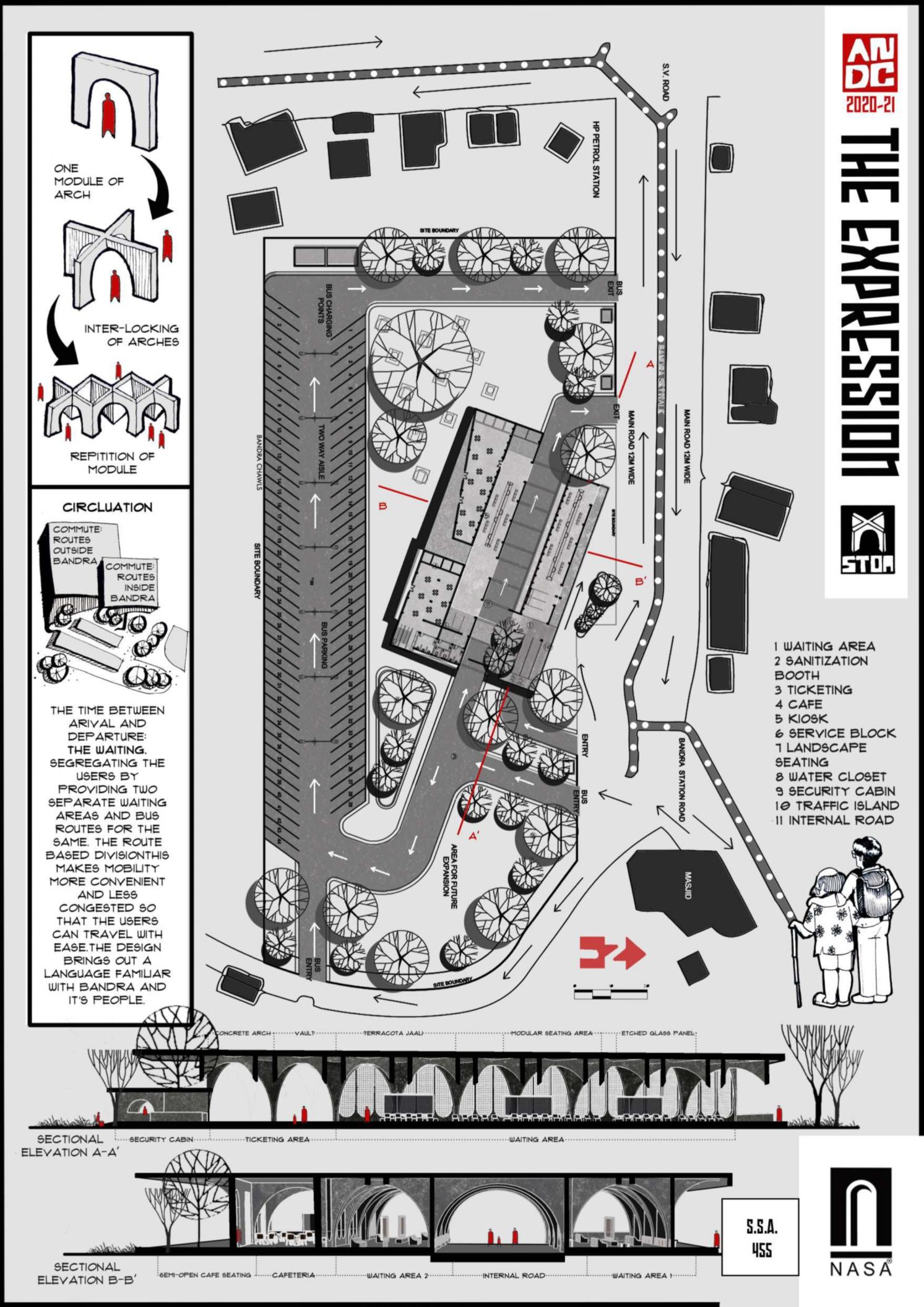

The theme of the competition was to reimagine bus stops in the post-coronavirus era. The design focused on creating a socially distanced and safe transit facility by using architecturalelementstoseparateanddirectthecrowd.
N A S A A N D C
Juror’s choice award 24
