C O N T E N T S

1. MIXED-USE RESIDENTIAL and COMMERCIAL

2. CONDOMINIUM DESIGN

3. APARTMENT INTERIORS

4. COMMERCIAL DESIGN

01 MIXED-USE RESIDENTIAL and COMMERCIAL Location: Bangalore, India Project Name: TG Arcade Project type: Professional Firm: Ambiant Associates Year of Completion: 2019 Site Area: 2,400 sq ft Focus Areas: Architecture planning, Zoning, and Elevation design Scope: Designed and planned the project from start to finish, including Space planning, Façade design, Materials selection. Coordinated with structural engineers for the plinth, column, and beam layout.

About: This project is a mixed-use commercial and residential development located in Jayanagar, one of the prime areas of Bangalore. It features retail space on the ground floor and a residential unit above it. The residential unit is a duplex house comprising two living units, one above the other.

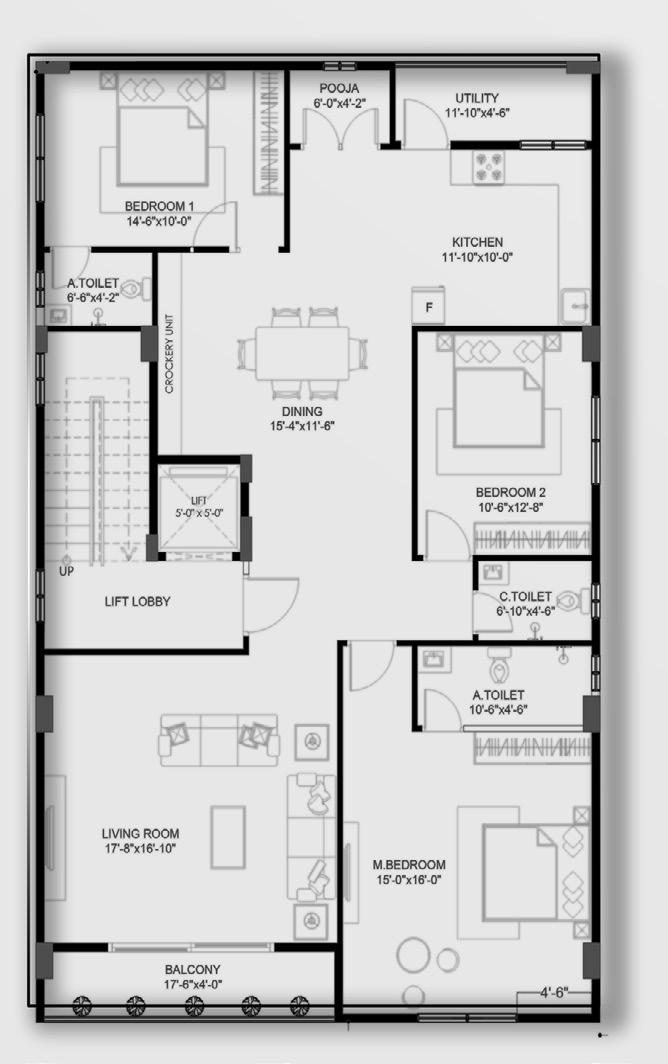

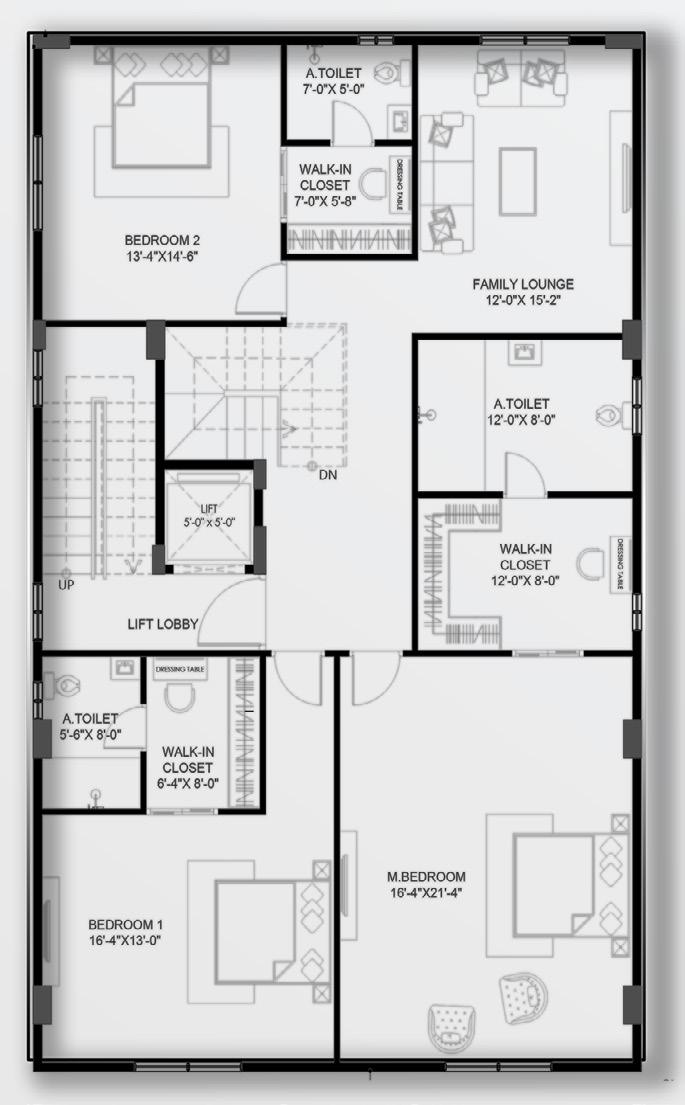

FLOOR PLANS

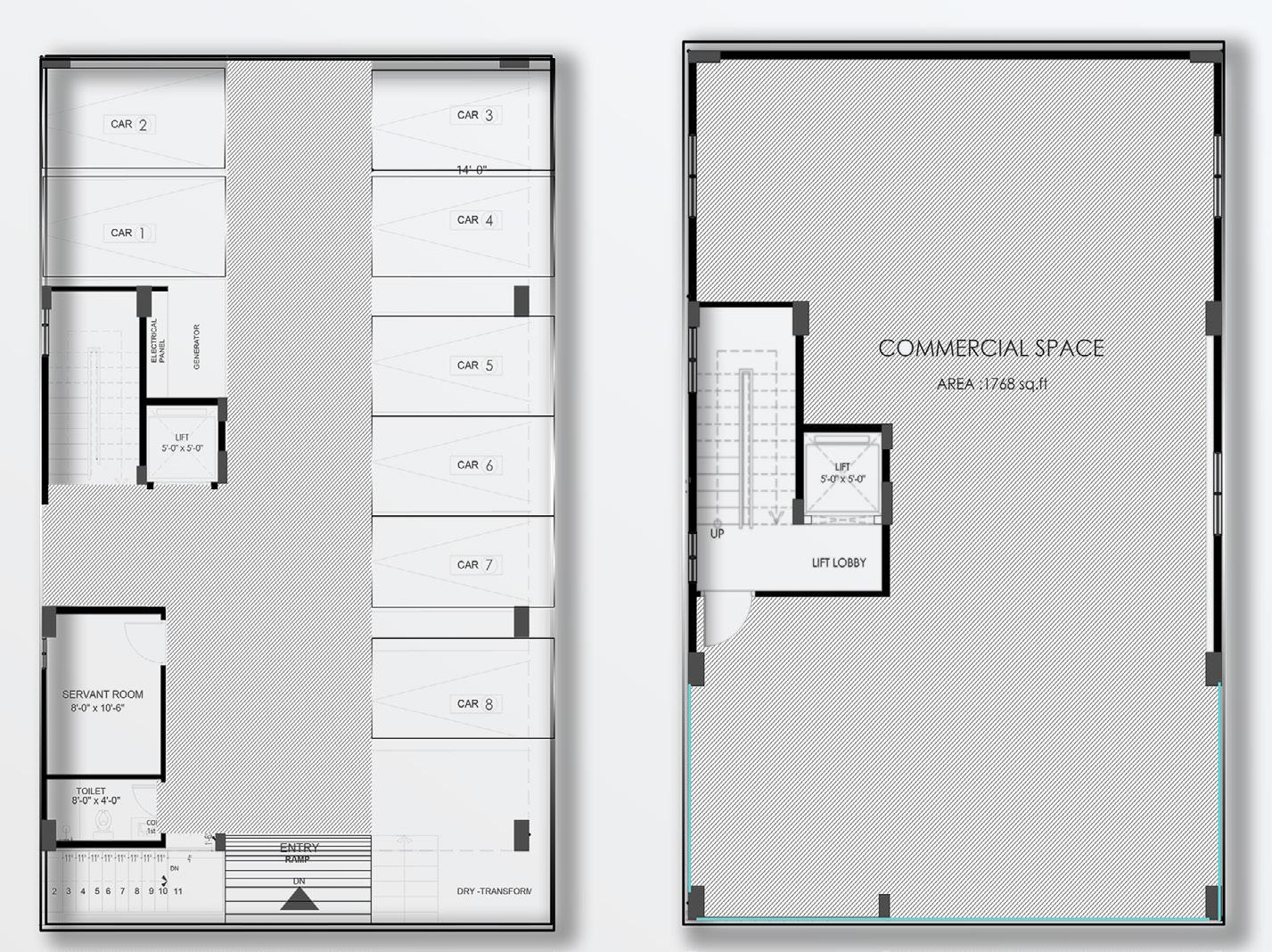

Semi-basement Plan

Third floor Plan

First floor Plan

Second floor Plan

Fourth floor Plan

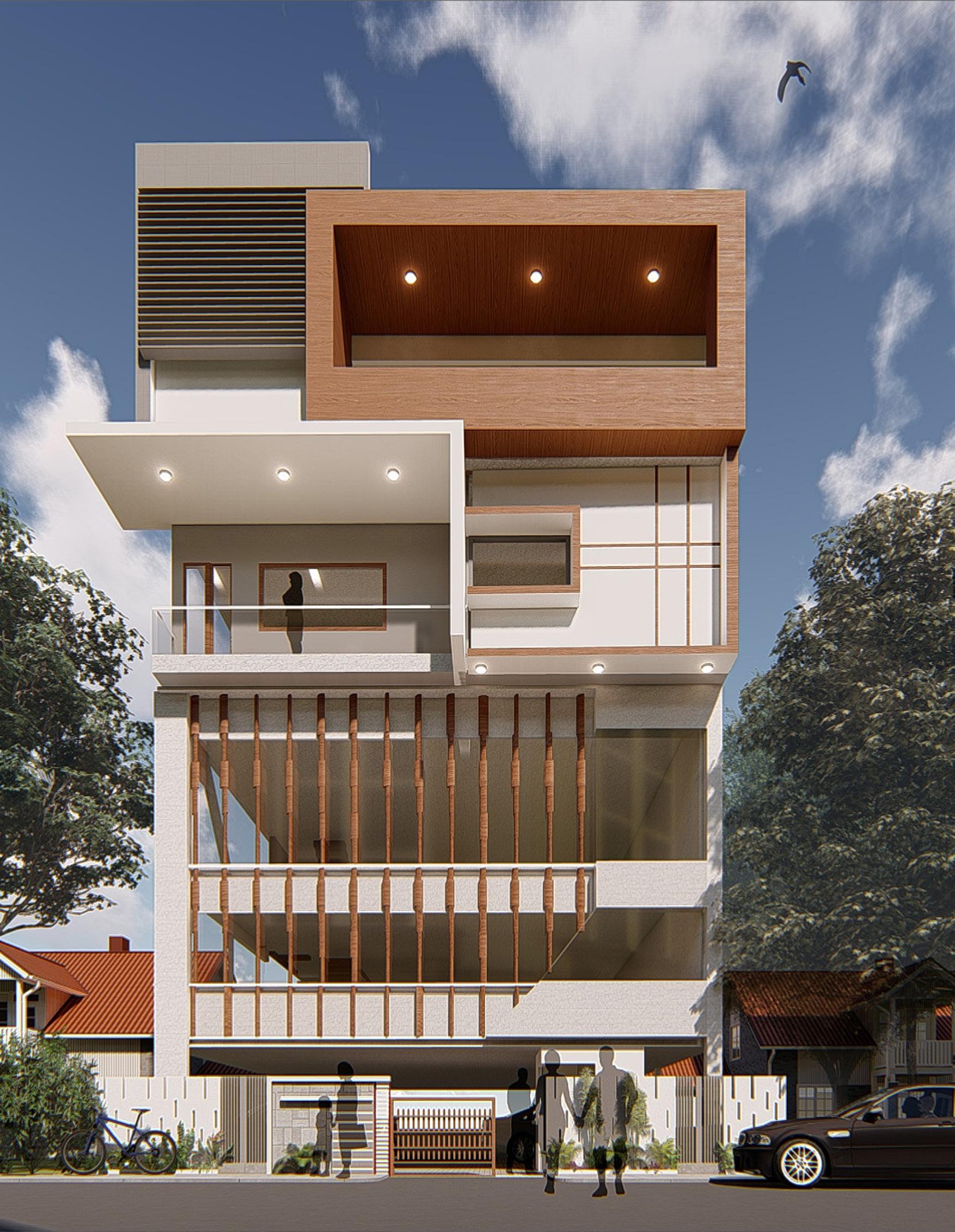

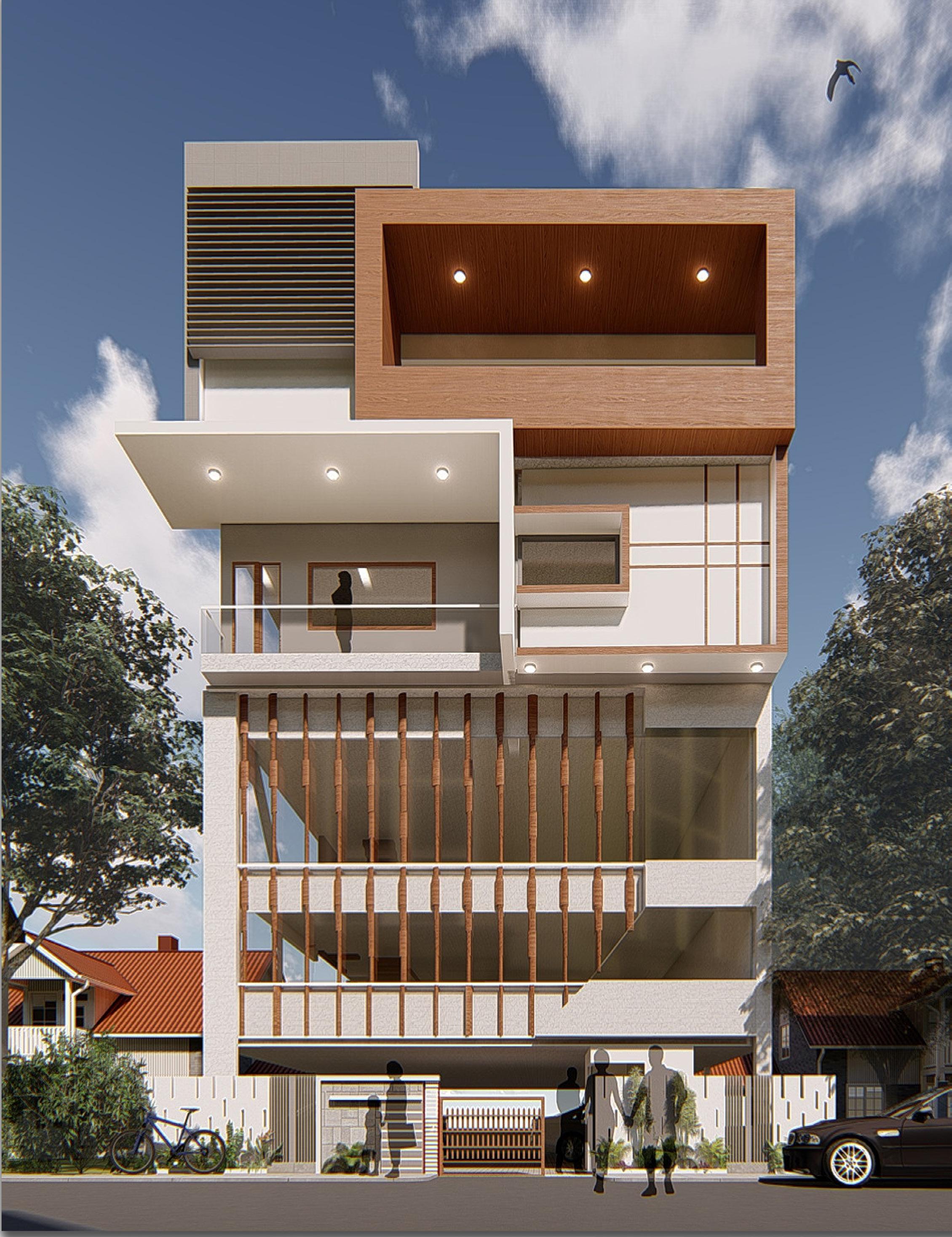

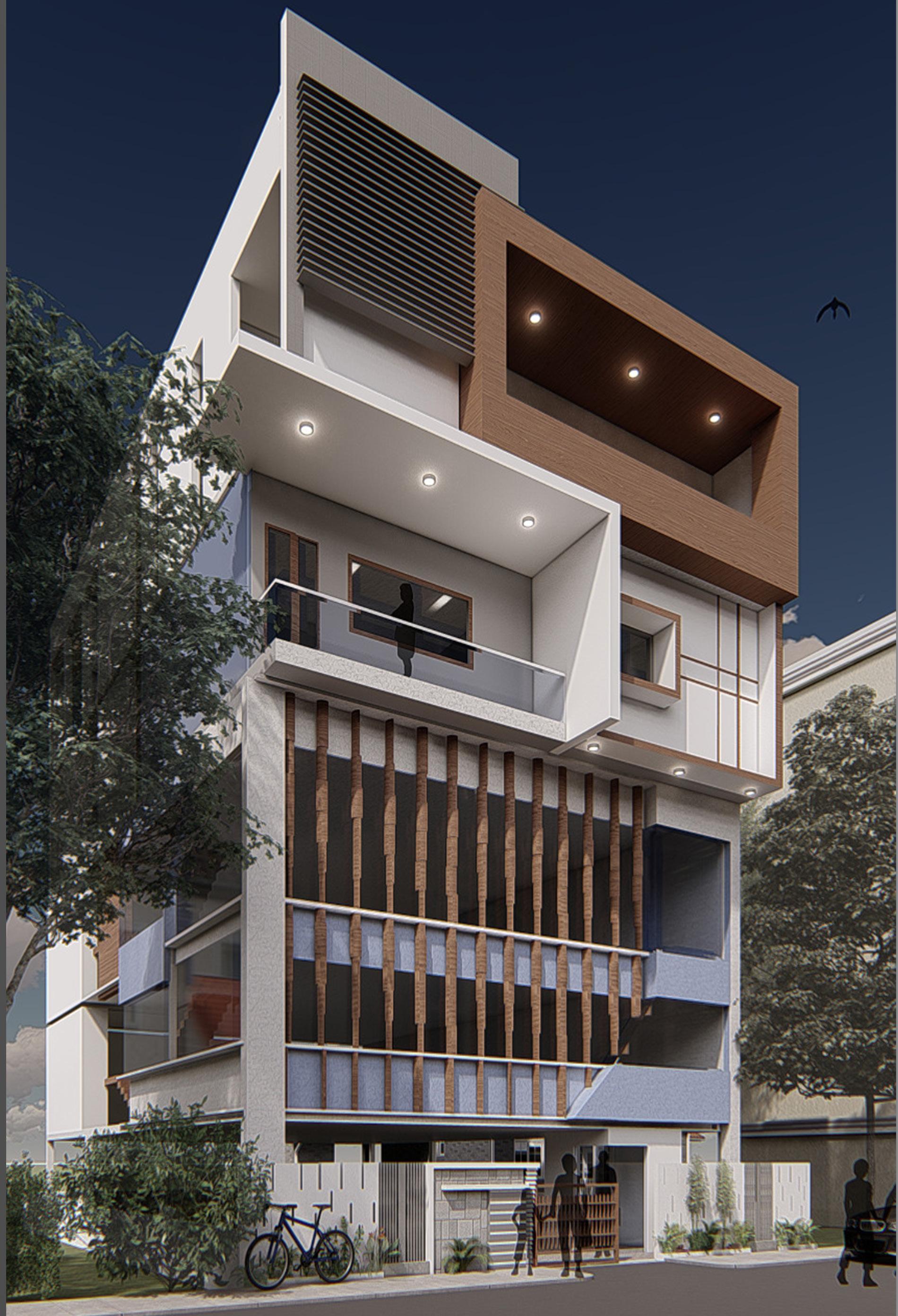

FACADE DESIGN

FOUNDATION DRAWINGS

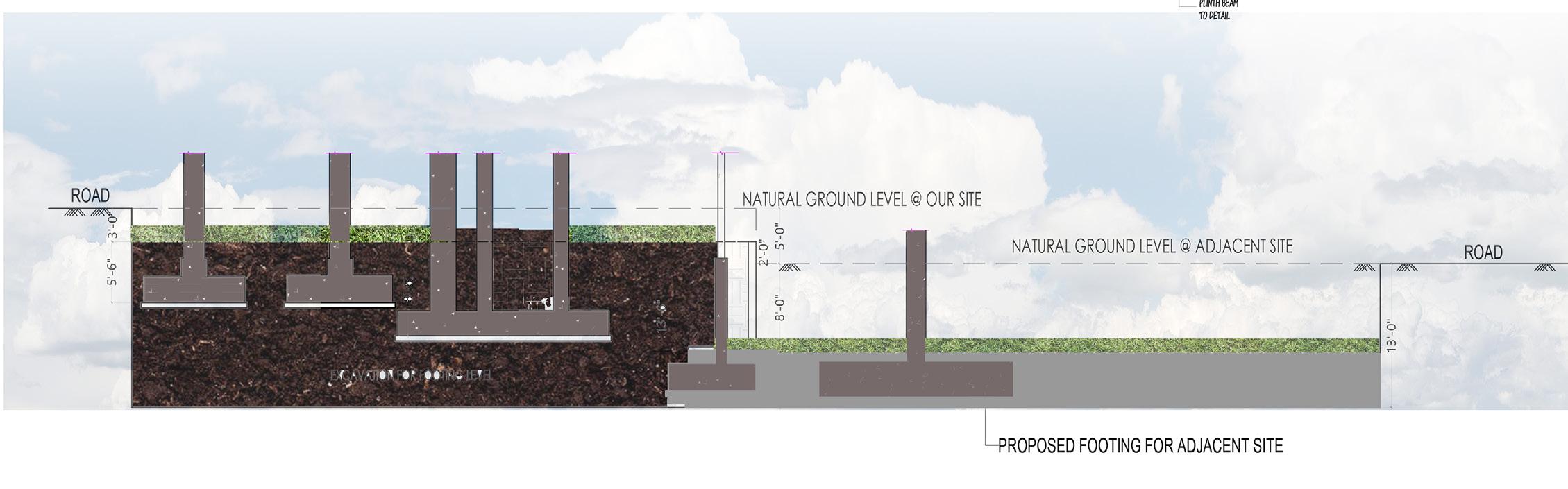

The foundation drawings required me to examine the foundations of adjacent sites before coming up with a final proposal. The foundations were planned in various depths to accommodate lift and staircase.

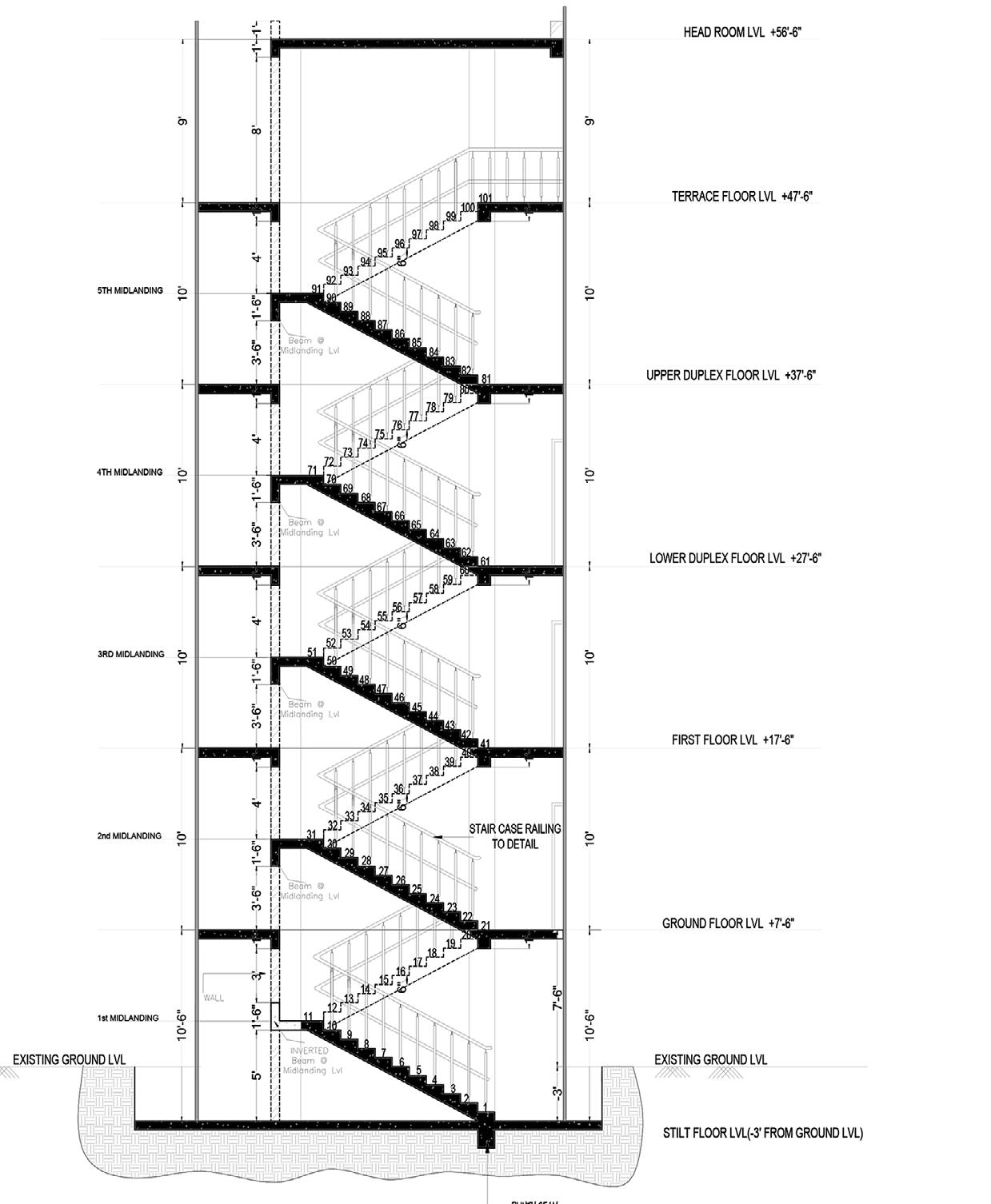

STAIRCASE SECTION

An external staircase was planned from the basement to the terrace. It follows all the fire safety norms while adding to the accessibility.

2'-9" 3"

6'-10"

3'-4"

15'-6" 4'-6"

3"

3"

6'-10"

3'-4" 9'-8"

3" 3"

6'-3"

4'-7"

6'-0"

9'-8"

8"

4'-6"

4"

6'-1"

***

3"

3'-6"

3'-8"

4"

2'-2"

4'-6"

***

1'-8"

1'-8"

4'-11" 14'

3"

3" 4'-3"

8'-3"

3'-4"

5,800 LTRS

11,000 LTRS

1'-8"

5'-4"

4'-2"

MH

3" 6'-8"

NOTE:1) DONOT SCALE THIS DRAWING.READ FIG DIMENSION ONLY 2) ALL DIMENSION ARE IN FEETS & INCHES 3) REFERENCE BENCH MARKS SHALL BE AS PER CONDITION 4) USE M25 GRADE OF CONCRETE UNLESS SPECIFIED 5) GRADE OF STEEL SHALL BE Fe500 CONFORMING TO IS:1786-1984.

6) CLEAR COVER FOR MAIN RETAINING WALL 50MM, COLUMNS 40mm, SLAB 15mmFOR FLOOR,20mm FOR TERRACE& BEAM 25mm TO STIRRUPS. 7) WHEREVER REQUIRED DEVELOPMENT LENGTH SHALL BE 45 TIMES DIAMETER FOR TENSION BARS, FOR 40 d COMPRESSI ON BARS&SUCH LAPS SHALL BE STAGGERED. 8) CONCRETE SHALL BE VIBRATED FOR OPTAINING OPTIMUM DENSITY.

8"

4'-2"

MH

8"

5'-4"

1'-8"

8'

5'-6"

5'-1"

14'-0"

5'-1"

3" 3"

5'-6"

3'-4"

8"

3"

5'-10"

9'

14'-0"

3'-4"

4'-5"

4'-5"

8"

3'-4"

3'-4"

3'-4" 5'-9"

2'-1"

3"

4'-4"

3"

1'-2"

5'-9"

3'-4"

1'-4" 5'-8"

4"

1'-2"

3"

3"

3"

3'-7"

3'-5" 5'-6"

4"

7'-8"

1'-8"

8"

3"

5'-0"

4'-3"

1'-8"

6'-4"

3"

4"

4'-6"

7'-4"

8"

3"

5'-6"

6'-8"

3"

3"

**

5'-8"

3'-4"

9'-7"

6"

5'-1"

1'-0"

5'-1" 6'-4"

5'-0"

15'-10"

3'-4"

SC.

2'-8"

4'-0"

5'-9"

1'-8"

RETAINING WALL 9"THK

3'-4"

**

3'-4"

6'-6"

9"

UNDER GROUND WATER STORAGE

3" 5'-6"

3'-4"

21'-2"

DATE

:

SCALE DEALT

: SHAHEEN.SK

11) THE PROVISIONS MADE IN IS 456-2000 &SP 34 &OTHER RELEVANT CODES SHOULD BE STRICTLY ADHERED TO DURING EXECTION.

DRAWN

: SHAHEEN.SK

12) THE SAFE BEARING CAPACITY FOR MODEL UNITS AFTER OBSERVATON HAS BEEN TAKEN AS 200 KN/ SQ.M.

DRAWING No : AA/TG/ST-03

13) THE FOUNDATIONS ARE TAKEN MINIMUM 5'-6" & 8'-6" FOR LIFTPIT BELOW EXISTING SOIL LEVEL UP TO HARD SOIL 14) THE STRUCTURE IS DESIGNED FOR SB+G+3 ONLY.

:

14-11-2018

9) ANY CHANGES IN THE SITE SHOULD BE NOTICED TO STRUCTURAL CONSULTANTS. 10) ALL DIMENSION SHALL BE VERIFIED BY THE SITE ENGINER BEFORE EXECUTION DULY FOLLOWING ARCHITERCTURAL DRAWINGS.

CHECKED :

NTS G.S.RAO

PROJECT CODE :

PROJECT:- PROPOSED COMMERCIAL & RESIDENCE BUILDING FOR T.G. DEVELOPERS AT JAYANAGAR, BANGALORE .

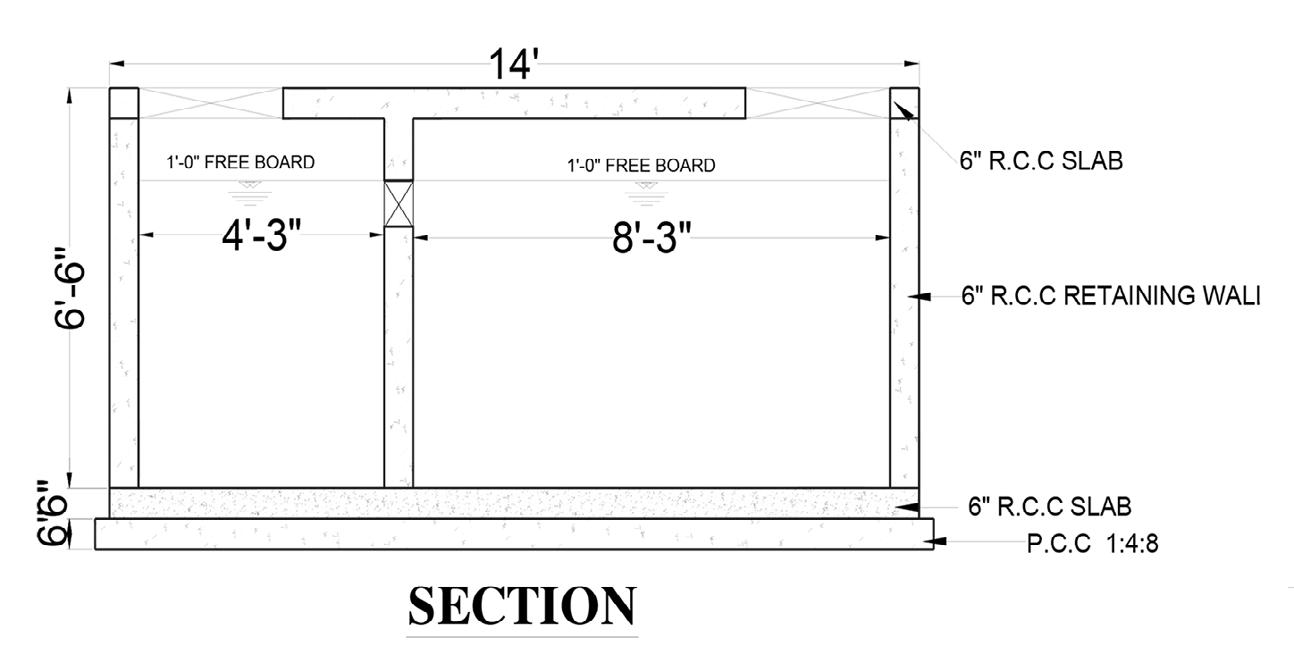

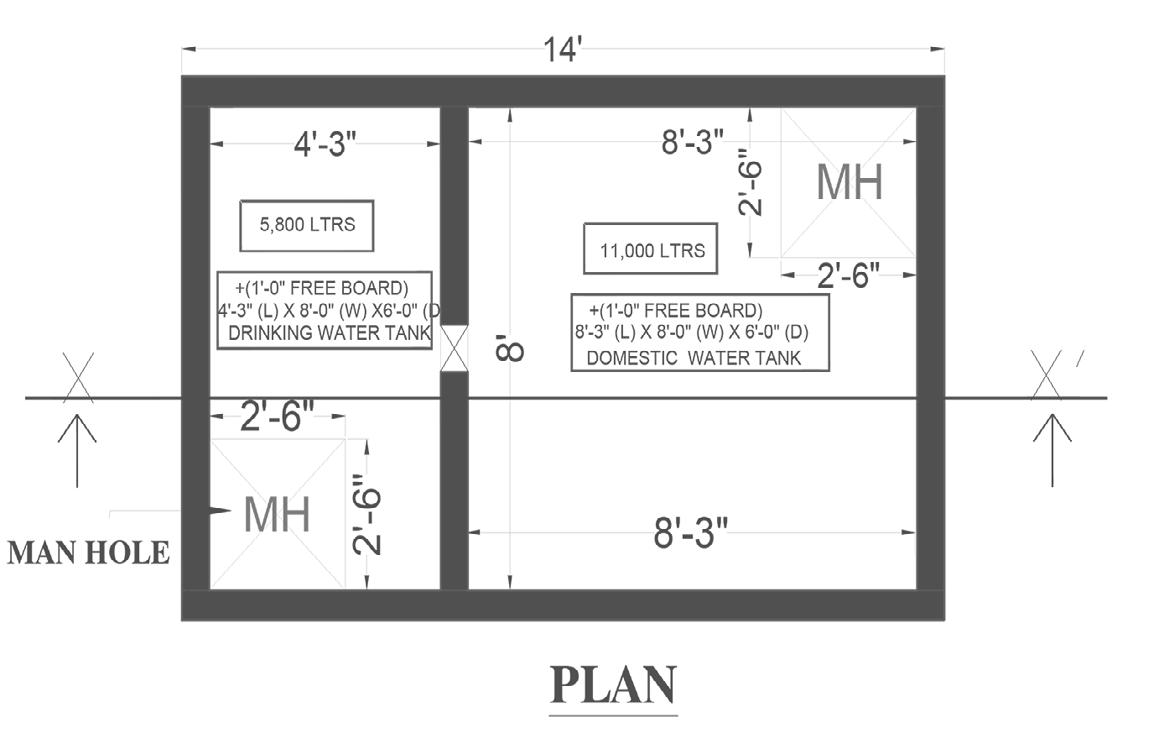

DRG TITLE:UGD SUMP DETAILS

ARCHITECT:

AMBIANT

ASSOCIATES ARCHITECTS & INTERIOR DESIGNERS NO.2460,2ND FLOOR, 17TH MAIN, 24TH CROSS BSK 2ND STAGE, BANGALORE-70.

PROJECT FOR:

02

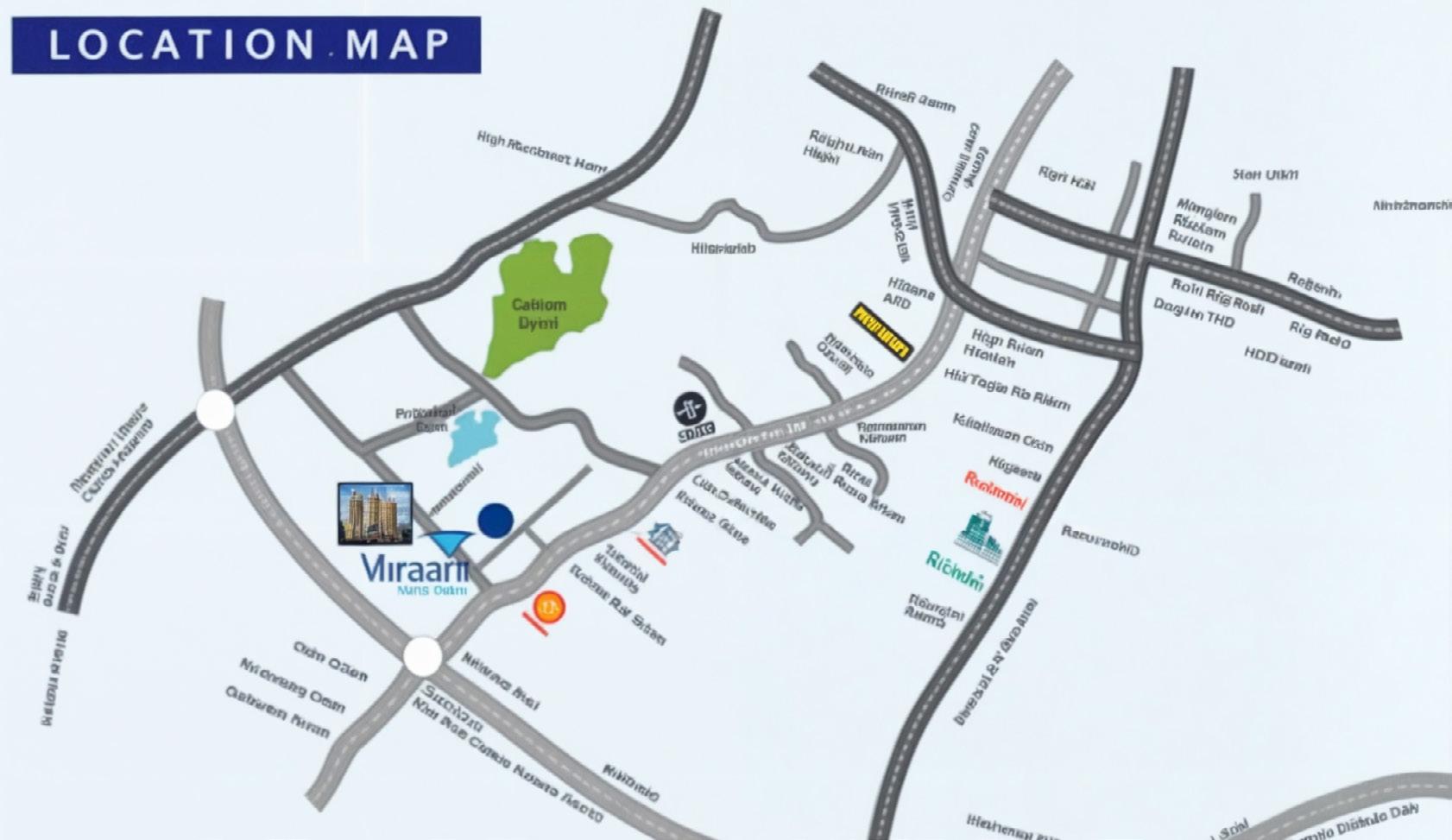

CONDOMINIUM DESIGN Location: Bangalore, India Project Name: Varahi Lake View Firm: Ambiant Associates Year of completion: 2019 Focus areas: Architecture planning, Zoning, and Elevation design About: Varahi Lake View is a condo complex in Bangalore, India. This site is surrounded by a lake on two sides and greenery on the other side. This prestigious project consists of 45 units. Led and designed the project endto-end under the supervision of senior architects, designed the site plan, zoning, floor charts, parking design, beam layouts, and elevation.

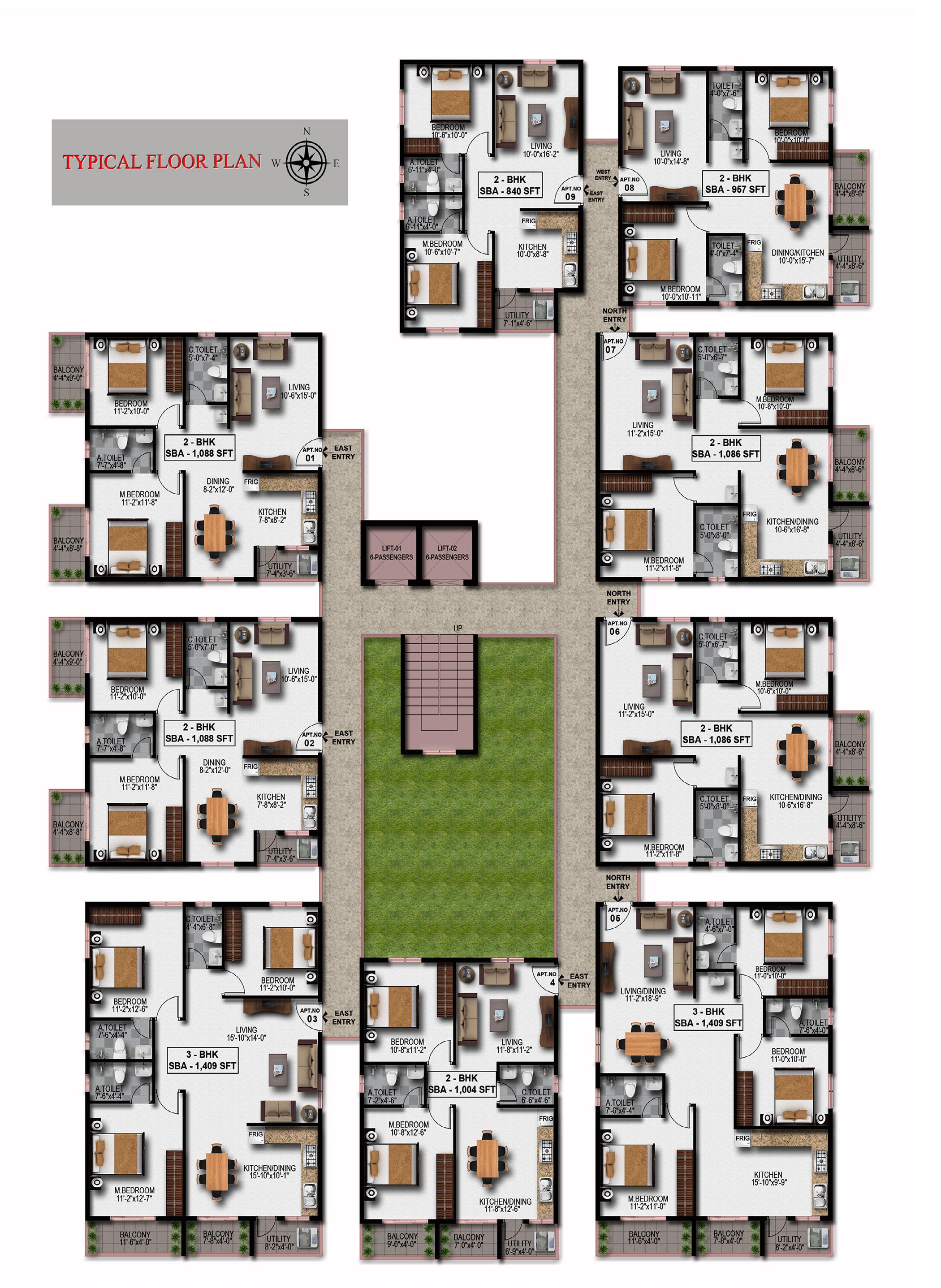

FLOOR PLAN

LAYOUTS

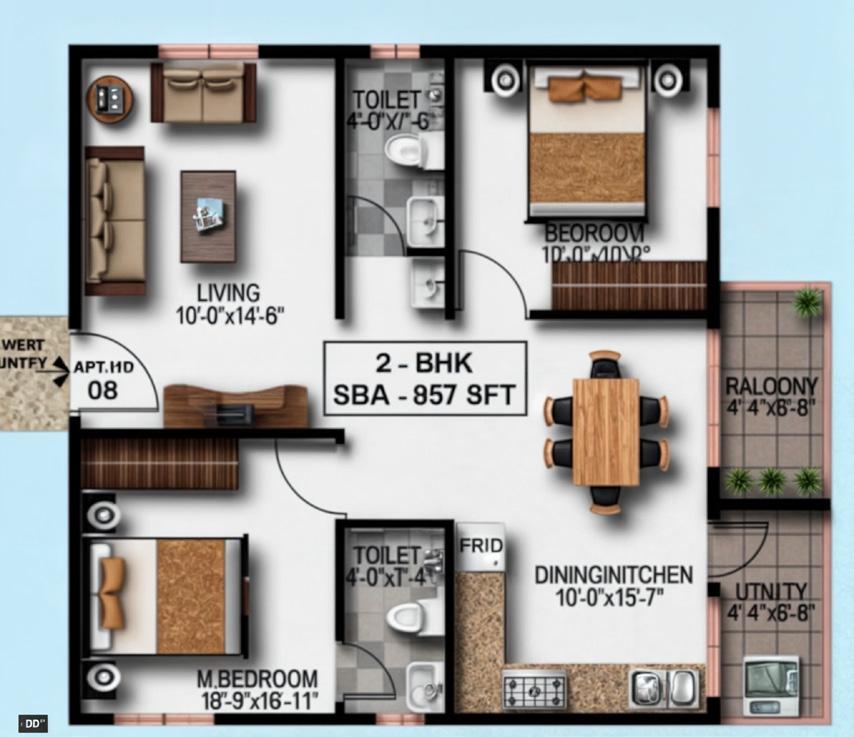

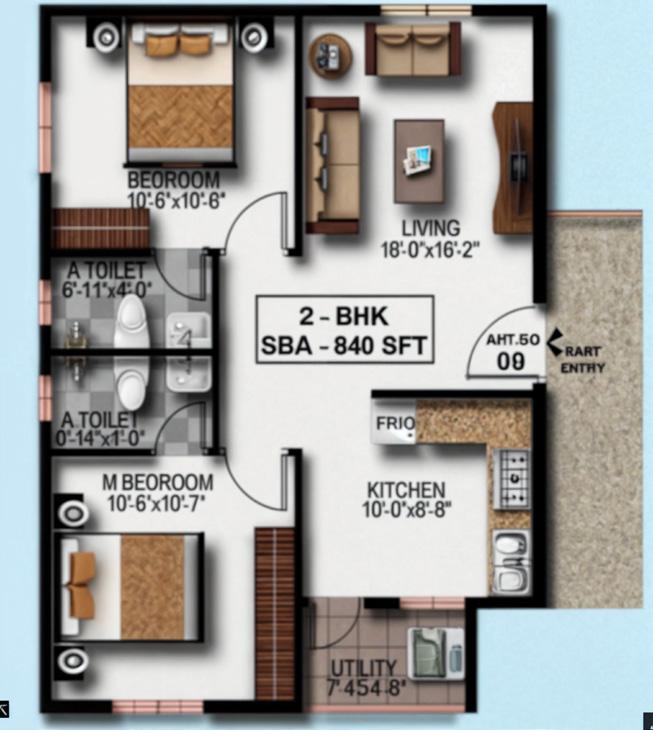

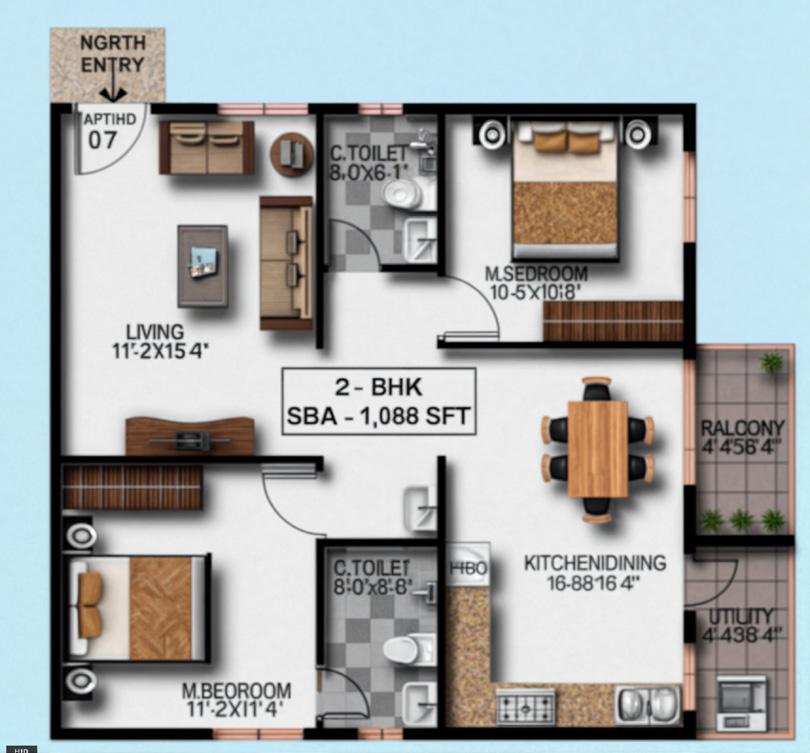

LAYOUT 1 - 840SQ.FT

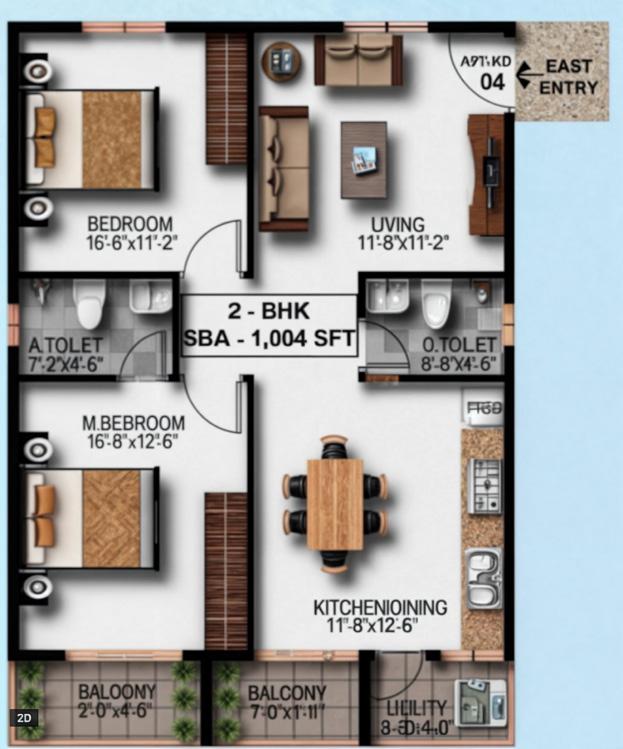

LAYOUT 2 - 1004SQ.FT

LAYOUT 3 - 857 SQ.FT

LAYOUT 4 - 1088 SQ.FT

BEAM LAYOUT

• • • •

Aligned beams and columns to ensure optimal load distribution and structural integrity by creating a direct load path.

Implemented a grid system to coordinate the placement of columns and beams, simplifying construction and enhancing stability.

Explored various column positioning strategies to accommodate beam layout while considering the parking layout requirements.

Balanced structural needs with functional requirements, ensuring that the beam and column layout did not interfere with the efficient use of parking spaces.

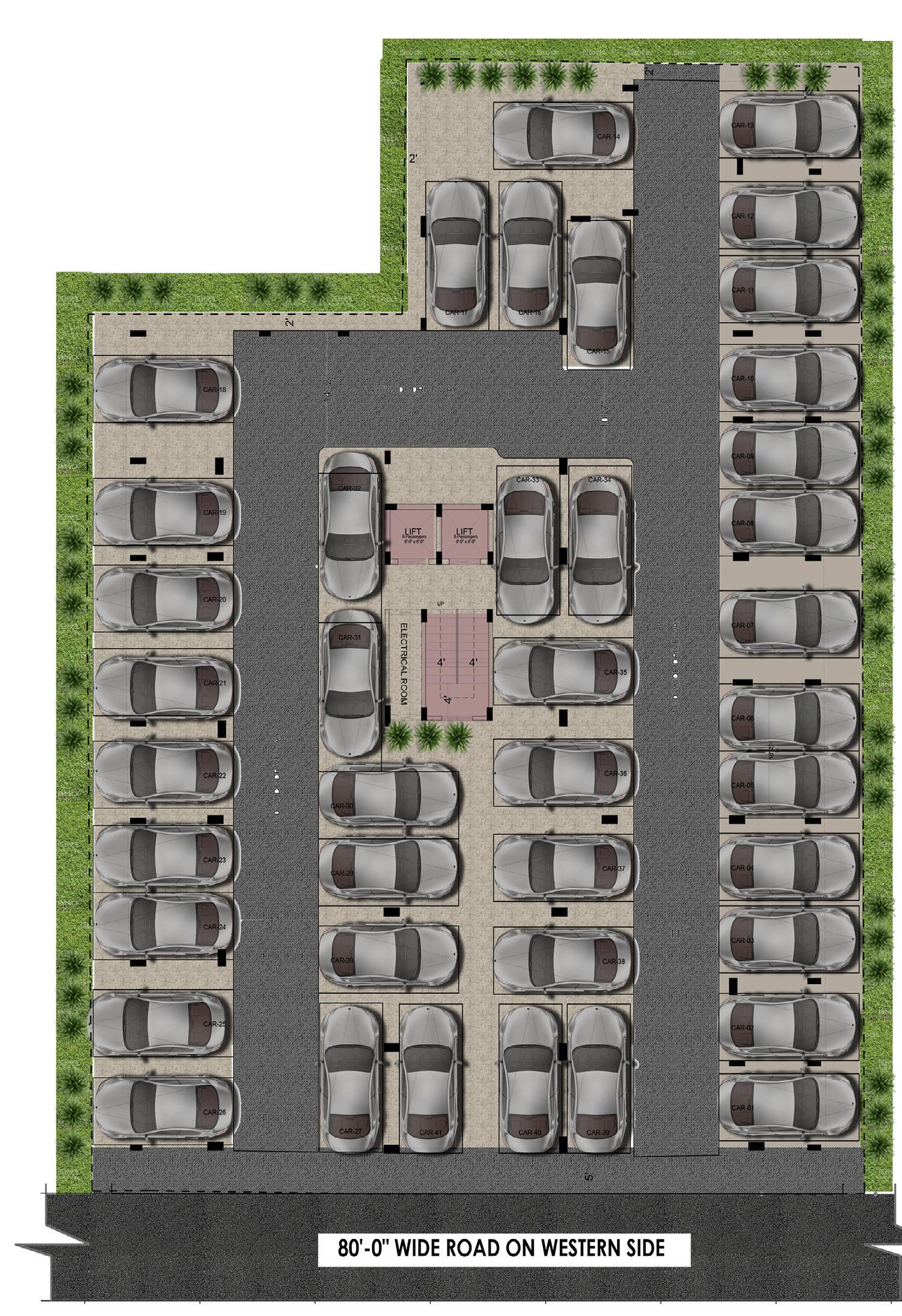

CAR PARKING LAYOUT

• • • • •

Explored various car parking options, including 2-way, 3-way, perpendicular, and parallel configurations.

Designed and executed a layout to fit 40 cars.

Engaged in extensive coordination with various teams to finalize the parking design.

Interacted with structural engineers to adjust column layouts.

Maximized the number of car parking slots through iterative design and collaboration.

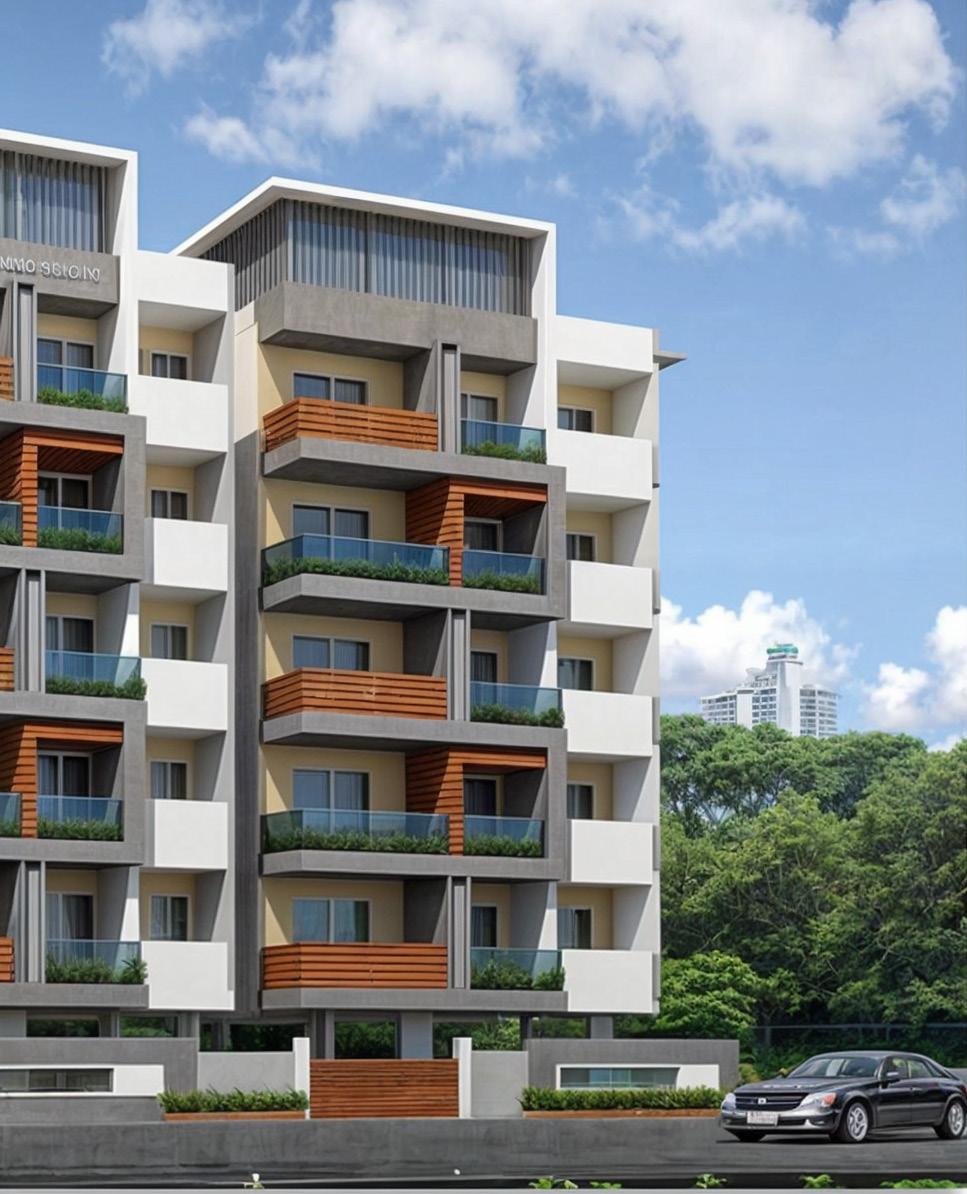

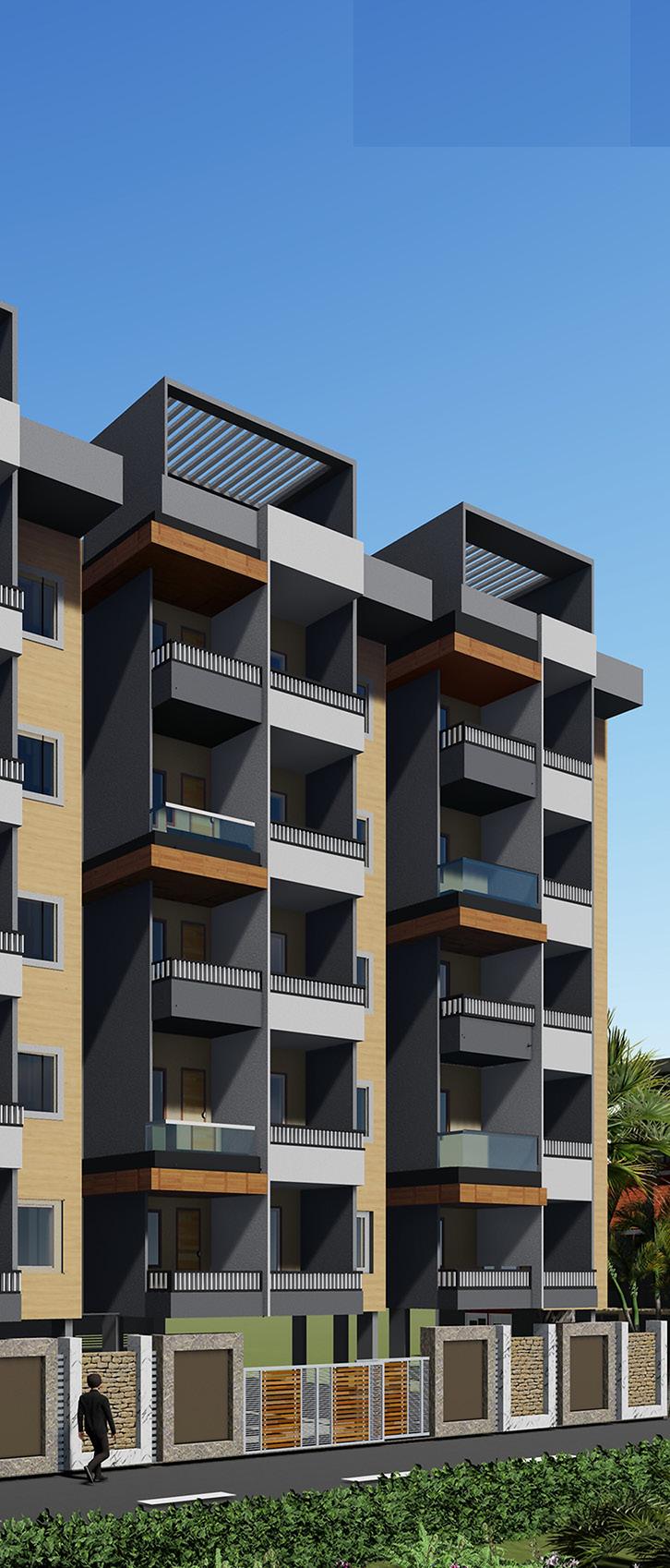

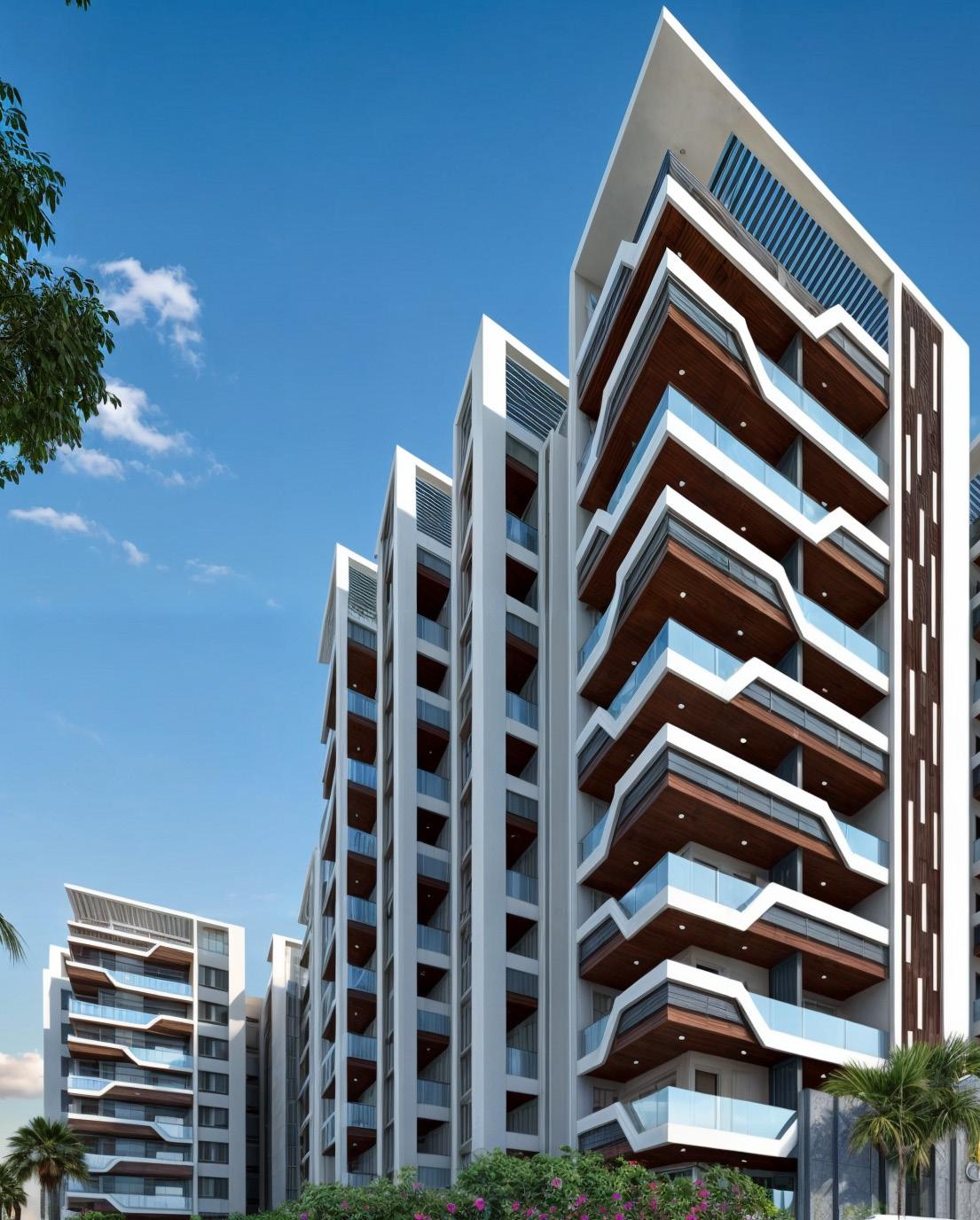

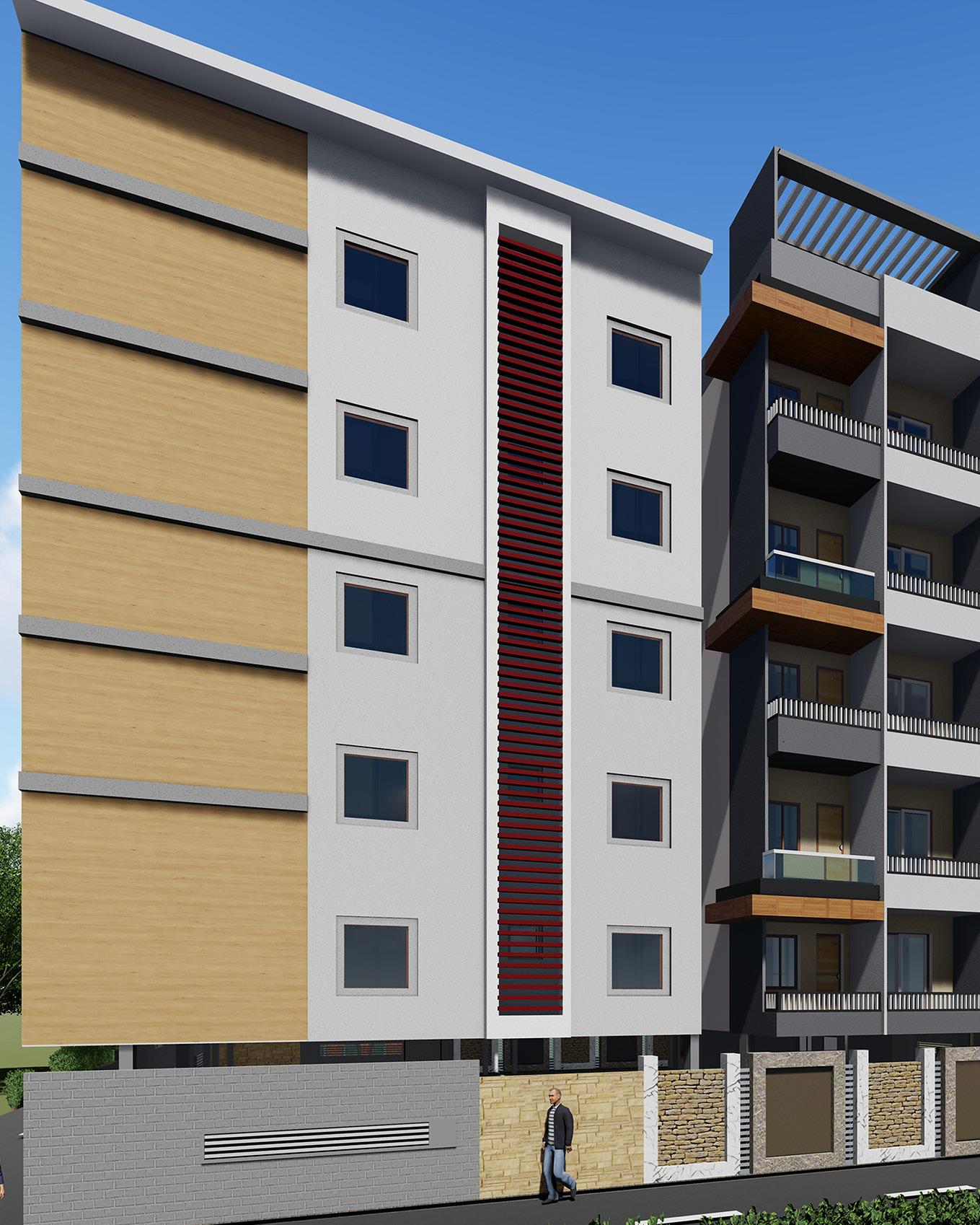

FACADE DESIGN

03 APARTMENT INTERIORS Location: Guntur, India Project Name: Aaditri Exotica Firm: Space Studio Year of Completion: 2022 Type: Residential Interior design Site Area: 2,400 sq ft Focus areas: Furniture layout, whole house interiors, kitchen planing and execution, budgeting, close out Scope: I established the first residential interior design studio and client walk-in experience center in the city of Guntur. This center provided a platform to introduce clients to various interior design styles and material options across different budgets.

Displayed different modules, including kitchens, wardrobes, and storage options.

Designed ceilings, lighting, and furniture to showcase a variety of design possibilities.

Supervised a team of 50+ on-site workers to execute projects while handling a budget of $35,000.

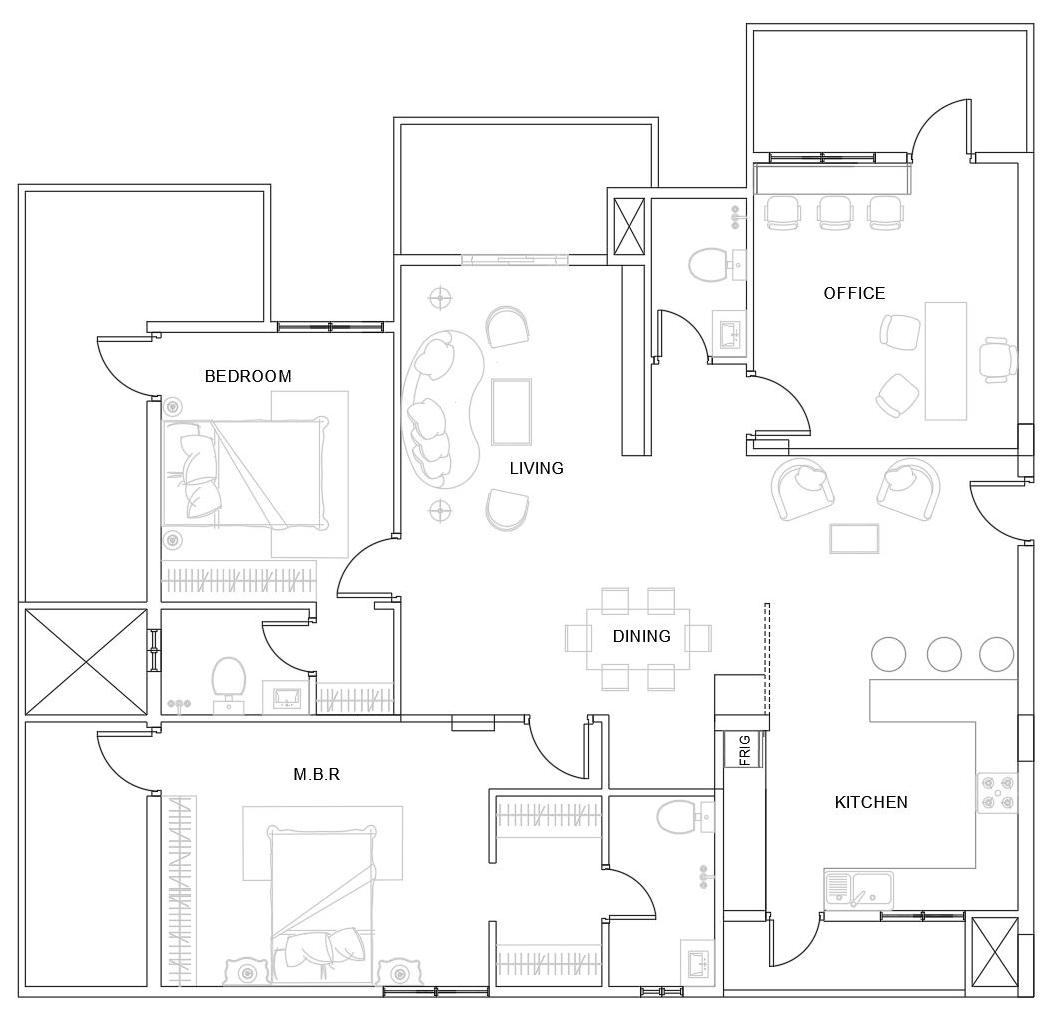

FLOOR PLAN

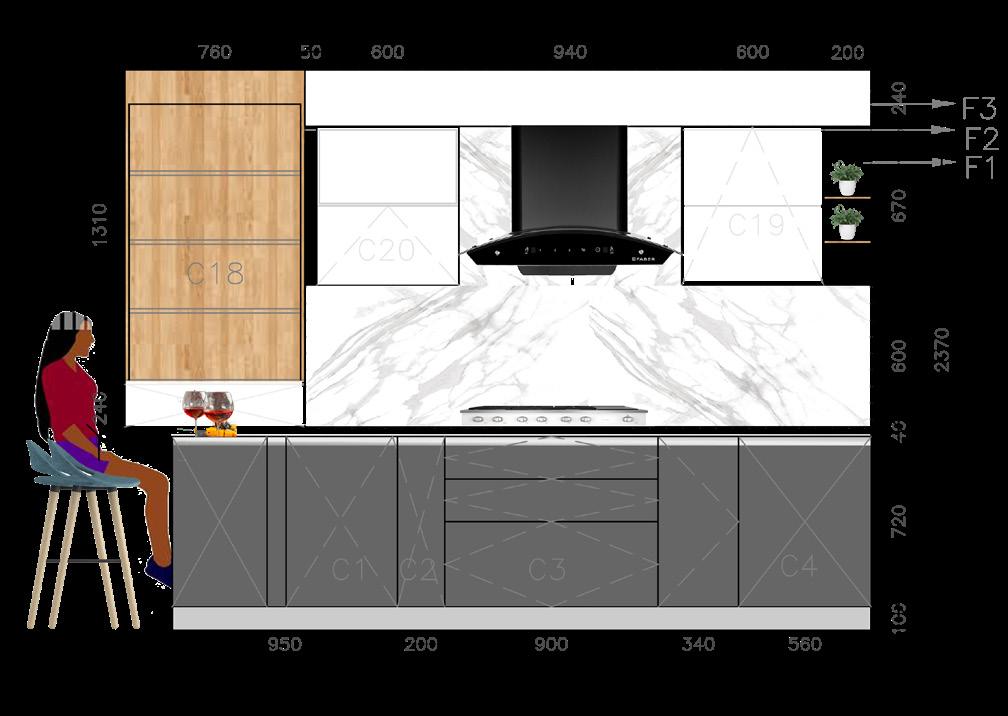

RENDERED ELEVATIONS

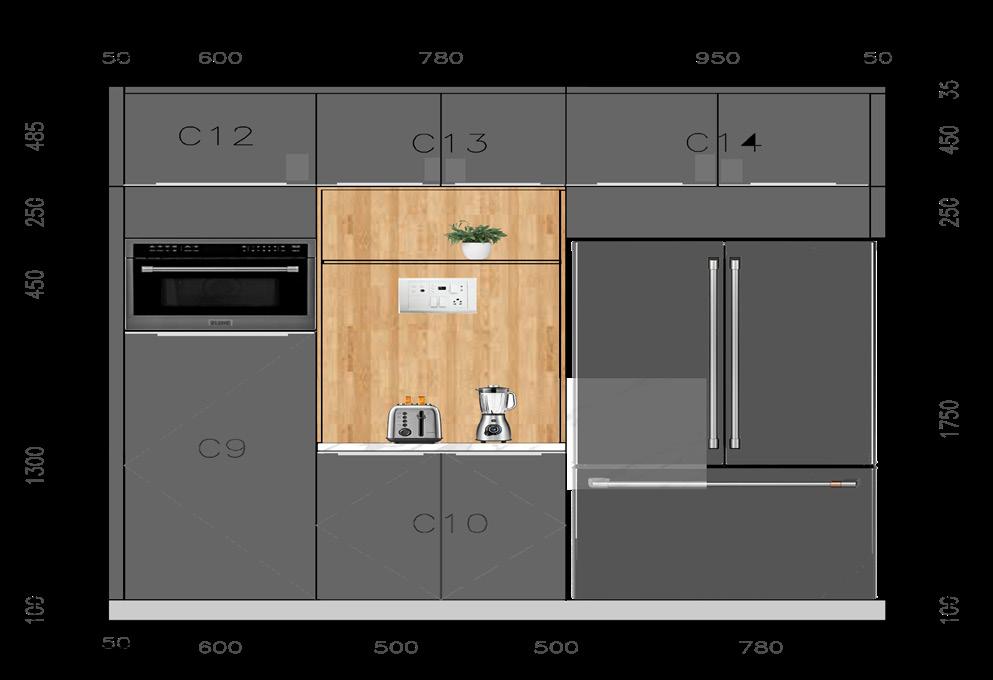

Elevation - 01

Elevation - 02

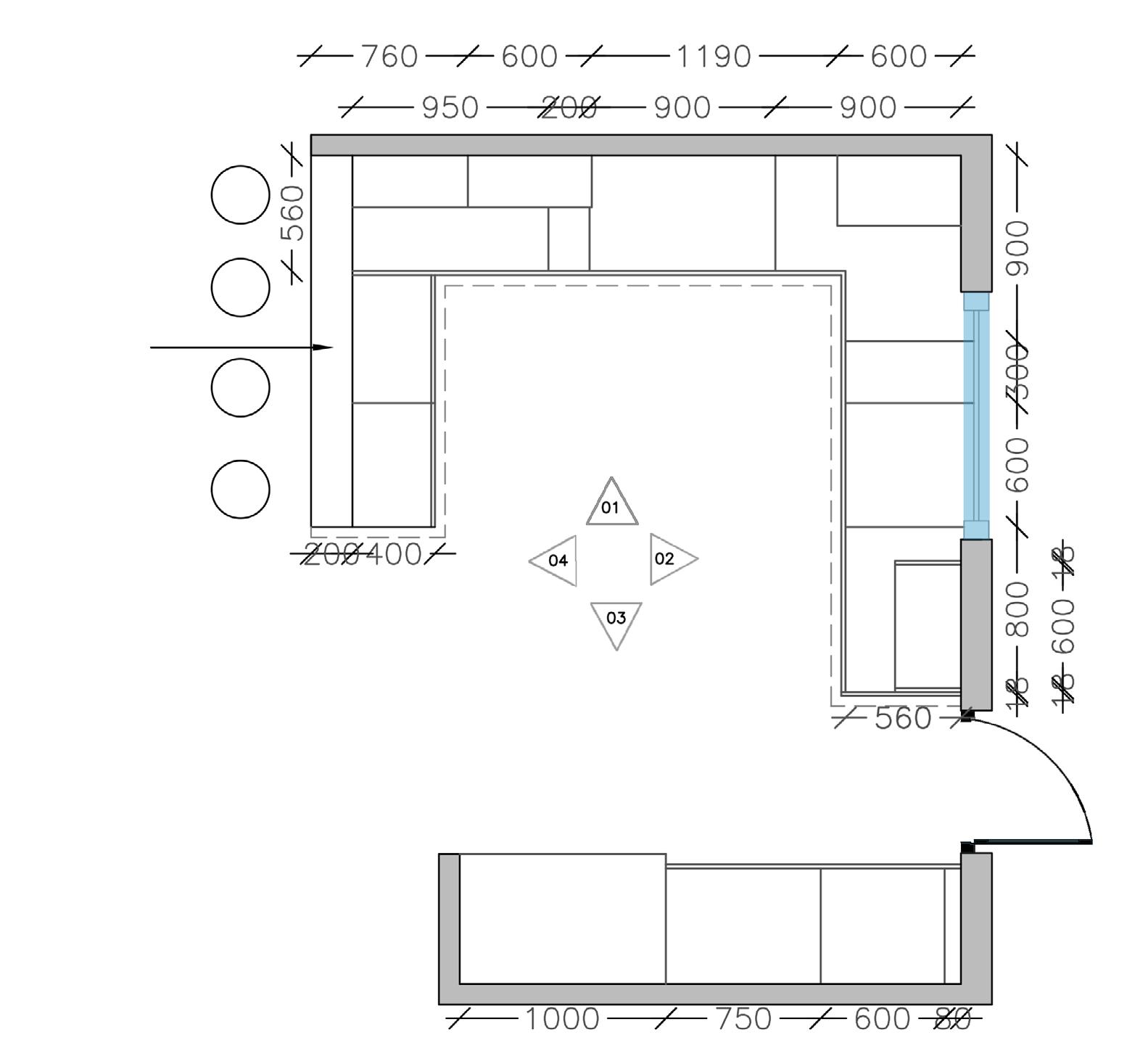

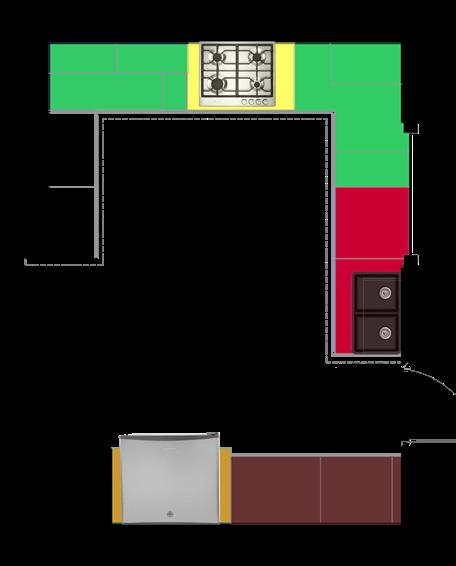

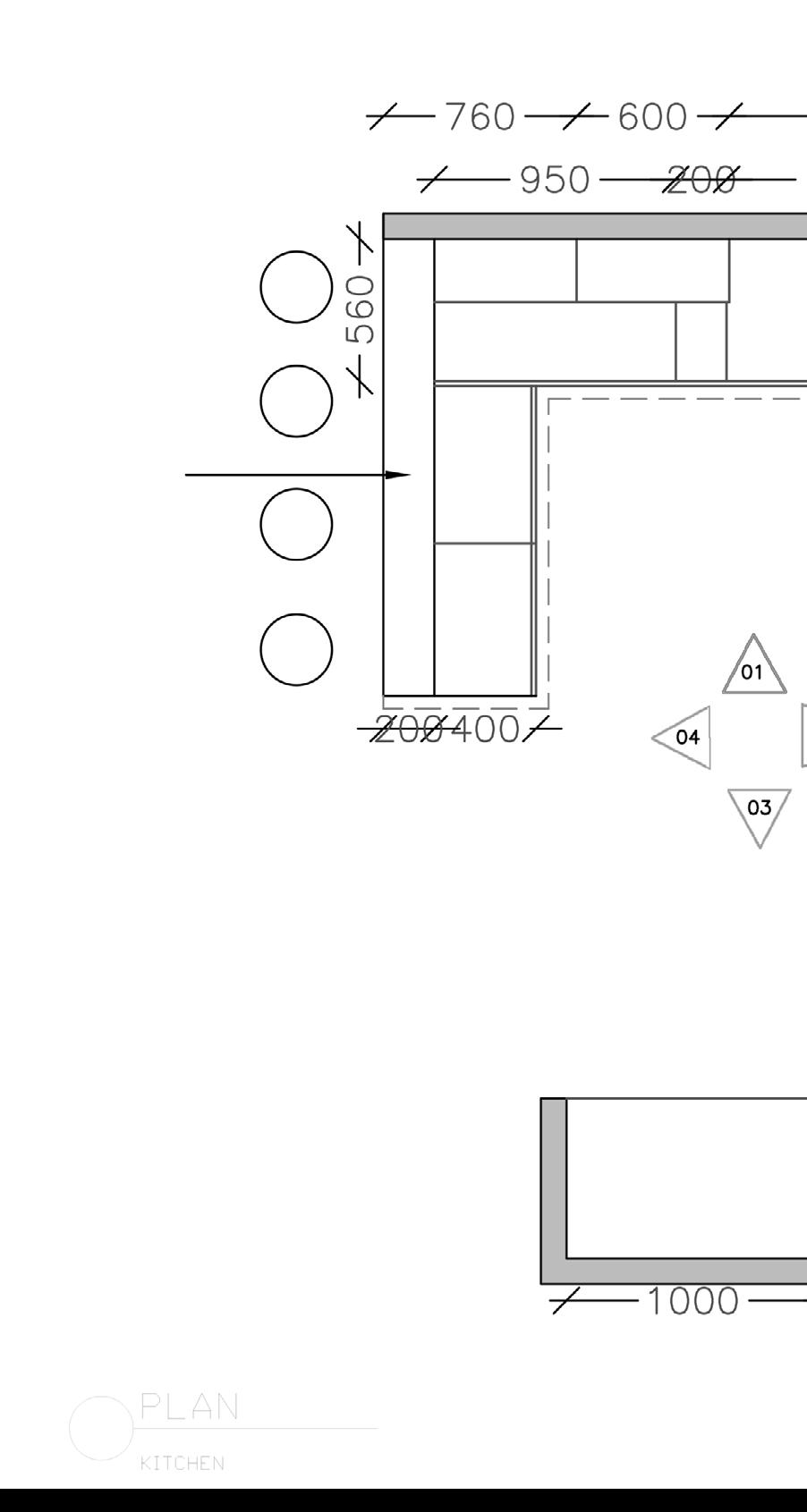

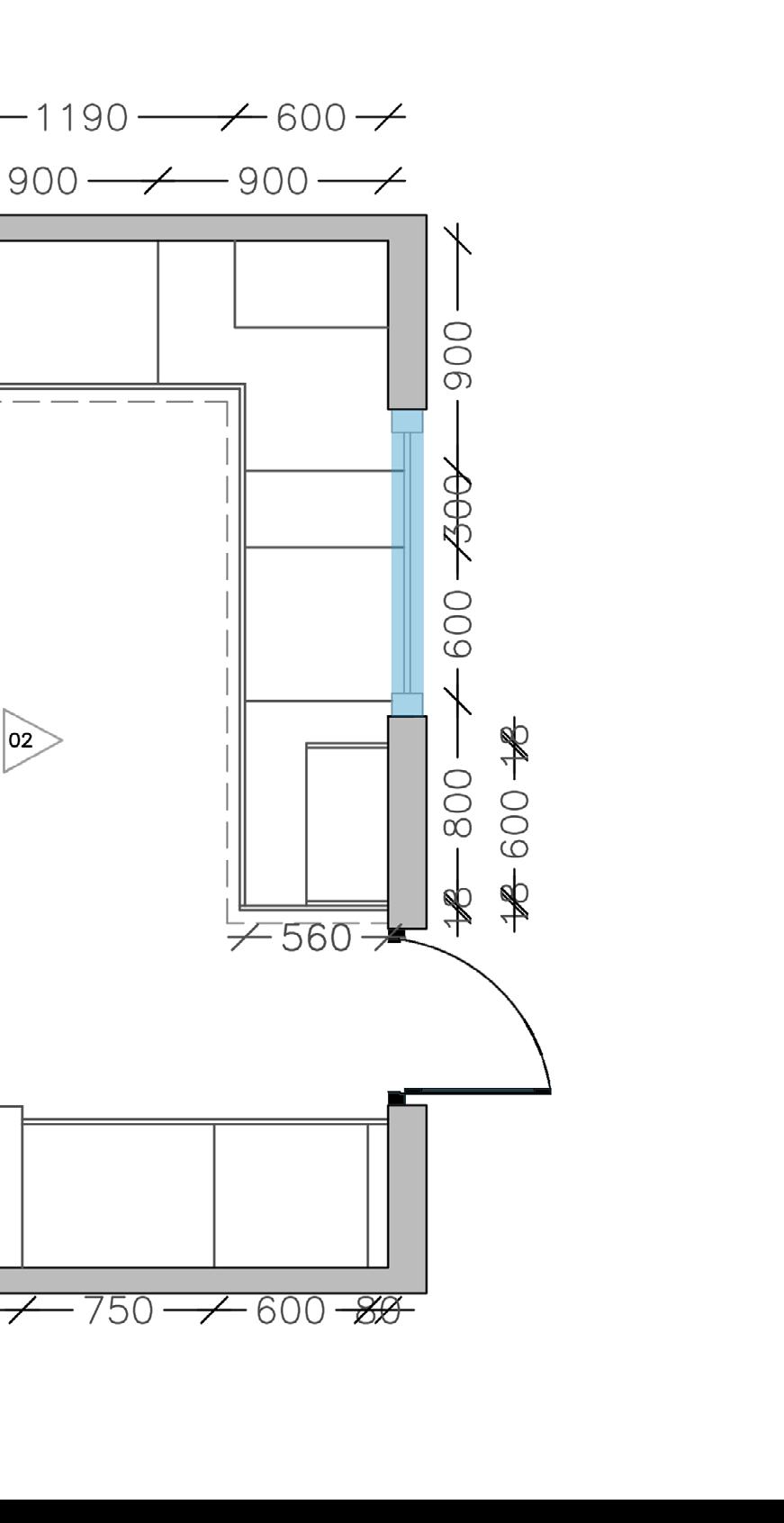

KITCHEN LAYOUT

Breakfast counter

Preperation zone Cleaning zone Cooking zone Storage zone Appliance zone

Elevation - 03

Elevation - 04

PERSPECTIVE VIEW

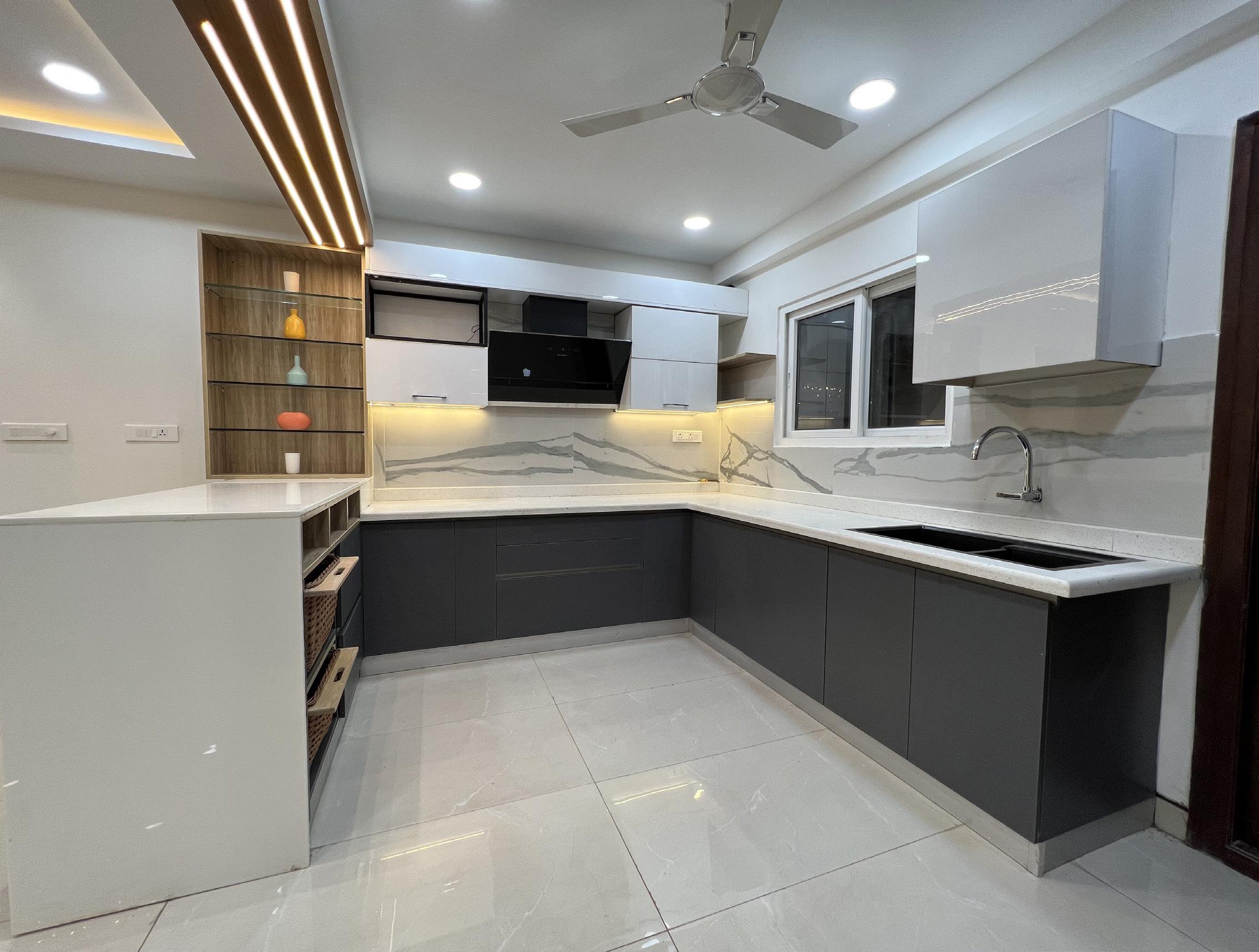

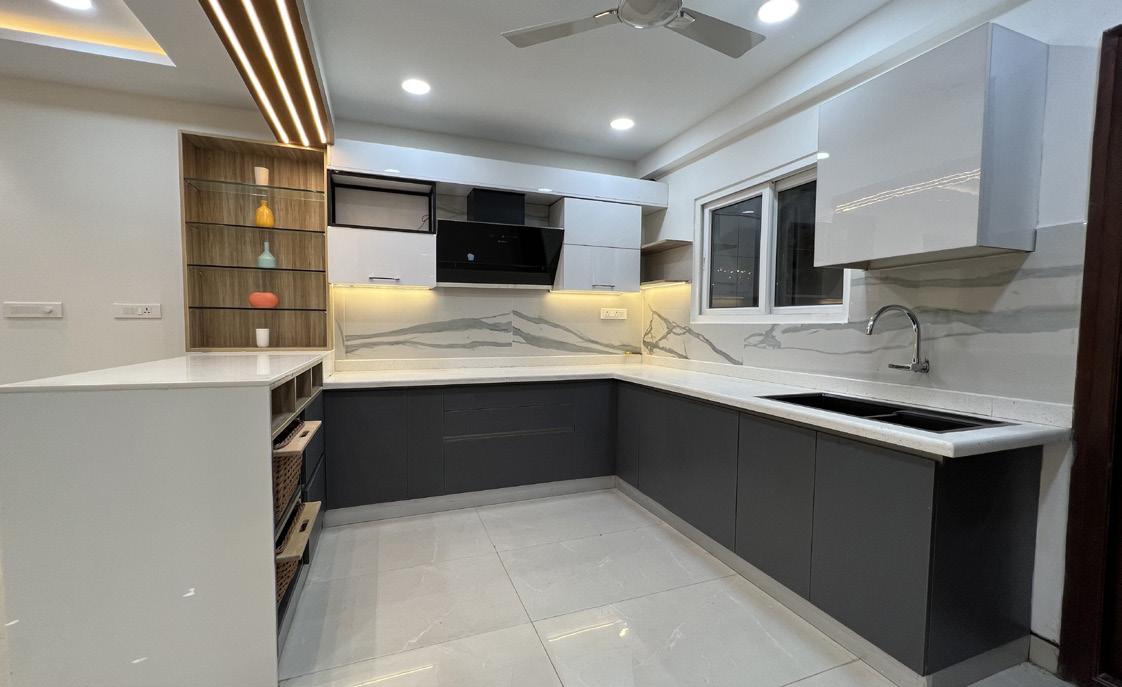

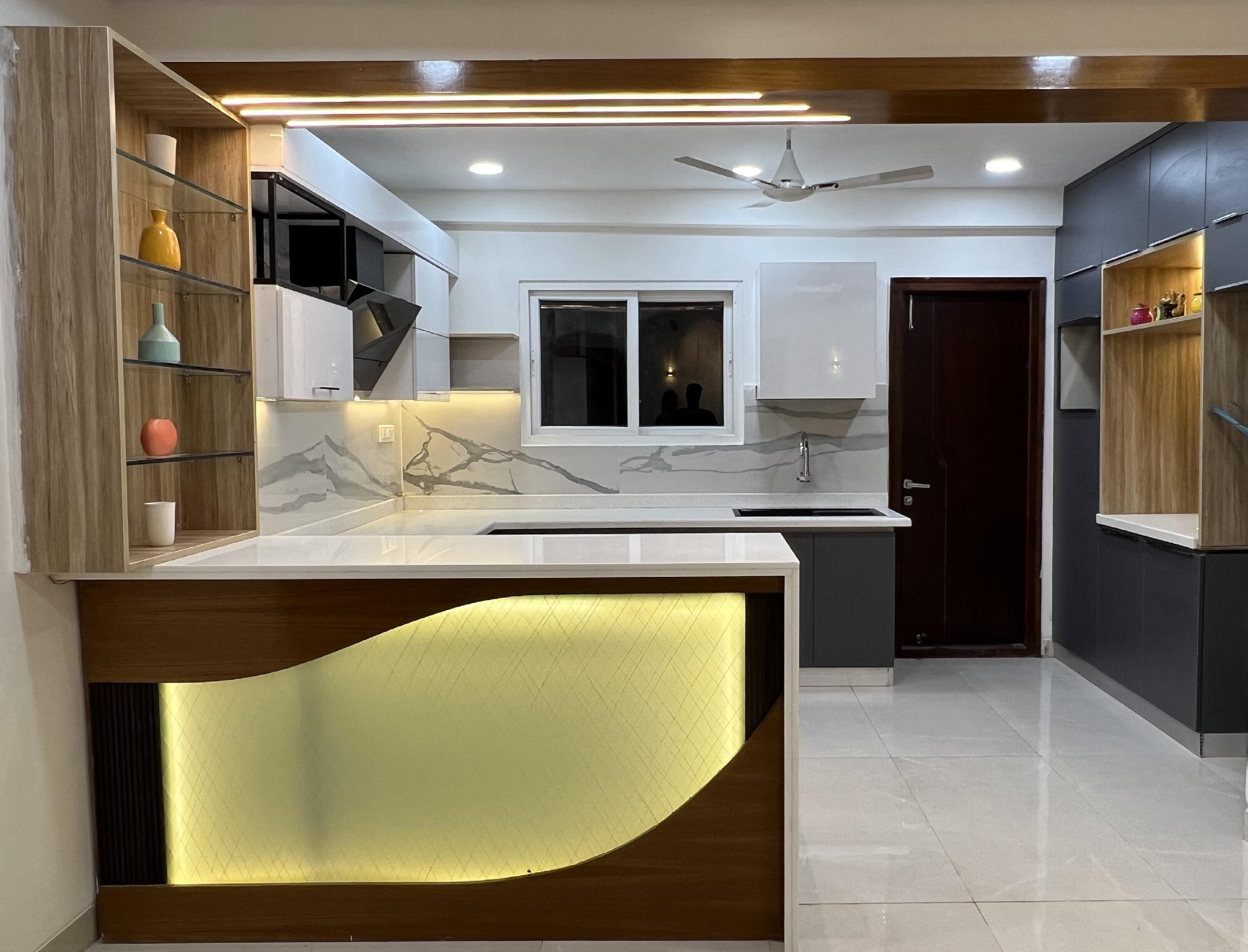

KITECHEN VIEW

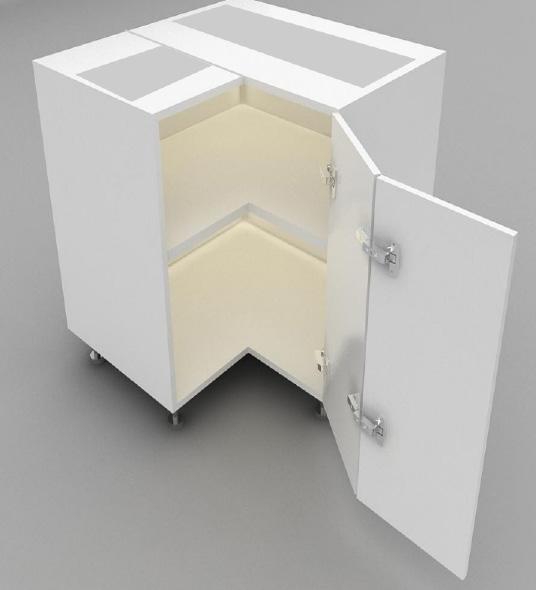

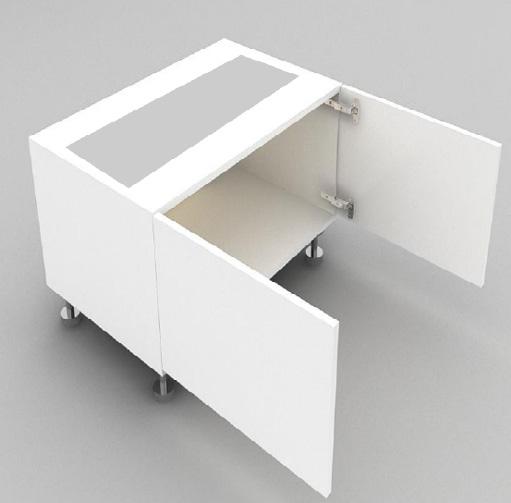

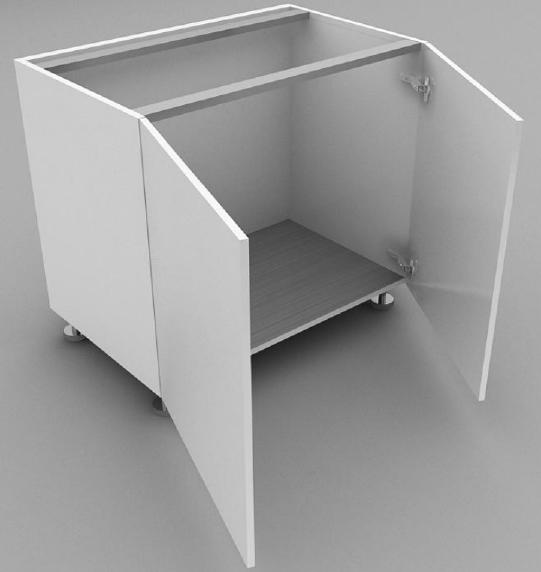

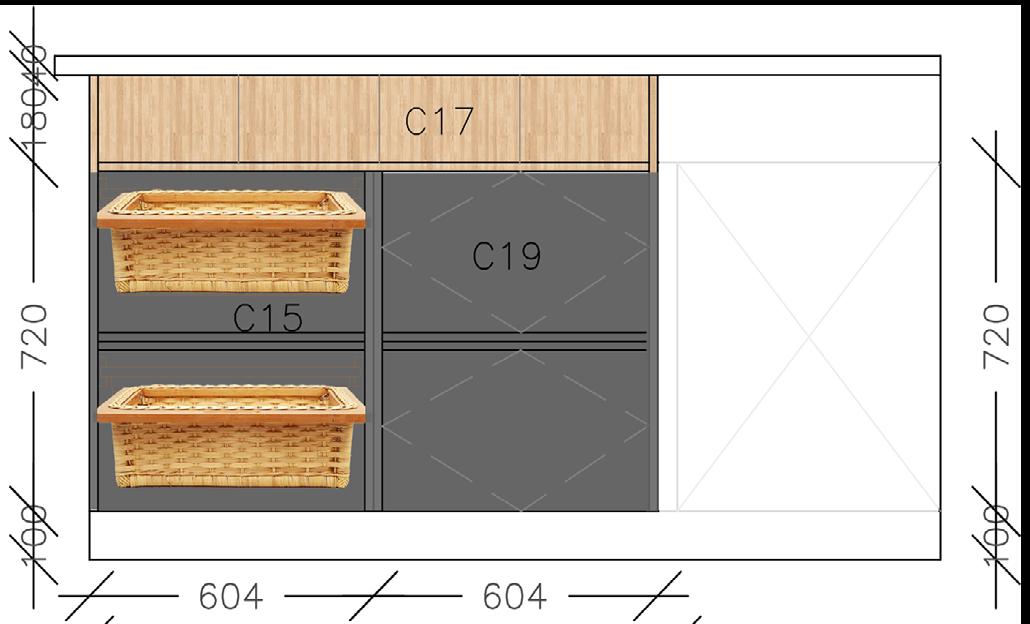

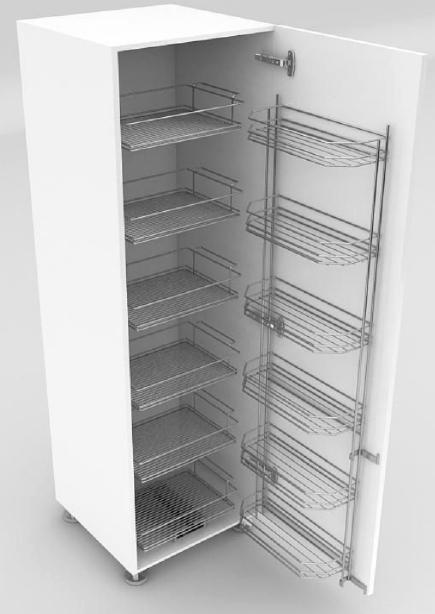

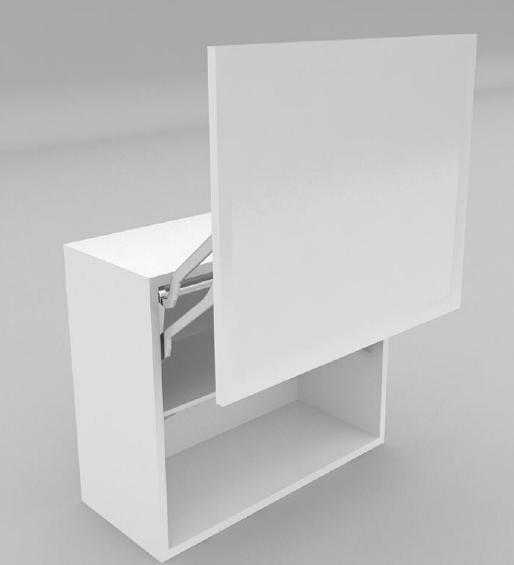

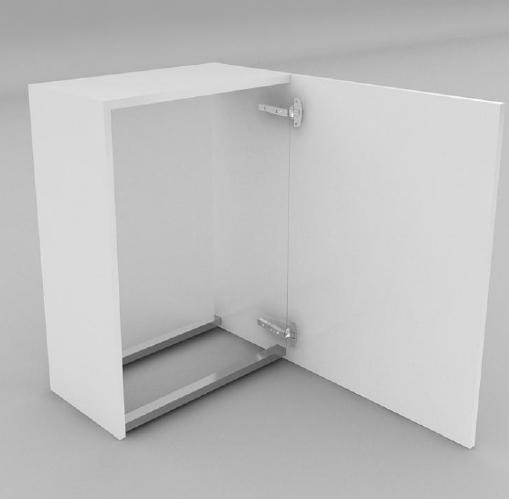

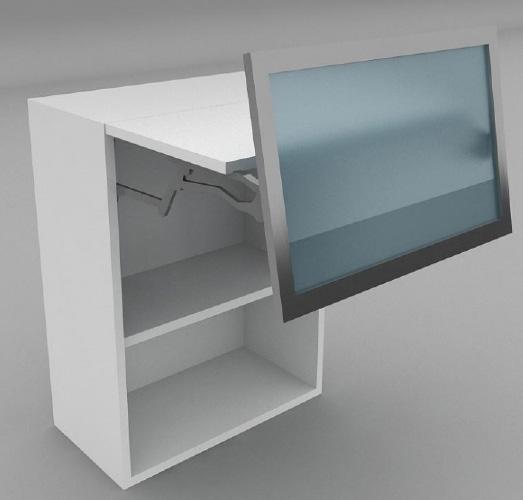

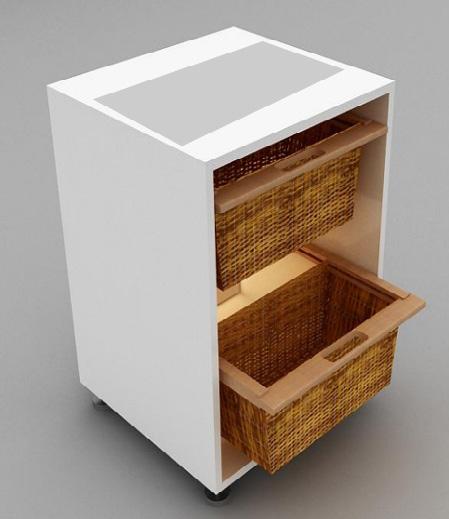

KITCHEN CABINET DETAILS C1- Base Corner Unit 950x720x560

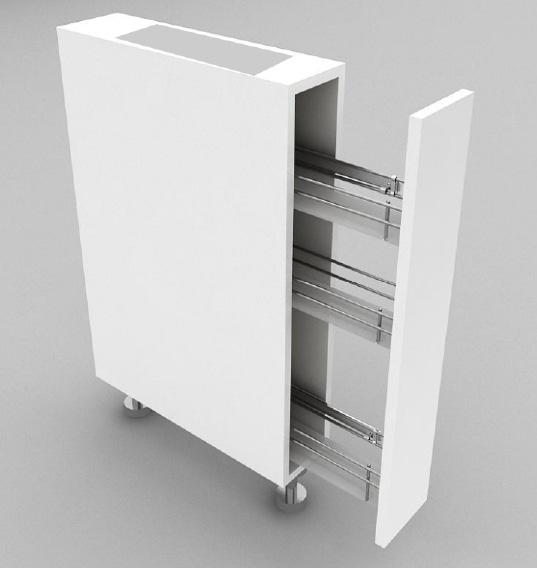

C2- 3 Tier Front Spice Pullout 200x720x560

C 9

C10 C1 C13

C7- Sink Unit with 2 Shutter 800x720x560

C14

C12- Wall Aqua Guard Unit 600x600x320 C8- 1 Hinged Door, with 6 Fixed Basket

C14- 2 Wicker Basket 600x720x560

C2

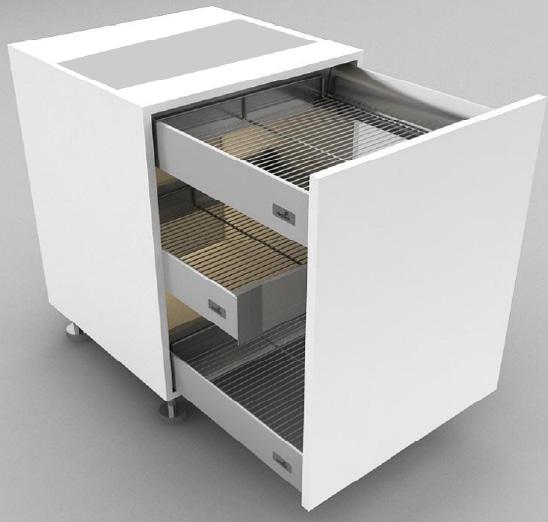

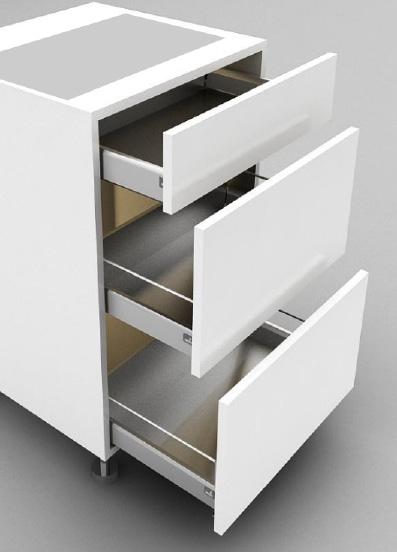

C3- 3 Drawer 900x720x560

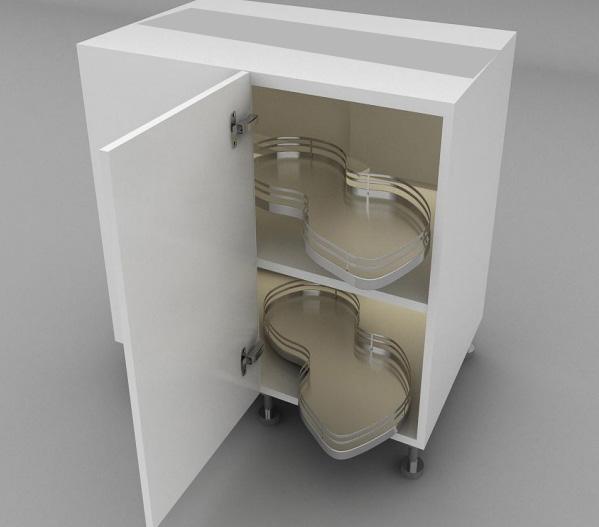

C4- Corner Base Unit 900x720x560

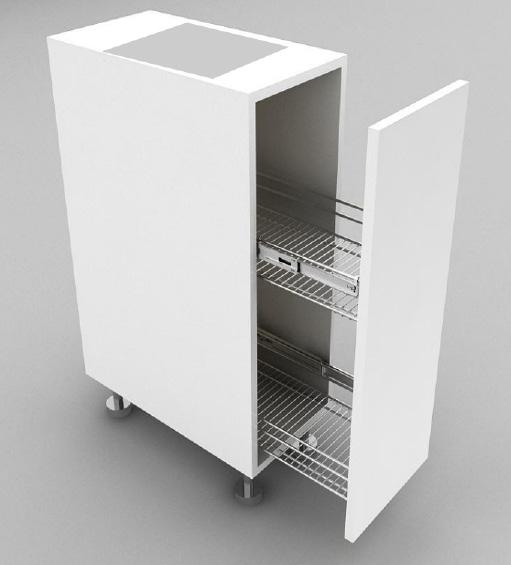

C5- 2 Tier Front Bottle Pullout 300x720x560

C11 C3

C4 C5

C10- Wall Unit 600x600x320

C6 C7

C9

C12

C8 C11- Wall Unit 600x600x320

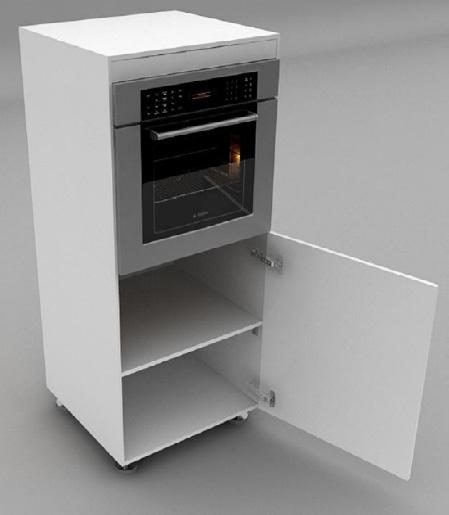

In-built Microwave 600x450x560

C9, C13- Base Unit 750x720x560

C6- Cargo Plus Basket 600x720x560

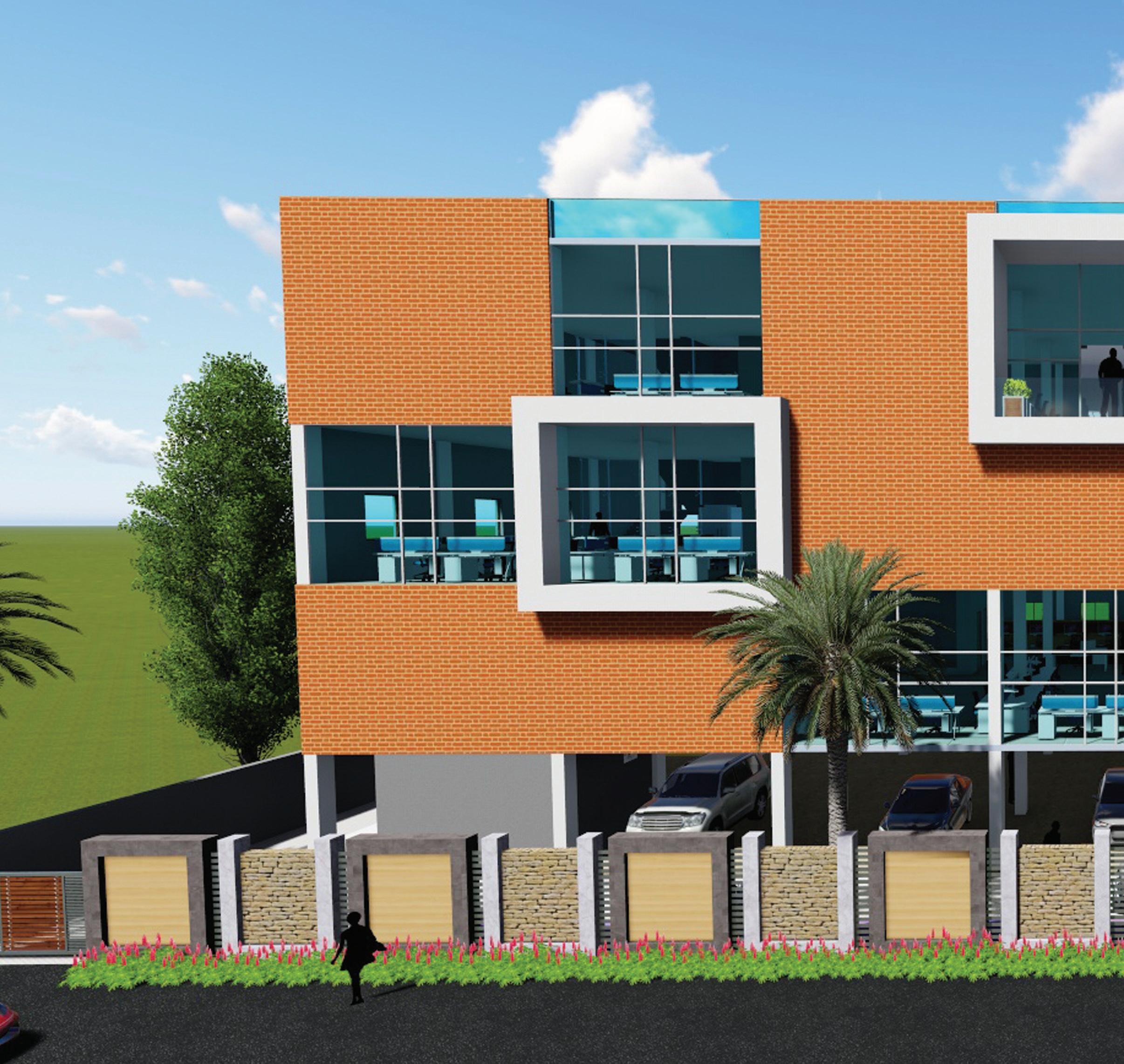

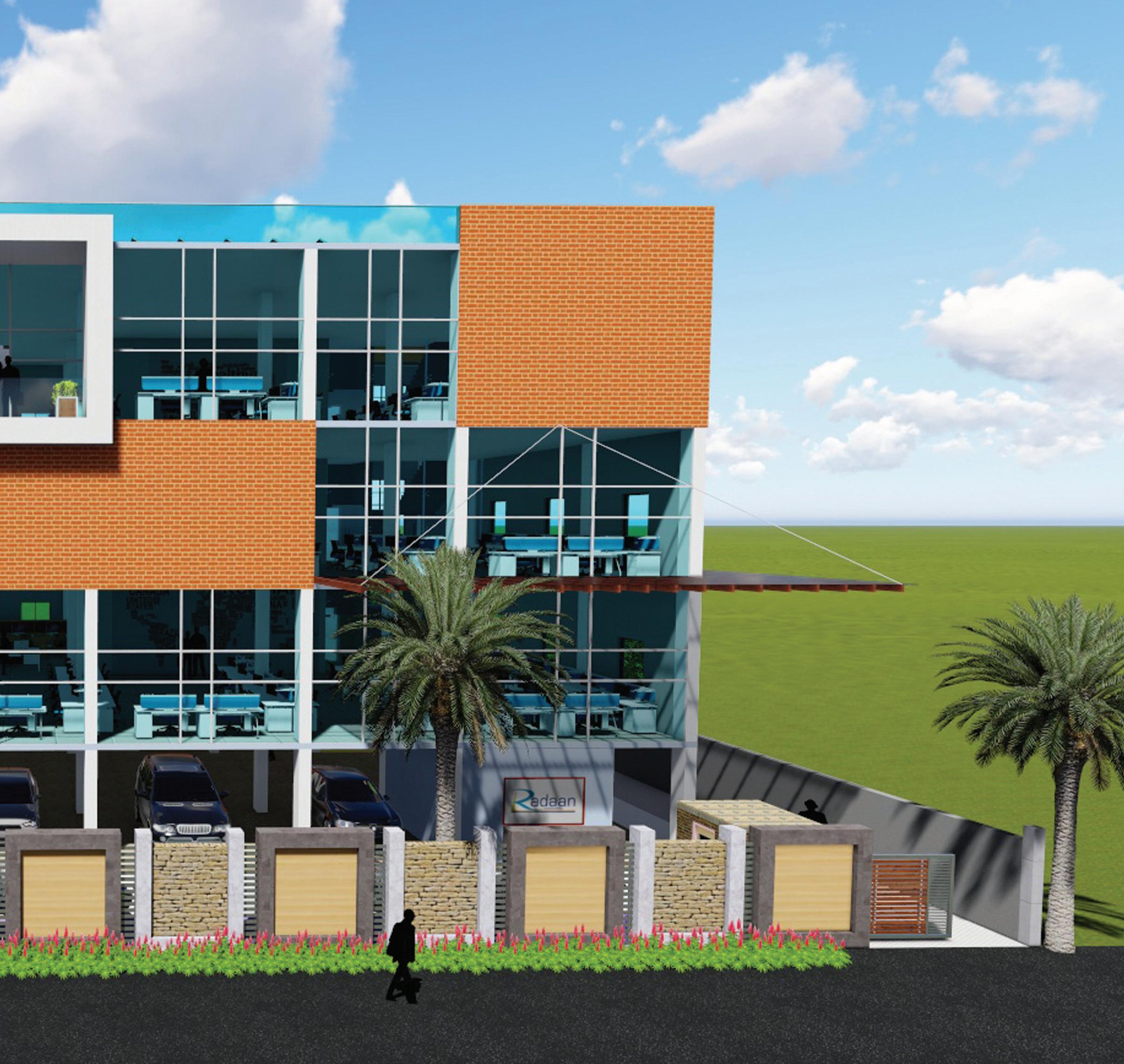

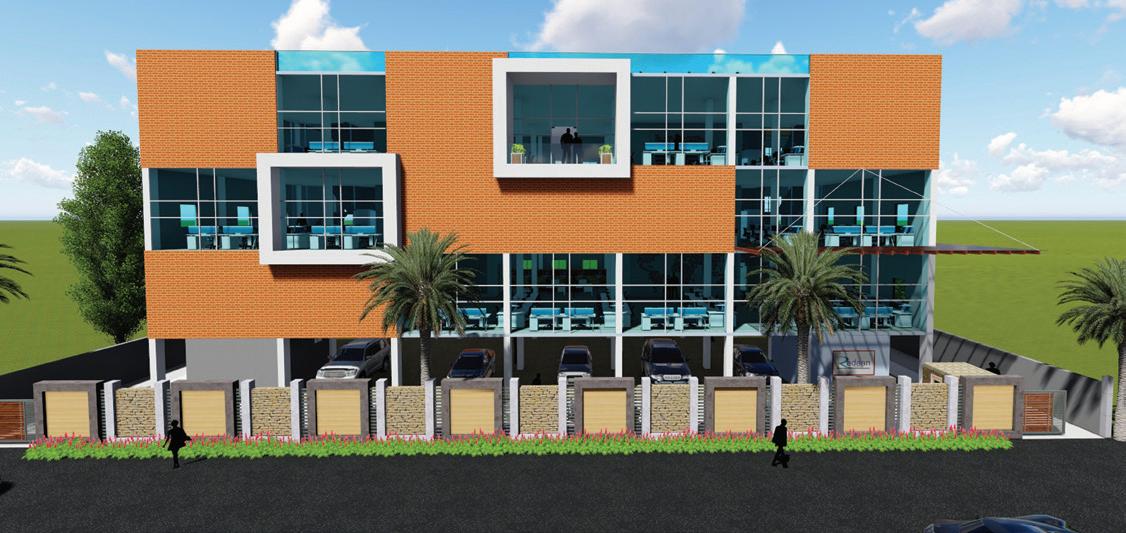

04 COMMERCIAL DESIGN

Location: Chennai, India Project Name: Radaan Year of completion: 2017 Focus areas: Facade design
