Den Helder 2100 Live with Water LOW LANDS ATLAS Q1 R&D Studio Academic Year 2022-2023

Student Satria A. Permana 5020344 Tutor Robbert Jan van der Veen Den Helder

How Can We Live without Water?

More than half of the tomato is water More than half of human is water More than half of the earth is water Sometimes need it, and sometimes avoid it Water is live-being that reacts to whatever around it acts Sometimes can be harsh and most of the time is kind It heals and gives life to the desert But can drown someone in the deep It flows through our ecosystem Which we should take care of One broke, entirely swept Which we must prevent And give them lives

Contents 2 3

How Can We Live with Water?

Contents

4 6 8 12 14 20 22 26

The Rising Sea Level and Den Helder Experiencing Den Helder The Development of Den Helder Rising Seawater: Adaptive Guiding Theme Rising Seawater: Learning Through Urban Form How Can We Live with Water: Design Perspective Adaptability Tools Imagining Den Helder 2100

28

Synthesized Three Structure Plan

42 43 43

Reflective Conclusion: Towards Urbanism Scales References Appendix

4-5

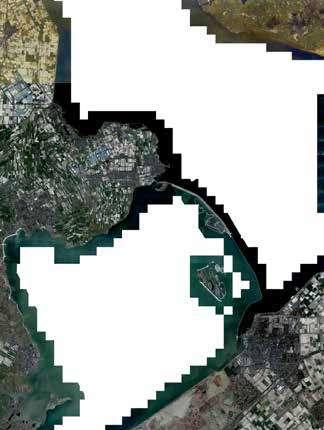

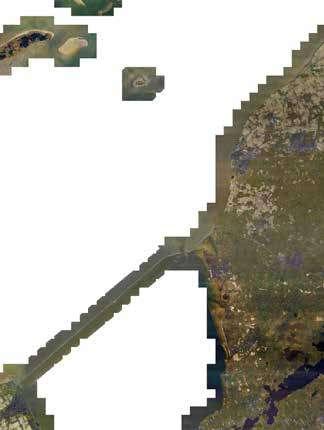

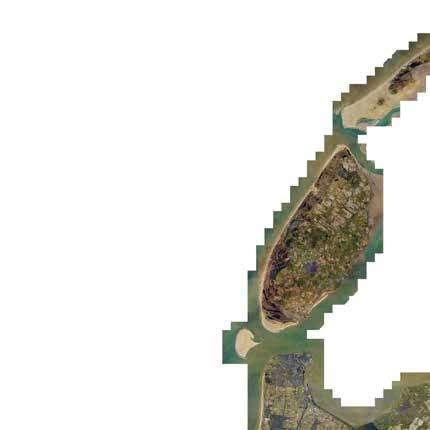

The Rising Sea Level and Den Helder The future of Netherlands’ low lands is still uncertain. The projected extreme 3 meter sea level rise by 2100, stormwater surges, housing challenges, climate crisis, and another possible worst case might lead the cases become reality.

Furthermore, 70 upcoming years will be significant transition of dynamic changes, whether we are ready or not.

Den Helder

10 0

km

Den Helder transformation through the time showed how the human alterered the significant part in shaping the island. Most historical notable part is the Stelling Den Helder, or the defence line Napoleon built in 18th century. Divide the island in polygon shape line from northwest to east by canal and dike corridors.

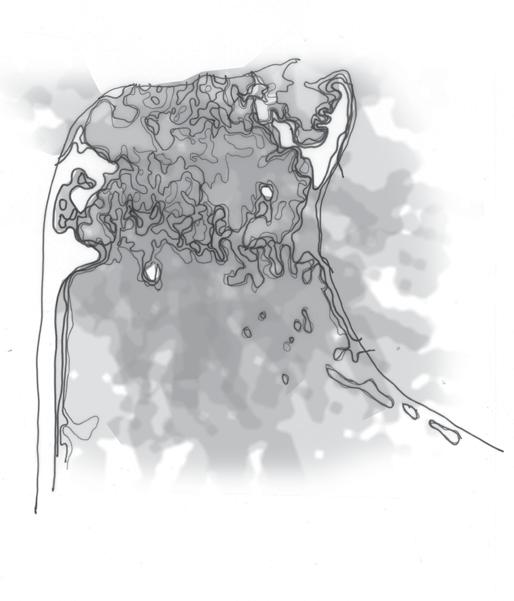

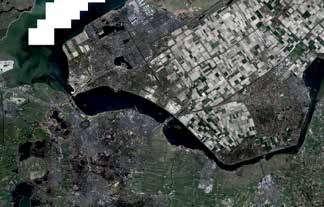

Geographically, Den Helder is almost flat and in the same height level as sea water.

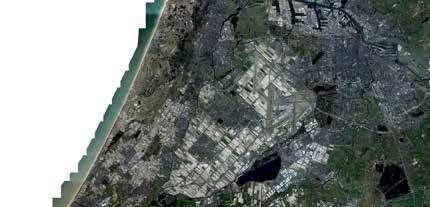

Amsterdam

This discourse brings the design and research works on how Den Helder will face the dynamic challenge. Can half of the Netherland can survive of 3 meter sea level rise? Can we?

Netherland NAP +0.00m

10 0

km

Den Helder

Den Helder 2100: Live with Water

Amsterdam

Netherland NAP +3.00m

Analys & Design of Urban Form

1650

1850

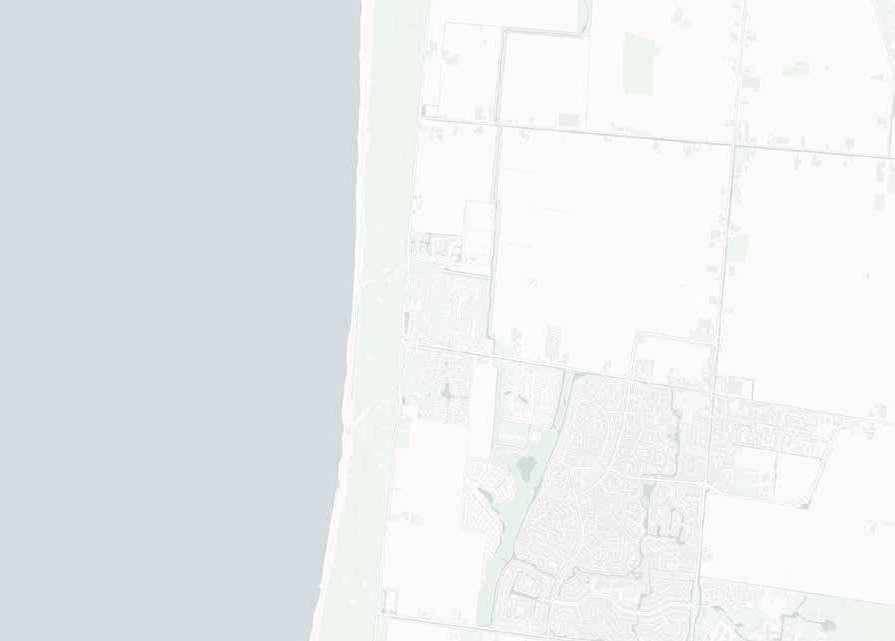

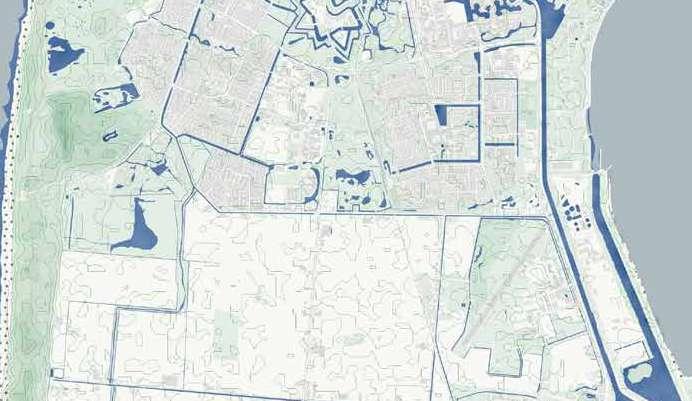

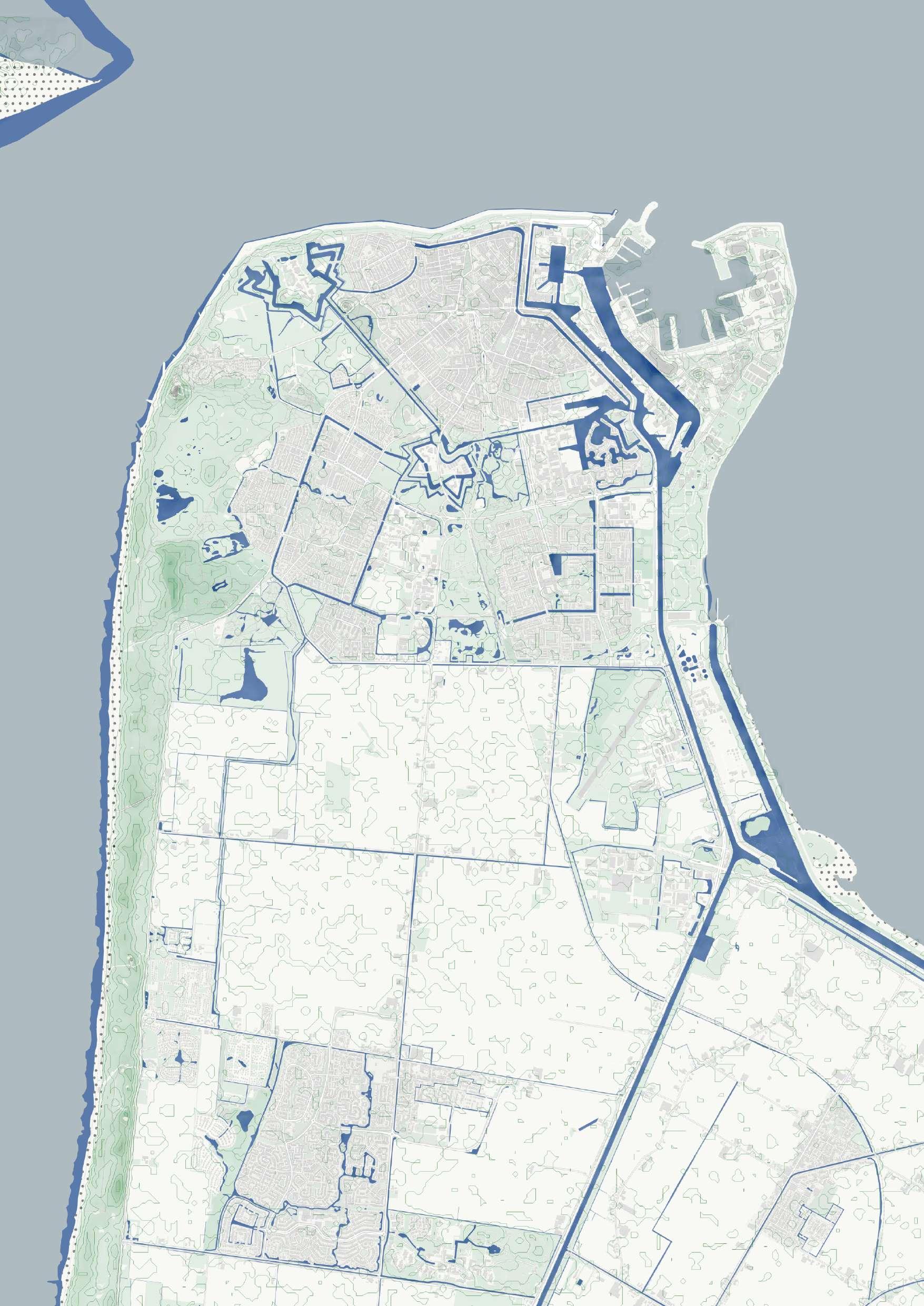

Den Helder 2022 Map of Den Helder in 2022 Sources: PDOK, edited by Author in QGIS

Neighborhood Dunes Beach & Dunes Transition Agriculture Water Sea

0

1

2 km

N

6-7

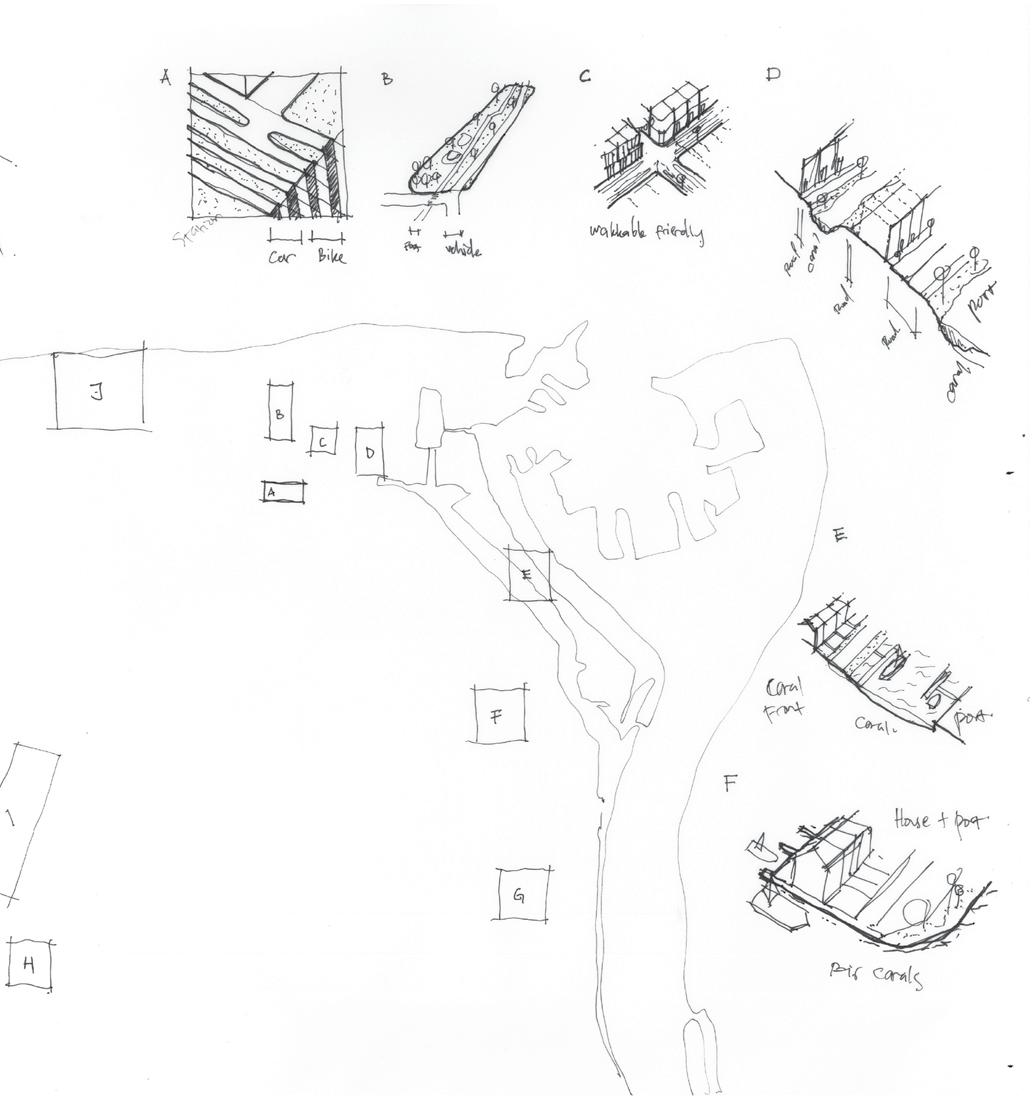

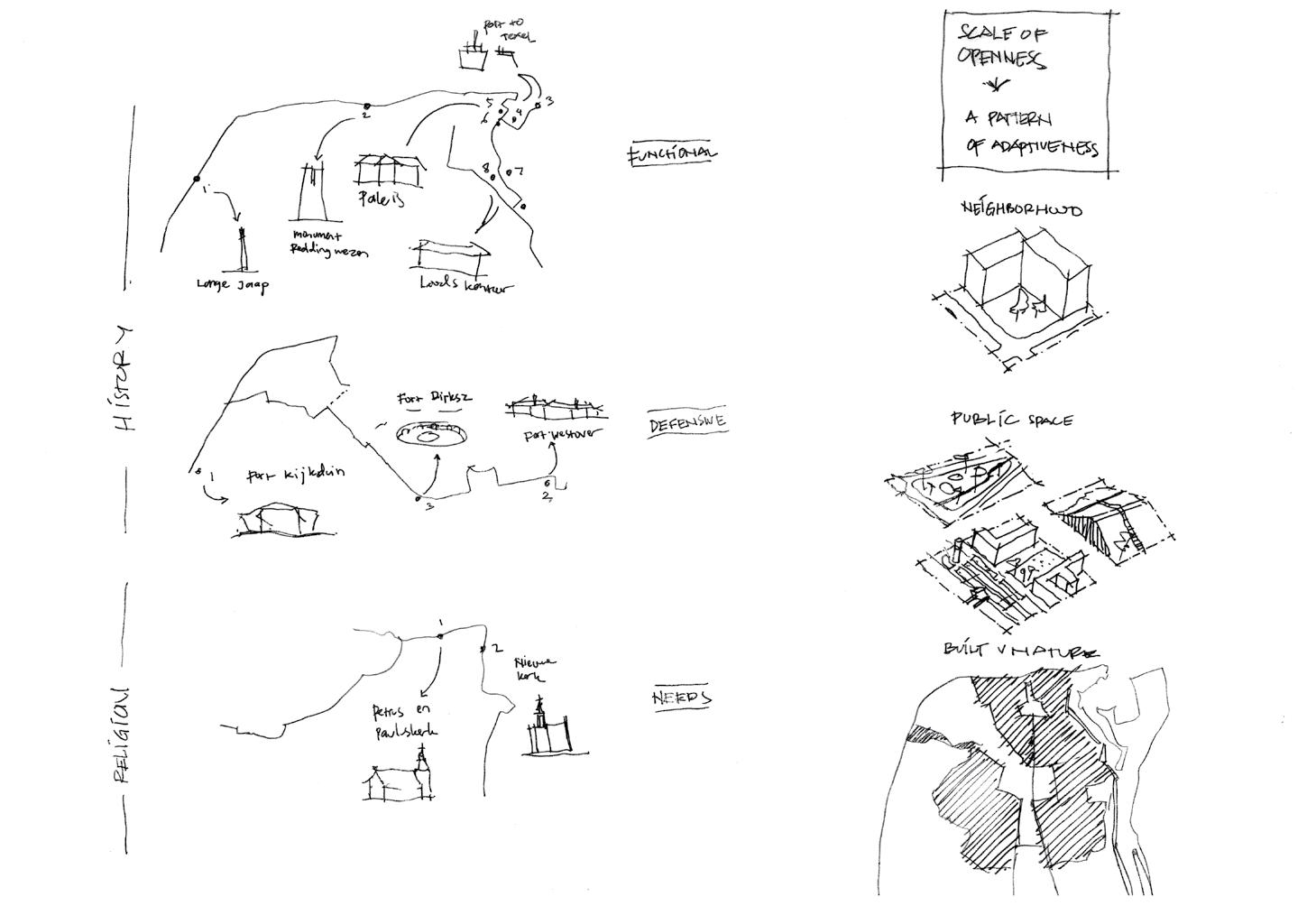

Experiencing Den Helder There is something I realised after exploring the city in one day.

Den Helder consists of multiple layers (urbanised, rural, natural, port, and defence base) which, I would say, is suitable for living in old age (since the neighbourhood is nice and calming). Yet, the relationship and the role of Den Helder as the northern coastal area in the Netherlands (have a lot of wind and as a sea-level rising defence), invites indefinite possibilities to face the future ahead.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

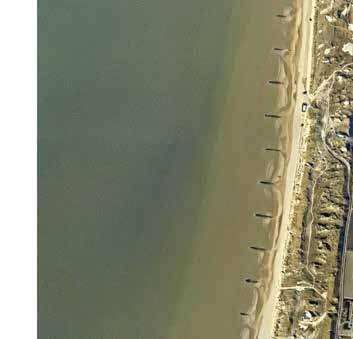

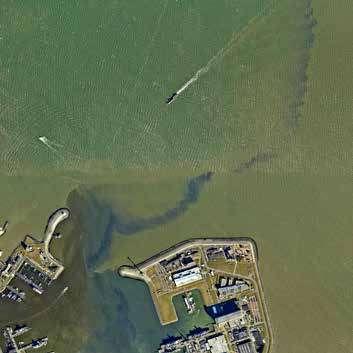

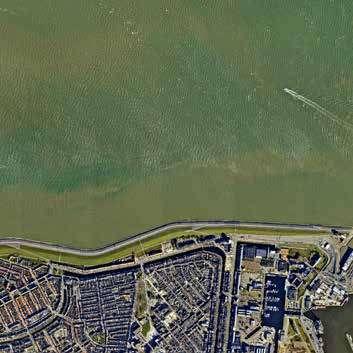

By standing at the top of the 17-meter height dike, we can assume that we can survive the 3-meter sea level rise. However, when we see the whole Netherlands, vulnerable low lands are likely in the centre and spread evenly to the other parts, leaving the coastal line the only safer part besides the high lands.

All Saints’ Flood (1570) Drawing by Hans Moser in 1570 of Scheldt flood

Zeepromenade

Spoorstraat

Fort Erfprins

Willemsoord

Den Helder Station Badhuistraat

Westhoek

De Helderse Duinen

Beatrixstraat

Grafelijkheidsweg

Watertoren

8-9

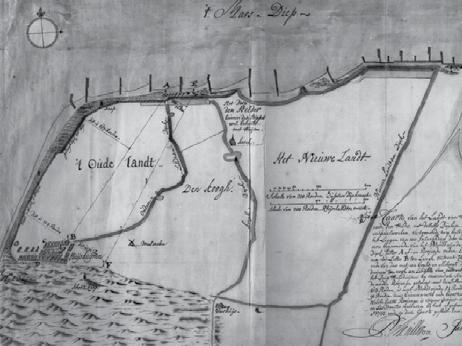

The Development of Den Helder Through these 250 years’ timelines, we can see how Den Helder developed with its turbulent historical evolution.

Started long ago in the 7th century when the first village and farm was built, the Huidsduinen. Then wiped away because of the huge flood that happened in 1570. We can see the significant losing part of the island at the edges.

Interestingly, the terrain resembled island-like, but with sand. The eastern part of the island was filled with sand dunes but gradually sunk because of the rising sea level. It did leave a trace in further development.

1600 All saints flood completely washed away all built structure in Den Helder, including the old Huidsduinen (oldest part of Den Helder, built arround 8th century.

Then they rebuilt the settlement and started a new living.

Huidsduinen

The hard soil part, therefore, becomes a suitable area to become a civilised town. We can learn from the recent past, from 1800 to 1850, how the fort development takes the natural form of the island through hard soiled parts while developing it to become more level. Through time, the island become smaller, the island-like part in the inner area slowly covered become flatlands, and the defence line create canals to Amsterdam.

Den Helder 2100: Live with Water

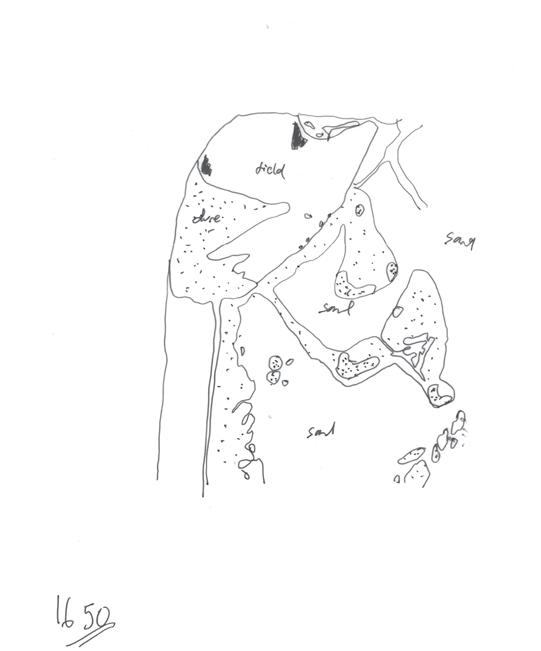

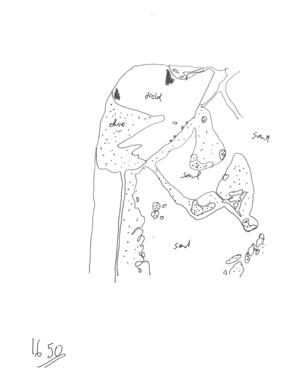

1650 Newer part were built and they constructed more dikes in order to have a proper protection. The village, then, become landlocked.

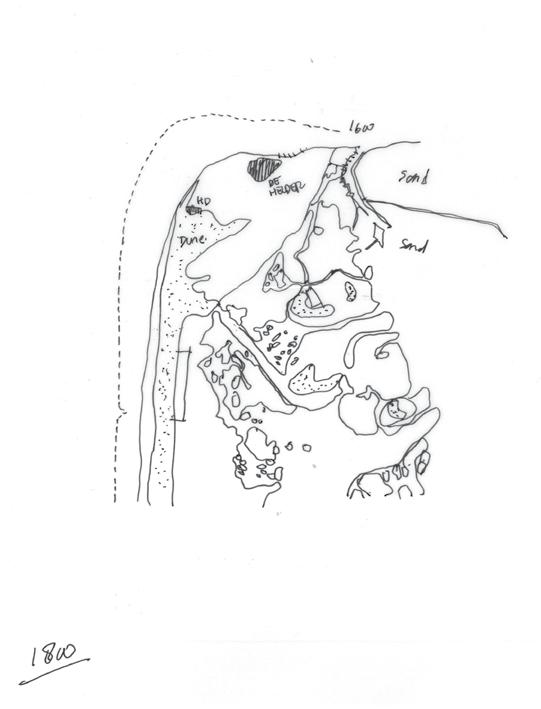

1800 In 17th to 18th century, the village residents made a good living from whaling, merchant shipping, and piloting ships through Marsdiep.

Analys & Design of Urban Form

1850 150 years later, Napoleon Bonaparte saw a great potential to make these area as one of defender during the French occupation. Fort Kijkduin was built and Fort Erfprins later.

Oud Den Helder

0km

1km

2km

0

0km

1km

0km

2km

1km

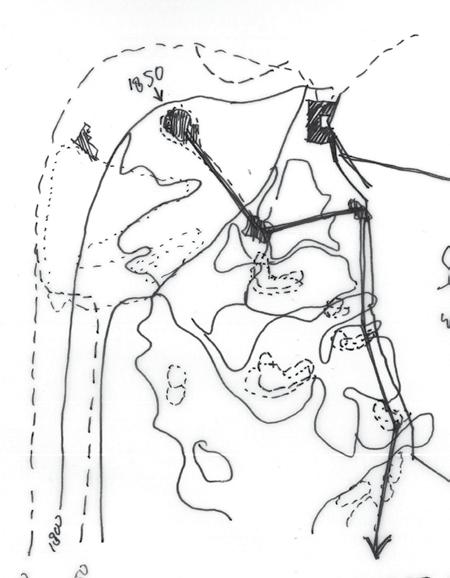

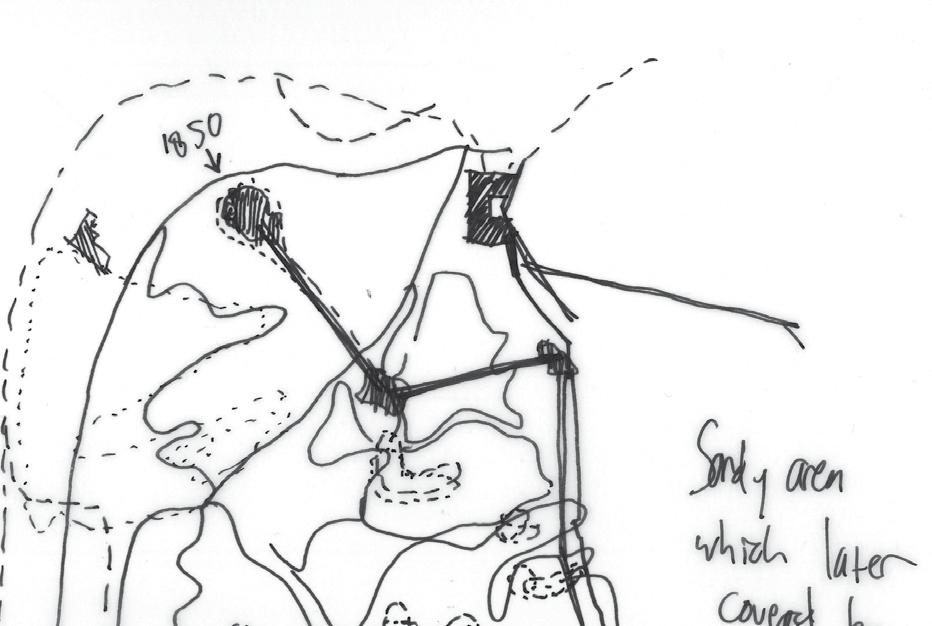

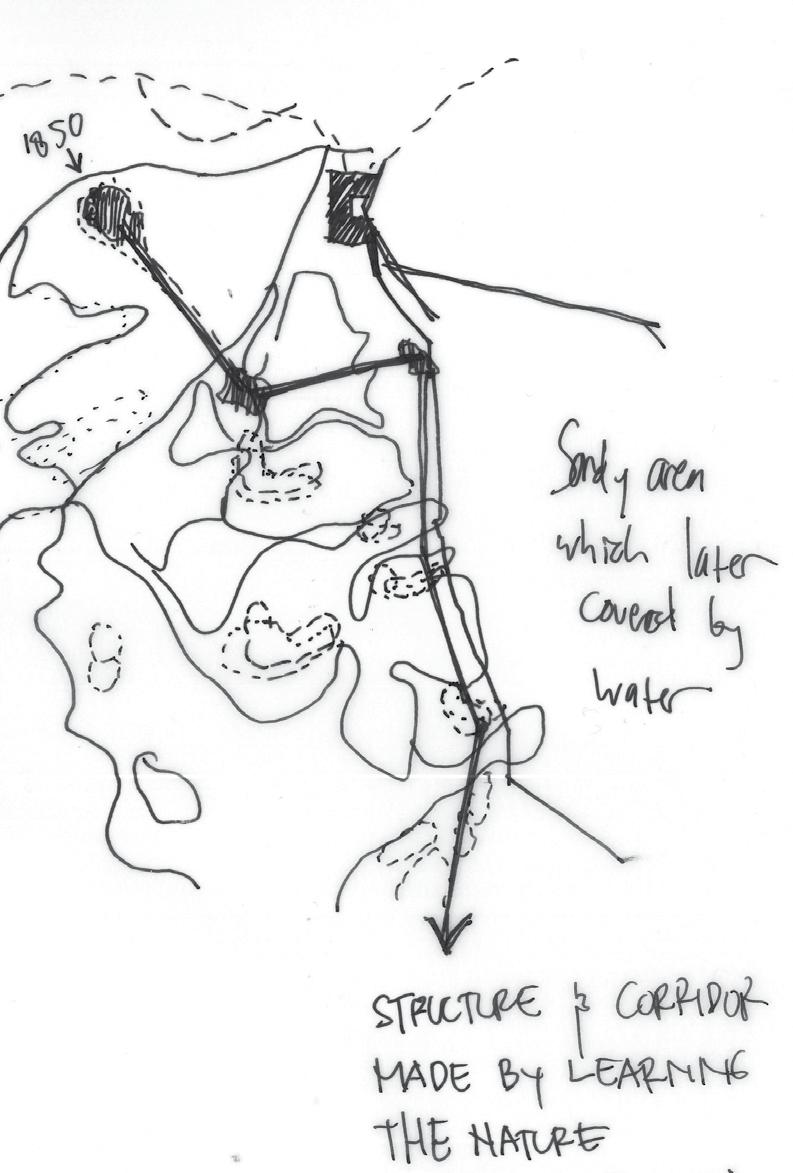

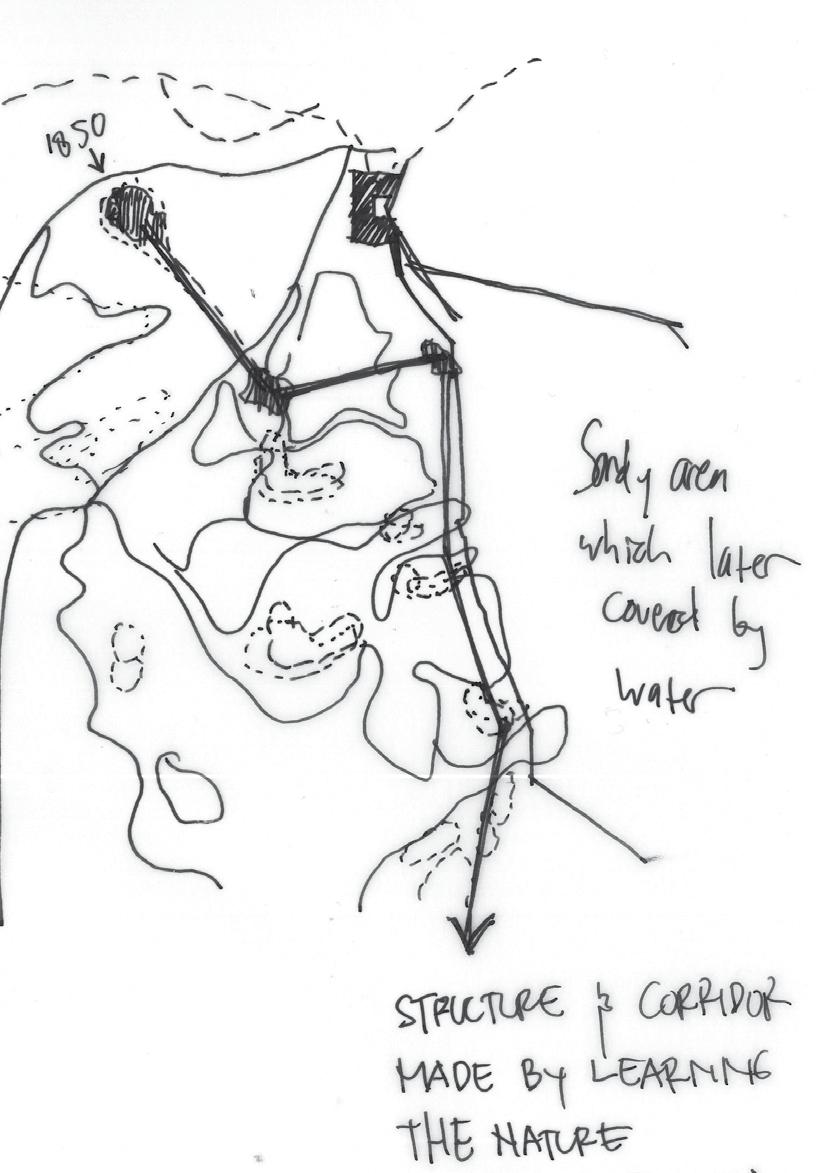

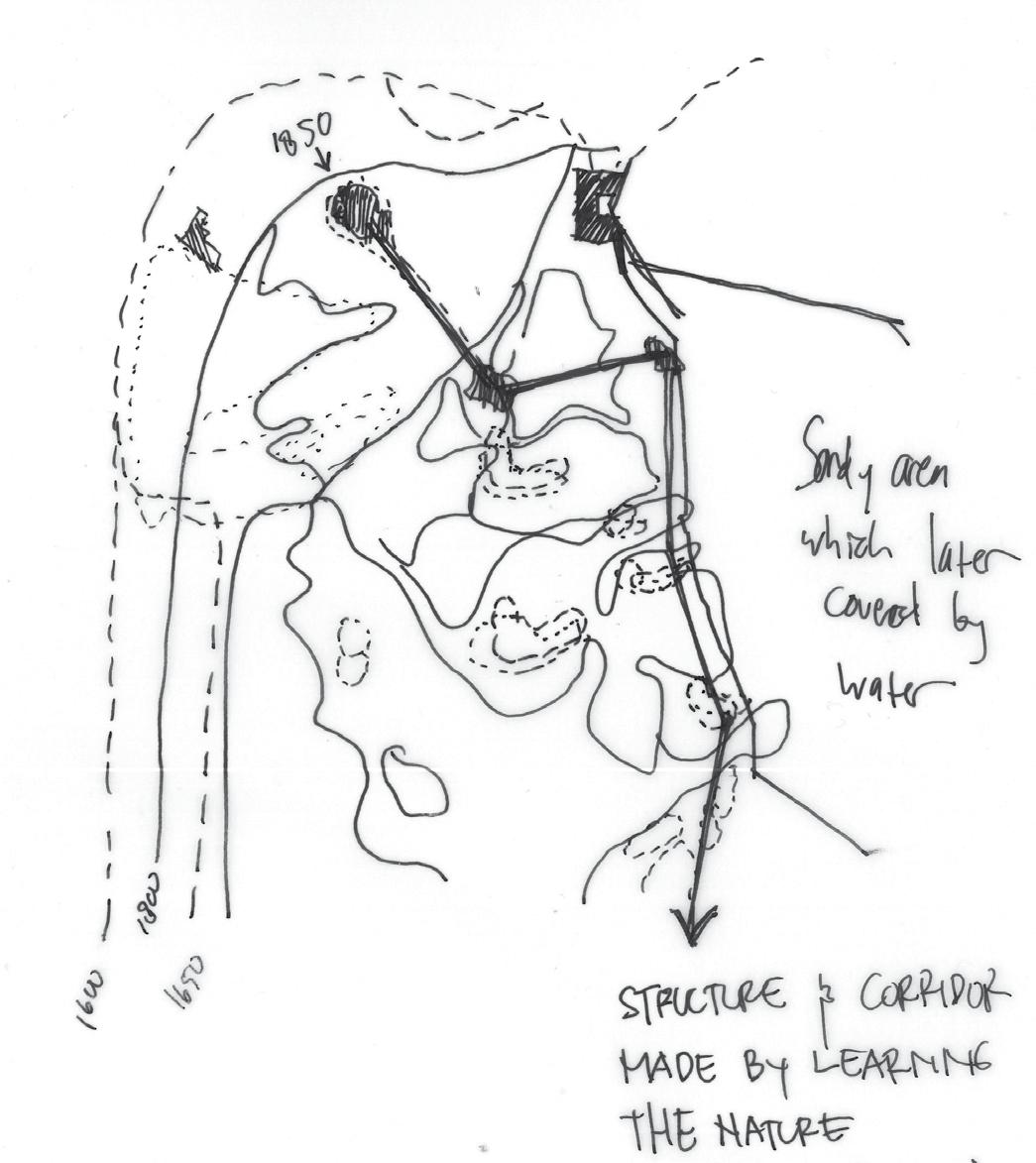

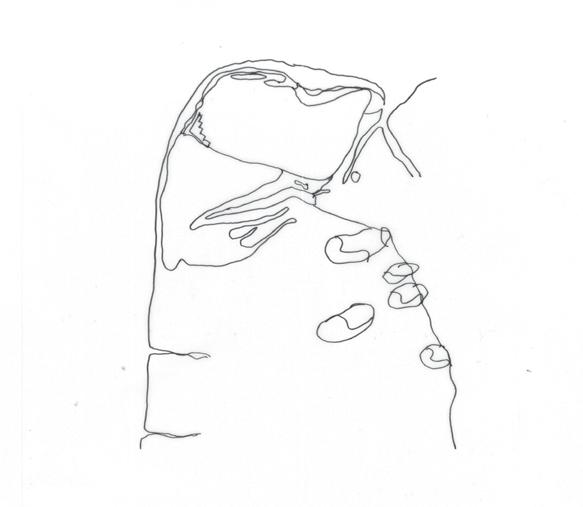

Lesson Learned: Nature and Human-made Interventions The maps illustrate how humans and nature alter the island.

Through time, the island become smaller, the island-like part in the inner area slowly covered become flatlands, and the defence line create canals to Amsterdam.

Dikes Water Wadden Sea Dunes Agriculture-flatland Neighborhood

0

1

2 km

N

10 - 11

1850 marked an influential part of the development of Den Helder. After the forts were built, it then grew as a trading city because of its strategic location. They opened canals and built a harbour to make goods transportation from here to Amsterdam became more convenient.

1570-1722 There was huge storm in 1570.

After the flood, residents rebuilt the villages, created more dikes, then the villages became landlocked.

After World War II ended, a newer naval port was built on the northwest side of the Island. Continuously made this concentrated area become the centre, which later bigger town grew surrounding this centre. Eventually, a greater technology of dikes was built and made this city more protected by the sea. Then in 1900 afterwards, the influence of modernism reached the city and experimentation of various architectural development happened. For example, from row houses to flat houses, until experimental landscape.

1722

1632 1598

Den Helder 2100: Live with Water

1815 Napoleon (1811) instructed constructions of defense work, then forts Kijkduin, Falga, Dirks Admiraal, Oostoever and Erfprins were created with canal surrounded them. King William (1814) carried the plan then make canal to Amsterdam.

1815-1900 The infrastructure and corridors were started to grow into a network after the railway built. Marked as one industrial revolution advancement to this age. Den Helder, therefore, became an economic and naval port cluster.

Analys & Design of Urban Form

1901-2000 As the network spread, largescale neighborhood development happened in this era. Overall pattern grew inside the urban island patches made from the canals. The patterns also showed Den Helder resembles the garden city and/or sattelite city form with the port and old town as center.

To Amsterdam

To Amsterdam

To Amsterdam

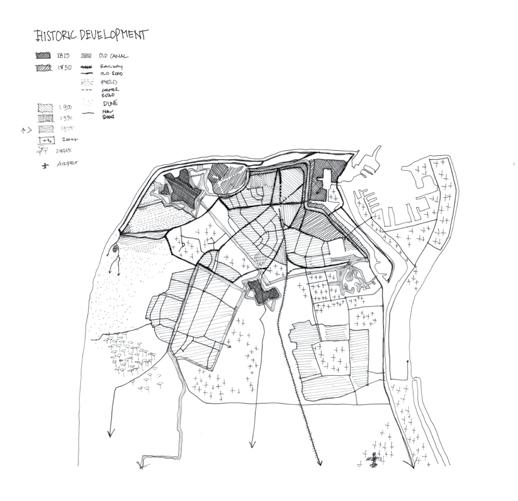

Historical Evolution Lesson Learned: Nature and Human-made Interventions Historical Evolution The maps illustrate Evolution how humans and nature alter the island.

Historical Layer6 Historical Evolution Through time, the island become smaller, the island-like part Layer6 Historical Evolution in the inner area slowly covered become flatlands, and the Layer6 Layer 5 Historical defenceLayer6 line create Evolution canals to Amsterdam.

Historical Layer 5Evolution Layer6 Layer 5Evolution Historical

0

Layer4 Layer6 Layer 5 Layer6 Layer4 2001-2022 Layer 5 Layer6 Layer4 Layer3 Layer 5 Layer4 1976-2000 Layer 5 Layer3 Layer4 Layer 5 Layer3 1951-1975 Layer2 Layer4 Layer3 1926-1950 Layer4 Layer2 Layer3 Layer4 Layer2 Layer1 1900-1925 Layer3 Layer2 Layer3 Layer1 Before 1900 Layer2 Layer3 Layer1 Railways Den Helder copy Layer2 Railway Layer1 Layer2 Railways Den Helder copy Layer1 Water Layer2 Railways Den Helder copy Water Den Helder copy Layer1 Railways Den Helder copy Layer1 Water Den Helder copy Railways Den Helder copy Layer1 Water Den Helder copy cbs_wijk_2021_niet_gegeneraliseerd Railways Den Helder copy Water Den Helder copy Railways Den Helder copy cbs_wijk_2021_niet_gegeneraliseerd 1 Den Helder N 2 kmcopy Water Railways Den Helder copy cbs_wijk_2021_niet_gegeneraliseerd Water Den Helder copy cbs_wijk_2021_niet_gegeneraliseerd Water Den Helder copy cbs_wijk_2021_niet_gegeneraliseerd Water Den Helder copy cbs_wijk_2021_niet_gegeneraliseerd cbs_wijk_2021_niet_gegeneraliseerd

12 - 13

Rising Seawater: Adaptive Guiding Theme As global warming and climate crisis awareness risen, we face a great challenge with the seawater rises. It is projected that we will deal with an extreme 3 meters height of sea level rise. It is important to note that most parts of the Netherlands were below sea level. Therefore, significant research and idea development are desired.

Defense mechanism: Lighthouse, dikes, inner dikes.

Den Helder mostly has flat lands with the same level as the sea, protected by dikes and dunes surrounding it. From the projections below, we must take note of the sea rise scenario between 50cm to 100cm as the most significant phase to develop solutions before everything is flooded.

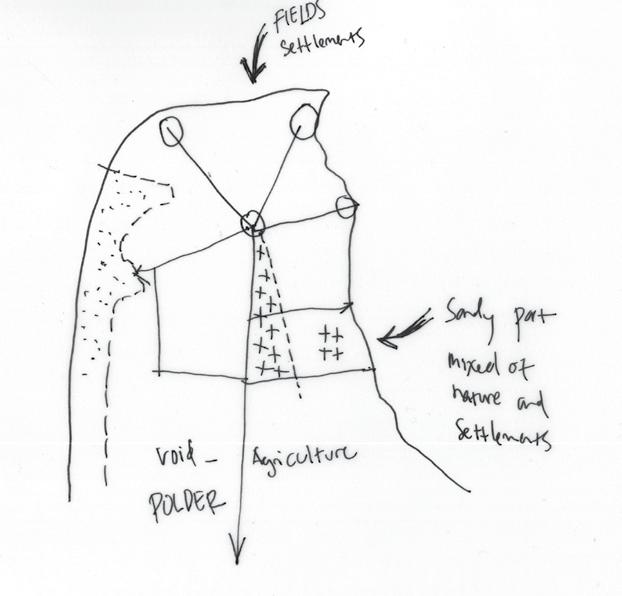

Adaptive mechanism: Settled in various nature land structure

The municipality of Den Helder consists of the following cities, towns, villages and/or districts. It also coexist with the Naval Base. To face this challenge, learning from the historical development of Den Helder, from defending, surviving, and adapting, we will retrace the journey of adaptability as a tool to face the 2100 rising sea water challenge.

To continue my intention to prevent and adapt to the sea level rise, I collected ideas from normative to extreme examples I found. Firstly, it comes from the story of Noah’s ark, a gigantic boat to save the life from a huge flood. Floating structure and land reclamation. Looking back to nature, we have powerful mangrove protection to break the sea waves, then we have a sponge that is structurally firm with water inside, and then ultimately the spider web that collects the dews. Spider web reminds me of city forms, collective networks filled with different functions.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

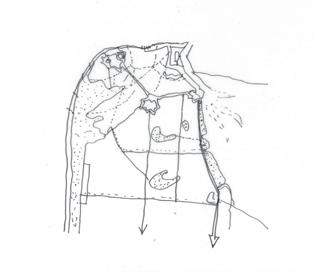

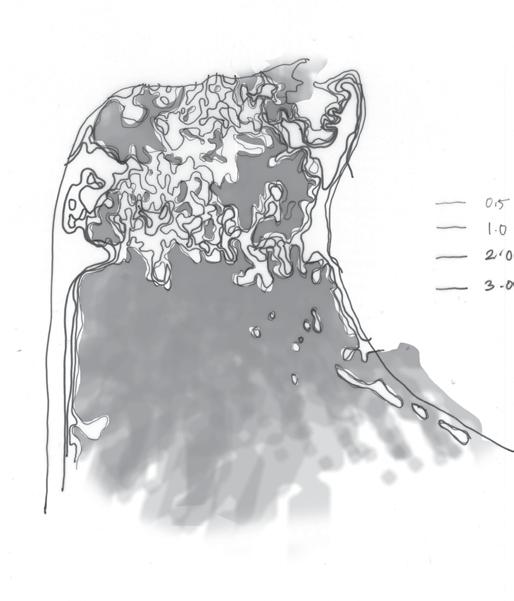

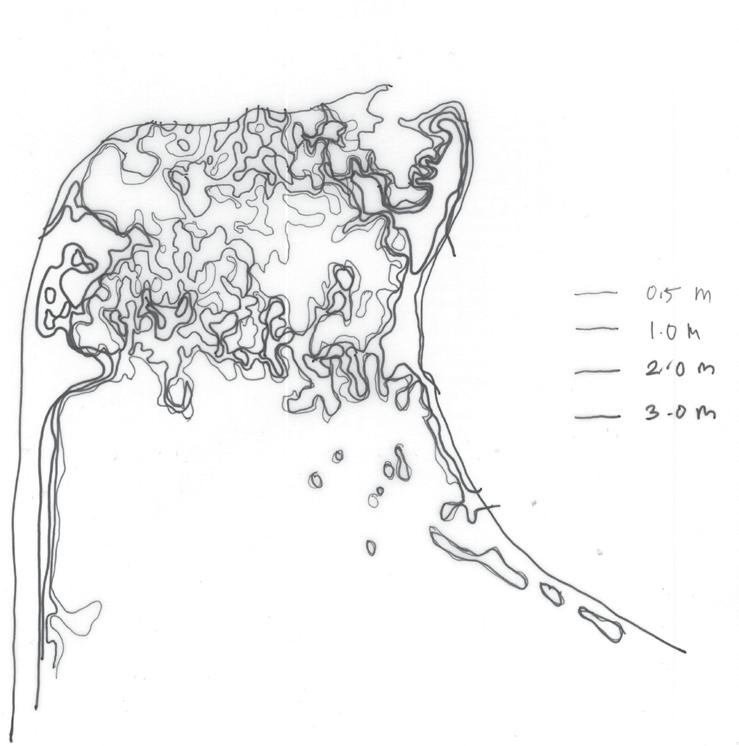

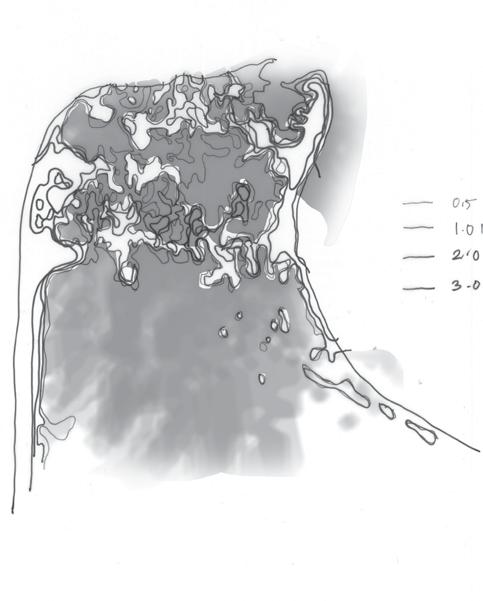

What if.. the voids and corridors act as seawater-rise adaptive machines?

300cm 0cm

50 cm

100cm

300cm

14 - 15

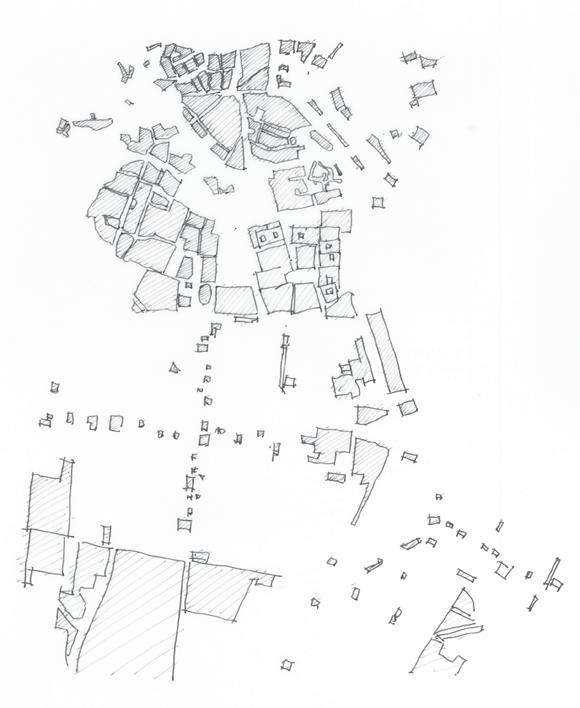

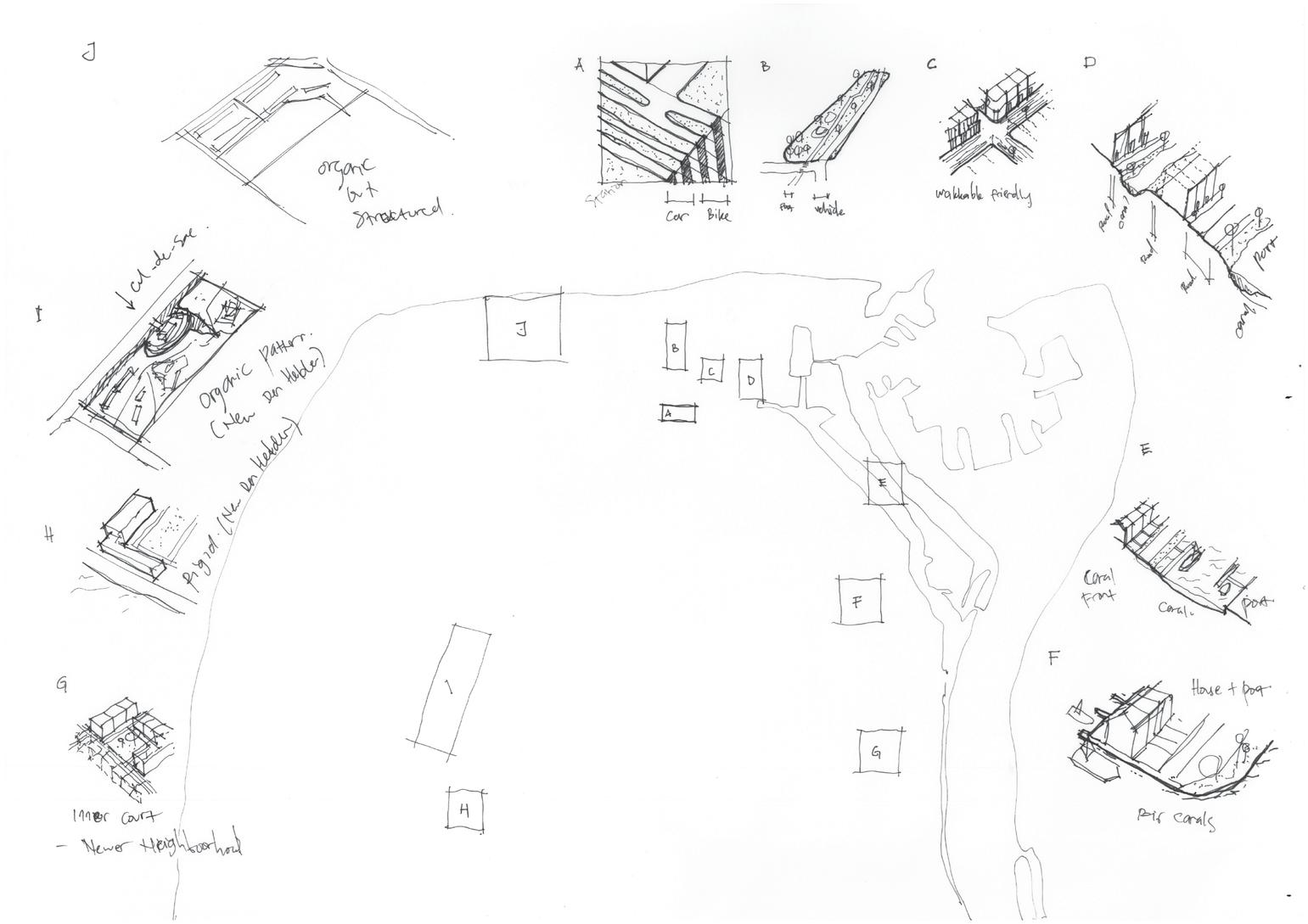

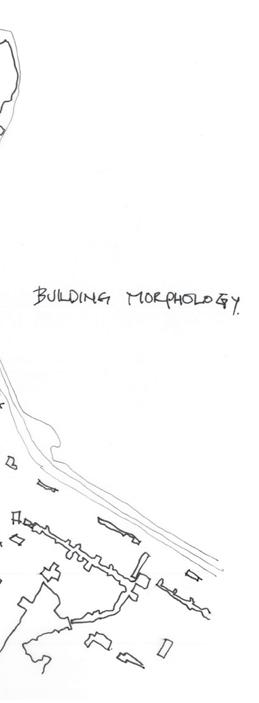

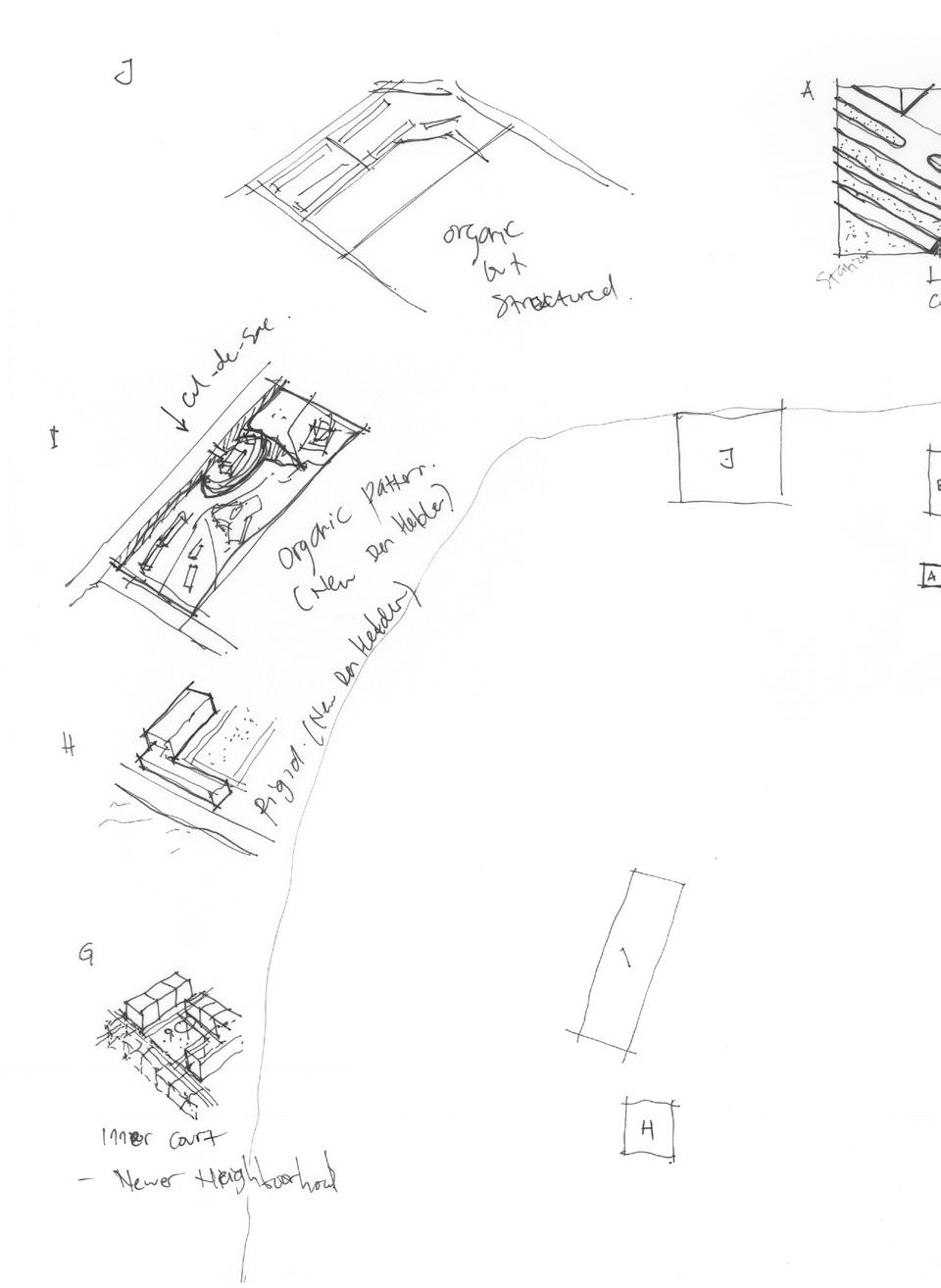

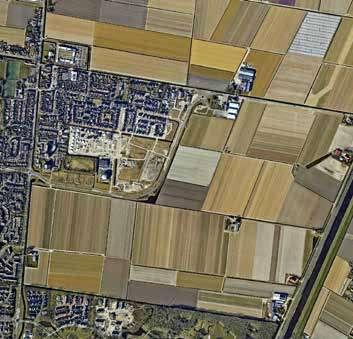

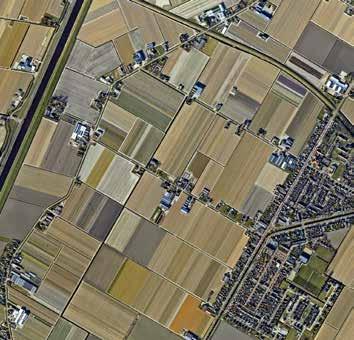

Rising Seawater: Learning Through Urban Form Finding a proper solution to sea level rise is yet challenging. We can predict, but we cannot fully understand how the sea level rise will impact the city as a whole. It takes a thousand years to determine the real impact. However, I do believe a collection of small ideas will improve each other and lead us to the right decision in situations we face. I always believe it is better to prevent rather than to cure, like an old man always said, “bring an umbrella before getting rain”. Therefore, a preventive theme is more desirable to me, personally. From historical research of the Den Helder development, I see the pattern of the following nature first, then settlement could build after. In between, there are infrastructures, which was the corridors. That later filling the city with center and its surrounding.

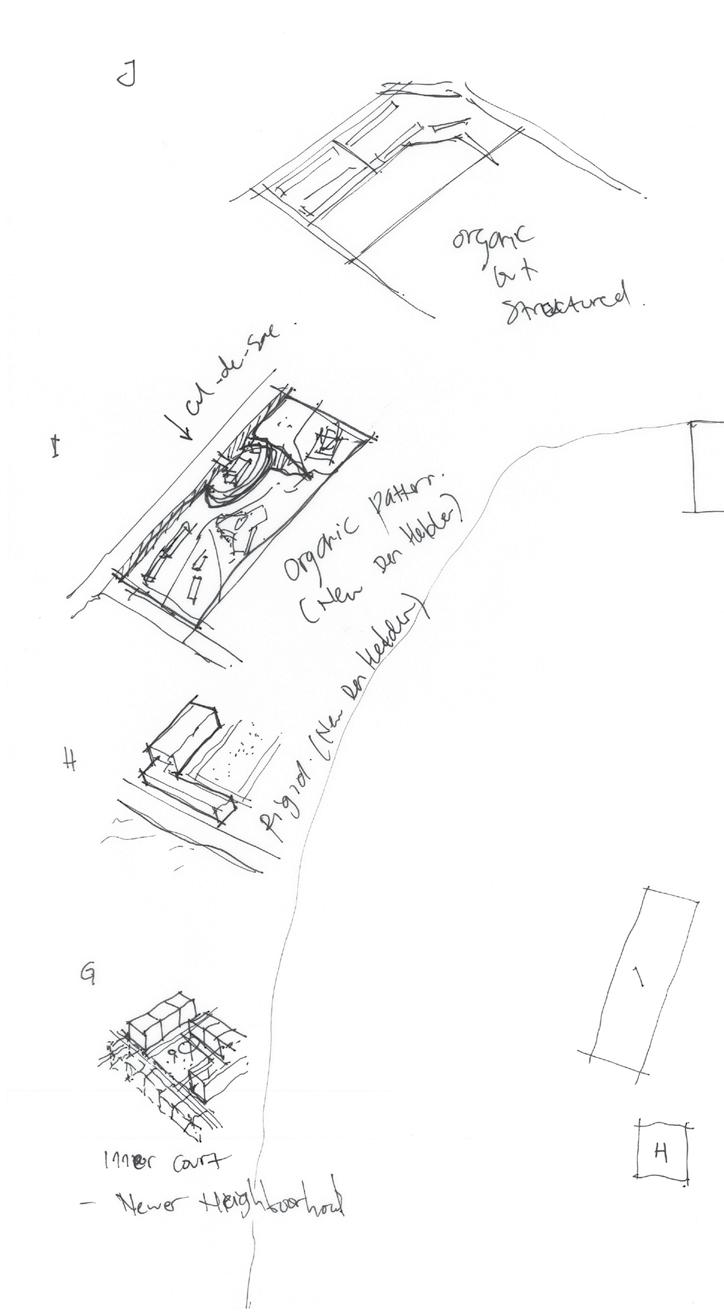

In the architectonic expression. We can see normative pattern that consist of neighborhood form filling the corridors and later corridor that built the settlement floating in the water.

Den Helder 2100: Live with Water

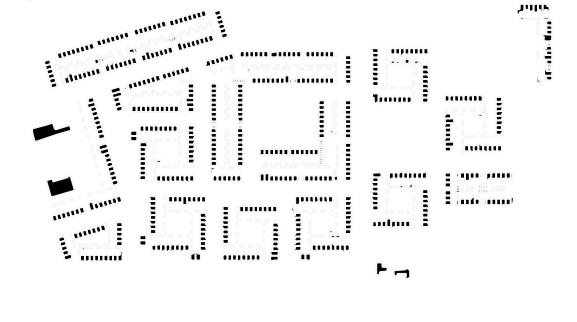

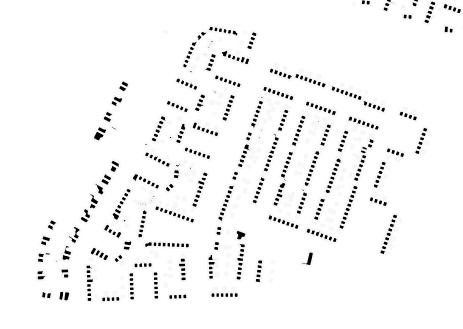

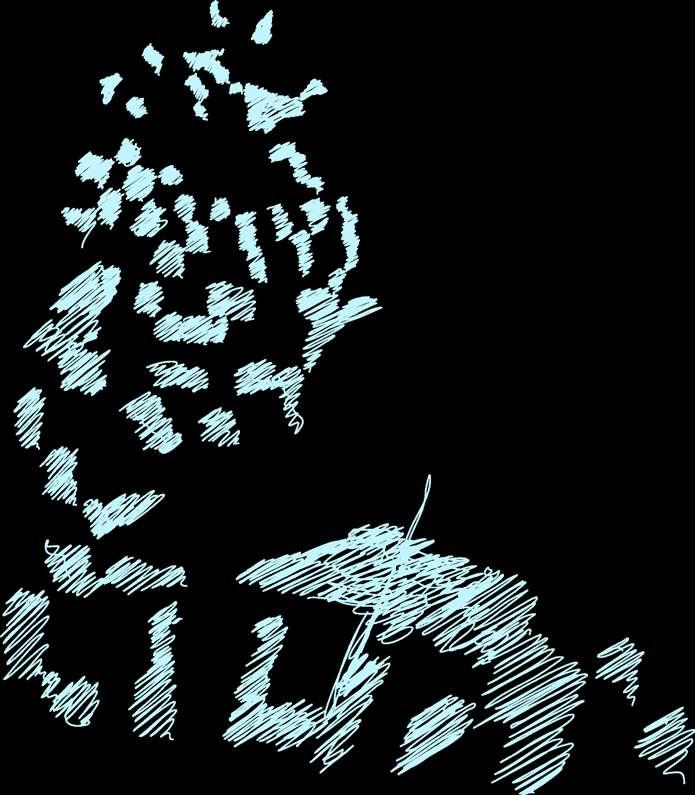

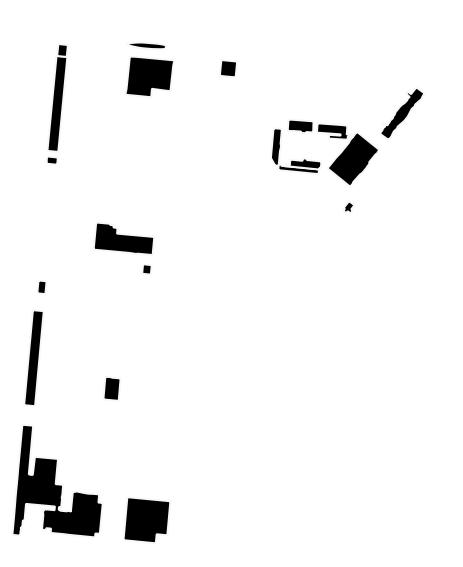

Building Patches

Principal Forms

2022

2000

Analys & Design of Urban Form

1950

1900

1850

Normative - Settled

Building Patches (except residential)

Extreme - Adaptive

16 - 17

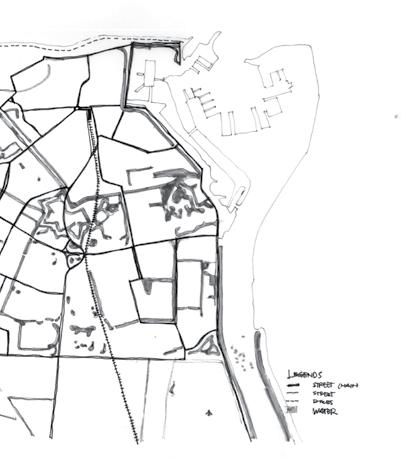

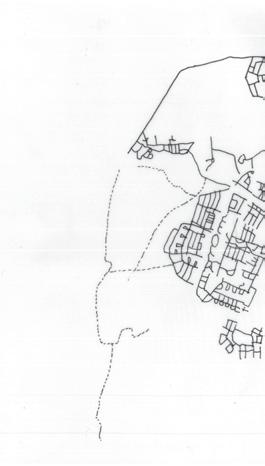

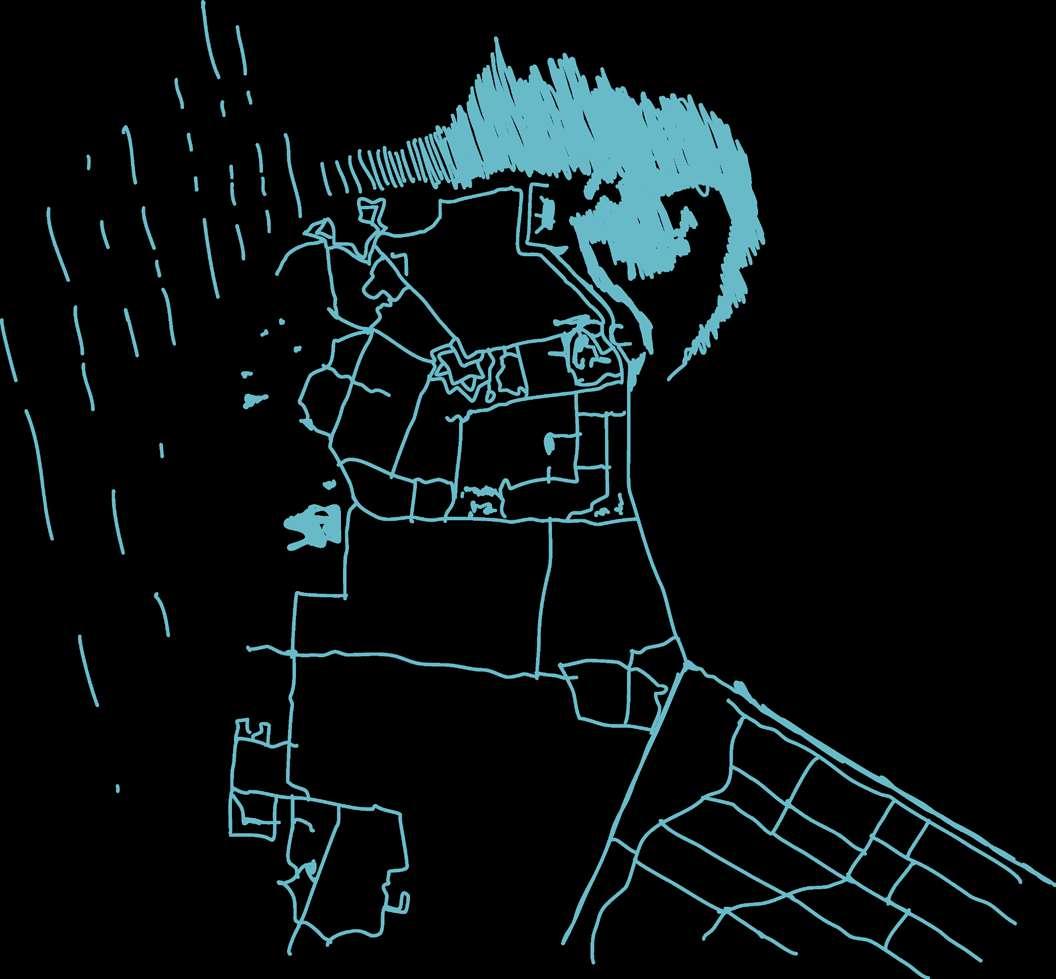

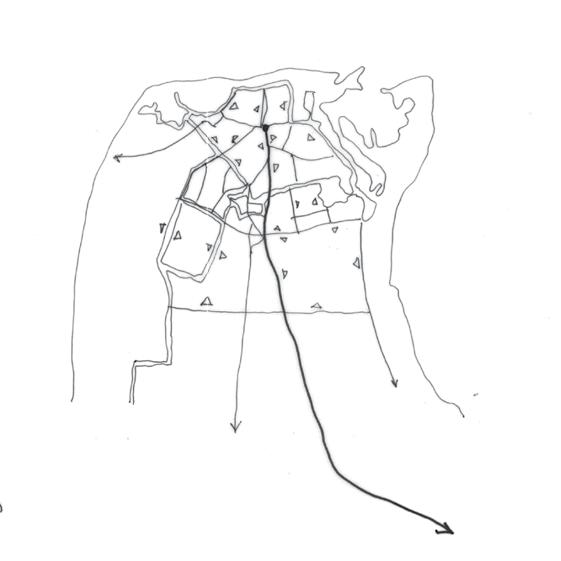

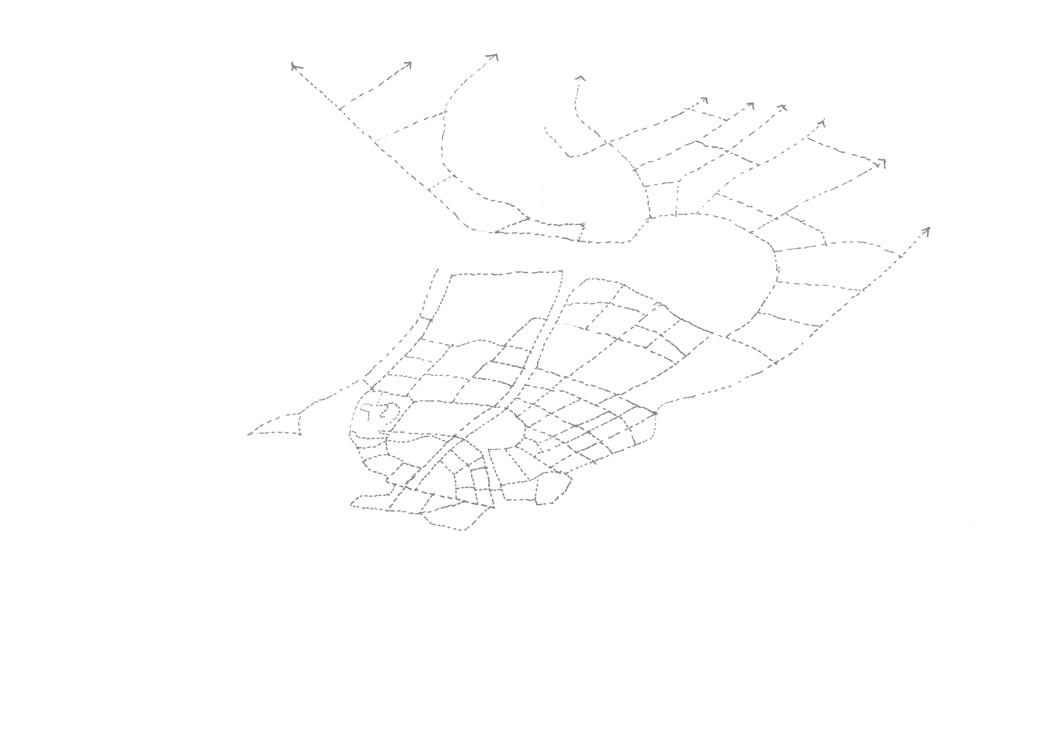

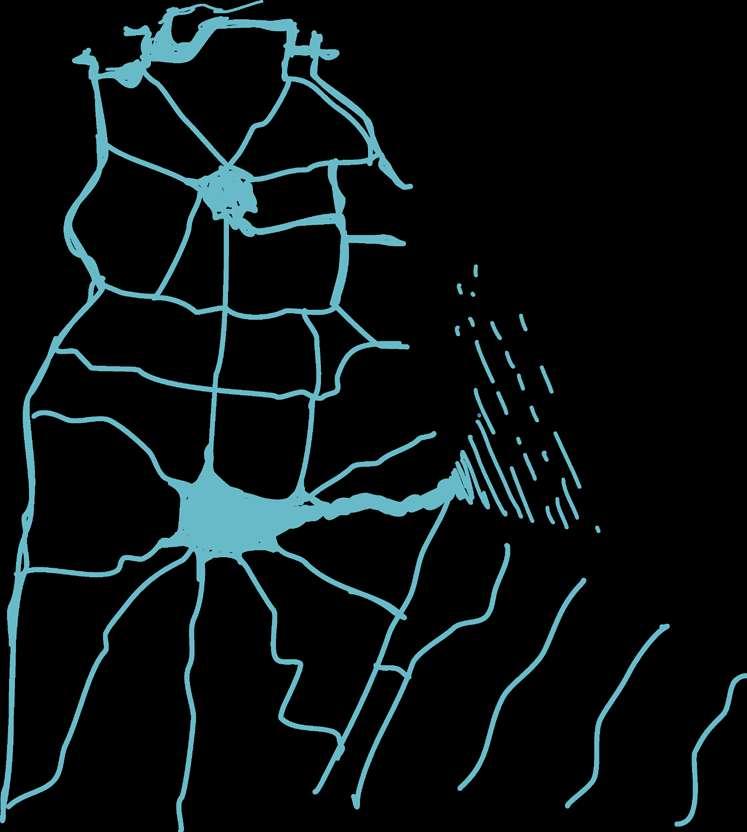

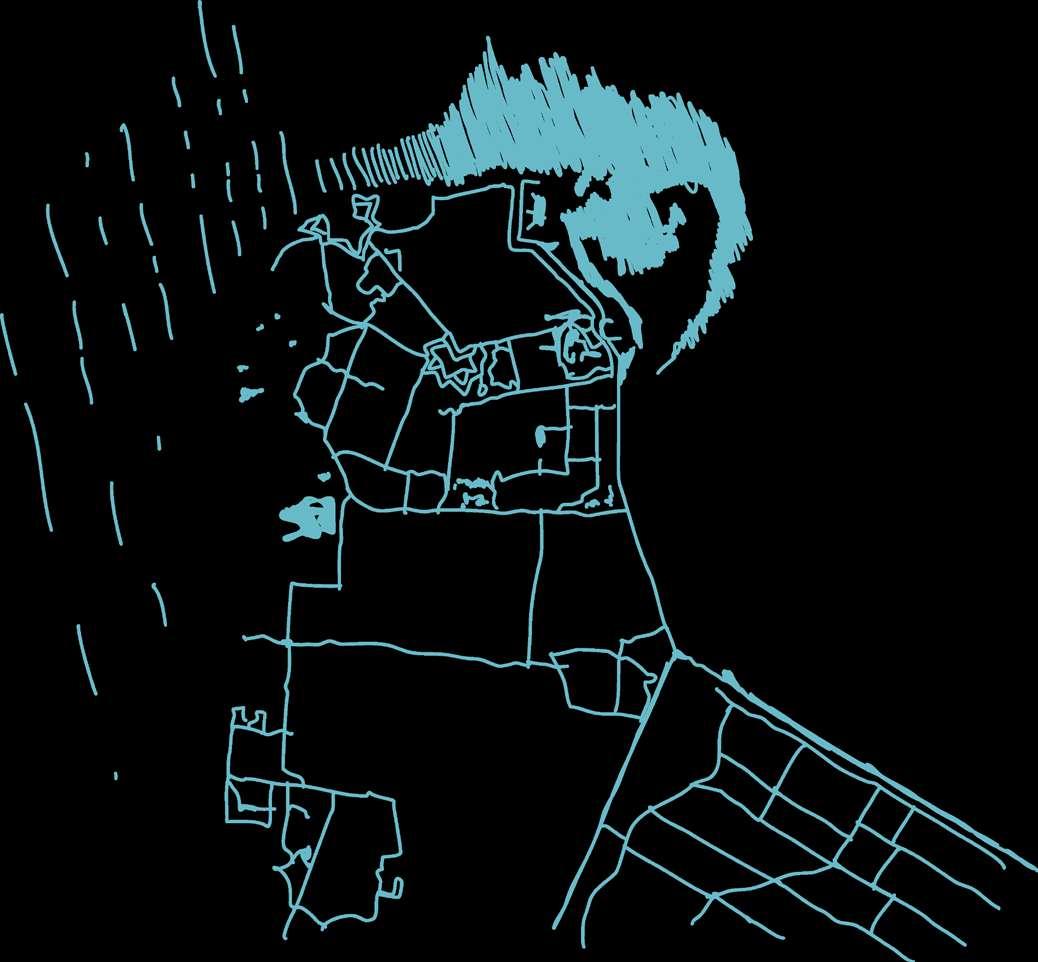

Corridor lines were influential actors in the development of Den Helder. Started with defence lines, and canals, and then the road was built. People mostly use private vehicles as the main transportation mode rather than public line since the residential area is scattered. Canals used to be dominant, but since the vehicular era came, it was not likely to be used within the city.

However, the port is still functioning well.

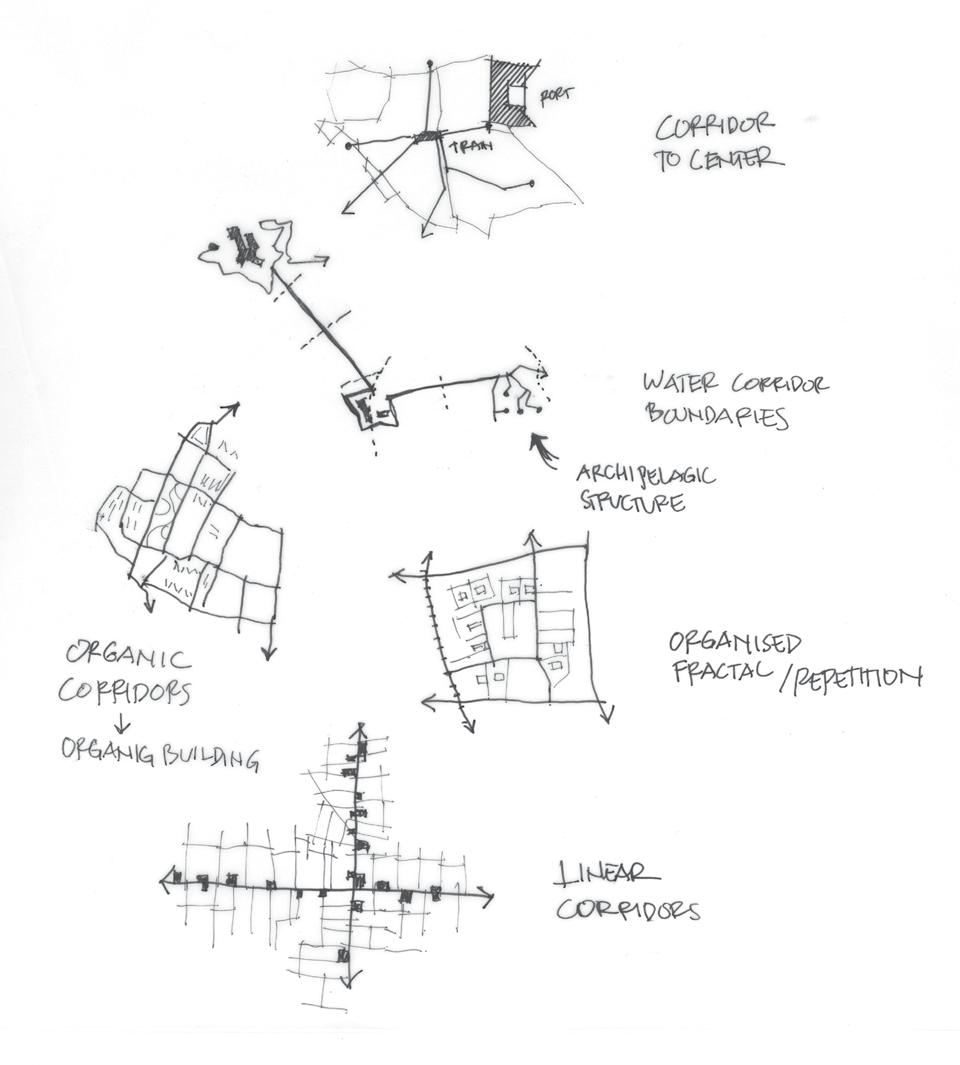

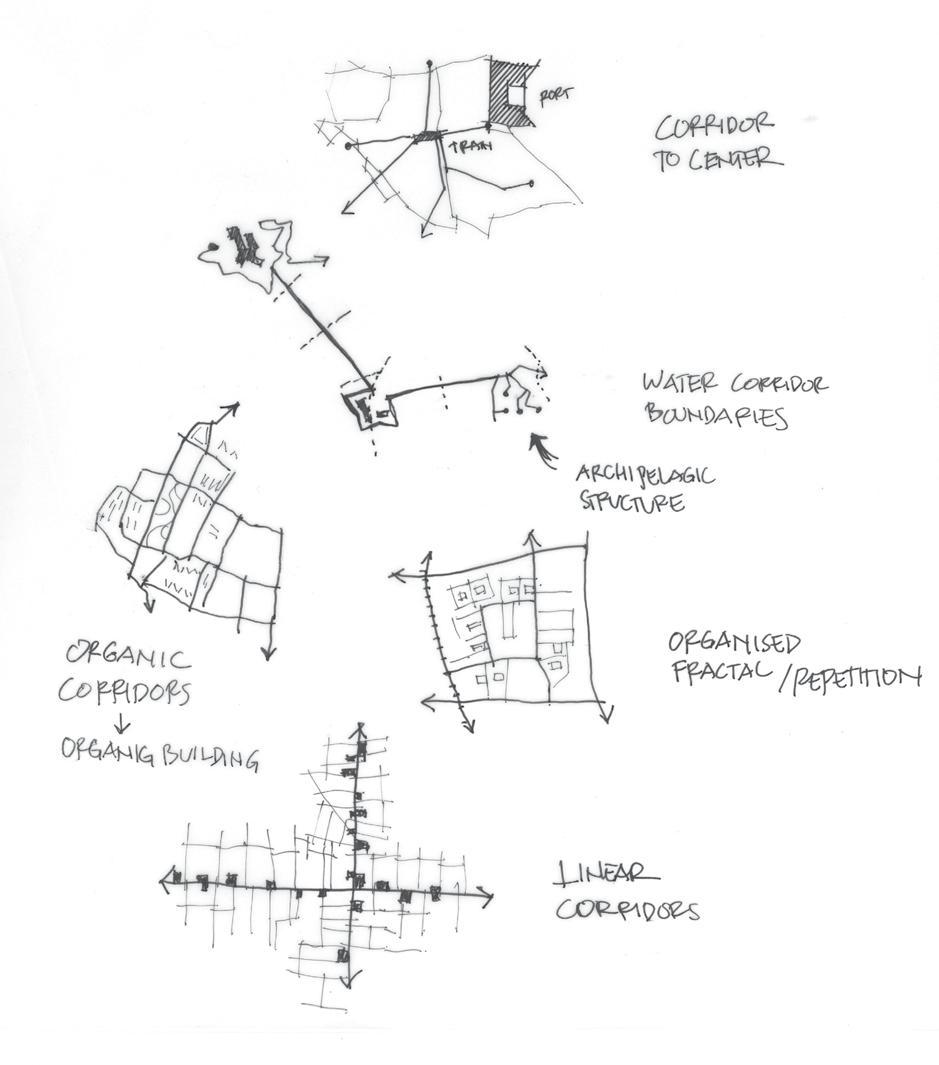

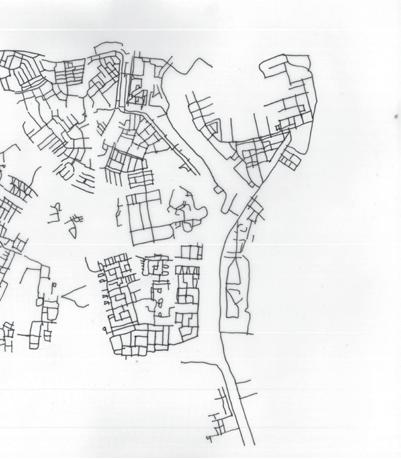

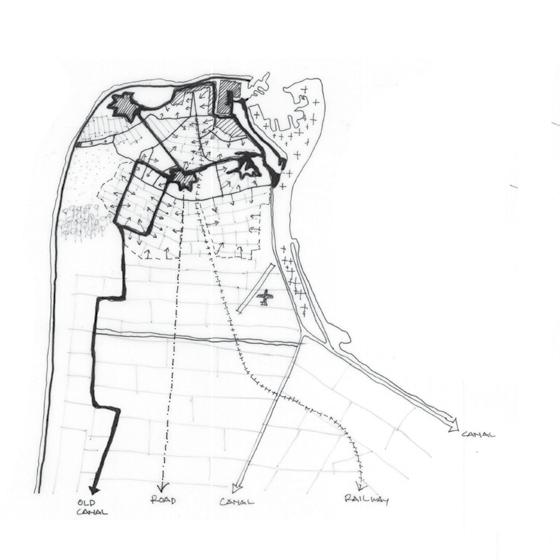

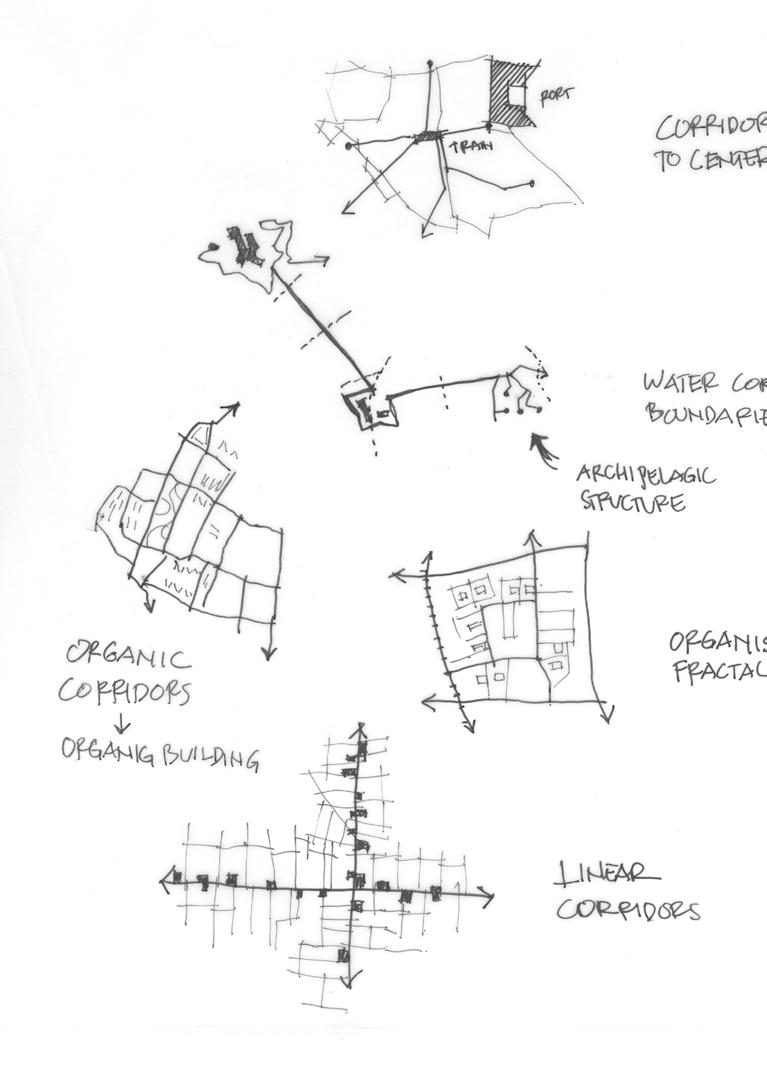

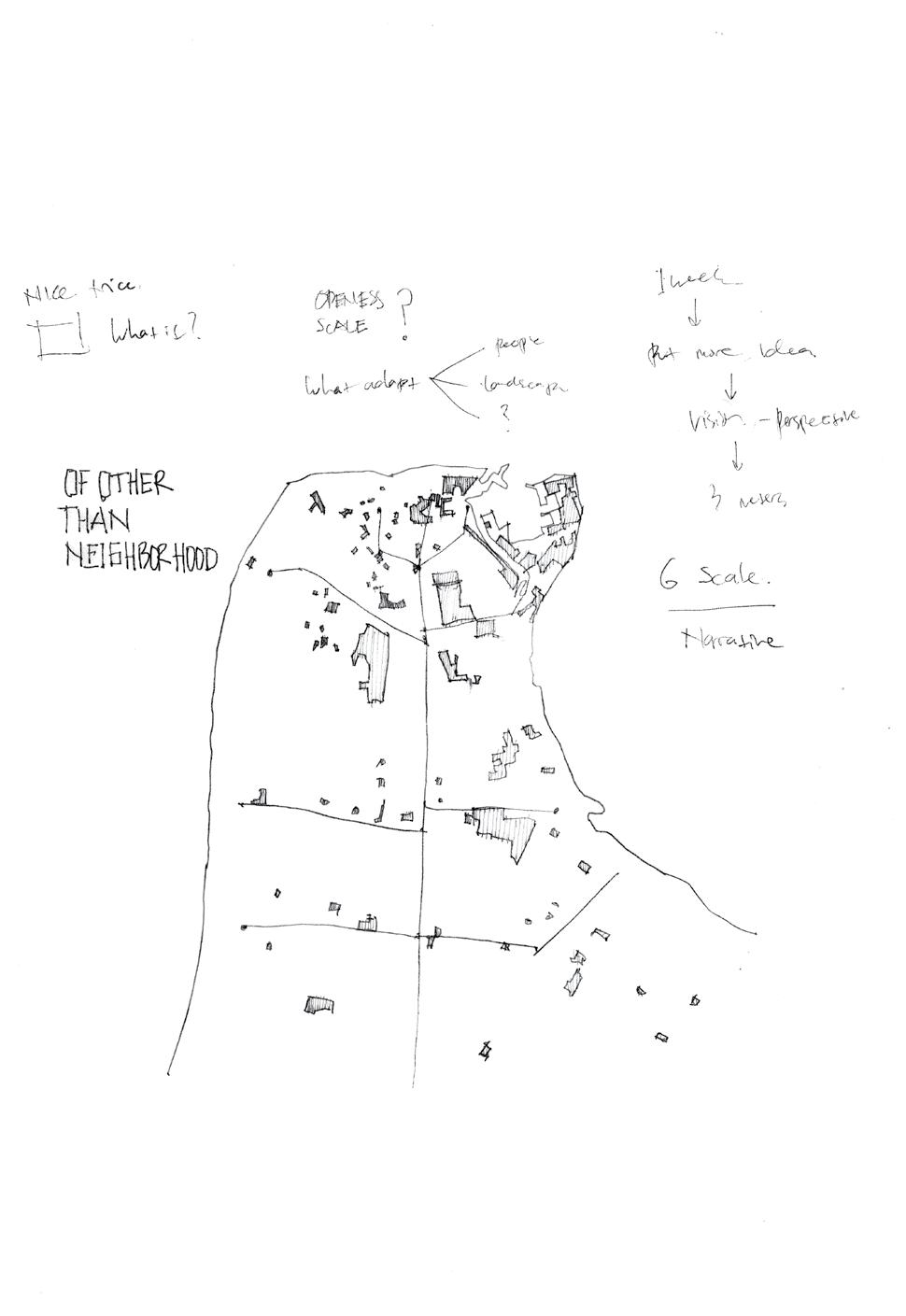

There are four patterns of the corridor in Den Helder, namely the defence line, centralised, organic, and linear. Each typology composes the tree-like form with the linear corridor as the trunk.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

Water Corridor

fabrics

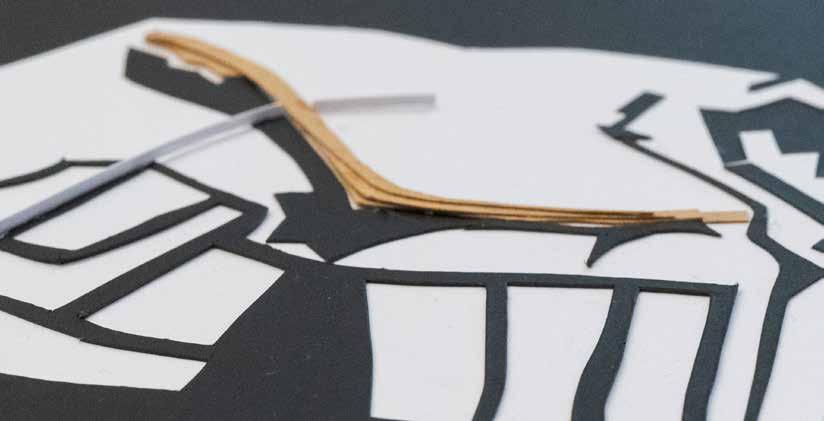

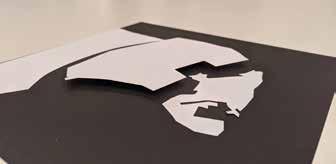

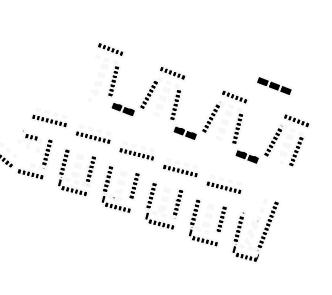

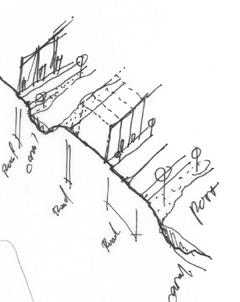

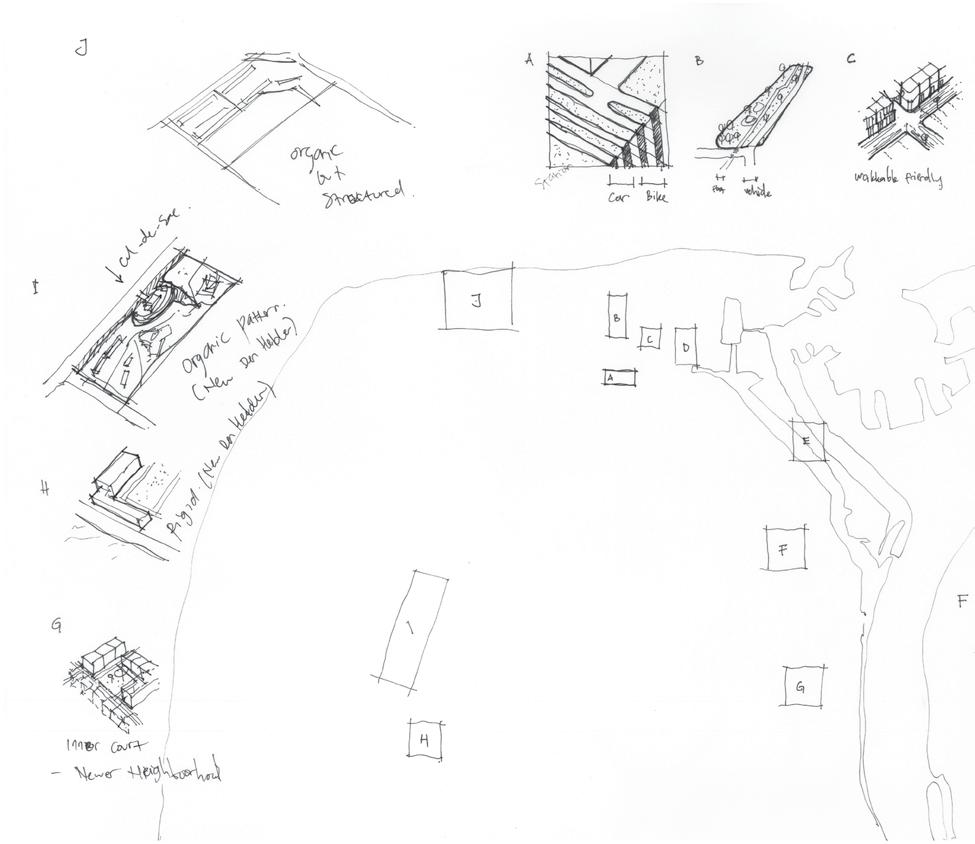

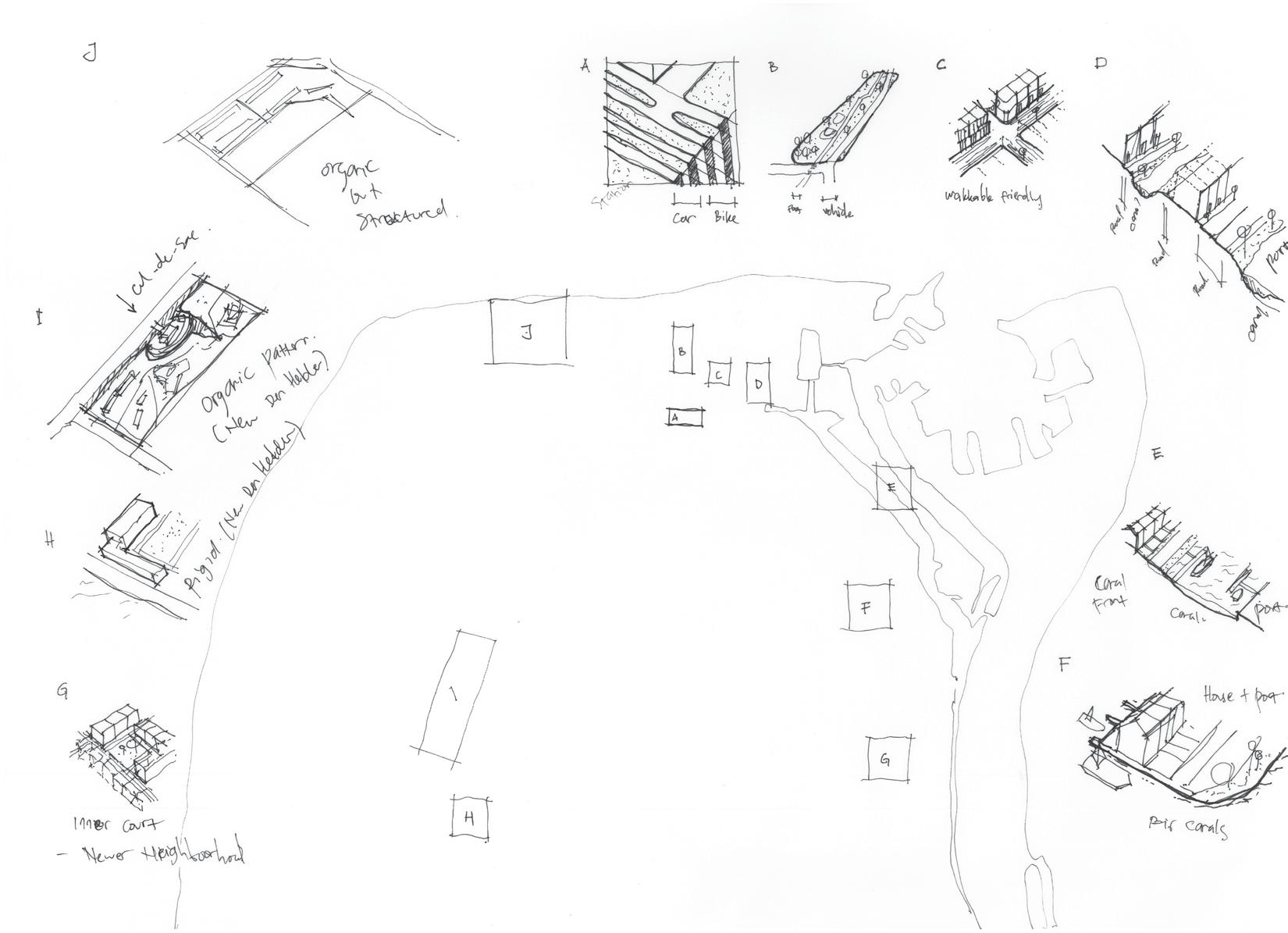

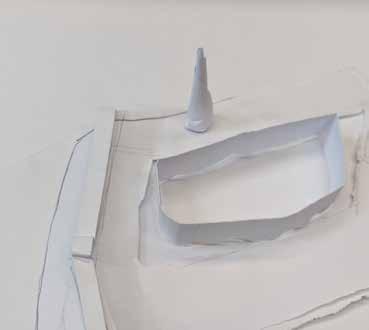

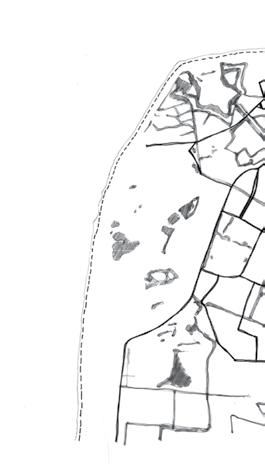

Mockup Exploration The mockups illustrates the development of built-form and design possibilities of using water patches and corridor as adaptive mechanism.

Train Line

Vehicle Corridor

water road

18 - 19 Analys & Design of Urban Form

Den Helder 2100: Live with Water

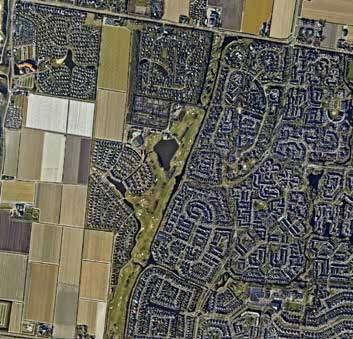

Looking more into the details, though private vehicle mode is more desirable, it does not rule out the possibility of making the city open. Distributed attractions are still in linear lines, and approachable. The centrum is also walkable and has great access because of its strategic location, which is also close to the old port, the Wilemsoord. Experimenting with architectural features in newer parts also breakthrough the regular pattern of connectivity, bringing nature close to the habitat.

Less Concentrated Flows

Concentrated Flows

20 - 21

How Can We Live with Water: Design Perspective This comes to our great question for the whole project, how will Den Helder survive the 3-meter sea rise? Based on the analyses we went through, it is important to note the early phase of sea level rise is crucial. We should be ready whenever the sea water is rising. It is always easy to just protect it with big dikes like a castle, however, it would not stand for long.

Why we must adapt to it because we cannot prevent future and worse scenarios might happen. By learning about the natural ecosystem, we can give and introduce water to the city just like Den Helder used to be. Enhancing its cultural potential, establish economic and societal effects through the adaptability of the city.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

Therefore, I divide the development into three phases. The first phase is to invite the island nearby to have a greater defence on a national scale while preparing the infrastructure of creating barriers and buffer zones for water to come through.

The second phase, when the rising sea level reached one meter. We have to survive to the next level of 2 meters rising by creating a buffer corridor to guide the water to the right spot.

Create more absorption land and water lines. And finally, in the third phase, the extreme scenario might happen, we have to adapt to upcoming water that comes to the city. From city scale to architecture scale. Work together, digging more room for the water, more corridors, and lifting the building. To allow more biodiversification on the land live.

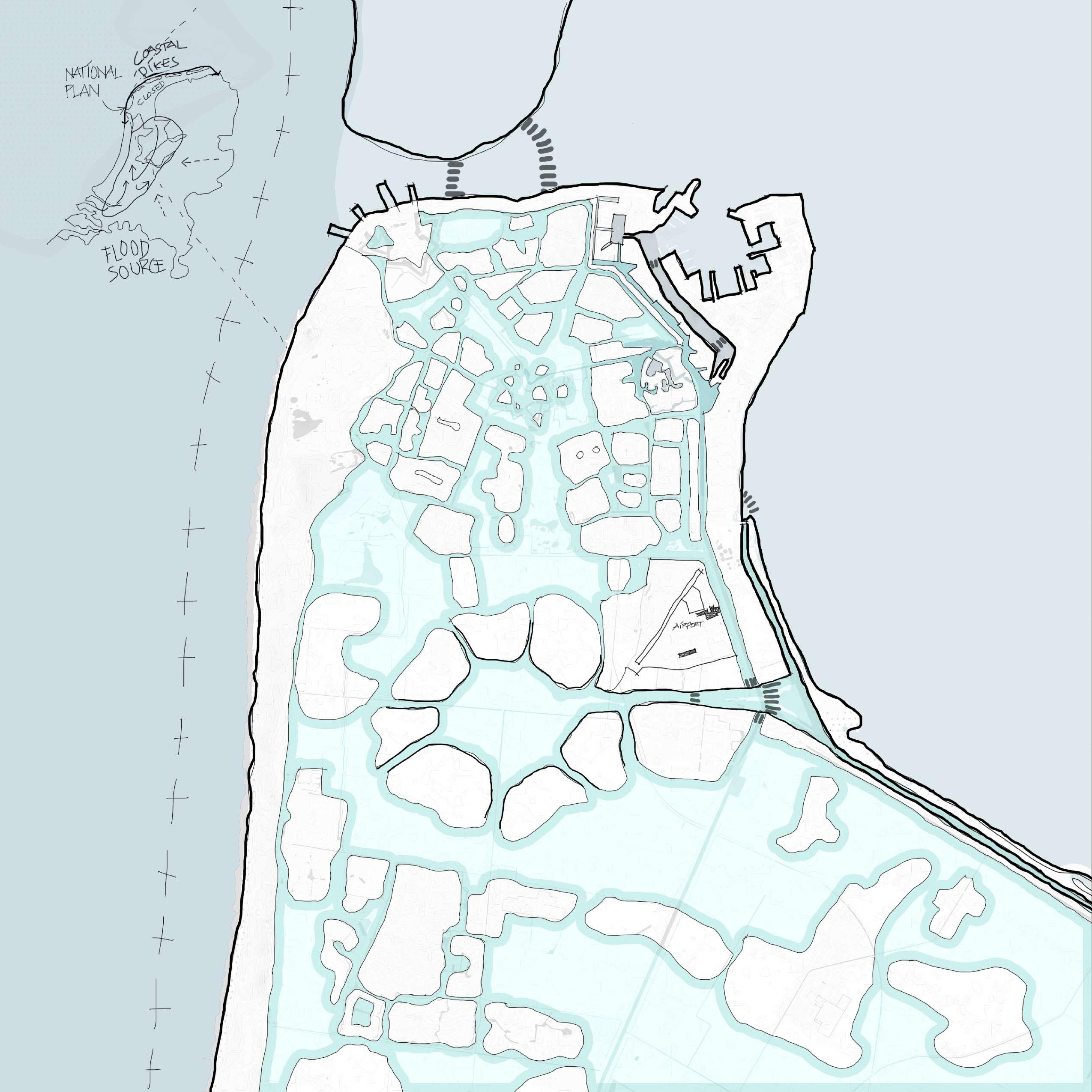

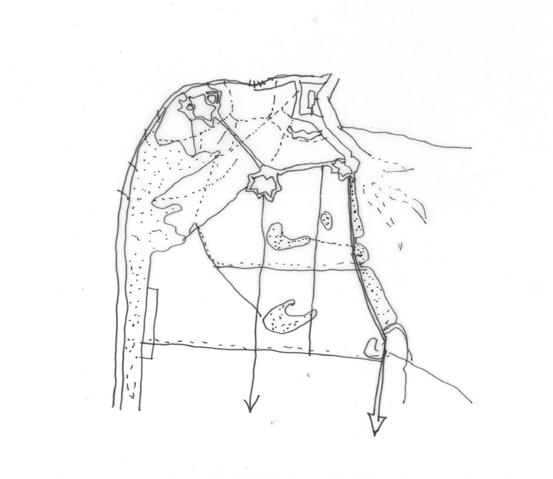

Principal idea on how water will be distributed evenly through the city.

22 - 23

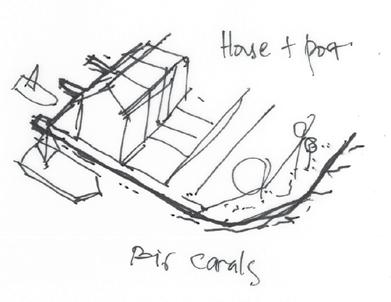

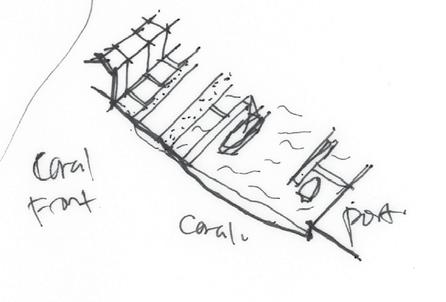

Adaptability Tools The design perspective should further inviting more ideas on how to realise it in a real case. In the section below, we can see that Den Helder is already defended by the dikes. But the water is projected to flor from the inner island part of the Netherlands. The adaptive tools illustrate the city of sponge.

Having porous surfaces as well as a solid features to keep it firm and stable.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

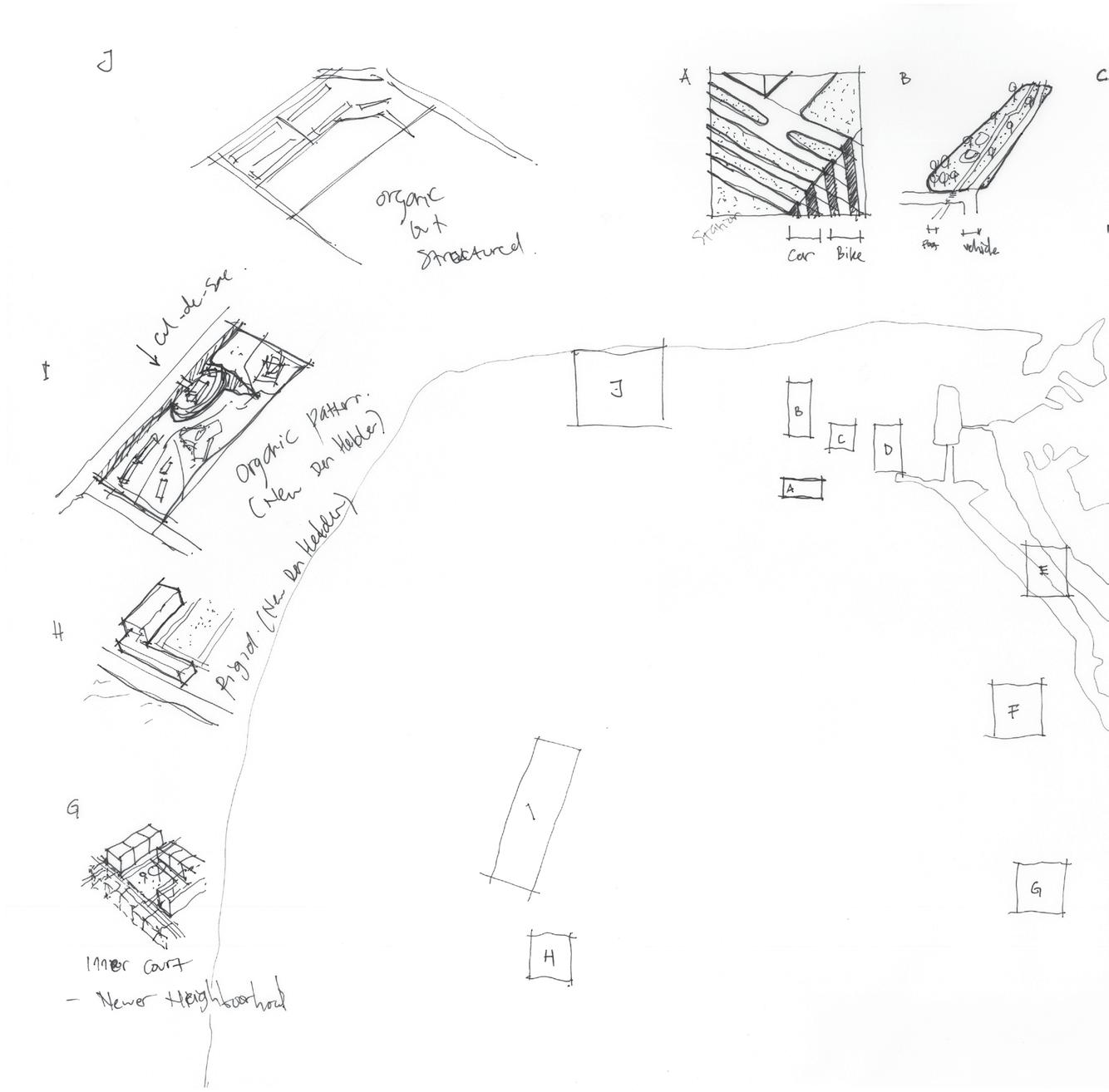

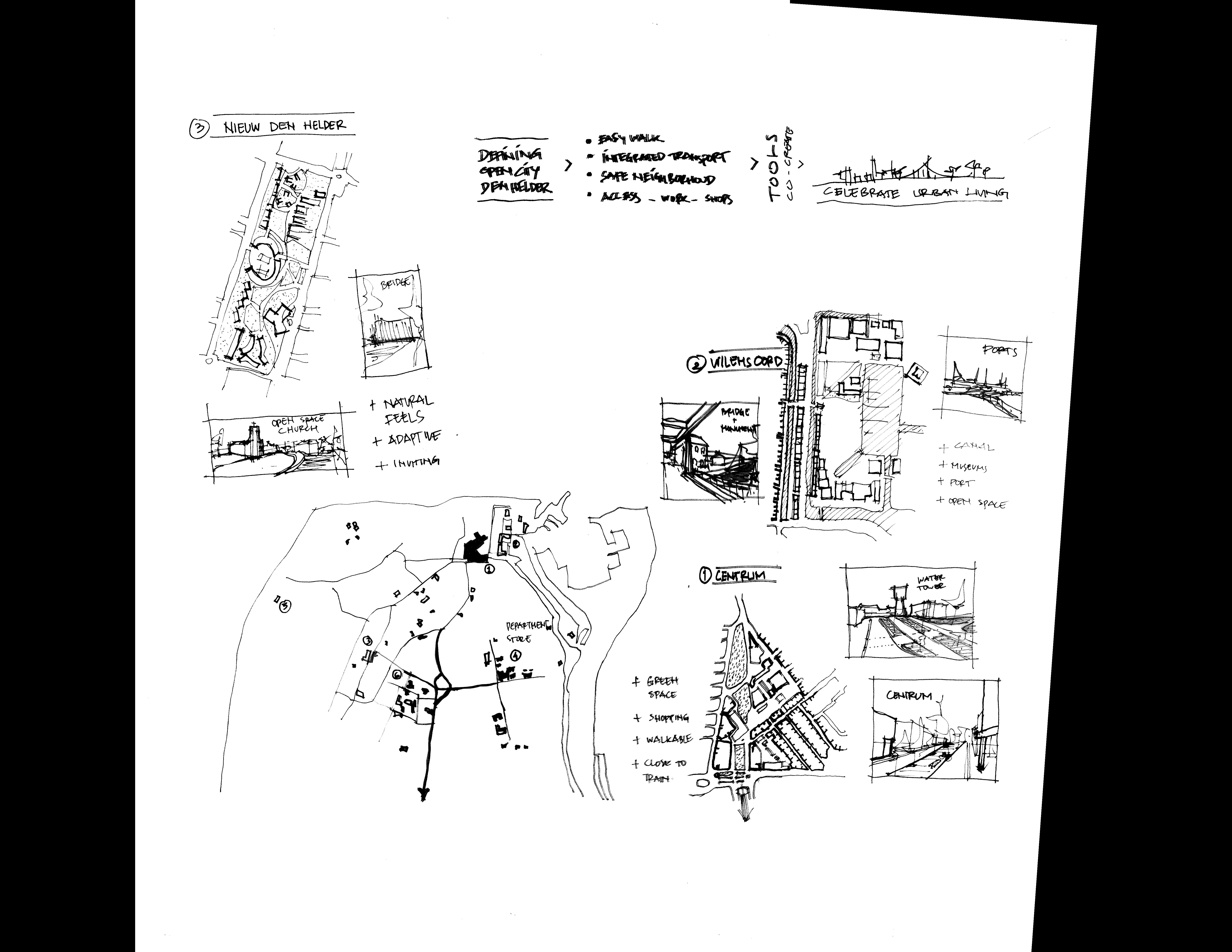

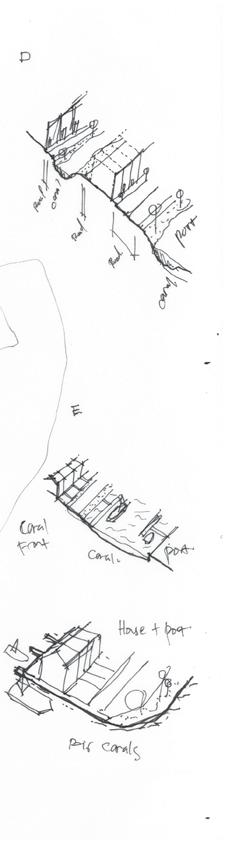

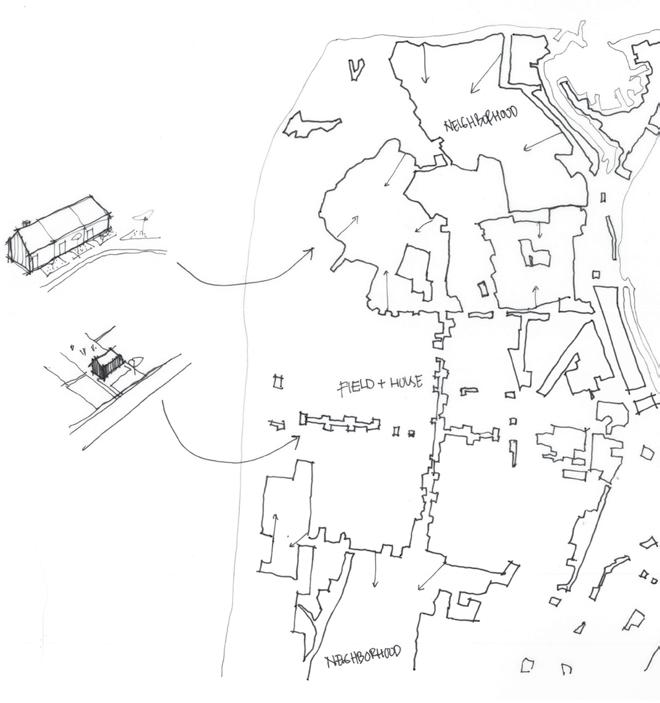

In this case, I explored on a neighbourhood scale the implementation of the ideas. Nevertheless, I keep the structure open, therefore more possibilities are allowed.

24 - 25 Den Helder 2100: Live with Water

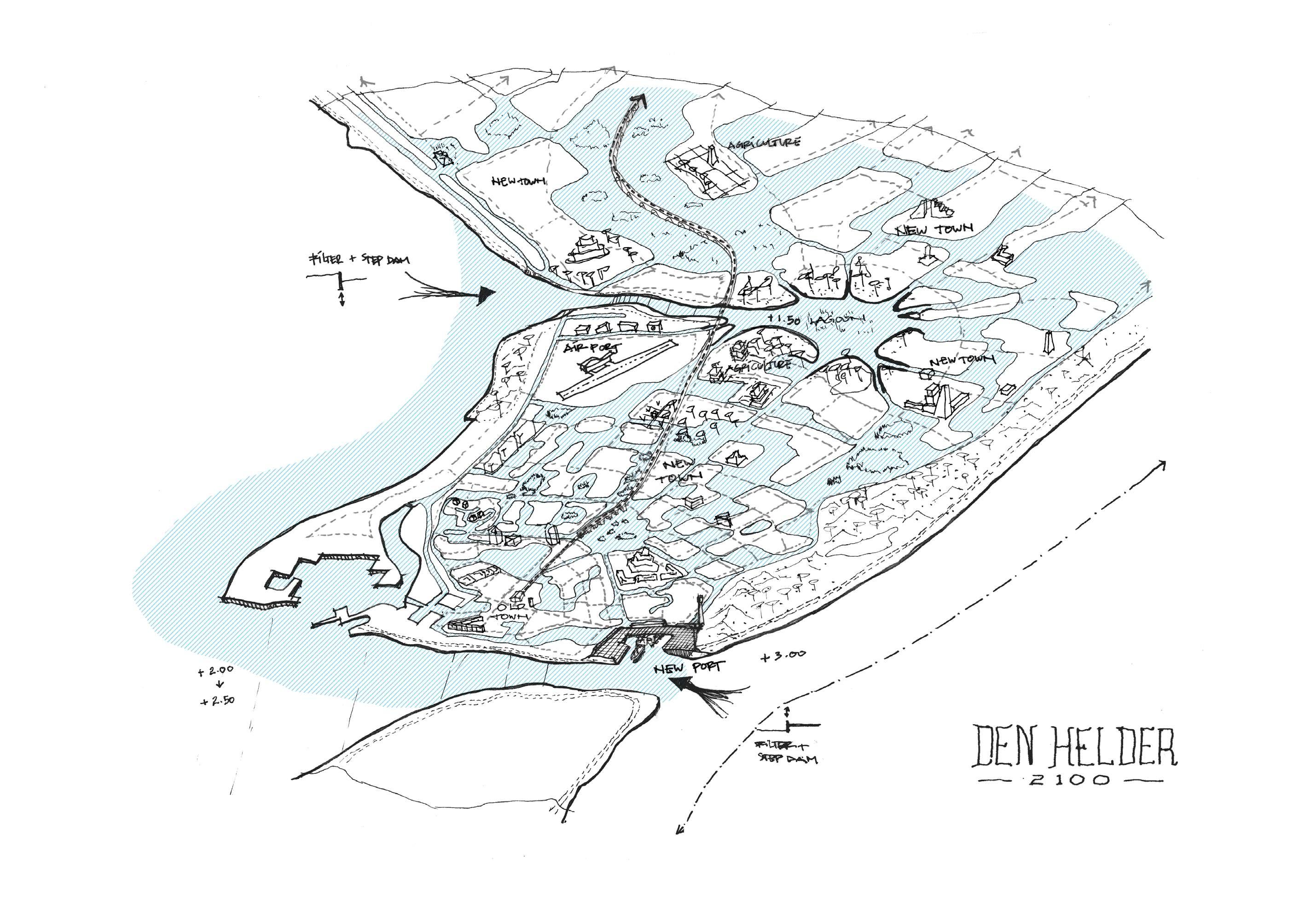

Den Helder 2100 Imagining Den Helder to adapt to sea level rise in 2100. Islandlike buffer patches will be the main structure to keep what inside adaptive to the crisis.

Rail Line

Analys & Design of Urban Form

Vehicle Line Building Patches Dunes & Forest New Agriculture Port Underwater Wavebreaker Buffer Zone Water - Marsh - Natural Filtration Inner Sea Open Sea

0

1

2 km

N

New Island

Underwater Wavebreaker

Filter + Dam Domestic Port

New International Port Old Town

Rail Station Residential

Filter + Dam

Dunes & Forest

Industry

Energy Farms Residential

Residential

Airport New Agriculture Forest Filter + Dam Lagoon

Residential

New Agriculture Residential

26 - 27

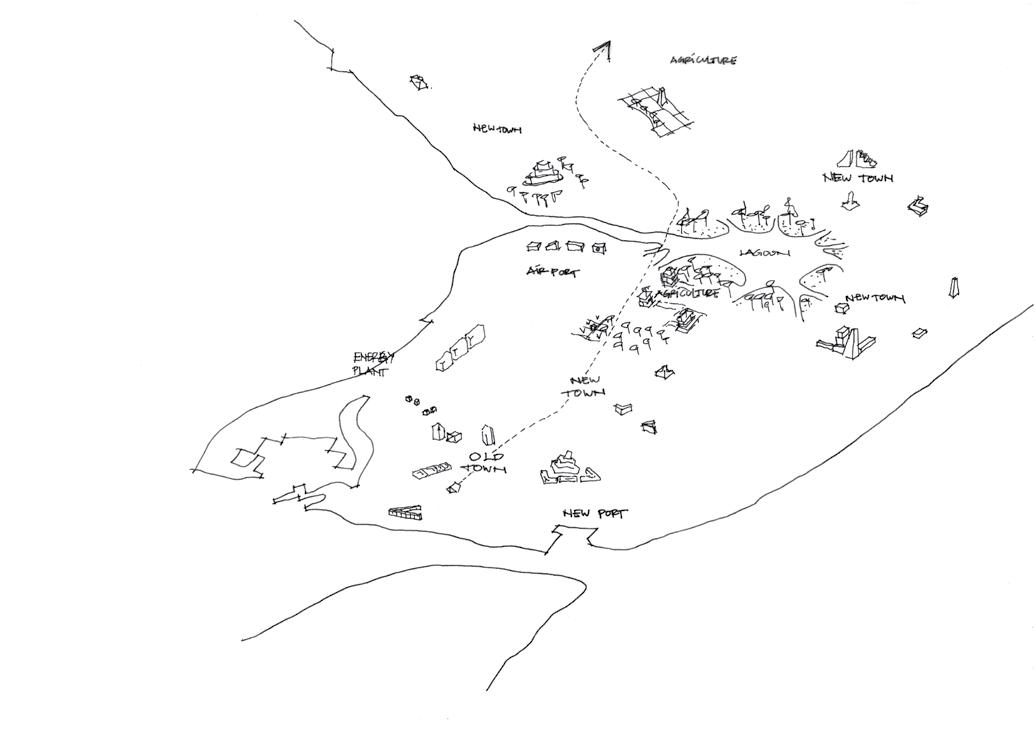

Imagining Den Helder 2100 Let us imagine what Den Helder will be in 2100. The world will be going through an enormous climate crisis which will be made the sea level rise. Netherlands’ low lands, were especially impacted at most. Den Helder, at the top of the coast, will accept water from the south and try to live with it.

We might hope it will not happen, but we should prepare for the worst, just in case.

After the sea level rises, we have to cope with water everywhere. Embrace it. Water will be a catalyst for further technological advancement, such as amphibious transportation modes. It is hard to decide which one should be protected or leave it to the floods. With consideration, Den Helder will protect its oldest part and try to make the other area adapt. The oldest parts mainly act as economic boosters because of their valuable historical artefacts. Roads rise to allow more water to flow. Island established and protects what is inside by extending porous buffer zones.

And agriculture is adapting to new technology, allowing more production with limited land, allowing the soil to regenerate itself to its natural state.

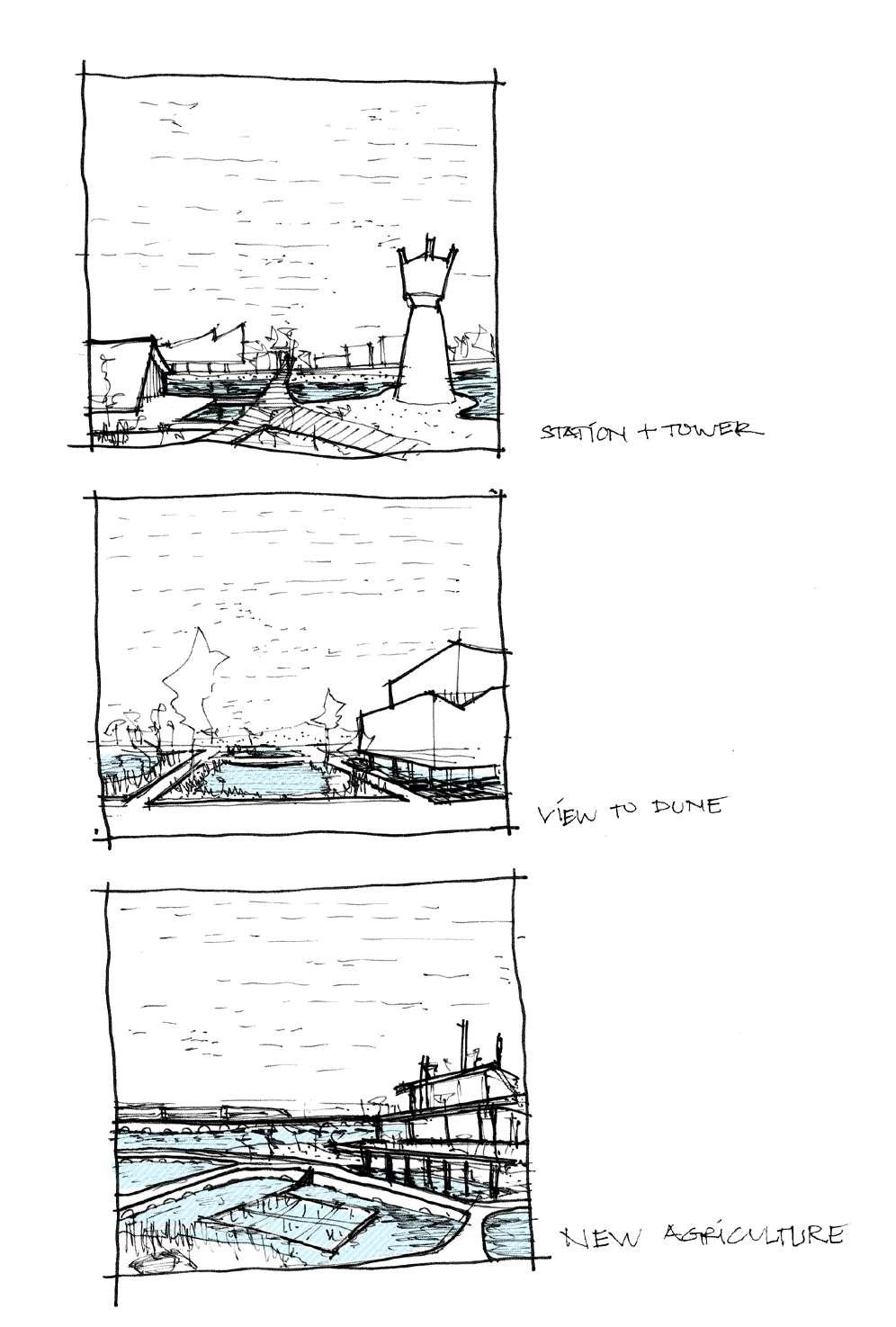

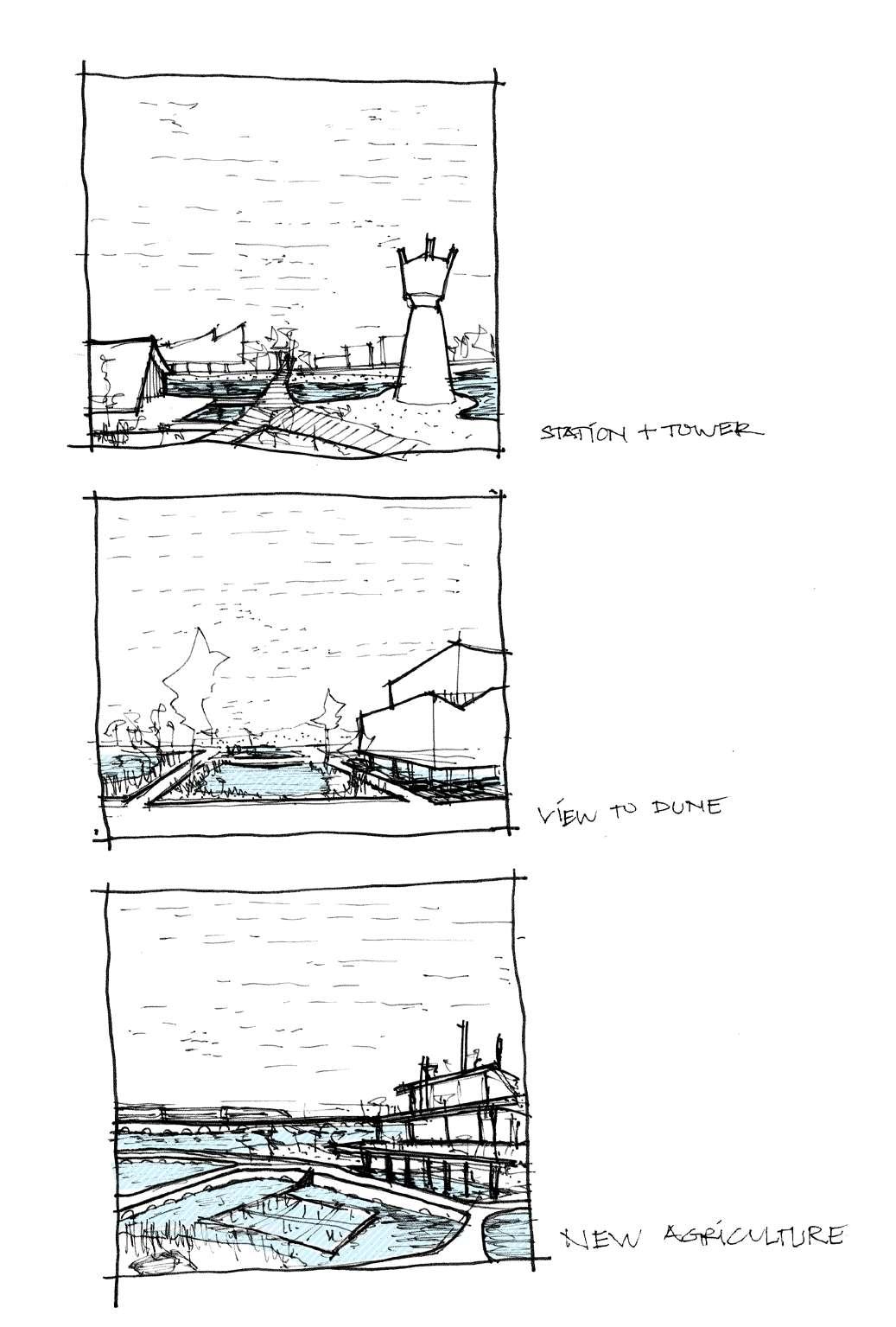

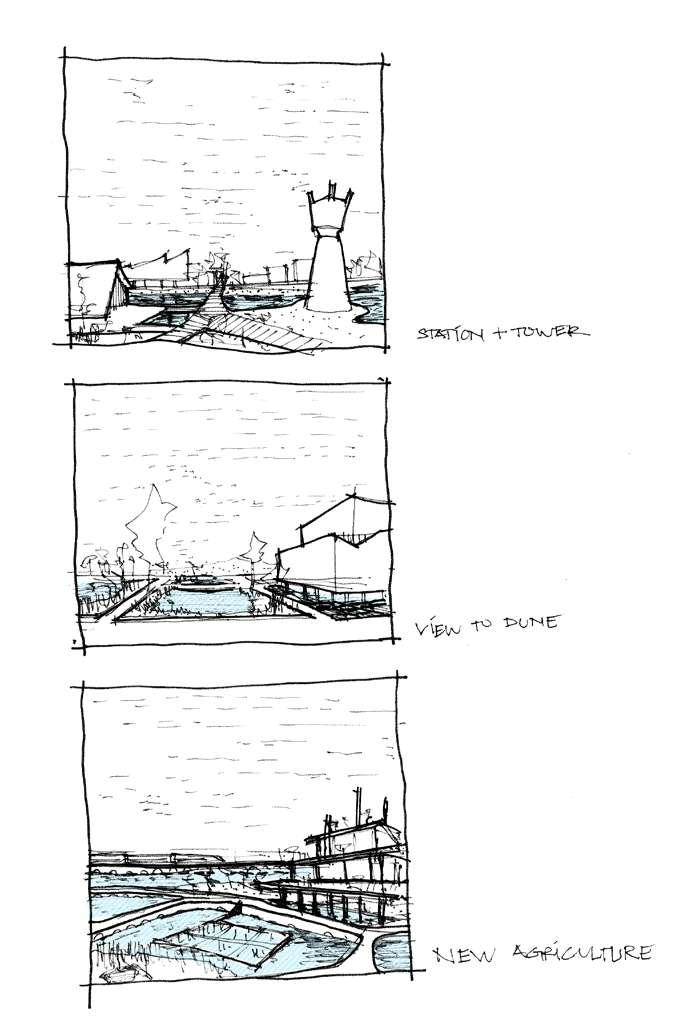

Rail Station and Water Toren surrounded by hybrid landscapes

Den Helder 2100: Live with Water

Adaptive lifted housing in the residential neighborhood

Analys & Design of Urban Form

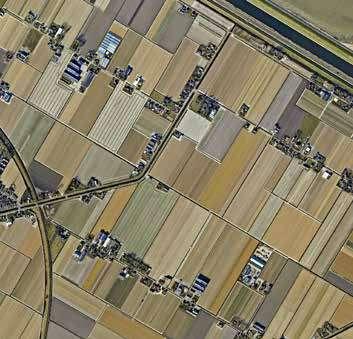

New-kind of agriculture, intertwined with water-based farming ecosystem

28 - 29

Synthesized Three Structure Plan To come to a unified structure plan as a group, the first step was to draw simplified diagrams of our individual plans and overlay those to see the spatial similarities and differences, while discussing our thematic approaches. All three of us dealt with the rising sea level through managed flooding by partially protecting the land, though in different ways.

Timon let the water in from the east, converting a large part of the city into a hybrid area where people would live on the Wadden and sedimentation would guarantee a dynamic landscape, while protecting a portion of the city centre with a new dike. Satria also let the water in from the east, but in a much more controlled way, through a series of locks to guarantee a lower and more controlled water level in a network of new canals. Tomas, like Satria, also opted to strengthen the eastern dike, bundling the railway, road and dike as one wall to protect both the city and the hinterland.

Tomas and Timon both placed a dike around the old city centre (albeit in different places) and gave the military port a new function (albeit in a very different way).

Den Helder 2100: Live with Water

We could then look at taking the best ideas from our three plans and fit them together into one common structure plan. As a starting point we took the canals of Satria with the flooding and dynamic sedimentation of Timon, the transformation of the port area from Tomas. From that, a new vision formed.

Thomas’s idea to strengthen the eastern dike, bundling the railway, road and dike as one wall to protect both the city and the hinterland.

Timon’s idea to let the water in from the east, converting a large part of the city into a hybrid area

Analys & Design of Urban Form

Satria’s idea to let the water in from the east, but in a much more controlled way, through a series of locks

Conflict overlayered map, shows the intersection between the three perspectives.

30 - 31

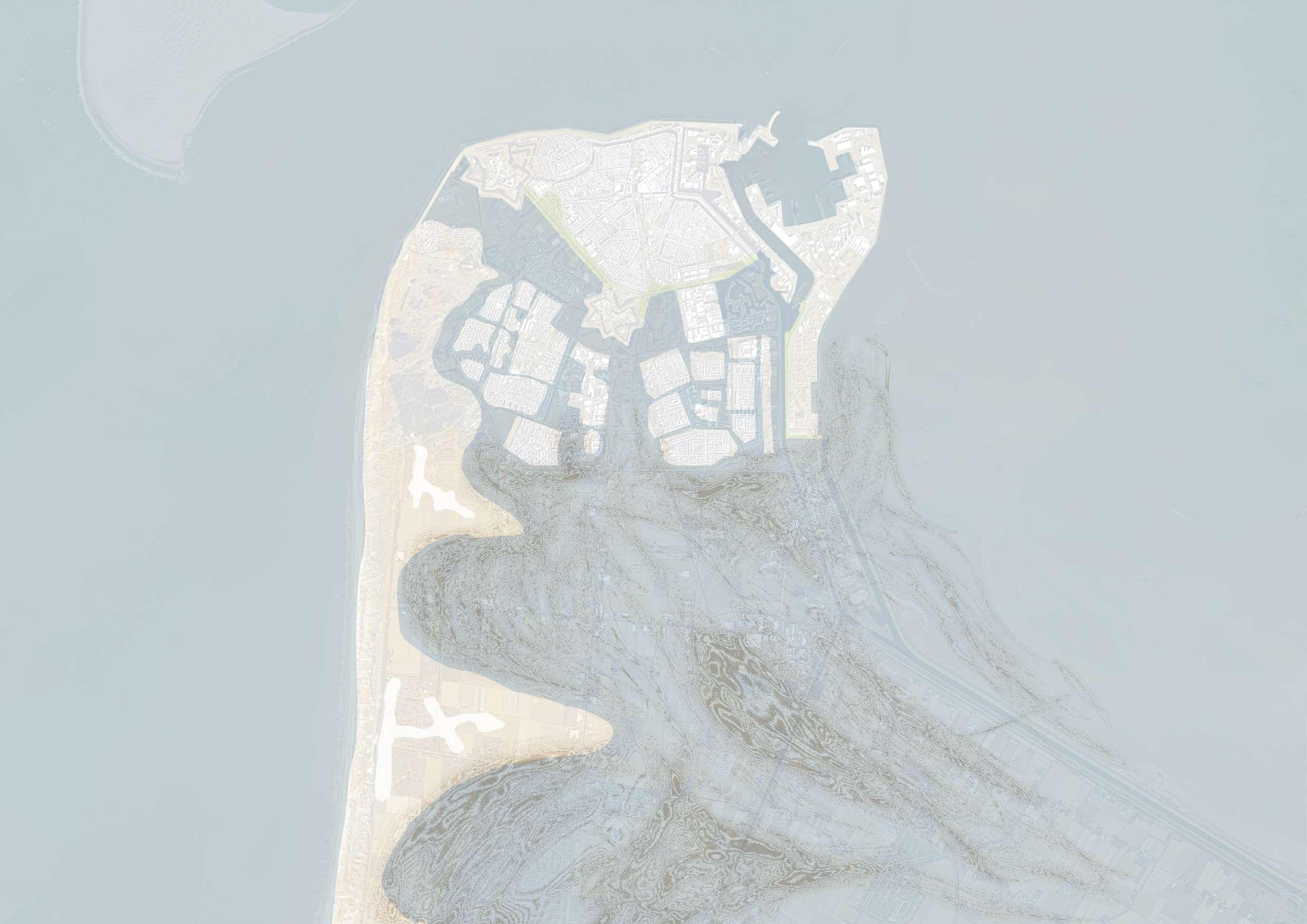

Helder 2100 Integrating the city and the port with water through adaptation and embracing the dynamic landscape.

For centuries we have protected and hardened our coast as a way to deal with and defend ourselves from water.

Instead of trying to maintain this one hard line of defense between the domain of humans and that of water, we shift into a new paradigm in which we live with the water in a more integrated way.

In our extreme scenario the sea-level will have risen by 3 metres in 2050. Den Helder, with its location on the tip of Noord-Holland and the south-western starting point of the Wadden sea, provides an ideal testbed for this new way of achieving flood resilience rather than just flood resistance, while future-proofing Den Helder’s economy and embracing its character as part of the wadden islands.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

The old city centre can be protected from flooding by repurposing the fortification line around Den Helder to create a new dike. Around the forts this can look like a regular sea-dike, but the linear parts can be a green ribbon, a park that is accessible and forms a destination for people to go rather than just a wall that separates. On the eastern side this park is connected to the port-area.

The dike here, which nowadays carries a road and has no connection with the buildings on either side, can be widened, heightened, and transformed into a multi-use area and become a part of the city.

In a future where we have to deal with climate crisis, the military will play a much smaller role, and the military harbour area can be home to a variety of new industries.

The dike to the south of the industrial area will not be strengthened and in time the water will break come in from this side, flooding a large part of the land. In the newer parts of Den Helder to the south of the fortifications many new canals are dug in preparation for this, so a large amount of water can move through this area easily, while the new islands in-between can be elevated using the soil from the new waterways. This area would facilitate a much more adaptive way of living with the water, as these new canals also play a large role in the transportation around this area. A new transit line connects the island structure from the redeveloped port in the east to a new train station in the west. The railway, along with a road, is moved to the dune strip in east, and forms the sole land connection of Den Helder to the south. This will also enable a strengthening of this dune area.

While a large portion of land to the south of Den Helder will flood, this will also bring in new sedimentation, resulting in a dynamic landscape that will also grow the land in some areas over time. Along the new railway new settlements can form, and through enabling and working with sedimentation, the land around these settlements can grow.

residential / commercial areas mixed areas industrial areas park - dike dunes hard dike road railway transit route

The synthesised design perspectives address the extreme climate change of three meter sea rises where some of dikes unable to hold the water flow and make areas flooded. However, eventually the flooded area will be sedimented naturally.

Whereas, the adaptive and protected scenario will survive some parts of the island.

32 - 33

Connections – New national corridors will connect Den Helder with the rest of the country. Placing them on the dunes ensures they will not flood, leaving the city stranded

Hybrid Zone

Den Helder 2100: Live with Water

New Settlements – The proximity to the rail and resilience of the land allow new settlements to form along the dunes

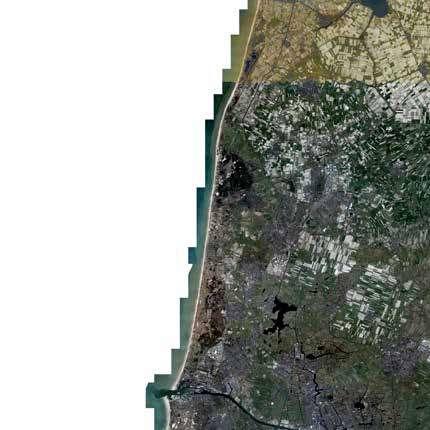

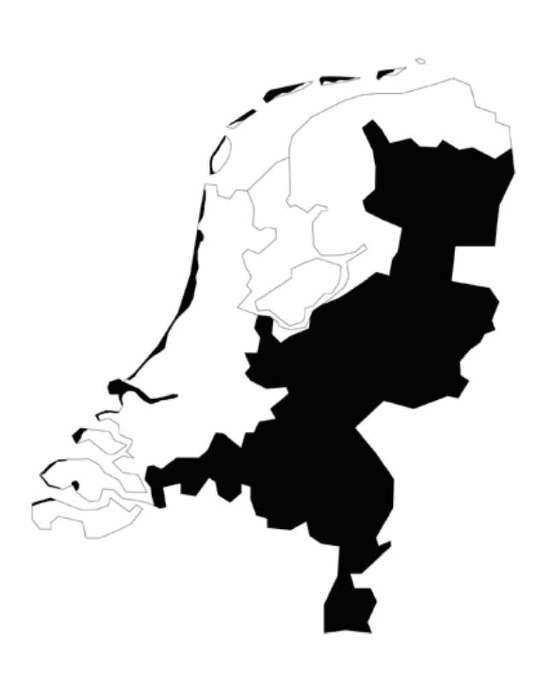

2100 scenario of the hybrid flooded area in Netherlands and new rail lines in the dunes.

The Dunes The heightened dunes and dikes along the coast of the Netherlands play significant roles in protecting the whole area within the dunes, as well as in our scenario. Dunes will be connectors and further development lines surrounding it and a sedimented land will form.

Analys & Design of Urban Form

We expect flooding in the areas south of Den Helder. We took a “build with nature” approach and decided to create vast areas of marshland, which will help break the tides and catch sediment carried by the floods. Over the years new beaches will form along the new coastline – the east edge of the existing dunes.

As most of the land south of Den Helder will be flooded, we decided to place the railway and national road leading to Den Helder on the dudes. Dunes are the most suitable placeholder for national corridors as they will not flood at any point in the scenario, keeping the city connected to other cities along the coasts, the city of Alkmaar, and finally Amsterdam. The railway connection is especially advantageous, and as the sediment builds up and creates new land along these corridors, we expect new developments to form alongside it. The Dune Settlements will live in symbiosis with the rising sea levels and will prove resilient in the uncertain future. They adapt over time as they raise together with the water.

Adaptation – Salt marshes catch sediment and heighten the ground

Legend: Salt marsh Dune / Sand

ons

Train station

s

Industrial functions

ved

Train tracks Road

National road

Railway

Sediment-formed island

lines of deve

lopment

Railway station

k

The scenario we are working with will inevitably flood a sizeable portion of land in northern Holland. A portion of the population from around Den Helder is expected to lose their homes.

Furthermore, agricultural land will flood with salt water, lowering the agricultural potential of the region and causing a food shortage in the country. The Harbor in Den Helder will be well protected against flooding and thus, present a safe haven for new residential, commercial, and industrial activities. We decided to urbanize and integrate these islands, which were previously separated from the city due to military functions, by connecting them to the rest of the city, especially the historical centre.

Den Helder 2100: Live with Water

34 - 35

Harbor Areas

Legend: Water Soft dike

Analys & Design of Urban Form

Residential functions Industrial functions Public space - paved Public space - park Public transport Road Hard dike

We designed a hard dike, lifting the harbor and creating two distinct levels. The lower level is used by commercial and industrial activities, while the layer above features a bike road and greenery woven into a public space. People can gather and interact in this new “city park”. Transformation of the harbor help the new harbor, previously fenced off to the public, to grow. The New Harbor stands on reclaimed land used primarily for military purposes. We decided to heighten the existing soft dike and create public space and greenery on top of it. Instead of military, The New Harbor will feature residential functions as well as sustainable food industries such as vertical farms, aquaponics, hydroponics, offshore farms, etc. The New harbor will become a futuristic centre – promoting circular economies and serving as a foundation for natural city growth for decades to come.

Connections – the connection to and from the islands is reinforced, increasing the centrality. The Harbor now serves as a “bridge” between the New Harbor and the historical centre.

Public space – Doubling the levels allows the harbour to keep its economic significance while also featuring public space bringing in “life”

Protection – Dikes are heightened to future-proof the coastlines in case of an extreme scenario

Zoning – Areas for sustainable industries and commerce are created on the lower level.

Connections – New connections to the rest of the city are created.

Joining the identity of the harbour to the city

New Typologies – Integrating the New Harbor with the rest of the city will create a demand for housing on the island. Natural urban growth with varying typologies is expected to take place over the upcoming decades.

Protection – Dikes are heightened to future-proof the coastlines in case of an extreme scenario. Soft dikes create parks.

Zoning – areas for sustainable industries, commerce, and residential functions are created, densifying these areas, and providing a shelter for the displaced

The New Harbor stands on reclaimed land used primarily for military purposes. We decided to heighten the existing soft dike and create public space and greenery on top of it. Instead of military, The New Harbor will feature residential functions as well as sustainable food industries such as vertical farms, aquaponics, hydroponics, offshore farms, etc. The New harbor will become a futuristic centre – promoting circular economies and serving as a foundation for natural city growth for decades to come.

Existing road on hard dike

Mainland

Sea level +3m

Park on a Dike

New hard dike creating two levels

New urban area

Natural dike

Sea level +3m

36 - 37

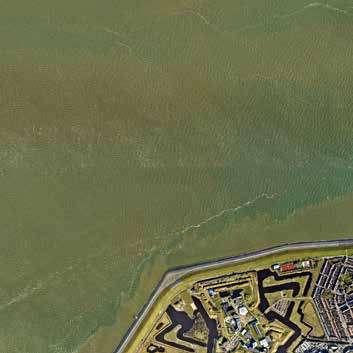

The fortifications of the Stelling of Den Helder will have a new role of protecting the city within from water. Placed along the route of the old fortifications, a new dike will be built to protect the old city centre. A hardened dike will outline the recognisable star-shaped fort structures, and in the east, a set of locks will provide access to ships, and form the connection between the dike and the redeveloped military area. I between these nodes the dike will take a different shape, as it will form the basis of an accessible park, with paths meandering though this green ribbon, connecting to various roads on either side.

Instead of a separating wall, a border that limits the view, it can be a destination from which to look out over the new flooded and hybrid area to the south. In a few places the ribbon will be intersected by important connections to the adaptive islands to the south, the most important of which is the western bridge, which connects the old city to the new railway station.

Housing

new park/dike with paths

flooded areas

hard dike around fort ke

di k

ar

/p

Den Helder 2100: Live with Water

Park-dike

to s n io ds t ec lan n n s co w i ne

ne

Analys & Design of Urban Form

wi

sla

nd

s

l sib es acc

e

pr

ot

e ct

ive gr een ribbo n

s

ck

lo

flo

od

ed

e

dik

ar

ea

dike d r a h fort d n u aro

rk

a /p

to L if t

co rib nne bo cto n r

res

public/com

ent r

um

t en dim med e S or nd F sla I

to C

adaptive room for water

oad

St ati on

ed r

ail to R

public/com

g ildin u B r ula Reg

ent hm c t Ca ent m i Sed

ing uild B d Lifte

g ldin Bui d e ver Co

+0 .5 0m

rid Hyb +0 .5 0m

dor orri C d ene d i W

ard urty o 2C 202 +0 .0

2 202

+0 .0 0m

nt me h c at nt C e m i Sed

+3 .0 0m

ing uild B ed ect n n Co

+3 .0 0m

+3 .0 0m

g ldin Bui d Lifte

ing uild B ed ver Co

ard urty o C tion ten e R

+3 .0 0m

+0 .5 0m

rd tya our C 2 202

+0 .0 0m

ing uild B r a gul Re 2 202

+0 .0 0m

+0 .5 Analys & Design of Urban0m Form

or rrid o C ed

rid Hyb

ing uild B r a gul Re

+0 .0 0m

dor orri C ter Wa 2 202

d Roa d Lifte

public/com

+0 .0 0m

adaptive room for water

+3 .0 0m

t en dim med e S or nd F sla I

d Roa d e Lift

th Plin d e en Op

R

+3 .0 0m

2 202

2R 202

ard urty o 2C 202

+0 .0 0m

g ildin u B ar gul Re

rd dor tya orri r C u r te Co Wa tion 2 n 2 e 20 et +0 .0 0m

res

+0 .5 0m

g ldin Bui d e ver Co

+0 .5 0m

+3 .0 0m

+3 .0 0m

-buffer and isl tial en id rcial me

adaptive room for water

g or ildin rrid u o B dC ed ect ene n d i n W Co +3 .0 0m

ed

nt me h c at nt C e im Sed

co rib nne bo cto n r

Ce ntr roa d to

rid Hyb

g ldin Bui d Lifte

+3 .0 0m

um

g ldin

Bnut i mre ed a i l d eu ReSg FormIsland

Lift

Den Helder 2100: Live with Water

il S tat ion Ra to

rid Hyb

oad dR e t f i L

+3 .0 0m

Se di Fo men rm t Isl ed an d

res

-buffer and isl tial en id rcial me

th Plin d ene Op

ing uild B d Lifte

co rib nne c b

Lift

In the neighbourhood scales, the islands will form a network of connectivity, which will integrate one into another. Therefore, distributing the economic centre in each Retention Pa coverage is important. Each centre is aidedtch by transit station and public function, making it open and inclusive.

oad dR

Ret en Pat tion ch

Se di Fo men rm t Isl ed an d

-buffer and isl tial en id rcial me

Principally, the idea is to create some room for the upcoming water and at the same time protect the buildings with various strategies, such as making a sediment catchment on the ground floor, or radically lifting the buildings and island-like structure. Eventually, the surrounding area will be a buffer zone to hold and reintegrate the relationship with water.

t en im ed d Se orm nd F sla I

ed roa d

o St ati ai l to R

ent rum

The adaptive islands work as transition machine to allow some part of the patches to become a way for the water flows, evaporates, and be absorbed to become a groundwater catchment. In general, we cannot predict what will happen when the sea level rises. History teaches us how floods will impact buildings and society in an extreme way, spontaneously.

What if, we can guide the flood, tame them, and take advantage of it?

Lift

ed roa d

to C

38 - 39

Adaptive Island

+17.00

22.5 20 17.5

+10.00

15 12.5

+3.00

+4.00 +0.50

0

+0.50

+3.00

projected rising sealevel

+0.50

2.5

+5.00

5

+7.50

10 7.5

-2.5 -5 -7.5 -10 sea

hard dike

dunes

polder forrest

neighborhood

canal

neighborhood

canal

neighborhood

canal

hard dike

canal

hard dike

neighborhood

canal

hard dike

neighborhood

canal

hard dike

sea

Section of current condition (2022 Den Helder)

+17.00

22.5 20 17.5

+10.00

15 12.5

+3.00

+4.00

rum

+3.00

projected rising sealevel

ent

2.5

+5.00

5

+7.50

10 7.5

ion

to C

0

-10 sea

hard dike

dunes

polder forrest

neighborhood

canal

Lift

to

-7.5

ed

Ra

il S

-5

roa d

tat

-2.5

neighborhood

canal

neighborhood

sea

Se di Fo men rm t Isl ed an d

Ret en Pat tion ch

+17.00

22.5 20 17.5

+10.00

15 12.5

+3.00

+0.50

+0.50

0

+4.00

t en m d i e d Se orm nd F sla I

+3.00

projected rising sealevel

+0.50

2.5

+5.00

5

+7.50

10 7.5

-2.5 -5 -7.5 -10 sea

hard dike

dunes

polder forrest

neighborhood

canal

neighborhood

canal

sea

Structure Plan of the Adaptive Island Zone

+17.00

22.5 20 17.5

+10.00

15 12.5

2.5

-5 -7.5

+3.00

oad R d Lifte

linth P d ene p O

0 -2.5

+4.00

projected rising sealevel

+3.00

+5.00

5

+7.50

10 7.5

-10 hard dike

dunes

g ldinSection Plan of the Adaptive Island Zone i u B lar

polder forrest

neighborhood

canal

neighborhood

canal

rid Hyb

g ldin i u dB e t f i L

+3 .0 0m

sea

sea

40 - 41 Den Helder 2100: Live with Water

Redefined Military Base

Integrating the city and the port with water through adaptation and embracing the dynamic landscape.

Densified Harbor

Accessible Green Ribbon

Central Station

Analys & Design of Urban Form

Preserved Town

Helder 2100 In our extreme scenario the sea-level will have risen by 3 metres in 2050. Den Helder, with its location on the tip of Noord-Holland and the southwestern starting point of the Wadden sea, provides an ideal testbed for this new way of achieving flood resilience rather than just flood resistance, while future-proofing Den Helder’s economy and embracing its character as part of the Wadden islands.

While a large portion of land to the south of Den Helder will flood, this will also bring in new sedimentation, resulting in a dynamic landscape that will also grow the land in some areas over time. Along the new railway new settlements can form, and through enabling and working with sedimentation, the land around these settlements can grow.

Sediment Catchment

Adaptive Island

Preserved Dunes

Huidsduinen

42 - 43

Reflective Conclusion: Towards Urbanism Scales Shifting perspective from architecture to urban scale is challenging for me. In architecture, I used to work with detailed scales to create poetry space yet simple and effective. Here, in urbanism, urban scale works toward different scales and people. One thing impacts another, like a network.

Through this 10-week process of understanding the grammar of urban forms, such as lines, patches, boundaries, and mosaics, I realised how we must compose and create life within. Not only about humans but also about ecological, economic, cultural, and societal aspects.

Complexities in contemporary cities are in dire need of interdisciplinary work, and as urbanists see the whole thing is a framework to adapt the city to the evolving landscape. Unravel the forms, encompassing political, ecological, economic, and social aspects, to weave the boundaries and ribbons of the city. Noting the interactions of movements, scales, networks, and spaces makes it open and inclusive.

Analys & Design of Urban Form

Den Helder 2100: Live with Water

Working with the lowlands, therefore, finding a state where heterotopia terms live. Heterotopia is a dynamic and balanced system, constantly changing. A state between utopic and dystopian scenarios might happen. As global warming and climate crisis awareness risen, we face a significant challenge with the seawater rises. It is projected that we will deal with an extreme 3 meters height of sea level rise. It is important to note that most parts of the Netherlands were below sea level. Therefore, significant research and idea development are desired.

I see urbanism as a catalyst. A catalyst to reform and reintegrate the built environment issues, which weaved through scales, aided with awareness of creative and balanced minds.

References Maps 3D BAG by tudelft3d https://3dbag.nl PDOK https://www.pdok.nl/ Actueel Hoogtebestand Nederland https://www.ahn.nl/ahn-viewer Old Maps Online https://www.oldmapsonline.org/

Datas Stelling Den Helder https://stellingdenhelder.nl/

Images All Saints’ Flood (1570) Drawing by Hans Moser in 1570 of Scheldt flood Regional Archives Alkmaar https://www.regionaalarchiefalkmaar.nl/

Appendix

LOW LANDS ATLAS Q1 R&D Studio Academic Year 2022-2023
