RAPIDSELF DRENSRENNER
FORDELELER
UTVALG: TILPASSET
De nye rennene er betydelig forbedret, et mer tilpasset utvalg dekker de fleste behov.
UTVALG: ENKLERE
Ved å forenkle sortimentet med kan kundene ta et enkelt og optimalt valg av renne og rist.
MODERNE V-FORM
Med oppdatert V-formet design dreneres vann raskere.
• Mer hastighet ved lav flyt.
• Mer kapasitet ved ekstreme strømninger.
EVOLUSJONERENDE DRENERINGSSYSTEM
RAPIDSELF FIXING SYSTEM
Med det nye klikk-festesystemet forbedres ikke bare den hydrauliske effektiviteten, både vedlikehold og rengjøring blir i tillegg svært mye enklere
FLERE FORDELER
Absorpsjonsspor i henhold til standarder.
No irregularities. Ingen uregelmessigheter. Innvendig overflate uten forhåndslagde merker for å forhindre turbulens som reduserer dreneringskapasiteten.
Glatt innvendig finish. Forbedrer
Festesystem med forbedret mekanisk stabilitet og kraftfordeling.
Ruting spor. De leder vannet mot interiøret, og øker oppsamlingen.
Anti-skli rist. Overfladisk geometri designet for å forbedre vedheft.
Ferdiglagde spormerker på tetningen. Forenkler påføring av skjøten.
Optimalisert V-form for forbedret hydraulisk effektivitet.
Vertikale uttak. Ferdiglagde merker for å lette åpningen.
Hann-kvinne vertikal og horisontal justering. Forenkler installasjonen.
Vertikal låseforsterkning. Forhindrer flyteeffekt. Forenkler installasjonen.
Festesystem. Rask, fullstendig manuell lukking.
In addition to gratings for pedestrian and vehicle use, we have a wide range of gratings for heavy-duty areas such as ports, docks and airports. All our gratings are designed according to the European Standard EN-1433 which regulates covering and sealing devices for use in pedestrian and vehicle circulation areas, classifying the gratings in six categories, in accordance with the place of installation.
GALVANISED & STAINLESS
LOCKING SYSTEMS
CLICK LOCKING SYSTEM WITHOUT SCREW
• Especially for channels with no galvanized edge,nor cast iron edges.
• Specific for A15 load classes.
• No screws.
LOCKING BAR AND SCREW
• Channels with and without edge-on.
• Up to load class C250.
• Two locking bars and two screws per LM
SCREW TO THE CHANNEL BASE
• Channels with or without edges.
• Up to load class C250.
• Two screws per LM.
BOLTLESS LOCKING SYSTEM
• Channels with profile
• Up to load class D400
• 8 fixing points per LM
8 BOLTS PER GRATING
• Channels with galvanized or cast iron edges.
• Load classes from D400 up to F900.
• 8 screws per LM.
KOMPLETTE DRENERINGSLØSNINGER
Our complete drainage system
Vi tilbyr komplett dreneringssystem med alle nødvendige produkter, fra vannoppsamling til utslippspunktet, med en rekke kanaler som tilpasser seg kravene til hvert prosjekt, produsert i henhold til standard UNE EN-1433.
We offer complete drainage system with all the required products, from water collection up to the point of discharge, with a range of channels that adapt to the requirements of each project, manufactured in accordance with Standard UNE EN-1433.
CHANNELS
SUMP UNITS
GRATINGS
LOCKING SYSTEM
BUCKET
LATERAL OUTLETS END CAPS
Channels
Sump Units
SLOPE CONFIGURATIONS
WITHOUT SLOPE
All of the channels are placed at the same height.
Advantages: Very simple from an execution point of view. It has a hydraulic capacity sufficient for short stretches of drainage. PRESLOPED
Channels of variable height with a built-in slope of 0.5% and 2.5%, according to the model.
Advantages: Very appropriate for areas where the ground has no natural slope.
CASCADE SLOPE
A combination of straight channels of various heights that are joined using step connectors.
Advantages: Simple and economic onsite execution when slopes need to be included.
MIXED SLOPE
A combination of the previous systems.
Advantages: Very appropriate to drain longlength stretches. It allows for the optimization of hydraulic capacity to the utmost.
Domestic drainage
Self
Channels for pedestrian use and occasional car traffic, for areas with low hydraulic requirements. Using a channel with a built-in profile is recommended, especially when finished with concrete or asphalt paving and/or with frequent passage of vehicles.
Mini
Channels designed for areas with height limitation, pedestrian use and occasional traffic. Using a channel with a built-in profile is recommended, especially when finished with concrete or asphalt paving and/or with frequent passage of vehicles.
Urban
Channels for pedestrian use and occasional car traffic, for all types of hydraulic requirements. Using a channel with a built-in profile is recommended, especially when finished with concrete or asphalt paving and/or with frequent passage of vehicles. Option of built-in slope, mixed slope or cascaded slope.
Sport
Drainage channels for sports and recreation facilities.
Applications
Secondary streets, squares, playgrounds, schools, parks, gardens, etc.
Load class up to C250 (according to model).
Applications
Reinforced slabs, garage flooring structure, basements, showers, changing rooms, roofs, etc.
Applications
Pedestrian areas, sports facilities, residential complexes, car parks for light vehicles, etc.
Load class up to C250 (according to model).
Load class up to C250 (according to model).
Applications
Football pitches, running tracks, showers, changing rooms, swimming pool paving, etc.
Hydro
Polypropylene drainage channels for pedestrian use and occasional car traffic, for areas with low hydraulic requirements.
Applications
Secondary streets, squares, playgrounds, schools, parks, gardens, etc.
Load class up to C250 (according to model).
Load class up to C250 (according to model).
Domestic drainage
Technical drainage
Civil drainage
Load Class up to C-250 EN-1433 Standard

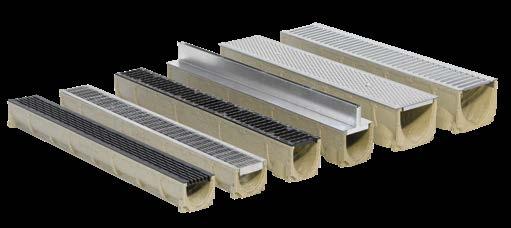

RAPIDSELF 100
ULMA polymer concrete channel, model SR100. External width 125 mm, internal width 100 mm. External heights available between 50 and 150 mm, in modules 1 linear metre long, optimised V-shape with self-cleaning effect designed especially for channel stretches with no longitudinal slope. No-screw Rapidself fixing system with up to 8 fixing points.
CHANNEL KIT WITH BUILT-IN SLOTTED GALVANISED GRATING
*U-shaped cross
CHANNELS
GRATING
RAPIDSELF 100
SLOT GRATING
MANHOLE COMPRISED OF EXTERNAL AND INTERNAL FRAME
COMPRISED OF SINGLE FRAME
Load Class up to C-250 EN-1433 Standard
RAPIDSELF 150
ULMA polymer concrete channel, model SR150. External width 175 mm, internal width 150 mm. External heights available between 75 mm and 150 mm, in modules 1 linear metre long, optimised V-shape with self-cleaning effect designed especially for channel stretches with no longitudinal slope. No-screw Rapidself fixing system with up to 8 fixing points.
CHANNELS
GRATING
SLOT GRATING
SUMP UNITS
