ROHANNA BENT University at Buffalo | School of Architecture and Planning 2019-2023
B
R
TABLE OF CONTENTS
DESIGN STUDIOS 06 Extended Play 12 Blurred Boundaries 24 Unified 30 Sensory Chamber OTHER WORK 36 Case Studies for Construction Technology 40 Drawing Matters
DESIGN STUDIOS

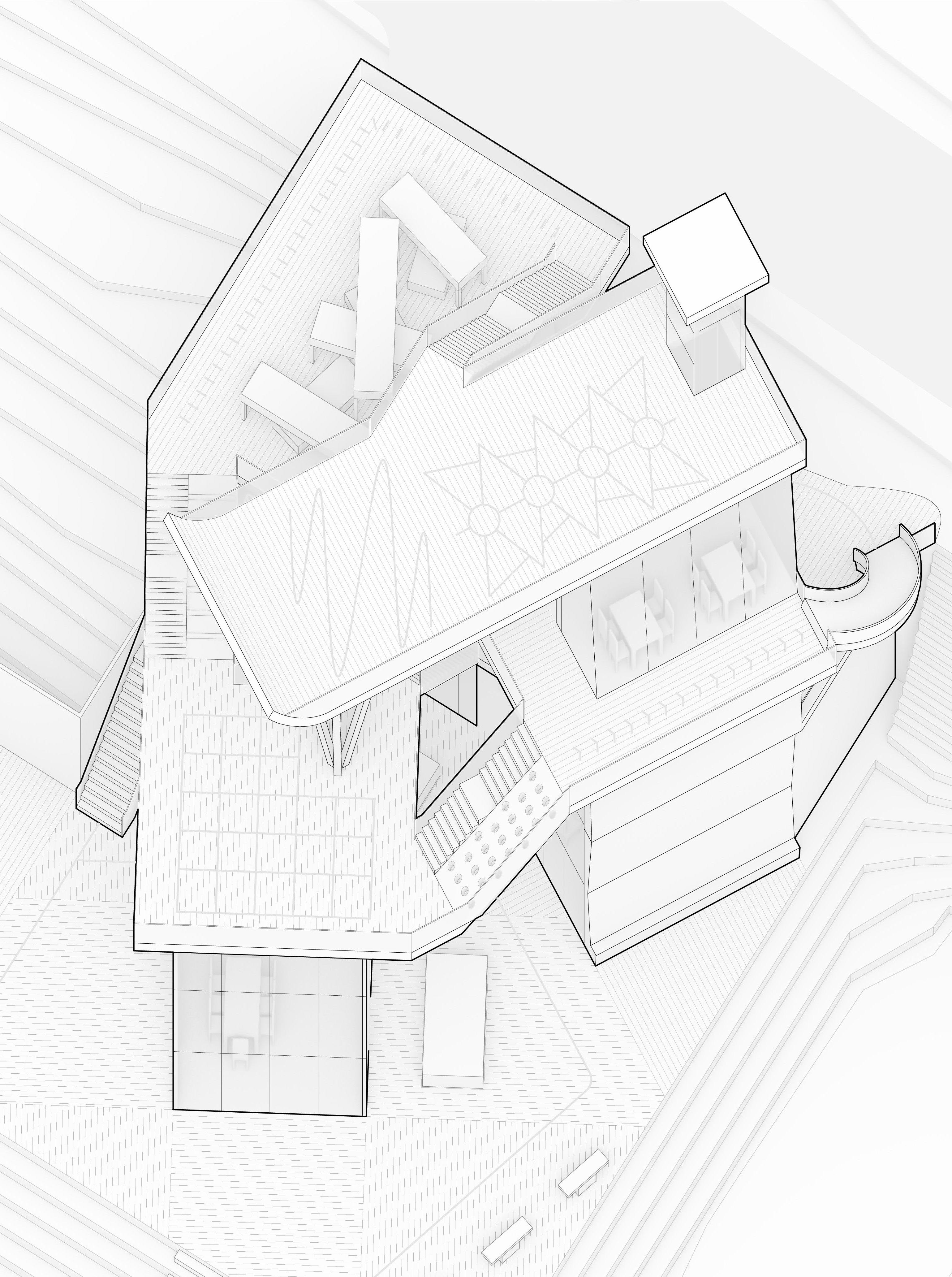

EXTENDED PLAY
PARTNERS:
INSTRUCTOR:

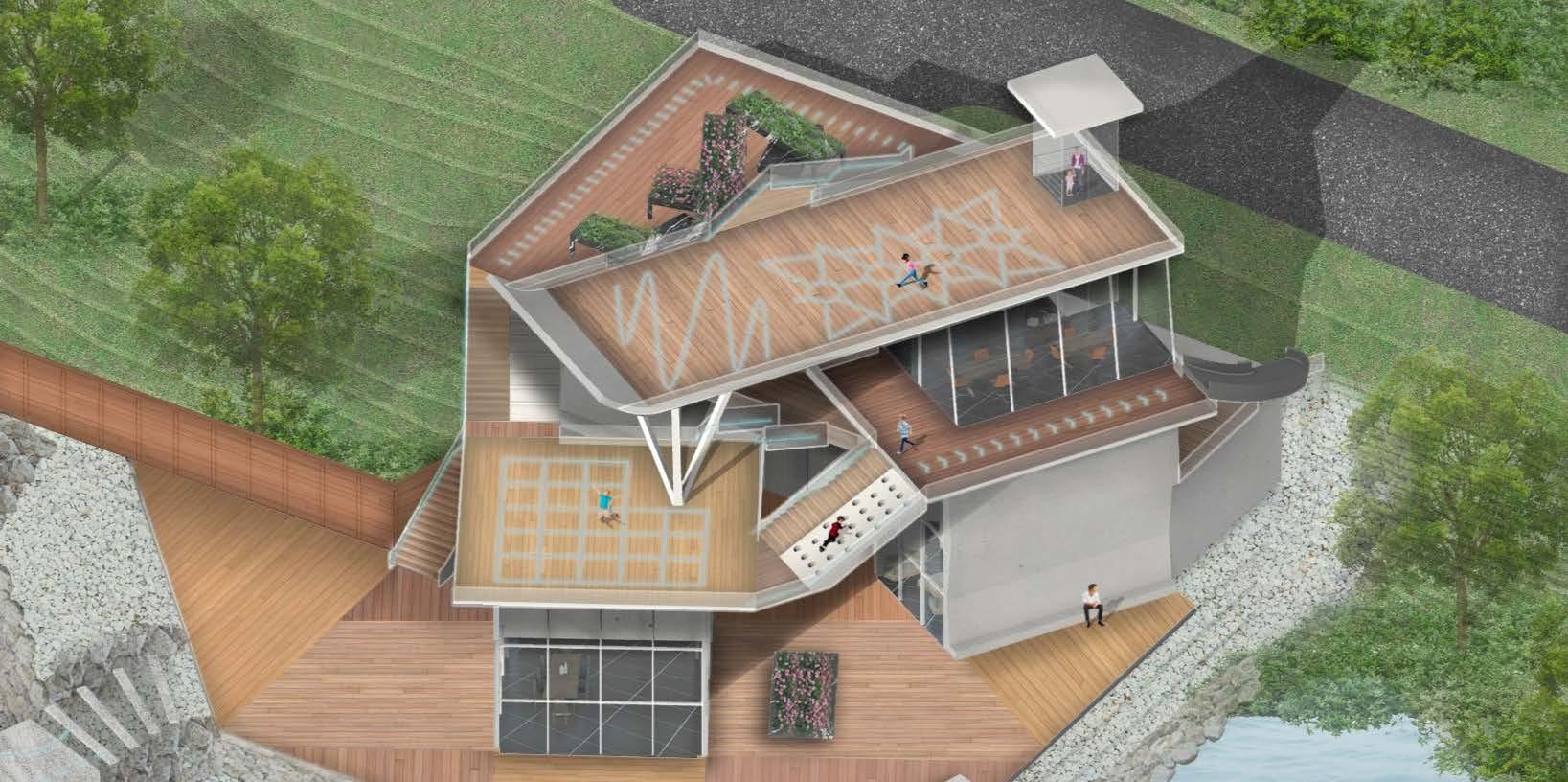

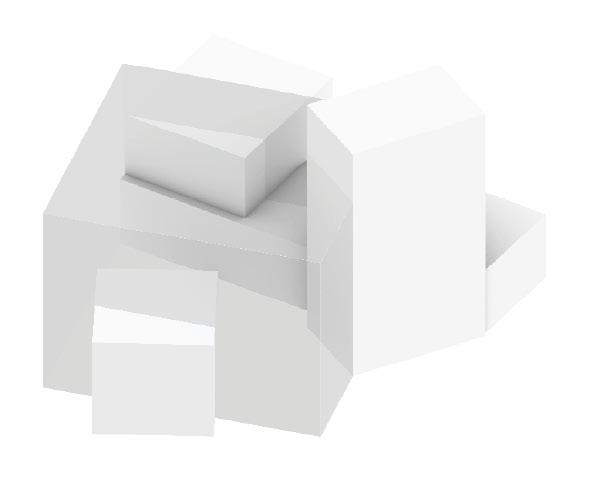

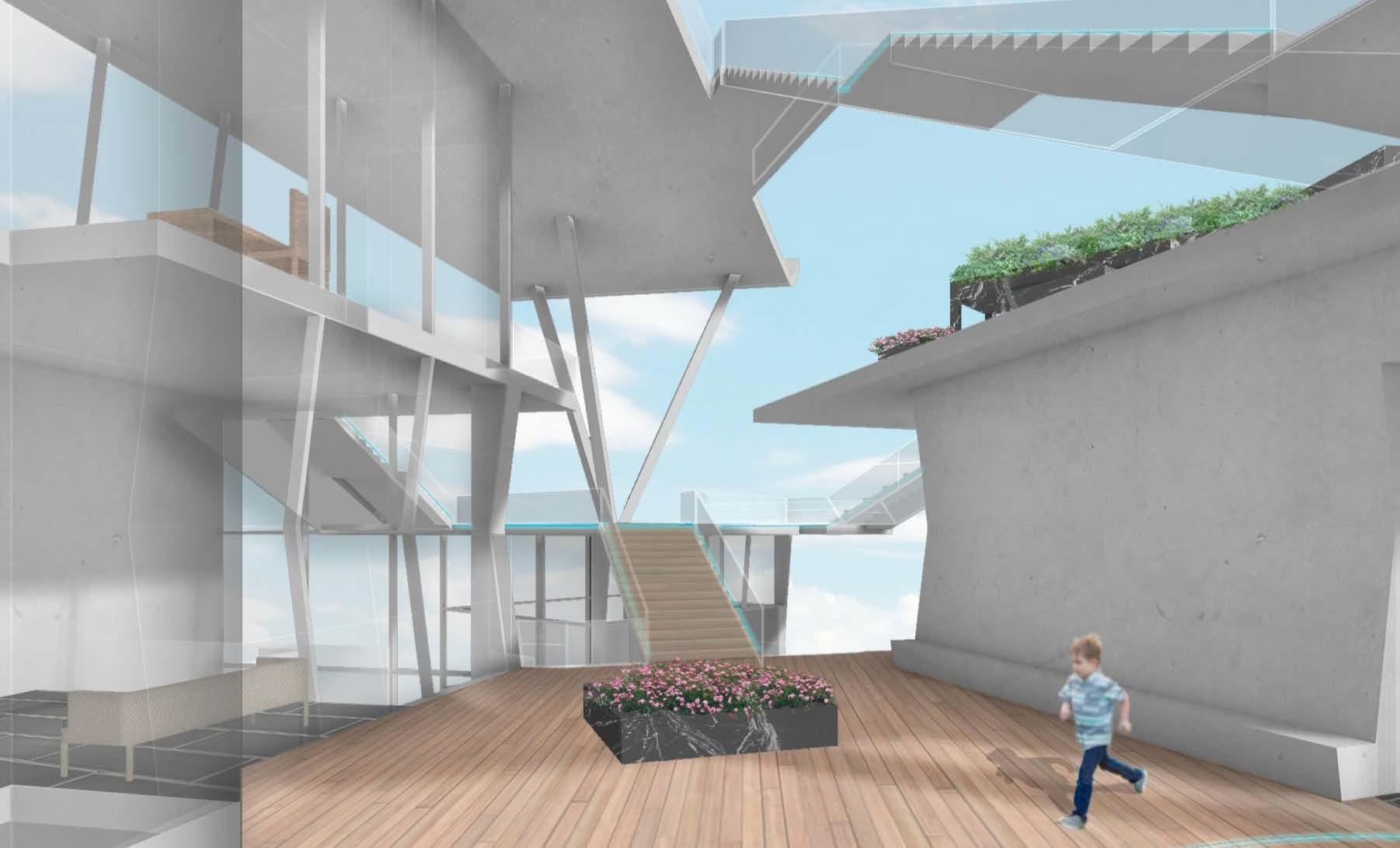

Extended Play was designed by representing the diversity of movements through boundless spaces while promoting the various layers of play to dismantle the level of the hierarchical nature to further emphasize ambiguity.

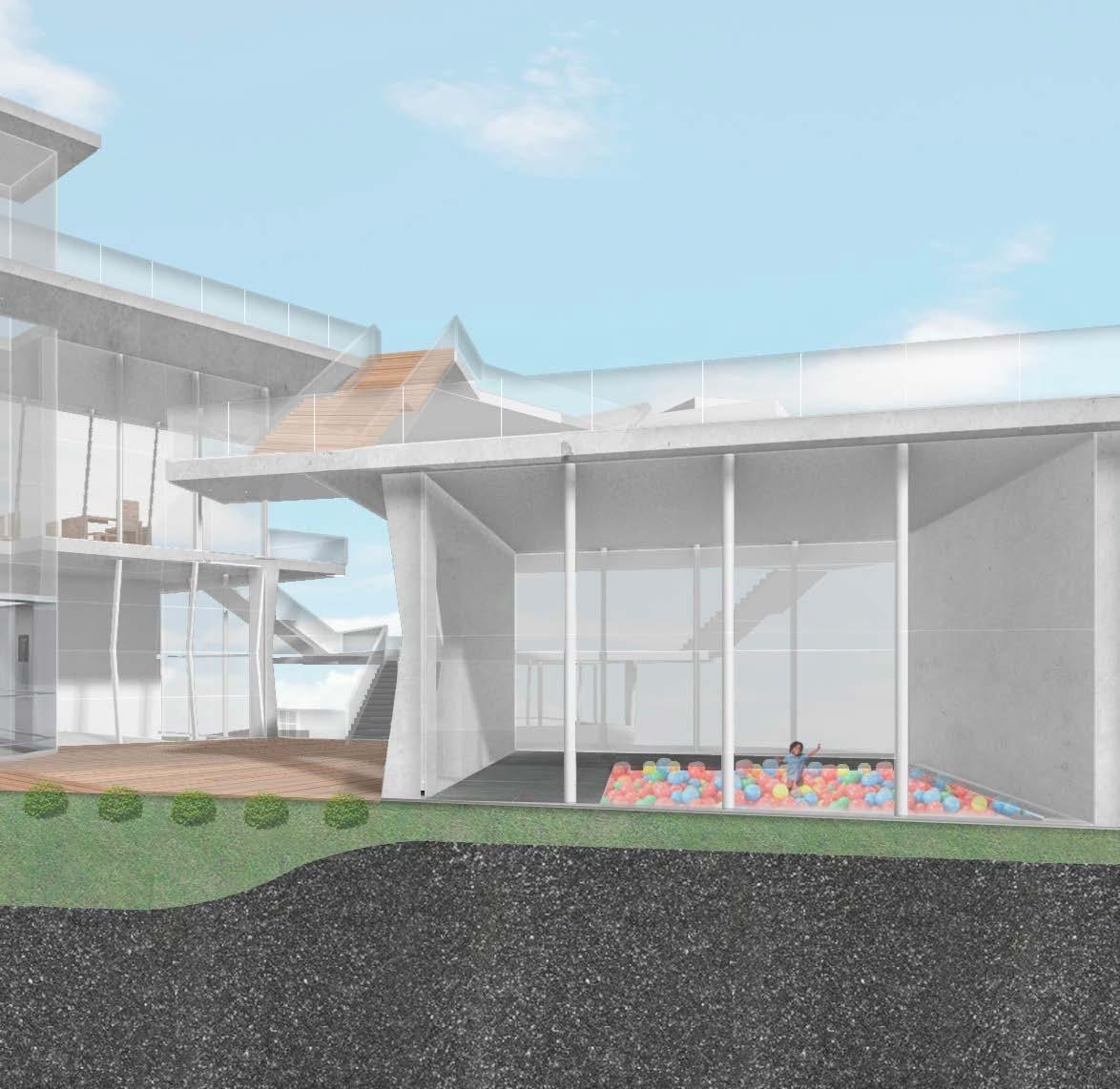

We were interested in representing an architecture that can be more open and more communicative to the broader audience. The program of this project is a little gym, a kid’s play space, that offers various activities.
The use of LED lights throughout the space emphasizes where the play happens in the building but also as a way for kids to use their imagination.
ARC 201| FALL 2020
SABRI HAFIZ UDDIN, JP COLLANTES
6
JIN YOUNG SONG
1.
2.
3.
8
4.

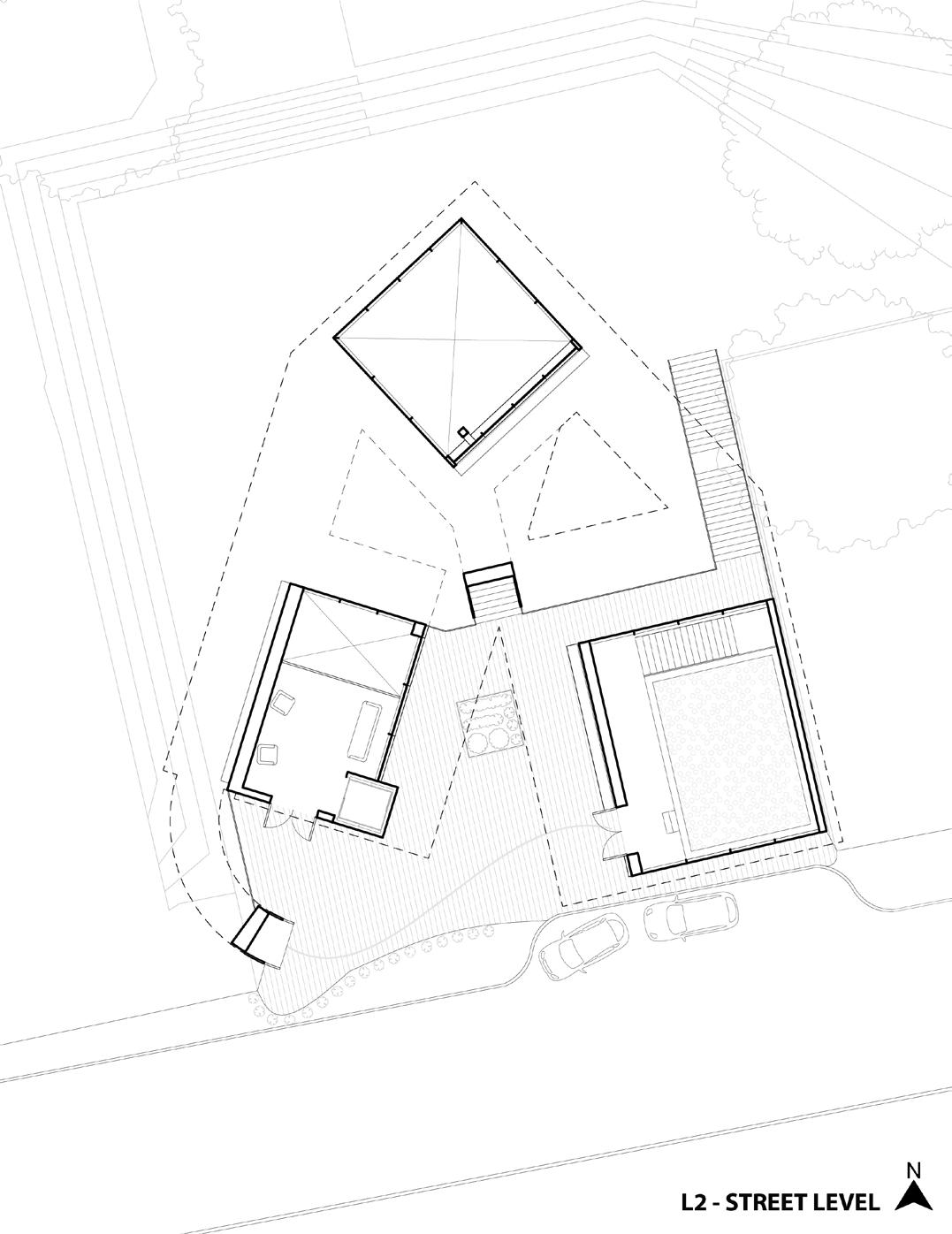

9 L2 - LEVEL TWO L1 - LEVEL ONE
10
11
L4 - LEVEL FOUR

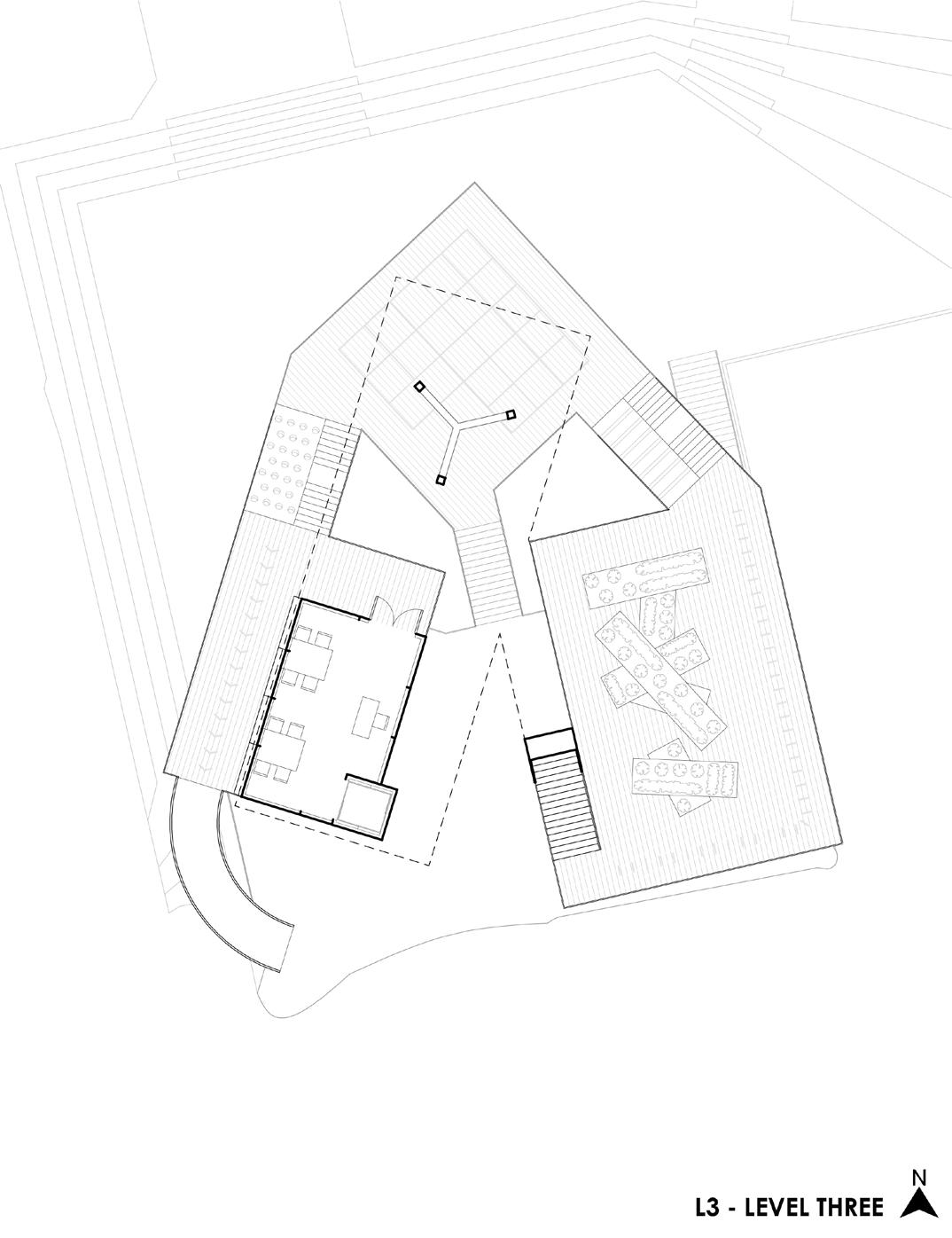

L3 - LEVEL THREE

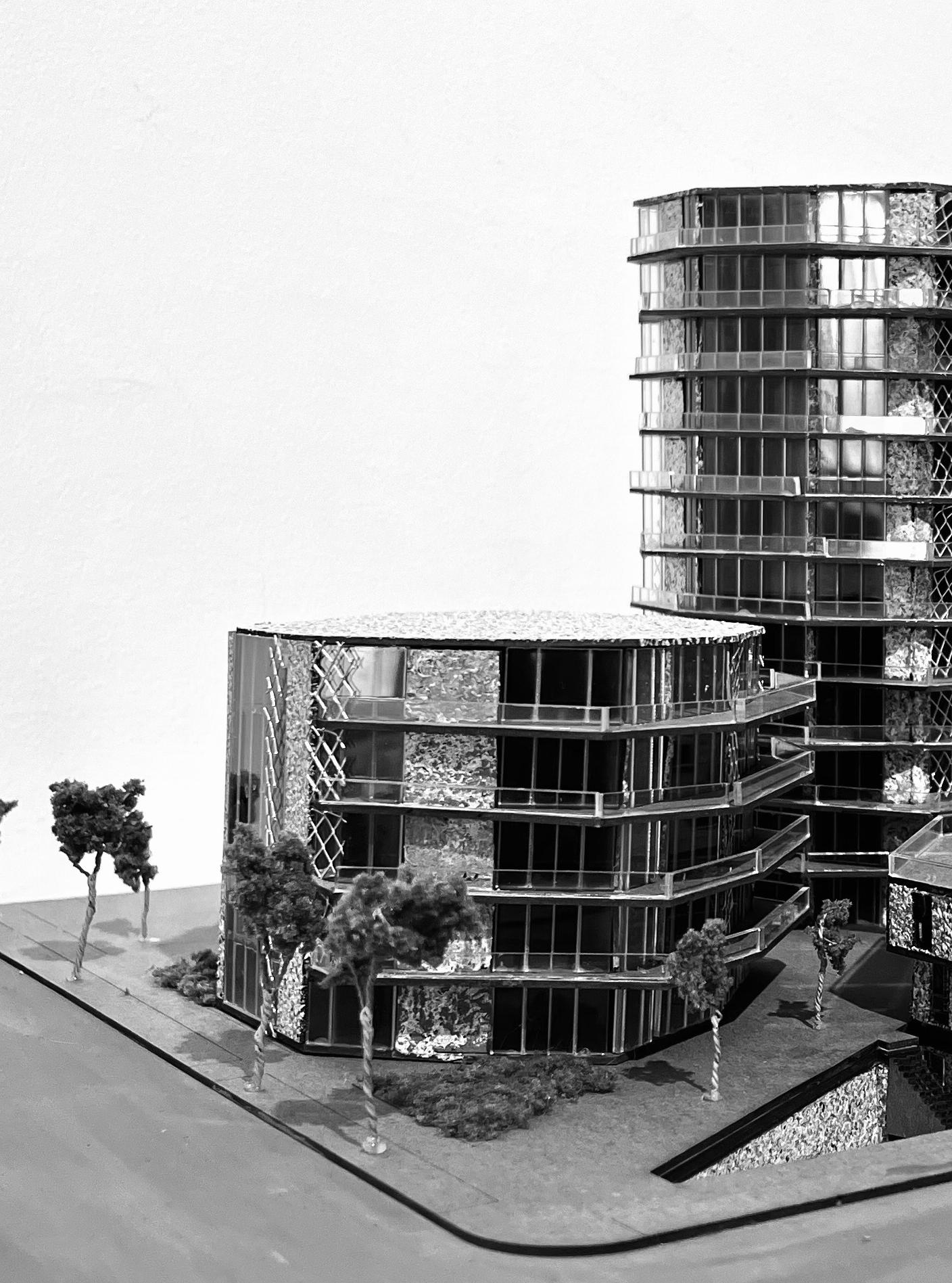

BLURRED BOUNDARIES
ARC 403| FALL 2022
PARTNERS: CASSIDY FRISCH
INSTRUCTOR: ANNETTE LECUYER

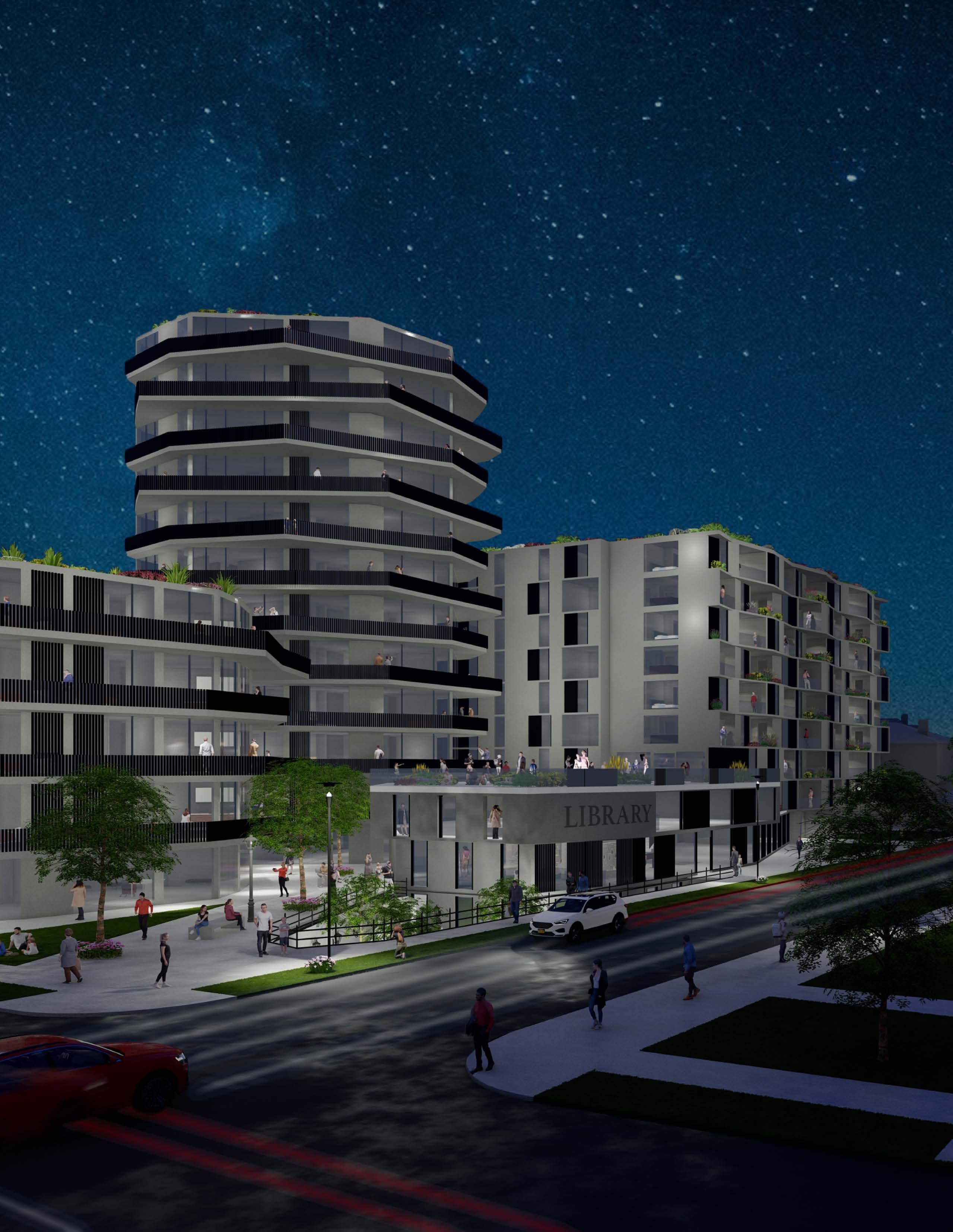

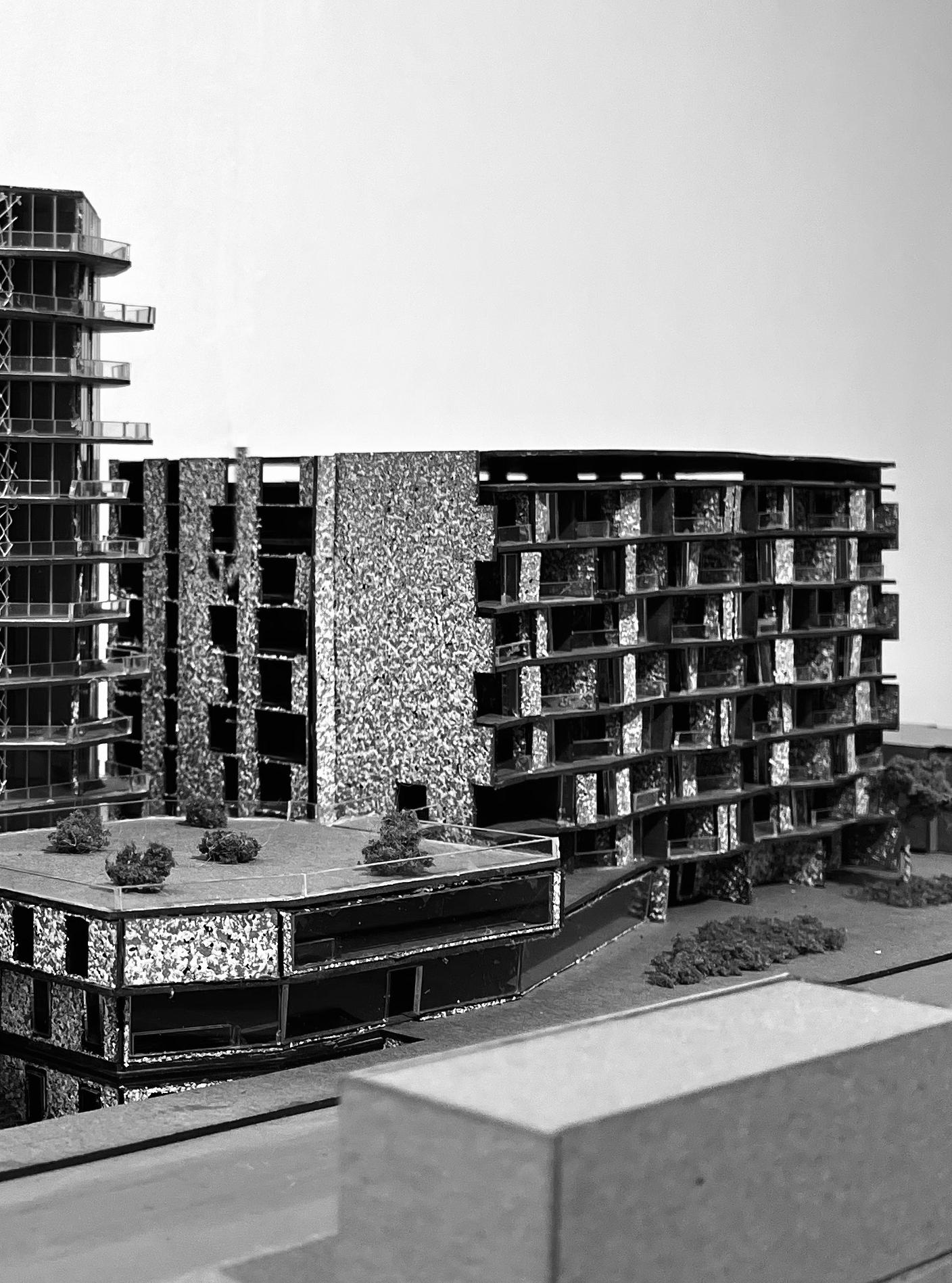

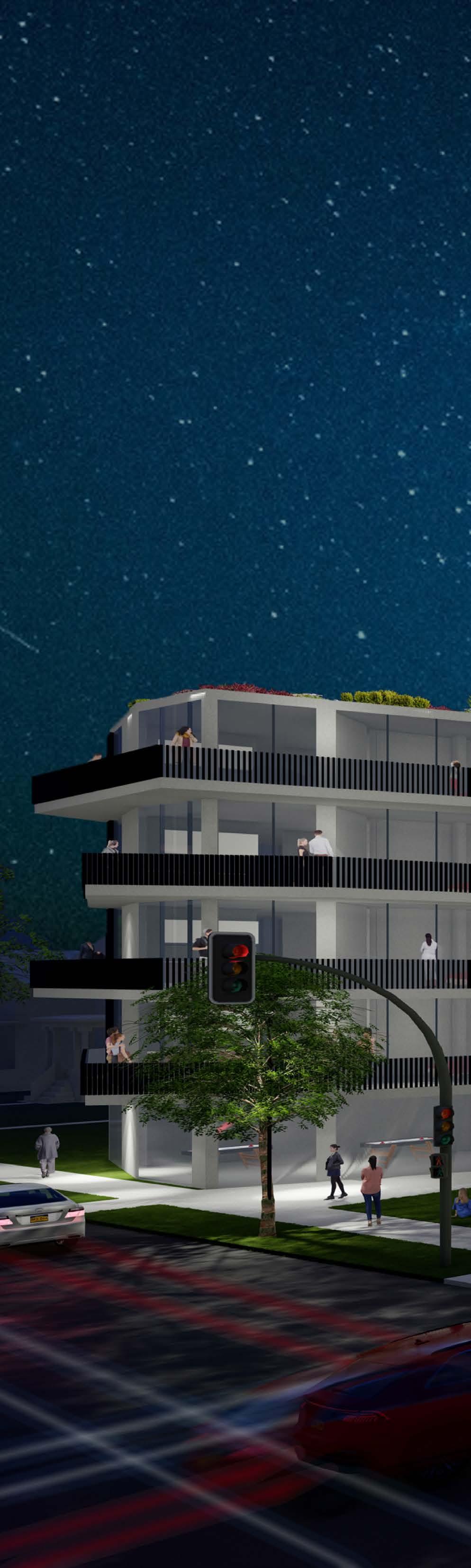

Blurred Boundaries aim was to bring people of all ages together to live on the site to create a multi-generational housing complex. This is accomplished through various unit sizes in both the existing building (Sedita) and the new buildings which include studios, one bedroom, two bedroom, and three bedroom units.
This project blends the boundaries that the different generations may have and allows them to come together, interact, and help one another.
The blurry boundaries can not only be seen in the public program of the library, but also with the connection points of the shared balcony spaces and courtyard spaces on both the ground and basement levels.
The building creates characters of the existing building and site by activating the street frontages and the building facades with lively occupiable space.
12
TYPICAL FLOOR PLAN A
= 1’-0”
UNIT PLAN 1A
= 1’-0”
UNIT PLAN 1A
TYPICAL FLOOR PLAN B
= 1’-0”
UNIT PLAN 2A
UNIT PLAN 2A
= 1’-0”
UNIT PLAN 2C
UNIT PLAN 2C
= 1’-0”
TYPICAL FLOOR PLAN A 1/8” = 1’-0”
1/8”
1/8”
1/8”
1/8”
1/8”
14

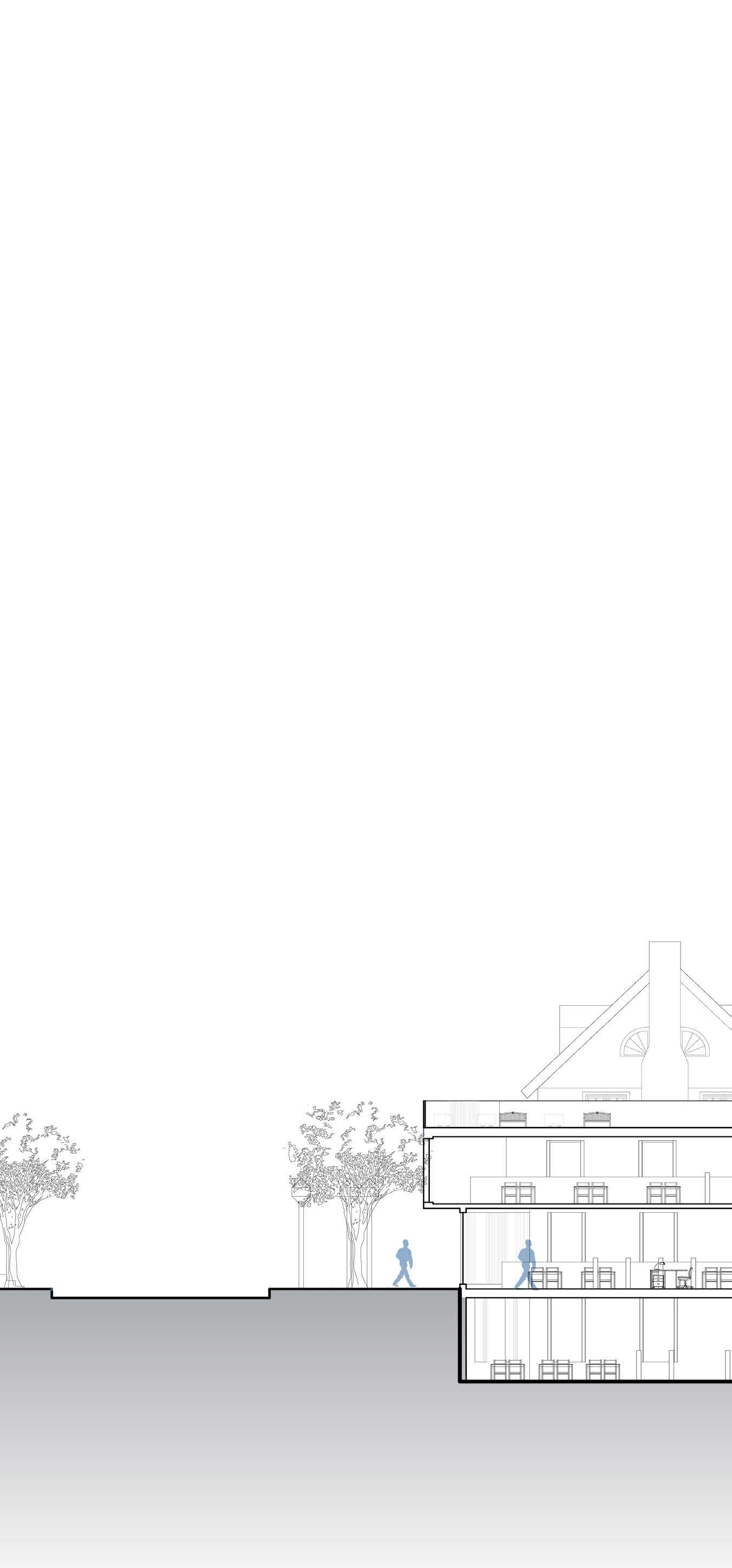

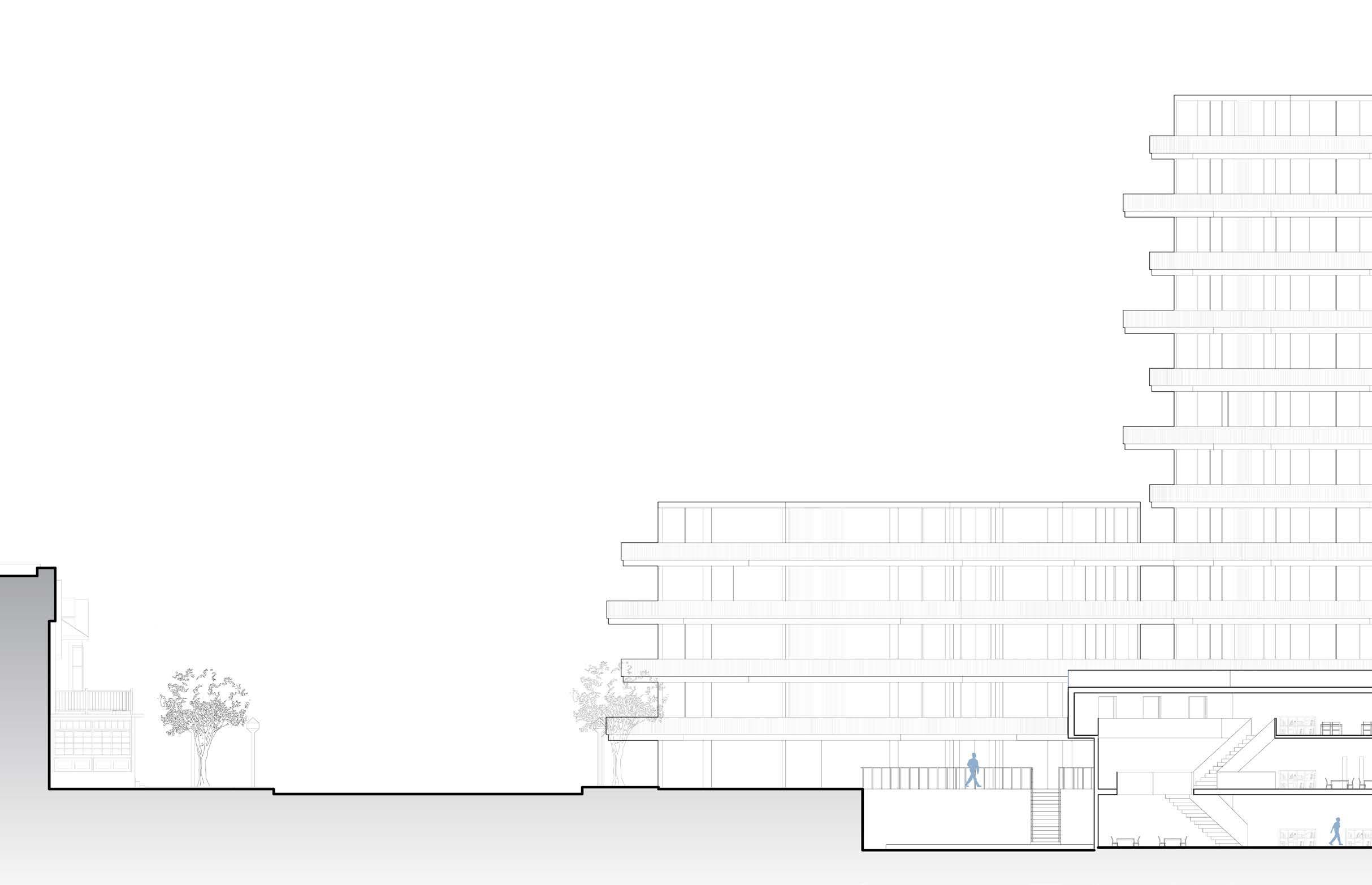

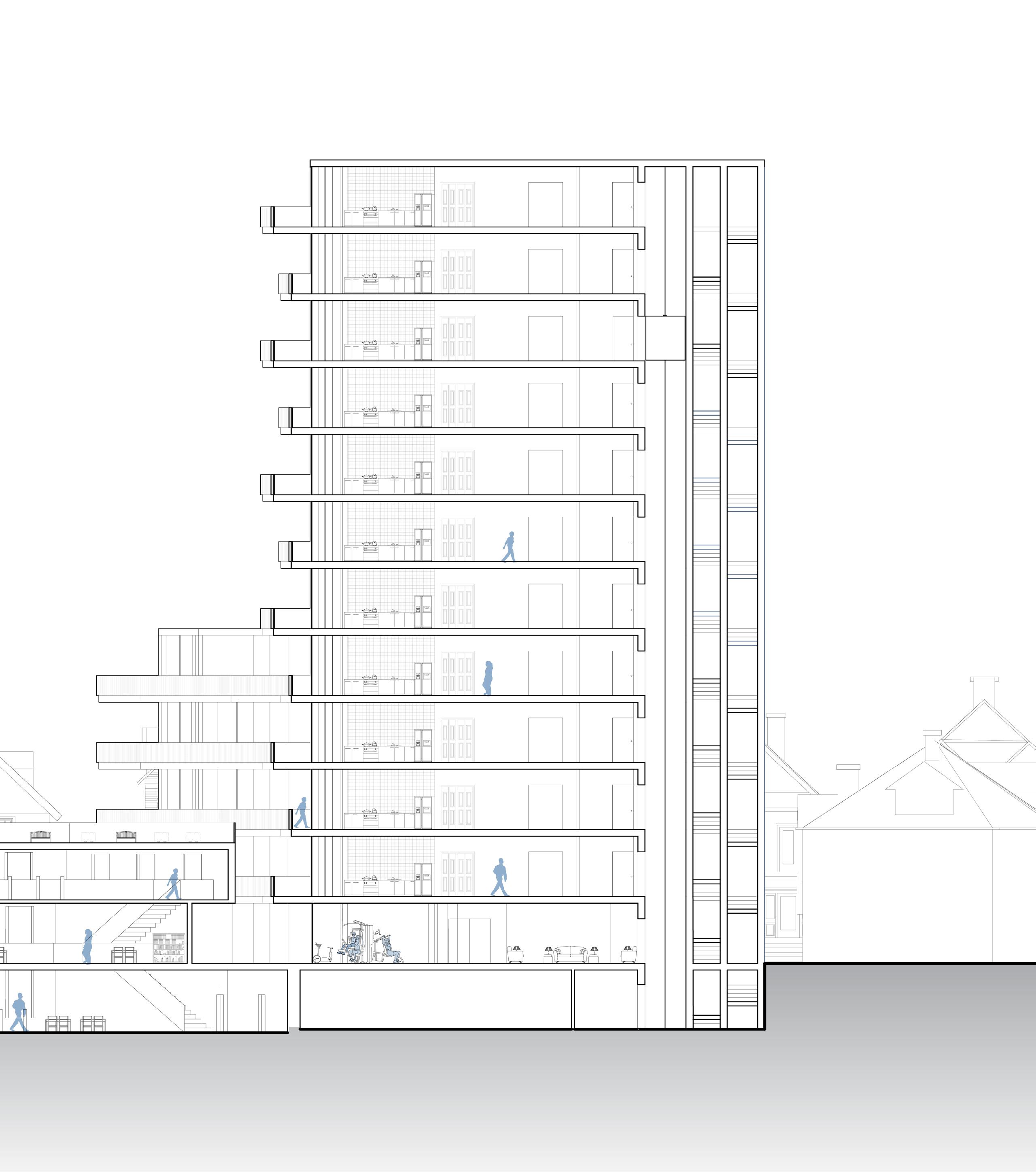

15 SECTION A
UNIT PLAN 1B
UNIT PLAN 2A 1/8” = 1’-0”
1/8” = 1’-0”
UNIT PLAN 1B
UNIT PLAN 2C 1/8” = 1’-0”
UNIT PLAN 2B
UNIT PLAN 2B
1/8” = 1’-0”
UNIT PLAN C
UNIT PLAN C
1/8” = 1’-0”
1/8” = 1’-0”
16
17
18

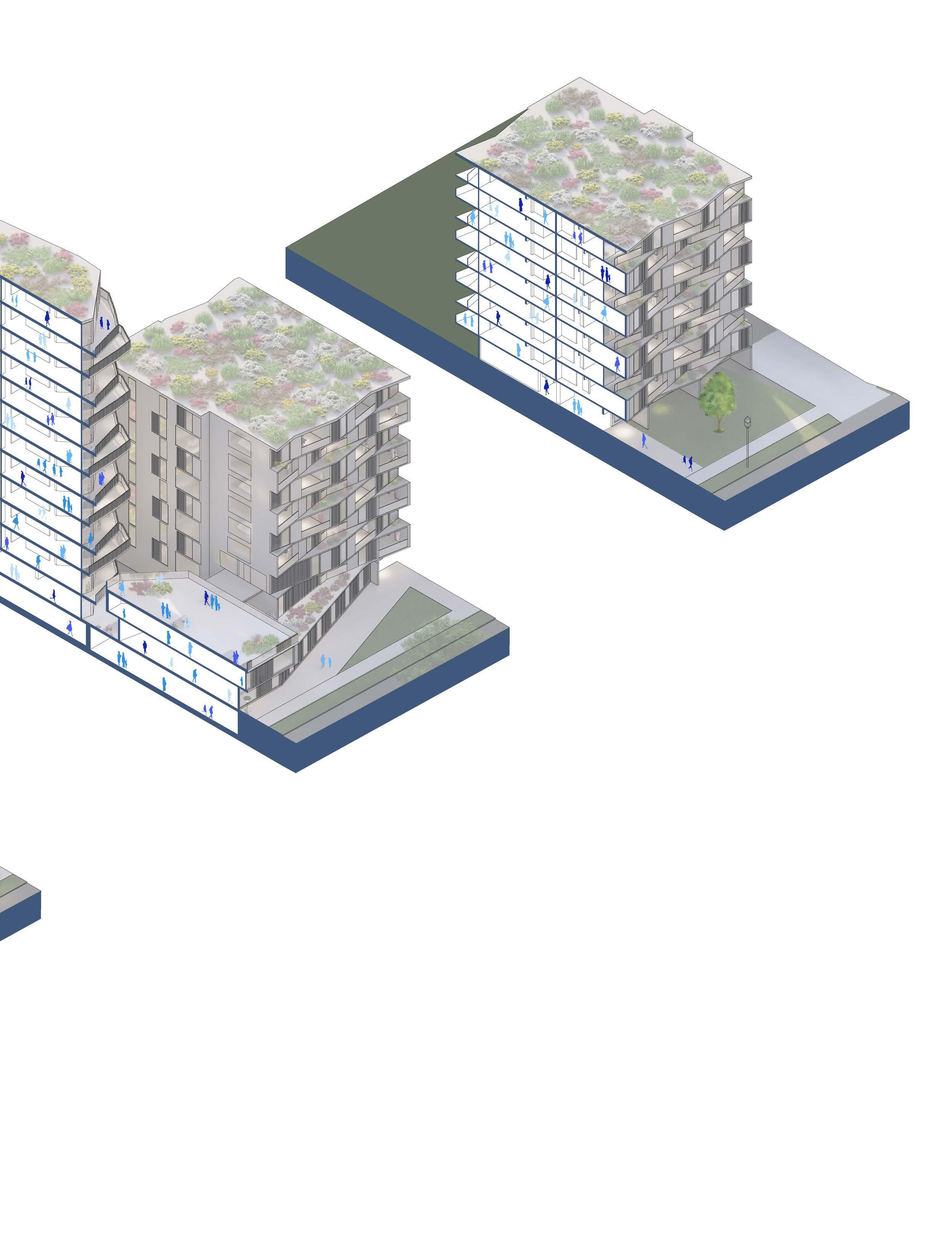

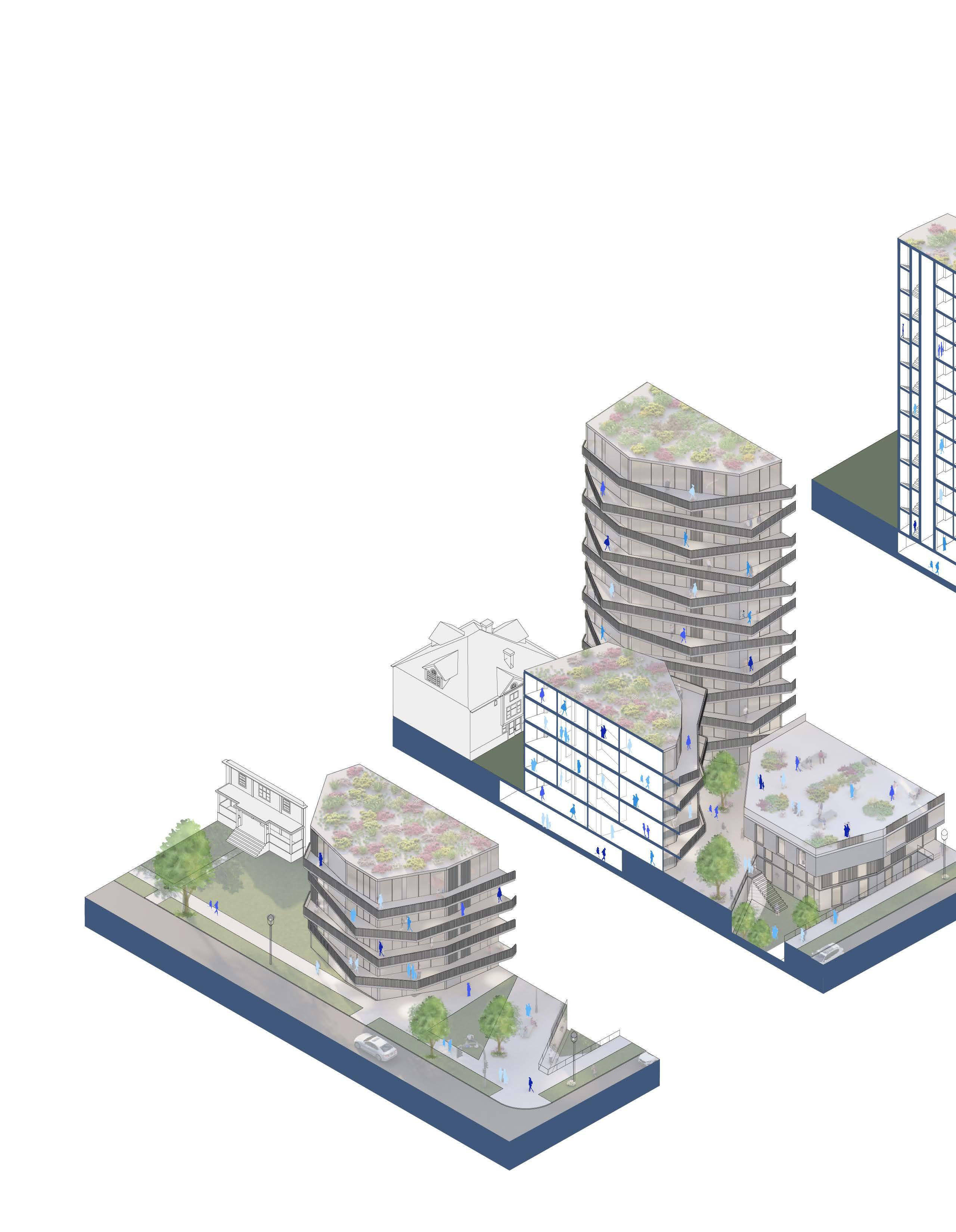

19 EXPLODED SECTION AXONOMETRIC

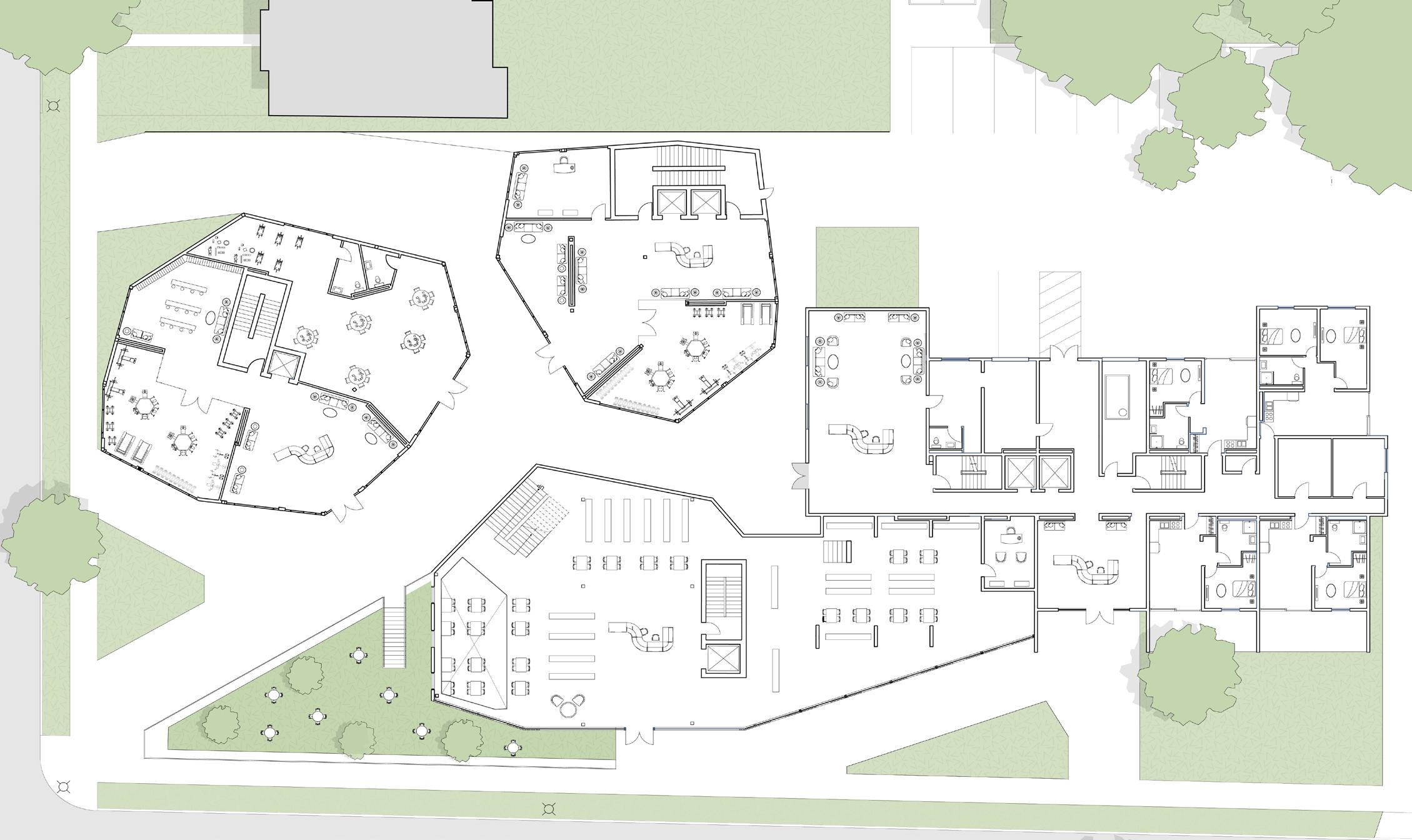

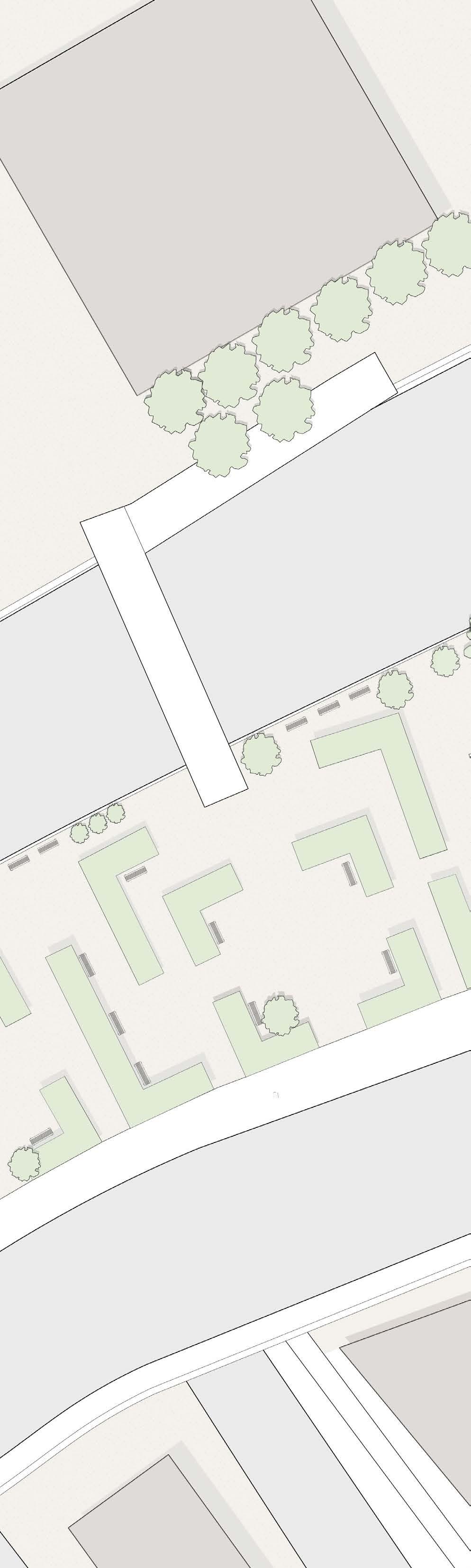

20 GROUND LEVEL

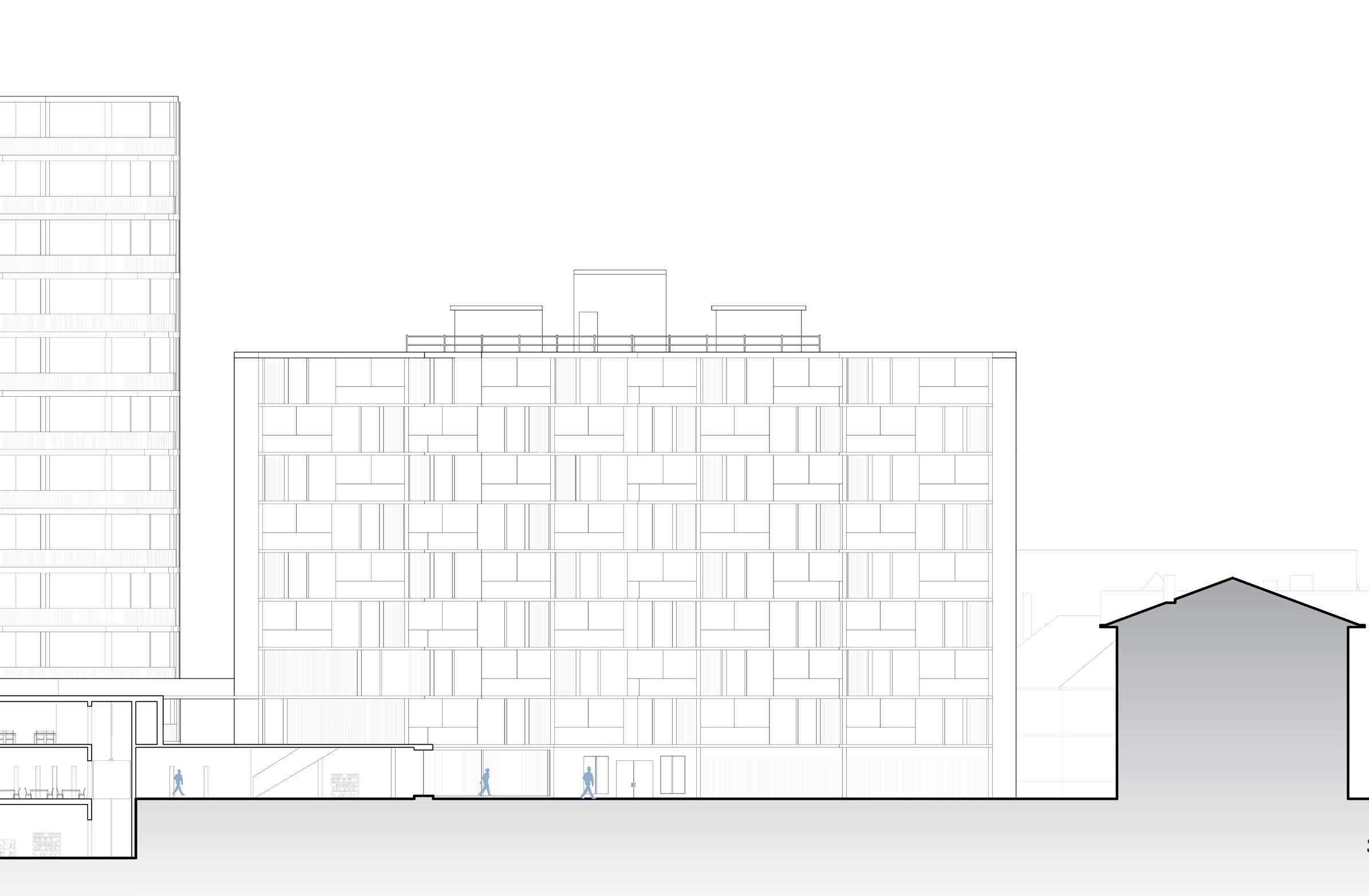

FLOOR SECTION C 21

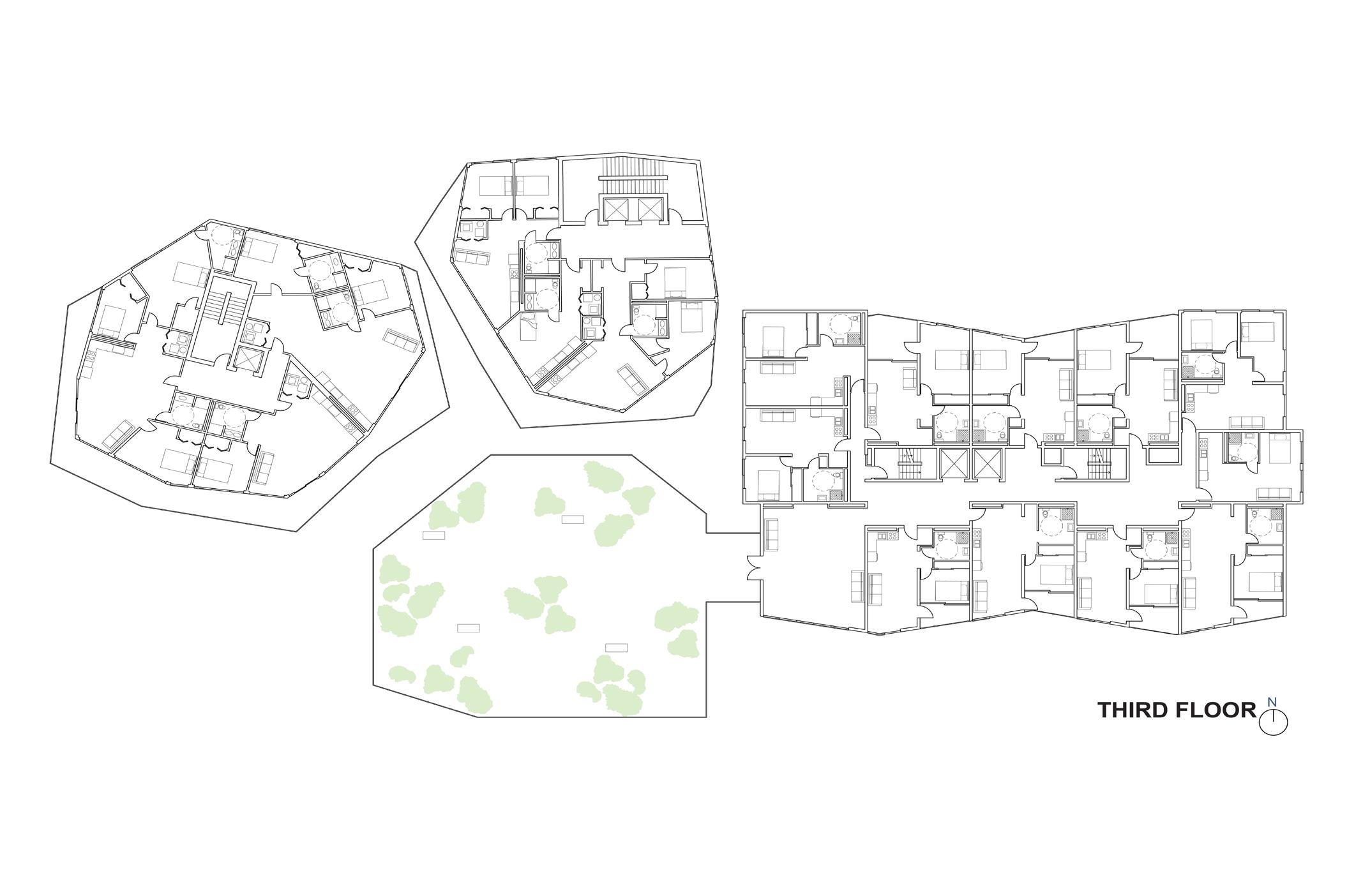

THIRD
22
23

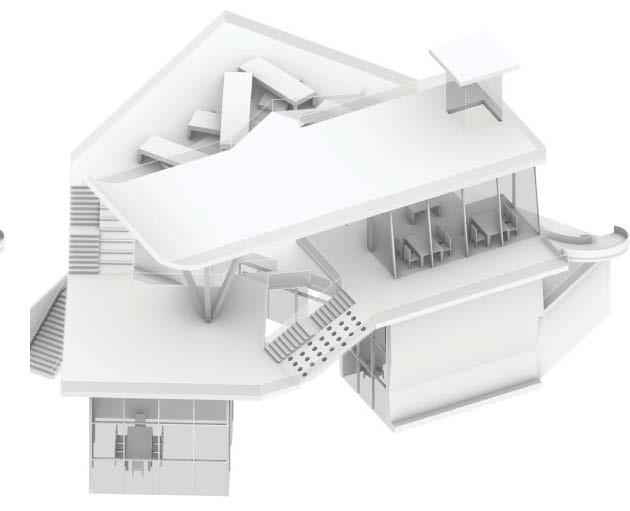

UNIFIED
ARC 302| SPRING 2022
INSTRUCTOR: ELAINE CHOW

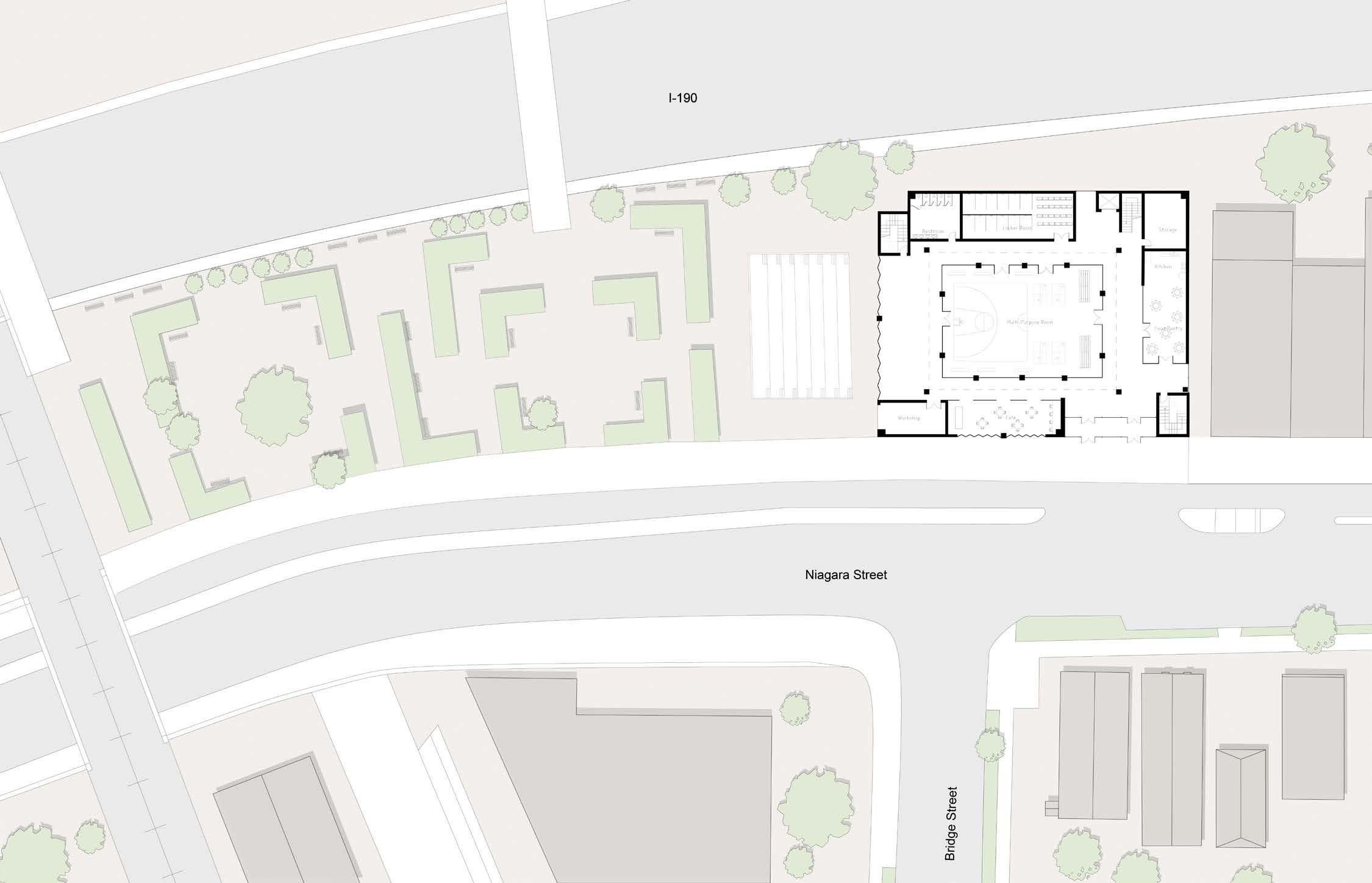

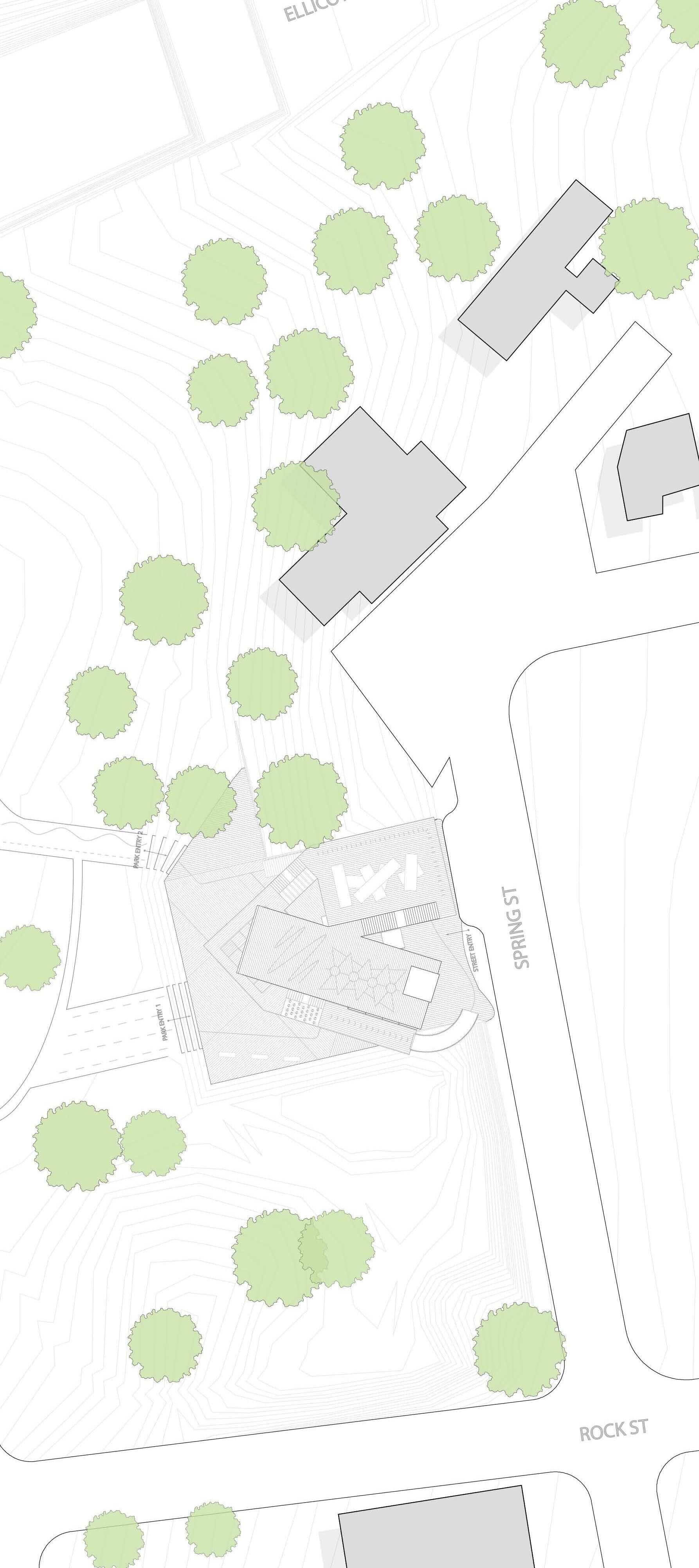

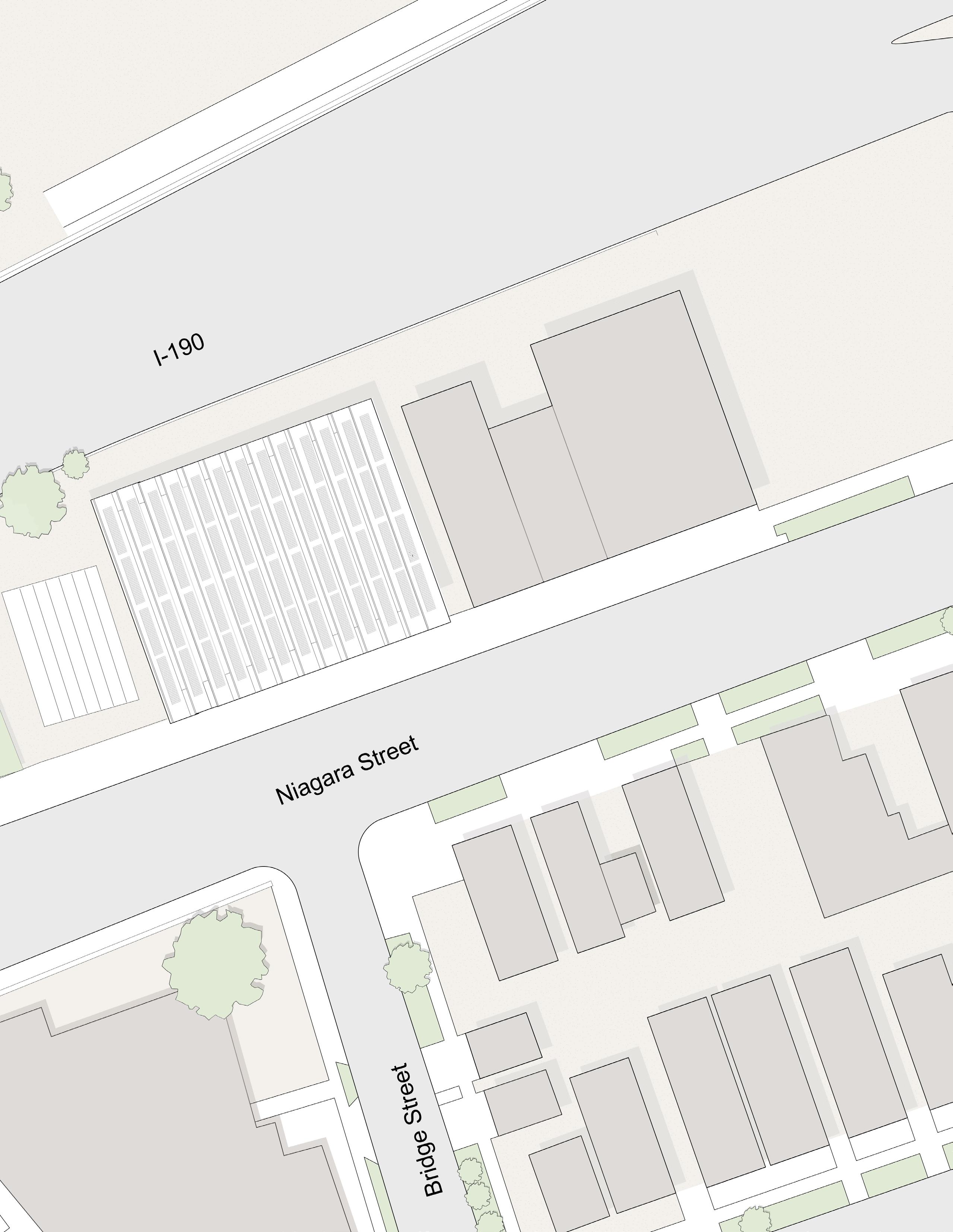

Black Rock is a community located in nothwestern Buffalo. The community is mainly residential and with that there are not enough services that support the community. To allow as much services needed for the community a community center was designed on a site to fulfil the needs of the residents.

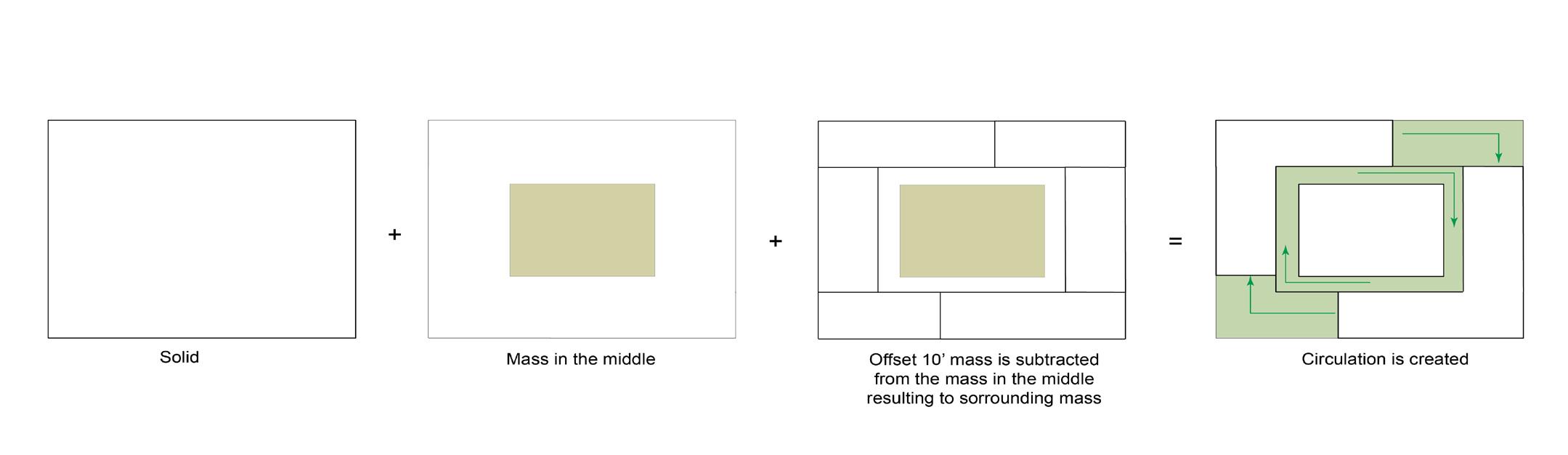

Unified is designed to create a a small community within a big community with the main idea being to allow the circulation and the spaces to complement each other. The programs to which surrounds the most important space in the centre, acts as the core of the building, from that creates circulation.
24
KEY
Lobby
Food Pantry
Cafe
Mechanical Room
Youth Center
Meeting room
Locker room
Storage
Child Daycare
Multi-Purpose Room
Admin Office
Exercise Room
Workshop
Storage
Janitor
Game Room
Employment Office
26

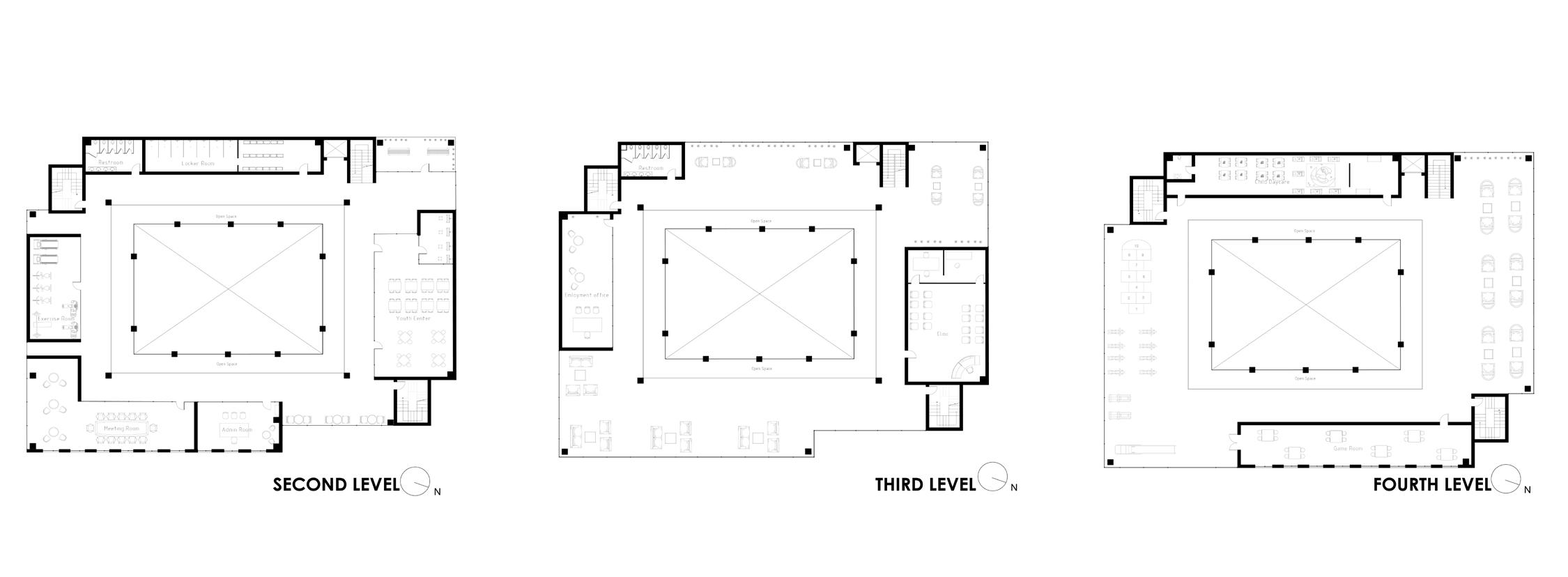

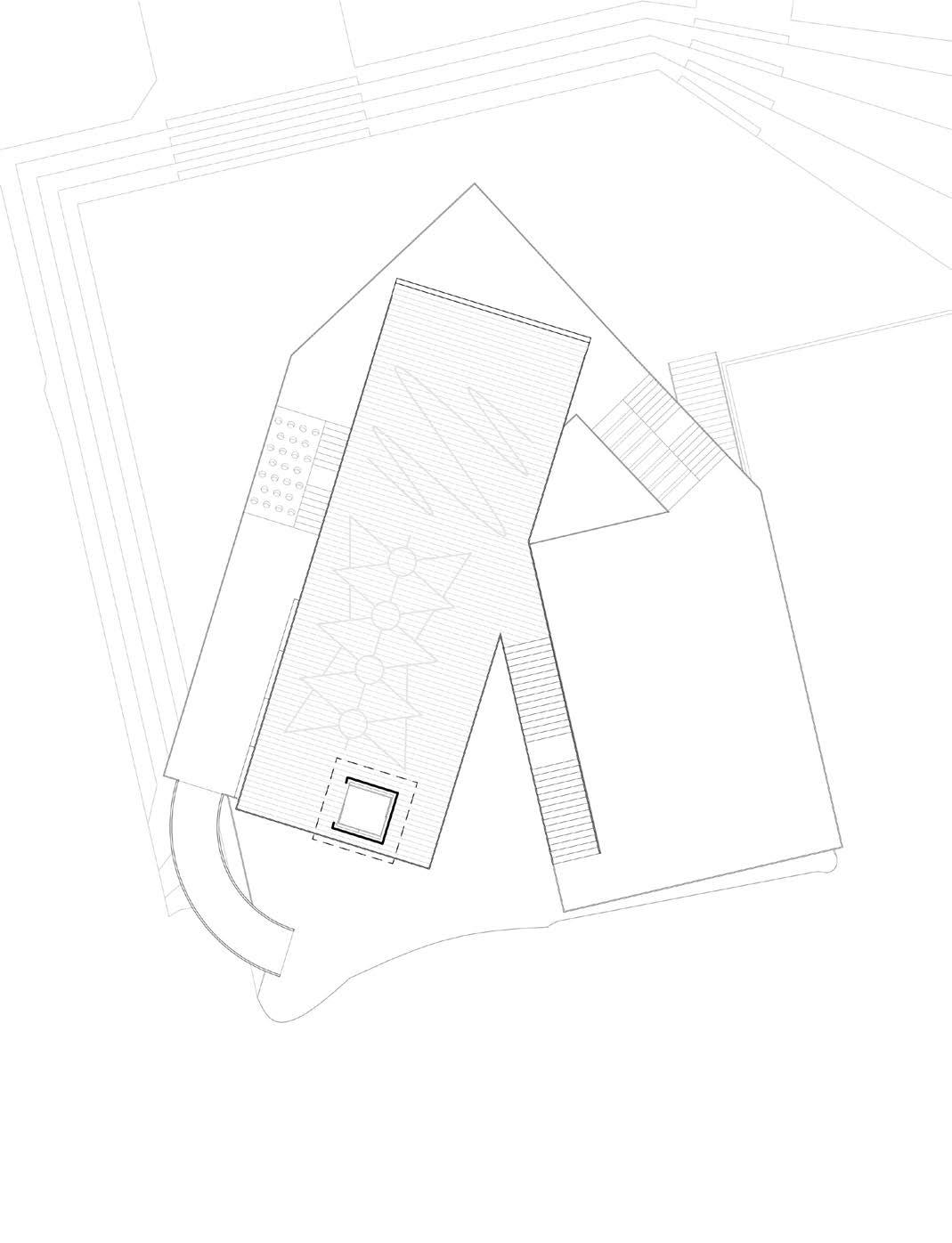

27 SECOND LEVEL THIRD LEVEL FOURTH LEVEL GROUND LEVEL

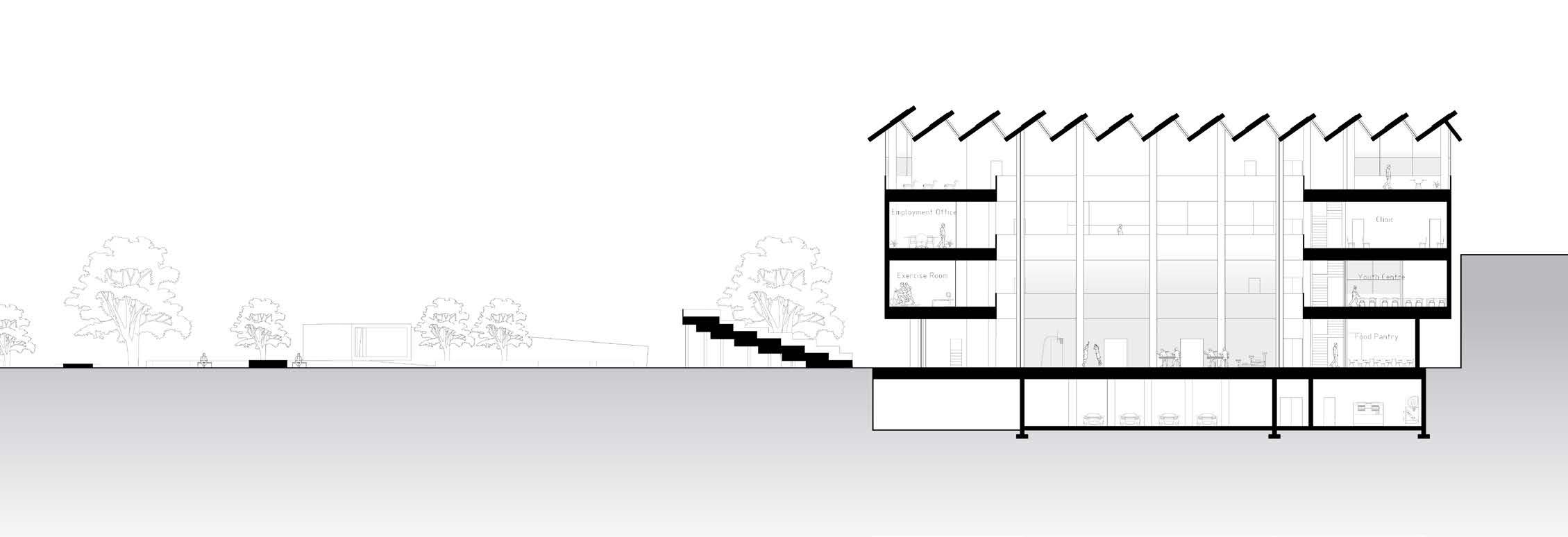

SECTION A SECTION B
29
SECTION C ELEVATION
SENSORY CHAMBER
ARC 301| FALL 2021
INSTRUCTOR: SETH AMMAN

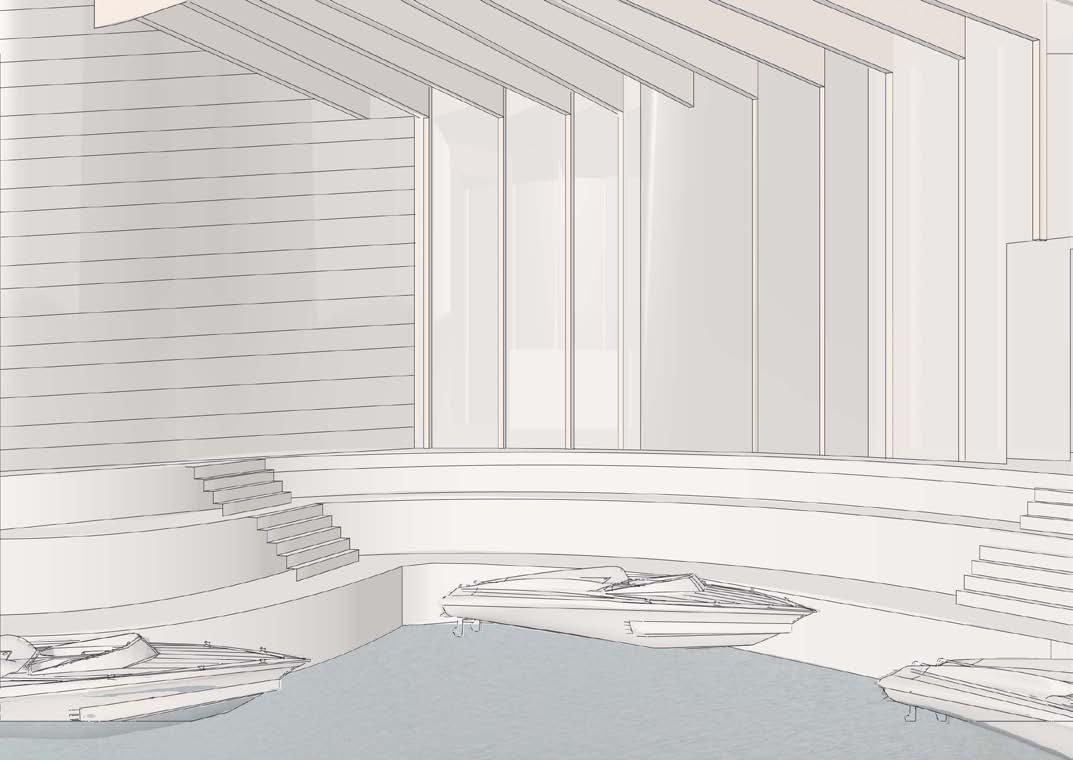

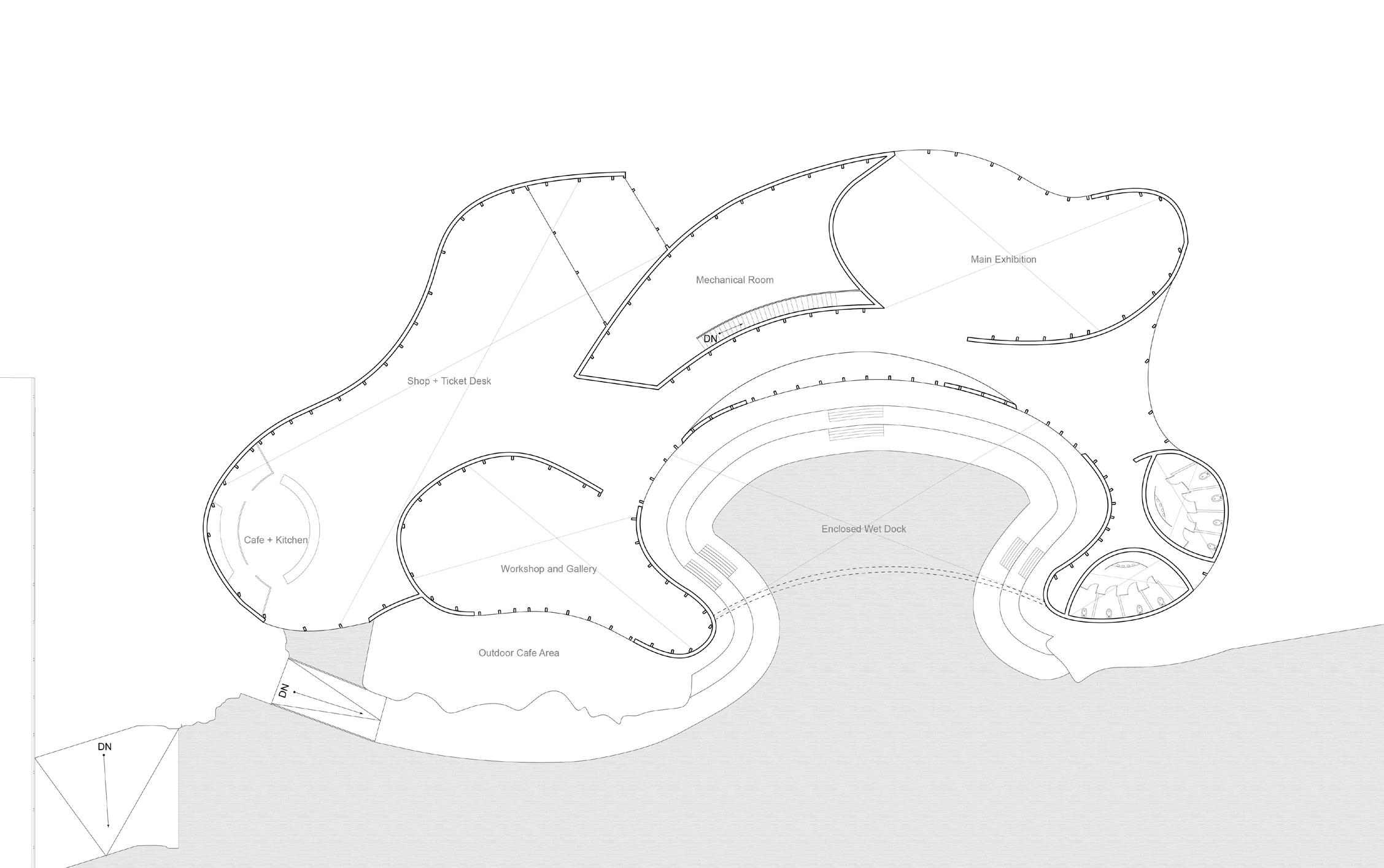

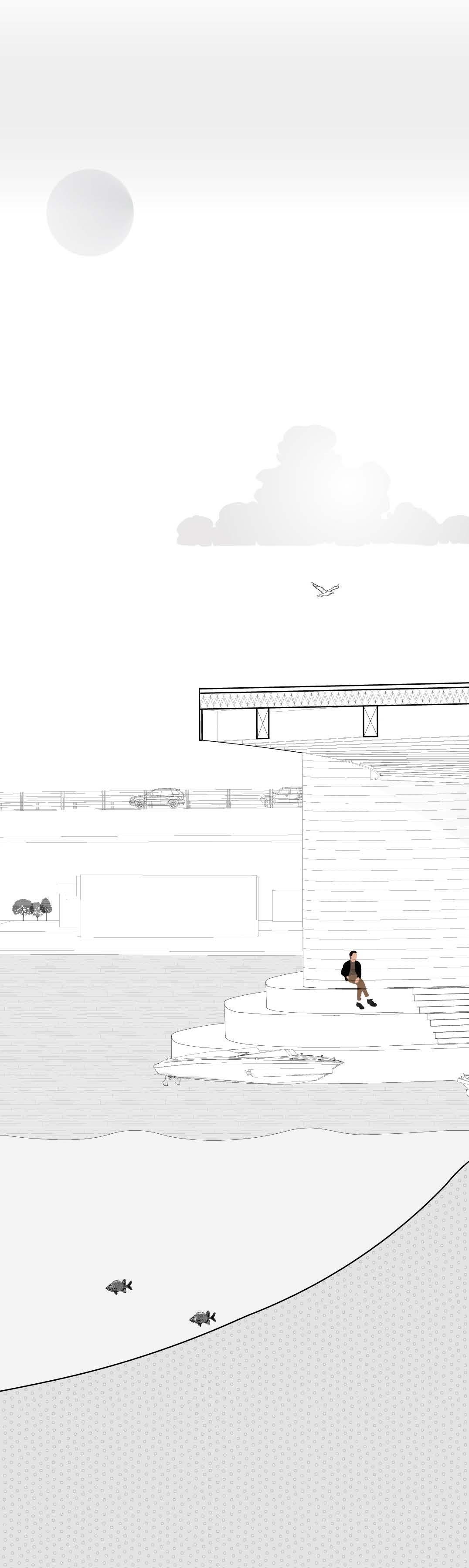

Sensory chamber is a boathouse/boat museum designed for 17 Sweeney Street, North Tonawanda, Buffalo. The building was designed based on the concept of using two senses, seeing and hearing of the water which encourages people to interact with the water-front.
The curvature of the building forms a circulation which allows people to flow through the spaces. The exposure of the structure which is similar to wood framing boat.
The buiding creates a community on the inside and also on the outside by providing spaces where residents of North Tonawanda can experience different views and enjoy one another’s company.
30
32

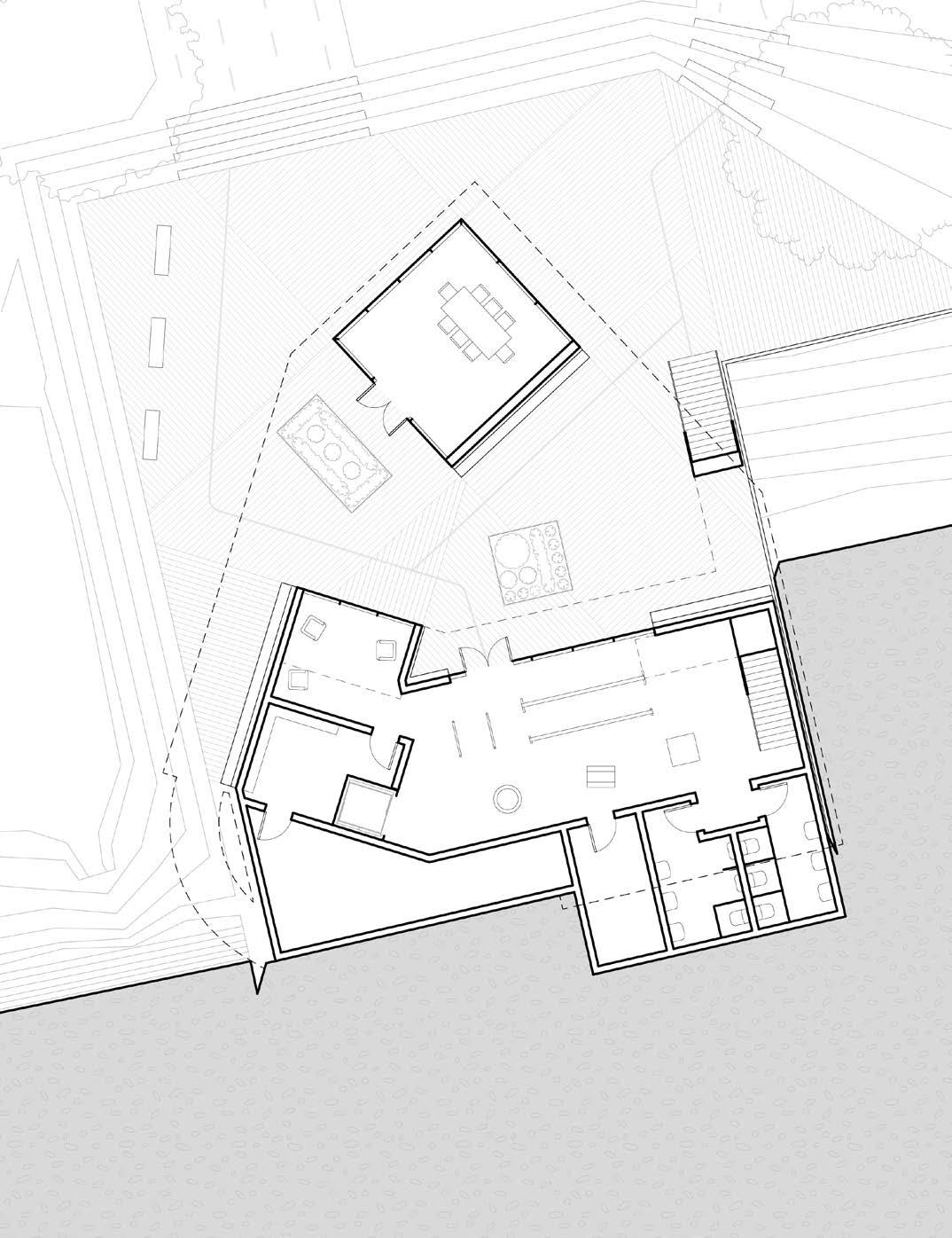

LEVEL
SECOND LEVEL

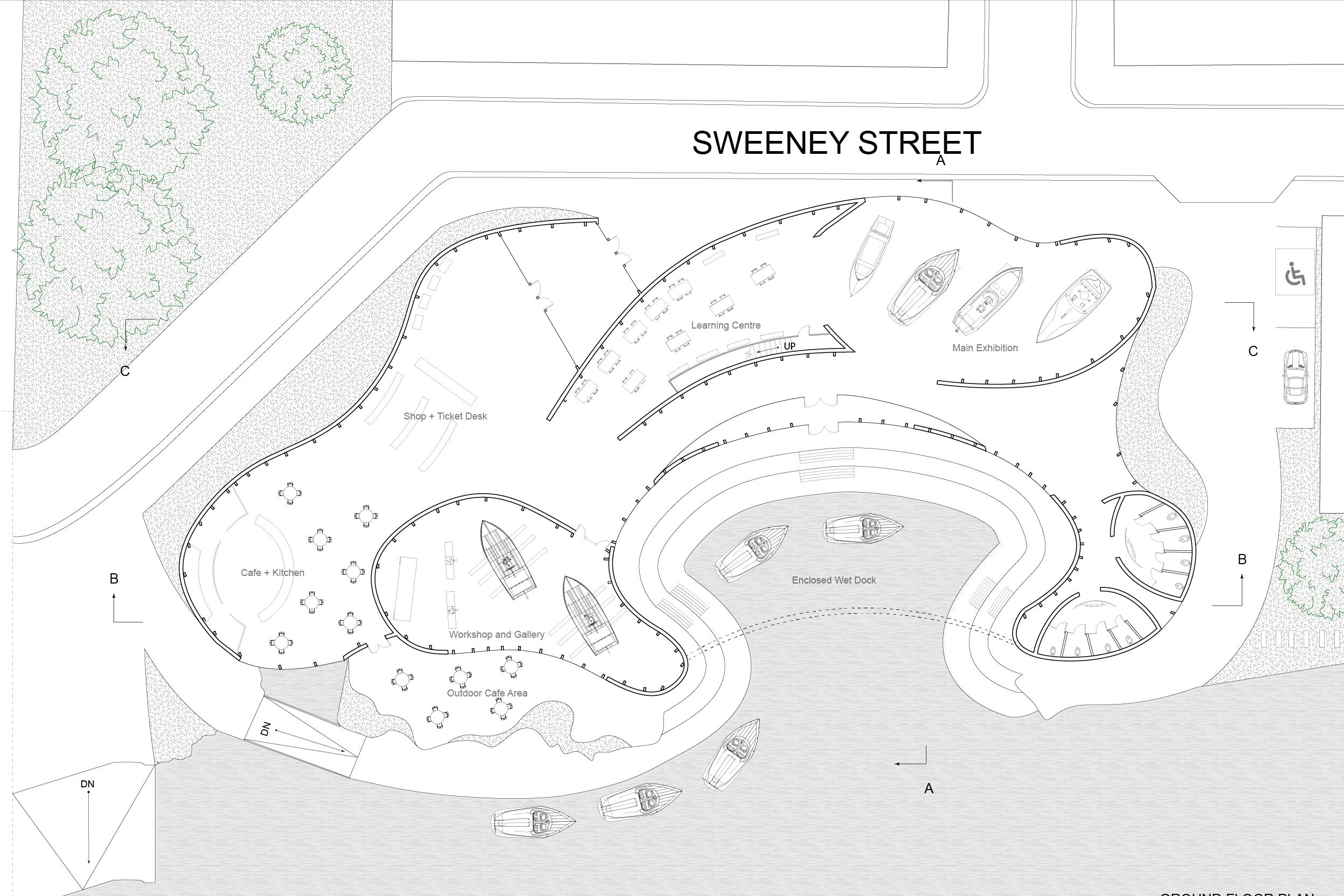

GROUND
Sweeney Street
33

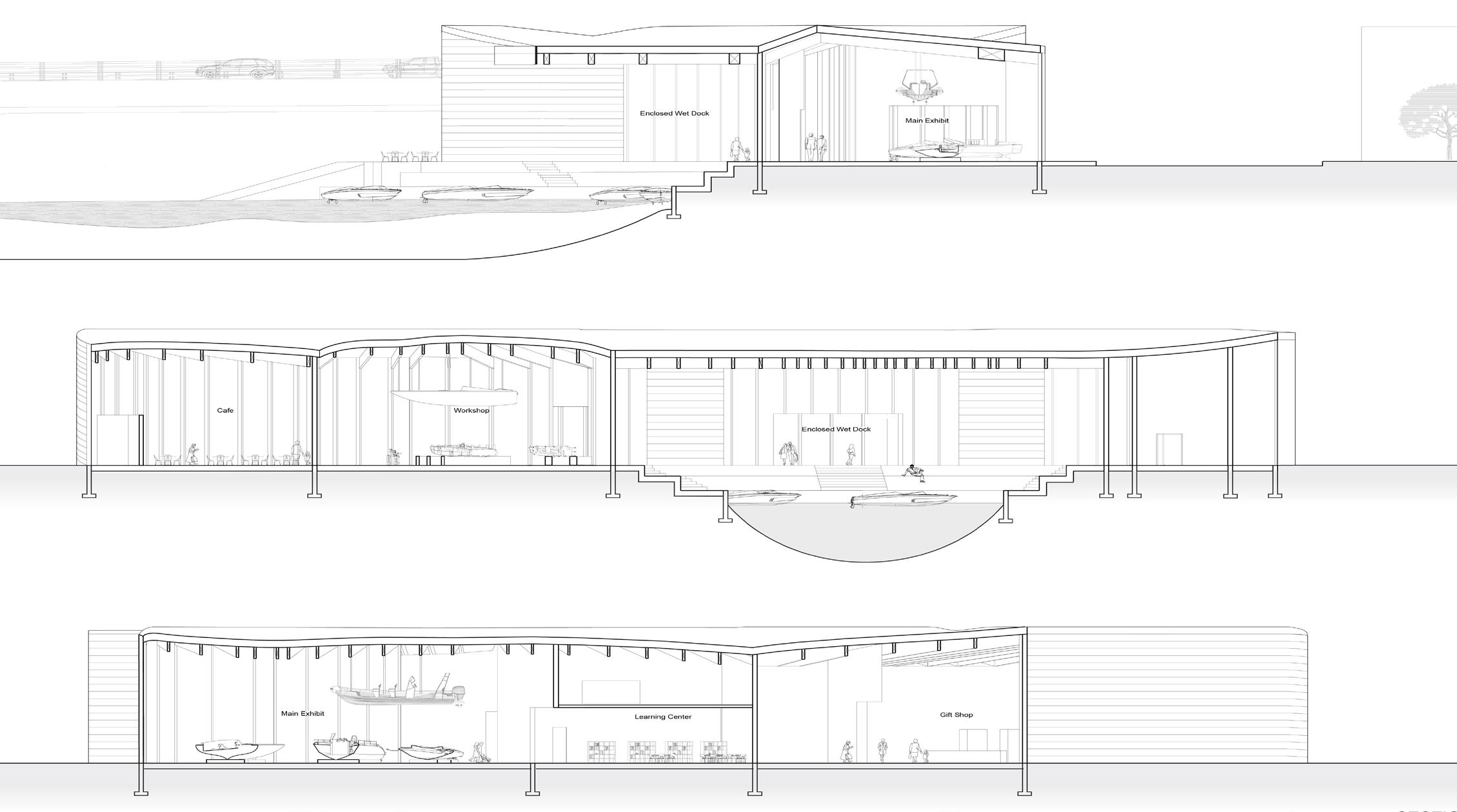

SECTION C
SECTION A

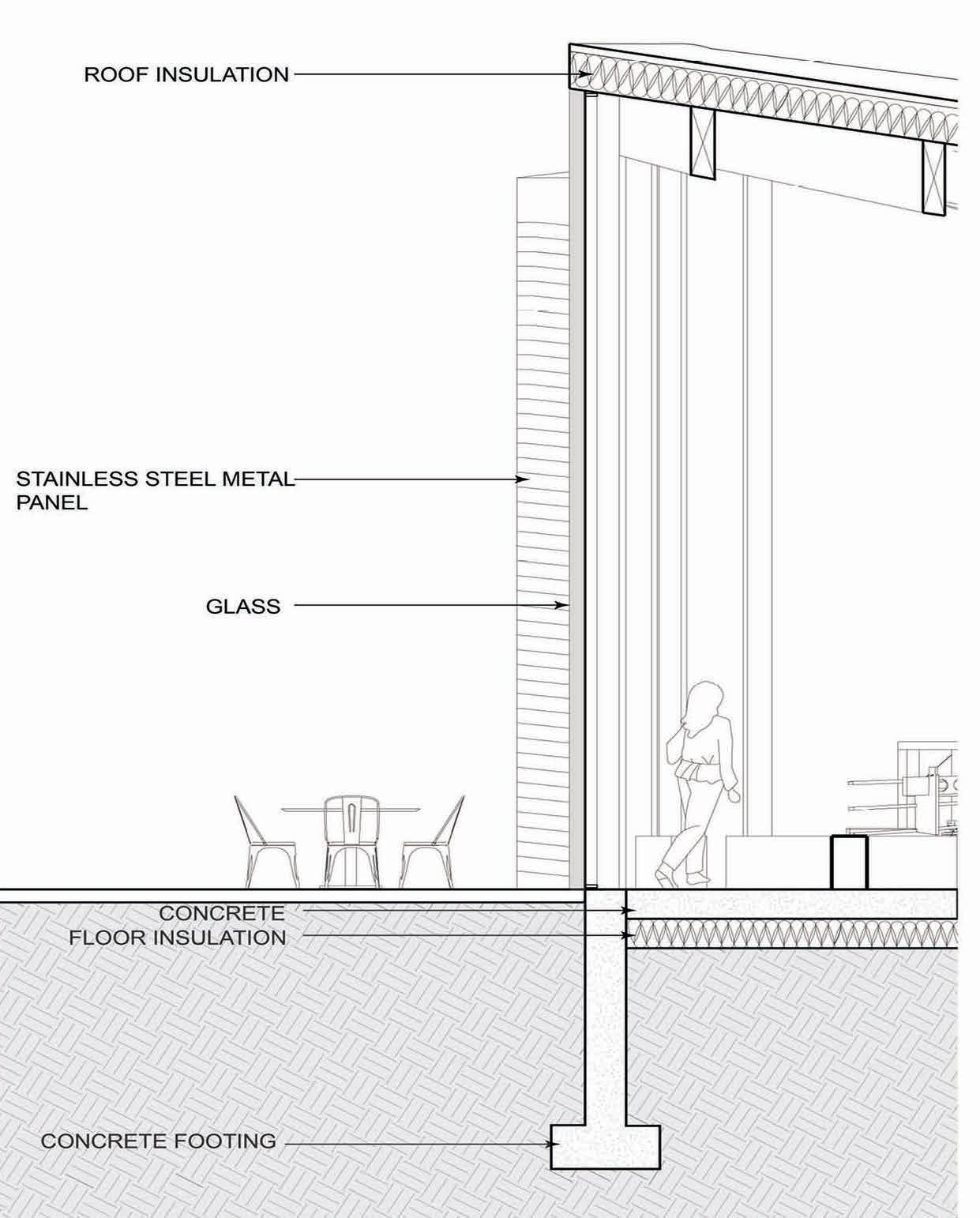

SECTION B WALL SECTION
OTHER WORK
CASE STUDIES
ARC 442| SPRING 2022
INSTRUCTOR: ANNETTE LECUYER
The drawings were done for Construction Technology as a way to identify and be knowledgeable about construction materials and systems. The drawings include the elevation, section and plan of the portion of the buildings which were the Croffead House by Clark and Manefee and the Pierce County Environmental Service Building by Miller Hull.
An extraction of the area that shows important elements within the section were drawn as axons for a closer look of what materials were used to construct the building.

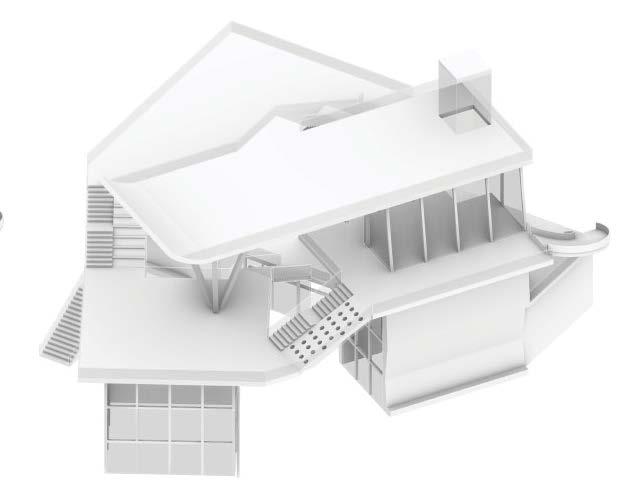

CROFFEAD HOUSE
Rohanna Bent
Architect : Clark and Manefee
Scale: 3/4” = 1’-0”
36
5’-0” A B C 1 2
1
OUTLINE SPECIFICATION NOTES
Foundation for perimeter wall
36 inch wide x 12 inch thick site cast concrete strip footing with 3-#5 reinforcement bars 24 inch o.c.
2 Ground Floor
4 inch compacted sand over compacted earth fill vapor barrier
4 inch thick site cast concrete slab on grade with wire mesh reinforcement
3 Window at ground level site cast concrete sill 1 course CMU bond beam lintel at outer wythe with 2 course CMU bond beam lintel at inner wythe, grouted solid with (4) #5 reinforcement bars steel frame doubled glazed window.
4
Wall at ground level
8 x 16 x 8 CMU inner wythe with (3) #5 reinforment bars at corner, (1) #5 reinforcement bar at openings, and (1) #5 reinforcement bar at 48 inches o.c., cells fully grouted. horizontal joint reinforcement at 16 inches on center vapor barrier
2 iches rigid insulation
2 inche cavity
8 x 8 x 4 CMU outer wythe
5 Second floor Floor
2 x 10 joist at 16 inches o.c.
3/4 inch plywood subflooring
3/4 inch finish wood flooring at 1 x 6 tongue and groove
Ceiling
2 x 4 joists at 16 inches o.c.
3/4 inch gypsum board
6
Roof
2 x 8 rafters at 16 inches o.c.
3/4 inch plywood sheathing
built-up roof membrane
Ceiling
2 x 4 joists at 16 inches o.c. with 4 inches batt insulation between vapor barrier
3/4 inch gypsum board
A. Foundation -to- Wall Axon B. Floor -to- Wall Axon C. Wall -to- Roof Axon3 4 5 6
COUNTY
38 A B C
MILLER HULL ARCHITECTS
PIERCE
6 1 2 3 4 5 7
Rohanna Bent
Architect : Miller Hull
OUTLINE SPECIFICATION NOTES
1 Foundation
18 inch wide x 10 inch deep site cast concrete strip footing with 2-#5 rebar reinforcement continuous
2 Ground Level
4 inch crushed gravel
Vapor Barrier
2 inch sand
R-10 rigid insulation at perimeter
4 inch concrete slab on grade
Raised floor system
3 Upper Floor
36 inch wide cast-in-place concrete beam
8 inch precast Hollow Core Concrete Planks
2 1/2 inch Topping Slab
Raised Floor System
Suspended Ceiling System
4 Roof
36 inch wide cast-in-place concrete beam
Sloping 8 inch precast hollow core concrete planks
2.5 inches cast concrete slab
R-30 rigid insulation
Single ply vented roof membrane
5
Exterior Wall (ALL LEVELS)
6 inch metal studs at 16 inches on center with R-19 batt insulation
5/8 inch gypsum sheathing
Building wrap
½ inch cement panel
Interior:
Vapor Barrier
5/8 inch gypsum wall board
6 Windows at Upper and Lower Levels
Aluminum Storefront System with Casement Window
7 Pre-Engineered Aluminum Sunscreen Sysytem
Aluminum cantilevered brackets, top edge cut to slope with 6 inch flange, bolted to cast-in-place concrete fascia
24 inch wide by 2 inch deep aluminum grills
39

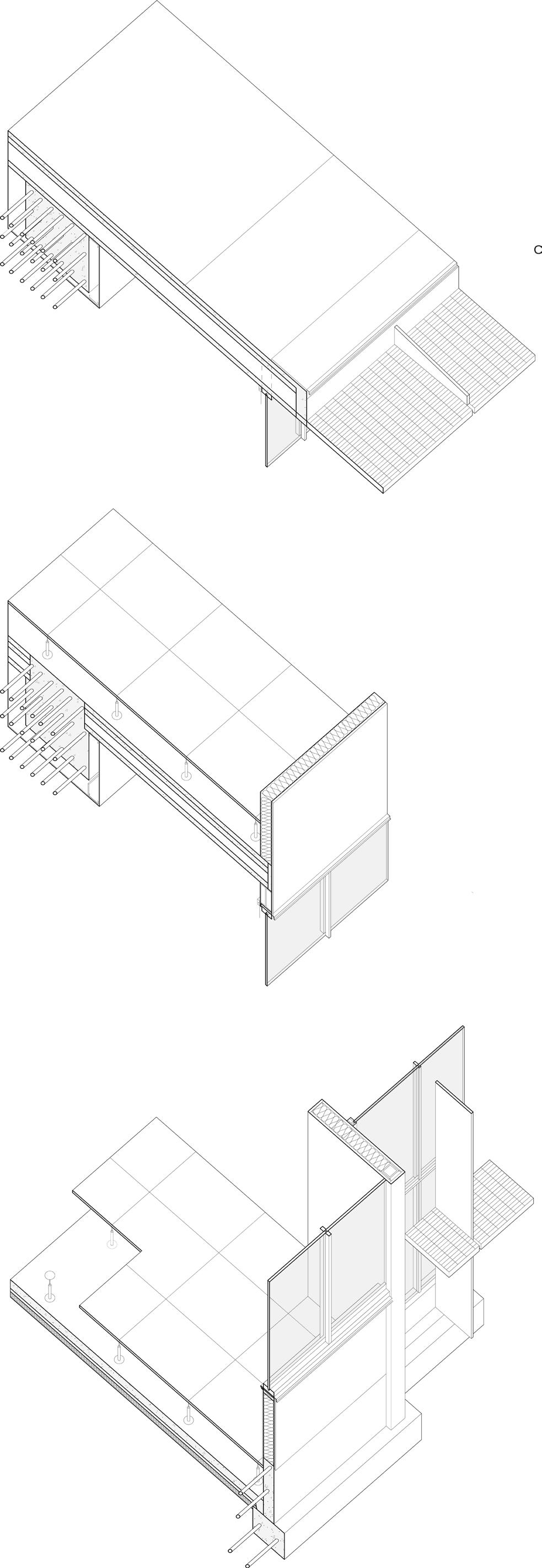

C. Wall -to- Roof Axon
B. Floor -to- Wall Axon
A. Foundation -to- Wall Axon
DRAWING MATTERS
ARC 404| SPRING 2023
INSTRUCTOR: BRIAN CARTER
This class was focused on the art of drawing. The bicycle was is a design of the famous Penny Farthing. The name Penny Farthing came from England because the small wheel was similar in size to an English penny.
The size of the large wheel is 56 inches in diameter and the smaller wheel is 18 inches in diameter in full scale.
40
42
43
DETAILED DRAWING
44
