PROFESSIONAL WORK

Year: 2021

Location: Ica, Peru

Type: Professional - Collaborative with NFA - Arquitectura

Author: Landscape Design - Renzo Saux

MURGA HOUSE RESIDENTIAL LANDSCAPE DESIGN

The Murga house is a housing project within a condominium called Hacienda Murga, which is in the Pisco Valley in the department of Ica, Peru. The immediate context is an agricultural scenario with more than 100 years of operation, where the traditional crops were vines, cotton, citrus and asparagus. The project is surrounded by nature, as it is located between the Pisco River and the Villacurí desert. Its proximity to the sea and its dry climate mean that the house can be used throughout the year.

The architectural proposal designed by the office (architect Nicole Futterknecht) meets the client's requirements and the construction parameters of the Hacienda Murga. The landscaping approach complements the architecture of the house, since it creates natural limits, focuses views towards the desert, softens the transitions of the exterior spaces and aligns with the regulations of the condominium itself. The vegetative species used are native to the Pisco Valley, which guarantees harmony and visual synchrony between the landscape and the intervention on the lot.

05

06

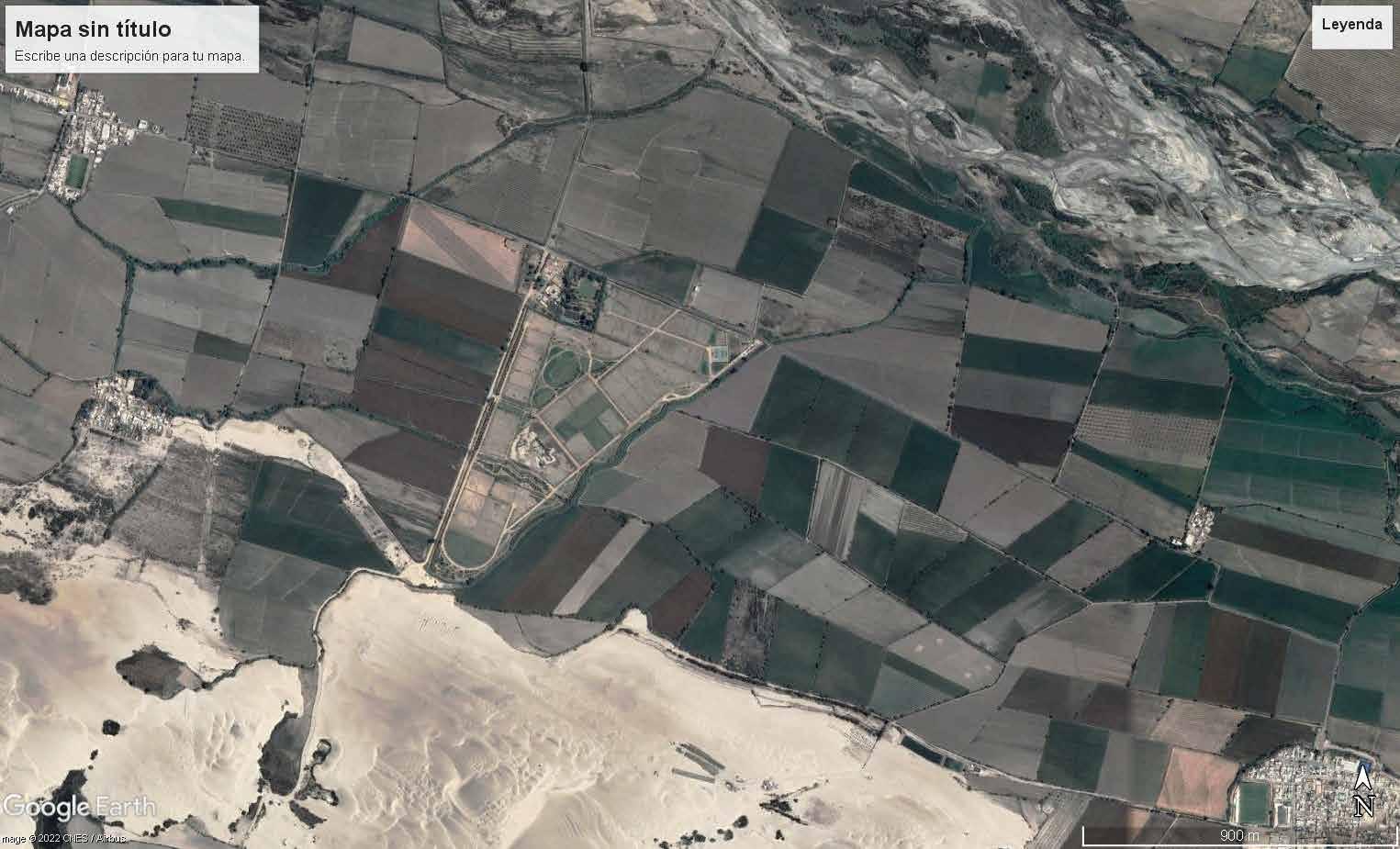

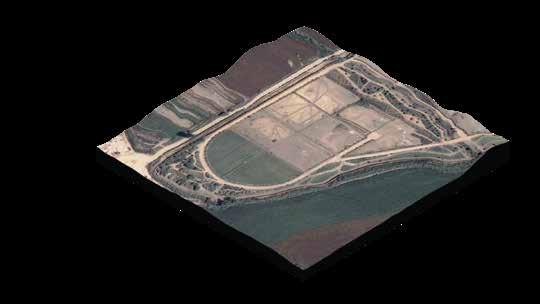

LOCATION MAP

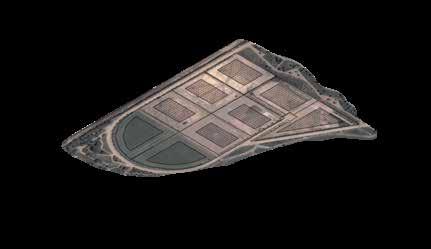

PARAMETERS & REGULATIONS

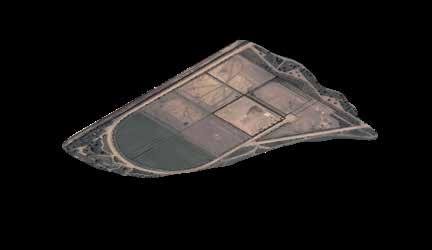

PISCO VALLEY, ICA - PERÚ 13° 44’ 08” S

75° 59’ 17” N

3

Lot 51 - Murga House Total area (100%): 4503 m² Area Occupied (15%): 675.43 m²

2

Vegetation & Living Fence Trees up to 3 m tall Living fence up to 1.6 m tall

1

Perimeter Withdrawal 10 m from the front 15 m from the sides 15 m from the back Total area: 300 m²

MURGA ESTATE 300 masl

Lot 51 East Sunrise West Sunset Wind Direction 264° West

0m

07

500 m

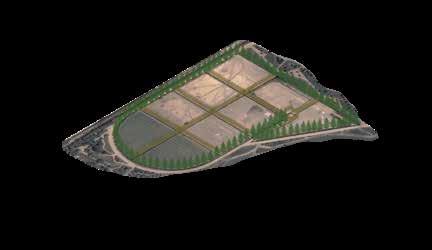

PLANTATION SPECIES PROPOSAL

3

Living Fence

GENERAL NOTES All species are arranged by the regulations of the urbanization.

A fruit tree area was requested by the clients.

The living fence must be a maximun of 1.60 m of height.

Blue Agave

Agave Tequilana Height: 1.2 m Qty: 14 u

1

A. V. Barbadensis Miller Height: 0.8 m Qty: 39 u

Caribbean Agave

Green Phormium

Golden Ichu

Purple Fountain Grass Chinese Fountain Grass

Agave Angustifolia Height: 1.2 m Qty: 09 u

Phormiun Tenax Height: 1.6 m Qty: 92 u

Pampas Grass

Cortaderia Seollana Height: 1.6 m Qty: 92 u

Fruit tree area

Apple Tree

Malus Domestica Height: 3 m Qty: 05 u

2

Aloe Vera

Peach Tree

Prunus Persica Height: 3 - 4 m Qty: 06 u

Orange Tree

Citrus Height: 3 - 4 m Qty: 06 u

Sauco Tree

Sambucus Height: 3 - 4 m Qty: 09 u

Stipa Ichu Height: 0.4 - 1.2 m Qty: 175 u

Pennisetum Setacium Height: 0.4 - 1.2 m Qty: 65 u

Pennisetum Height: 0.4 - 1.2 m Qty: 56 u

Perimetral Boundary

Mountain Molle

Mioporo Tree

Coastal Molle

Blue Palo Verde

Schinus Areira Height: 3 m Qty: 17 u

Schinus Molle Height: 3 m Qty: 09 u

Myoporum Laetum Height: 2 - 2.5 m Qty: 17 u

Parkinsonia Florida Height: 4 - 4.5 m Qty: 05 u

08

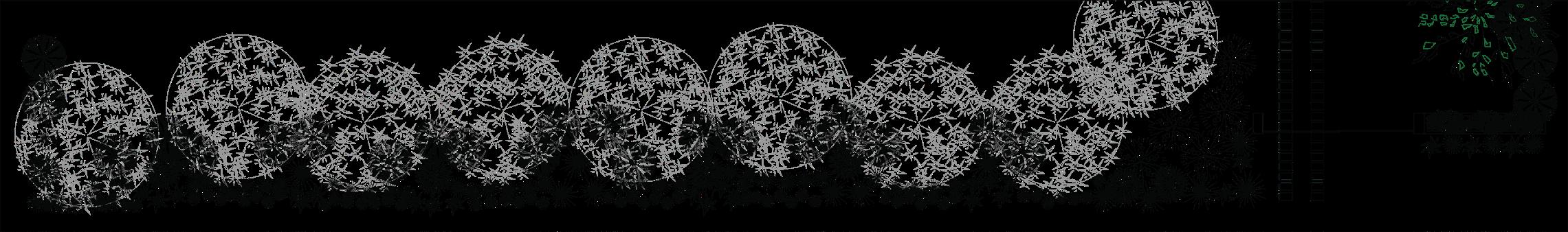

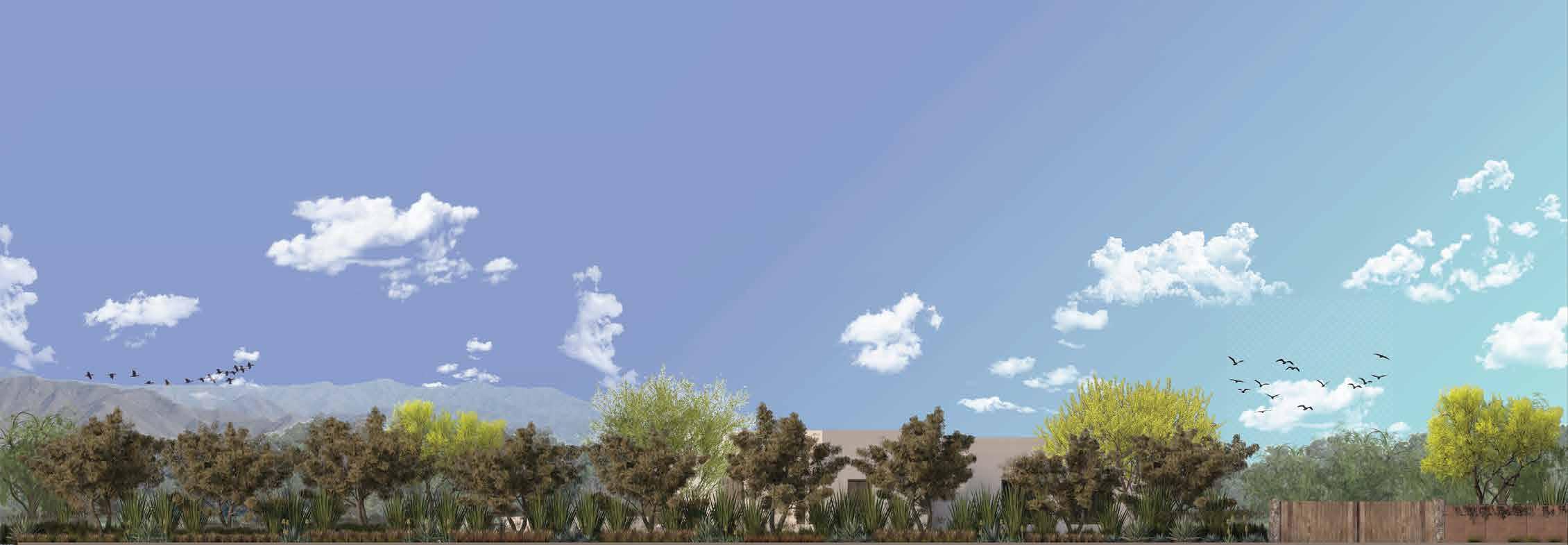

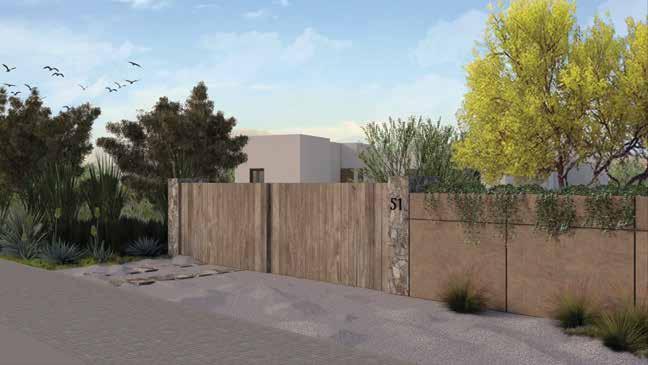

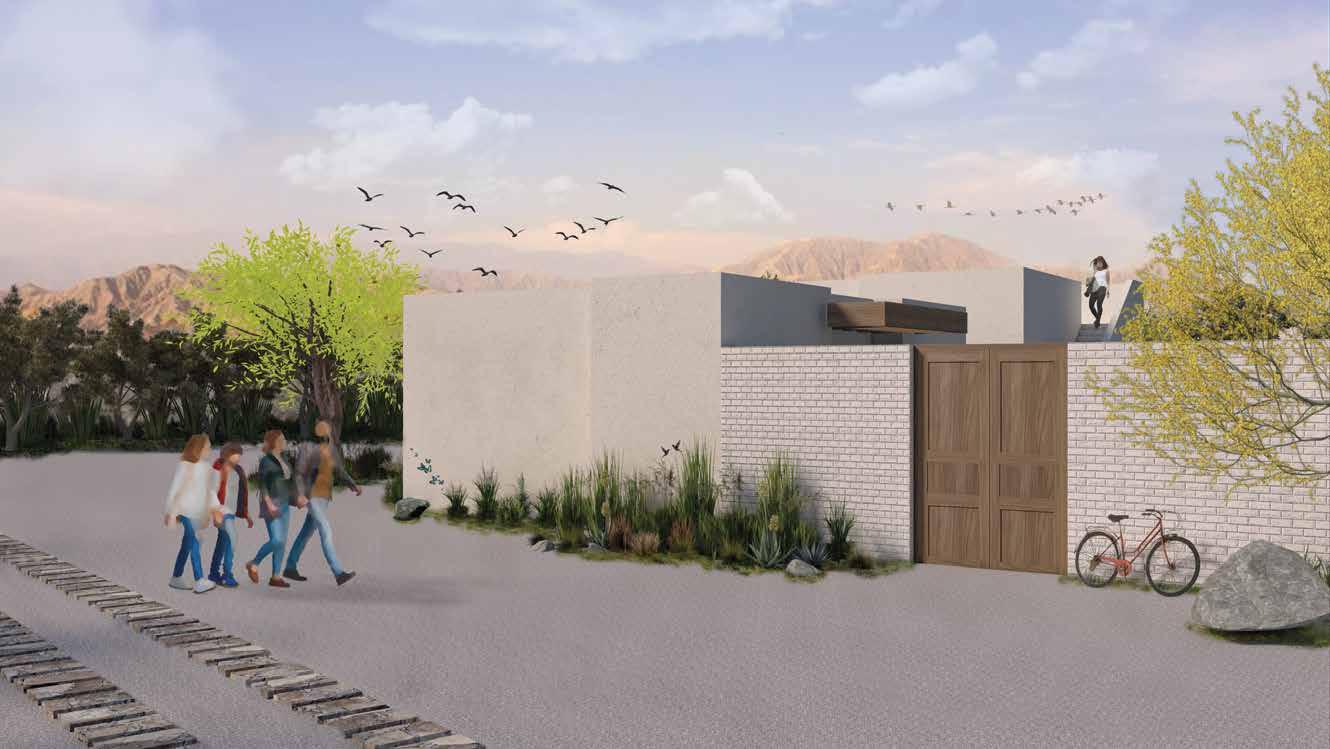

MAIN FACADE LIVING FENCE

Purple Fountain Grass Green Phormiun Aloe Vera

Chinese Fountain Grass

Caribbean Agave Blue Agave

09

Blue Palo Verde

Golden Ichu Mountain Molle

Cortaderia

51

10

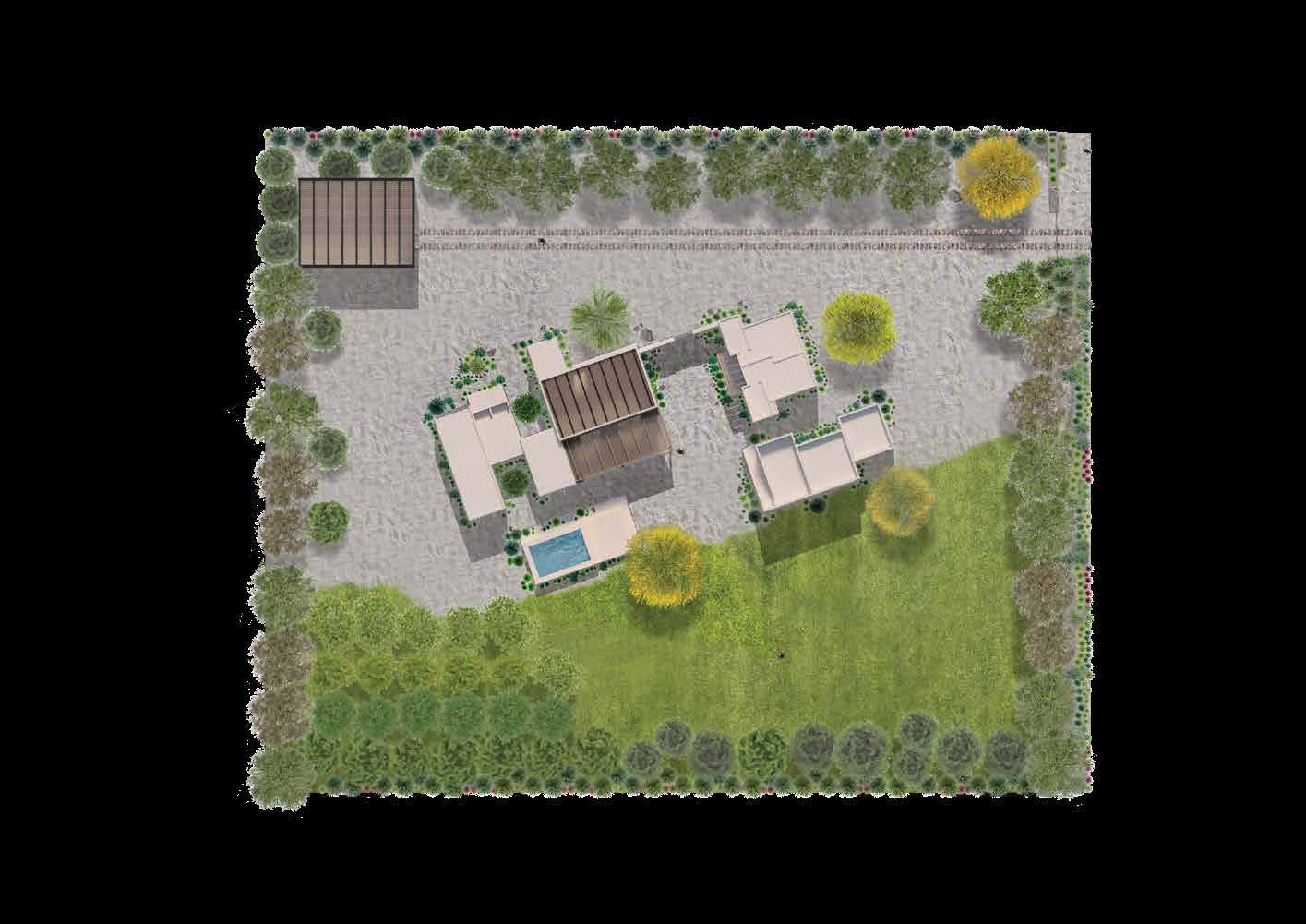

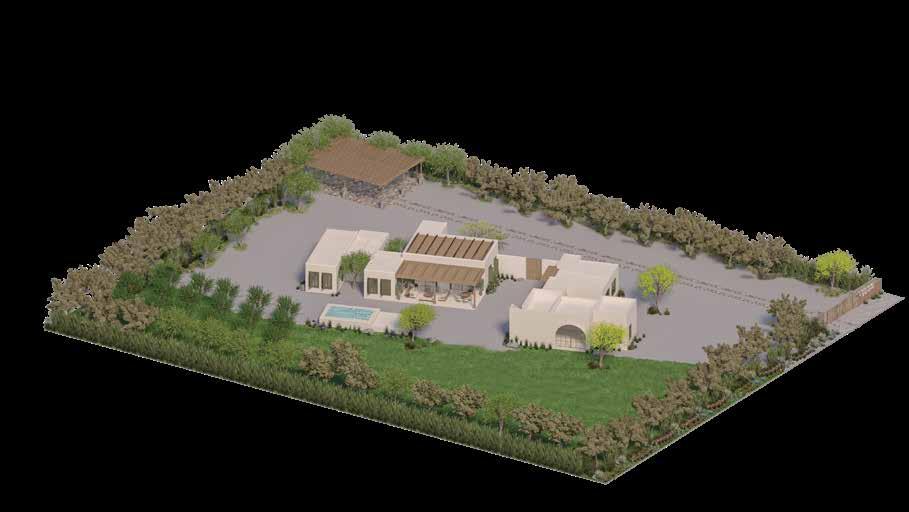

LANDSCAPE PLOT PLAN 1 2 3 4

Main entrance Service entrance Pool Guest area

1

2

4

3

11

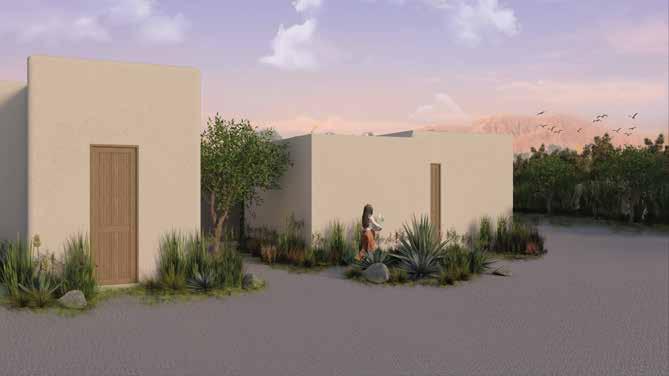

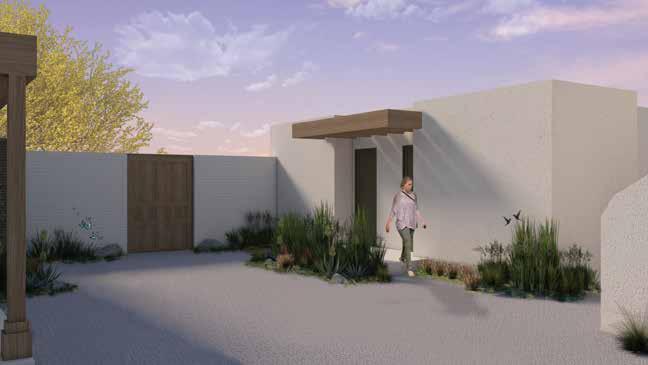

Main entrance

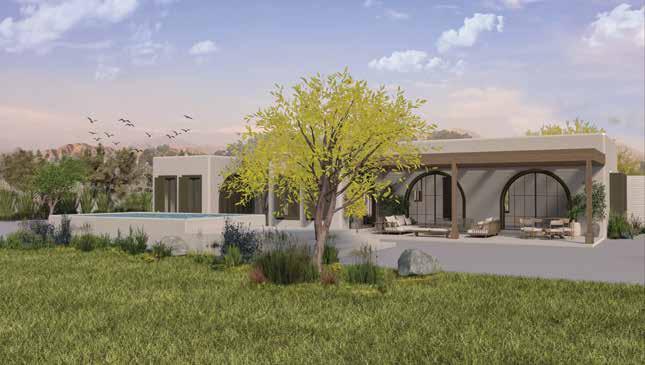

Pool

Service entrance

Guest area 12

ACADEMIC

ADVANCED PROJECTS

Year: 2017

Location: Lima, Peru

Type: Academic

Instructor: Pablo Díaz

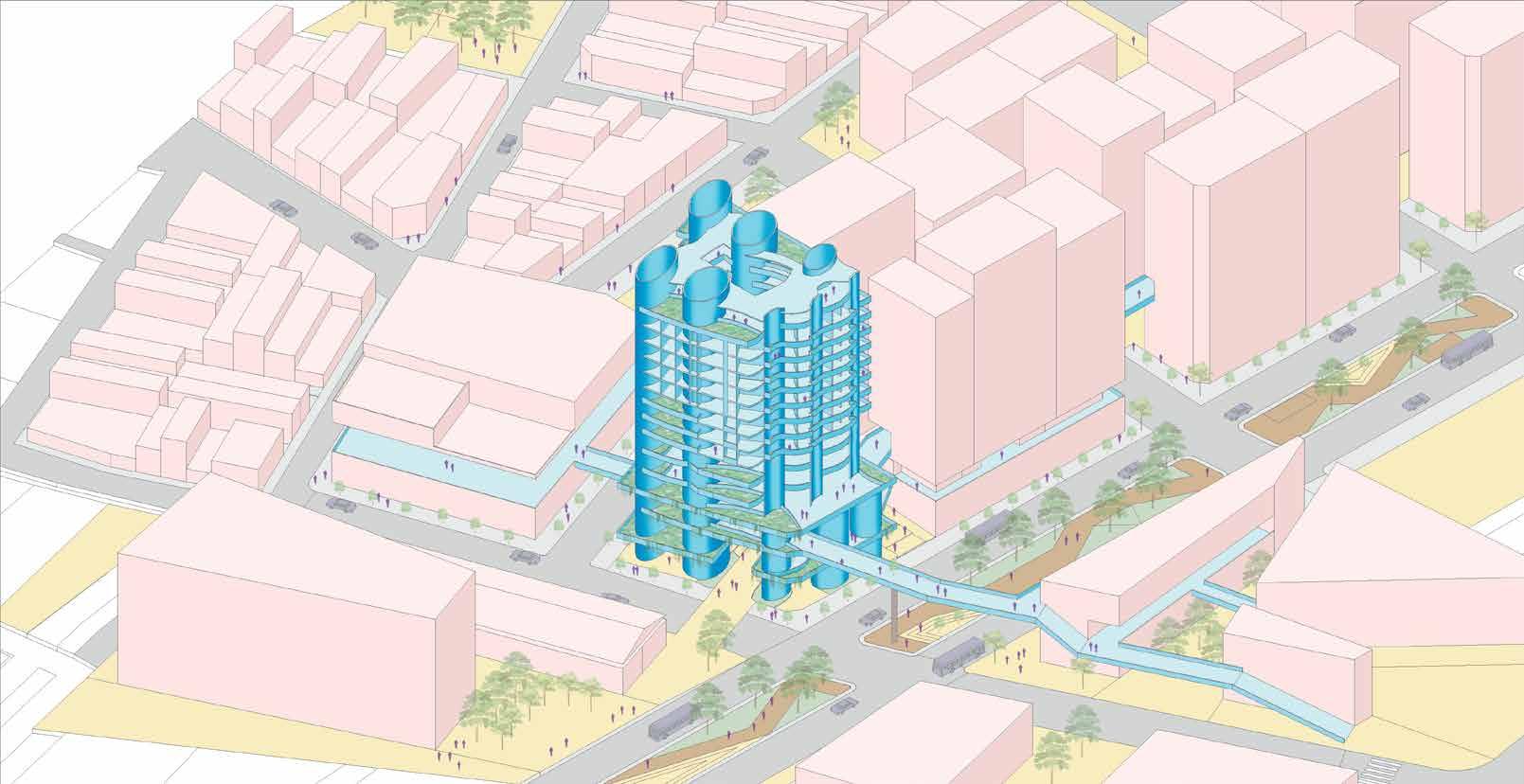

HYBRID VORTEX

URBAN INTERVENTION IN AMAUTA VALLEY Rimac, in its multi-strata condition, is a complex and cultural district in Lima. His characters and ways of inhabiting create different dynamics on various surfaces, reflecting urban spontaneity.

The conception of the project is based on this premise, understanding the multi-layer nature as a combination of fluxes which reach the territory itself as urban commands that encode the surfaces.

It is, then, the surfaces which function as a platform to settle the functional packages in the form of filters, enclosures and textures, which expose the essence of the spatial concepts of each programmatic space, and which respond to the way of inhabiting of the urban modifiers.

Likewise, the project is understood under the concept of urban vorticity. The rotation of fluxes around an axis: a spatial axis that can take the variables of mass, void or vertical circulation, generate different vortices in the project that respond to the spatial coding of the program. These vortices are the spatial experience whose eye is defined by the character of its axis and its edges by the encoded filters.

15

URBAN SITE ANALYSIS Solar Path & Wind Direction

East Sunrise West Sunset Wind Direction 10m over the ground

Vehicular Circulation

Main road Secondary road Residential road

17

Land Use

Hybrid Commercial-Residential High Density Residential Green Areas Other Uses Hybrid Commercial-Financial Cultural Public Market

Pedestrian Circulation

High transit sidewalk Aerial sidewalk Bikeway

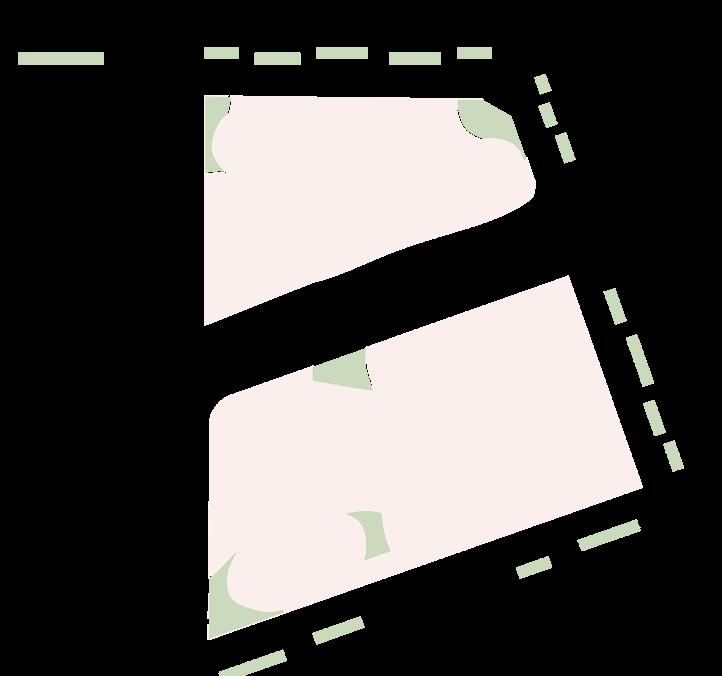

Edges

Hard Edge - no permeability Soft Edge - condicioned permeability Project perimeter

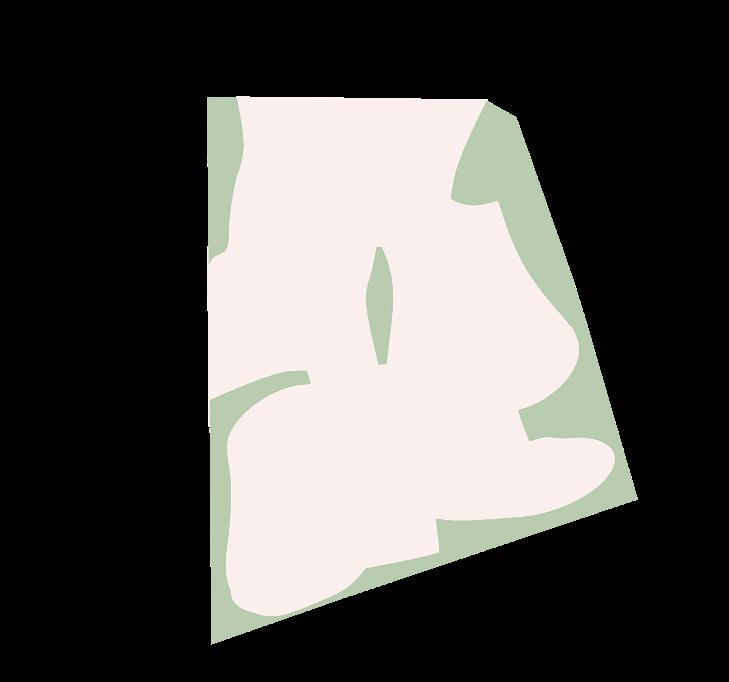

Paths

Pedestrian flux Project ground program

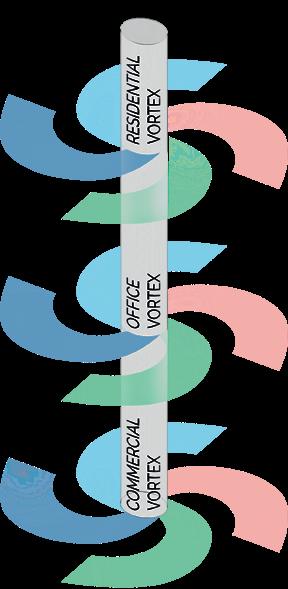

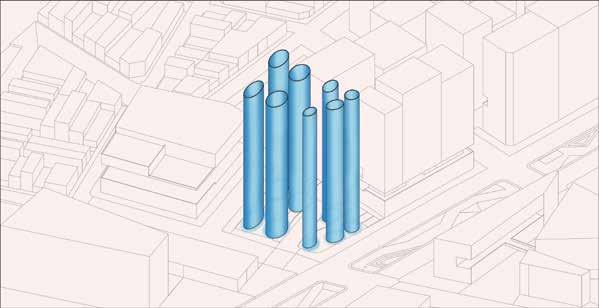

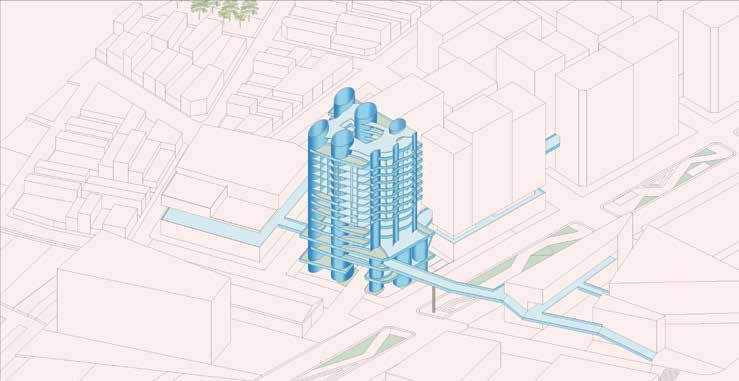

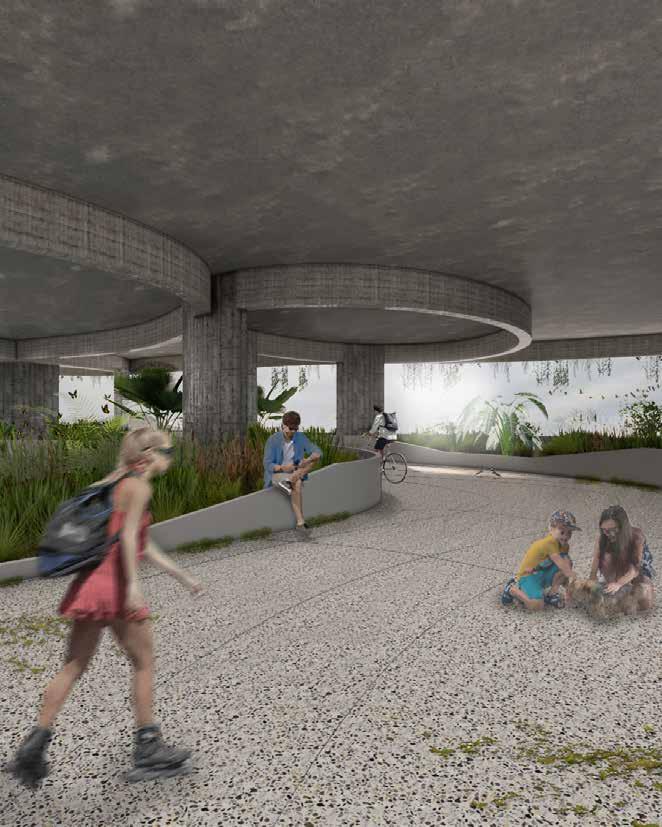

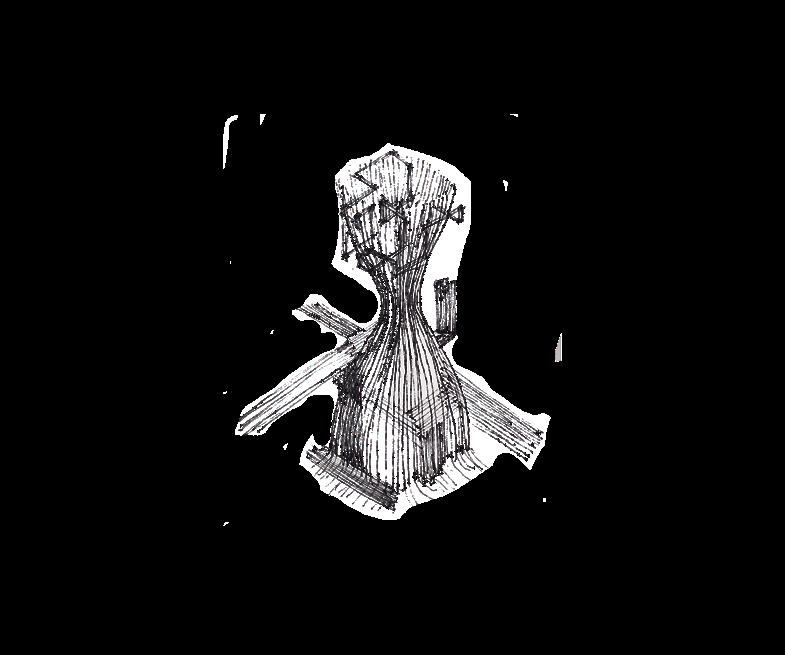

PROJECT CONCEPT VORTEX AS SPACE The variable packages for the spatial design are configured by concepts such as permeability, opacity, tension, floor textures and publicity. For each functional stratum, different percentages are worked for the conception of the characteristics of the space. The urban modifiers, that is, the characters, are located throughout the building, since none are exclusive to each stratum. The vortices created are formed by the needs of each strategy, being flexible to any change in fthe flux intensity.

The specific strategies of the project have the spatial eye as a vertical circulation space, structure, store or home.

They are different nuclei of each programmatic stratum.

The edges - filter behave as transparent enclosures, terraces, gardens as a change in texture or as balconies in the case of housing.

<TENSION> simple

<PUBLICITY> multiple

<PERMEABILITY> insulation

private

public

<SURFACES> permeability

transit

stayingness

18

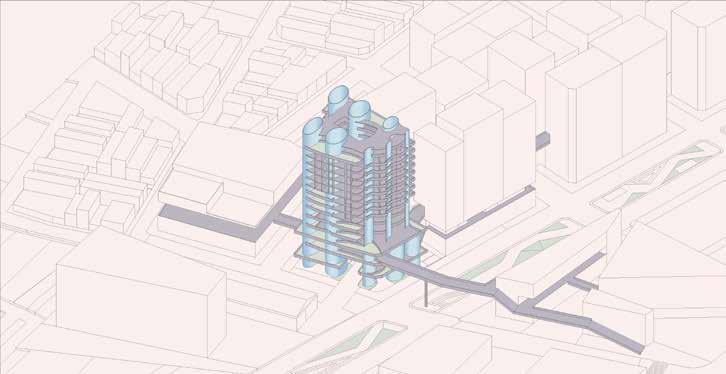

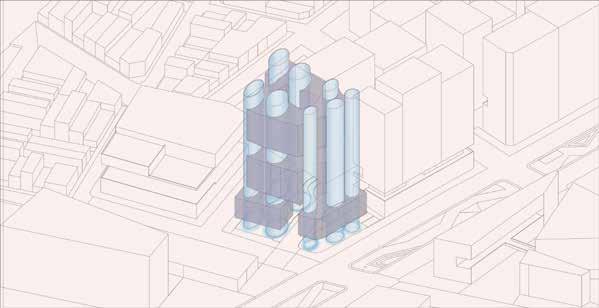

PROJECT STRATEGIES

1 5

2 3

6 7

19

8

4

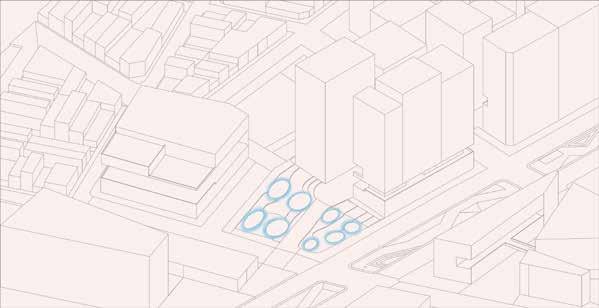

Flux vortices

Vertical vortices

Project programme

Porosity within programmes

Project subdivisions

Green areas & Connections

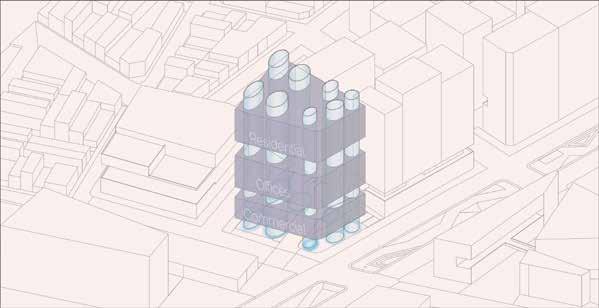

PROGRAM DISTRIBUTION

Vertical Vortex #07

Vertical Vortex #06

Vertical Vortex #05

FFL +59.00 FFL +55.50 FFL +52.00 FFL +48.50 FFL +45.00

RESIDENTIAL FLOORS

FFL +41.50 FFL +38.00 FFL +34.50 FFL +31.00

FFL +26.50

FFL +22.00

OFFICE FLOORS

FFL +17.50

FFL +13.00

FFL +7.00

FFL +0.00

COMMERCIAL FLOORS

PROGRAM FLOOR PLANS npt -1.00

npt -1.00

COMMERCIAL FLOOR PLAN

npt -0.80

npt -0.20 Shop Store 01

npt +17.50

npt -0.20

Shop Store 02

npt -0.60

Area

Shop Store 03 npt -0.40

npt -0.40

npt -0.20 8

7

6

5

4

3

2

1

npt -0.20

NPT -0.20

32.97

Shop Store 02

37.68

Shop Store 03

38.75

Shop Store 04

75.36

Shop Store 05

19.67

Restrooms

npt +0.00

npt +0.20 Shop Store 04 npt +0.40

m2

Shop Store 01

8

7

6

5

4

3

2

1

npt +17.50

60.45

Circulation Area

232.835

Vertical Core

138.371

Total

636.086

npt +0.00 8

7

6

5

4

3

2

1

npt +0.60 8

Shop Store 05

7

6

5

4

3

2

npt +17.50

npt +0.80

npt +0.60 npt +0.20

npt +0.80

NPT +0.80

1

2

3

4

5

6

7

npt +0.40 npt +0.80

npt +0.60

Restrooms

Restrooms npt +1.00

npt +0.80

npt +1.00

21

npt +17.50

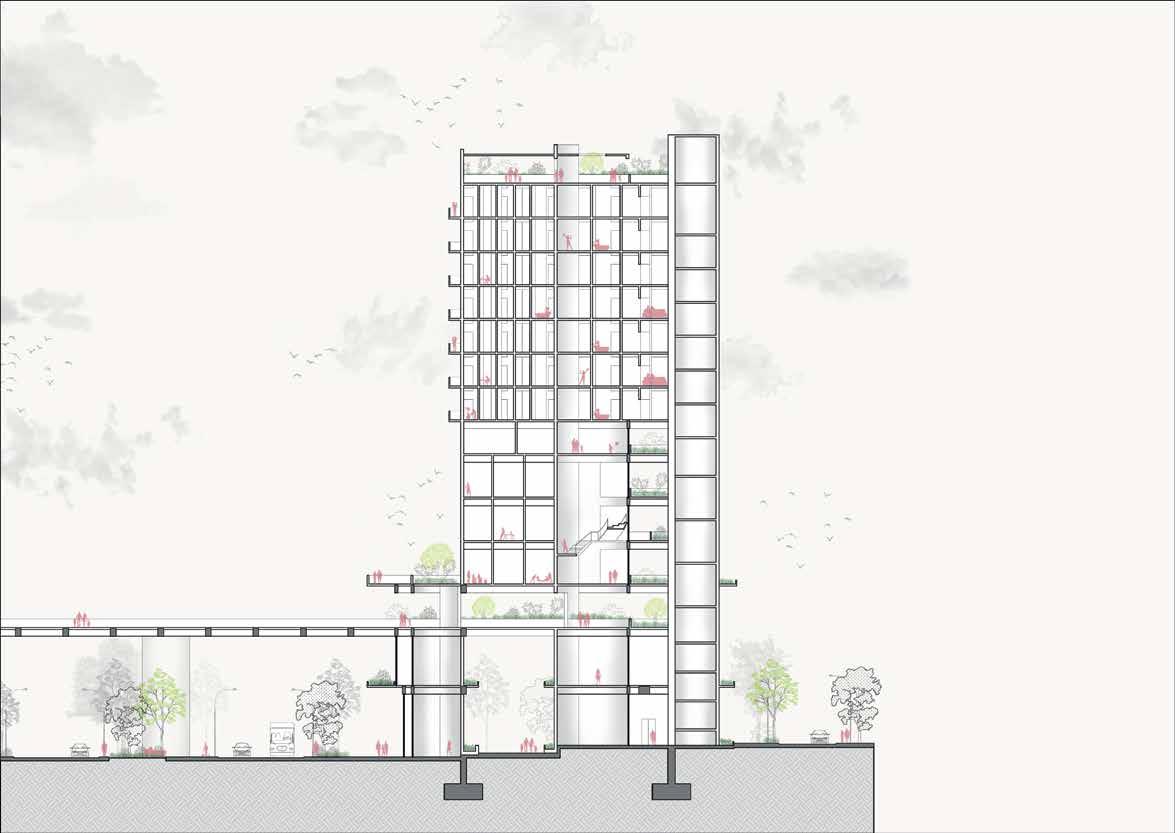

OFFICES FLOOR PLAN

HOUSING FLOOR PLAN

4th - 6th floor

7th - 14th floor

1

1 2

6

WA

3 4

5

2

Area 6 5 4 3 2 1

npt +17.50

Workshop Area

8

7

6

5

4

3

1

2

3

4

5

6

315.37

Flat 01

175.51

Duplex 01

165.4

Flat 02

42.15

Flat 03

63.65

2

npt +41.50

npt +41.50

npt +17.50

m2

Workshop Area

7

NPT + 41.50

npt +41.50

1

2

3

4

5

6

7

Duplex 02

124

Flat 04

388

Flat 05

110.561

Flat 06

38.74

Circulation Area

40.12

Vertical Core

85.52

Total

1159.711

22

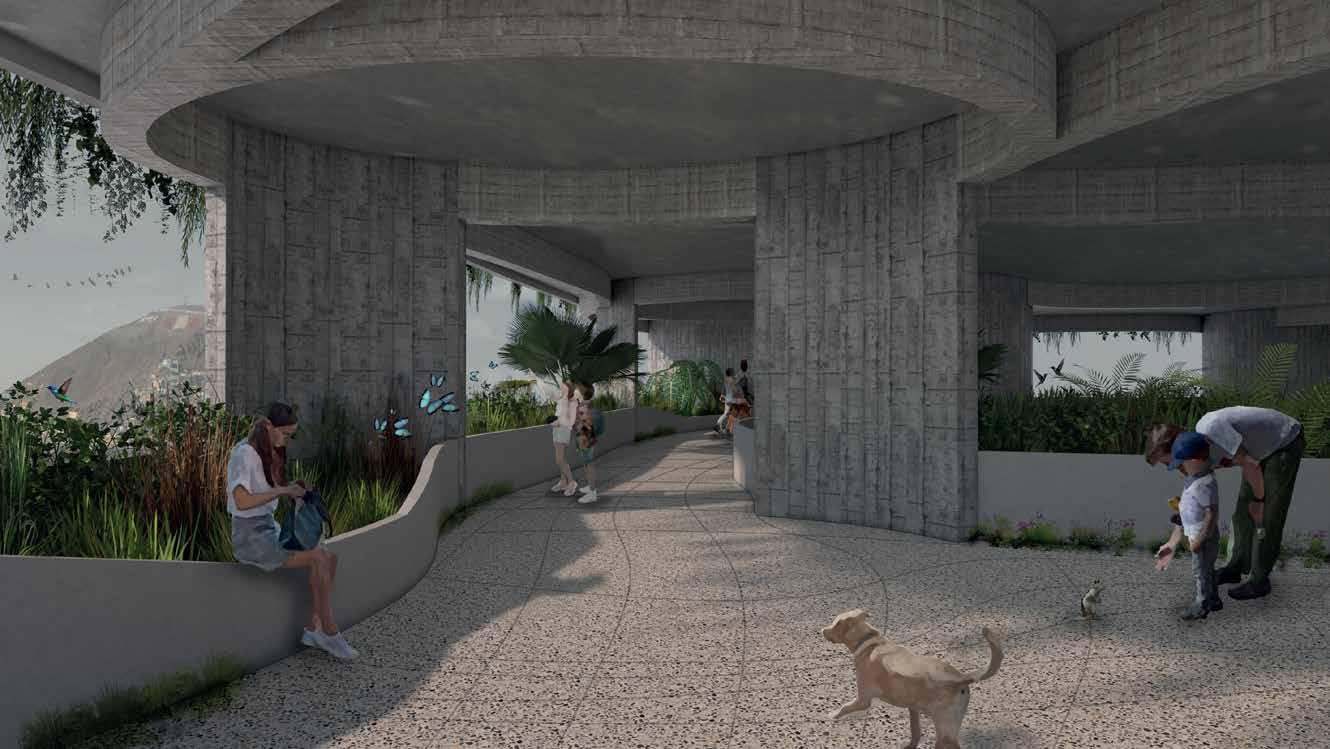

3rd FLOOR FLUXES VORTEX ECOSYSTEM

24

Year: 2021

Location: Lima, Perú

Type: Academic -Thesis Project

Instructor: Pablo Díaz

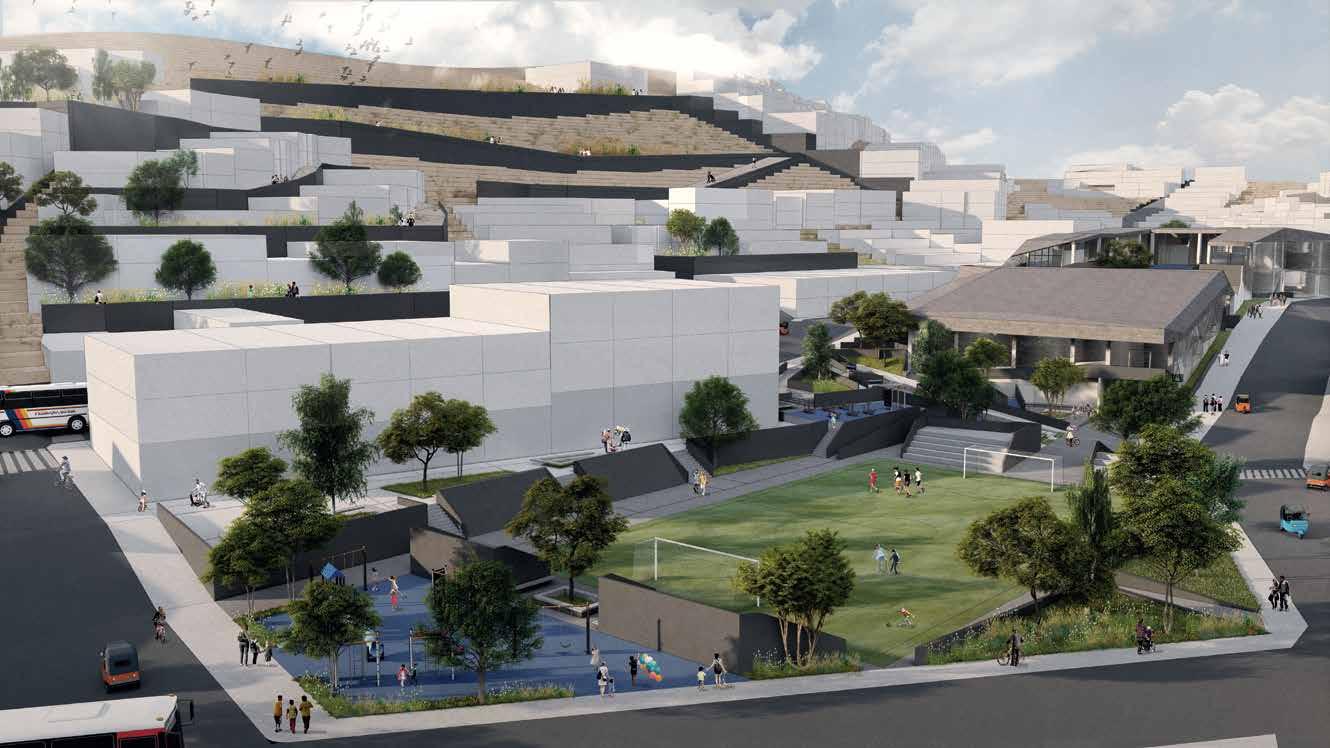

PUBLIC CHILDREN'S SPORTS TRAINING CENTER URBAN INTERVENTION IN AMAUTA VALLEY Architecture and sports have a multidimensional positive effect on society, and it is that both function as a social tool, a catalyst that strengthens the interaction of people regardless of their origin or condition through the sharing of collective activities in meeting spaces. The research was born from the purpose of instilling sporting values in a marginalized population through architecture. Under this premise, the project ‘Centro Público de Formación Deportiva Infantil’ is proposed in the ‘Valle Amauta’, located in the district of Ate Vitarte, and will seek to fulfill the role of urban, social, educational, and cultural enhancer, not only as a building, but also as a new recreational centrality that articulates the topographic condition of the context, its inhabitants, accessibility routes and land use.

The project is proposed as a solution to the quantitative and qualitative deficit of multidisciplinary sports infrastructure in educational institutions and in the urban consolidation of the ‘Valle Amauta’.After the analysis of different theories and successful cases of intervention in vulnerable areas to improve the quality of life through sports buildings, a series of concepts arises that form the basis of project strategies, where the inclined plane is the main design variable. The project is designed under a pattern of slopes and inclined surfaces that distribute the sports spaces, circulation, entrances and public squares on the chosen land in order to encourage physical effort to all its users.

25

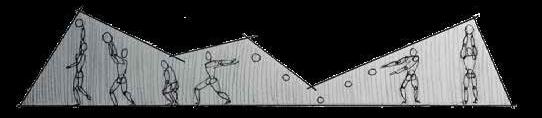

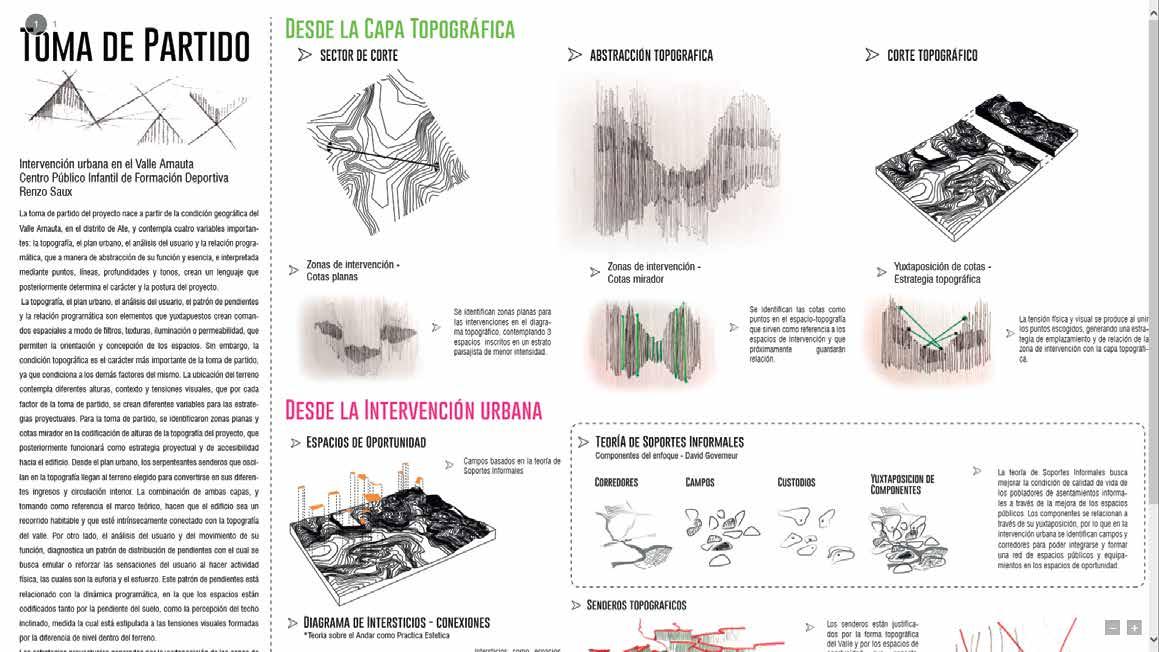

PROJECT CONCEPT 1

27

URBAN INTERVENTION LAYER

2

TOPOGRAPHIC LAYER

3

USER LAYER

4

LAYER LINKING

28

29

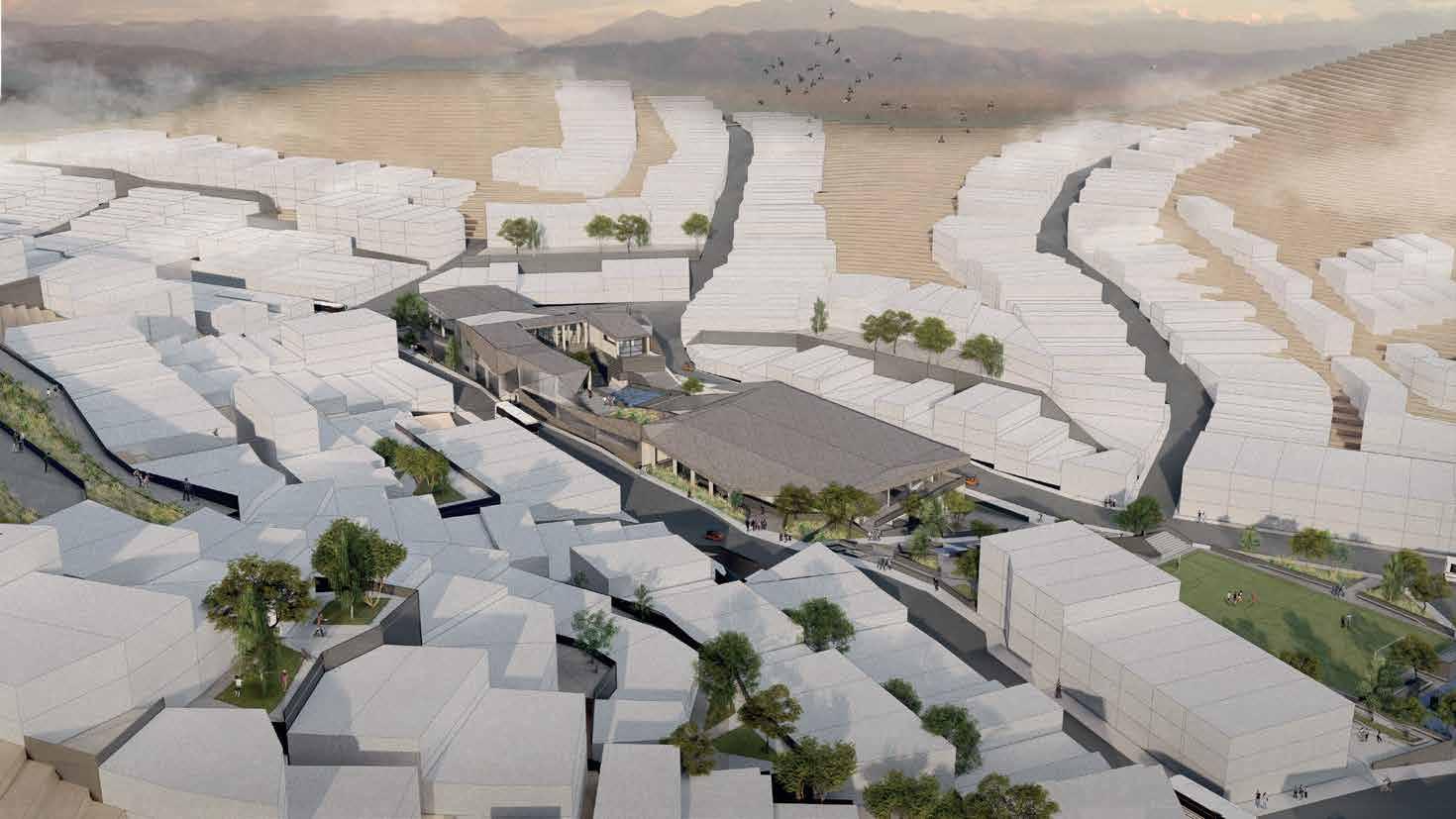

URBAN INTERVENTION NEW URBAN CLUSTERS

PUBLIC SPACES SYSTEM

1

Entrance to Valle Amauta + Children’s Policlinic + District Area 04 Park

Public Spaces in the flat area of the Valley

2

Entrance to Huaca Monterrey I + Cultural & Educational Approach + Land Valuation

Landscape Treatment

3

Entrance to Huaca Monterrey II + Civic & Cultural Approach + Land Valuation

4

Recreation Area + Community Integration & Civic Training

5

Public Center for Children's Sports Training

6

Cultural, Educational & Civic IE El Amauta José Carlos Mariátegui

Meeting Points on Slopes Viewpoints Limit of the Intervention (Valle Amauta)

Area

4

3

5

2

1

30

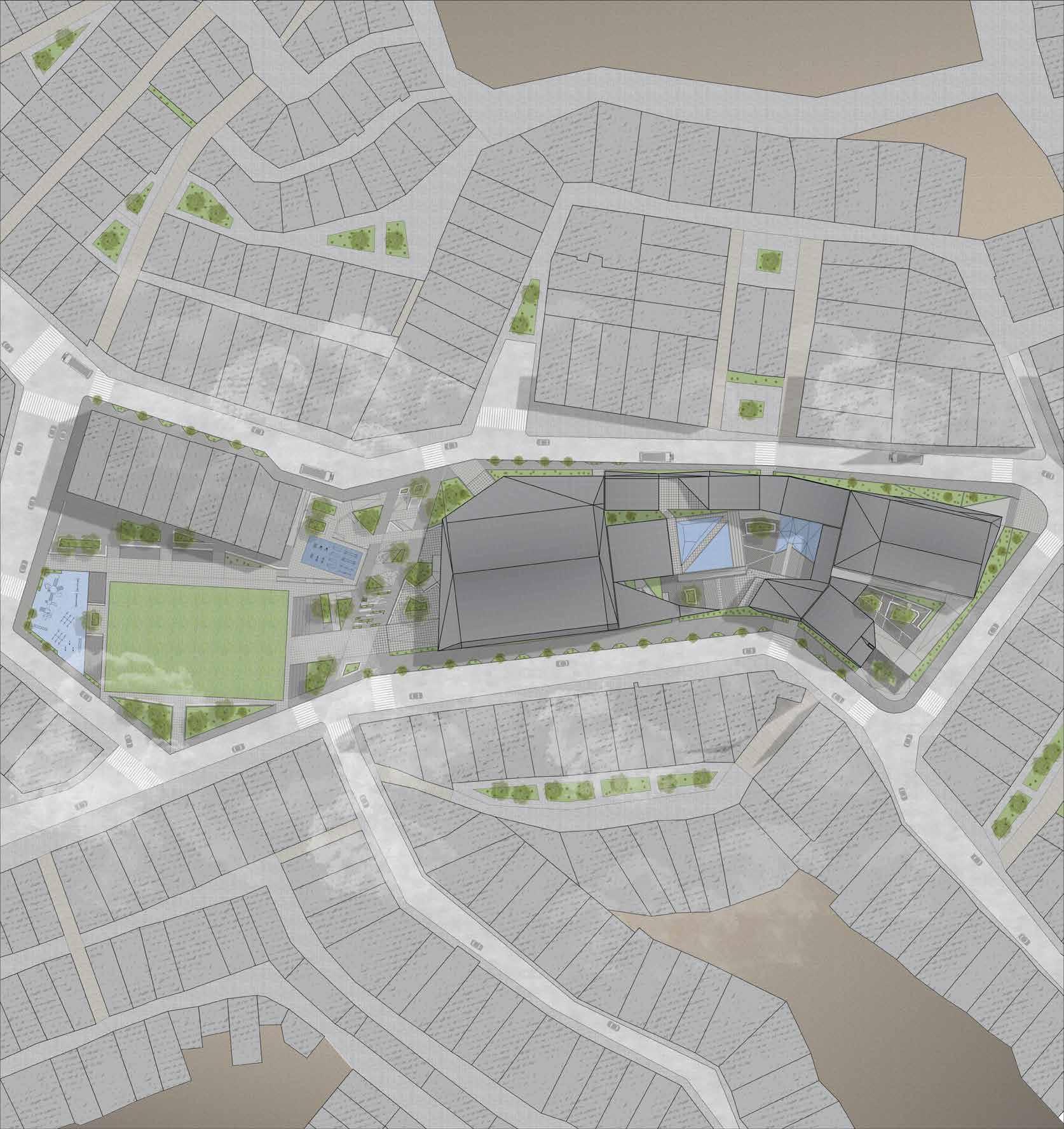

PLOT PLAN 1

Built Area #01

4

Built Area #04

2

Built Area #02

5

Built Area #05

3

Built Area #03

6

Built Area #06

pera

nza

FFL+2.50

av. L a Es

FFL+3.50

FFL +3.00

FFL +2.00

F

Sports Hall #01

FFL +2.00 FFL +0.00

FFL +0.00

av .L a

FFL +0.00

Es p

er an

za FFL +0.00

Artistic Gymnastics Hall

av. Amauta FFL+6.00

FFL +4.50

1

FFL +4.00

FFL +8.50

2 5 FFL +10.00

FFL +2.50

FFL +2.50

3 NPT +7.50

FFL +1.00

4

FFL +6.50

6

FFL +8.50

FFL +0.00

roes

s Hé Calle Lo

FFL +12.00

FFL +7.75

FFL +10.00

32

33

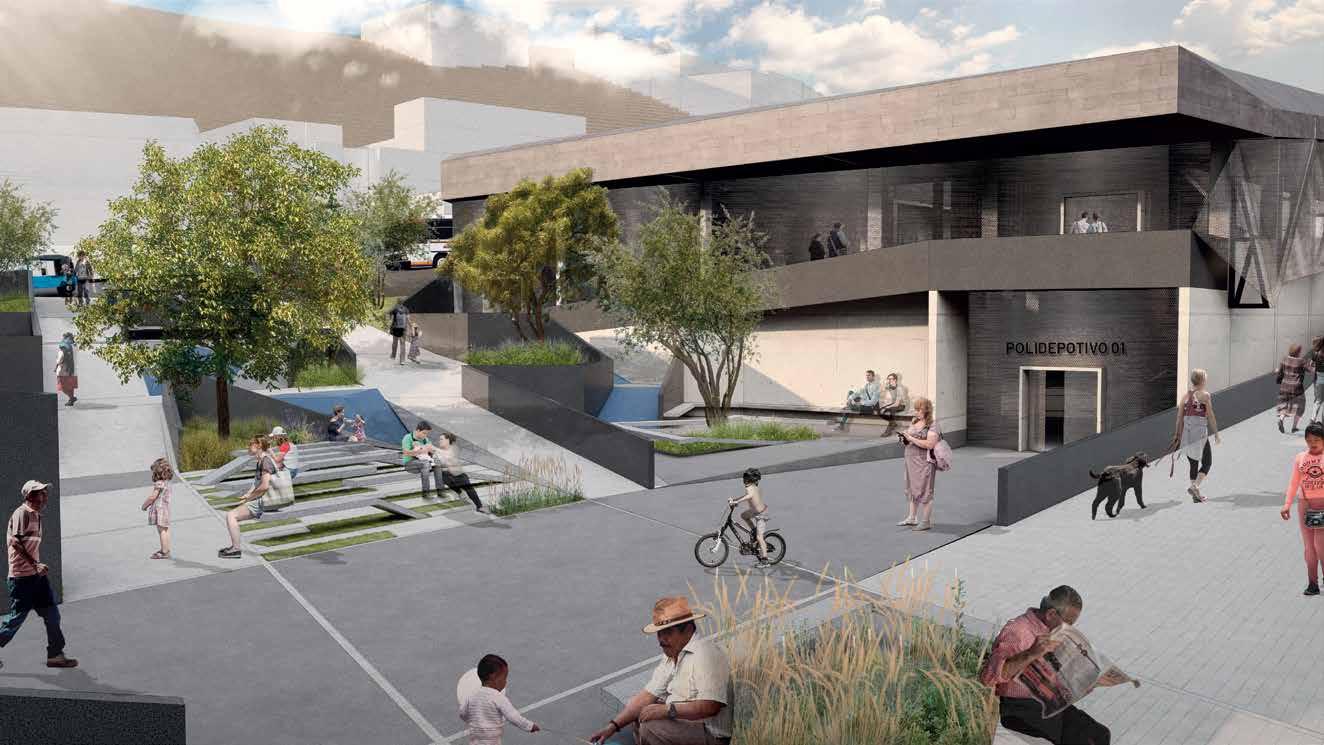

RECREATIONAL CLUSTER The accesses to the project have a previous public square, either at street level or within the building's own land.

These areas contain different types of surfaces, whose material and design depend on their function. They are mainly inclined surfaces due to the slope of the land and to their recreational use.

The design strategy of keeping the same surface as a delimiting element of the space generates a continuous language at different scales, since it is applied from the design of the ceilings and interior coverings of the building to the generation of public furniture from the floor and parapets.

On the other hand, the unevenness is used to generate different visuals for internal and external patios and sports spaces.

The routes of the building are based on these unevenness, guaranteeing a continuous pedestrian flow that articulates all the recreational activities and that allows their expectation.

Sports Hall 01 Entrance 34

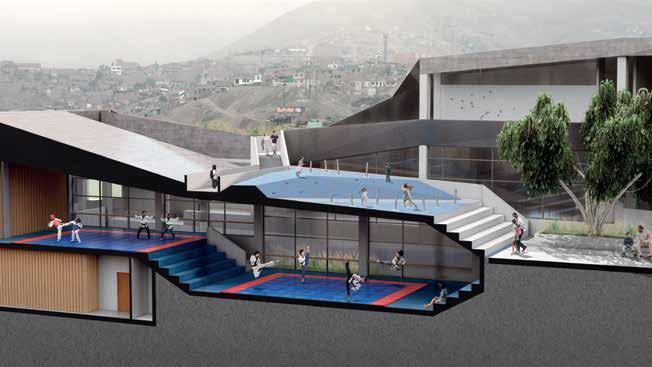

MAIN SECTION 1. Sports Hall 01 Entrance Patio 2. Sports Hall 01 3. Restrooms 4. Martial Arts Gym 5. Inclined Terrace 6. Main Patio 7. Climbing Wall 8. Passage 9. Artistic Gymnastics Hall

04

03 02 01

35

03

07

05

09 03

06

08

04

36

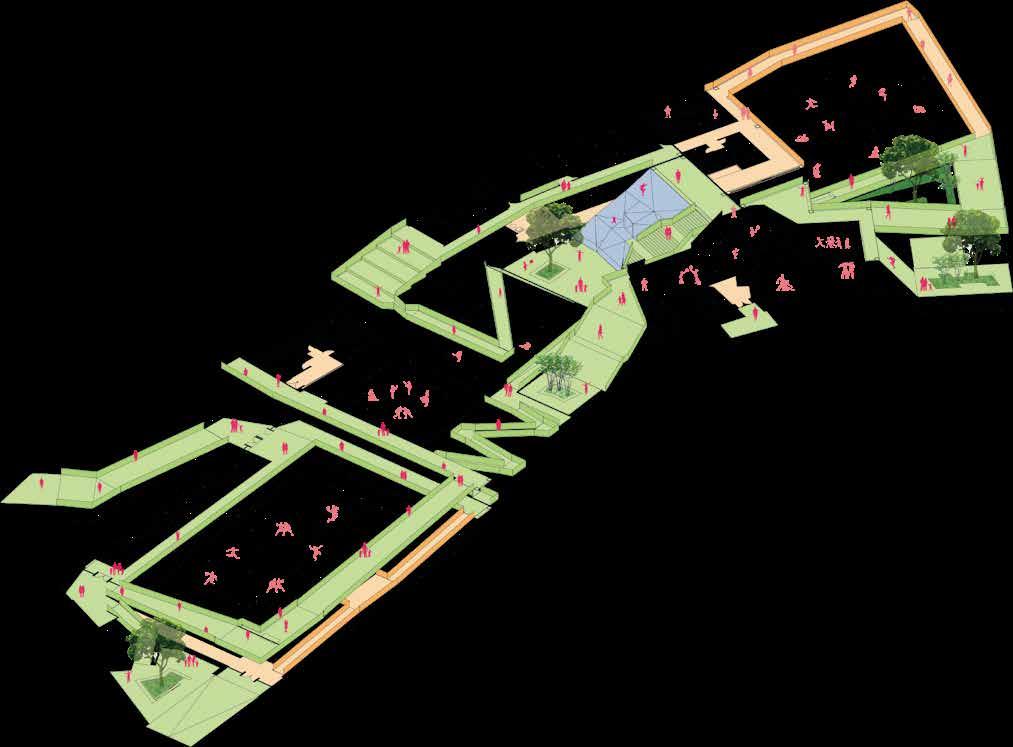

CIRCULATION SYSTEM

Artistic Gymnastics Hall FFL +8.50

Public circulation Semi-public circulation

Recreation Room

Auditorium FFL +13.25 Reading Room

Table Tennis Gym

Recreation Room FFL +13.25 Community Room FFL +8.50

Public Entrance FFL +6.50

Computer Room FFL +7.50 Public Entrance FFL +4.50

Outdoor Patio FFL+6.50 Martial Arts Gym

Public Bleachers

Surface - route of viewing Public Entrance FFL +2.50

Sighting platform FFL +4.50

Entrance Patio Sports Hall 01 Entrance FFL +/- 0.00

37

Dance Room FFL +8.50 Generator Set Room FFL+4.75

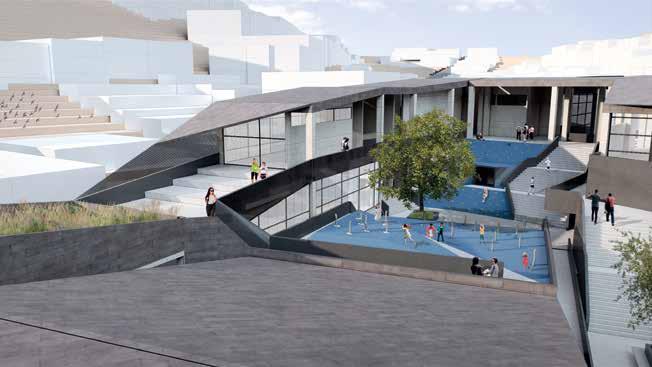

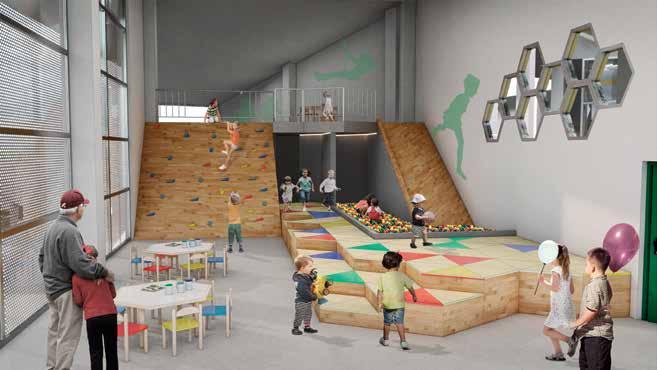

PASSABLE ENCLOSURE HABITABLE CIRCULATION The inner main patio is made up of a flat square between two inclined surfaces. It is in this sector where the essence of the oblique function is shown, where the user can consume the recreational space and interpret it as a continuous physical element that delimits the project environments.

Main Patio

Recreation Room

Martial Arts Gym 38

ACADEMIC

MODEL MAKING PROJECTS

Year: 2011

Type: Academic - Conceptual

Instructor: Martín Fabbri

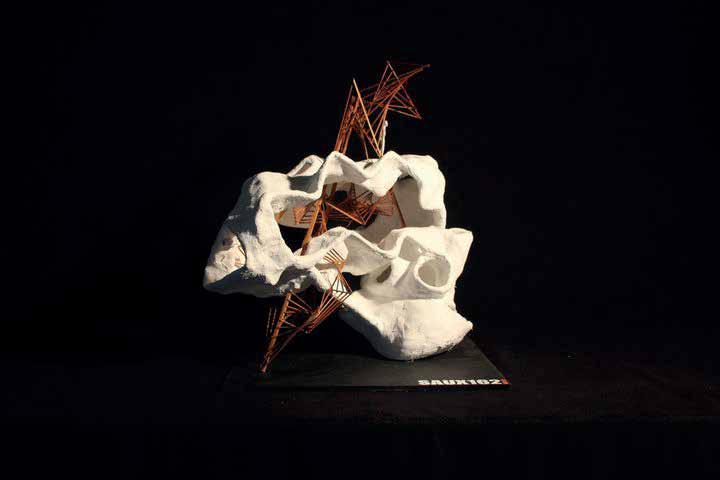

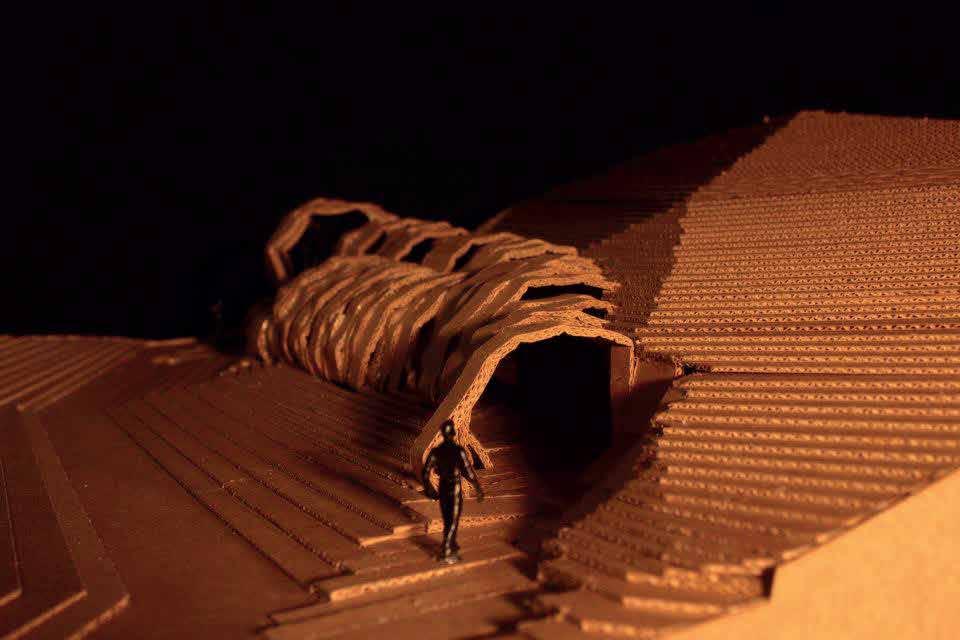

THE SHELTER ORGANIC LANGUAGE FOR SPATIAL COMPOSITION The organic geometry of the shelter acts as a structure, ornament and spatial composer. On one hand, the plaster allows a very organic language to define enclosures, light entrances and spatial connections. Inside this, there is a metallic structure that is the skeleton of the object. Then, there is a skin that crosses it with hyperbolic paraboloid shapes that, with different measurements, adapt to the organic spaces of the plaster structure.

The shelter has 3 spaces: the upper one; that it is an open space, the horizontal interior; which is a semi-closed and main space, and finally the lower one; which is closed and serves as rest.

42

43

Year: 2012

Type: Academic

Instructor: Martín Fabbri

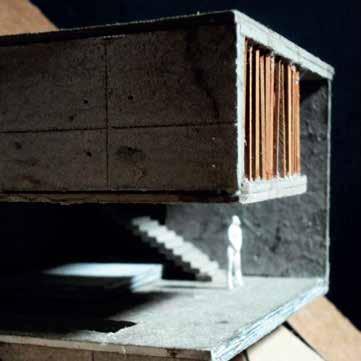

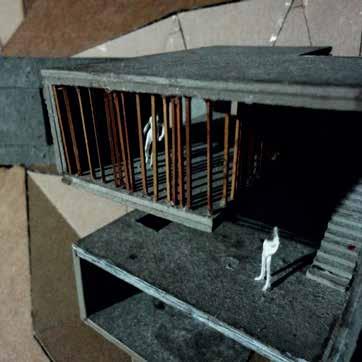

DUAL HOUSE CONTRAST BETWEEN TWO DESIGN LANGUAGES The houses coexist with each other through an ambiguous relationship.

The contrast of both is based on the stereotomic and the tectonic, the private and the exposed, and the way in which they relate to the exterior.

However, they are connected by a structural strip, which functions as a vertical façade in one house and extends laterally towards the other house, where it acts as a surface and enclosure. The slogan for this exercise is to represent two traits that are opposite in the designer.

44

Year: 2012

Type: Academic

Instructor: Carlos Pestana

DESERT MUSEUM TRANSVERSE MIMESIS IN THE DESERT Located in the coastal desert of Lima, the desert museum is buried in the dunes of the landscape. Part of the project is buried, and another part is exposed to the outside since its layout is designed by the Andean tripartite worldview: Hanan pacha, Kay pacha and Uku pacha. The language for this exercise was based on cross-sectional tapes. The mimesis with the territory is an essential variable, which is why it is read that the museum is part of the dune. In addition, follow the direction of the elevations of the geography of the place. The ribbons expand and contract to form longitudinal spaces of different types, depending on which world of the Andean worldview they belong to.

ASCENDING GANGWAY INDOOR VIEWER

SHOWROOM OUTDOOR VIEWER

ENTRANCE

45

46

Year: 2012

Type: Academic

Instructor: Carlos Pestana

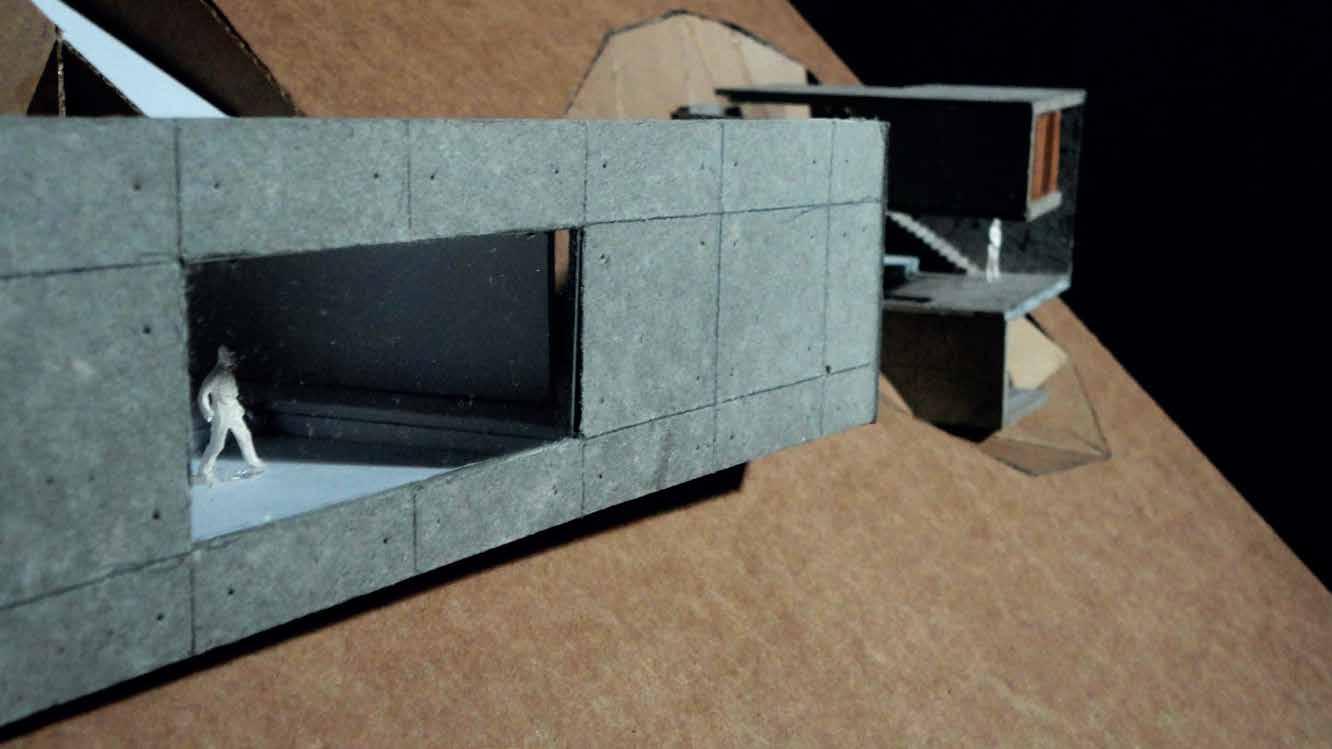

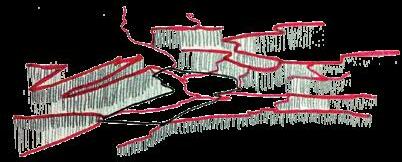

HOUSE ON THE CLIFF ABSTRACTION AND CONCEPTUALIZATION OF AN IDEA IN AN ARCHITECTURAL OBJECT After a site analysis, the concept that was extracted was that of the stone. Following the line of the Andean worldview, the stone means an element that contains energy and is a symbol of reference in the landscape.

Therefore, the layout of the spaces in the house resembles the rugged topography of the cliff, expressed as folds. On the other hand, the spaces enclose an interior patio that serves for the recreation of the user and for their ventilation. The essential activities are sleeping, eating, observing and eating.

47

Year: 2013

Type: Academic

Instructor: Pablo Díaz

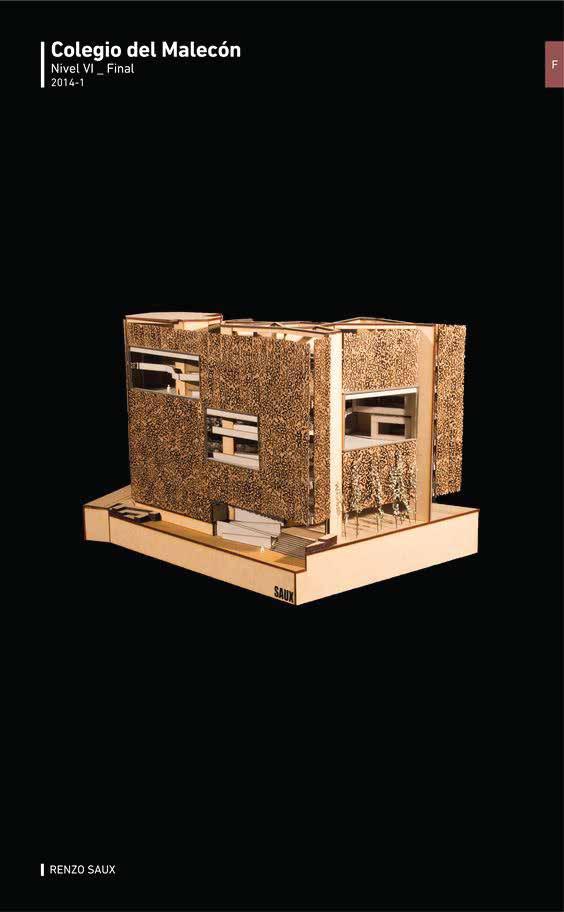

URBAN HABITAT COMBINATION OF NATURAL LAYERS TOWARDS ARCHITECTURE The Urban Habitat was the basis for the development of a school on the Chorrillos boardwalk. The substrata indicated design variables and spatial relationships, which create the building. From the rocky substratum, the structural idea is abstracted, forming a dozen plates that support the levels.

From the nebulous layer, the idea of having a circulation suspended in the air is synthesized, so the ramp system is separated from the outside of the school and has direct contact with the outdoors. Finally, from the grass substratum, the idea of textures as a protective element of the building arises, for which a permeable skin is used for the entry of light and ventilation.

48
