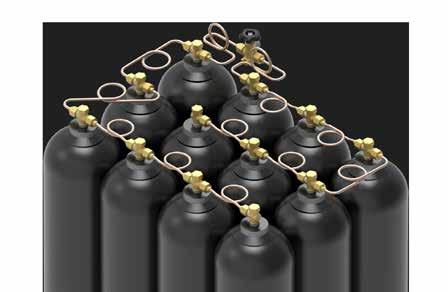

551 OFF-LINE HIGH-PRESSURE BUNDLE VALVE
552 VALVE FOR REFRIGERANT GASES
631 HIGH-PRESSURE LINE- VALVE
VIPR VALVES
616 HIGH FLOW PRESSURE REDUCTION VALVE
616 BI-DIRECTIONAL PRESSURE REDUCTION VALVE
617 VIPR VALVE - OXYGEN COMPACT LIGHT WEIGHT
617 VIPR VALVE - INERT COMPACT LIGHT WEIGHT
617 VIPR VALVE - ACETYLENE COMPACT LIGHT WEIGHT
618 VIPR OXYGEN
618 VIPR INERT
618 VIPR ACETYLENE

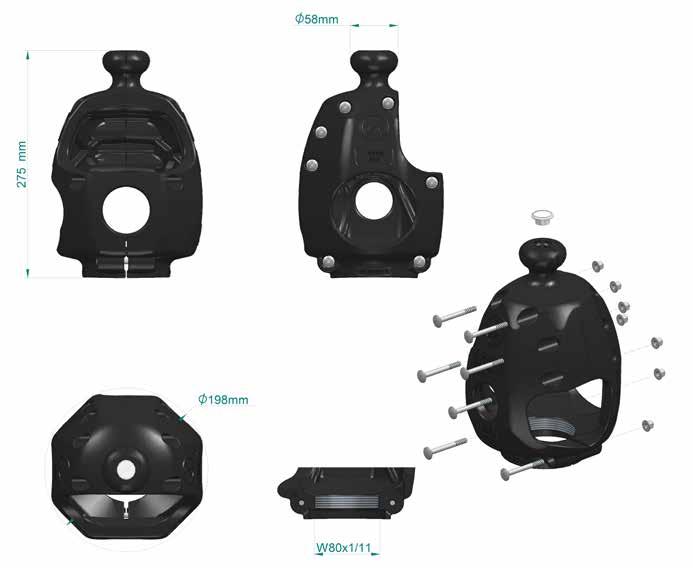

618 PROTECTIVE GUARD
618 PROTECTIVE GUARD (Ø 198)
CARBONATER VALVES
332 CARBONATER VALVE
CYLINDER VALVE FOR CORROSIVE GASSES
490 CHLORINE VALVE WITH V-RINGS AND ADDITIONAL O-RING SEALING
FIRE SUPPRESSION VALVES
370 PNEUMATIC TIMER VALVE
570 PNEUMATIC CO2 VALVE
580 FIRE SUPPRESSION VALVE PNEUMATICALLY OPERATED

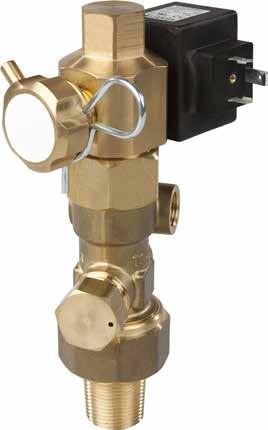

580 MGE ELECTRICA /PNEUMATICALLY OPERATED FIRE SUPPRESSION VALVE
FILL CONNECTORS
431 FILL CONNECTOR
431 ANGLE FILL CONNECTOR
431 ANGLE HANDWHEEL CONNECTOR
431 ANGLE/SWIVEL CONNECTOR
LOW PRESSURE REGULATORS
047 BUDGET REGULATOR FOR GAS CYLINDERS
056 AUTOMATIC CHANGE-OVER DEVICE
057/058 SINGLE STAGE REGULATOR WITH FL ANGE CONNECTION
070/071 SINGLE STAGE REGULATOR WITH HOSE CONNECTION
160 ADJUSTABLE REGULATOR FOR HIGH CAPACITY
447 BUDGET REGULATOR
457/458 TWO STAGE REGULATOR

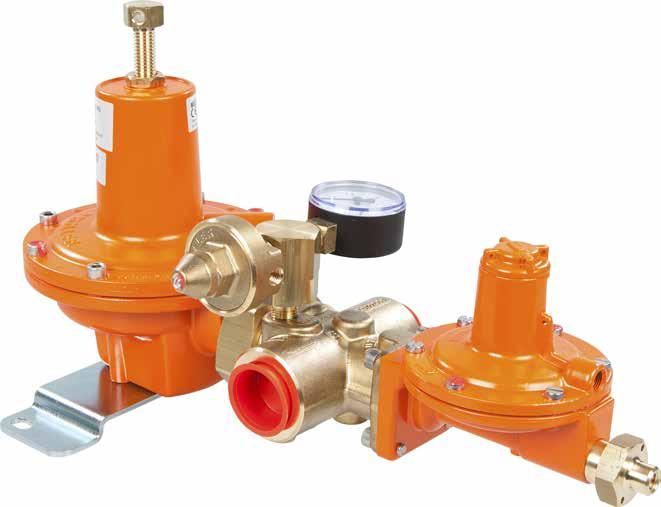

554-1 REGULATOR COMBINATION 554 WITH OPSO AND PRV FOR GAS TANK APPLICATION
554-2 MIDDLE RANGE PRESSURE REGULATOR COMBINATION 554 WITH OPSO AND PRV
554-3 LOW PRESSURE REGULATOR COMBINATION 554 WITH OPSO AND PRV OR DOUBLE DIAPHRAGM
555 HIGH CAPACITY LPG REGULATOR
744 PRESSURE RELIEF VALVE
858/859 REGULATOR WITH OPSO

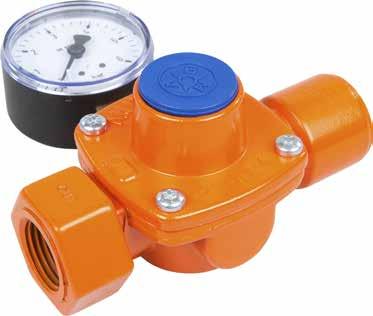

865 OVER-PRESSURE SHUT OFF SAFETY DEVICE
126
Light weight and small valve for 5L cylinders
SIMPLE VALVE OR WITH RPV / MPR
RPV / MPR:
1. The valve is oxygen pressure surge tested by BAM for WP 200 bar
2. Reliable opening/closing setting of the RPV function
3. Minimum Pressure Retention: 2 - 7.5 bar
4. Approved for -20° C
5. The distance from the sealing surface to the tip of the pin can be customized
6. RPV unit can be replaced
7. Max passage: Ø2.5 mm
8. Pressure gauge is optional
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process.
The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: According to ISO 10297
Working pressure: 200 bar
Inlet connection: 17E or other on request
Inlet filter: On request
Outlet connection for simple valve: DS2404, DIN, AFNOR, CGA, BS, AS or other on request
Outlet with RPV (200 bar): DS2404, DIN, BS and others when compatible
Dip Tube: On request, M10x075, or other
Anti dust tube: On request
Residual Pressure Valve / Minimum Pressure
Retention: 2 - 7.5 bar retain pressure
Handwheel: Plastic Ø38 mm and with logo on request
Burst disc: On request, according to CGA S 1.1
Excess flow device: On request
Tape / Plastic protection cap: On request
Fusible element: On request
Surface treatment: Chromium plating on request
Passage: Ø2.5 mm
Pressure gauge: Optional

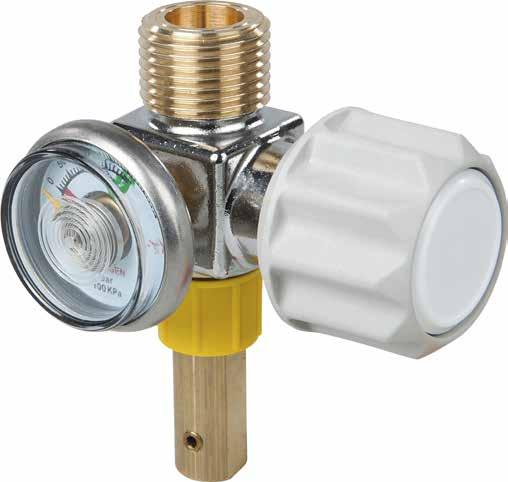

127
Light weight and small valve for 5L cylinders
SIMPLE TOP OUTLET VALVE
1. The valve is oxygen pressure surge tested by BAM for WP 200 bar
2. Max passage: Ø2.5 mm
3. Manomenter for cylinder pressure
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: According to ISO 10297
Working pressure: 200 bar
Inlet connection: M18x1,5, 5/8-18 UNF or other on request
Inlet filter: On request
Outlet connection for simple valve: DS2404, DIN, AFNOR, CGA, BS, AS or other on request
Dip Tube: On request, M10x075, or other
Anti dust tube: On request
Handwheel: Plastic Ø38 mm and with logo on request
Burst disc: On request, according to CGA S 1.1
Excess flow device: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plating on request
Passage: Ø2.5 mm
418
In-line high-pressure cylinder valve
RPV / MPR - NEW LOW COST DESIGN
(compared to the off-line valve, however there are limited numbers of outlets)
1. Improved lifetime on the RPV unit, reducing maintenance costs
2. RPV noise level considerably reduced compared to competing products. This is achieved at all flow rates
3. Improved temperature range on the RPV seal (-40º C to + 140º C)
4. The RPV can withstand 60 blow downs at 300 bar
5. The opening/closing pressure range is improved
6. The valve is oxygen pressure surge tested by BAM for WP 300bar
7. RPV unit can be replaced
8. Impact value of 400J / 111KG can be achieved with inlet thread 25E
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: According to ISO 10297 & 15996
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: BS 341-3 No. 2,3,4. AS2473.2 Type 10,11,20,50,51,60,61. CGA 580, DS2404 B.8. ISO 228-1 G3/4 RH INT. NBR. ISO 5145 W30x2 or other on request
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional. Free spinning handwheel on request
Burst disc: On request, according to CGA S 1.1
Max flow: On request
Tape / Plastic protection cap: On request
Fusible element: On request
Surface treatment: Chromium plating on request
Max passage: Ø4

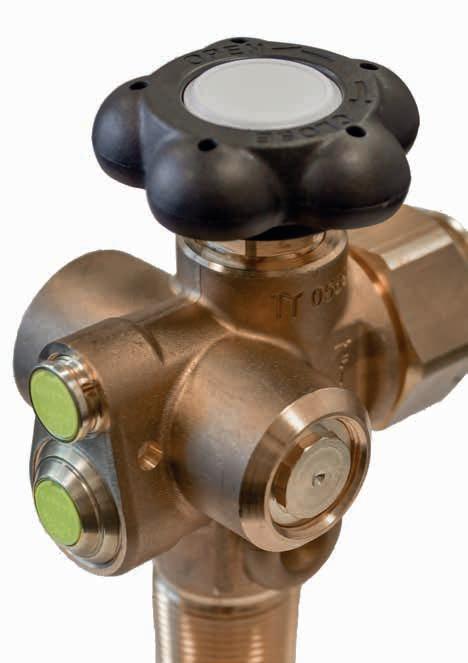

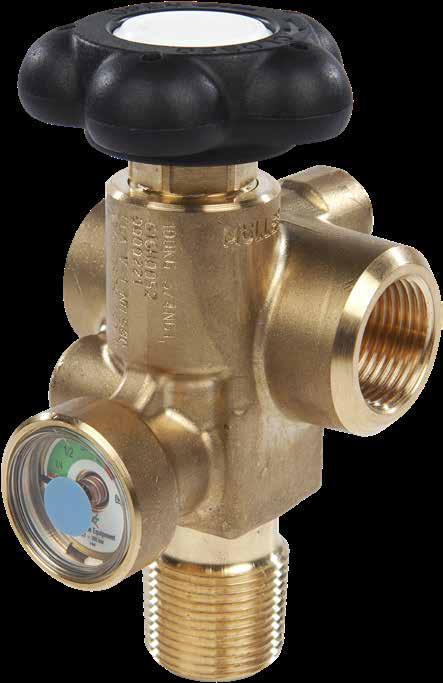

419
Off-Line High-Pressure Cylinder Valve
RPV / MPR - VALVE WITH ACTIVE PRESSURE GAUGE
PROTECTED BY THE VALVE BODY
419 Off-Line High-Pressure Cylinder Valve
About this valve
The valve is manufactured in Denmark on state of the art machinery, and the quality is monitored throughout the entire process. The final product is subjected to a 100% functional test after assembly ensuring you a world class
Residual Pressure Valve!
BAM Approved: According to ISO 10297 & 15996
Working pressure: ≤310 bar (4500 psi)
Inlet connection: 25E, 25ES, 3/4 - 14 NGT or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional. Free spinning handwheel on request
Burst disc: On request, according to CGA S 1.1
Max flow: On request
Tape / Plastic protection cap: On request
Fusible element: On request
Surface treatment: Chromium plating on request
Max. passage: Ø4
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk

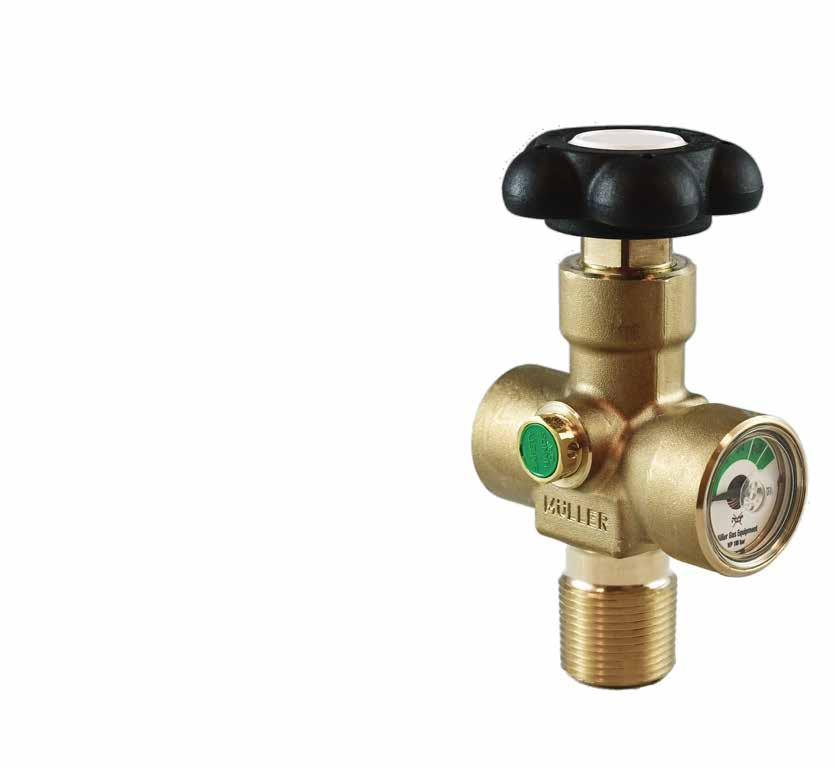

419 - WITH ACTIVE PRESSURE GAUGE
• Inlet and outlet on the same center line
• With active pressure gauge
• Pressure gauge protected by the valve body
GAUGE (TYPE 418)
• Weight and brass saving design
• Lower CO2 footprint
*≈25% less CO2 compared to type 518
• Inlet and outlet on the same center line
435
Pin Index Valve
MEDICAL PIN INDEX VALVE
1. The valve is oxygen pressure surge tested by BAM for WP 200 bar
2. Approved for -20° C to +65° C
3. Impact value of 400J / 111KG can be achieved with inlet thread 25ES
4. RPV Optional (3.0 – 7.5 bar)
5. Max passage: Ø 2,5 mm
6. RPV unit including non return valve to prevent a back-flow into the cylinder
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: According to ISO 10297
Working pressure: 200 bar
Inlet connection: 25E, 25ES, 17E, 17ES, M18 or other on request
Inlet filter: On request
Working temperature: -20º C to +65º C
Outlet connection: Pin Index ISO 407 / AS 2473.3 / CGA V-1
Dip Tube: On request
Dip Tube thread: M10 x 0.75, or other on request
Anti dust tube: On request
Optional RPV / MPR: 3 - 7.5 bar retain pressure
Handwheel: Wing, toggle, black plastic handwheel
Burst disc: On request, according to CGA S 1.1 / TRG 254-2 Nr 1
Excess flow device: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plated
Passage: Ø 2,5 mm
449
In-line High Flow
Residual Pressure Valve
Standard cylinder valve with passage Ø5.2 with RPV - and Ø8.0 without RPV
TECHNICAL SPECIFICATIONS:
• The valve is approved for WP 300 bar
• Reliable opening/closing setting of the RPV function
• Minimum Pressure Retention: 3.0 - 7.5 bar
• Approved for -40° C
• Impact value of 400J / 111KG can be achieved with inlet thread 25ES (Ø5.2)
• Max passage: Ø8mm without RPV (In selected models) For further technical specifications on this valve please see reverse.
TECHNICAL SPECIFICATIONS:
449 In-line High Flow
Residual
Pressure Valve
About this valve
The MGE Type 449 In-line high flow valve with a new and improved RPV design can achieve around 30% faster filling. It is also available with a Ø8 passage, which makes it suitable for fire extinguishing and bundel applications. In addition, the RPV unit has a prolonged lifetime, leading to lower maintenance costs.
The valve is manufactured in Denmark on state-of-the-art manufacturing equipment, and the quality is monitored throughout the entire process. It is assembled on an automated assembly line and undergoes a 100% functional test. After passing all tests, it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure: 300 bar & 200 bar (RPV version)
Inlet connection: 25E, 25ES, or other on request
Outlet connection for valve with Ø8.0 passage: e.g. DS2404, DIN, or other on request
Outlet connection for valve with RPV and Ø5.2 passage: DS2404, DIN, BS and others when compatible
Dip Tube: On request, M10x075, M16x1, or other on request
1. The valve is oxygen pressure surge tested by BAM for WP 300 bar
2. Reliable opening/closing setting of the RPV function
3. Minimum Pressure Retention: 3 - 7.5 bar
4. Approved for -40° C
5. The distance from the sealing surface to the tip of the pin can be customised
6. Impact value of 400J / 111KG can be achieved with inlet thread 25ES
7. RPV unit can be replaced
8. Max passage: Ø6mm
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection for simple valve: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Outlet with RPV (200 bar): DS2404, DIN, BS and others when compatible
• The valve is oxygen pressure surge tested by BAM for WP 200 bar
• Reliable opening/closing setting of the RPV function
• Minimum Pressure Retention: 2.0 bar
• Impact value of 20 KG can be achieved with inlet thread 17E
• The distance from the sealing surface to the tip of the pin can be customised
• RPV unit can be replaced
• Max passage: Ø3,5 mm
90 years of proven experience
Discover more of our products at: www.bmv.dk
452 In-line High-pressure Cylinder Valve
About this valve
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure (gas): 200 bar
Approved test pressure (liquified): 250 bar
Inlet connection: 17E
Inlet filter: On request
Outlet connection: INSTA 852, DIN 477, or other on request
• The valve is oxygen pressure surge tested by BAM for WP 200 bar, inert WP 250 bar
• Reliable opening/closing setting of the RPV function
• Minimum Pressure Retention: 2 - 7.5 bar
• Approved for -20° C
• The distance from the sealing surface to the tip of the pin can be customised
• Impact value of 400J / 111KG can be achieved with inlet thread 25ES
• RPV unit can be replaced
• Max passage: Ø6mm For further technical specifications
90 years of proven experience
Discover more of our products at: www.bmv.dk
453 In-line High-pressure Cylinder Valve
About this valve
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process.
The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure: 250 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection for simple valve: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Outlet with RPV (200 bar): DS2404, DIN, BS and others when compatible
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional. Free spinning and oval handwheel on request.
For key operated valve see our 456 variant Burst disc: On request, according to CGA S 1.1
Max flow: On request
Tape / Plastic protection cap: On request
Fusible element: On request
Surface treatment: Chromium plating on request
Passage: Ø4 and Ø6 depending on configuration
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
- HIGH PRESSURE CYLINDER VALVE
A ROBUST DESIGN (TYPE 451)
512
Off-line high-pressure cylinder valve
RPV / MPR STANDARD DESIGN
RPV / MPR:
1. The valve is oxygen pressure surge tested by BAM for WP 300bar
2. Reliable opening/closing setting of the RPV function
3. Minimum Pressure Retention: 3 - 7.5 bar
4. Approved for -40 C
5. The distance from the sealingface to the tip of the pin can be customised
6. Impact value of 400J / 111KG can be achived with inlet thread 25ES.
7. RPV unit can be replaced.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional. Free spinning handwheel on request
Burst disc: On request, according to CGA S 1.1
Max flow: On request
Tape / Plastic protection cap: On request
Fusible element: On request
Surface treatment: Chromium plating on request.
Top Outlet Cylinder Valve
TECHNICAL SPECIFICATIONS:
513 Top Outlet Cylinder Valve
About this valve
The valve type 513 is a top outlet valve with a working pressure of 300 bar and RPV. The valve operating mechanism is for key operation.
Approval: ISO 10297
Approved test pressure: 300 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Dip tube: On request, M10x075, or other
Anti dust tube: On request
Operation: Key operated
Burst disc / Fusible element: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plating on request
Passage: Ø4 mm
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 info@bmv.dk

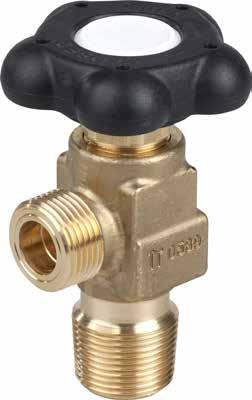

515 Side Outlet Valve Key Operated
About this valve
The valve type 515 is a side outlet valve with a working pressure of 230 bar. The valve operating mechanism is for key operation.
Approval: ISO 10297
Approved test pressure: 230 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Dip tube: On request, M10x075, or other
Anti dust tube: On request
Operation: Key operated
Burst disc / Fusible element: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plating on request
Passage: Ø4 mm
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 info@bmv.dk
Top Outlet Cylinder Valve
TECHNICAL SPECIFICATIONS:
• Cylinder valve with top outlet
• The valve has an work pressure of max. 360
• Available with or without fusible plug
• Working temperature range from
• Bursting disc on request
• Passage Ø4 mm
• The valve is available in a key-operated version
• Impact value of 400J / 111KG can be achived with inlet thread 25ES
90 years of proven experience
Discover

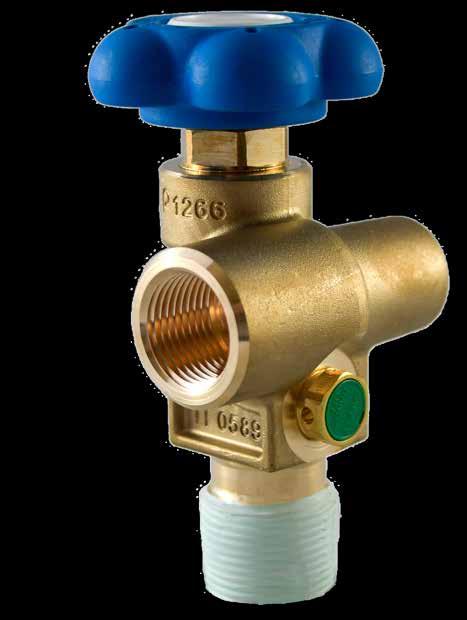

517 Top Outlet Cylinder Valve
About this valve
The valve type 517 is a cylinder valve with a top outlet. It has an approved test pressure of max. 360 bar and is designed to operate within a temperature range of -40ºC to +60ºC. The valve can be used for acetylene (C2H2) and is available with or without a fusible plug. It is also available in a key-operated version.
Approval: ISO 10297
Approved test pressure: 360 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Dip tube: On request, M10x075, or other
Anti dust tube: On request
Operation: Handwheel or key operated
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional.
Burst disc / Fusible element: On request
Excess flow valve: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plating on request
Passage: Ø4 mm
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk

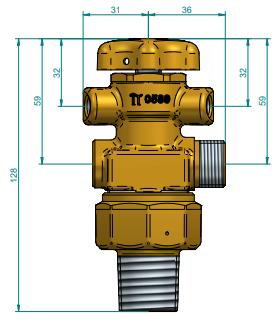

Dimensions

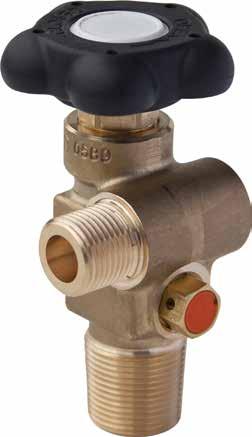

518
Off-line high-pressure cylinder valve
RPV / MPR – NEW IMPROVED DESIGN
RPV / MPR WITH CONICAL SEALING SYSTEM:
1. Improved lifetime on the RPV unit, reducing maintenance costs
2. RPV noise level considerably reduced compared to competing products. This is achieved at all flow rates
3. Improved temperature range on the RPV seal (-40º C to + 140º C)
4. The RPV can withstand 60 blow downs at 300bar
5. The opening/closing pressure range is improved
6. The valve is oxygen pressure surge tested by BAM for WP 300bar
7. RPV unit can be replaced
8. Impact value of 400J / 111KG can be achived with inlet thread 25ES
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional. Free spinning handwheel on request
Burst disc: On request, according to CGA S 1.1
Max flow: On request
Tape / Plastic protection cap: On request
Fusible element: On request
Surface treatment: Chromium plating on request.
519
In-line high-pressure cylinder valve
RPV / MPR - New Improved Design
TECHNICAL SPECIFICATIONS:
• Improved lifetime on the RPV unit, reducing maintenance costs
• RPV noise level considerably reduced compared to competing products. This is achieved at all flow rates
• Improved temperature range on the RPV seal (-40º C to + 140º C)
• The RPV can withstand 60 blow downs at 300bar
• The opening/closing pressure range is improved
• The valve is oxygen pressure surge tested by BAM for WP 300bar
• RPV unit can be replaced
• Impact value of 400J / 111KG can be achived with inlet thread 25ES
For further technical specifications on this valve please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk

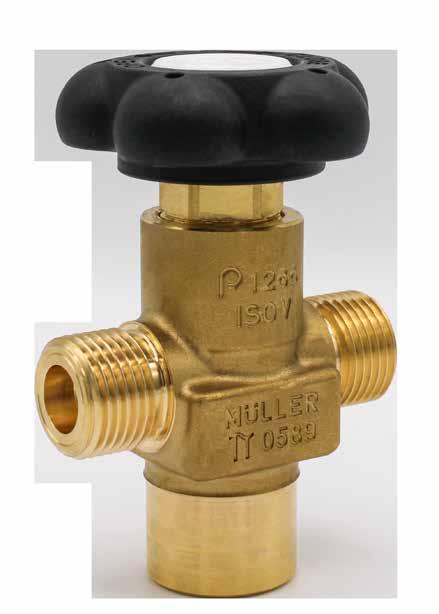

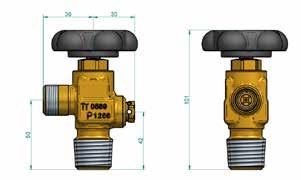

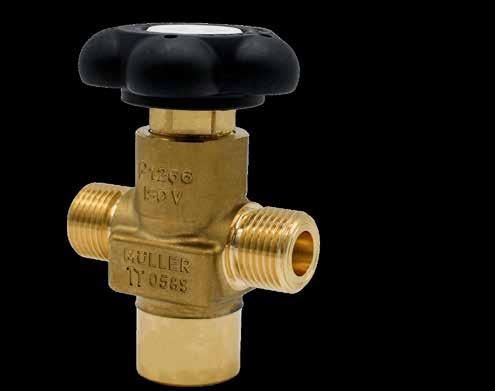

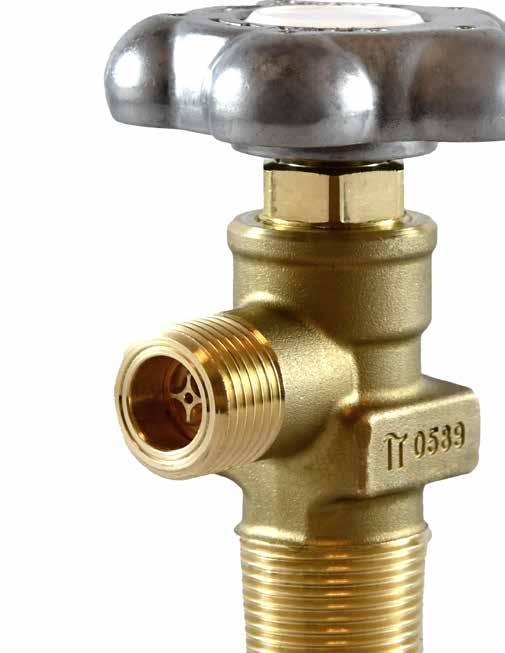

519 In-line high-pressure cylinder valve
About this valve
The valve type 519 is an economical alternative to type 518 and is primarily intended as a cylinder valve. Due to its conical seal in the RPV, the noise level is significantly reduced, even at higher flows. Our proven sealing system is also used in type 519 to ensure the best and most reliable quality and performance.
Approval: 10297 & 15996 (BAM)
Marking: π0589 (BAM) & ρ1266 (Arrowhead)
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request
Inlet filter: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Dip tube: On request, M10x075, or other
Anti dust tube: On request
Residual Pressure Valve: 3.0 - 7.5 bar retain pressure
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional. Free spinning handwheel on request
Bursting disc / Fusible element: On request, according to CGA S 1.1
Excess flow valve: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plating on request
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
519 - HIGH PRESSURE CYLINDER VALVE
• Optimized weight and brass saving design
Appoximately
4mm.
A ROBUST DESIGN (TYPE 518)
Robust design
Many different size variations
Inlet and outlet on the same center line
Up to 6 mm orifice passage

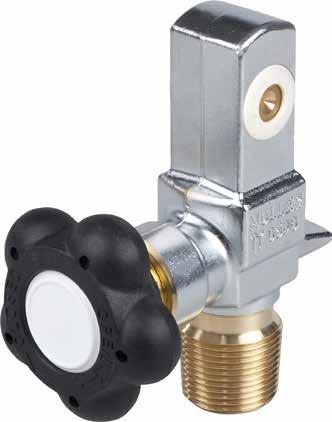

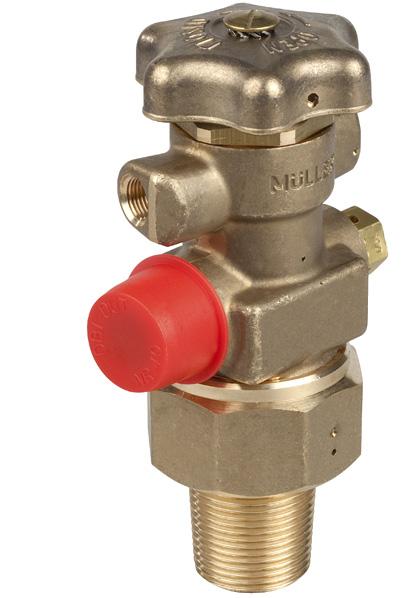

535
Pin Index Valve with RPV
RPV / MPR - NEW IMPROVED DESIGN
1. Improved lifetime on the RPV unit, reducing maintenance costs
2. RPV noise level considerably reduced compared to competing products. This is achieved at all flow rates
3. Improved temperature range on the RPV seal -35º C to +90º C. Approved for -20º C to +65º C
4. The valve is designed for easy handling / lifting
5. Improved design eliminating the blind plug on top of the valve
6. The RPV opening/closing pressure range is improved
7. The RPV valve is oxygen pressure surge tested by BAM for WP 200 bar
8. RPV (3.0 – 7.5 Bar)
9. Impact value of 400J / 111KG can be achieved with inlet thread 25ES
10. RPV unit including non return valve to prevent a back-flow into the cylinder
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: According to ISO 10297 & ISO 15996
Working pressure: 200 bar
Inlet connection: 25E, 25ES, 17E, M18 or other on request
Inlet filter: On request
Working temperature: -20º C to +65º C
Outlet connection: Pin Index ISO 407 / AS 2473.3 / CGA V-1
Dip Tube: On request
Dip Tube thread: M10 x 0.75, or other on request
Anti dust tube: On request
RPV / MPR: 3.0 – 7.5 bar retain pressure
Handwheel: Plastic Ø58.5 or Ø65 and with logo. Aluminium handwheel or free spinning handwheel on request.
Burst disc: On request, according to CGA S 1.1/TRG 254-2 Nr 1
Excess flow device: On request
Tape / Plastic protection cap: On request
Surface treatment: Chromium plated
Passage: Ø 2,5 mm
Off-line high-pressure
Bundle Valve
RPV / MPR - Improved RPV design with conical sealing system
TECHNICAL SPECIFICATIONS:
• Prolonged lifetime on the RPV unit, lowering maintenance costs.
• RPV noise level dramatically reduced compared to competitors,this is at all flow rates.
• The RPV can withstand 50 blow downs with CO2 / 100 KG cylinder
• The RPV unit can be replaced
• Passage Ø6 mm for residual gas - an excellent choice for bundles
For further technical specifications on this valve please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk

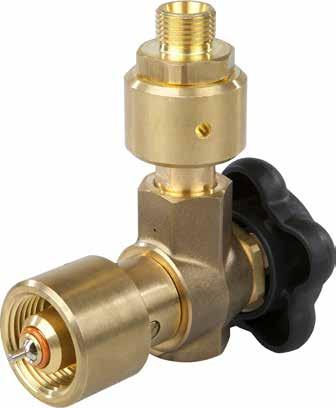

551 Off-line High-pressure Bundle Valve
About this valve
The MGE Type 551 is our standard off-line high-pressure cylinder valve. The valve is a further development of the Type 518 with less noise pollution at a high flow rate, thanks to the conical seal.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297 & 15996
Working pressure: 300 bar & 200 bar
Inlet connection: On request
Outlet connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145, or other on request
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional.
Plastic protection cap: On request
Surface treatment: Chromium plating on request
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 info@bmv.dk
Illustration- 551 main valve in use
TECHNICAL SPECIFICATIONS:
• Design with dual inlet connections, one for liquid phase and the other for gas phase. The inlet connection for the liquid phase is intended for fitting of a dip tube
• Two sealing systems, one for each gas phase
• One or two outlets as option
• Provision of either a safety valve or a burst disc
• Suitable for use without a permanent protection guard for a total package weight not exceeding 50 kg
• Handwheel can be designed to fit under a standard DIN protection guard
• Outlet seal nut and dip tube are optional

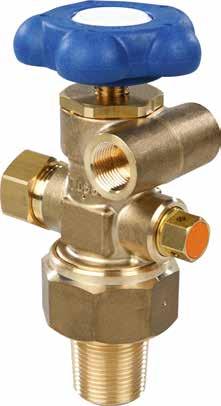

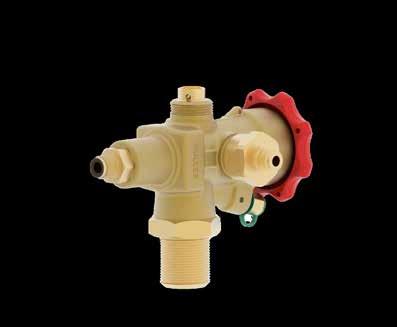

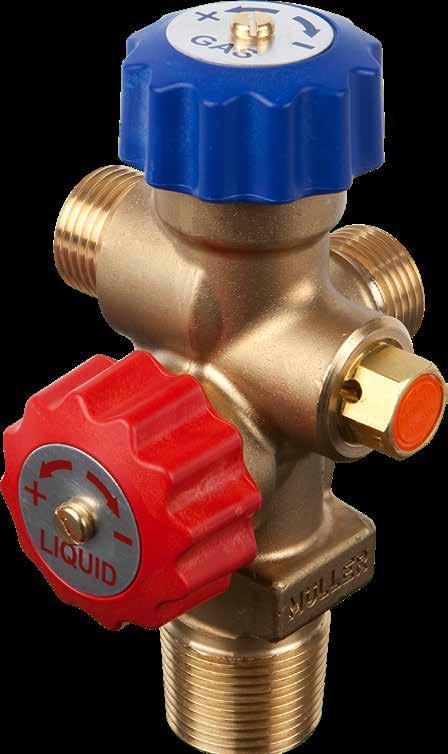

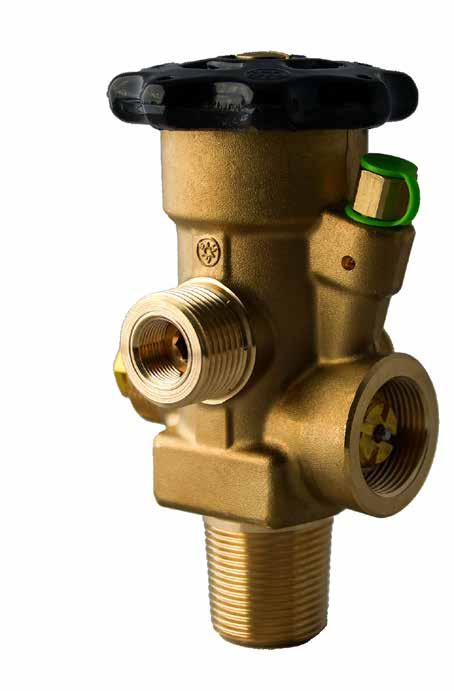

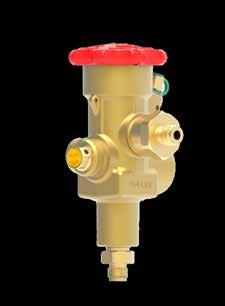

552 Valve for refrigerant gases
About this valve
The Müller type 552 refrigerant valve for industrial use offers a new innovative design. It is a small and compact solution with multiple characteristics. The valve can be provided with one or two outlets for either gas or liquid phase, the consumption of which is operated by the handwheels. The handwheel can be designed to allow the valve to fit under a DIN protection guard. Handwheel colour and logo can be supplied as per customer request.
The valve is manufactured on state-of-the-art machinery, and the quality is monitored throughout the entire process. The valve is subjected to a 100% functional test on the assembly line ensuring a safe and reliable high-quality product.
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 or e-mail: info@bmv.dk
BAM Approved: EN ISO 10297
Approved test pressure: 250 bar
Inlet connection: 25 E, or other on request
Available for the following gases: CO2
R12, R22, R114 & R134a
R14, R116 or other on request
Filling connection: to customer specification
Burst disc / safety valve: According to gas type
Valve weight: 0,9 kg.
Gas phase: Blue handwheel or other on request
Liquid phase: Red handwheel or other on request

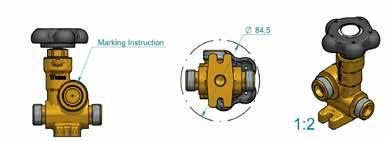

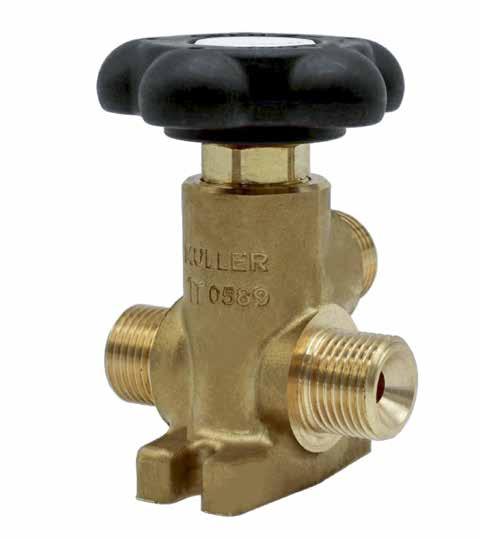

High-pressure Line- valve
Simple valve or with RPV / MPR
TECHNICAL SPECIFICATIONS:
• The valve is oxygen pressure surge tested by BAM for WP 300 bar
• Two outlets for bundles or pipelines
• Approved for -40° C
• With inlet thread or foot.
• Impact value of 100kg can be achieved with inlet thread 25ES
• Max passage: Ø6mm

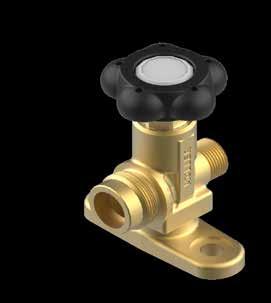

Line-Valve
About this valve
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297
Working pressure: 300 bar & 200 bar
Inlet Connection: 25E, 25ES, or other on request
Inlet Filter: On request
Outlet Connection for Simple Valves: DS2404, DIN, ISO 5145 or other on request
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request. Aluminium handwheel is optional.
Tape / Plastic protection cap: On request
Surface treatment: Chromium plating on request Passage: Ø4 and Ø6 depending on configuration
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
616 High Flow Pressure Reduction Valve
Approved for 310 bar (4500 psi) oxygen - also for bundle application (ISO VB)
TECHNICAL SPECIFICATIONS:
• Pressure Reduction Valve typical from 300 bar to 70 +15/-10 bar
• Approved for working pressure up to 310 bar (4500 psi)
• Safety Valve
• Residual Pressure Valve
• Ø4 passage to achieve high flow rates
• Filter incorporated to protect the regulating unit
• Optionel: Separate filling port (typical 300 bar), which also can be used for consumption without pressure reduction
• Can be delivered without filling port for bundle applications
For further technical specifications on this valve please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk
TECHNICAL SPECIFICATIONS:

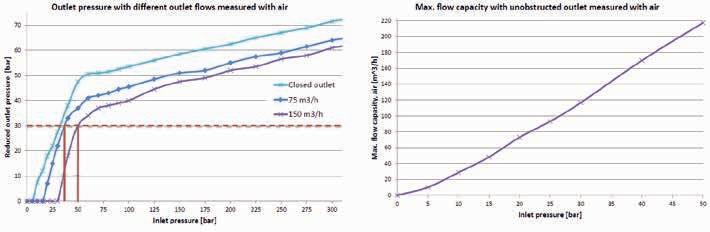

616 High Flow Pressure Reduction Valve
About this valve
The Müller High Flow Pressure Reduction Valve type 616 for industrial use offers a new innovative design for pack or single cylinder applications.
The valve is equipped with a regulating unit, safety valve and RPV function, and it is approved for 300 bar Inert and Oxygen service. The possibility to fill through the 300 bar filling connection and take out 70 bar at the low pressure side with your existing regulator gives a unique cost saving opportunity. Upgrade your 200 bar bundles to 300 bar without complications for your customers.
The regulating unit of the valve has a high flow capacity compared to its size and is preset at 70 bar +15/-10 bar. For single cylinder applications, the valve can be used without a permanent protection guard (cylinder package ≤ 100kg).
The valve is manufactured on state of the art machinery, and the quality is monitored throughout the entire process. The final product is subjected to a 100% functional test after assembly ensuring you a world class Pressure Reduction Valve!
BAM Approved: according to EN ISO 10297 & 15996
Working pressure: ≤ 310 bar (4500 psi)
Inlet connection: 25 ES, or other on request
Outlet connection: to customer specification
Filling connection: to customer specification
Static outlet pressure: preset to 70 bar +15/-10 bar at 300 bar inlet pressure
Residual pressure valve: 3 - 7,5 bar retain pressure
Safety valve: Max. open/min. close 180/100 bar
Valve weight: 1,0 - 1,15 kg.
Valve dimension, height over cylinder: 100 mm (approx)
Opening/closing to cylinder: Handwheel
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
Bi-directional Pressure Reduction Valve
Approved for 300 bar oxygen - also for bundle application (ISO VB)
TECHNICAL SPECIFICATIONS:
• Pressure Reduction Valve from 300 bar to 70 +/- 10 bar
• BAM approved for 300 bar Oxygen and Inert service according to EN ISO 10297 &15996
• Filter incorporated to protect the regulating unit
• One outlet/fill port (to national 200-150 bar standard).
Filling 300 bar via a special fill connecter and you consume through the same port
• Active indicator to show the 300 bar in the cylinder
90 years of proven experience
Discover more of our products at: www.bmv.dk
616 Pressure Reduction Valve
About this valve
The Müller Bi-directional Pressure Reduction Valve type 616 for industrial use offers a new innovative design for single cylinder applications. The valve is provided with a regulating unit, safety valve and RPV function, and it is approved for 300 bar Inert and Oxygen service. You fill 300 bar via a special fill connecter and you consume through the same port. The possibility to fill 300 bar through the 200 bar outlet connection and take out 70 bar at the same port using your existing regulator gives a unique cost saving opportunity, and you can upgrade your 200 bar cylinders to 300 bar without complications for your customers. A 300 bar active Indicator class 2.5 shows the cylinder contents at all times. The valve can fit into an existing guard with easy accessibility to the outlet/fill port and indicator as well as the hand wheel. Burst disc can be provided as option.
The regulating unit of the valve has a high flow capacity compared to its size and is preset at 70 bar +/- 10 bar. For single cylinder applications, the valve can be used without a permanent protection guard (cylinder package ≤ 100kg). The valve is manufactured on state of the art machinery, and the quality is monitored throughout the entire process. The final product is subjected to a 100% functional test after assembly ensuring you a world class Pressure Reduction Valve!
BAM Approved: according to EN ISO 10297 & 15996
Working pressure: ≤ 300 bar
Active indicator showing content of the cylinder all the time.
Inlet connection: 25 E, or other on request
Outlet connection: to customer specification
Outlet pressure: preset to 70 bar +/- 10 bar
Residual pressure valve: 3 - 7,5 bar retain pressure
Safety valve opening: max. 140 bar
Cv value: 0,31 (with air)
Valve weight: 1,0 kg.
Valve dimension, height over cylinder: 100 mm (approx)
Opening/closing to cylinder: Handwheel
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
TECHNICAL SPECIFICATIONS:
• 2 stage regulation system (optimal 0-10 bar)
• European Patent No. EP2215537
• Pressure indicator (0-360 bar)
• Pressure gauge (10-16 bar)
• 2 stage regulation system, safety valve, RPV in one unit for easy maintainance
• Filter incorporated to protect the regulation unit
• Max flow rate 250 I/min Min. 20 bar
TECHNICAL SPECIFICATIONS:

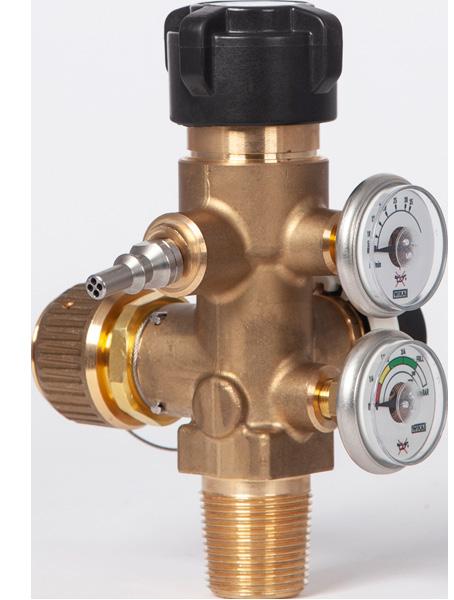

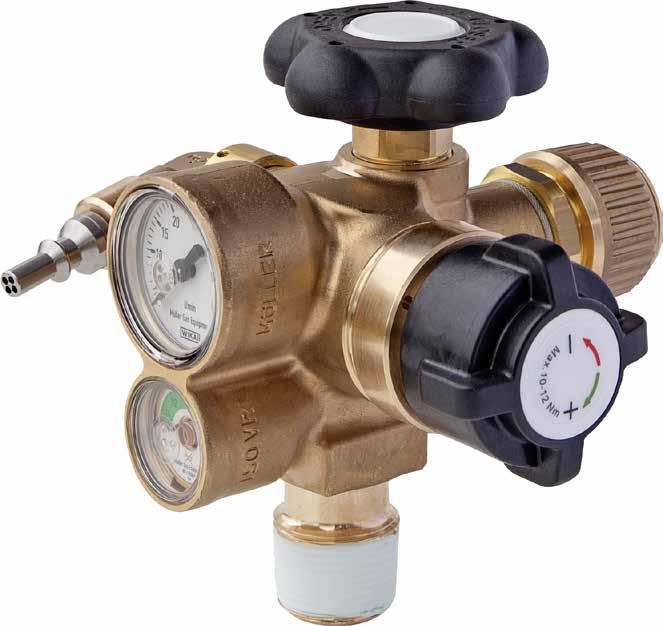

617 VIPR Valve - Oxygen Compact Light Weight
About this valve
The Müller type 617 industrial VIPR sets new standards with its new innovative design. It is equipped with a two stage regulating unit including safety valve and RPV function. The regulating unit has a patented balanced system allowing you to change the fl ow settings by applying a constant torque.
For easy maintenance of the regulating unit, the main valve can be shut off and the complete unit can be replaced without further disassembly.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on a automated assembly line using Helium as media for accurate leak testing. The valve is subjected to a 100% functional test on the assembly line with complete records of all test results, ensuring full data traceability. When the valve has passed all tests on the assembly line, it is allocated a unique serial number relating to the recorded test data, giving you a world class industrial VIPR!
BAM Approved: according to EN ISO 22435
Working pressure: 300 bar & 200 bar
Inlet connection: 25 E, 25ES, or other on request. Anti dust tube on request
Outlet connection: Quick connect EN 561, screw connection ISO 3253, or other on request
Filling connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Outlet pressure: adjustable 0 - 6 bar / 0 - 10 bar
Residual pressure valve: 3 - 7,5 bar retain pressure
Safety valve opening: 12 bar / 18 bar
Safety valve closing: min. 6,0 bar / 10 bar
He leak tested: leak rate of ≈ 2x10-3 mBAR x l/sec (6 cm3/h)
Valve weight: 1,4 kg.
Valve dimension, height over cylinder: 125 mm (approx)
Opening/closing to cylinder: Handwheel
Regulation of flow: Handwheel
Burst disc: on request
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 info@bmv.dk
TECHNICAL SPECIFICATIONS:
• 2 stage regulation system (300-50 bar / 0-4,5 bar)
• European Patent No. EP2215537
• Pressure indicator (0-360 bar)
• Pressure gauge (0-35 I/min)
• 2 stage regulation system, safety valve, RPV in one unit for easy maintainance
• Filter incorporated to protect the regulation unit
• Max flow rate 32 I/min
TECHNICAL SPECIFICATIONS:
617 VIPR Valve - Inert
Compact Light Weight
About this valve
The Müller type 617 industrial VIPR sets new standards with its new innovative design. It is equipped with a two stage regulating unit including safety valve and RPV function. The regulating unit has a patented balanced system allowing you to change the fl ow settings by applying a constant torque.
For easy maintenance of the regulating unit, the main valve can be shut off and the complete unit can be replaced without further disassembly.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on a automated assembly line using Helium as media for accurate leak testing. The valve is subjected to a 100% functional test on the assembly line with complete records of all test results, ensuring full data traceability. When the valve has passed all tests on the assembly line, it is allocated a unique serial number relating to the recorded test data, giving you a world class industrial VIPR!
BAM Approved: according to EN ISO 22435
Working pressure: 300 bar & 200 bar
Inlet connection: 25 ES, 25ES, or other on request. Anti dust tube on request
Outlet connection: Quick connect EN 561, screw connection ISO 3253, or other on request
Filling connection: DS2404, DIN, NEN, AFNOR, UNI, NBN,CGA, BS, AS, ISO 5145 or other on request
Outlet pressure: adjustable 0 - 25 I/min
Residual pressure valve: 3 - 7,5 bar retain pressure
Safety valve opening: max. 12 bar
Safety valve closing: min. 6,0 bar
He leak tested: leak rate of ≈ 2x10-3 mBAR x l/sec (6 cm3/h)
Valve weight: 1,4 kg.
Valve dimension, height over cylinder: 125 mm (approx)
Opening/closing to cylinder: Handwheel
Regulation of flow: Handwheel
Burst disc: on request
Not for medical use
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
TECHNICAL SPECIFICATIONS:
• 1 stage regulation system (0 - max. 1,5 bar)
• European Patent No. EP2215537
• Pressure indicator (0-40 bar)
• Pressure gauge (0 - 2,5 bar)
• Filter incorporated to protect the regulation unit
• Max flow rate Q1=30 I/min
For further technical specifications on
TECHNICAL SPECIFICATIONS:
617 VIPR Valve - Acetylene Compact Light Weight
About this valve
The Müller type 617 industrial VIPR sets new standards with its new innovative design. It is equipped with a one stage regulating unit. The regulating unit has a patented balanced system allowing you to change the fl ow settings by applying a constant torque. For easy maintenance of the regulating unit, the main valve can be shut off and the complete unit can be replaced without further disassembly.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on a automated assembly line using Helium as media for accurate leak testing. The valve is subjected to a 100% functional test on the assembly line with complete records of all test results, ensuring full data traceability. When the valve has passed all tests on the assembly line, it is allocated a unique serial number relating to the recorded test data, giving you a world class industrial VIPR!
BAM Approved: according to ISO 22435
Working pressure: 18 bar
Inlet connection: 25 E, 25ES, W31.3, W29.2, W36 or other on request
Outlet connection: Quick connect EN 561, screw connection ISO 3253, or other on request
Filling connection: DS2404, DIN, NEN, AFNOR, UNI, NBN,CGA, BS, AS, ISO 5145 or other on request
Outlet pressure: Adjustable 0 - max 1,5 bar
He leak tested: leak rate of ≈ 2x10-3 mBAR x l/sec (6 cm3/h)
Valve weight: 1,4 kg.
Valve dimension, height over cylinder: 125 mm (approx)
Opening/closing to cylinder: Handwheel
Regulation of flow: Handwheel
Not for medical use
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk

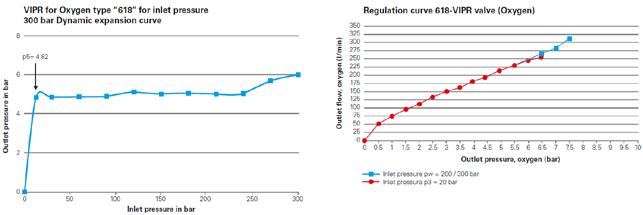

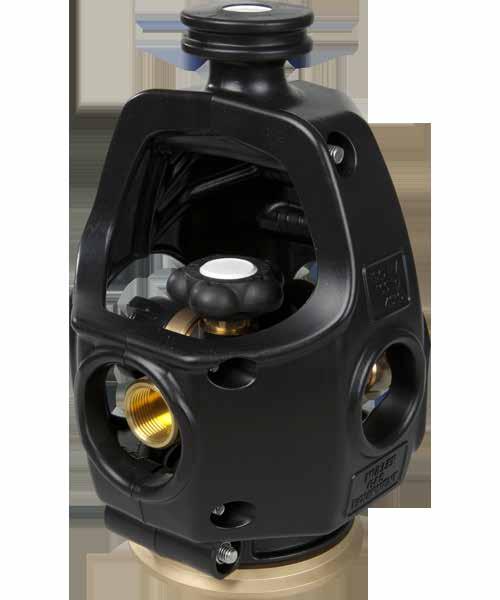

618 VIPR - Oxygen
TECHNICAL SPECIFICATIONS:
• 2 stage regulating system (300-50 bar / 0-6 bar)
• European Patent No. EP2215537
• Pressure indicator (0-360 bar) Built into the valve body
• Pressure gauge (0-10 bar) Built into the valve body
• 2 stage regulating system, safety valve, RPV in one unit for easy maintainance
• Filter incorporated to protect the regulating unit
• Max flow rate 250 l/min Min. 20 bar
For further technical specifications on
90
About this valve
The Müller type 618 industrial VIPR sets new standards with its new innovative design. It is equipped with a two stage regulating unit including safety valve and RPV function. The regulating unit has a patented balanced system allowing you to change the flow settings by applying a constant torque. Pressure gauge and flow meter are incorporated into the main valve body for better protection. For easy maintenance of the regulating unit, the main valve can be shut off and the complete unit can be replaced without further disassembly.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on a automated assembly line using Helium as media for accurate leak testing. The valve is subjected to a 100% functional test on the assembly line with complete records of all test results, ensuring full data traceability. When the valve has passed all tests on the assembly line, it is allocated a unique serial number relating to the recorded test data, giving you a world class industrial VIPR!
BAM Approved: acording to ISO 22435
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request. Anti dust tube on request
Outlet connection: Quick connect EN 561, screw connection ISO 3253, or other on request
Filling connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Outlet pressure: adjustable 0 - 6 bar
Residual pressure valve: 3 - 7,5 bar retain pressure
Safety valve opening: max. 12 bar
Safety valve closing: min. 6,0 bar
He leak tested: leak rate of ≈ 2x10-3 mBAR x l/sec (6 cm3/h)
Valve weight: 1,9 kg
Valve dimension, height over cylinder: 110 mm (approx)
Opening/closing to cylinder: Handwheel
Regulation of flow: Handwheel
Burst disc: on request
Not for medical use
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 · info@bmv.dk
618 VIPR - Inert
TECHNICAL SPECIFICATIONS:
• 2 stage regulating system (300-50 bar / 0-6 bar)
• European Patent No. EP2215537
• Pressure indicator (0-360 bar)
• Pressure gauge (0-40 l/min)
• 2 stage regulating system, safety valve, RPV in one unit for easy maintainance
• Filter incorporated to protect the regulating unit
• Max flow rate 32 l/min
For further technical specifications on this valve please see reverse.

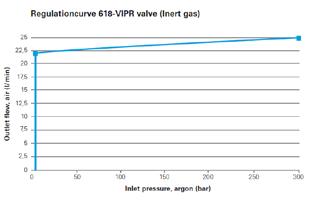

618 VIPR - Inert
About this valve
The Müller type 618 industrial VIPR sets new standards with its new innovative design. It is equipped with a two stage regulating unit including safety valve and RPV function. The regulating unit has a patented balanced system allowing you to change the flow settings by applying a constant torque. Pressure gauge and flow meter are incorporated into the main valve body for better protection. For easy maintenance of the regulating unit, the main valve can be shut off and the complete unit can be replaced without further disassembly.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on a automated assembly line using Helium as media for accurate leak testing. The valve is subjected to a 100% functional test on the assembly line with complete records of all test results, ensuring full data traceability. When the valve has passed all tests on the assembly line, it is allocated a unique serial number relating to the recorded test data, giving you a world class industrial VIPR!
BAM Approved: acording to ISO 22435
Working pressure: 300 bar & 200 bar
Inlet connection: 25E, 25ES, or other on request. Anti dust tube on request
Outlet connection: Quick connect EN 561, screw connection ISO 3253, or other on request
Filling connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Outlet pressure: adjustable 0 - 25 l/min
Residual pressure valve: 3 - 7,5 bar retain pressure
Safety valve opening: max. 12 bar
Safety valve closing: min. 6,0 bar
He leak tested: leak rate of ≈ 2x10-3 mBAR x l/sec (6 cm3/h)
Valve weight: 1,9 kg
Valve dimension, height over cylinder: 110 mm (approx)
Opening/closing to cylinder: Handwheel
Regulation of flow: Handwheel
Burst disc: on request
Not for medical use
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 · info@bmv.dk
618 VIPR - Acetylene
TECHNICAL SPECIFICATIONS:
• 1 stage regulating system (0 - max. 1,5 bar)
• European Patent No. EP2215537
• Pressure indicator (0-40 bar)
• Pressure gauge (0-2,5 bar)
• Filter incorporated to protect the regulating unit
• Standard flow rate Q1
For further technical specifications on this valve please see reverse.
90 years of
TECHNICAL SPECIFICATIONS:

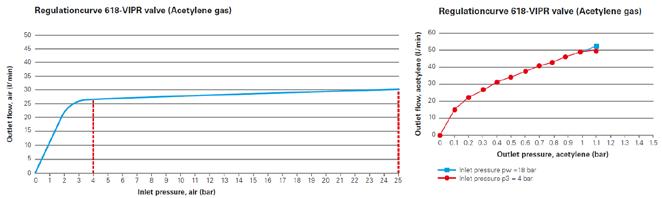

618 VIPR - Acetylene
About this valve
The Müller type 618 industrial VIPR sets new standards with its new innovative design. It is equipped with a 1 stage regulating unit. The regulating unit has a patented balanced system allowing you to change the flow settings by applying a constant torque. Pressure gauges are incorporated into the main valve body for better protection.
For easy maintenance of the regulating unit, the main valve can be shut off and the complete unit can be replaced without further disassembly.
The valve is manufactured on state in Denmark of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on a automated assembly line using Helium as media for accurate leak testing. The valve is subjected to a 100% functional test on the assembly line with complete records of all test results, ensuring full data traceability. When the valve has passed all tests on the assembly line, it is allocated a unique serial number relating to the recorded test data, giving you a world class industrial VIPR!
BAM Approved: acording to ISO 22435
Working pressure: 18 bar
Inlet connection: 25E, 25ES, W31.3, W29.2, W36 or other on request
Outlet connection: Quick connect EN 561, screw connection ISO 3253, or other on request
Filling connection: DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5145 or other on request
Outlet pressure: adjustable 0 - max 1,5 bar
He leak tested: leak rate of ≈ 2x10-3 mBAR x l/sec (6 cm3/h)
Valve weight: 1,9 kg
Valve dimension, height over cylinder: 110 mm (approx)
Opening/closing to cylinder: Handwheel
Regulation of flow: Handwheel
Not for medical use
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 · info@bmv.dk
Regulationcurve 618-VIPR valve (Acetylene gas)

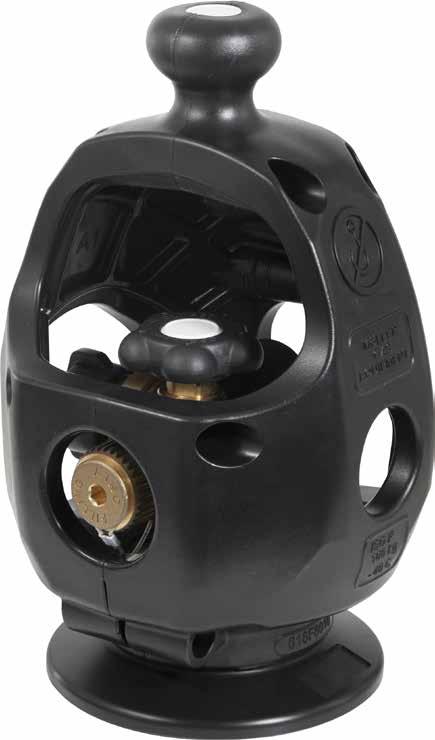

Protective Guard for the 618 industrial VIPR
TECHNICAL SPECIFICATIONS:
• BAM approved acc. to ISO 1117 (ISO PC marked)
• Electrical properties; Surface resistivity according to ASTM D257 (Ω/sq):102 – 104
• Approved for -40° C in accordance with ISO 11117
• Approved for a total package mass of 100KG (50L cylinder) in accordance with ISO 11117
• Tamper resistant design
• Offers maximum protection of the VIPR
• Standard colour is black, but can be changed according to customer requirements
• Can be equipped with customer logo
• Can be equipped with customer RFD chip
• Made of HDPE (High Density Polyethylene)
90 years of proven experience
Discover more of our products at: www.bmv.dk
The Guard is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The guard is designed with knob for easy handling of the cylinder.
Protective Guard for the 618 industrial VIPR
TECHNICAL SPECIFICATIONS:
• BAM approved acc. to ISO 11117
• Electrical properties; Surface resistivity according to ASTM D257 (Ω/sq):102 – 104
• Approved for -40° C in accordance with ISO 11117
• Approved for a total package mass of 100KG (50L cylinder) in accordance with ISO 11117
• Tamper proof design
• Offers maximum protection of the VIPR
• Colour is black, but can be changed to meet customer requirements
• Can be equipped with customer logo
• Can be equipped with customer RFD chip
• Can be equipped with plug for filling port
• Made of HDPE (High Density Polyethylene)
90 years of proven experience
Discover more of our products at: www.bmv.dk
The Guard is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The guard is designed with knob for easy handling of the cylinder.
Carbonater valve
Standard cylinder valve with passage Ø2.0 for 425g cylinders
TECHNICAL SPECIFICATIONS
• The valve has an approved test pressure of 250 bar
• Bursting Disc: Up to 250 bar bursting pressure
• Max passage: Ø2.0 mm
• Cleanliness: In accordance with medical standards
• Compatible with all common household soda makers.
further technical specifications
90 years of proven experience
Discover more of our products at: www.bmv.dk

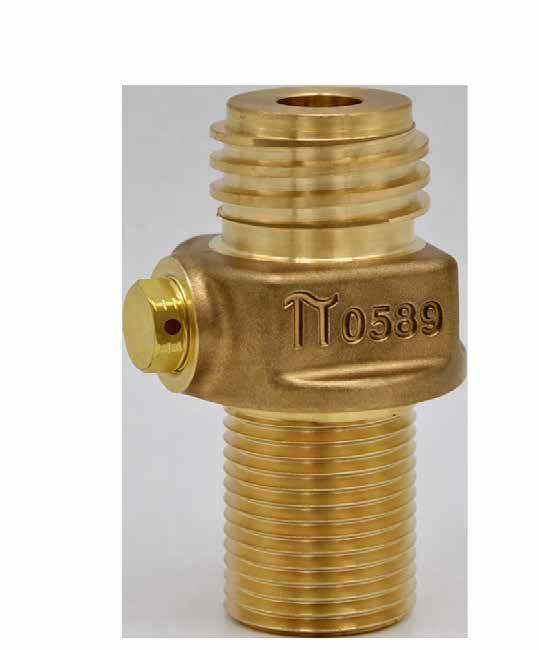

332 CO2 carbonater valve
About this valve: Premium Gas Cylinder Valve for Water Carbonators – 100% Made in Denmark
Our high‑quality gas cylinder valve is engineered specifically for water carbonators, delivering maximum safety, a perfect fit.
Entirely Manufactured in Denmark
The valve is fully produced and assembled in Denmark – from raw materials to the final inspection. This ensures short produc tion routes, sustainable processes, and uncompromising reliability.
100% Quality Control
Every single valve undergoes complete and meticulous quality inspection. Only flawless products leave our facility. The out come: maximum safety, long service life, and consistent performance for every use.
Universal Compatibility
Our valve fits all common brands and models of water carbonators. Simply attach it and start using it right away – no adapters or special accessories required.
Custom Modifications Available
If you need specific dimensions, material variants, or branded customization, we’ve got you covered. Custom adaptations are available upon request.
BAM Approved: Acording to ISO 17879
Approved test pressure: 250 bar
Inlet connection: M18x1, 5
Outlet connection: Tr21x4, Tr 21x3 or other on request
Burst disc: 250 bar
Gas: CO2
Passage: Ø2.0 mm
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk

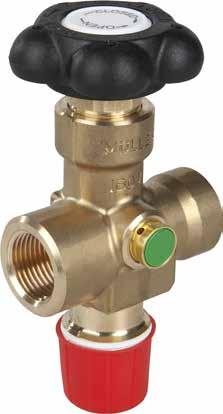

Chlorine valve with V-rings and
additional O-ring sealing
Valve body in brass with chemical nickel plating (40 µm)
TECHNICAL SPECIFICATIONS:
• External tightness achieved with two preset V-ring seals by disc springs and additionally O-ring sealing
• Valve body in brass with chemical nickel plating (40 µm)
• Other components produced in stainless steel
• Passage Ø6.5 mm
• BAM approved
• Non rotating, threadless lower inne spindle
further technical specifications
90 years of proven experience
Discover more of our products at: www.bmv.dk
TECHNICAL SPECIFICATIONS:

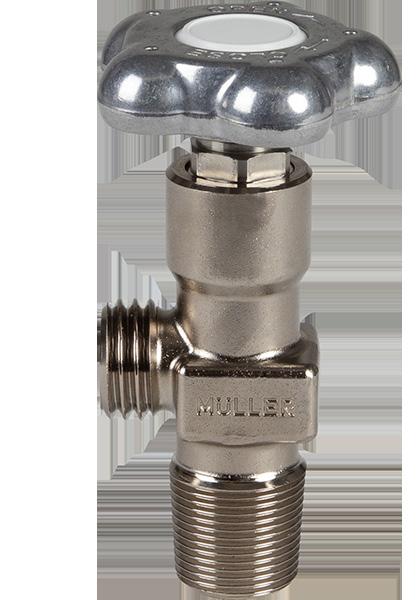

490 Chlorine valve with V-rings and additional O-ring sealing
About this valve
The MGE Type 490 is a chlorine cylinder valve approved by BAM. The valve has an improved service life due to the chemically nickel-plated valve body and stainless steel machined parts, which improve its corrosion resistance. The valve features a spring-loaded V-ring design with additional O-ring sealing. This design ensures a leak-tight valve and eliminates the need to re-tighten the gland nut. The valve has a user-friendly design with soft-close handwheel that ensures low closing torque. No key is required for operation.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process.
The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 10297
Approved test pressure: 60 bar
Inlet connection: 25E, or other on request
Outlet connection: DIN 477-1 No. 8
Dip Tube: On request, M 10 x 075, or other
Handwheel: with logo on request. Aluminium handwheel is optional
Tape / Plastic protection cap: On request
Surface treatment: Chemical nickel plating 40 µm
Max passage: Ø6.5 mm
Outlet sealing cap, or plug: On request
Gas: CI2
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
Pneumatic Timer Valve
Used for fire extinguishing systems
TECHNICAL SPECIFICATIONS:
• Quick release for Inert gases
• Manual or pneumatical activation of the valve
• The valve is tested by BAM for WP 200 bar at 15°C
• The valve fulfill ISO 17871 as a type “B” 10 activations
• The valve must be used with a valve protection guard according to 4.1.6.8 ADR
• Approved operating temperatures between -20°C and +65°C
The MGE Type 370 Pneumatic Timer Valve is used for fire extinguishing systems. The quick action valve for Inert gases can be manual activated by using a handwheel or pneumatically activated by using the M26x1.5 connection. The valve is also equipped with a bursting disc.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 17871
Working pressure: 200 bar
Approved test pressure: 190 bar
Inlet connection: 25E according to ISO 11363-1, or other on request
Inlet filter: On request
Outlet connection: W21,8x1/14 DIN 477-1, or other on request
Dip Tube thread: M 16 x 1, or other on request
Activation: Pneumatically or by handwheel
Handwheel: Aluminium handwheel Ø65
Burst disc: According to CGA S 1.1 or TRG 254-2 Nr. 1
Tape / Plastic protection cap: On request
Gas: Argonite, Halon, N2, Ar/N2, CO2 (filling factor 0.68)
Passage: Ø12 mm
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
TYPE 370 - ALSO AVALIBLE AS:
Dimensions
570
Pneumatic CO2 Valve
Used for fire extinguishing systems
TECHNICAL SPECIFICATIONS:
• Quick release for CO2
• Manual or pneumatical activation of the valve
• Approved for operating temperatures between -20°C and +50°C
• The valve is tested by BAM and has an approved test pressure of 250 bar
• The valve fulfill ISO 17871 as a type “B” 10 activations
• The valve must be used with a valve protection guard according to 4.1.6.8 ADR
90 years of proven experience
www.bmv.dk
TECHNICAL SPECIFICATIONS: 570 Pneumatic CO2 Valve
About this valve
The MGE Type 570 Pneumatic CO2 Valve is used for fire extinguishing systems. The quick action valve can be manual activated by using a handwheel or pneumatically activated by using the G1/8” connections. The valve is also equipped with a bursting disc.
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. The valve is assembled on an automated assembly line and the valve is subjected to a 100% functional test. After passing all tests on the assembly line it is securely packed for shipping.
BAM Approved: Acording to ISO 17871
Approved test pressure: 250 bar
Inlet connection: 25E according to ISO 11363-1, or other on request
Inlet filter: On request
Outlet connection: W21,8x1/14 DIN 477-1, or other on request
Activation: Pneumatically or by handwheel
Handwheel: Brass handwheel Ø48 mm
Operating temperature: -20°C /+65°C
Gas application: CO2
Bursting disc: According to CGA S 1.1 or TRG 254-2 Nr. 1
Tape / Plastic protection cap: On request
Passage: Ø12 mm
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 info@bmv.dk
580
Fire suppression valve pneumatically operated / Manually operated
1. Quick release for CO2, Ar, Inergen
2. Manual and pneumatical activation of the valve
3. Approved for (-20º C - +65º C)
4. The valve is tested by BAM for WP 200 bar at 15º C
5. The valve fullfills ATR D 2/2012 as a type “C” 100 activations
6. The valve must be used with a valve protection guard according to 4.1.6.8 ADR
The valve is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process.
The valve is assembled and subjected to a 100% functional test.
After passing all tests it is securely packed for shipping.
BAM Approved: According to ATR D 2/2012 as a type “C” 100 activations
Test pressure: 250 bar at 15º C
Working pressure: 200 bar at 15º C
Inlet connection: 25E according to ISO 11363-1, or other on request
Inlet filter: On request
Outlet connection: W21,8x1/14 DIN 477-1, or other on request
Dip Tube thread: M 16 x 1, or other on request
Activation: Pneumatically or by handwheel
Handwheel: Plastic Ø58.5 or Ø65 and with logo on request.
Aluminium handwheel is optional. Free spinning handwheel on request
Burst disc: According to CGA S 1.1 or TRG 254-2 Nr 1
The fill connector is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. We supply to all major gas companies world wide and our raw materials are sourced from reliable European suppliers. Individual requirements constantly present new challenges producing unique solutions. Therefore we have many years of experience in making customized solutions.
• Body material only from reliable European suppliers with certificate DS/EN 10204
• Simple use
• Replaceable spare parts
• Swivel design
• All relevant data engraved
Hydraulic Test Pressure (TP): 675 bar (Optional)
Pin: Monel. Fitted with a fixed or spring loaded pressure pin for the RPV
Swivel design: Knurled or simple
Surface treatment: Plain or chrome plated
O2 Cleaning: According to EIGA Guideline IGC Doc 33/06/E
O2 Test: Available with BAM or CTE test (test costs may apply)
Engraving: All relevant data are engraved
Body Material: Brass
Inlet connection: Hose connection according to customer requirement.
Only use and replace parts with original MGE spareparts.
431 STRAIGHT SIMPLE

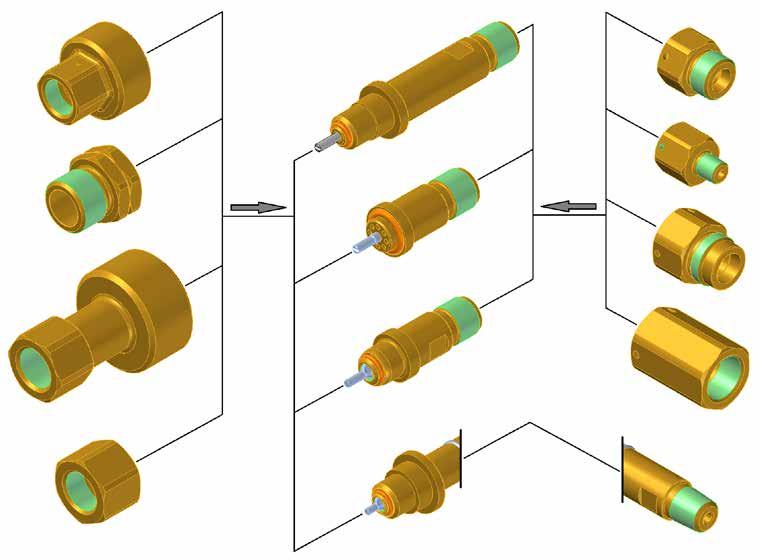

Fill Connectors for valves with RPV / non RPV
Valve connection
Body fixed-/ spring loaded pin
Hose connection
DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5745 or other on request
ISO 5145, DIN 477-1, DS 2404, CGA V-1, BS 341-3, AS 2473.2, NF E 29-650, ISO 8434-1, ISO 3253 or other on request
Only use original spare parts from MGE. Please contact MGE for a complete spare parts list and do not hesitate to contact us for further information.
See our online catalogue

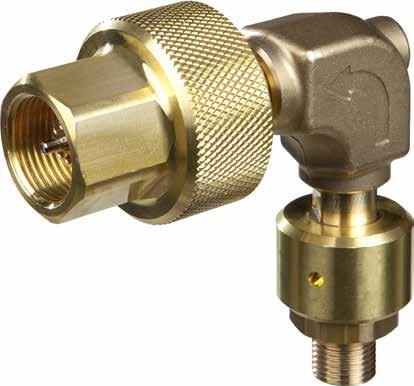

431 ANGLE
ANGLE FILL CONNECTOR
Angle Fill Connector for valves with RPV / non RPV
The fill connector is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. We supply to all major gas companies world wide and our raw materials are sourced from reliable European suppliers. Individual requirements constantly present new challenges producing unique solutions. Therefore we have many years of experience in making customized solutions.
• Body material only from reliable European suppliers with certificate DS/EN 10204
• Simple use
• Replaceable spare parts
• Angle design
• All relevant data engraved
Hydraulic Test Pressure (TP): 675 bar (Optional)
Pin: Monel. Fitted with a fixed or spring loaded pressure pin for the RPV
Swivel design: Knurled or simple
Surface treatment: Plain or chrome plated
O2 Cleaning: According to EIGA Guideline IGC Doc 33/06/E
O2 Test: Available with BAM or CTE test (test costs may apply)
Engraving: All relevant data are engraved
Body Material: Brass
Inlet connection: Hose connection according to customer requirement.
Only use and replace parts with original MGE spare parts.
431 ANGLE
Angle Fill Connectors for valves with RPV / non RPV
DS2404, DIN, NEN, AFNOR, UNI, NBN, CGA, BS, AS, ISO 5745 or other on request
ISO 5145, DIN 477-1, DS 2404, CGA V-1, BS 341-3, AS 2473.2, NF E 29-650, ISO 8434-1, ISO 3253 or other on request See our online catalogue

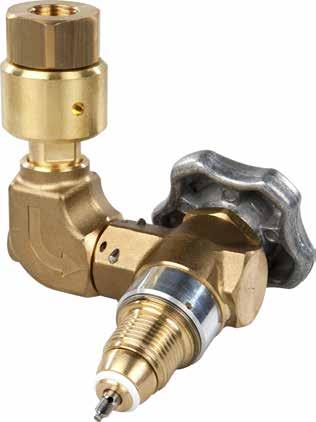

431 ANGLE HANDWHEEL DESIGN
Fill connector for valves with RPV / non RPV
The fill connector is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. We supply to all major gas companies world wide and our raw materials are sourced from reliable European suppliers. Individual requirements constantly present new challenges producing unique solutions. Therefore we have many years of experience in making customized solutions.
• Body material only from reliable European suppliers with certificate DS/EN 10204
• For side outlet filling
• Easy handling
• Replaceable spare parts
• All relevant data engraved
• Can be used for liquid CO2 at temperatures down to -60° C
• Improved lifetime of sealing gaskets with lip seal requiring only low torque
Hydraulic Test Pressure (TP): 675 bar (Optional)
Pin: Monel. Fitted with a fixed or spring loaded pressure pin for the RPV
Handwheel: Plastic Ø58.5 or Ø65. Aluminium handwheel is optional
Surface treatment: Plain or chrome plated
O2 Cleaning: According to EIGA Guideline IGC Doc 33/06/E (Optional 50 mg/m2 for hydrocarbon and 50 mg/m2 for particles)
O2 Test: Available with BAM or CTE test (test costs may apply)
Engraving: All relevant data are engraved
Body Material: Brass
Valve connection: ISO 5145, DIN 477-1, DS 2404, CGA V-1, BS 341-3, AS 2473.2, NF E 29-650, UNI 11144 or other on request
Hose connection: ISO 8434-1, ISO 3253, ISO 8434-6 or other on request
Only use and replace parts with original MGE spare parts.
Müller
431
ANGLE/SWIVEL DESIGN
Swivel Fill Connector for valves with RPV / non RPV
The fill connector is manufactured in Denmark on state of the art manufacturing equipment, and the quality is monitored throughout the entire process. We supply to all major gas companies world wide and our raw materials are sourced from reliable European suppliers. Individual requirements constantly present new challenges producing unique solutions. Therefore we have many years of experience in making customized solutions.
• For top and side outlet filling
• Body material only from reliable European suppliers with certificate DS/EN 10204
• Easy handling
• Replaceable spare parts
• Angle/swivel design
• All relevant data engraved
• Can be used for liquid CO2 at temperatures down to -60° C
• Improved lifetime of sealing gaskets with lip seal requiring only low torque
Hydraulic Test Pressure (TP): 675 bar (Optional)
Pin: Monel. Fitted with a fixed or spring loaded pressure pin for the RPV
Swivel design: Knurled or simple
Handwheel: Plastic Ø58.5 or Ø65. Aluminium handwheel is optional
Surface treatment: Plain or chrome plated
O2 Cleaning: According to EIGA Guideline IGC Doc 33/06/E. Optional 50 mg/m2 for hydrocarbon x, 50 mg/m2 for particles.
O2 Test: Available with BAM or CTE test (test costs may apply)
Engraving: All relevant data are engraved
Body Material: Brass
Valve connection: ISO 5145, DIN 477-1, DS 2404, CGA V-1, BS 341-3, AS 2473.2, NF E 29-650, UNI 11144 or other on request
Hose connection: ISO 8434-1, ISO 3253, ISO 8434-6 or other on request
Only use and replace parts with original MGE spare parts.
TECHNICAL SPECIFICATIONS:
• Single stage regulator
• Inlet pressure 0,3-16 bar
• Outlet pressure 29, 30, 50 mbar
• Capacity 4 kg/h (dependent on inlet and outlet pressure)
• OPSO: Can be combined with MGE type 869
• PRV
• PN 16
• Typically combined with MGE type 869
For further technical specifications on this regulator please see reverse.
TECHNICAL SPECIFICATIONS:
047 Budget regulator for gas cylinders
About this regulator
The low pressure regulator type 047 is a single stage regulator typically used for cylinders. However, the regulator can be integrated in all other systems which require a regulated pressure at a low capacity.
Mode of operation
The low pressure regulator type 047 is a single stage regulator for gas cylinders which reduces the non-regulated pressure from the cylinder to a nominal set pressure e.g. 50 mbar.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 0,3-16 bar
Inlet connection: Pol, G1/4, G3/8, G1/2, G3/4 or other on request.
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 4 kg/h (Propane)
Outlet pressure: 29 / 30 / 50 mbar or other on request
Pressure relief valve (PRV): 90-160 mbar or other on request
Over-pressure shut-off (OPSO): Can be combined with MGE type 869
Regulator weight: Approx. 1,2 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
TECHNICAL SPECIFICATIONS
• Automatic change-over device
• Inlet pressure 1,4-12 bar
• Outlet pressure 0,4-2,5 bar
• Capacity 4-12 kg/h (dependent on inlet and outlet pressure)
• PN 16
• Hose connections for cylinders on request
For further technical specifications on this regulator please see reverse.
TECHNICAL SPECIFICATIONS:
056 Automatic change-over device
About this automatic change-over device
The device can operate 2 gas cylinders at the same time. One cylinder is the operating cylinder, being used until the remaining pressure in the operating cylinder sinks below a defined pressure. Now the reserve cylinder is used. You have to close the empty cylinder by switching the knob to the reserve cylinder which is now the operating cylinder. You can change the empty cylinder and add a full cylinder. The benefit of this is that you have a constant gas supply and can change the empty cylinder during the use of gas.
Available models
056-1 (green knob)
Inlet pressure: 1,4-12 bar
Service pressure: 0,9 bar
Reserve pressure: 0,4 bar Capacity: 4 kg/h
056-2 (orange knob)
Inlet pressure: 2-12 bar
Service pressure: 1,6 bar
Reserve pressure: 1,0 bar Capacity: 6 kg/h
056-3 (black knob)
Inlet pressure: 2,4-12 bar
Service pressure: 2 bar
Reserve pressure: 1,4 bar Capacity: 12 kg/h
056-4 (red knob)
Inlet pressure: 2,8-12 bar
Service pressure: 2,5 bar
Reserve pressure: 1,8 bar Capacity: 12 kg/h
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet connection: M18x1,25 int., G3/8 LH Int., G3/8 RH Int. or other on request.
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Weight: Approx. 1,6 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 · info@bmv.dk
TECHNICAL SPECIFICATIONS:
• Single stage regulator
• Inlet pressure 1,8-16 bar
• Outlet pressure 0,8-4 bar
• Capacity 24 kg/h (dependent on inlet and outlet pressure)
• PN 16
For further technical specifications on this regulator please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk
About this regulator
The pressure regulators type 057 and 058 are single stage regulators with a width range of application possibilities. The regulators can be integrated in all systems, which require a regulated pressure.
Mode of operation
The pressure regulators type 057 and 058 are single stage regulators for gas systems which reduce the non- regulated pressure from up to 16 bar to a nominal or adjusted pressure of up to 4 bar.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1,8-16 bar
Inlet connection: G1/4, G3/8, G1/2, G3/4 or other on request.
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 24 kg/h (Propane)
Outlet pressure: 0,8-4 bar
Regulator weight: Approx. 1 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
Single stage regulator with hose connection - fixed and adjustable
TECHNICAL SPECIFICATIONS:
• Single stage regulator
• Inlet pressure 1,8-16 bar
• Outlet pressure 0,8-4 bar
• Capacity 24 kg/h (dependent on inlet and outlet pressure)
• PN 16
For further technical specifications on this regulator please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk
About this regulator
The pressure regulators type 070 and 071 are single stage regulators with a width range of application possibilities. The regulator can be integrated in all systems, which requires a regulated pressure.
Mode of operation
The pressure regulators type 070 and 071 are single stage regulators for gas systems which reduce the non- regulated pressure from up to 16 bar to a nominal or adjusted pressure of up to 4 bar.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1,8-16 bar
Inlet connection: Pol, hose connection or other on request.
Outlet connection: Hose connection or other on request
Capacity: 24 kg/h (Propane)
Outlet pressure: 0,8-4 bar
Regulator weight: Approx. 1 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
TECHNICAL SPECIFICATIONS:
• First stage regulator
• Inlet pressure 1,5 - 16 bar
• Outlet pressure 0,75 - 1,5 bar
• Capacity 100 kg/h - 150 kg/h (dependent on inlet and outlet pressure)
• OPSO (optional)
• PRV (optional)
• Pressure gauge
• PN 25
For further technical specifications on this regulator please see reverse.
TECHNICAL SPECIFICATIONS:
160 Adjustable regulator for high capacity
About this regulator
Intermediate Pressure Regulator type MGE 160. The intermediate pressure regulator type MGE 160 is a regulator of 1st stage for LPG which reduces the non-regulated pressure of the gas cylinder to a fixed outlet pressure. The regulator is equipped with an overpressure shut-off valve (OPSO) and a safety relief valve (PRV).
Mode of operation
The intermediate pressure regulator reduces the non-regulated pressure from the gas cylinder to nominal pressure. At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the safety device (OPSO) will be reached which will then close by itself and block the gas flow before the regulator. Should an additional pressure rise occur e.g. through a not complete closing of the over-pressure shut-off valve (OPSO), the relief valve (PRV) will automatically release the gas flow in a limited quantity to the atmosphere after obtaining the fixed activation pressure.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1,5-16 bar
Inlet connection: G1/4, G3/8, G1/2, G3/4, G1 or other on request.
Outlet connection: G1/4, G3/8, G1/2, G3/4, G1 or other on request
Capacity: 100 kg/h - 150 kg/h (Propane)
Outlet pressure: 0,75 - 4 bar other on request
Pressure relief valve (PRV): 1,4 - 5 bar other on request
Over pressure shut off (OPSO): 1,2 - 4,7 bar other on request
Regulator weight: Approx.5 kg
Gas: LPG/LNG or on request
Working temperatur: -40°C to +80°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
447 Budget regulator
TECHNICAL SPECIFICATIONS:
• Single or second stage regulator
• Inlet pressure 1-4 bar
• Outlet pressure 29, 30, 50 mbar
• Capacity 10 kg/h (dependent on inlet and outlet pressure)
• OPSO: Can be combined with MGE type 869
• PRV (optional)
• PN 4
• Safety diaphragm (optional)
• Typically combined with MGE type 869
For further technical specifications on this regulator please see reverse.
90
TECHNICAL SPECIFICATIONS: 447 Budget regulator
About this regulator
The budget regulator type 447 is a single or second stage regulator with a large range of application possibilities. The regulator can be integrated in all systems, which require a regulated pressure at a low capacity.
Mode of operation
The low pressure regulator type 447 is a single or second stage regulator for gas systems which reduces the non-regulated pressure from up to 4 bar to a nominal pressure e.g. 50 mbar.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1-4 bar
Inlet connection: G1/4, G3/8, G1/2, G3/4 or other on request.
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 10 kg/h (Propane)
Outlet pressure: 29 / 30 / 50 mbar or other on request
Pressure relief valve (PRV): 90-160 mbar or other on request
Over-pressure shut-off (OPSO): Can be combined with MGE type 869
Regulator weight: Approx. 1,2 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
Two stage regulator - fixed and adjustable outlet pressure
TECHNICAL SPECIFICATIONS:
• Two stage regulator
• Inlet pressure 1,8-16 bar
• Outlet pressure 0,8-4 bar
• Capacity 24 kg/h (dependent on inlet and outlet pressure)
• OPSO: Can be combined with MGE type 869
• PN 16
• Typically combined with MGE type 869
For further technical specifications on this regulator please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk
TECHNICAL SPECIFICATIONS:
Regulator combination type MGE 457/458
The regulator combination type MGE 457/458 is a regulator of 1st stage for LPG which reduces the non-regulated pressure of the gas cylinder to a fixed or adjusted outlet pressure. The regulator is equipped with an over-pressure shut-off valve (OPSO).
Mode of operation
The regulator combination reduces the non-regulated pressure from the gas cylinder using 1 stage to nominal pressure.
At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the safety device (OPSO) will be reached which will then close by itself and block the gas flow before the regulator. The operating state of the over-pressure shut-off valve (OPSO) can be monitored at the glass.
Bright = open
Red = closed
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1,8-16 bar
Inlet connection: G1/4, G3/8, G1/2, G3/4 or other on request.
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 24 kg/h (Propane)
Outlet pressure: 0,8-4 bar
Over-pressure shut-off (OPSO): Can be combined with MGE type 869
Regulator weight: Approx. 1 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
Regulator combination 554 with OPSO and PRV for gas tank application
TECHNICAL SPECIFICATIONS:
• Two stage regulator combination
• Inlet pressure 1,5-16 bar
• Outlet pressure 29 / 30 / 37 / 50 /100 mbar or other on request
• Capacity 10 kg/h (dependent on inlet and outlet pressure)
• OPSO: 75-150 mbar
• PRV: 90-200 mbar
• PN 25
• For gas tank applications
• Optional test equipment on request
For further technical specifications on this regulator please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk
TECHNICAL SPECIFICATIONS:
About this regulator
Regulator combination type MGE 554/859. The regulator combination type MGE 554/859 is a combination of a regulator of 1st stage and a regulator of 2nd stage for LPG which reduces the non-regulated pressure of the pressure receptacle to a fixed outlet pressure. The regulator of 1st stage is equipped with an overpressure shut-off valve (OPSO) and the regulator of 2nd stage is equipped with safety relief valve (PRV).
Mode of operation
The regulator combination reduces the non-regulated pressure from the pressure receptacle using 2 stages to a nominal 50 mbar. At an inadmissible rise of the outlet pressure of the 2nd stage regulator the activation pressure of the safety device (OPSO) will be reached which will then close by itself and block the gas flow before the regulator of 1st stage. The operating status of the over-pressure shutoff valve (OPSO) can be monitored at the glass.
Bright=open
Red=closed
Should an additional pressure rise occur e.g. through a not complete closing of the over-pressure shut-off valve (OPSO), the relief valve (PRV) will automatically release the gas flow in a limited quantity to the atmosphere after obtaining the fixed activation pressure.
DVGW Approved: According to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1,5-16 bar
Inlet connection: Pol, G1/4, G3/8, G1/2, G3/4 or other on request
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 10 kg/h (Propane)
Outlet pressure: 29 / 30/ 37 / 50 / 100 mbar or other on request
Pressure relief valve (PRV): 90-200 mbar or other on request
Over-pressure shut-off (OPSO): 75-150 mbar
Regulator weight: Approx. 2 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +80°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
554-2
Middle range pressure regulator combination 554 with OPSO and PRV
TECHNICAL SPECIFICATIONS:
• Single stage regulator combination
• Inlet pressure 1,75-16 bar
• Outlet pressure 0,75 / 1,0 / 1,5 / 2,0 /2,5 bar or other on request
• Capacity 40-60 kg/h
• OPSO: 1,1 - 3,2 bar
• PRV: 1,4-3,5 bar
• PN 25
• Adjustable (optional)
• Pressure gauge (optional)
• Optional test equipment on request
For further technical specifications on this regulator please see reverse.
90 years of proven experience Discover more of our products at: www.bmv.dk
TECHNICAL SPECIFICATIONS:
PRV
About this regulator
Regulator combination type MGE 554. The regulator combination type MGE 554 is a regulator of 1st stage for LPG which reduces the non-regulated pressure of the gas cylinder to a fixed outlet pressure. The regulator is equipped with an over-pressure shut-off valve (OPSO) and a safety relief valve (PRV).
Mode of operation
The regulator combination reduces the non-regulated pressure from the gas cylinder using 1 stage to nominal pressure. At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the safety device (OPSO) will be reached which will then close by itself and block the gas flow before the regulator. The operating state of the over-pressure shut-off valve (OPSO) can be monitored at the glass.
Bright=open
Red=closed
Should an additional pressure rise occur e.g. through a not complete closing of the over-pressure shut-off valve (OPSO), the relief valve (PRV) will automatically release the gas flow in a limited quantity to the atmosphere after obtaining the fixed activation pressure.
DVGW Approved: According to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1,75-16 bar
Inlet connection: Pol, G1/4, G3/8, G1/2, G3/4 or other on request
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 40-60 kg/h (Propane)
Outlet pressure: 0,75 / 1,0 / 1,5 / 2,0 /2,5 bar or other on request
Pressure relief valve (PRV): 1,4-3,5 bar or other on request
Over-pressure shut-off (OPSO): 1,1 - 3,2 bar
Regulator weight: Approx. 2 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +80°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
554-3
Low pressure regulator combination 554 with OPSO and PRV or double diaphragm
TECHNICAL SPECIFICATIONS:
• Single stage regulator combination
• Inlet pressure 0,5-4 bar
• Outlet pressure 30 / 37 / 50 mbar or other on request
• Capacity 12-24 kg/h (dependent on inlet and outlet pressure)
• OPSO: 90-120 mbar bar
• PRV: 90-200 mbar
• PS 4
• Additional diaphragm (optional)
• Pressure gauge (optional)
• Optional test equipment on request
For further technical specifications on this regulator please see reverse.
90 years of proven experience
Discover more of our products at: www.bmv.dk
554-3 Low pressure regulator combination 554 with OPSO and
PRV
or double diaphragm
About this regulator
Regulator combination type MGE 554. The regulator combination type MGE 554 is a regulator of 2nd stage for LPG which reduces the regulated pressure of the regulator of 1st stage to a fixed outlet pressure. The regulator is equipped with an over-pressure shut-off valve (OPSO) and an additional diaphragm (AD) or a safety relief valve (PRV). Due to the safety diaphragm it is not necessary to have a vent.
Mode of operation
The regulator combination reduces the regulated pressure from the gas cylinder using 1 stage to nominal pressure. At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the safety device (OPSO) will be reached which will then close by itself and block the gas flow before the regulator. The operating state of the over-pressure shut-off valve (OPSO) can be monitored at the glass.
Bright=open
Red=closed
Should an additional pressure rise occur e.g. through a not complete closing of the over-pressure shut-off valve (OPSO), the safety diaphragms will stop a non-controlled discharge of the gas.
DVGW Approved: According to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 0,5-4 bar
Inlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 12-24 kg/h (Propane)
Outlet pressure: 30 / 37 / 50 mbar or other on request
Pressure relief valve (PRV): 90-200 mbar or other on request
Over-pressure shut-off (OPSO): 75-150 mbar
Regulator weight: Approx. 2 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +80°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
TECHNICAL SPECIFICATIONS:
• Second stage regulator
• Inlet pressure 1-4 bar
• Outlet pressure 29, 37, 50, 67 or 100 mbar
• Capacity 60 kg/h – 150 kg/h (dependent on inlet and outlet pressure)
• OPSO (optional)
• PRV or additional diaphragm
• Pressure gauge (optional)
• PN 4
For further technical specifications on this regulator please see reverse.
TECHNICAL SPECIFICATIONS:
555 High capacity LPG regulator
About this regulator
The low pressure regulators type MGE 555 are pressure regulators of 2nd stage for liquid gas which reduce the regulated pressure from the regulators of 1st stage to a fixed outlet pressure. As a safety device the regulator is equipped with an over-pressure shut-off valve (OPSO) and a safety relief valve (PRV). Furthermore it can be equipped with an additional diaphragm.
Mode of operation
The regulators reduce the regulated pressure from the pressure regulator of the 1st stage to nominal 29/37/50/67 or 100 mbar. At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the over pressure shut off valve (OPSO) is reached and the over-pressure shut-off valve will close by itself and block the gas flow before the regulator. Should an additional pressure rise occur e.g. through a not complete closing of the over-pressure shut-off valve the relief valve (PRV) will automatically release a limited gas flow to the atmosphere after obtaining the fixed activation pressure.
If equipped with additional diaphragm it can be used in housing installations.
DVGW Approved: according to EN 16129 / CE marking according to 2016/426 (GAR)
Inlet pressure: 1-4 bar
Inlet connection: G1
Outlet connection: G1
Capacity: 60-150 kg/h (Propane)
Outlet pressure: 29 / 37 / 50 / 67 / 100 mbar other on request
Pressure relief valve (PRV): 90-190 mbar other on request
Over pressure shut off (OPSO): 90-160 mbar other on request
Regulator weight: Approx.5 kg
Gas: LPG/LNG, natural gas or on request
Working temperatur: -40°C to +80°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
744 Pressure relief valve
TECHNICAL SPECIFICATIONS:
• Set pressure 1-5 bar
• Can be combined with nearly every MGE regulator
• Spare part
• PN 25
TECHNICAL SPECIFICATIONS:
About this over-pressure shut off safety device
At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the safety device (PRV) will be reached which will then exhaust the gas flow.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Connection: G 1/4
Set pressure: 1-5 bar or other on request
Weight: Approx. 0,5 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
TECHNICAL SPECIFICATIONS
• First stage regulator
• Inlet pressure 3-16 bar
• Outlet pressure 1-4 bar
• Capacity 10 kg/h
• OPSO included
• PN 25
• Type 858 adjustable regulation
• Type 859 fixed regulation
For further technical specifications on this regulator please see reverse.
TECHNICAL SPECIFICATIONS:
858/859 Regulator with OPSO
About this regulator
The regulator type MGE 859 is a regulator of single stage for LPG, which reduces the non-regulated pressure of the pressure receptacle to a fixed outlet pressure.
The regulator is equipped with an over-pressure shut-off valve (OPSO).
Mode of operation
The regulator reduces the non-regulated pressure receptacle using one stage to a nominal 3 bar. At an inadmissible rise of the outlet pressure, the safety device (OPSO) will be reached which will then close by itself and block the gas flow. The operating state of the overpressure shut-off valve (OPSO) can be monitored at the glass
Bright=open
Red=closed
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Inlet pressure: 1-16 bar
Inlet connection: POL or other on request
Outlet connection: G1/4, G3/8, G1/2, G3/4 or other on request
Capacity: 10 kg/h (Propane)
Outlet pressure: 3,2 bar or other on request
Over-pressure schut-off (OPSO): 75-150 mbar
Weight: Approx. 1 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order:
Phone: +45 73 42 12 12 · info@bmv.dk
TECHNICAL SPECIFICATIONS:
• Set pressure 1,2 - 4,7 bar
• OPSO for type 160
• Spare part
• PN 25
TECHNICAL SPECIFICATIONS: 865 Over-pressure shut off safety device
About this over-pressure shut off safety device
At an inadmissible rise of the outlet pressure of the regulator the activation pressure of the safety device (OPSO) will be reached which will then close by itself and block the gas flow.
If the OPSO device needs to be reset then disassemble the brass protection cap and the internal thread has to be screwed on to the threaded pin. The cap can then be pulled back to reset the OPSO device.
DVGW Approved: according to EN 16129 / CE marking according to 2009/142/EC
Connection: To be connected with type 160
Set pressure: 1,2 - 4,7 bar or other on request
Weight: Approx. 1 kg
Gas: LPG / LNG / Propane / Butane / Natural gas or other on request
Working temperatur: -40°C to +50°C
Contact our Sales Department to place your order: Phone: +45 73 42 12 12 · info@bmv.dk
