Power management

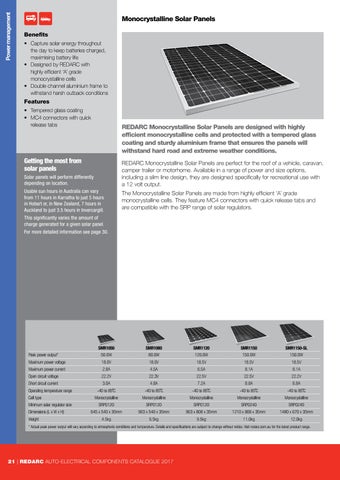

Monocrystalline Solar Panels Benefits • Capture solar energy throughout the day to keep batteries charged, maximising battery life • Designed by REDARC with highly efficient ‘A’ grade monocrystalline cells • Double channel aluminium frame to withstand harsh outback conditions
Features • Tempered glass coating • MC4 connectors with quick release tabs
REDARC Monocrystalline Solar Panels are designed with highly efficient monocrystalline cells and protected with a tempered glass coating and sturdy aluminium frame that ensures the panels will withstand hard road and extreme weather conditions.
Getting the most from solar panels Solar panels will perform differently depending on location.
REDARC Monocrystalline Solar Panels are perfect for the roof of a vehicle, caravan, camper trailer or motorhome. Available in a range of power and size options, including a slim line design, they are designed specifically for recreational use with a 12 volt output.
Usable sun hours in Australia can vary from 11 hours in Karratha to just 5 hours in Hobart or, in New Zealand, 7 hours in Auckland to just 3.5 hours in Invercargill.
The Monocrystalline Solar Panels are made from highly efficient ‘A’ grade monocrystalline cells. They feature MC4 connectors with quick release tabs and are compatible with the SRP range of solar regulators.
This significantly varies the amount of charge generated for a given solar panel. For more detailed information see page 30.
Peak power output*
SMR1050 50.0W
SMR1080 80.0W
SMR1120 120.0W
SMR1150 150.0W
SMR1150-SL 150.0W 18.5V
Maximum power voltage
18.0V
18.0V
18.5V
18.5V
Maximum power current
2.8A
4.5A
6.5A
8.1A
8.1A
Open circuit voltage
22.2V
22.3V
22.5V
22.5V
22.2V
Short circuit current
3.0A
4.8A
7.2A
8.8A
8.8A
Operating temperature range Cell type Minimum solar regulator size Dimensions (L x W x H) Weight
-40 to 85˚C
-40 to 85˚C
-40 to 85˚C
-40 to 85˚C
-40 to 85˚C
Monocrystalline
Monocrystalline
Monocrystalline
Monocrystalline
Monocrystalline
SRP0120
SRP0120
SRP0120
SRP0240
SRP0240
645 x 540 x 35mm
963 x 540 x 35mm
963 x 808 x 35mm
1210 x 808 x 35mm
1480 x 670 x 35mm
4.5kg
6.5kg
9.5kg
11.0kg
12.0kg
* Actual peak power output will vary according to atmospheric conditions and temperature. Details and specifications are subject to change without notice. Visit redarc.com.au for the latest product range.
