Benefits • Keeps auxiliary batteries charged from 240 volt mains power, car power and solar panels • Fully automatic for set and forget operation • Provides charge status and power-remaining information
Power management

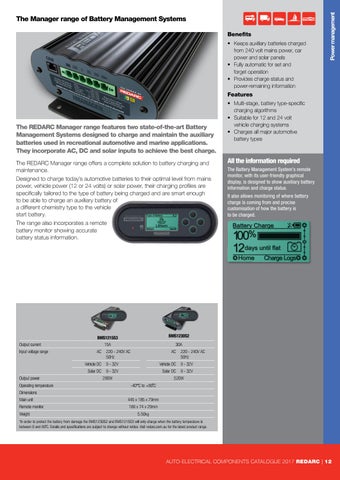

The Manager range of Battery Management Systems
Features
The REDARC Manager range features two state-of-the-art Battery Management Systems designed to charge and maintain the auxiliary batteries used in recreational automotive and marine applications. They incorporate AC, DC and solar inputs to achieve the best charge. The REDARC Manager range offers a complete solution to battery charging and maintenance. Designed to charge today’s automotive batteries to their optimal level from mains power, vehicle power (12 or 24 volts) or solar power, their charging profiles are specifically tailored to the type of battery being charged and are smart enough to be able to charge an auxiliary battery of a different chemistry type to the vehicle start battery.
• Multi-stage, battery type‑specific charging algorithms • Suitable for 12 and 24 volt vehicle charging systems • Charges all major automotive battery types
All the information required The Battery Management System’s remote monitor, with its user-friendly graphical display, is designed to show auxiliary battery information and charge status. It also allows monitoring of where battery charge is coming from and precise customisation of how the battery is to be charged.
The range also incorporates a remote battery monitor showing accurate battery status information.
Output current
BMS1215S3 15A
Input voltage range
AC
Output power
BMS1230S2 30A
220 - 240V AC 50Hz
AC
220 - 240V AC 50Hz
Vehicle DC
9 - 32V
Vehicle DC
9 - 32V
Solar DC
9 - 32V
Solar DC
9 - 32V
280W
520W
Operating temperature
-40°C to +80˚C
Dimensions Main unit
445 x 185 x 79mm
Remote monitor
186 x 74 x 29mm
Weight
5.50kg
*In order to protect the battery from damage the BMS1230S2 and BMS1215S3 will only charge when the battery temperature is between 0 and 60˚C. Details and specifications are subject to change without notice. Visit redarc.com.au for the latest product range.
